2.5 Ton Free Standing Bridge Crane 8' 2" Span 32' Runway 13' HUB Coffing Hoist

2.5 Ton Free Standing Bridge Crane 8' 2" Span 32' Runway 13' HUB Coffing Hoist

SKU #313704

Product Condition: Used

Your Price
$18,999.99
$18,999.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

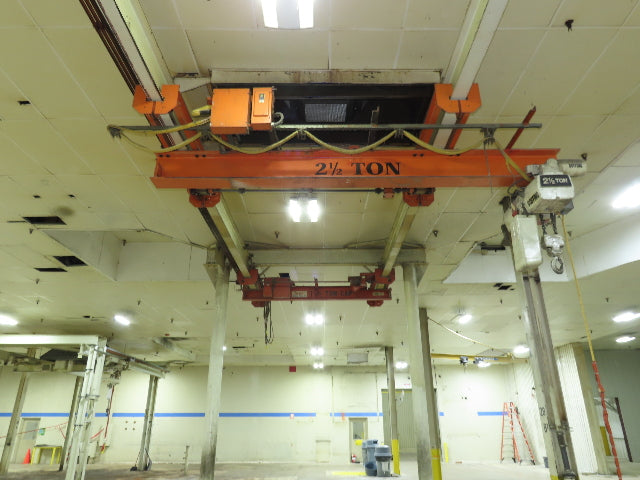

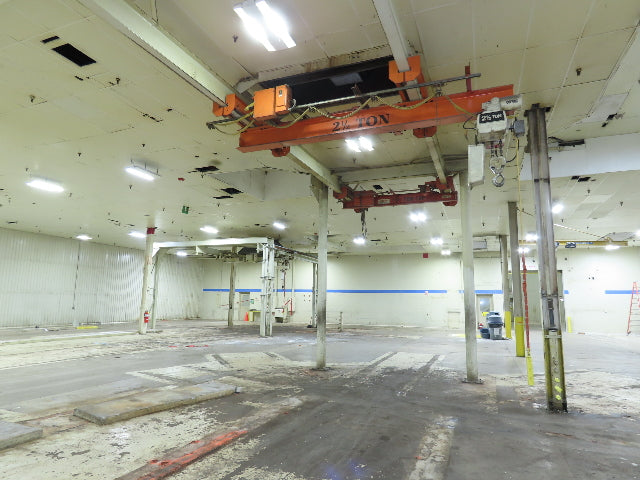

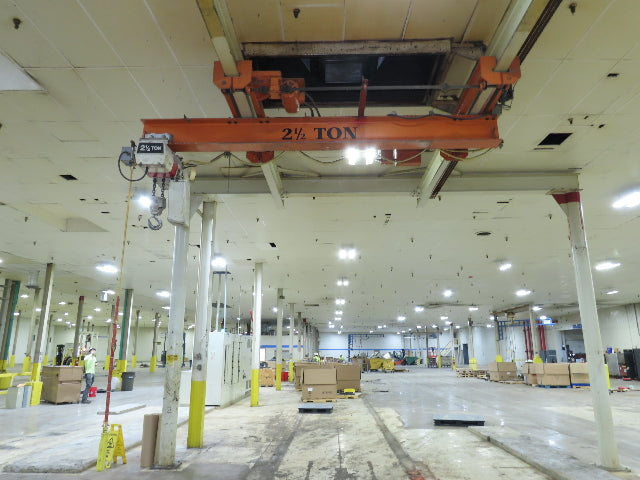

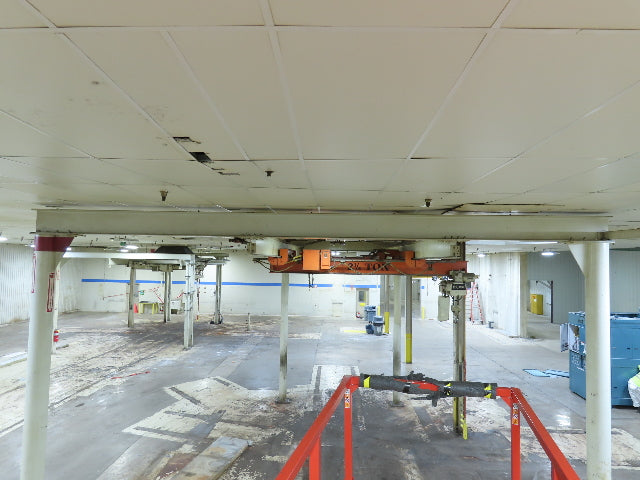

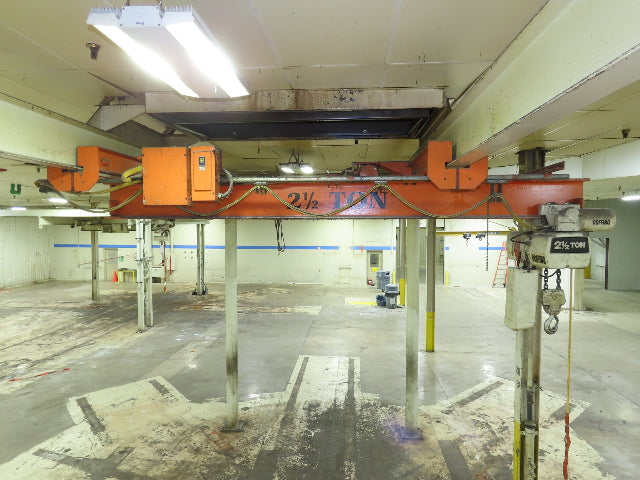

  • Bridge crane in working condition, removed from a working environment.

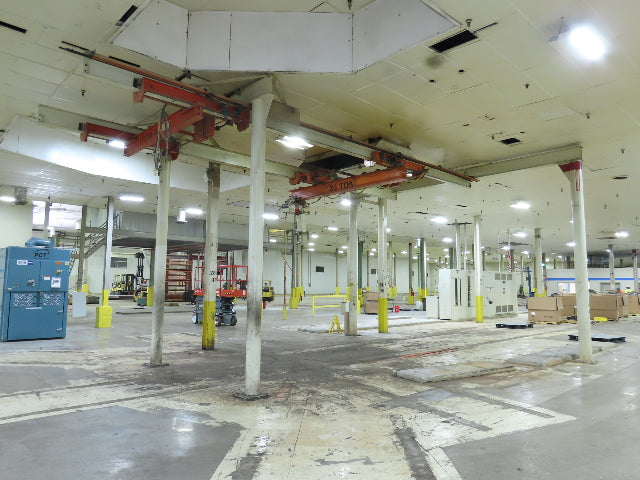

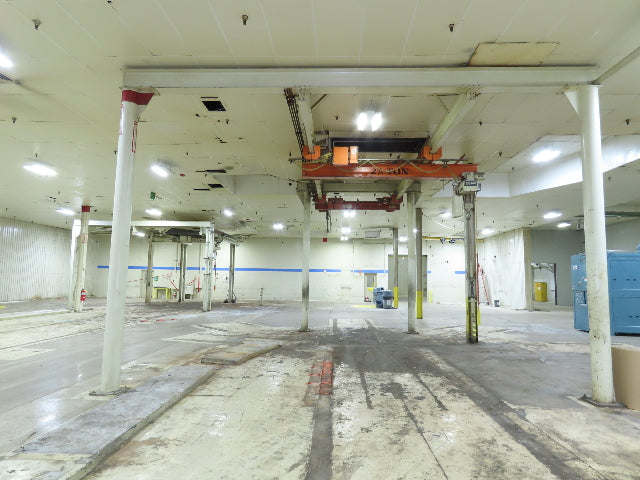

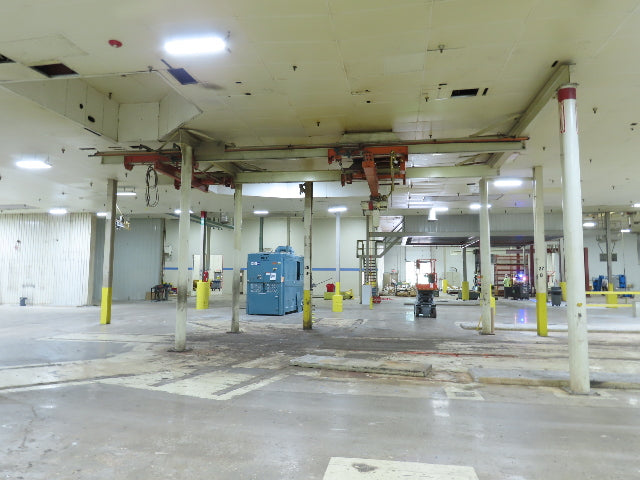

  • 4 Post crane system with Coffing hoist.

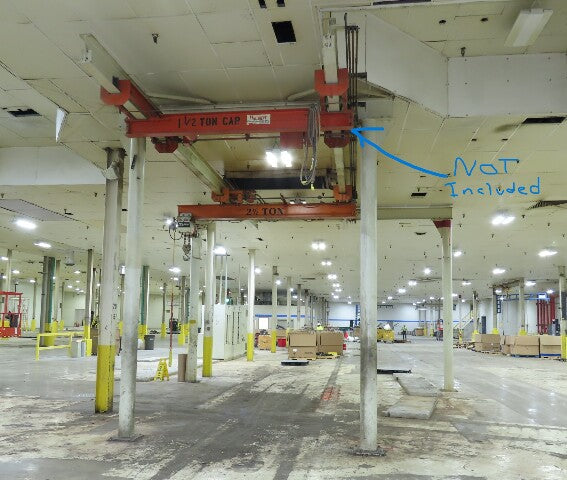

  • Has a wider cross beam at one end.  There were 2 bridges on this system only the 2.5 ton is included in this lot.

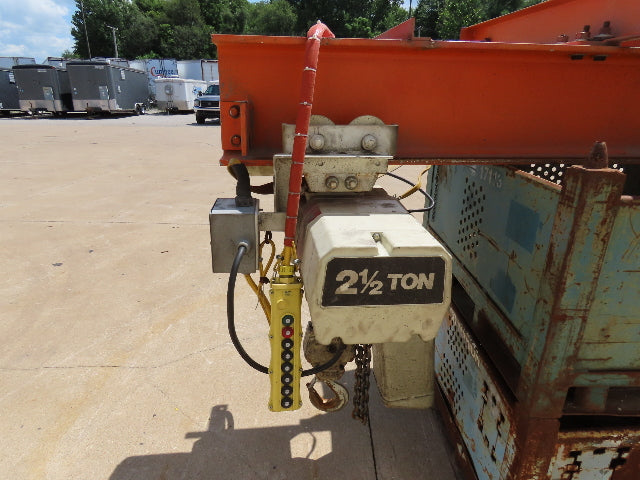

  • Controls:  2-Speed corded pendant 460V 3PH power.

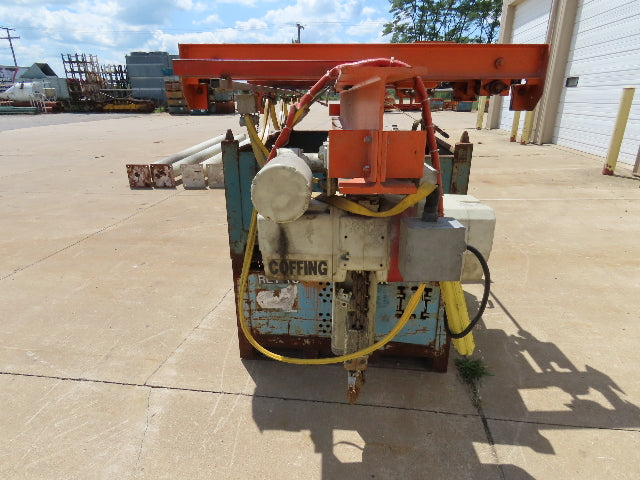

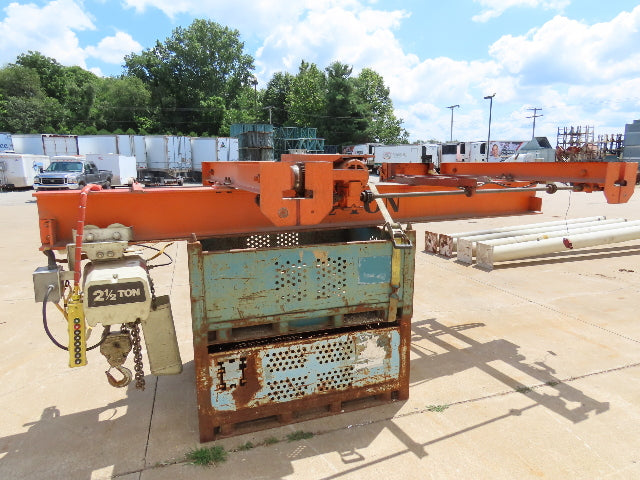

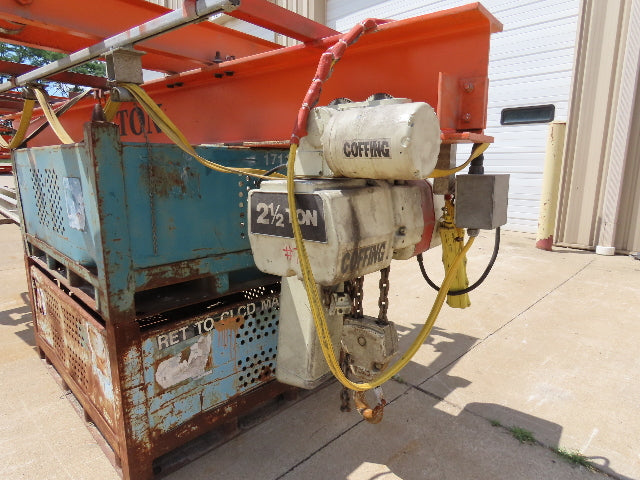

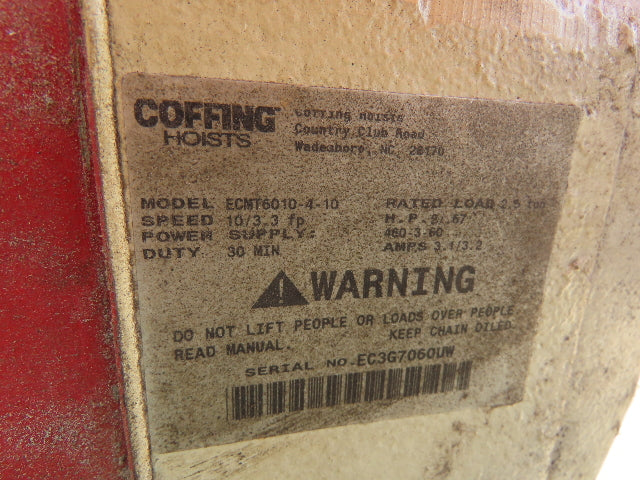

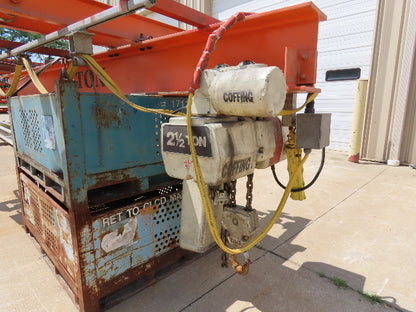

  • Hoist:  Coffing 2.5 Ton 2-speed 10/3.3 FPM 460V 3PH  (ECMT6010-4-10)

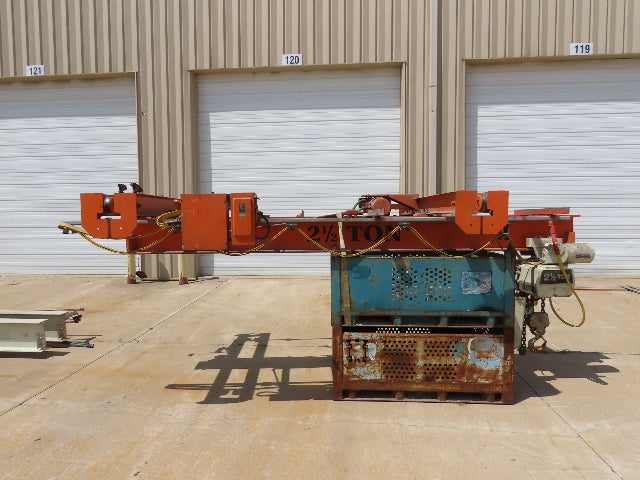

  • Bridge Type:  Underhung
  • Bridge Capacity:  2.5 Ton
  • Bridge Span:  8' 2.5"  (Center distance of runways)

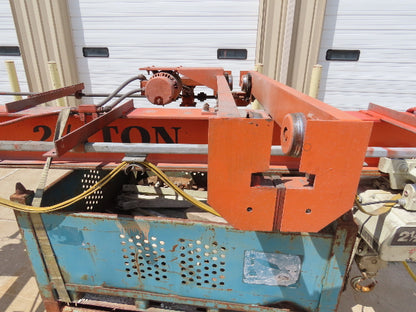

  • Bridge Beam:  13' Length.  8"W x 12"H

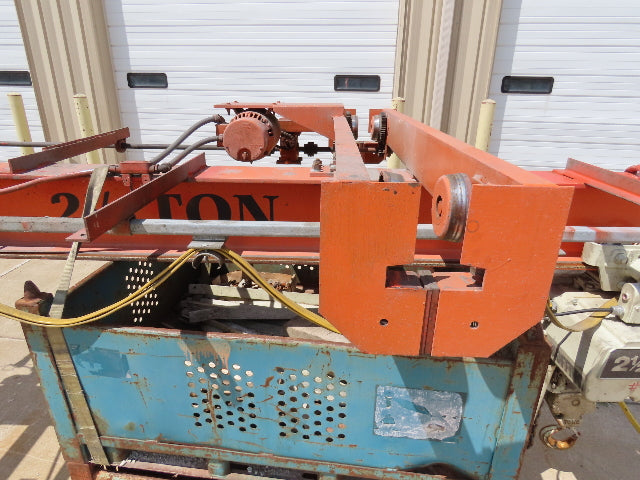

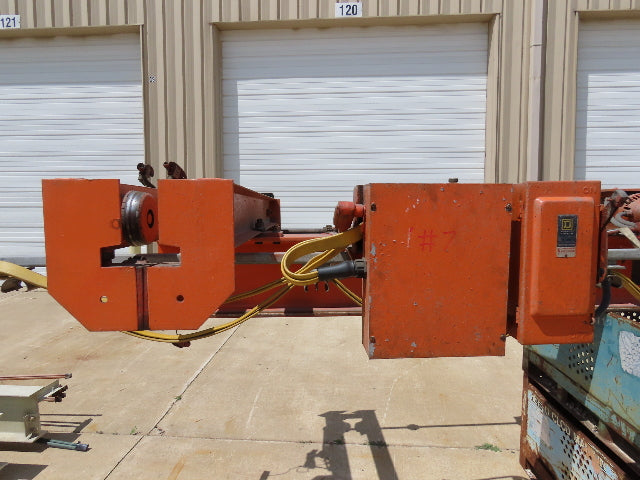

  • End Trucks:  68" Length.  Fits 5" Flange width.
  • Runway Length:  29' - 31' Bridge travel length.

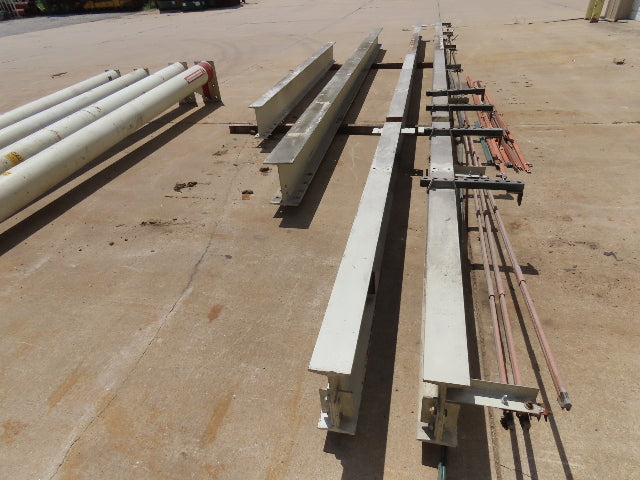

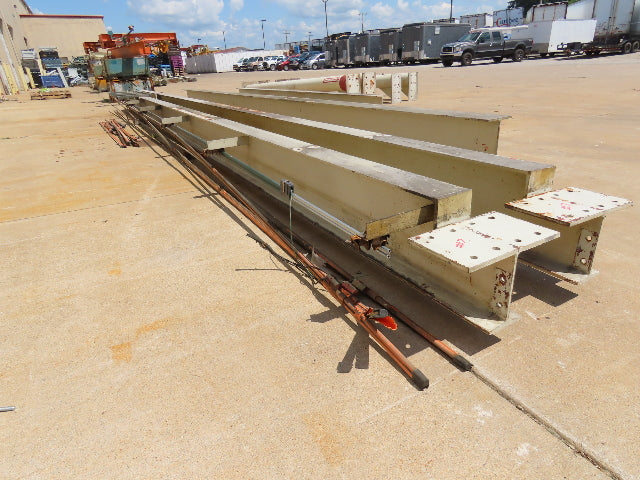

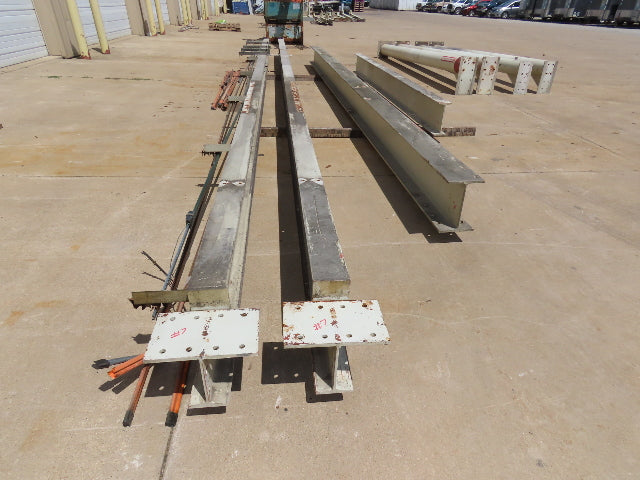

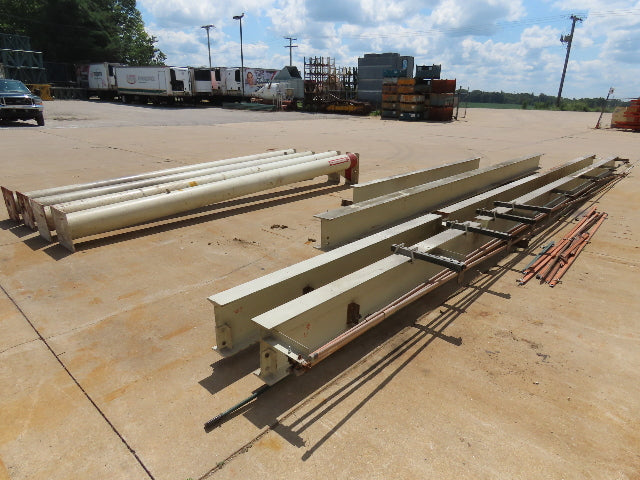

  • Runway Beams: 32'  Length.  5" Flange Width.  12"Height.  Cross beam mounting is at 24'  (See photos)

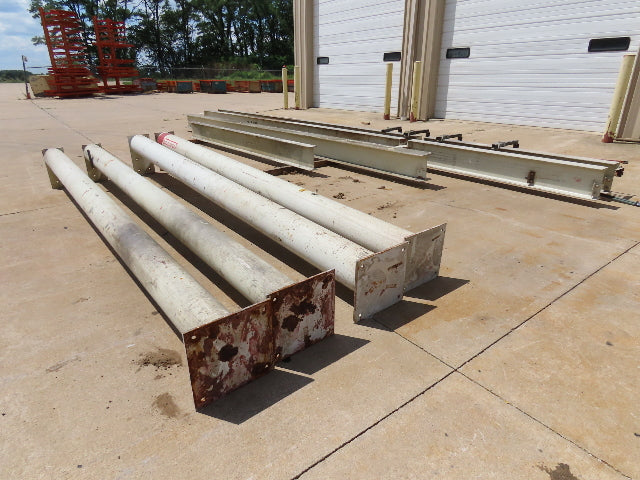

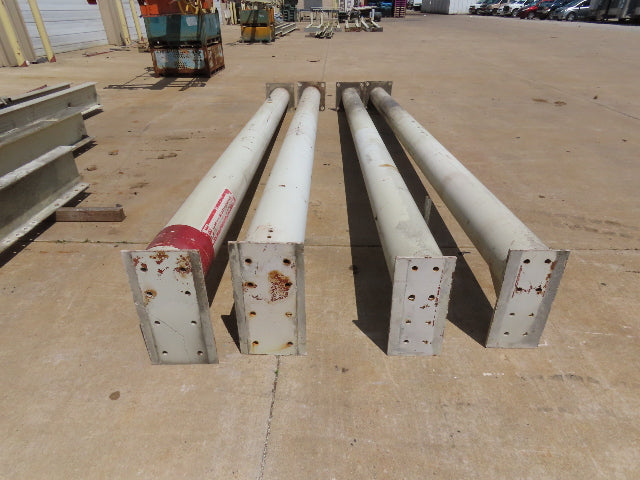

  • Upright Post Height :  14' 9"
  • Upright Post Width:  Posts are 2 different dia.  9-1/2" and 8-1/2" dia with a 15" base.   10-3/4"x 20-3/4" Top plate on 9-1/2" posts.   8-1/2"W x 18-1/2" top plate on 8-1/2" dia posts.

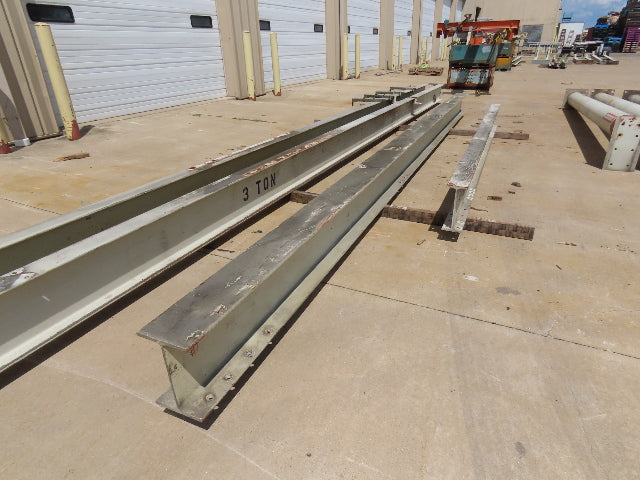

  • Cross Beams:  23' 7" Length and 13' 3.5" Length.  8"W x 12"H.
  • Clearance Heights:
  • Height Under Bridge Beam:  13'
  • Height Under Hoist Hook:  10'
  • Height Under Hoist Chain Bucket:  10'
  • Height Under Runway Beams:  14'
  • Top of Runway Clearance Height:  16'
  • Overall Footprint:  25' Length.  24' Width at wide end.  12' 5" wide at other end.

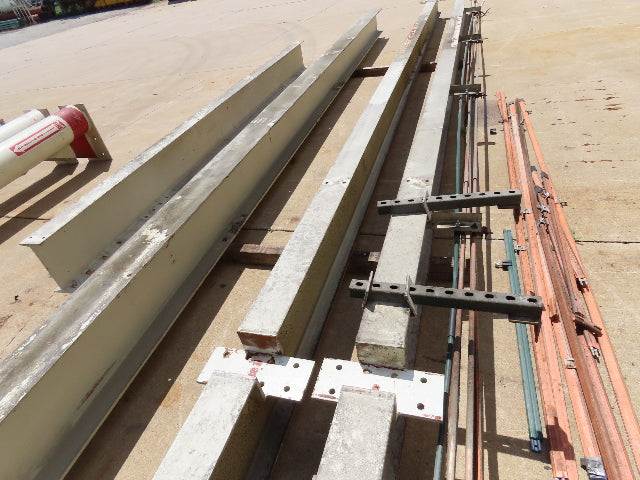

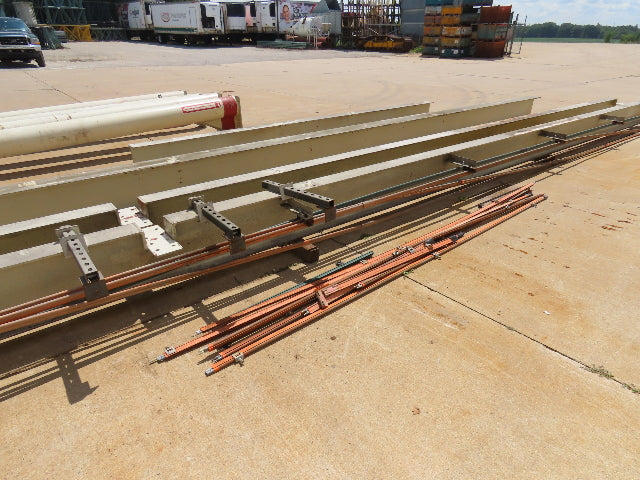

  • NOTE: Some of the power rail is loose and one rail is bent, we included some extra pieces we don’t have mounting accessories for these rails.

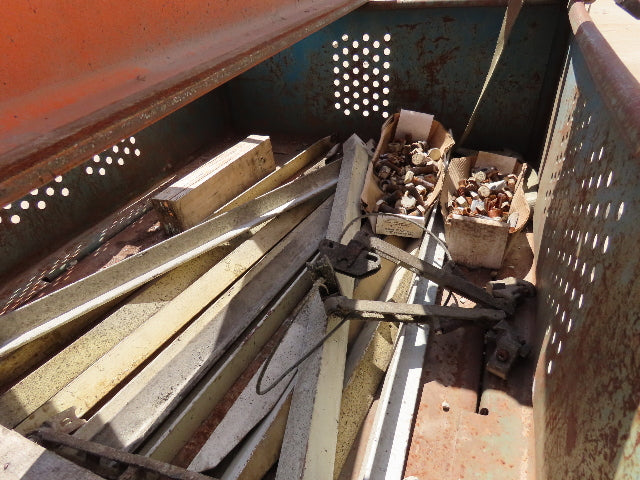

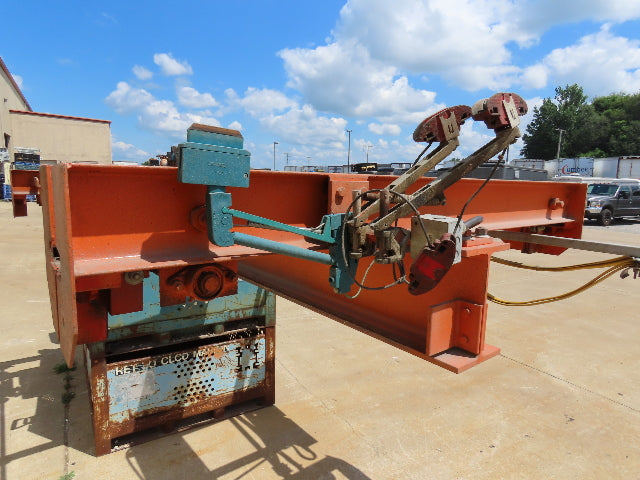

  • Also one of the collector arms broke off the bridge we included 2 extras with the install hardware.  Includes all the nuts and bolts to install except anchor bolts.
  • Ship weight is approximate.
