Robbin & Meyers

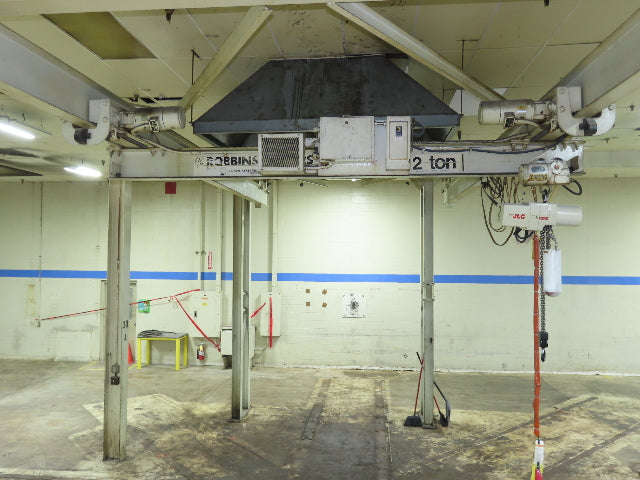

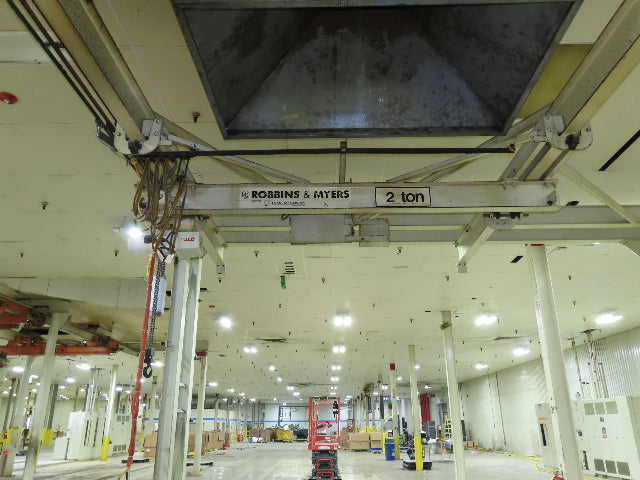

2 Ton Free Standing Bridge Crane 11' Span 27' Runway 11' 9" HUB Coffing Hoist

2 Ton Free Standing Bridge Crane 11' Span 27' Runway 11' 9" HUB Coffing Hoist

SKU #313713

Product Condition: Used

Your Price
$18,999.99
$19,999.99 $18,999.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

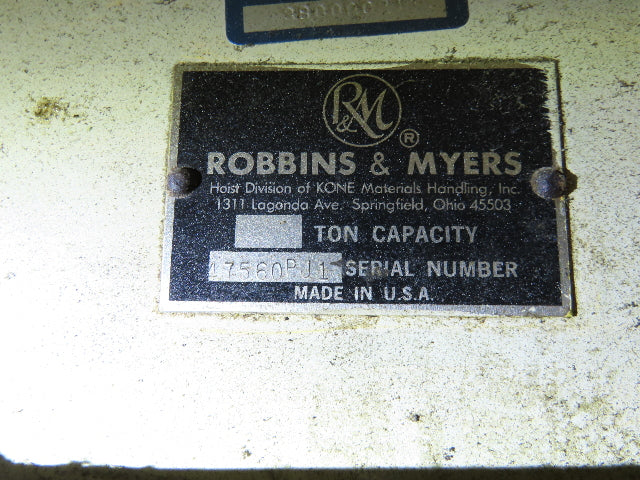

Brand
Robbin & Meyers
Model
N/A
MPN
JLC4008-3-15
Condition
Used

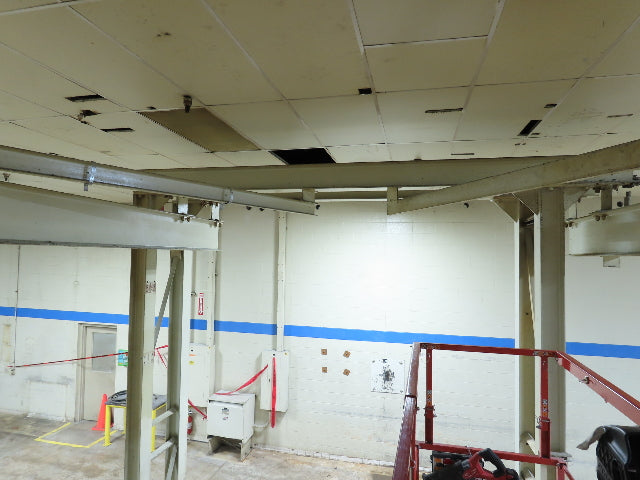

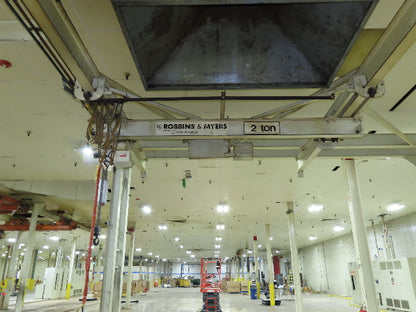

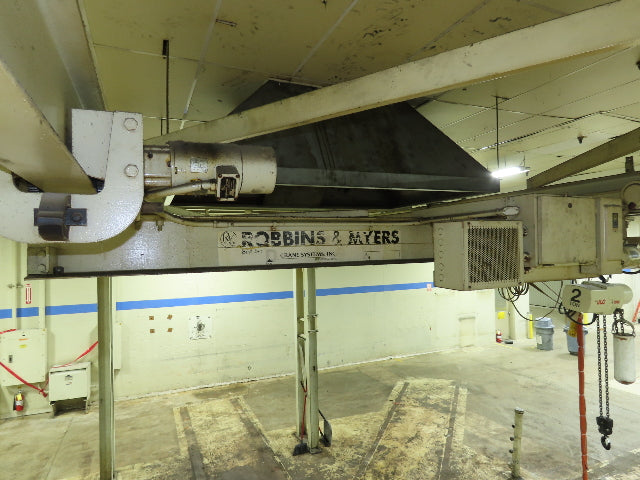

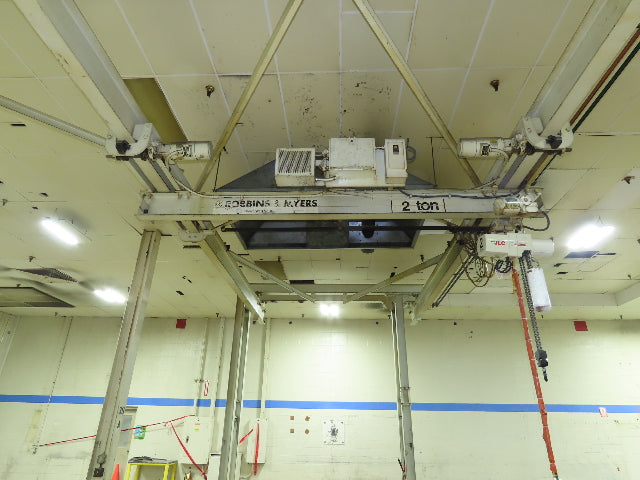

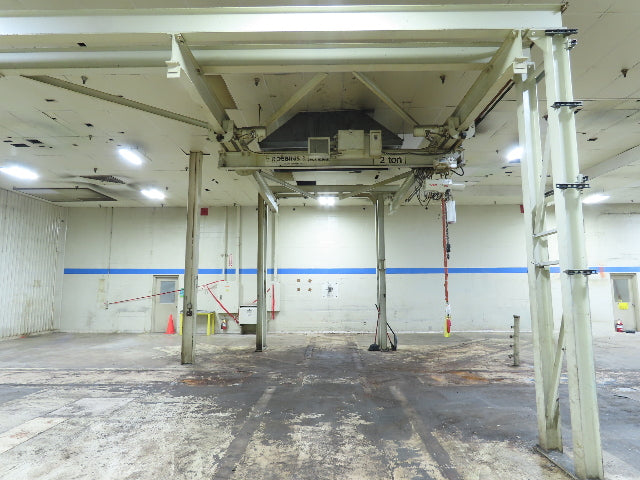

  • Bridge crane in working condition, removed from a working environment.

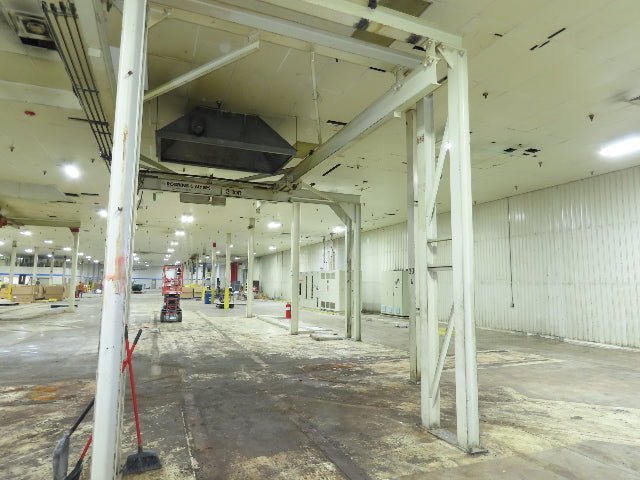

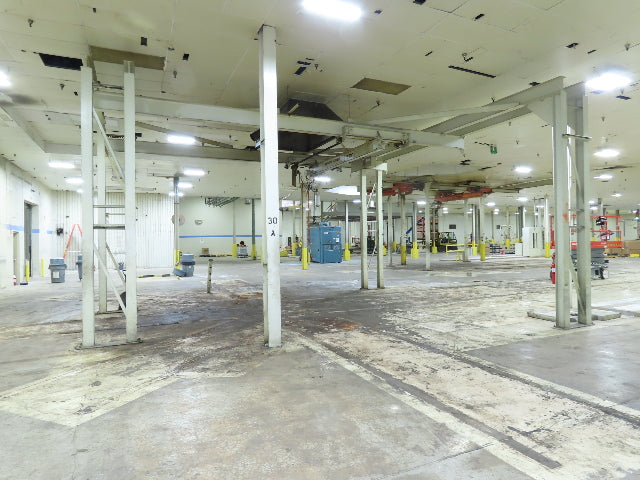

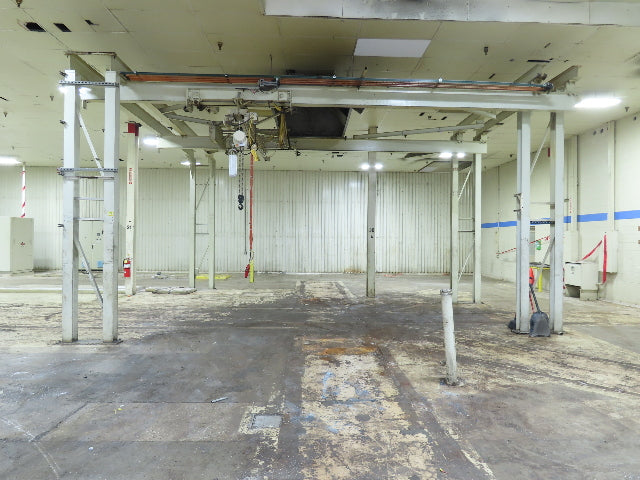

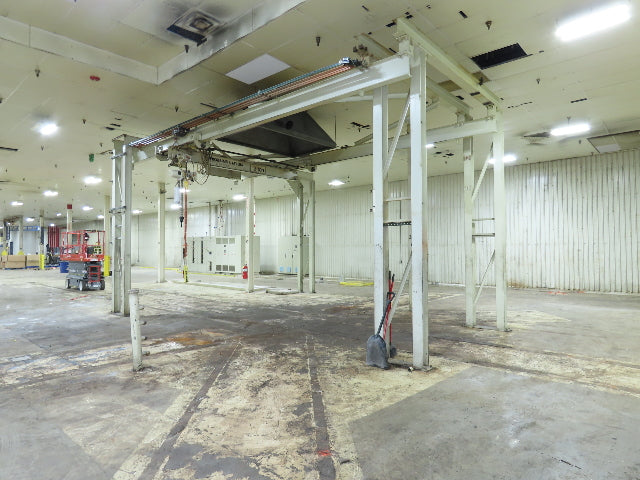

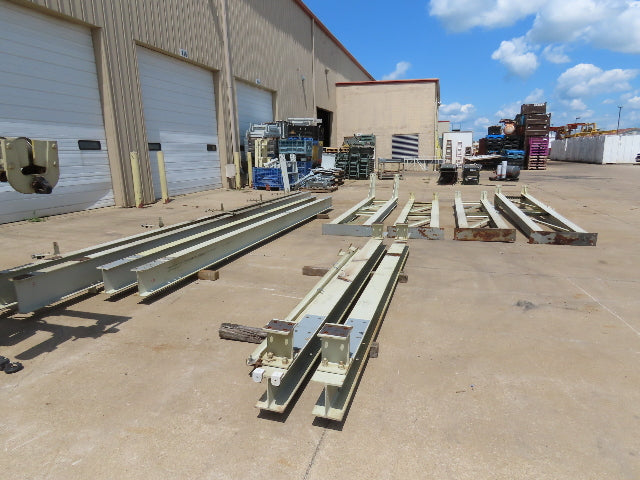

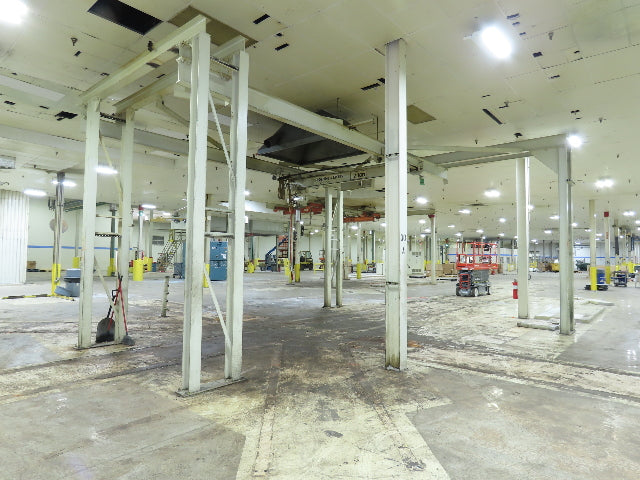

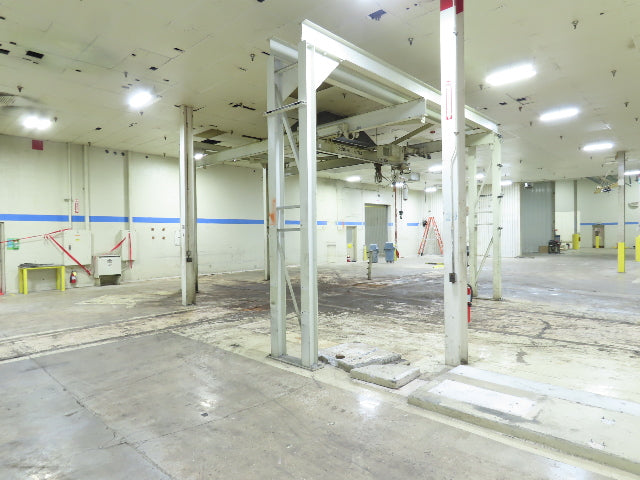

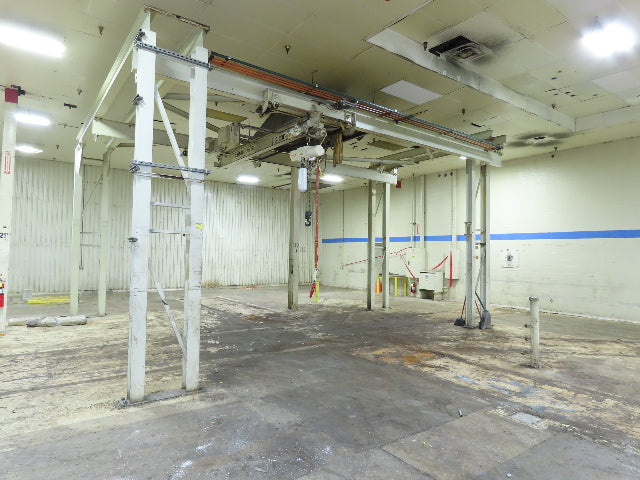

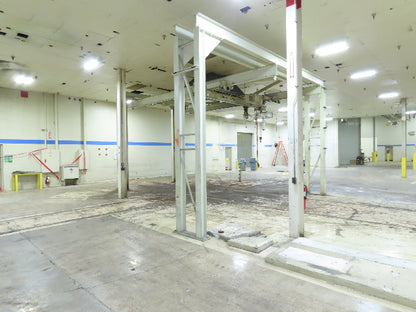

  • 4 Post crane system with Coffing hoist.
  • Has wider cross beams at one end.

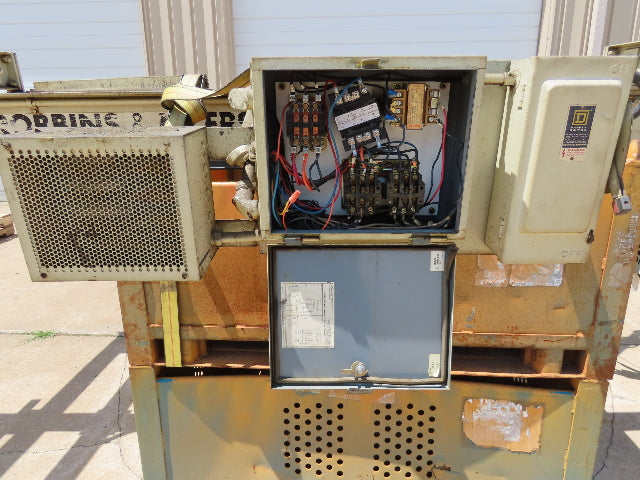

  • Controls:  Corded pendant 460V 3PH power.

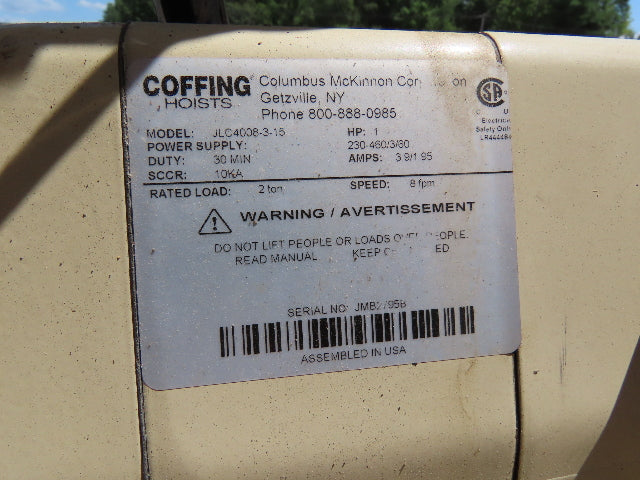

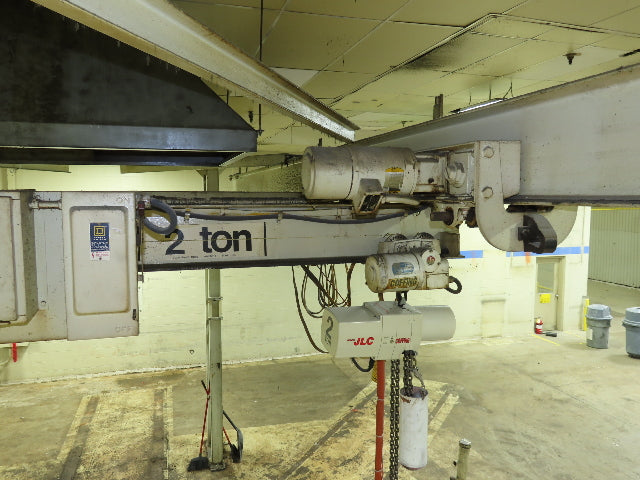

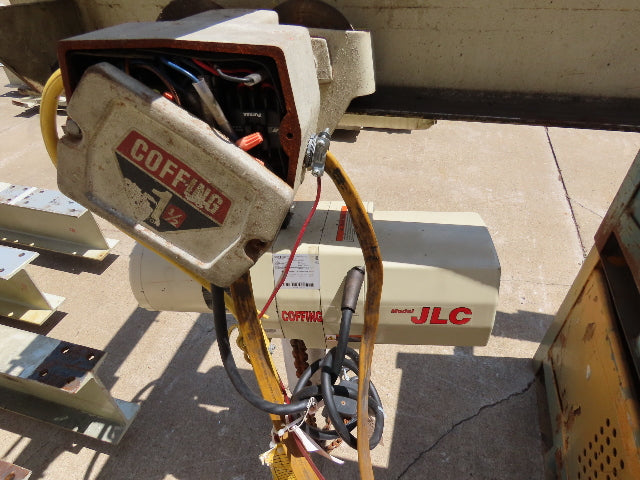

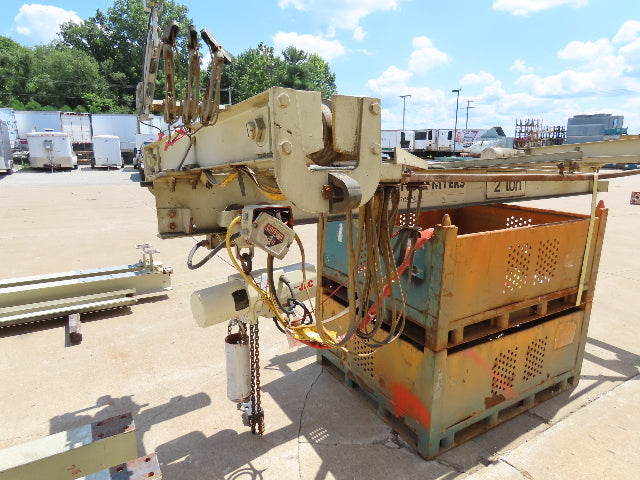

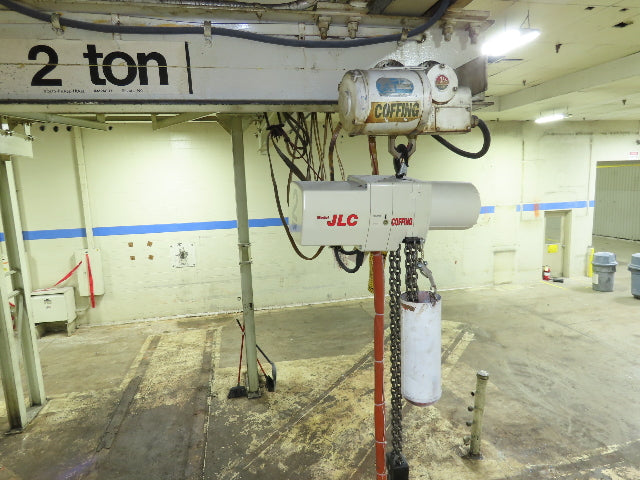

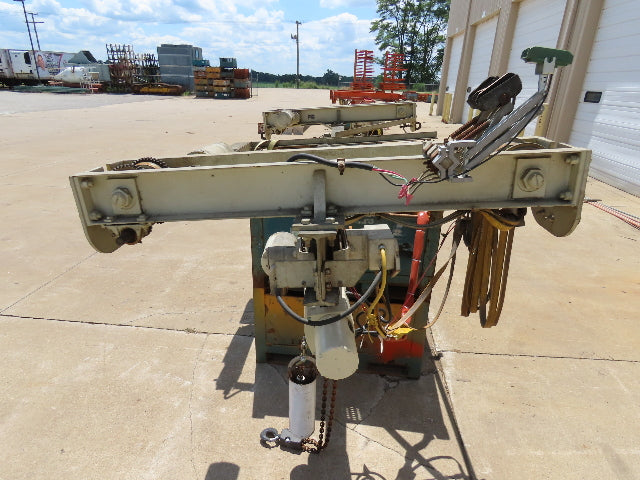

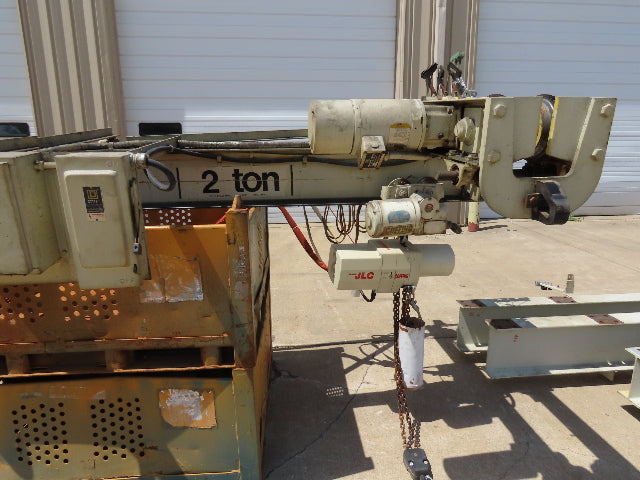

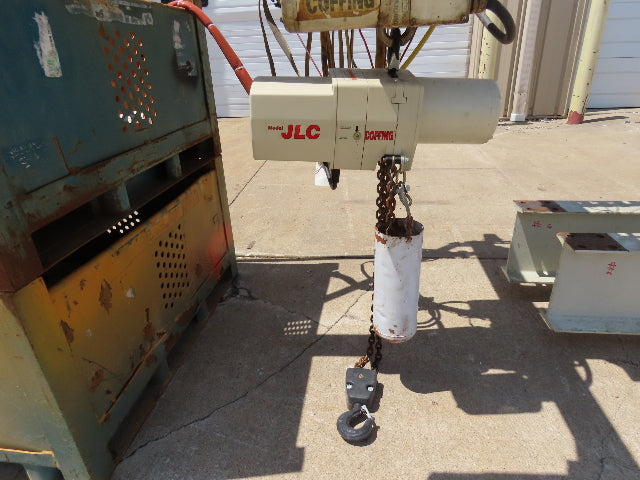

  • Hoist:  Coffing 2 Ton 1-speed 8 FPM 1Hp 460V 3PH  (JLC4008-3-15)
  • Bridge Type:  Underhung
  • Bridge Capacity:  2 Ton
  • Bridge Span:  11'  (Center distance of runways)

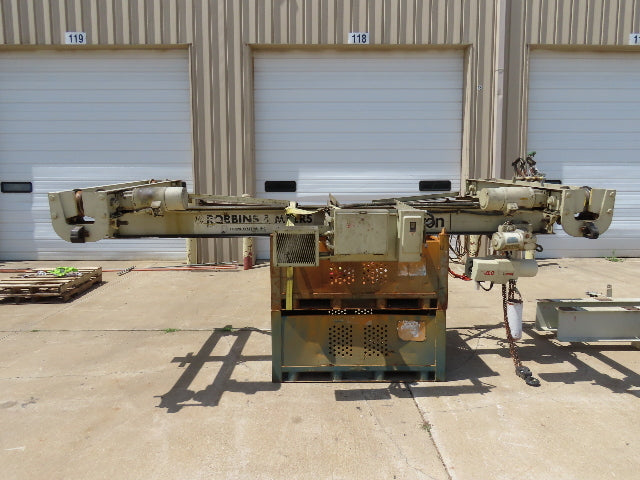

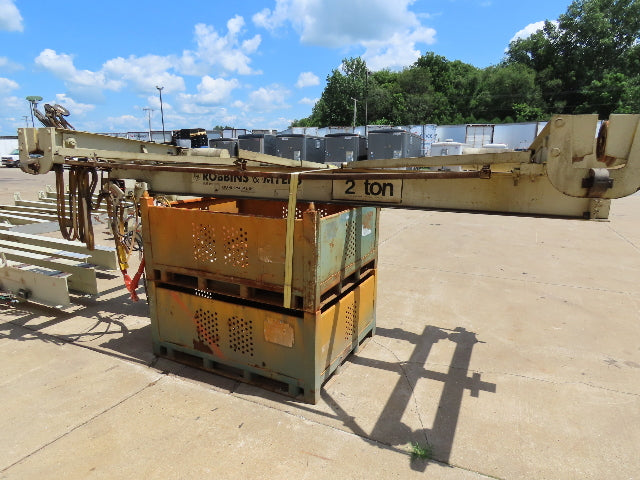

  • Bridge Beam:  12' 10" Length.  4-3/4"W x 10"H

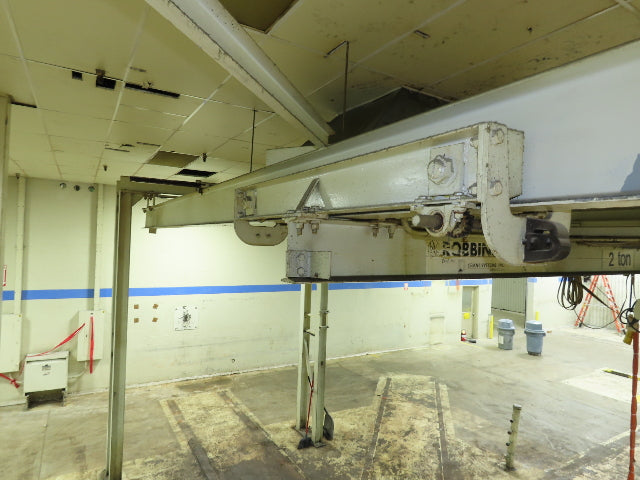

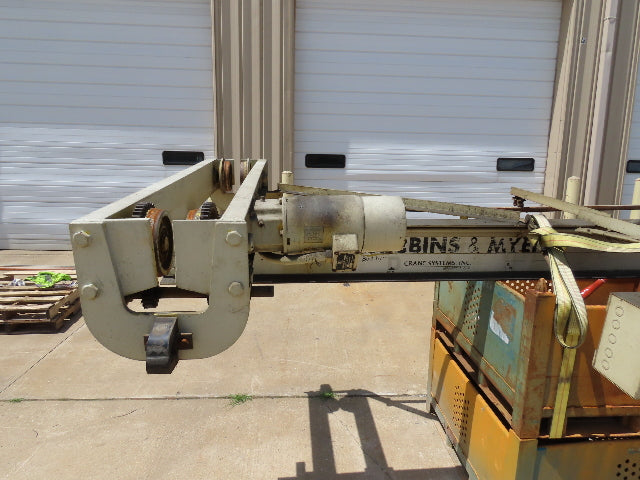

  • End Trucks:  66" Length.  Fits 5" Flange width.

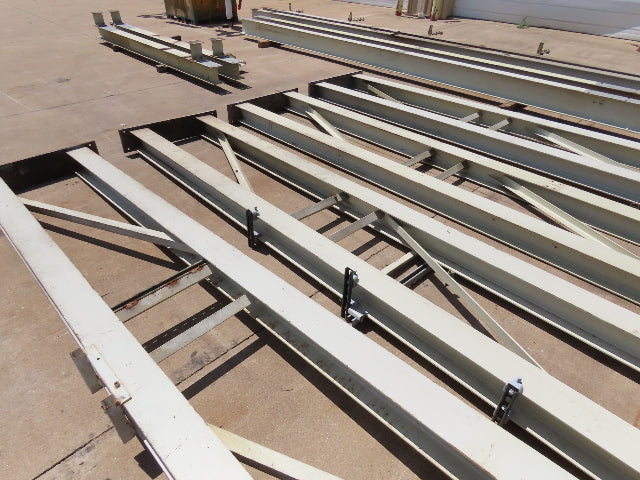

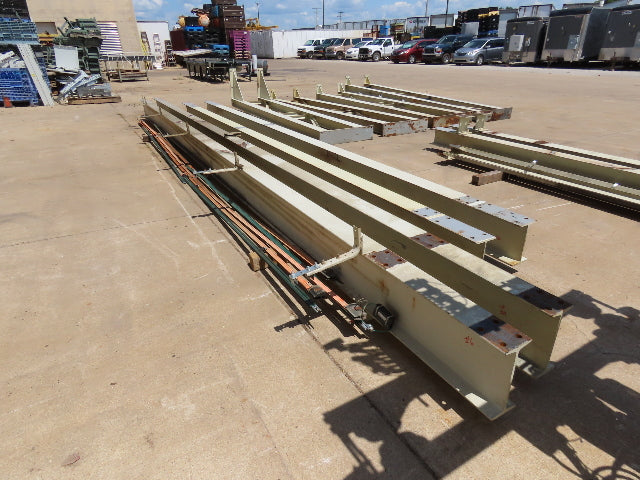

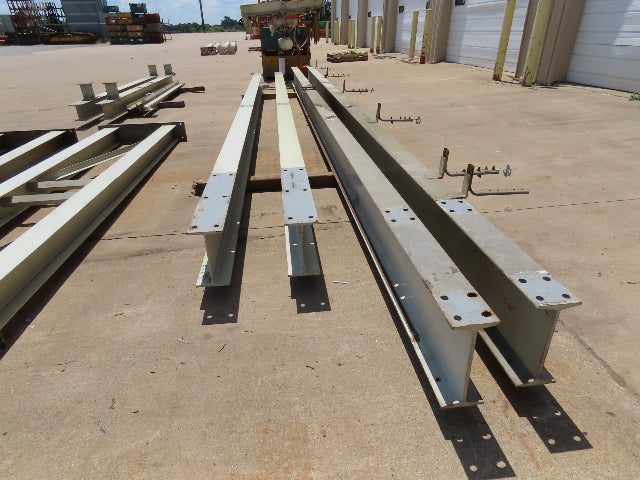

  • Runway Beams: 27'  Length.  5" Flange Width.  12"Height.

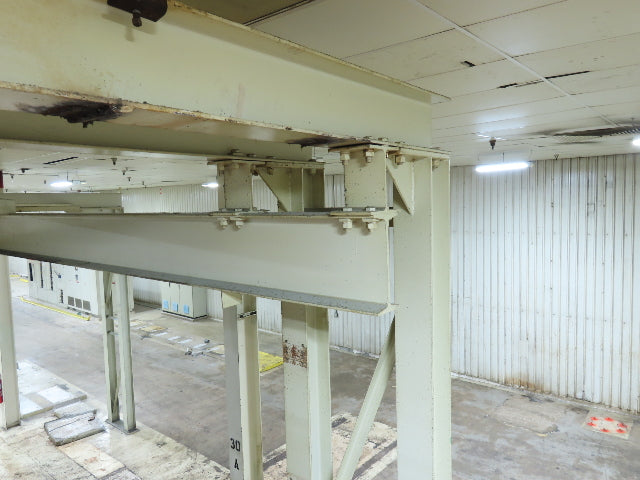

  • Upright Post Height :  2 Posts 14' 2"H,  2 Posts 13' 7"H.  The short cross beams have 8" risers to even the post height difference.  8"x 36" Top plate.

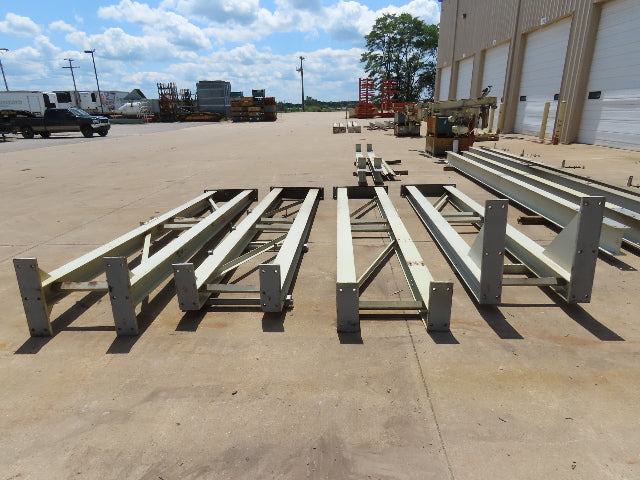

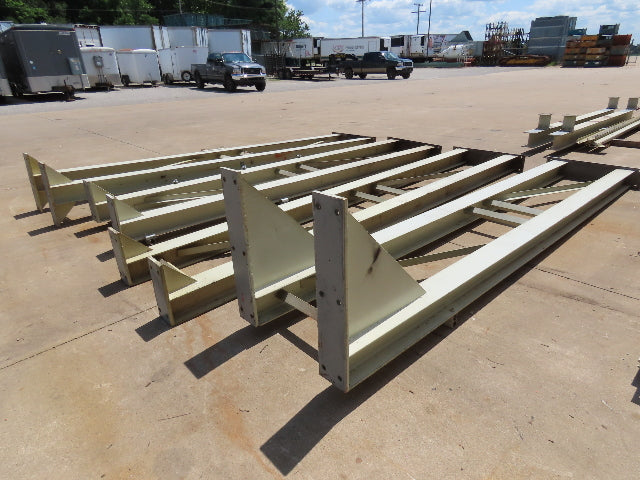

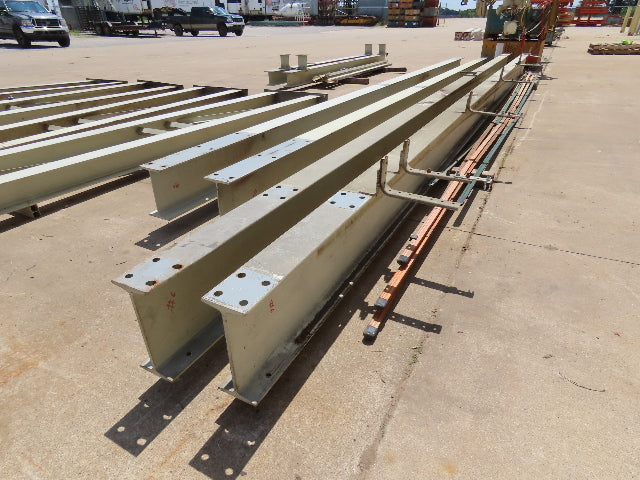

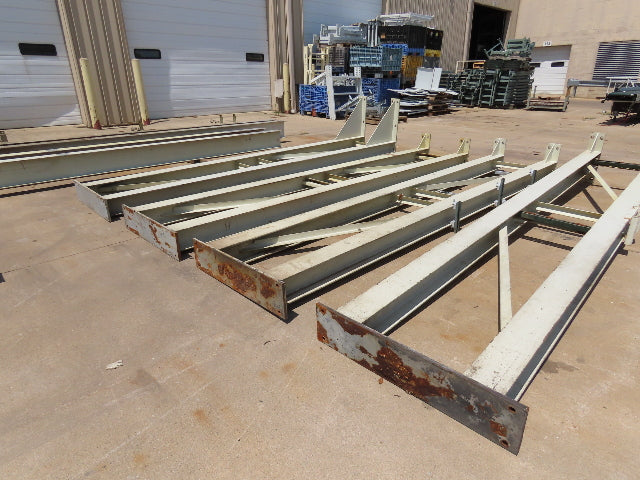

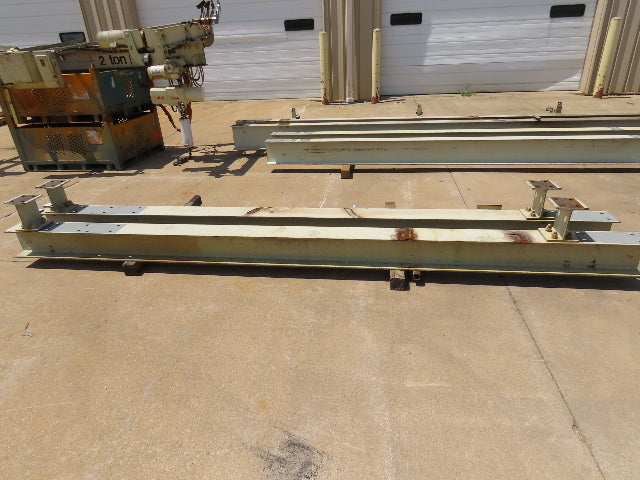

  • Cross Beams:  Has 2 beams at each end.  (2 Beams 22' 6" Length.  5-3/4"W x 10-1/4"H)  (2 Beams 13' Length.  6-1/2"W x 8"H.)  These 2 have 8" risers for the posts.
  • Clearance Heights:
  • Height Under Bridge Beam:  11' 9"
  • Height Under Hoist Hook:  9' 4"
  • Height Under Hoist Chain Bucket:  8' 7"
  • Height Under Runway Beams:  12' 7"
  • Top of Runway Clearance Height:  14' 11"
  • Overall Footprint:  27' 6" Length.  22' 7" Width at wider end.  11' 8" wide at other end.

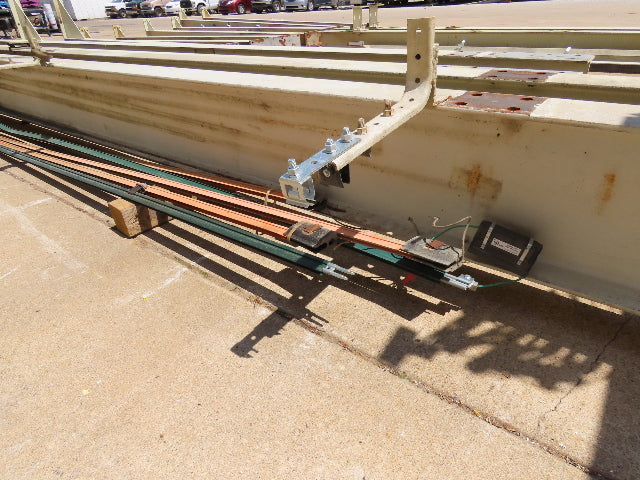

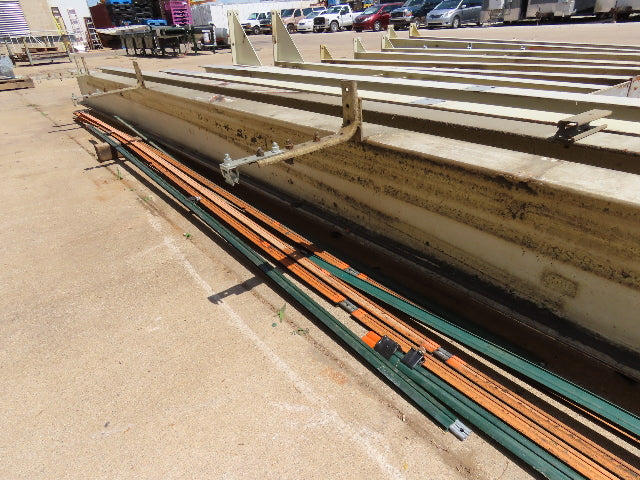

  • NOTE: Some of the power rail is loose we included some extra pieces we don’t have mounting accessories for these rails.

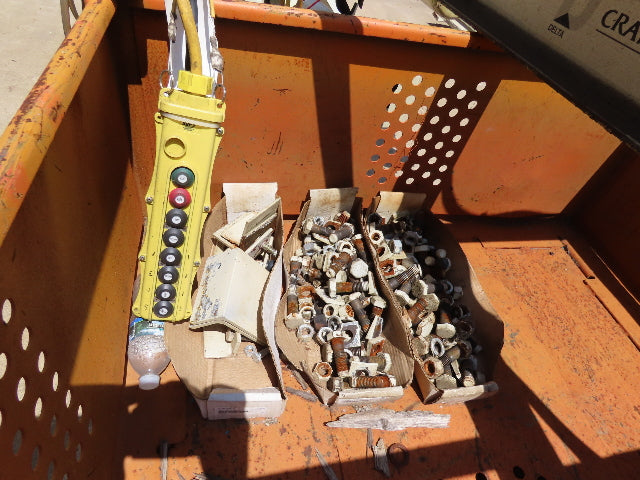

  •  Includes all the nuts and bolts to install except anchor bolts.
  • Ship weight is approximate.
