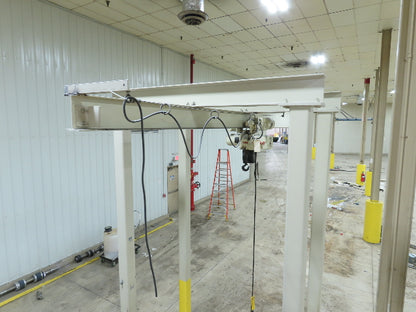

2 Ton Free Standing Fixed Bridge Crane 4'-7' Span 12' 9"HUB Coffing Hoist

2 Ton Free Standing Fixed Bridge Crane 4'-7' Span 12' 9"HUB Coffing Hoist

SKU #313018

Product Condition: Used

Your Price
$6,839.99
$7,199.99 $6,839.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Coffing
Model
JLCMT4008
MPN
JLCMT4008
Condition
Used
  • Bridge crane in working condition, removed from a working environment.

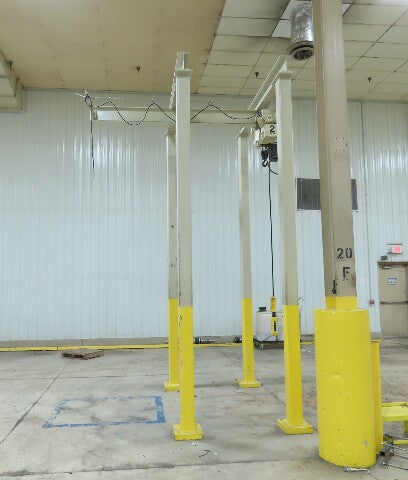

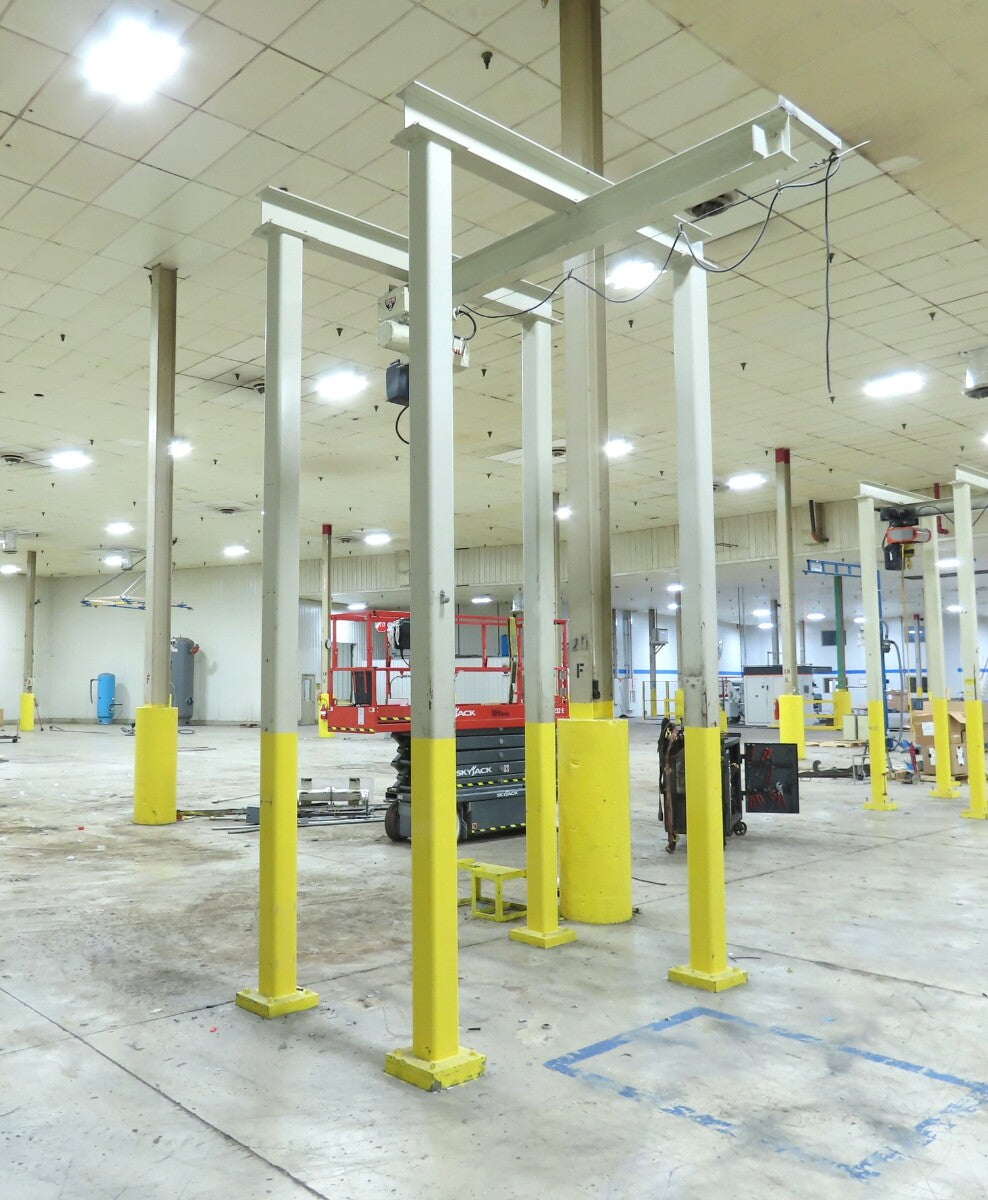

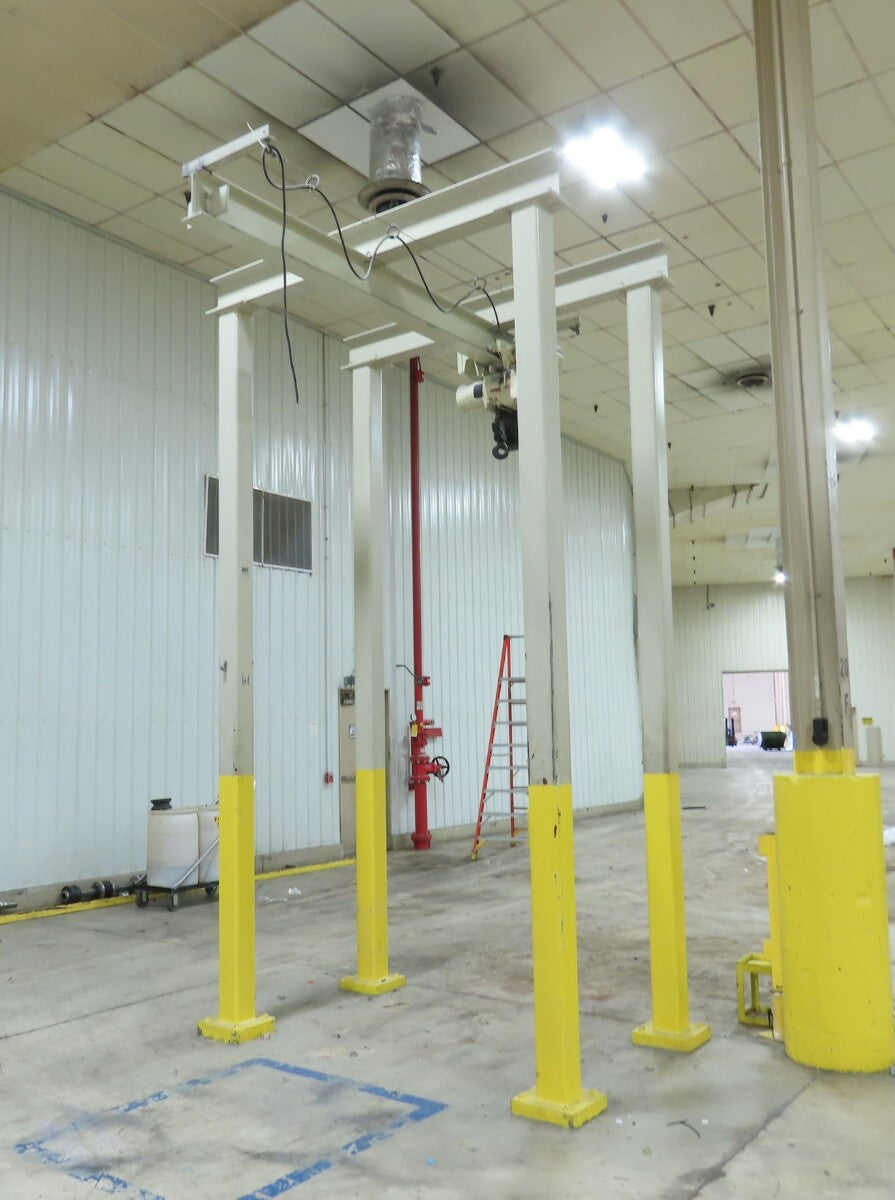

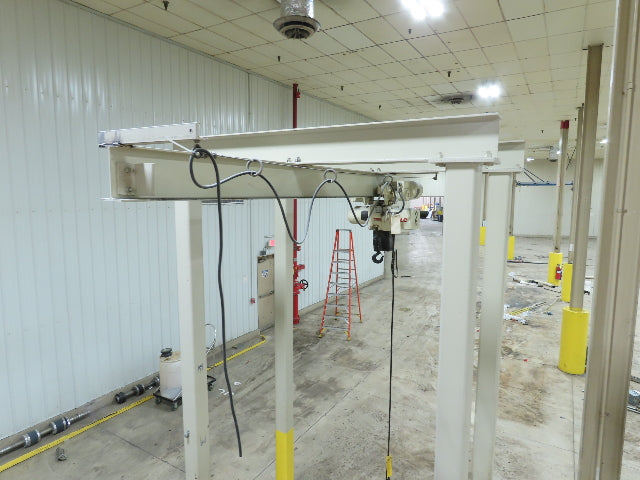

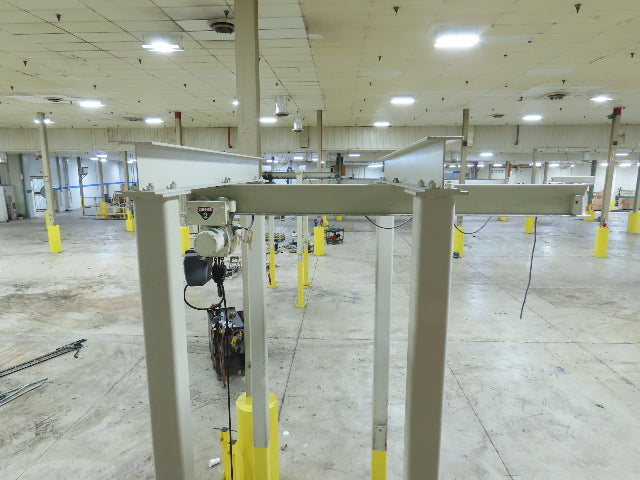

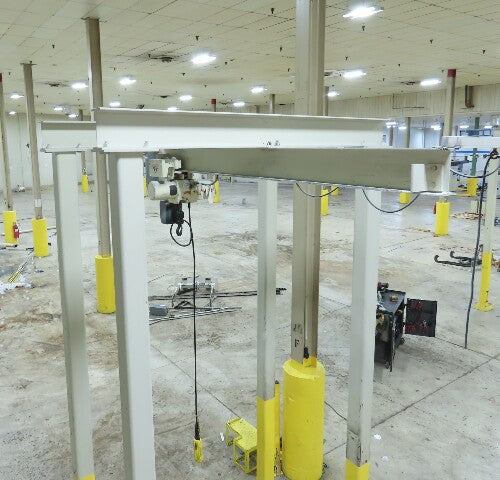

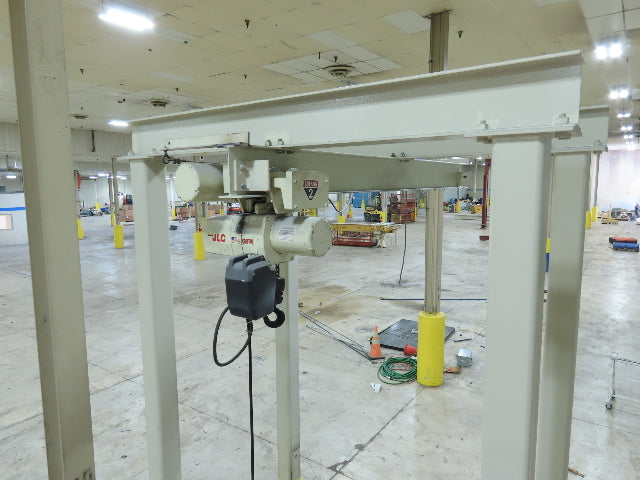

  • 4 Post crane system with Coffing 1-speed hoist, fixed bridge.

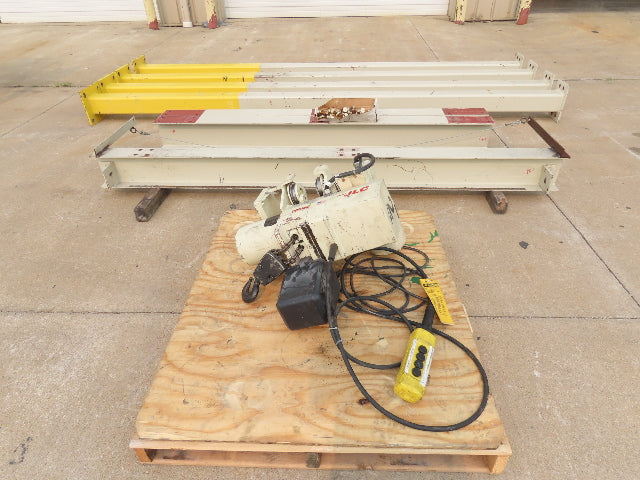

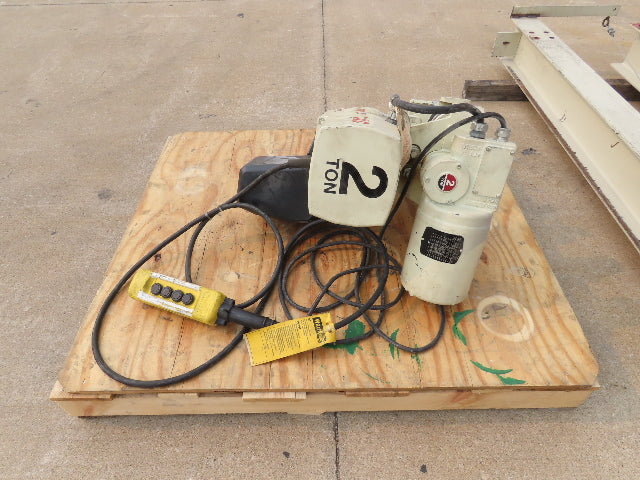

  • Controls:  Corded pendant 1-speed hoist with powered trolley.

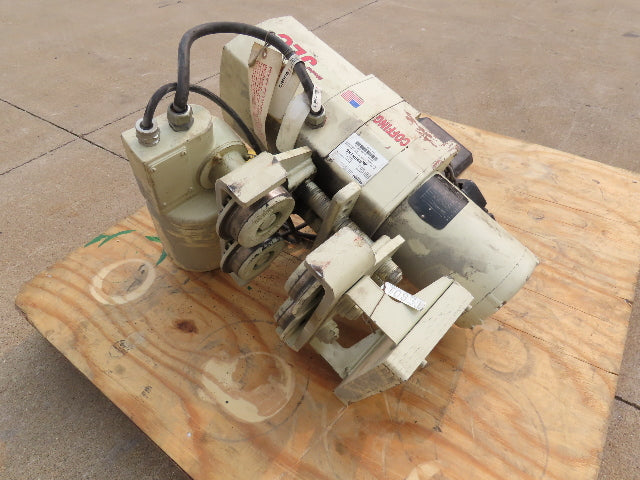

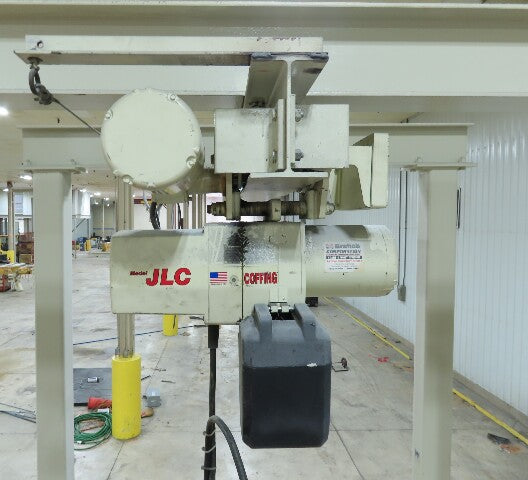

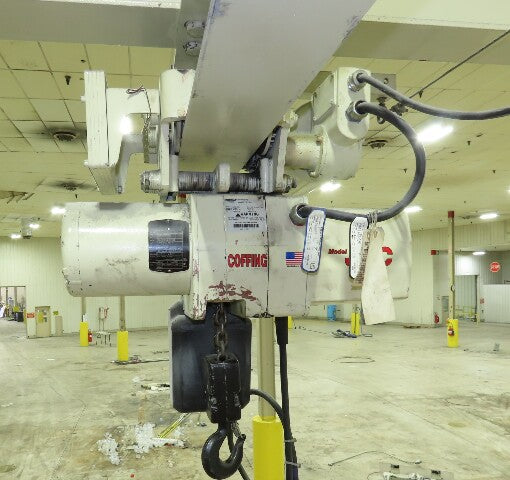

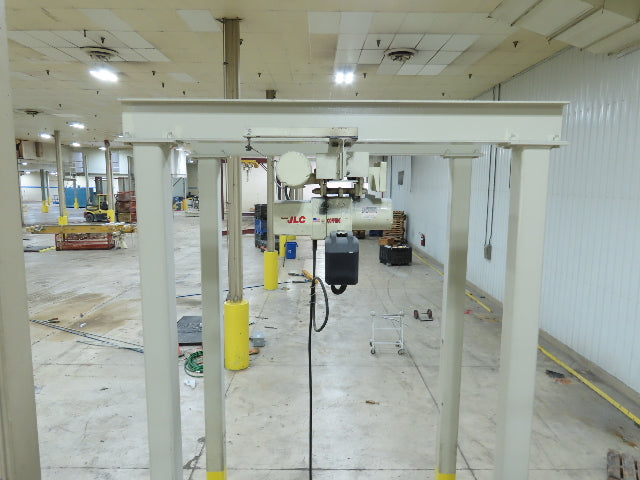

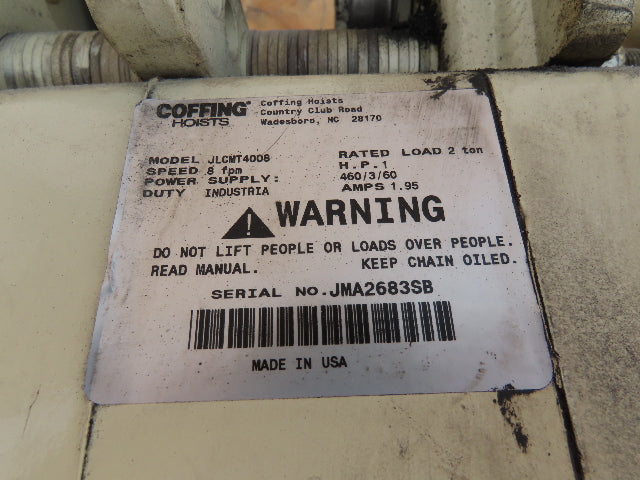

  • Hoist:  Coffing 2 Ton Model JLCMT4008  1-Speed 8 FPM 460V 3PH.
  • Bridge Type:  Fixed bridge no runway.
  • Bridge Capacity:  2 Ton
  • Bridge Span:  Set at 4' but could be up to 7' width with new holes drilled.

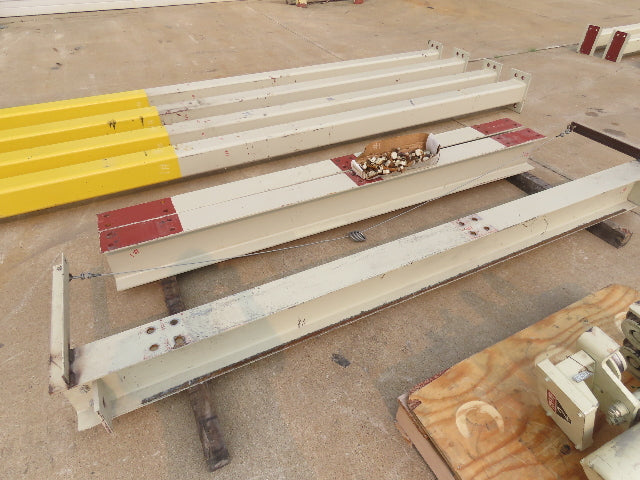

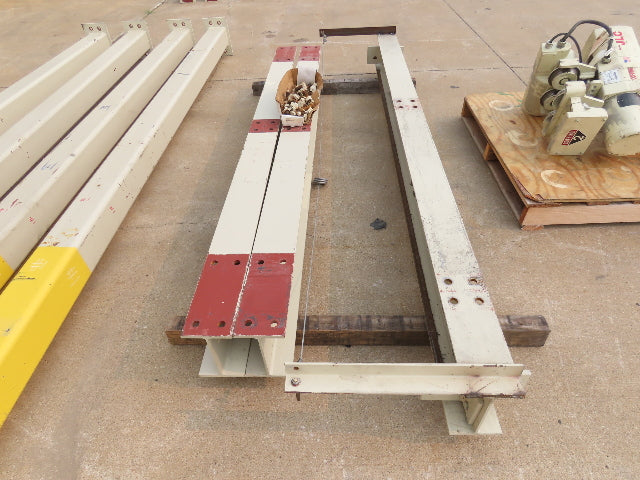

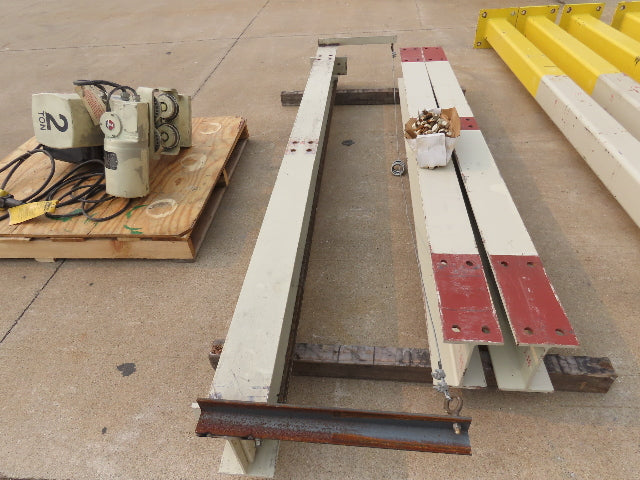

  • Bridge Beam:  9' Length.  5-1/4"W x  8-1/4"

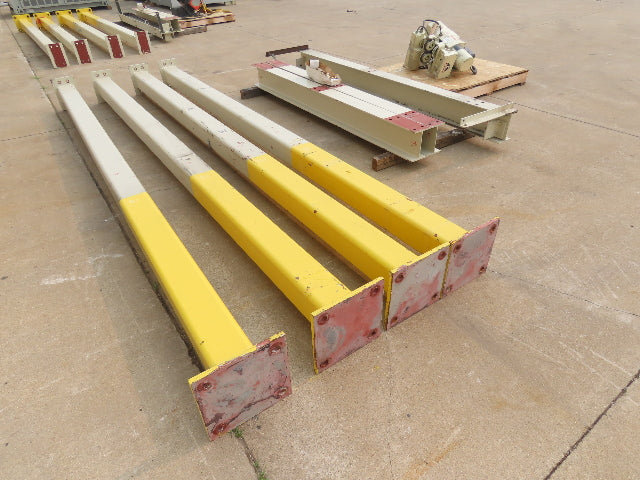

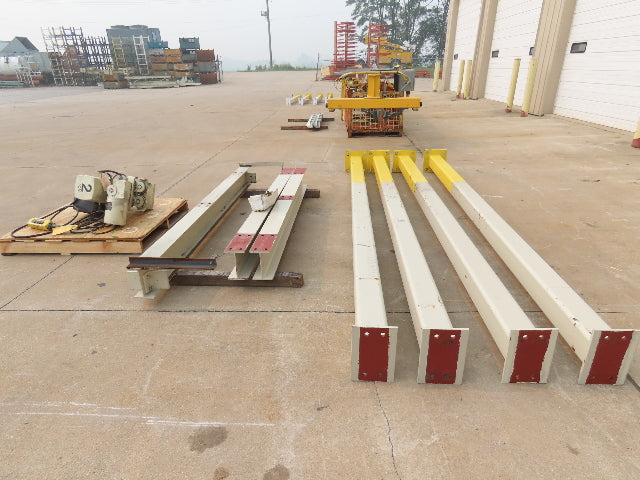

  • Upright Post Height :  13' 5"
  • Upright Post Width:  6"x 6" with a 12" base.
  • Cross Beams:  92" Length.  5-1/4"x 8-1/4"
  • Clearance Heights:
  • Height Under Bridge Beam:  12' 9"
  • Height Under Hoist Hook:  11'   (This is with hook fully retracted, hook may be currently set at a lower height than this)
  • Height Under Hoist Chain Bucket:  11' 1"
  • Height Under Cross Beams:  13' 5"
  • Top Clearance Height:  14' 1"
  • Overall Footprint:  60" Width.  7' 8" Length.
  • Ship weight is approximate.
