Automotion

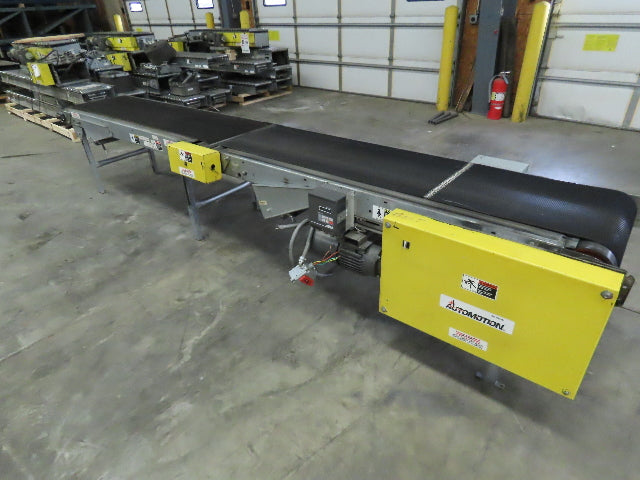

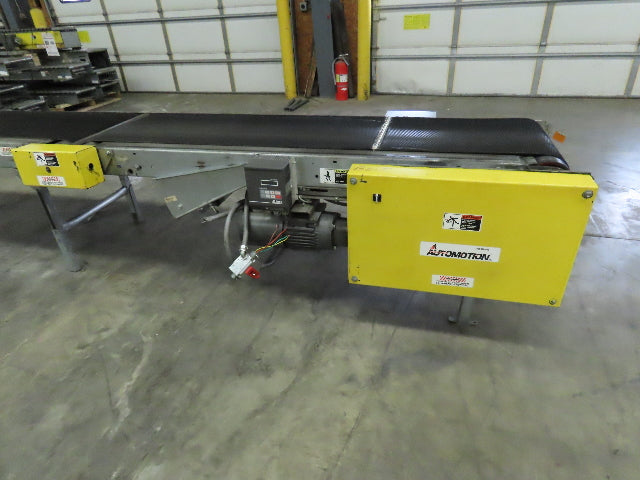

24"x 14' Slider Bed Gapper Conveyor 20" Belt Variable Multi Speed Slave Bed

24"x 14' Slider Bed Gapper Conveyor 20" Belt Variable Multi Speed Slave Bed

SKU #228548

Product Condition: Used

Your Price
$3,191.99
$4,799.99 $3,191.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Automotion
Model
300
MPN
SCB2-141
Condition
Used
  • Supply Voltage: 460V
  • Phase: 3
  • Horse Power: 2
  • Speed (Feet Per Minute): 75-300
  • Bed Length: 13' 10"
  • Belt Width: 20"

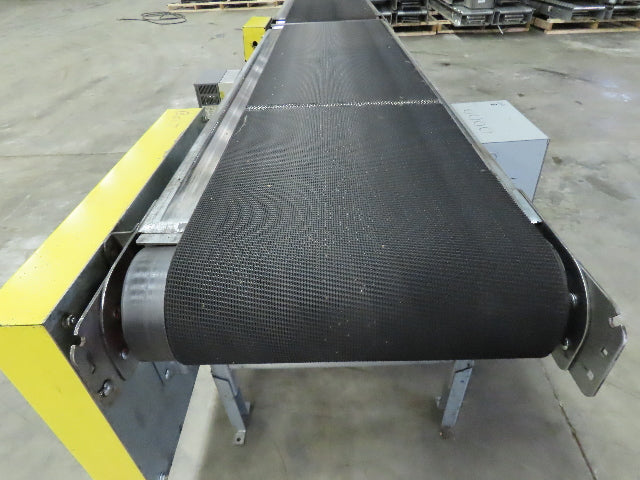

  • Belt Surface: ROUGH TOP RUBBER

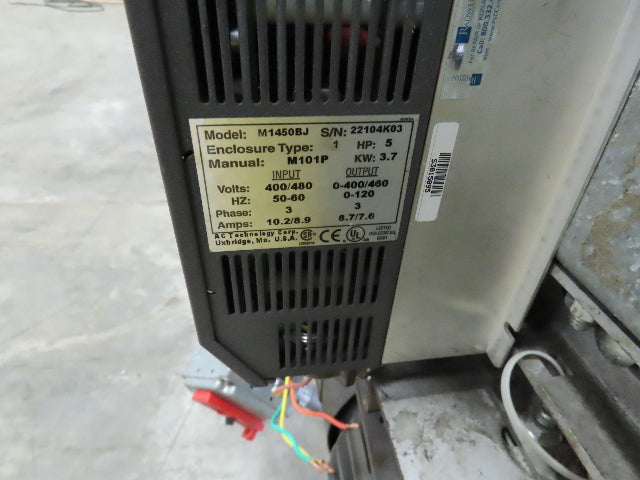

  • Electric Variable Speed Drive Brand & Model: AC Tech M1450BJ (5Hp)
  • Height of Legs From Floor to top of Bed: 27"-36" Adjustable
  • Casters: NO
  • Overall Length: 14' 2"
  • Gear Box Model: N/A
  • Gear Box Ratio: N/A
  • Gear Box Output RPM: N/A
  • Drive Handed (Right or Left): RH
  • Used Conveyor In Working Condition.  Tested @ 460V.

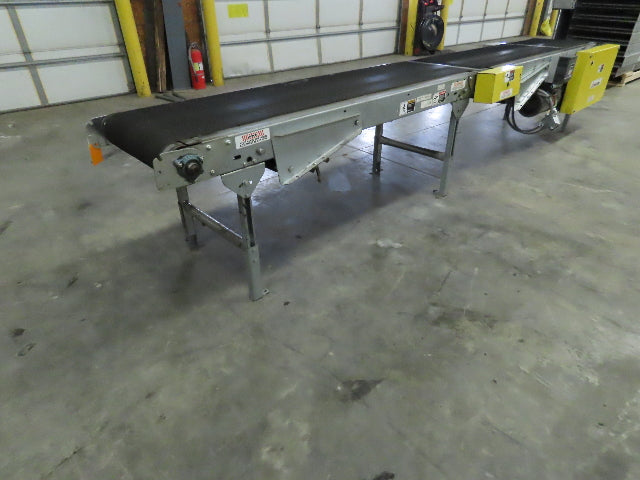

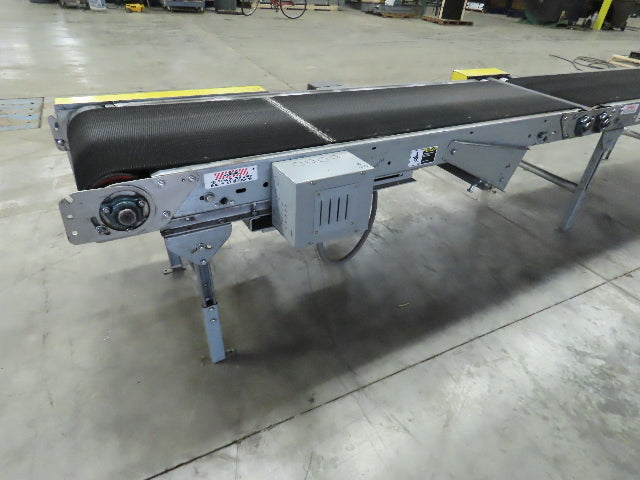

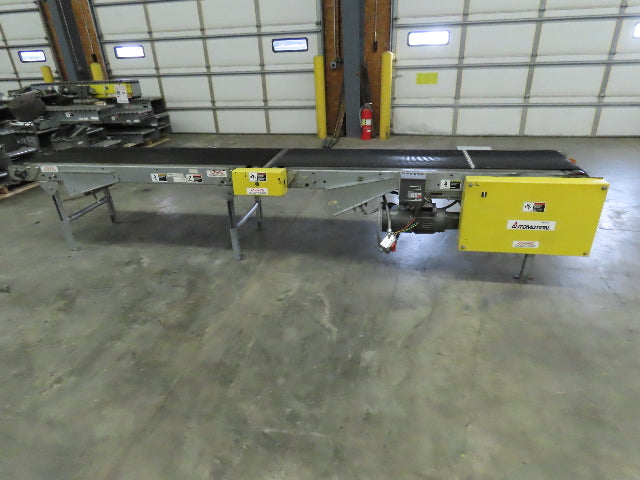

  • Conveyor Consists of 7' End Drive + 7' Slave Bed.

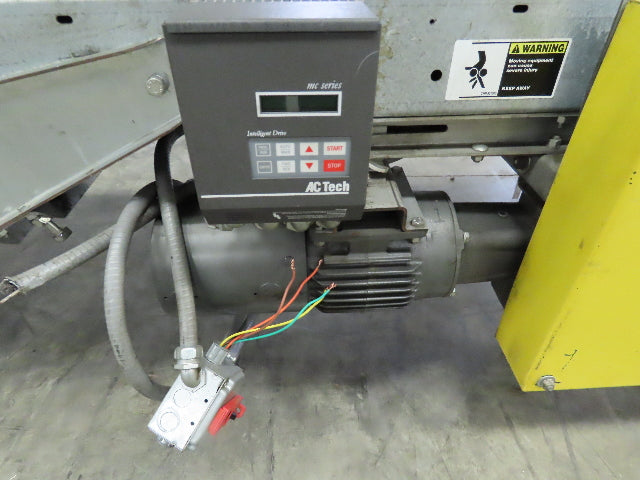

  • With AC Tech Variable Speed Drive

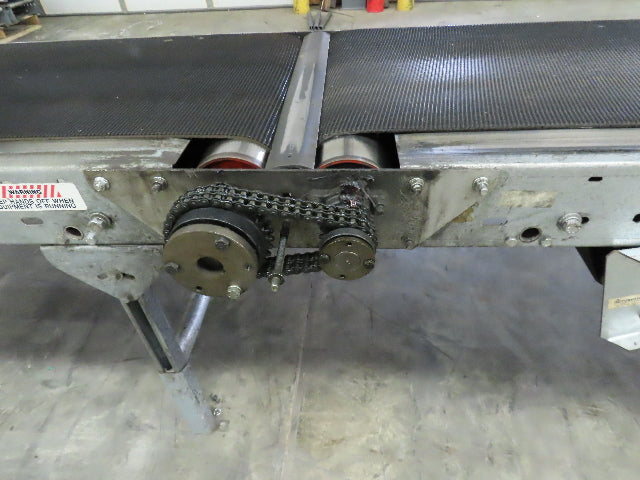

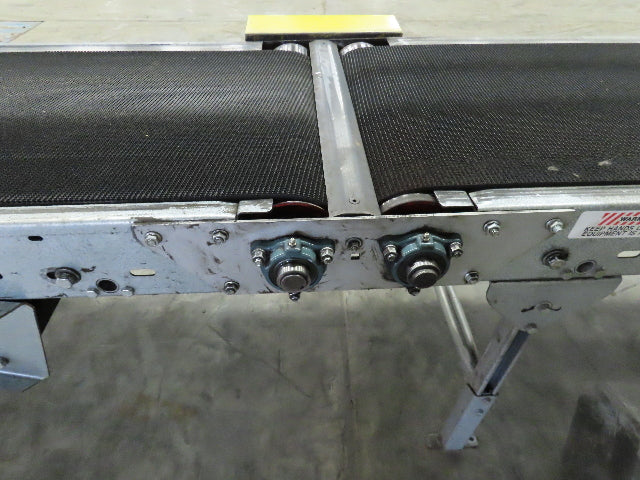

  • Sprockets Geared 2:1.  Slave Bed is Half The Speed Of The Drive Section.
  • Min Speed 75/150 FPM @ 30Hz.
  • Max Speed 150/300 FPM @ 60Hz.

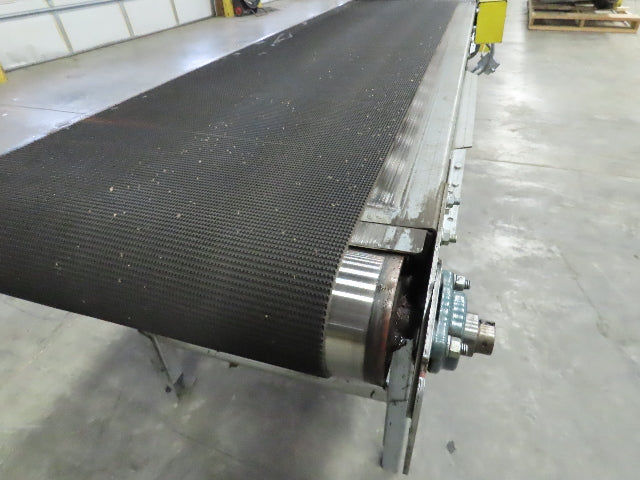

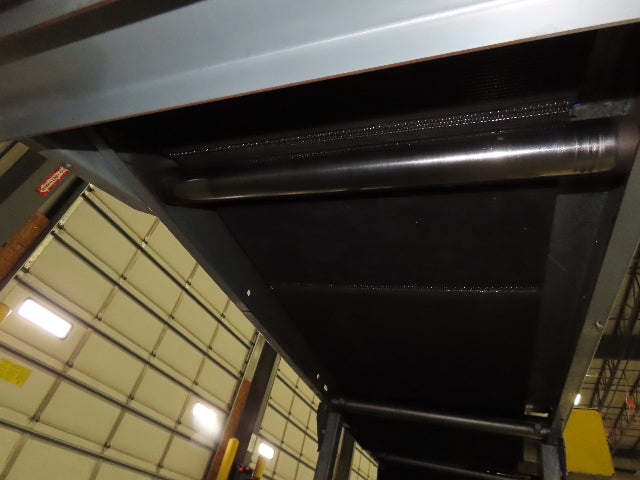

  • 6.5" Dia x 22.5" End Rollers.
  • 24" Bed Width.
  • 14' 2" Overall Assembled Length.
