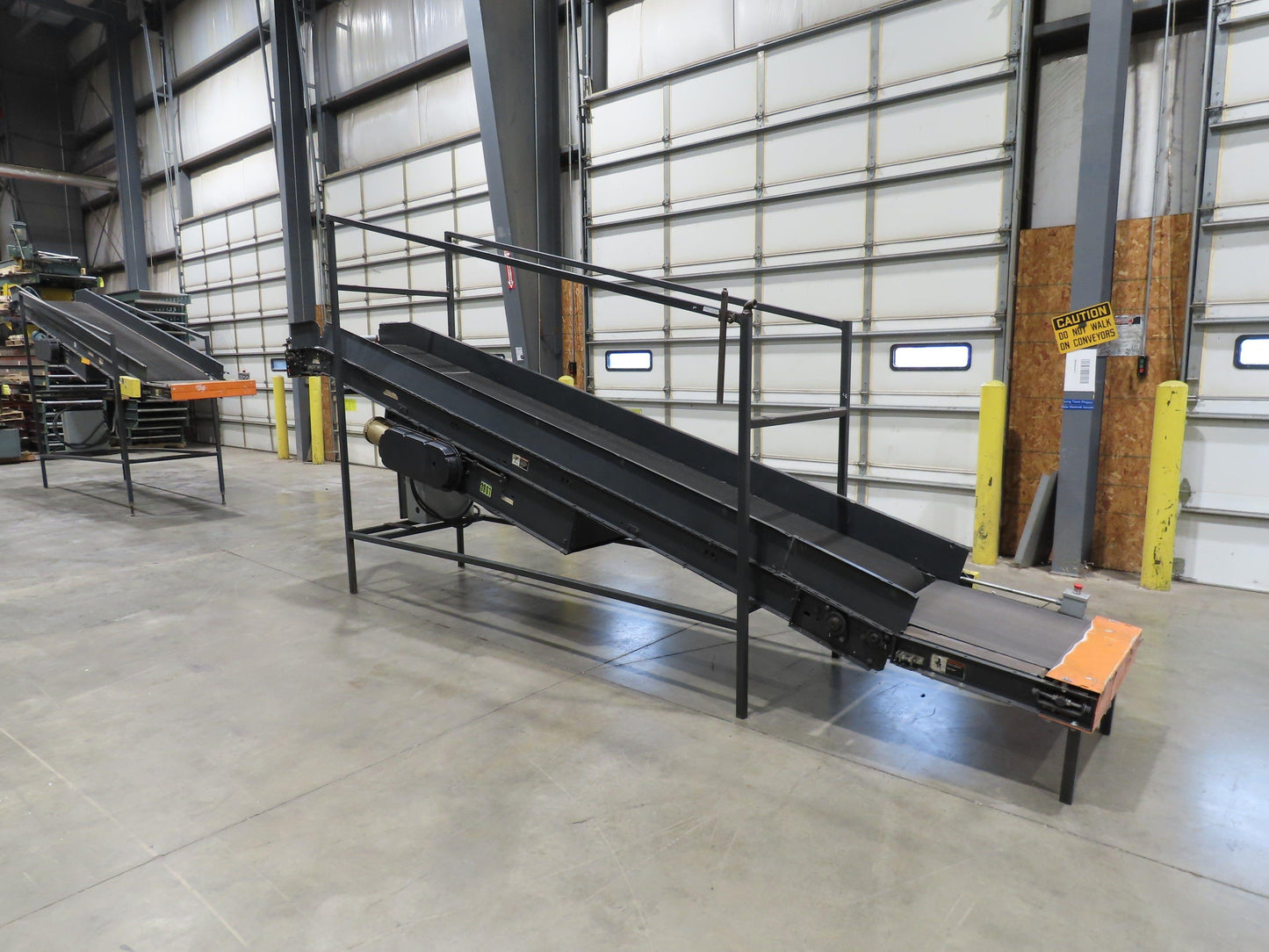

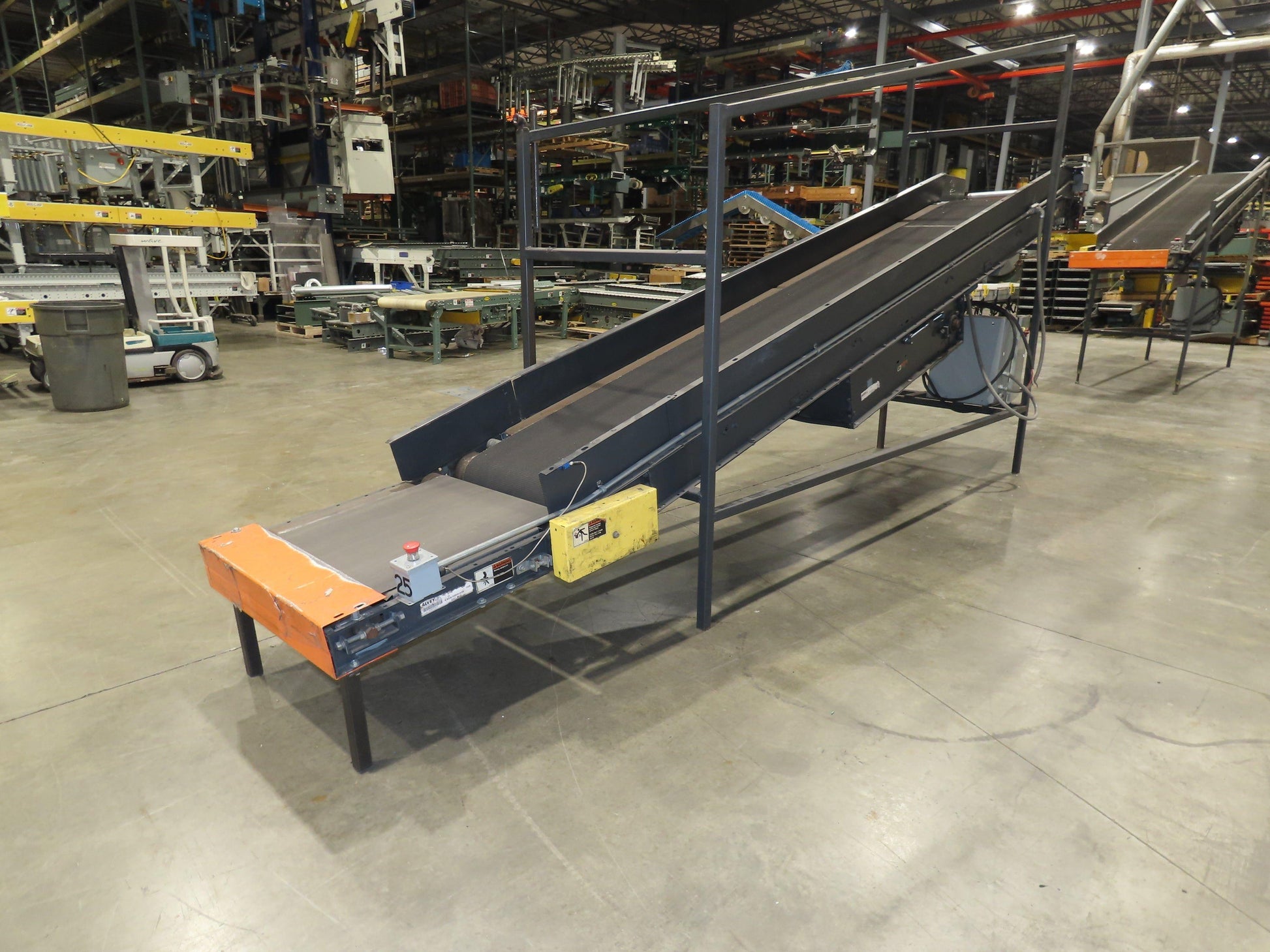

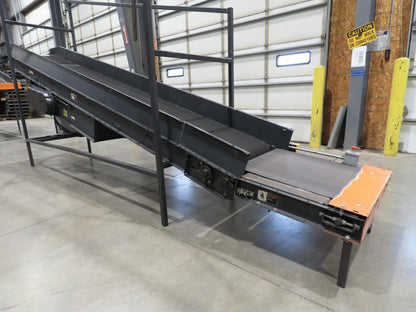

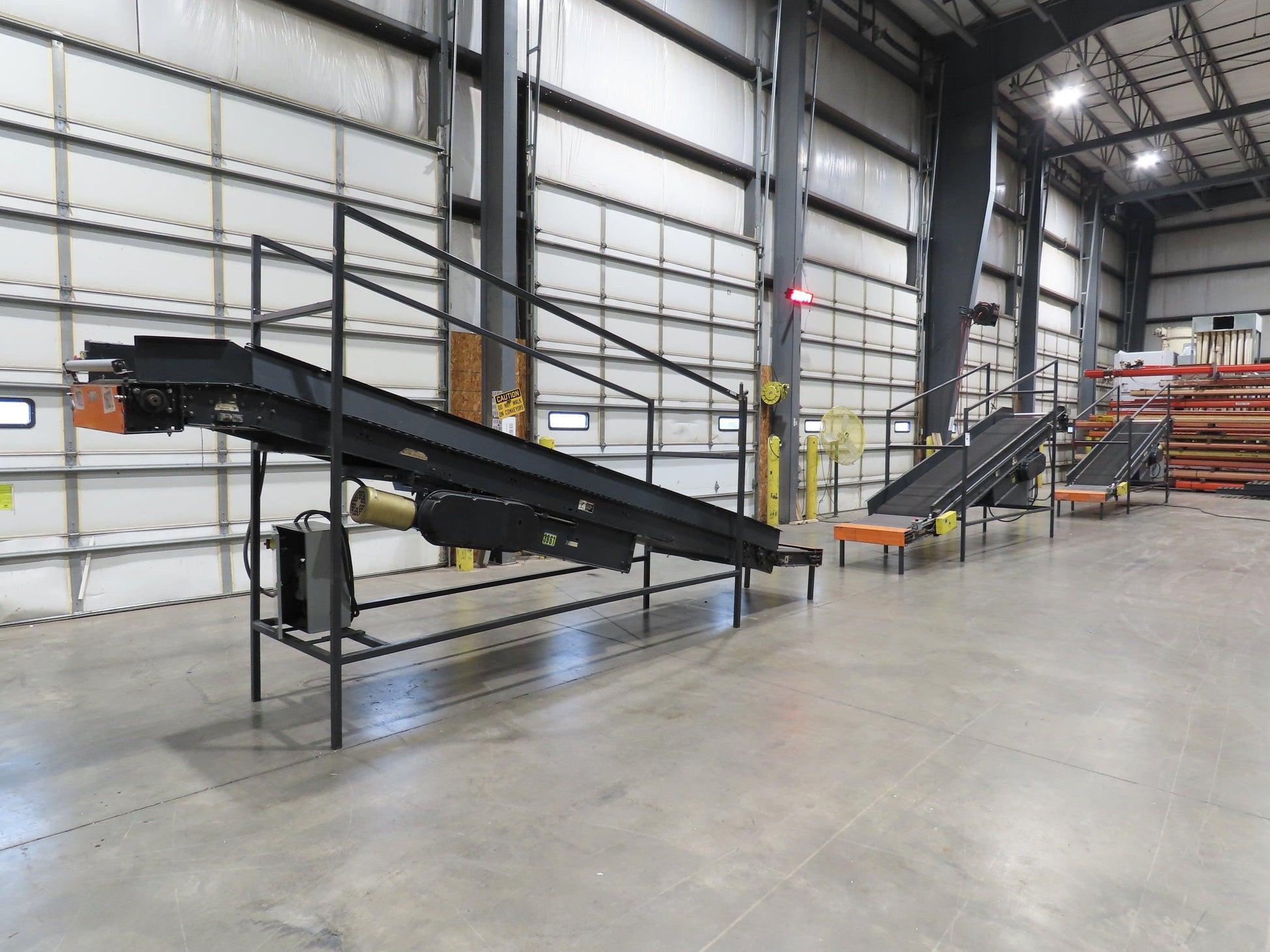

Alvey 28"x 17' Slider Bed 24" Belt Incline Conveyor Variable Speed Drive 460V

Alvey 28"x 17' Slider Bed 24" Belt Incline Conveyor Variable Speed Drive 460V

SKU #265228

Product Condition: Used

Your Price
$3,419.99
$3,999.99 $3,419.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Alvey
Model

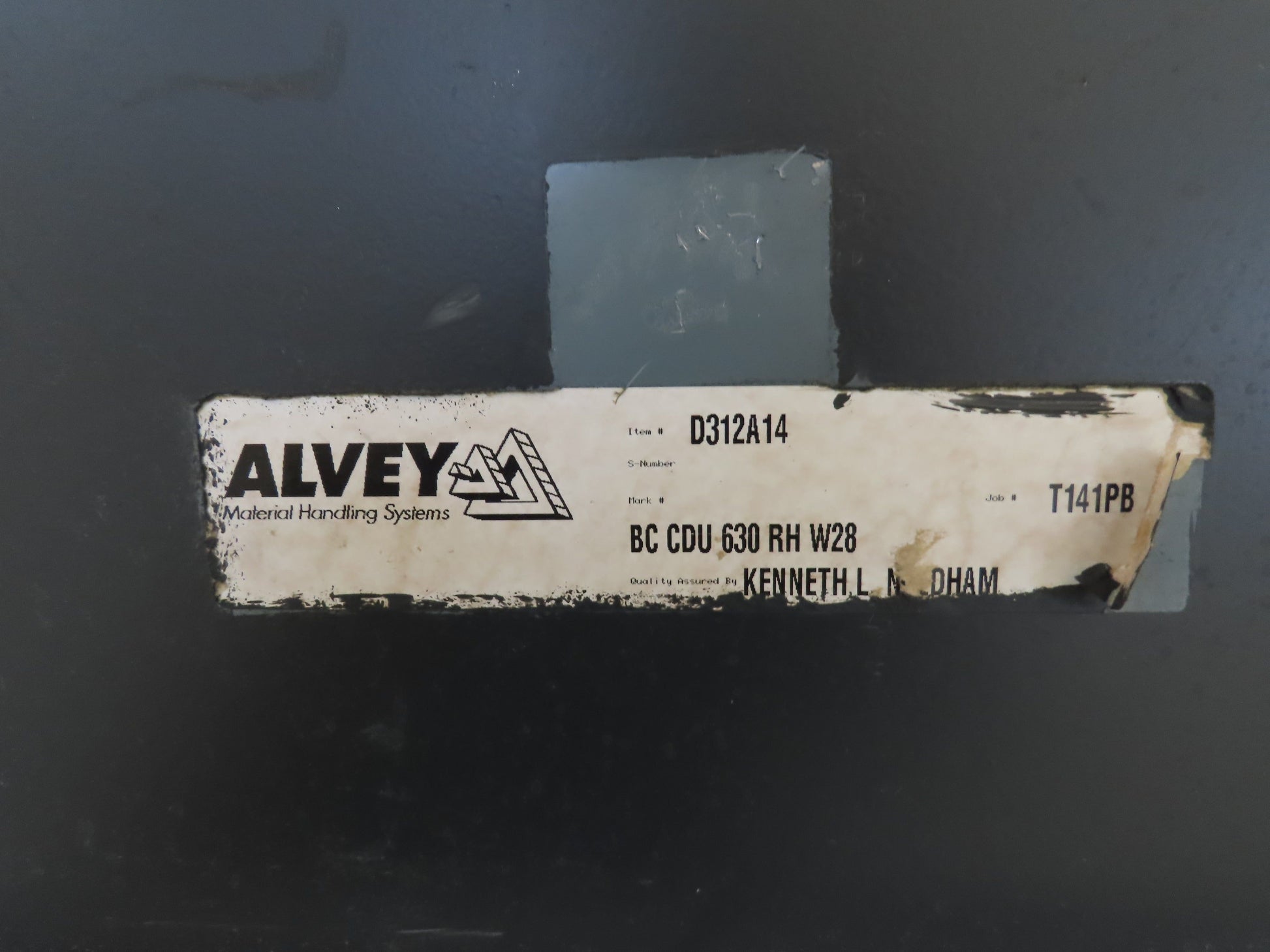

BC CDU 630 RH W28
MPN
N/A
Condition
Used
  • Conveyor In Good Used Condition.  Tested in our shop.

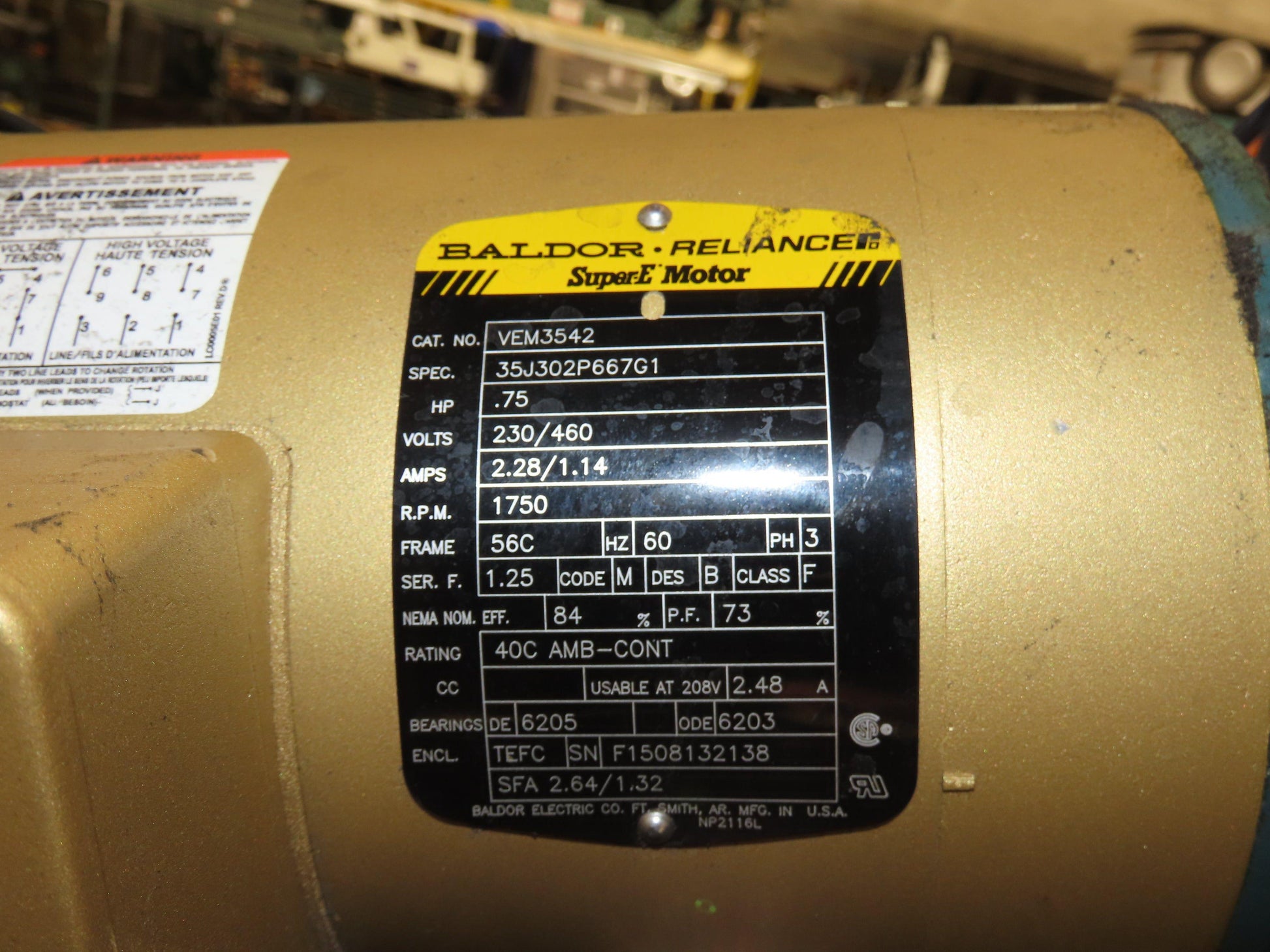

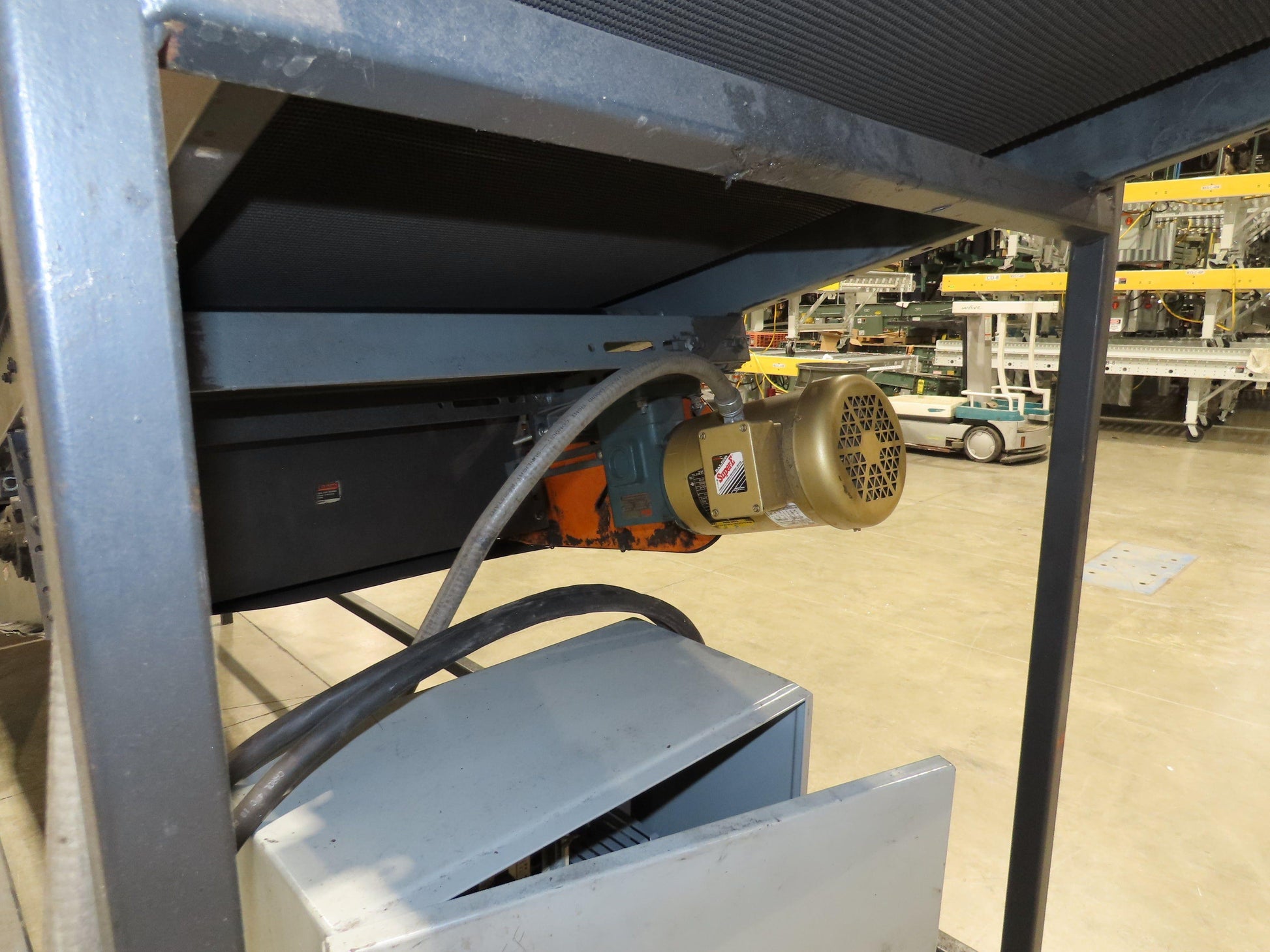

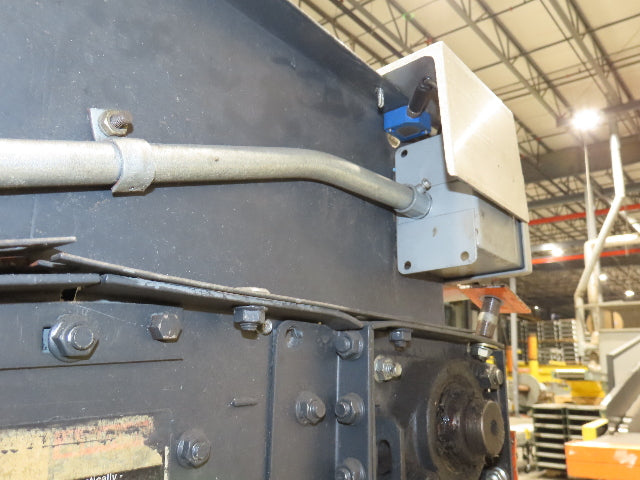

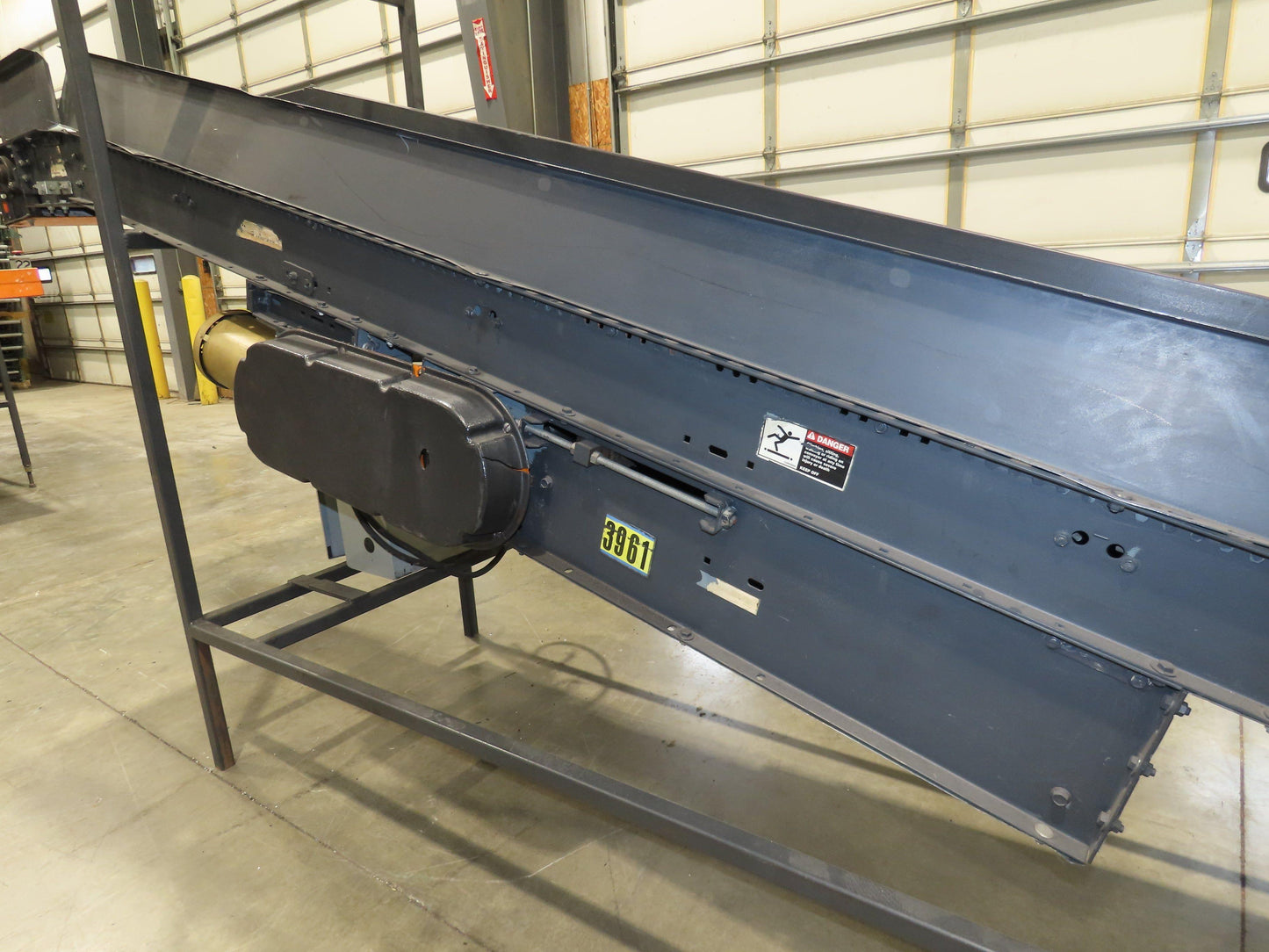

  • 3/4Hp 230/460V 3-phase motor chain drive with 10:1 reducer.  (Left side drive)

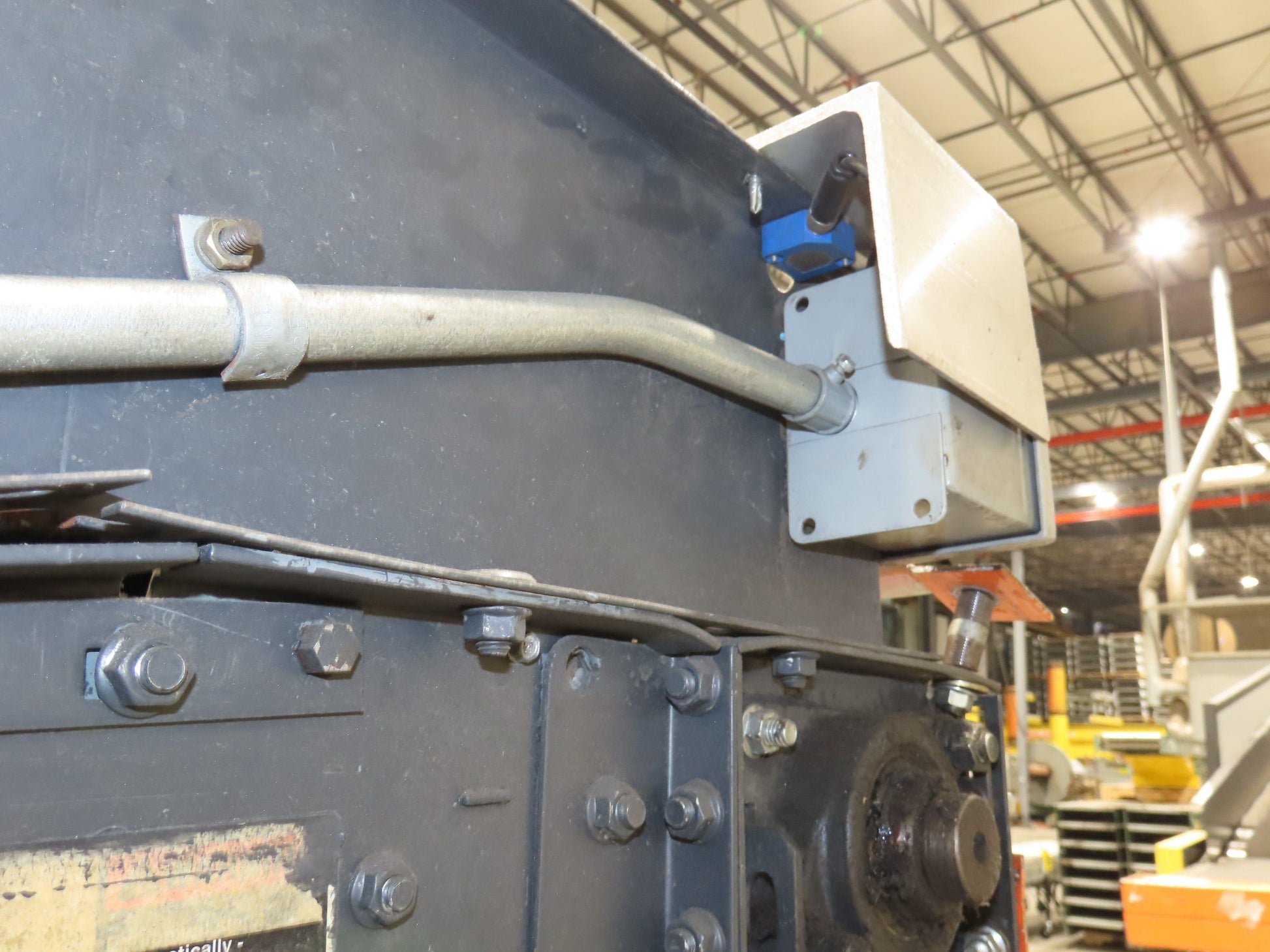

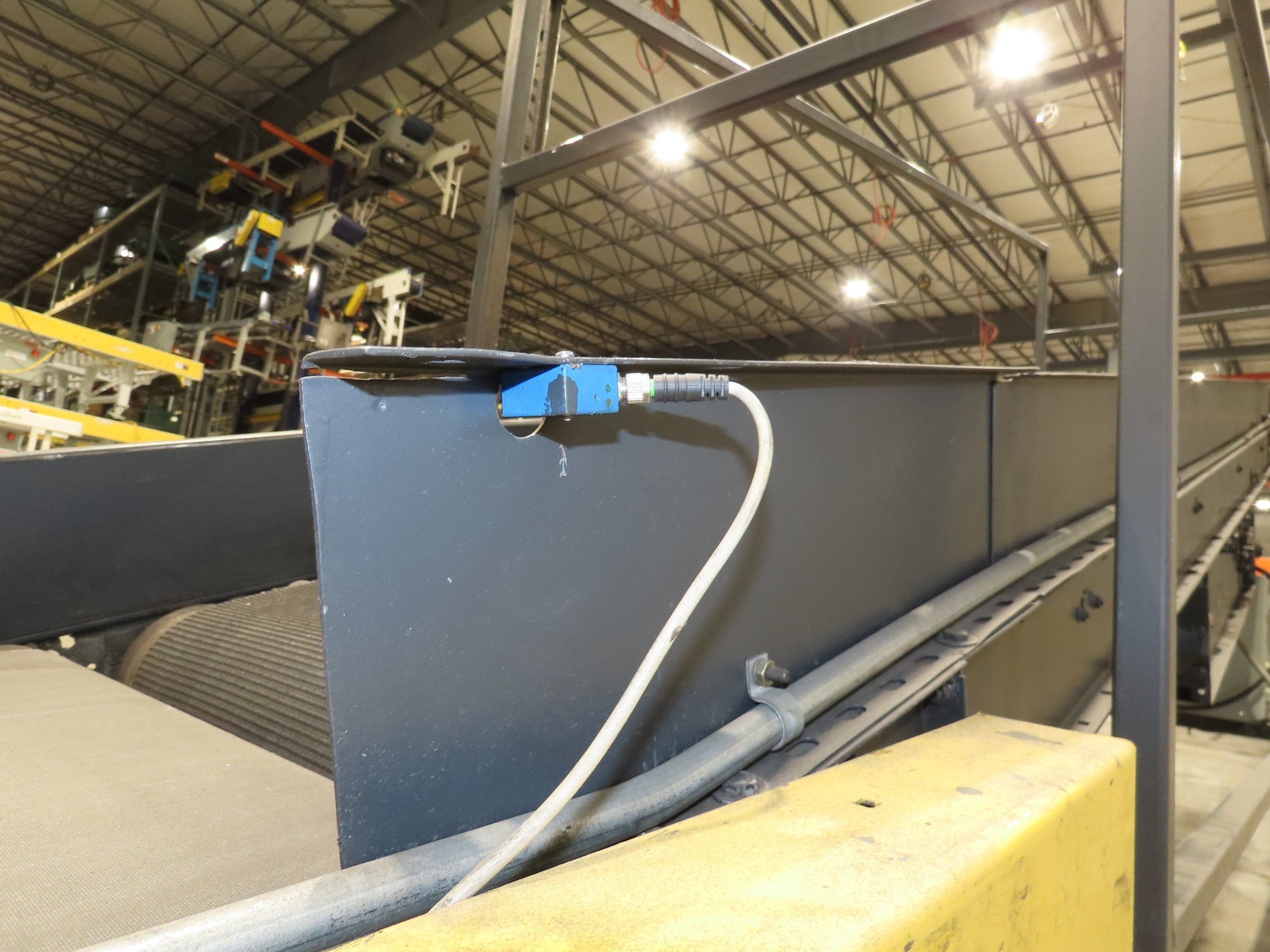

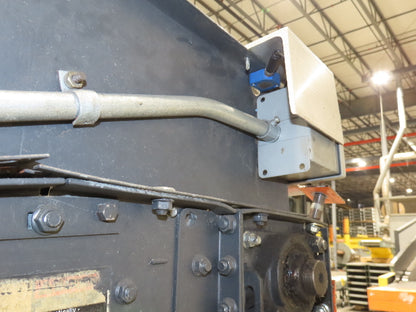

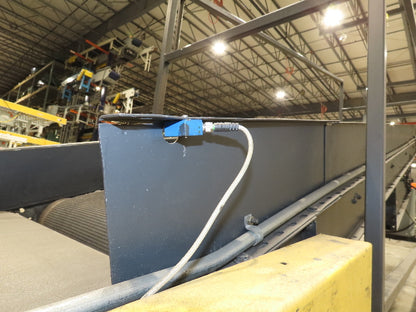

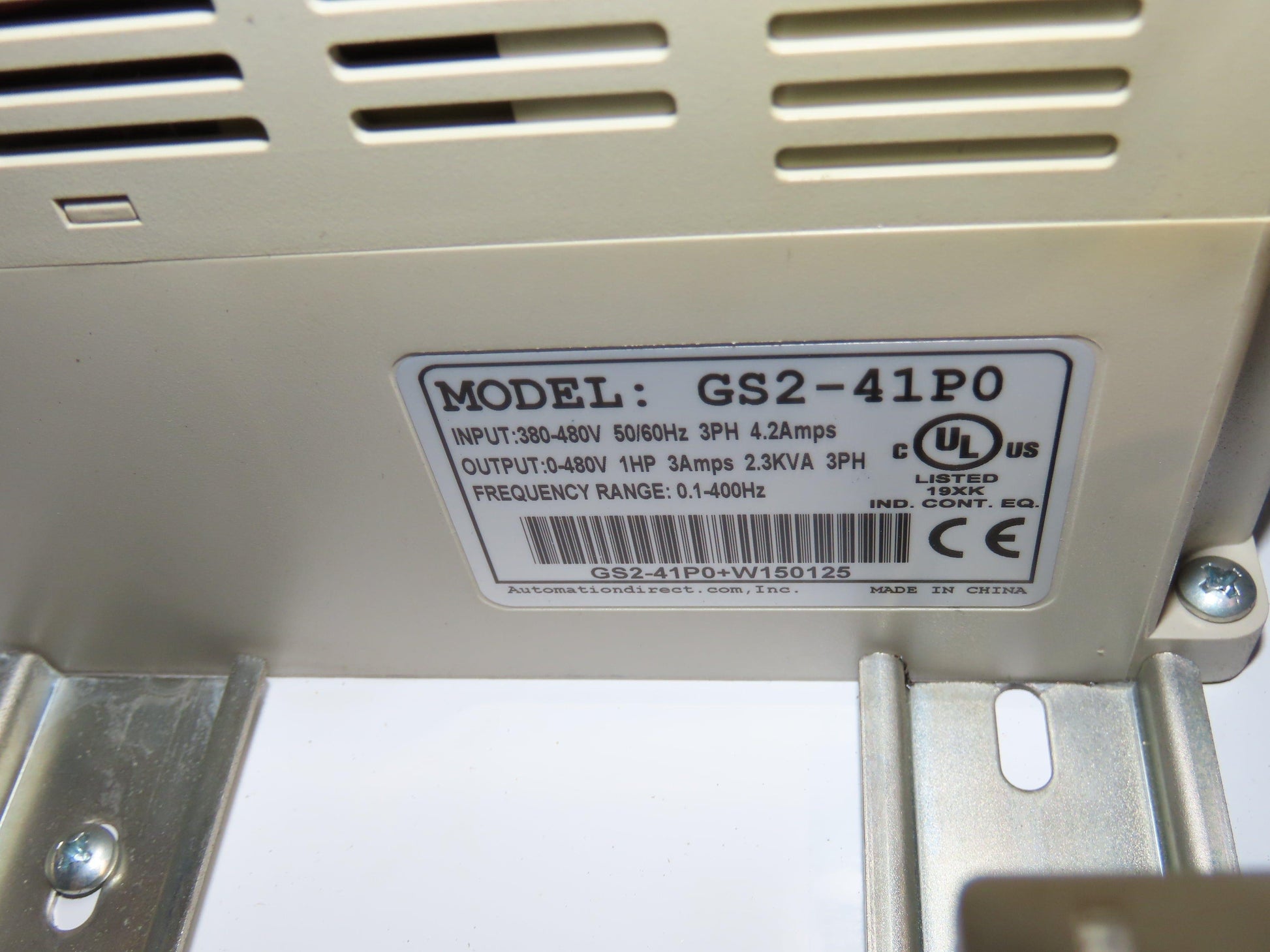

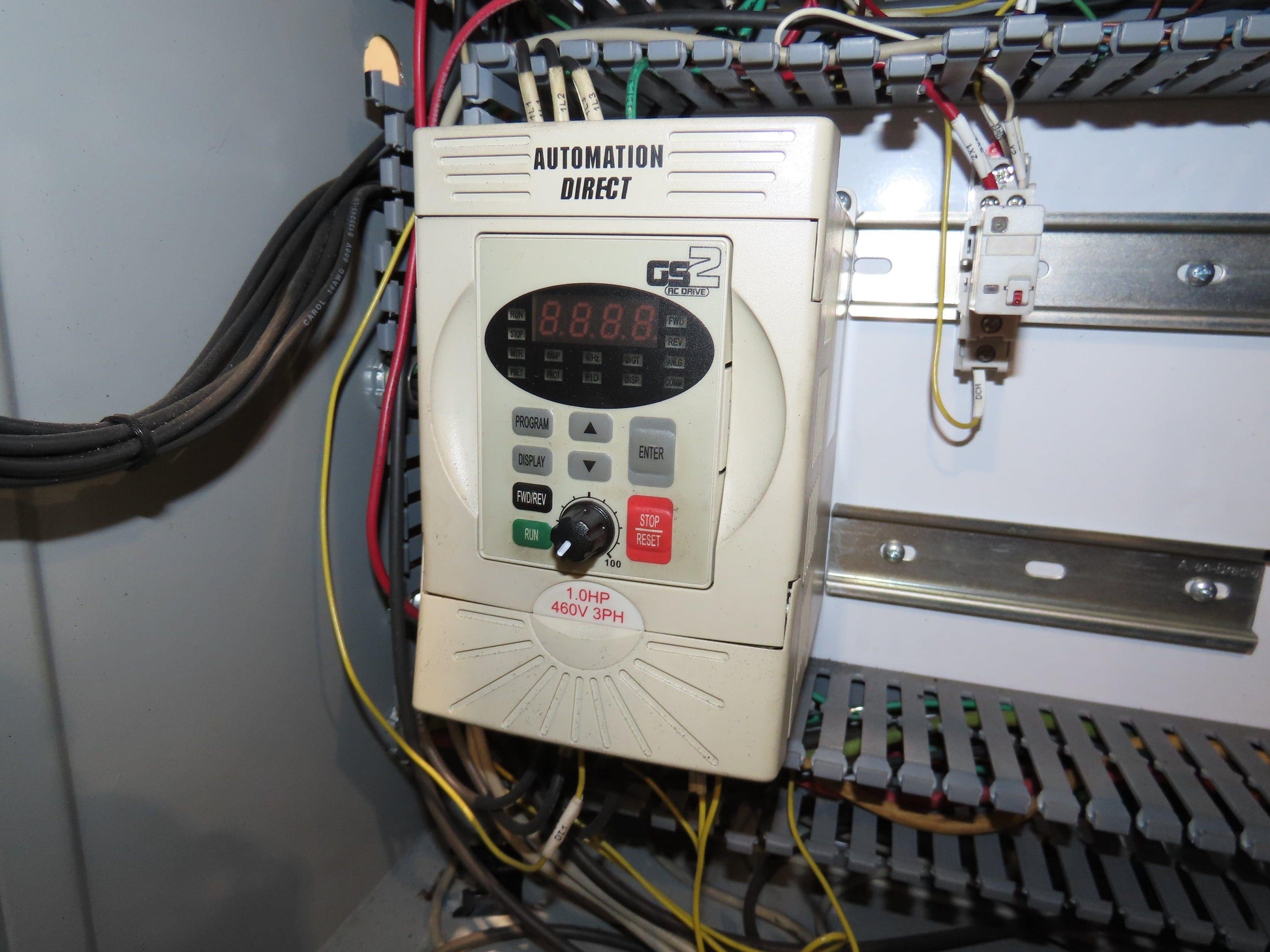

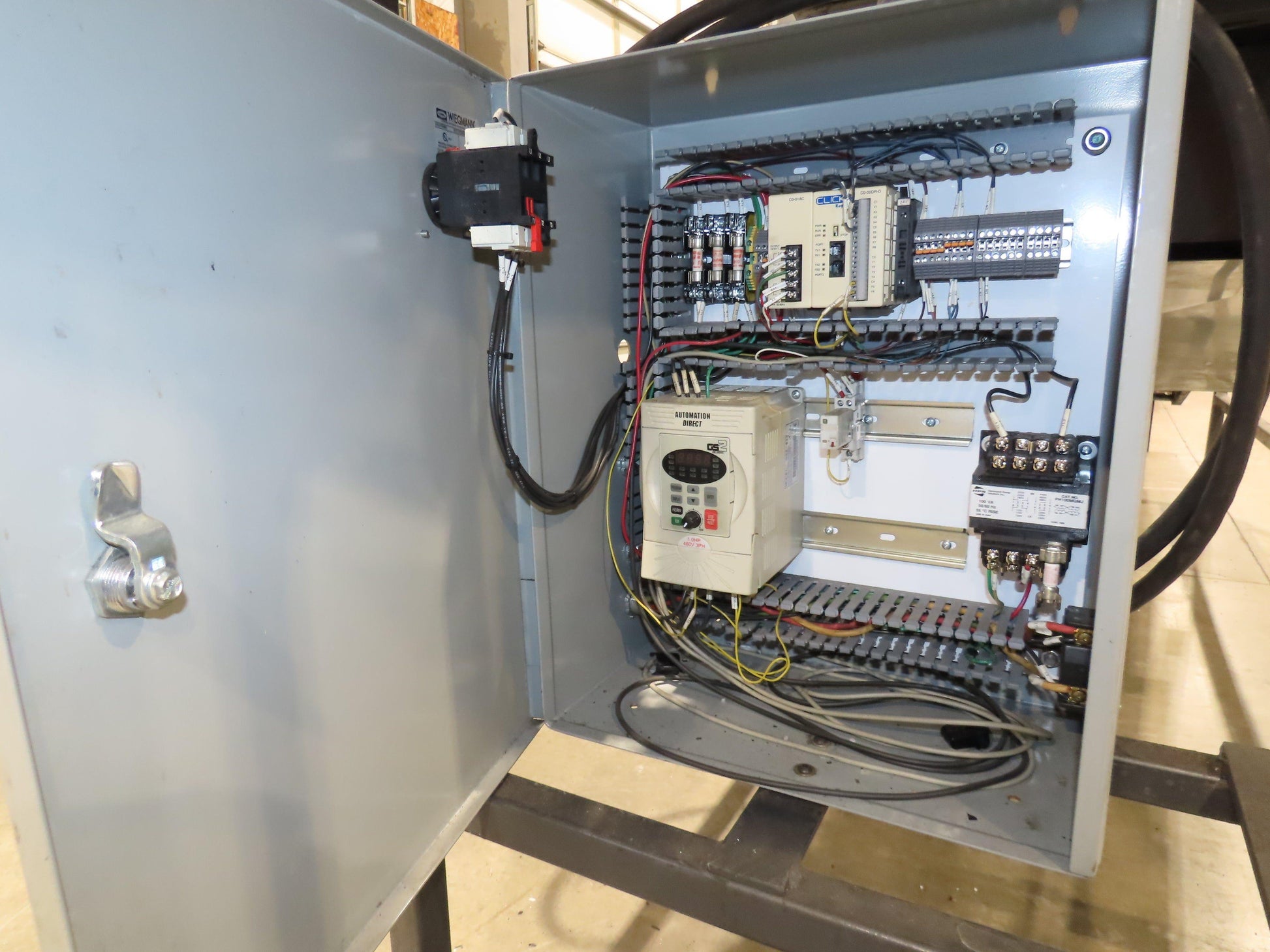

  • Set up with a GS2 VFD drive 3-phase input power.  Set up with photoeye sensors at bottom and top of incline to start and stop flow.

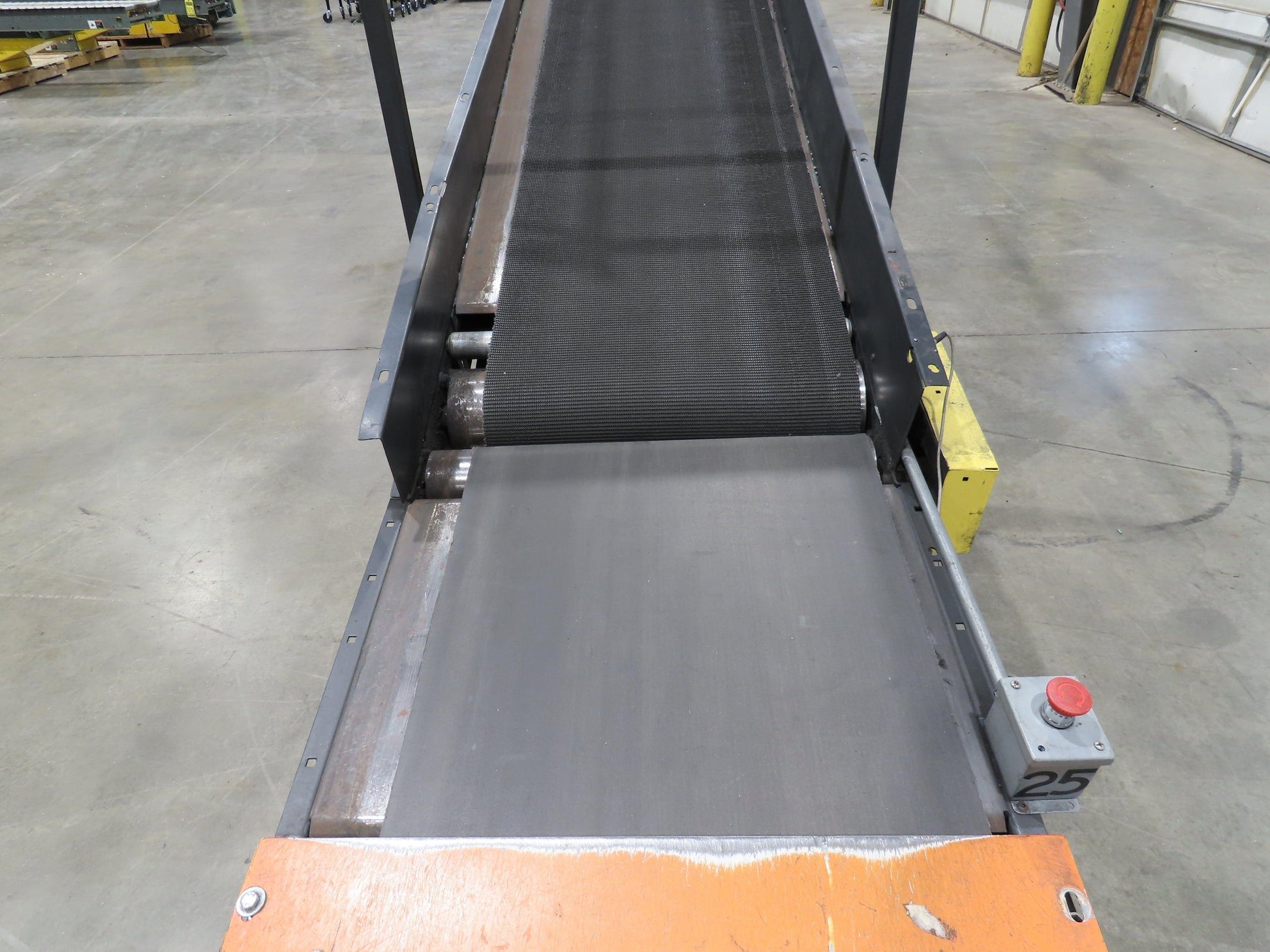

  • Max Belt Speed:  168 FPM (Infeed bed is 30 fpm faster)

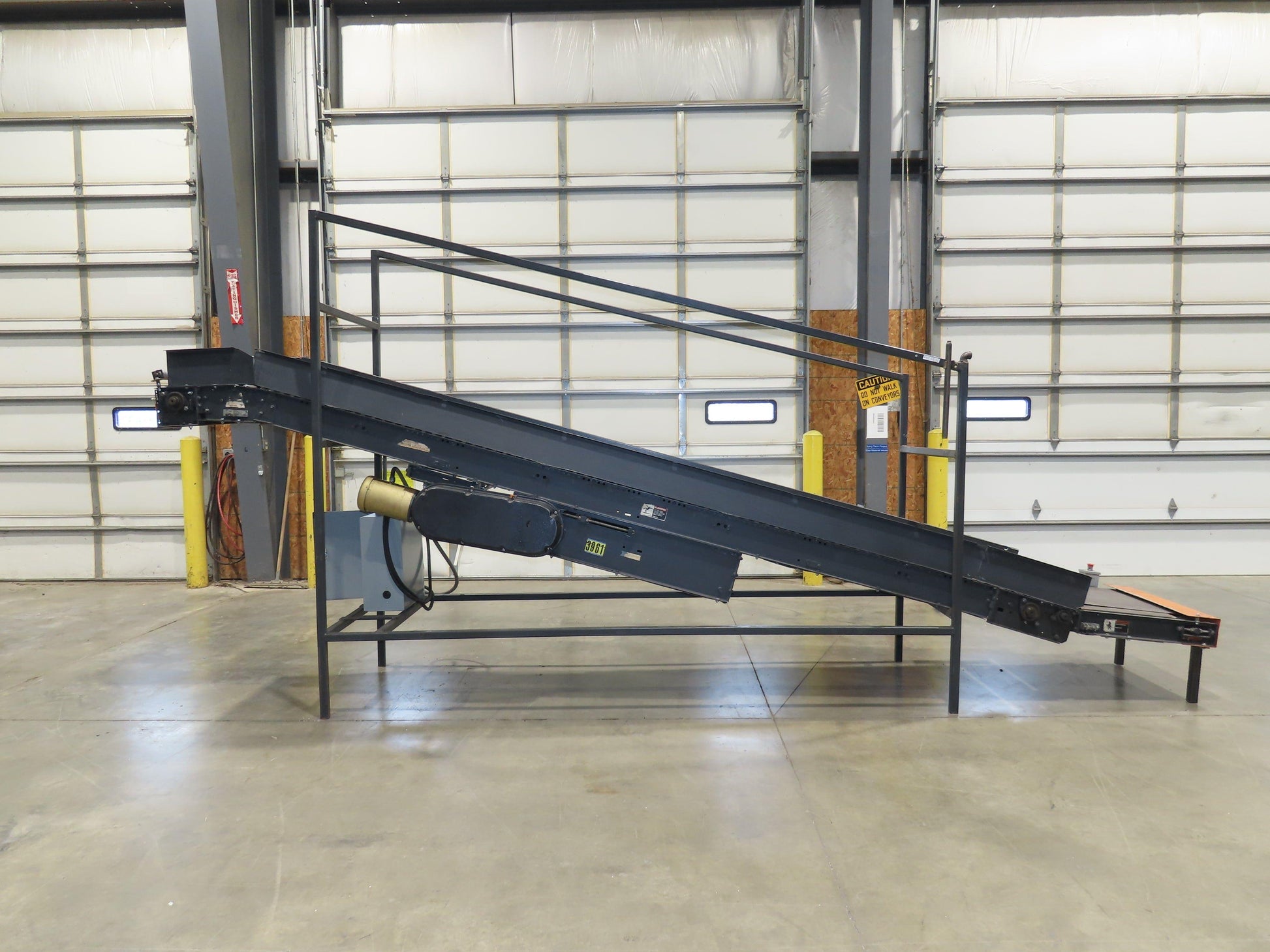

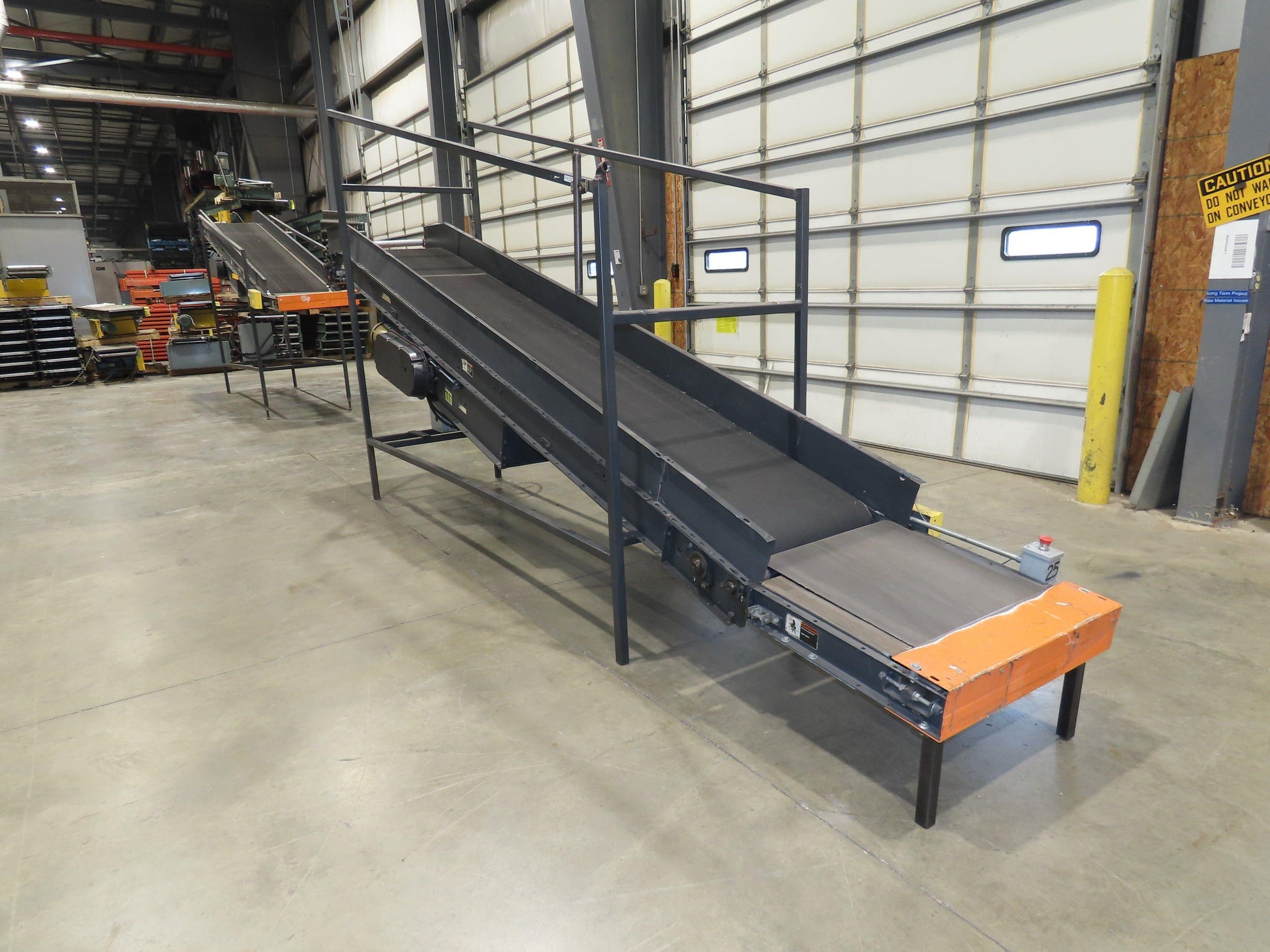

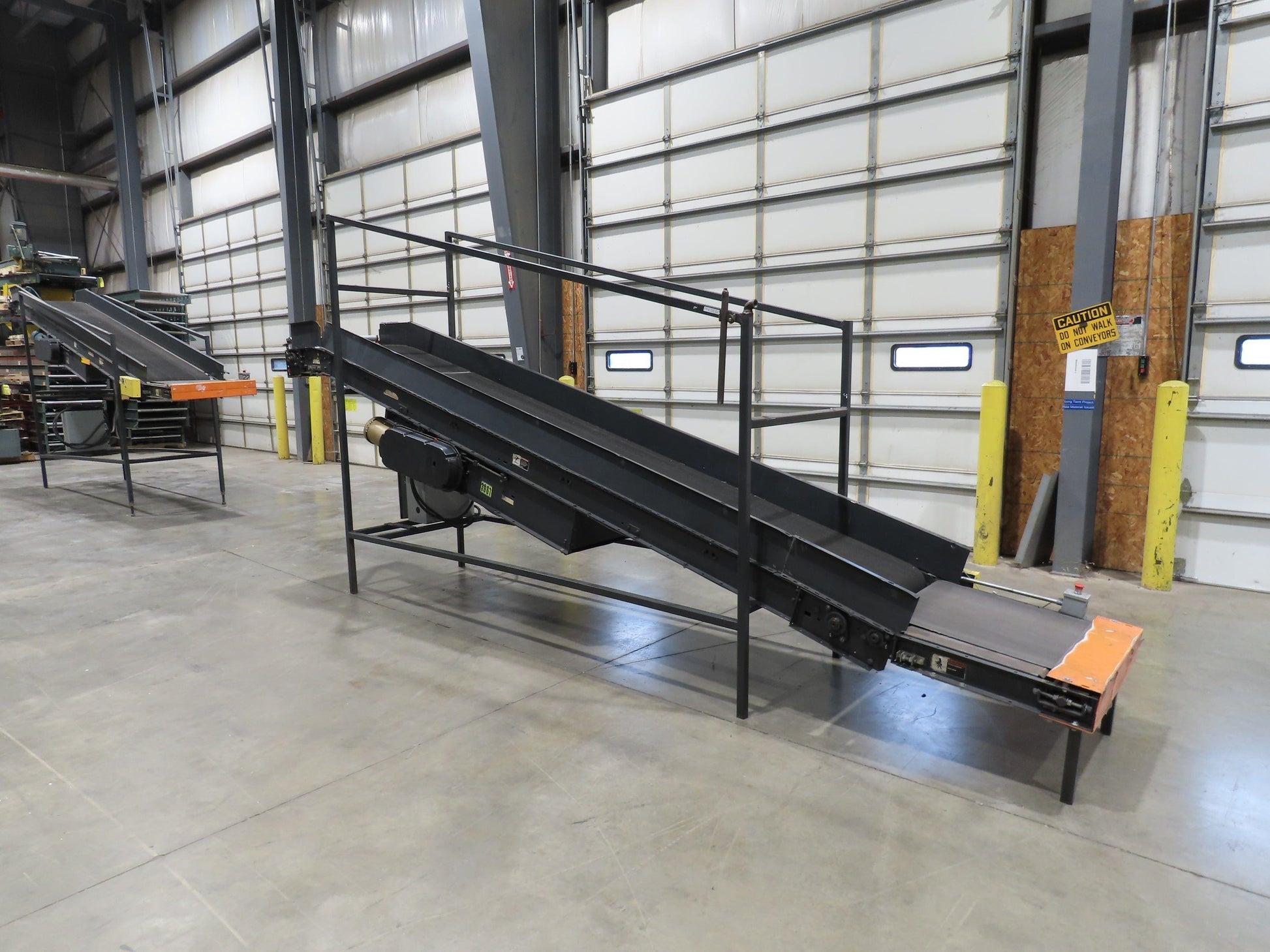

  • 17' Overall length.  Incline flattens at the top.
  • Frame width: 30.5"  (28" inside width)

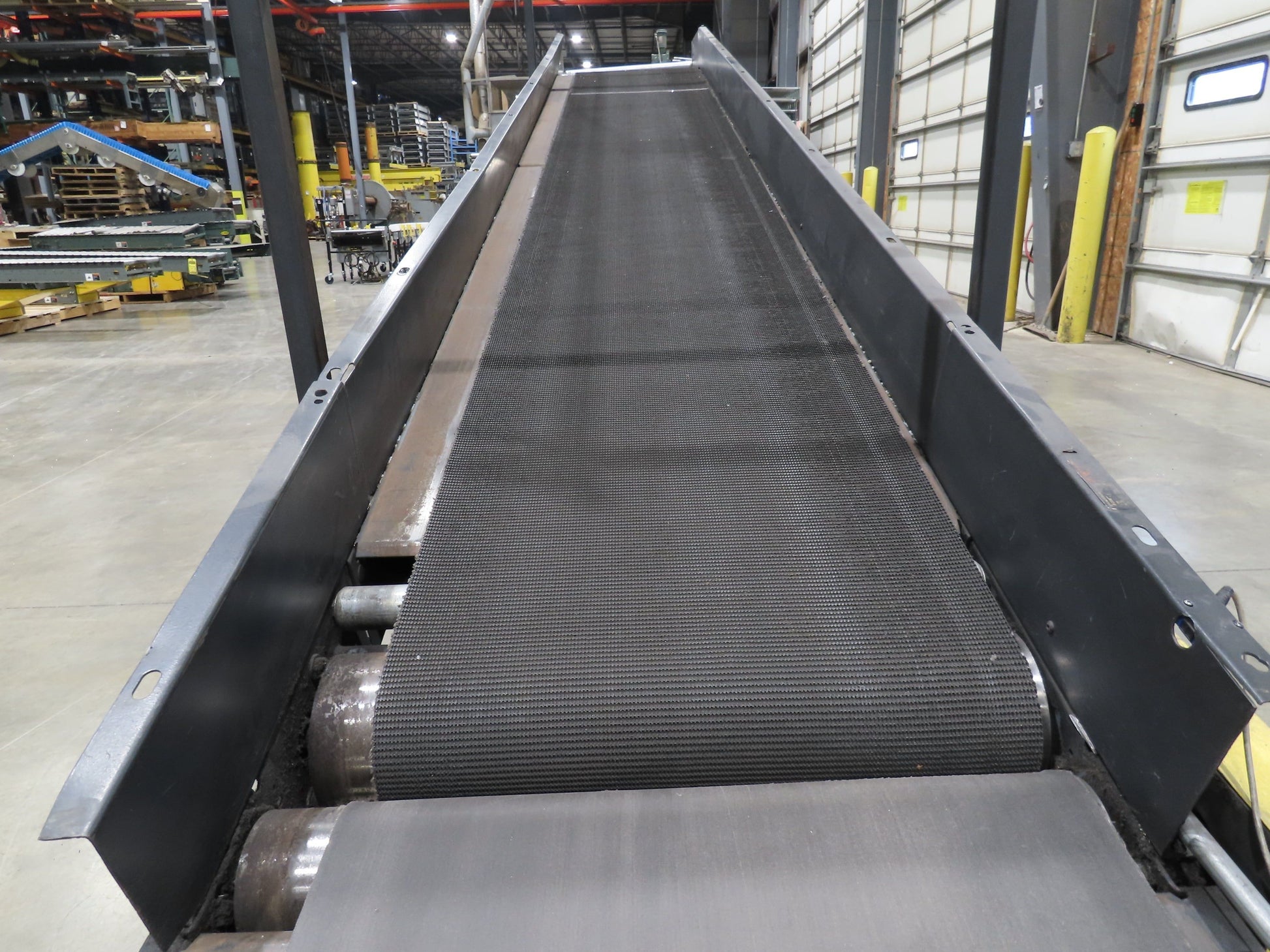

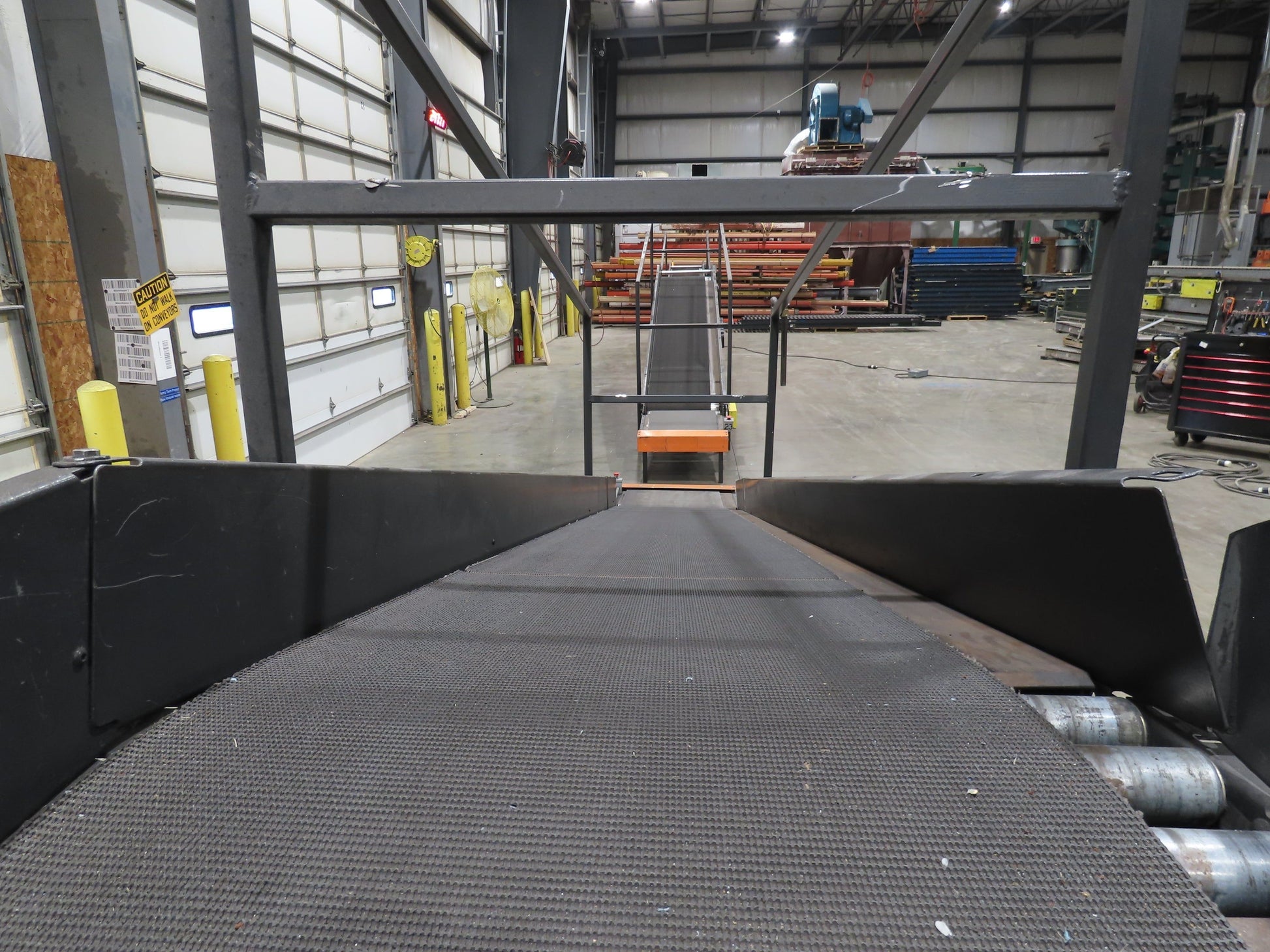

  • Belt width:  24"  (Tail pulleys:  26-3/4" length)

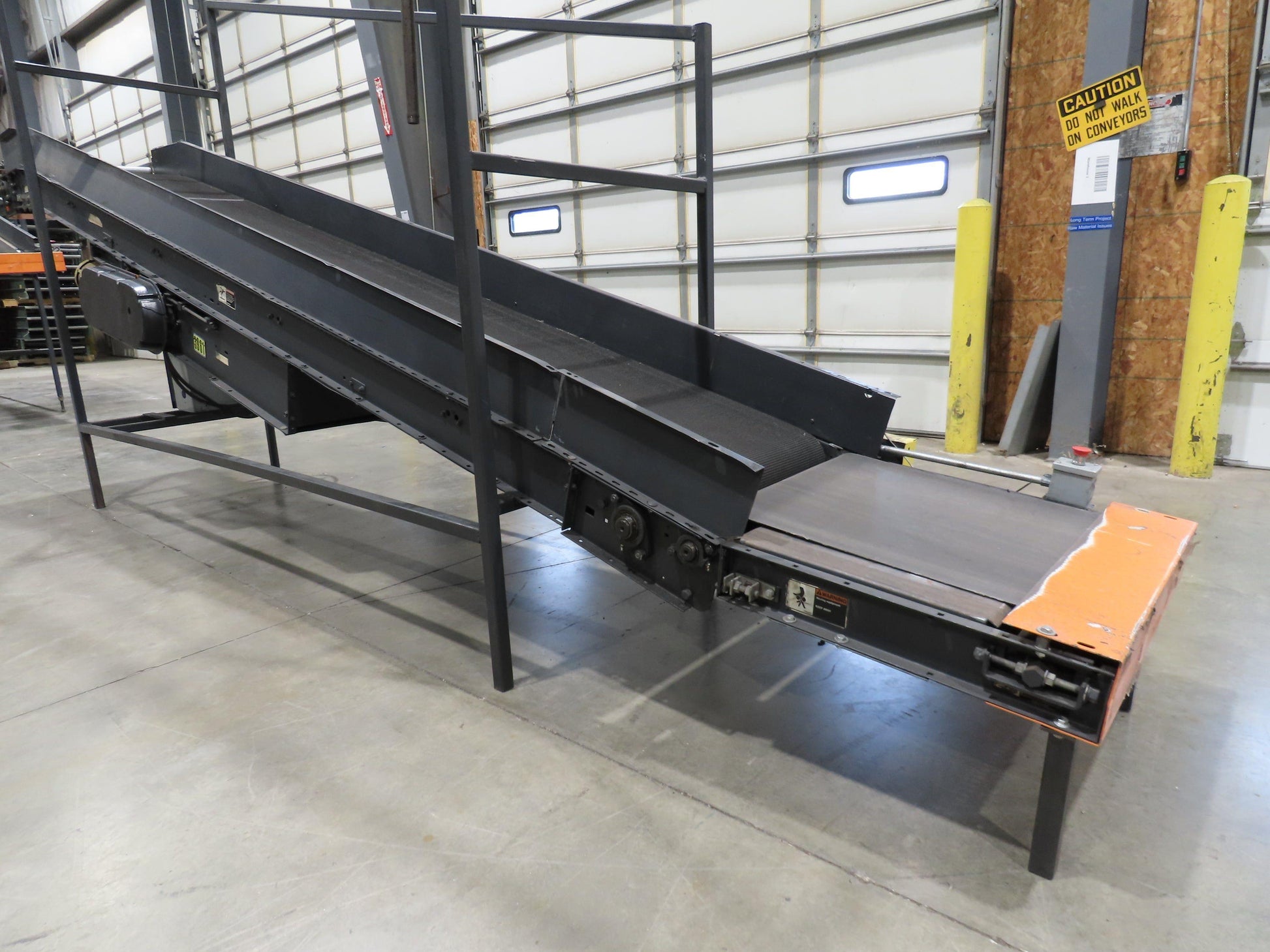

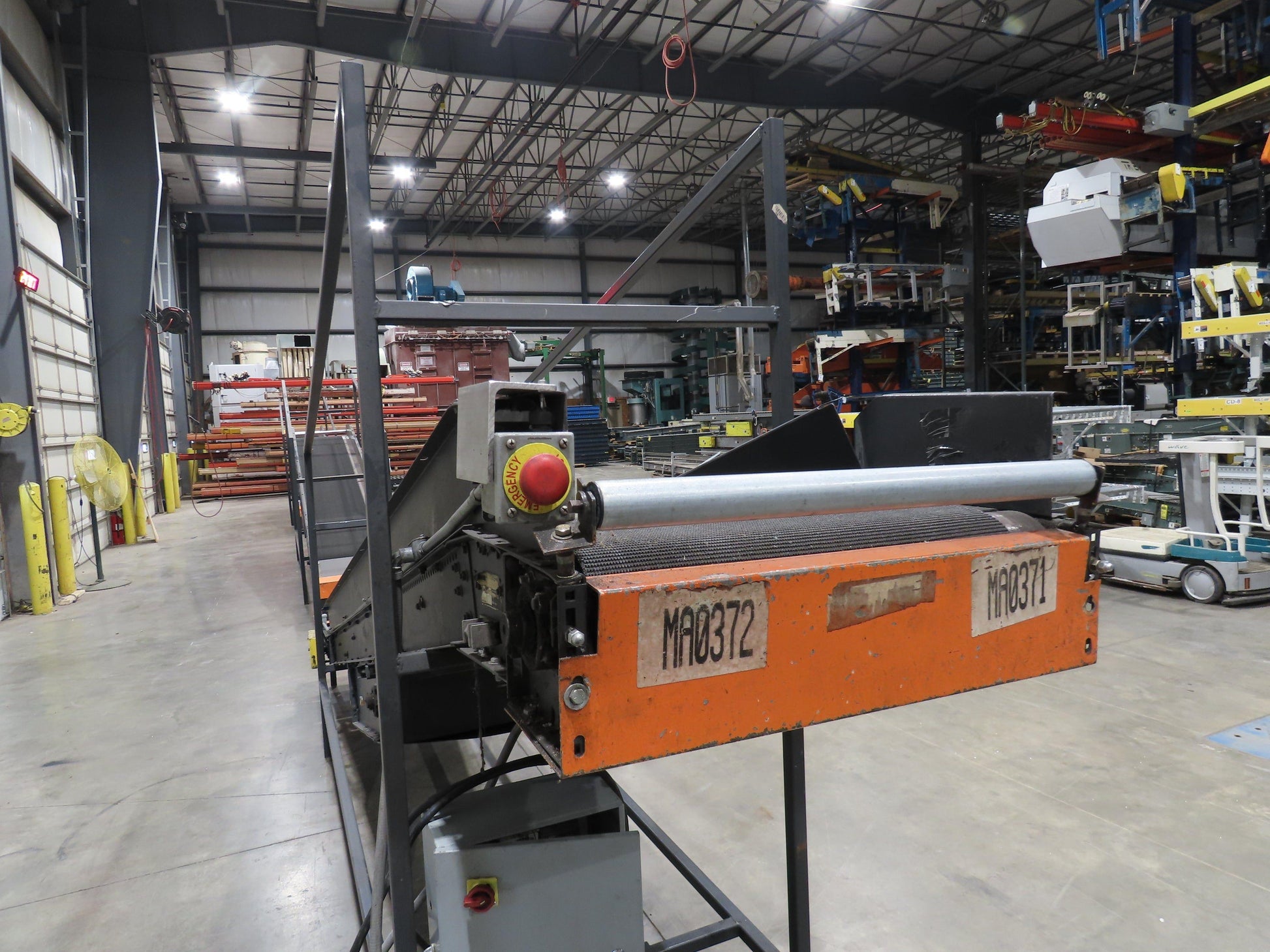

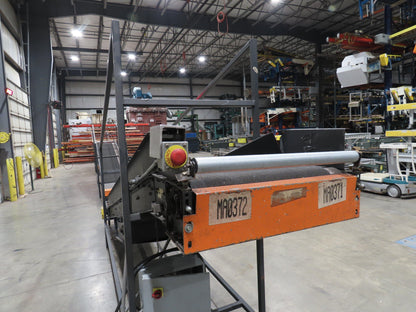

  • Infeed length:  32"
  • Infeed height:  17"
  • Discharge height:  64"
  • Skirting height:  7"
  • Frame height:  6-1/2"
  • Leg supports are 1-1/2" tube steel welded to the frame. Non-adjustable height.

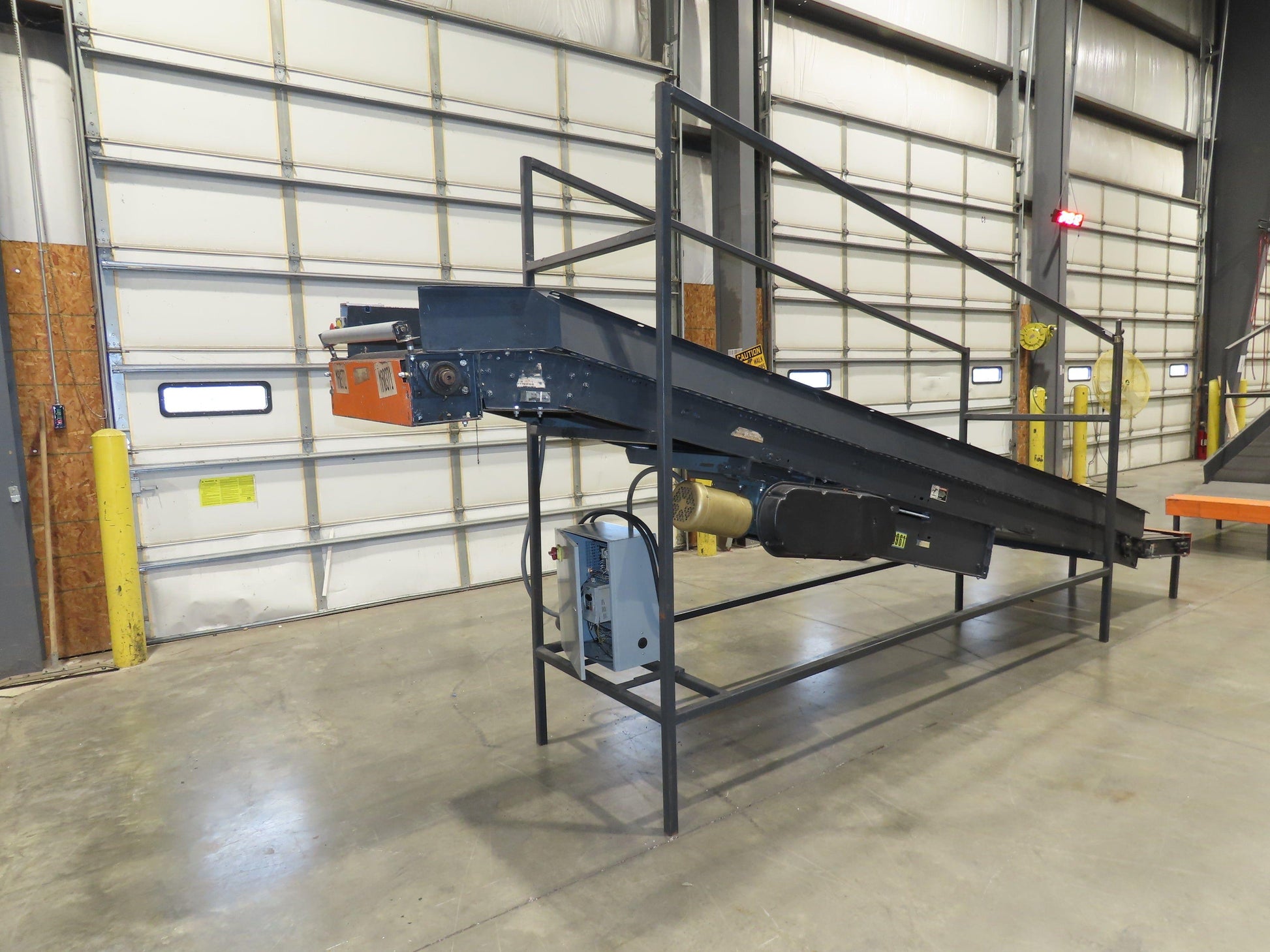

  • Leg support frame is 37" wide x 10' 2" length x 96" height.  The cross bars over the conveyor bed are 21" clearance at the bottom and 17" at the top.
