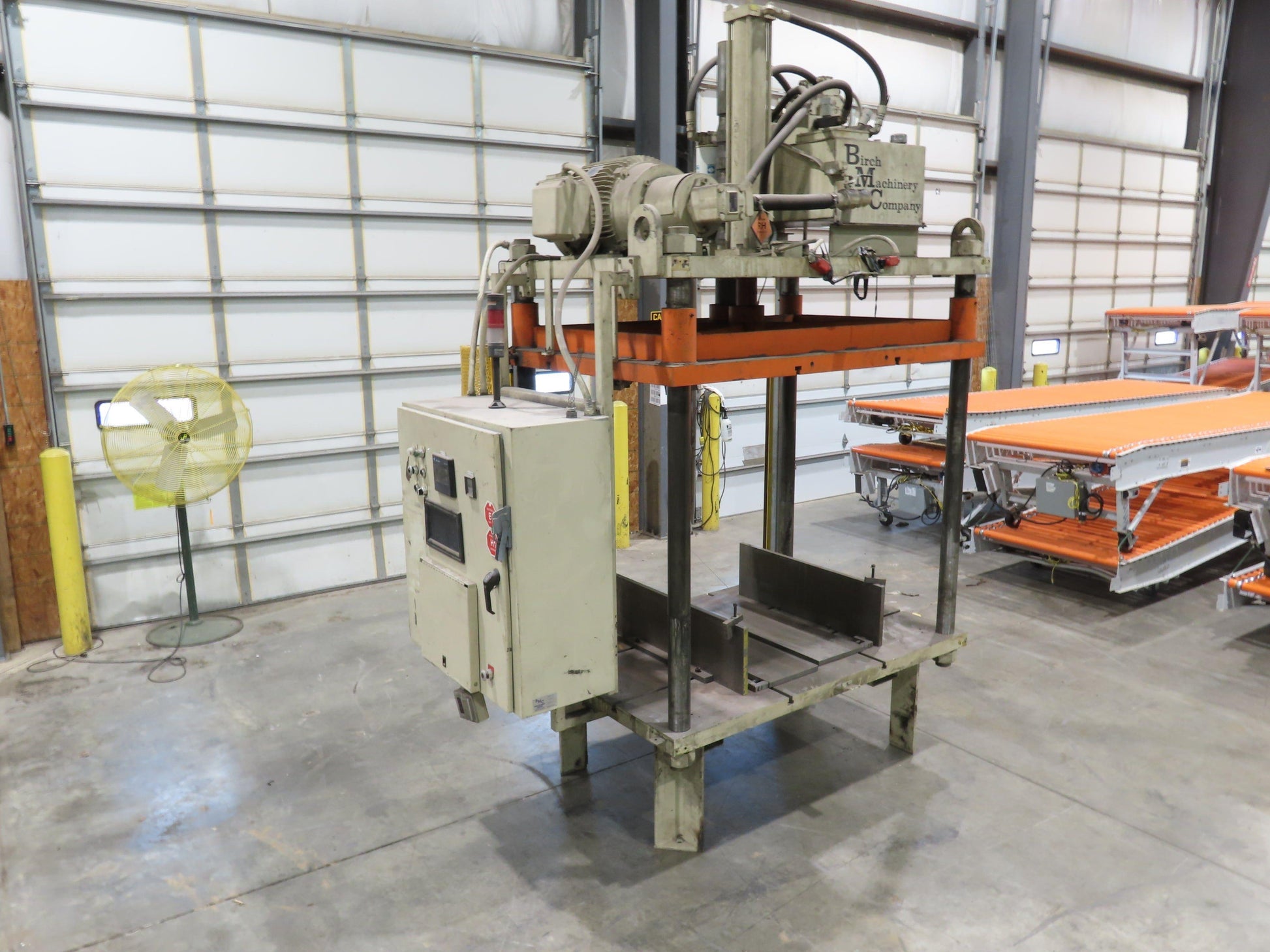

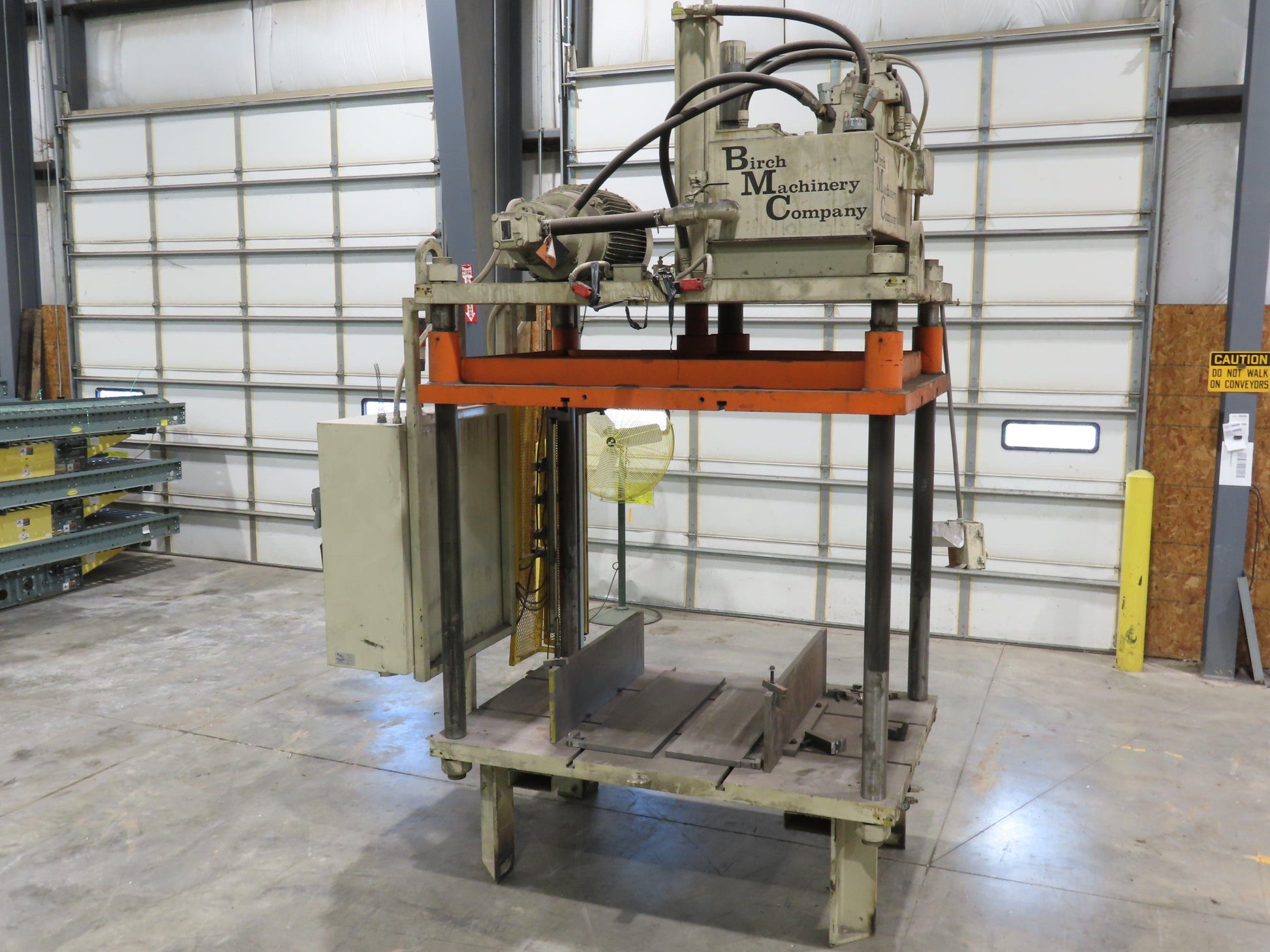

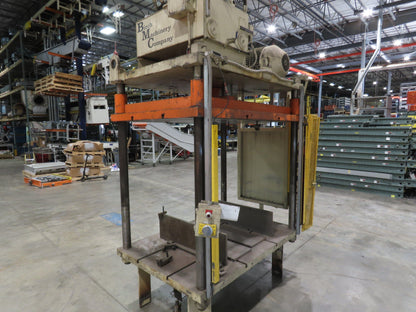

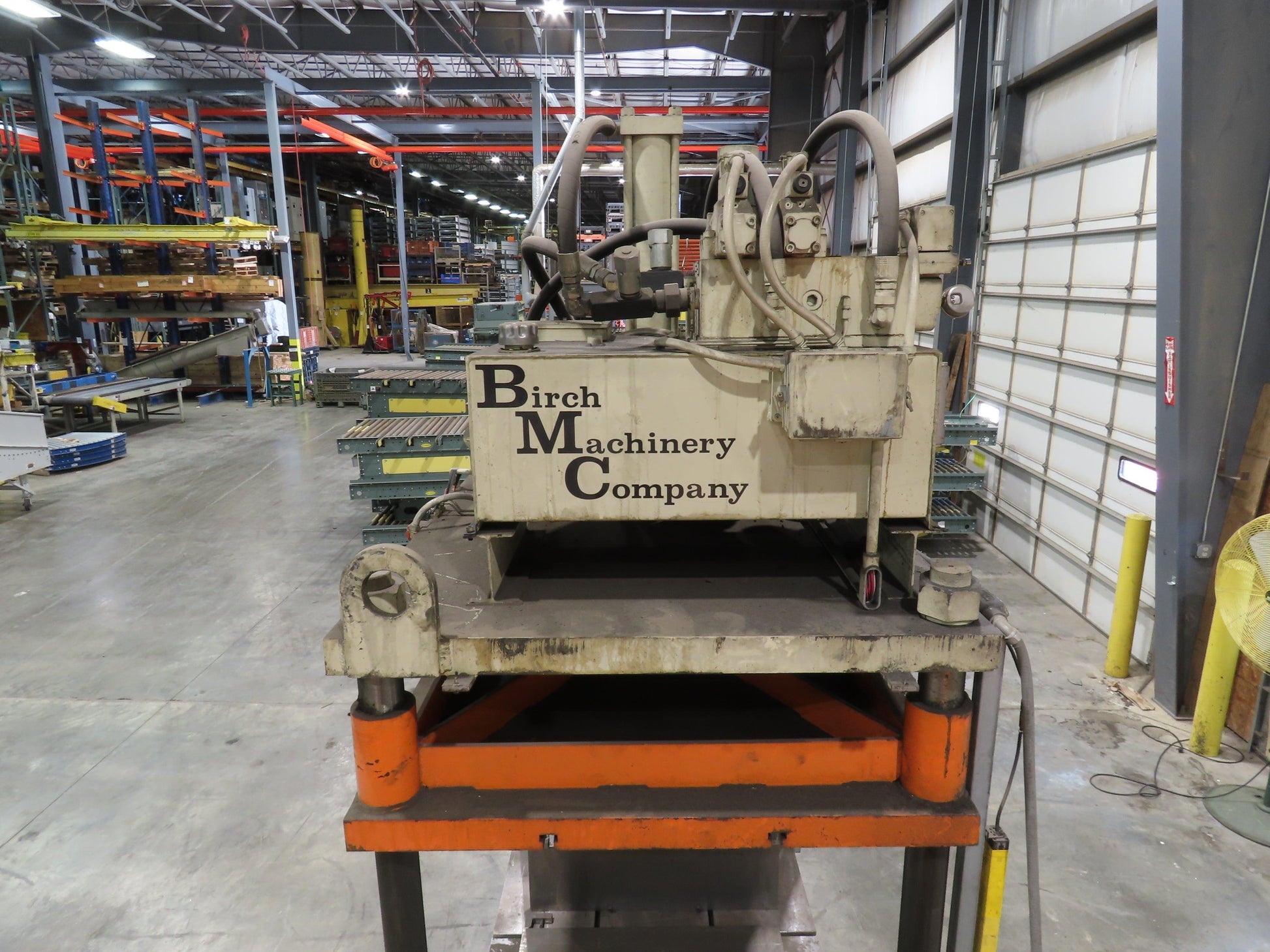

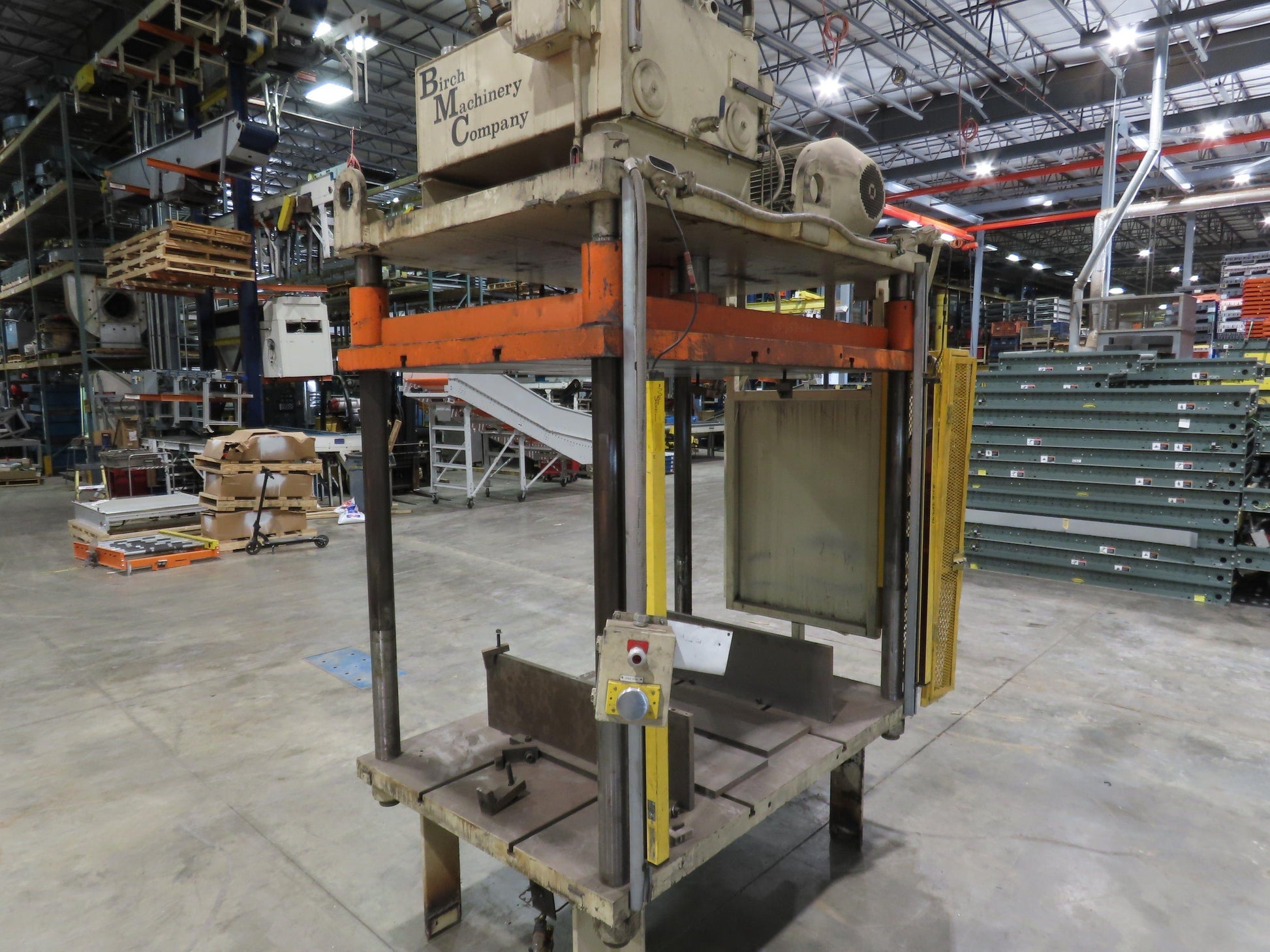

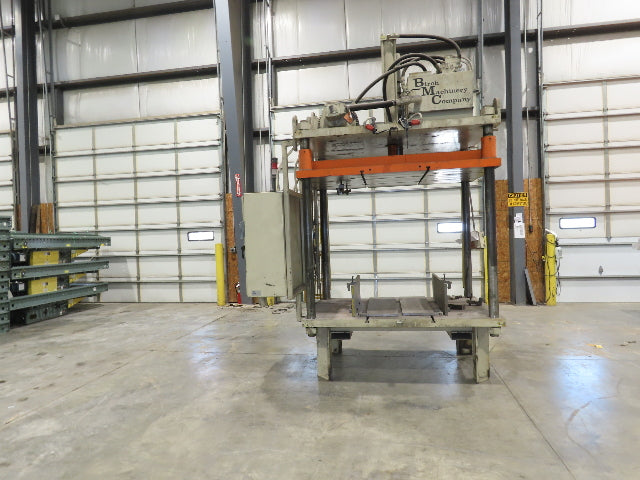

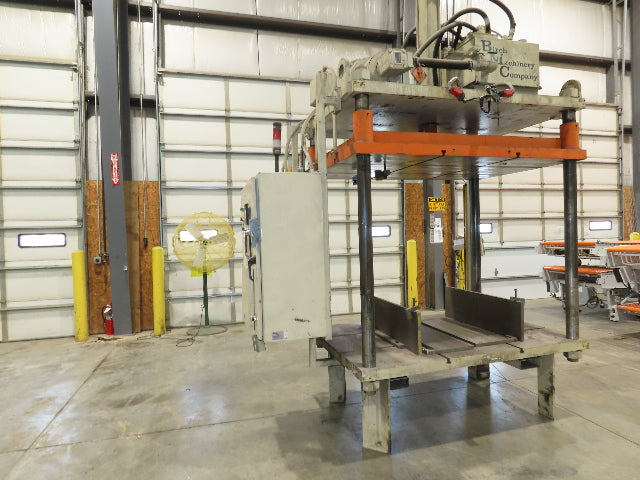

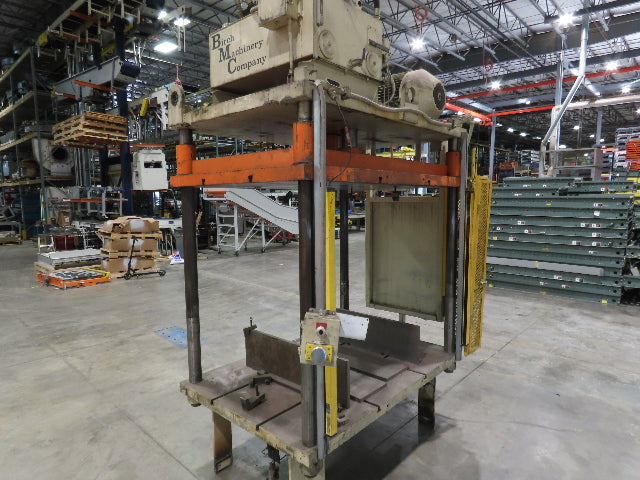

Birch 20 Ton 4-Post Vertical Hydraulic Die Casting Trim Press 25Hp 460V

Birch 20 Ton 4-Post Vertical Hydraulic Die Casting Trim Press 25Hp 460V

SKU #248483

Product Condition: Used

Your Price
$12,159.99
$15,999.99 $12,159.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Trim press in good working condition.  Tested in our shop.

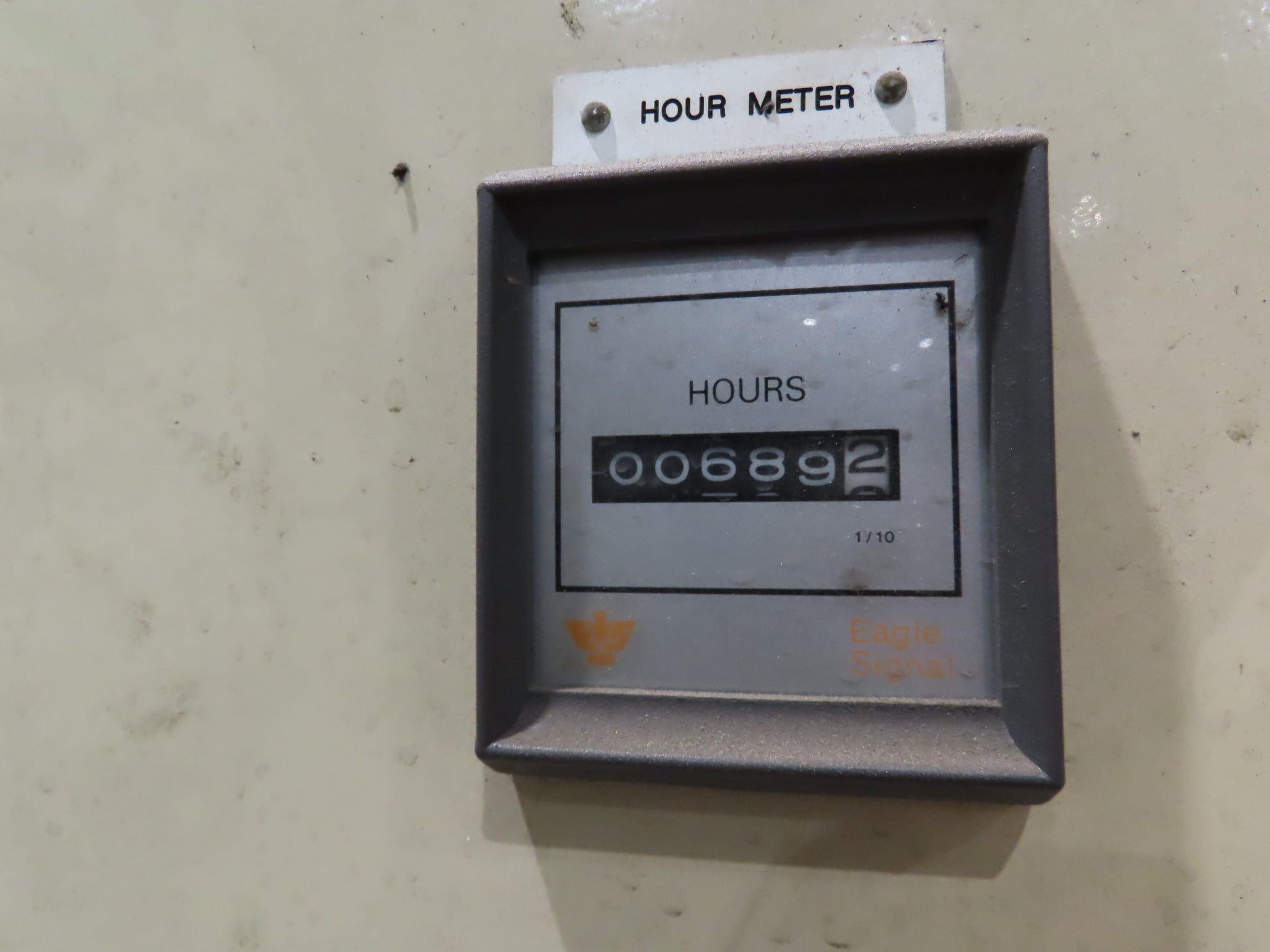

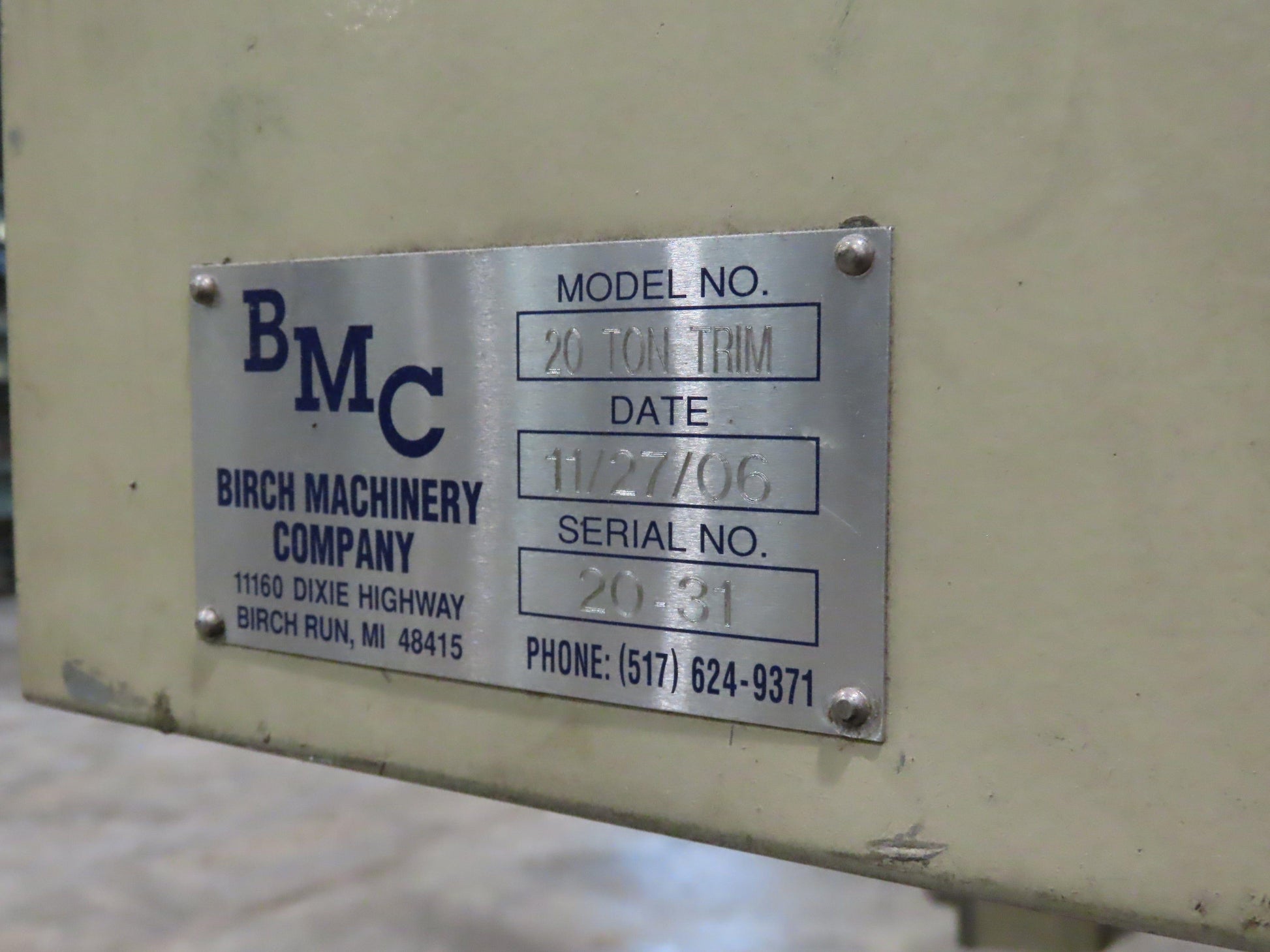

  • Mfg Date:  2006.  689 Hrs on hourmeter.
  • 20-ton capacity.
  • 36" stroke length.

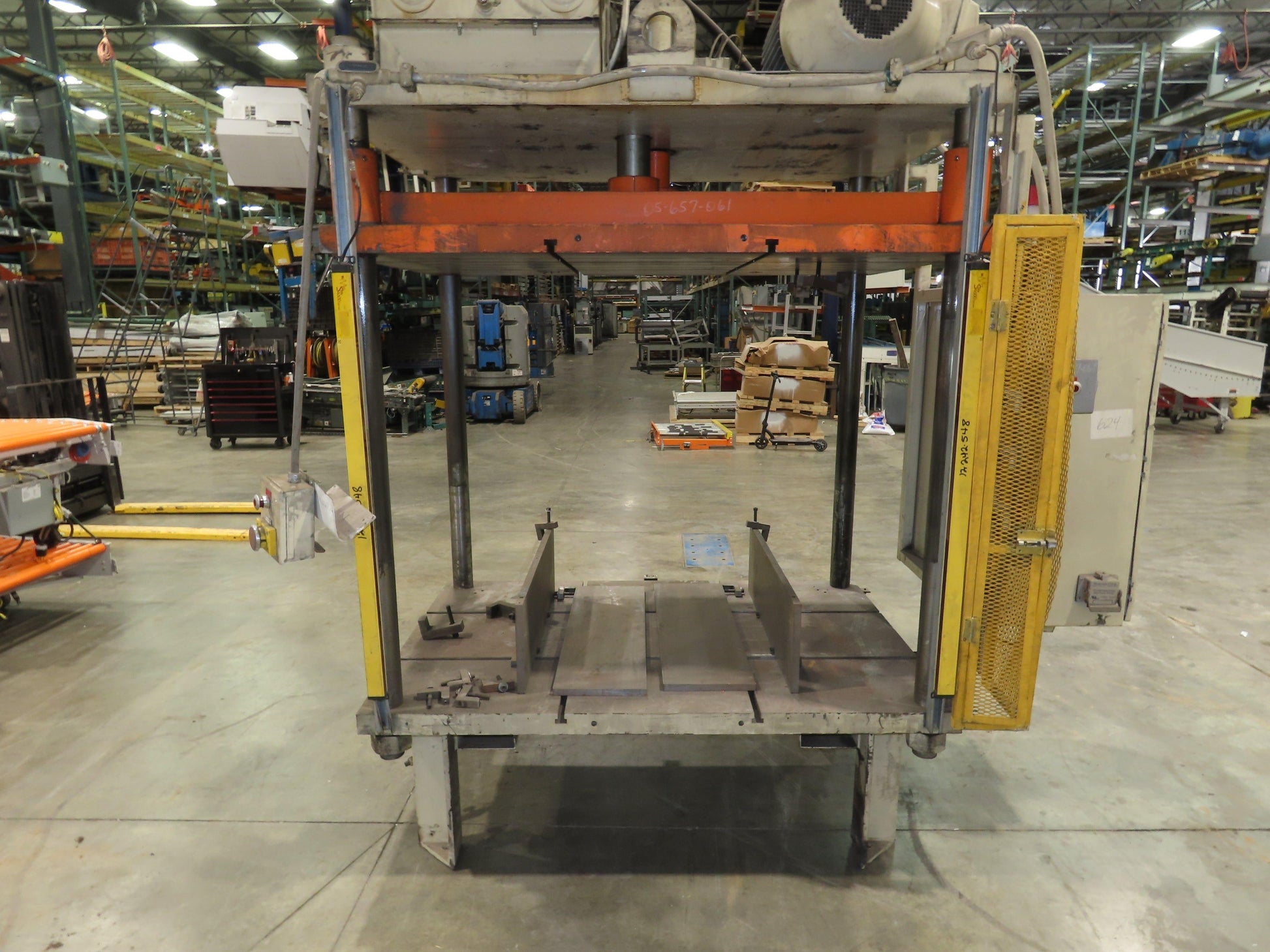

  • Distance Between Tie Bar Posts: 64" x 41"

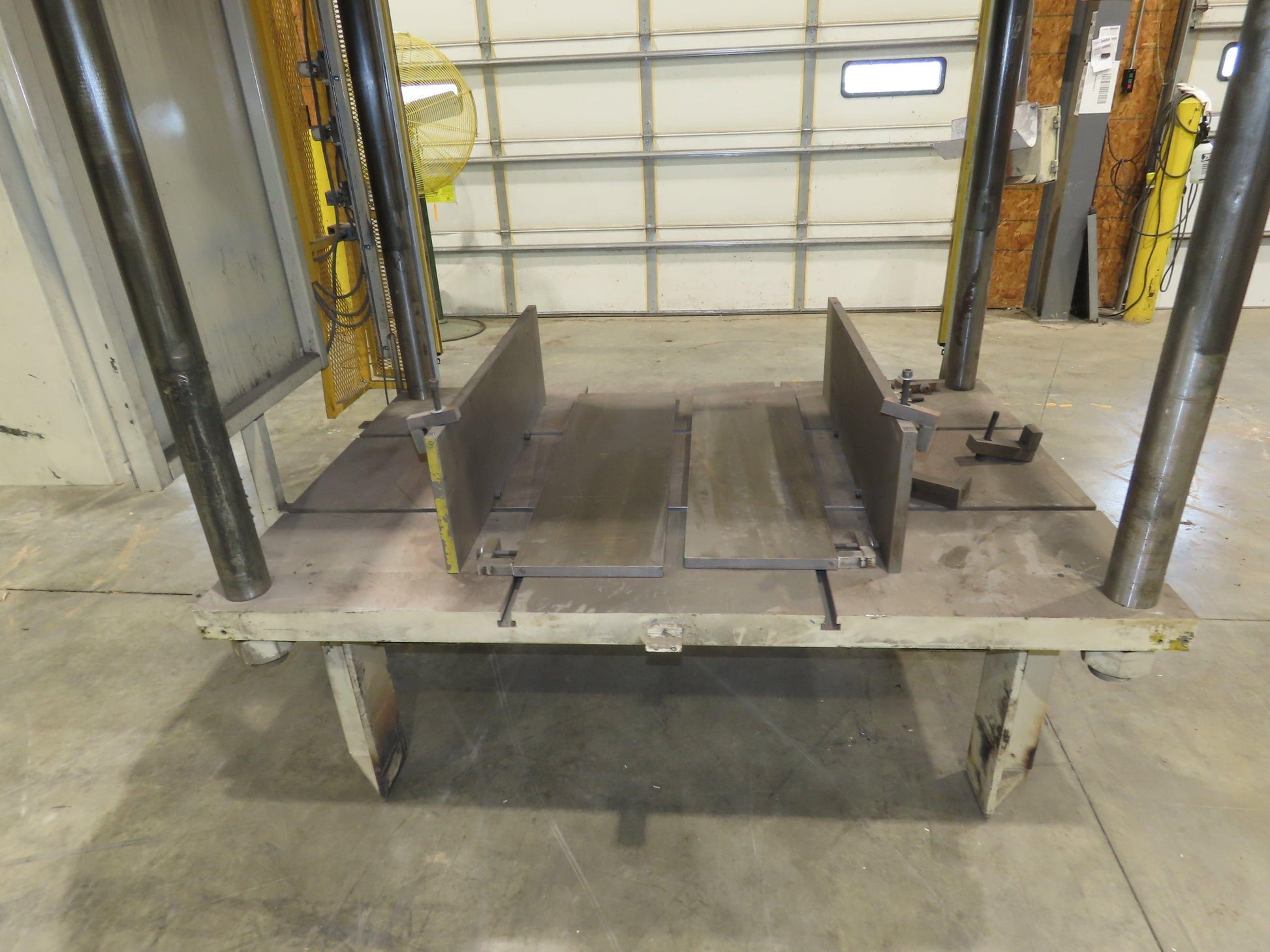

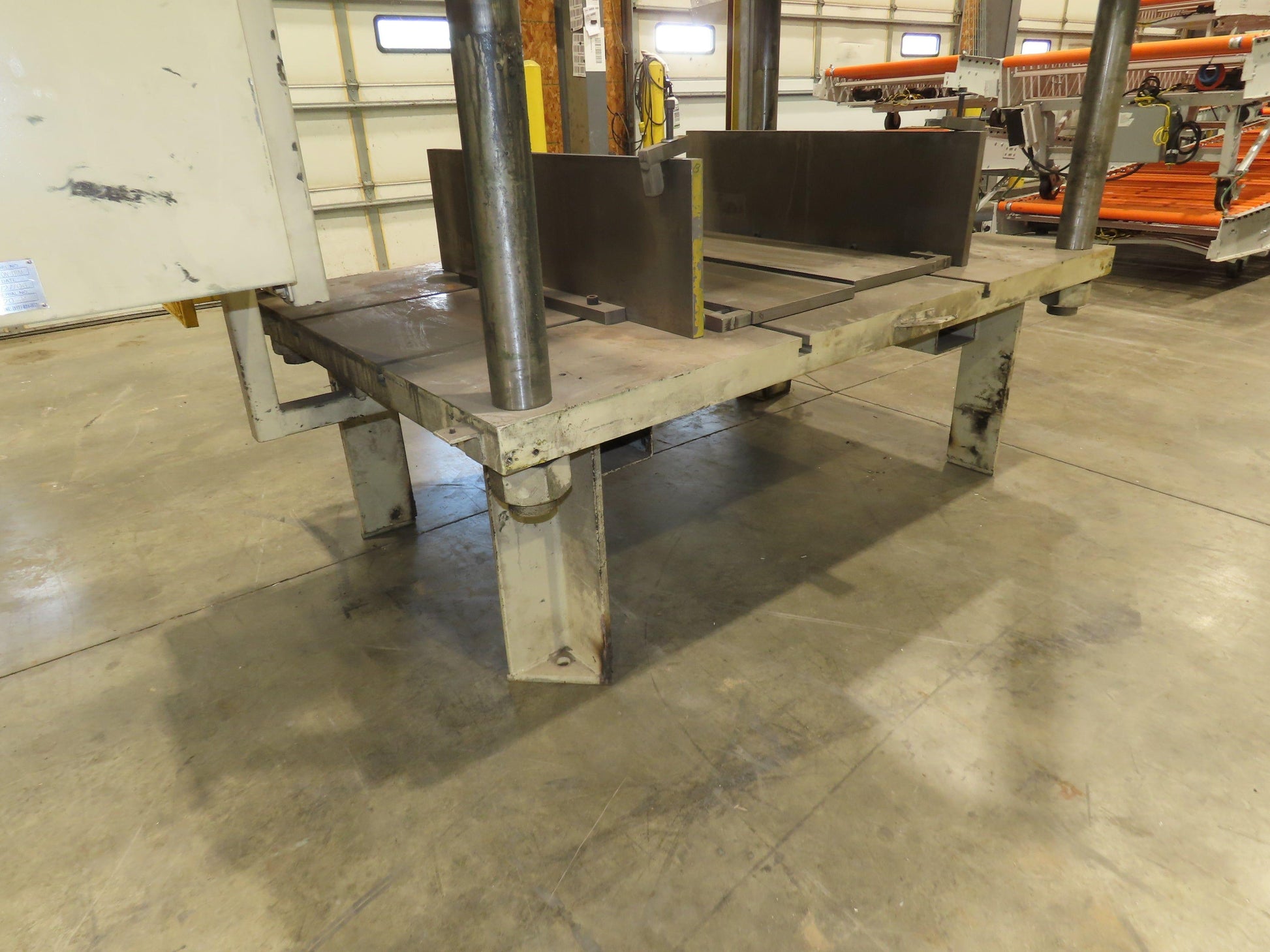

  • Table Dimensions: 74" x 50"
  • Table Height: 25-1/2"
  • Max Height Under Press Plate: 55"
  • Post Size: 3-1/2" Dia.

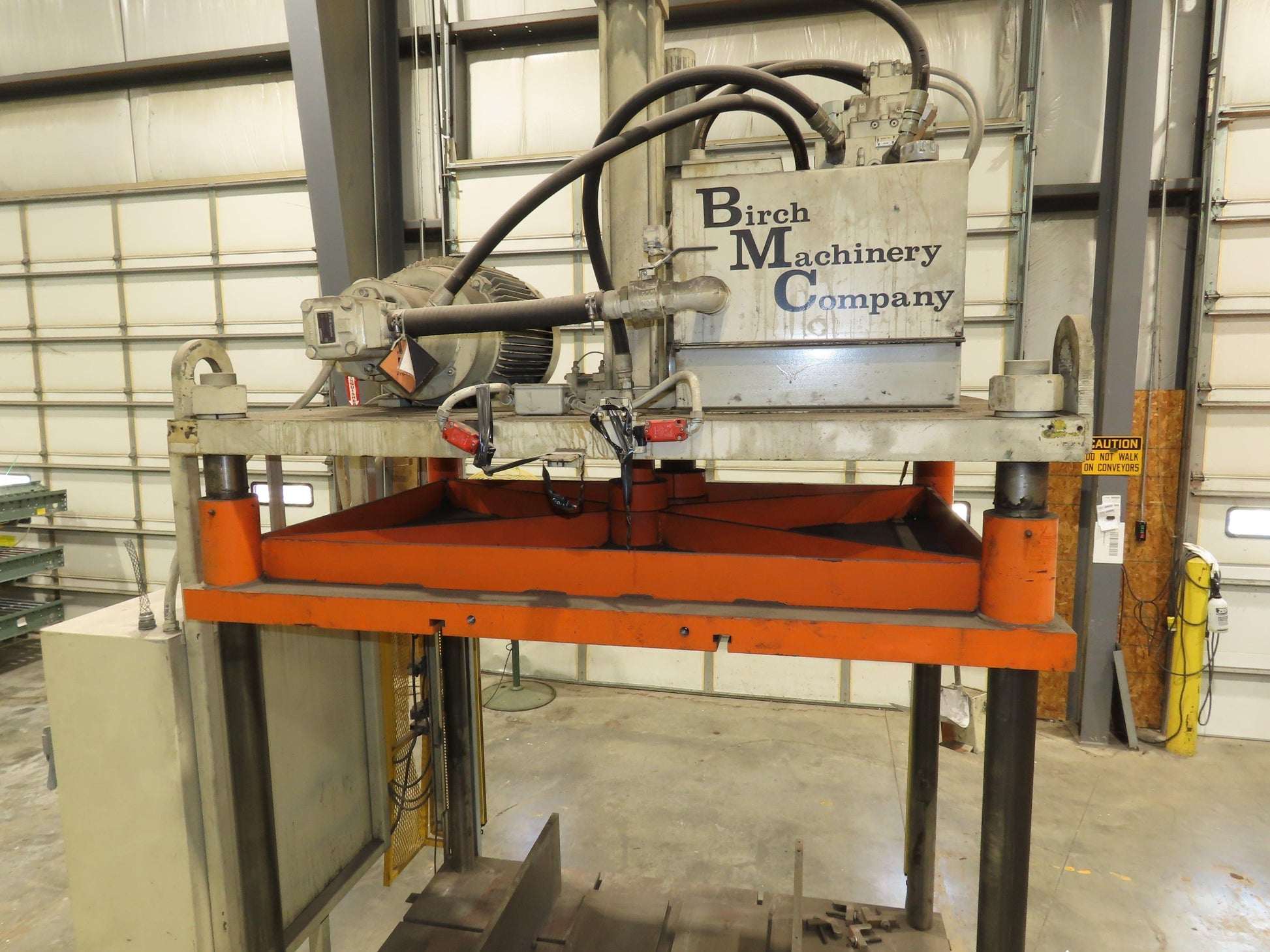

  • Cylinder Size:  5" Bore x 36" Stroke.

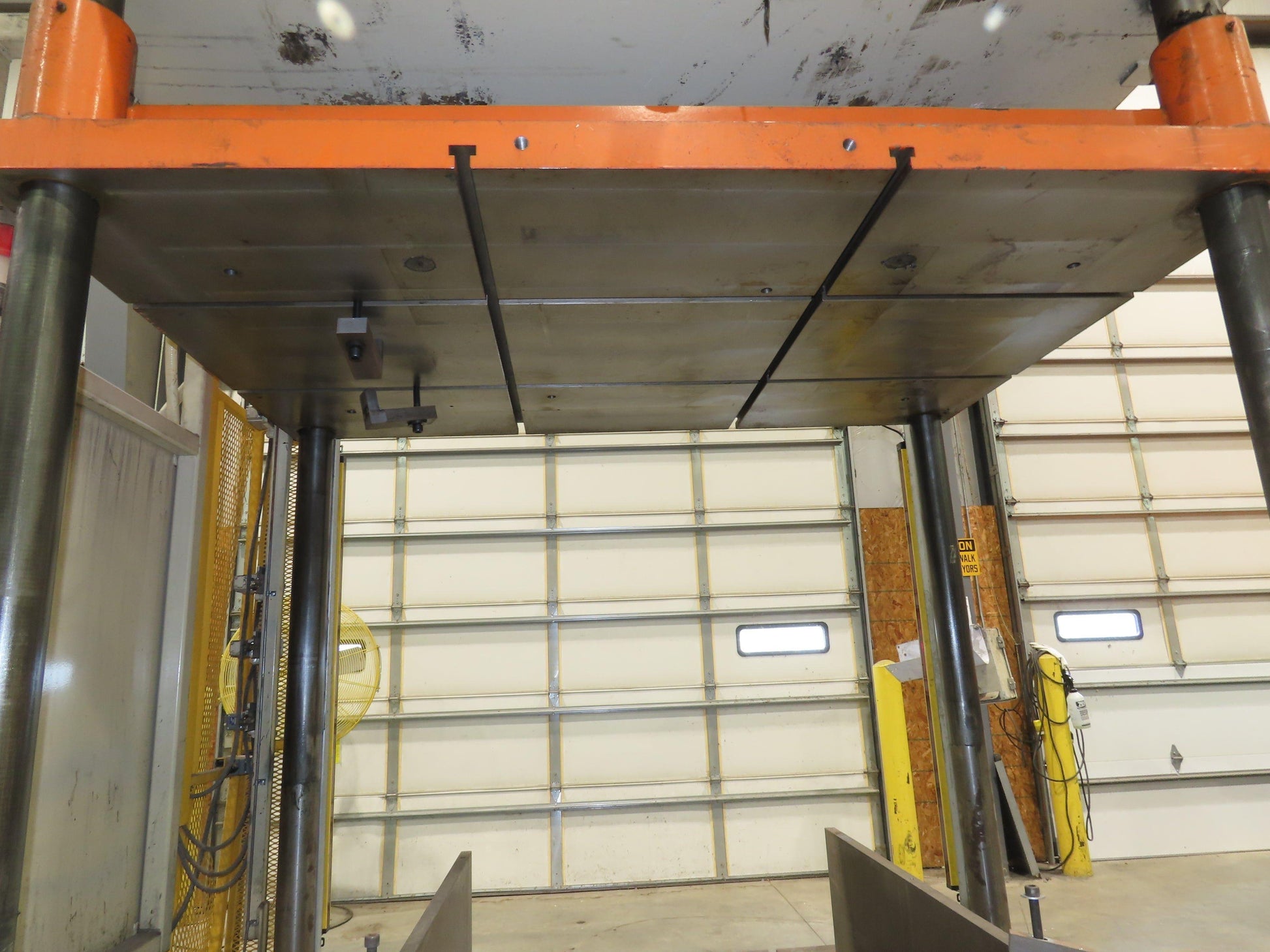

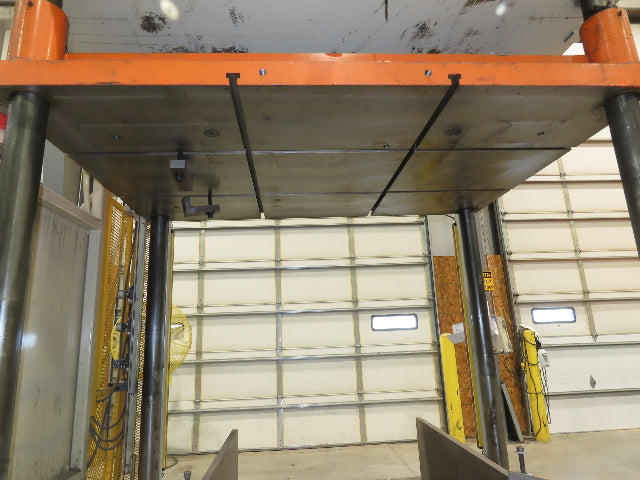

  • Press plate and table thickness is 2-7/8"

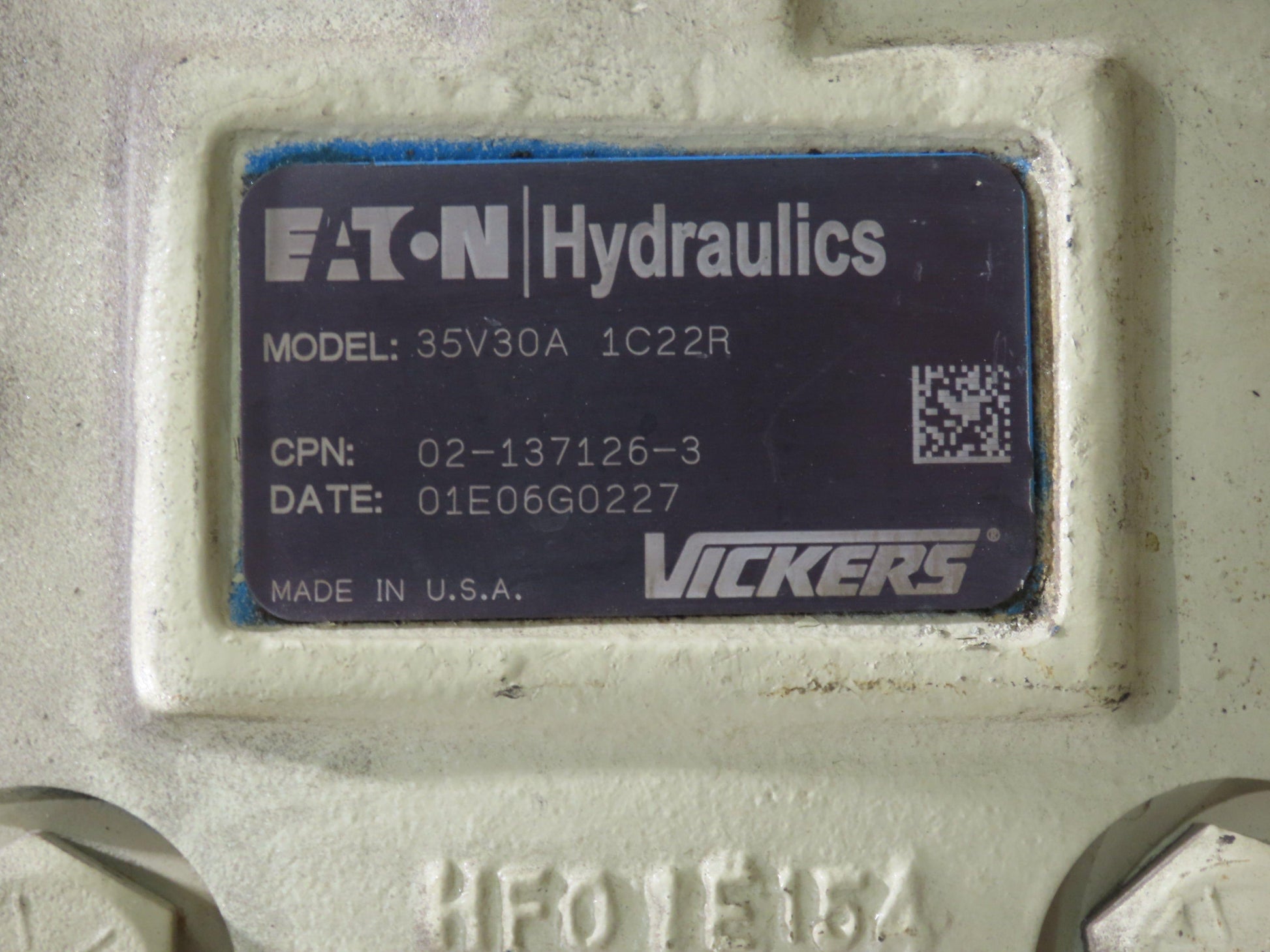

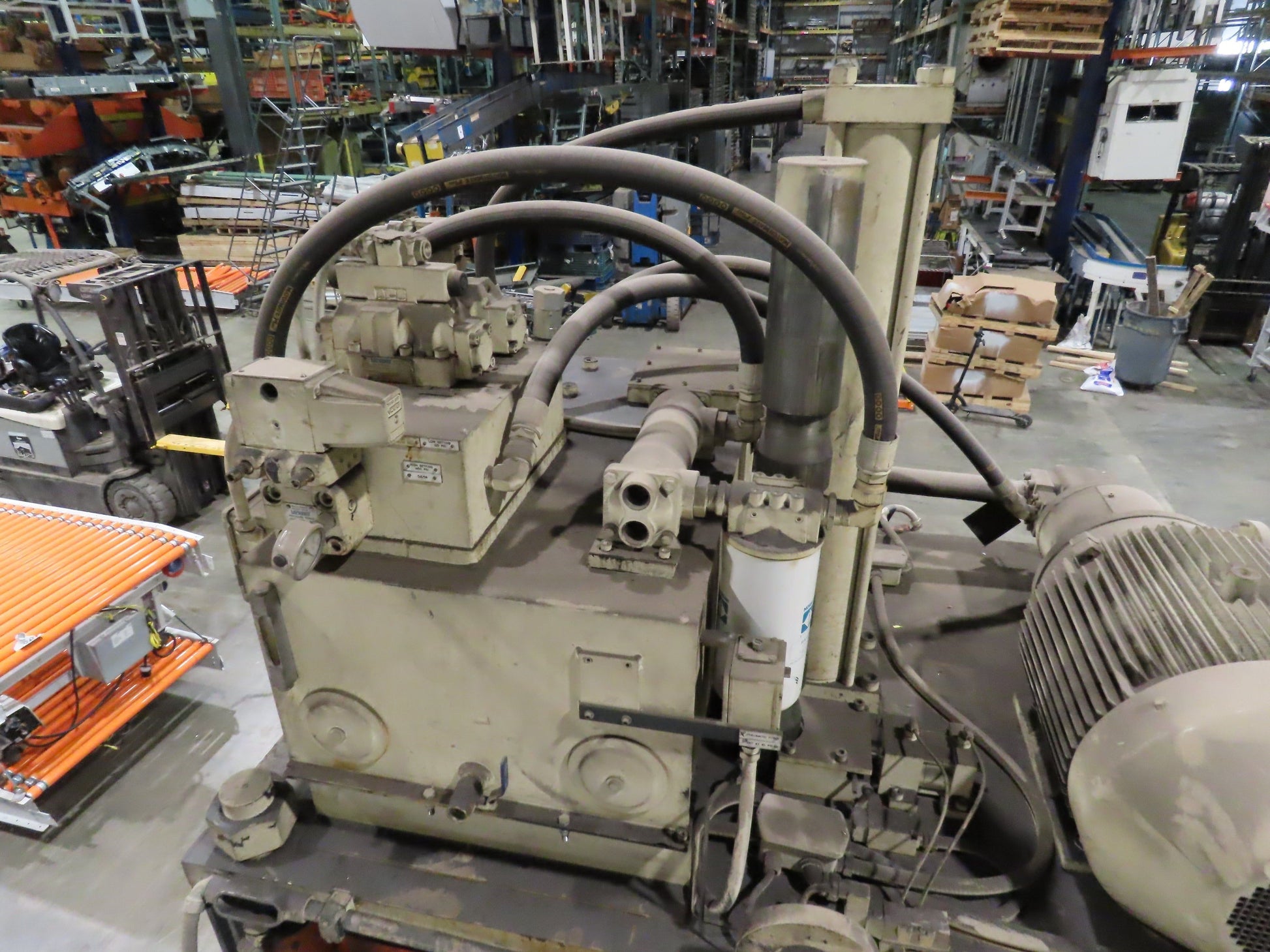

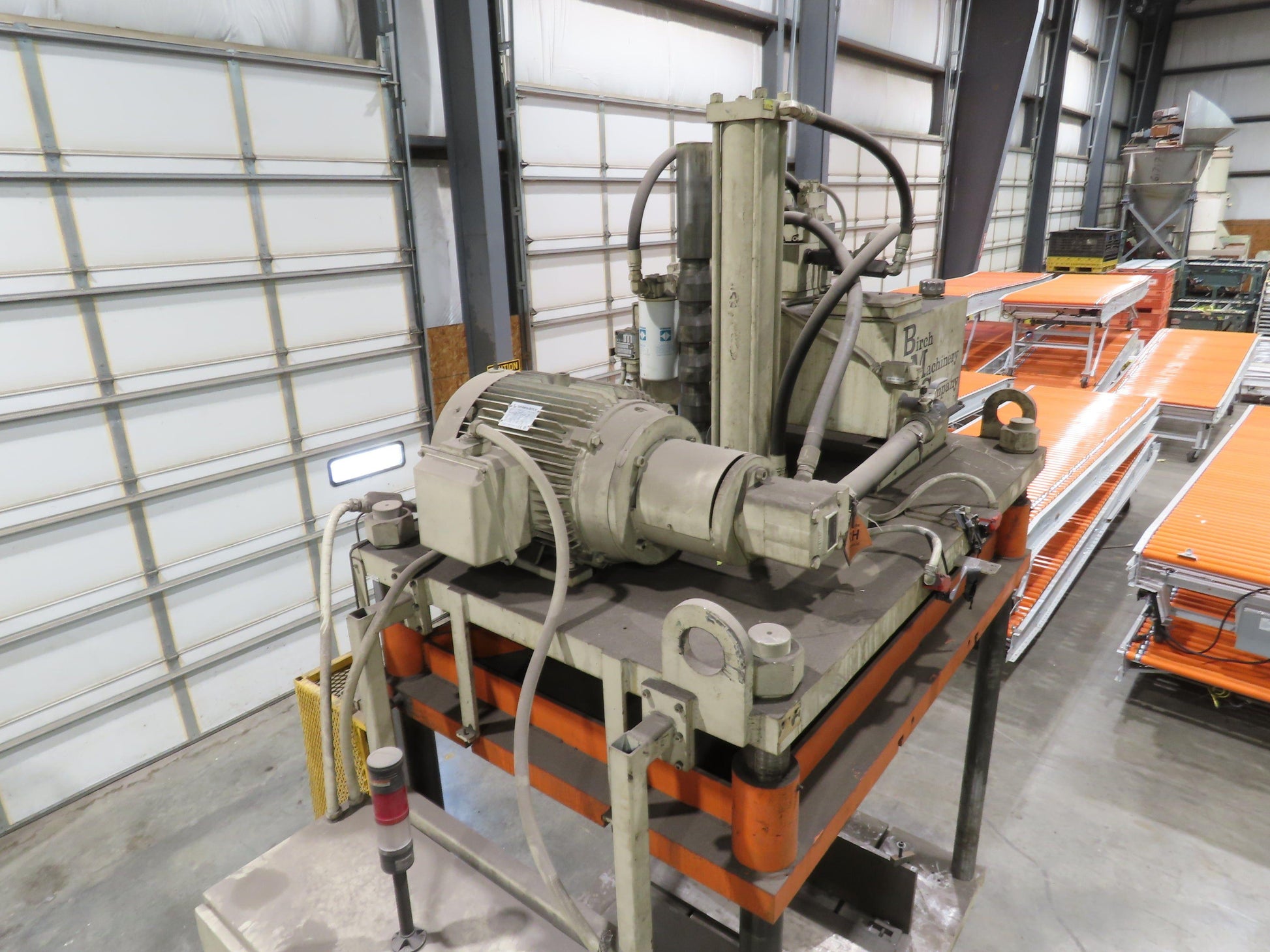

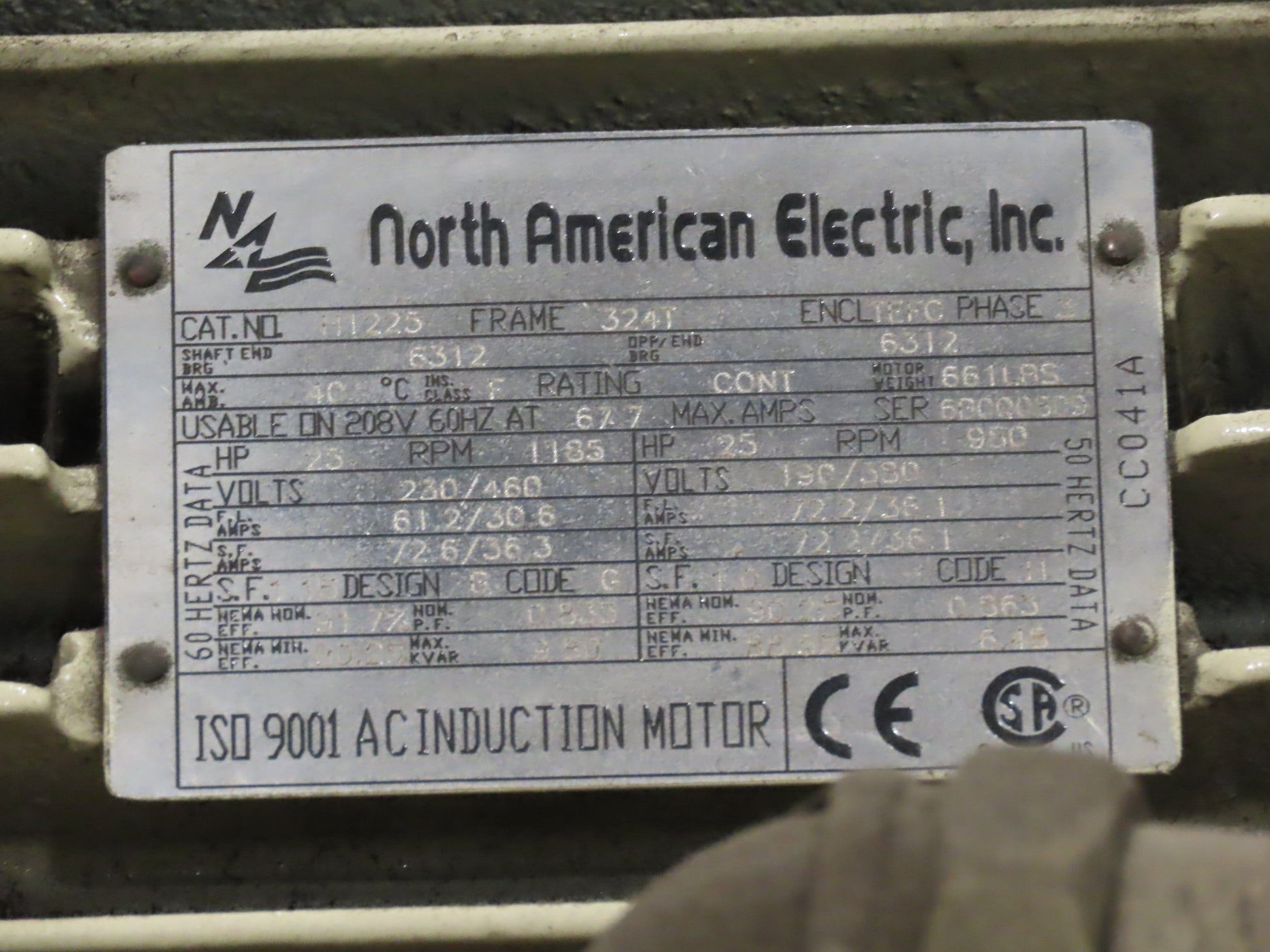

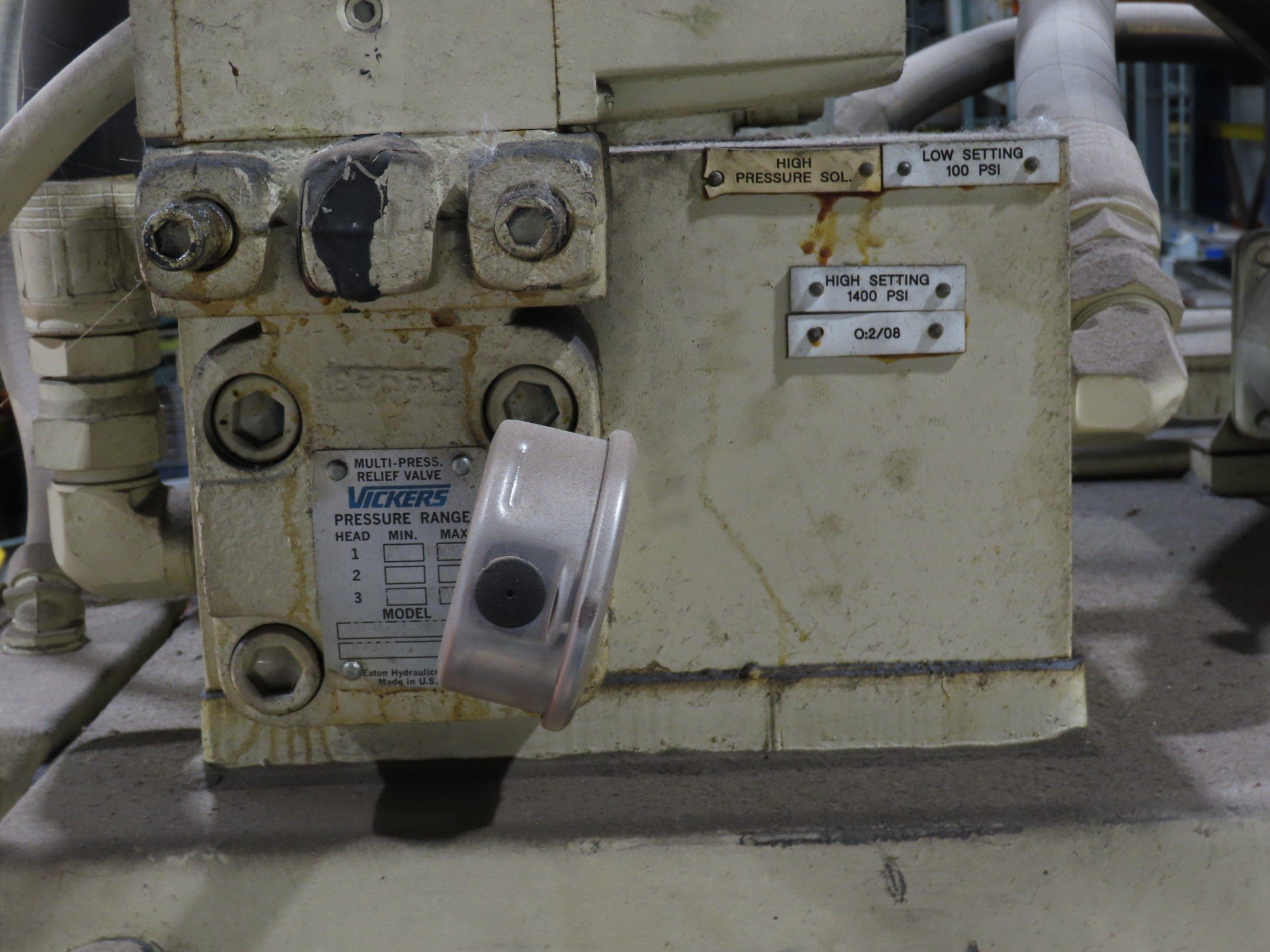

  • Power Unit Motor:  25Hp 230/460V 3PH. With Vickers pump 35V30A-1C22R.

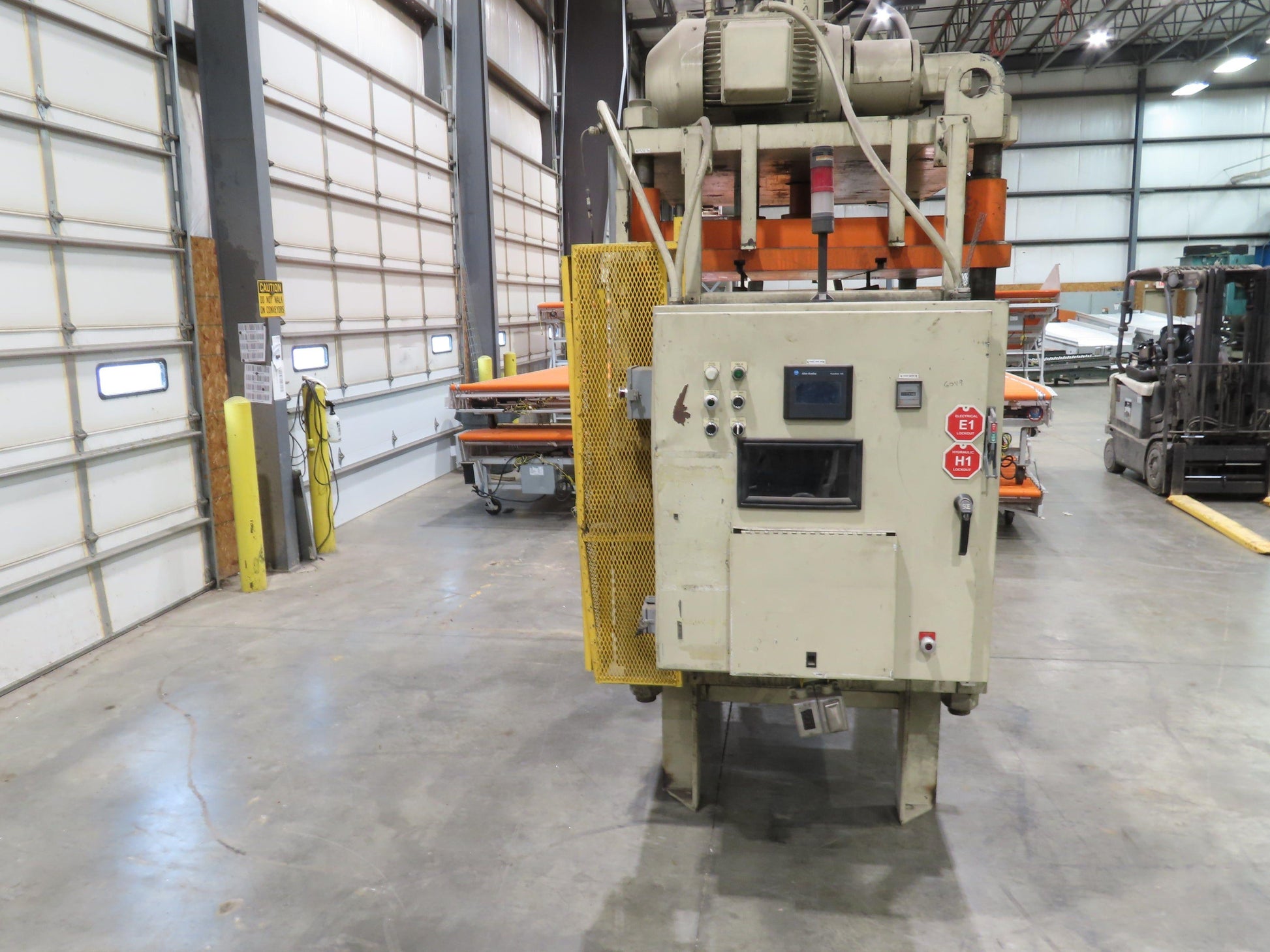

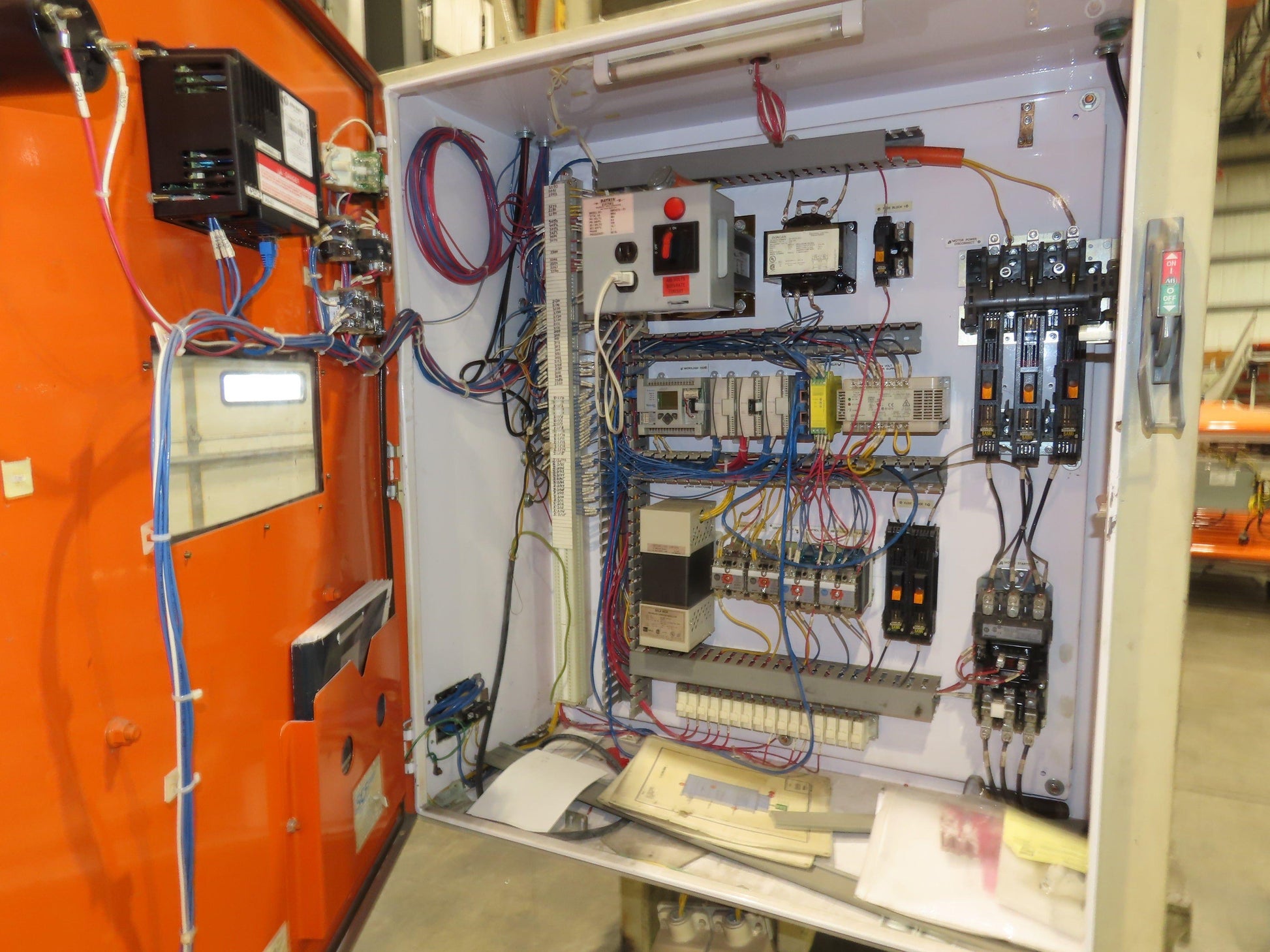

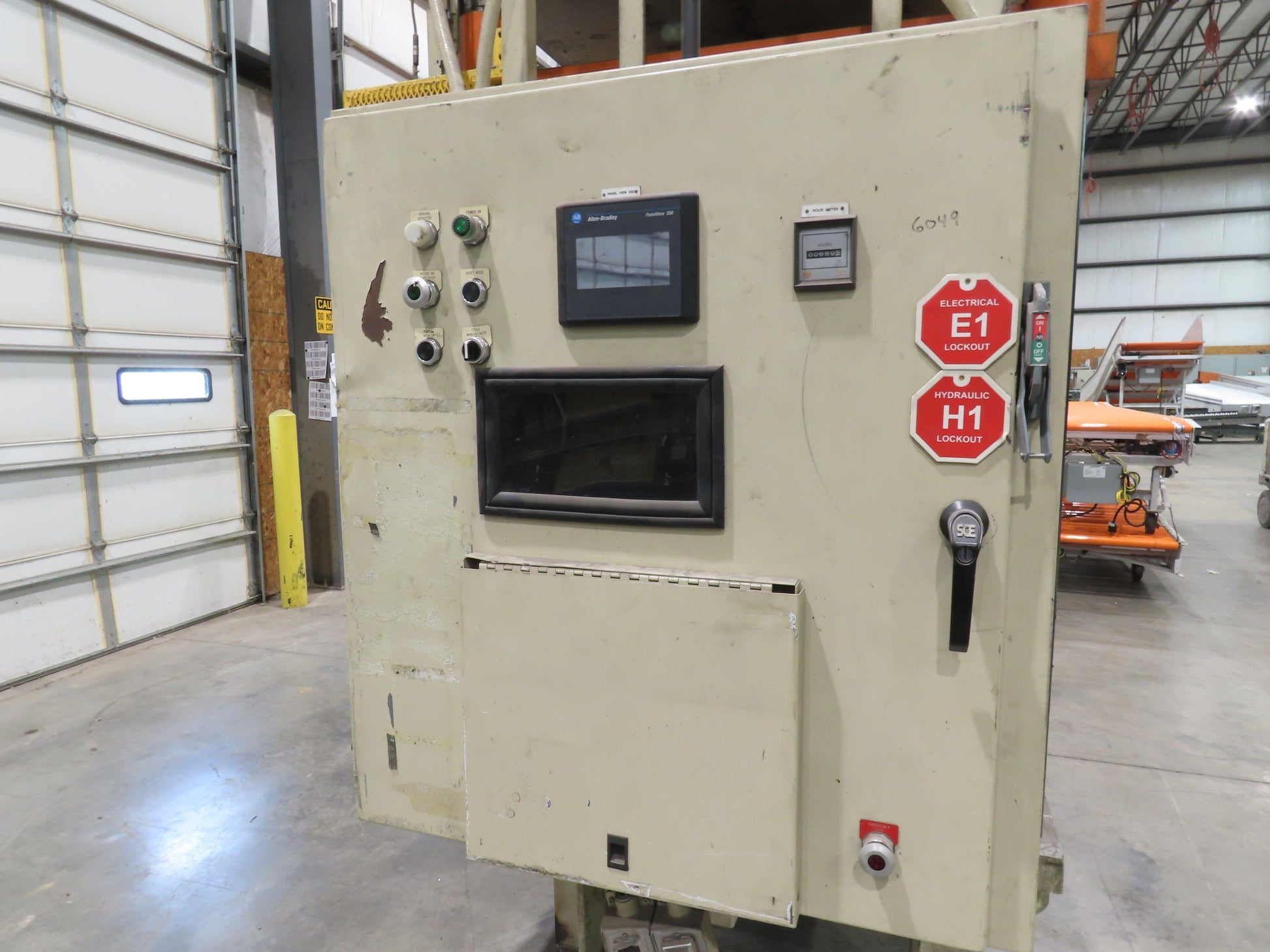

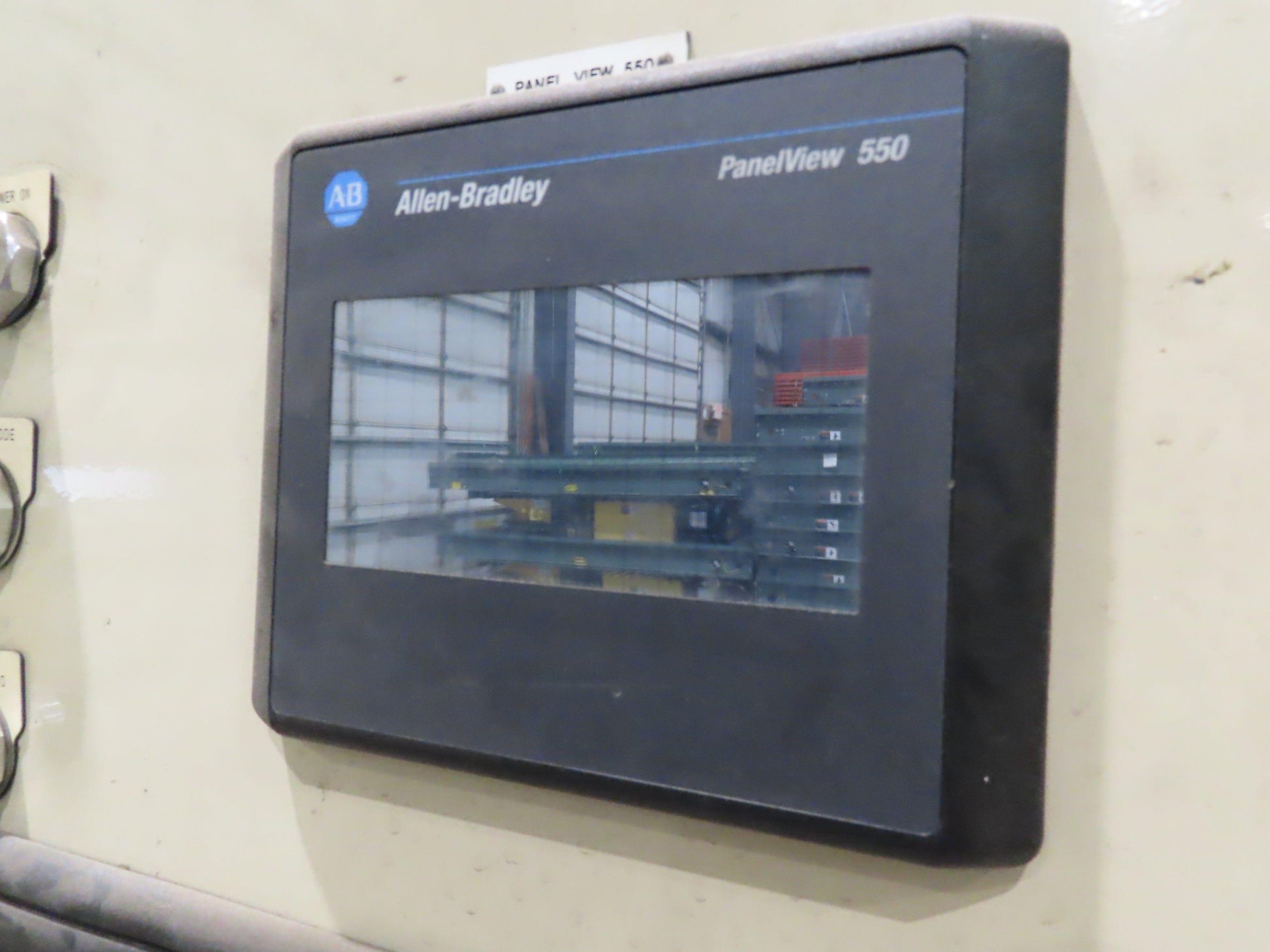

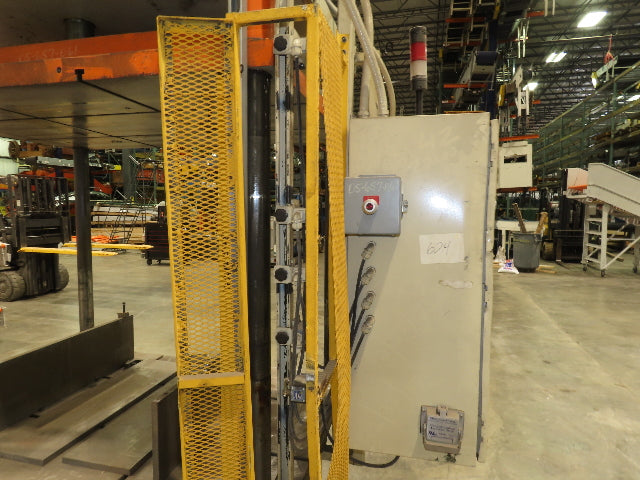

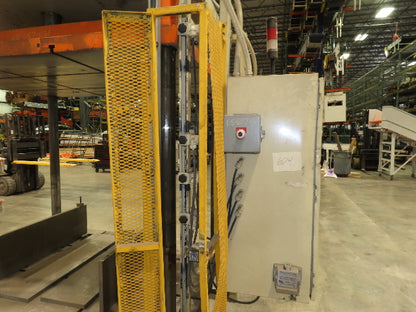

  • Press is set up with 4 limit switch stops.  Panelview 550 touchscreen control panel.
  • Overall Dimensions: 102"L x 60"D x 141" Clearance Height.
  • Approximate weight:  9000 - 10,000 Lbs,

Video


Condition: Used
