Brehob 2 Ton Free Standing Bridge Crane 10' Span 38' 4" Runway 11' 6"HUB

Brehob 2 Ton Free Standing Bridge Crane 10' Span 38' 4" Runway 11' 6"HUB

SKU #312540

Product Condition: Used

Your Price
$17,099.99
$17,099.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Bridge crane in working condition, removed from a working environment.

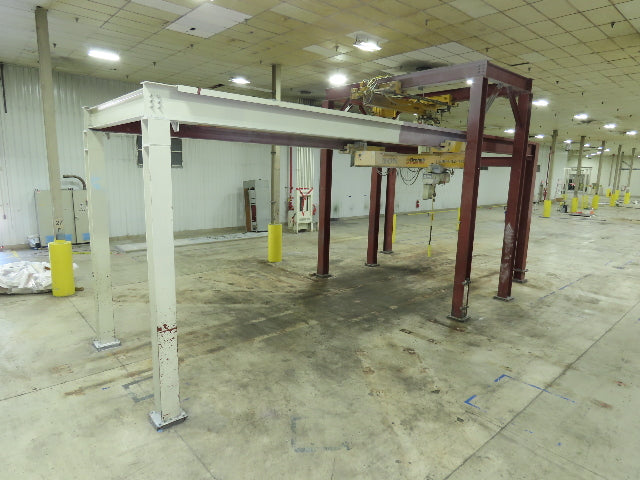

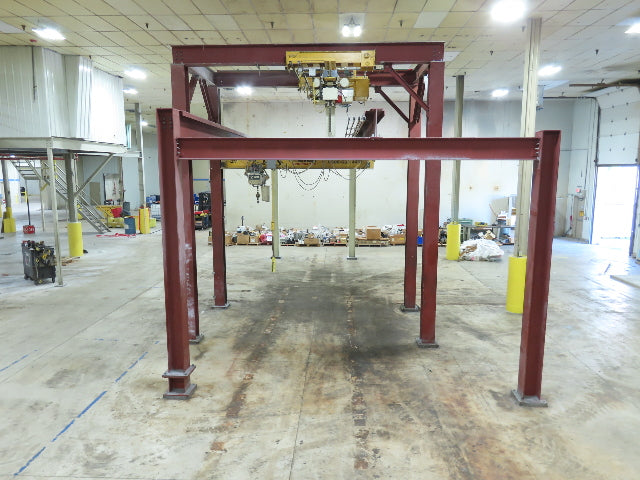

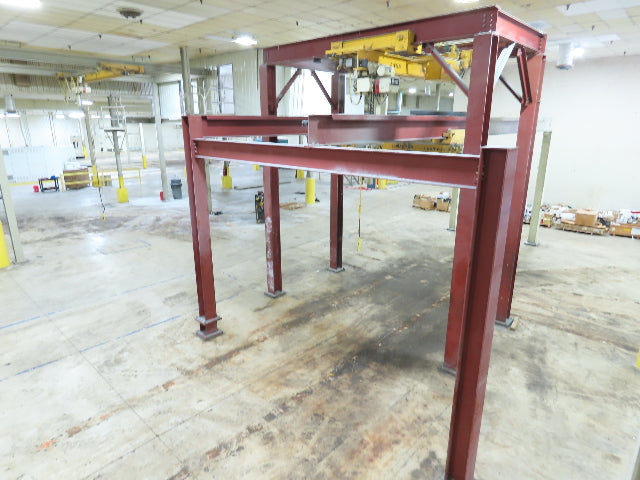

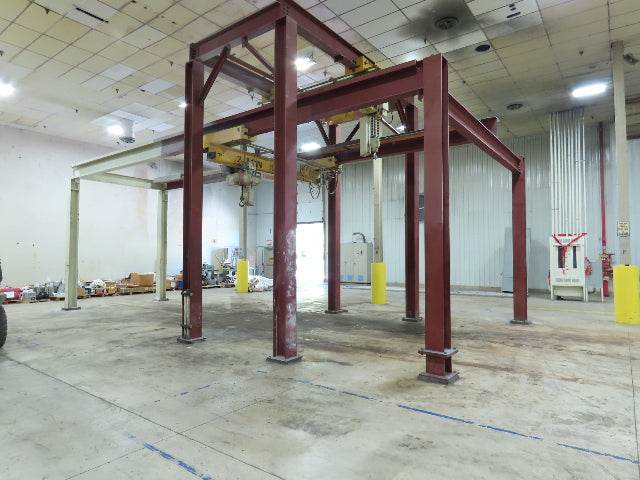

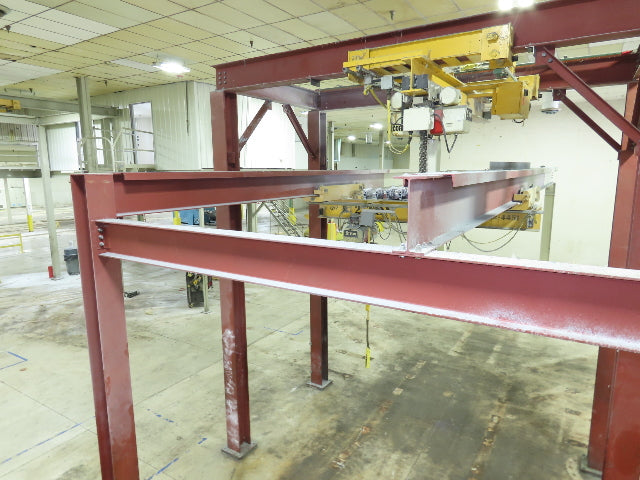

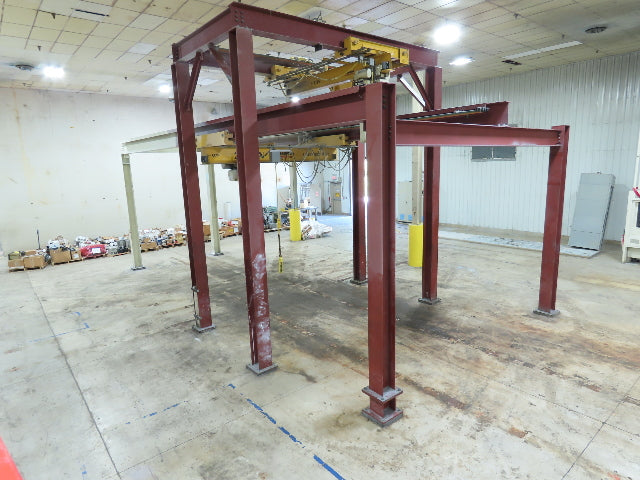

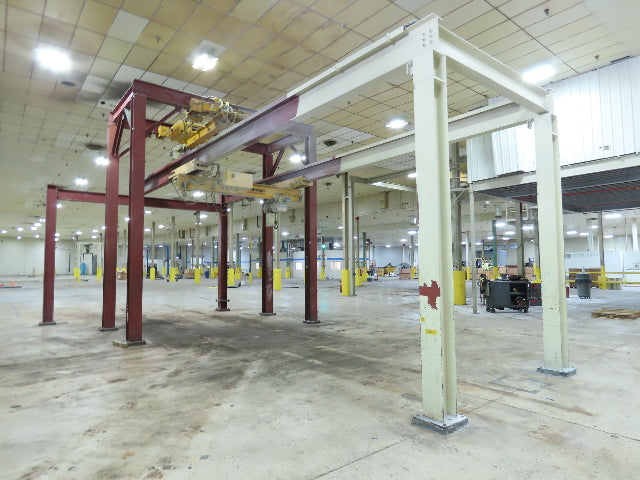

  • 4 Post crane system with Coffing hoist.  Has a wider cross beam at one end. This crane had another one installed over the top as seen in photos.

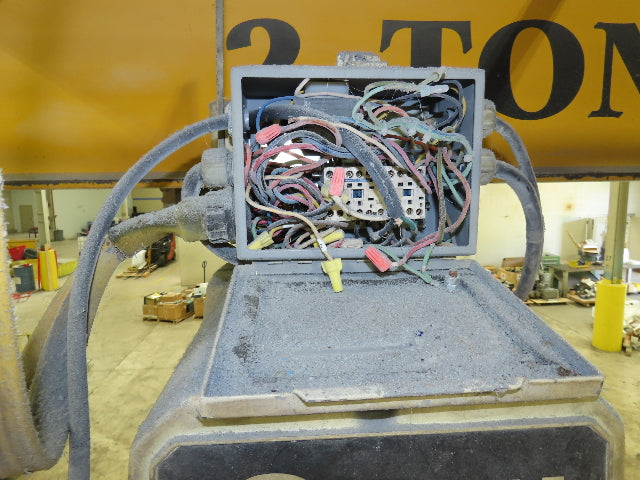

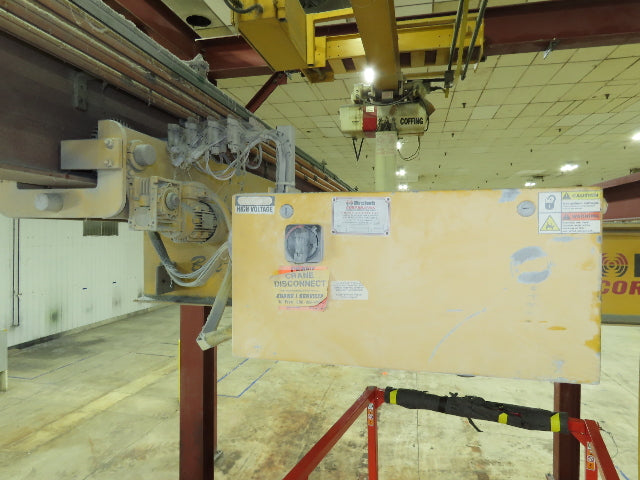

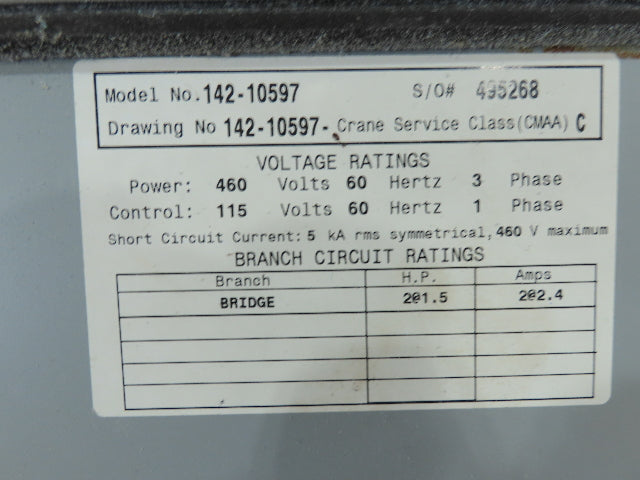

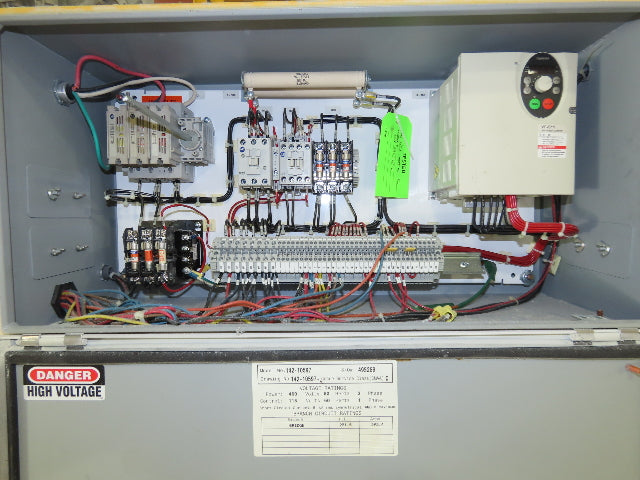

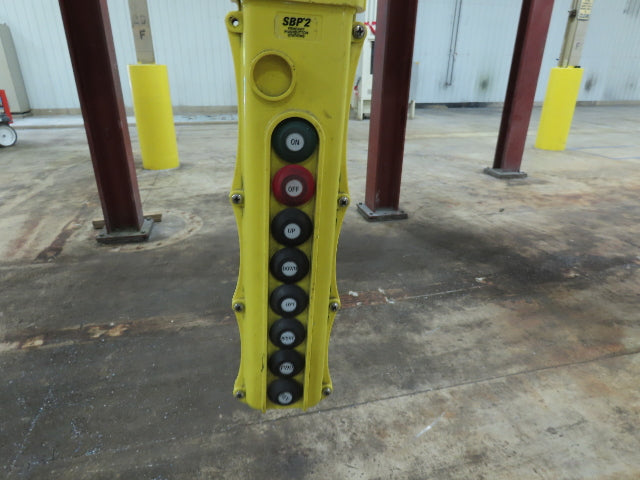

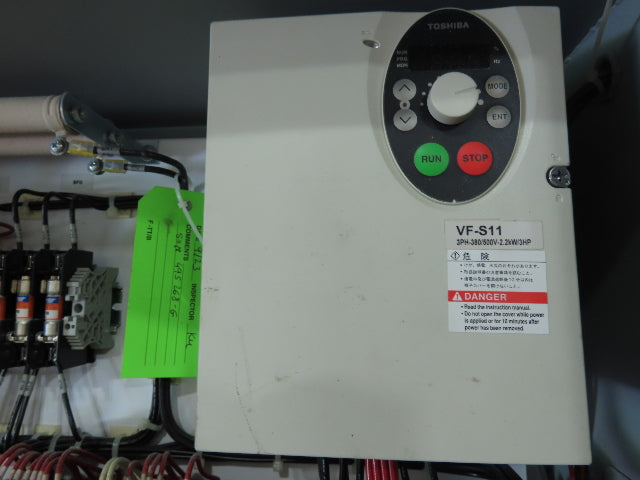

  • Controls:  2-Speed corded pendant with VFD in control panel 460V 3PH.

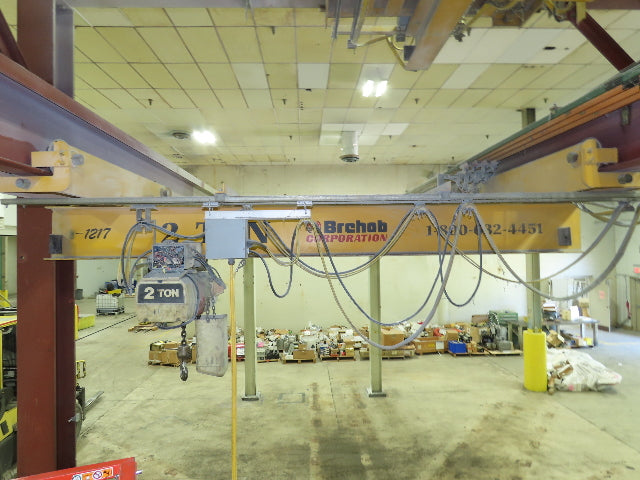

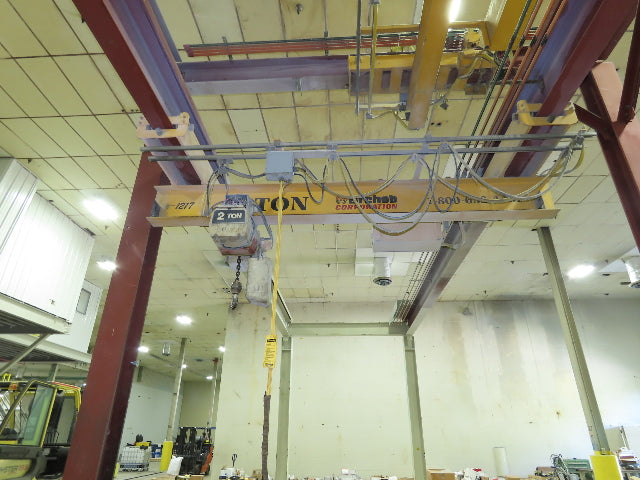

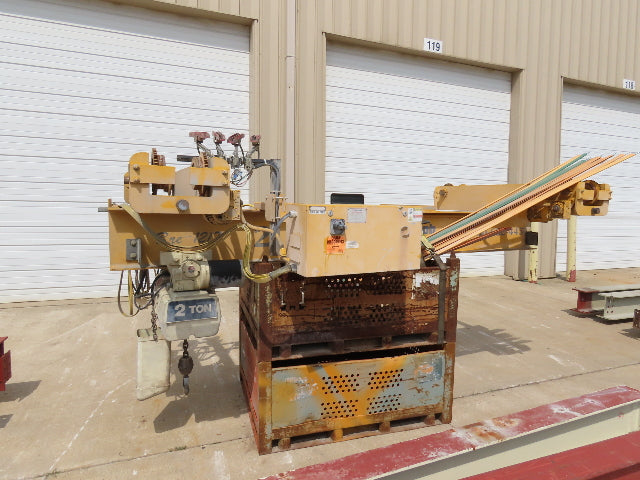

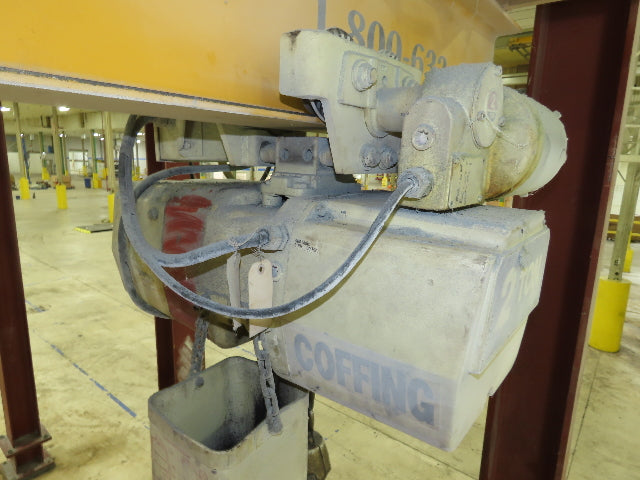

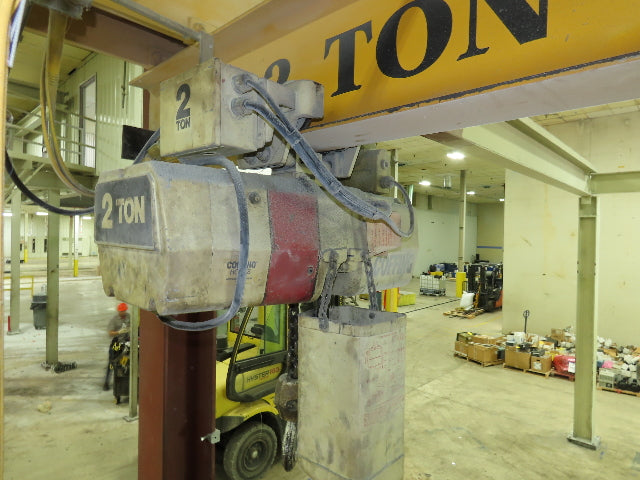

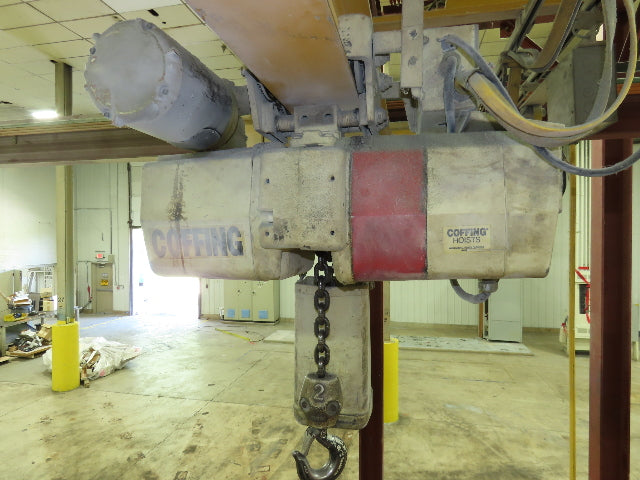

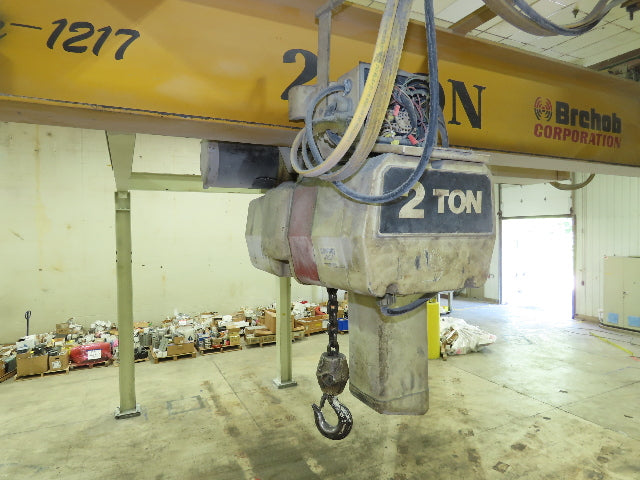

  • Hoist:  Coffing 2 Ton 1/2Hp 230/460V 3PH Motor

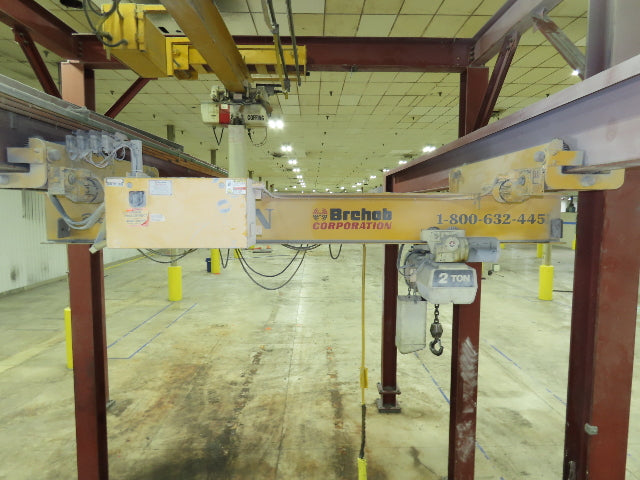

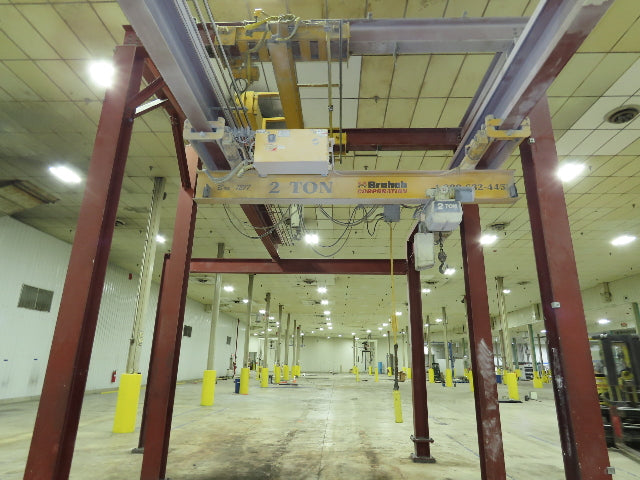

  • Bridge Type:  Brehob Underhung
  • Bridge Capacity:  2 Ton
  • Bridge Span:  10'  (Center distance of runways)

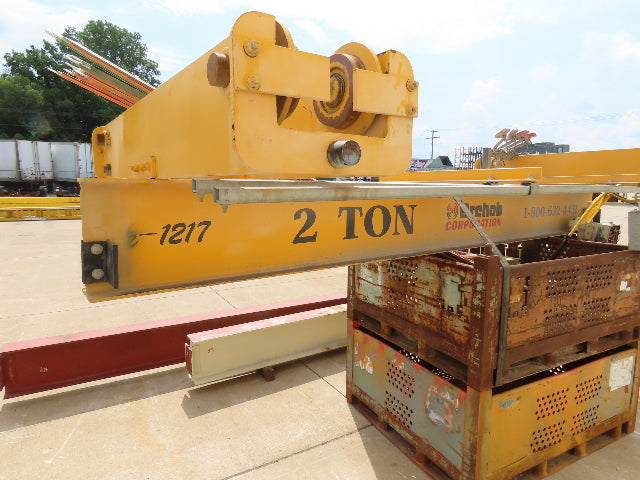

  • Bridge Beam:  6-3/4"W x 14"H x 12' 2" Length

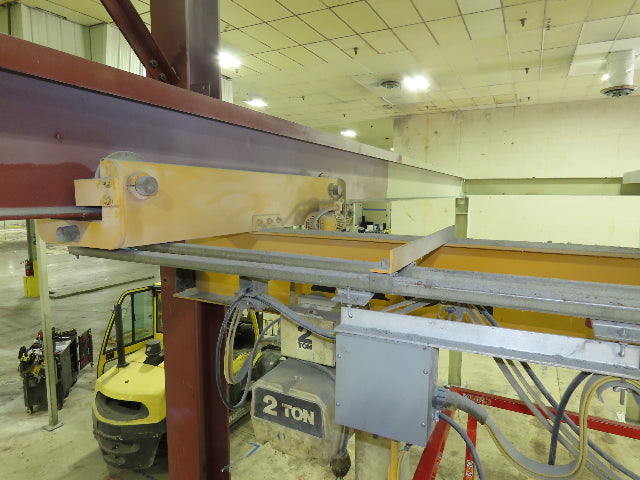

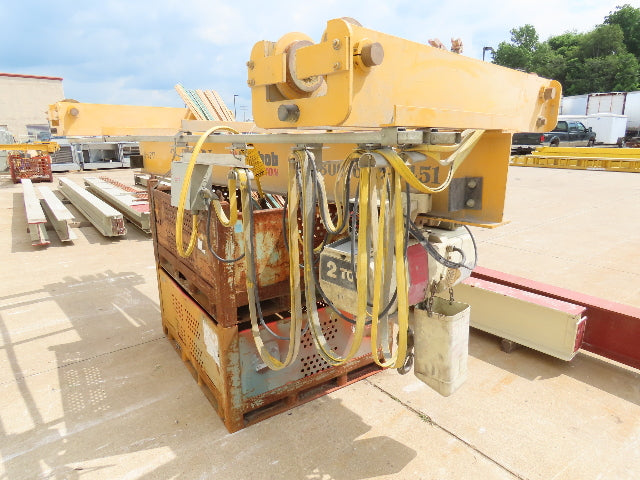

  • End Trucks:  62" Length.  4"-8" Flange width.
  • Runway Length:  36' 6" Trolley travel

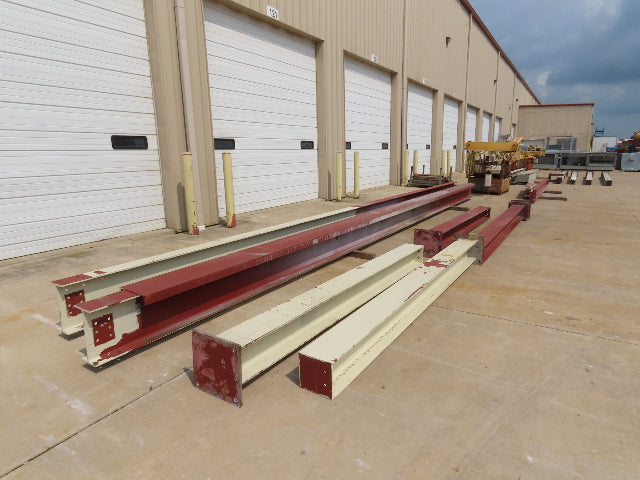

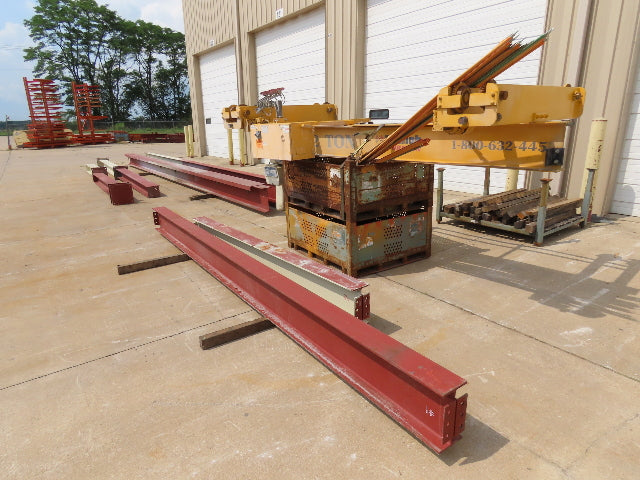

  • Runway Beams: 38' 4" and 38' 8" Lengths.  7" Flange Width.  12"W Top plate.

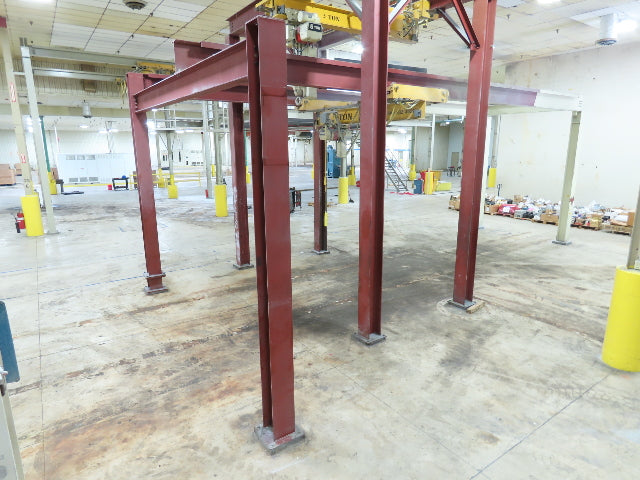

  • Upright Post Height : (2x) 13' 3.5"H  One of these has a 12" extension bolted on.  The other 2 are 11' 11.5" Height.
  • Upright Post Width:  10"x10" Square with a 16" base.

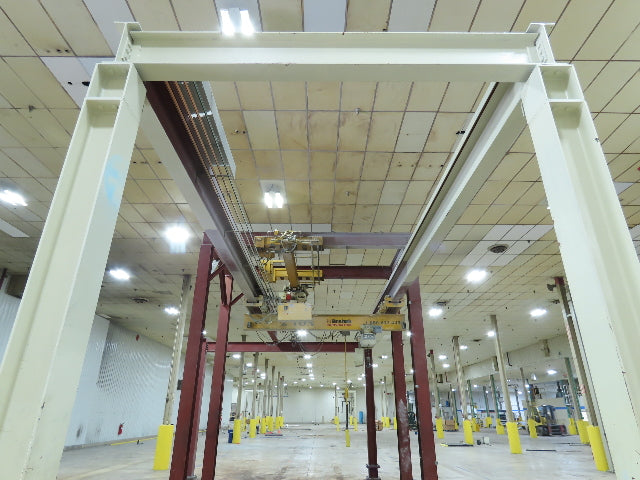

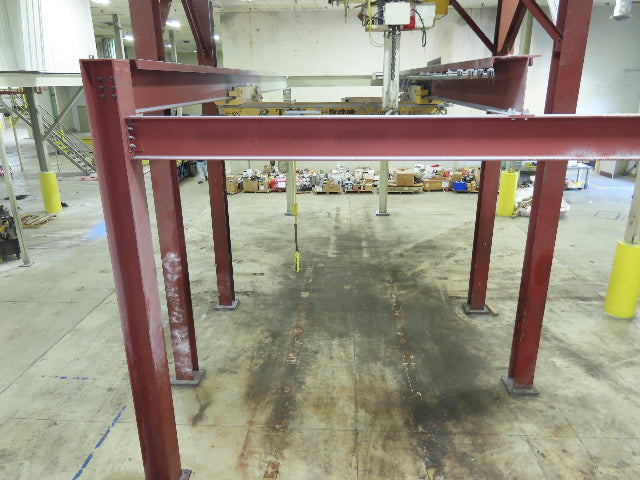

  • Cross Beams:  17' 2" Length and 10' Length.  7"W x 16"H
  • Clearance Heights:
  • Height Under Bridge Beam:  11' 6"
  • Height Under Hoist Hook:  8' 2"   (This is with hook fully retracted, hook may be currently set at a lower height than this)
  • Height Under Hoist Chain Bucket:  8' 10"
  • Height Under Runway Beams:  12' 11"
  • Top of Runway Clearance Height:  14' 4"

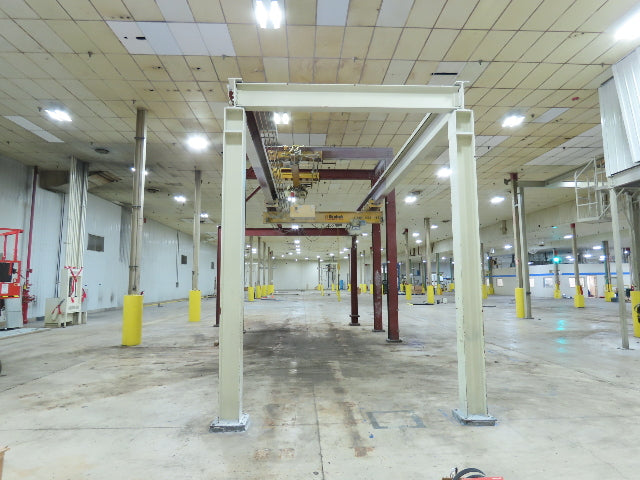

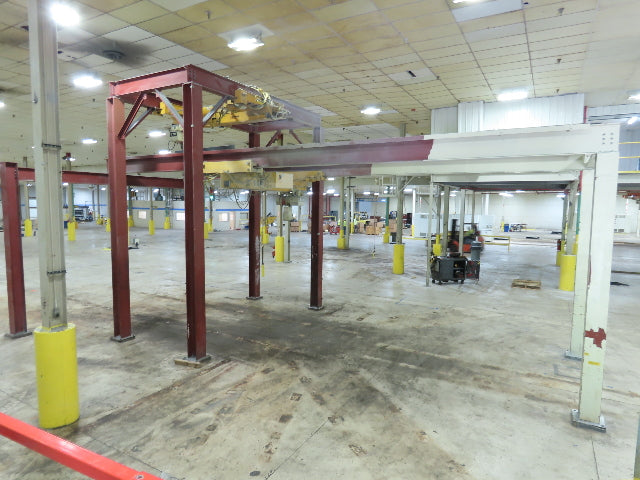

  • Overall Footprint:  39' 4" Length.  11' 4" Wide at white post end.  19' 4" wide at red post end.
  • Ship weight is approximate.

Condition: Used
