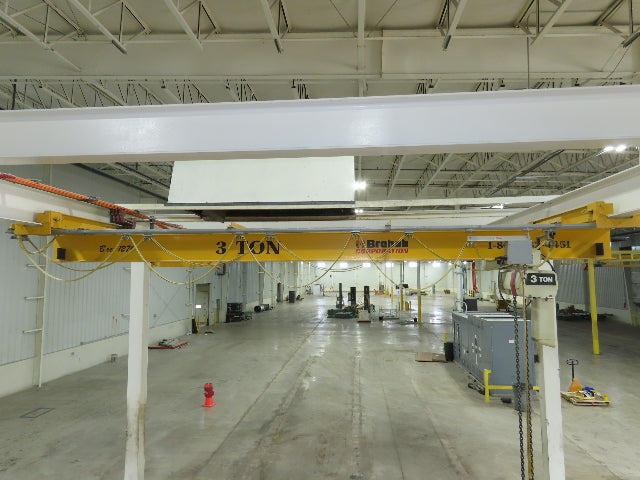

Brehob 3 Ton Free Standing Bridge Crane 18' Span 21' Runway 14' 5" HUB

Brehob 3 Ton Free Standing Bridge Crane 18' Span 21' Runway 14' 5" HUB

SKU #312559

Product Condition: Used

Your Price
$17,574.99
$17,574.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Bridge crane in working condition, removed from a working environment.

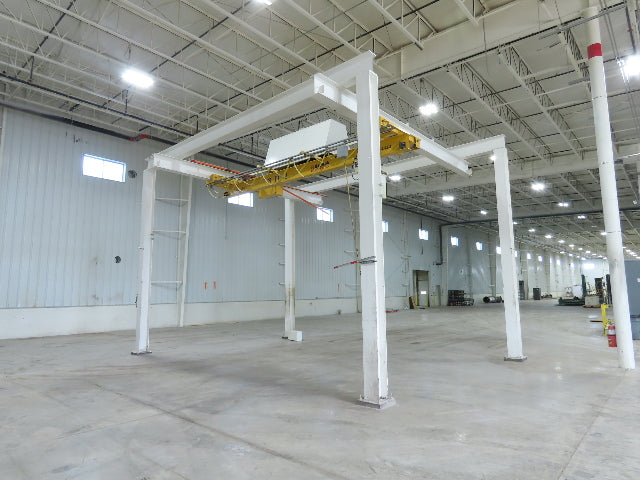

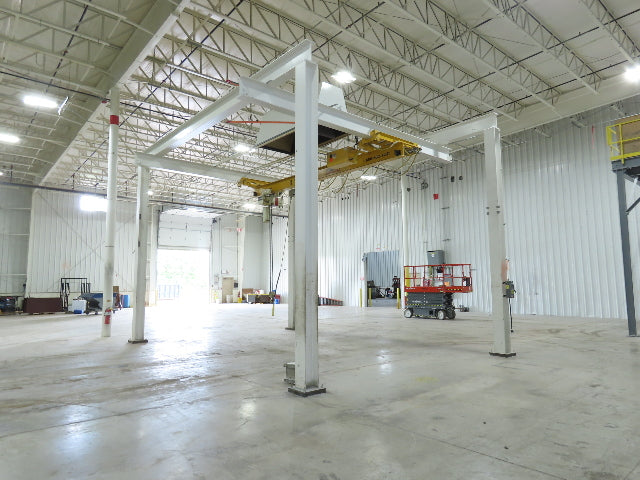

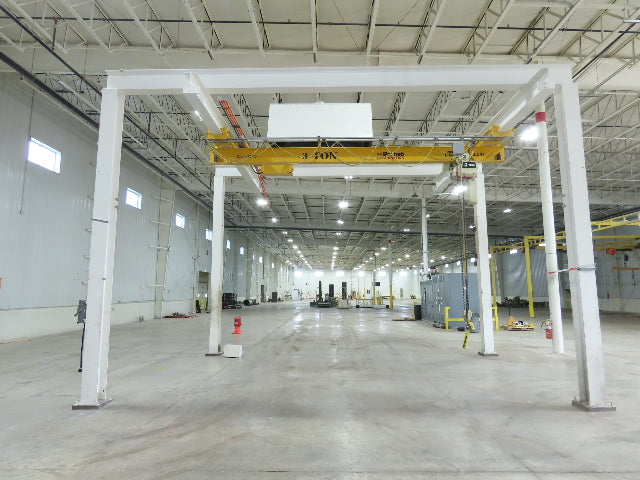

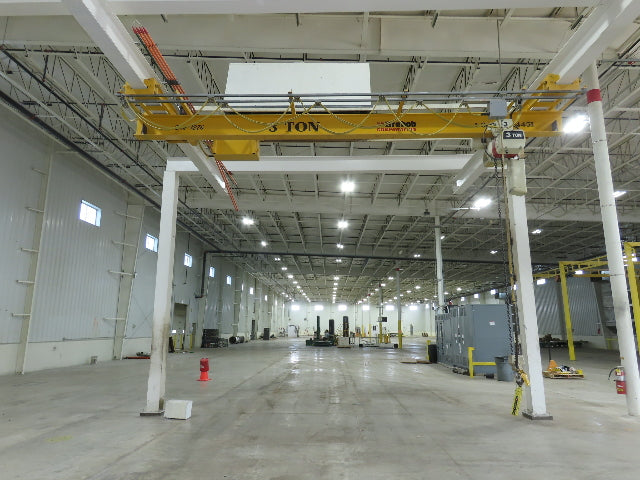

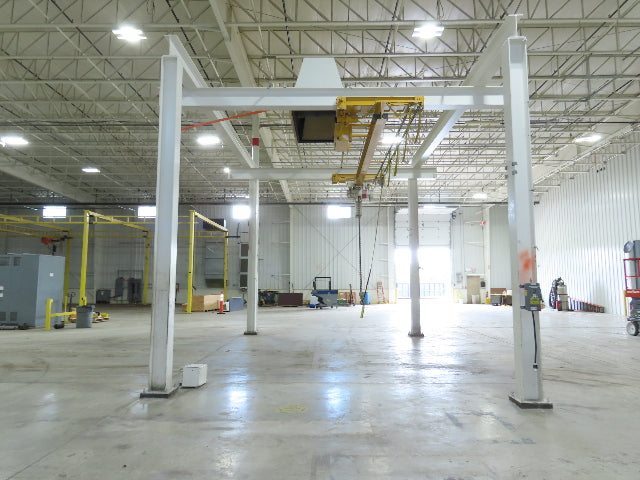

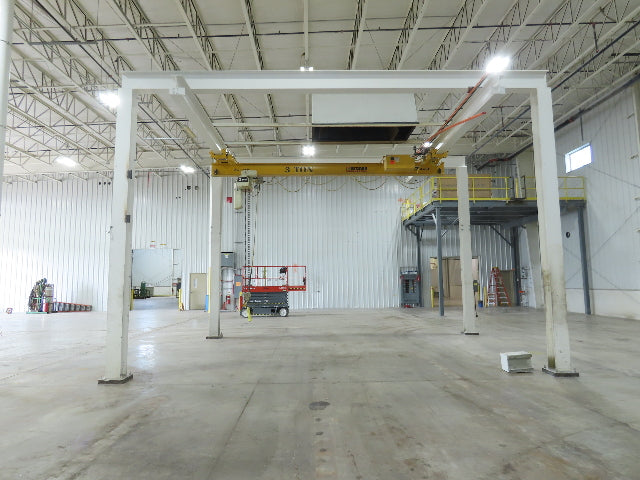

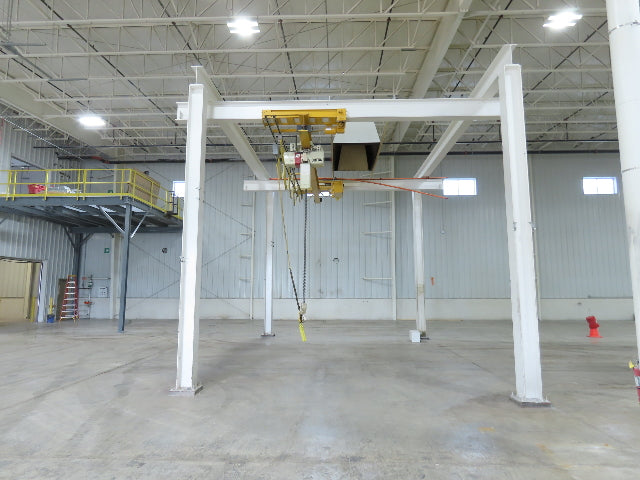

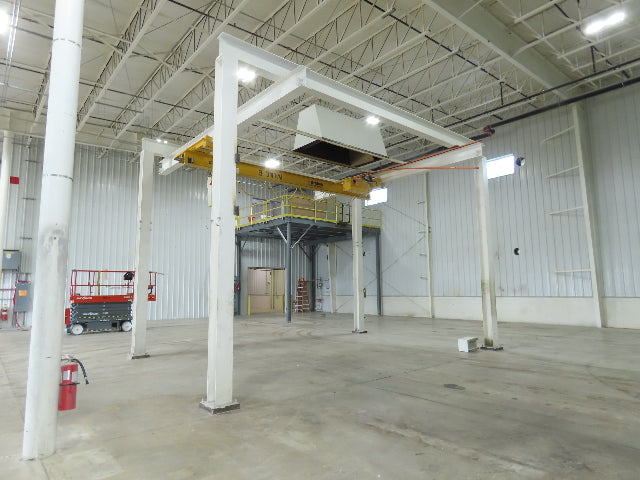

  • 4 Post crane system with Coffing hoist.

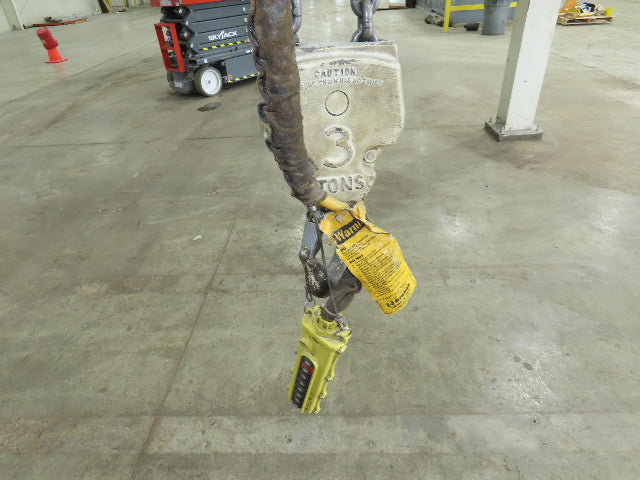

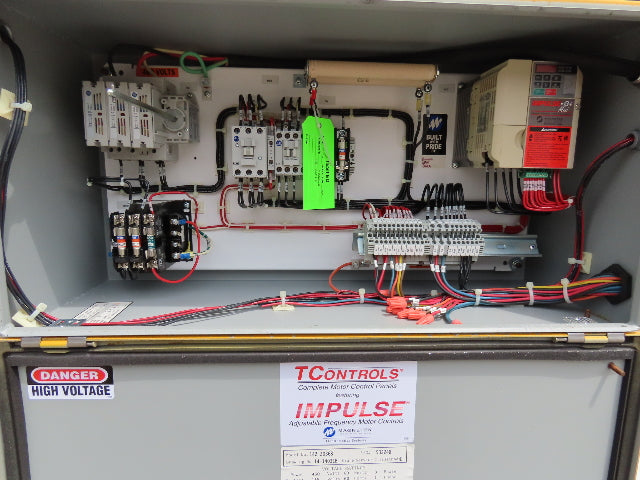

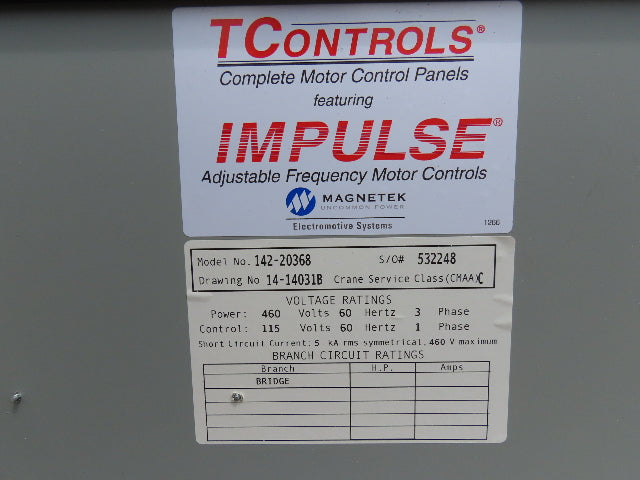

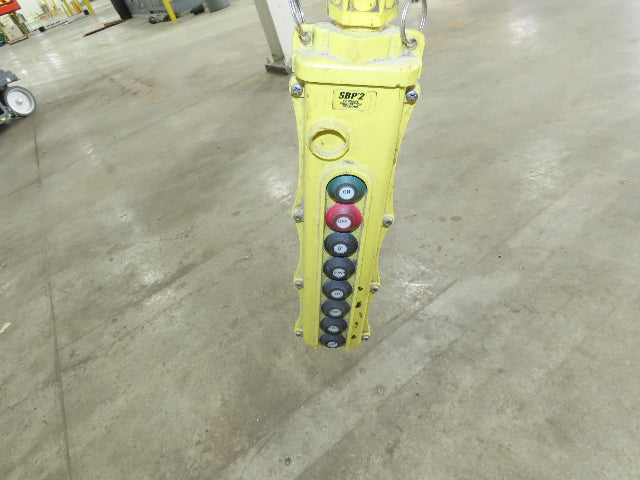

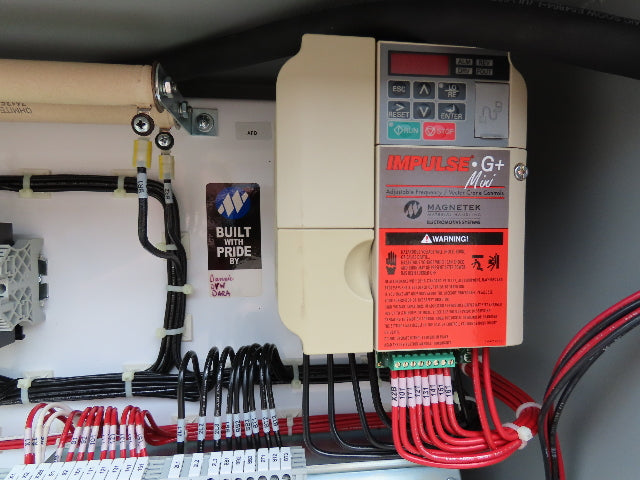

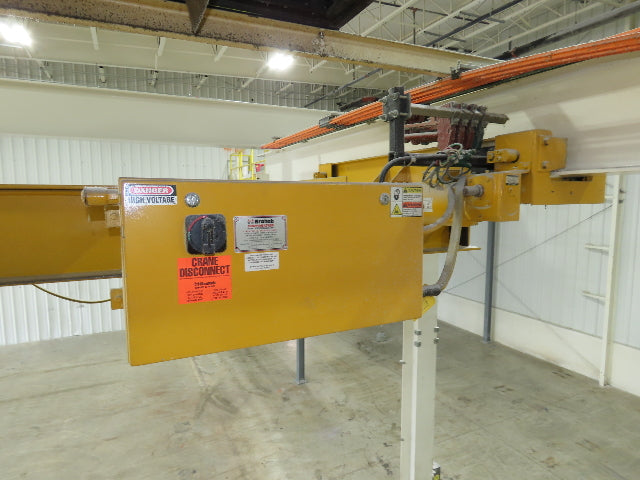

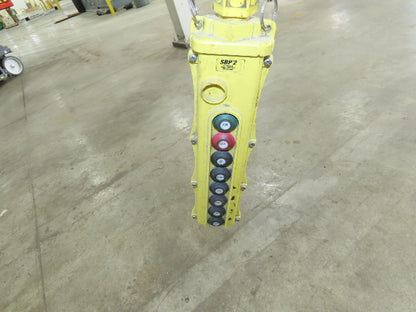

  • Controls:  2-Speed corded pendant with VFD in control panel 460V 3PH.

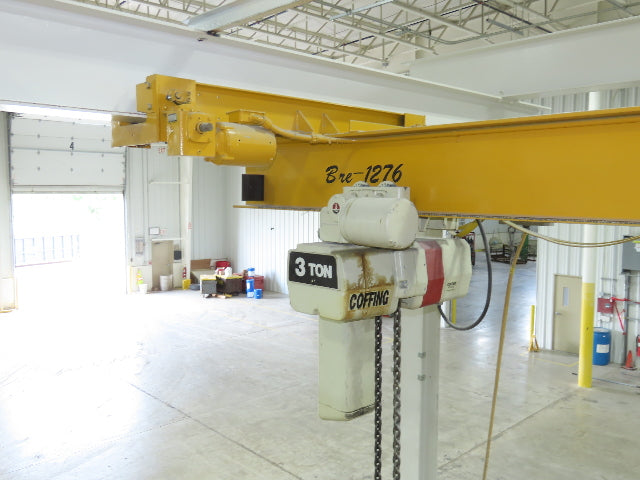

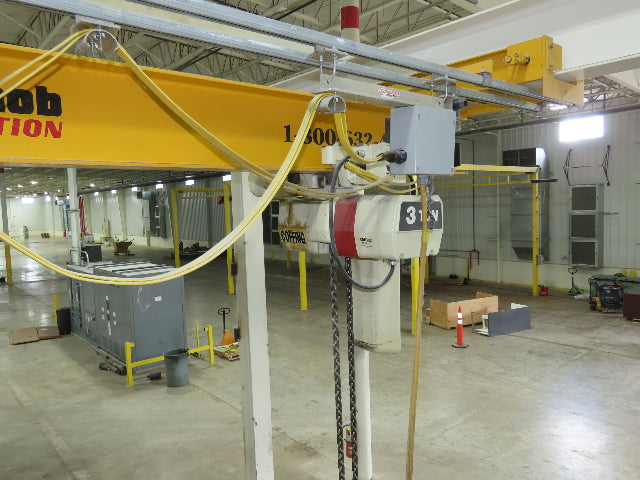

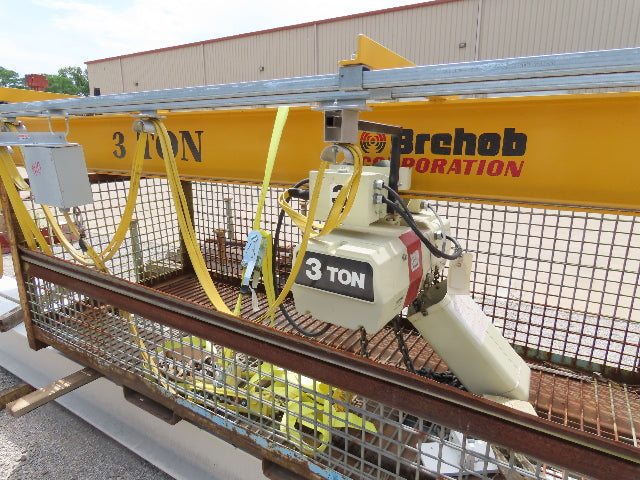

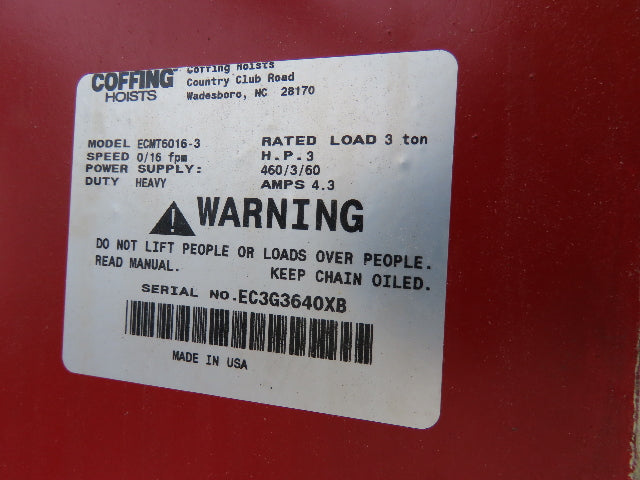

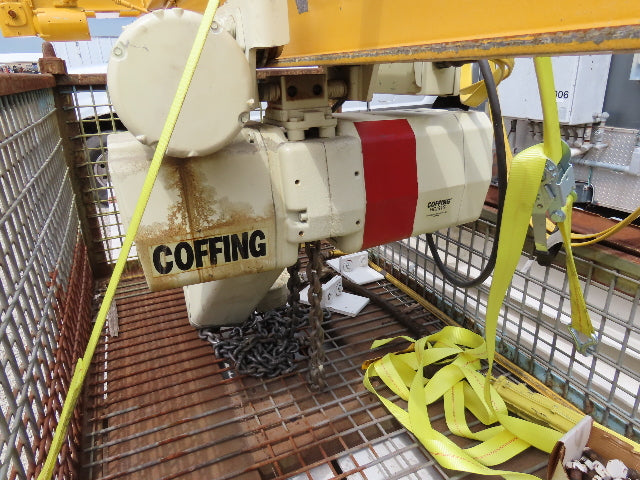

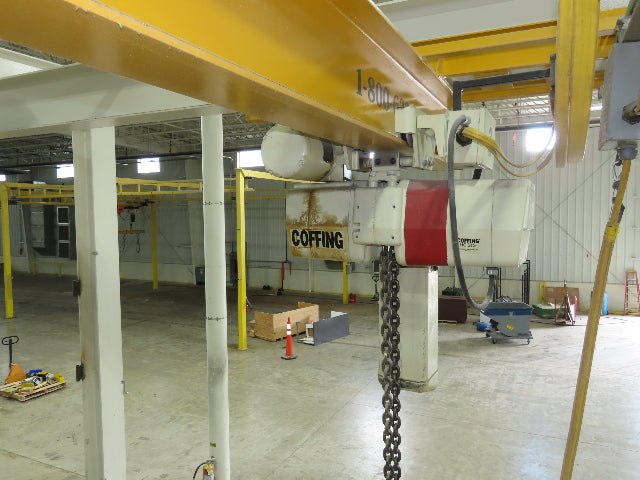

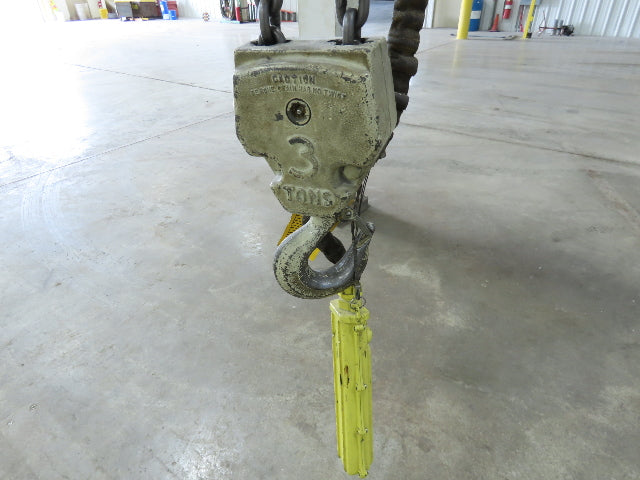

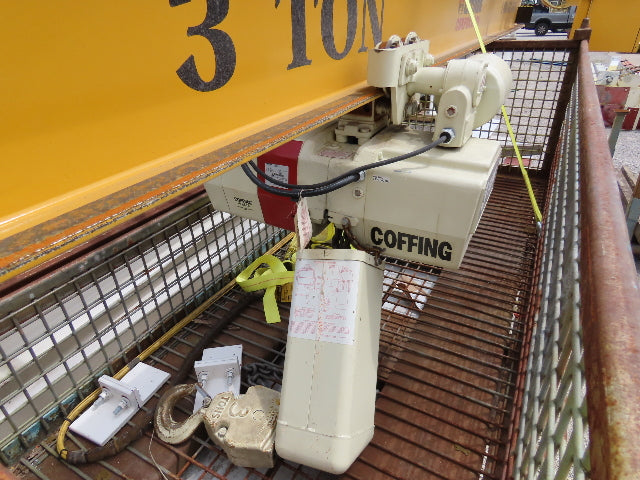

  • Hoist:  Coffing 3 Ton Model ECMT6016-3 0/16 FPM.  230/460V 3PH Motor

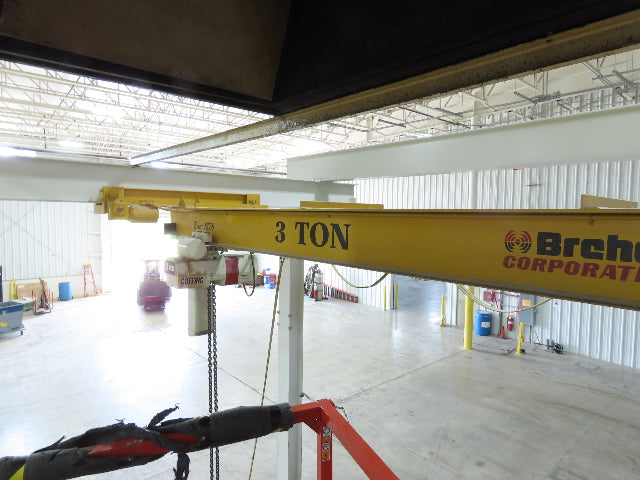

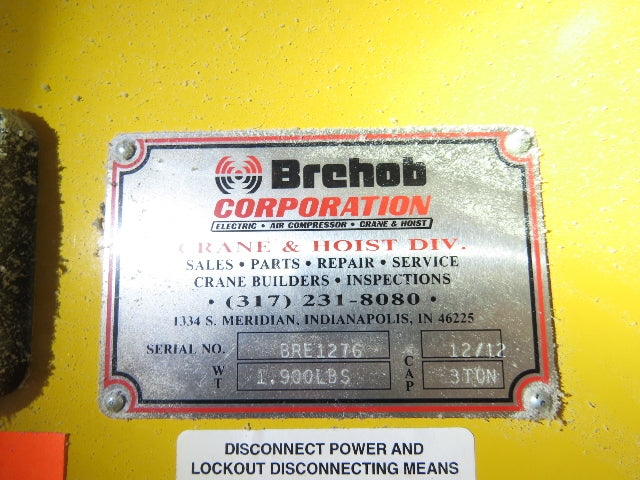

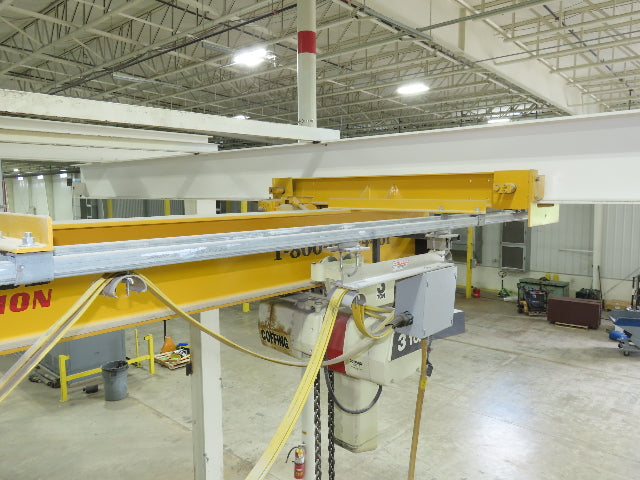

  • Bridge Type:  Brehob Underhung
  • Bridge Capacity:  3 Ton
  • Bridge Span:  18'  (Center distance of runways)

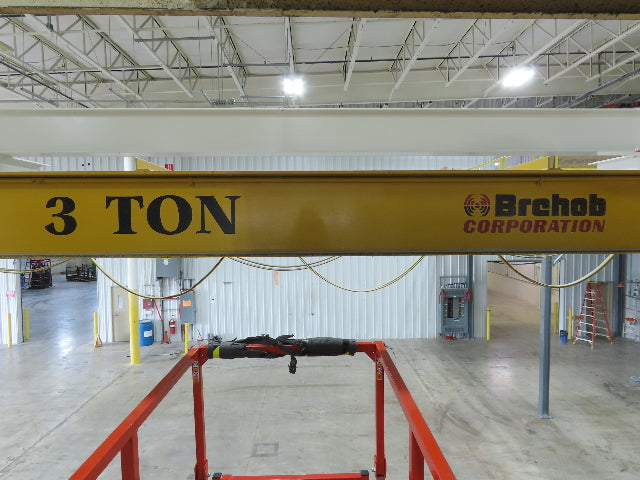

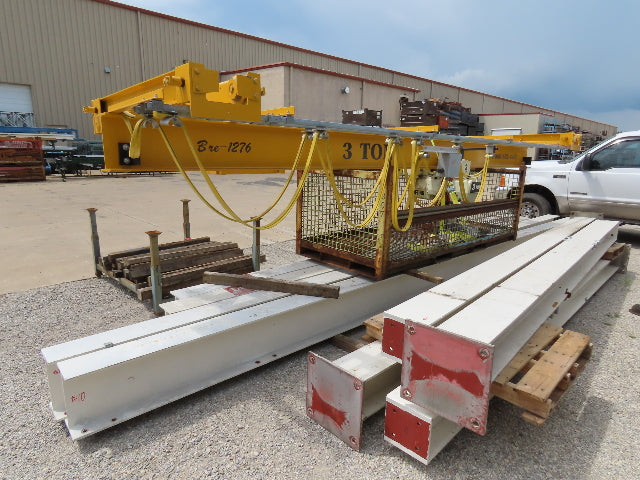

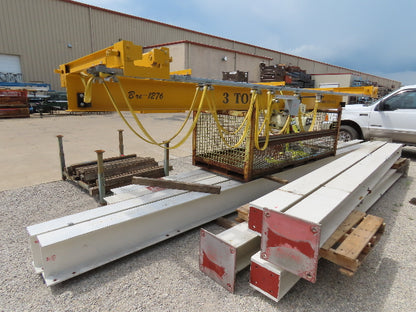

  • Bridge Beam:  6-3/4"W x 12-1/2"H x 20' 3.5" Length

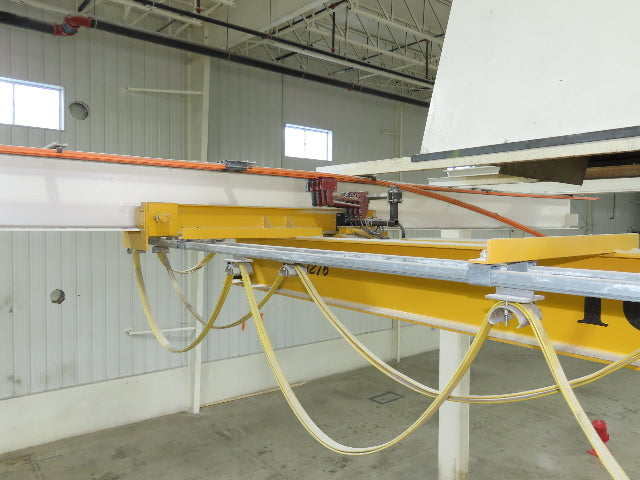

  • End Trucks:  61" Length.  Fits 4"-8" Flange width.
  • Runway Length:  20' 4" Trolley travel
  • Runway Beams: 21' Length.  8" Flange Width.  13-3/4"H
  • Upright Post Height : (4x) 16' 8"
  • Upright Post Width:  10"x10" Square with a 16" base.
  • Cross Beams:  25' 10" Length.  8"W x 13-3/4"H
  • Clearance Heights:
  • Height Under Bridge Beam:  14' 5"
  • Height Under Hoist Hook:   (This is with hook fully retracted, hook may be currently set at a lower height than this)
  • Height Under Hoist Chain Bucket:
  • Height Under Runway Beams:  15' 8"
  • Top Clearance Height:  17' 10"
  • Overall Footprint:  25' 4" Length.  18' 5" Width.
  • Ship weight is approximate.

Condition: Used
