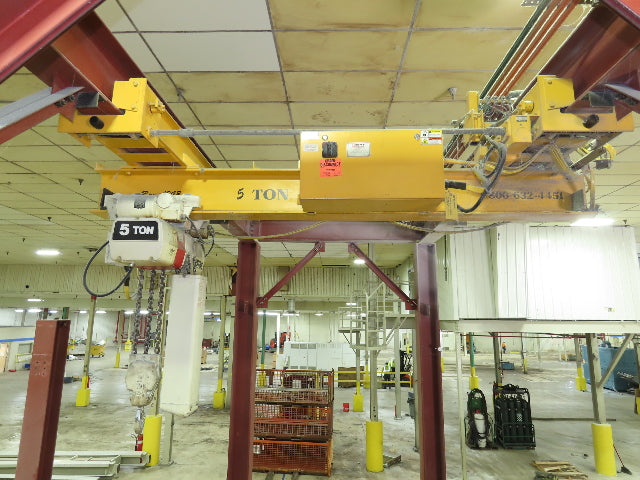

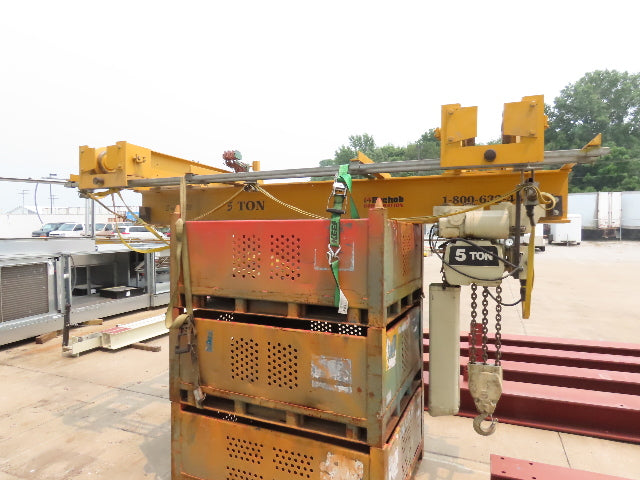

Brehob 5 Ton Free Standing Bridge Crane 8' Span 16' 10" Runway 16' 10"HUB

Brehob 5 Ton Free Standing Bridge Crane 8' Span 16' 10" Runway 16' 10"HUB

SKU #312974

Product Condition: Used

Your Price
$23,749.99
$23,749.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

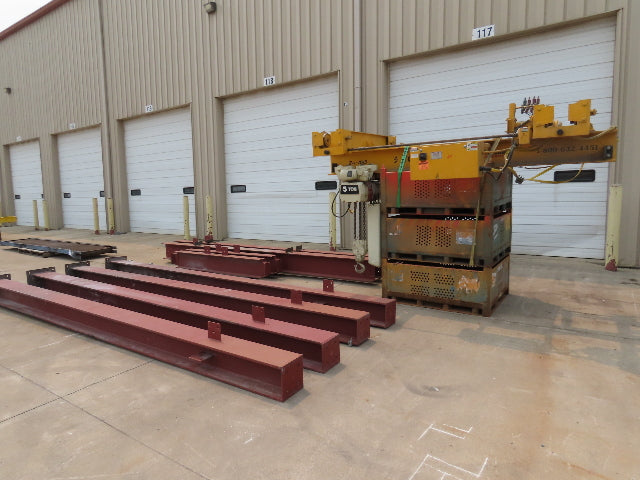

  • Bridge crane in working condition, removed from a working environment.

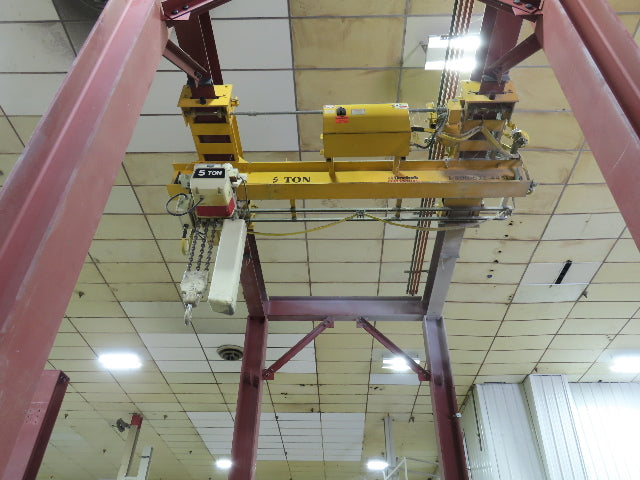

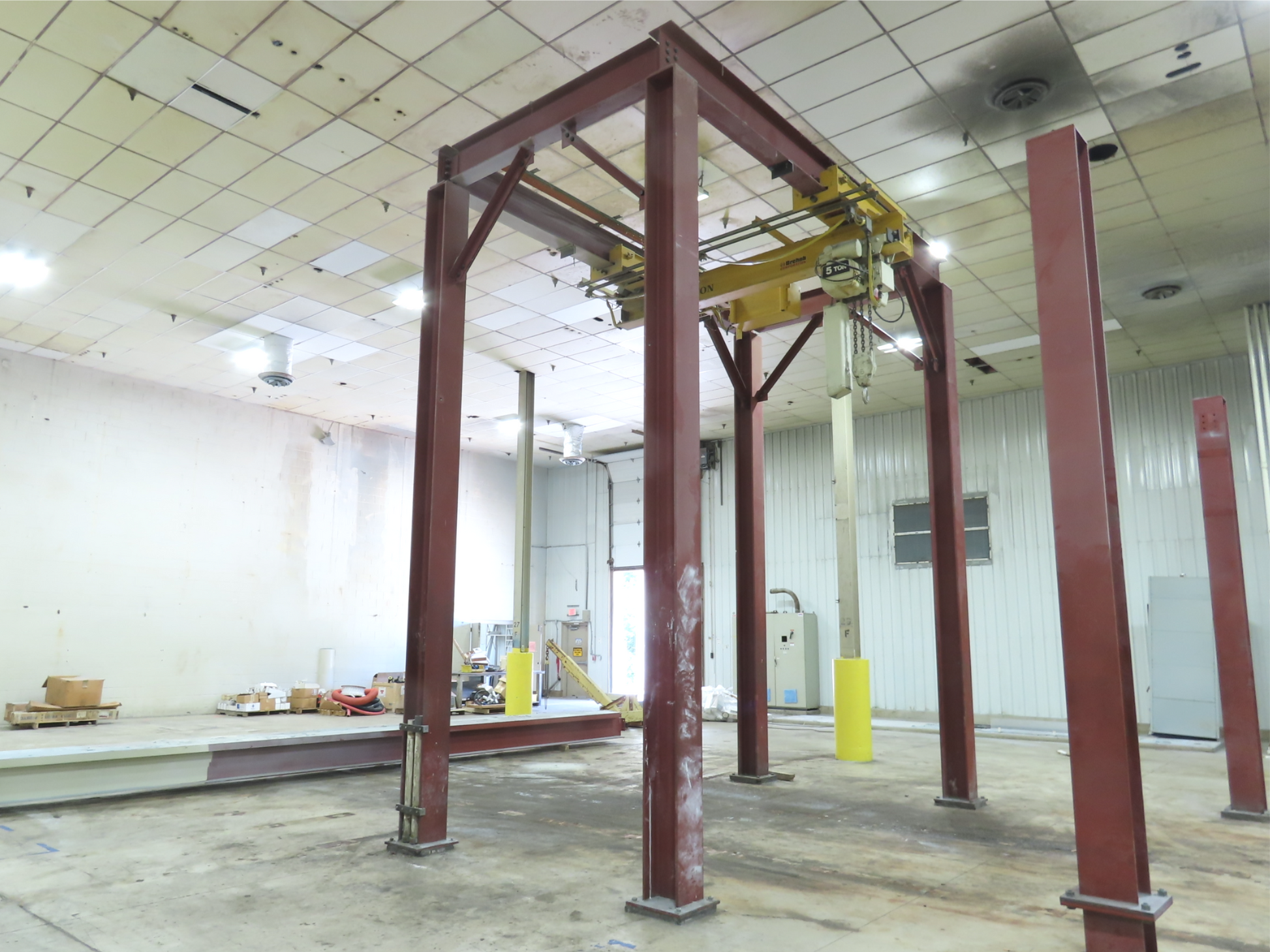

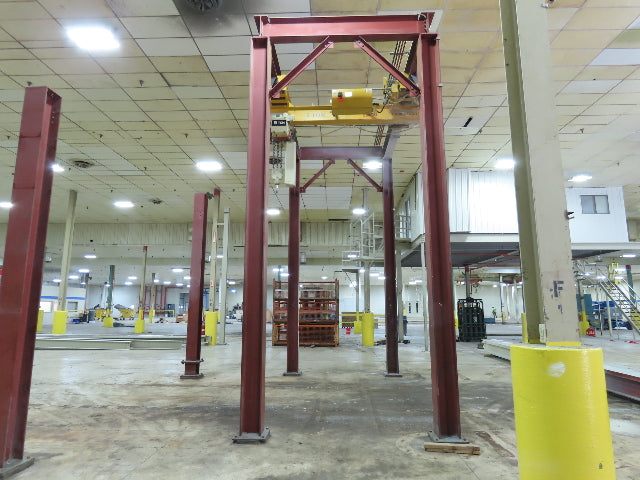

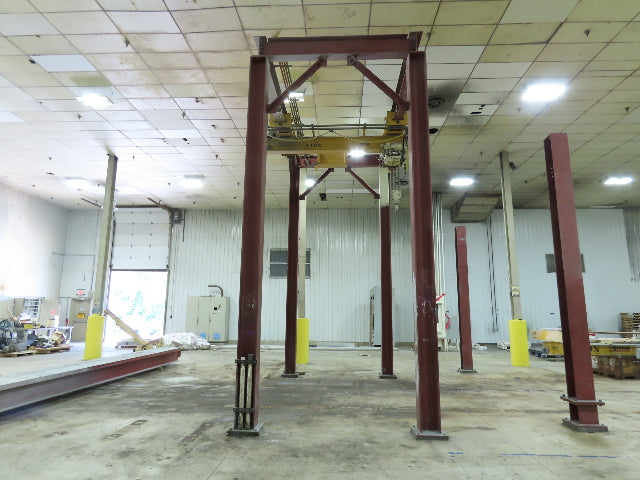

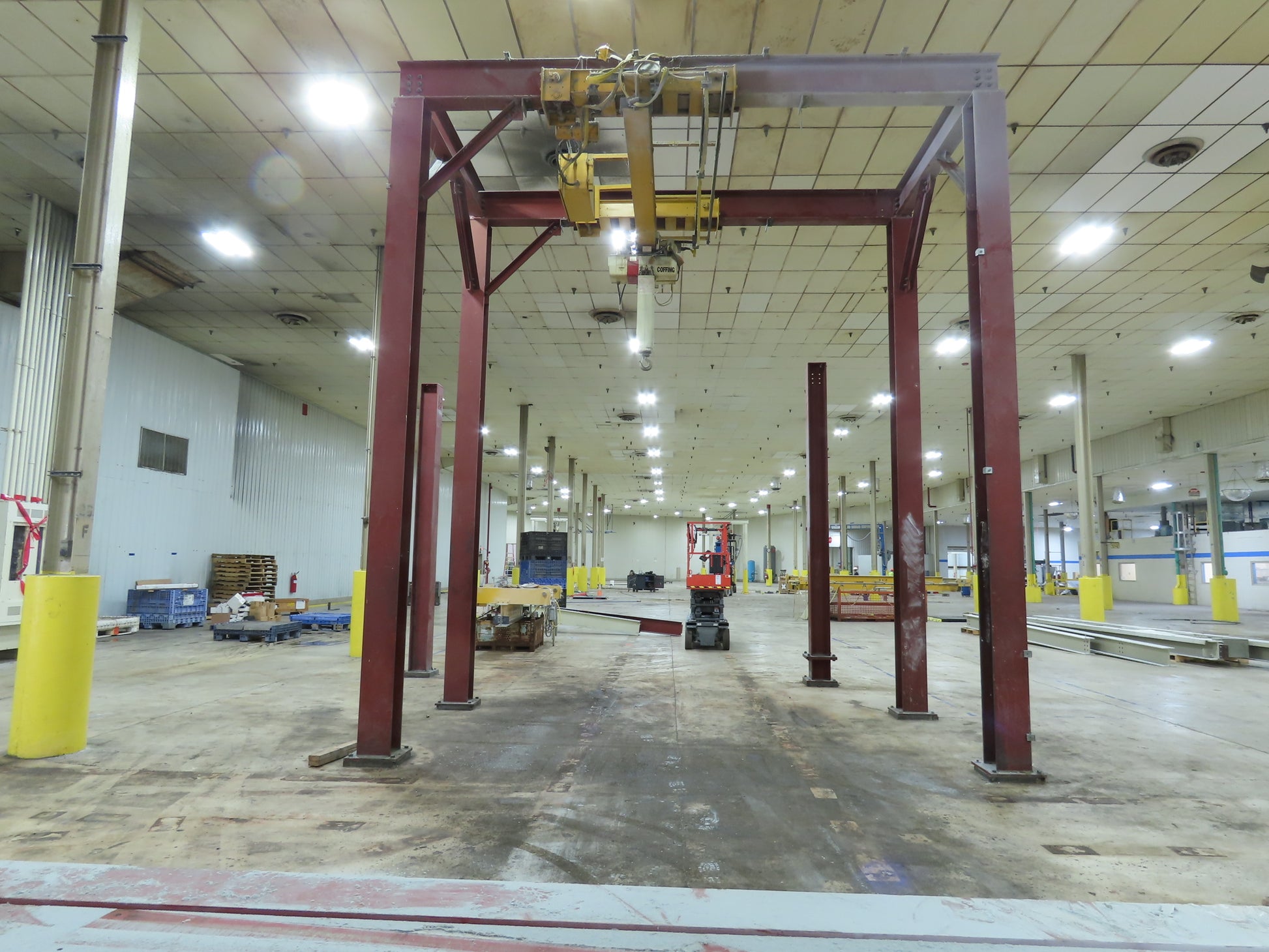

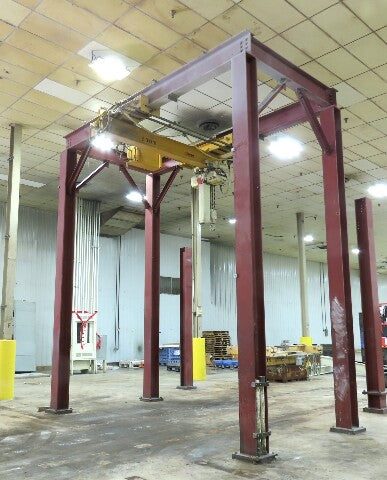

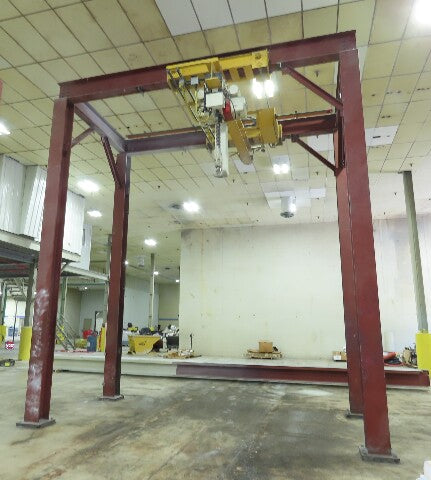

  • 4 Post crane system with Coffing 5 ton hoist.

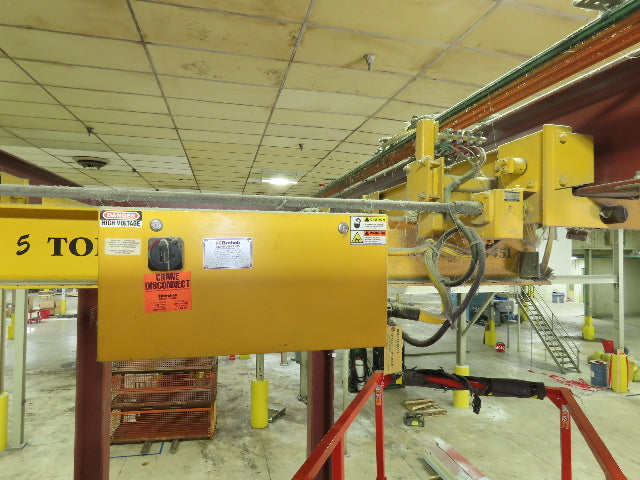

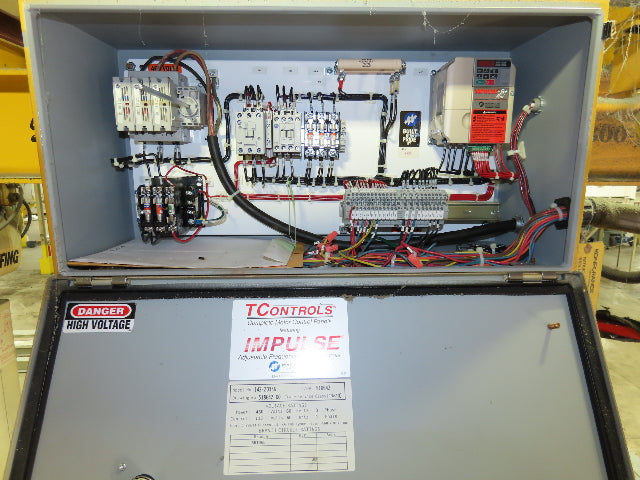

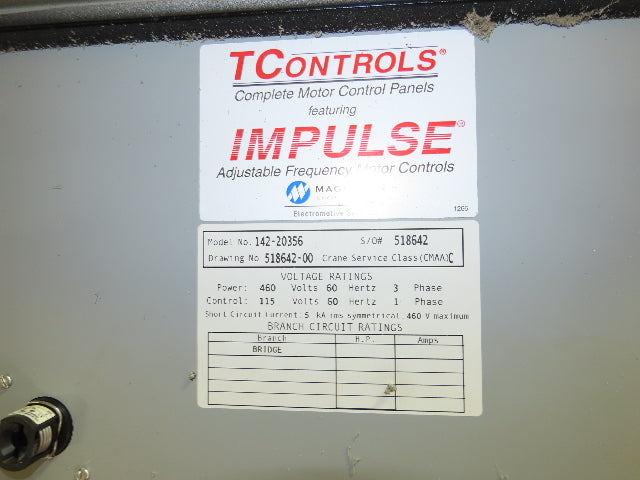

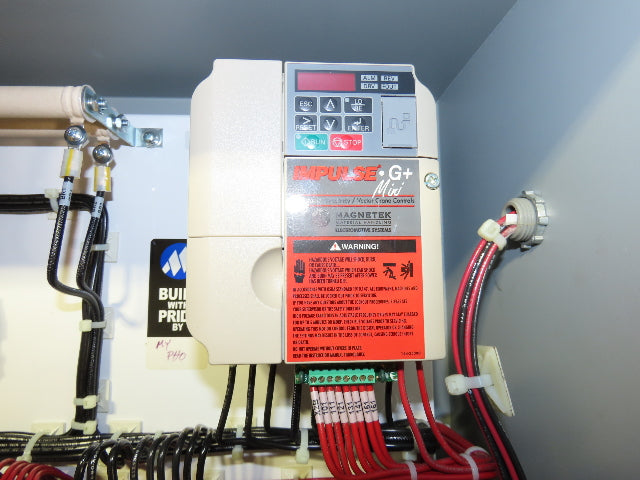

  • Controls:  Corded pendant with VFD in control panel 460V 3PH.

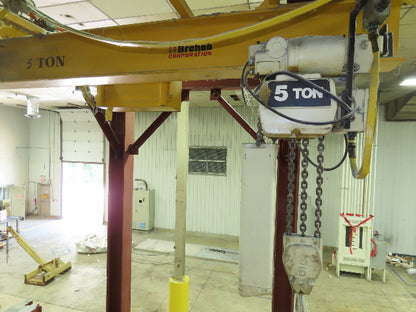

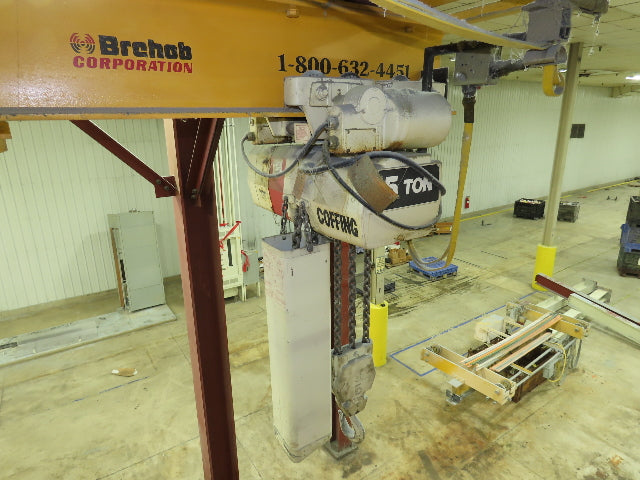

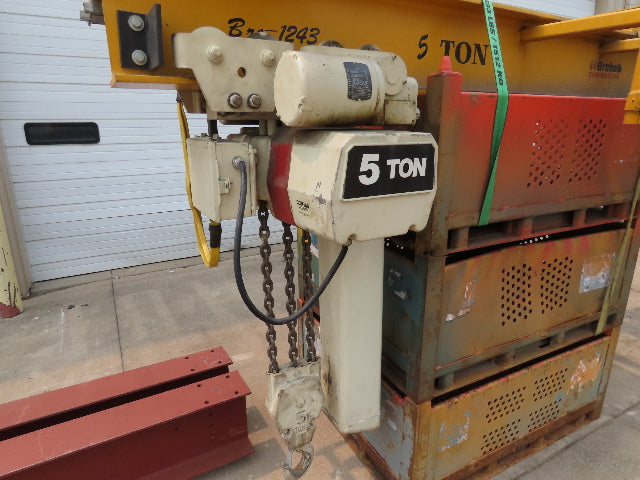

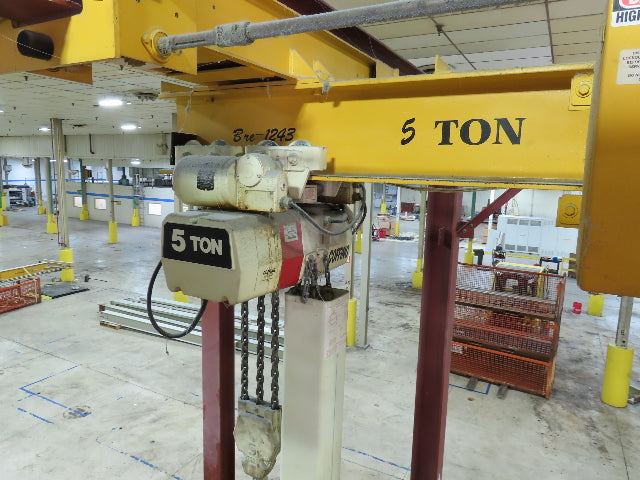

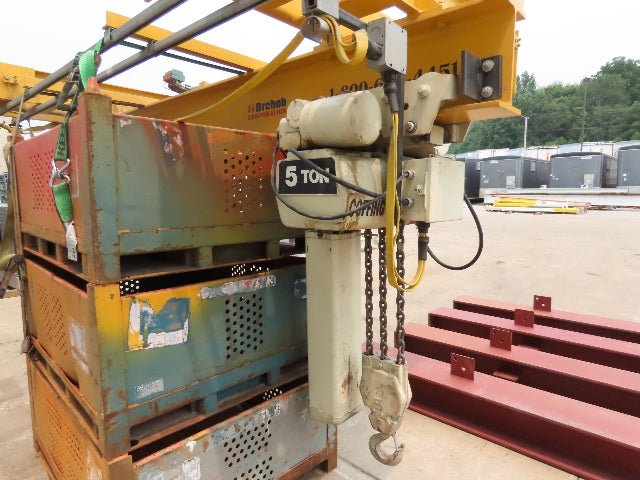

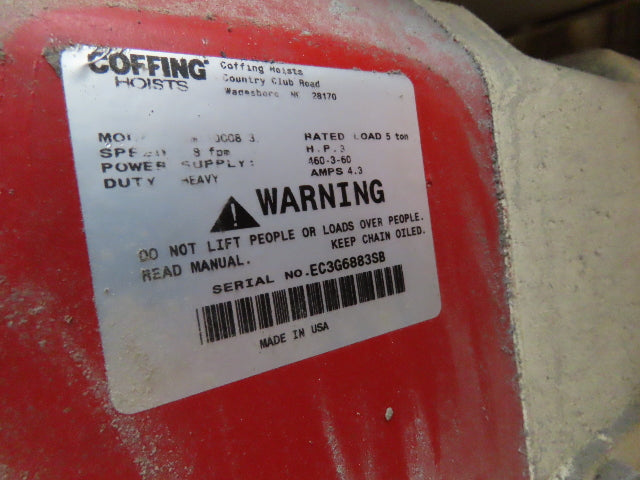

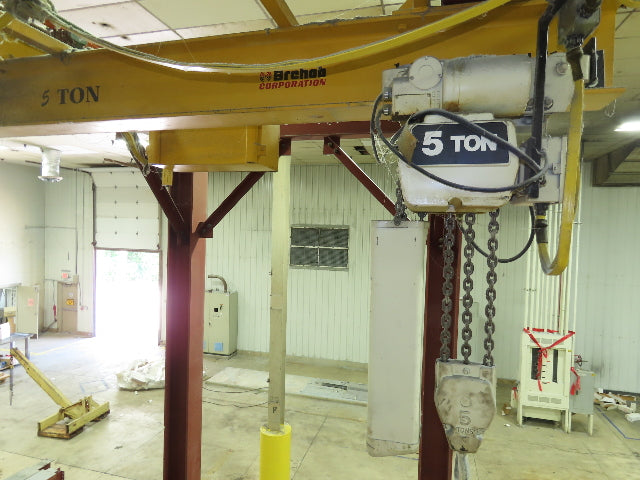

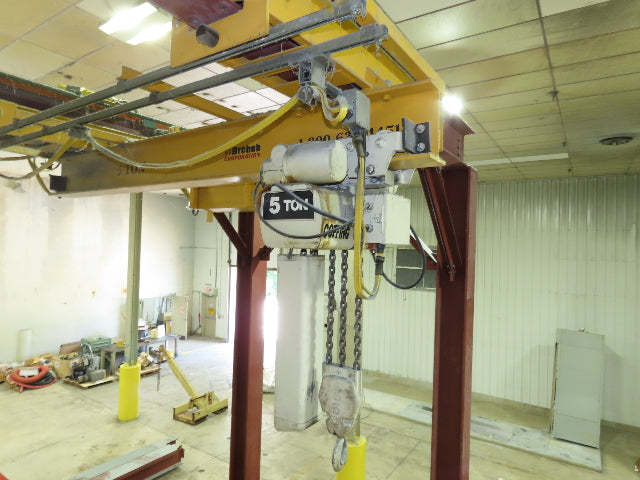

  • Hoist:  Coffing 5 Ton ECMT10008-3.  1-Speed 3Hp 460V 3PH.

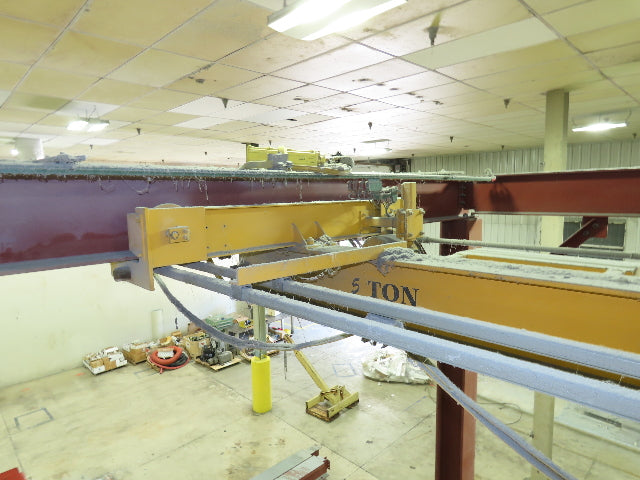

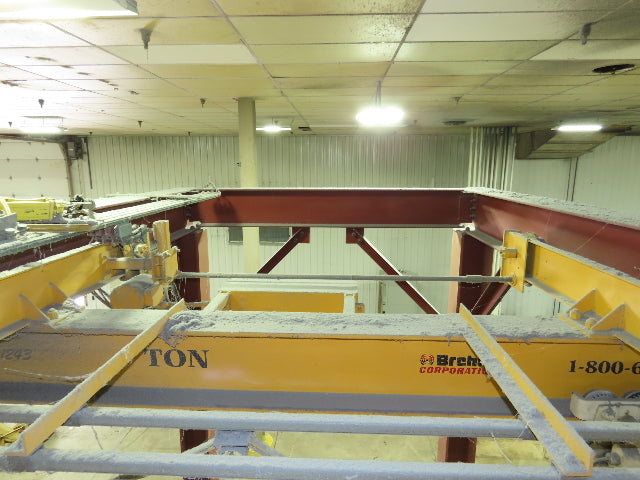

  • Bridge Type:  Brehob Underhung
  • Bridge Capacity:  5 Ton
  • Bridge Span:  8'  (Center distance of runways)

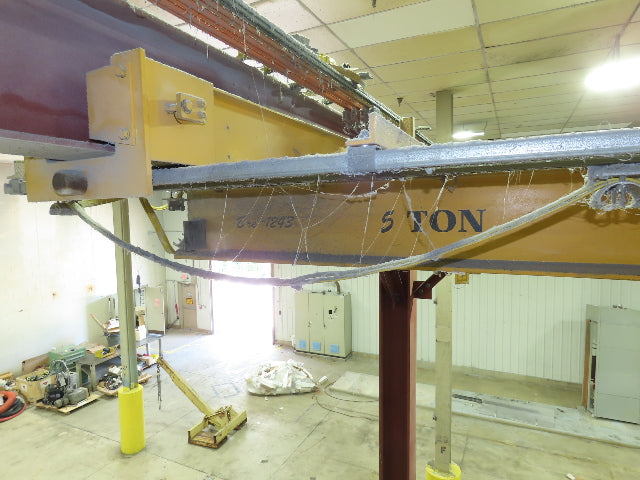

  • Bridge Beam:  11' Length.   8"W x 12"H

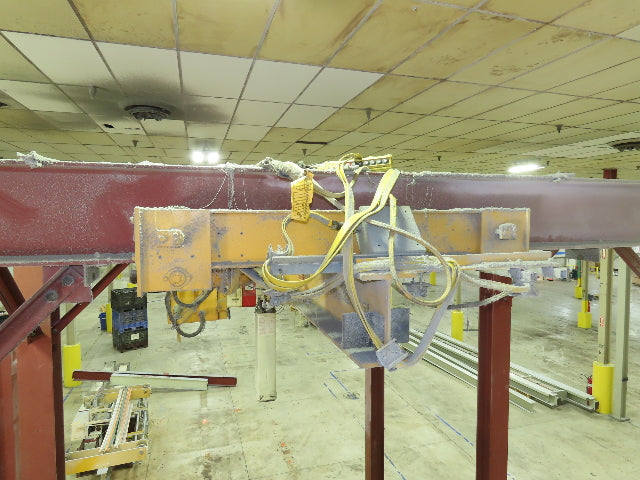

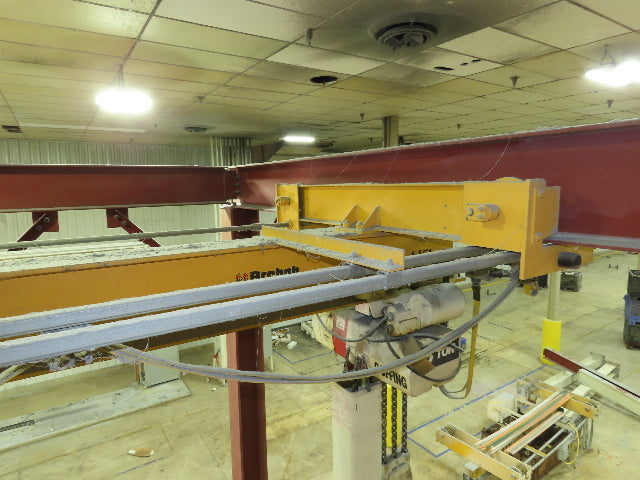

  • End Trucks:  64" Length.  4"-8" Flange width.

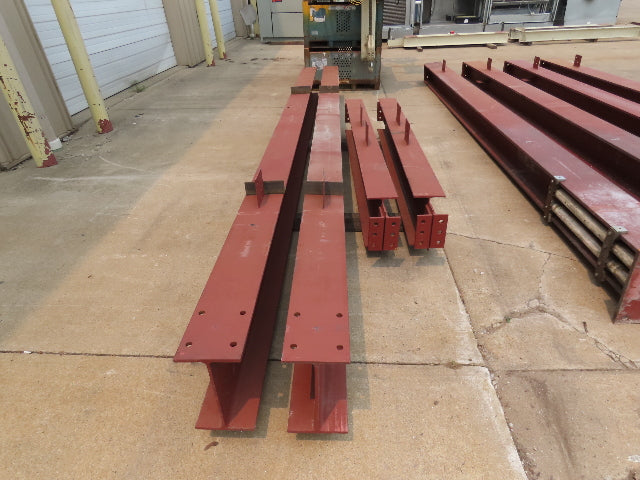

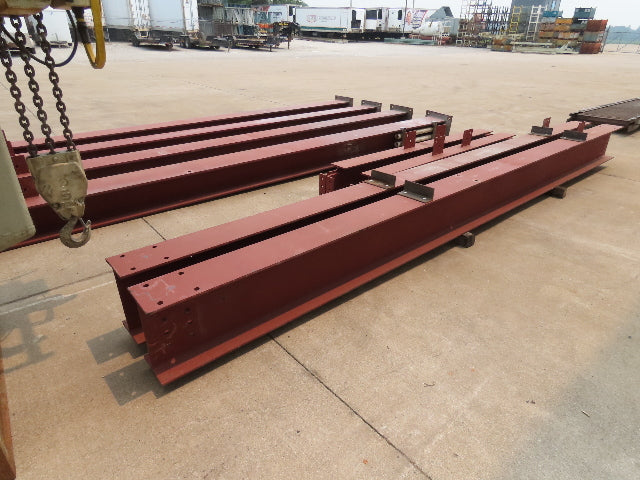

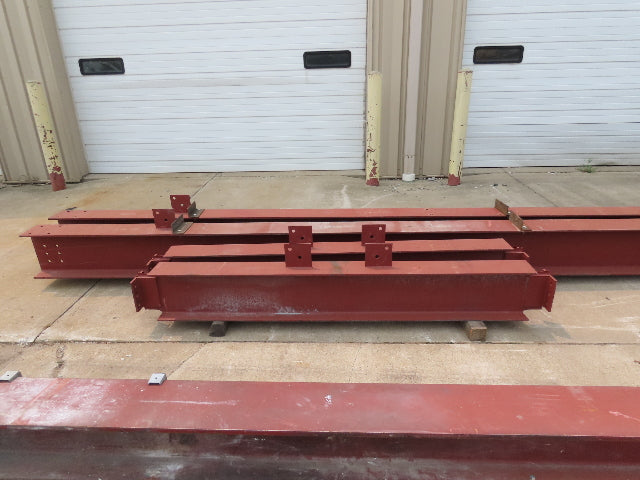

  • Runway Beams:  16' 10" Length.  8"W  x 14"H

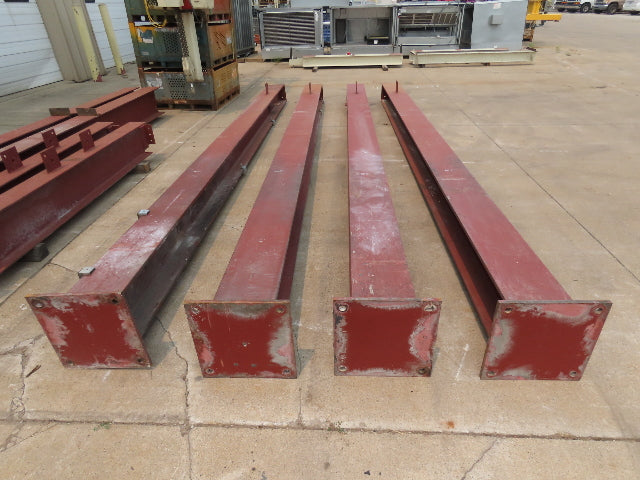

  • Upright Post Height : (2x)  17' 11"H
  • Upright Post Width:  10"x10" Square with a 16" base.

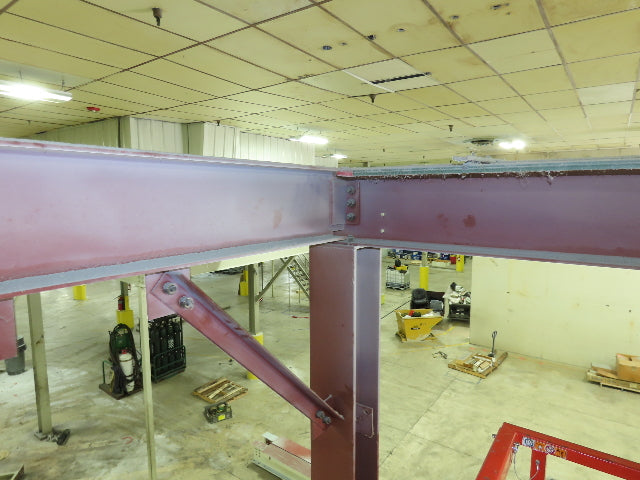

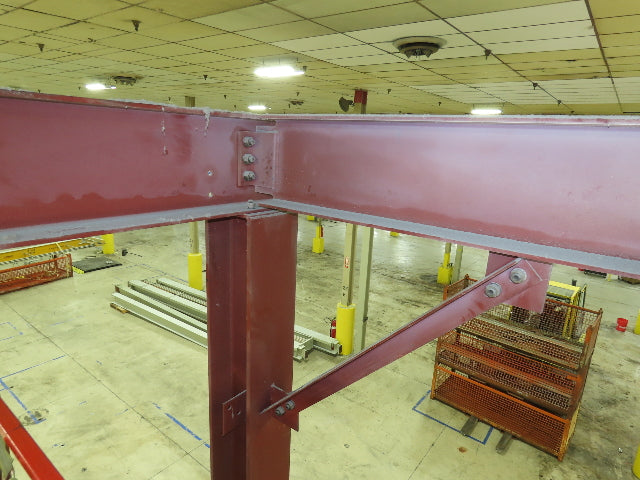

  • Cross Beams:  95-1/2" Length.  6.5"W x 12.5"H
  • Clearance Heights:
  • Height Under Bridge Beam:  16' 10"
  • Height Under Hoist Hook:  13' 5"   (This is with hook fully retracted, hook may be currently set at a lower height than this)
  • Height Under Hoist Chain Bucket:  12' 7"
  • Height Under Runway Beams:  18'
  • Top of Runway Clearance Height:  19' 2"
  • Overall Footprint:   9' 4" Wide.  17' 4" Length.
  • Ship weight is approximate.

Condition: Used
