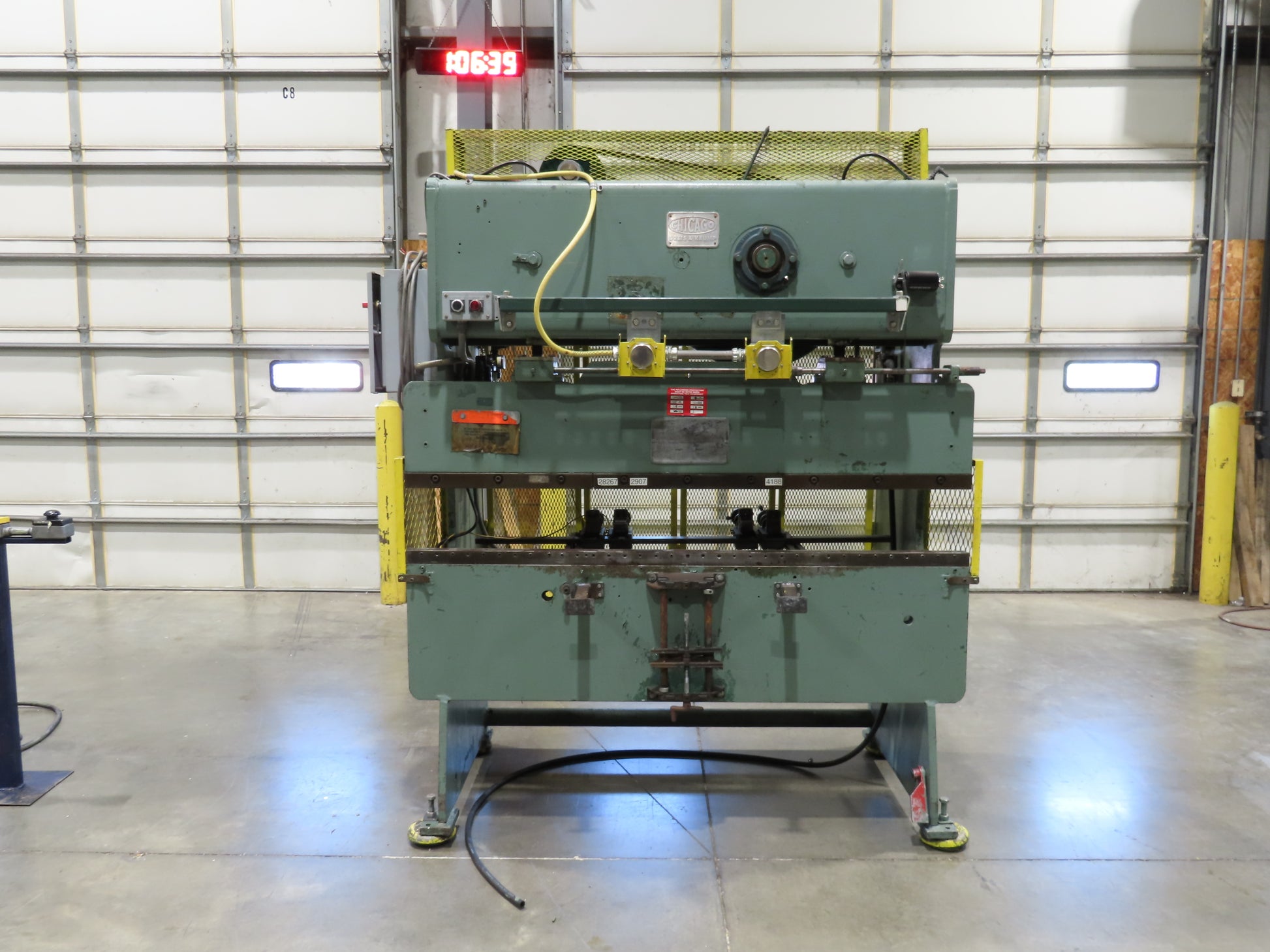

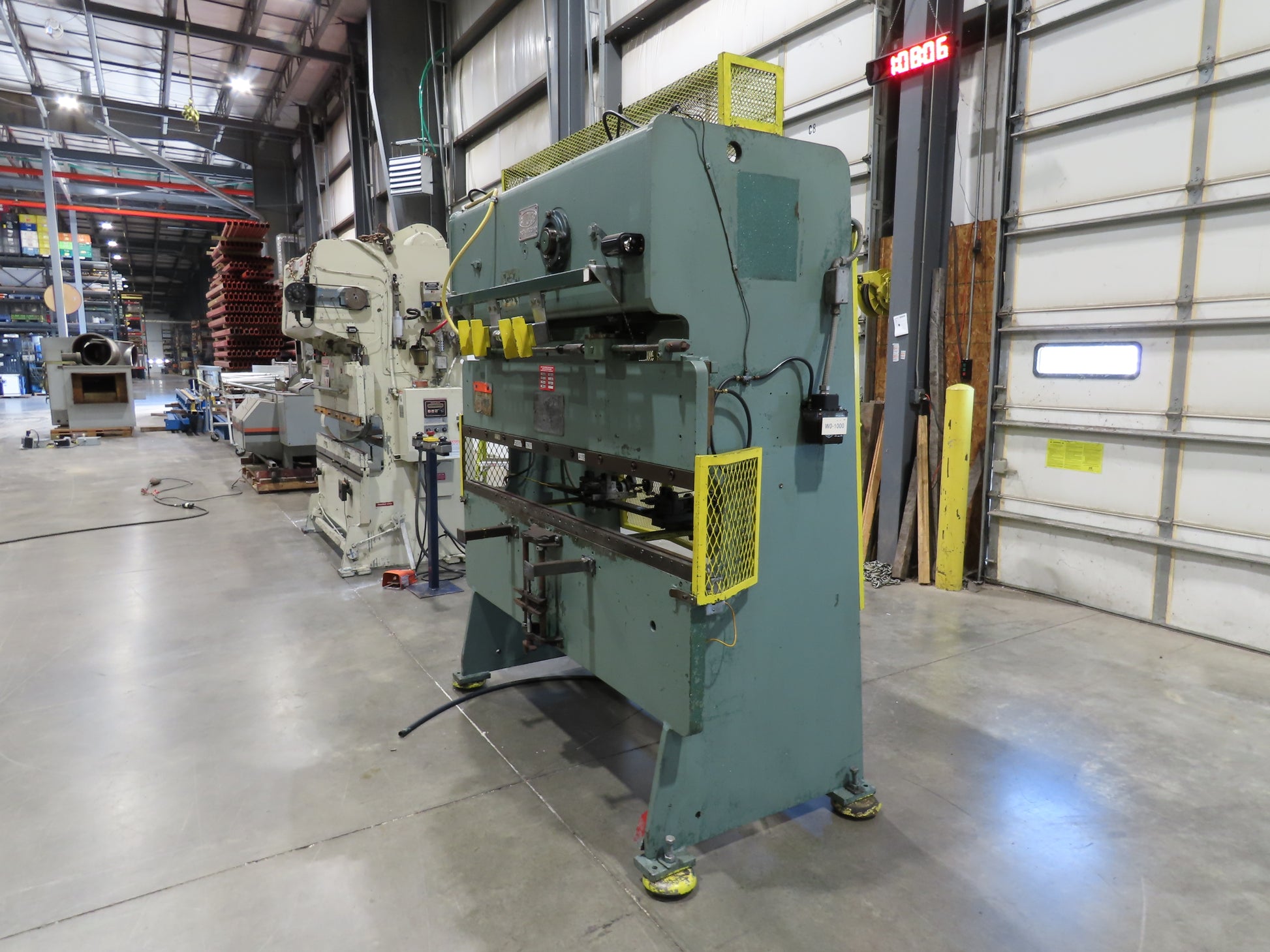

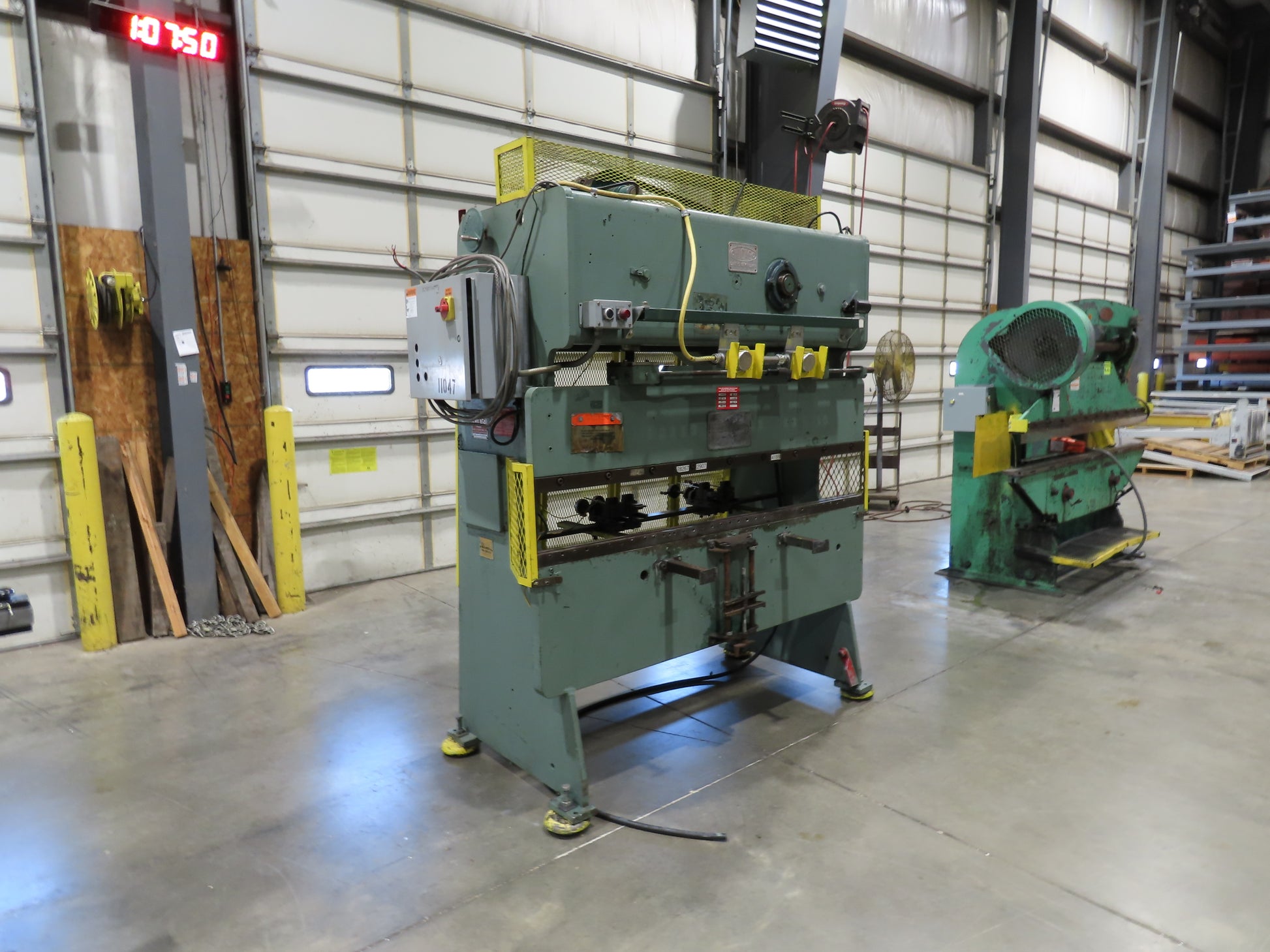

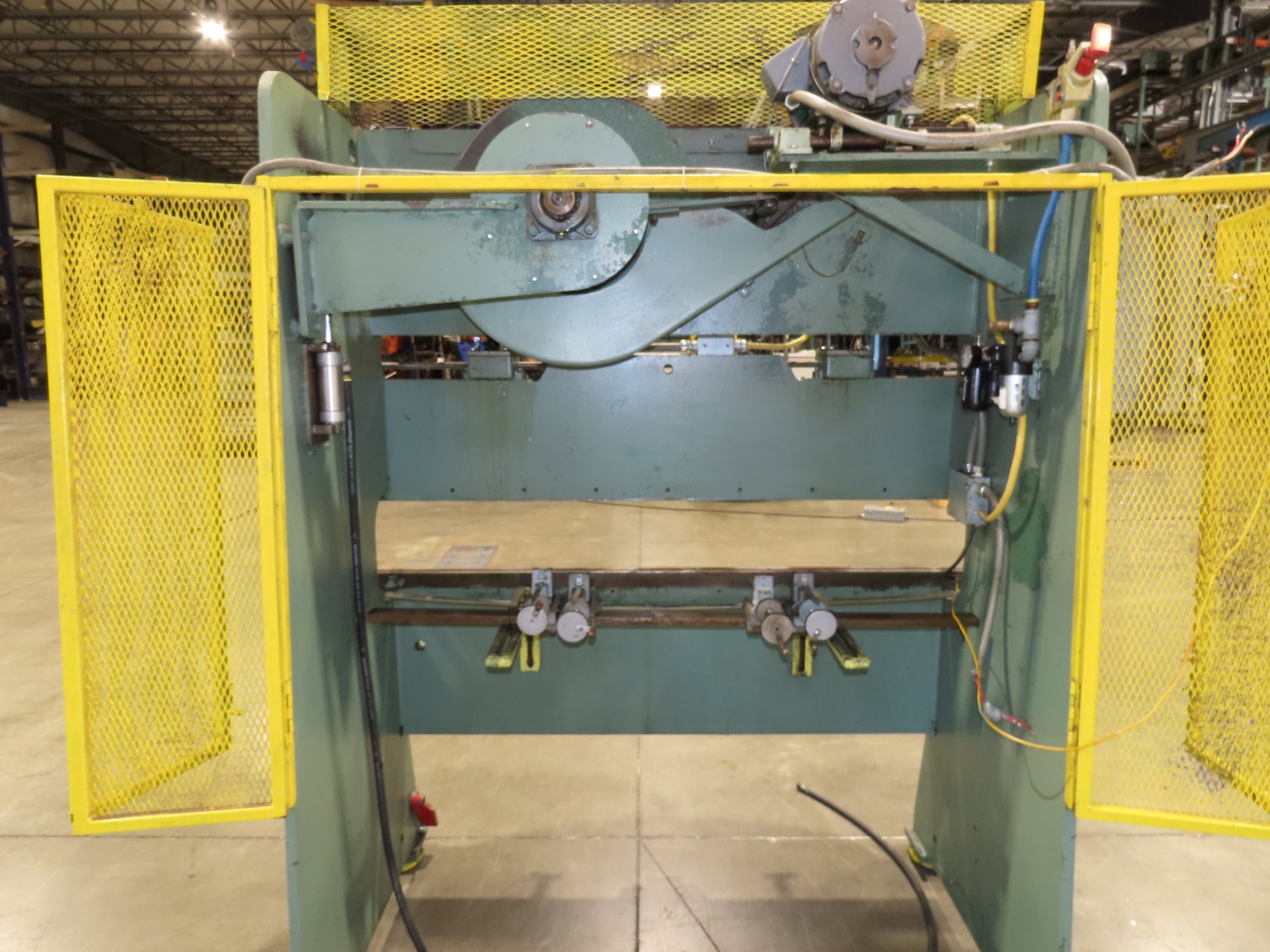

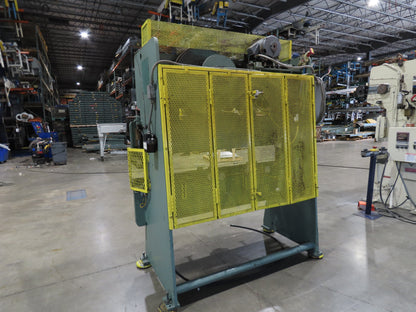

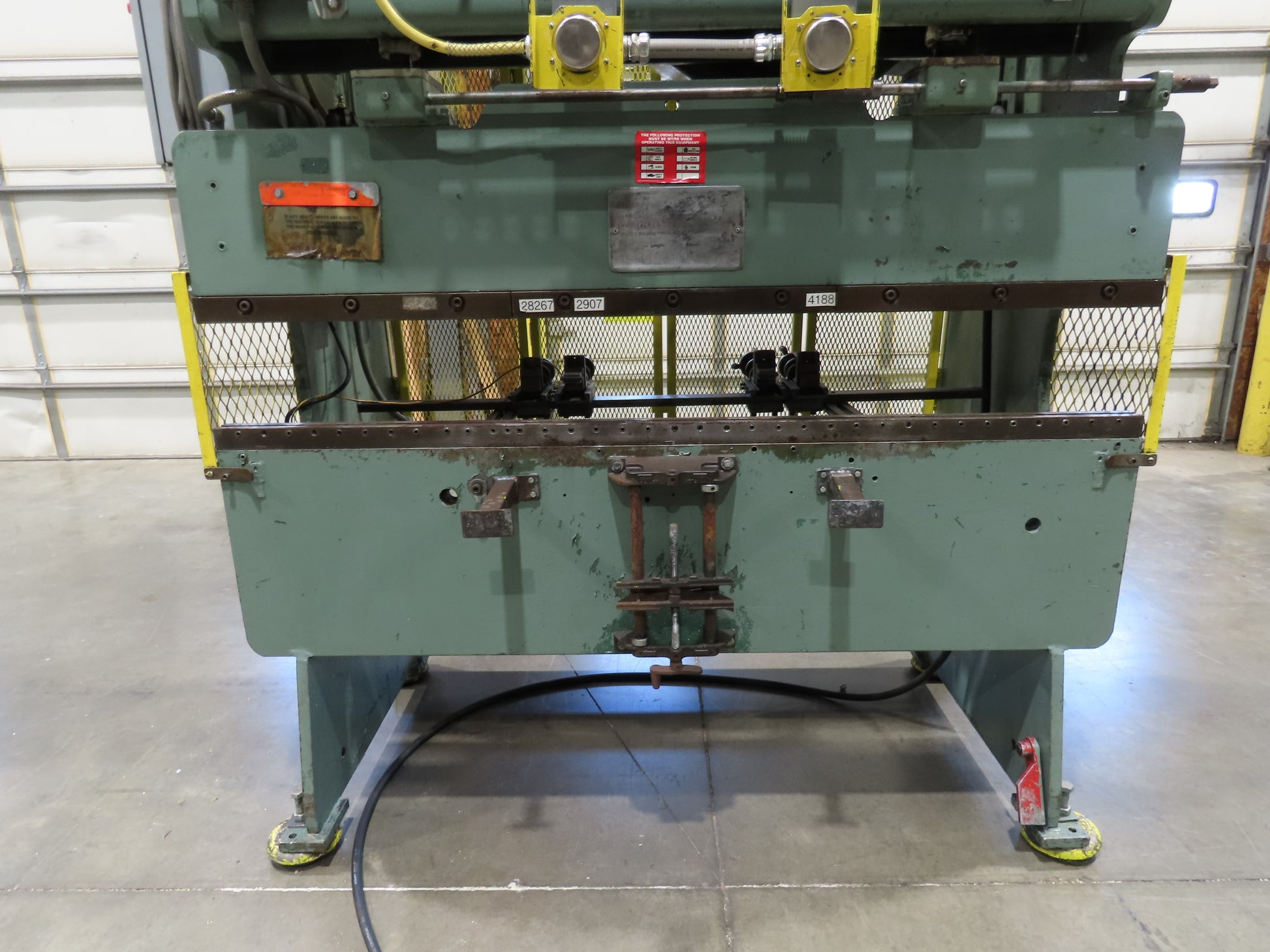

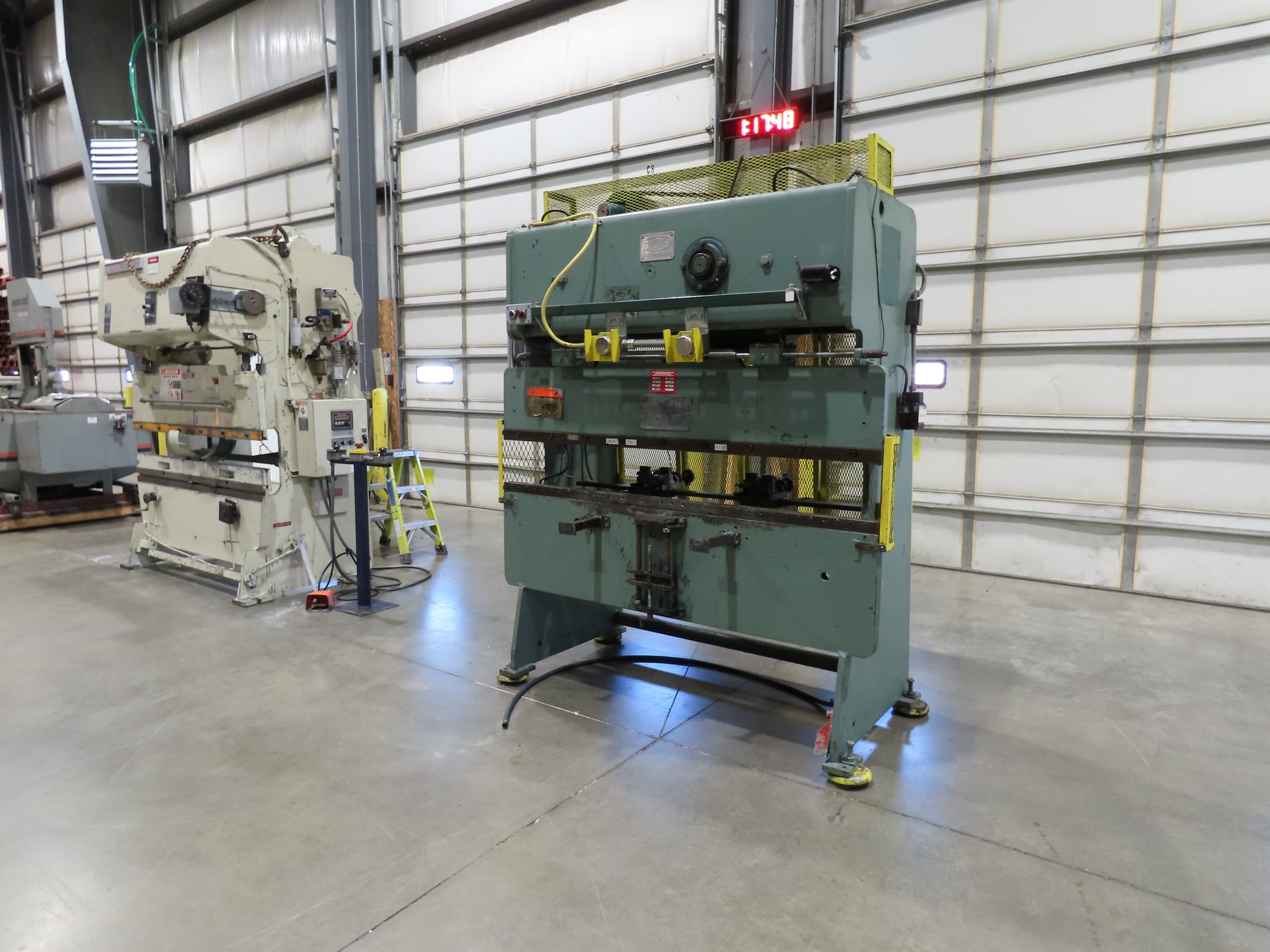

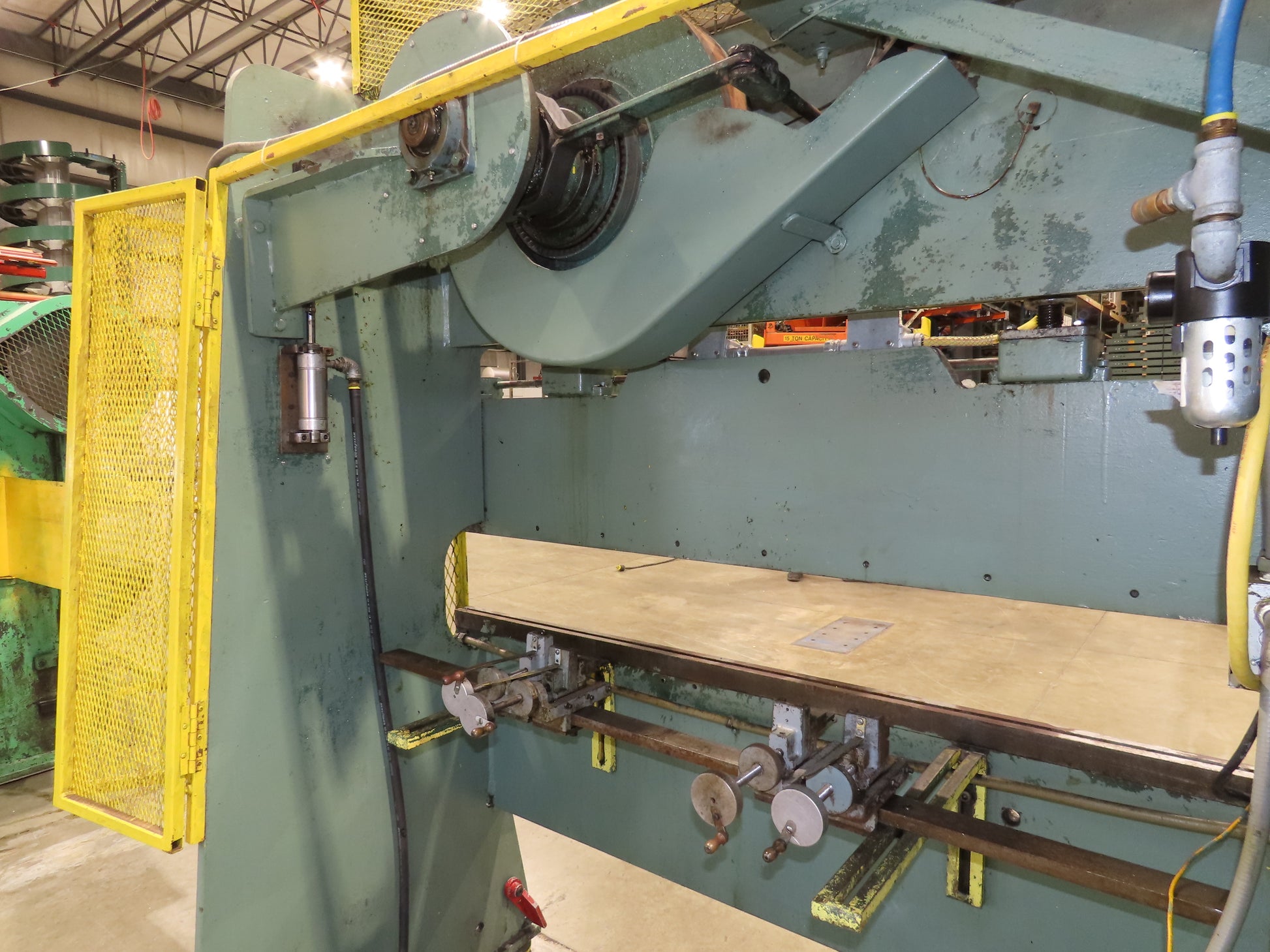

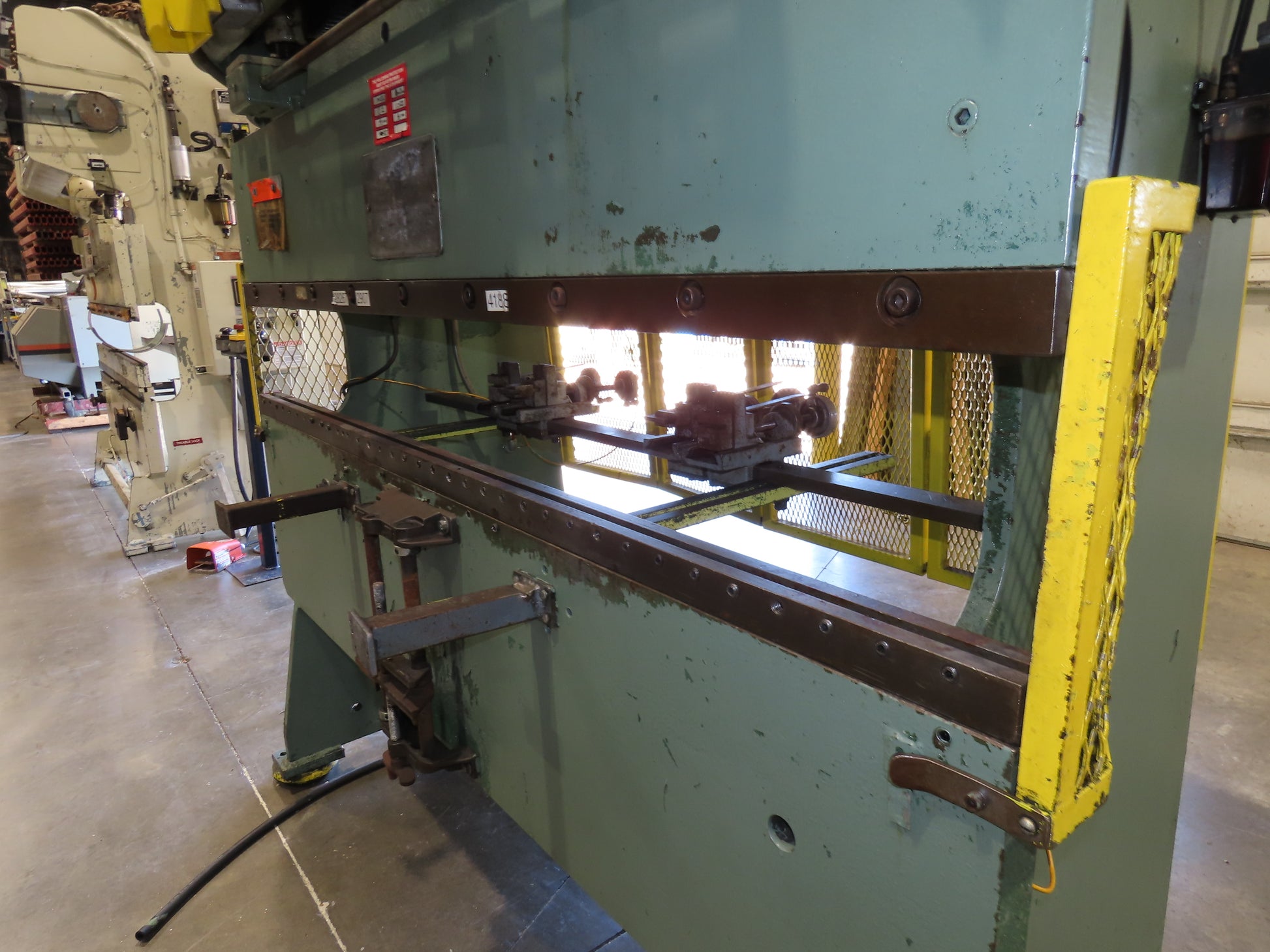

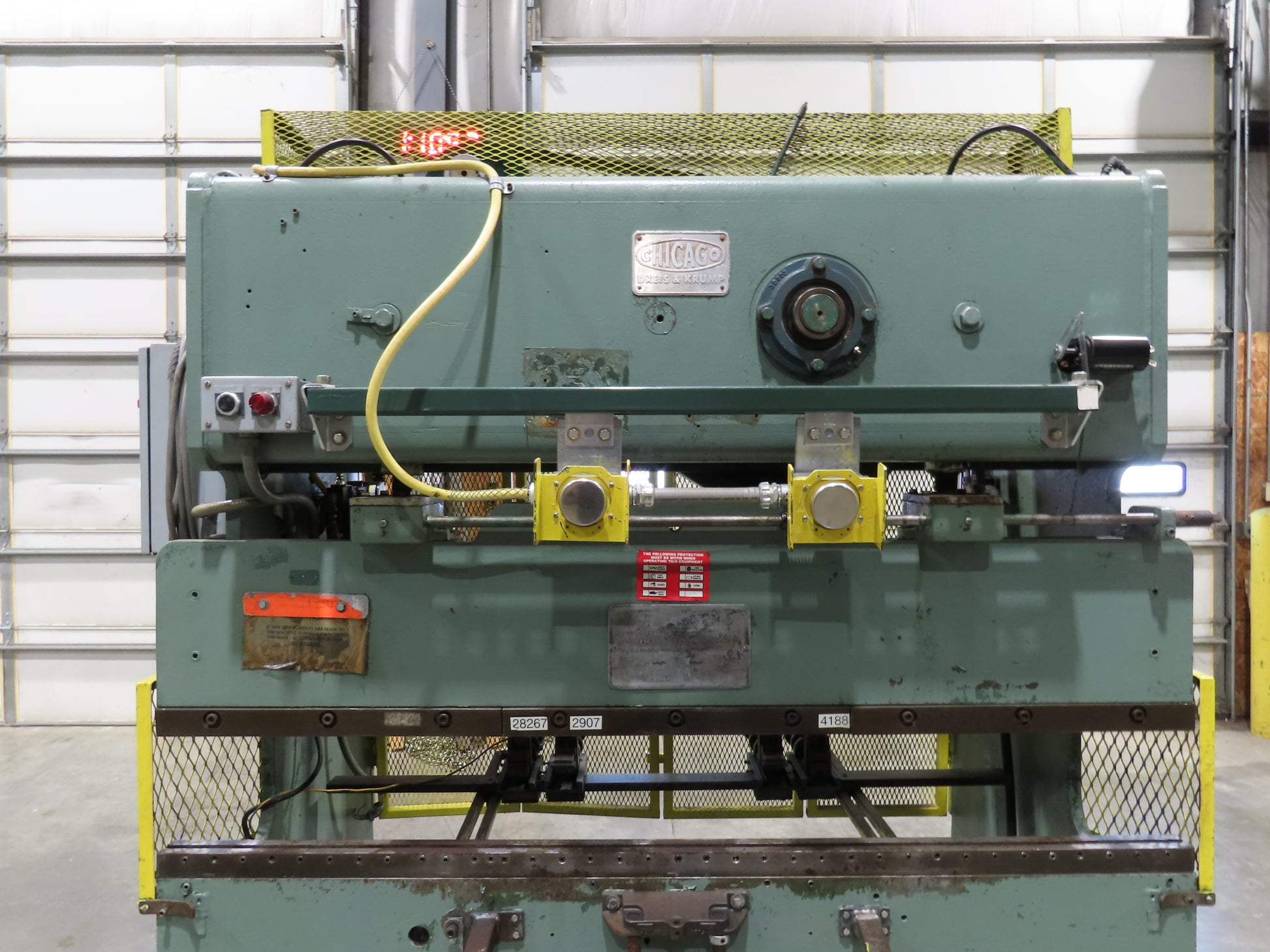

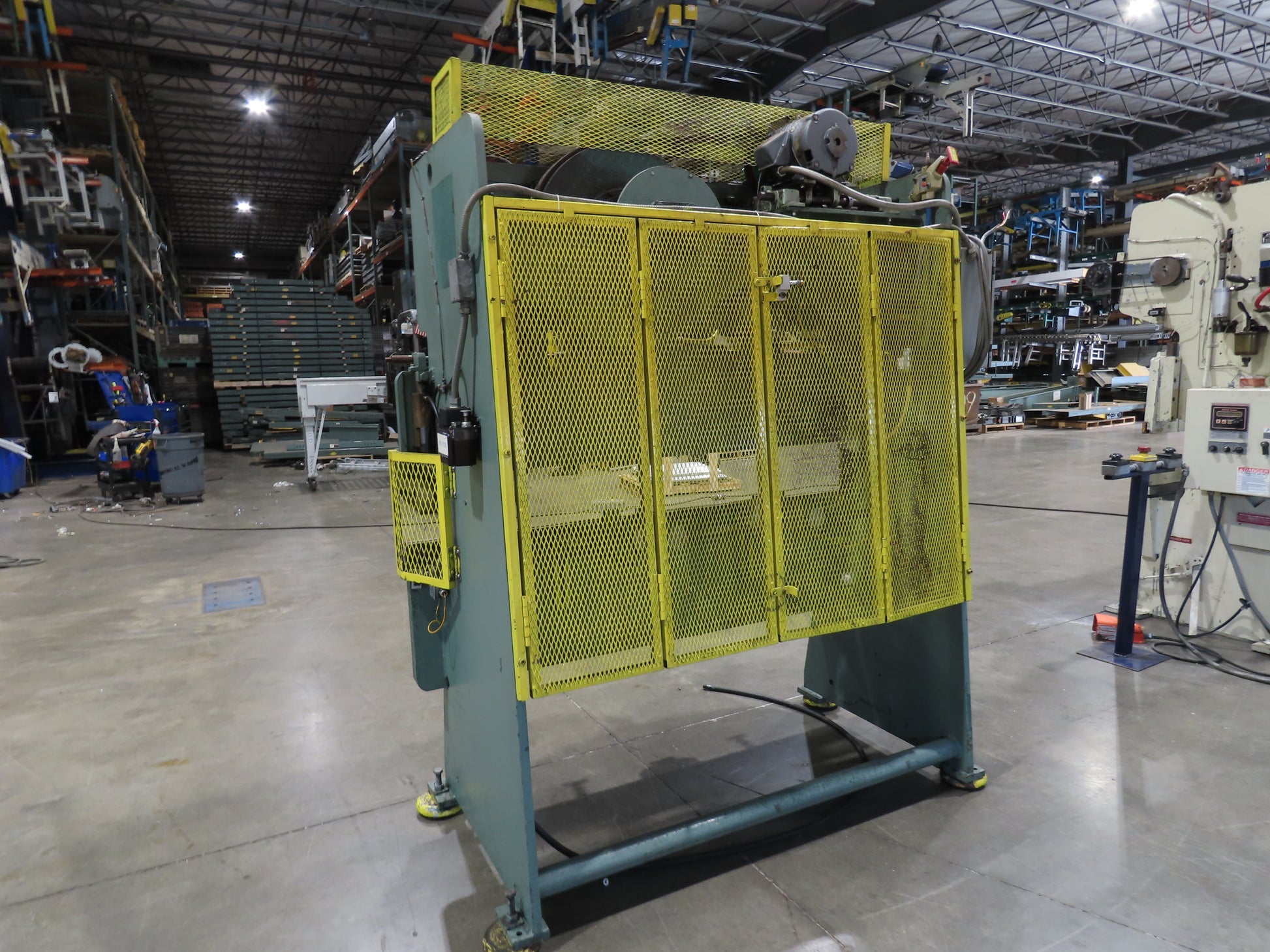

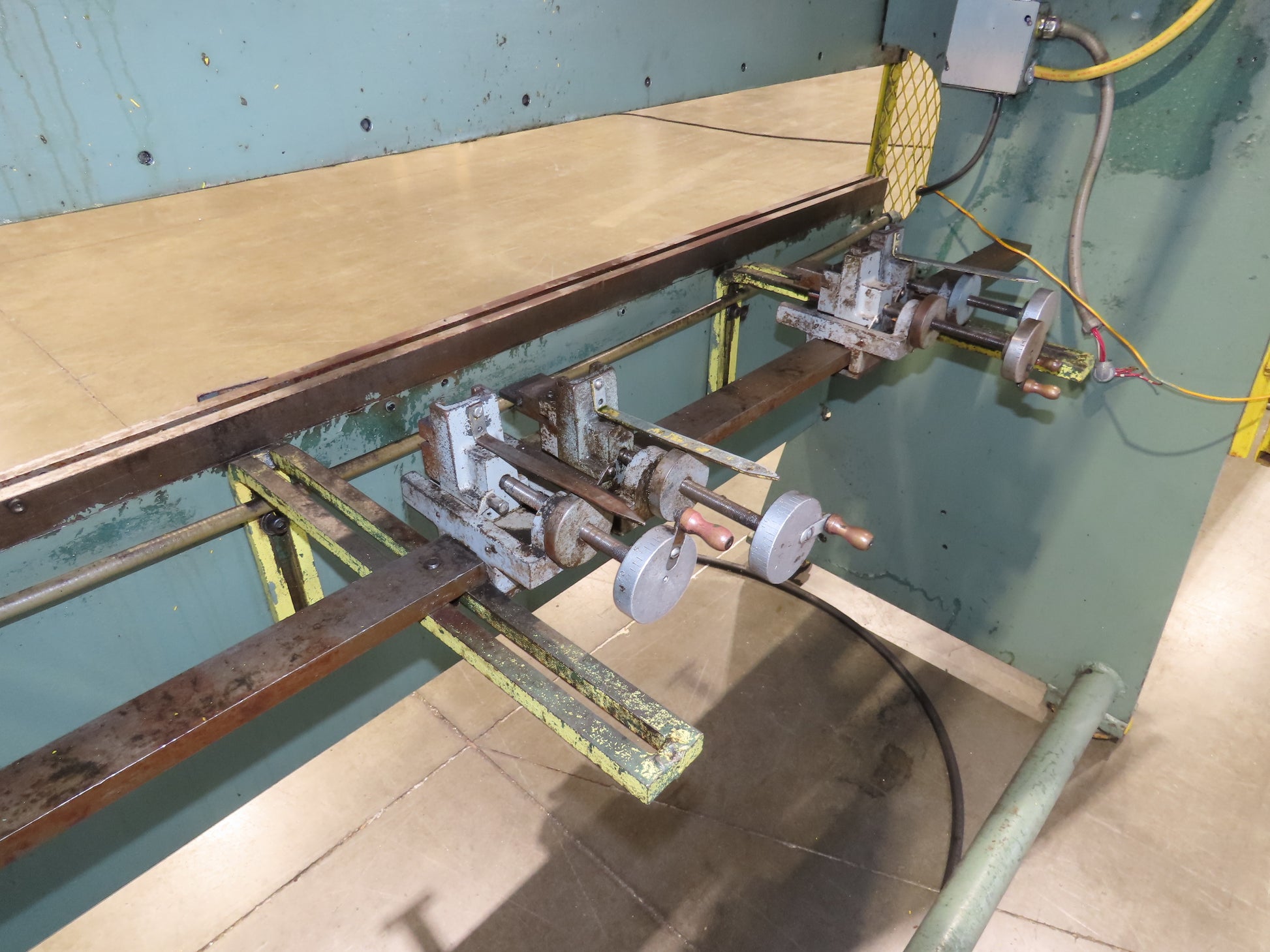

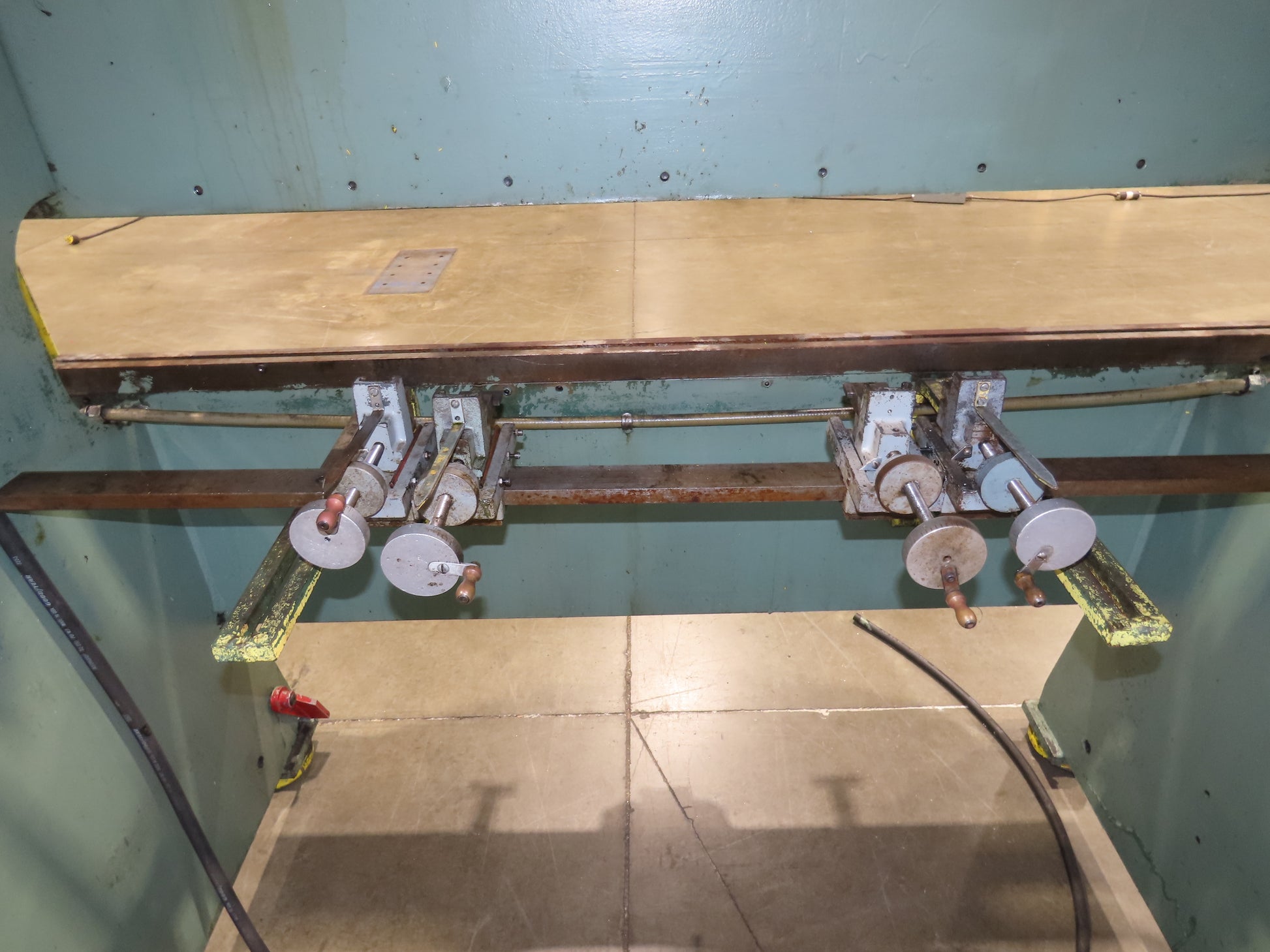

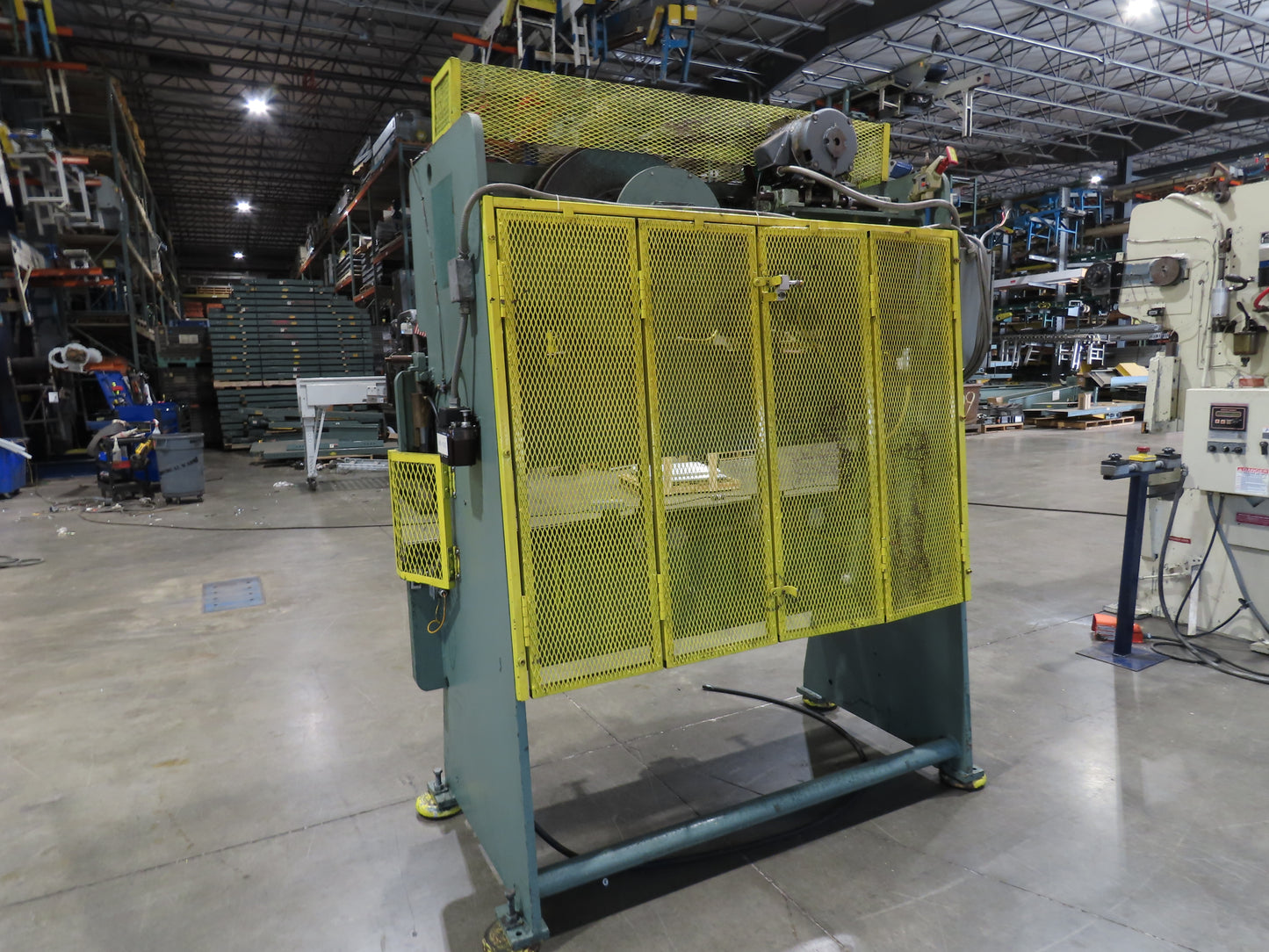

Chicago Mechanical Press Brake 25 Ton 6' Ram 2" Stroke 1.5Hp 460V Missing valve

Chicago Mechanical Press Brake 25 Ton 6' Ram 2" Stroke 1.5Hp 460V Missing valve

SKU #277944

Your Price
$3,790.49
$4,199.99 $3,790.49
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Press brake in good Mechanical condition.

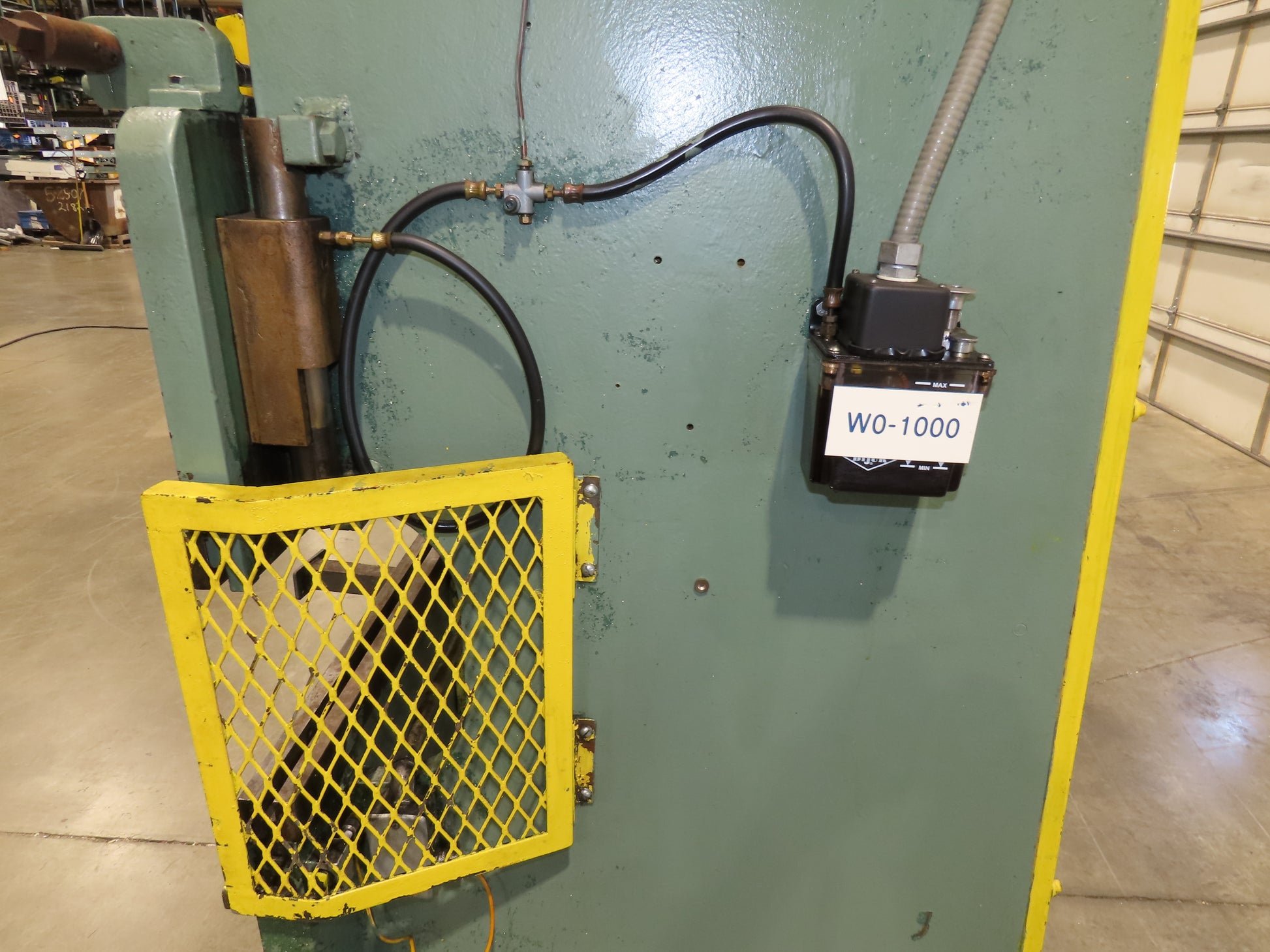

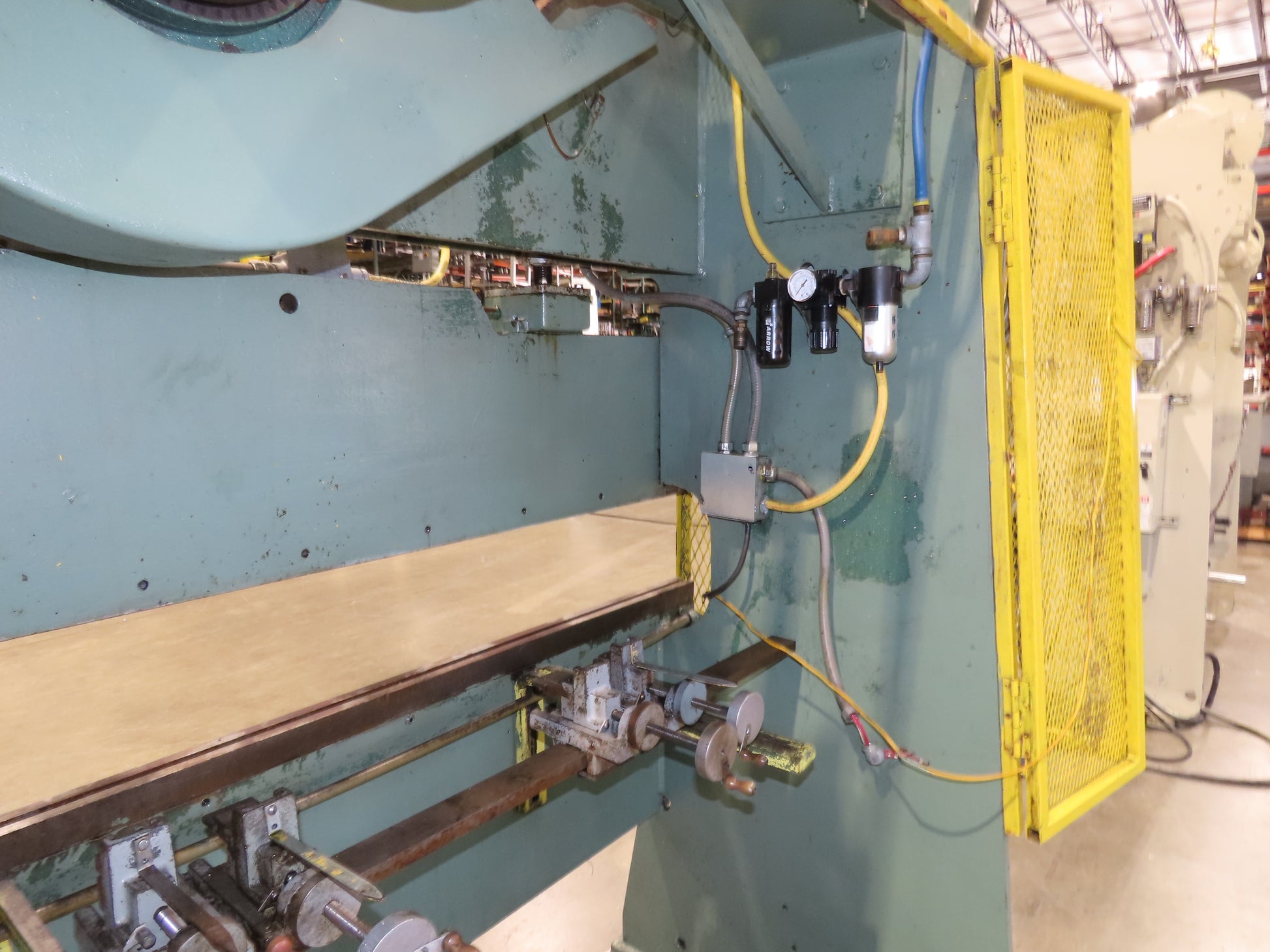

  • Switched to electric over air but is missing the valve.

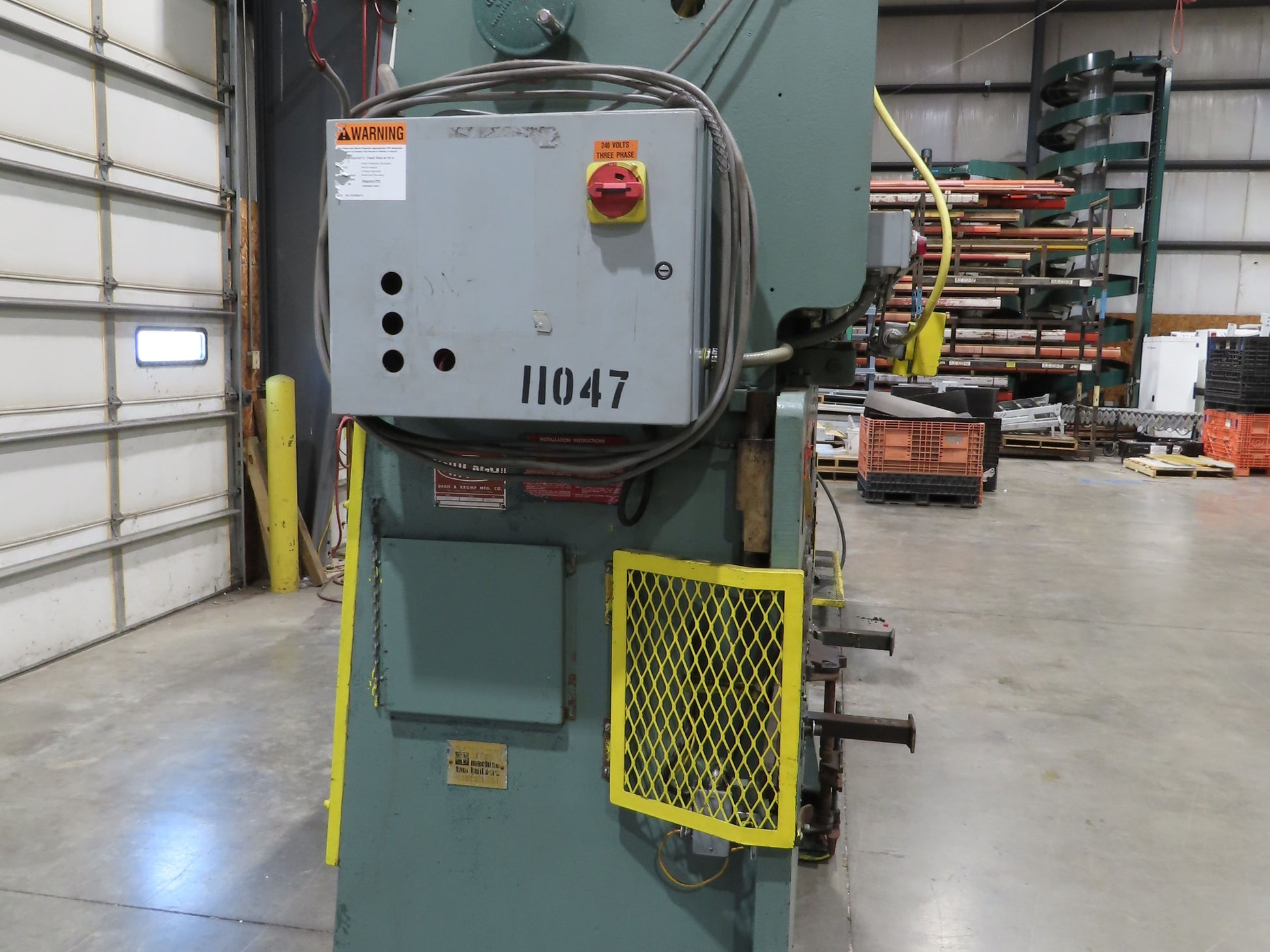

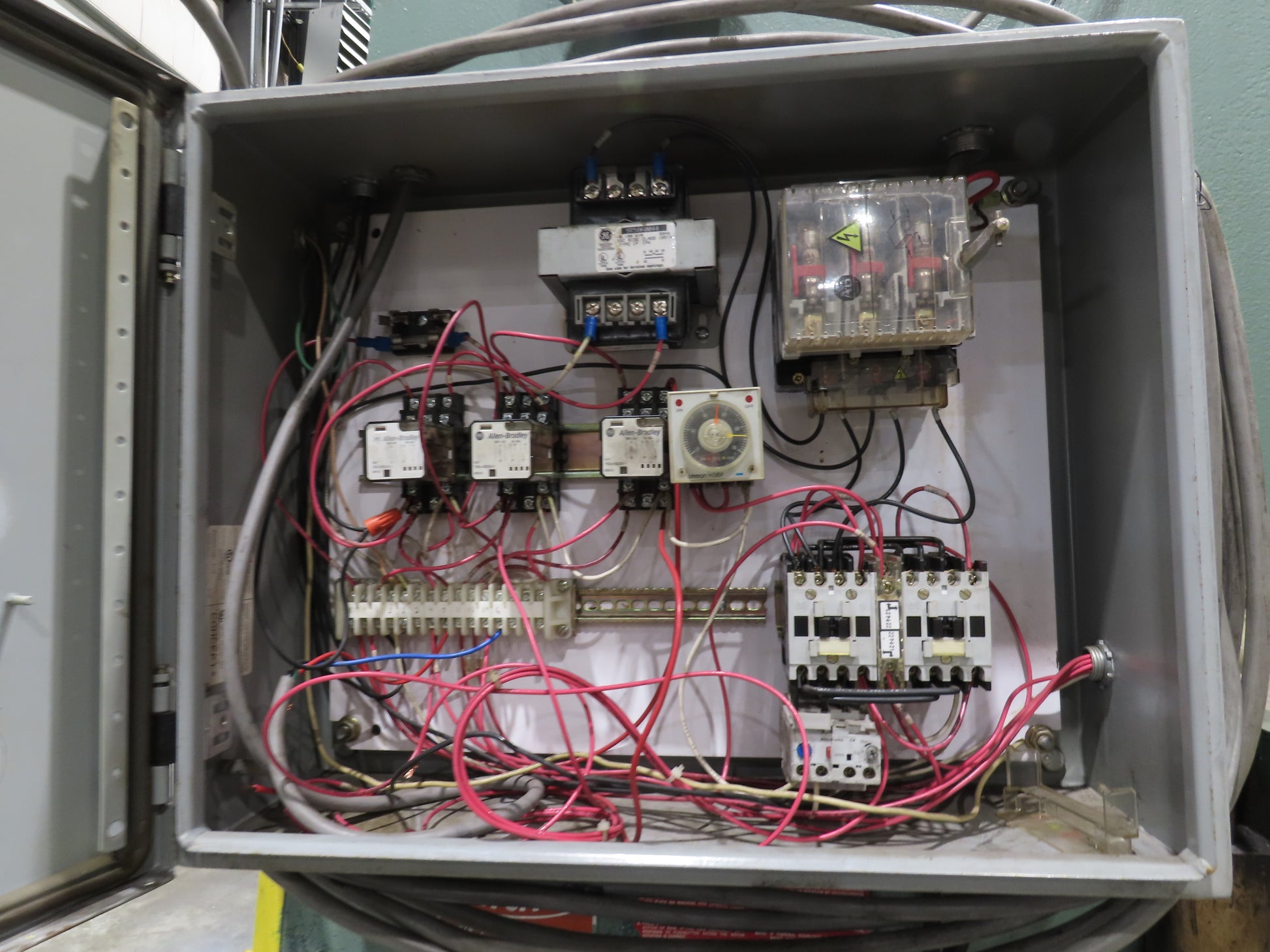

  • Will need serviced, panel is missing some contol switches.
  • We are unable to fully test.  Motor Tested @ 460V.

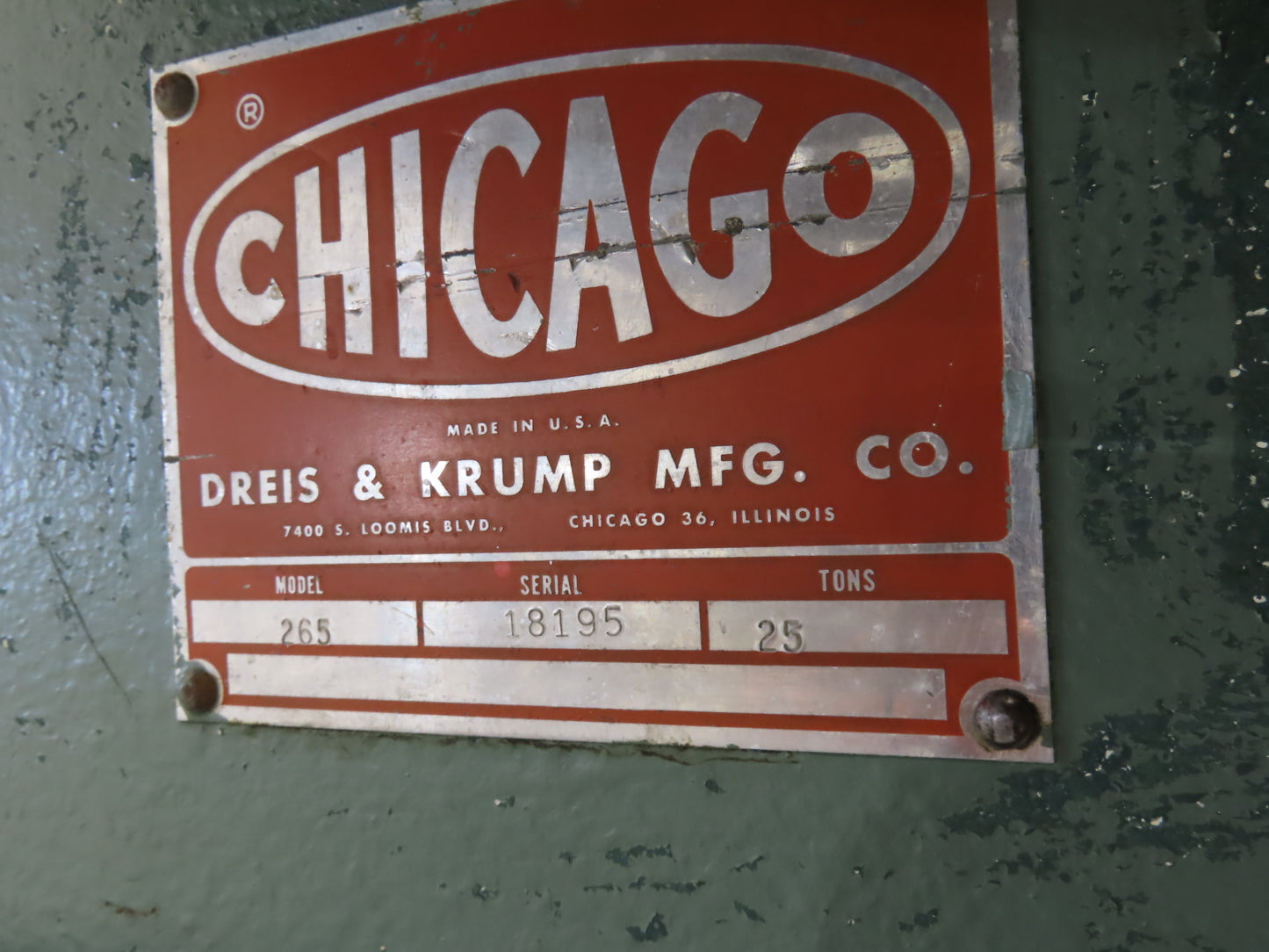

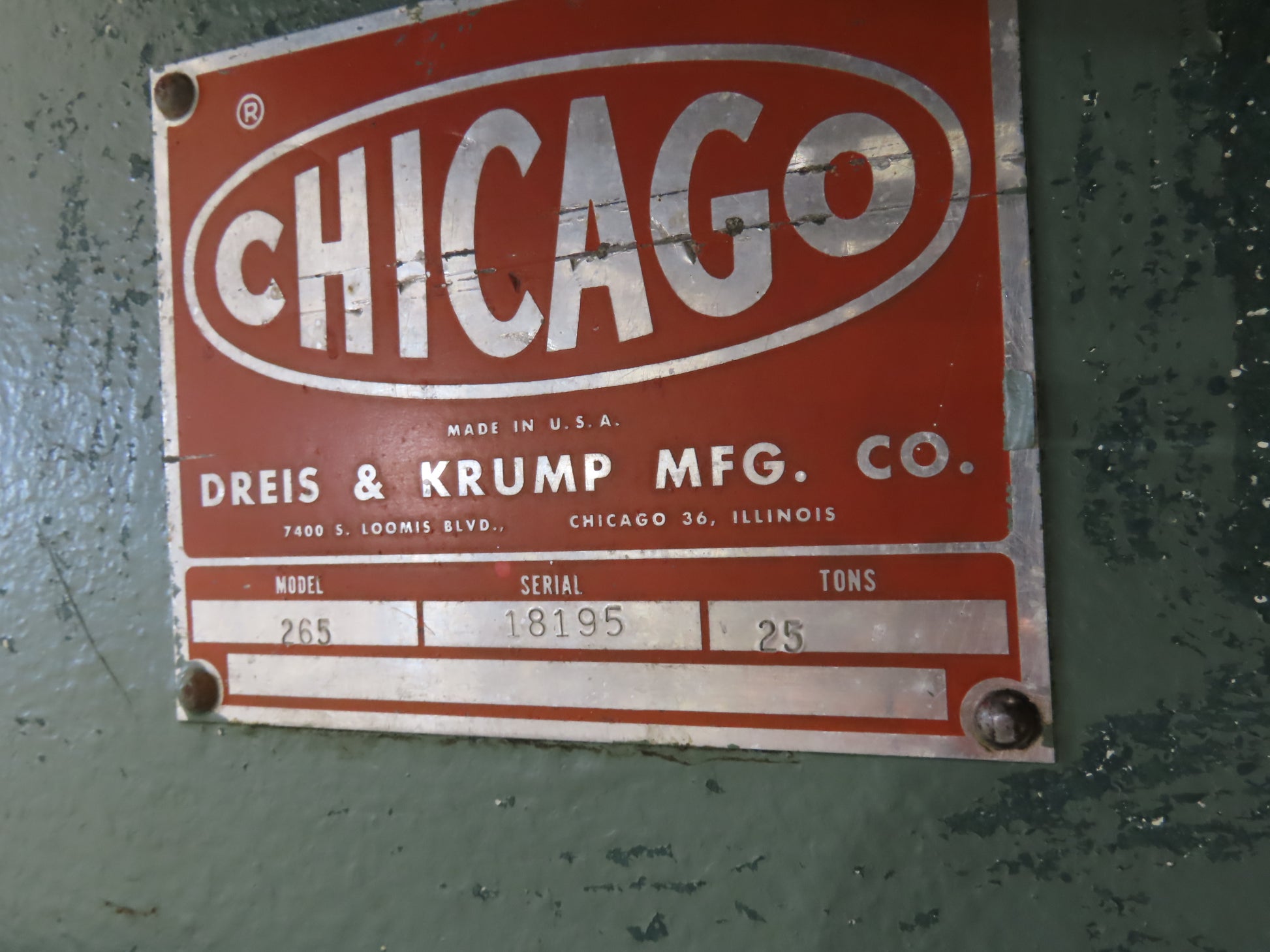

  • Model 265.  Serial 18195.
  • Capacity: 25 Ton

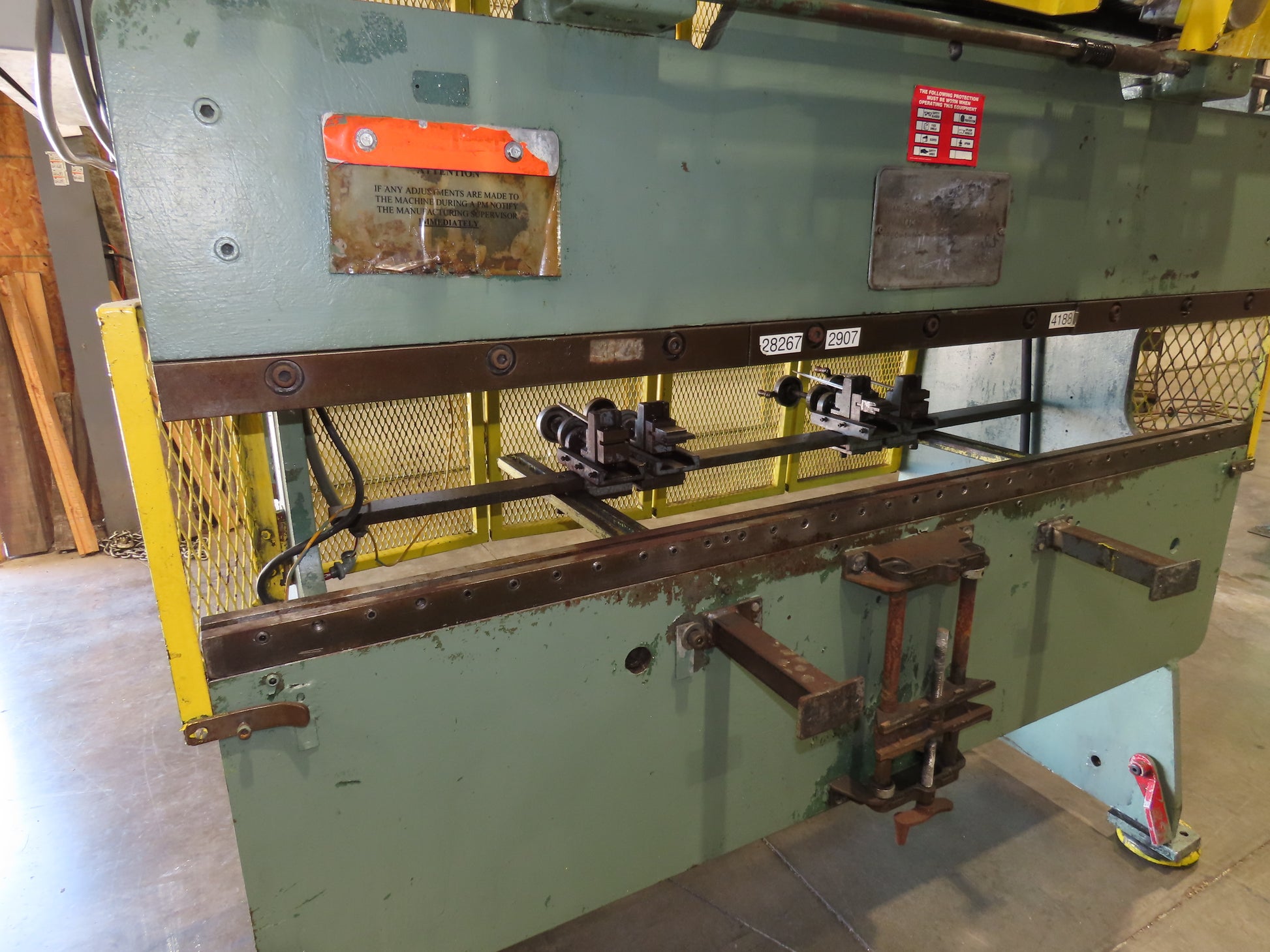

  • Bed and Ram Length:  72"
  • Stroke Length:  2"

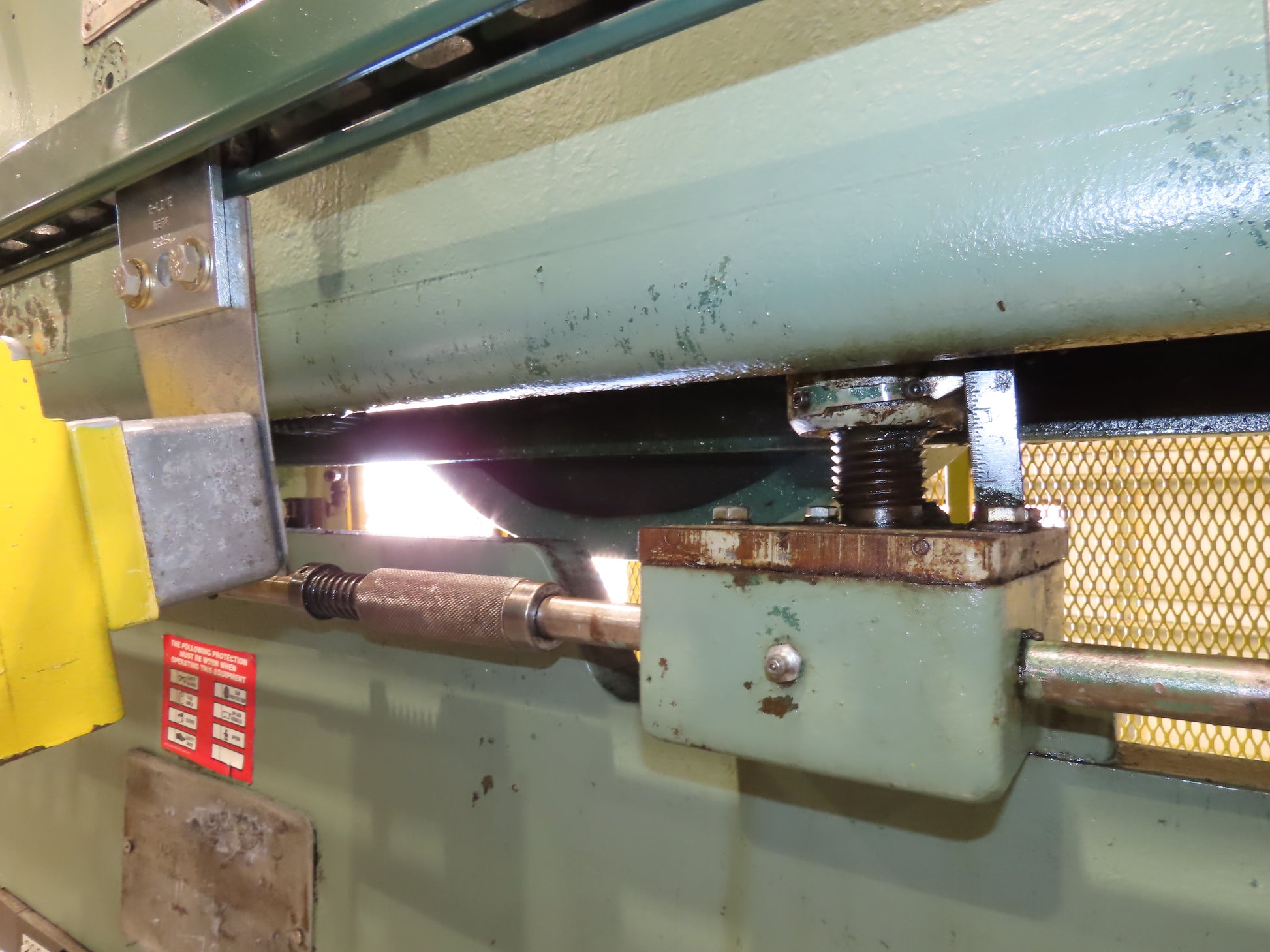

  • Ram Adjustment: 3" Manual Ram Adjustment
  • Ram Shut Height:  9"
  • Throat Depth: 6"
  • Distance Between Housing:  62"

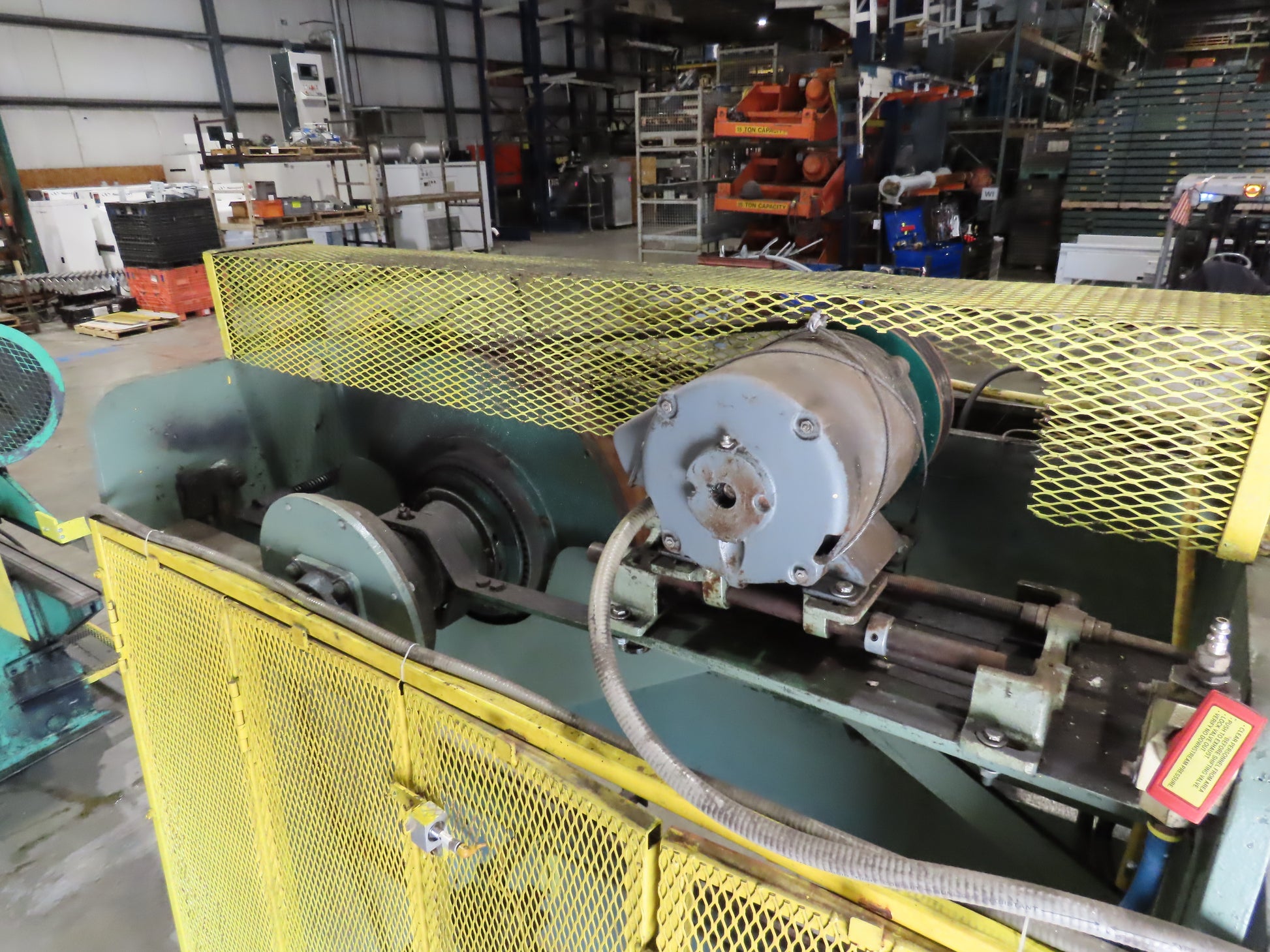

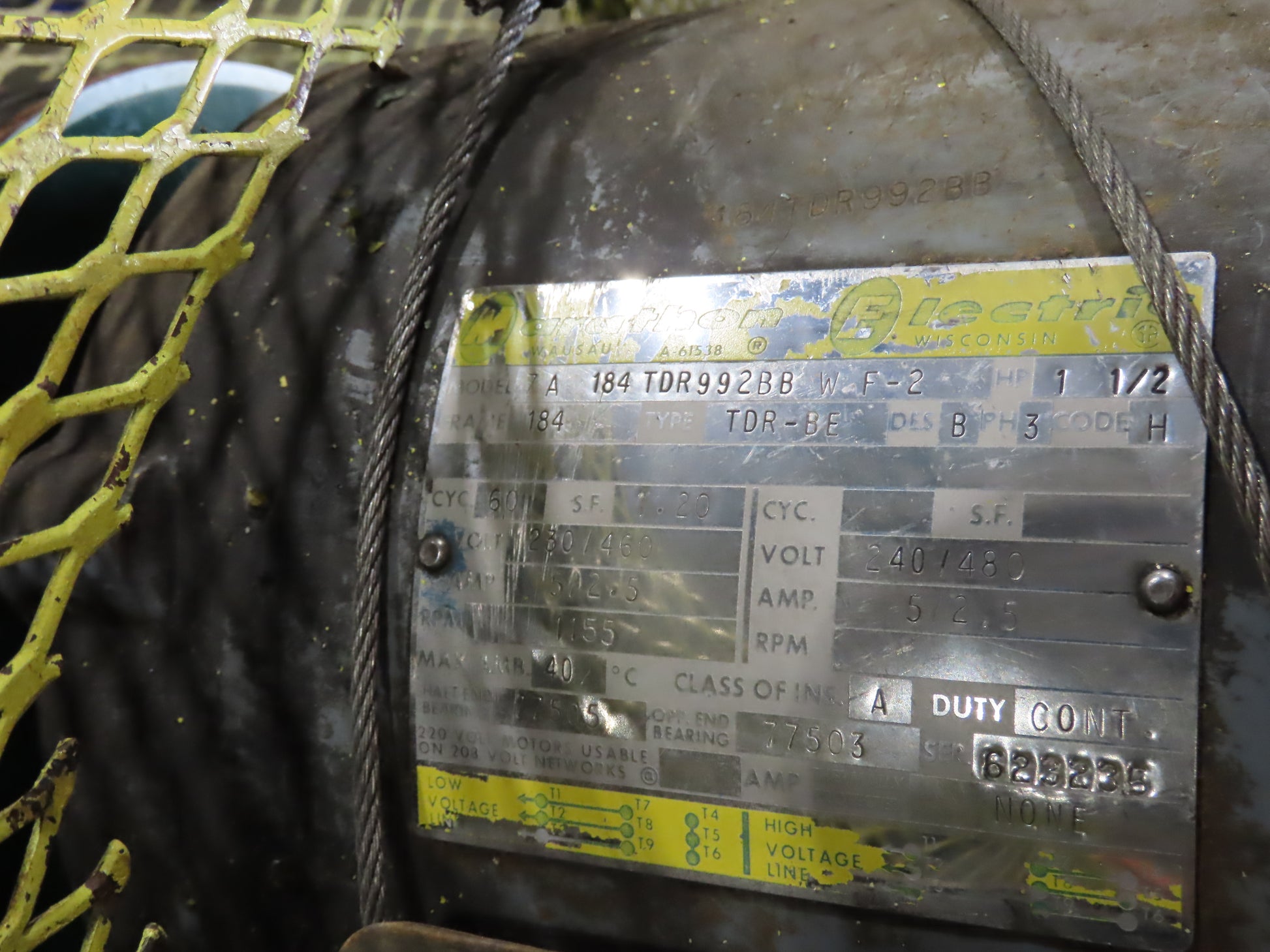

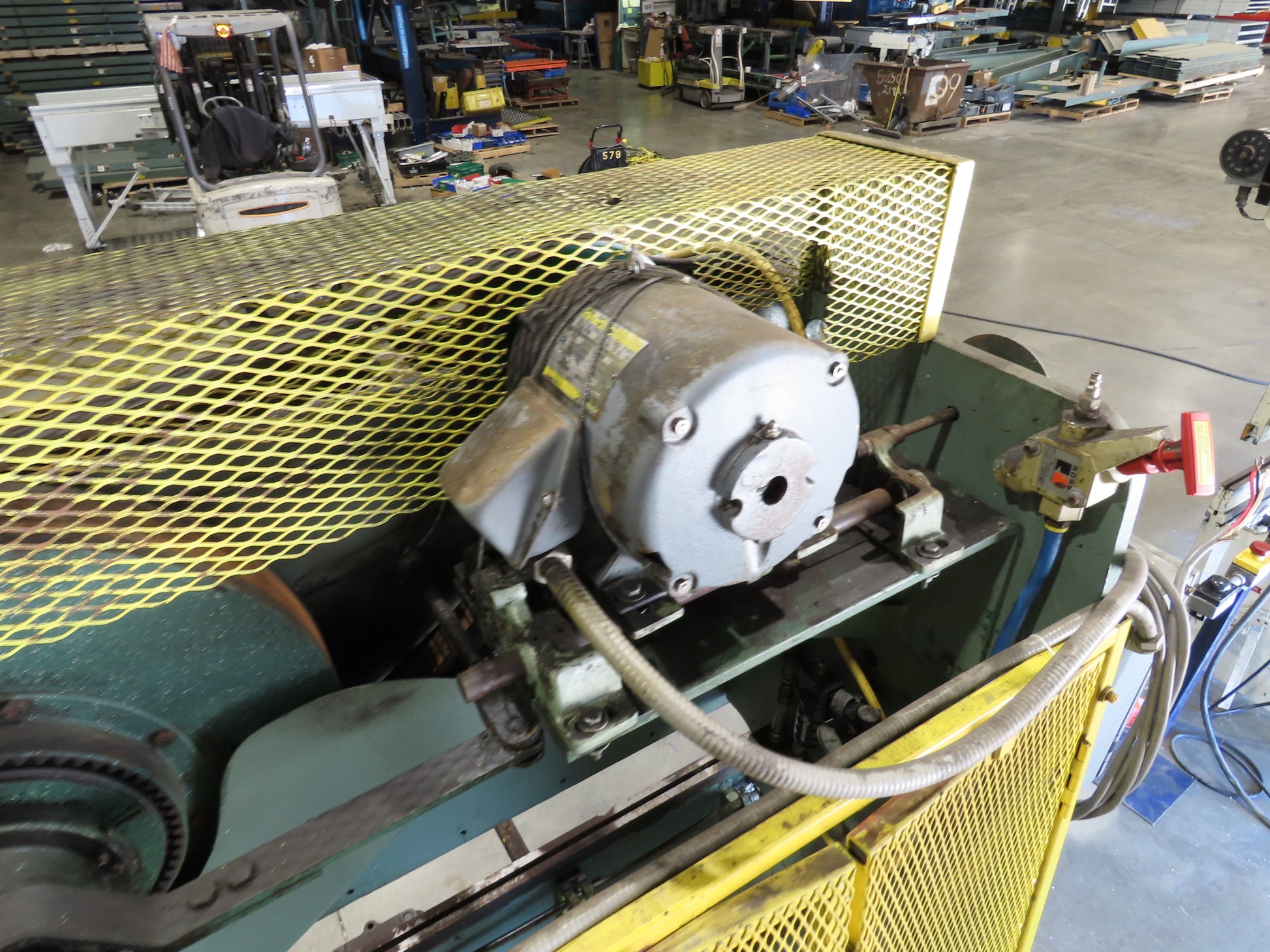

  • Motor:  1.5Hp 230/460V 3PH  (Tested @ 460V)
  • Overall width: 78" x 42"D
  • Overall Height:  78"
  • Approximate Weight:  4500 Lbs
