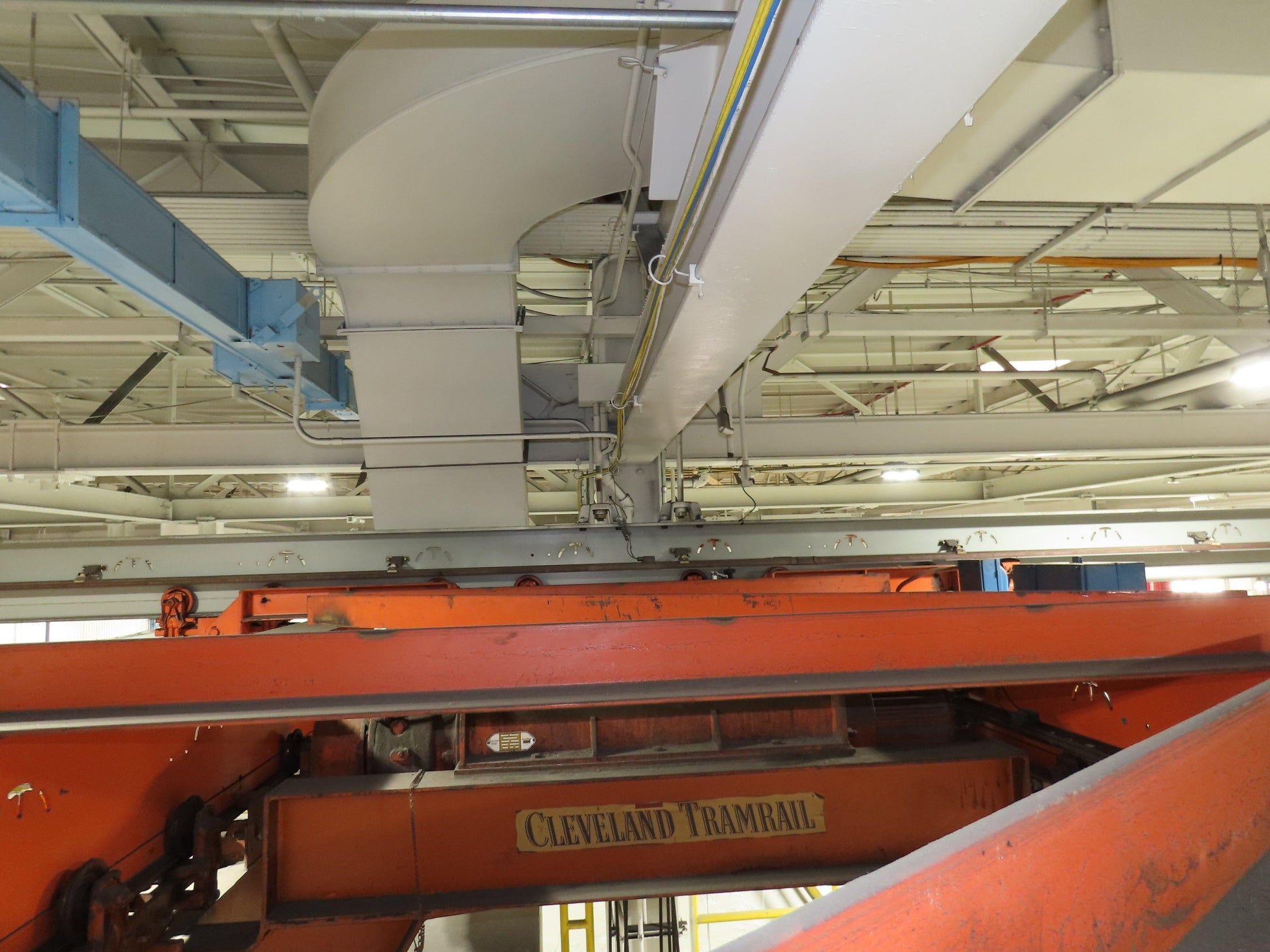

Cleveland Tramrail

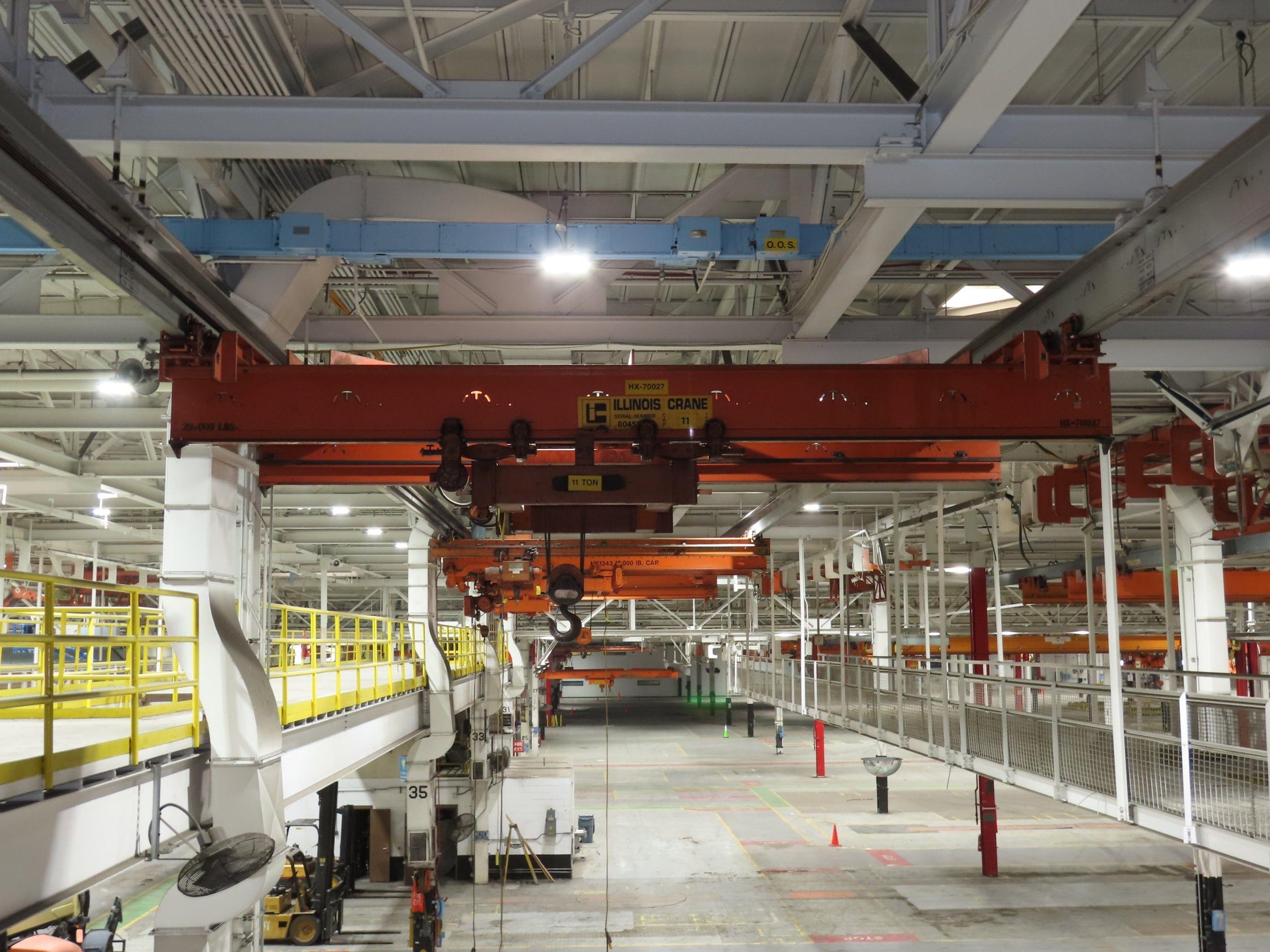

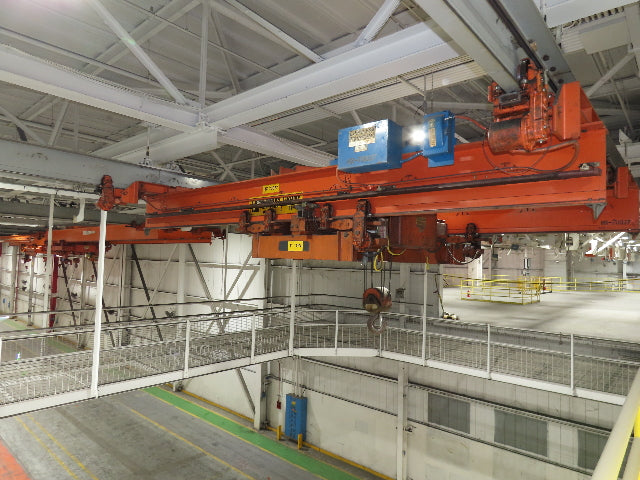

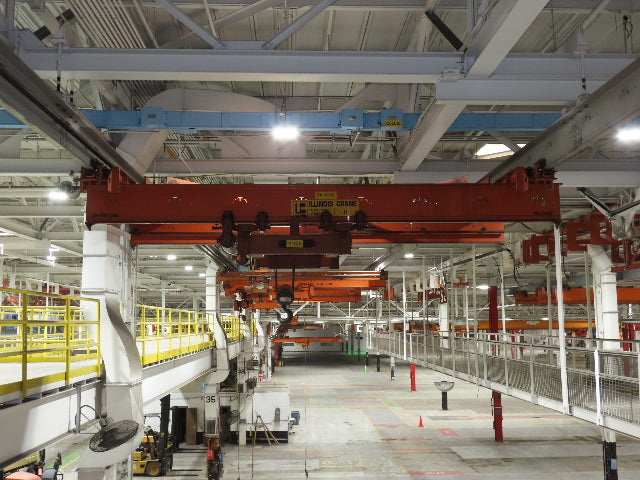

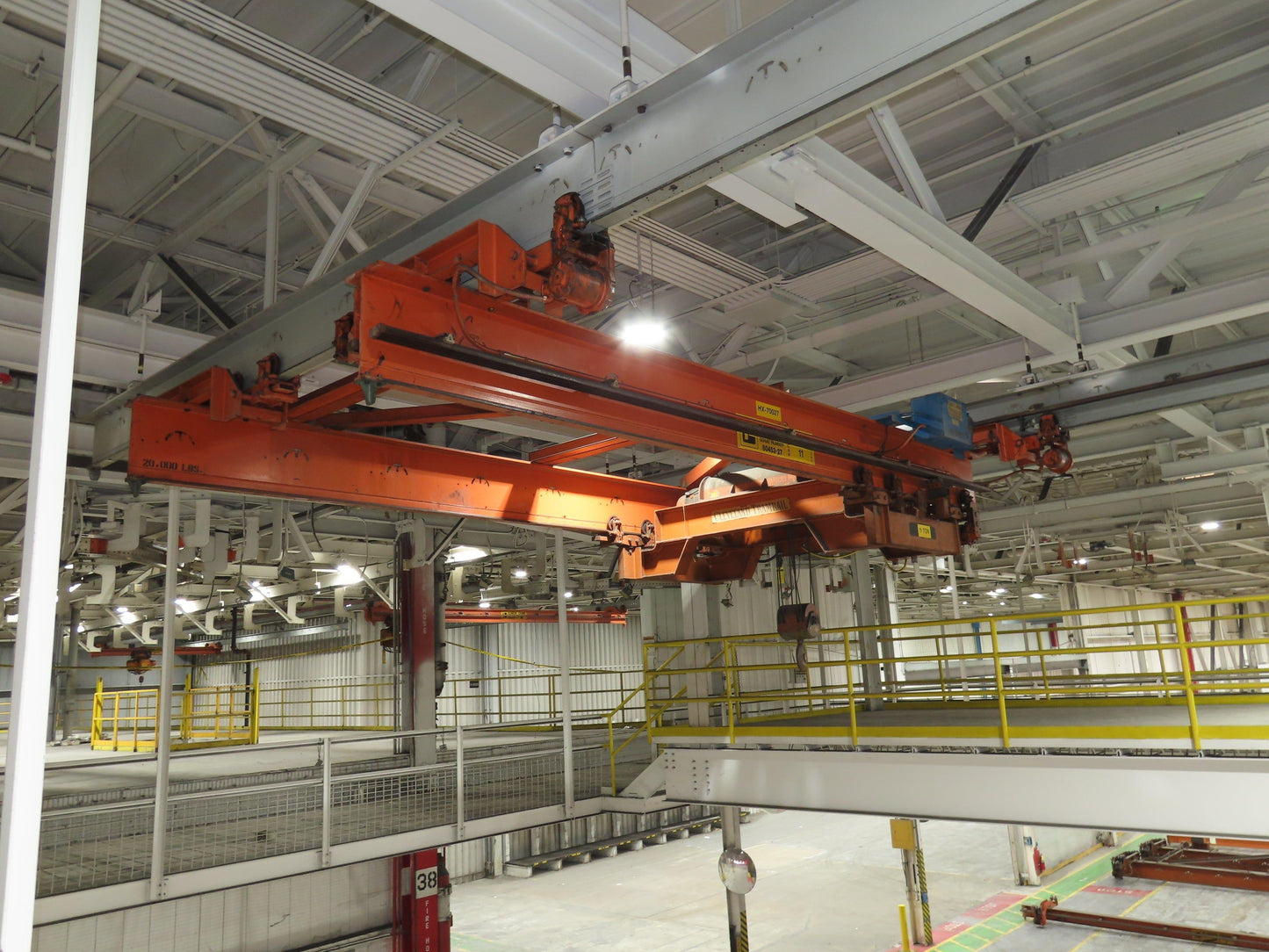

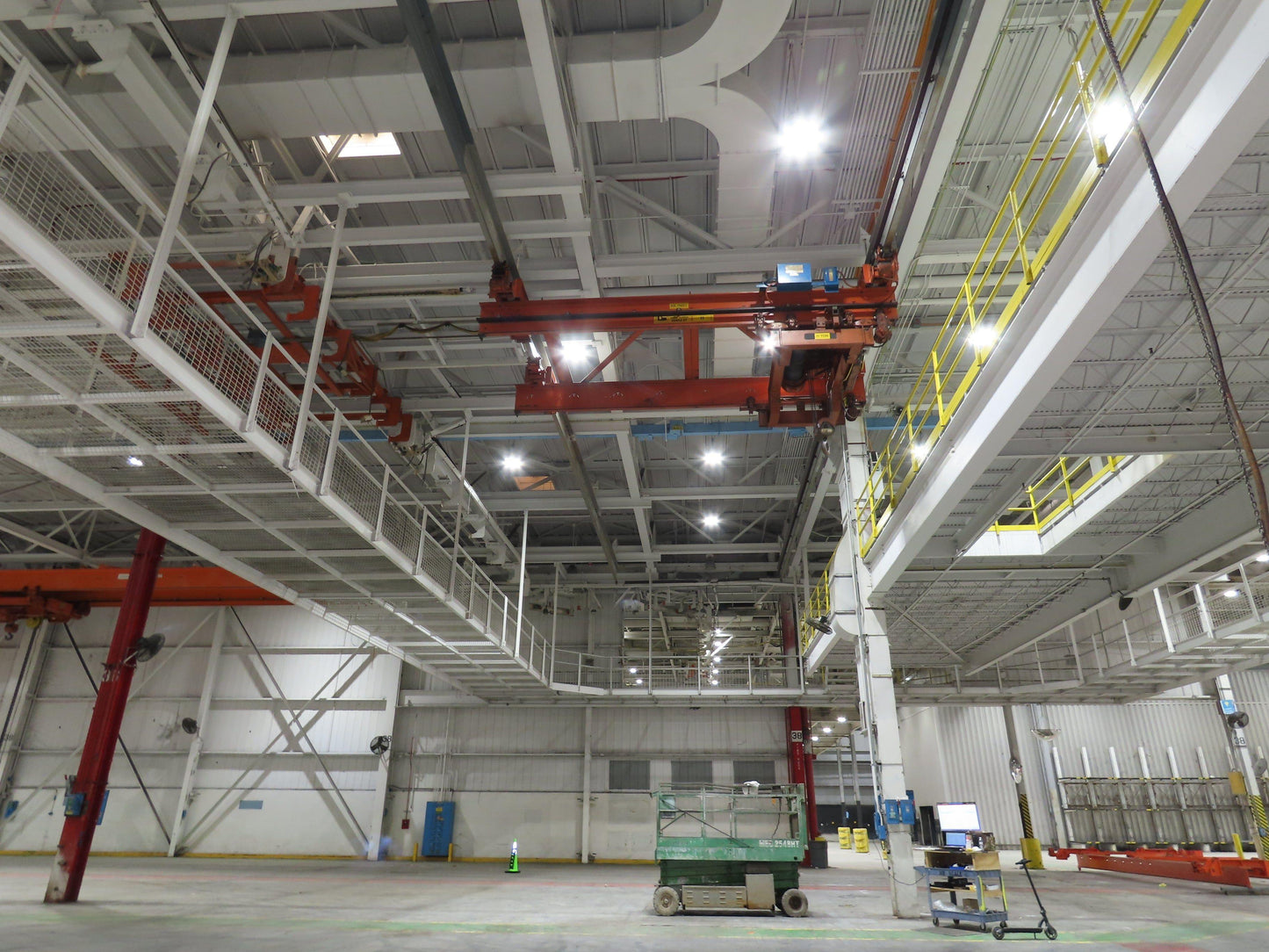

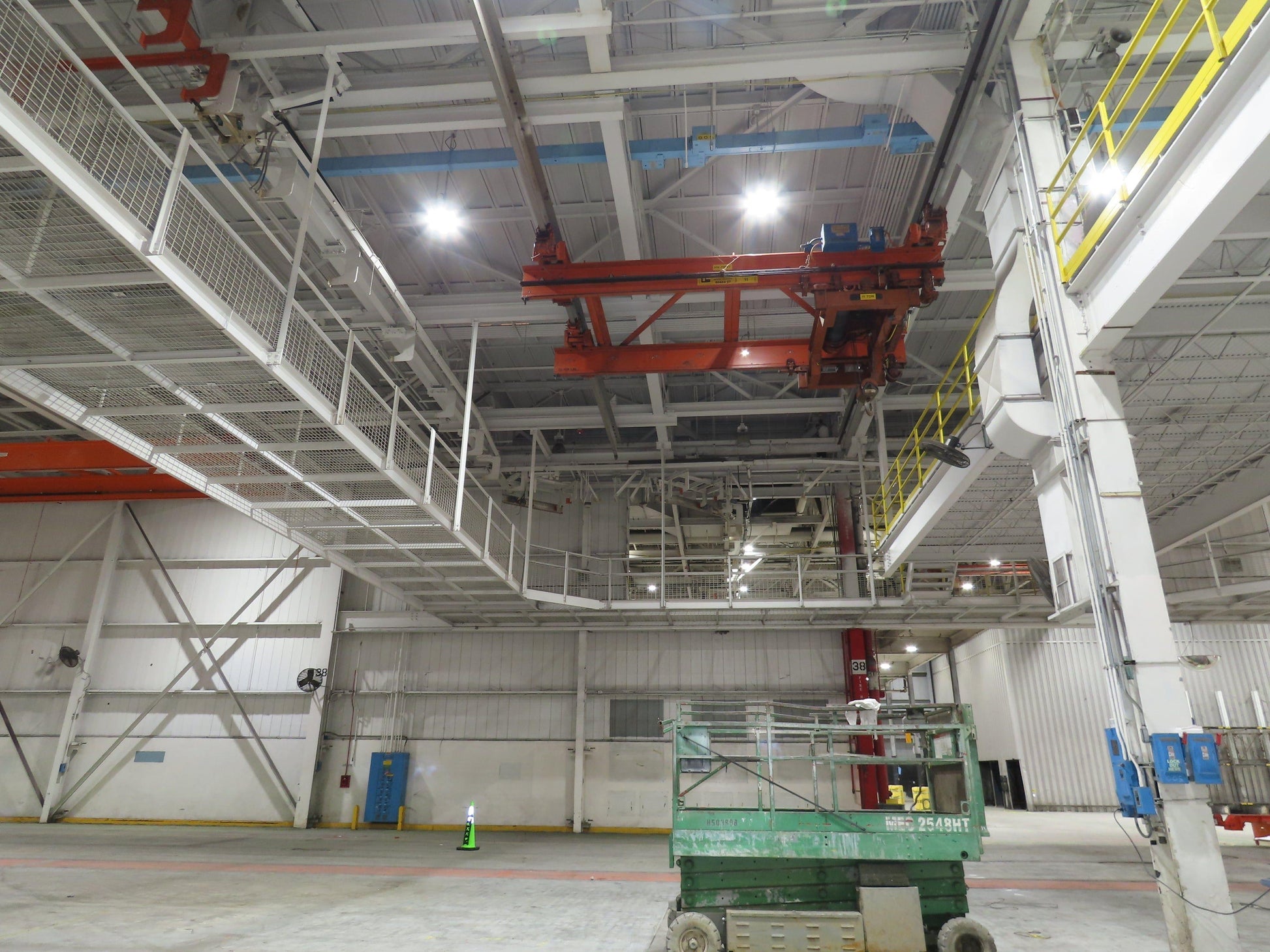

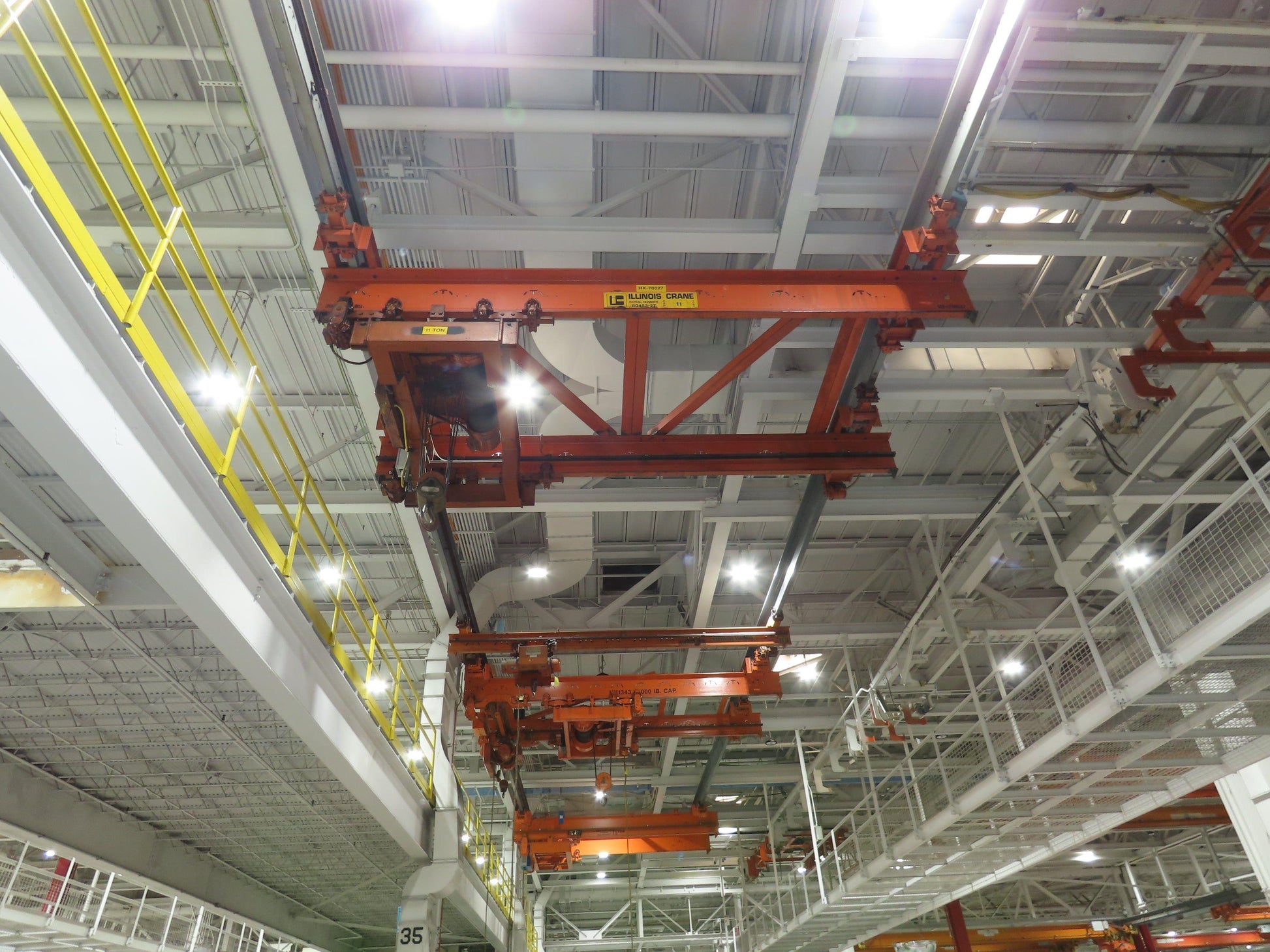

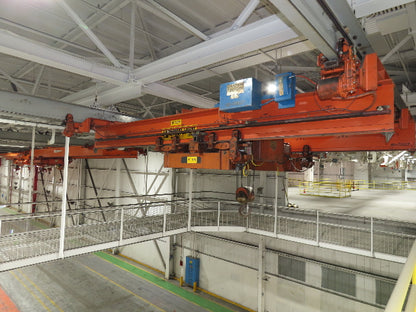

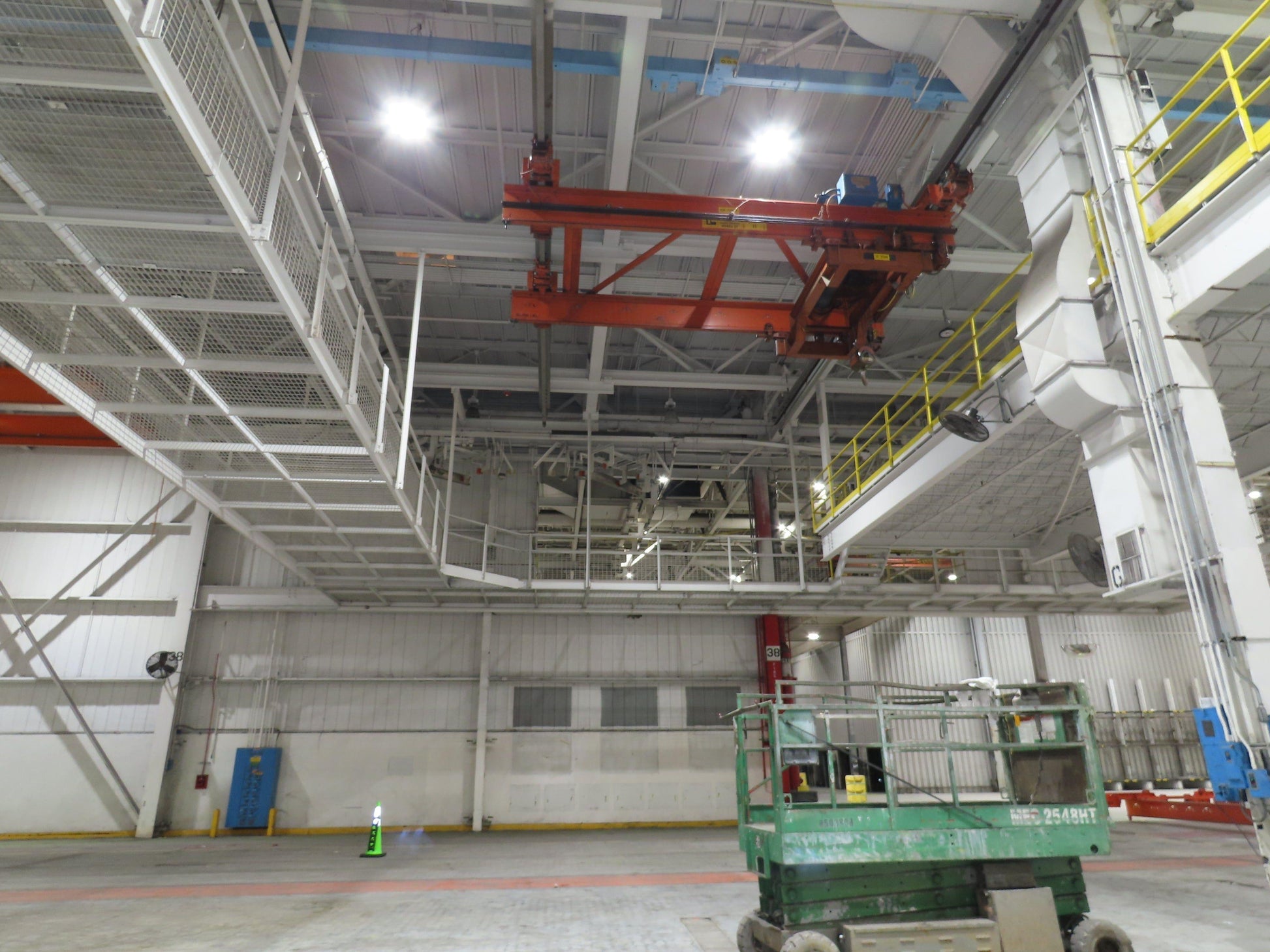

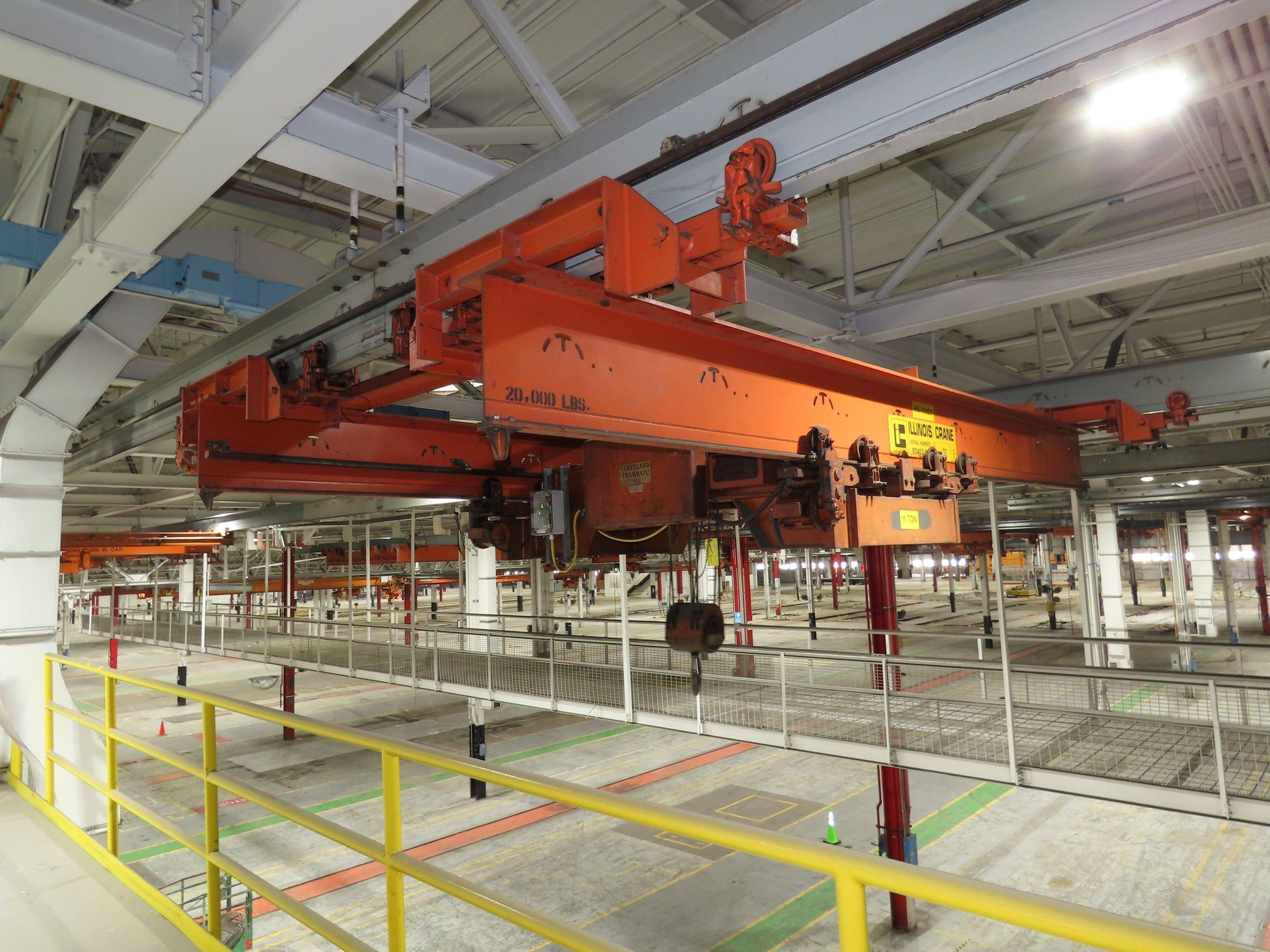

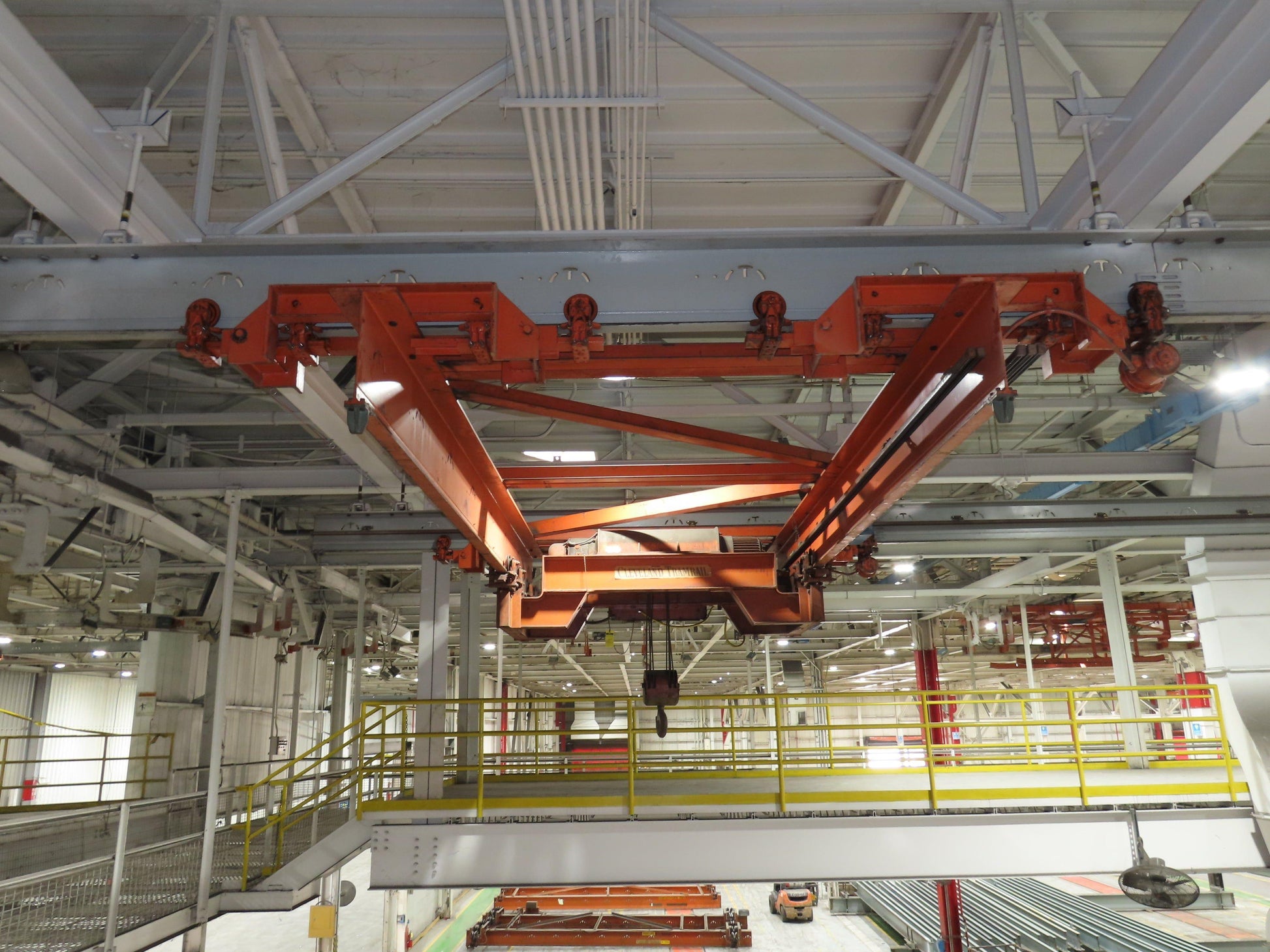

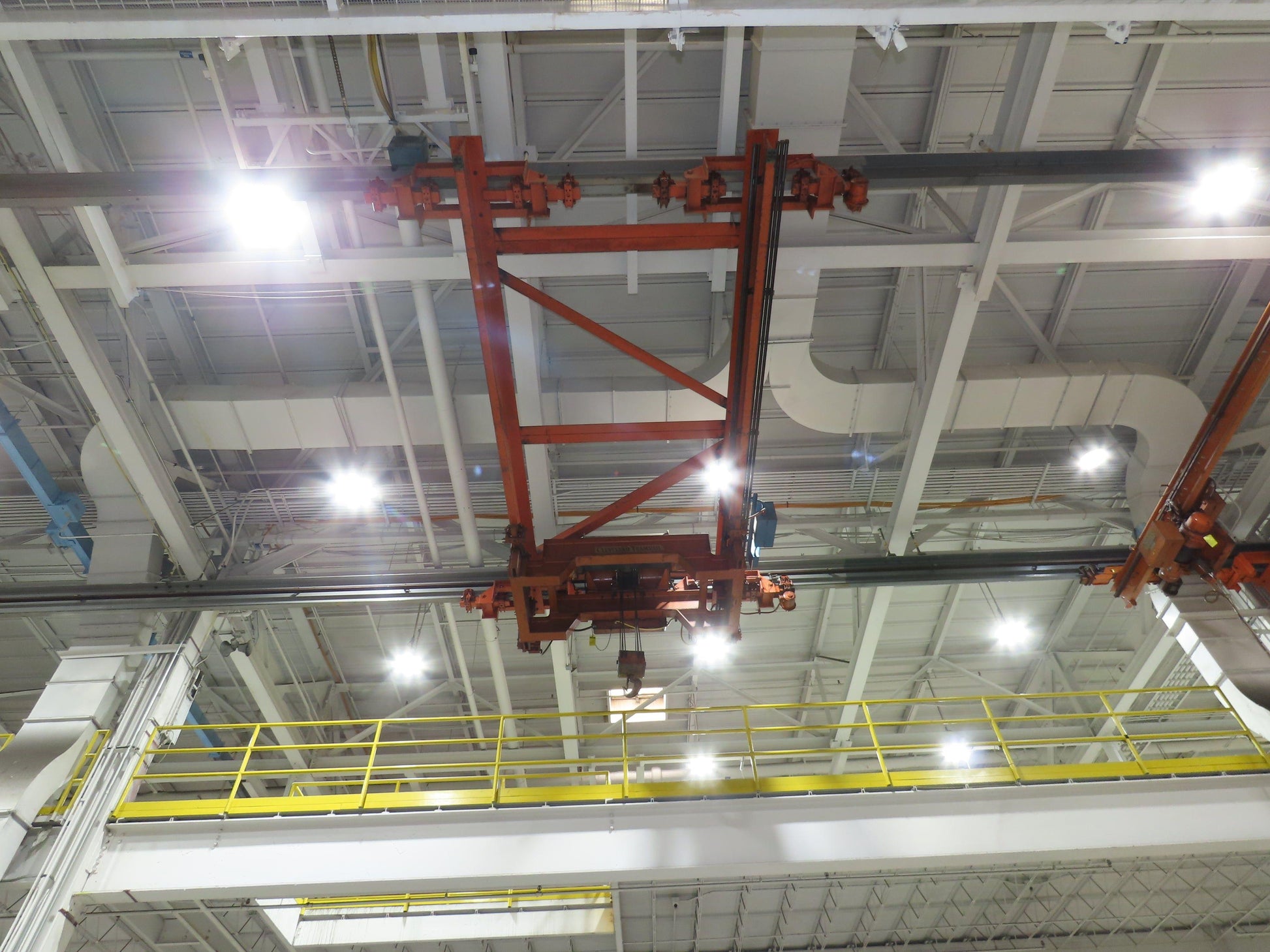

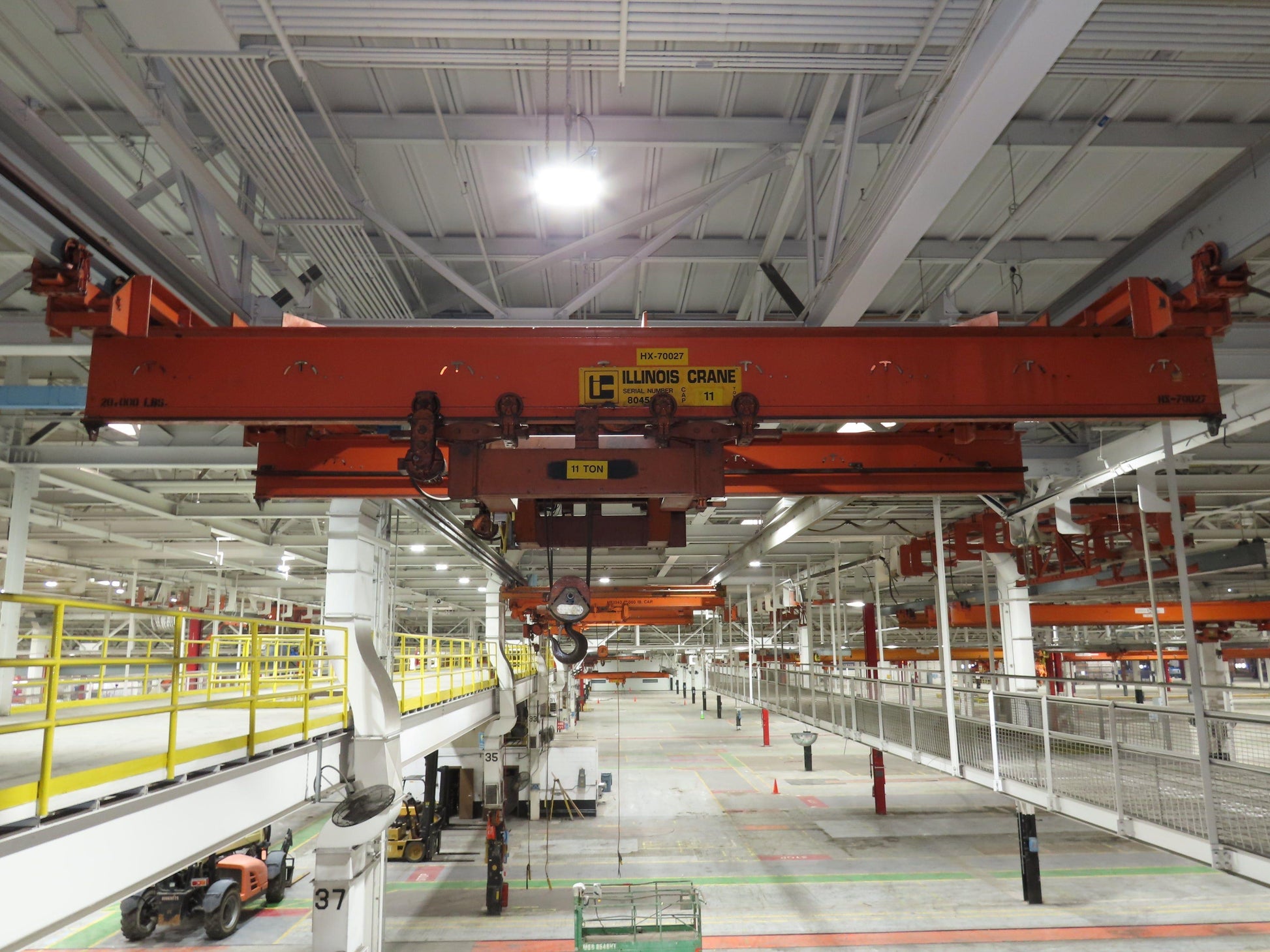

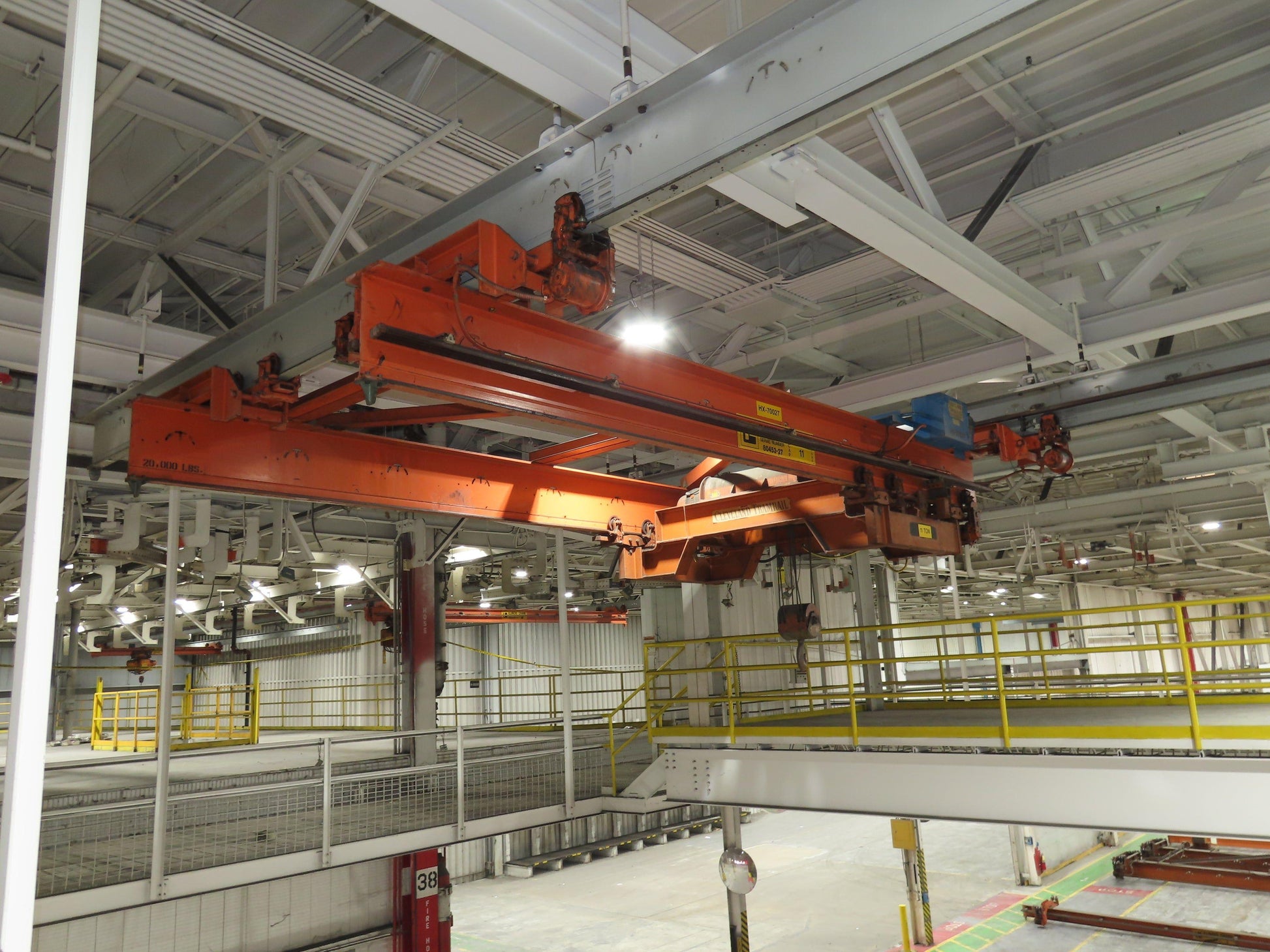

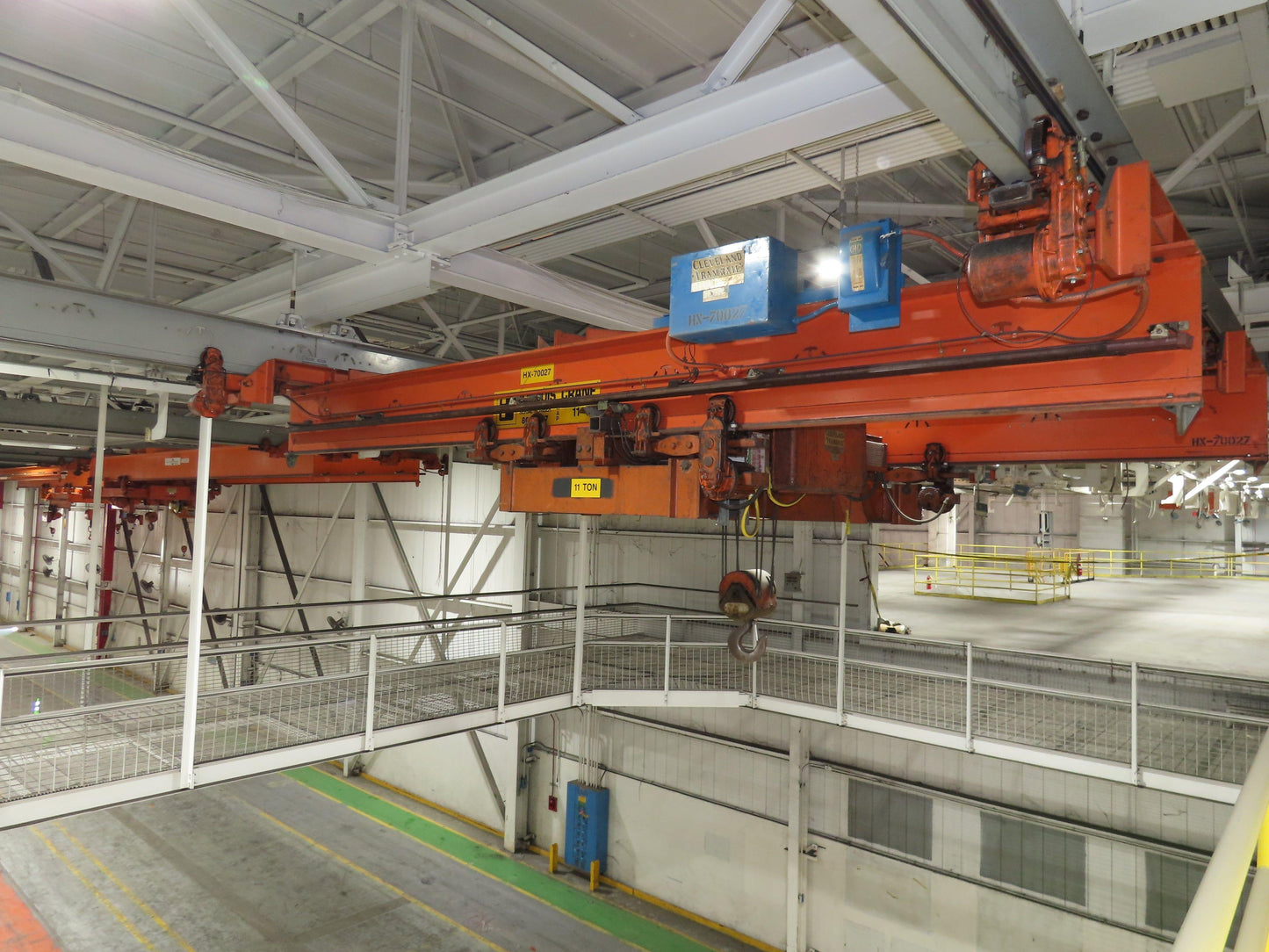

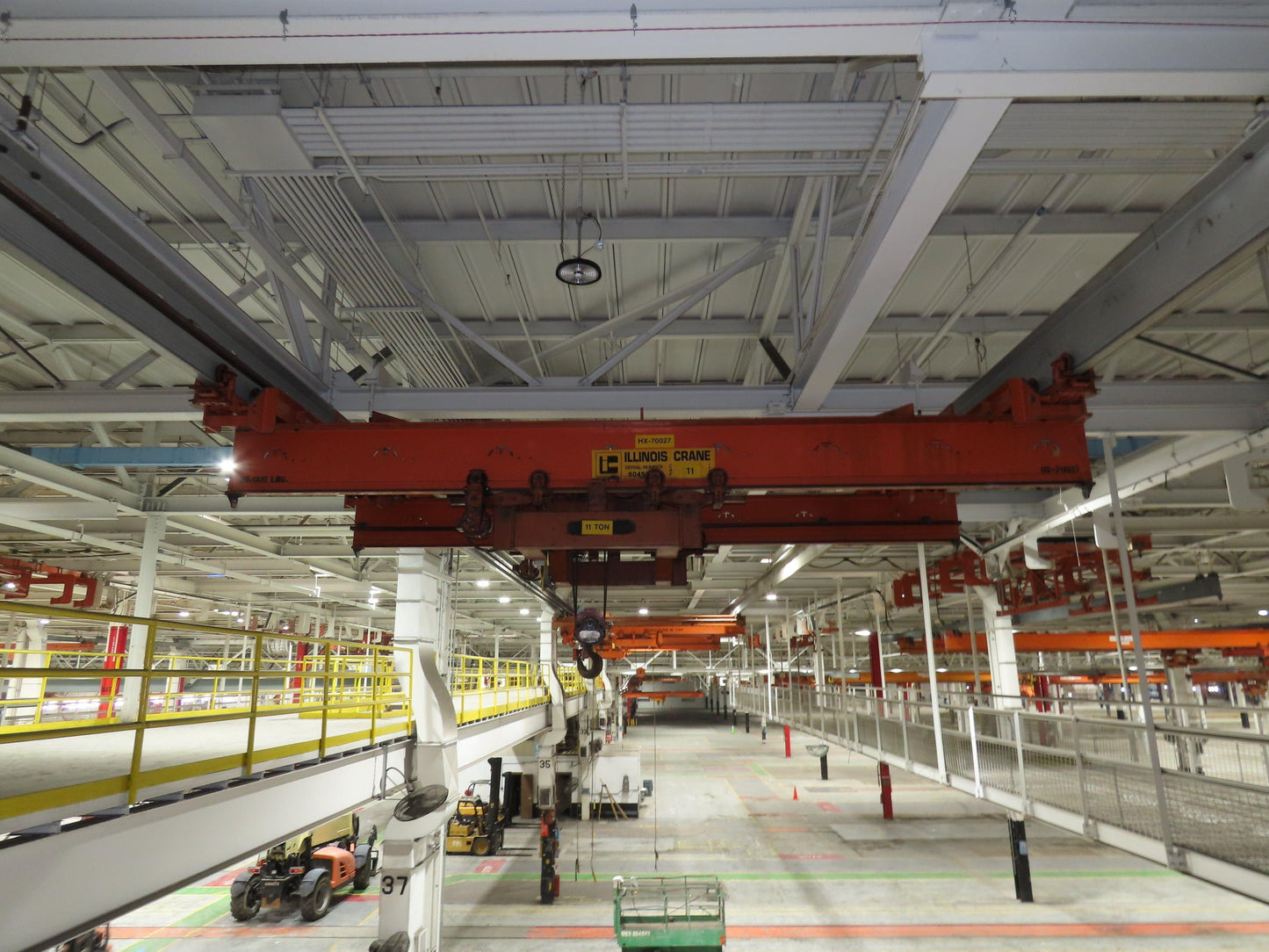

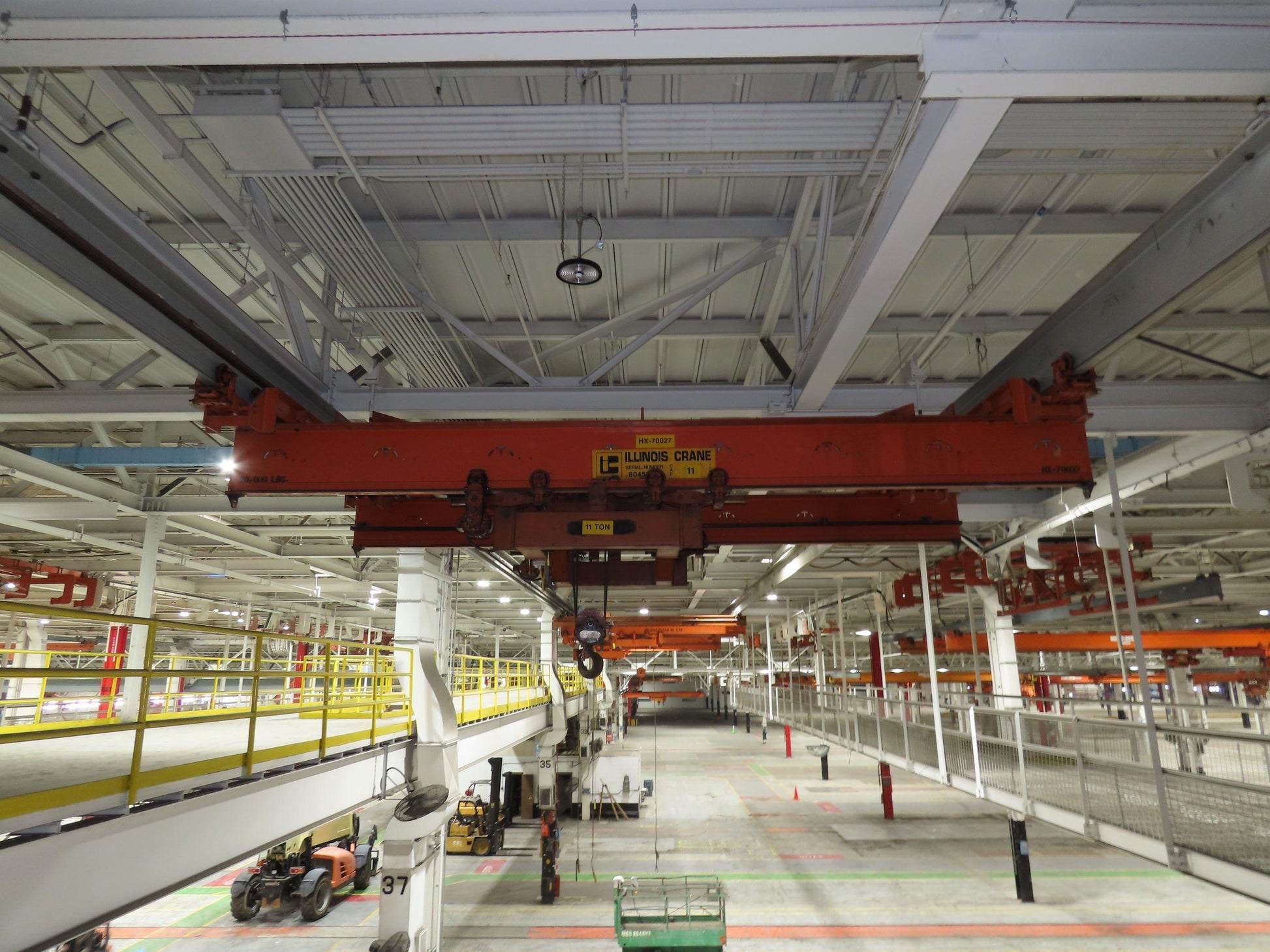

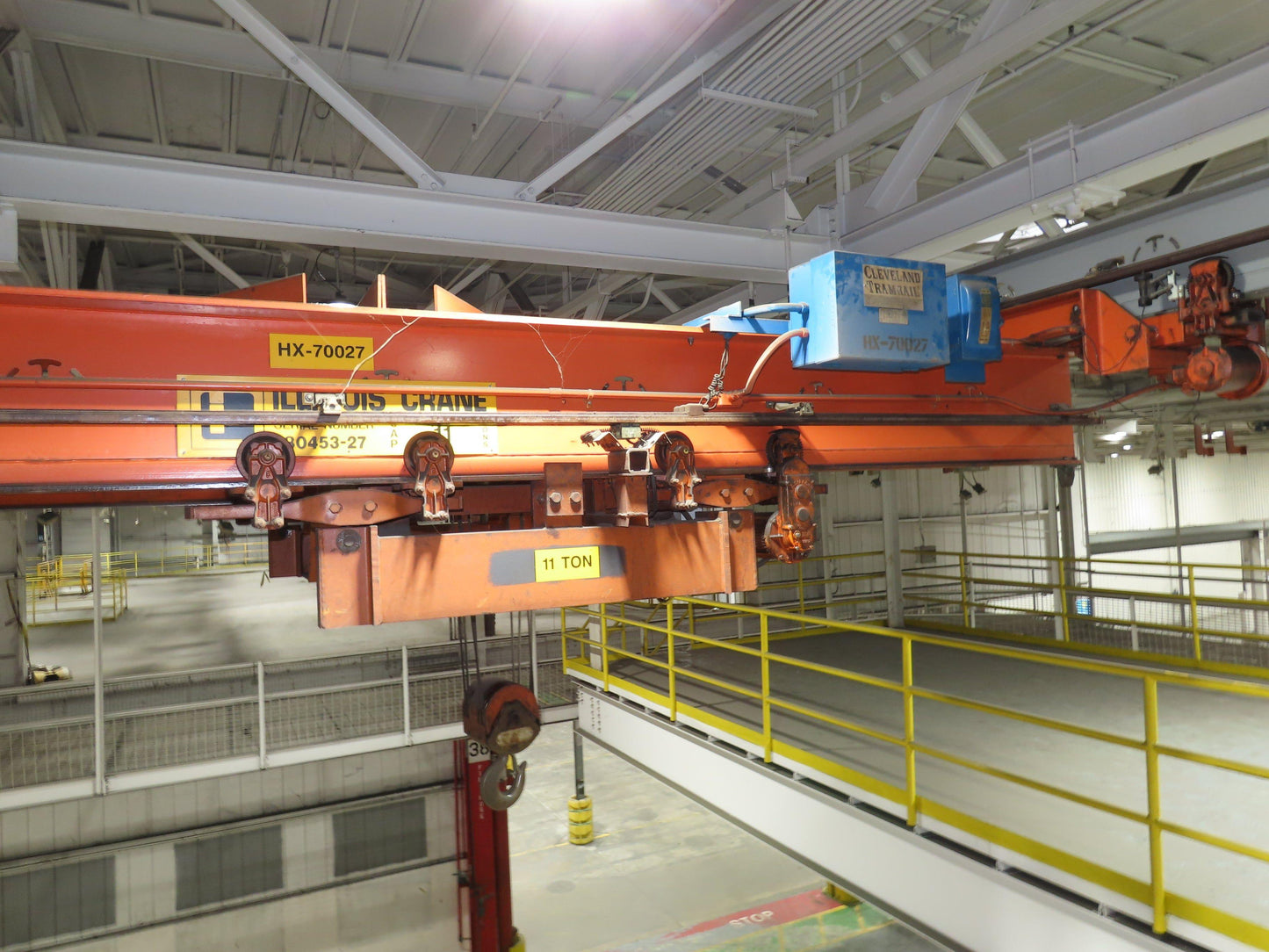

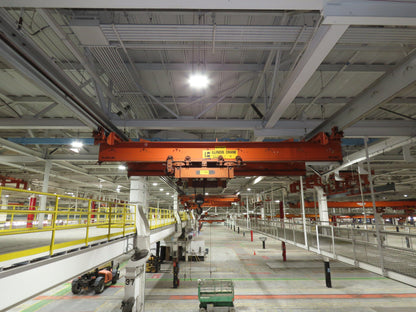

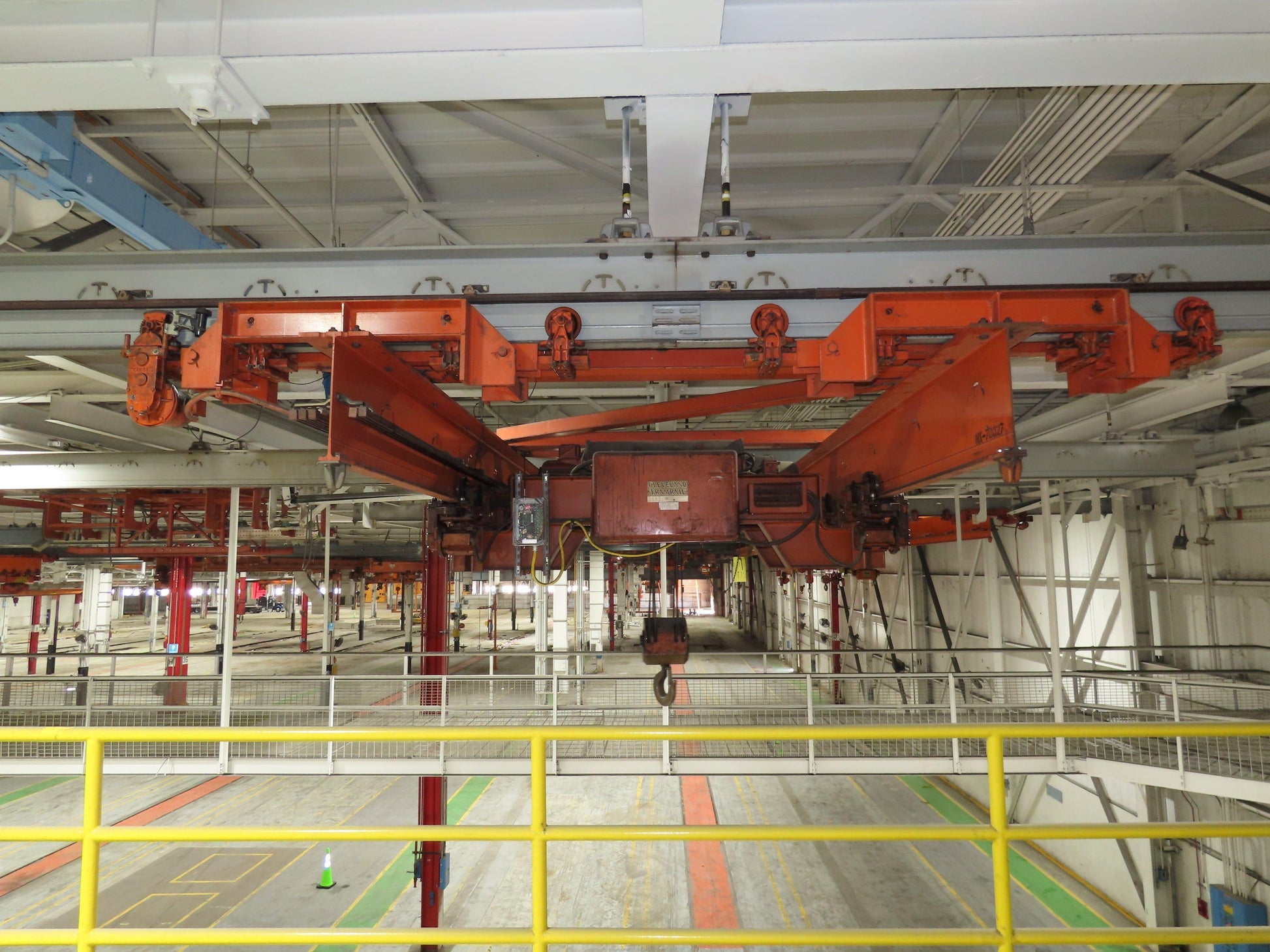

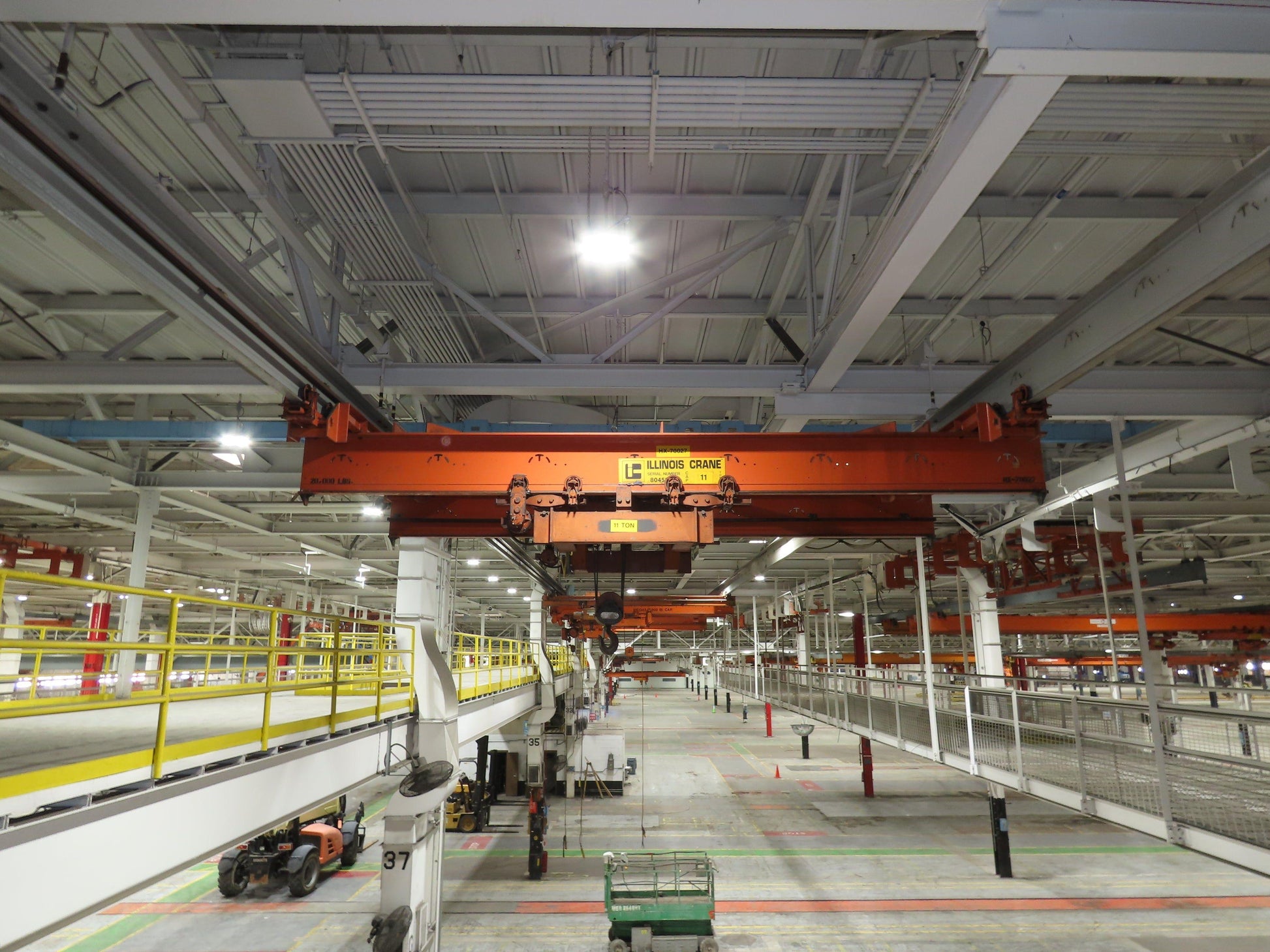

Cleveland Tramrail 11 Ton Double Girder Underhung Bridge Crane 18' 3" Span

Cleveland Tramrail 11 Ton Double Girder Underhung Bridge Crane 18' 3" Span

SKU #262019

Product Condition: Used

Your Price
$12,824.99
$14,999.99 $12,824.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail
Model
P&H
MPN

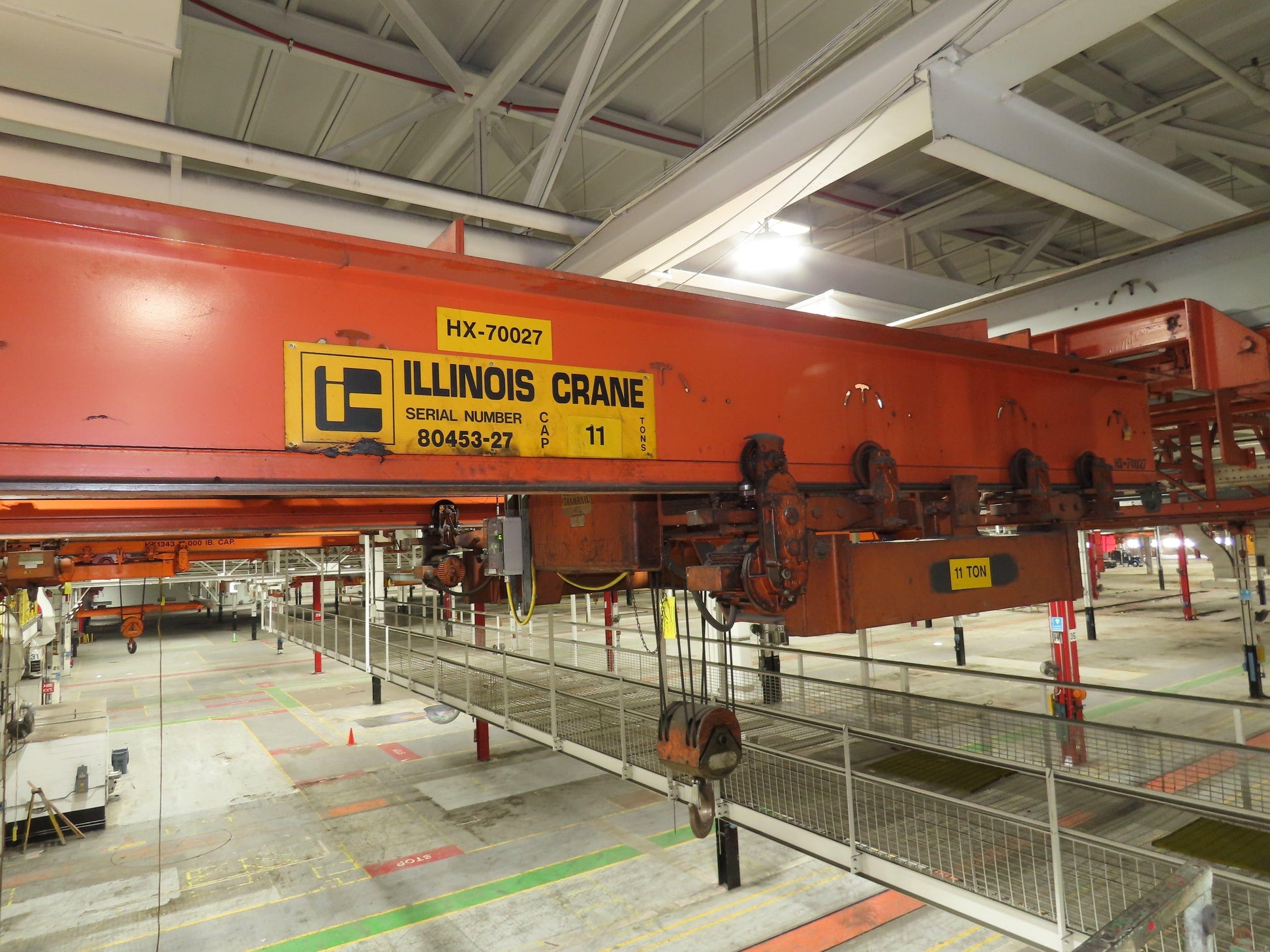

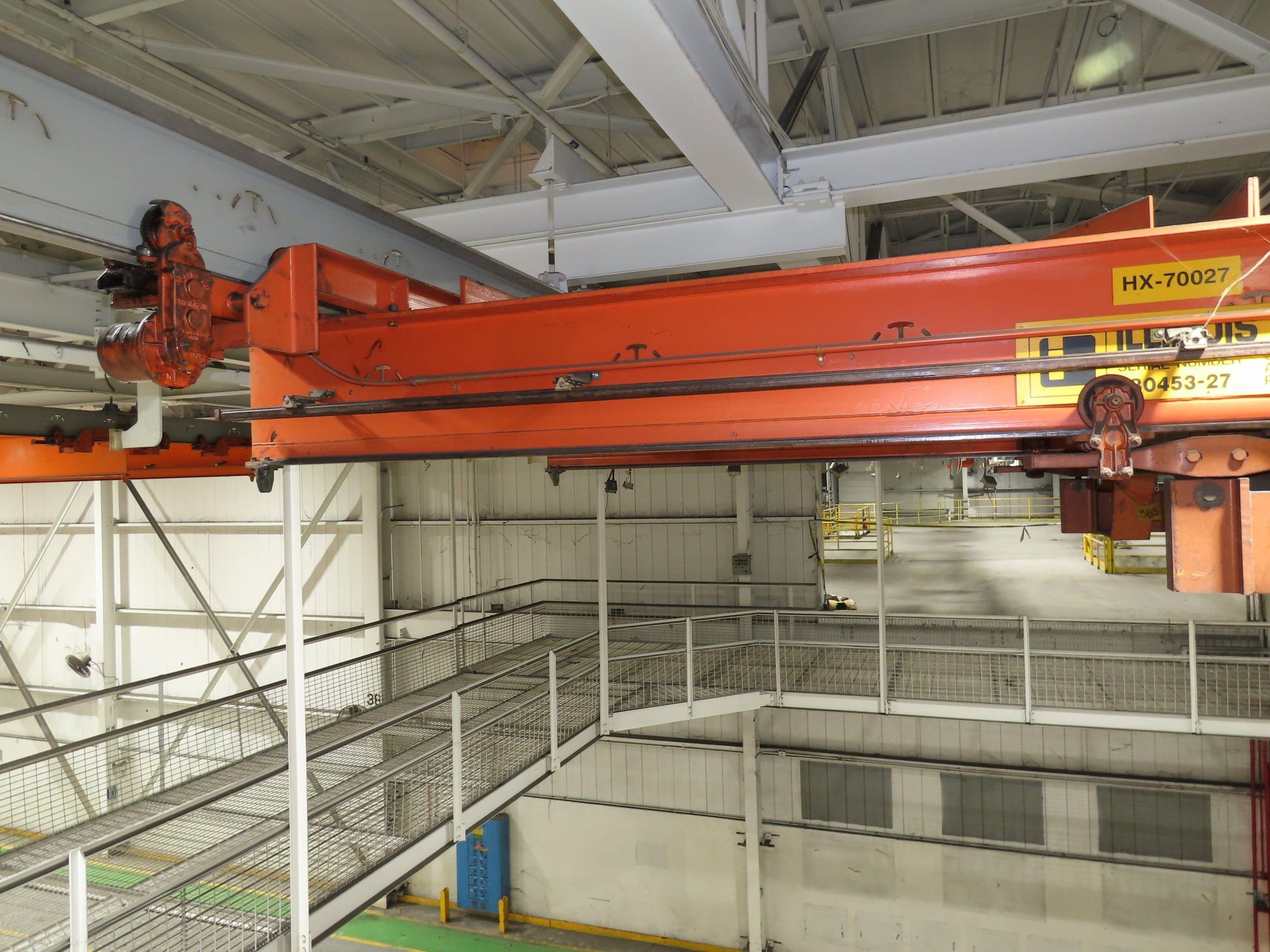

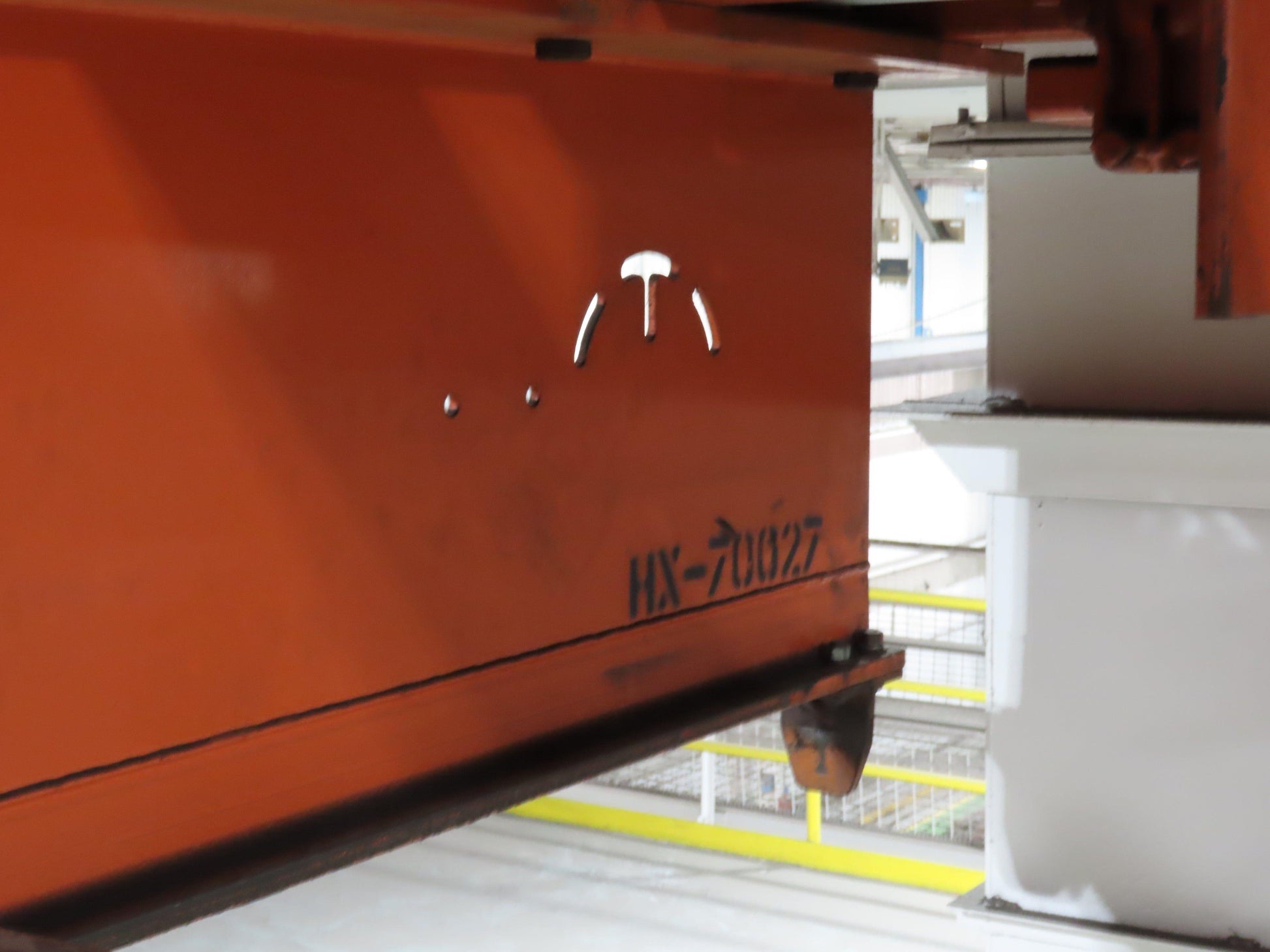

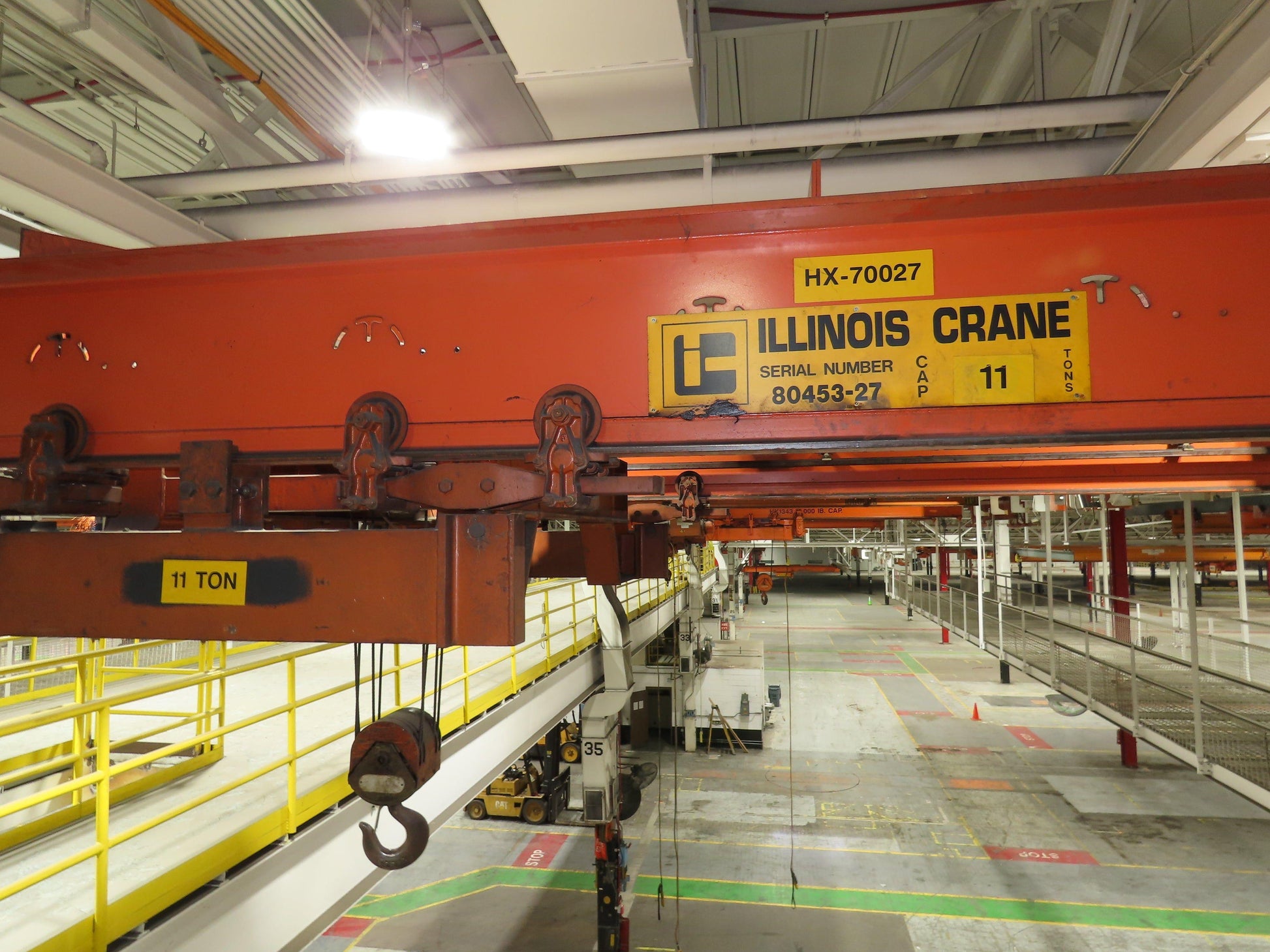

HX70027
Condition
Used
  • Capacity (tons): 11

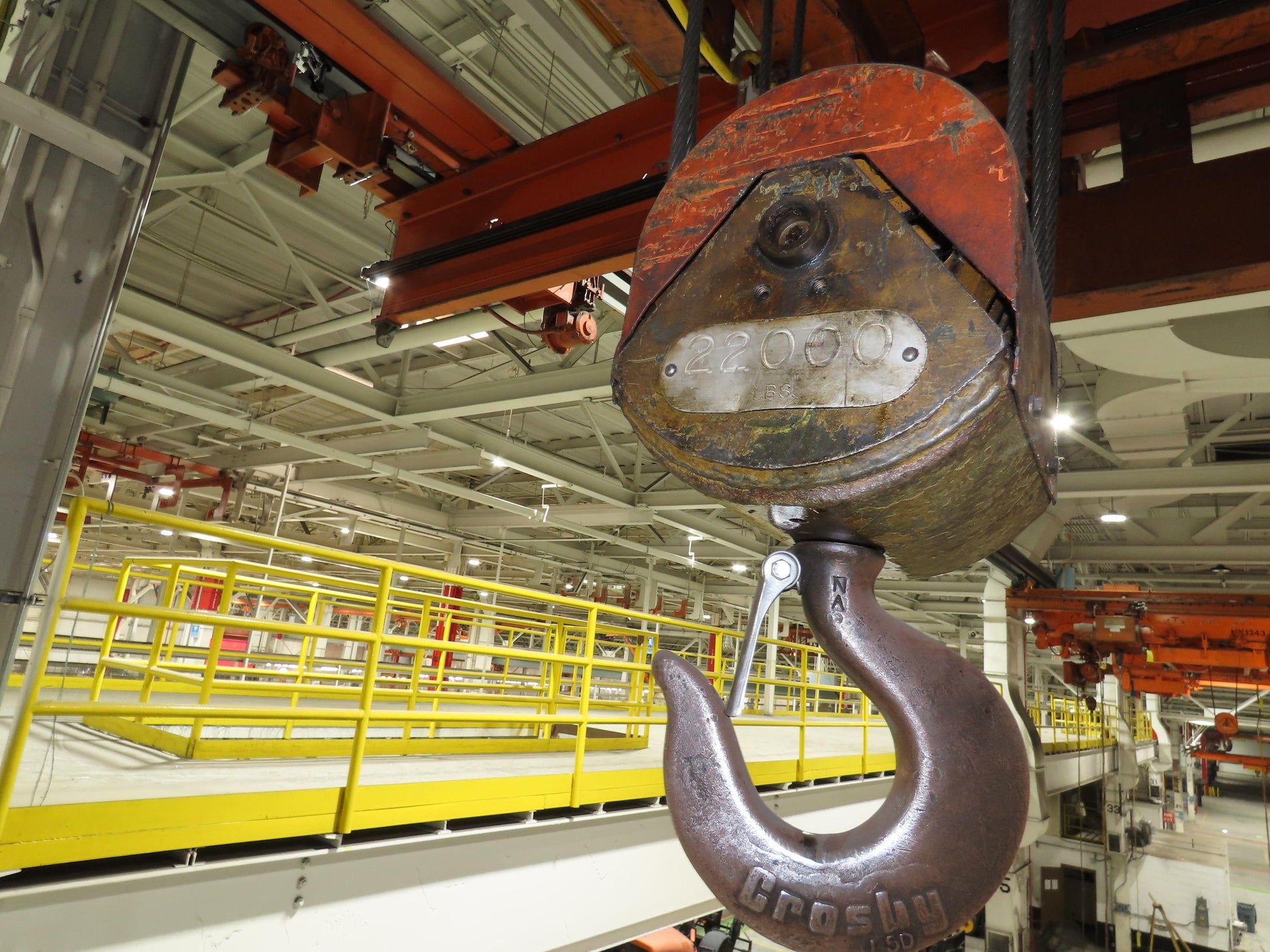

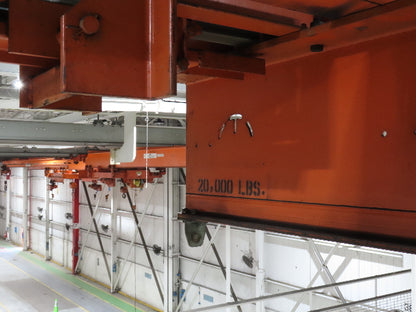

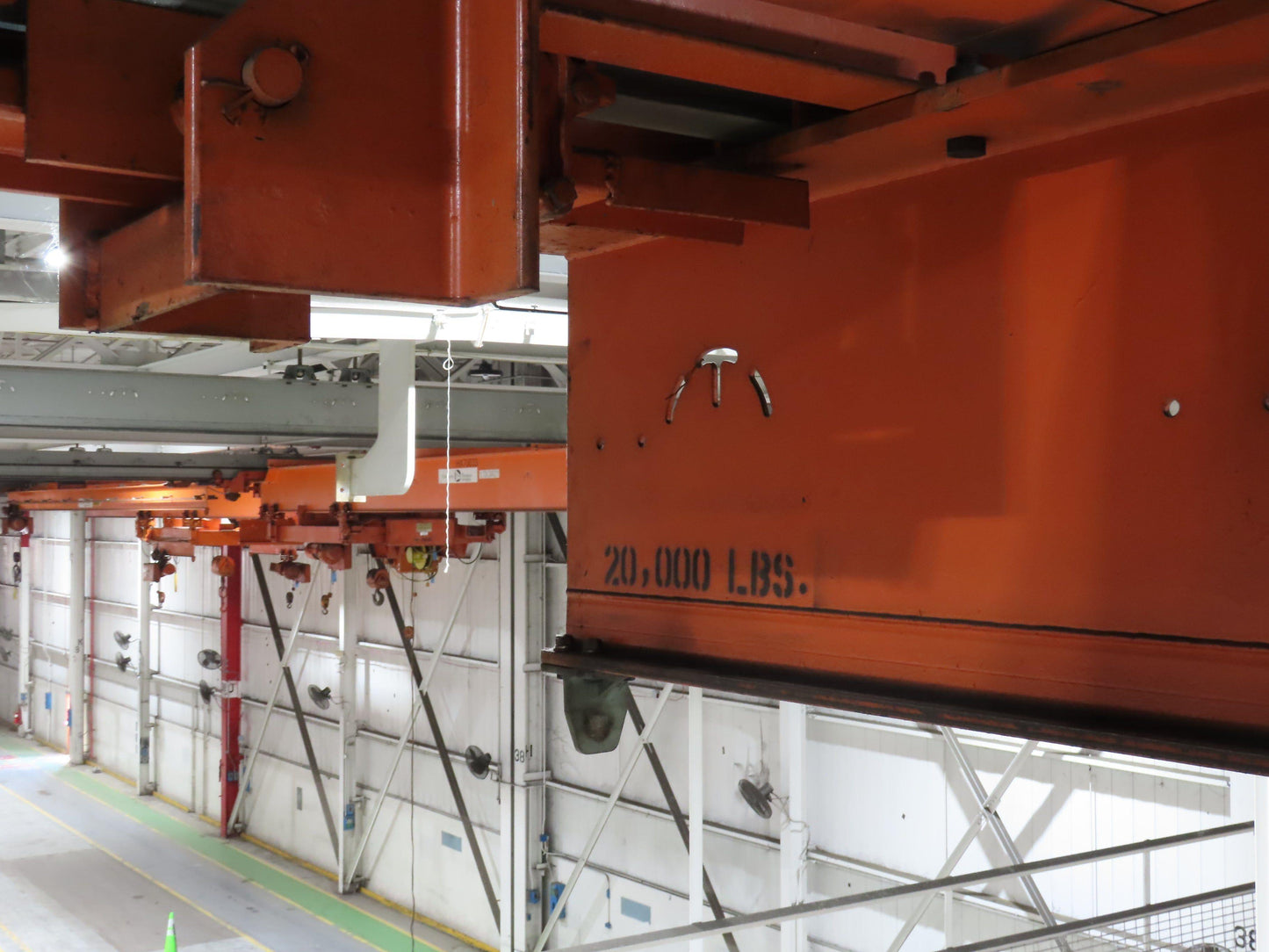

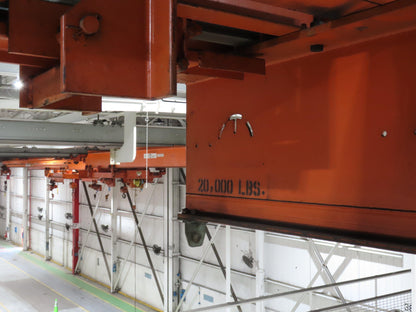

  • Capacity (lb): 22000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 18' 3"

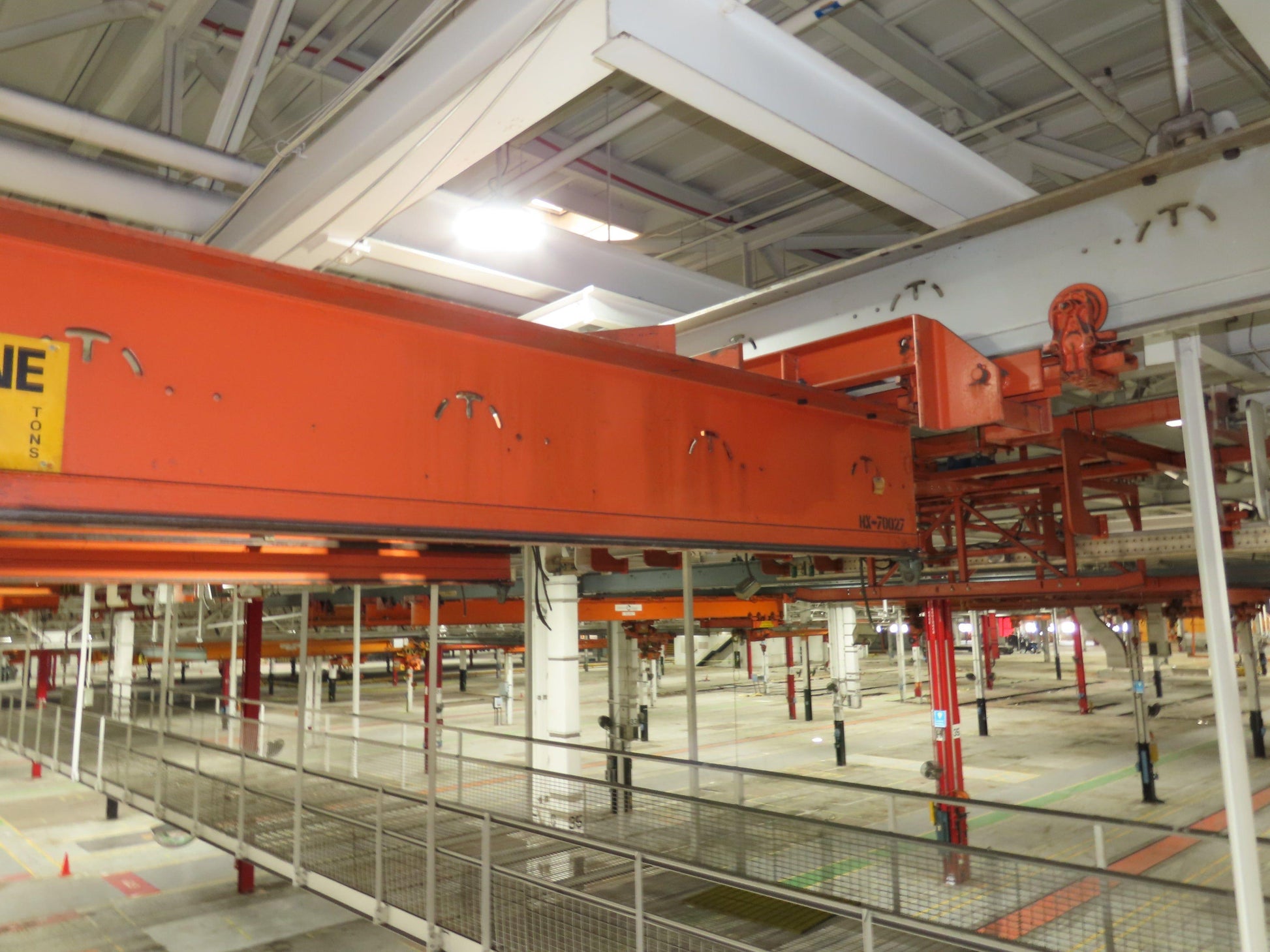

  • Main Girder Beam Size (Height x Width x Length): 20"H x 11"W x 20' 11" Length (3.25" flange)

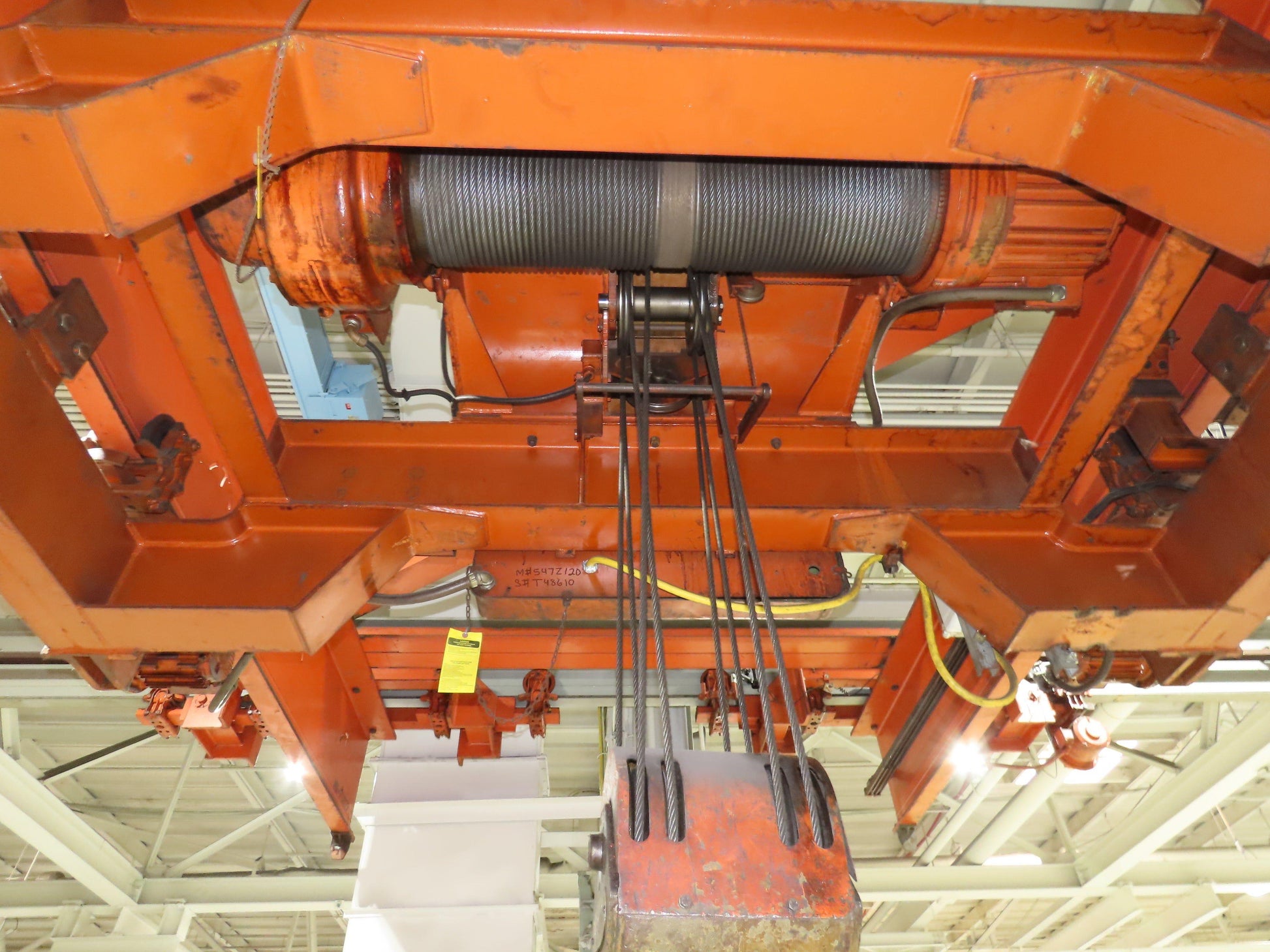

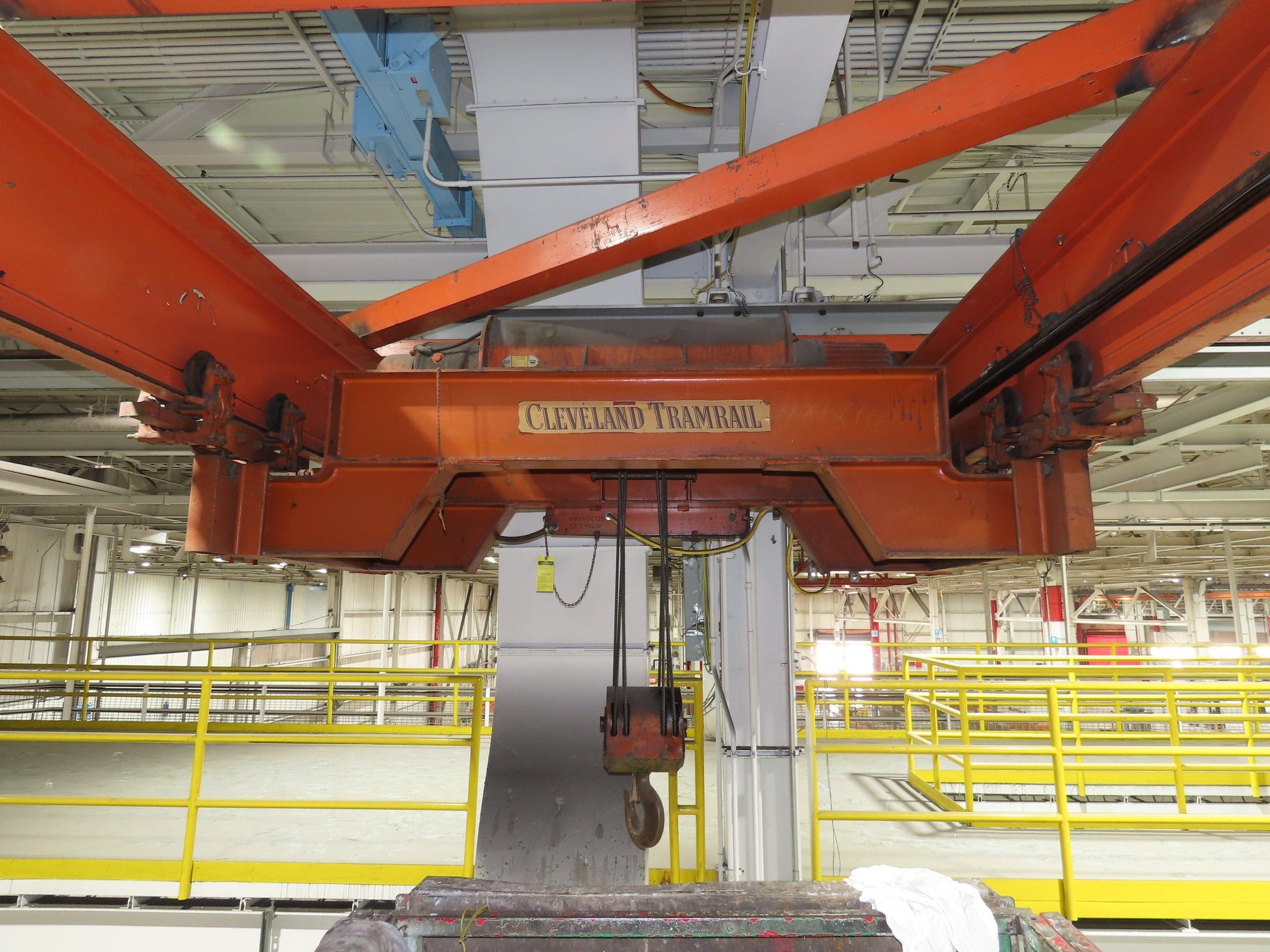

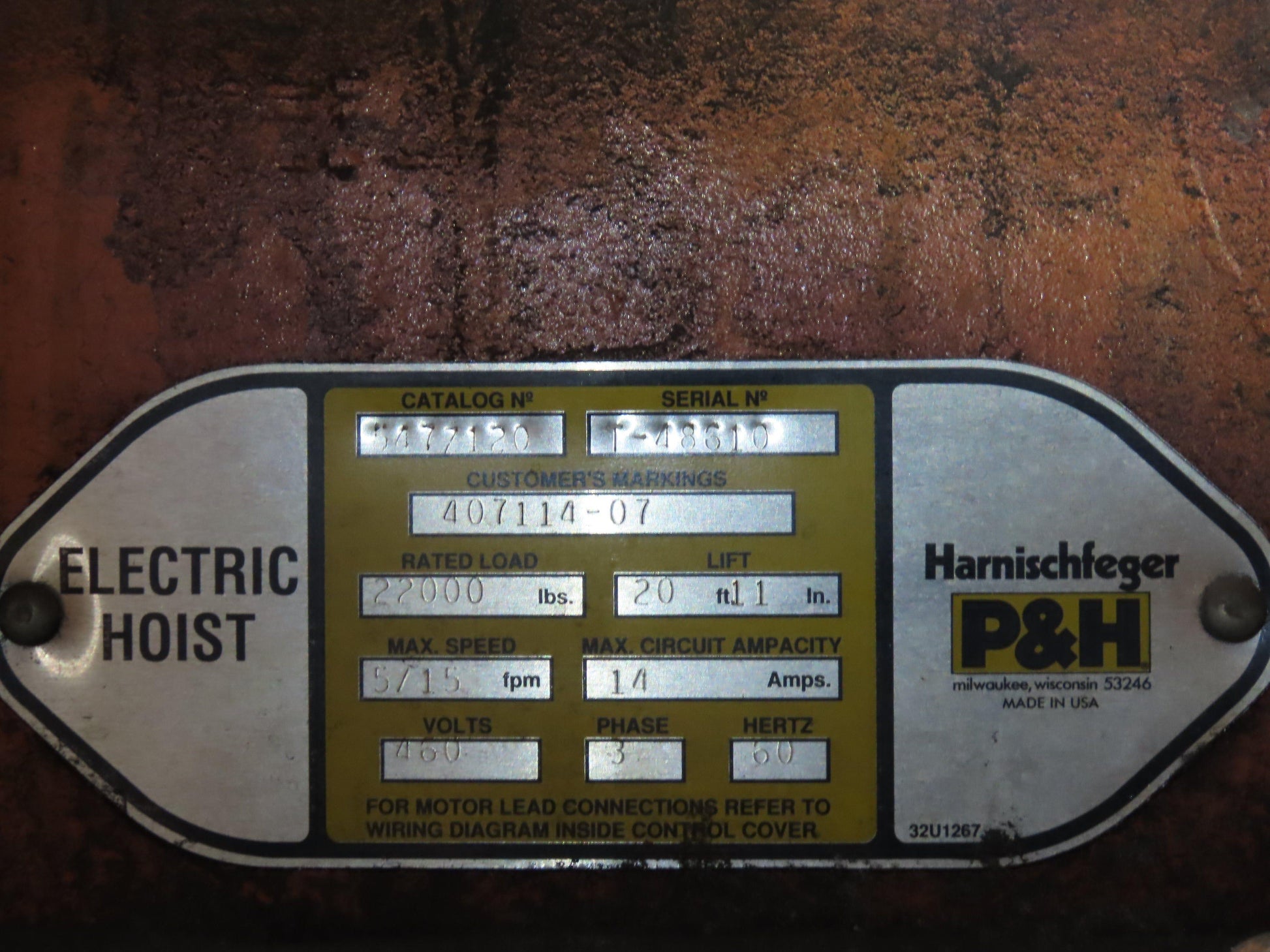

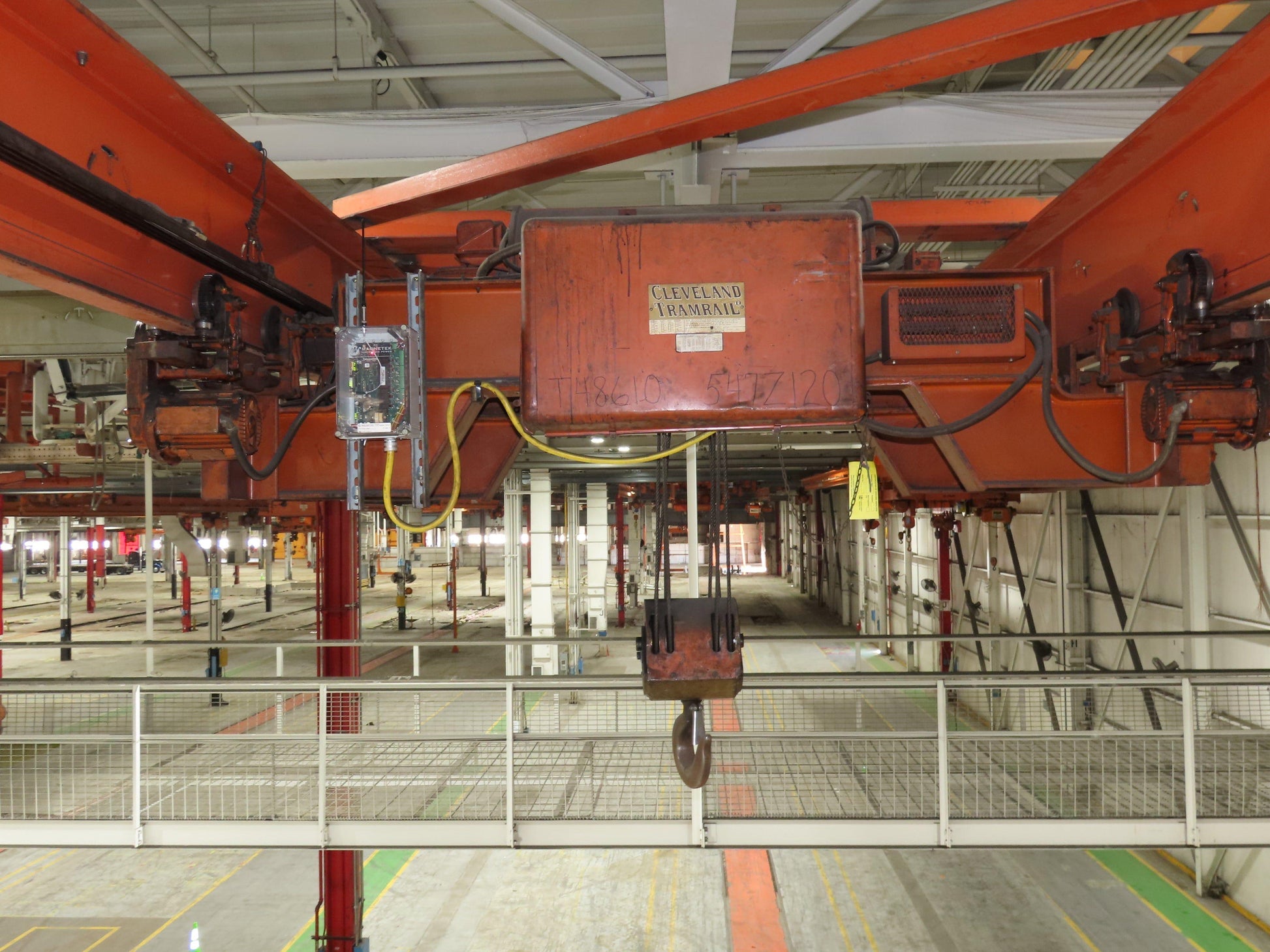

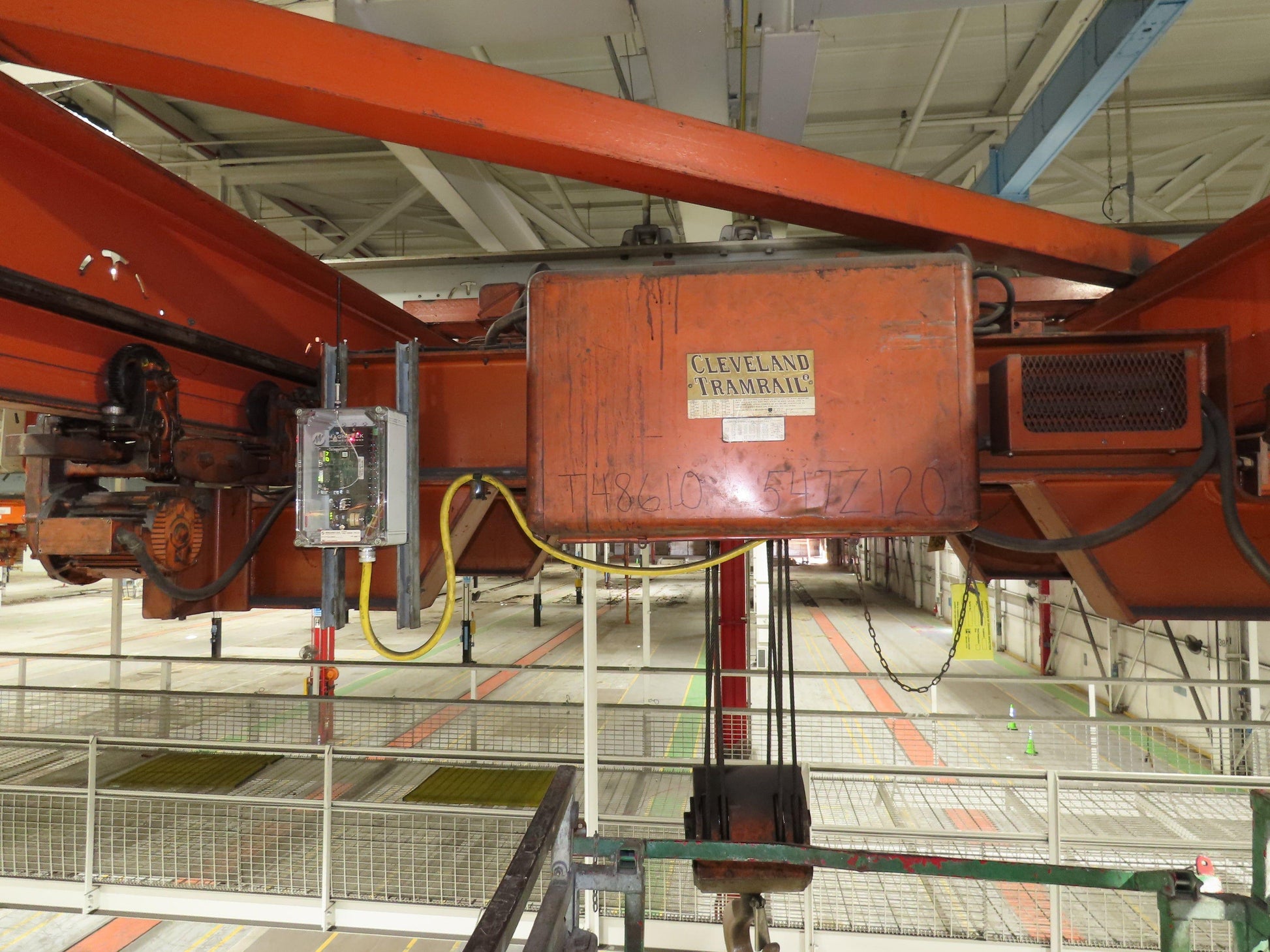

  • Hoist Brand: P&H
  • Lift Travel (feet): 23' 3"
  • Lift Speed (feet per minute): 5/15 fpm (2-Speed)

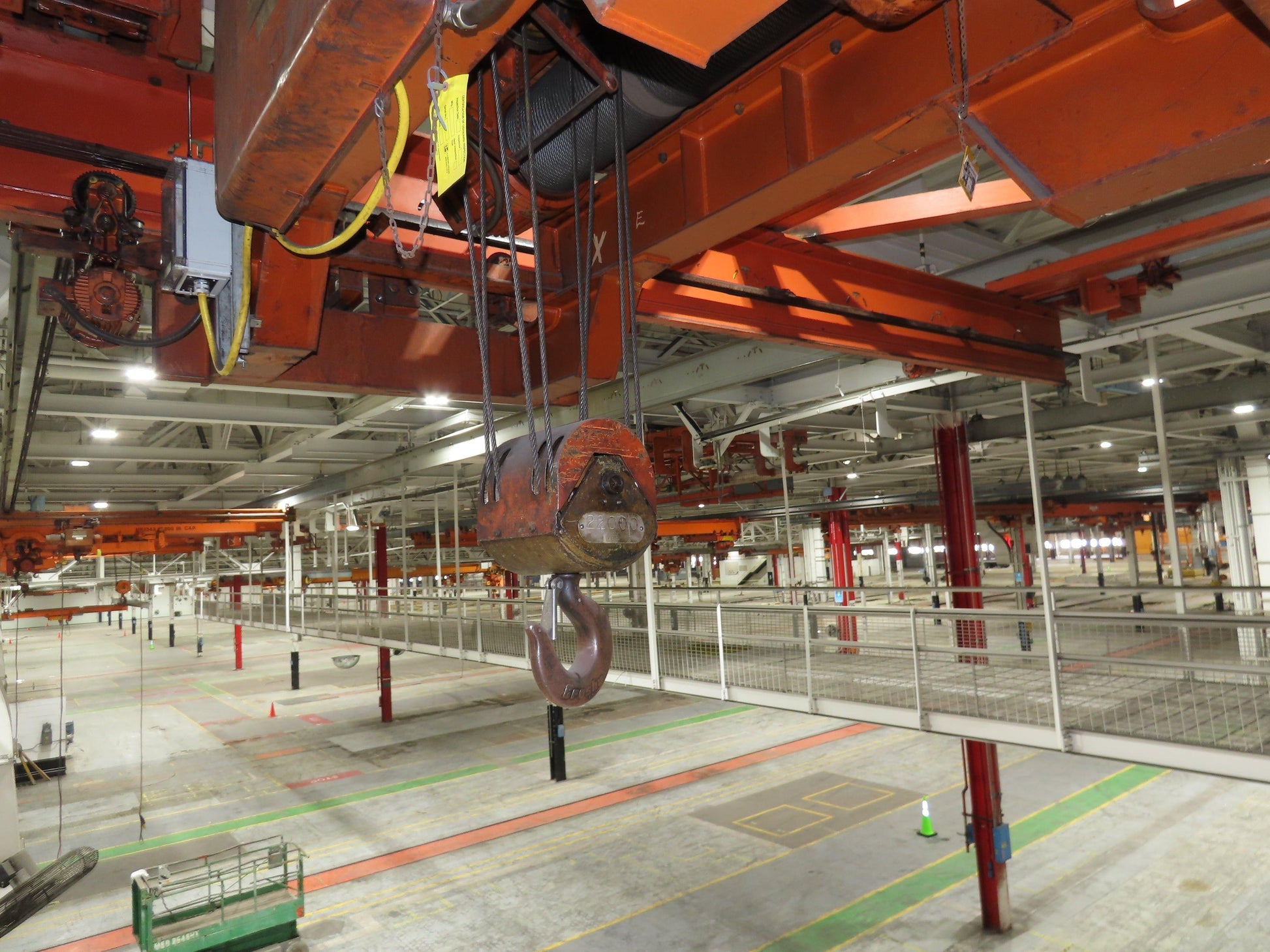

  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): Wireless pendant only
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 50
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 82"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 71"
  • Bridge Crane is in working condition.  Tested on site before removal.

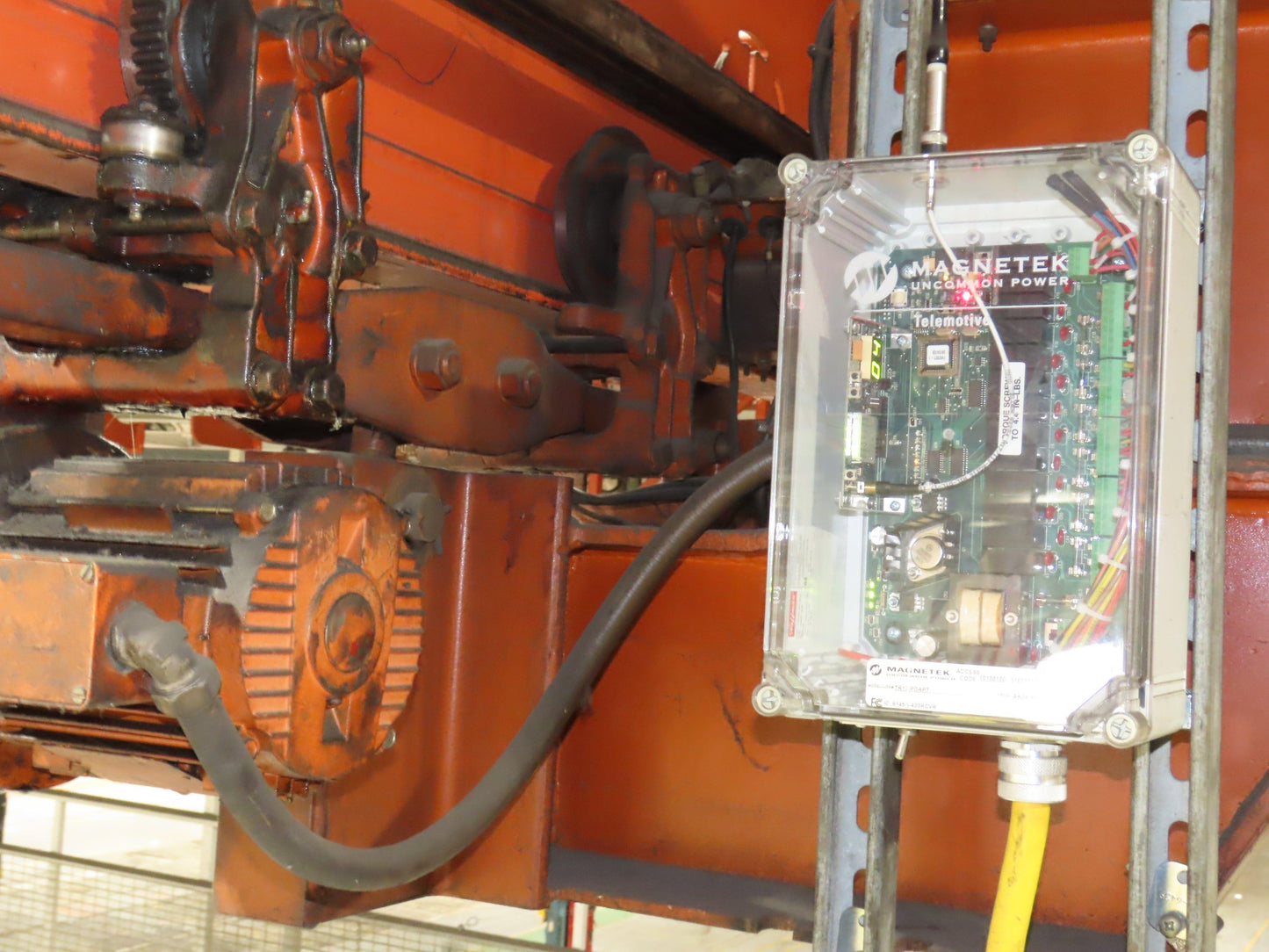

  • Includes wireless pendant only.
  • Single speed bridge and trolley.
  • 2-speed hoist.
  • Girder beam span: 8' 5"
  • Overall width: 14' 9" (End truck to end truck)
