Cleveland Tramrail

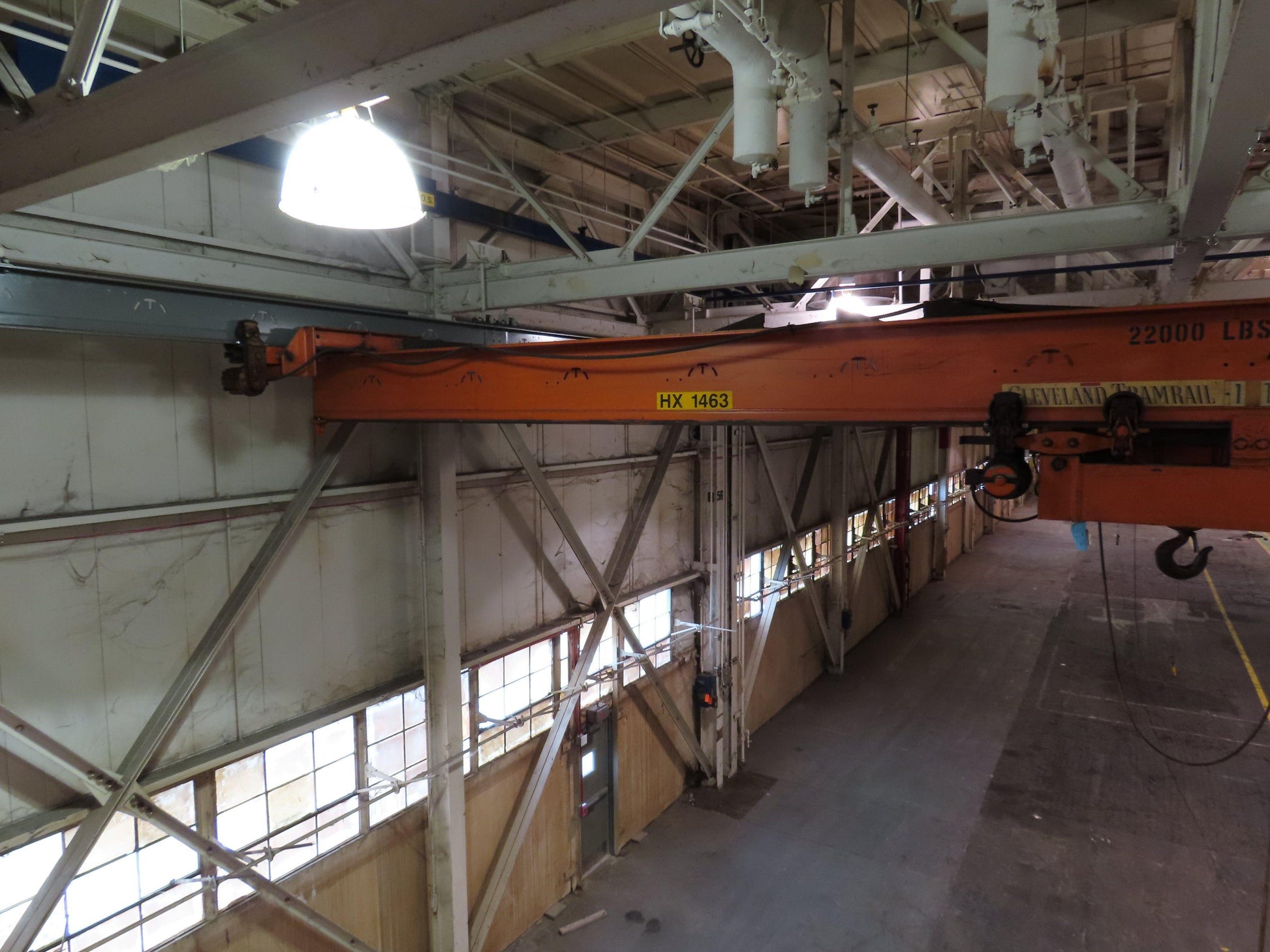

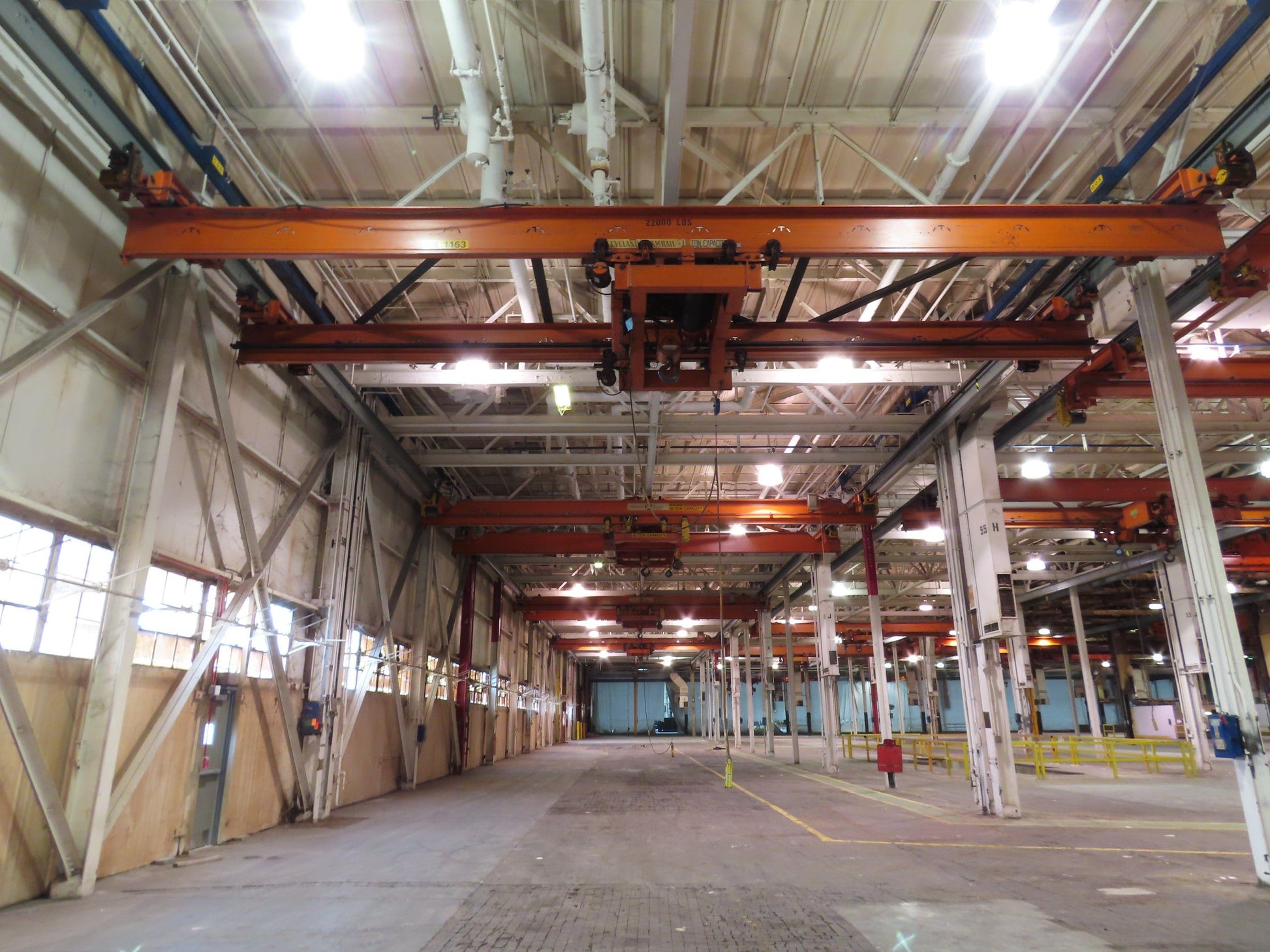

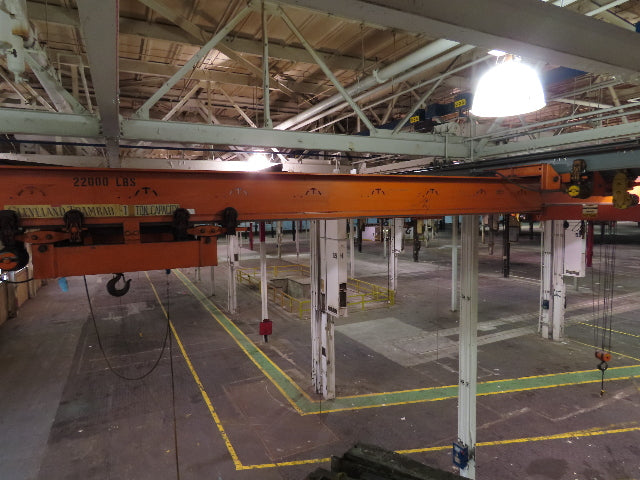

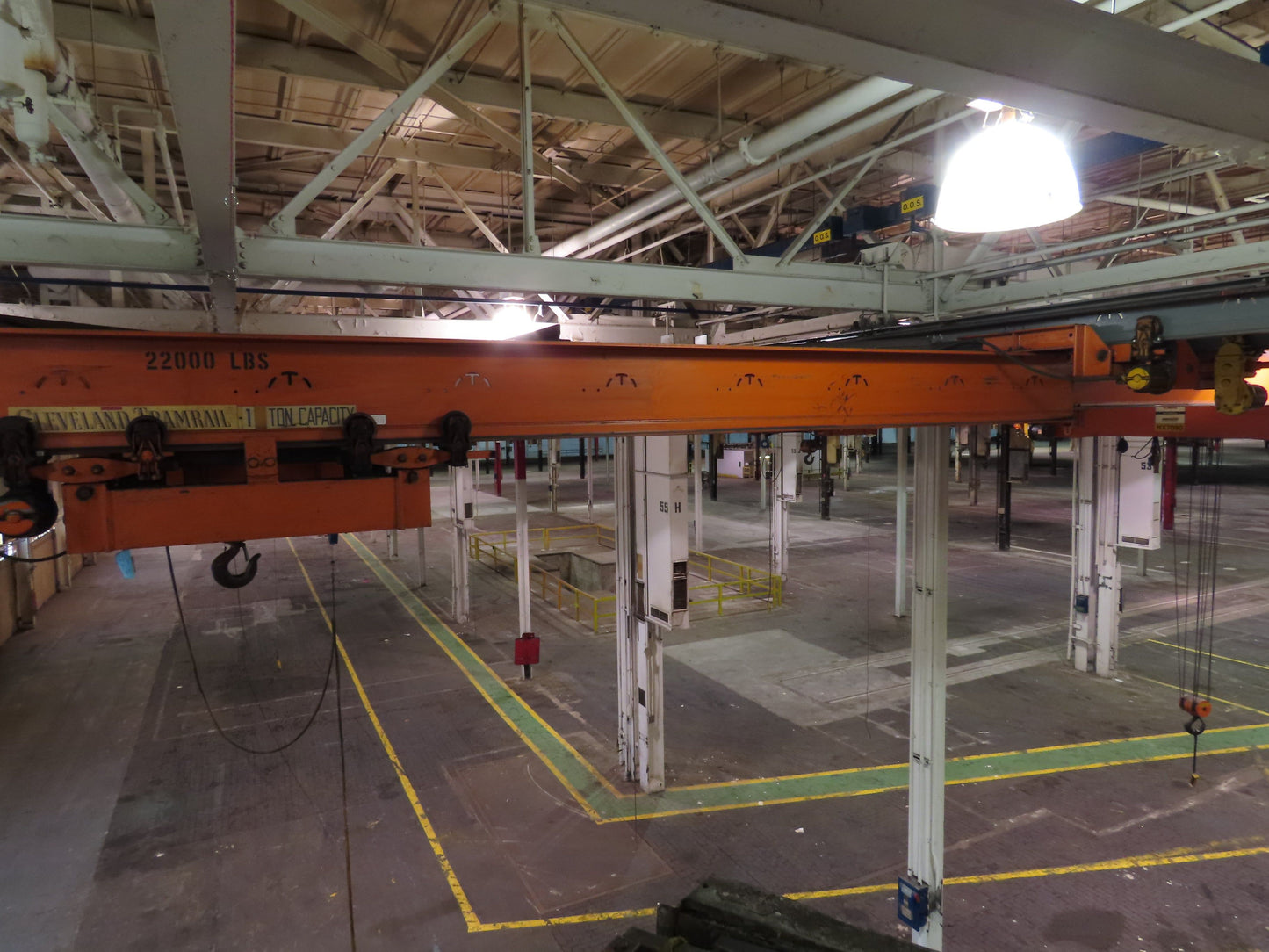

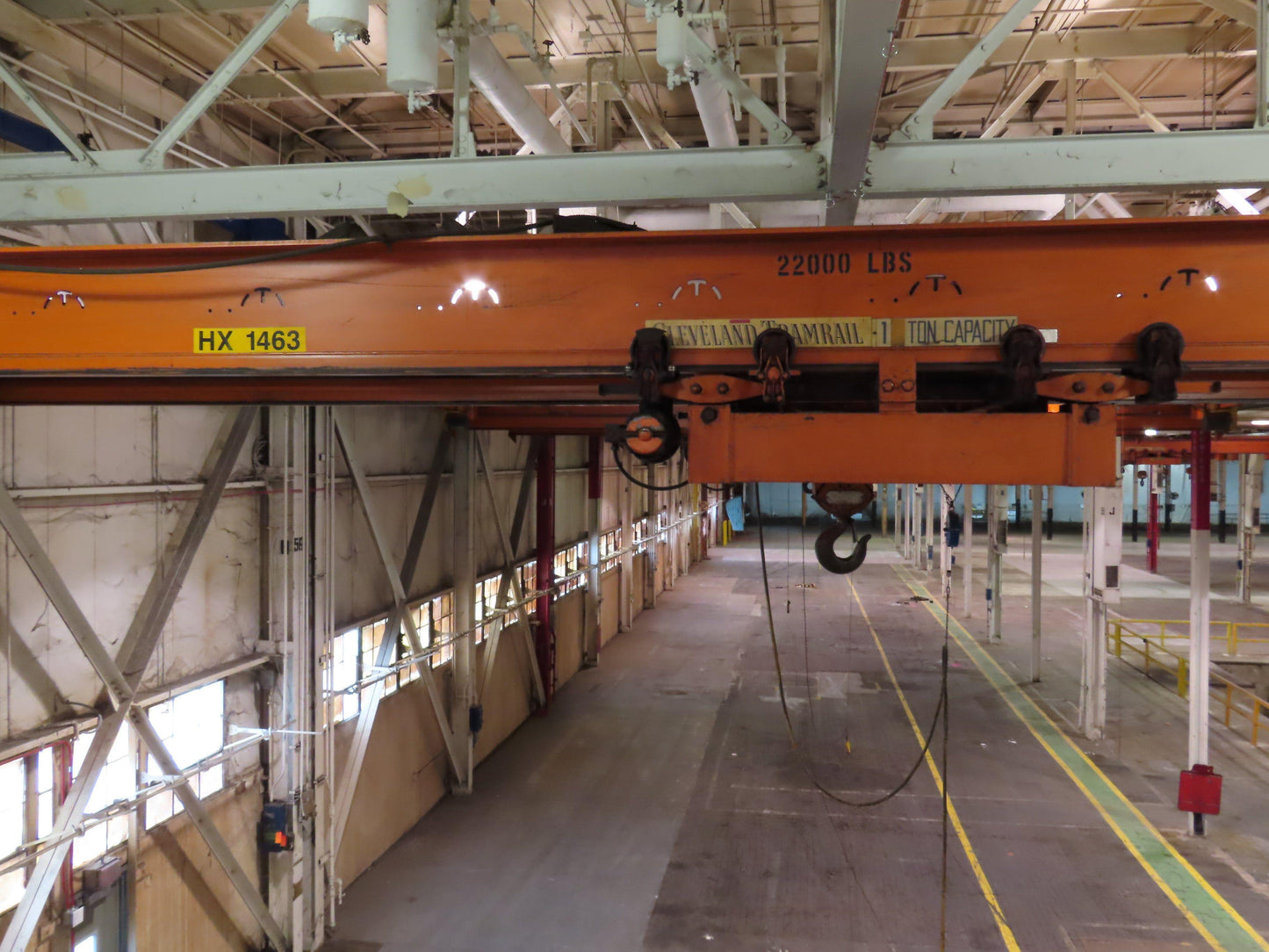

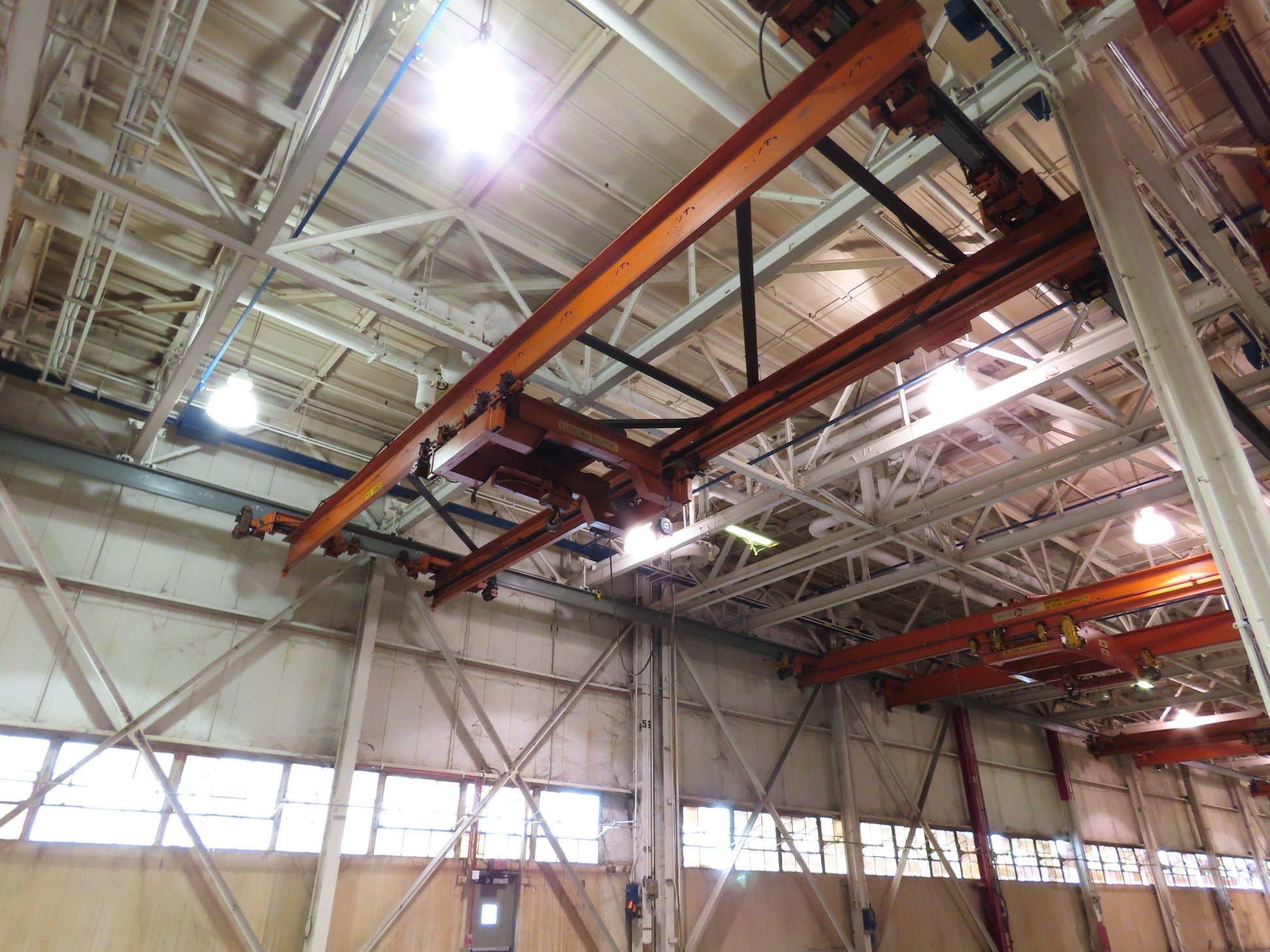

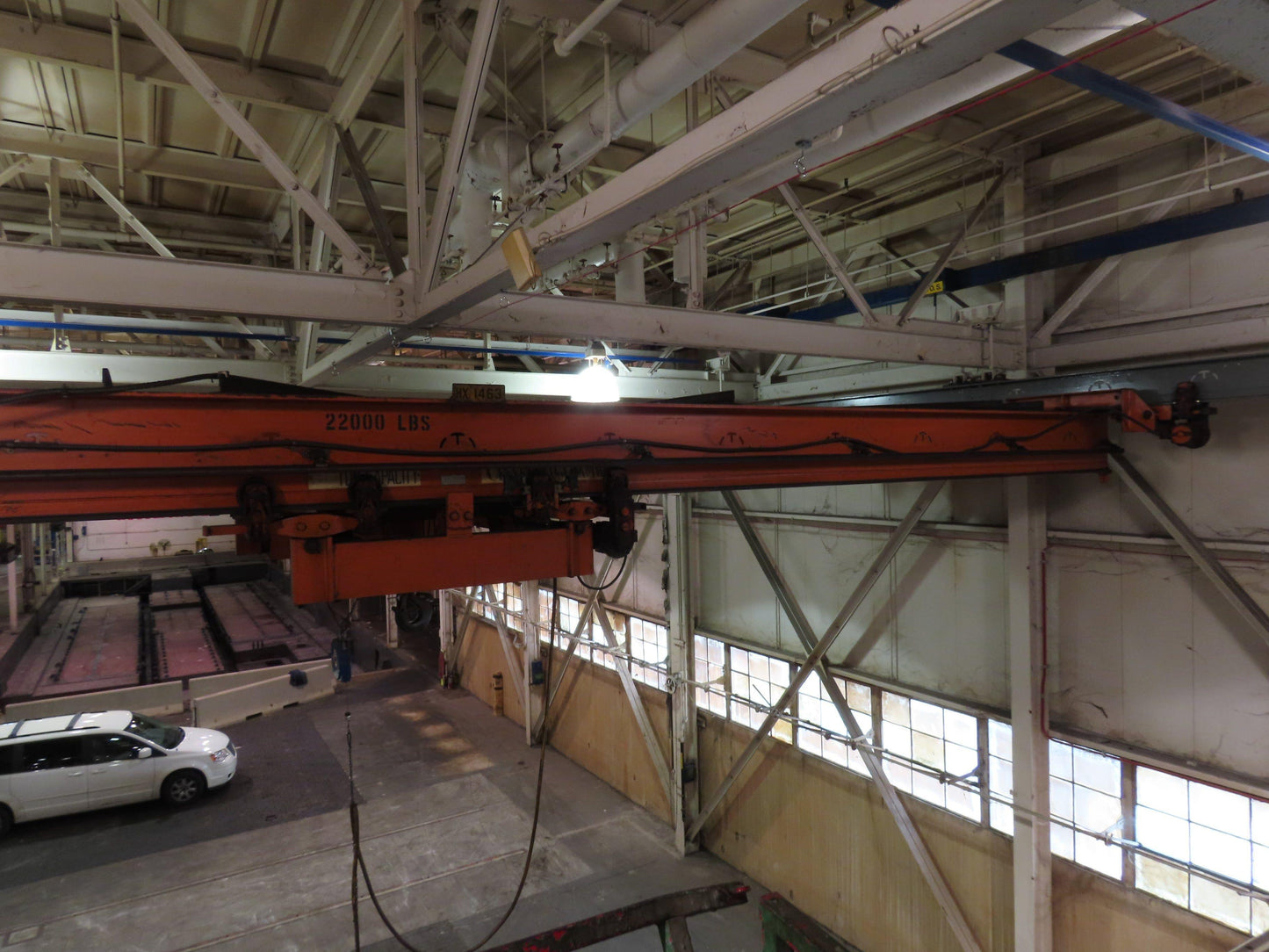

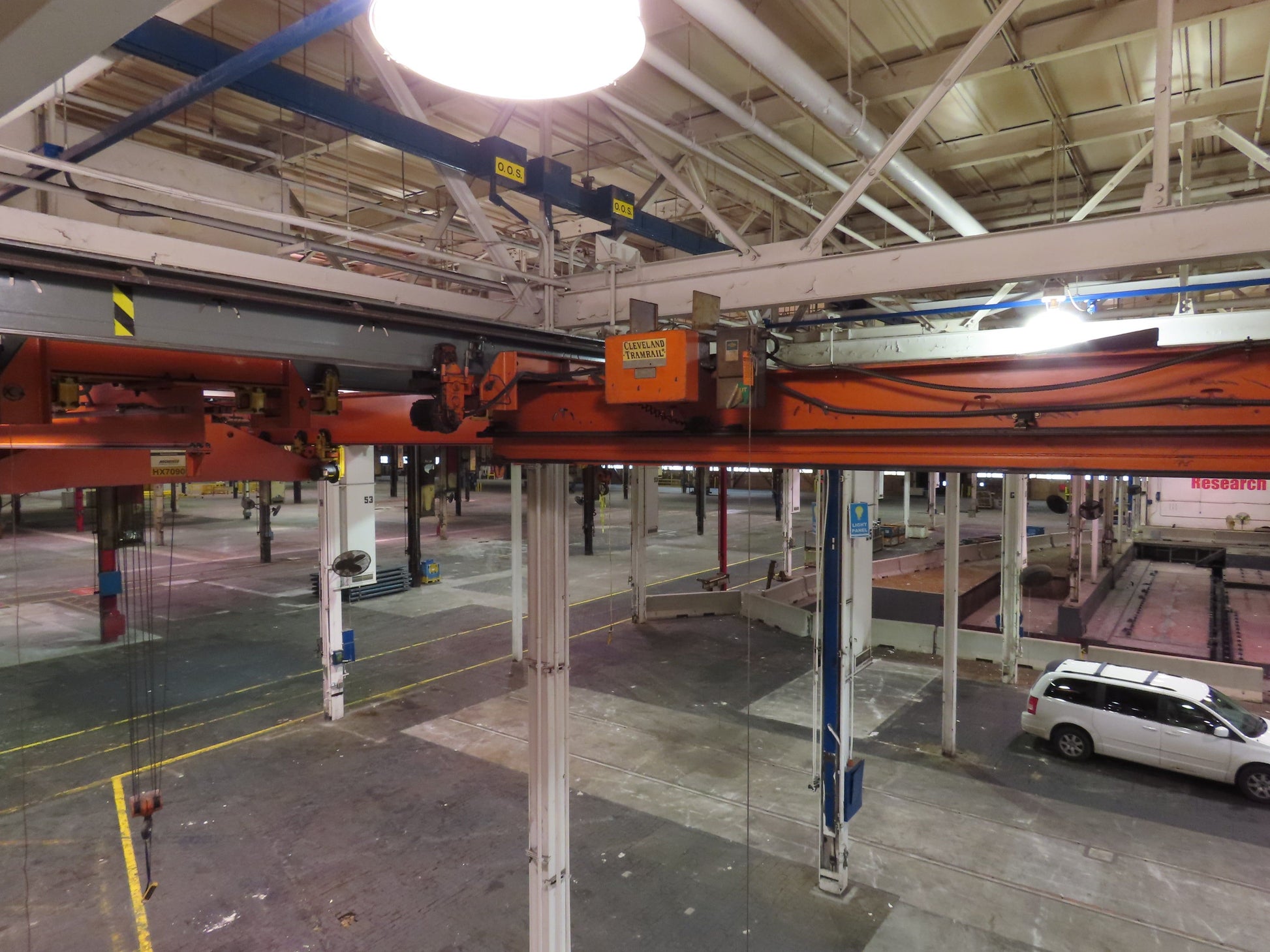

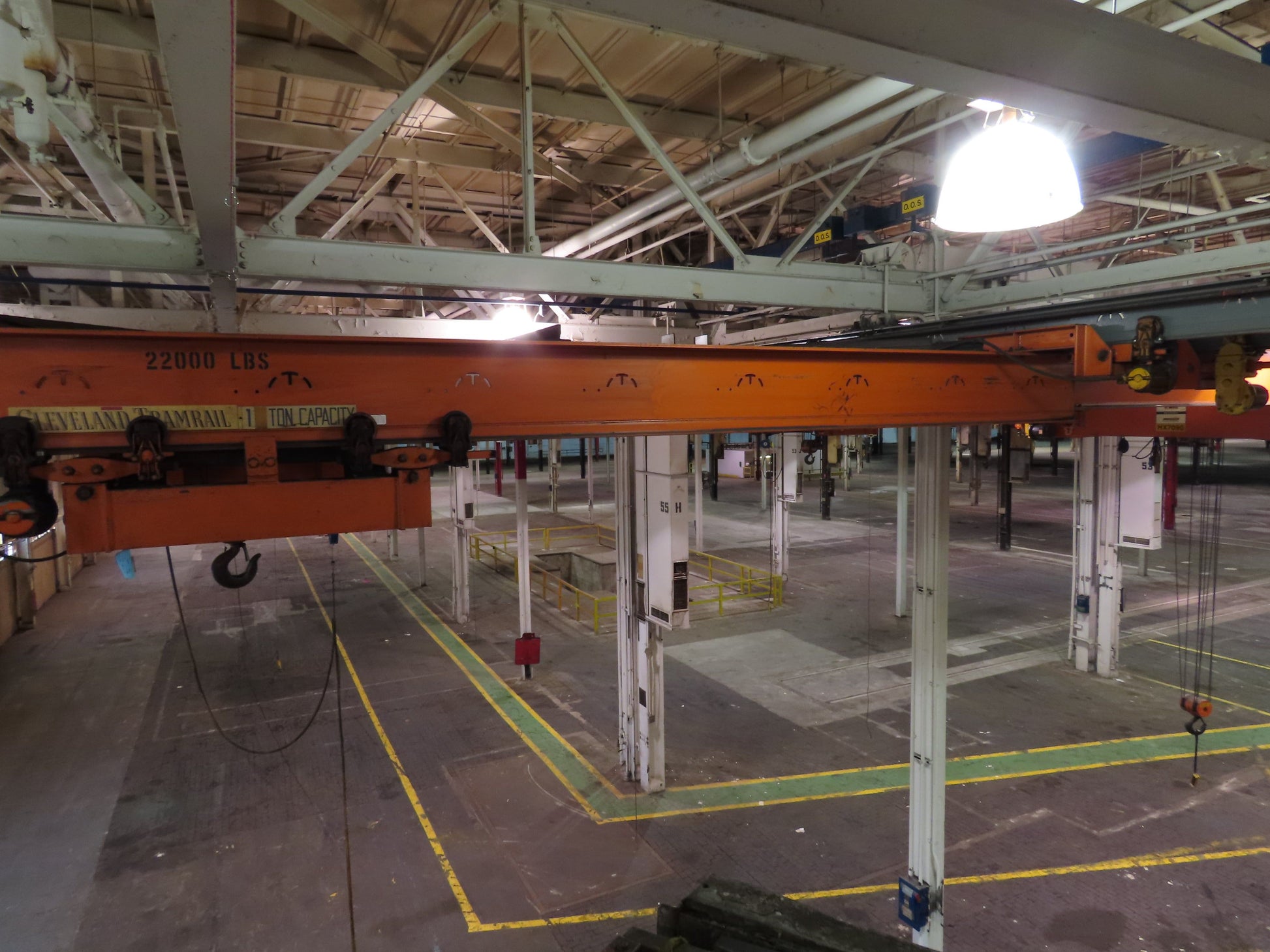

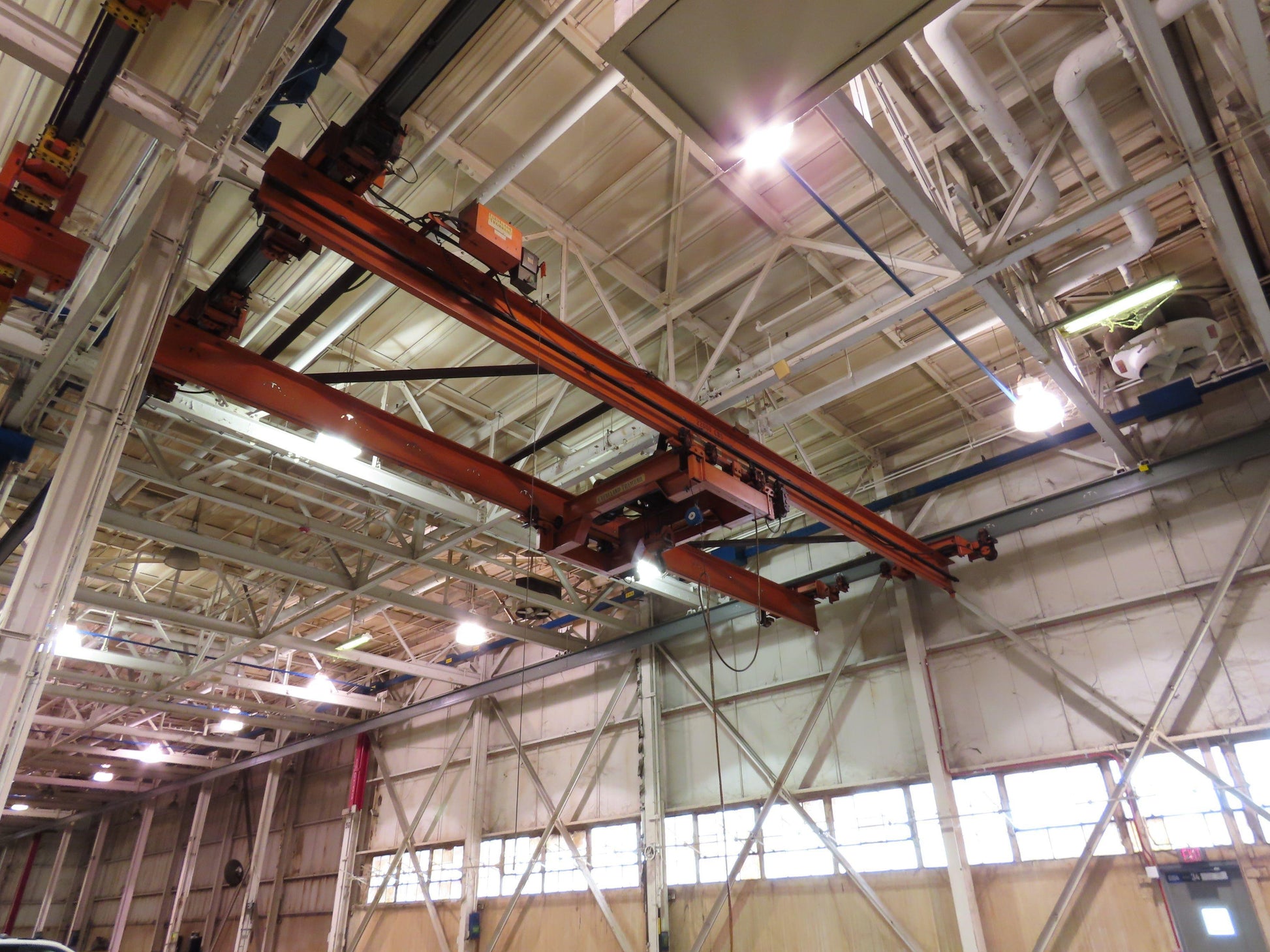

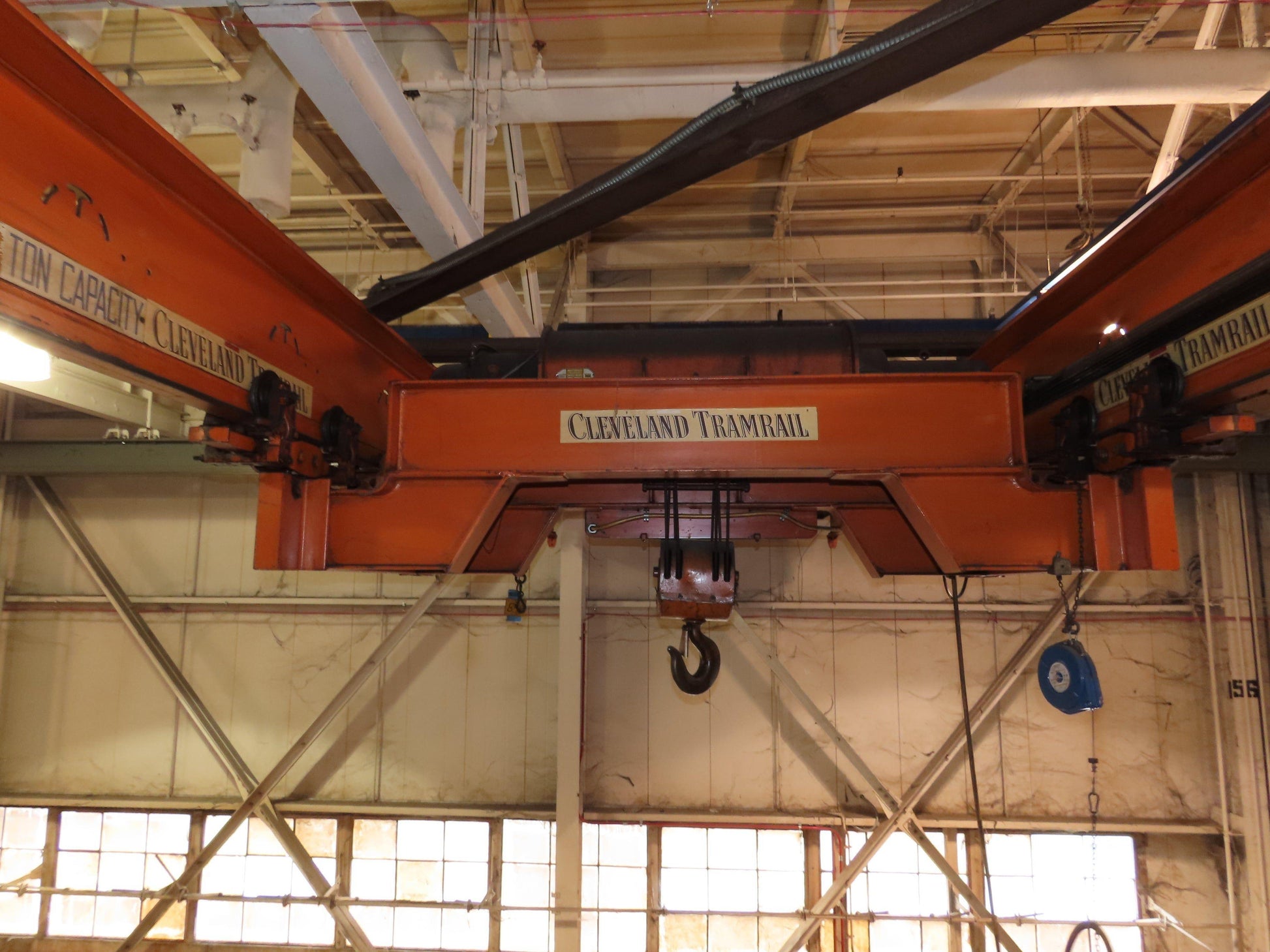

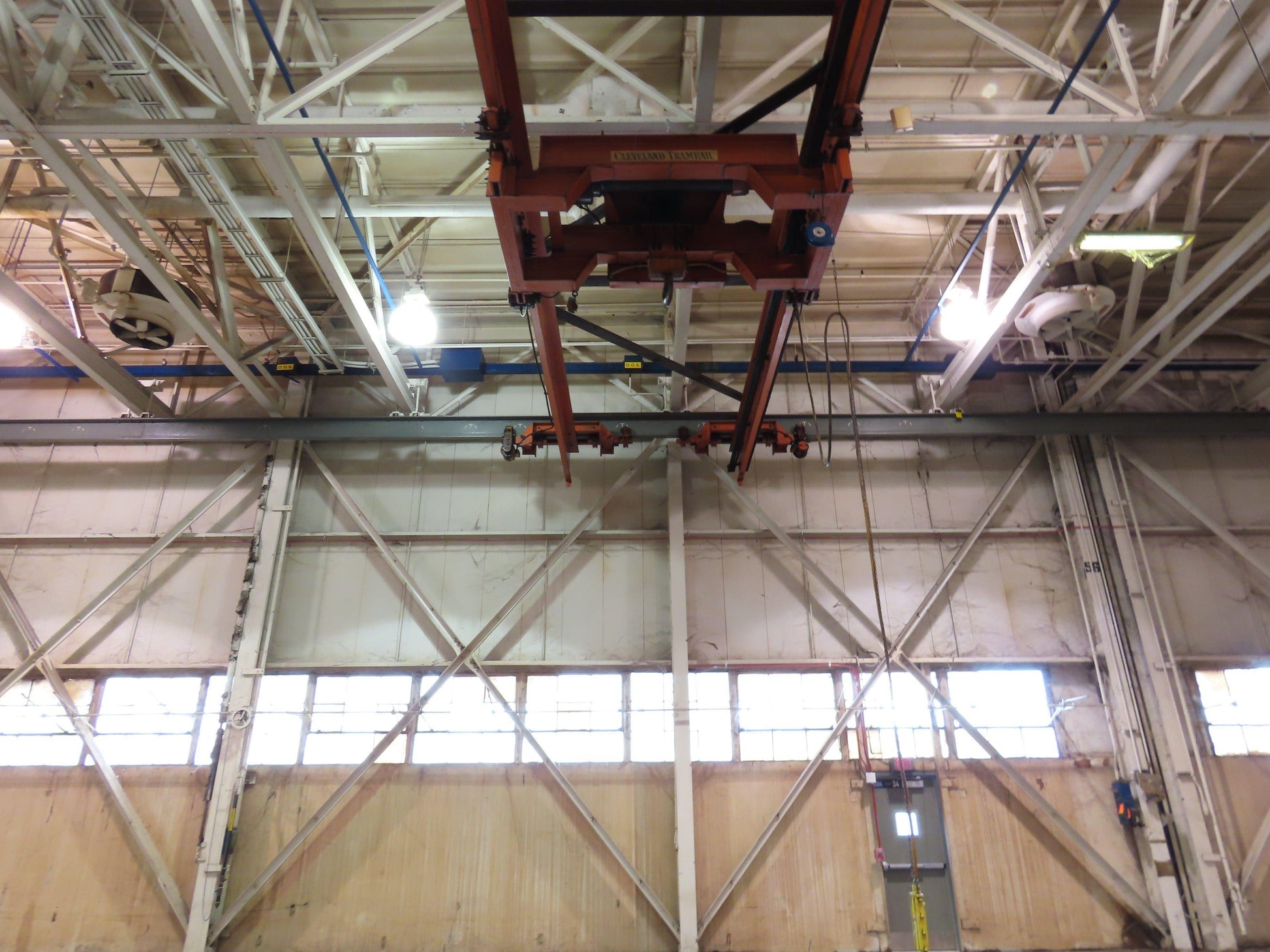

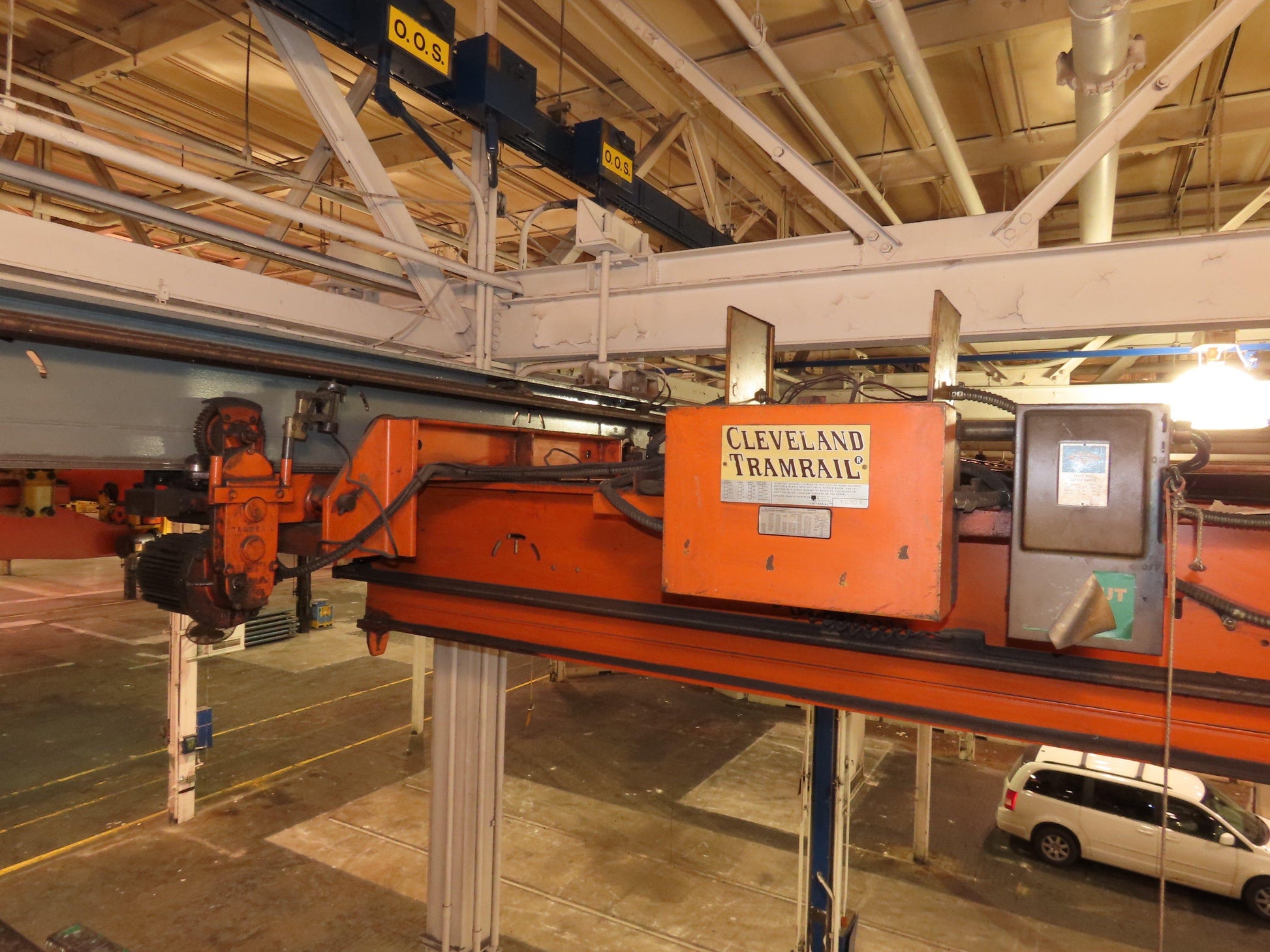

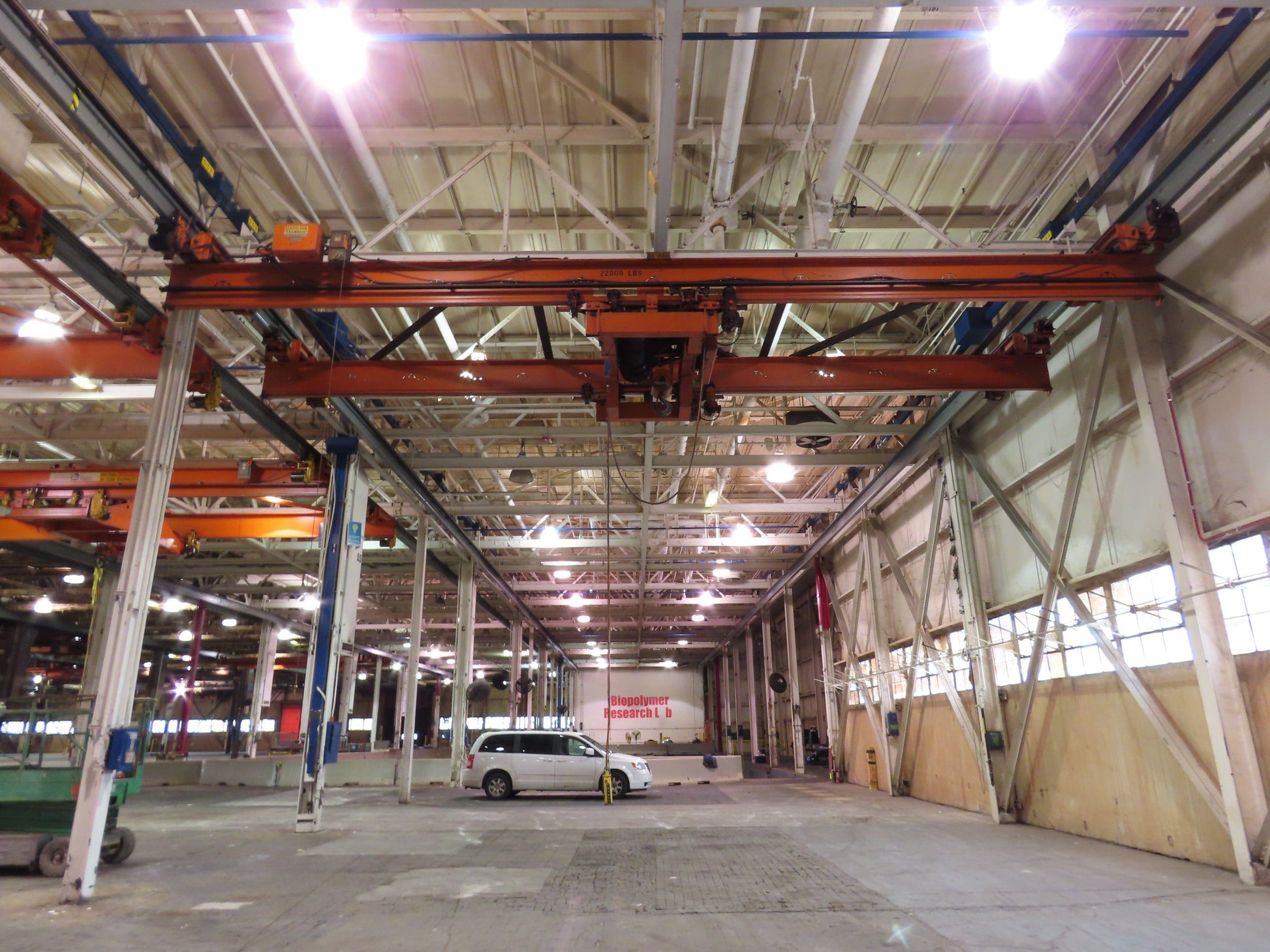

Cleveland Tramrail 11 Ton Double Girder Underhung Bridge Crane 34' 10" Span

Cleveland Tramrail 11 Ton Double Girder Underhung Bridge Crane 34' 10" Span

SKU #268199

Product Condition: Used

Your Price
$14,534.99
$16,999.99 $14,534.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail
Model
HX1463
MPN
N/A
Condition
Used
  • Capacity (tons): 11
  • Capacity (lb): 22000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 34' 10"

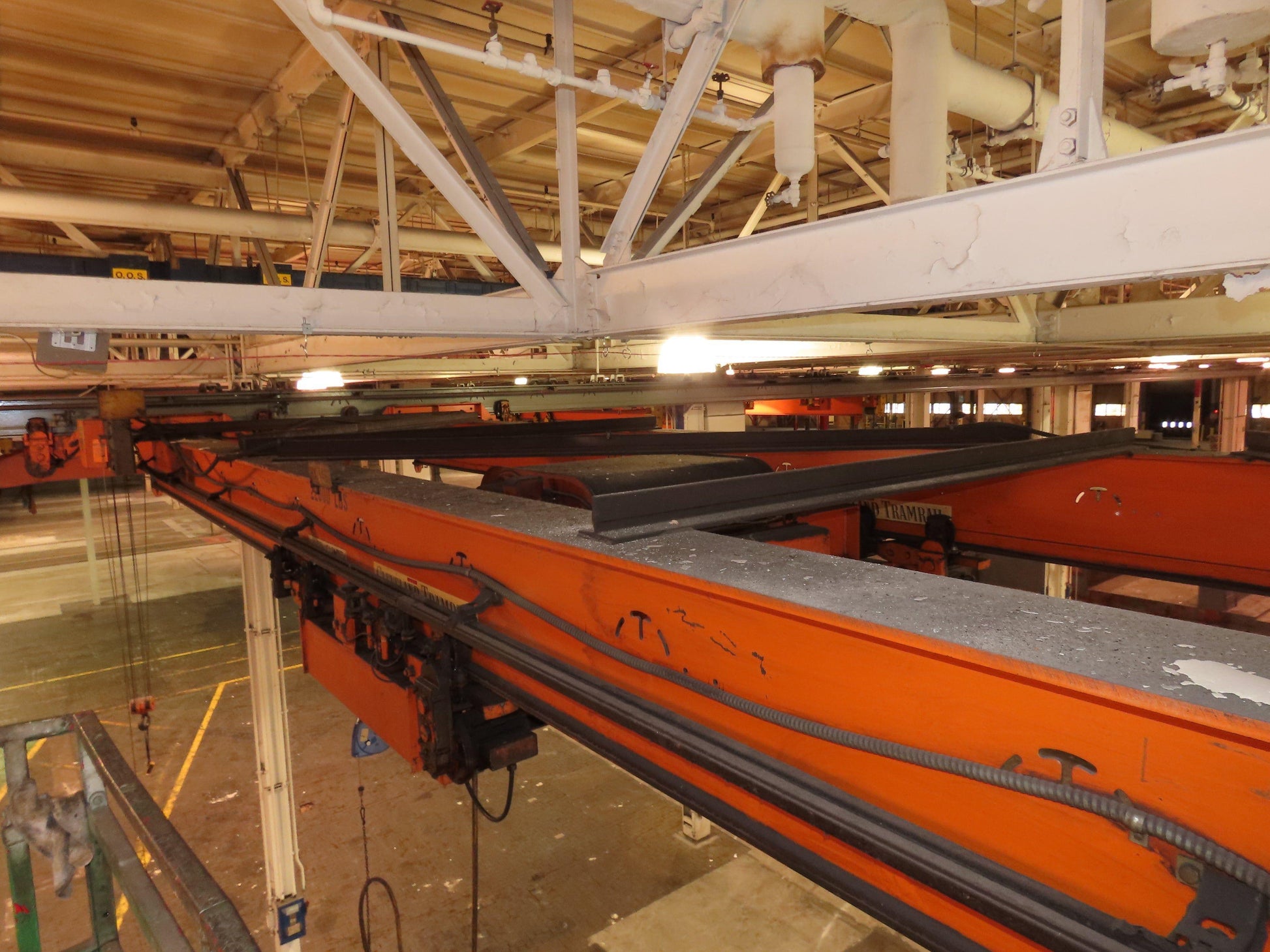

  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 37' 10"L

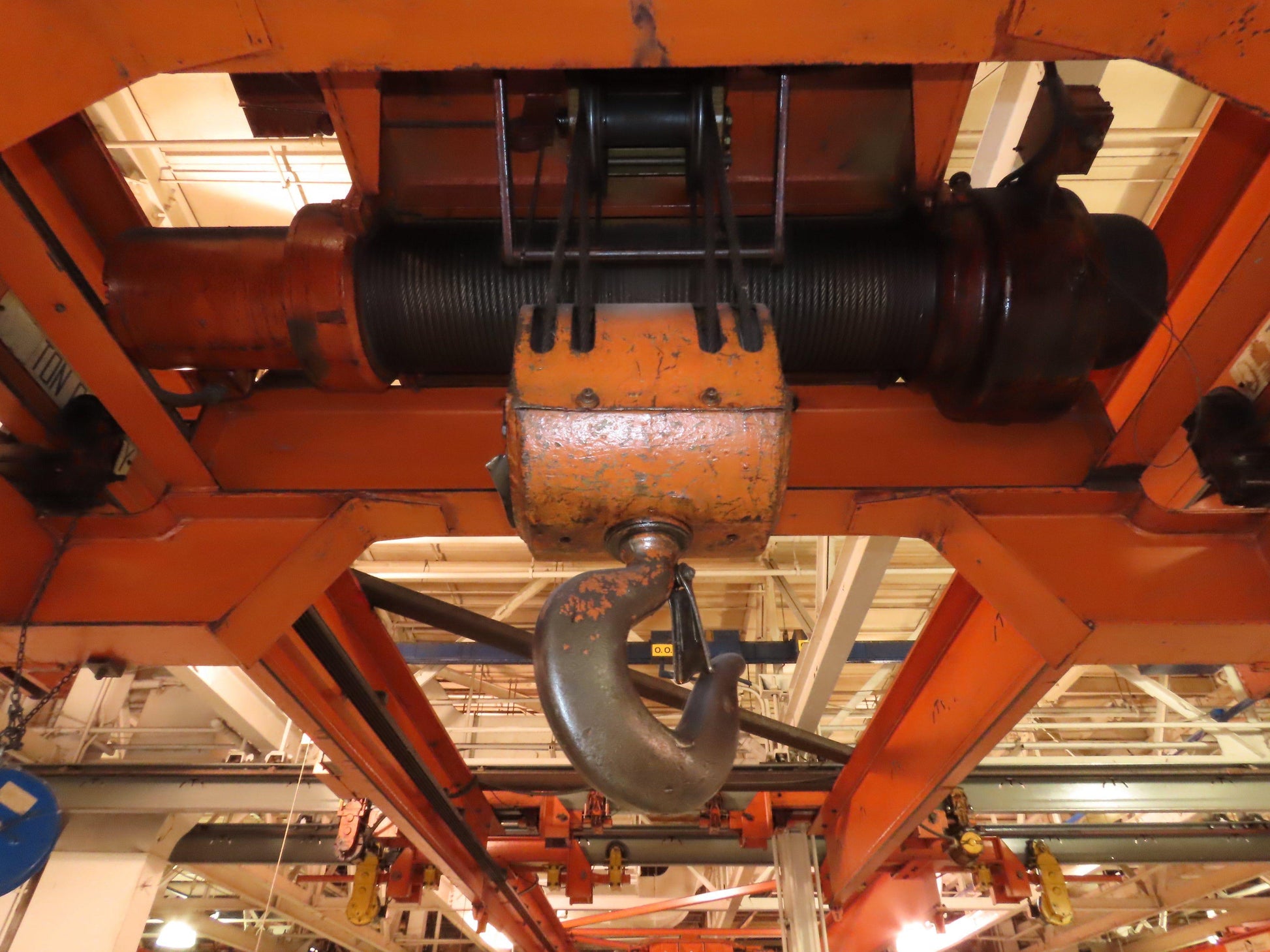

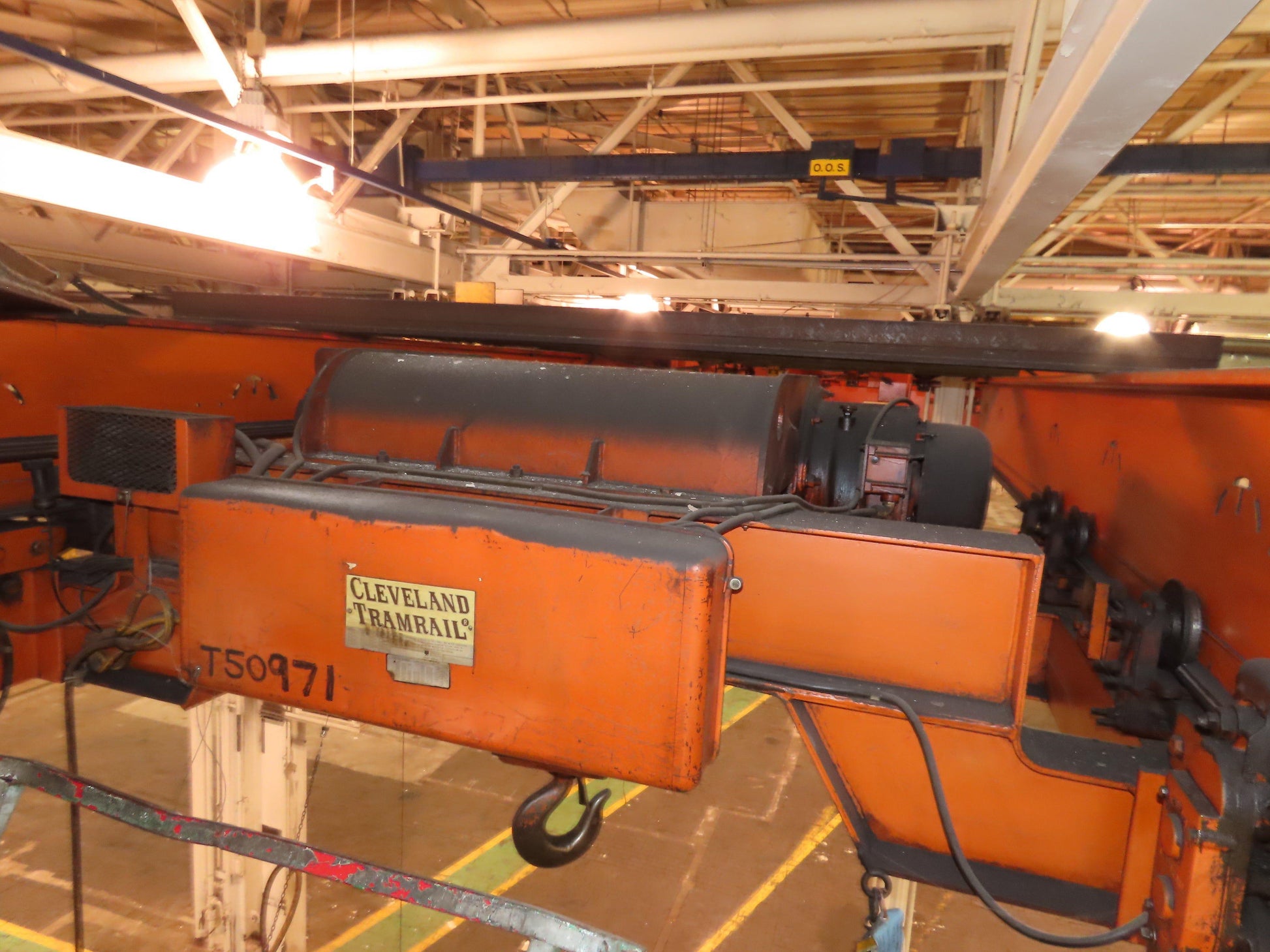

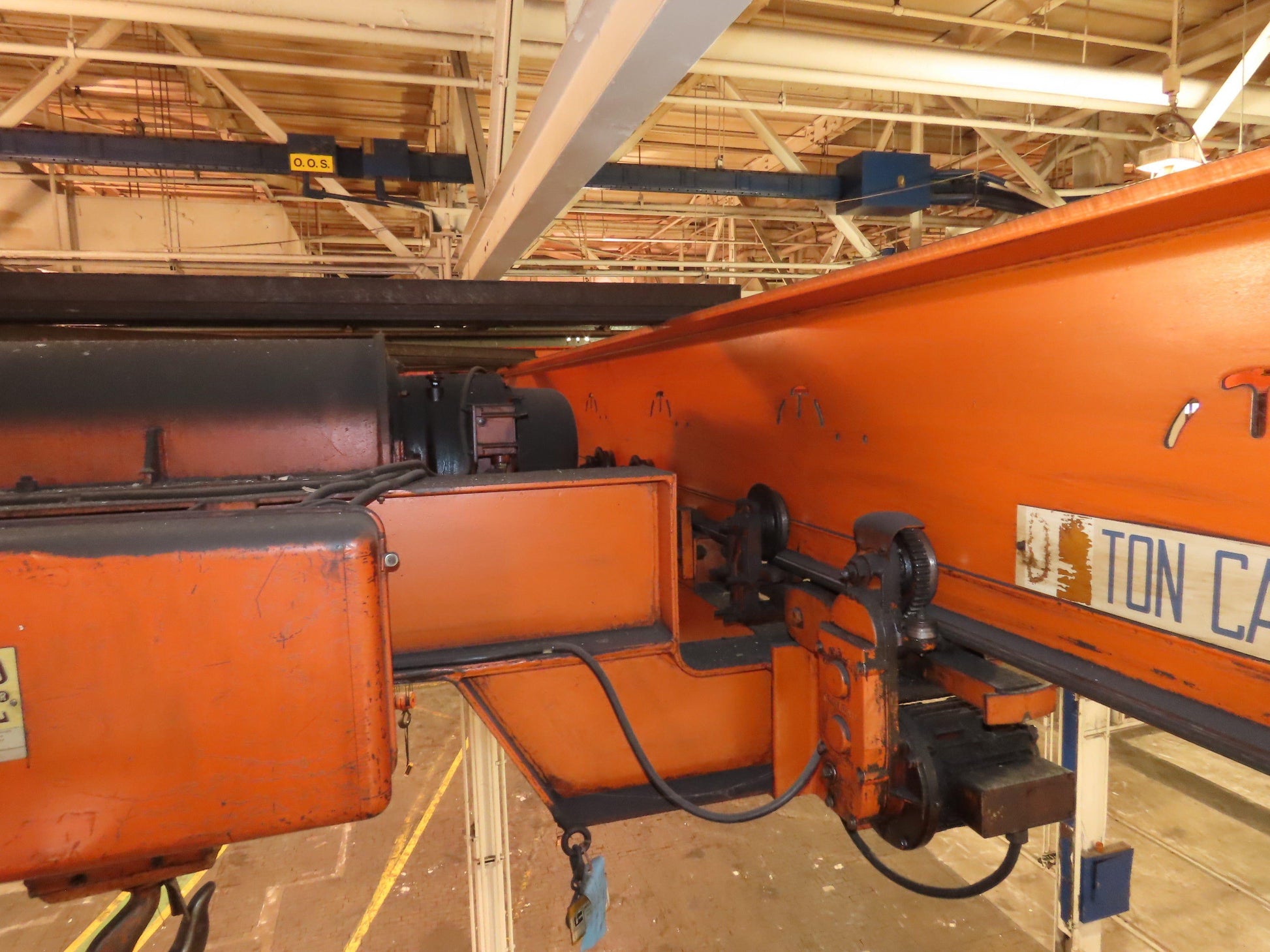

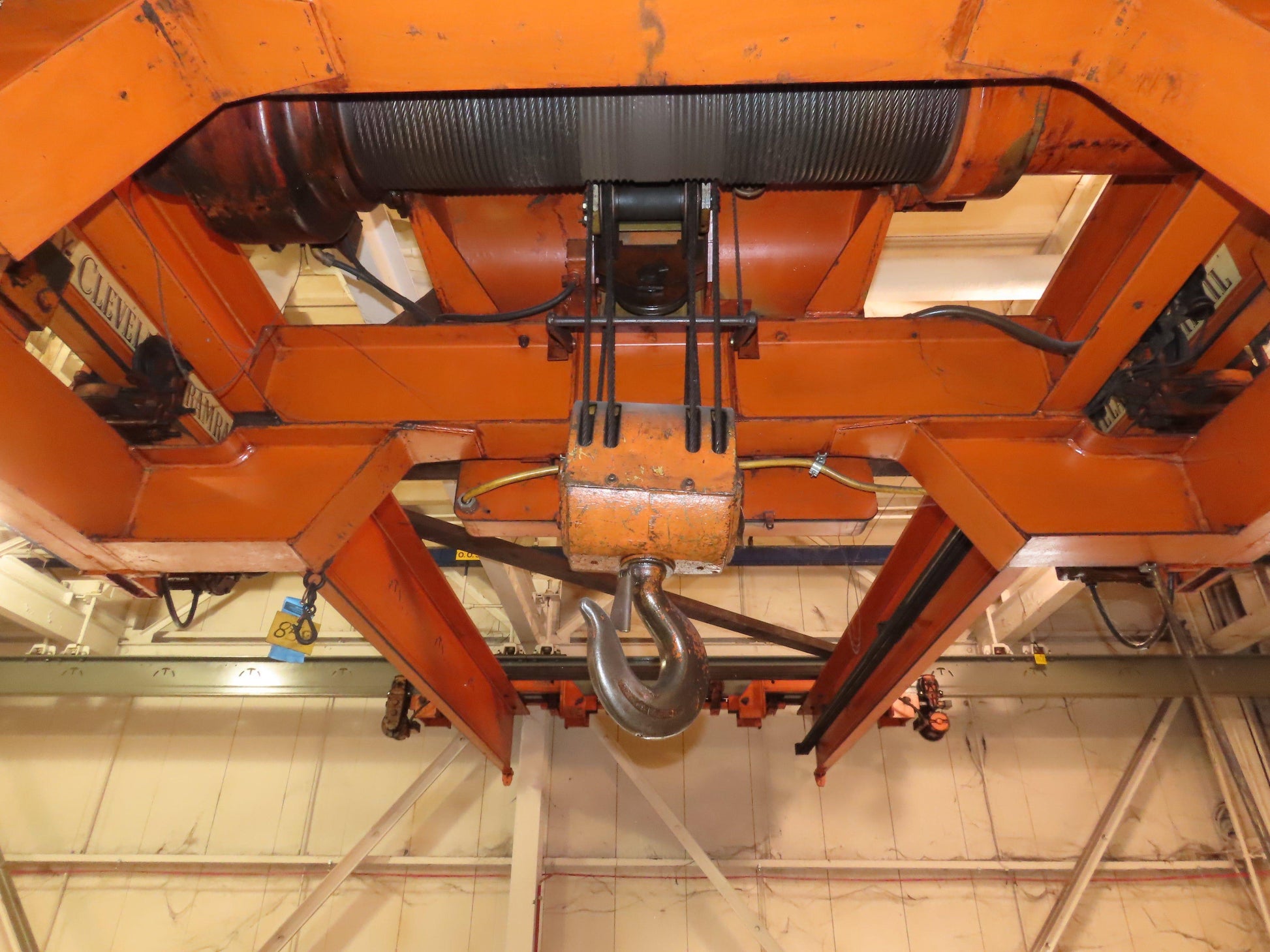

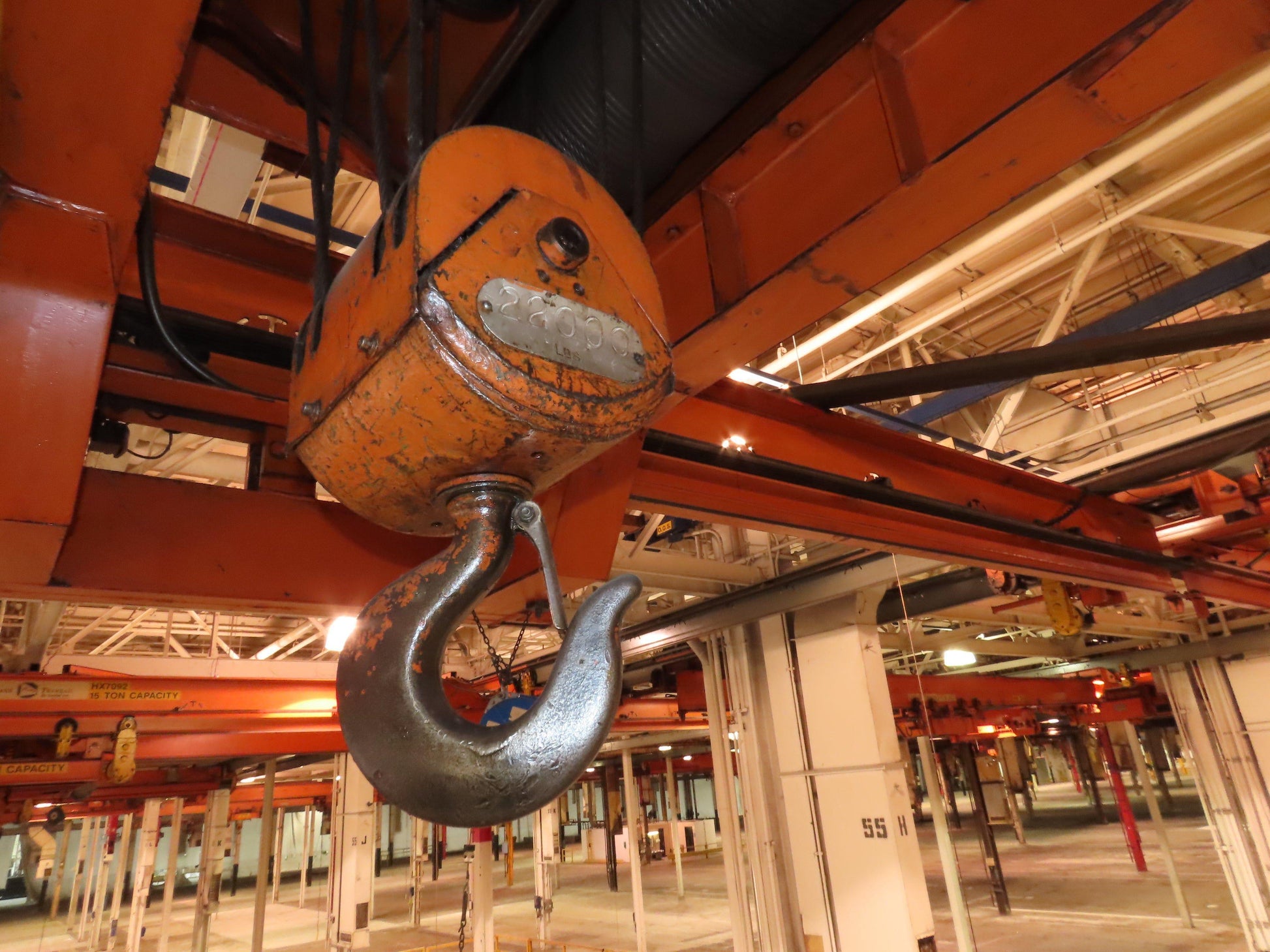

  • Hoist Brand: P&H
  • Lift Travel (feet): 20' 11"
  • Lift Speed (feet per minute): 5/15 FPM 2-Speed
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 20'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 33"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 53"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 62"
  • Bridge Crane is in working condition.  Tested on site before removal.

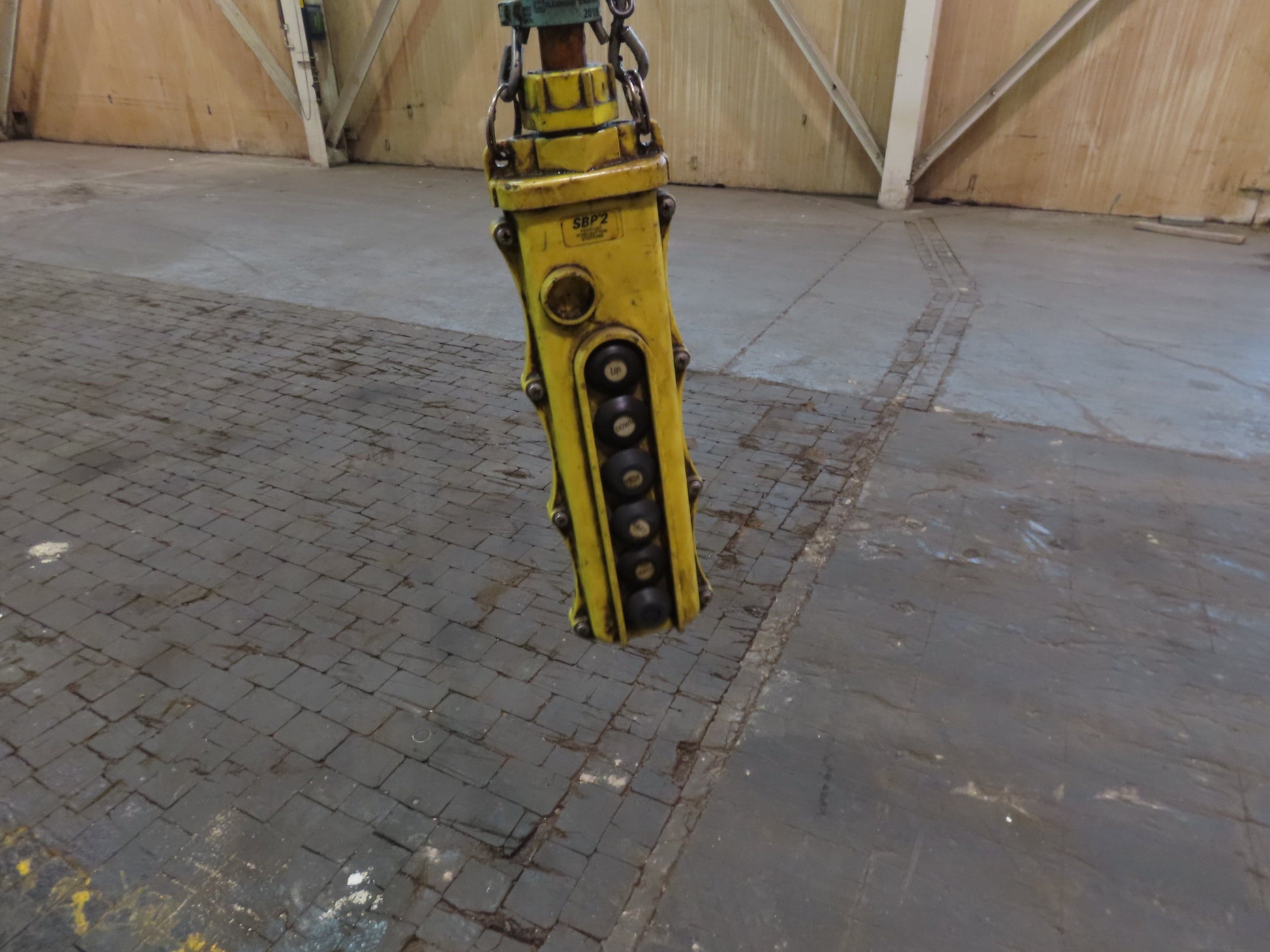

  • Includes corded pendant only.  Not set up for wireless.

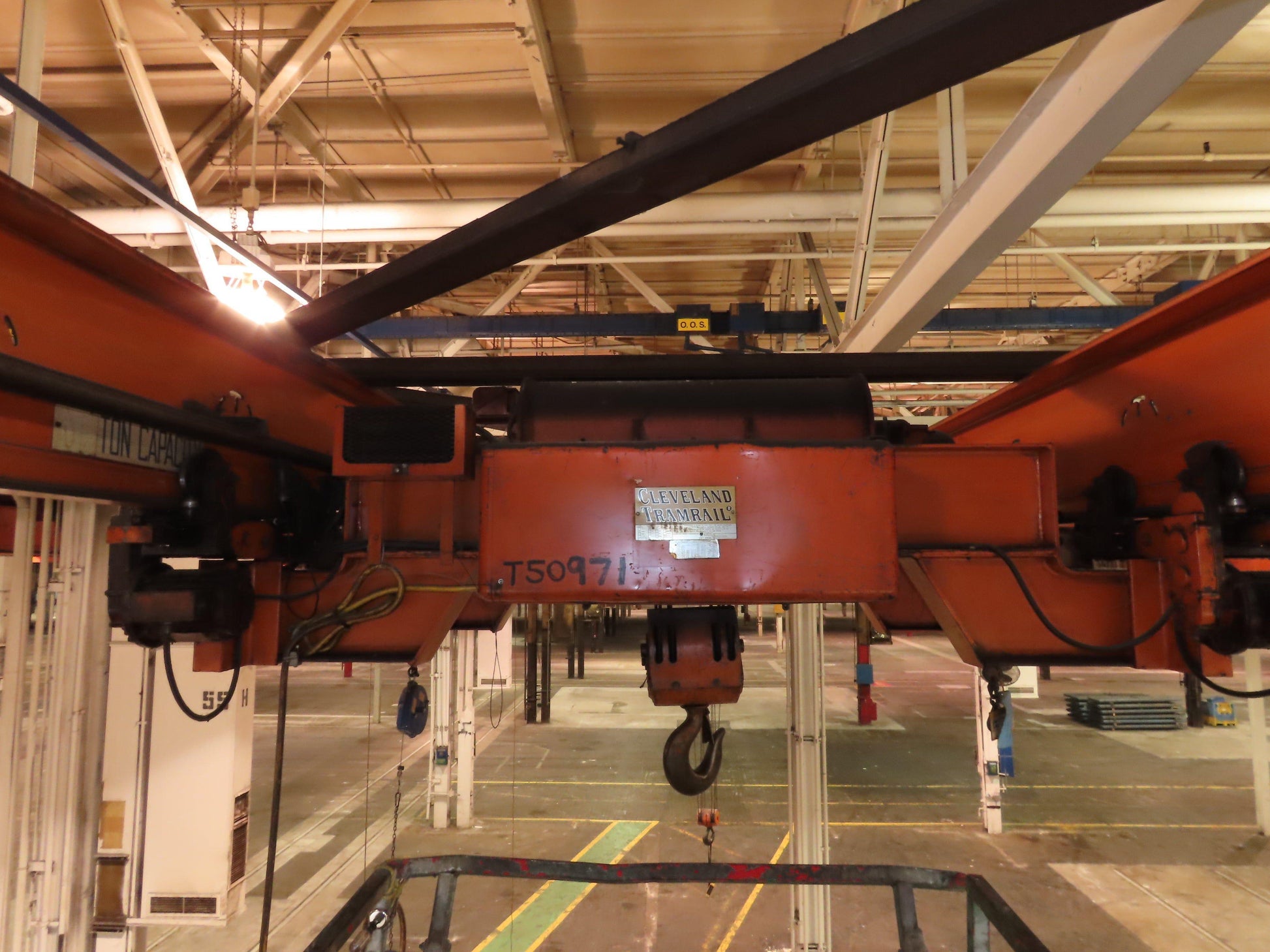

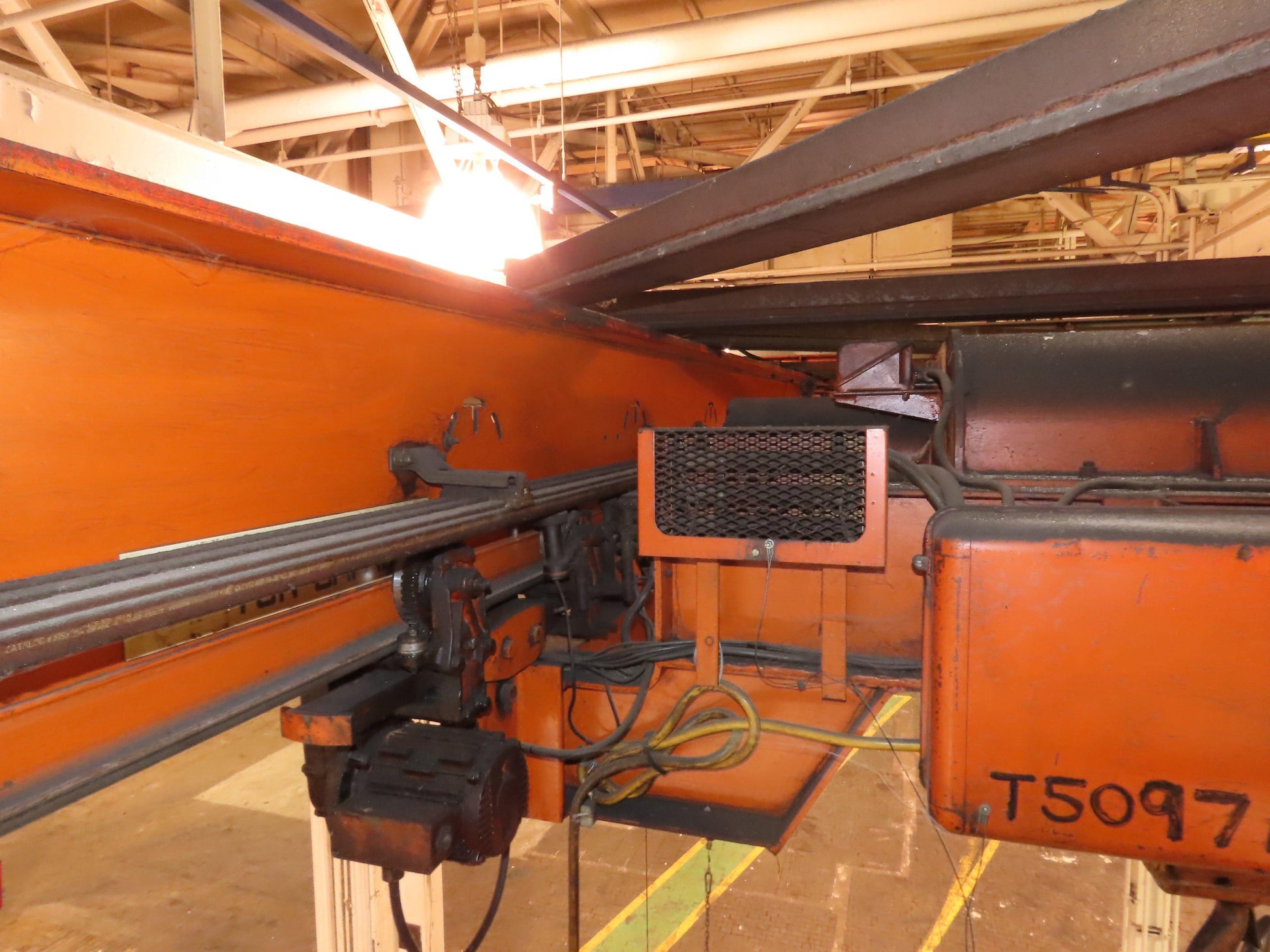

  • Trolley carriage length: 90"

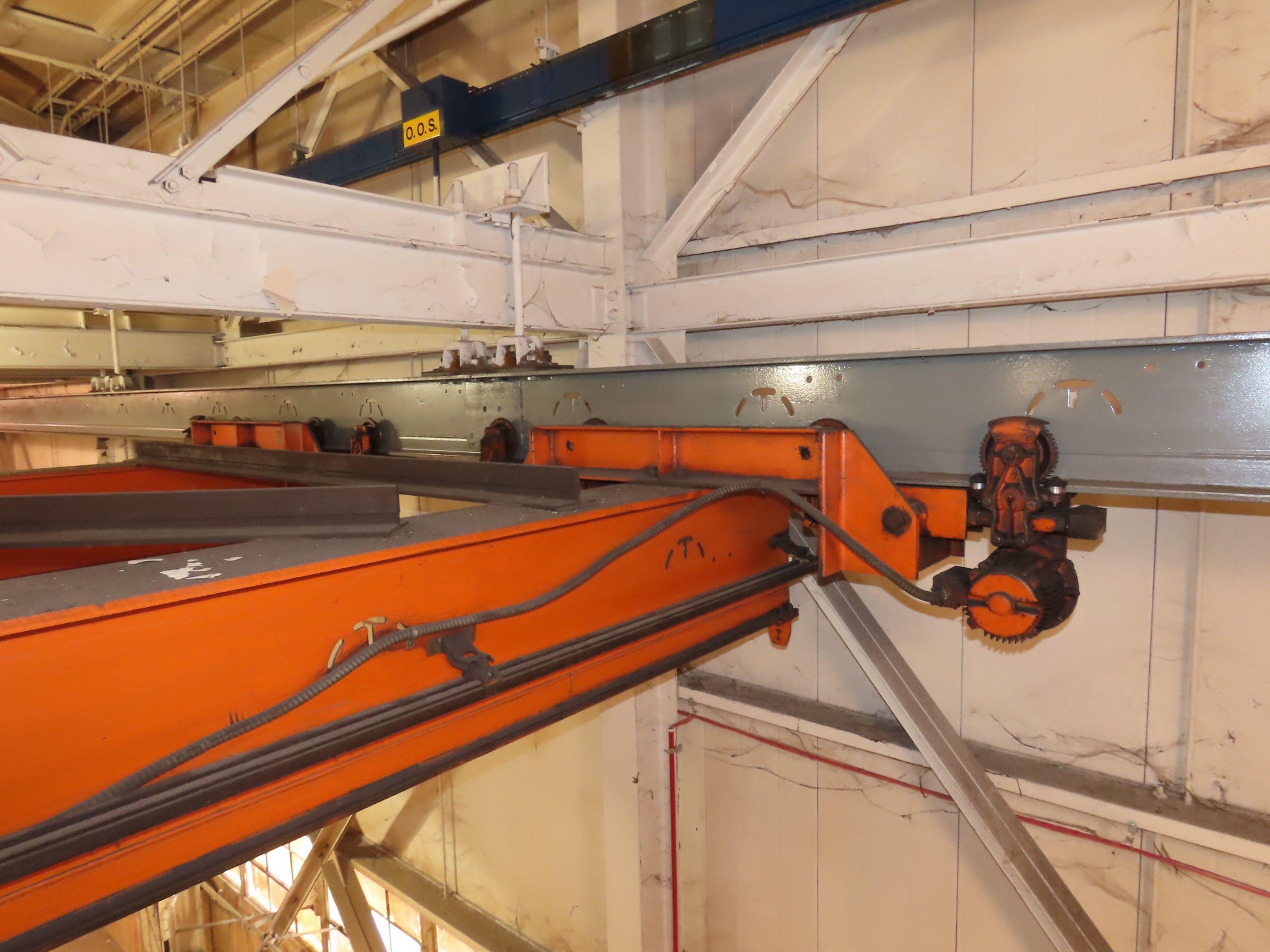

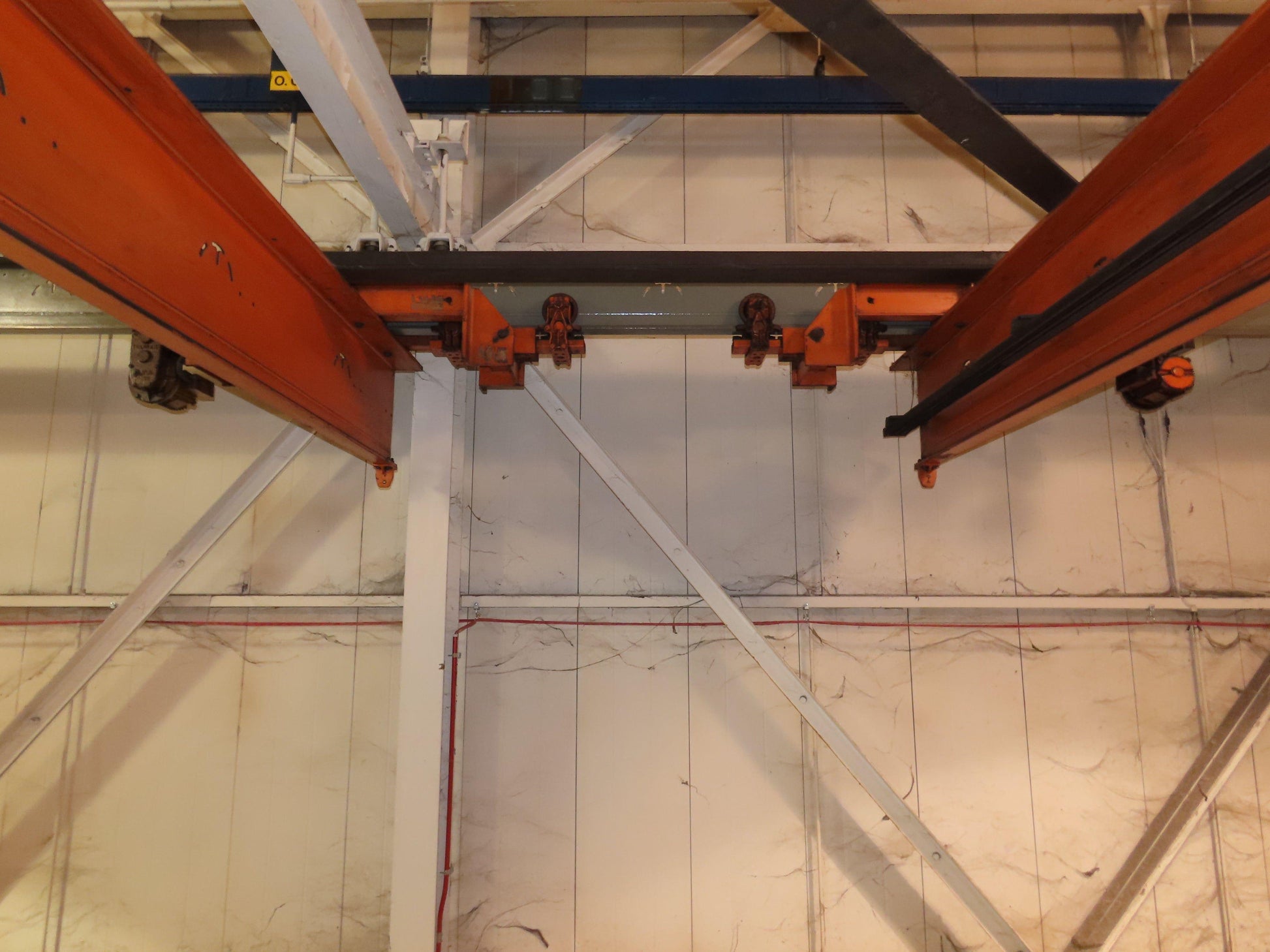

  • End truck length:  76"
  • End truck wheel size:  5"
  • Girder beam span: 8' 6"
  • Top braces are welded on.
