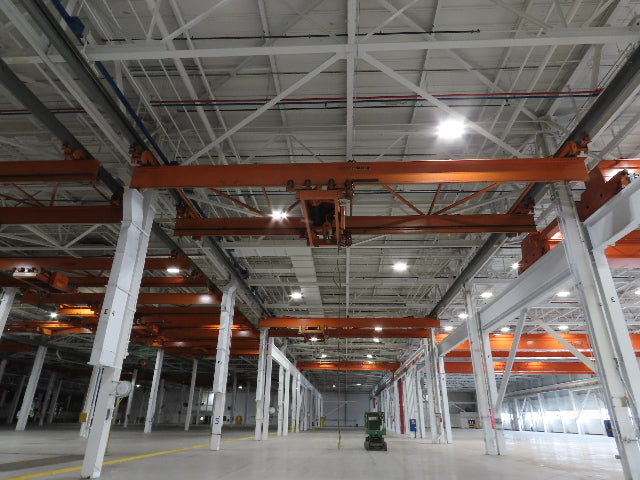

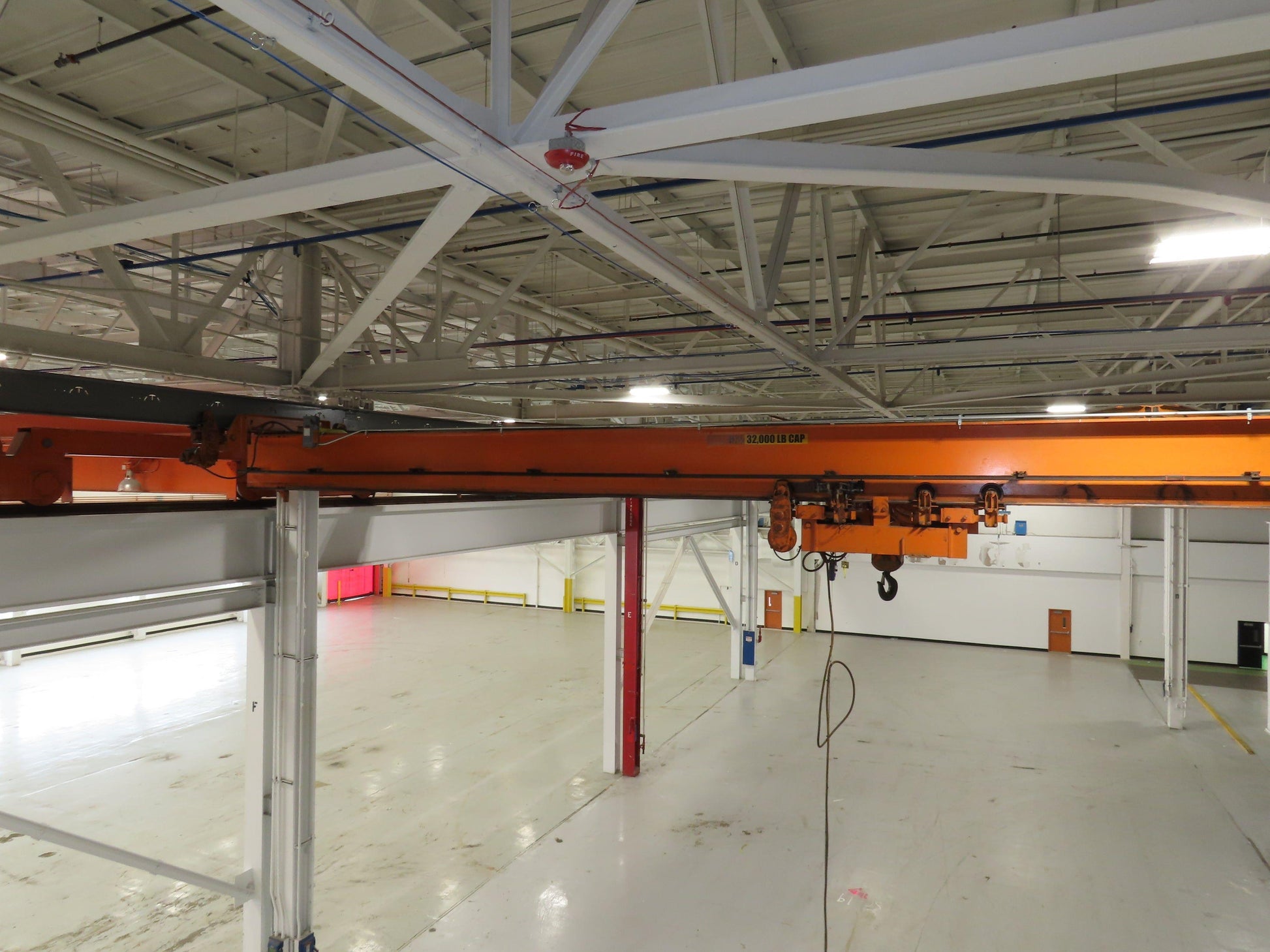

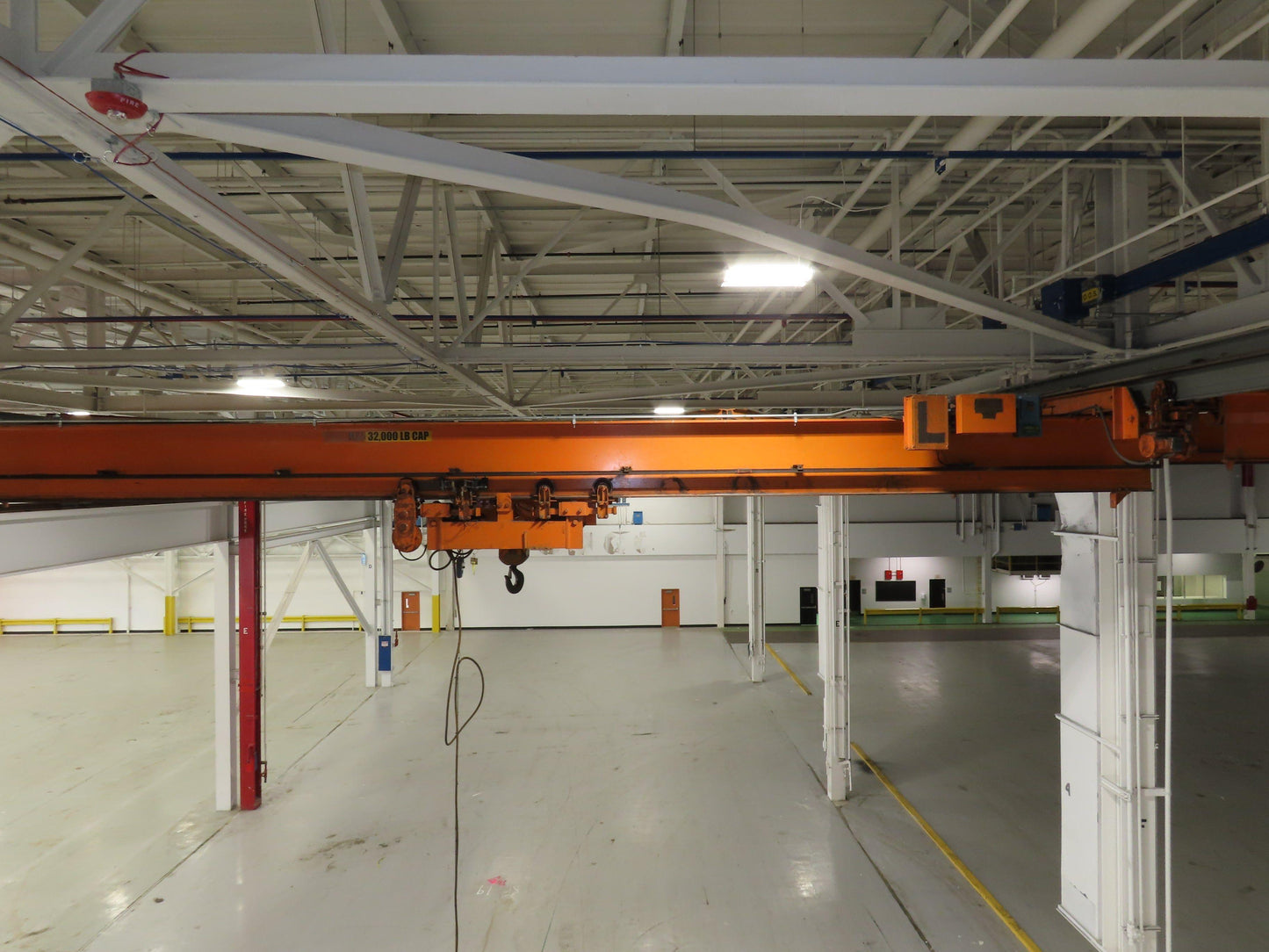

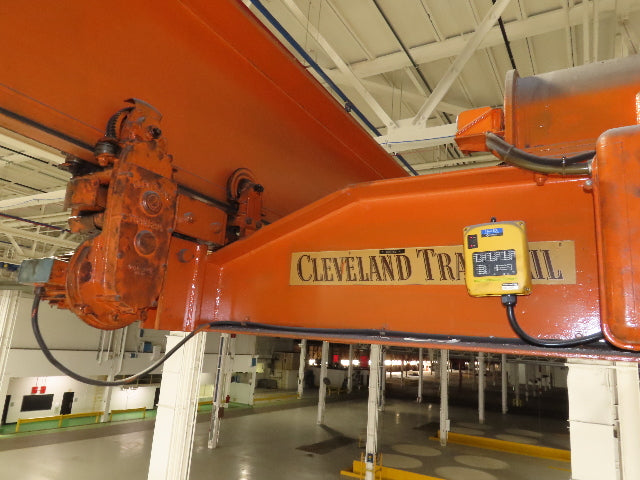

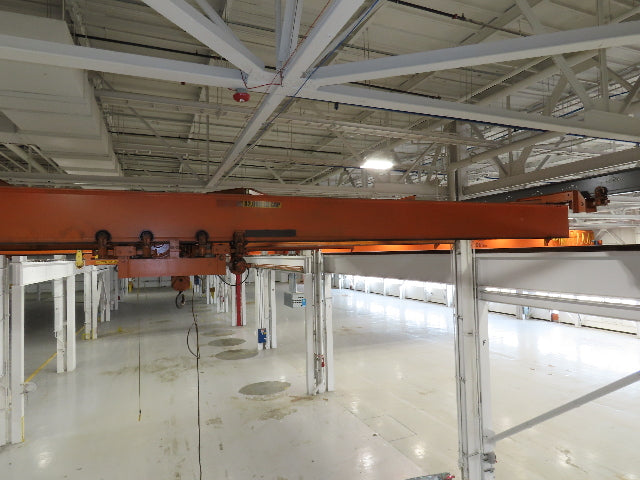

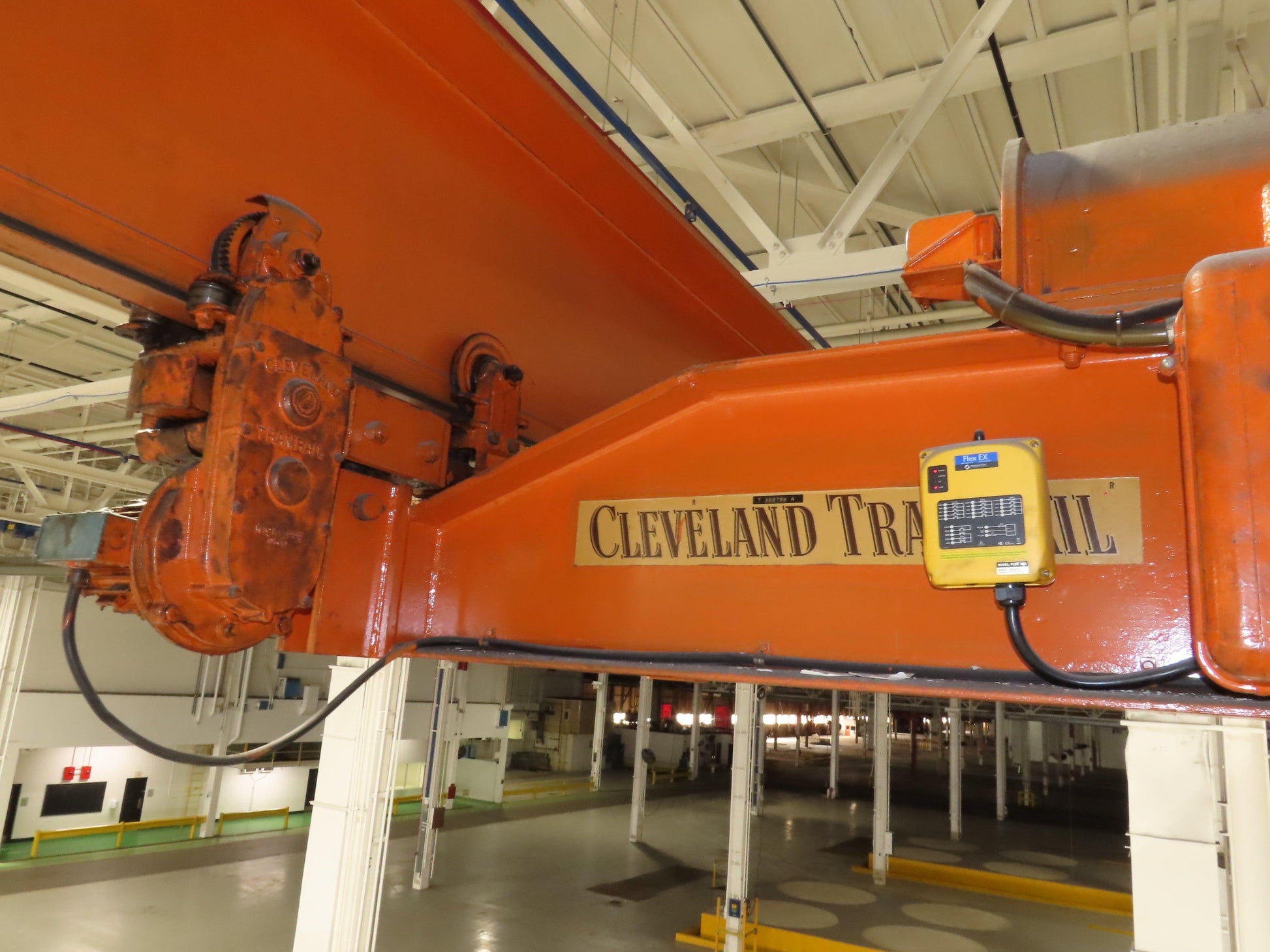

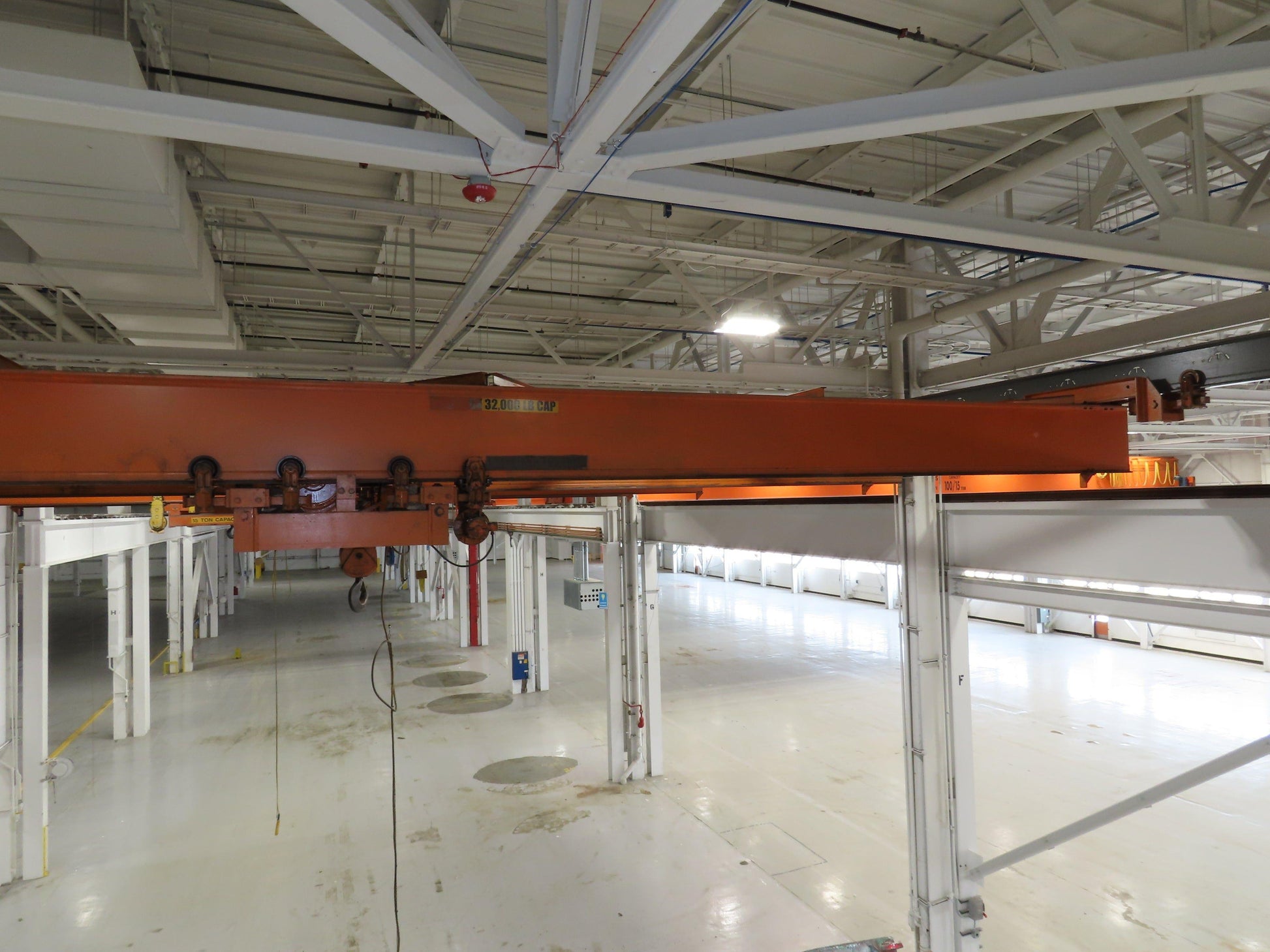

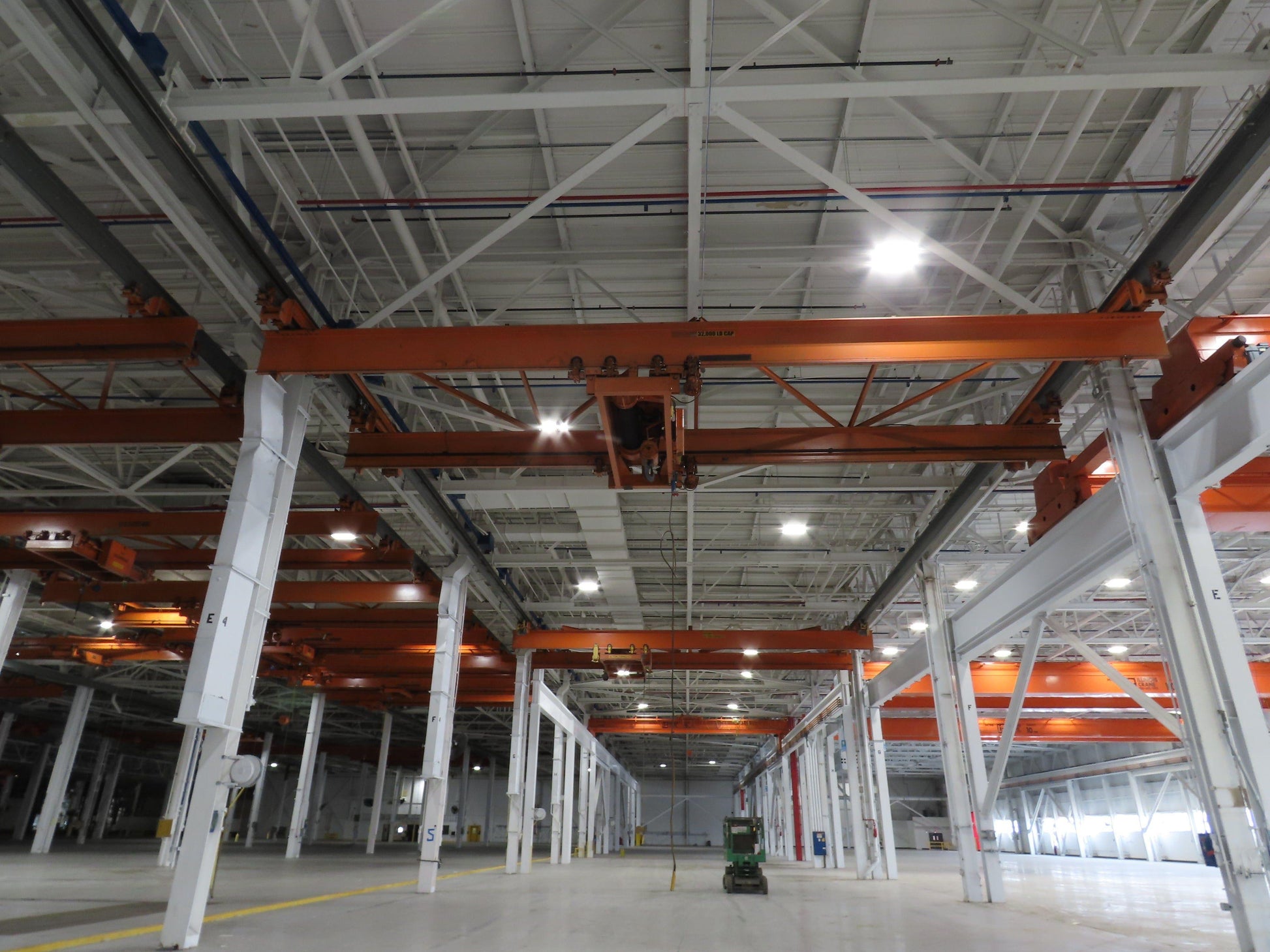

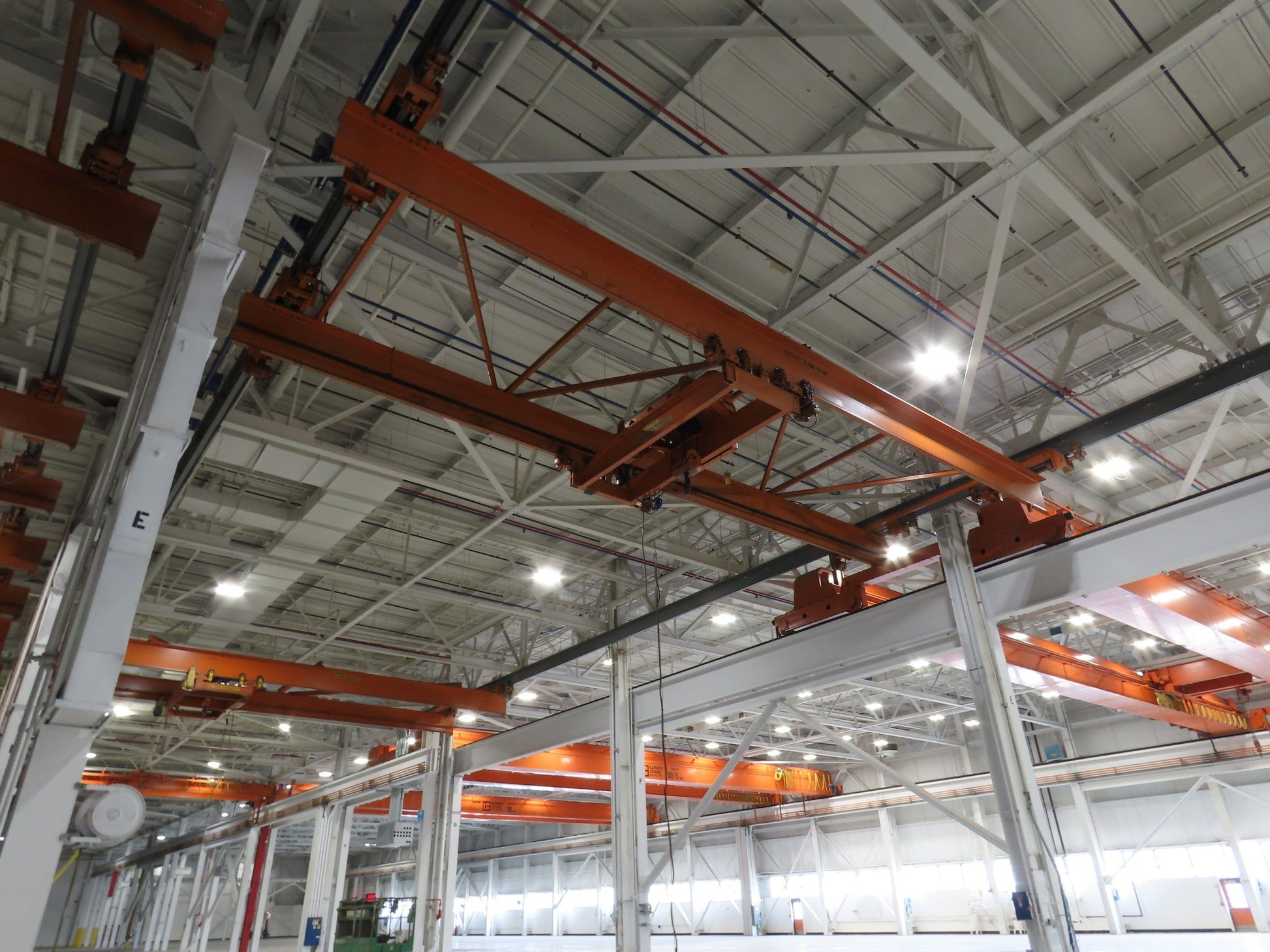

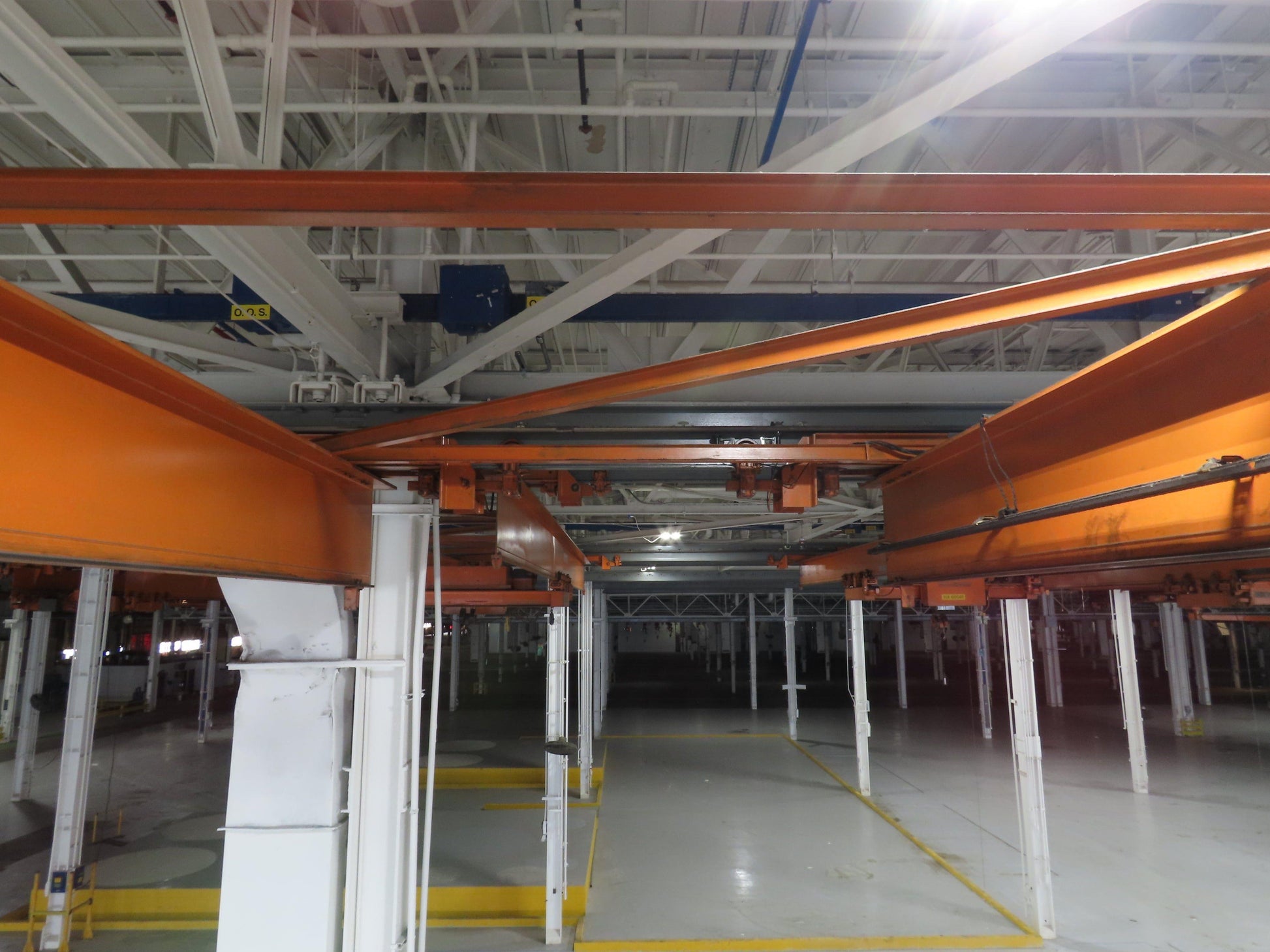

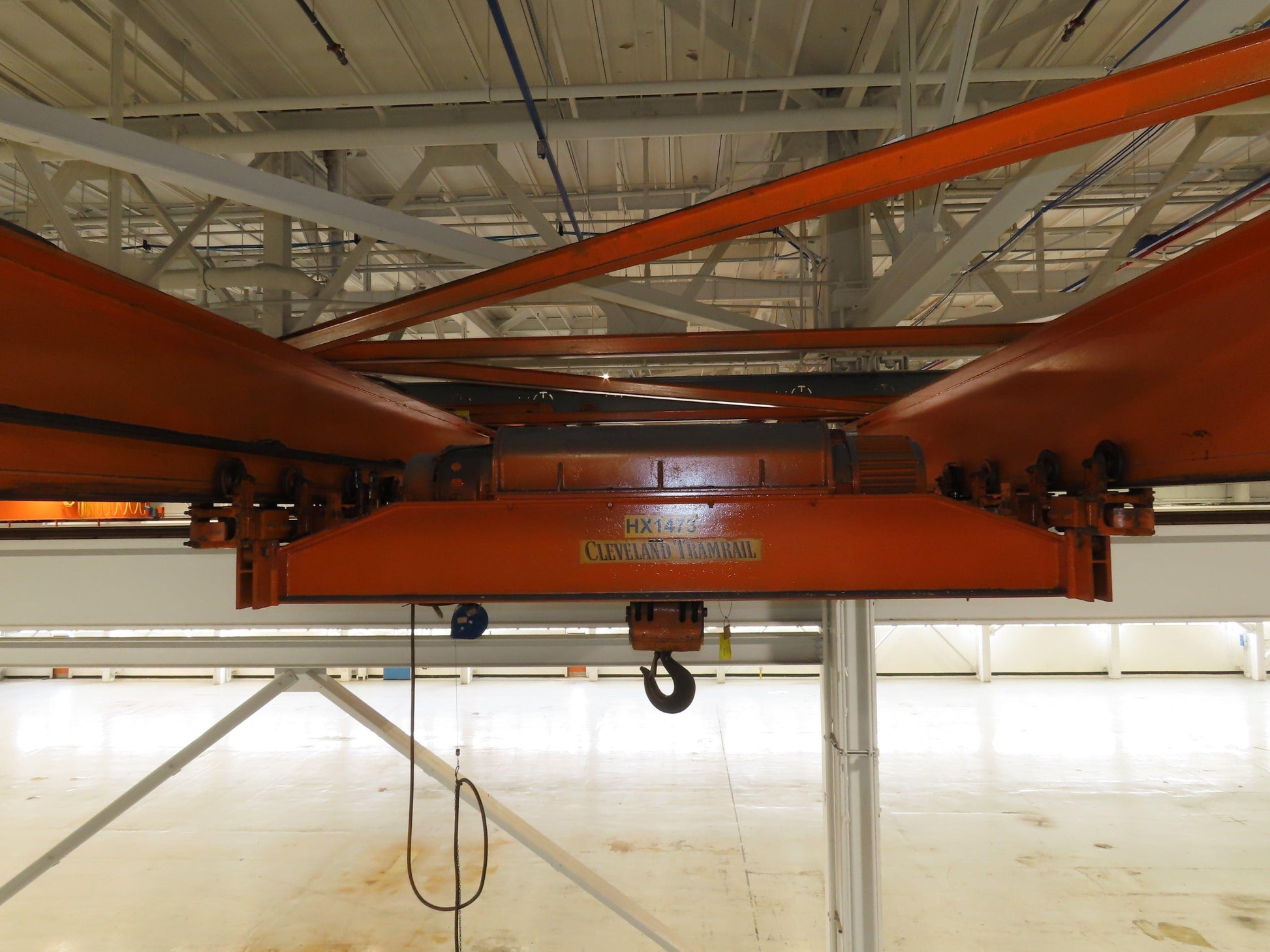

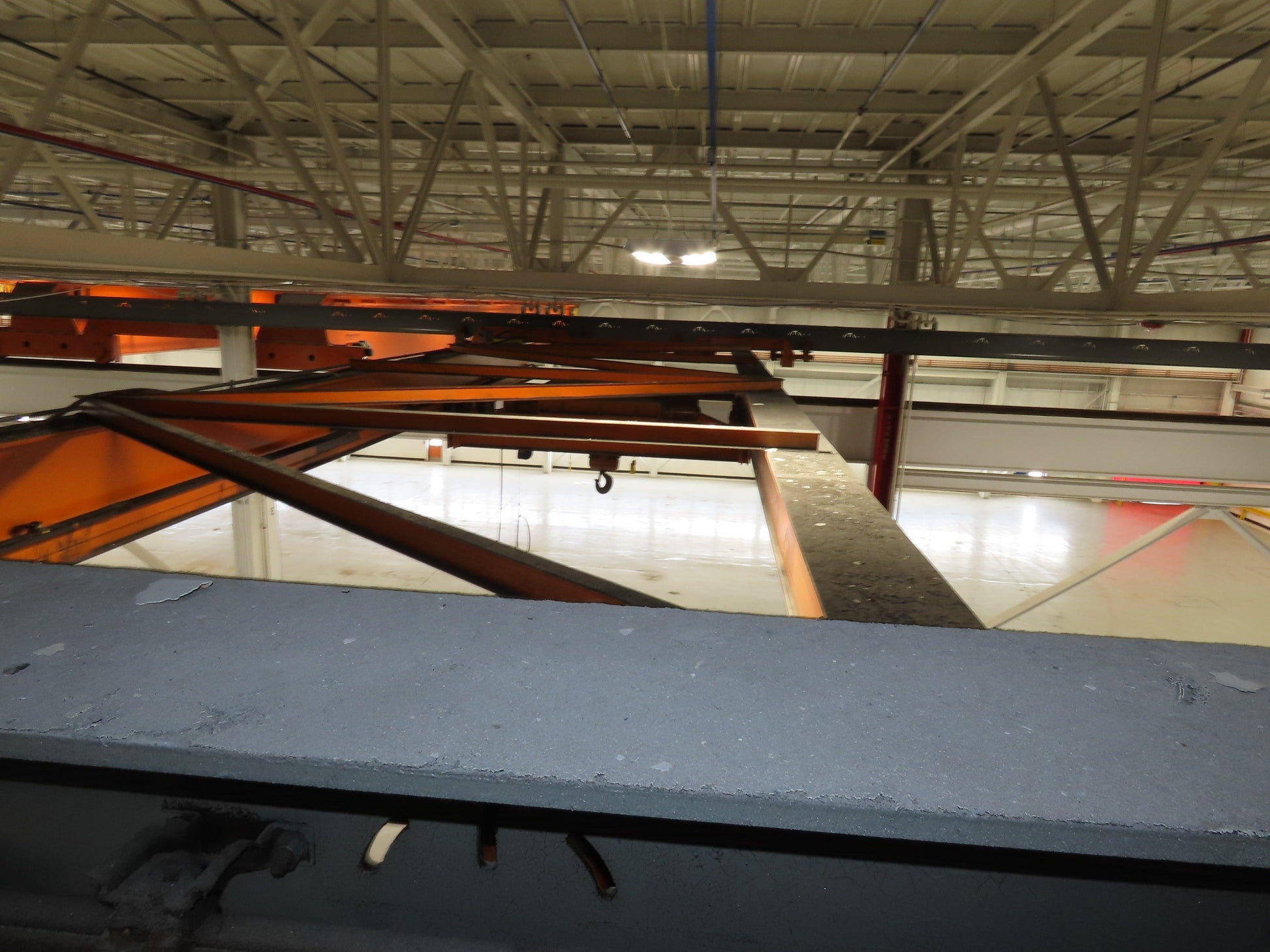

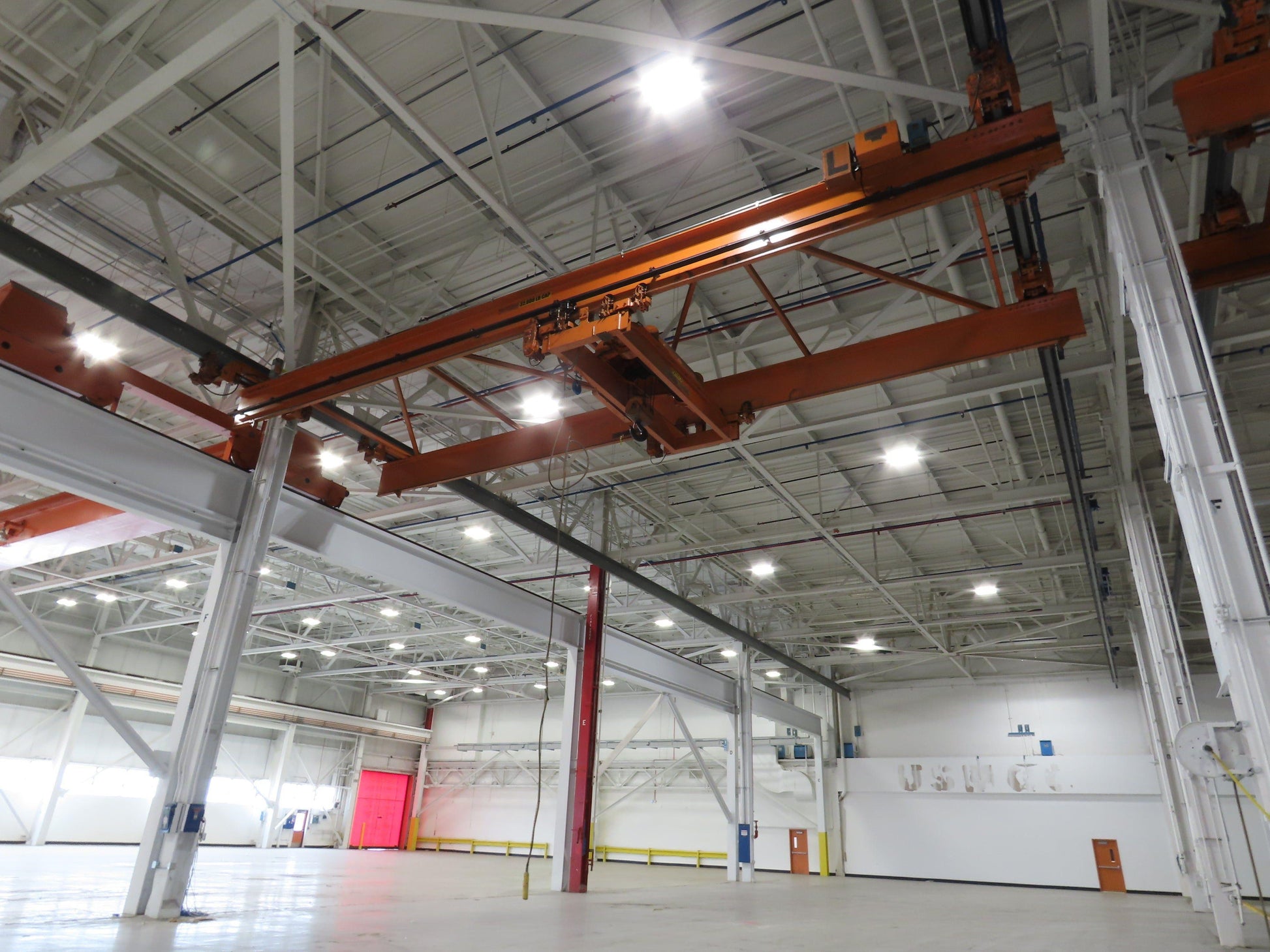

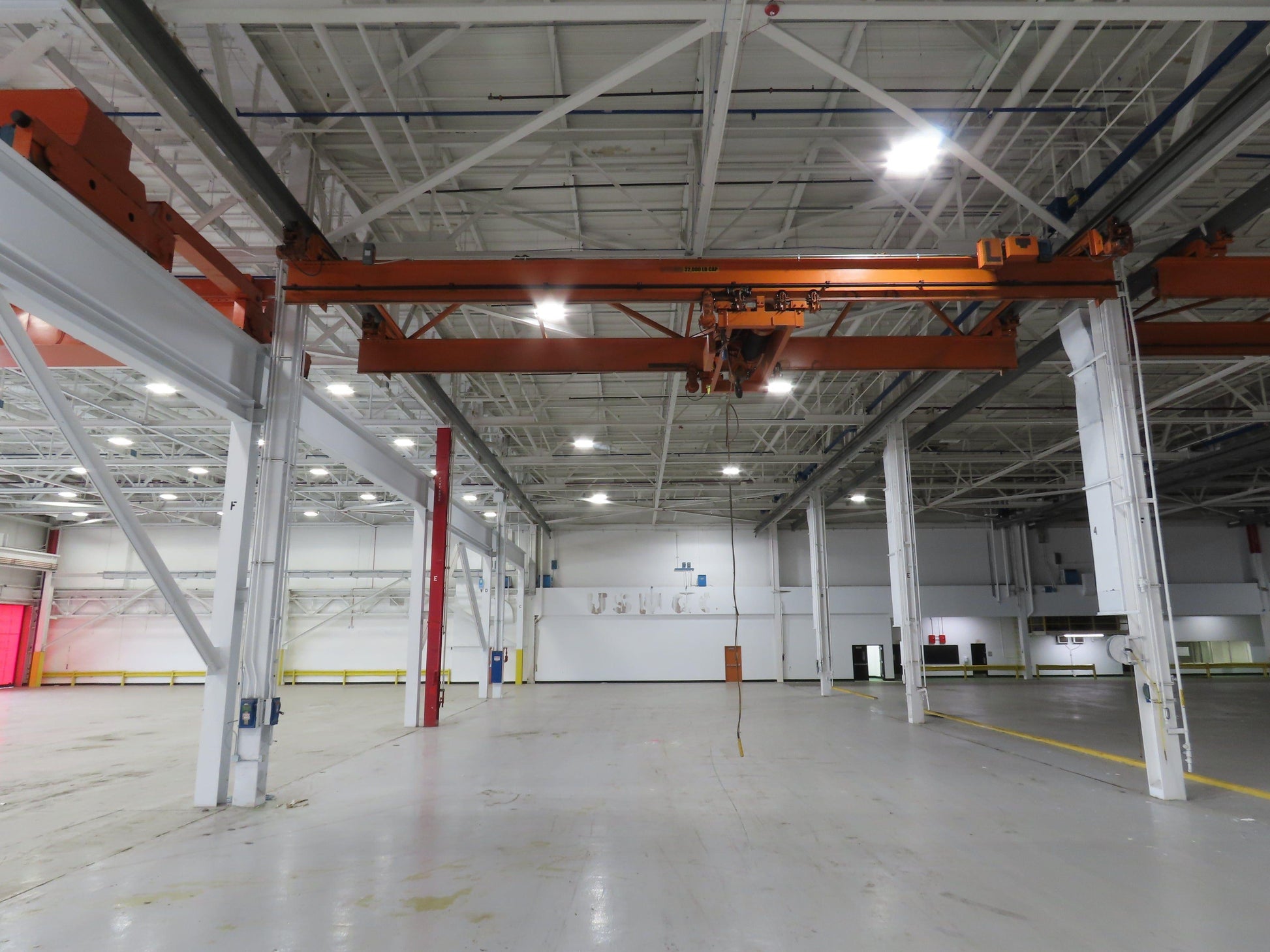

Cleveland Tramrail 16 Ton Double Girder Underhung Bridge Crane 43' Span w/Remote

Cleveland Tramrail 16 Ton Double Girder Underhung Bridge Crane 43' Span w/Remote

SKU #268195

Product Condition: Used

Your Price
$17,099.99
$19,999.99 $17,099.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail

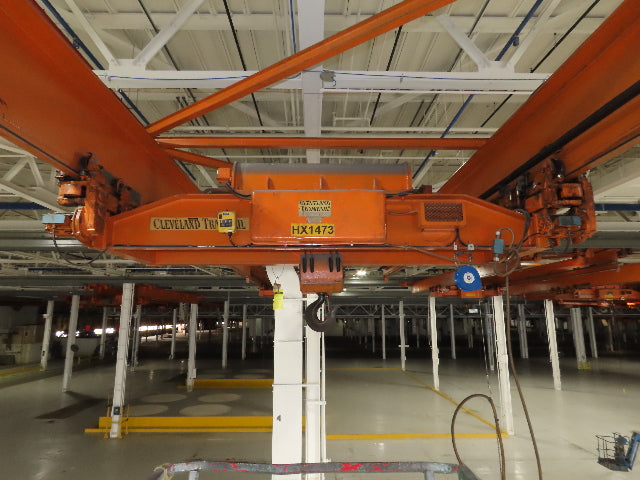

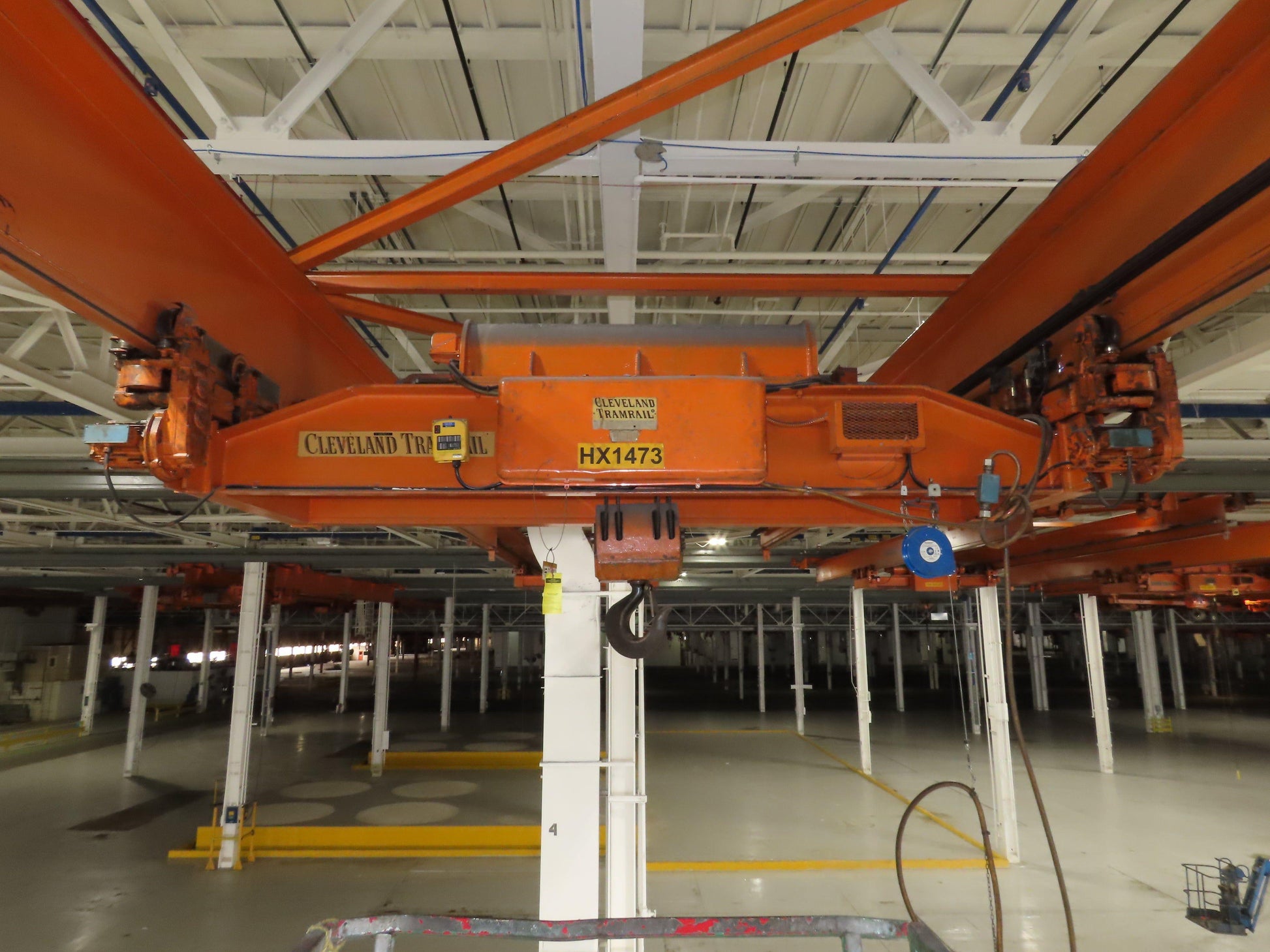

Model

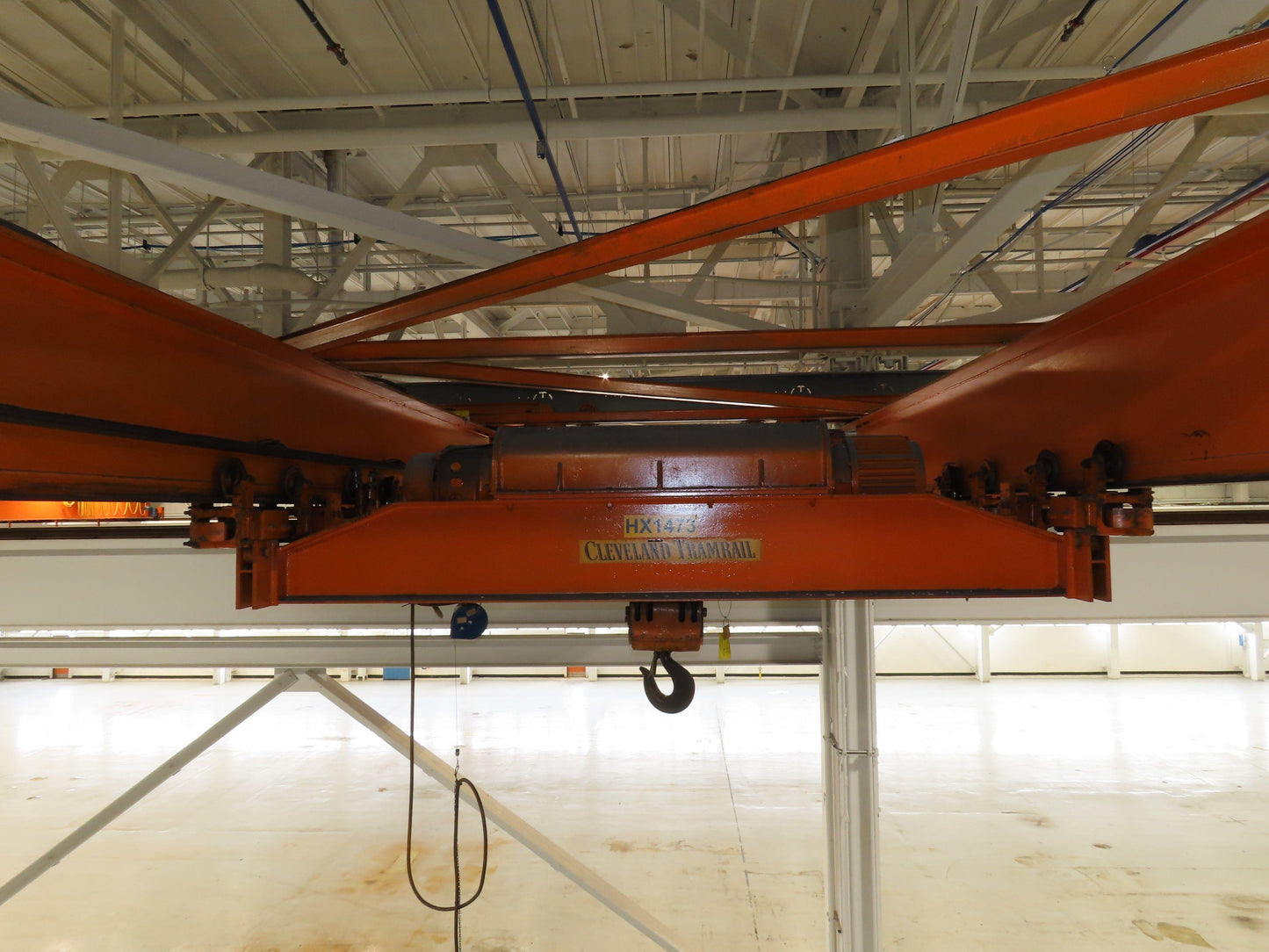

HX1473
MPN
N/A
Condition
Used
  • Capacity (tons): 16

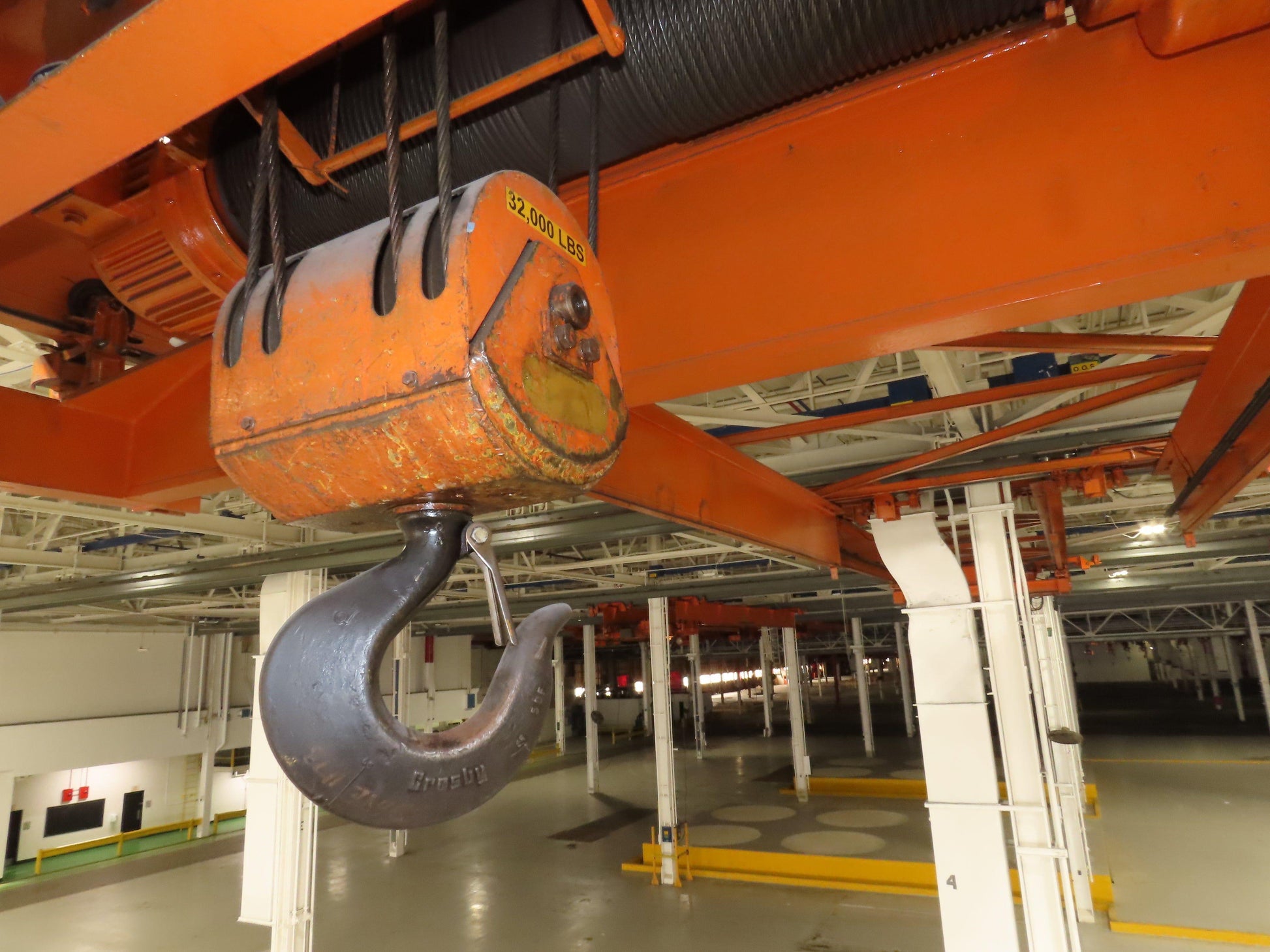

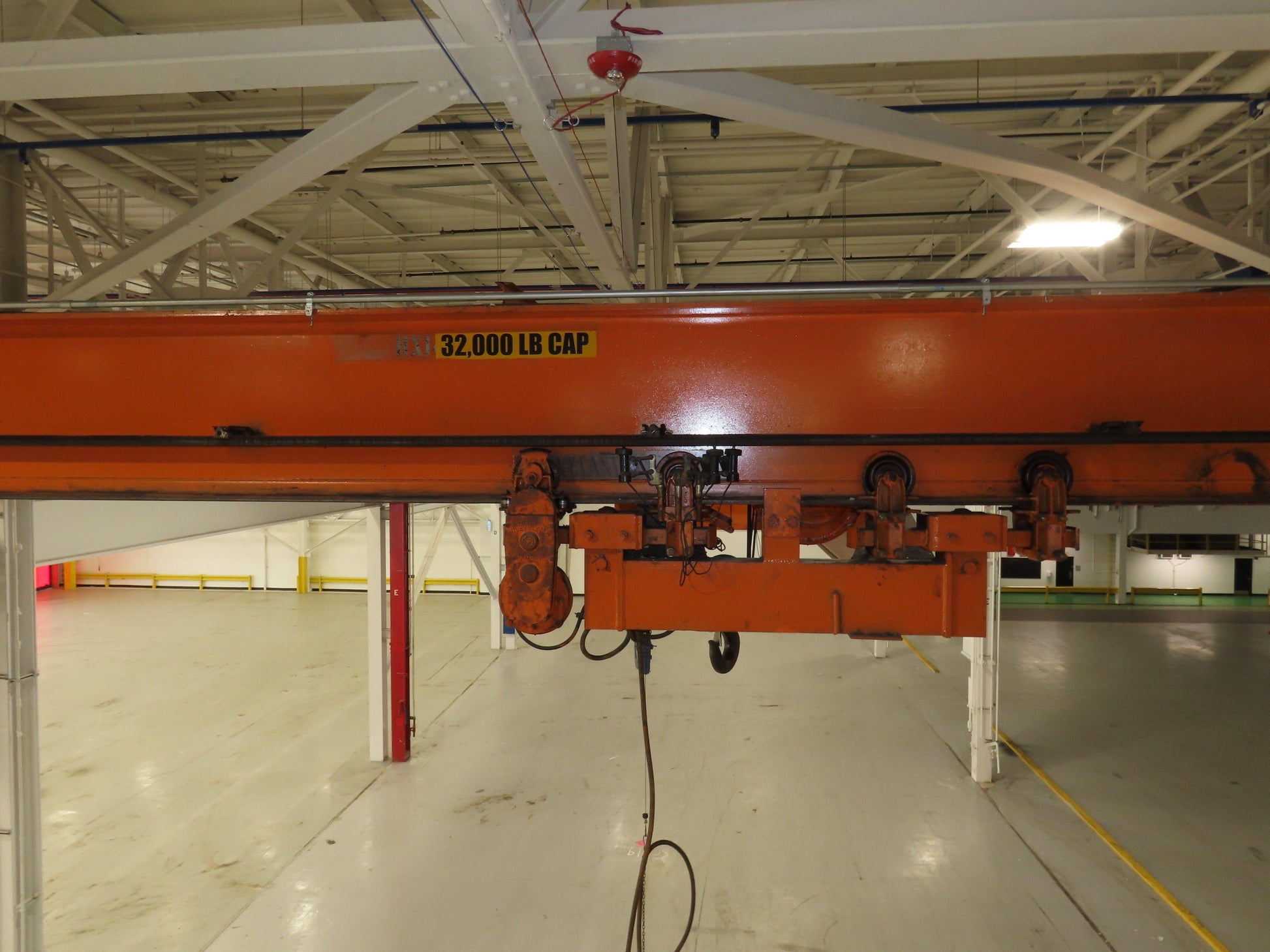

  • Capacity (lb): 32000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 43'
  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 46' 6"L

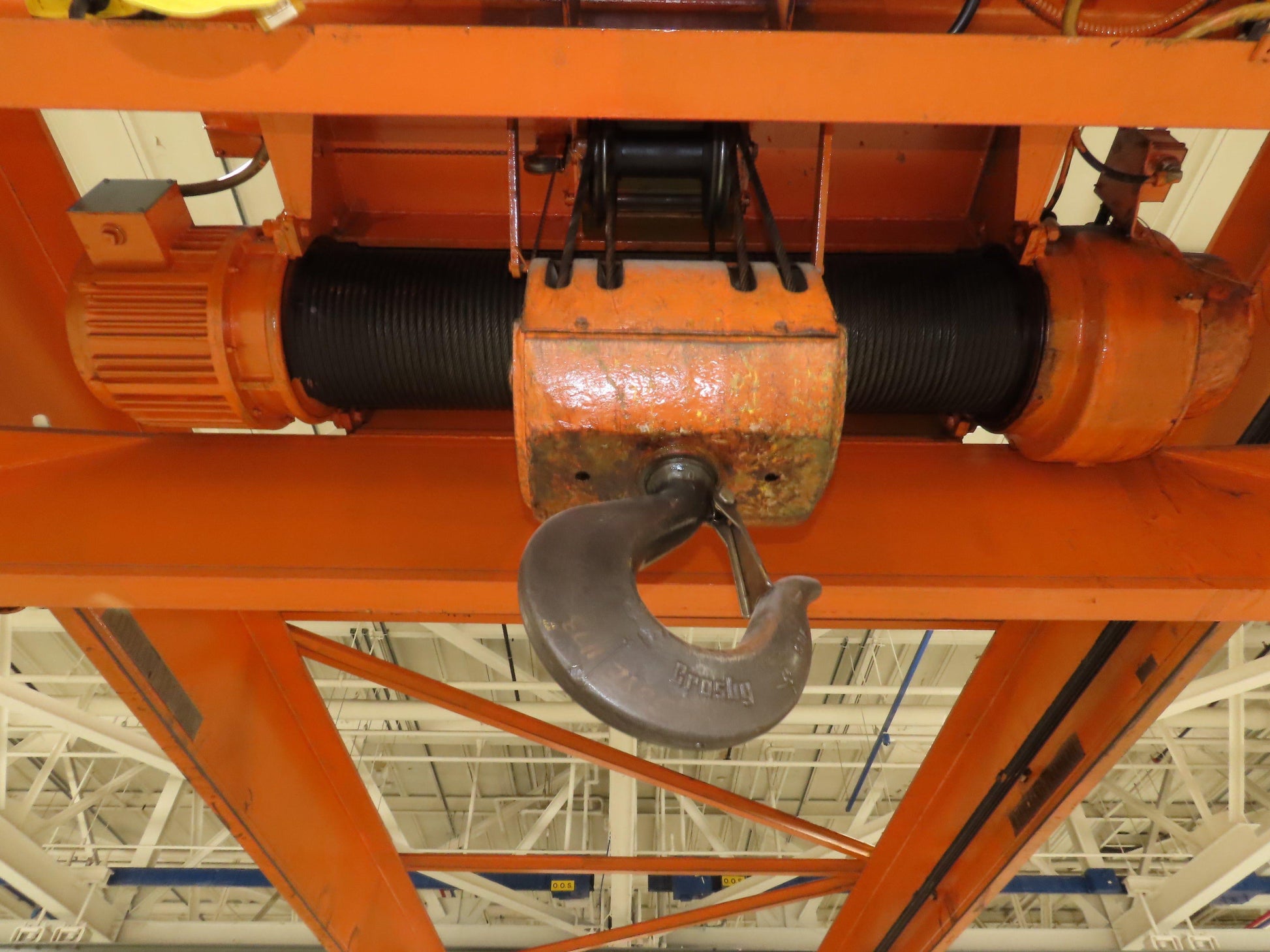

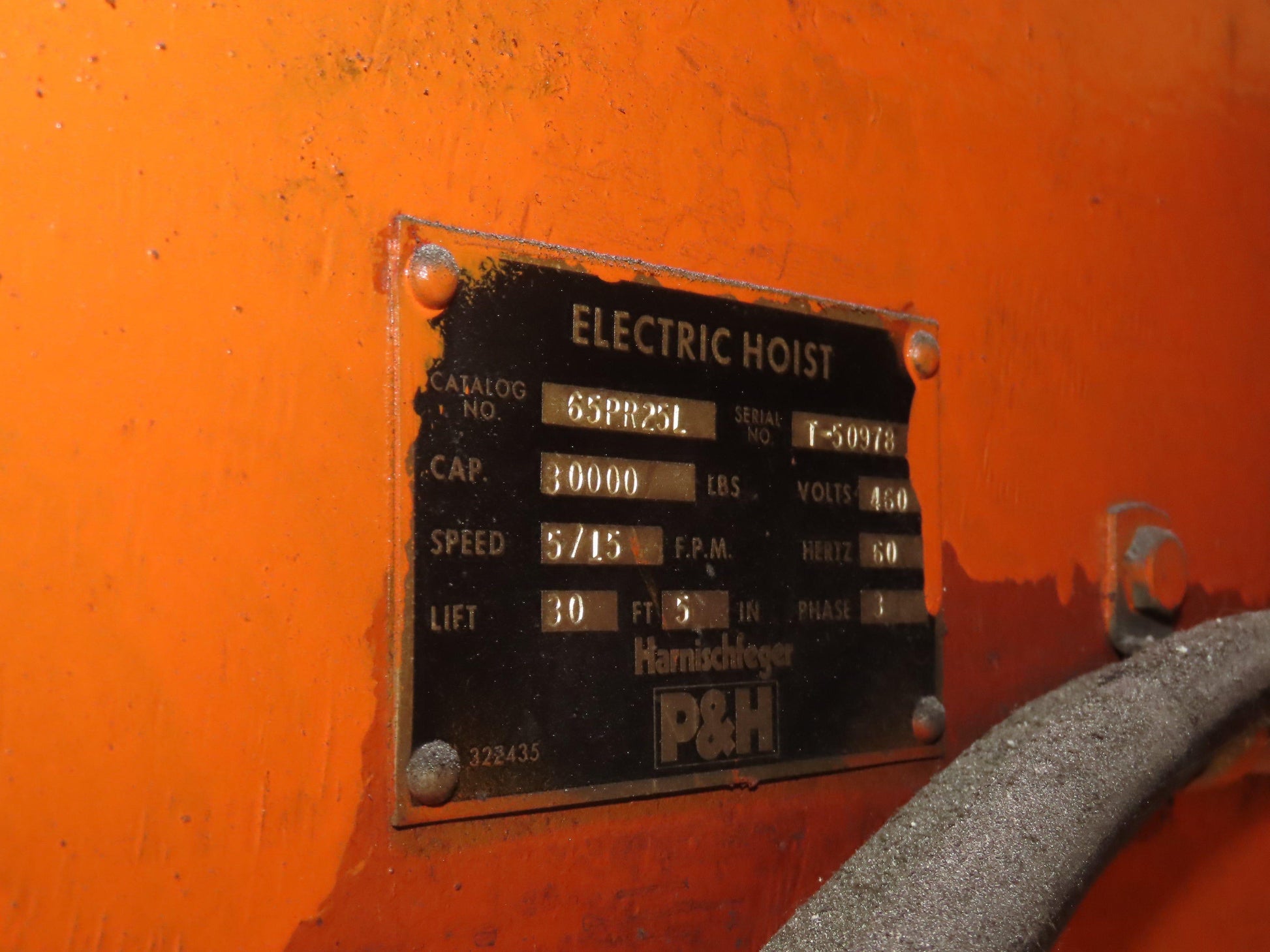

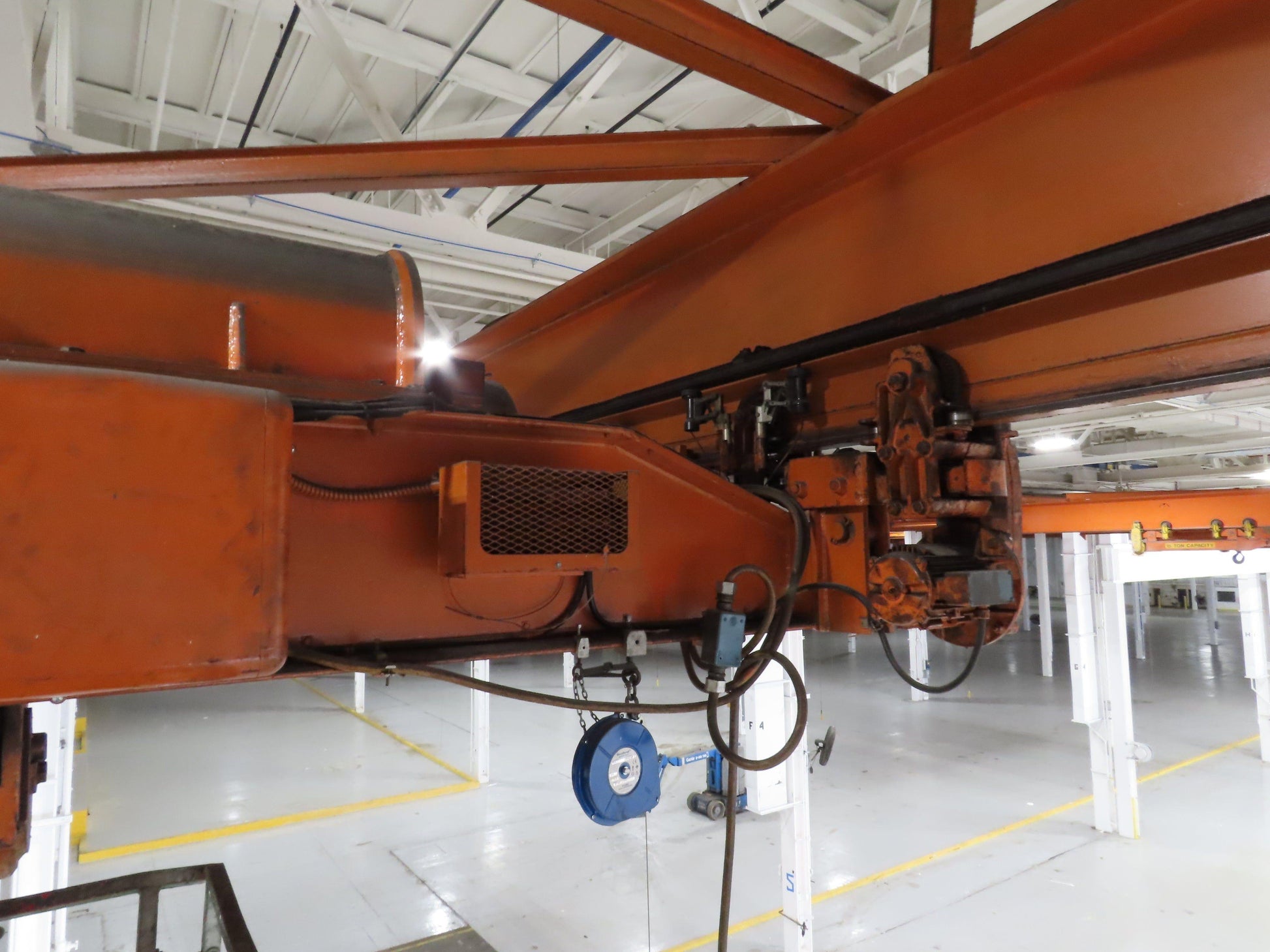

  • Hoist Brand: P&H
  • Hoist Model: 65PR25L
  • Lift Travel (feet): 30' 5"
  • Lift Speed (feet per minute): 5/15 2-Speed

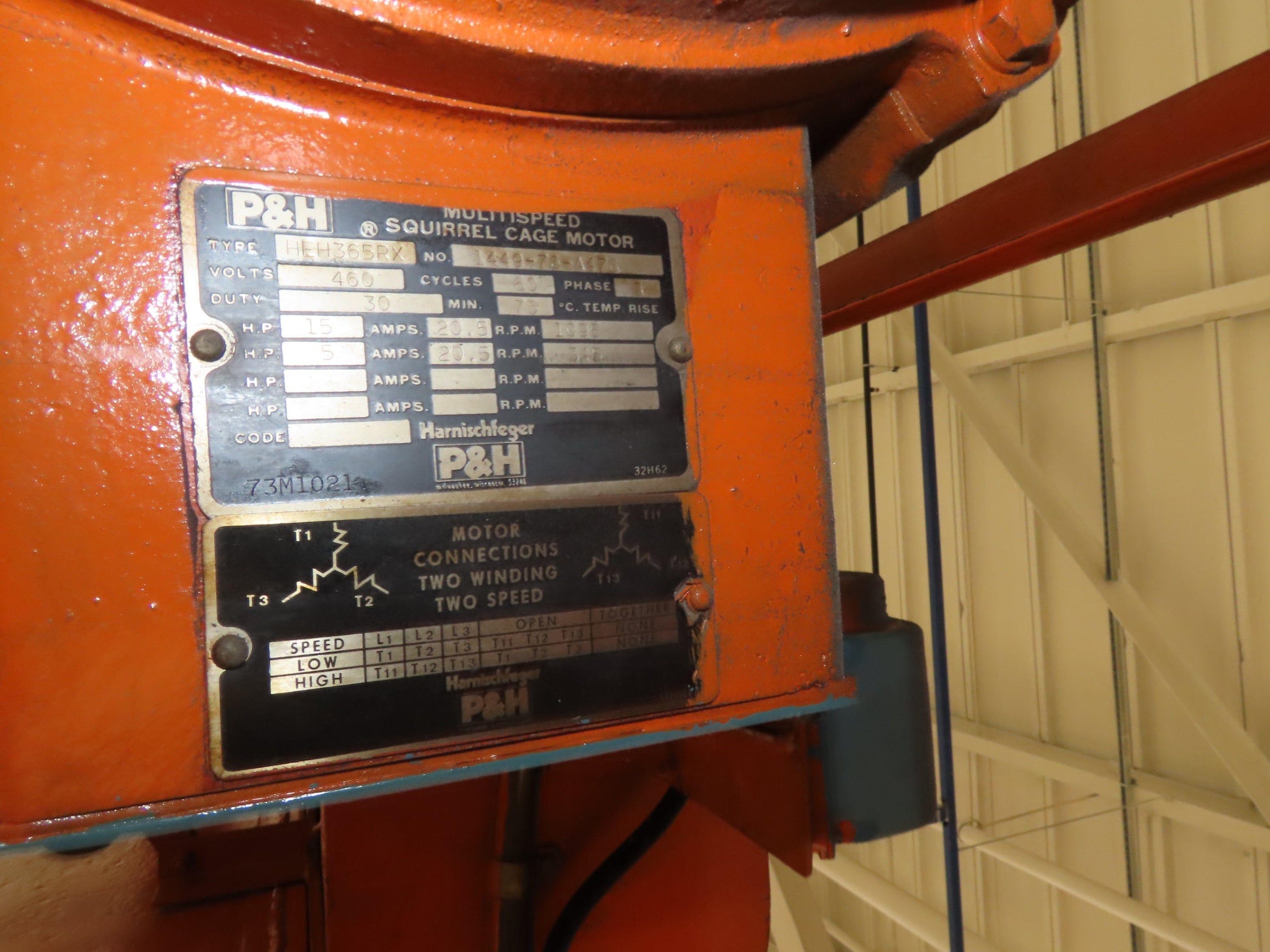

  • Motor Horse Power: 15

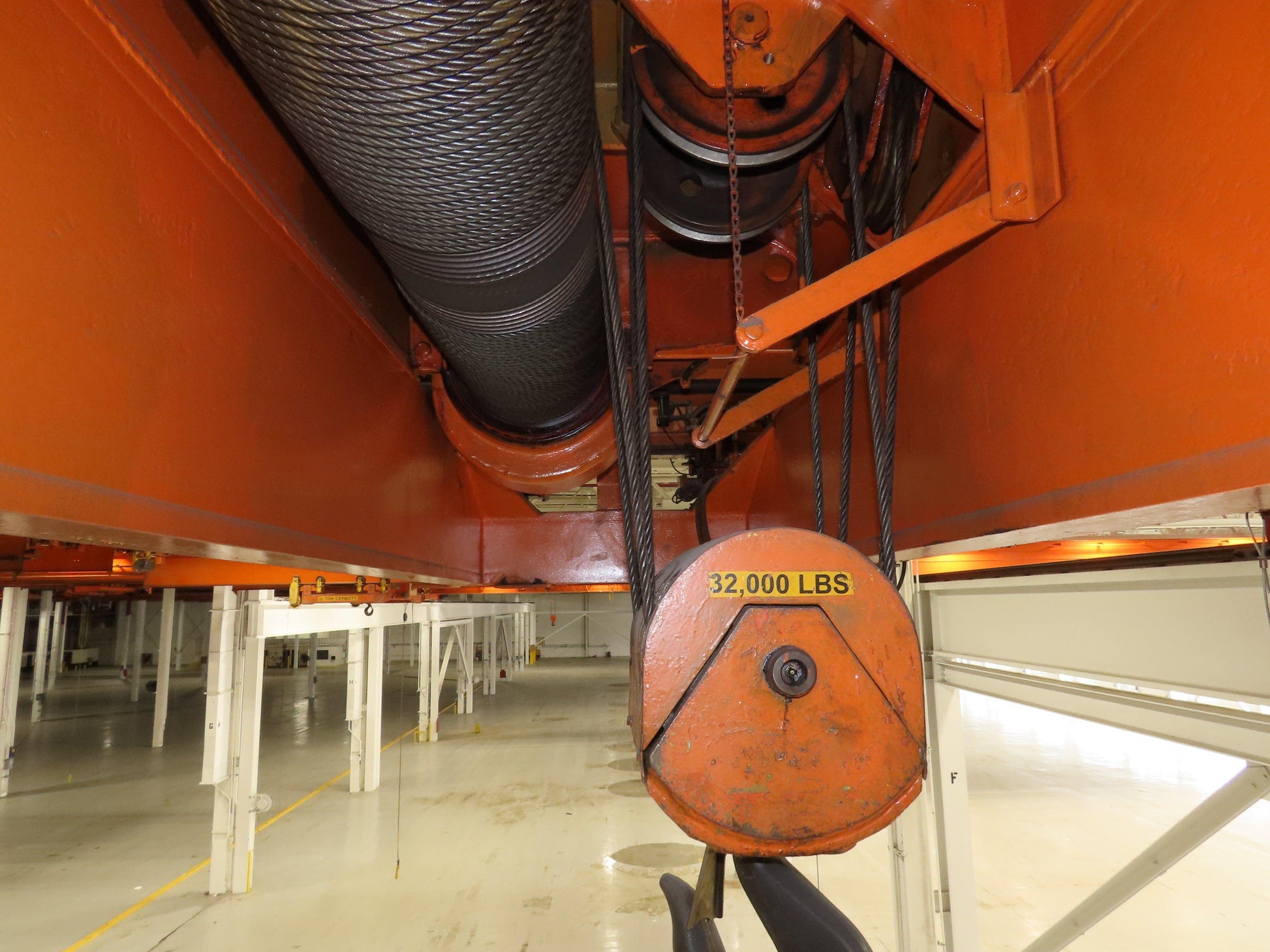

  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 26'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 44"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 74"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 82"
  • Bridge Crane is in working condition.  Tested on site before removal.

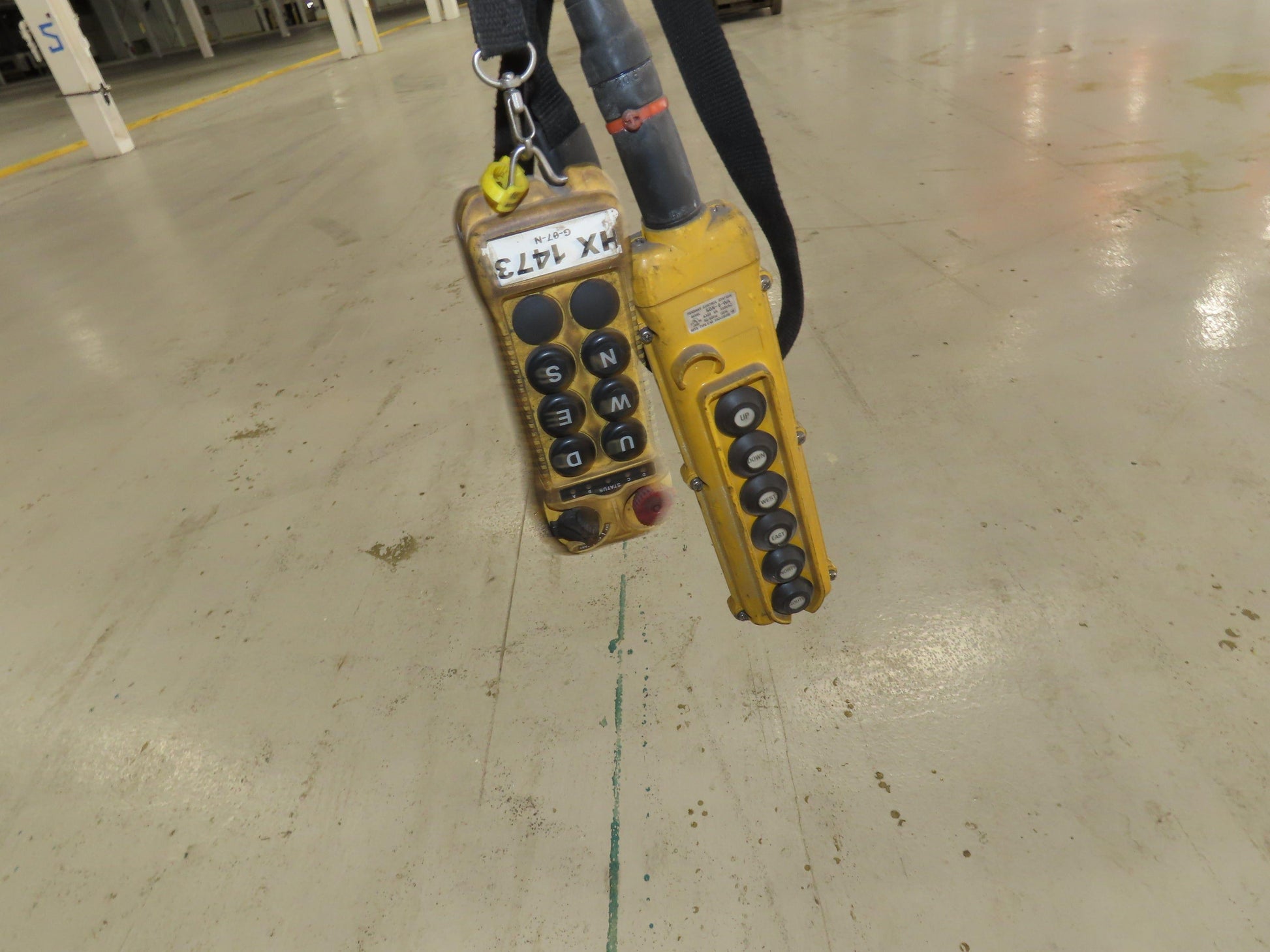

  • Includes corded and wireless pendants.
  • Single speed bridge and trolley, 2-speed hoist.
  • Trolley carriage length: 82"

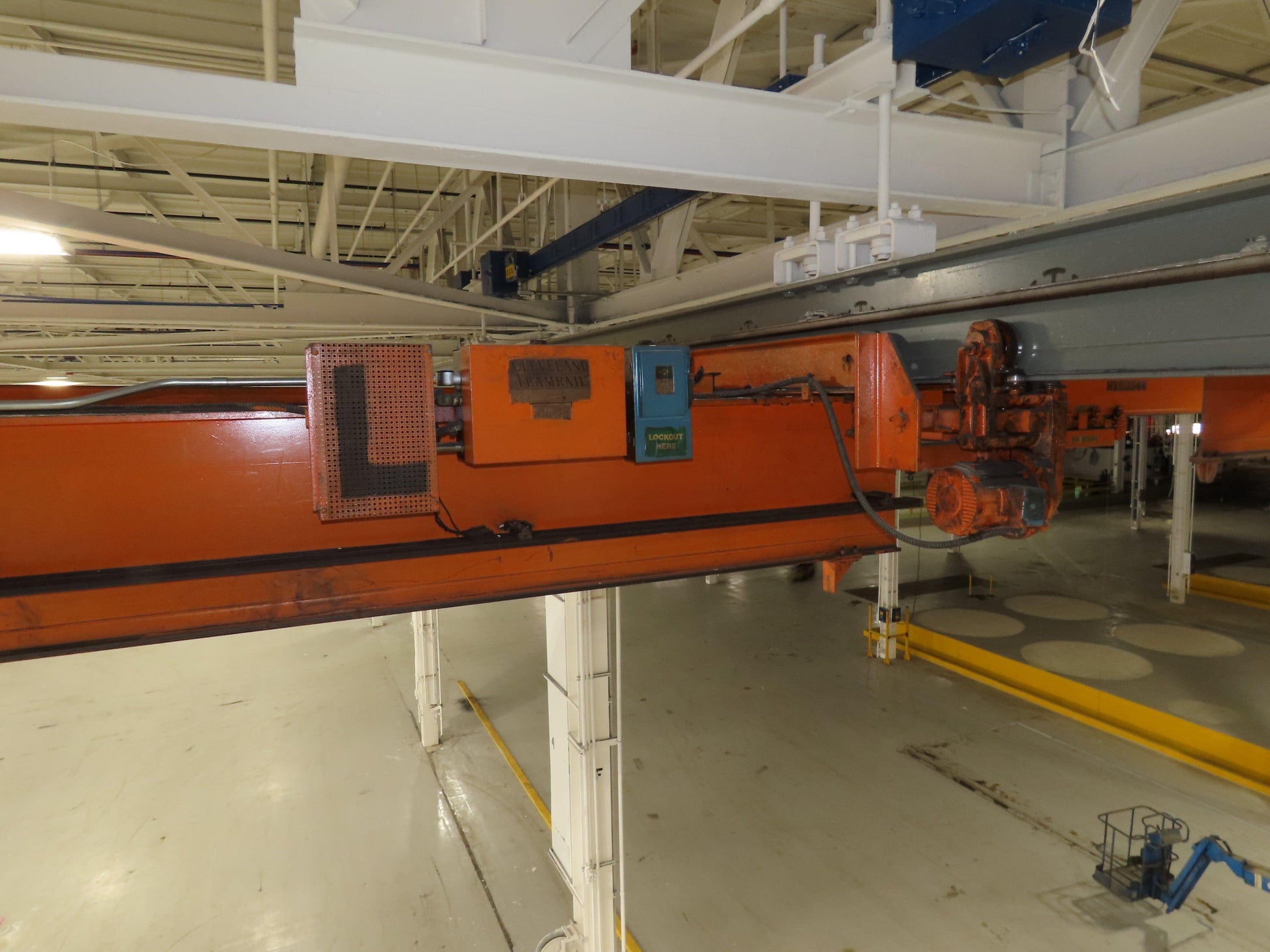

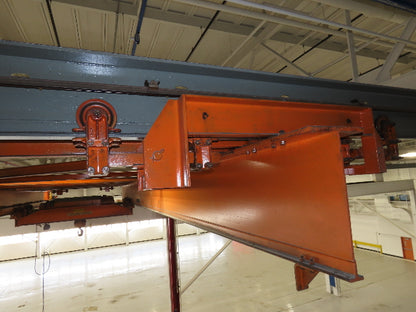

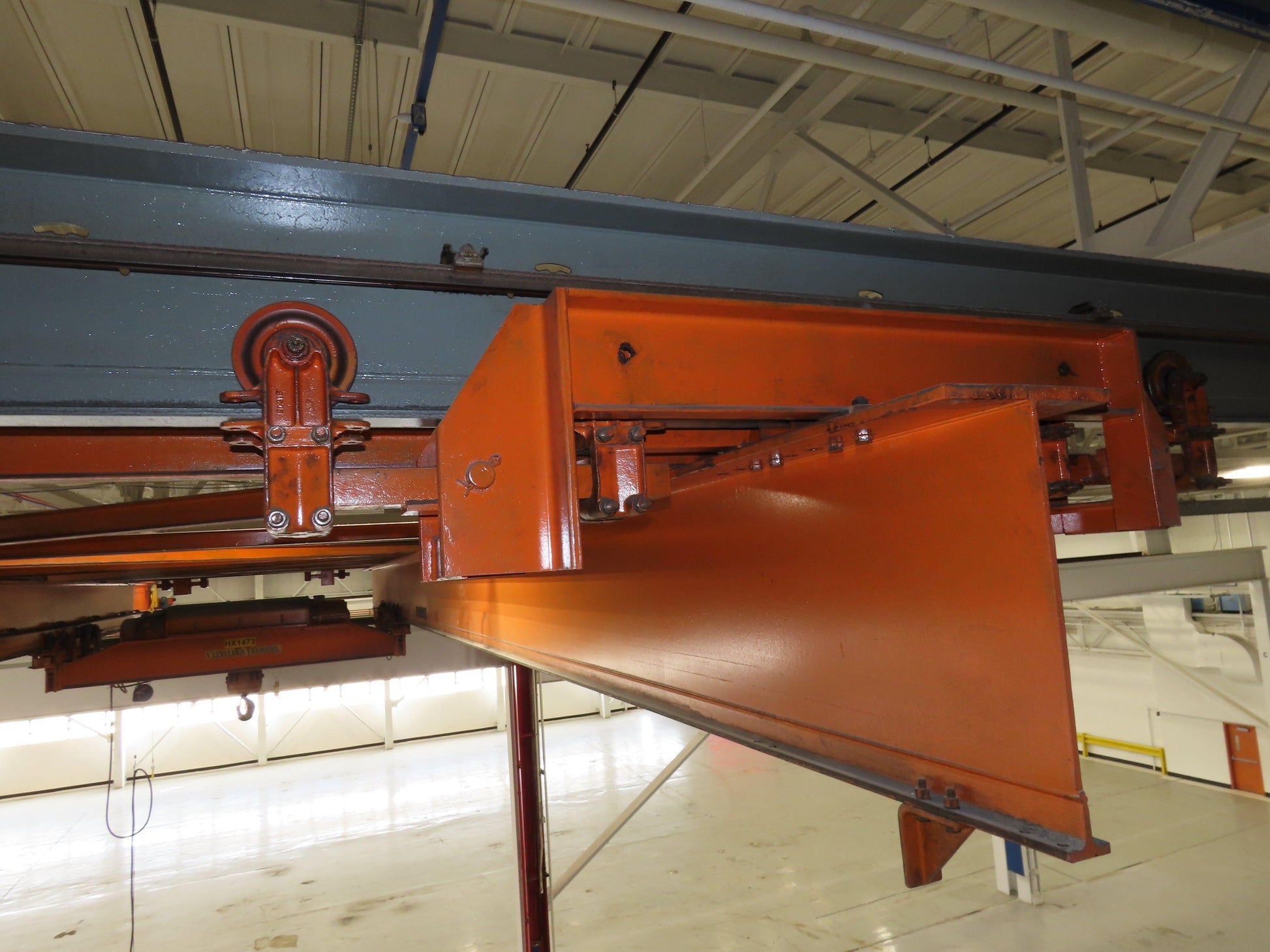

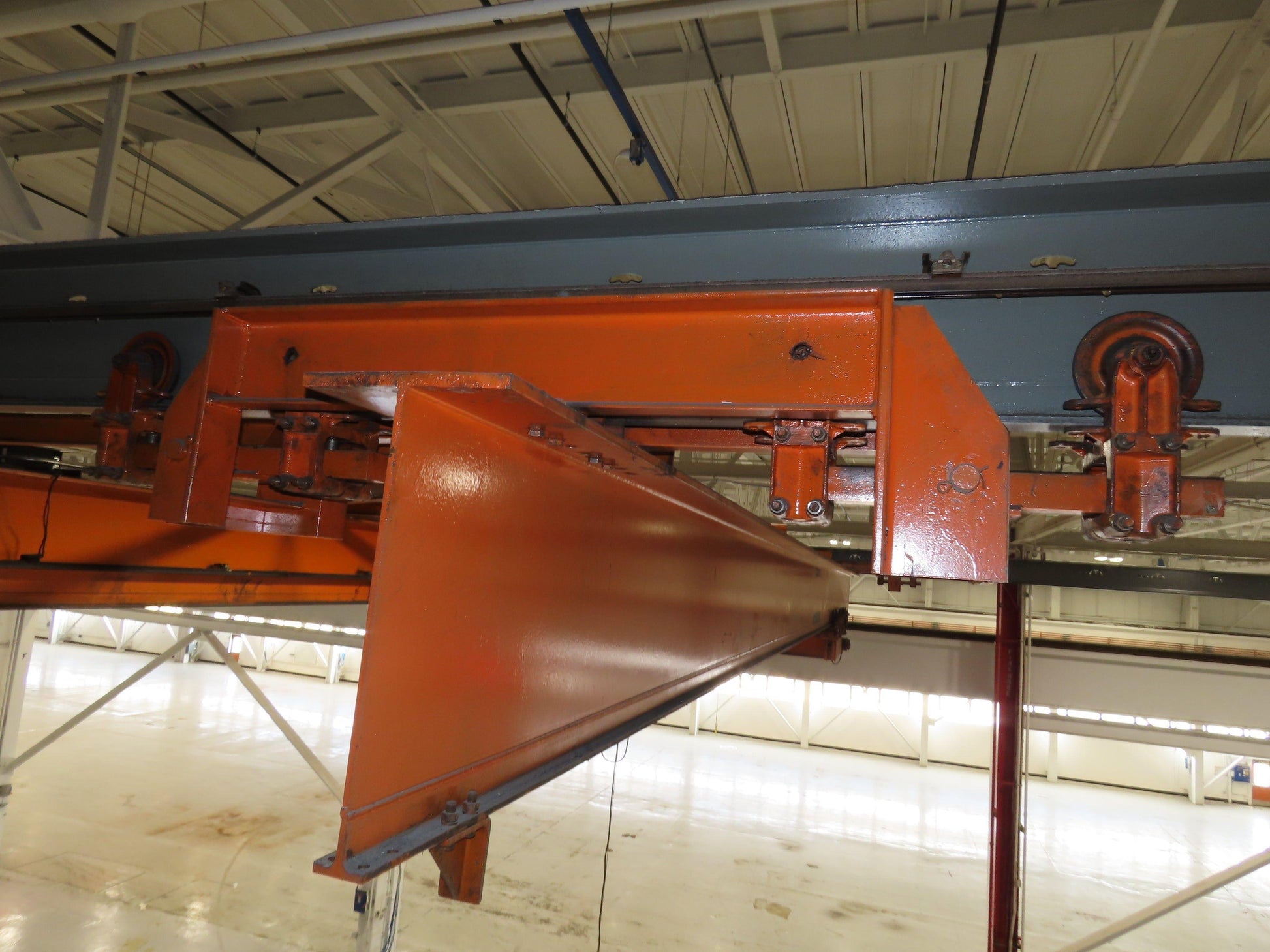

  • End truck length:  94"
  • End truck wheel size:  6"
  • Girder beam span: 12'
  • Top braces are welded on.
