Cleveland Tramrail

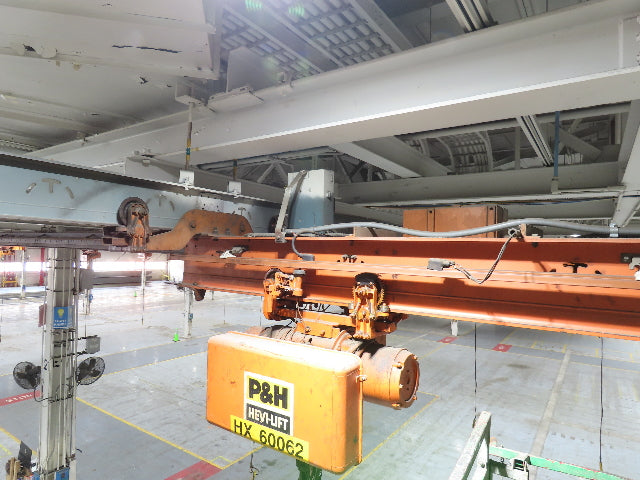

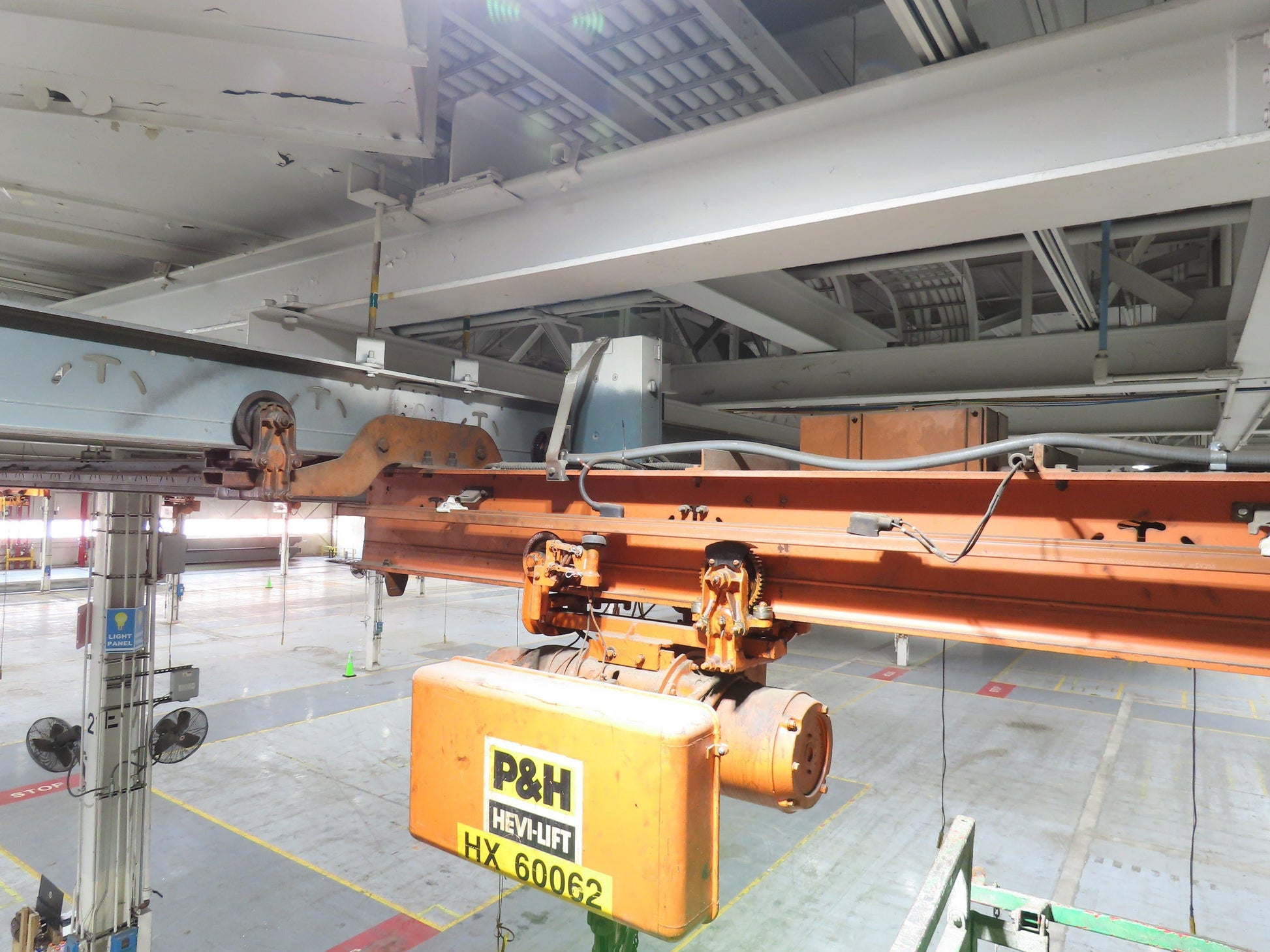

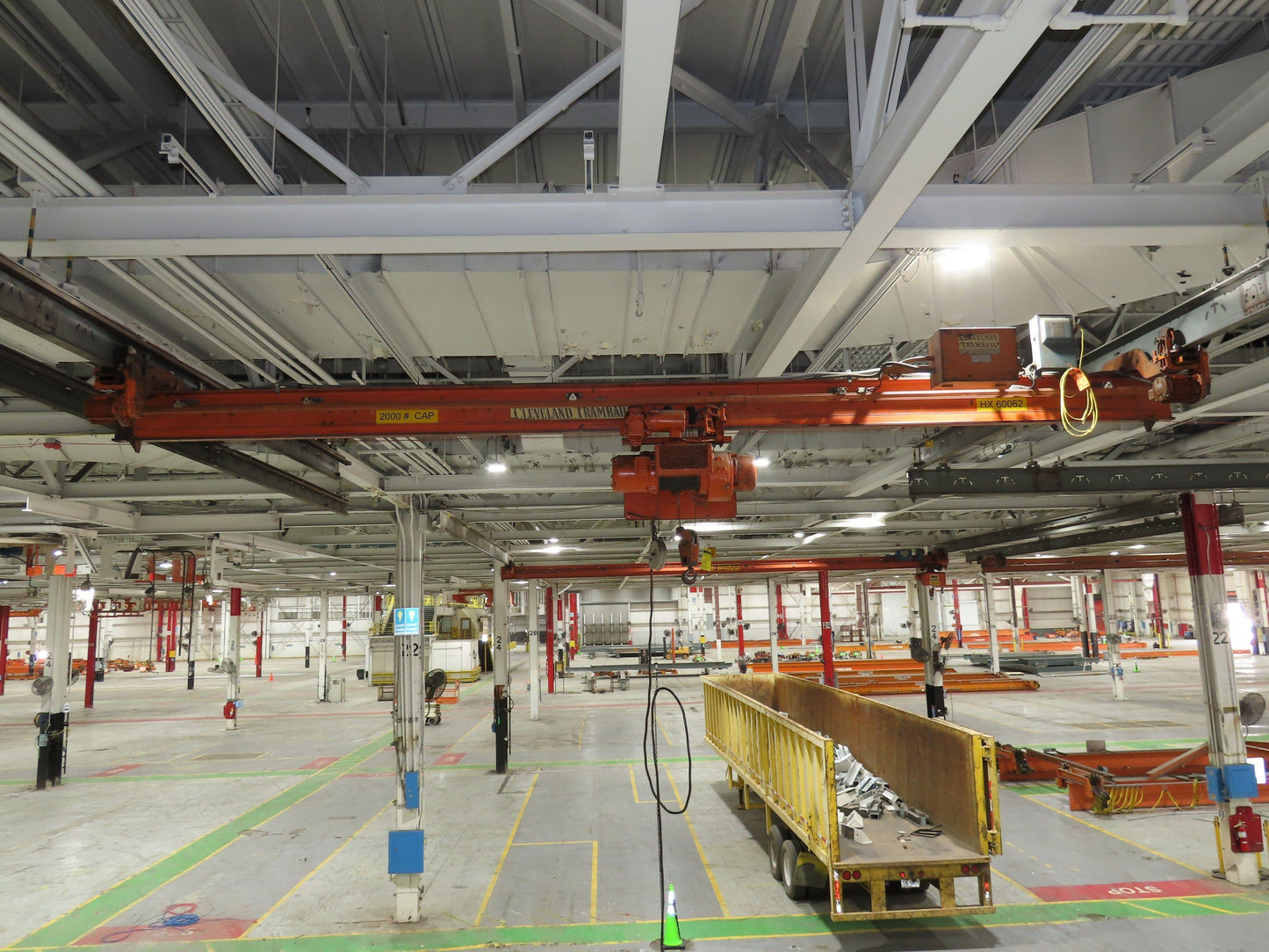

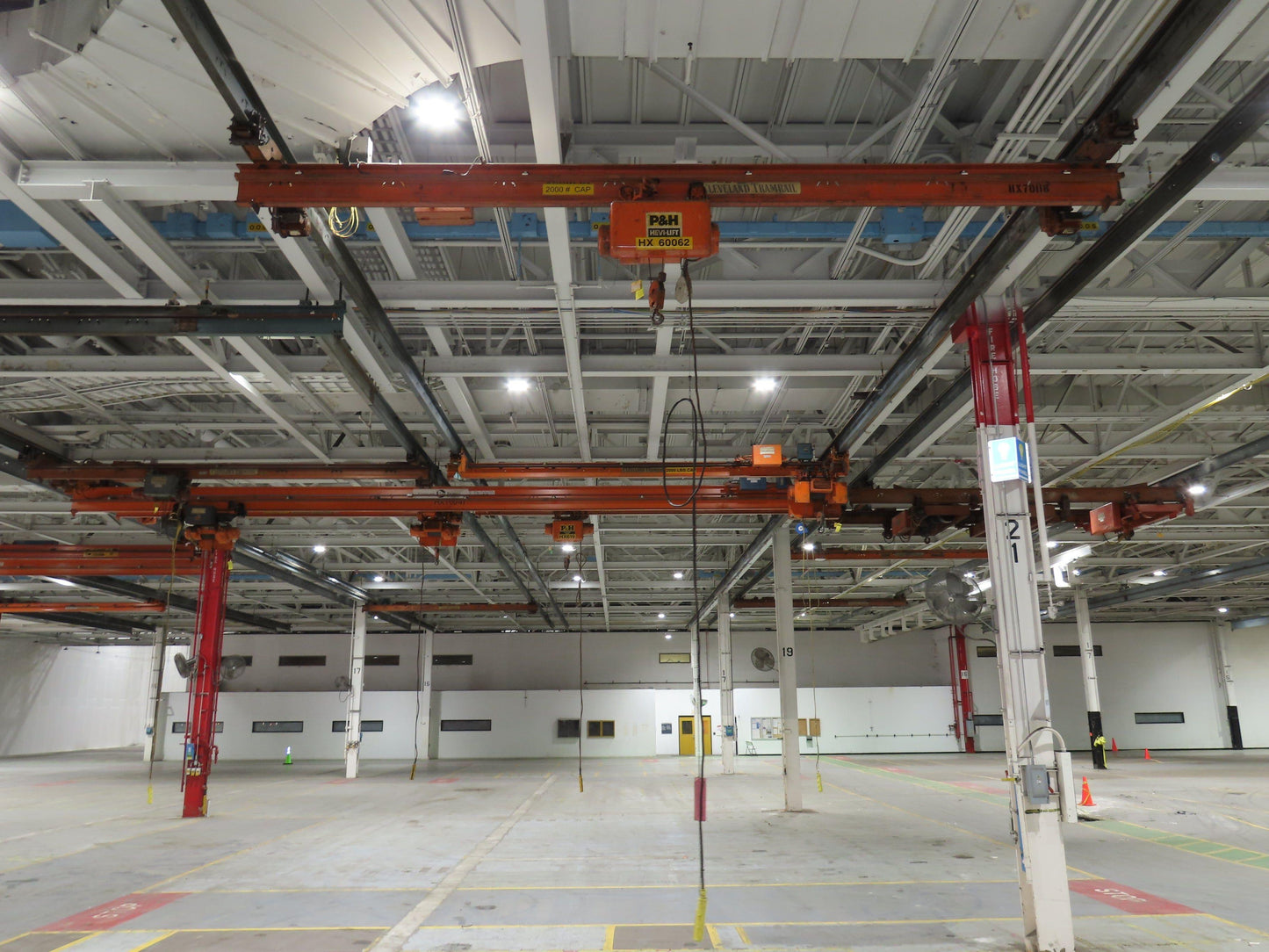

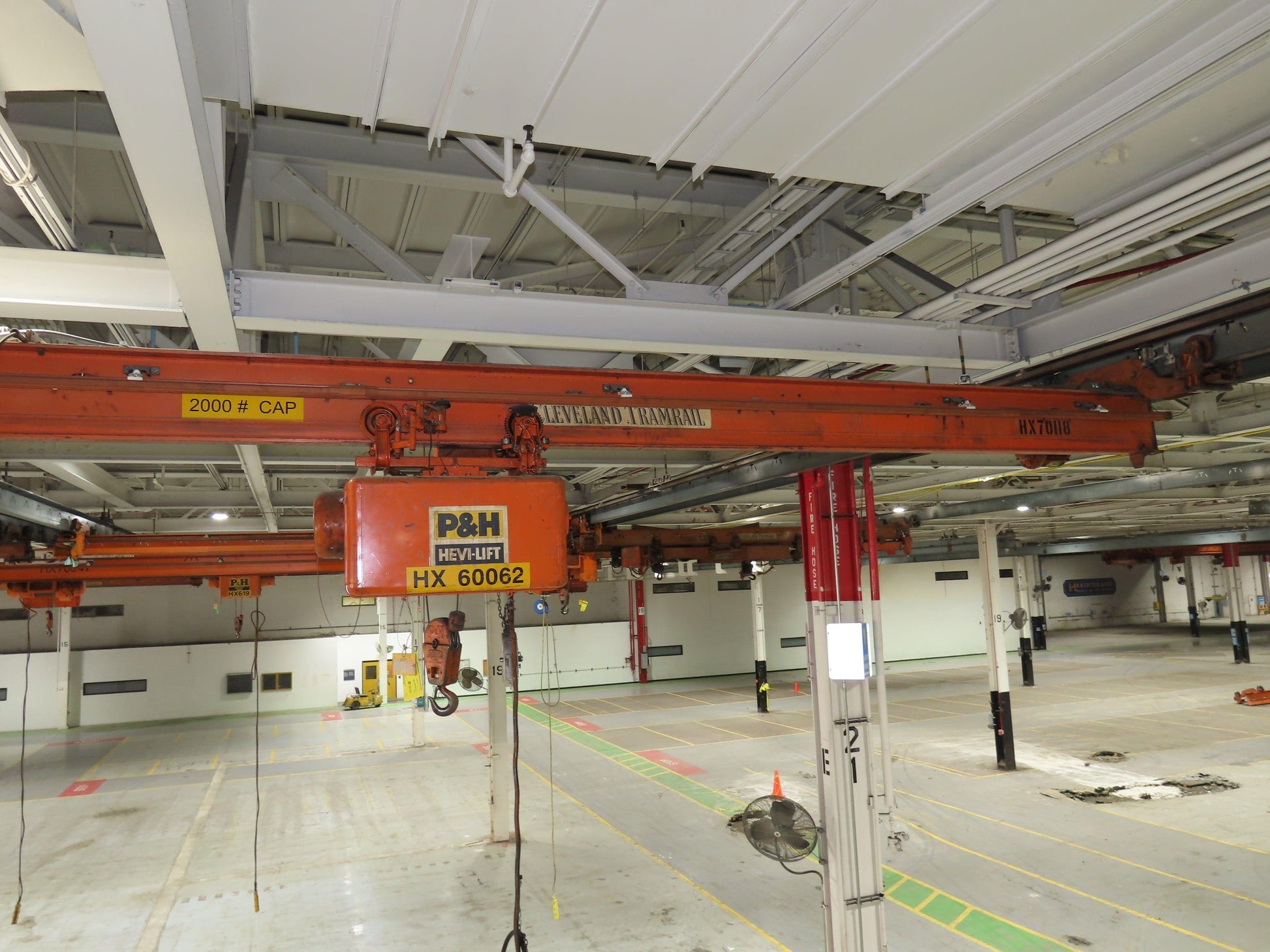

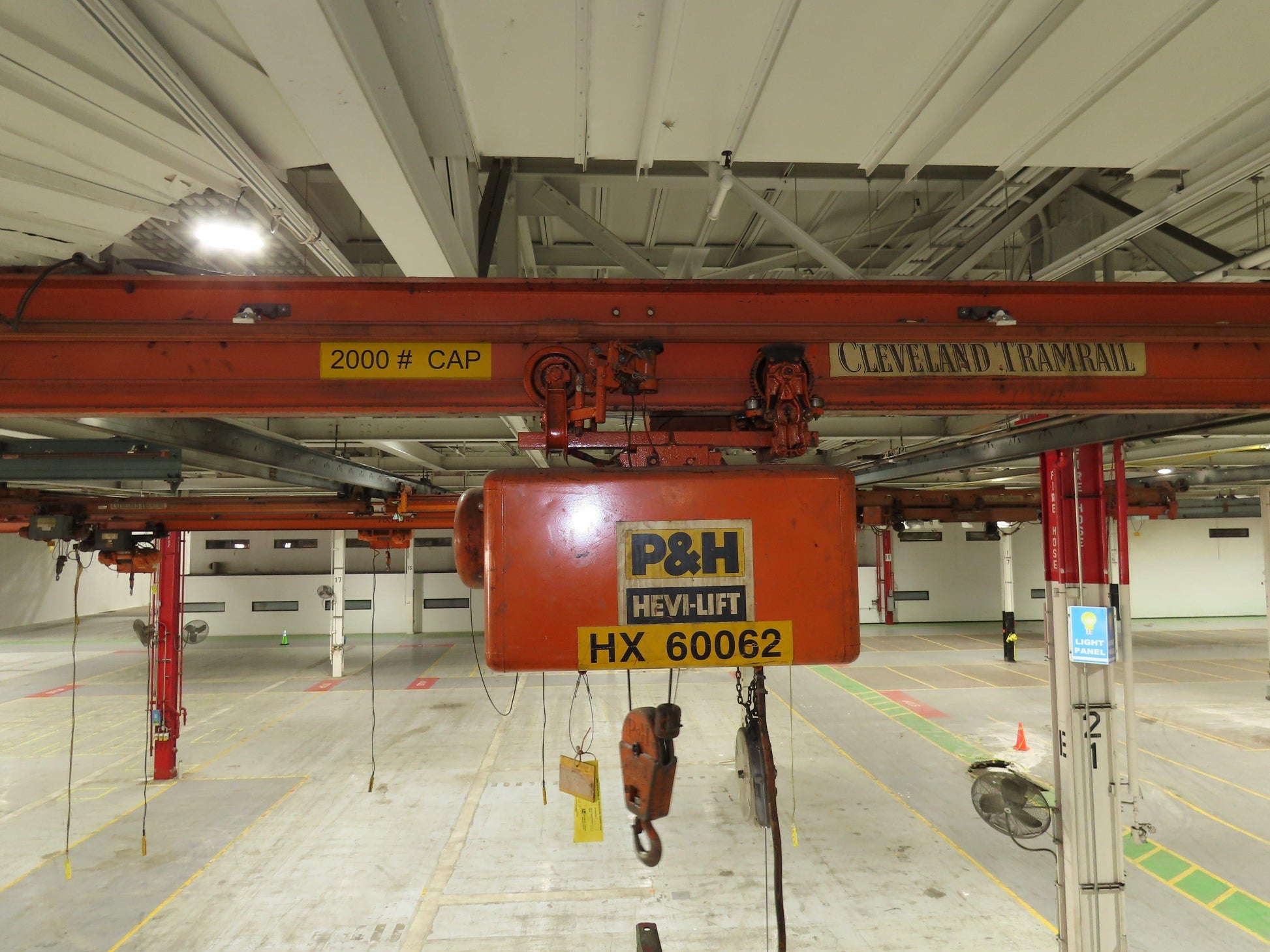

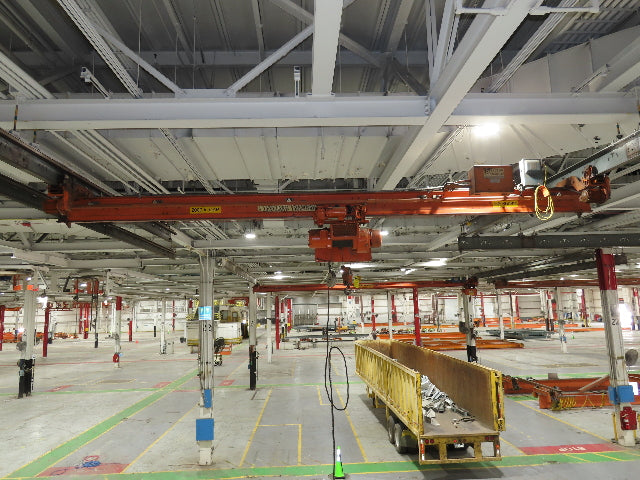

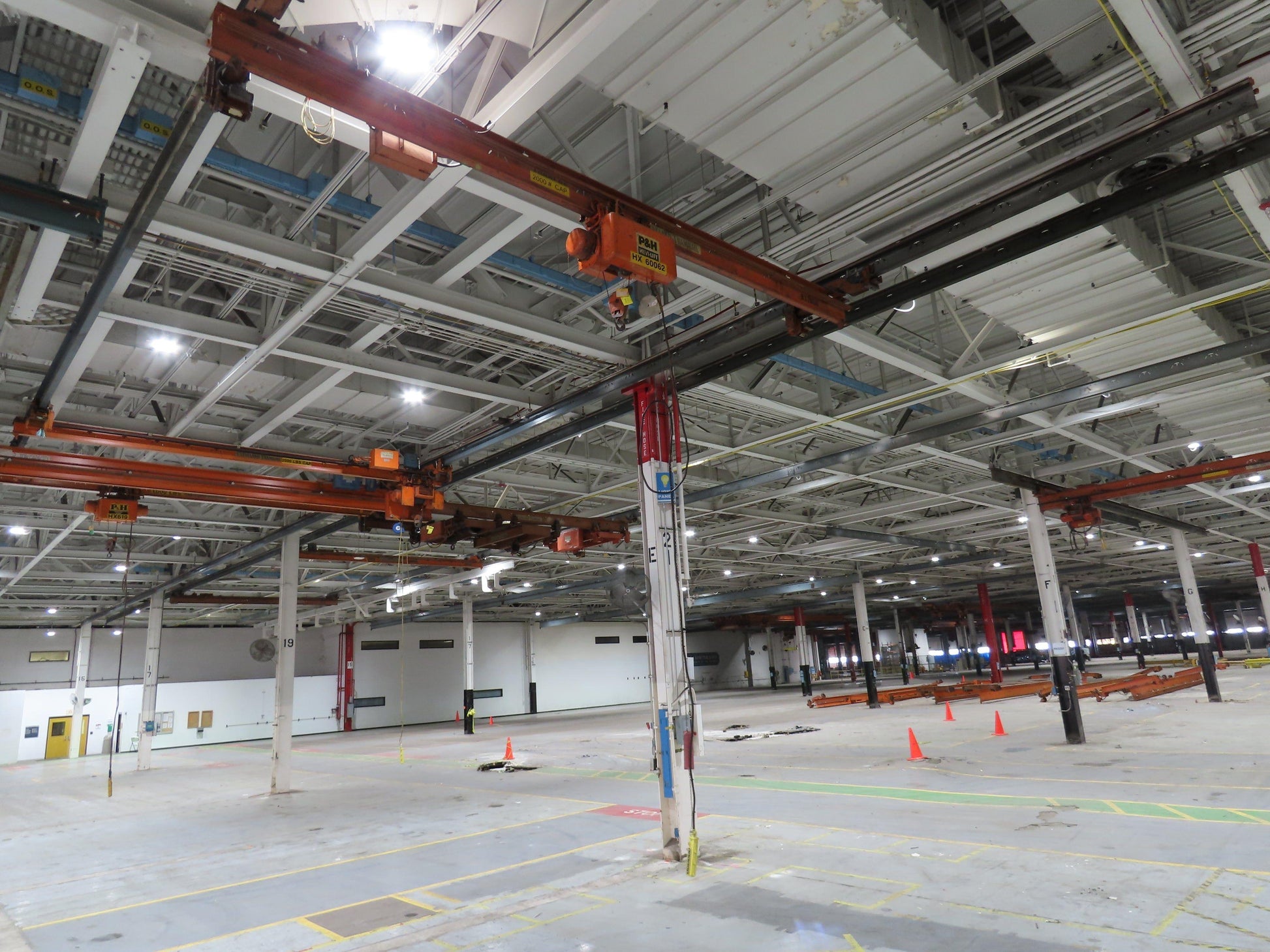

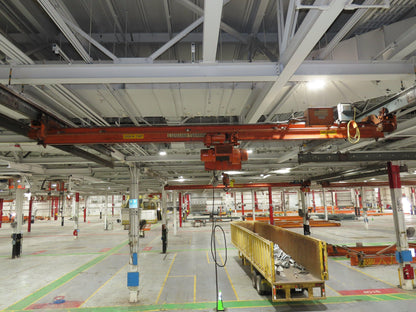

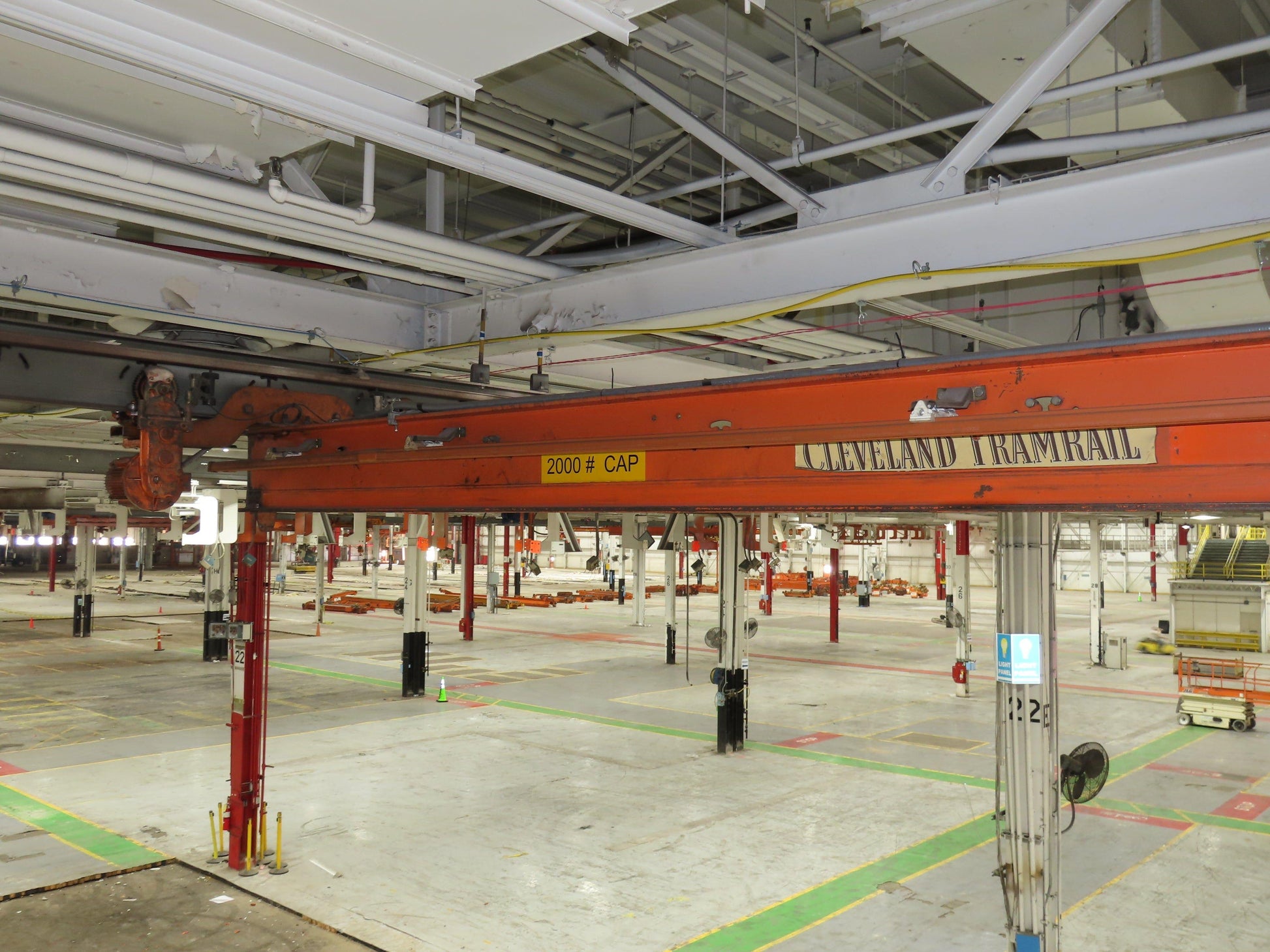

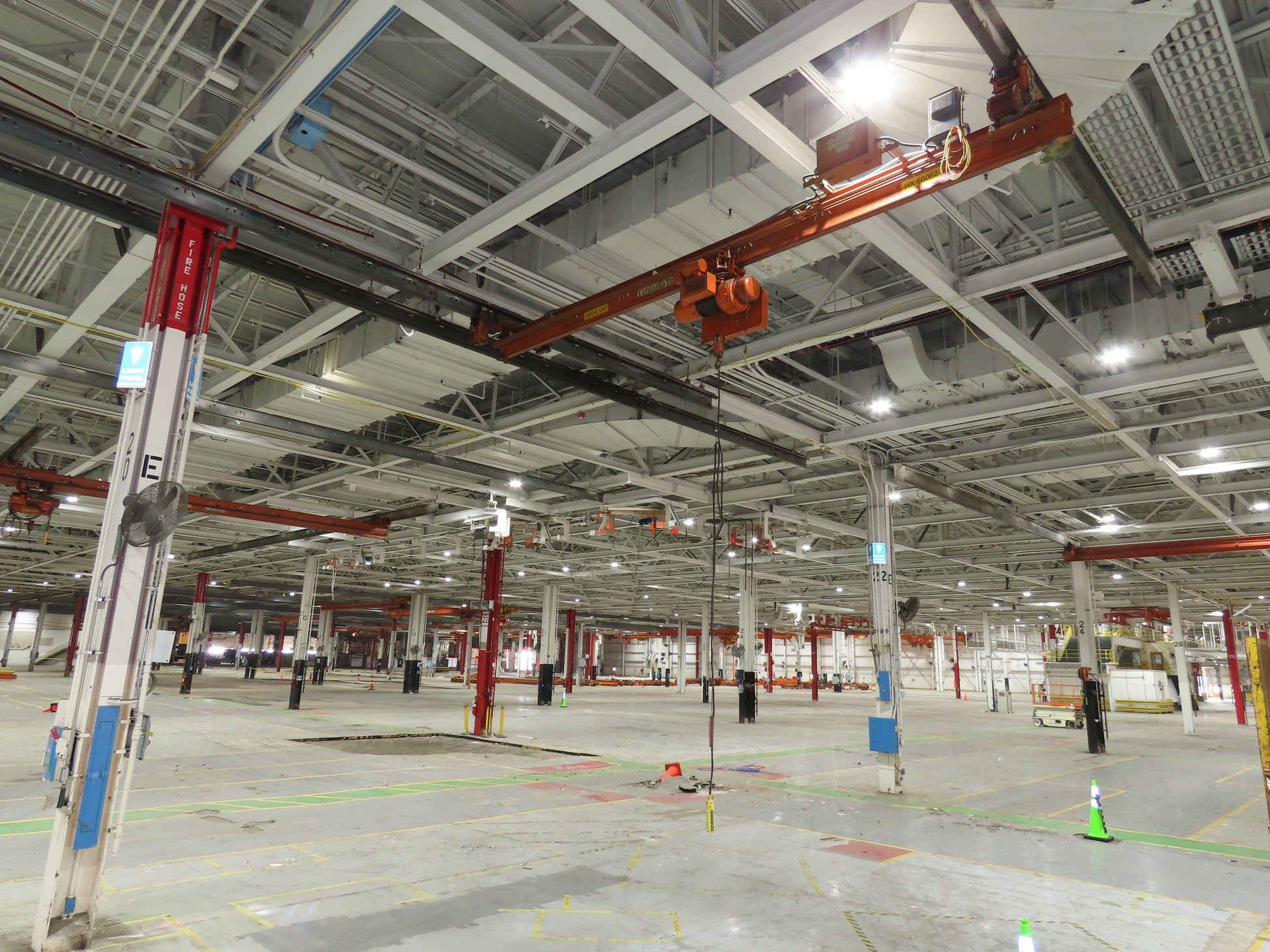

Cleveland Tramrail P&H 1 Ton Single Girder Underhung Bridge Crane 21' 8" Span

Cleveland Tramrail P&H 1 Ton Single Girder Underhung Bridge Crane 21' 8" Span

SKU #262257

Product Condition: Used

Your Price
$3,419.99
$3,999.99 $3,419.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail
Model

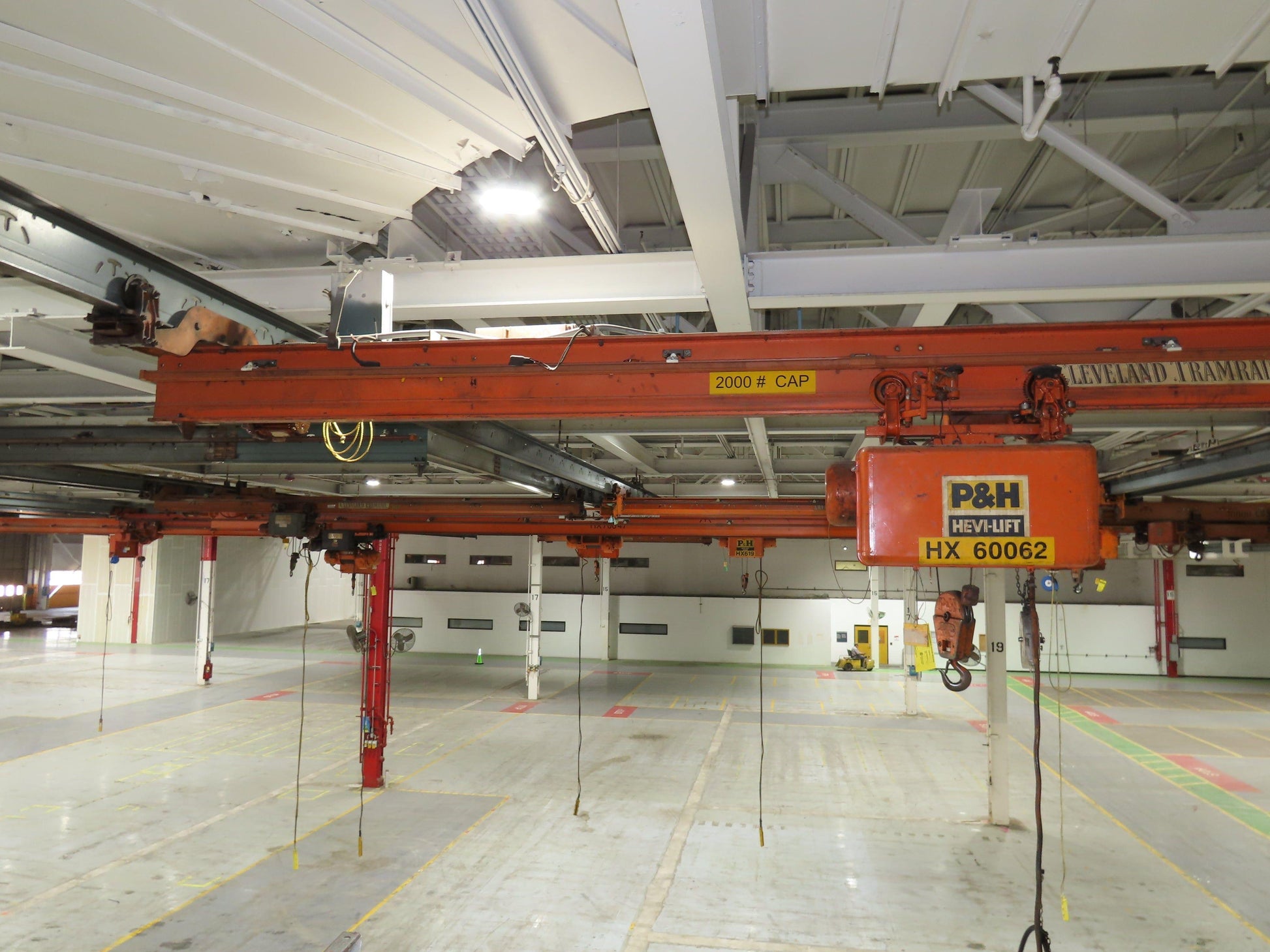

P&H Hevi-Lift
MPN

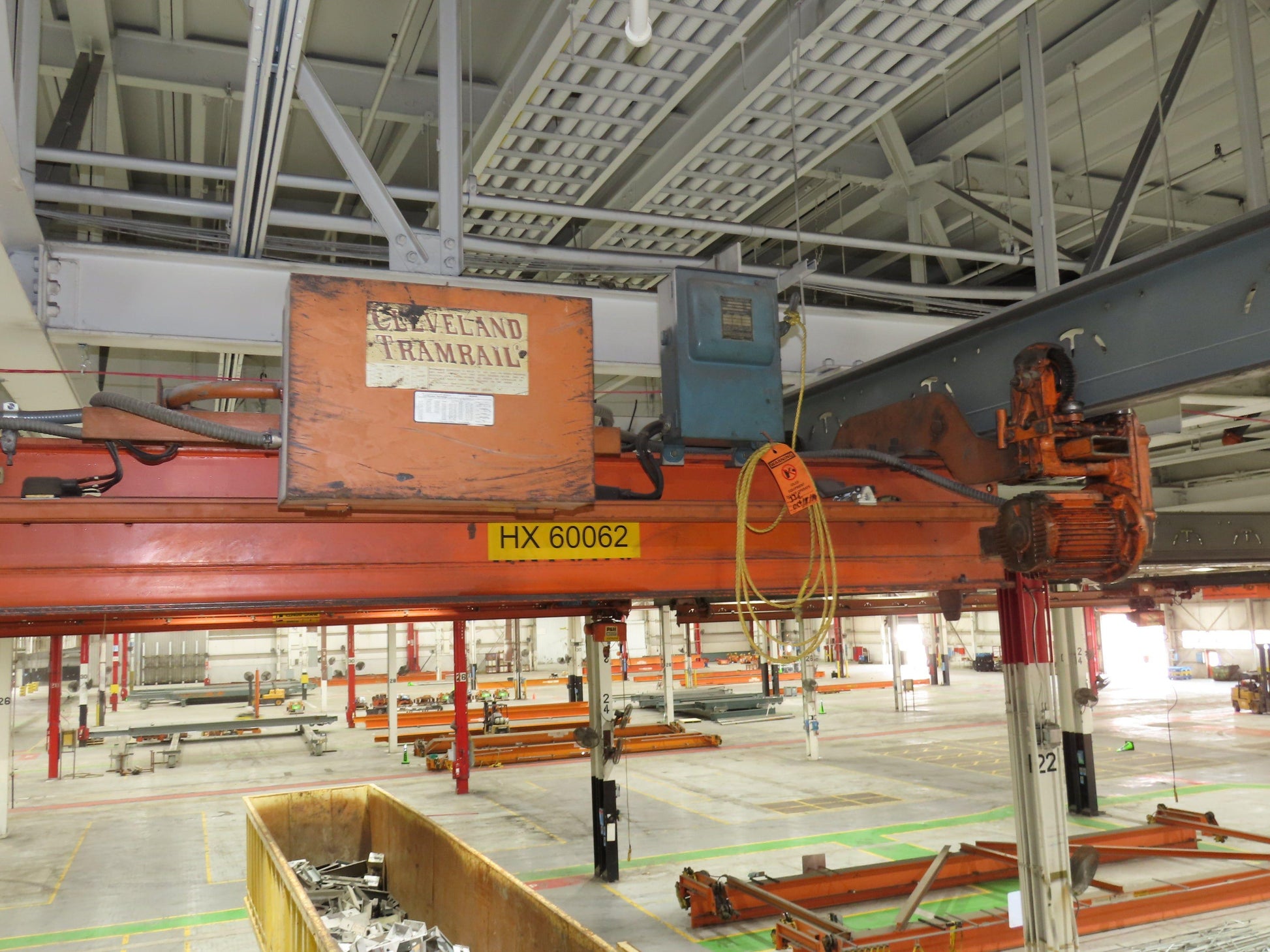

HX60062
Condition
Used
  • Capacity (tons): 1
  • Capacity (lb): 2000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 21' 8"
  • Main Girder Beam Size (Height x Width x Length): 12.5"H x 6-5/8"W x 23' 5" Length (3.25" bottom flange)
  • Bridge Speed (feet per minute): Single

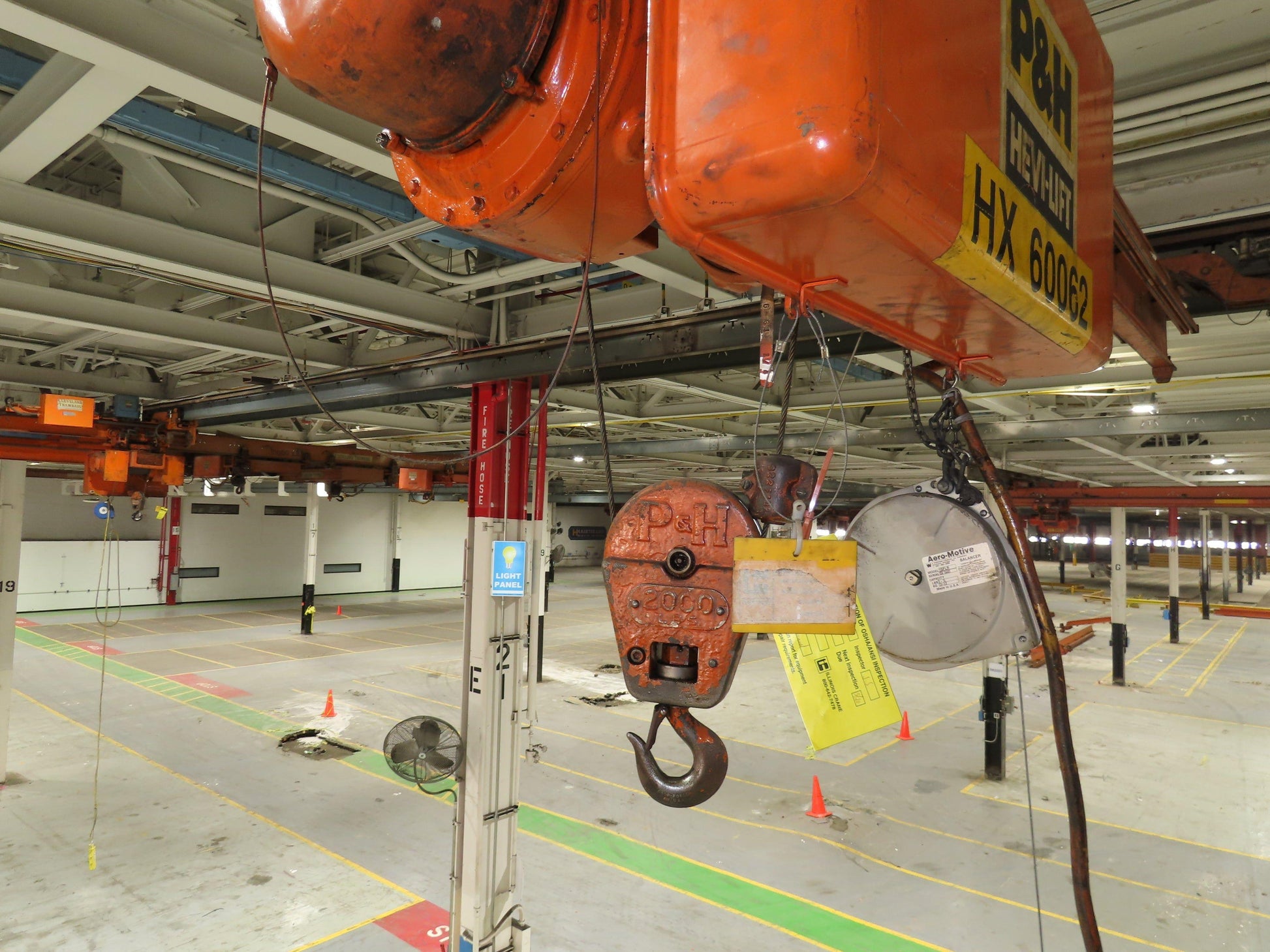

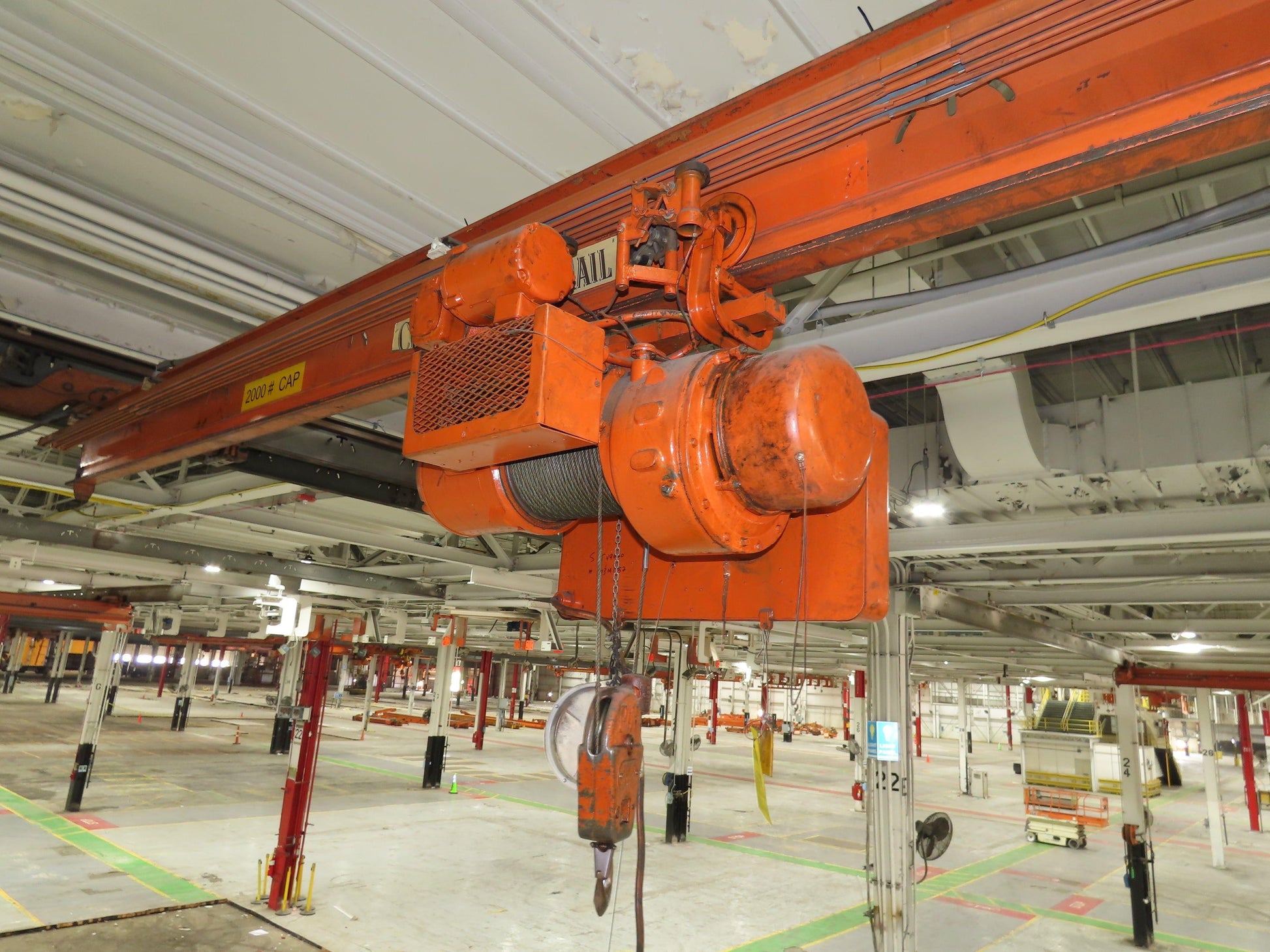

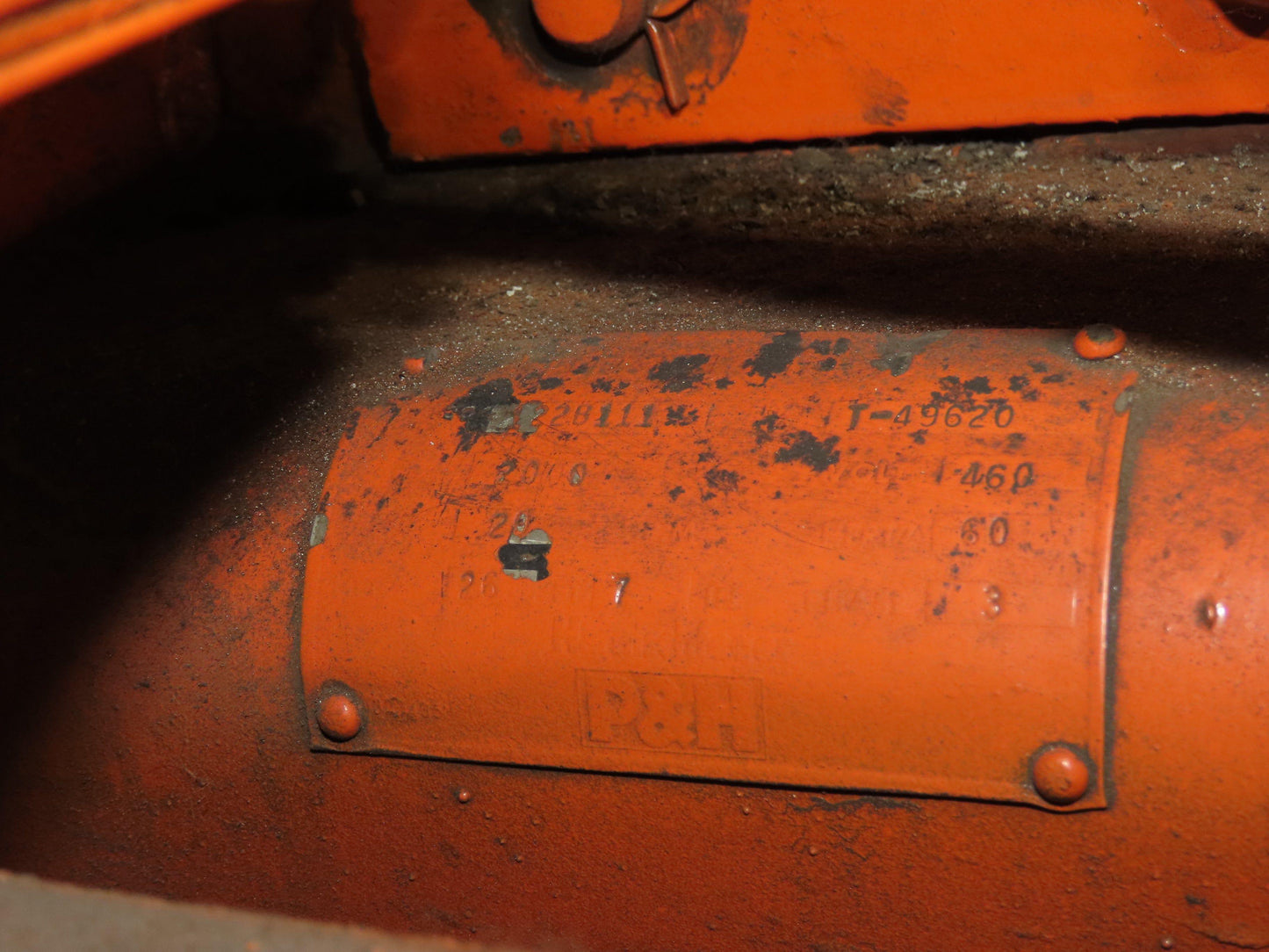

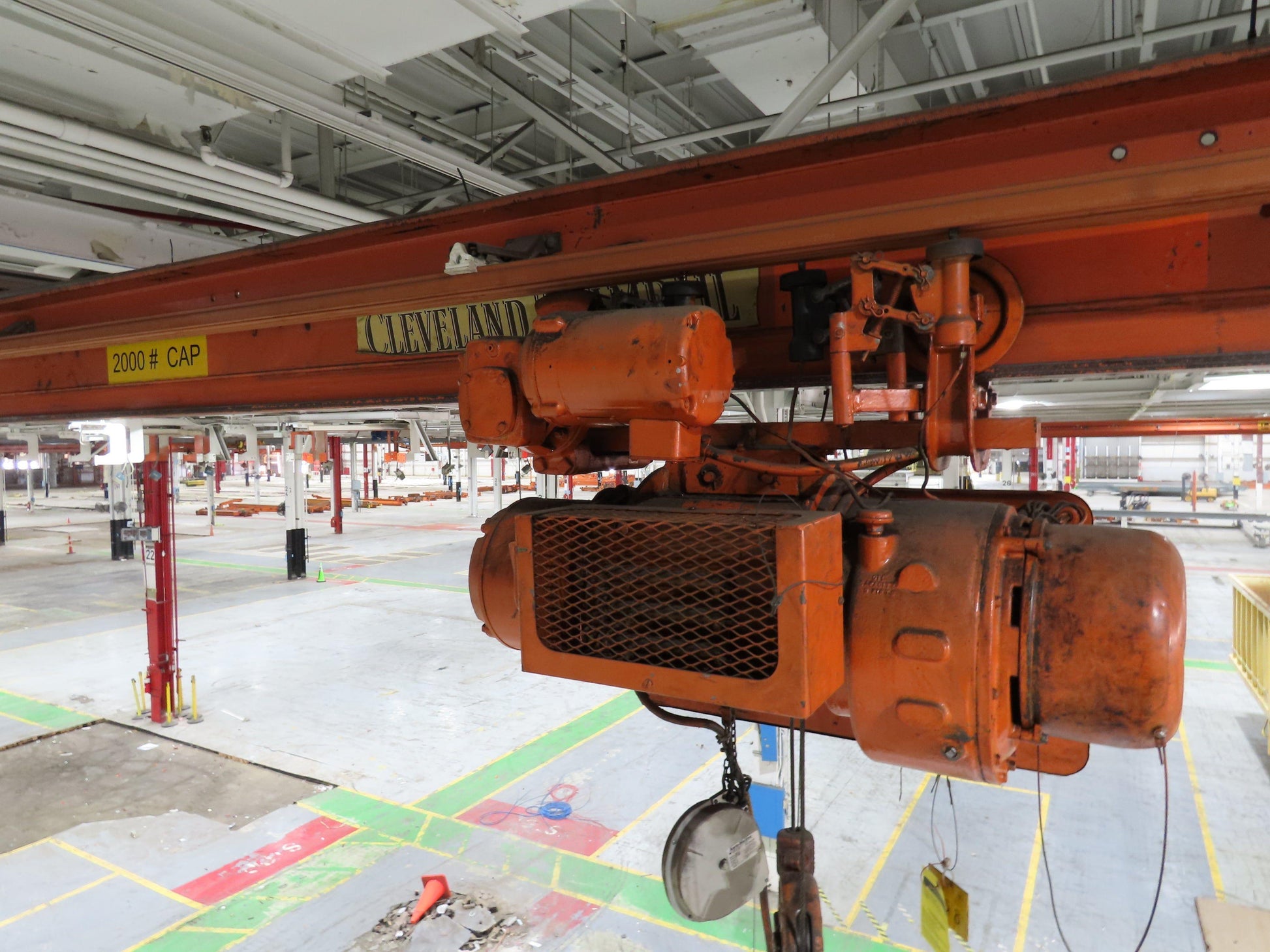

  • Hoist Brand: P&H
  • Lift Travel (feet): 26' 7"
  • Lift Speed (feet per minute): 20

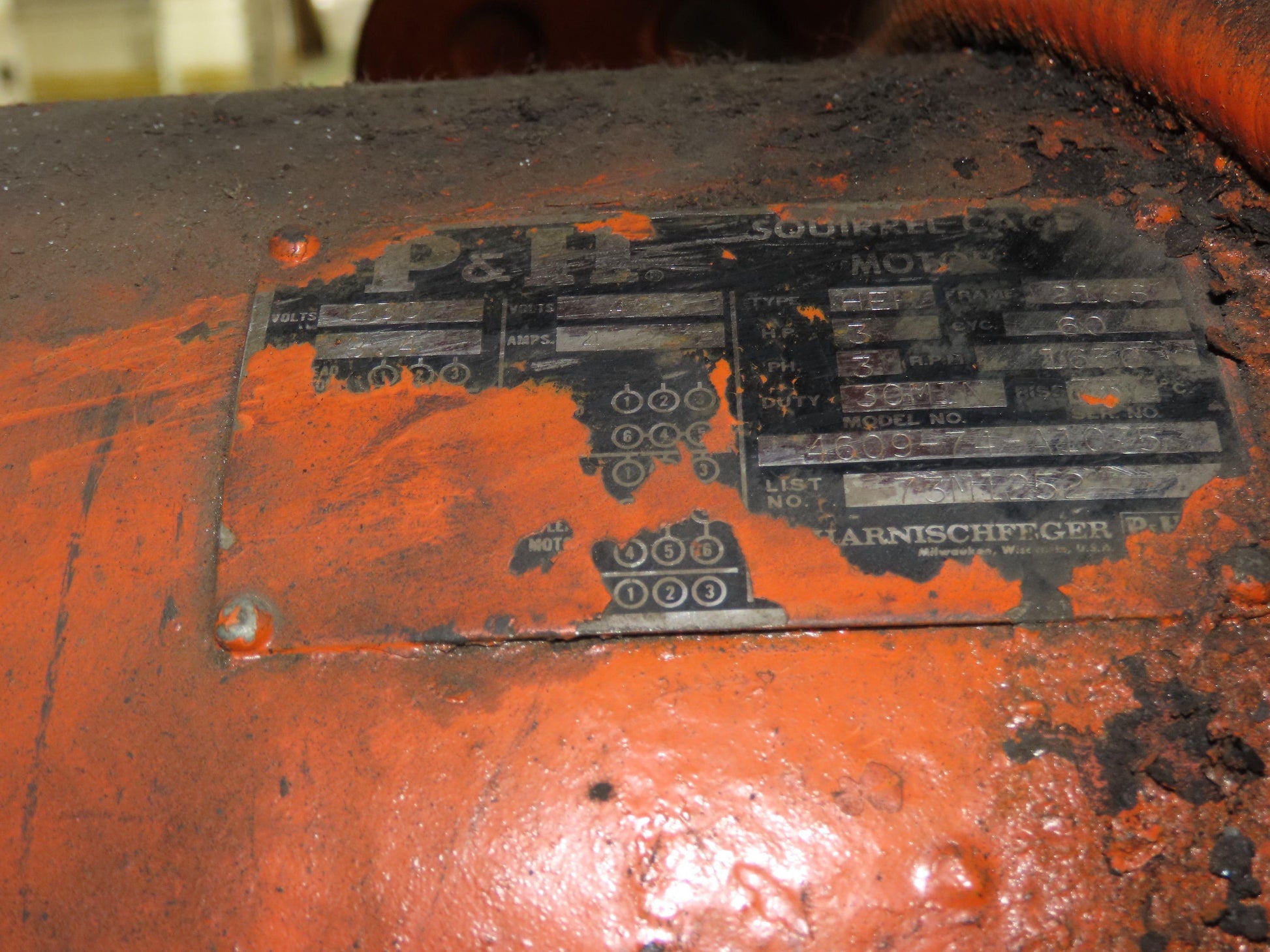

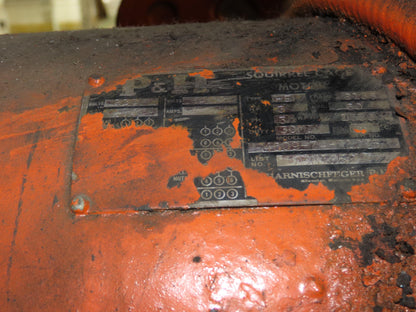

  • Motor Horse Power: 3
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 19'

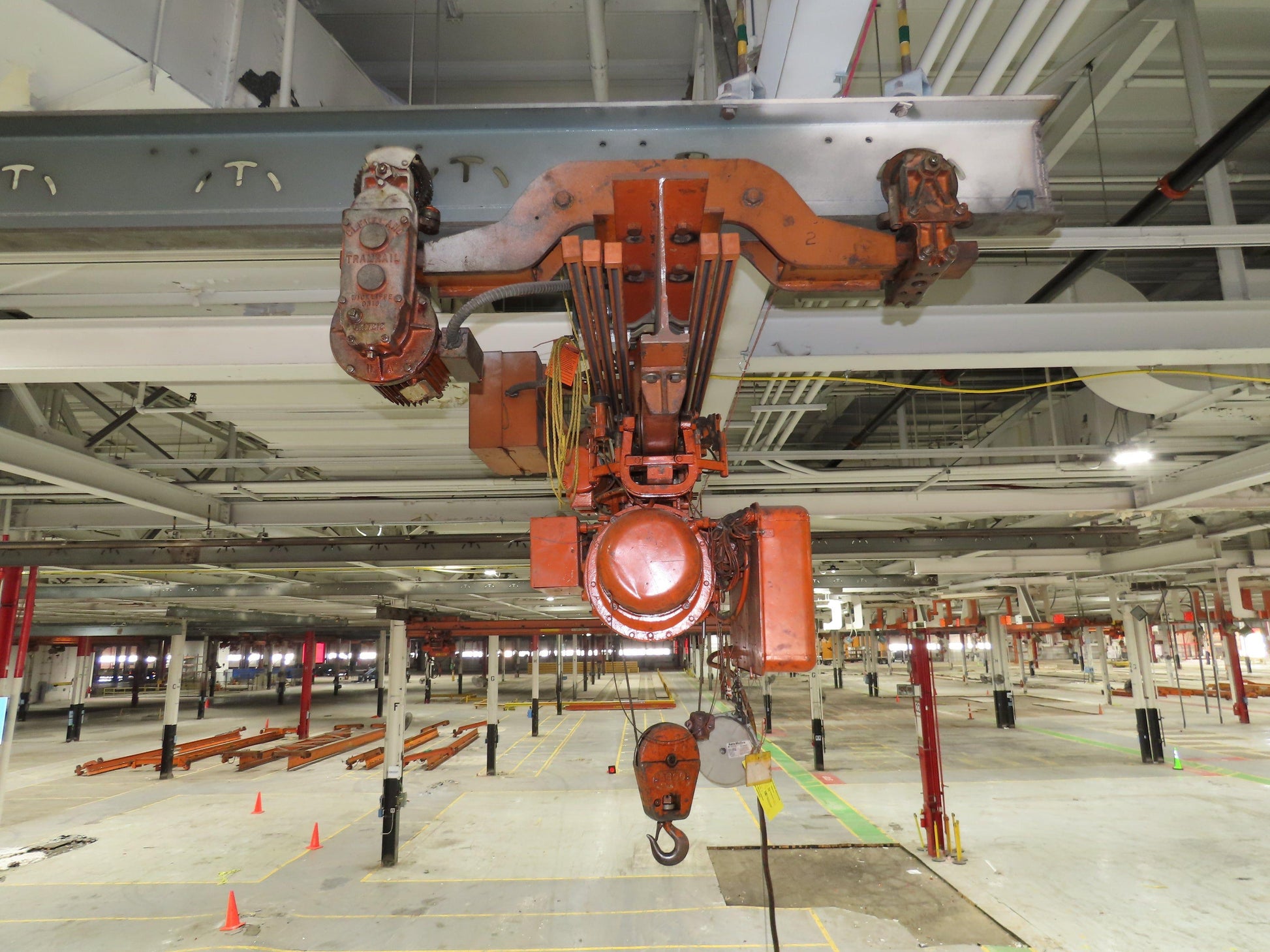

  • Hoist Power Trolley Speed (feet per minute): 60
  • Hoist Trolley Length of Travel: 20' 6"
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 40"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 54"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 68"
  • Bridge Crane is in working condition.  Tested on site before removal.
  • Includes corded pendant only.  Not set up for wireless.
  • Single speed bridge, trolley and hoist.
  • End truck length: 50"
