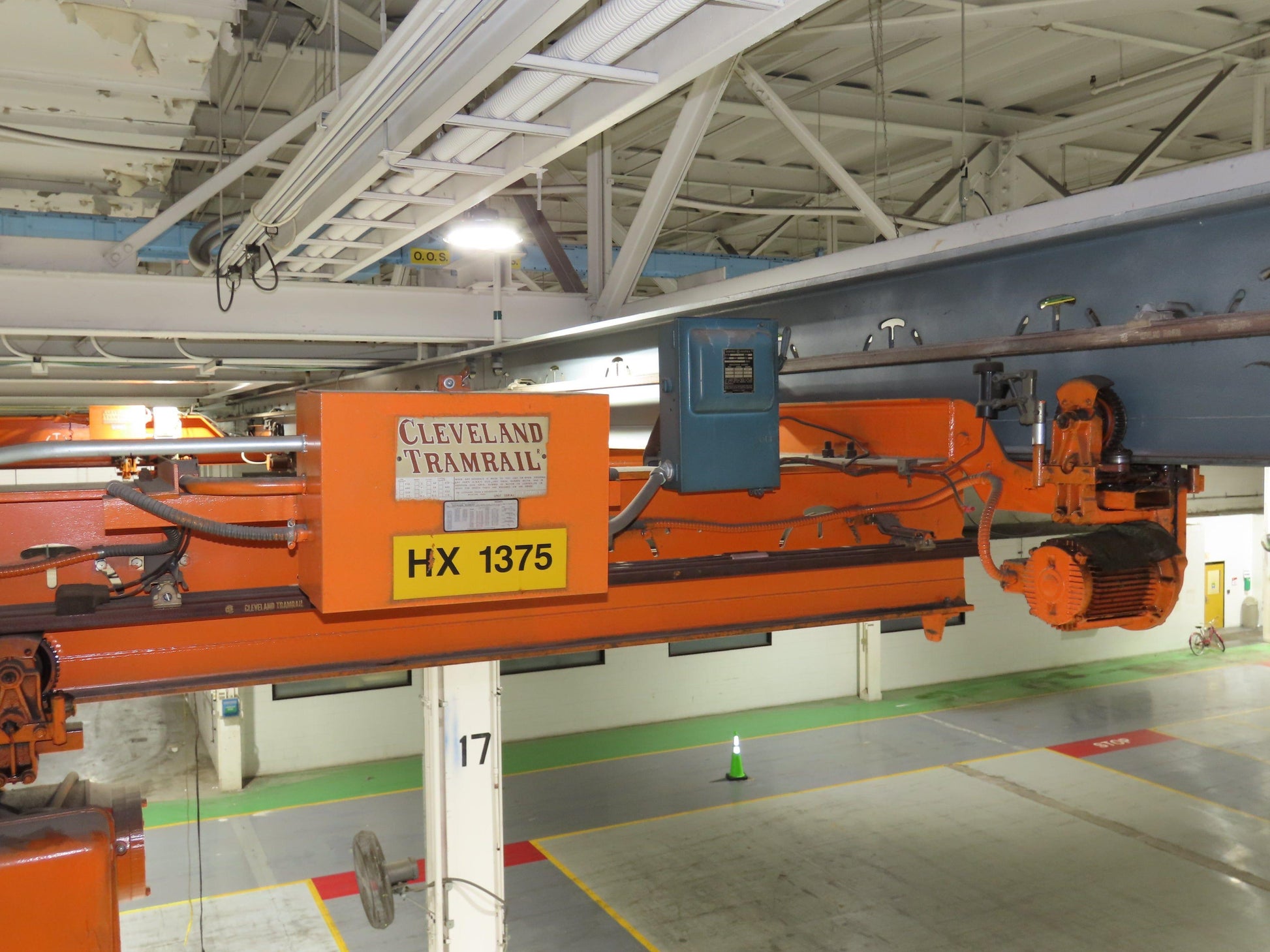

Cleveland Tramrail

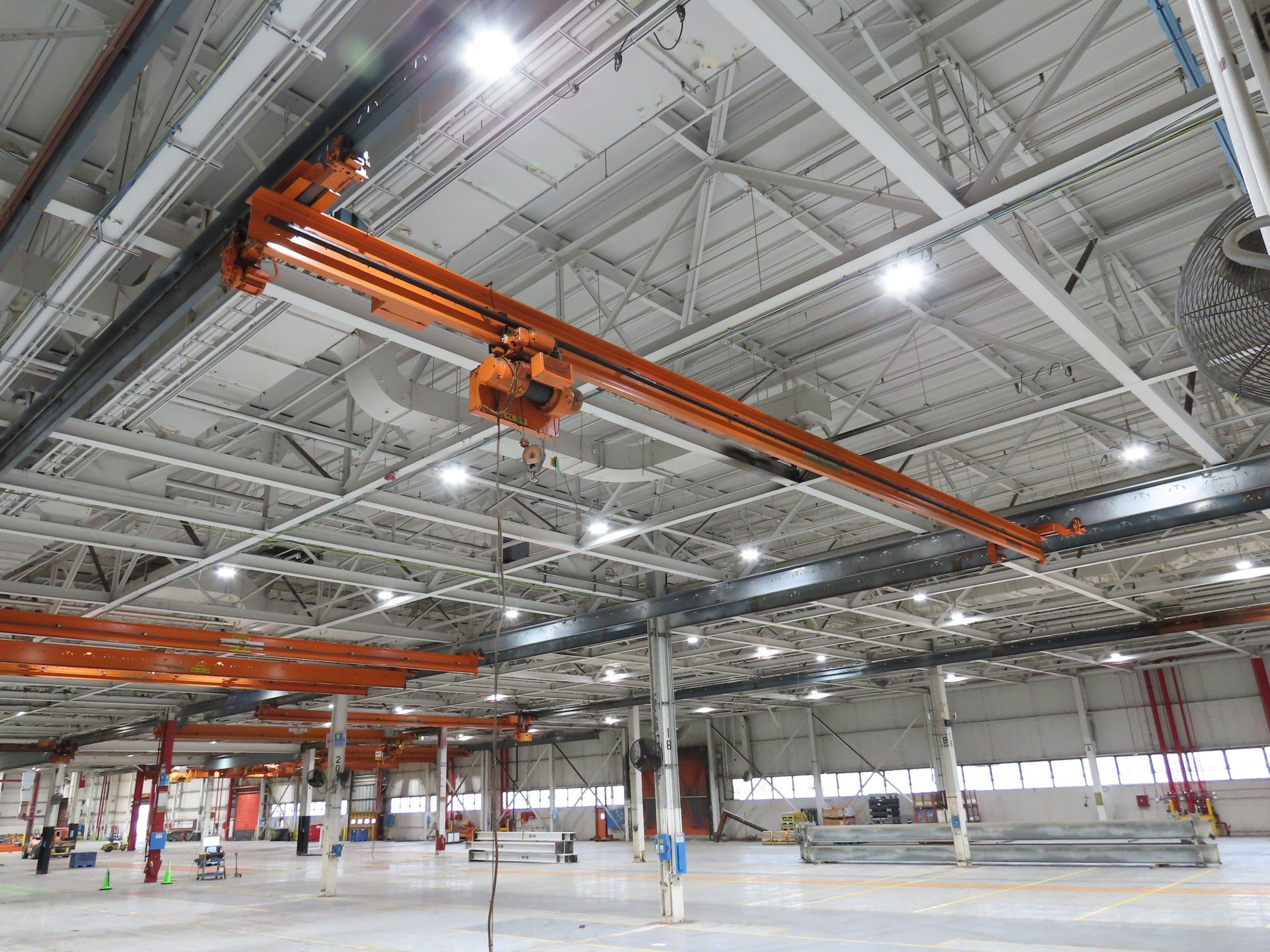

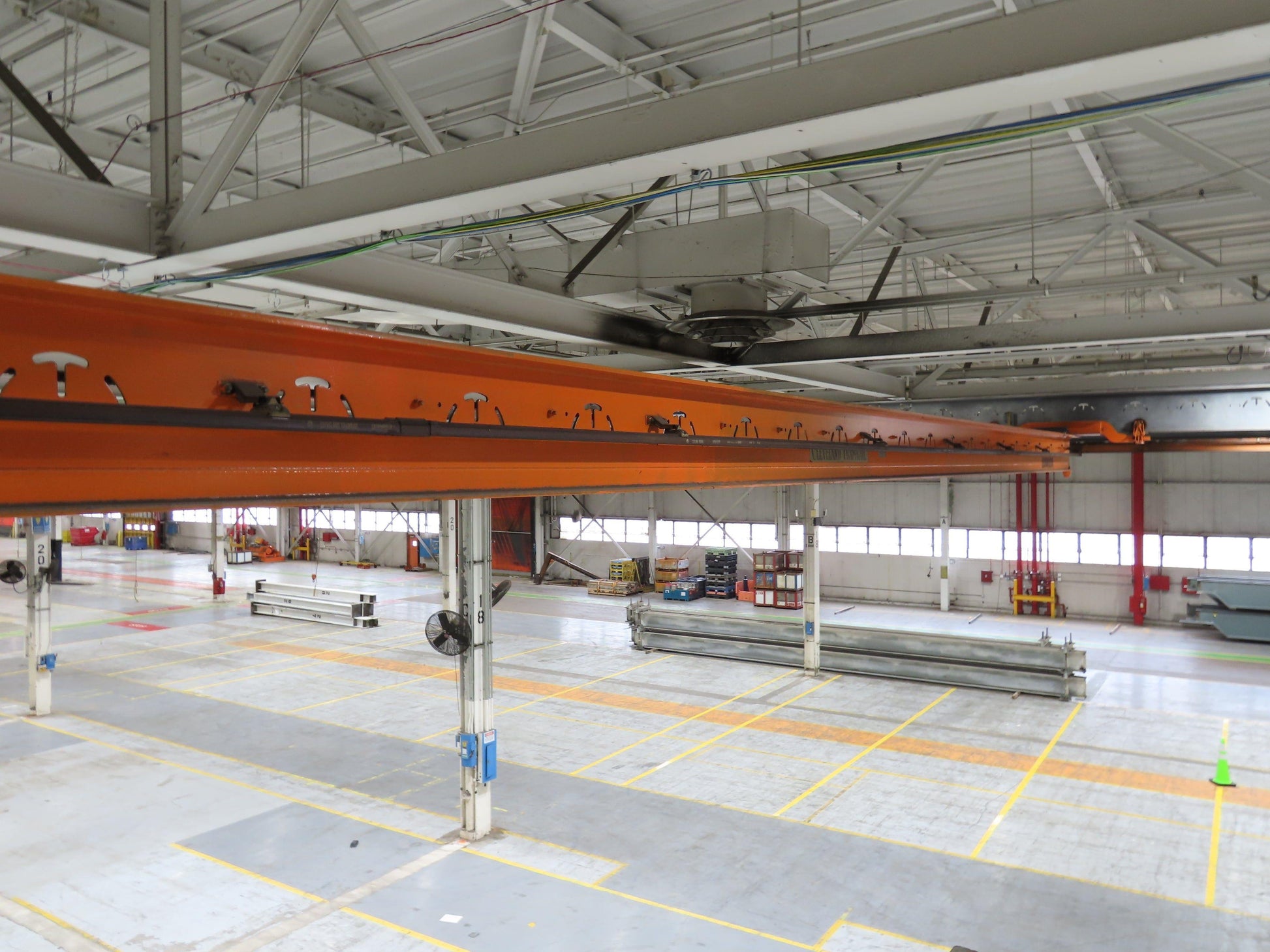

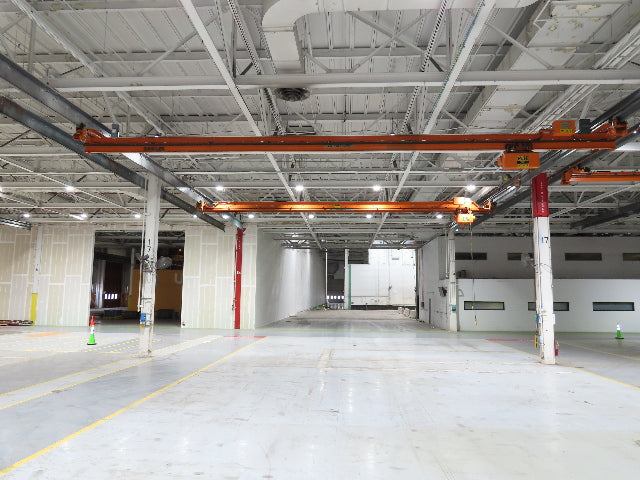

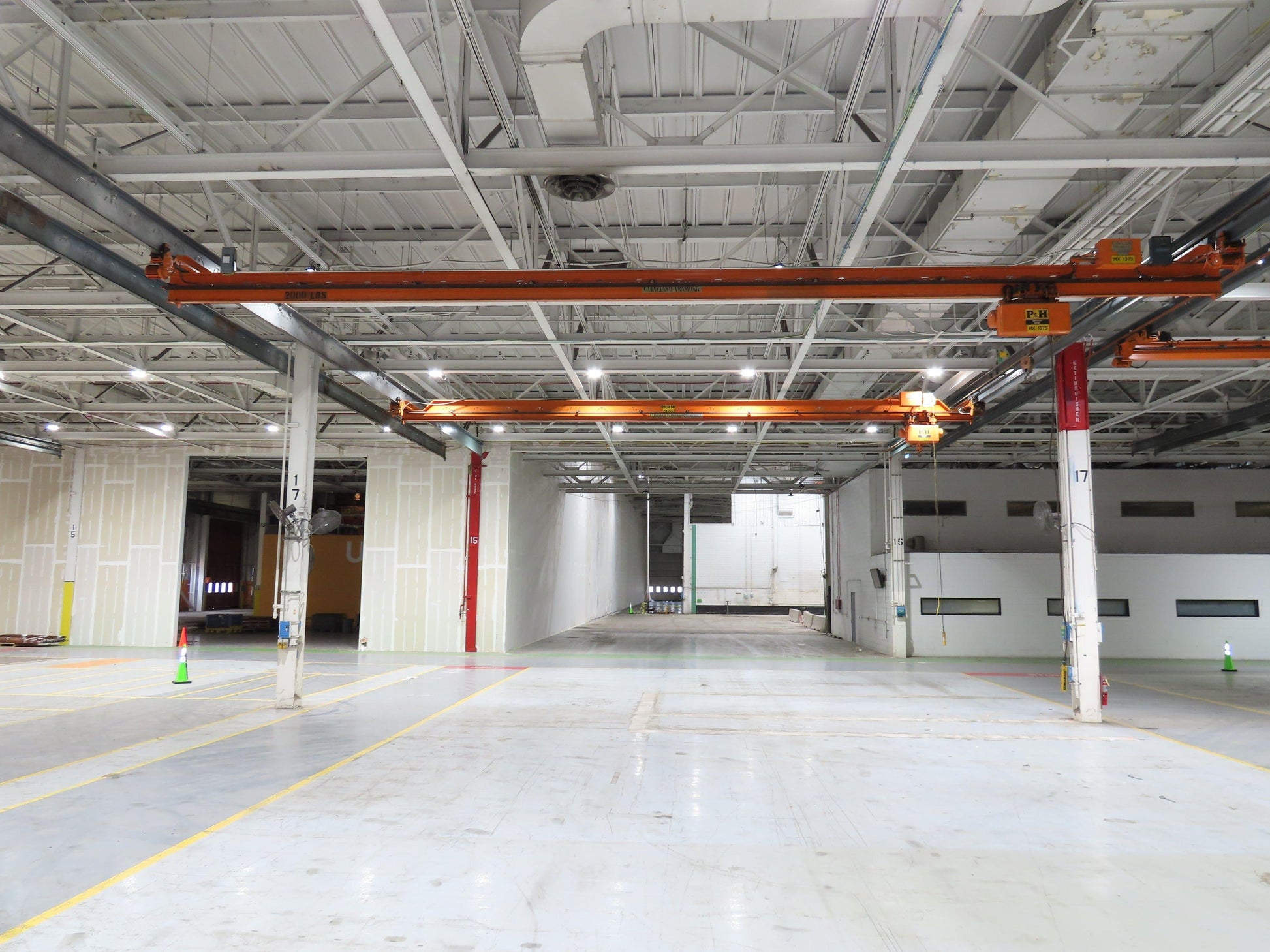

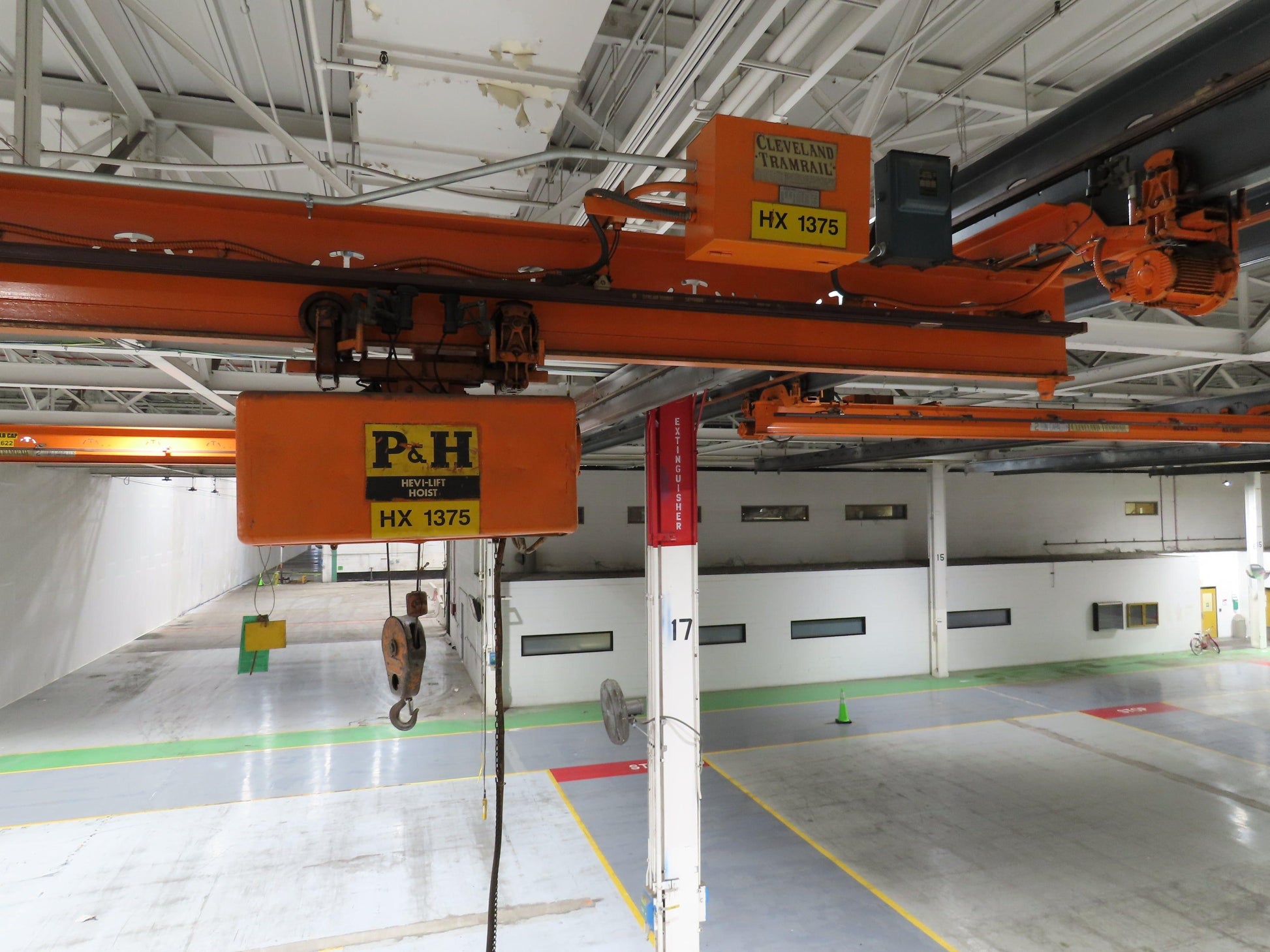

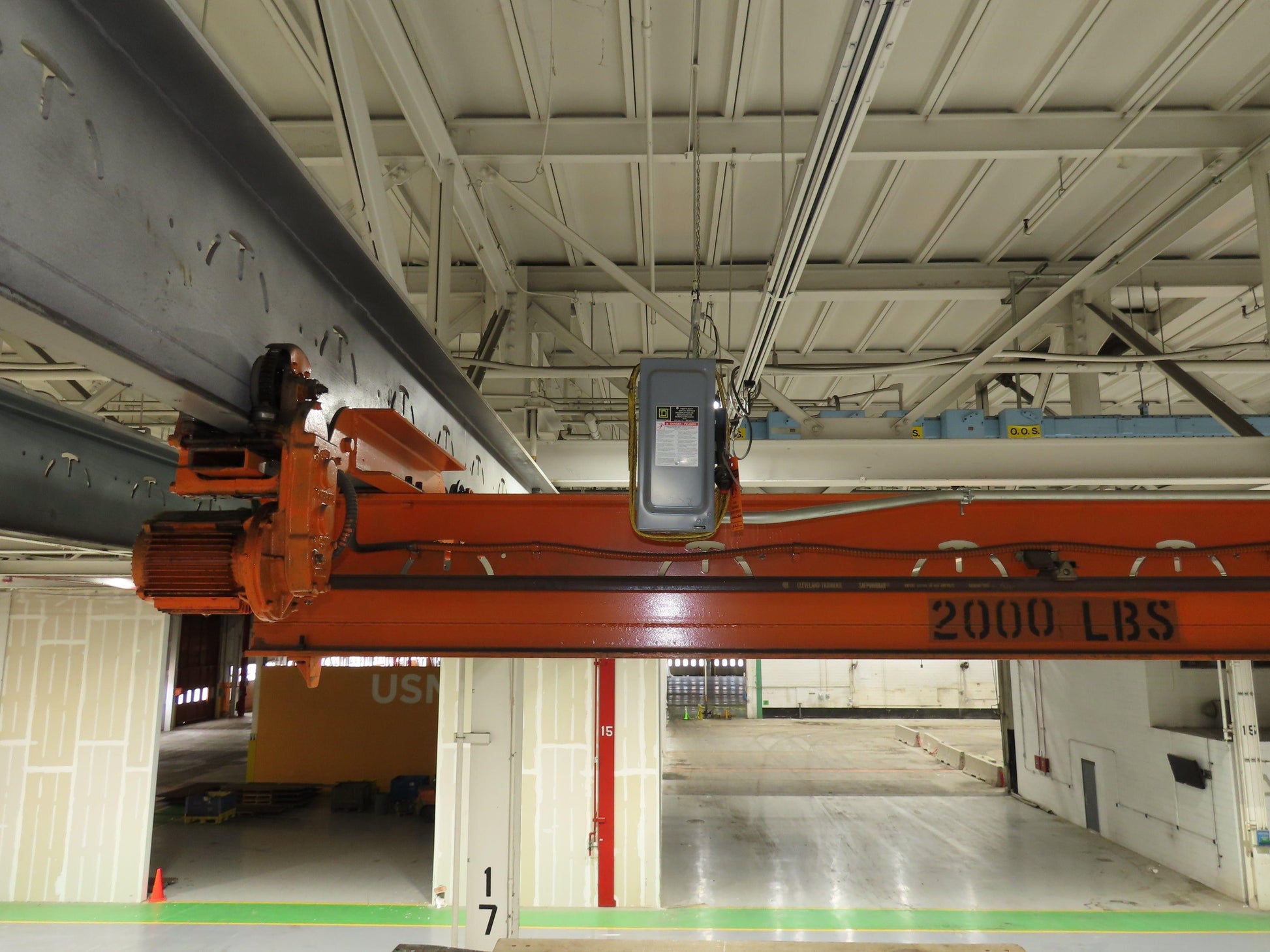

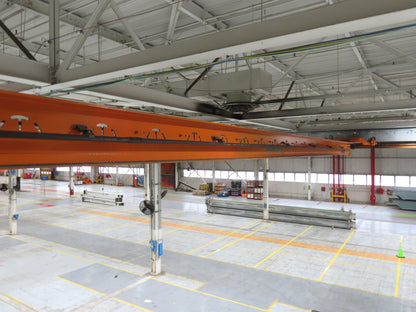

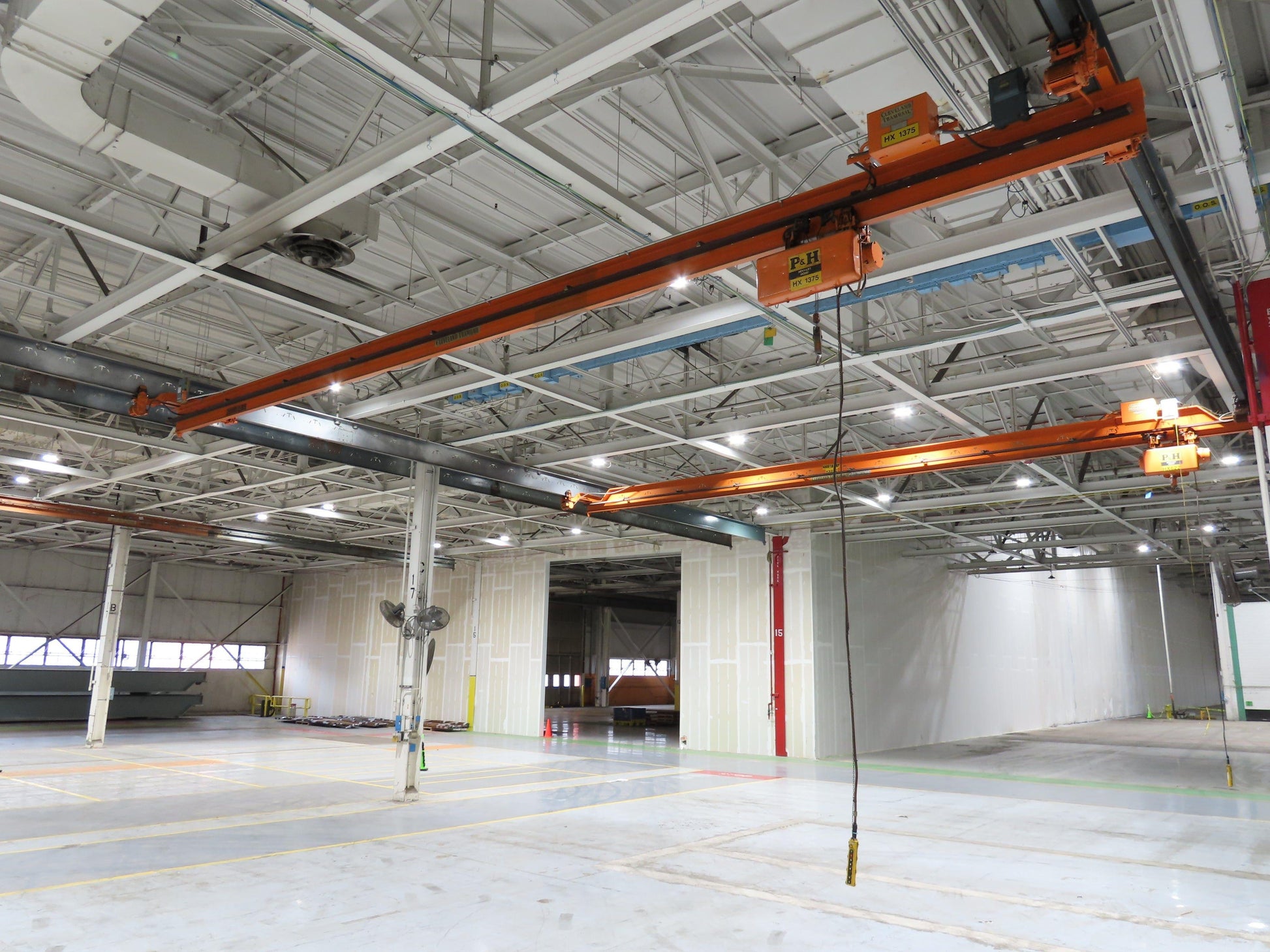

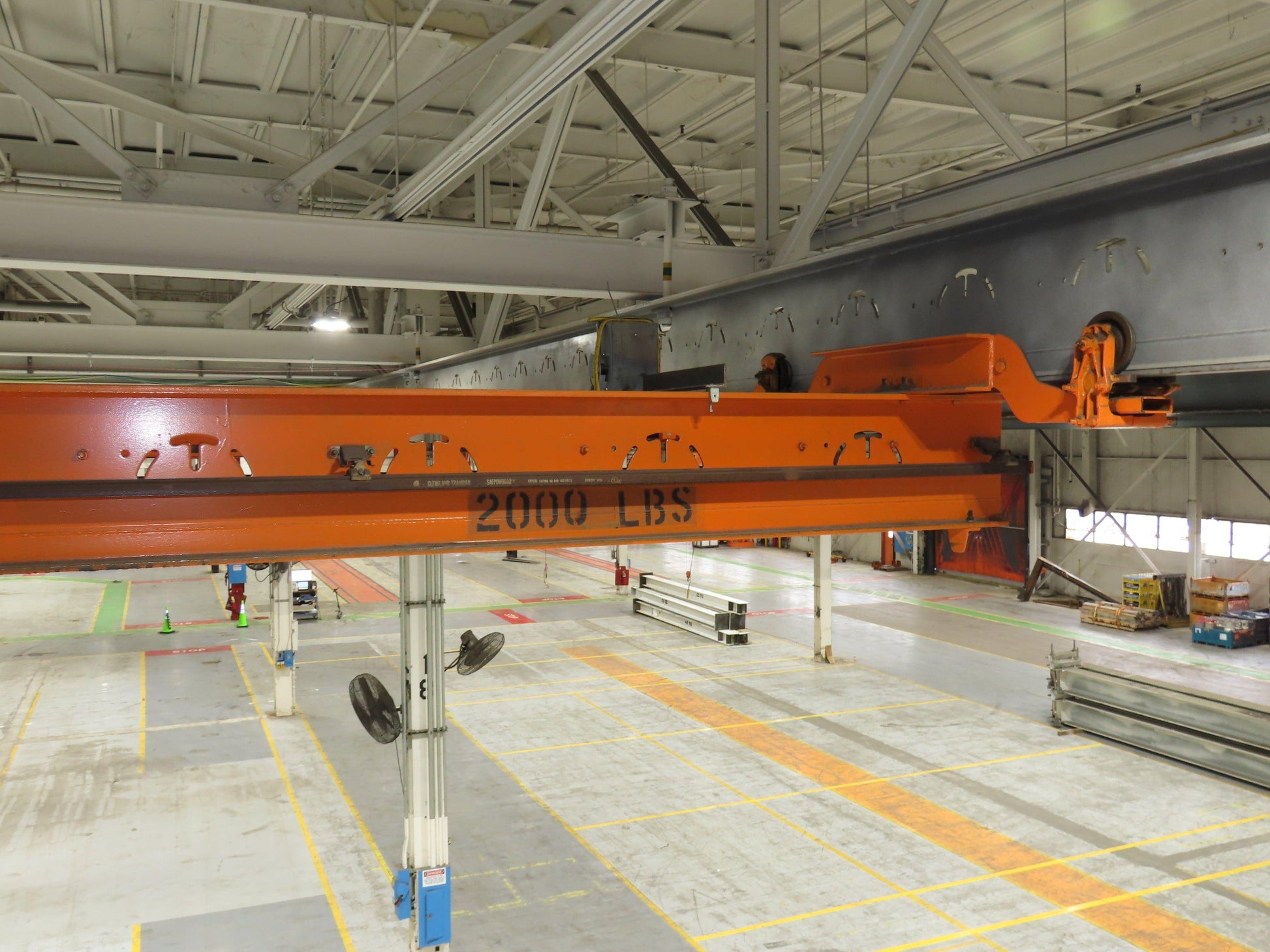

Cleveland Tramrail P&H 1 Ton Single Girder Underhung Bridge Crane 45' 10" Span

Cleveland Tramrail P&H 1 Ton Single Girder Underhung Bridge Crane 45' 10" Span

SKU #262194

Your Price
$5,129.99
$5,999.99 $5,129.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 1
  • Capacity (lb): 2000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45' 10"

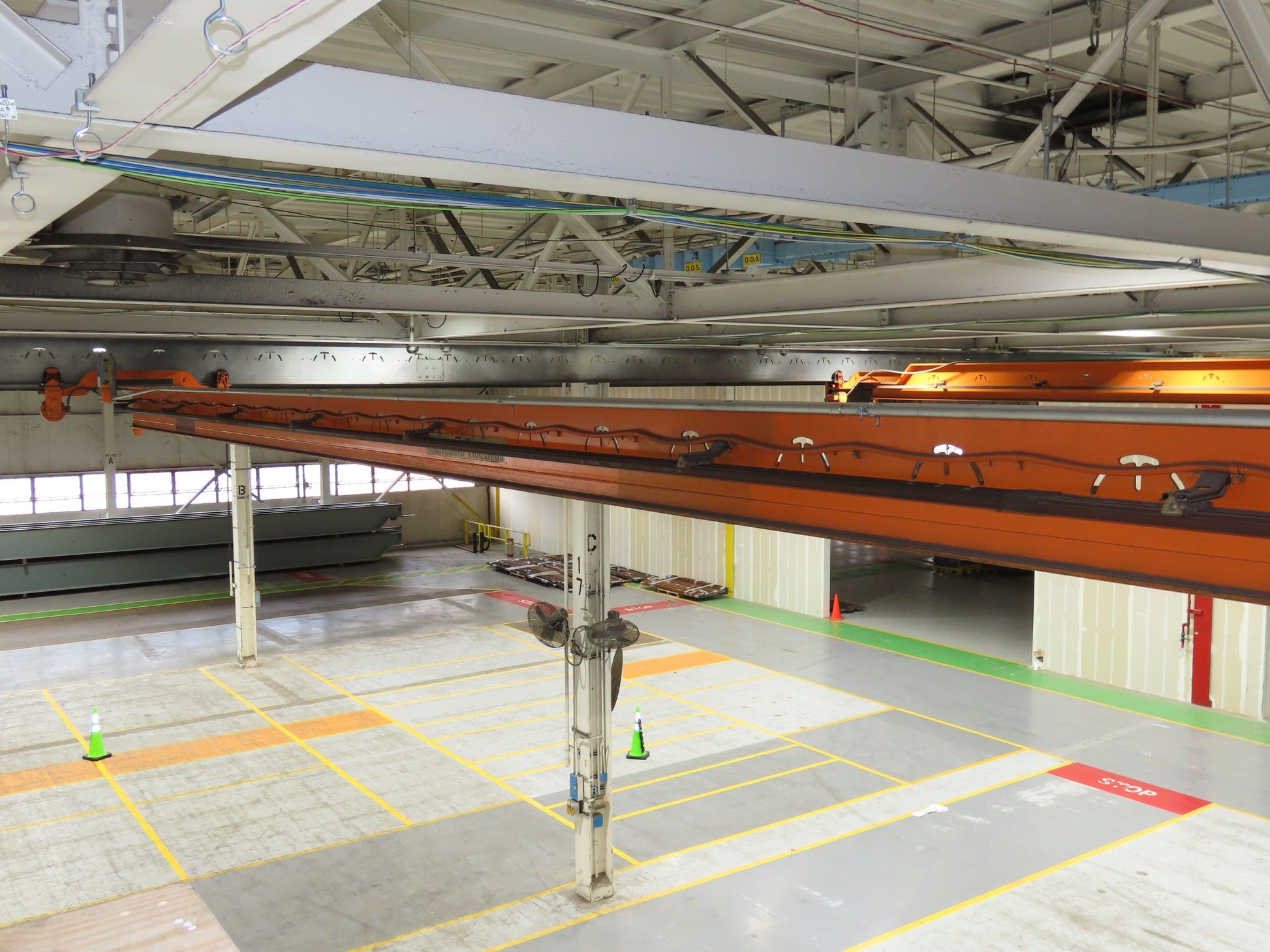

  • Main Girder Beam Size (Height x Width x Length): 16"H x 9.5"W x 47' 10" Length (3.25" bottom flange)
  • Bridge Speed (feet per minute): Single speed

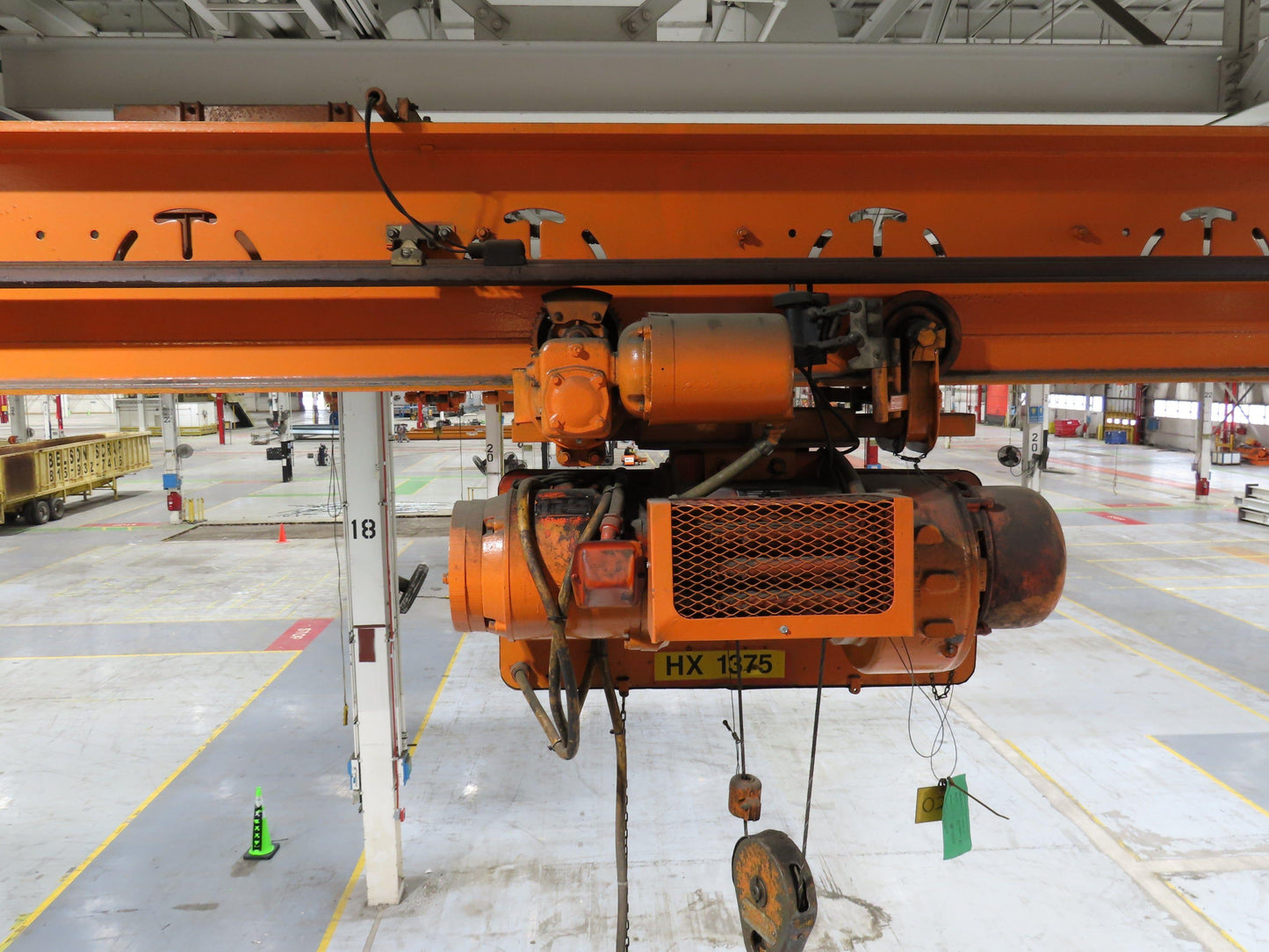

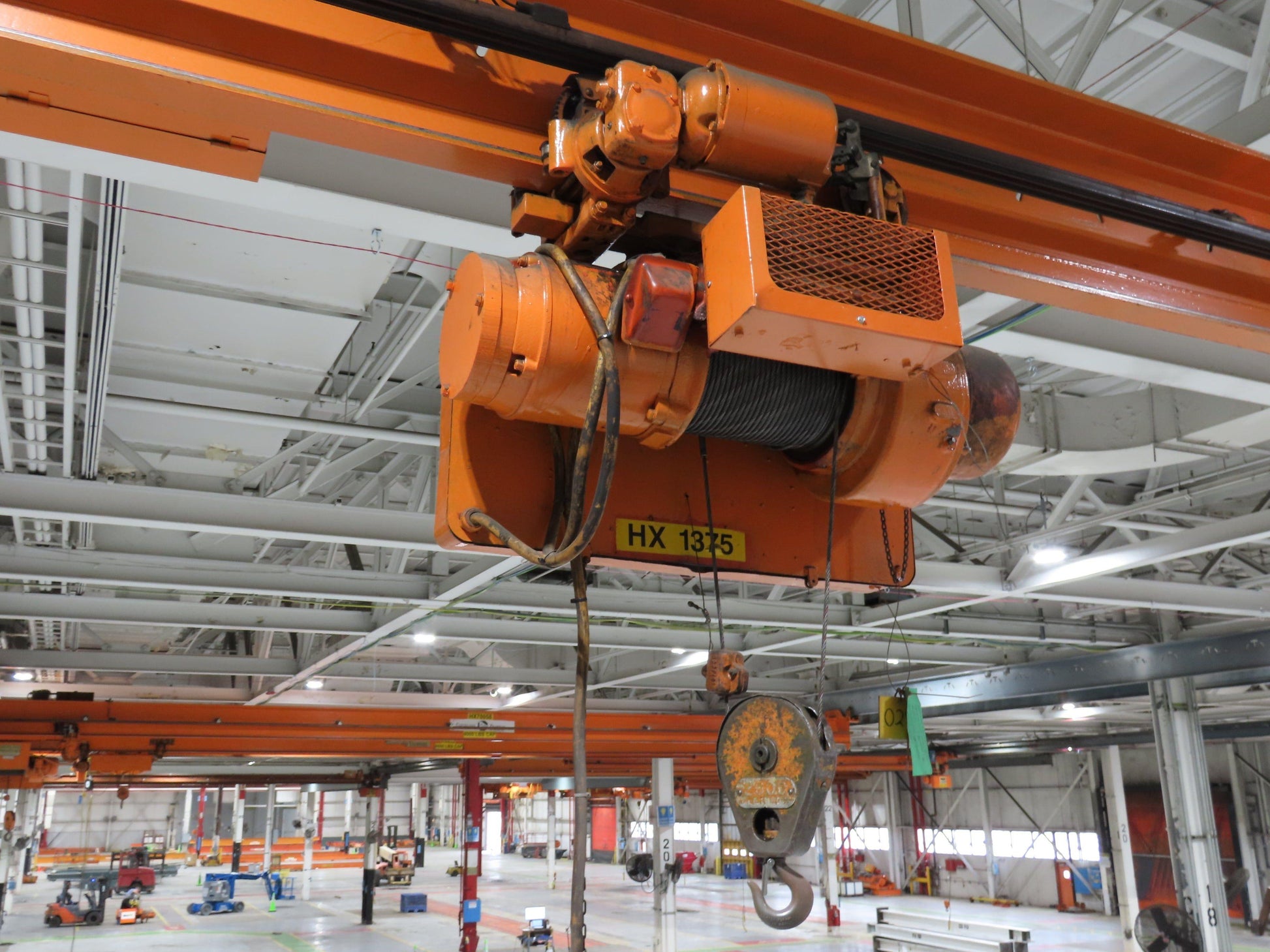

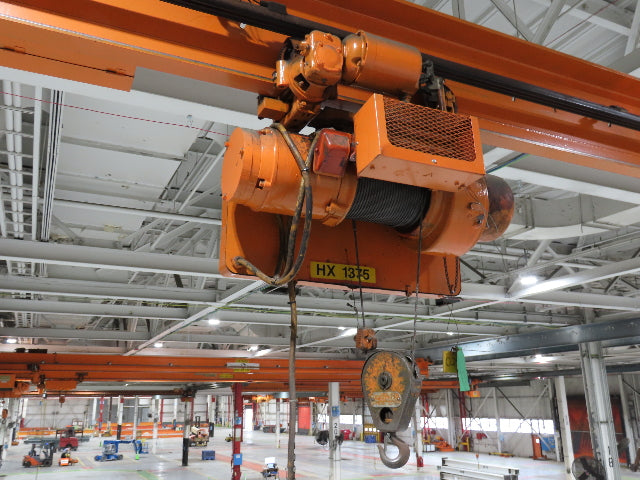

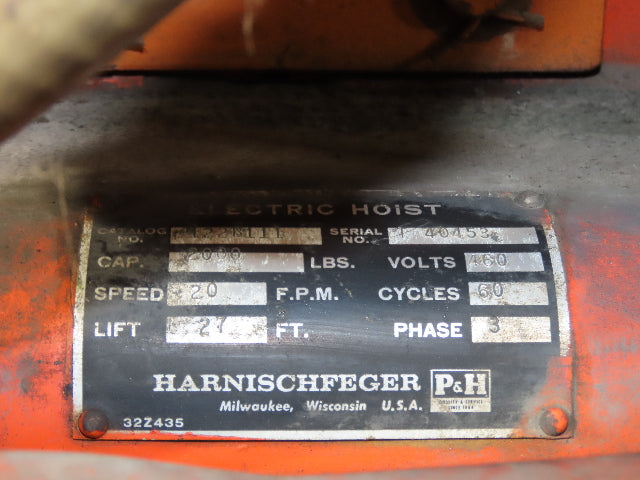

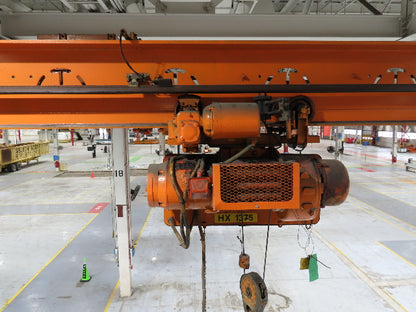

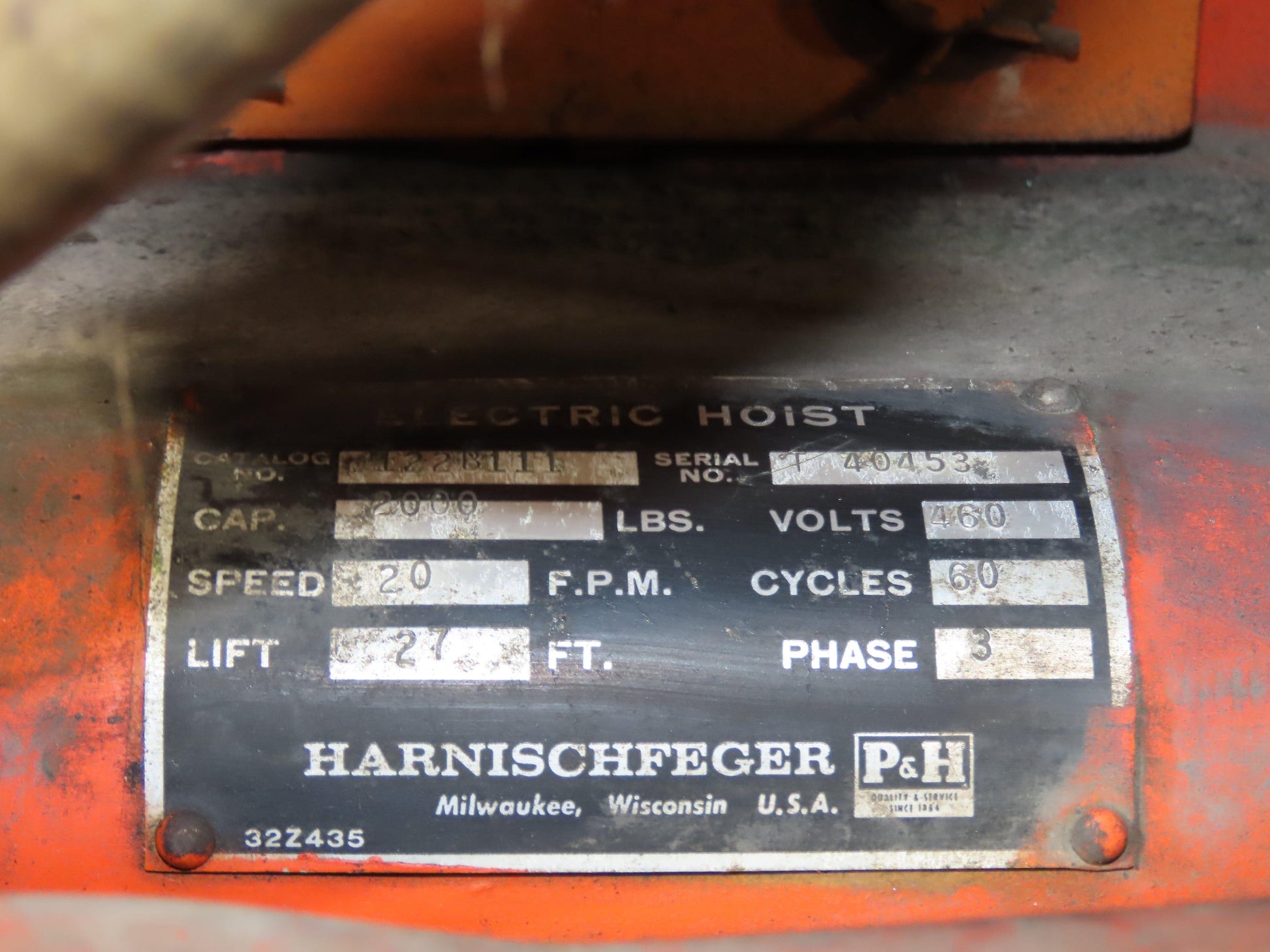

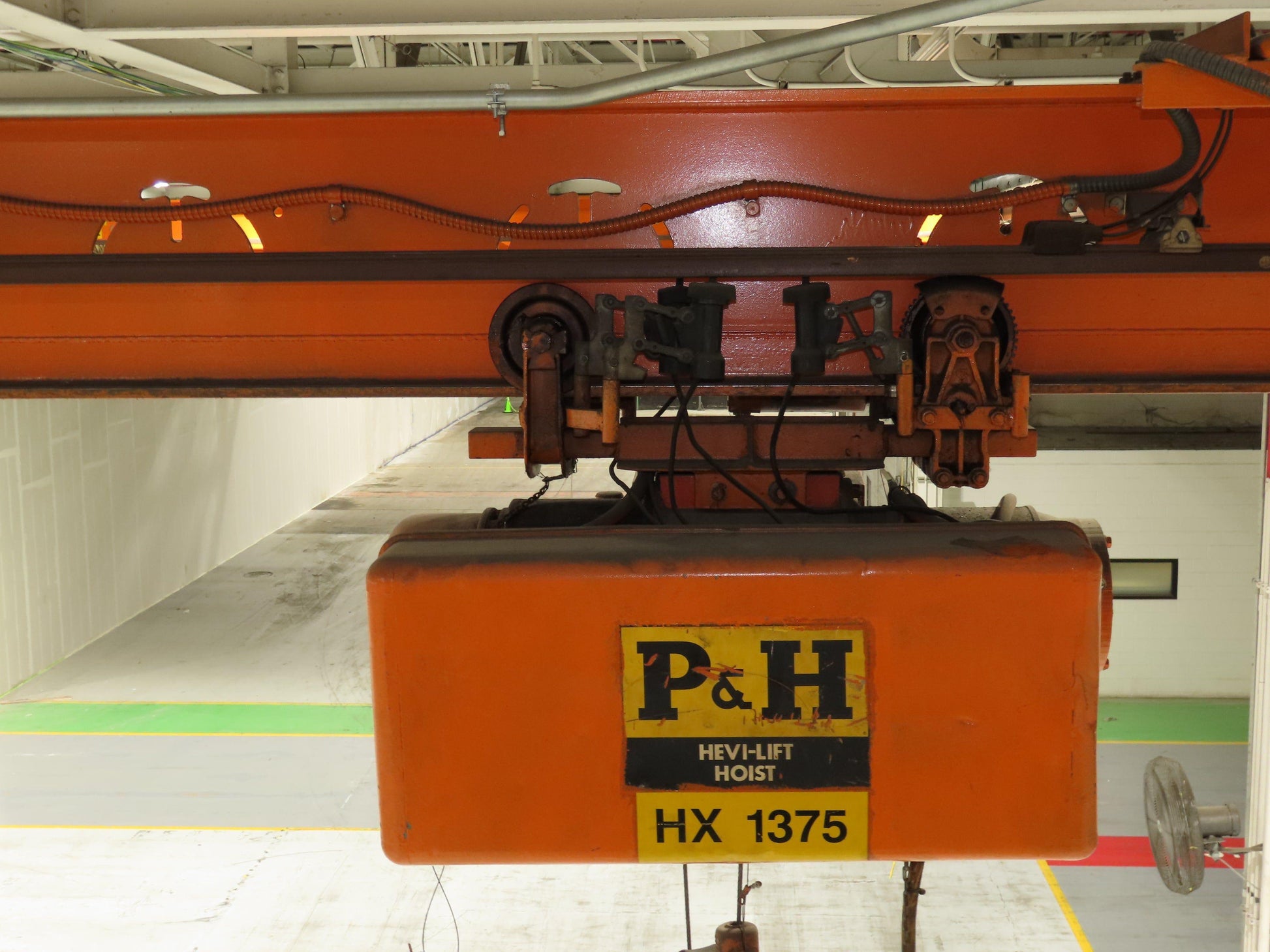

  • Hoist Brand: P&H
  • Lift Travel (feet): 27'
  • Lift Speed (feet per minute): 20

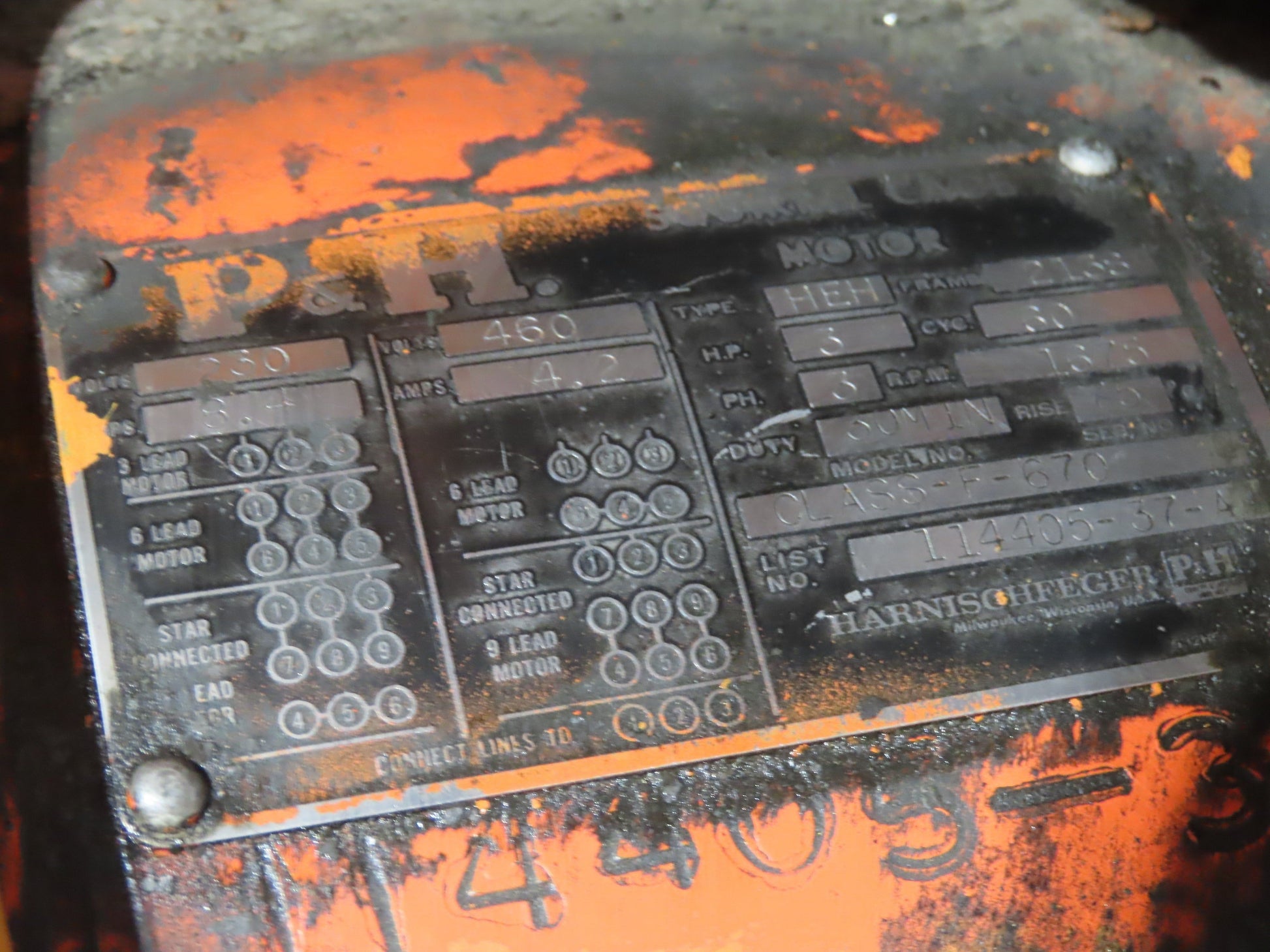

  • Motor Horse Power: 3
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 15'
  • Hoist Power Trolley Speed (feet per minute): 80
  • Hoist Trolley Length of Travel: 44' 6"
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 44"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 75"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 62"
  • Bridge Crane is in working condition.  Tested on site before removal.

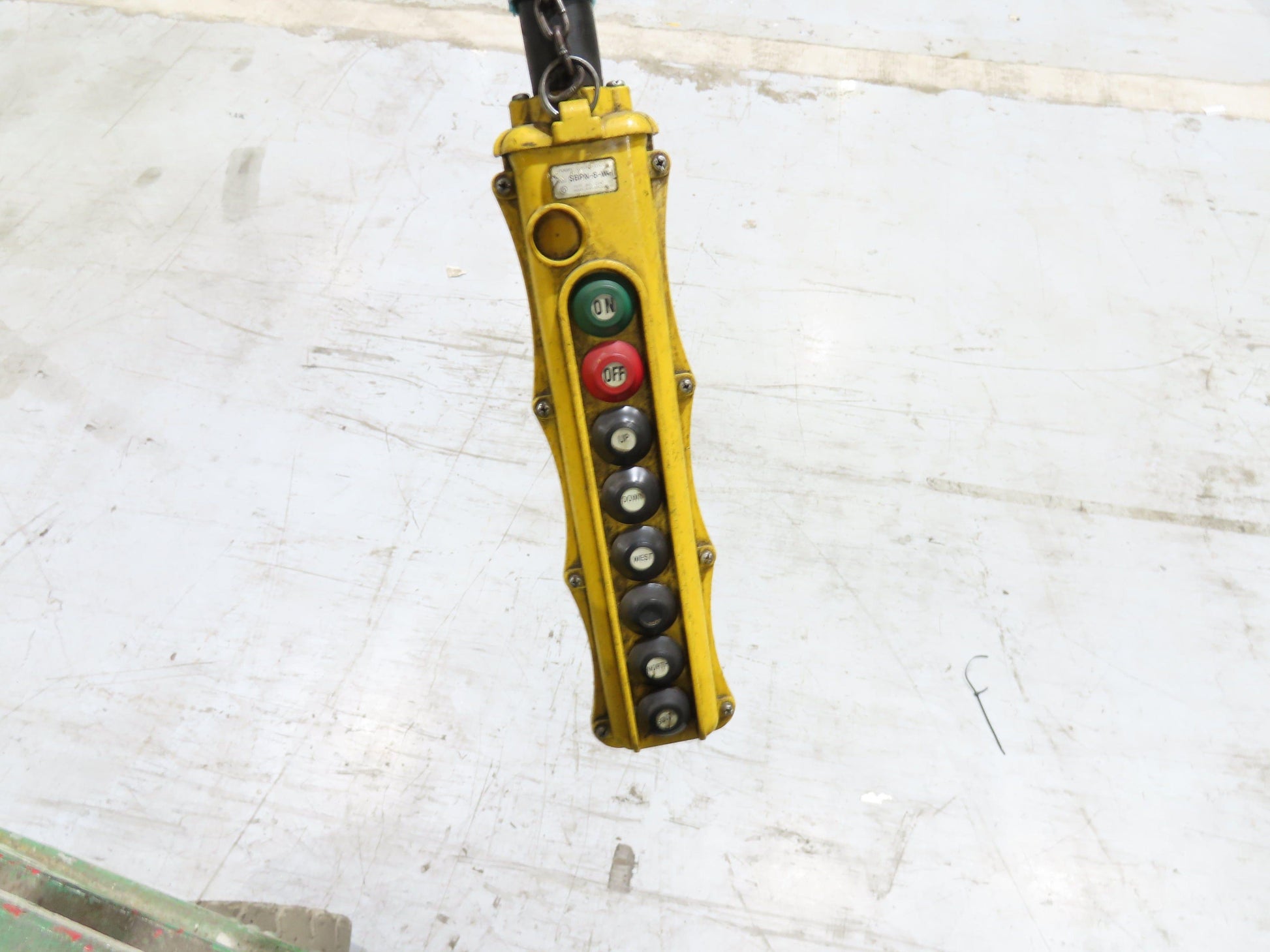

  • Includes corded pendant only.  Not set up for wireless.
  • Single speed bridge, trolley and hoist.

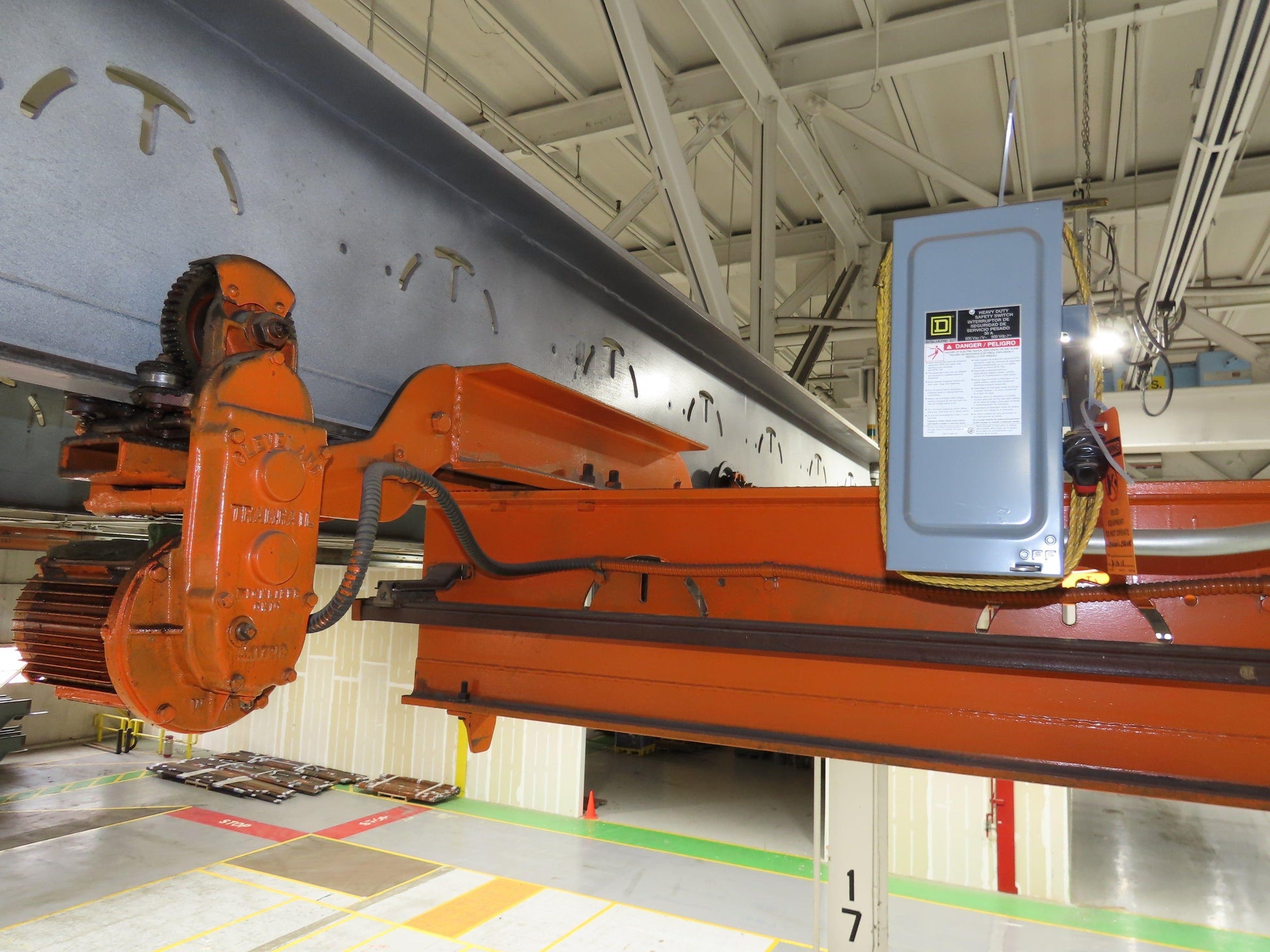

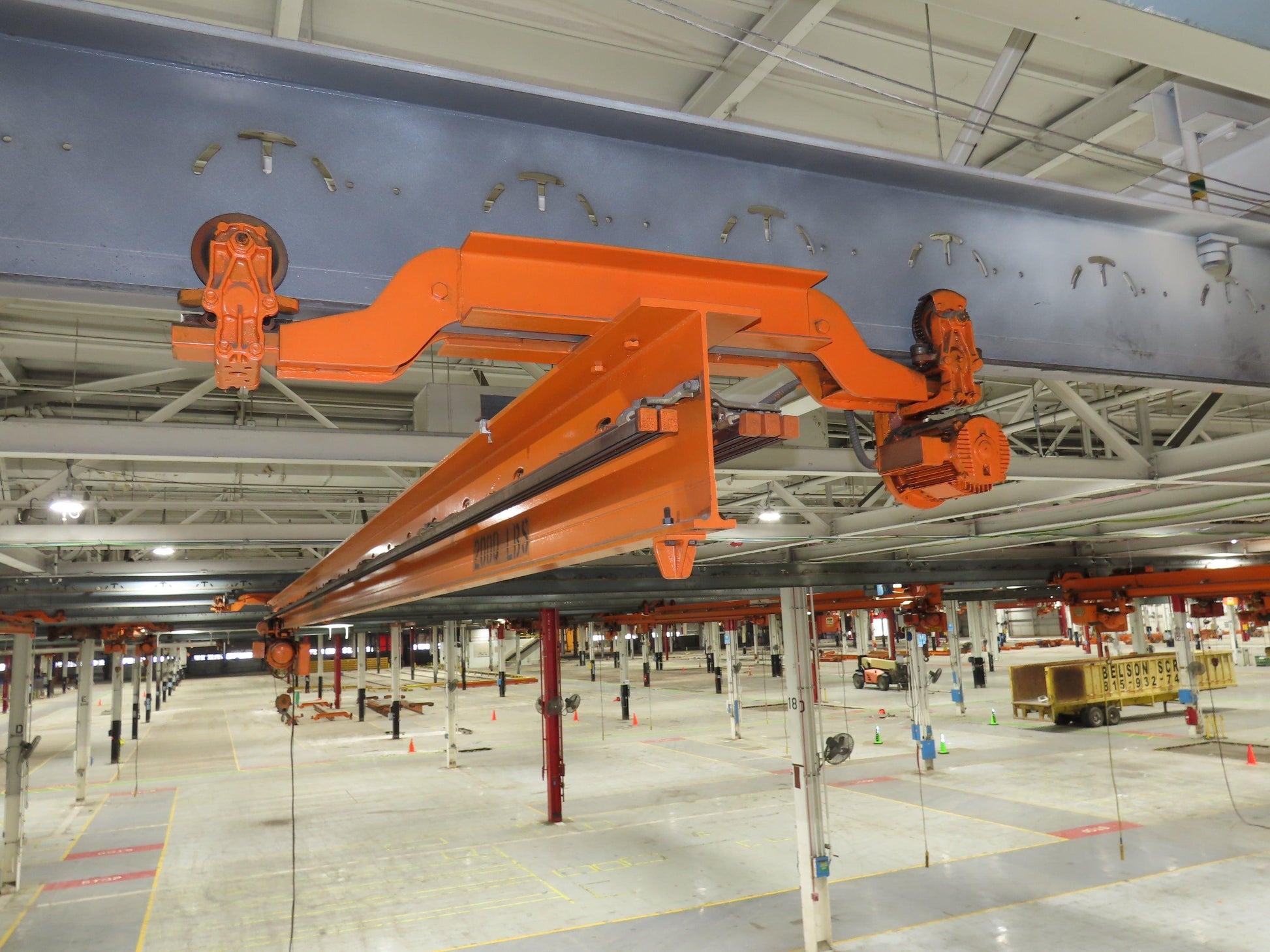

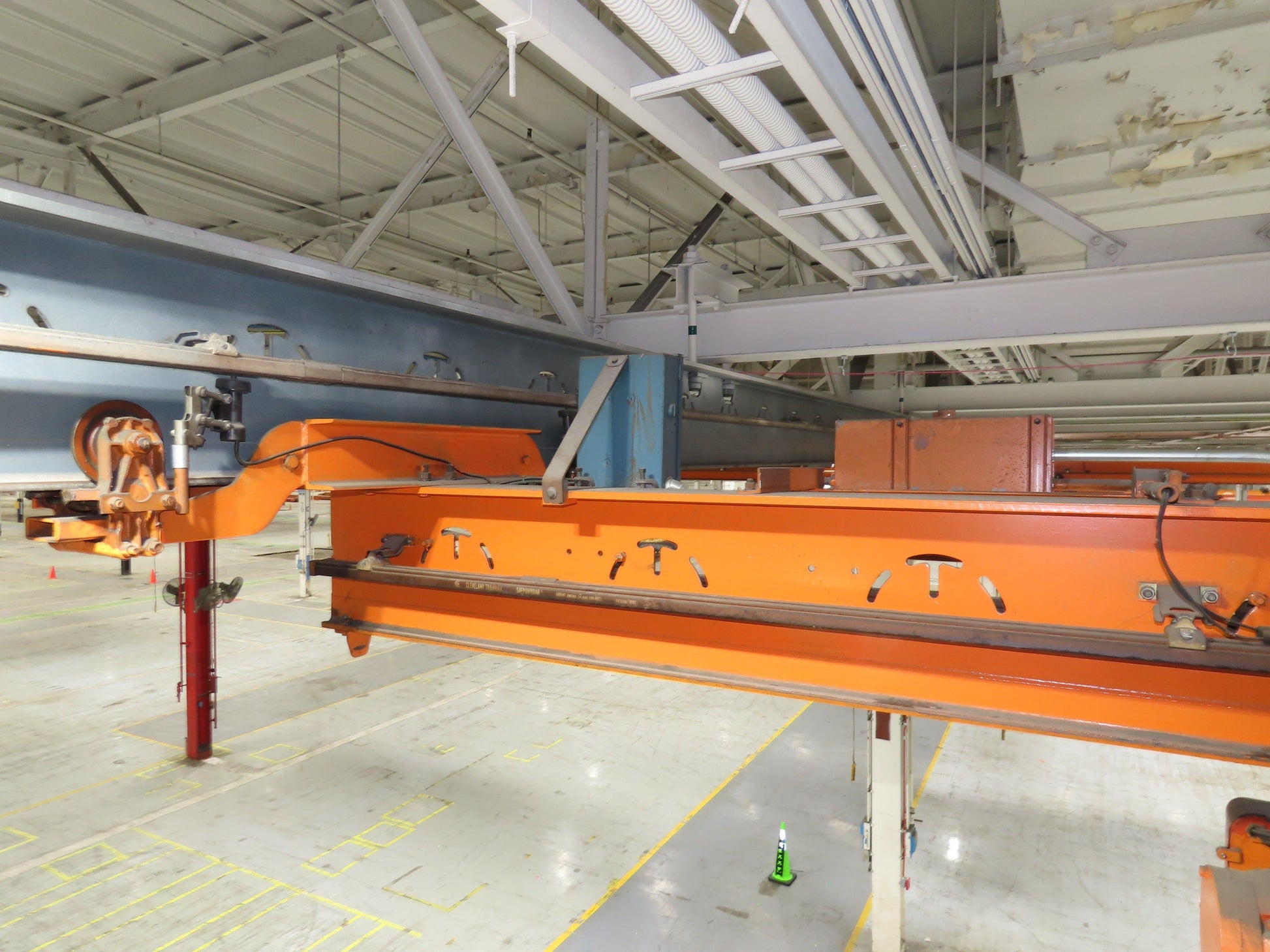

  • End truck length: 68"
