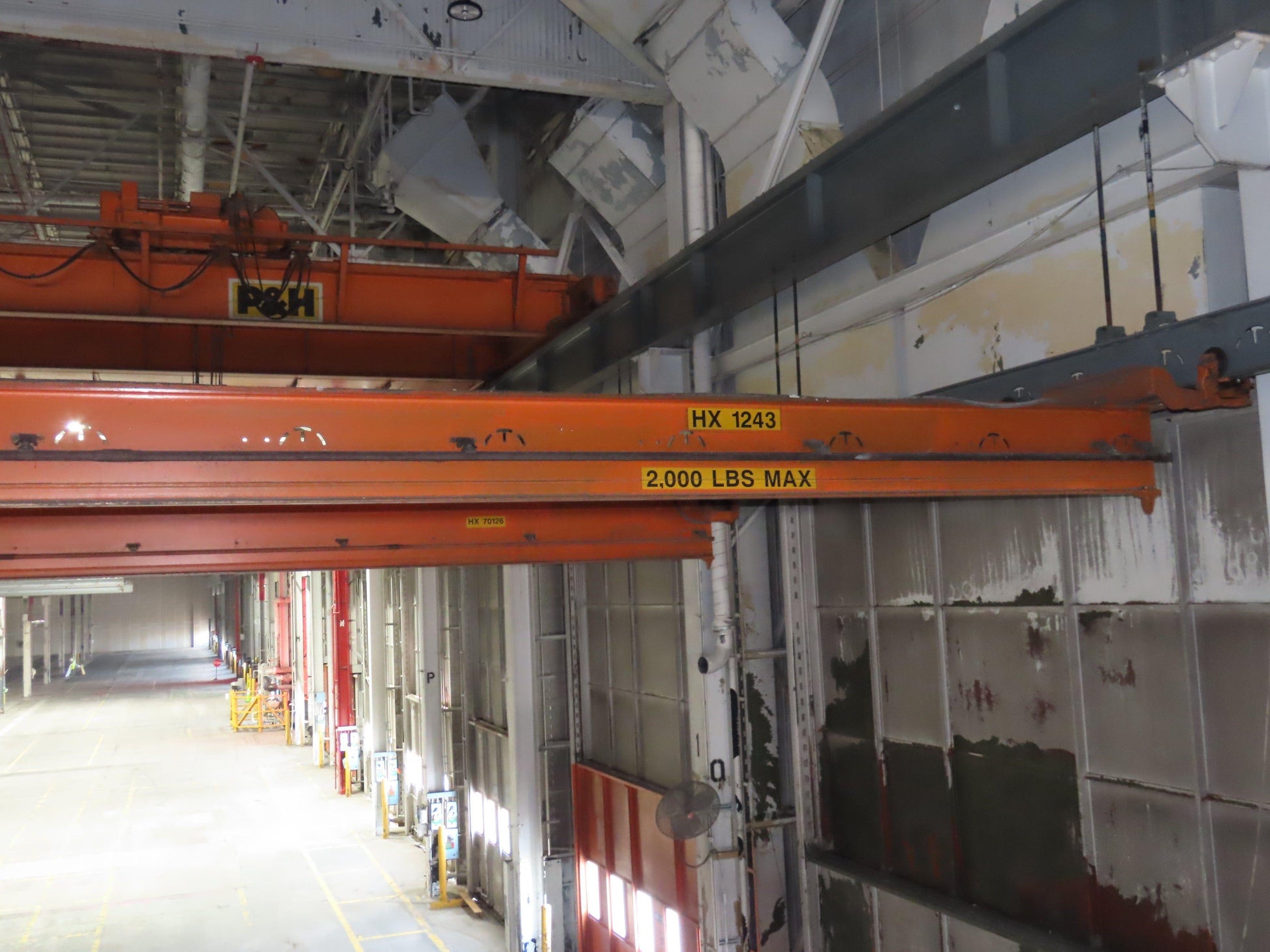

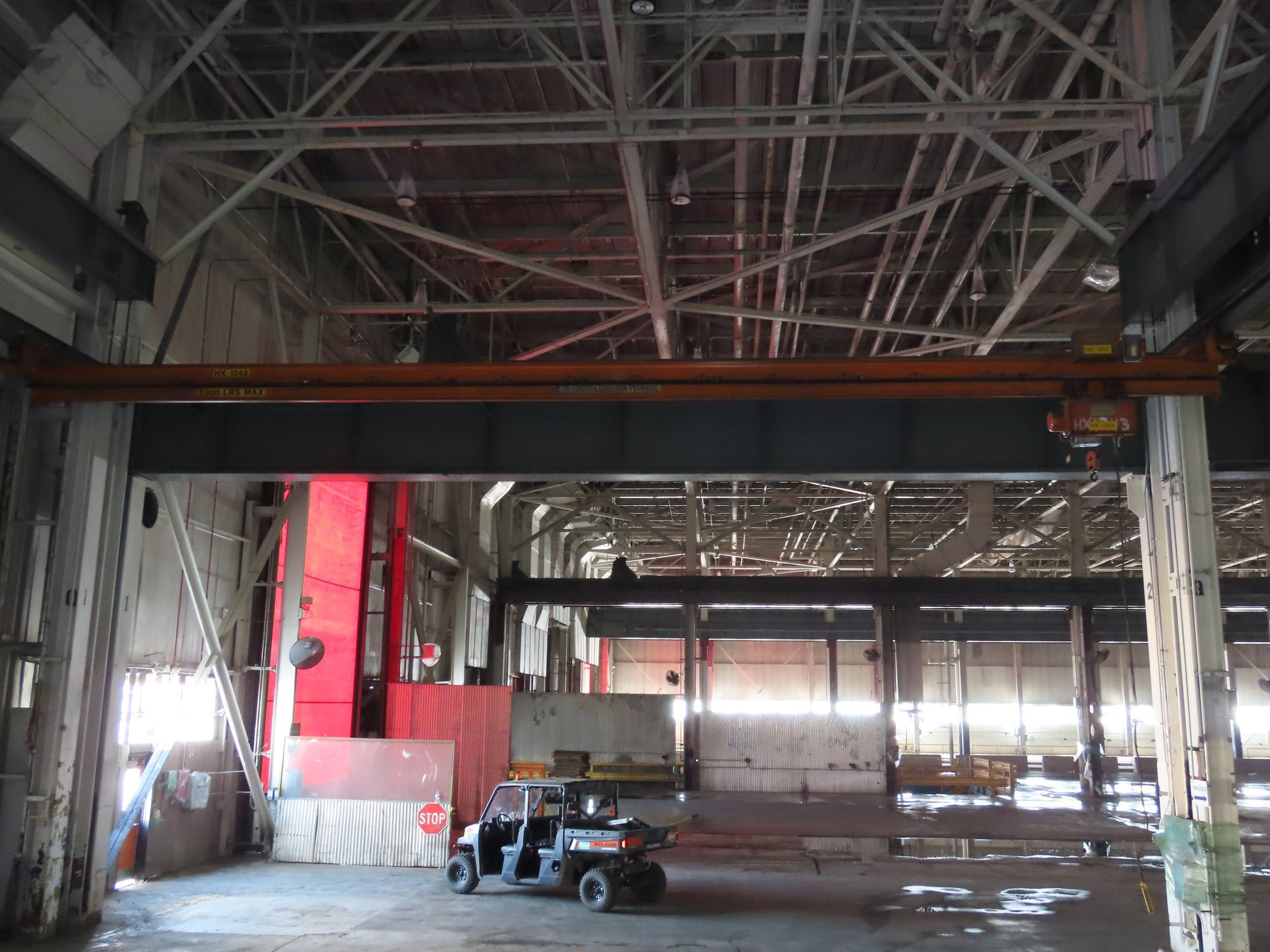

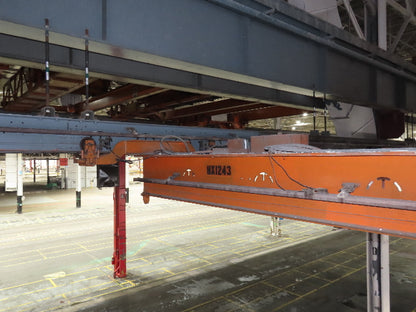

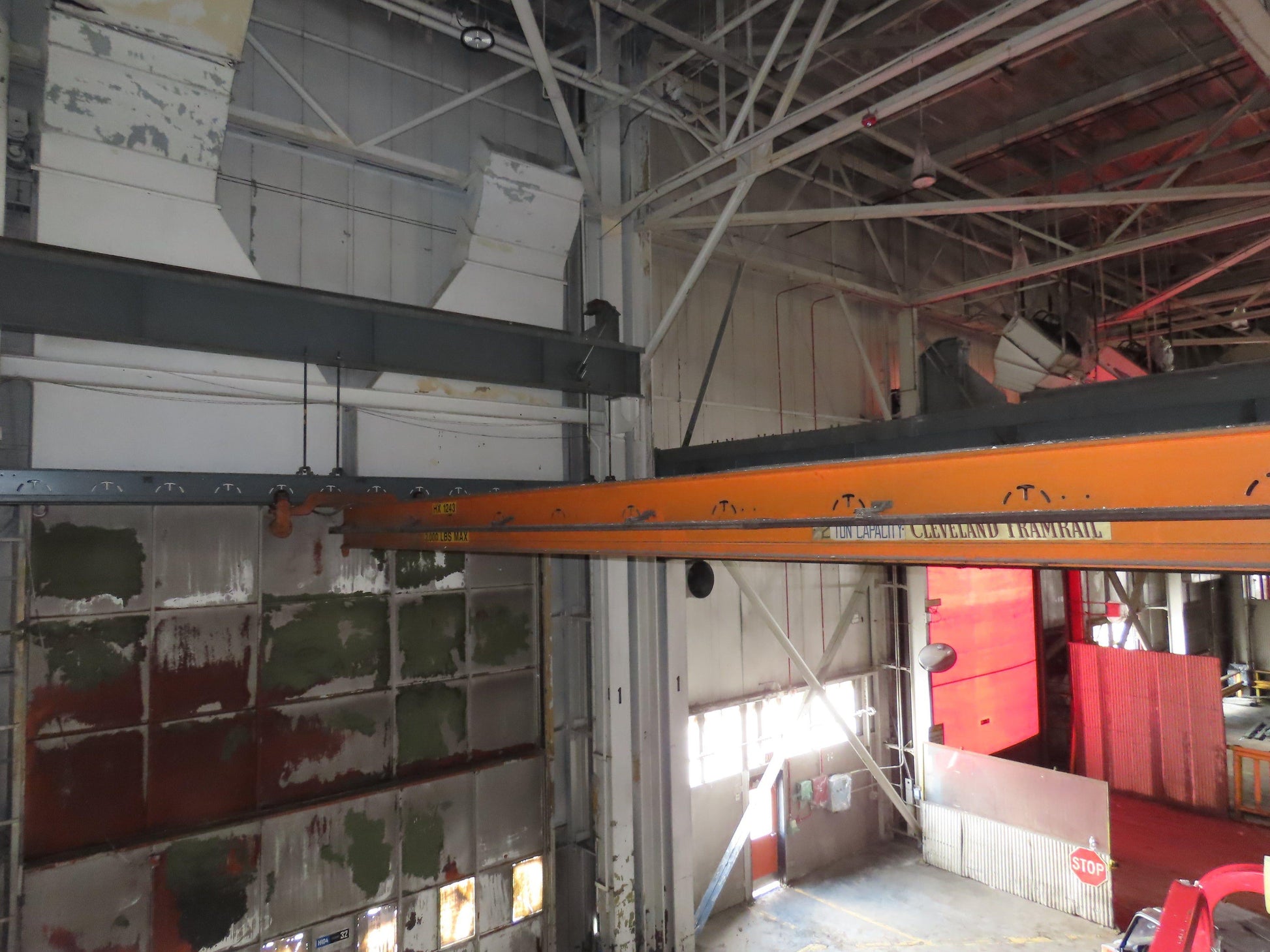

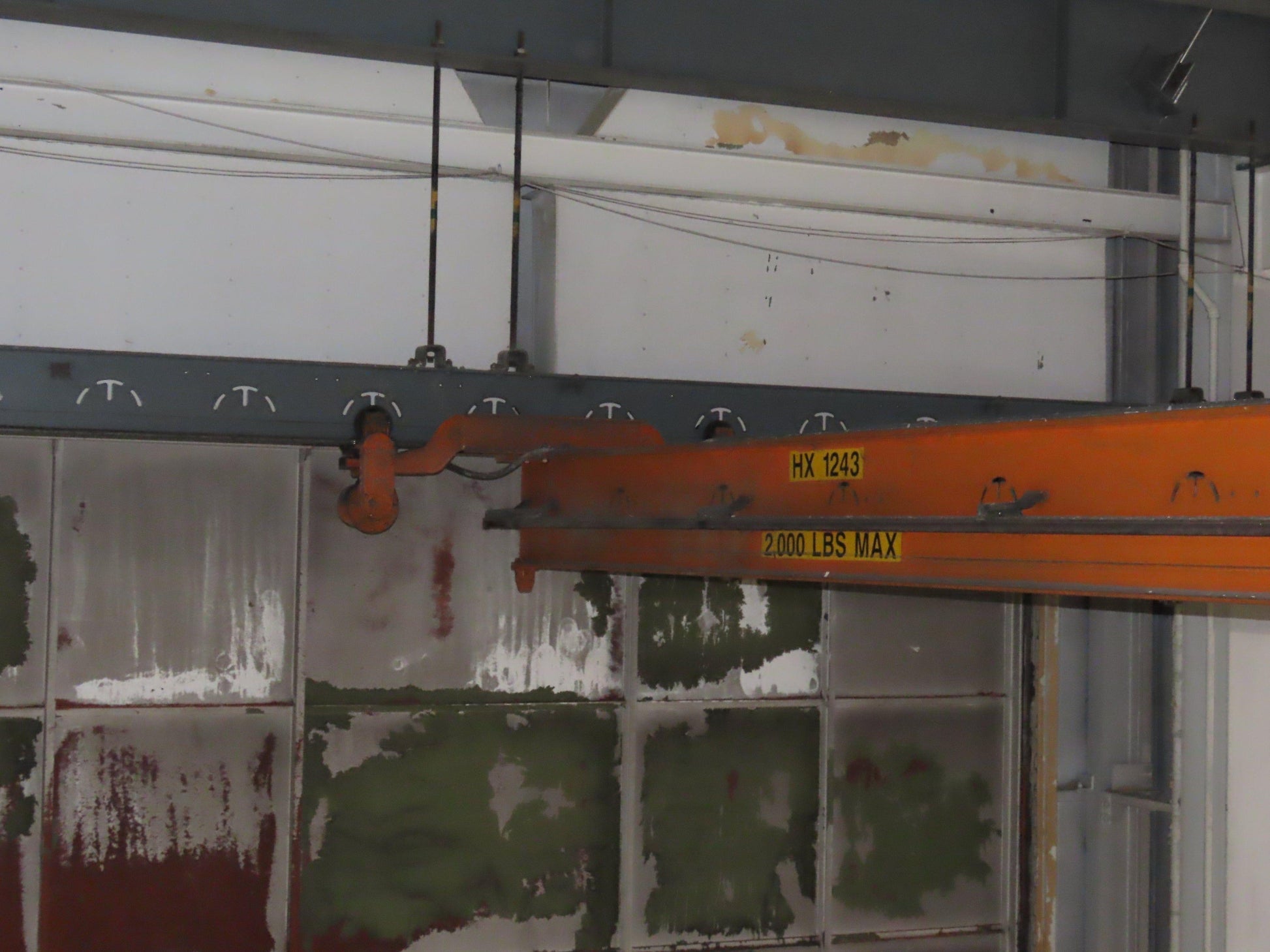

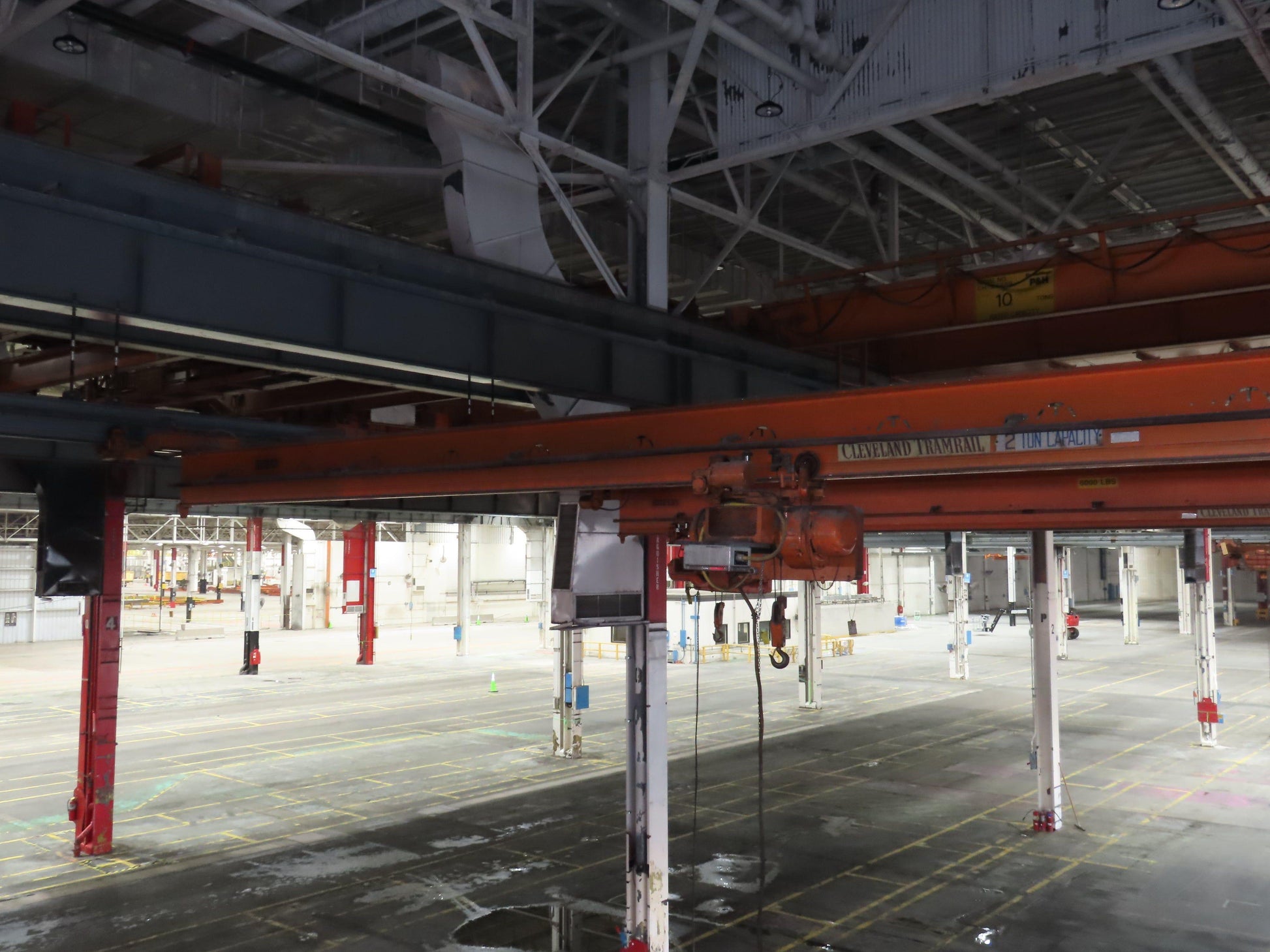

Cleveland Tramrail P&H 1 Ton Single Girder Underhung Bridge Crane 46' Span

Cleveland Tramrail P&H 1 Ton Single Girder Underhung Bridge Crane 46' Span

SKU #262717

Product Condition: Used

Your Price
$5,129.99
$5,999.99 $5,129.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail
Model
P&H Hevi-Lift
MPN

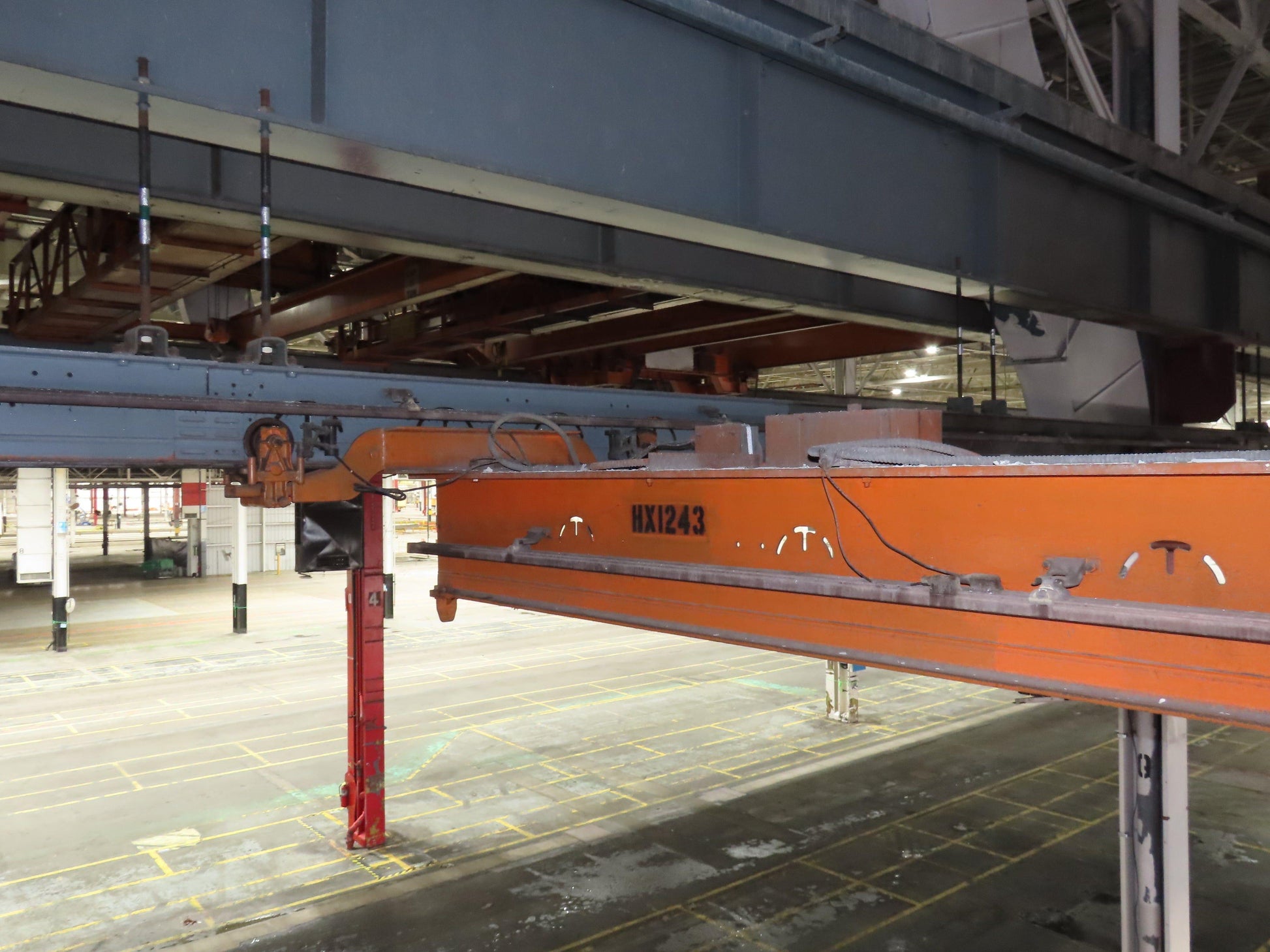

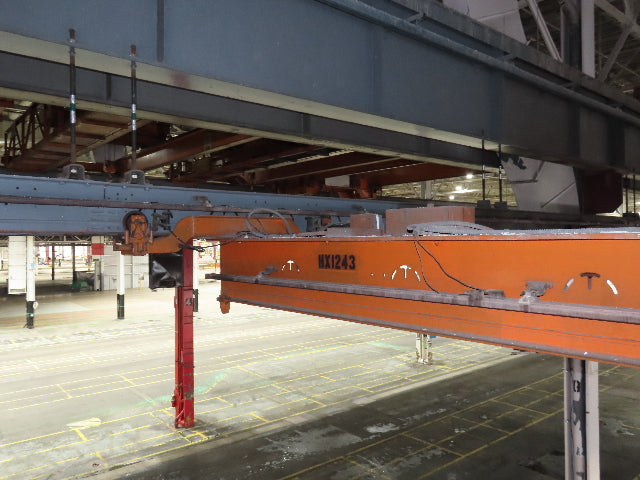

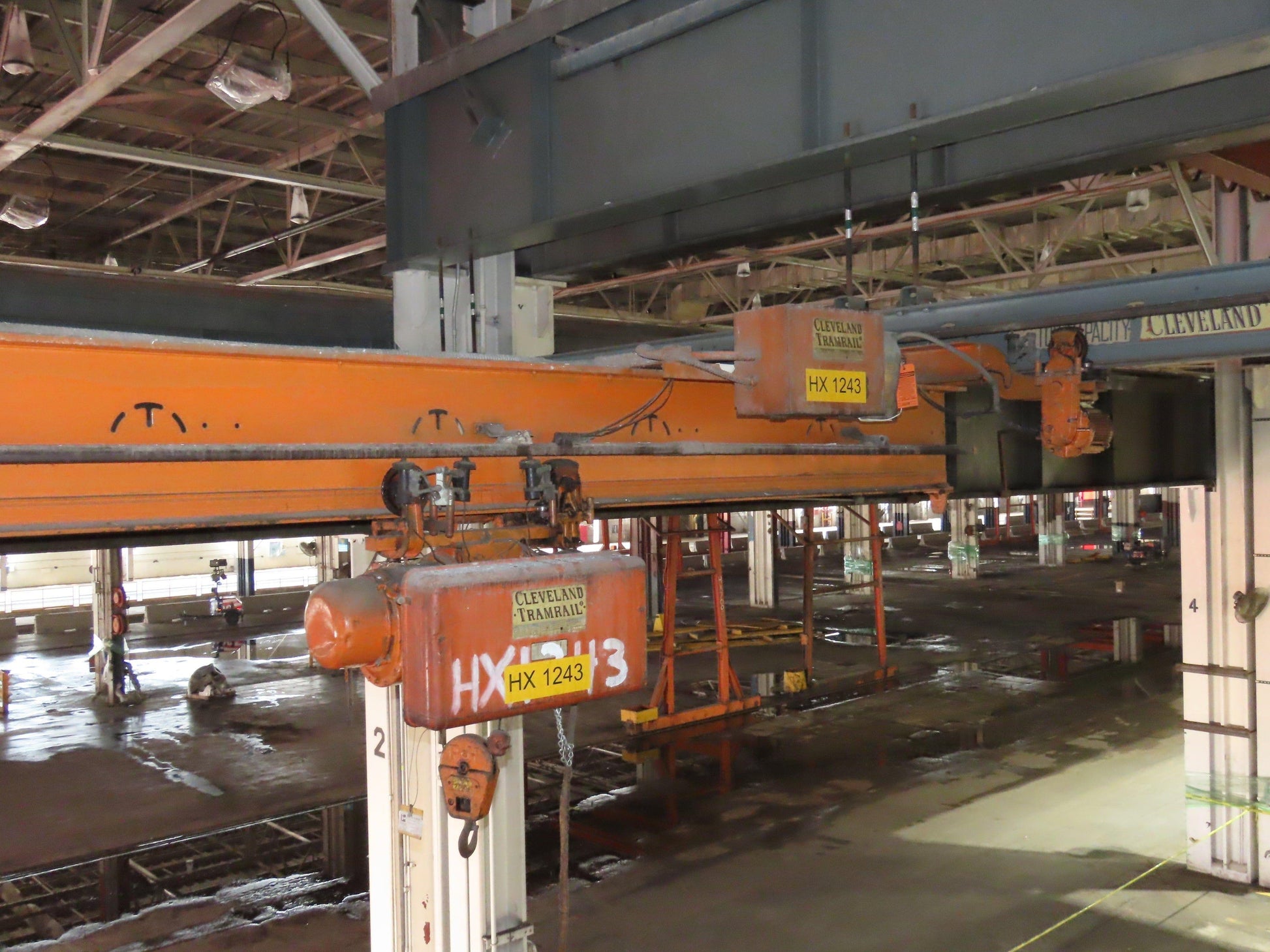

HX1243
Condition
Used
  • Capacity (tons): 1
  • Capacity (lb): 2000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 46'
  • Main Girder Beam Size (Height x Width x Length): 18"H x 9.5"W x 47' 10" Length (3.25" bottom flange)

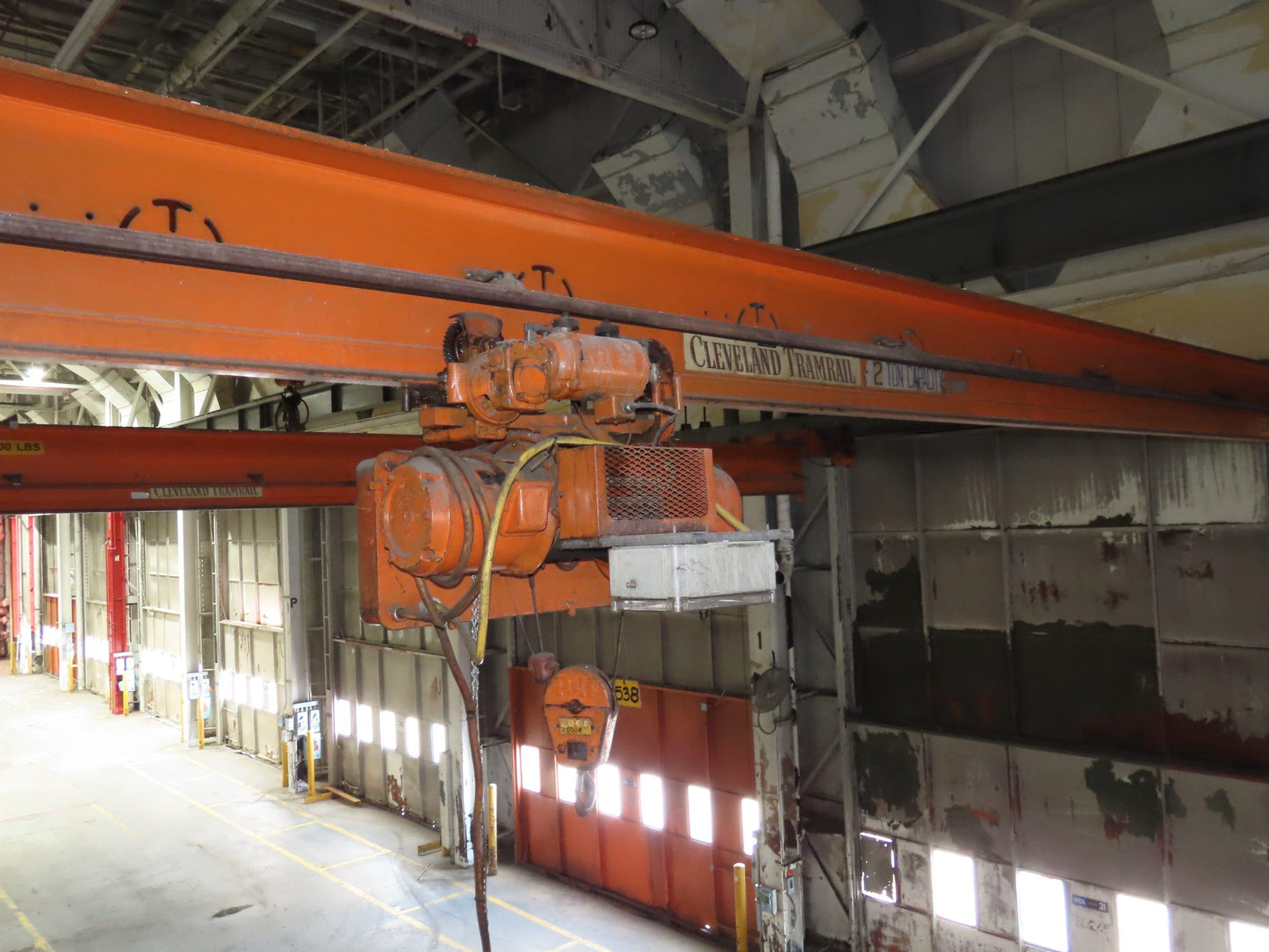

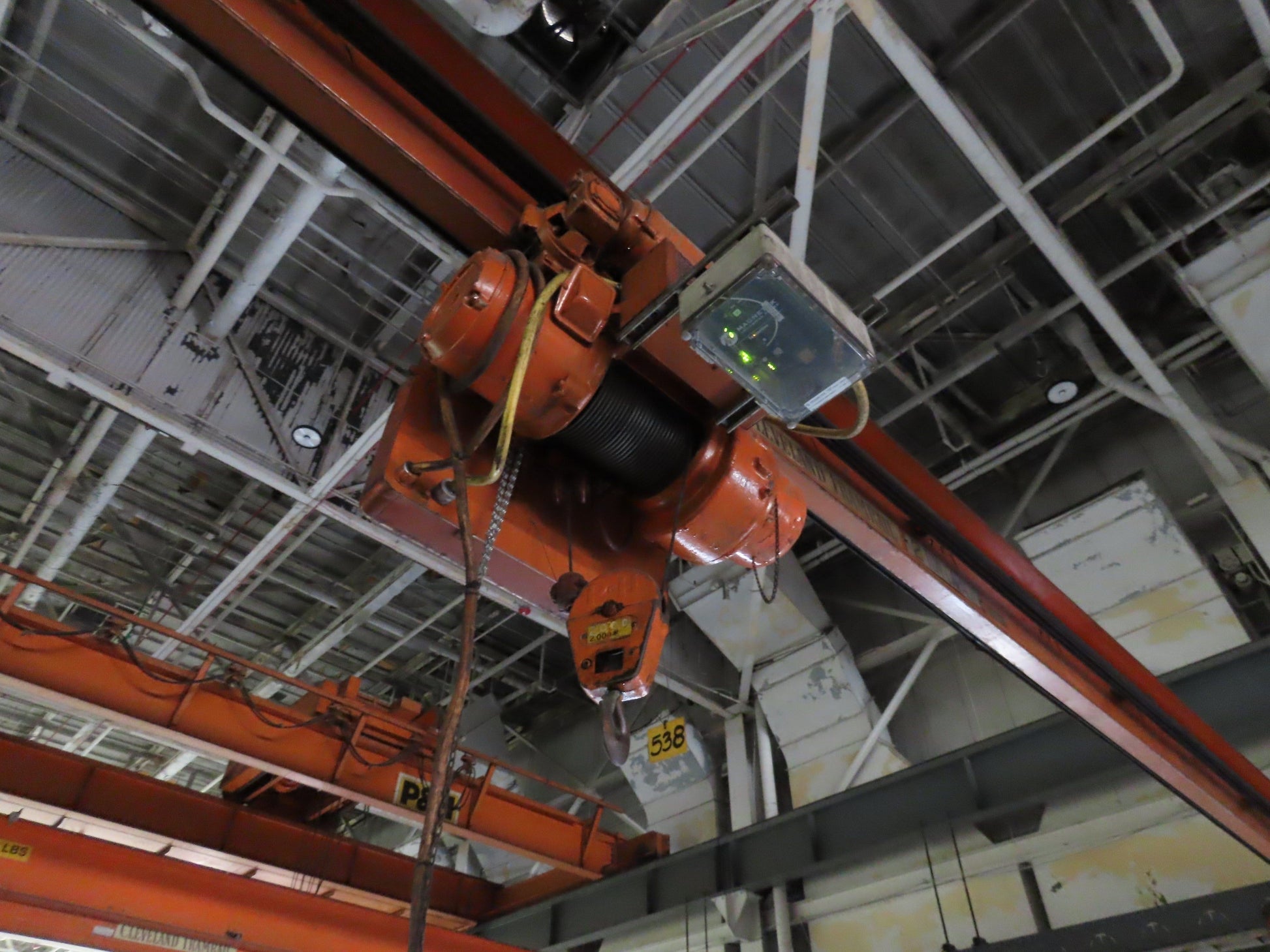

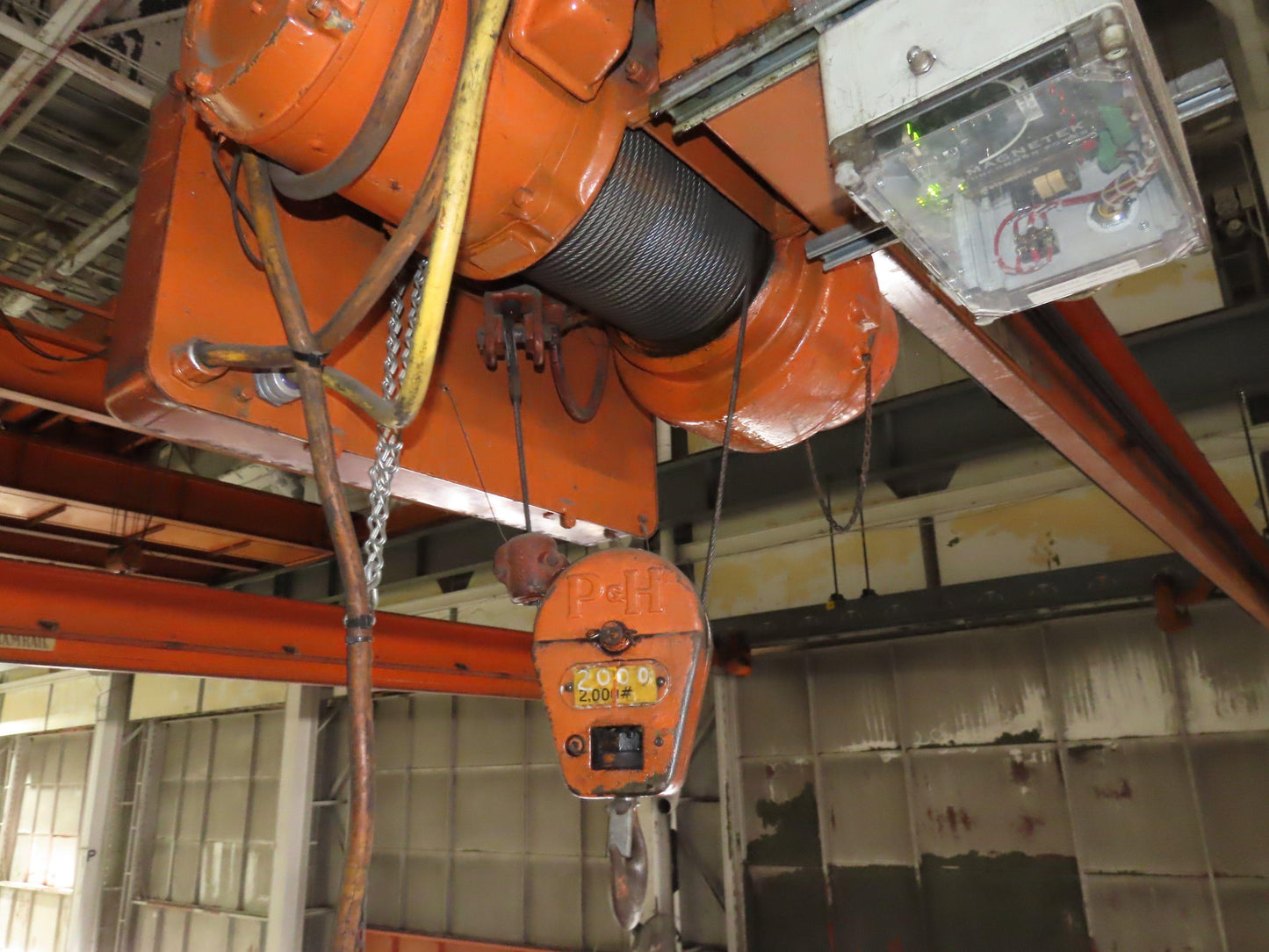

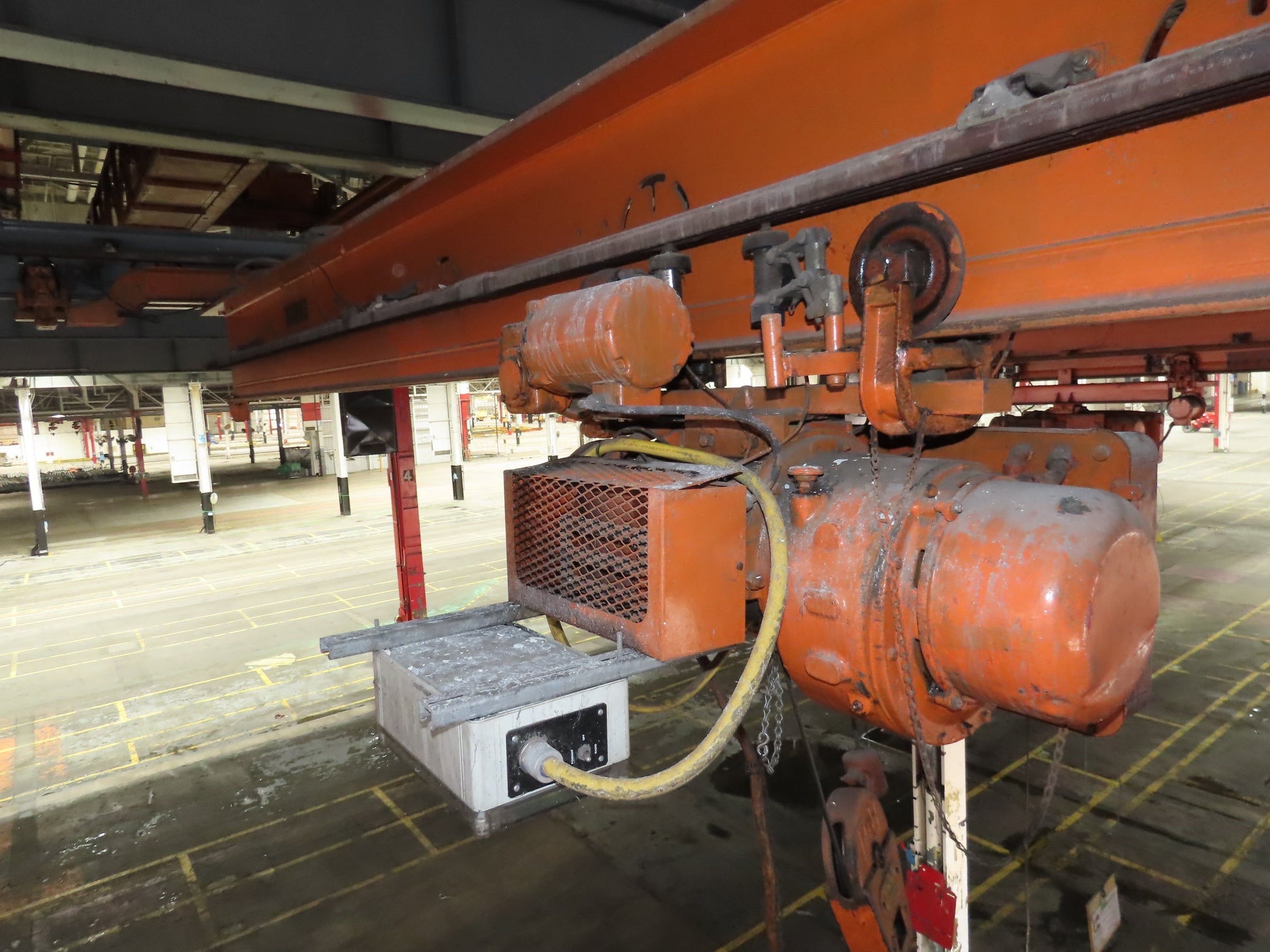

  • Hoist Brand: P&H
  • Lift Travel (feet): 26' 7"
  • Lift Speed (feet per minute): 20
  • Motor Horse Power: 3
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 18'
  • Hoist Power Trolley Speed (feet per minute): 80
  • Hoist Trolley Length of Travel: 44' 6"
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 38"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 56"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 64"
  • Bridge Crane is in working condition.  Tested on site before removal.

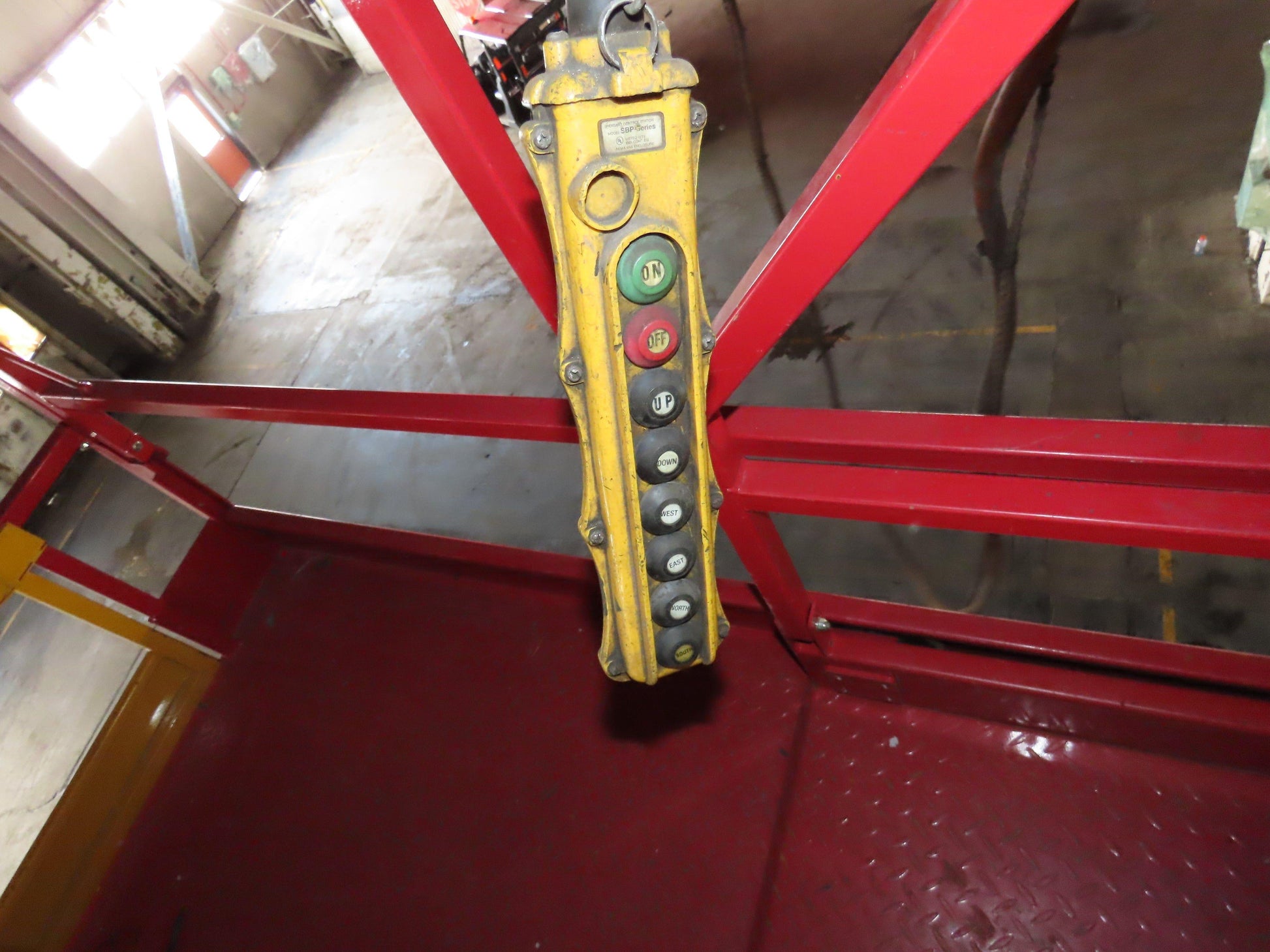

  • Includes corded pendant only.  Set up for wireless but is missing the remote.
  • Single speed bridge, trolley and hoist.

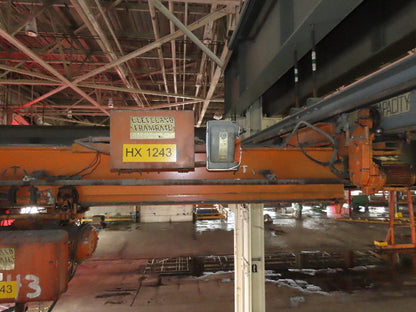

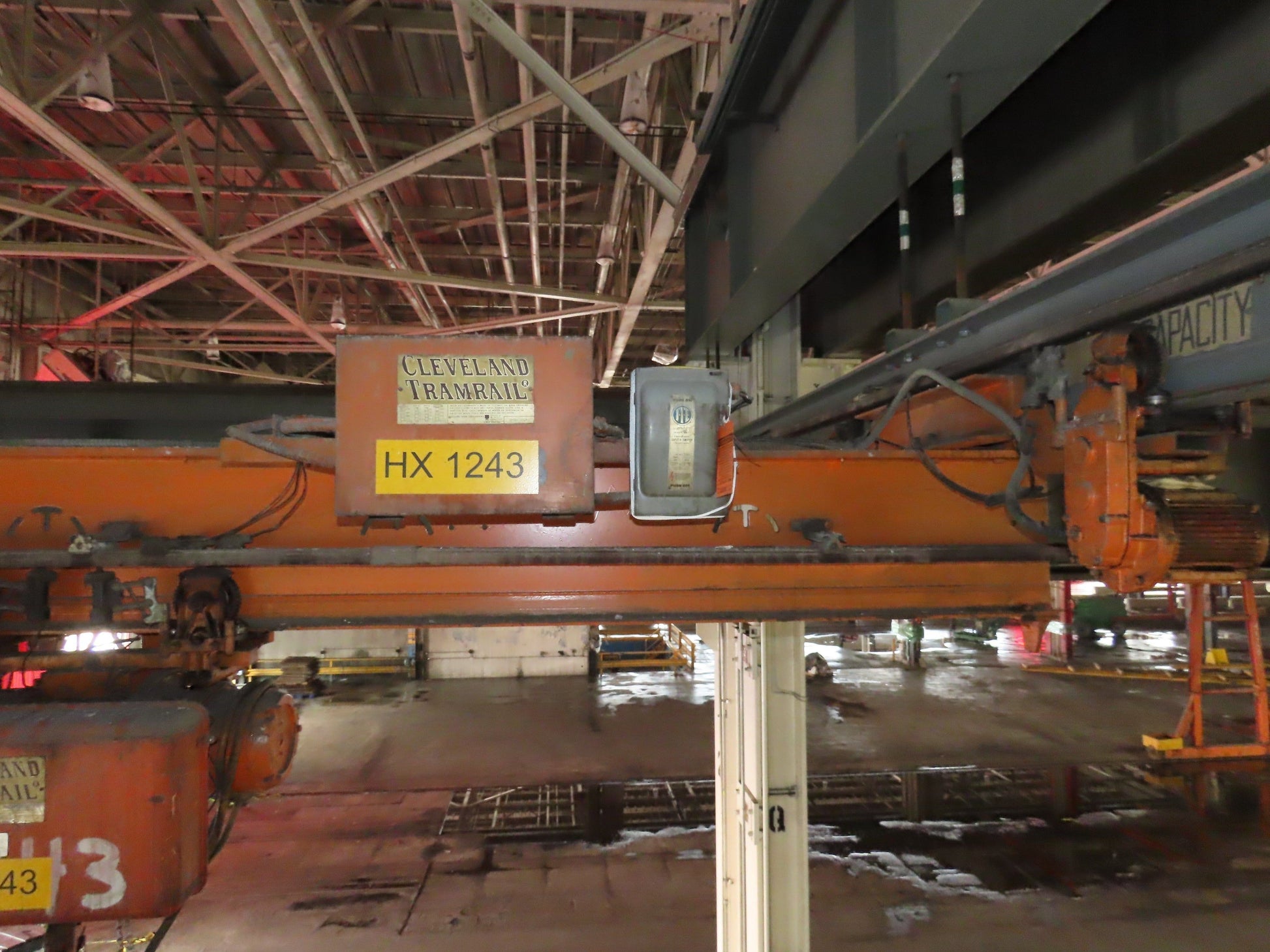

  • End truck length: 68"
