Cleveland Tramrail

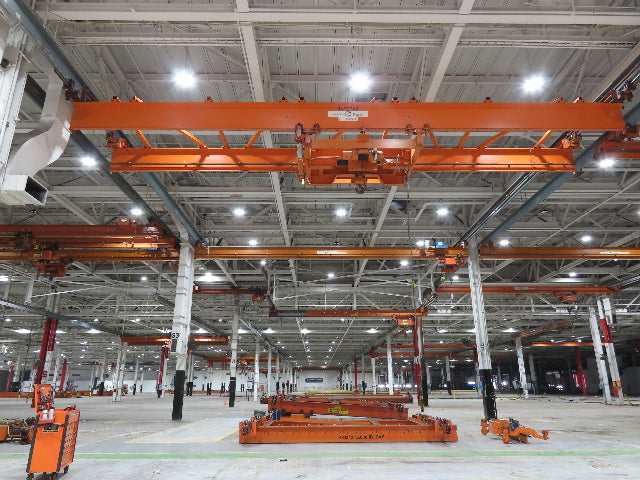

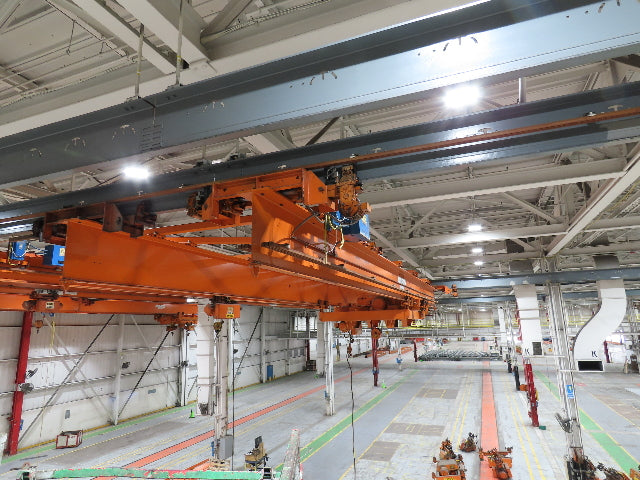

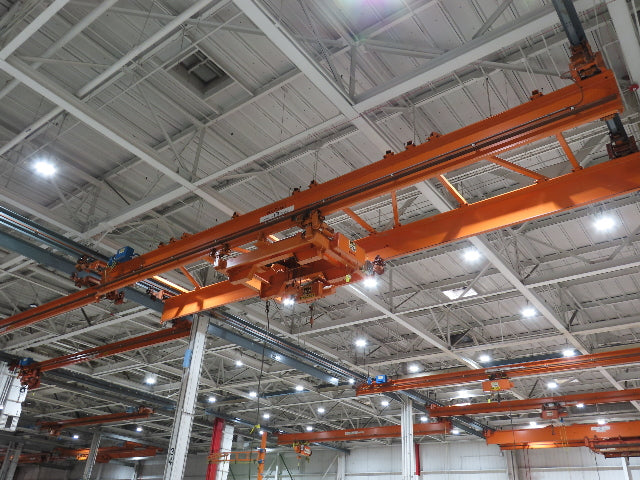

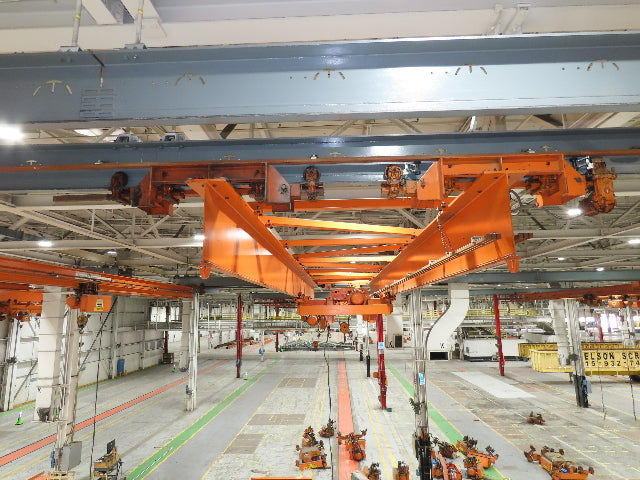

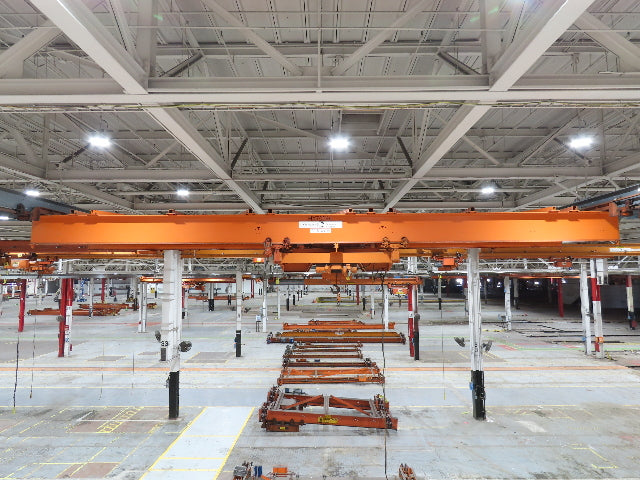

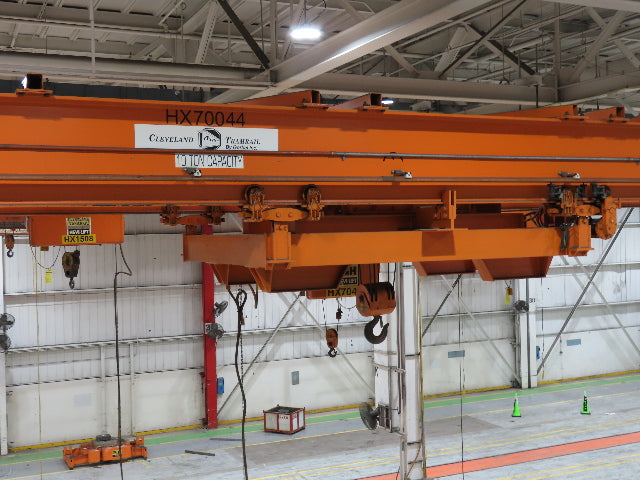

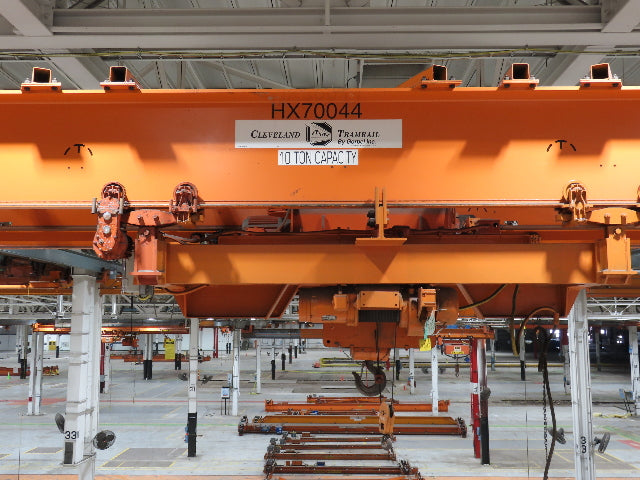

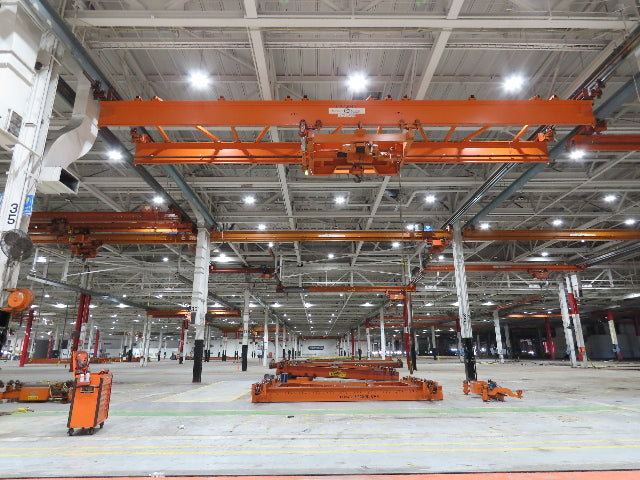

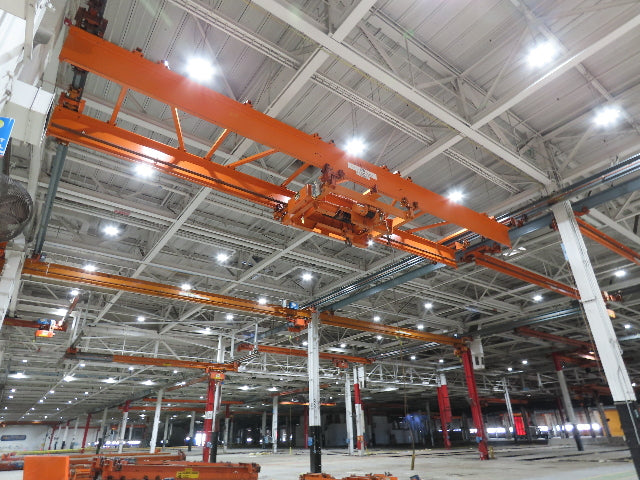

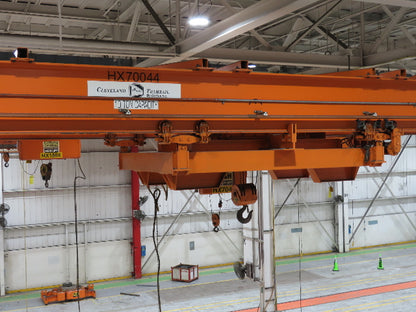

Cleveland Tramrail P&H 10 Ton Double Girder Bridge Crane 45' 10" Span w/Remote

Cleveland Tramrail P&H 10 Ton Double Girder Bridge Crane 45' 10" Span w/Remote

SKU #262300

Product Condition: Used

Your Price
$17,099.99
$19,999.99 $17,099.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail
Model
P&H Hevi-Lift
MPN
HX70044
Condition
Used
  • Capacity (tons): 10
  • Capacity (lb): 20000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung

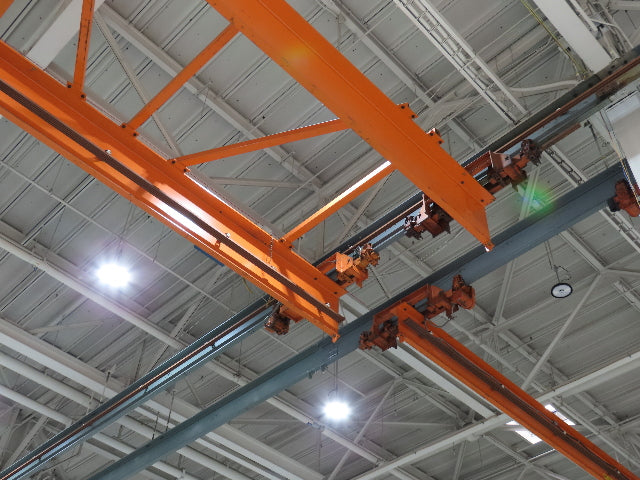

  • Runway Beam Distance Between Centers (Span): 45' 10"
  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 47' 10" Length (3.25" flange)

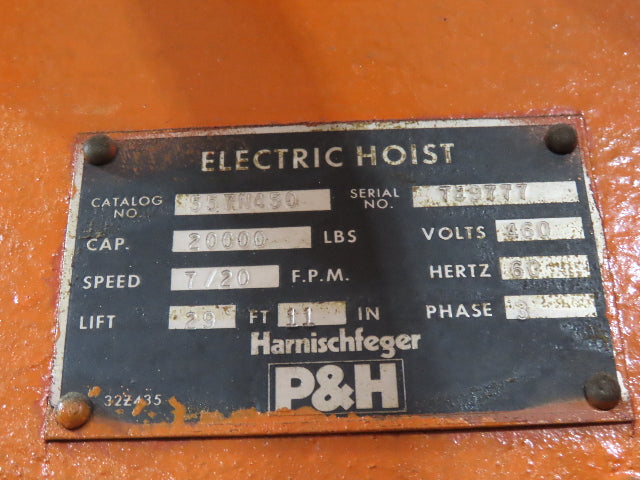

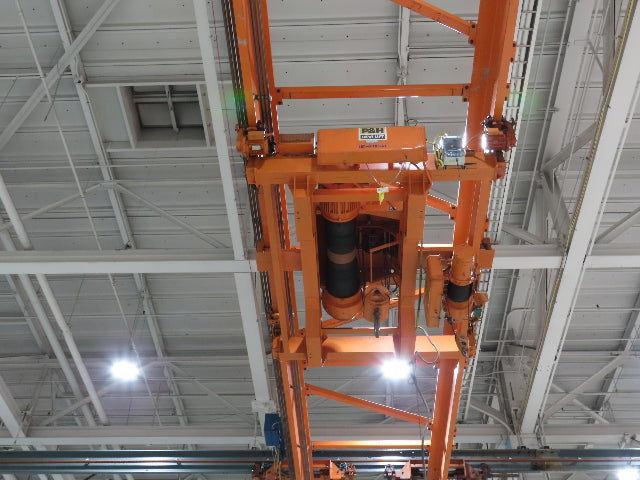

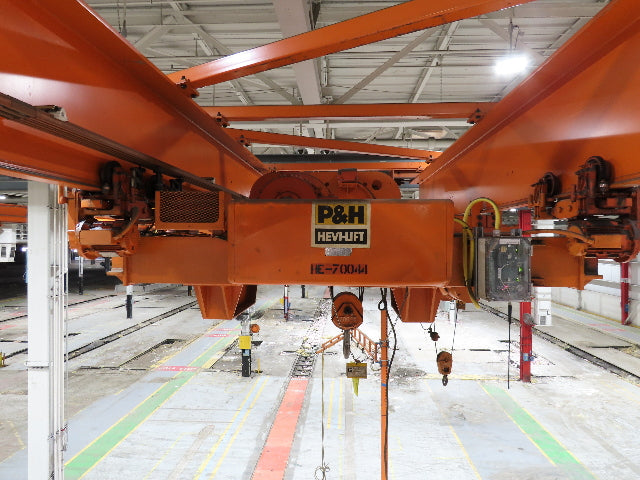

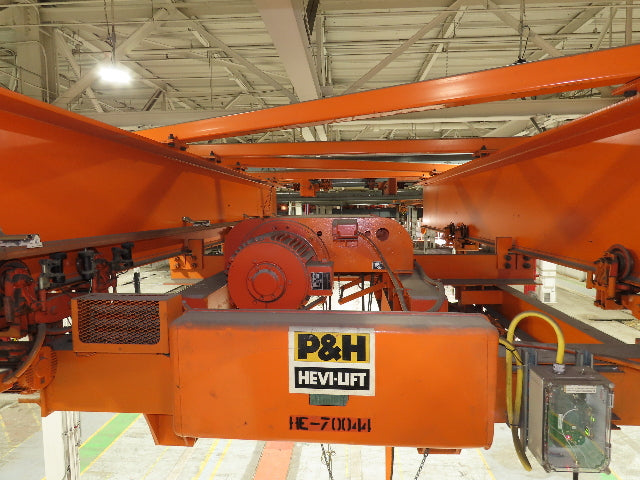

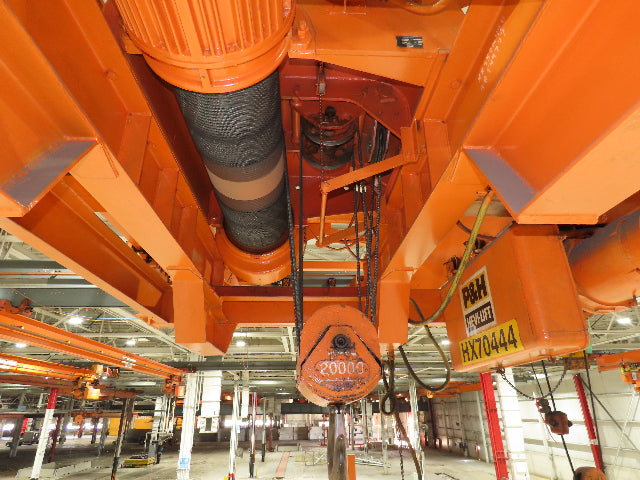

  • Hoist Brand: P&H
  • Lift Travel (feet): 29' 11"
  • Lift Speed (feet per minute): 7/20
  • Motor Horse Power: 15
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 23'
  • Hoist Power Trolley Speed (feet per minute): 80
  • Hoist Trolley Length of Travel: 35'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 52"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 82"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 90"
  • Bridge Crane is in working condition.  Tested on site before removal.

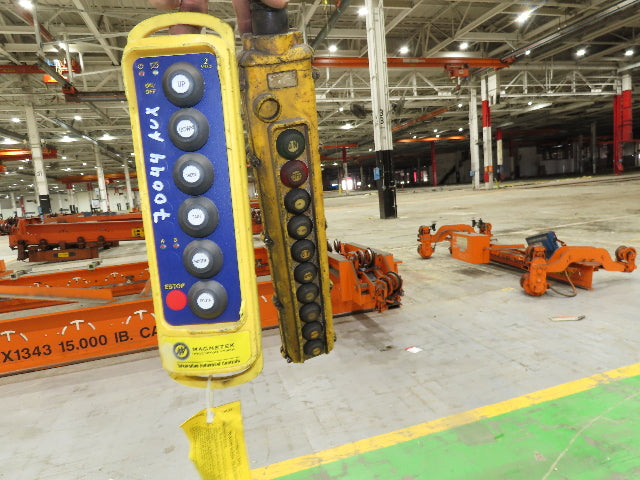

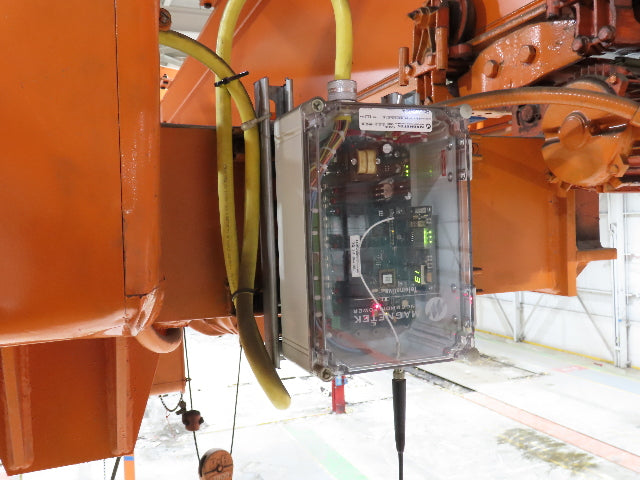

  • Includes corded and wireless pendants.

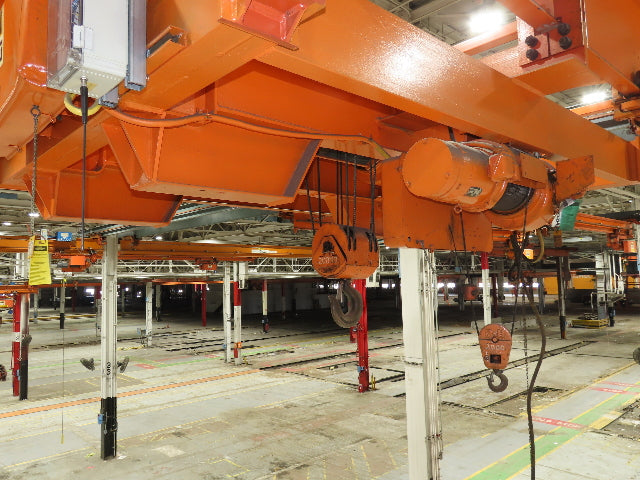

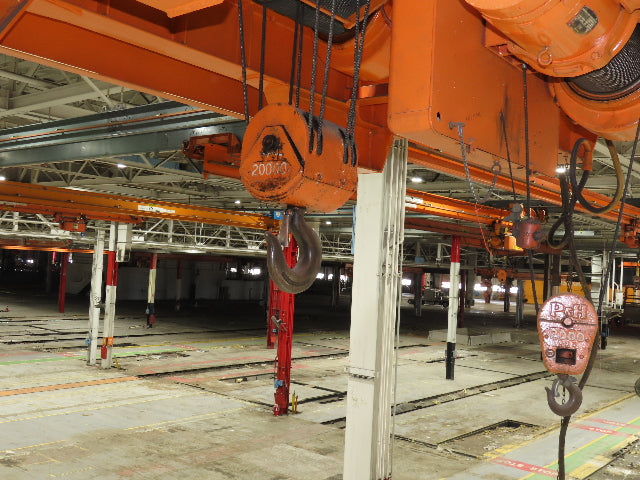

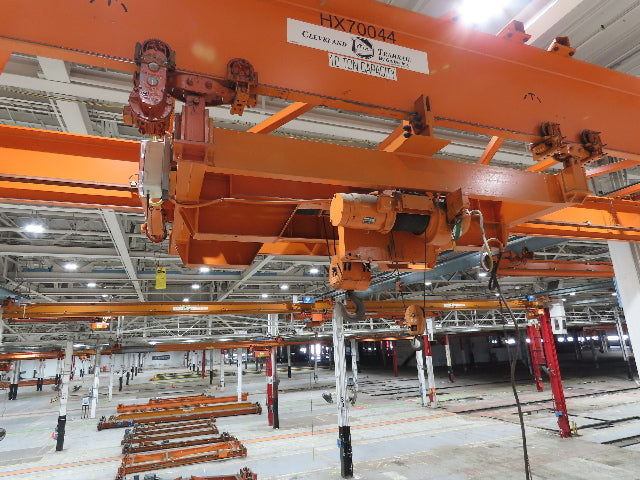

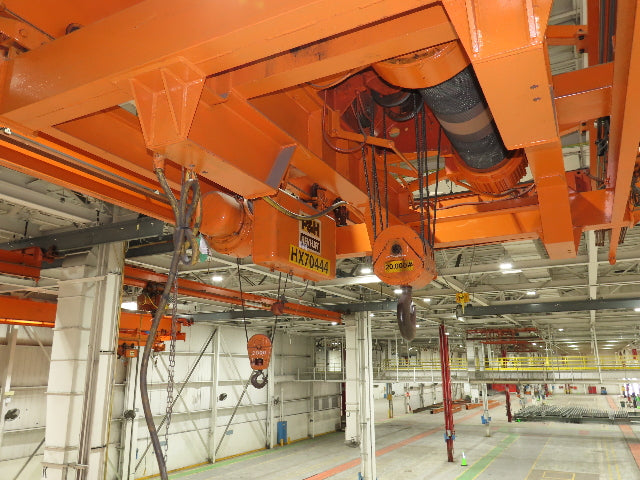

  • Set up with a 1-ton auxilliary hoist also controlled with the remote. Hook hangs 10" lower than the main hook.
  • Single speed bridge and trolley, 2-speed hoist.
  • End truck length: 76"
  • Girder beam span: 8'
  • Overall width: 14' 6" (End truck to end truck)
