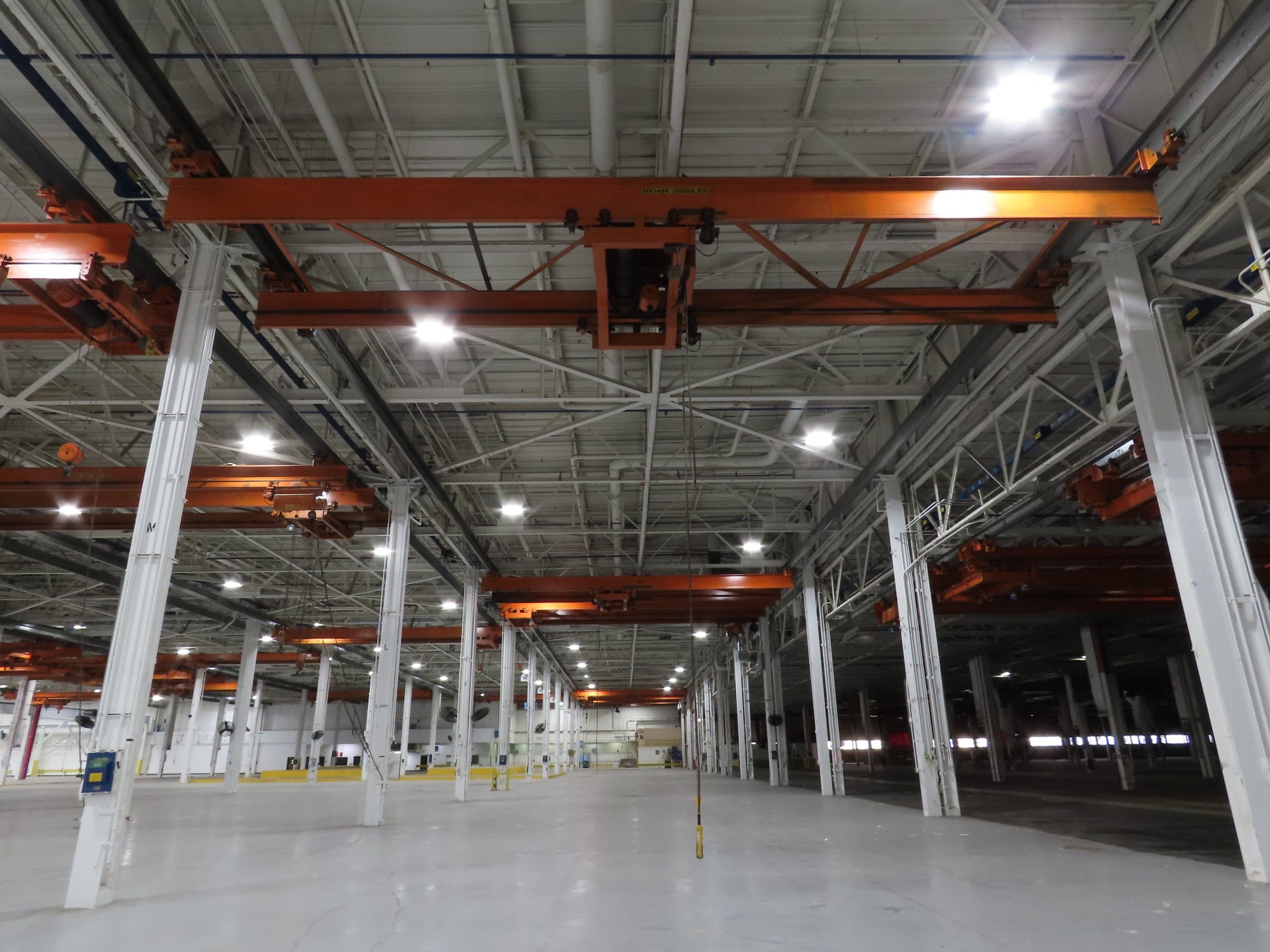

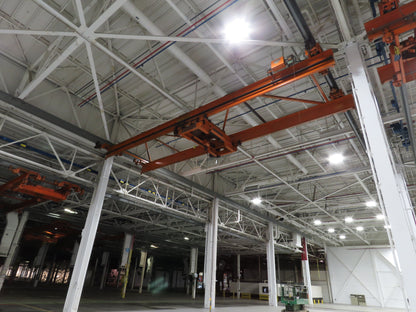

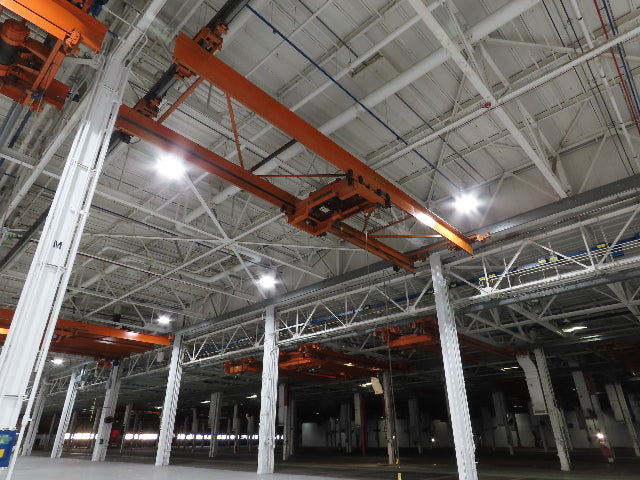

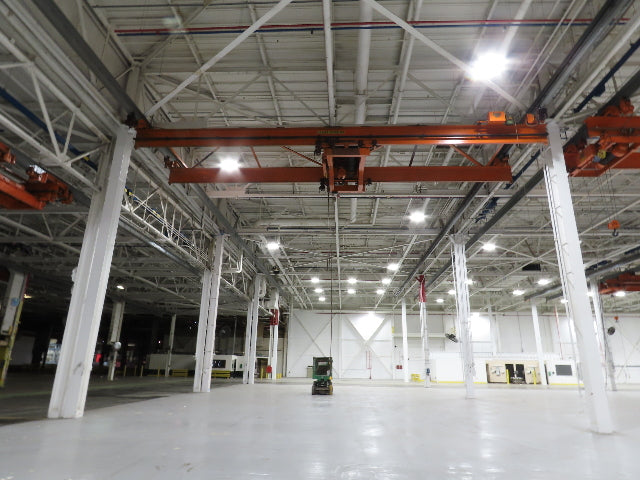

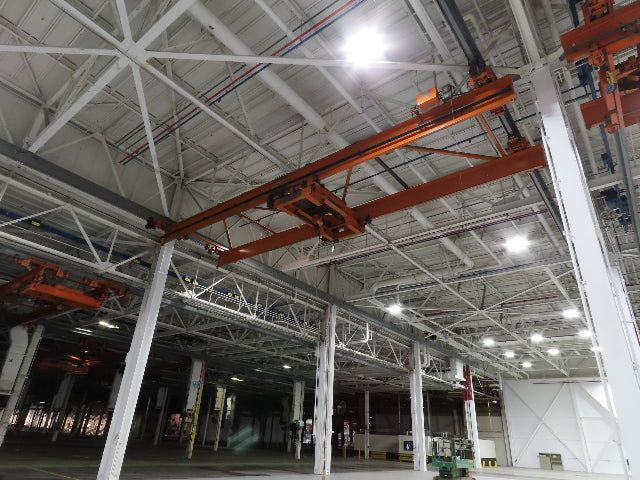

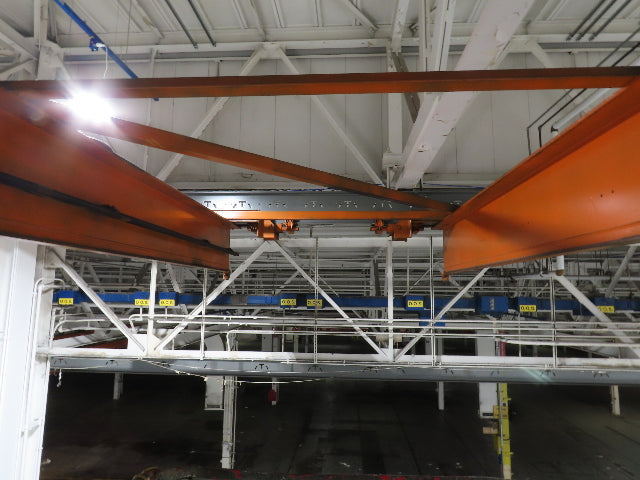

Cleveland Tramrail P&H 10 Ton Double Girder Underhung Bridge Crane 43' Span

Cleveland Tramrail P&H 10 Ton Double Girder Underhung Bridge Crane 43' Span

SKU #268200

Product Condition: Used

Your Price
$15,389.99
$17,999.99 $15,389.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail P&H
Model

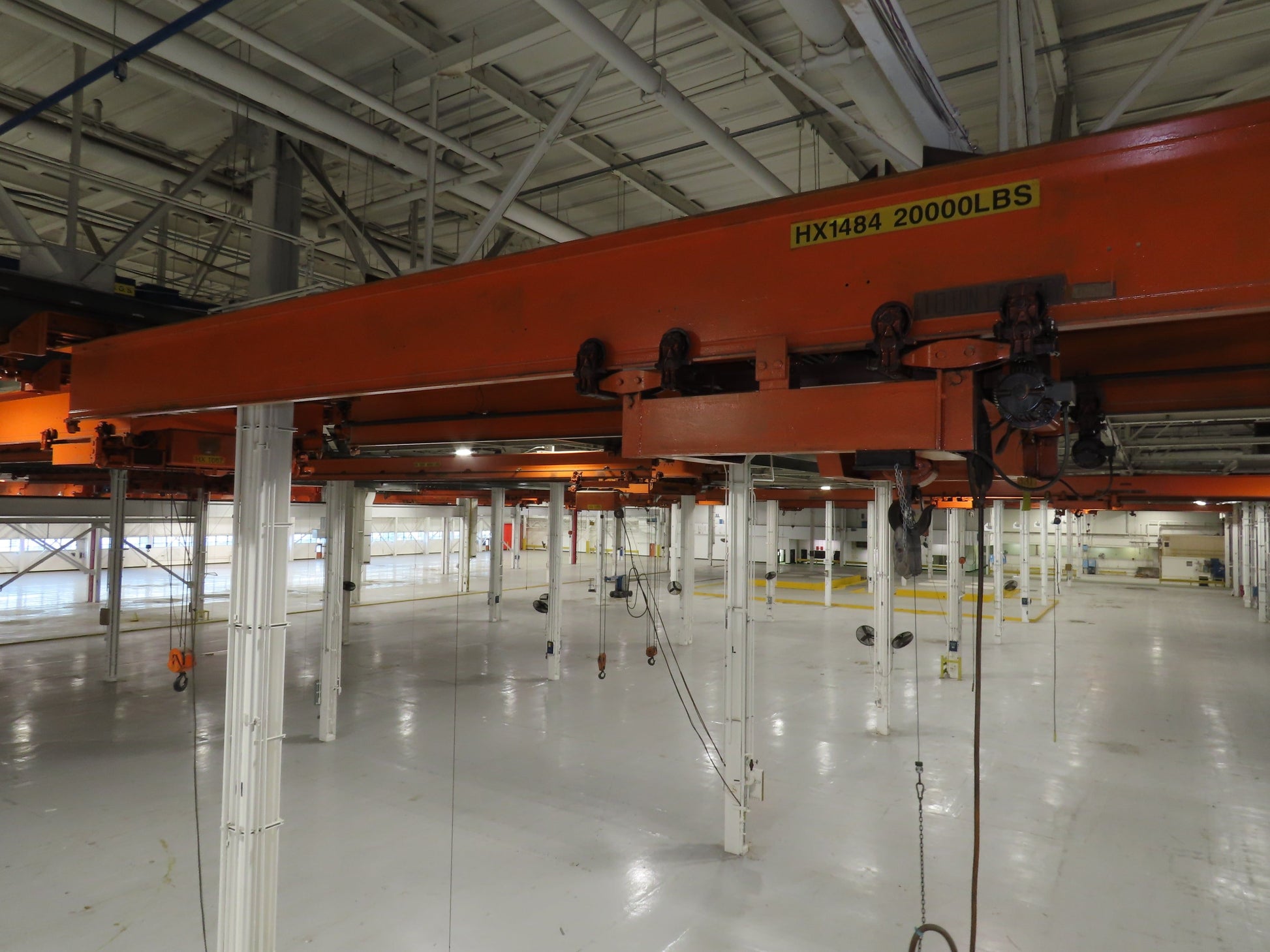

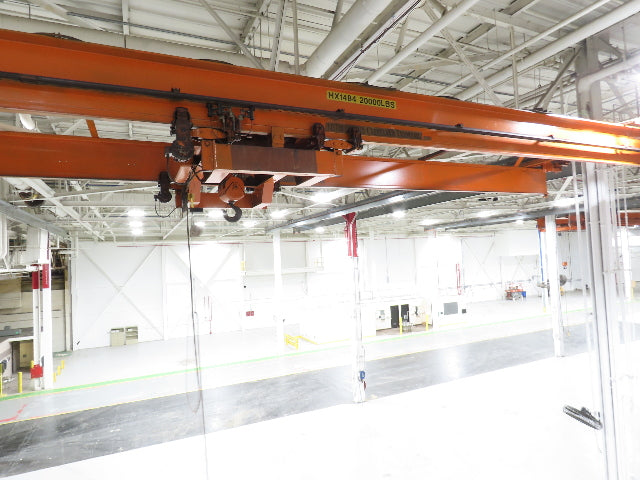

HX1484
MPN
N/A
Condition
Used
  • Capacity (tons): 10
  • Capacity (lb): 20000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 43'

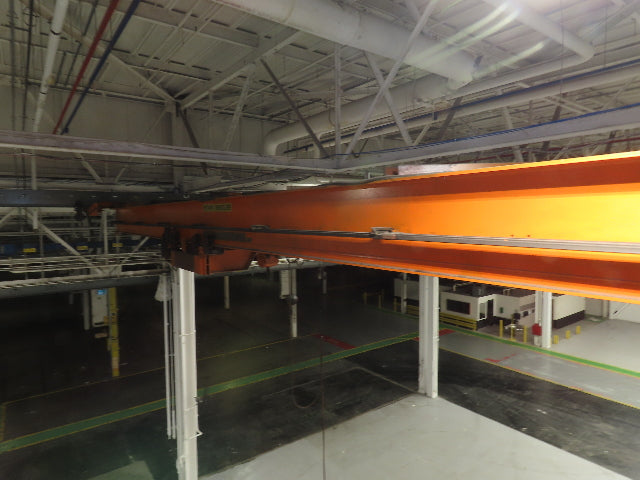

  • Main Girder Beam Size (Height x Width x Length): 24"H x 12.5"W x 45' 6"L 3.25" Flange

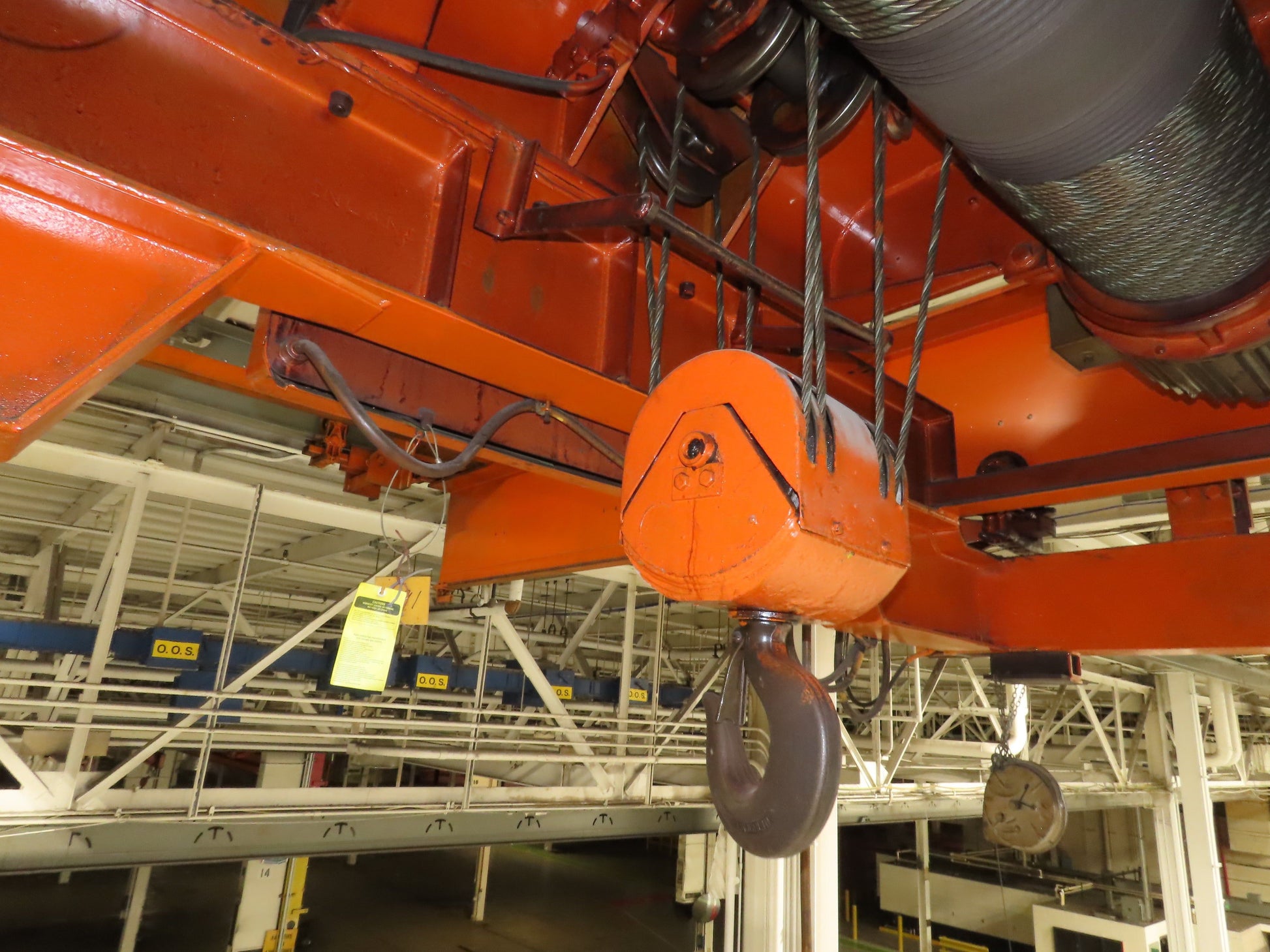

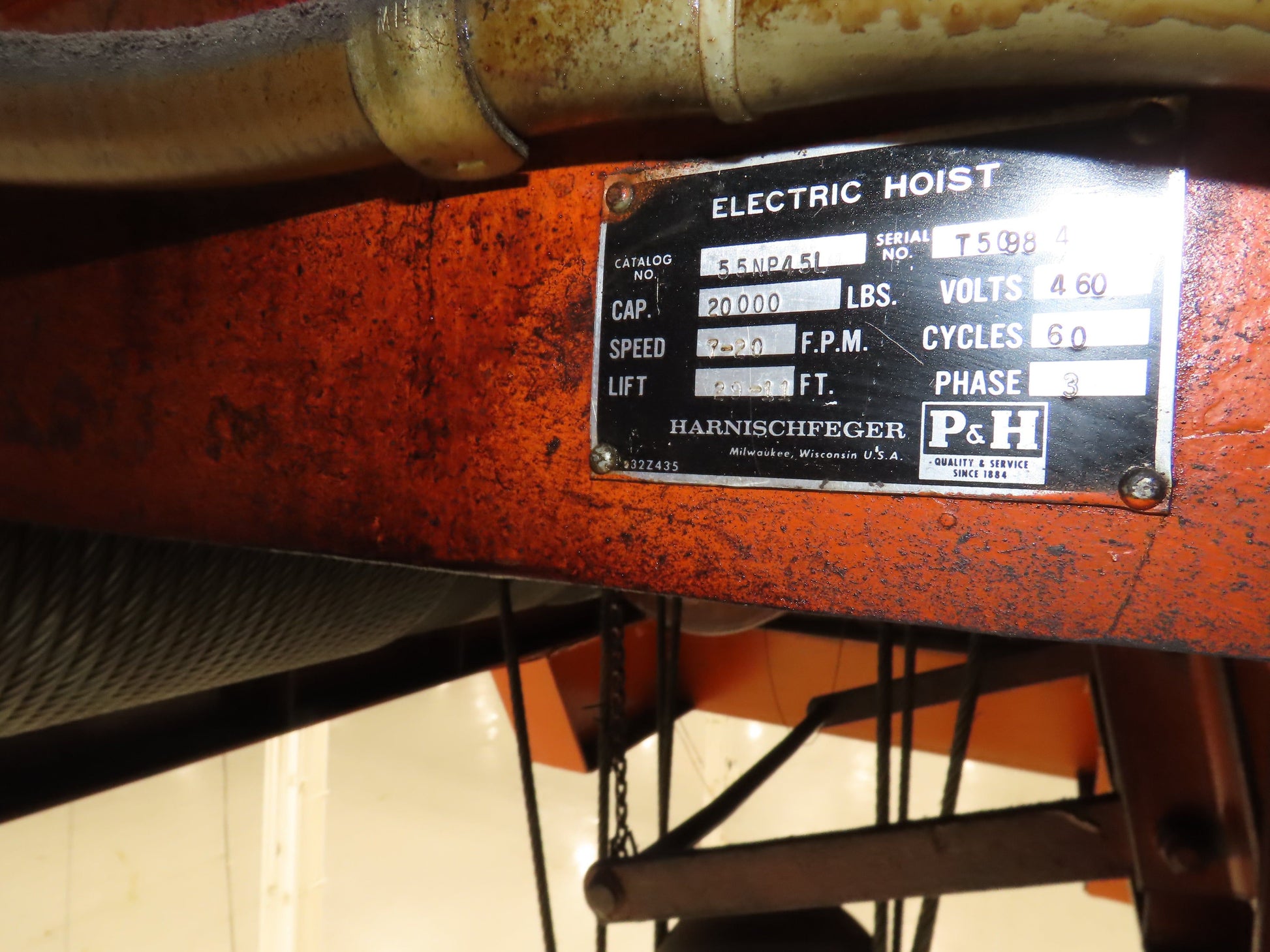

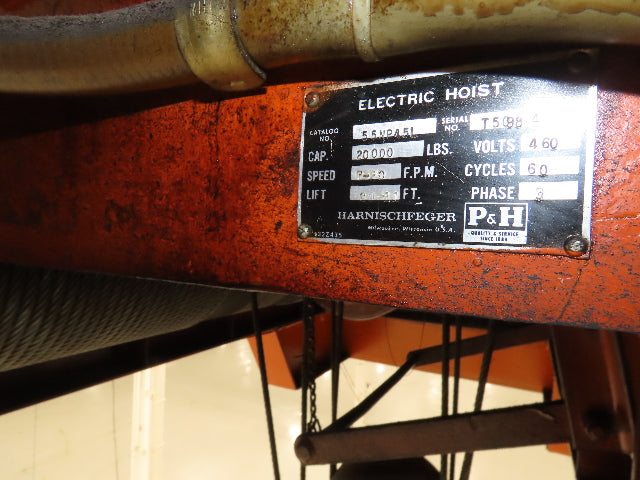

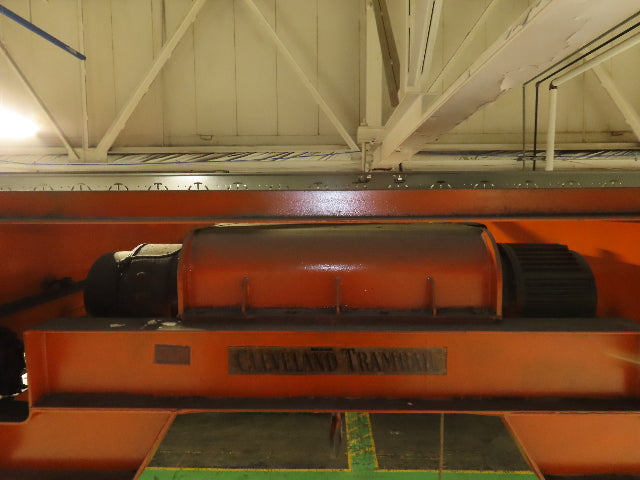

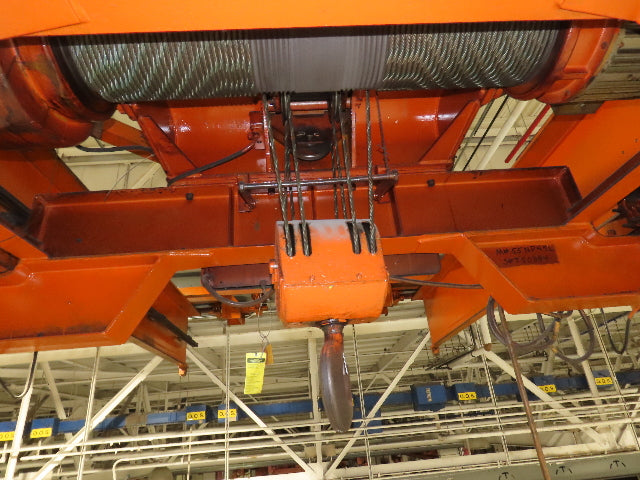

  • Hoist Brand: P&H
  • Hoist Model: 55NP45L
  • Lift Travel (feet): 29' 11"
  • Lift Speed (feet per minute): 7/20 FPM 2-Speed
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 30'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 31"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 56"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 65"
  • Bridge Crane is in working condition.  Tested on site before removal.

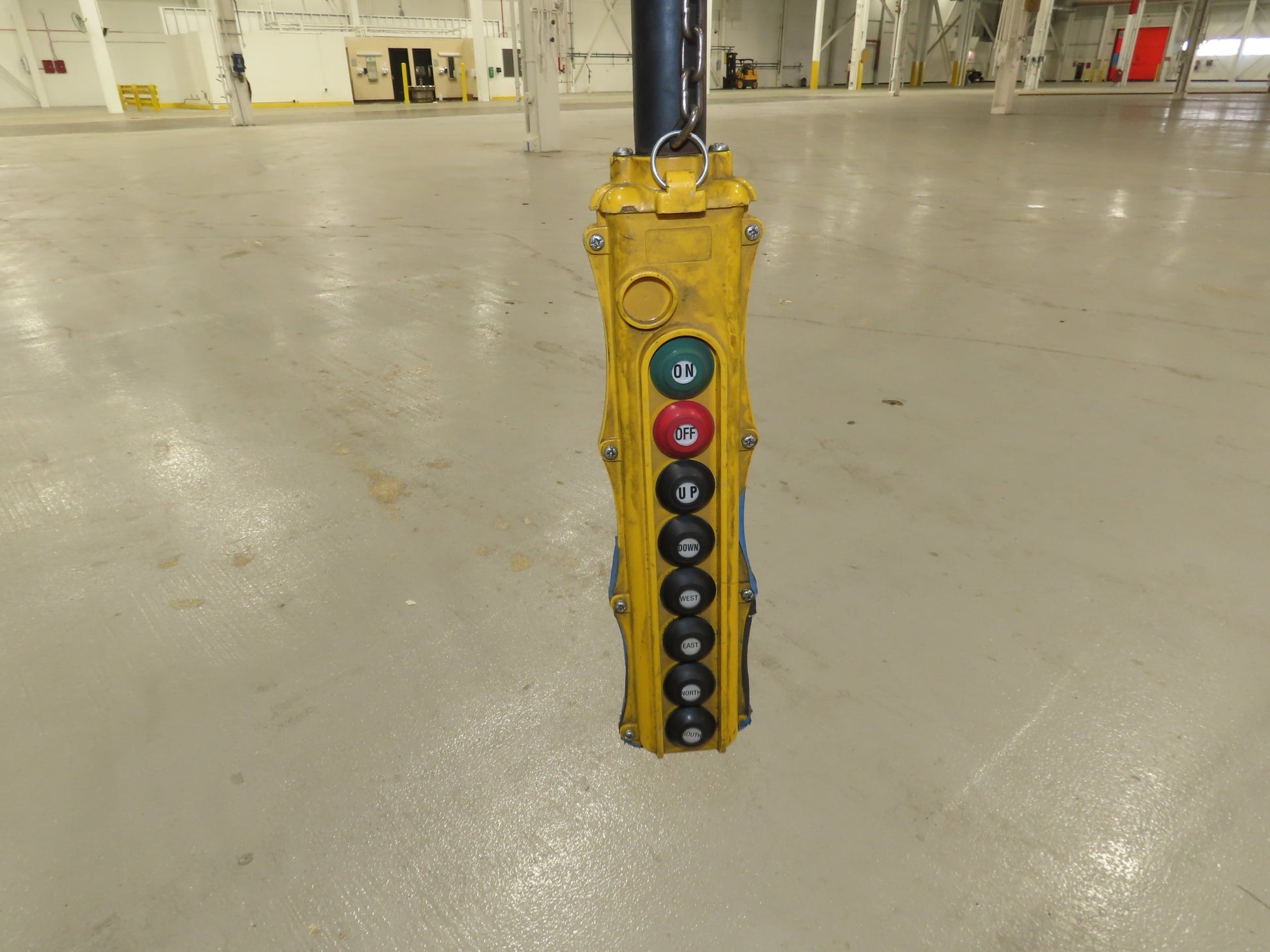

  • Includes corded pendant only.  Not set up for wireless.

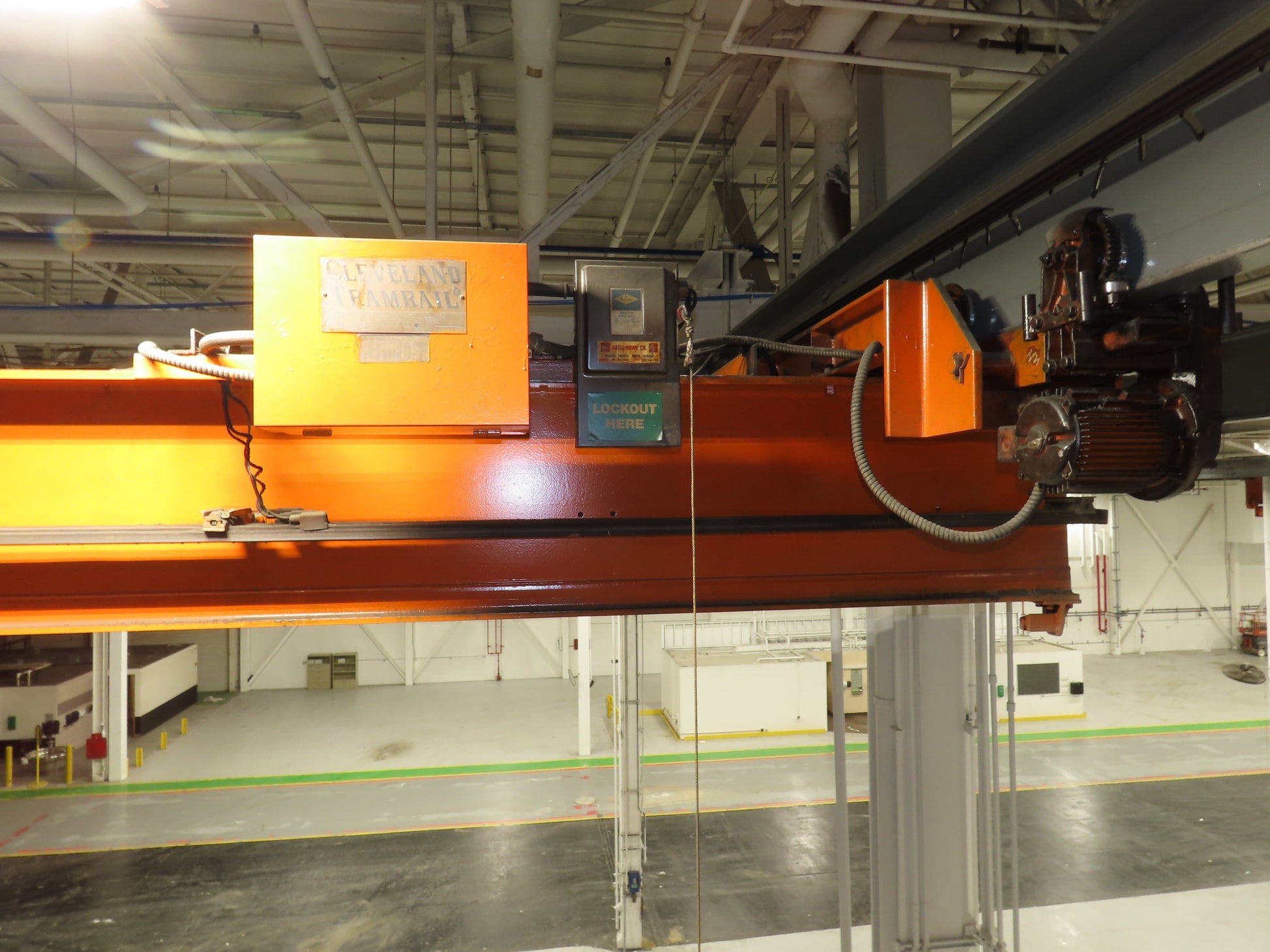

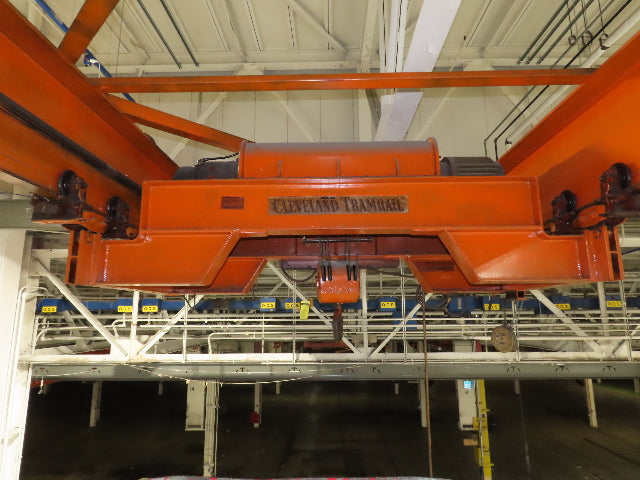

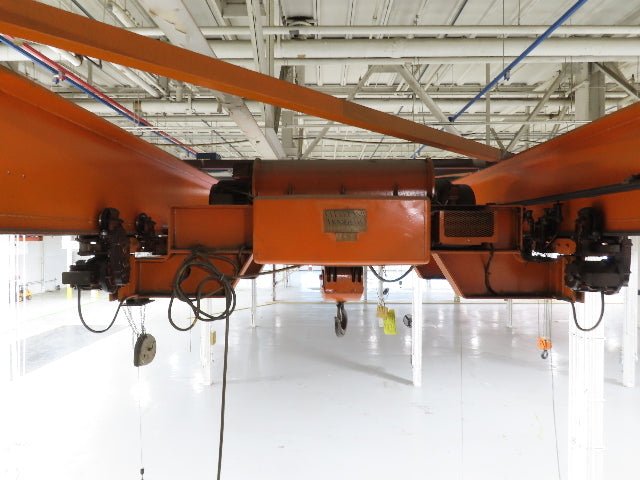

  • Trolley carriage length: 84"

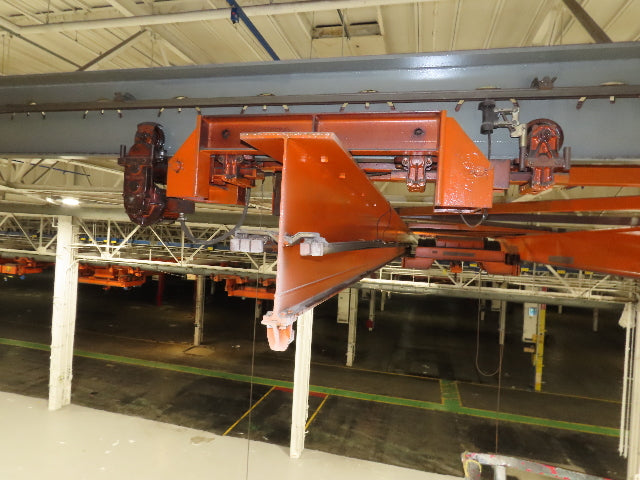

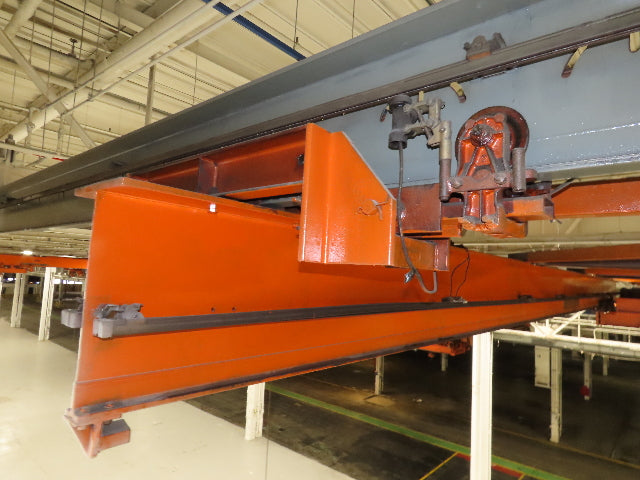

  • End truck length:  64"
  • End truck wheel size:  5"
  • Girder beam span: 9' 5"

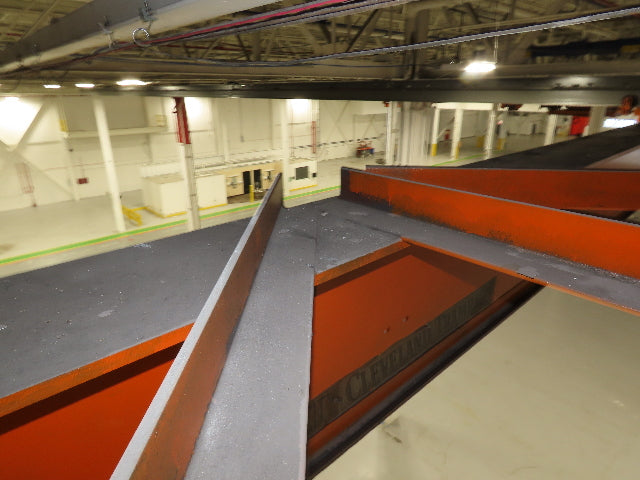

  • Top braces are welded on.
