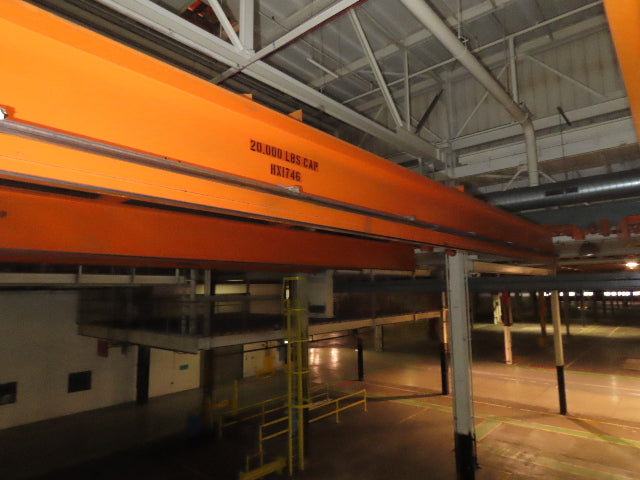

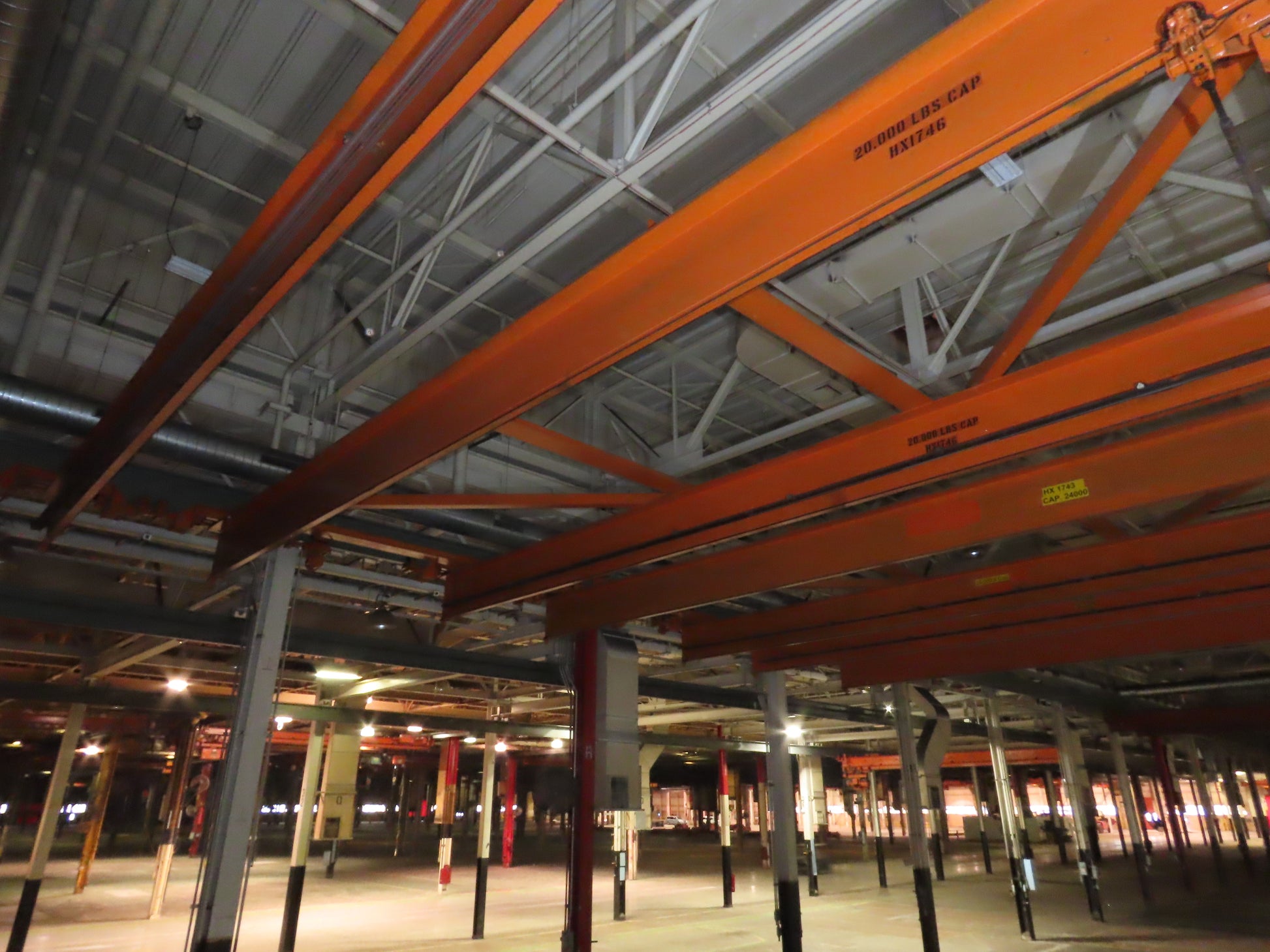

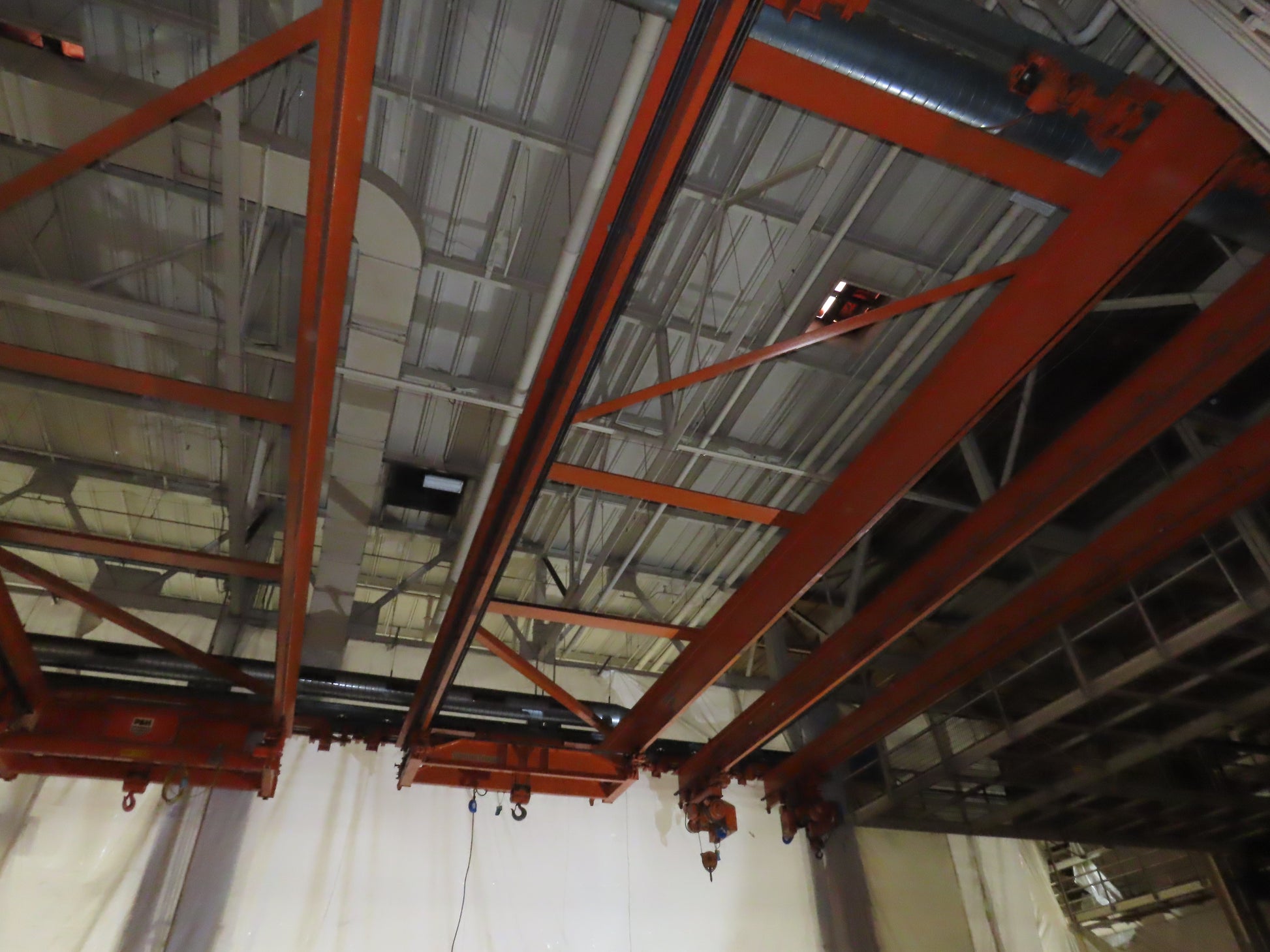

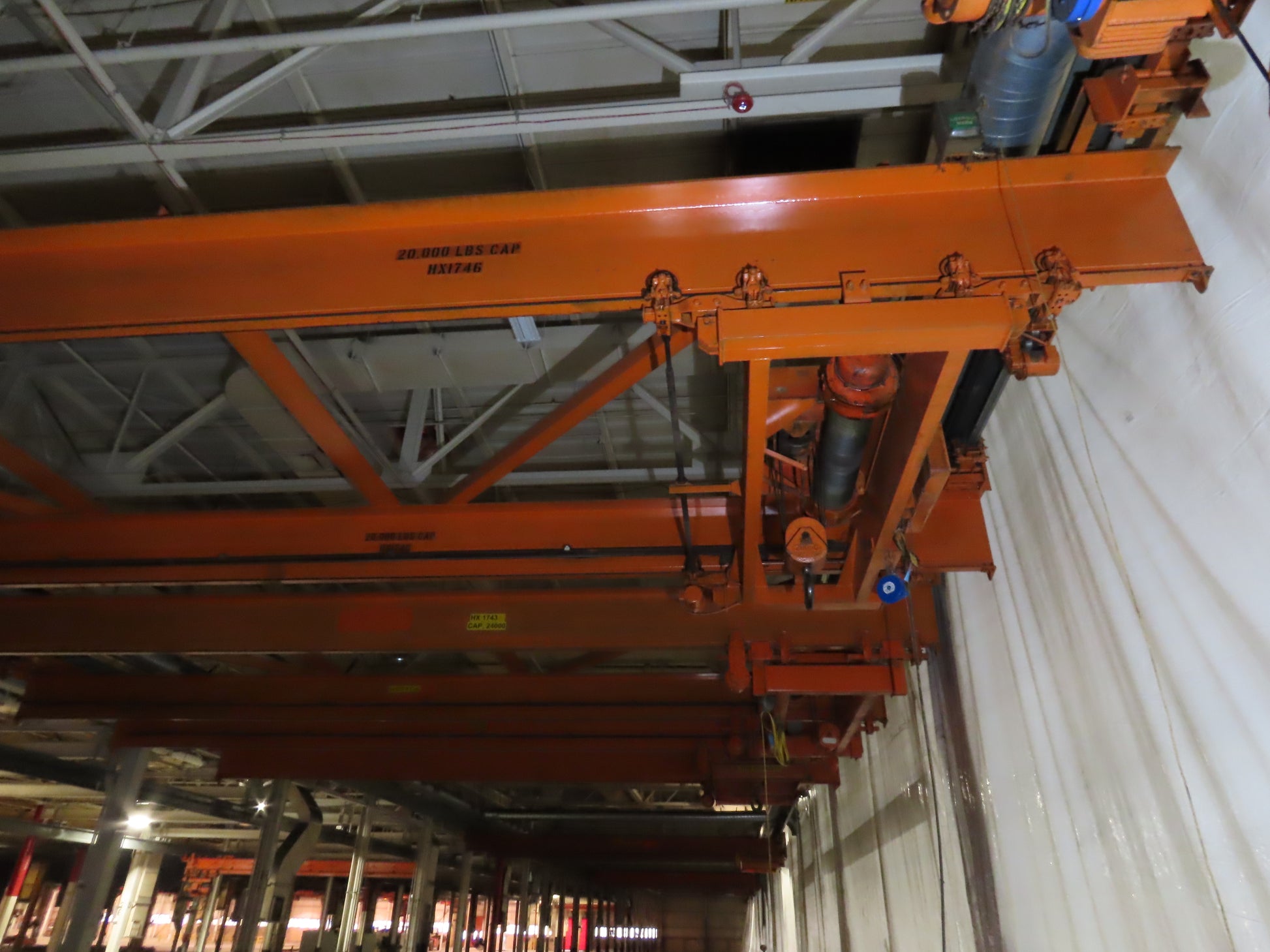

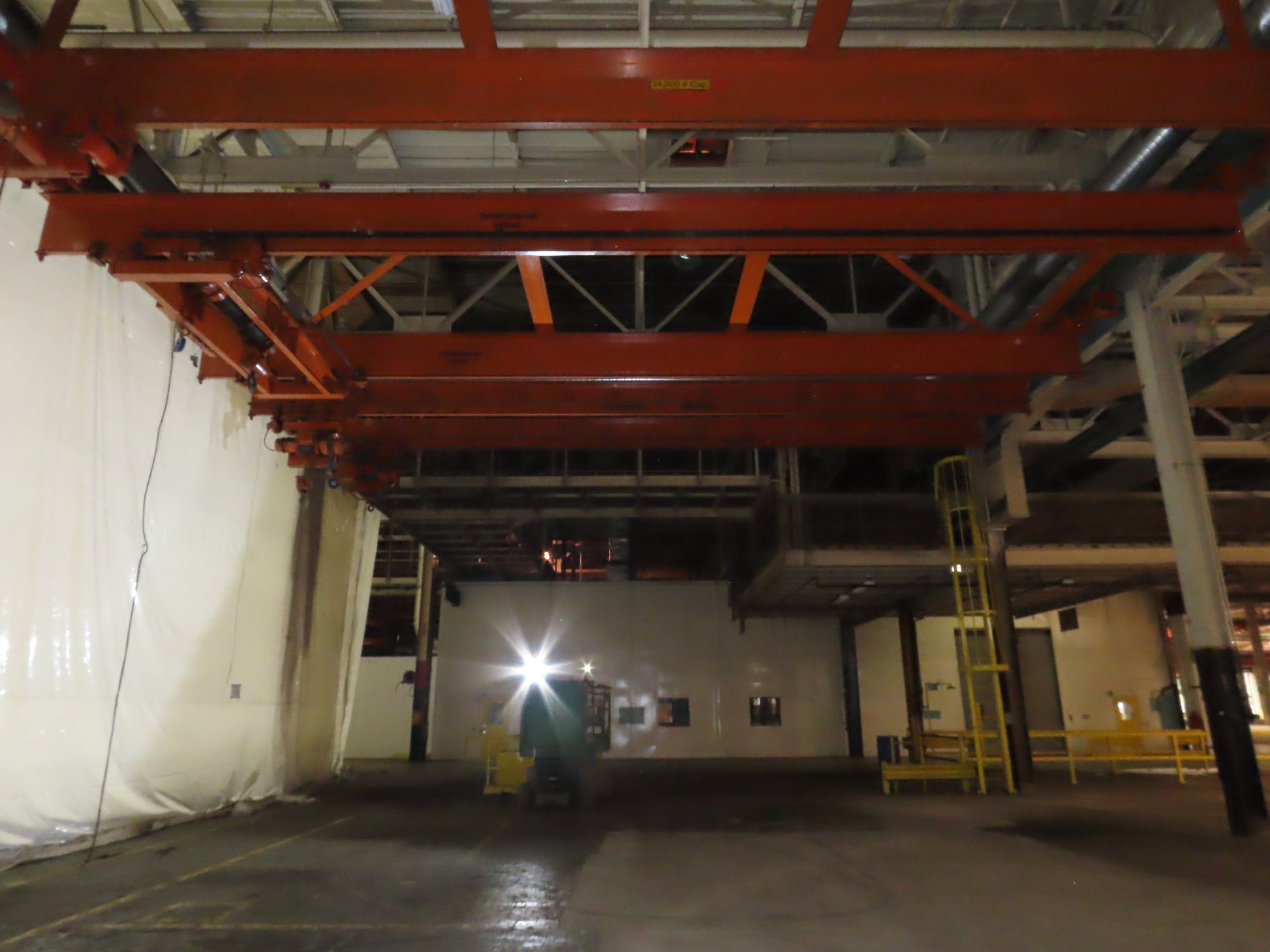

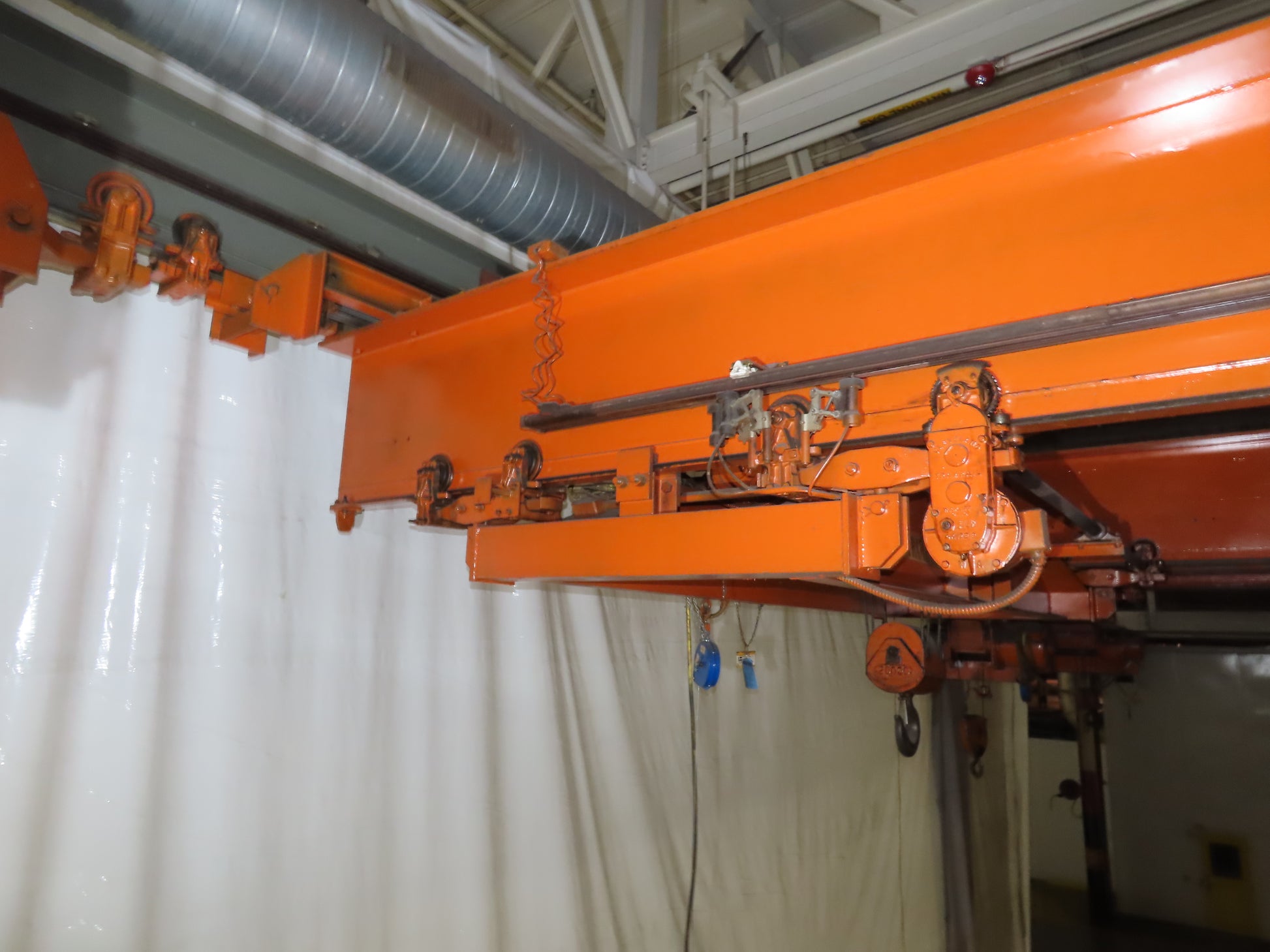

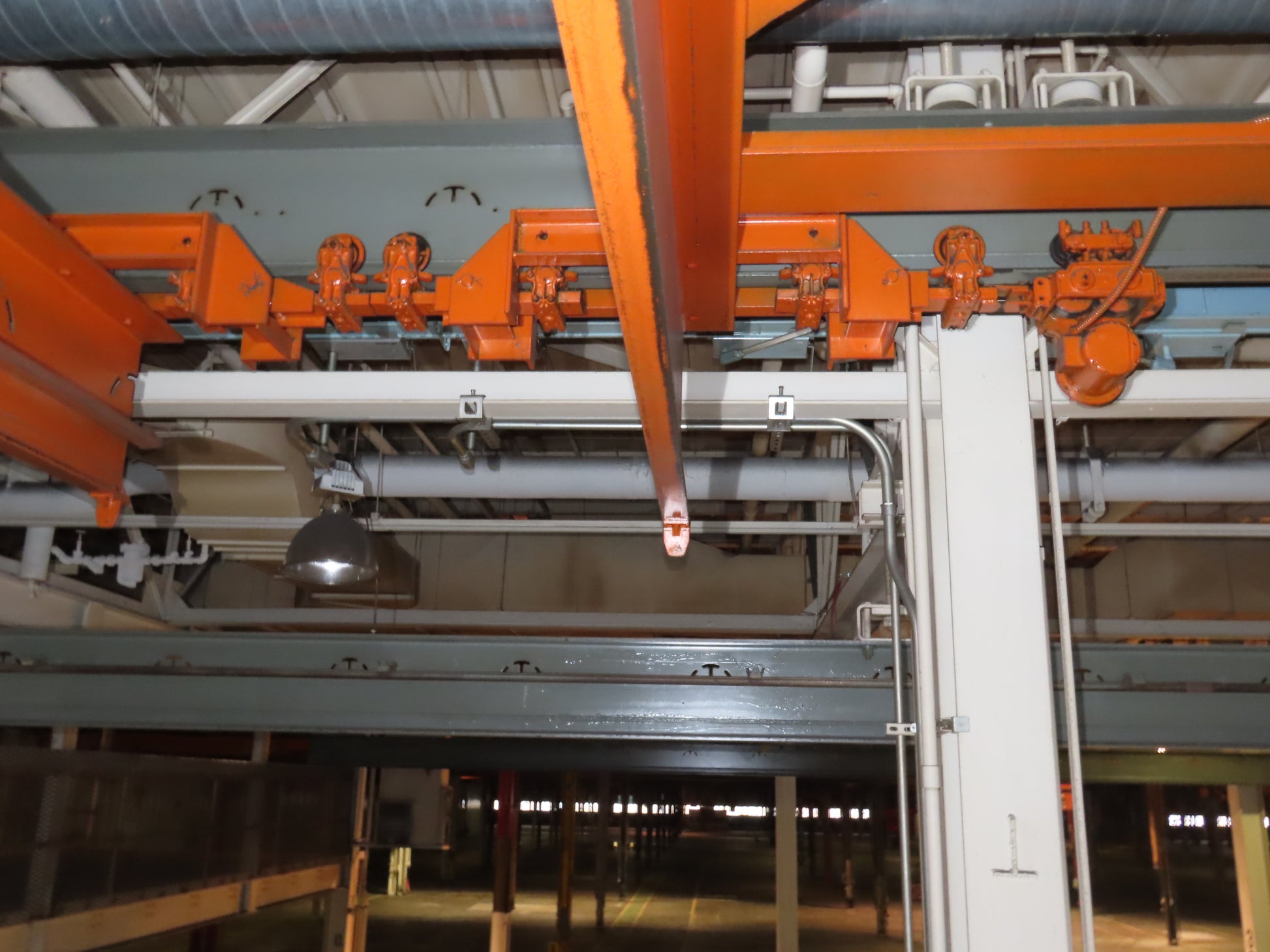

Cleveland Tramrail P&H 10 Ton Double Girder Underhung Bridge Crane 45' Span

Cleveland Tramrail P&H 10 Ton Double Girder Underhung Bridge Crane 45' Span

SKU #268231

Product Condition: Used

Your Price
$12,824.99
$12,824.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail P&H
Model

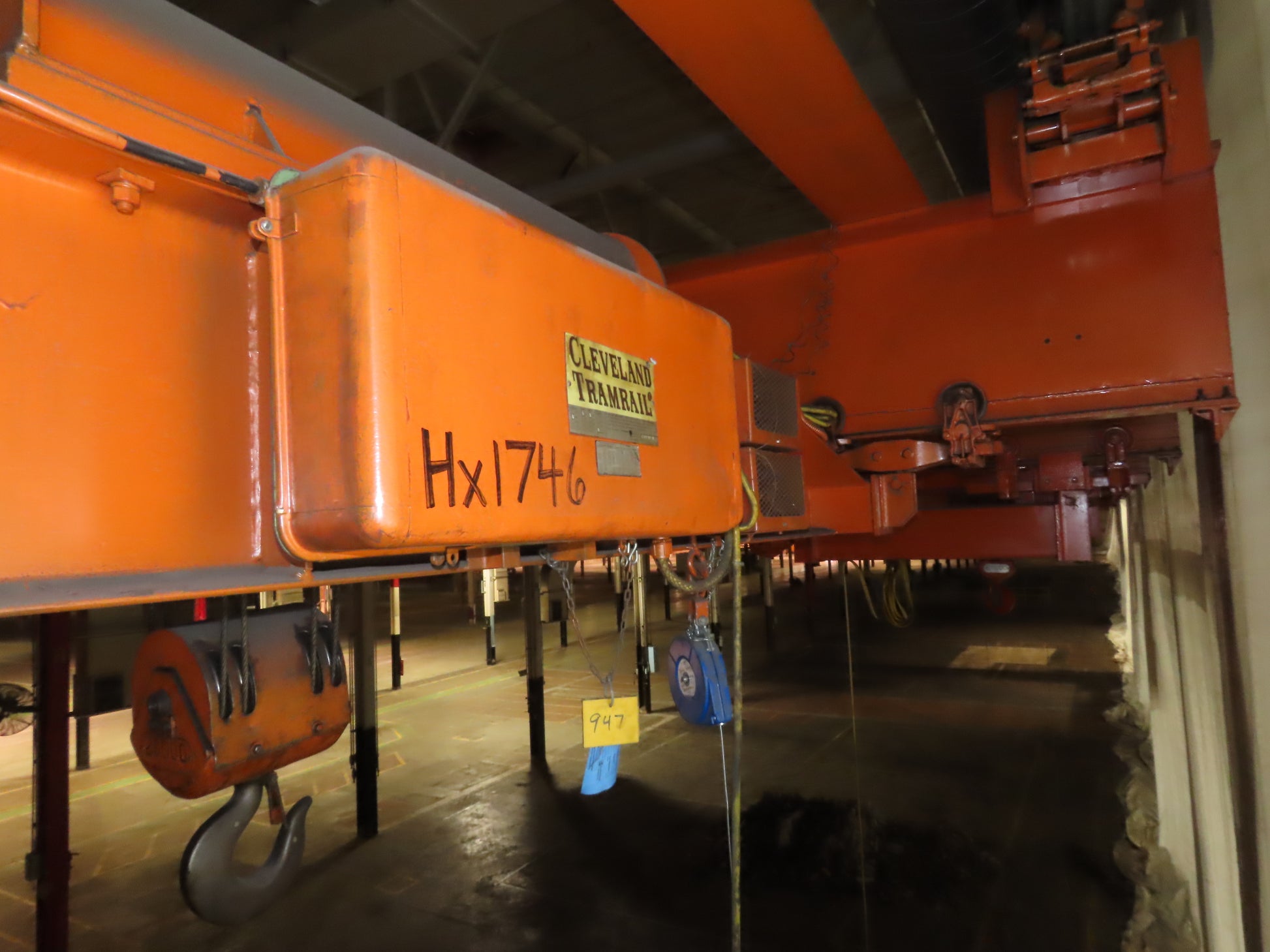

HX1746
MPN
N/A
Condition
Used

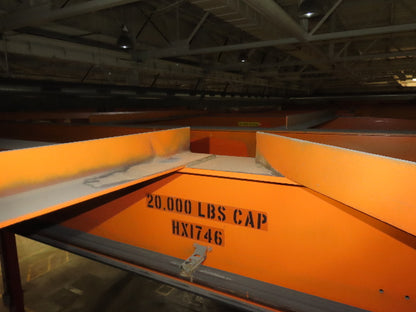

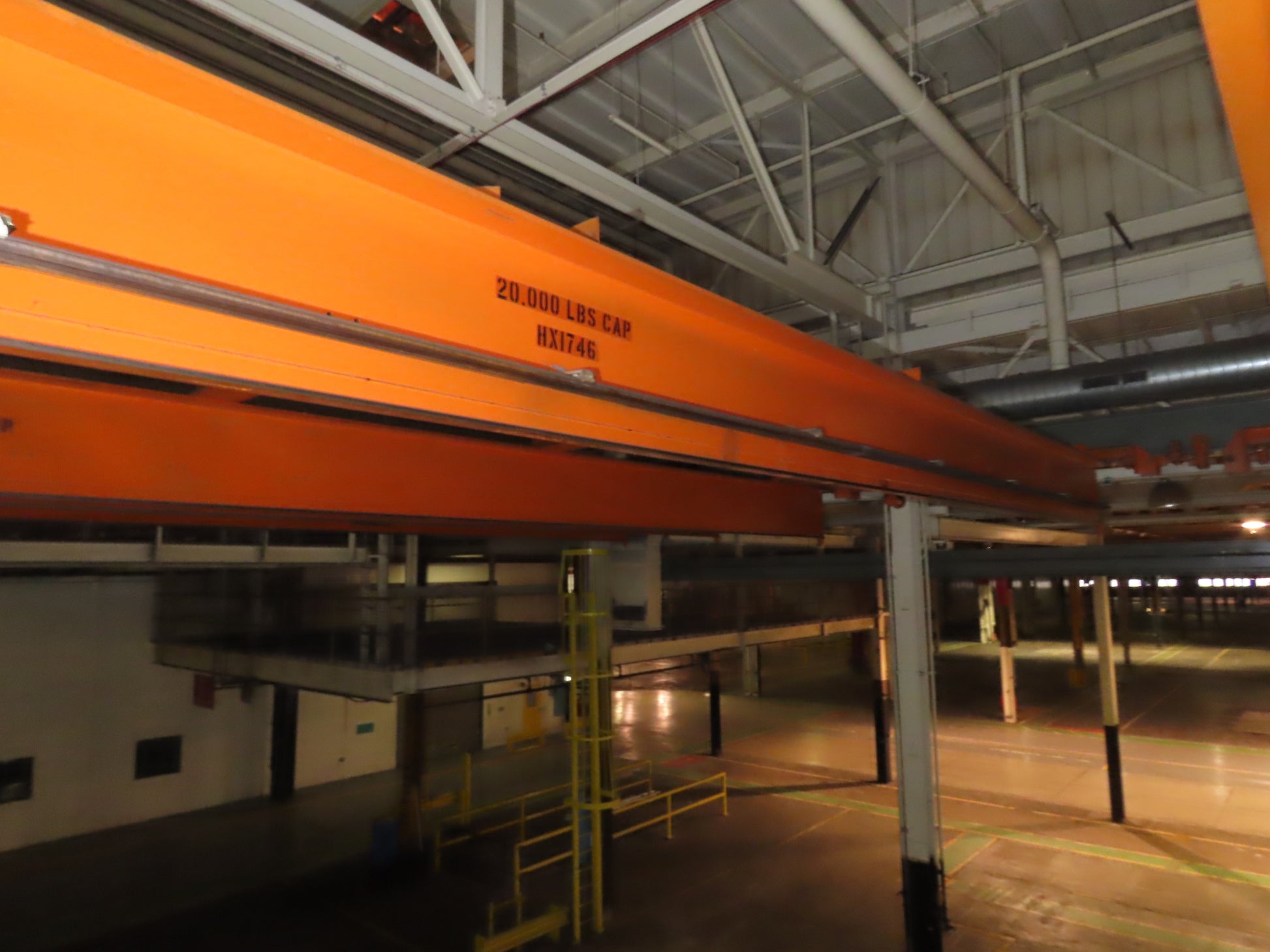

  • Capacity (tons): 10
  • Capacity (lb): 20000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung

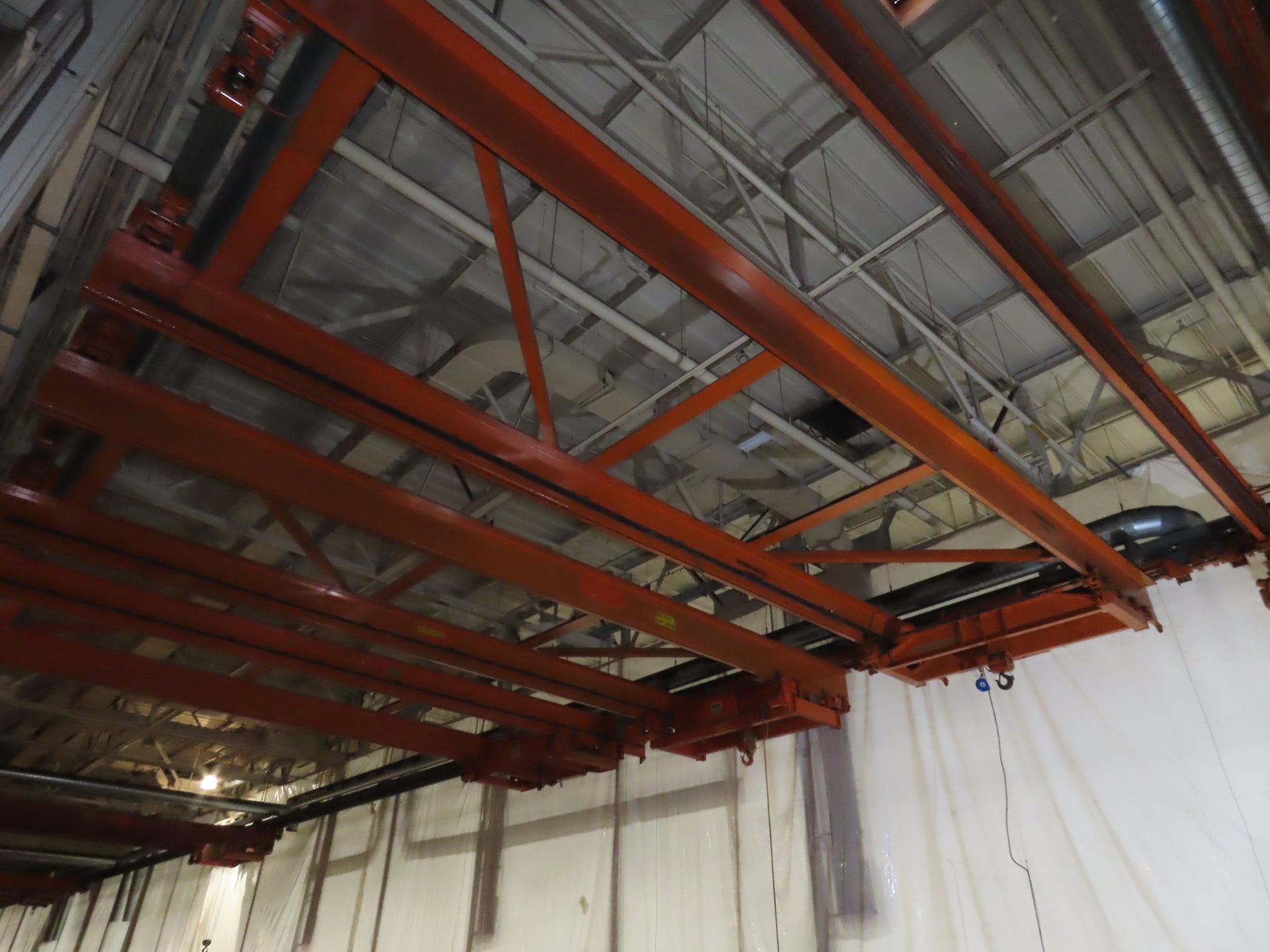

  • Runway Beam Distance Between Centers (Span): 45'

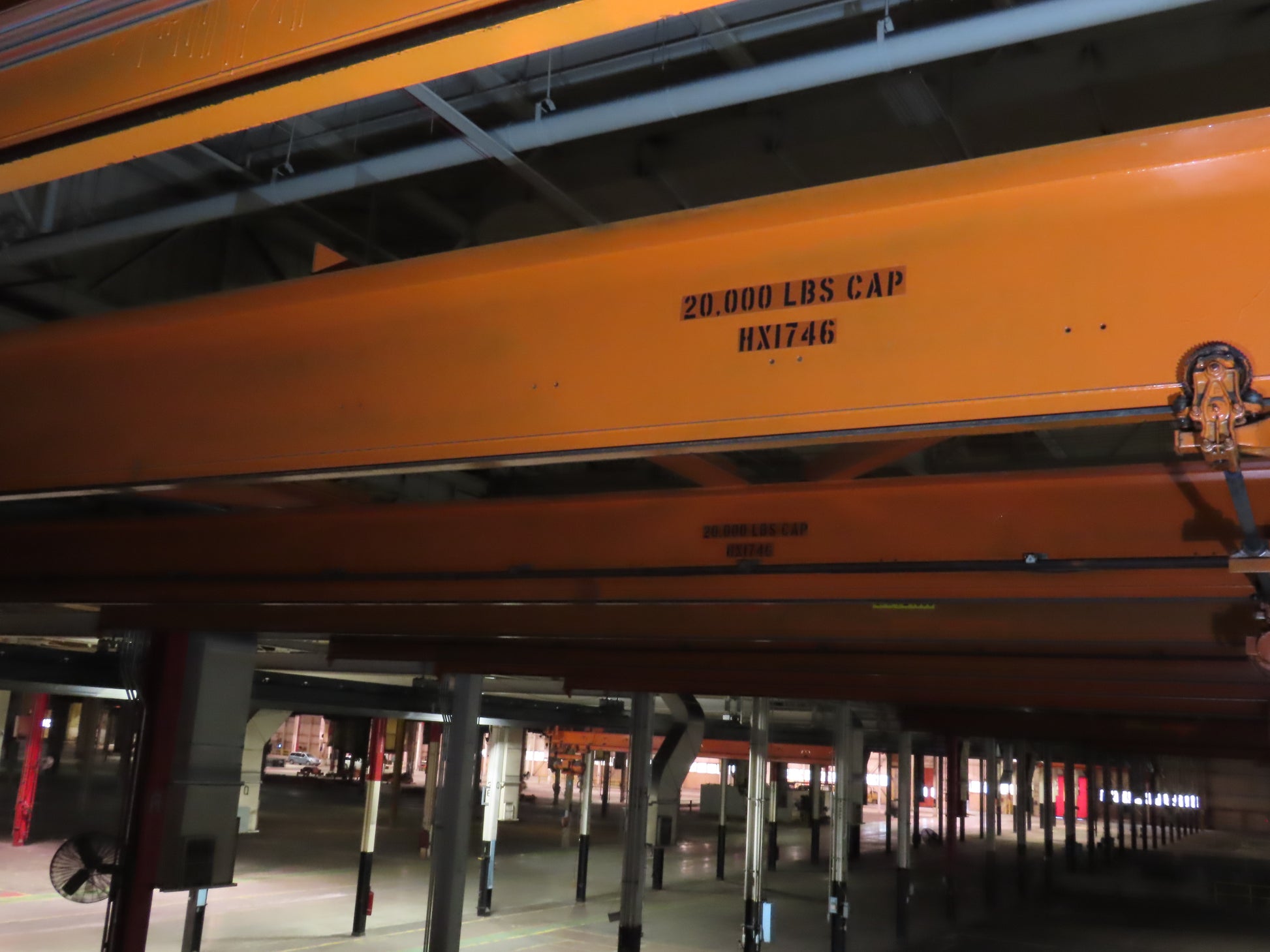

  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 47'L

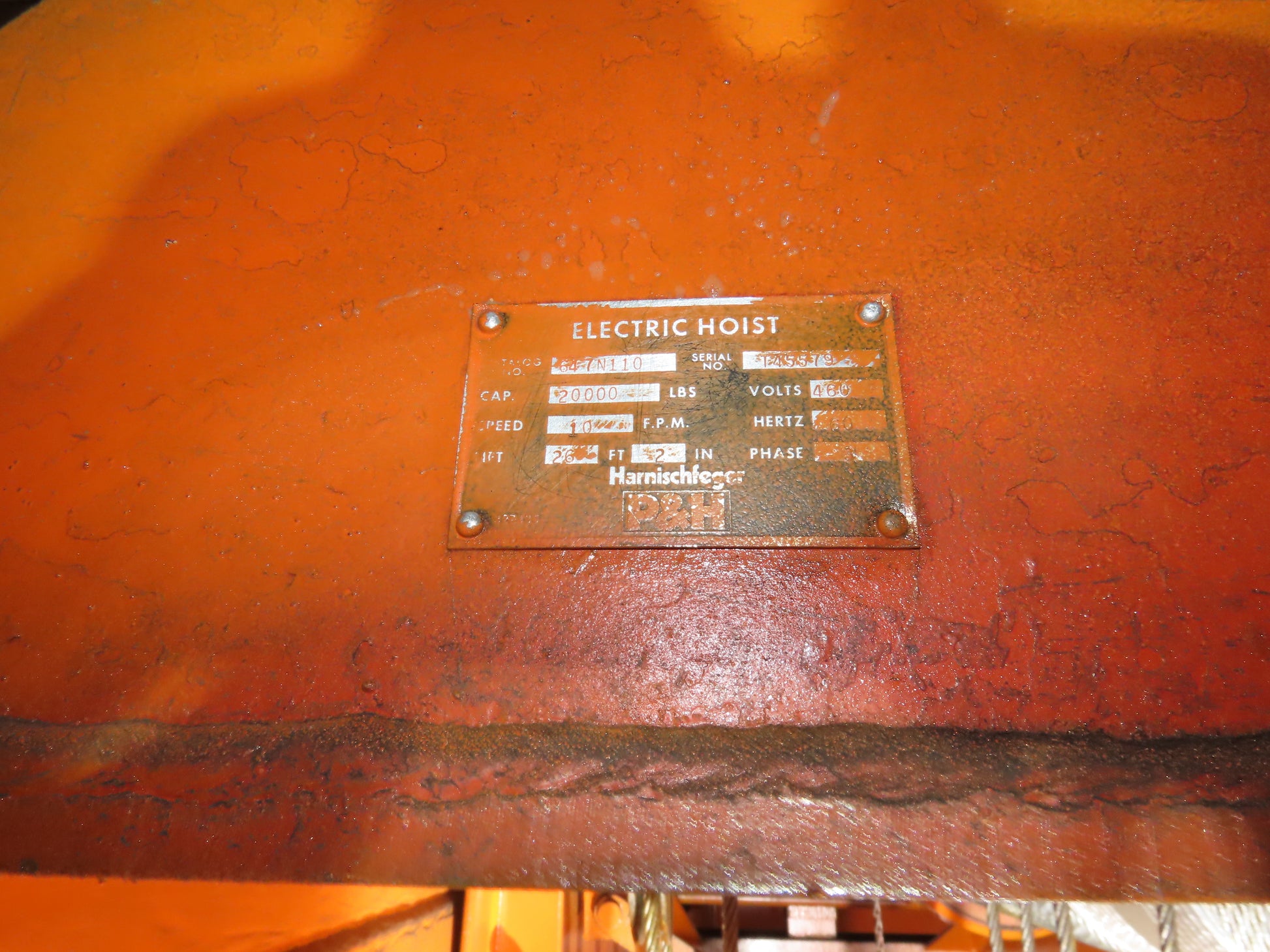

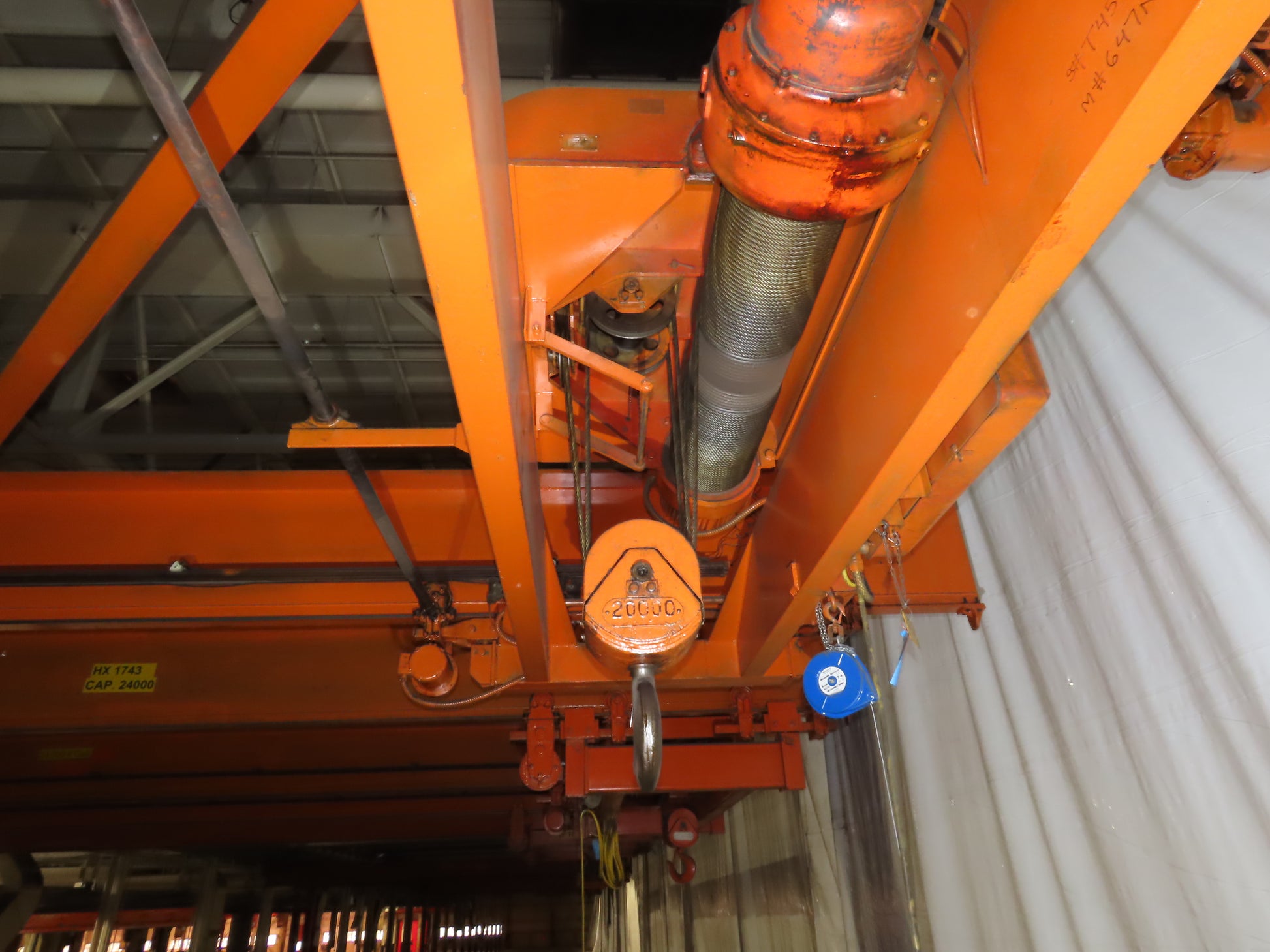

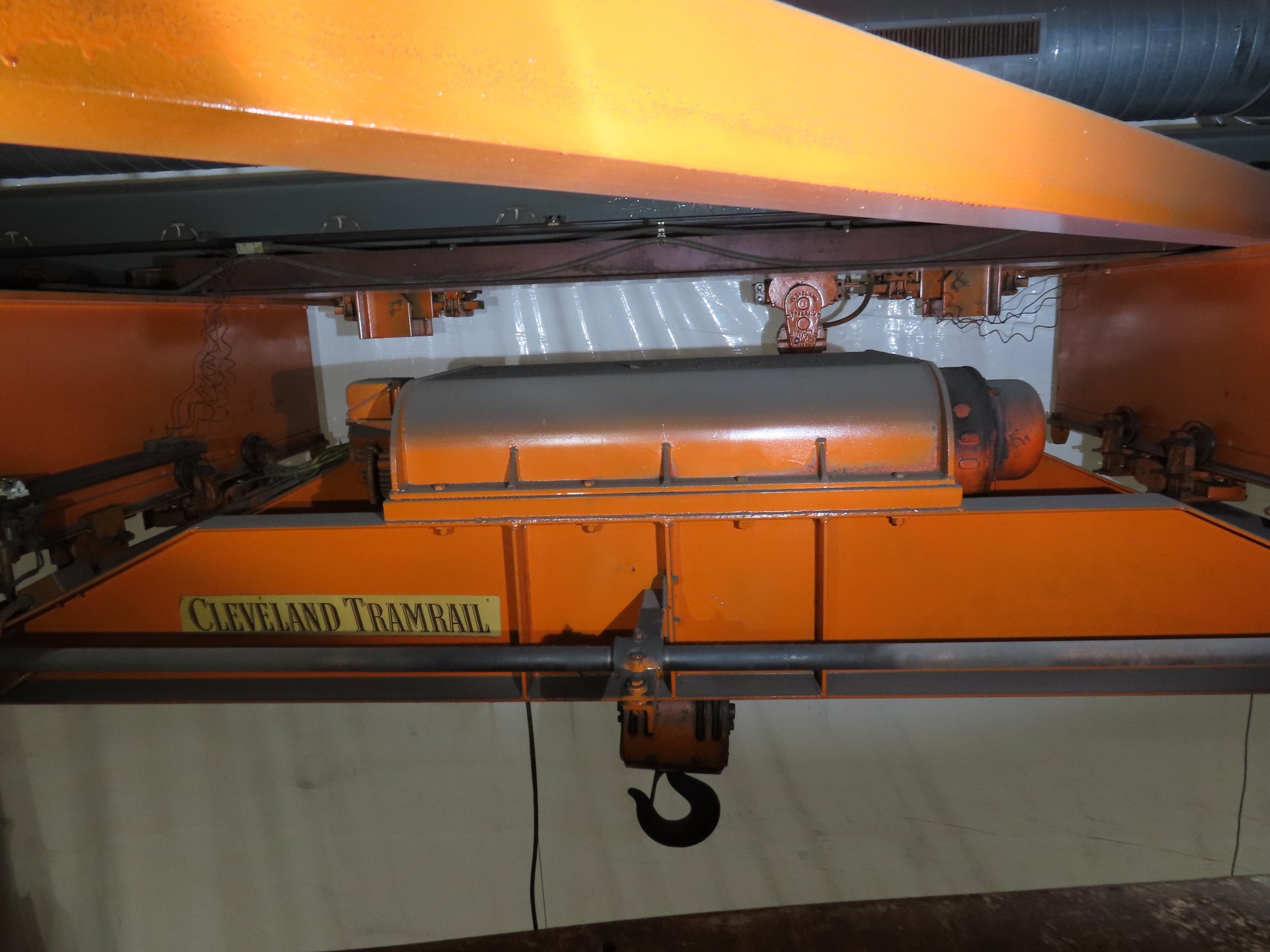

  • Hoist Brand: P&H
  • Lift Travel (feet): 26' 2"
  • Lift Speed (feet per minute): 10 FPM single speed
  • Pendant/Control Length From Bottom of Hoist (ft): 24'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 38"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 65"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 76"
  • Bridge Crane in good used condition.  We were unable to test the crane due to the power being cut.

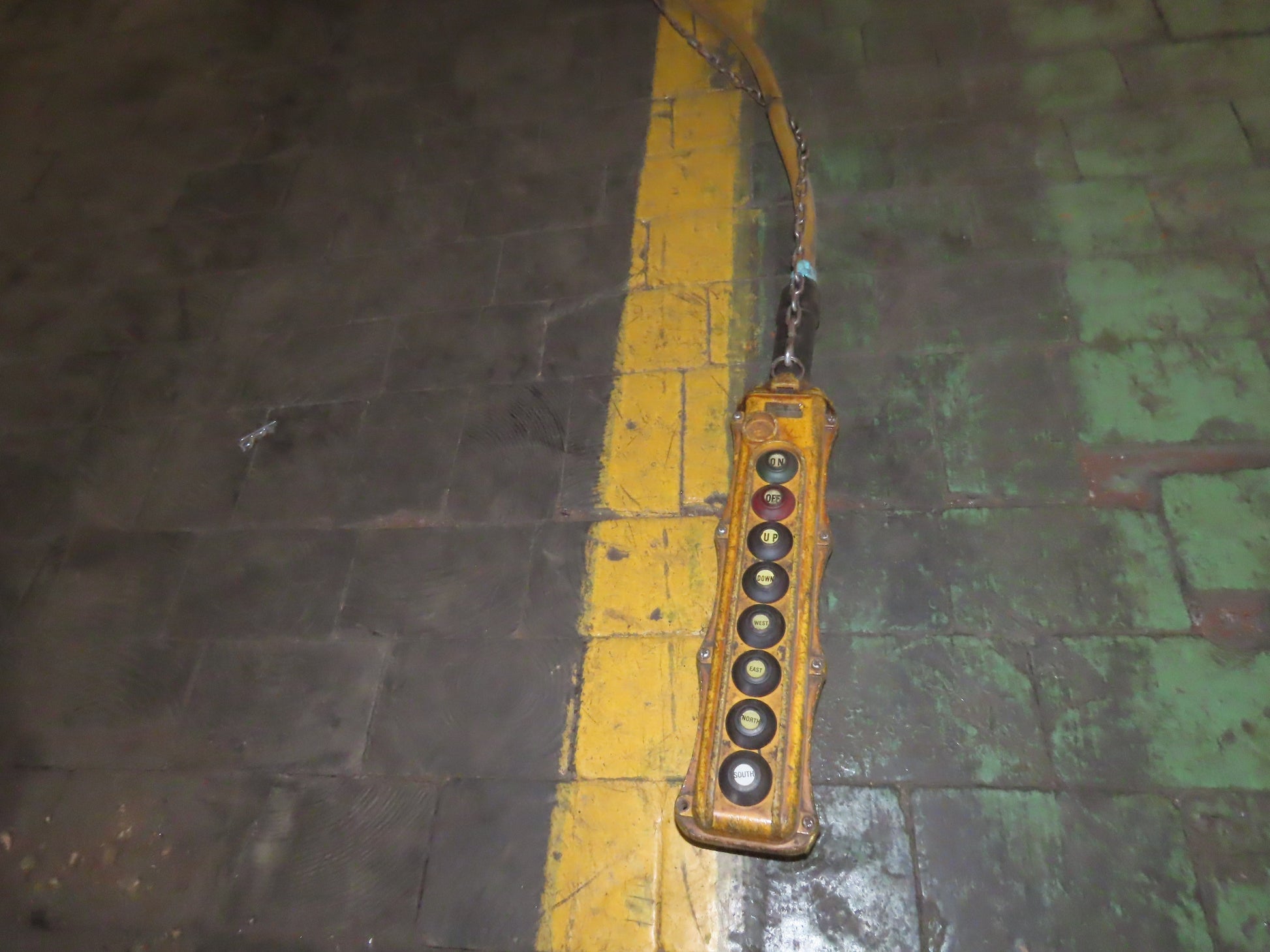

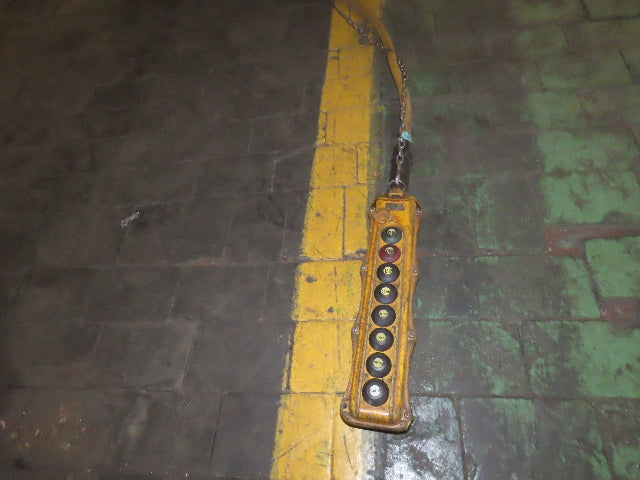

  • Includes corded pendant only.  Not set up for wireless.

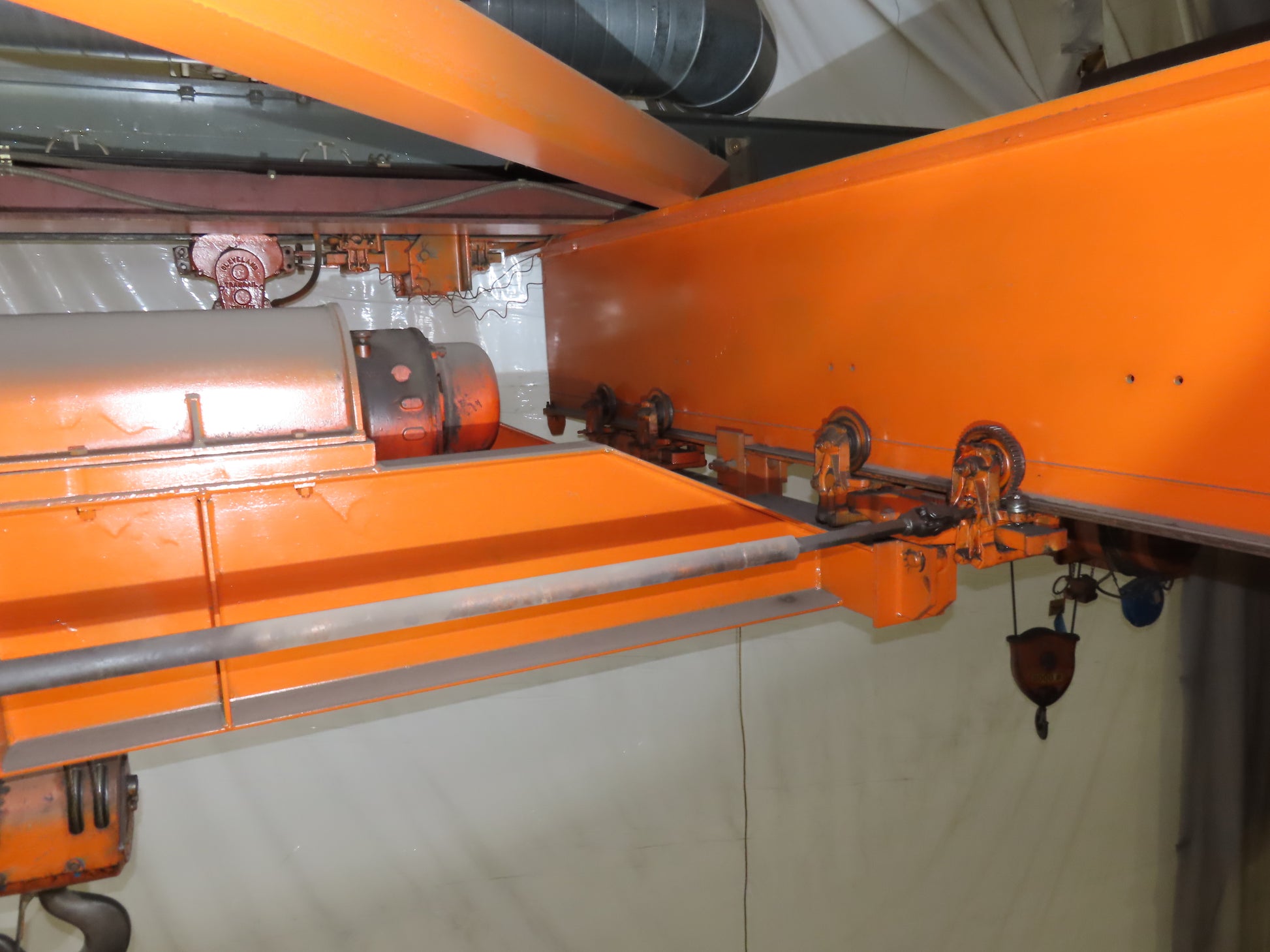

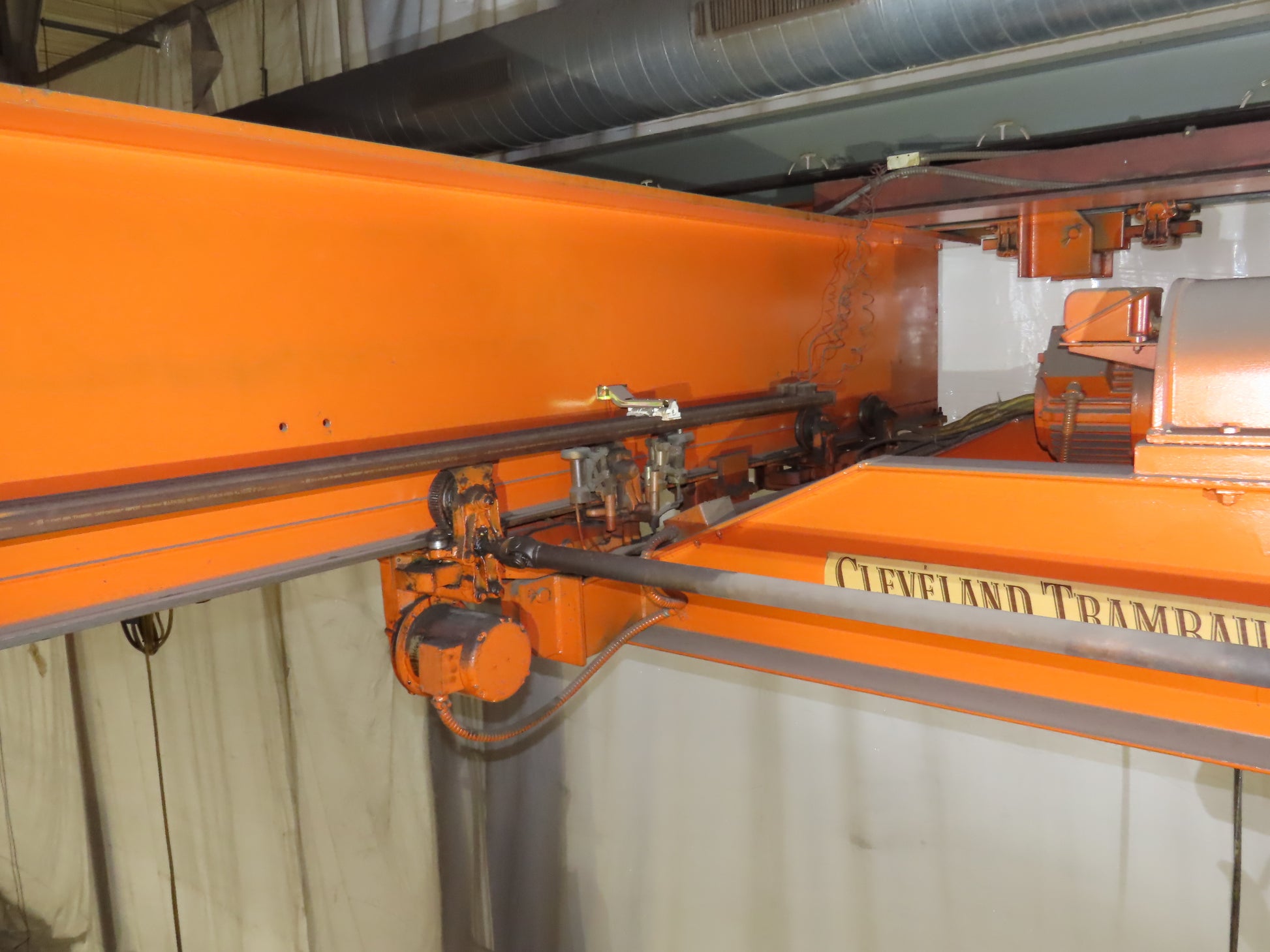

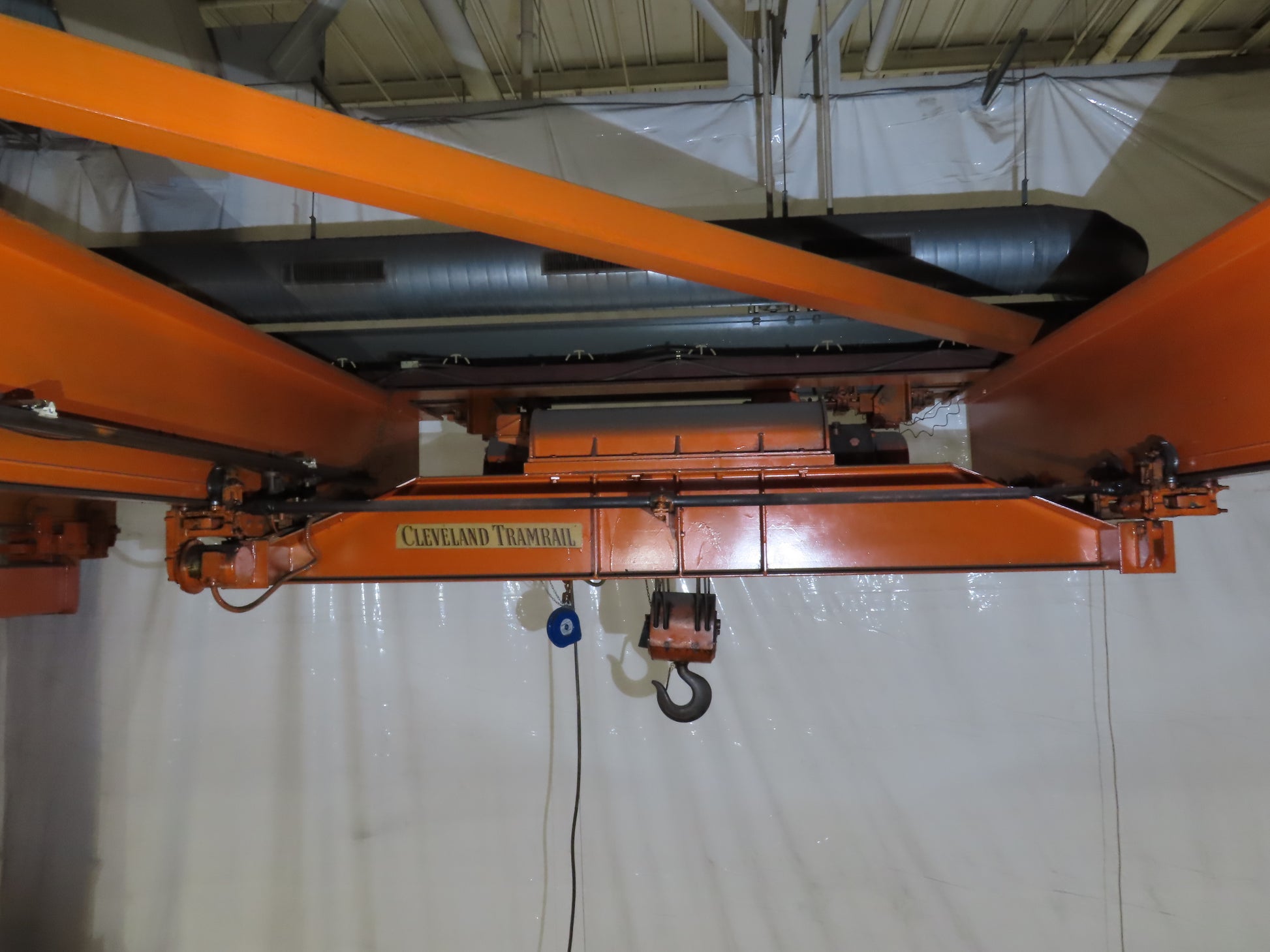

  • Single speed bridge and trolley, single speed hoist.

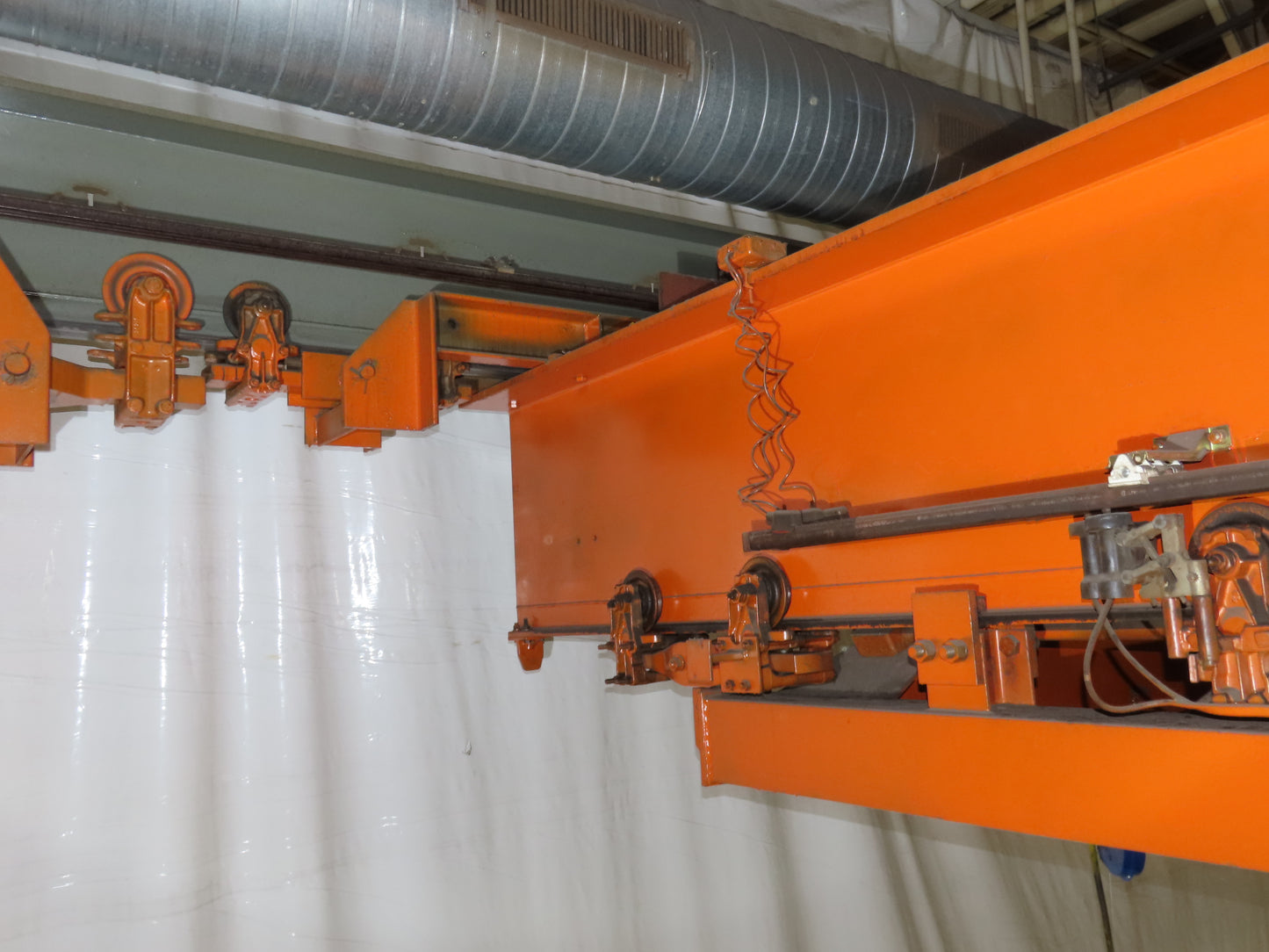

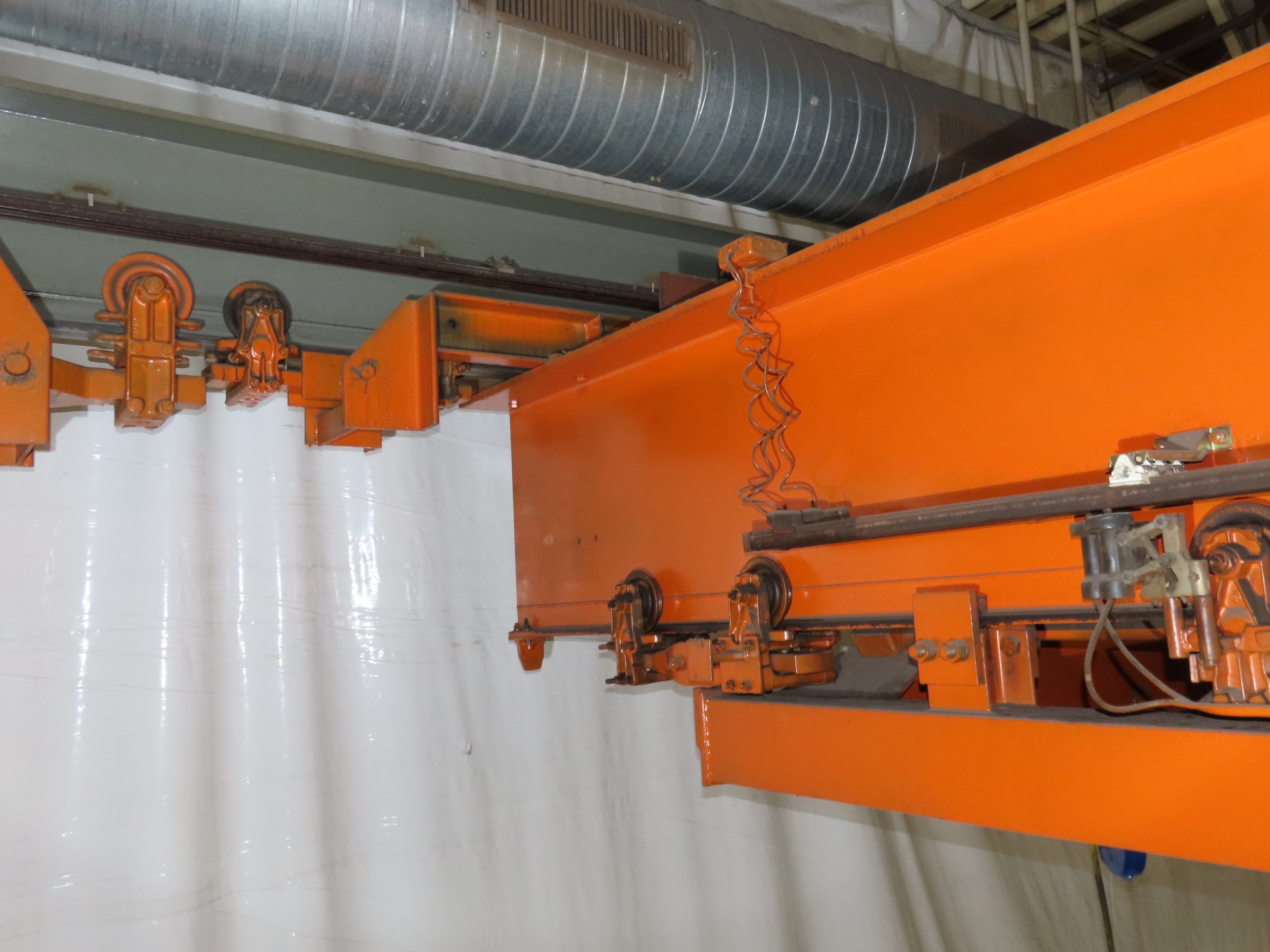

  • Trolley carriage length: 84"

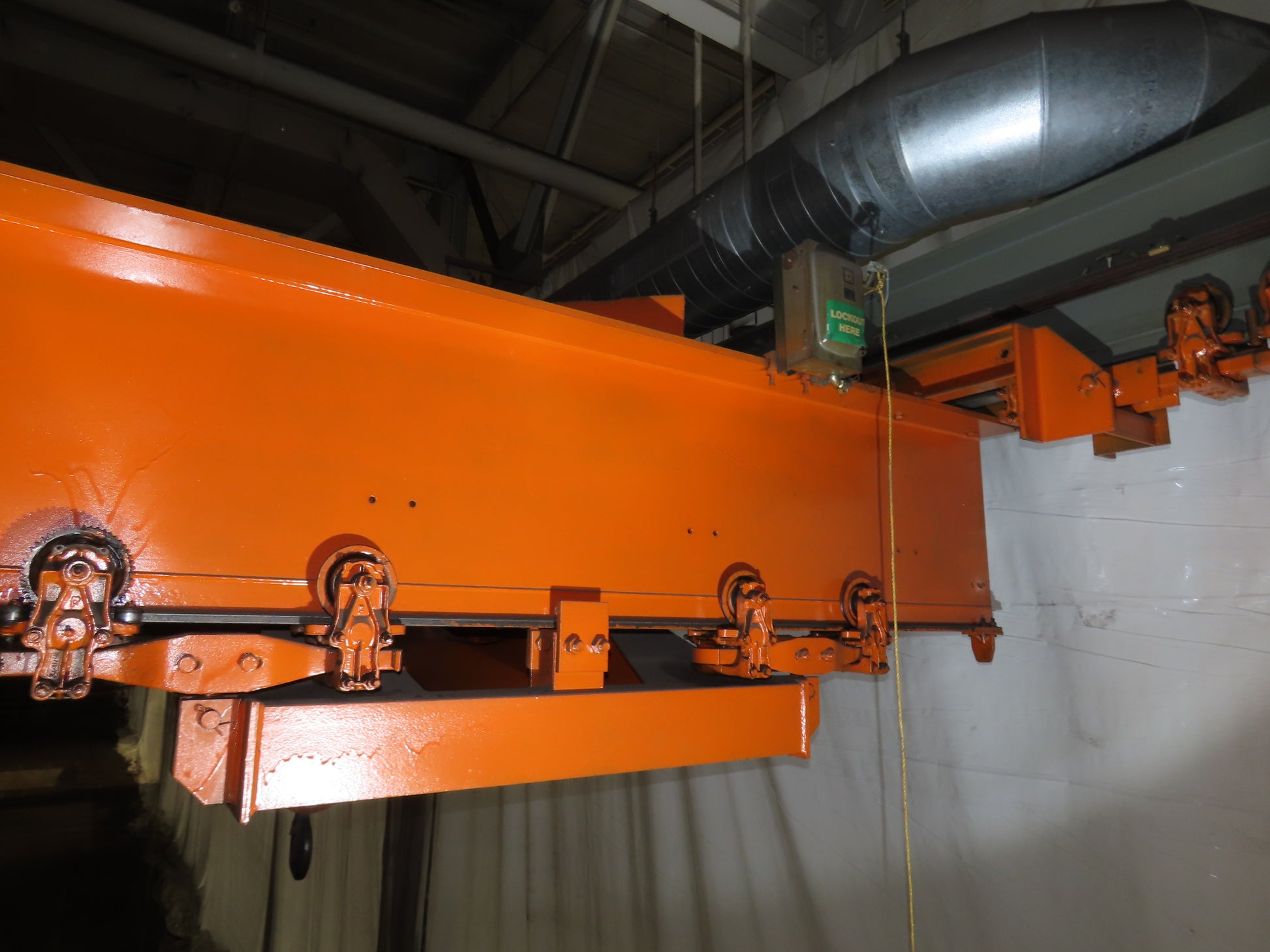

  • End truck length:  76"
  • End truck wheel size:  5"
  • Girder beam span: 12'

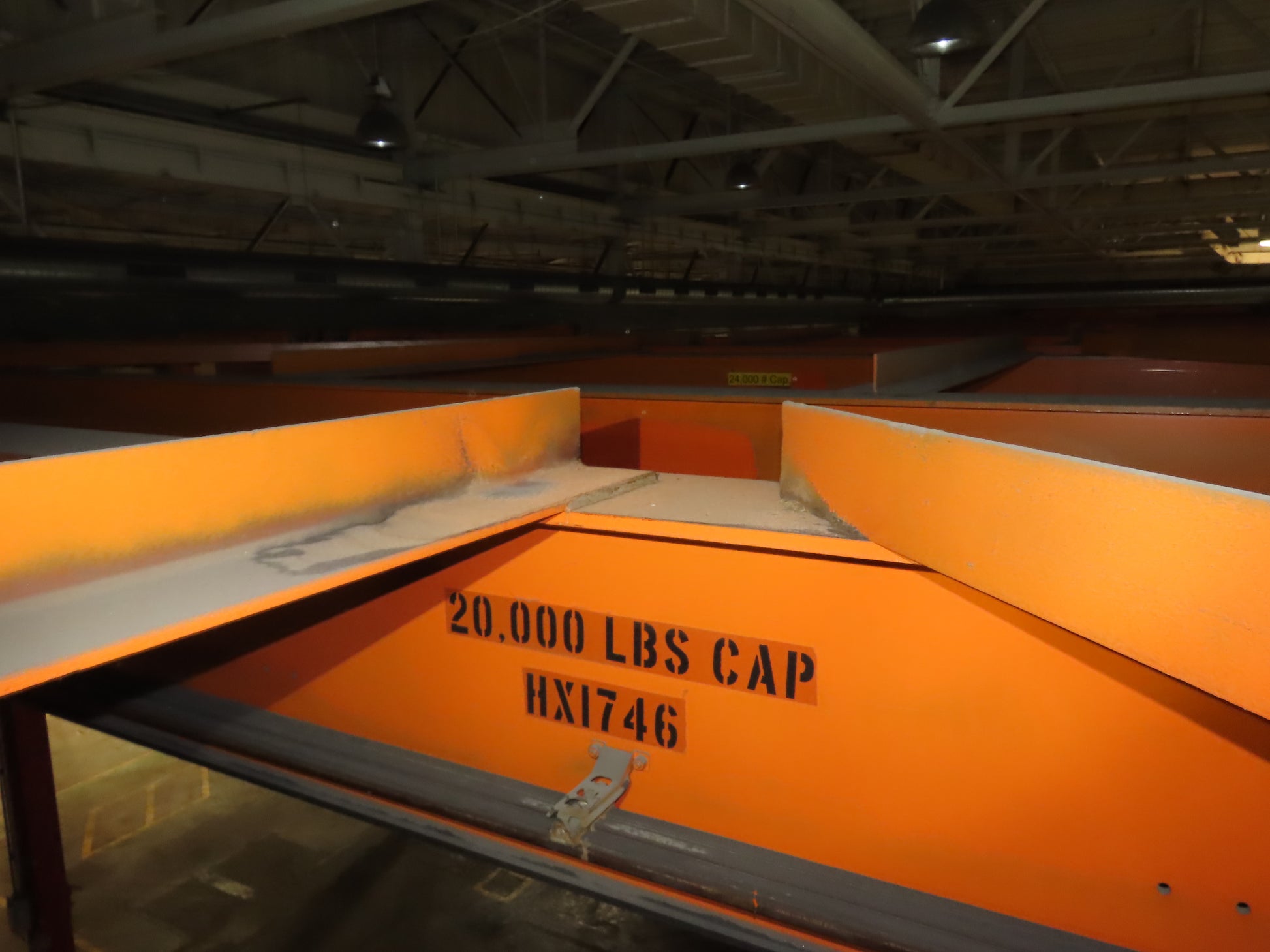

  • Top braces are welded on. The angle iron braces that were welded across the top were ground off at the welds for transporting so this would not be a wide load. Angle iron braces will either need to be welded back on or have holes drilled and be bolted on.
