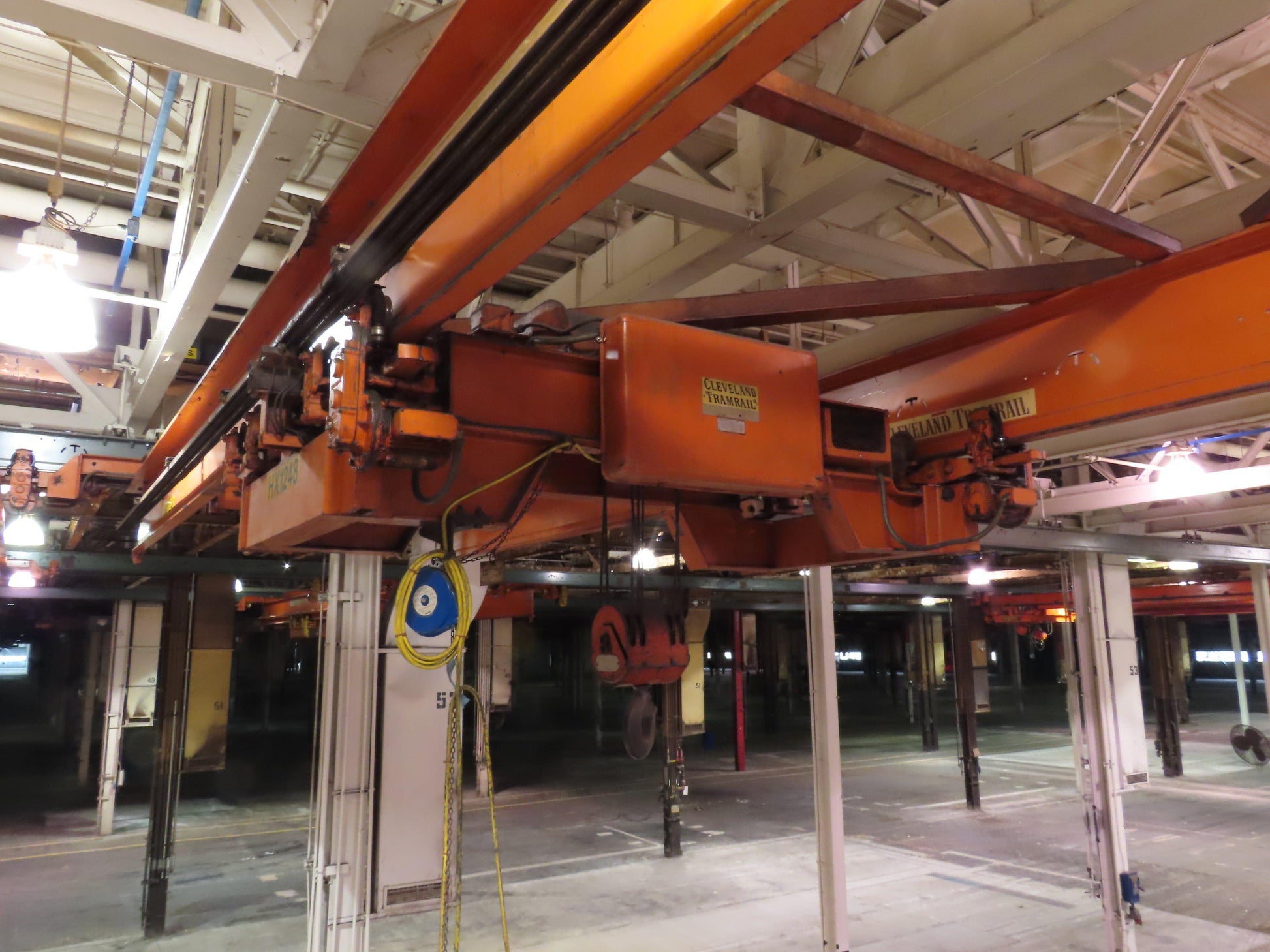

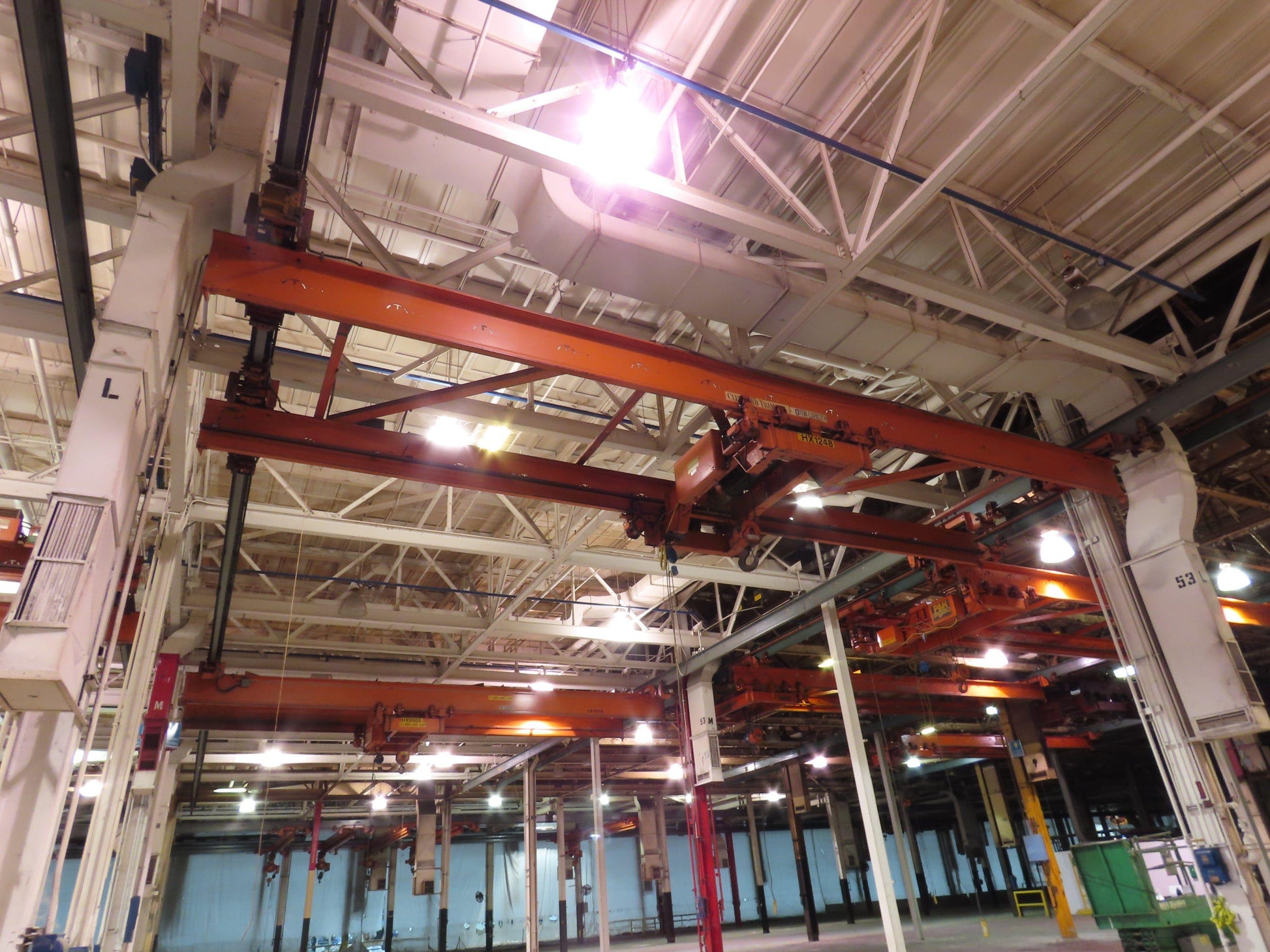

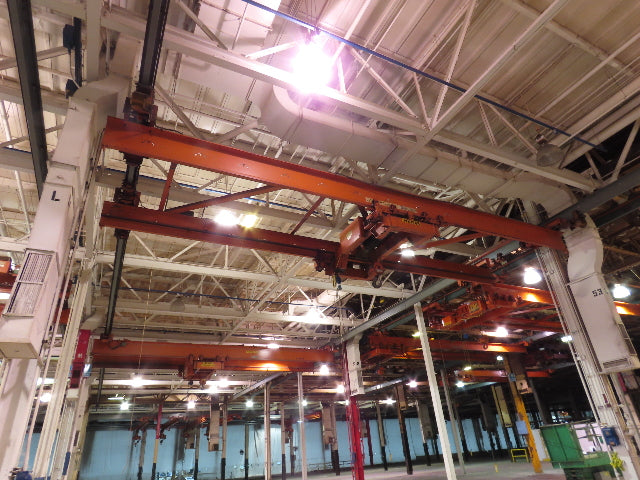

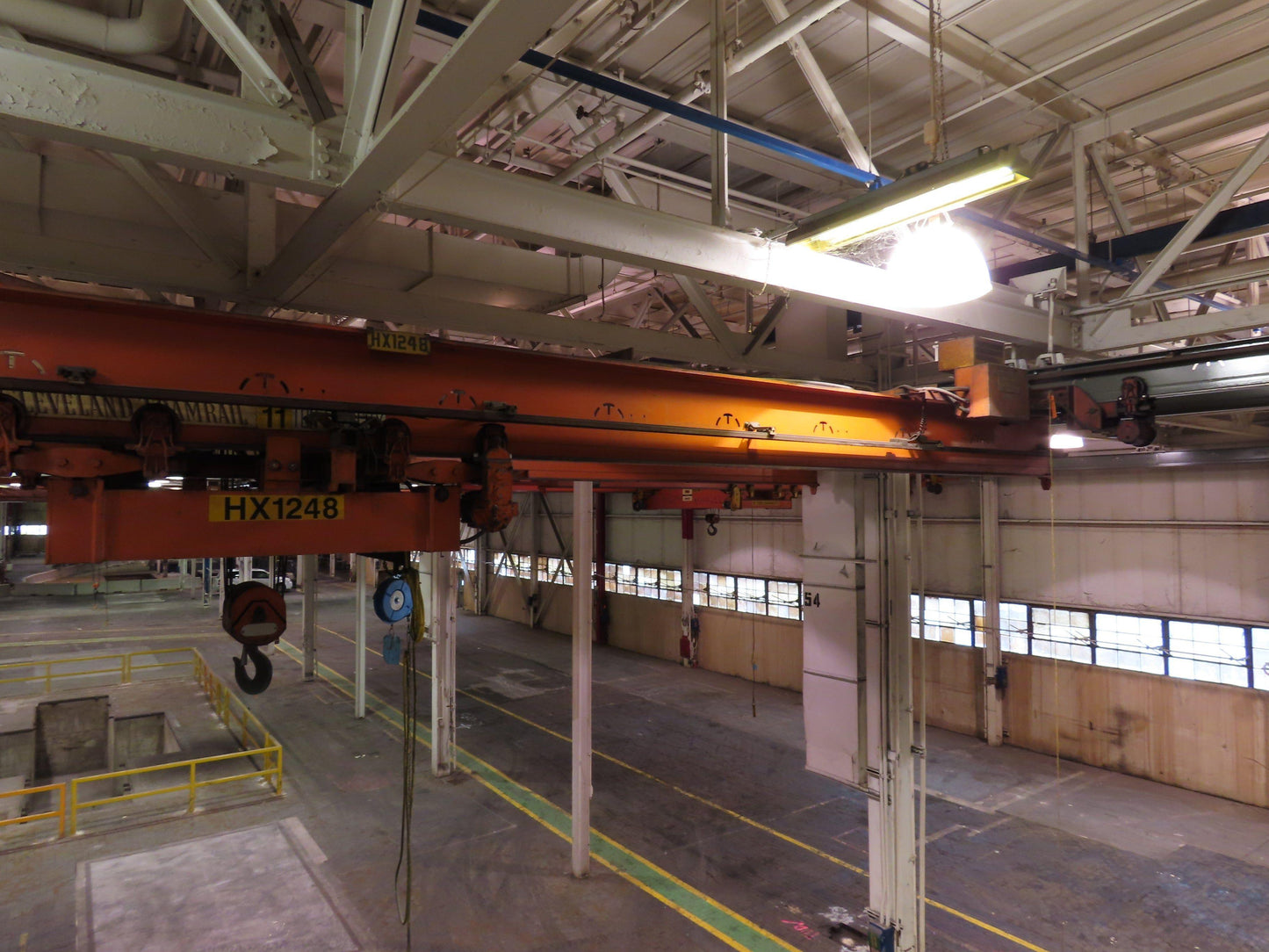

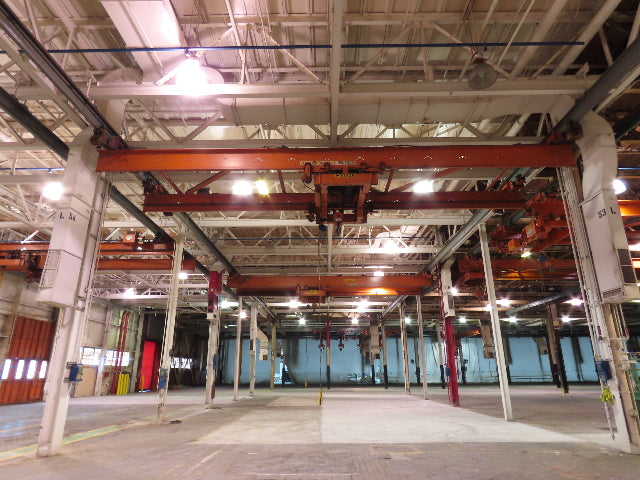

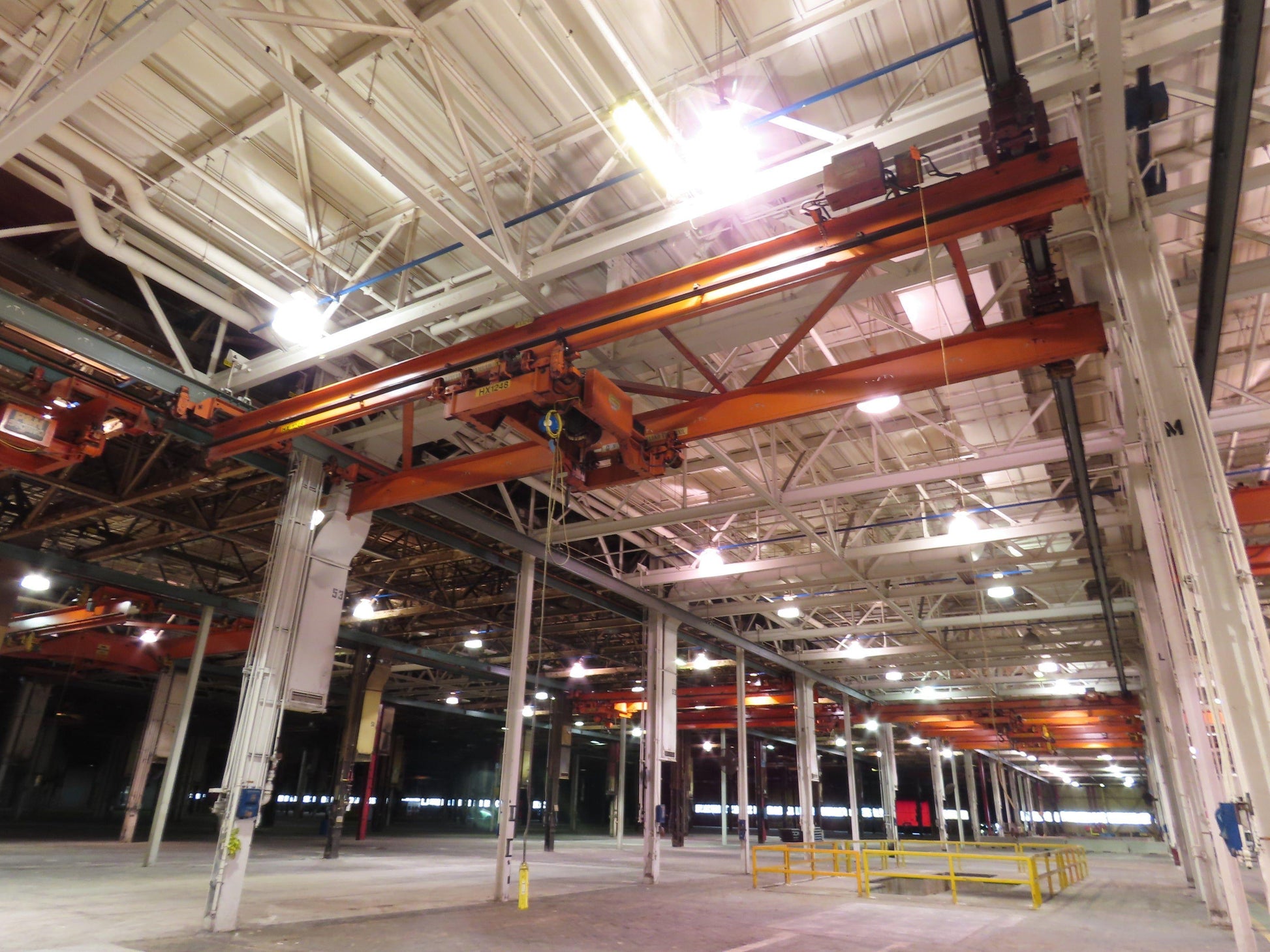

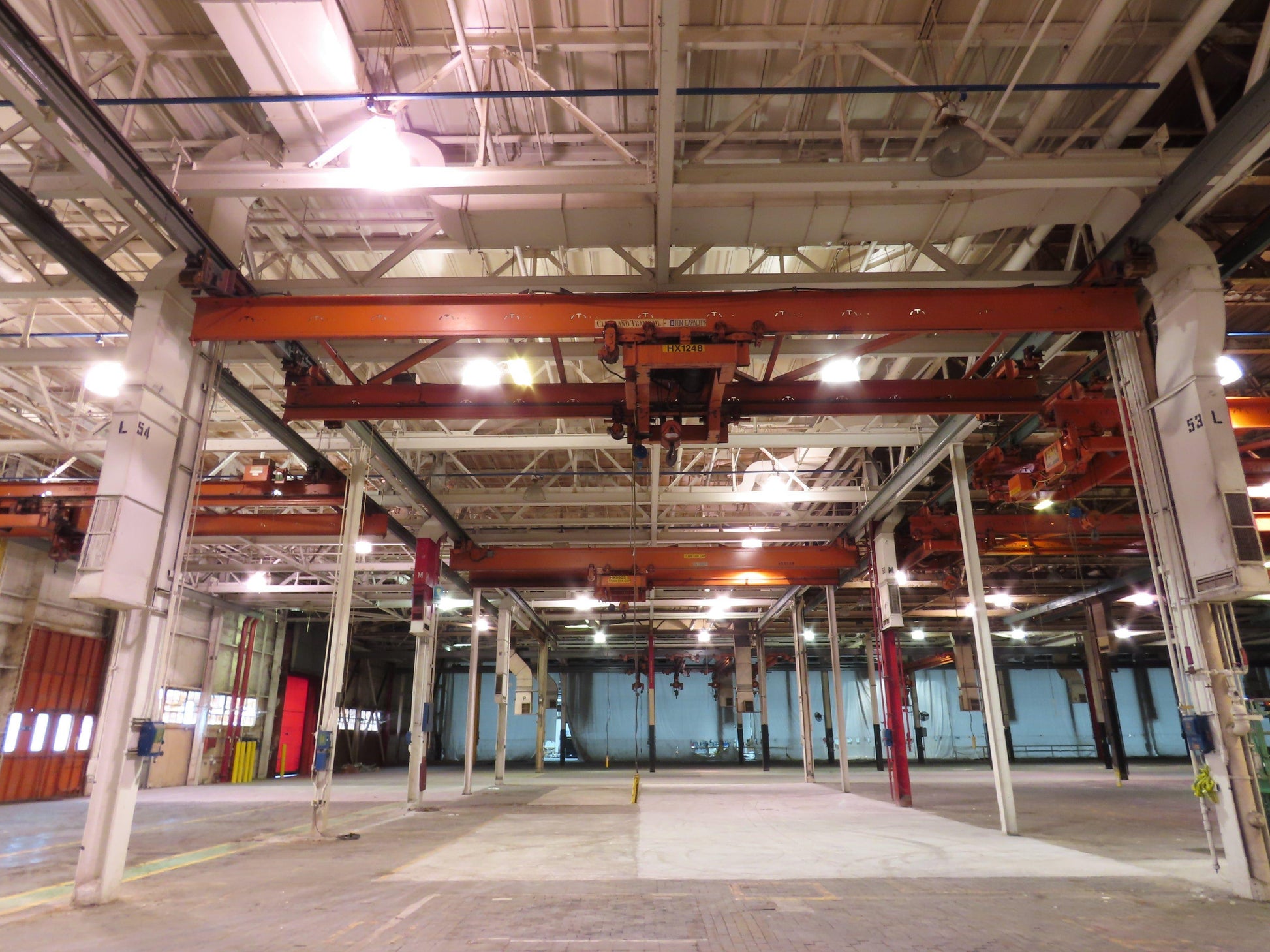

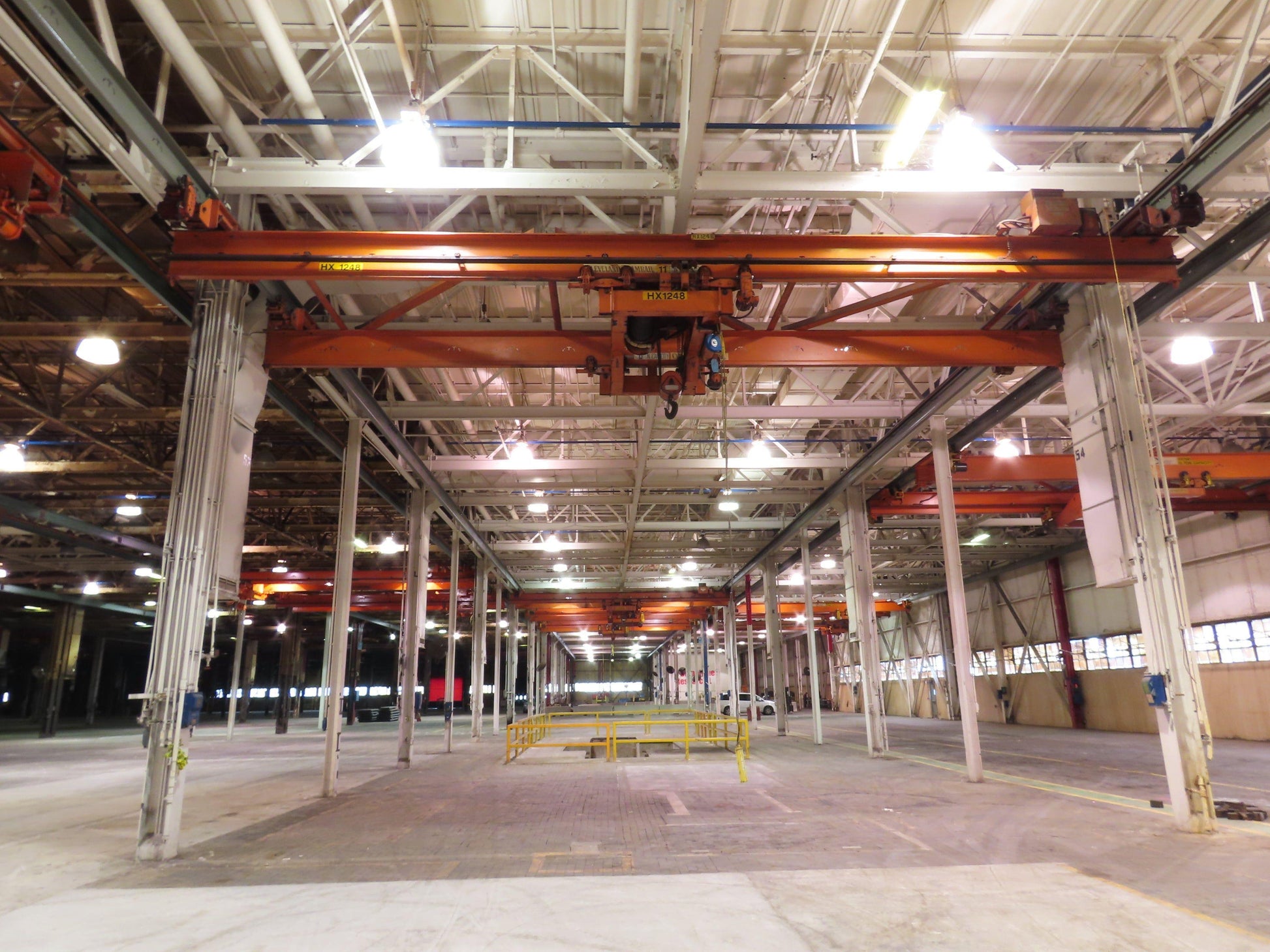

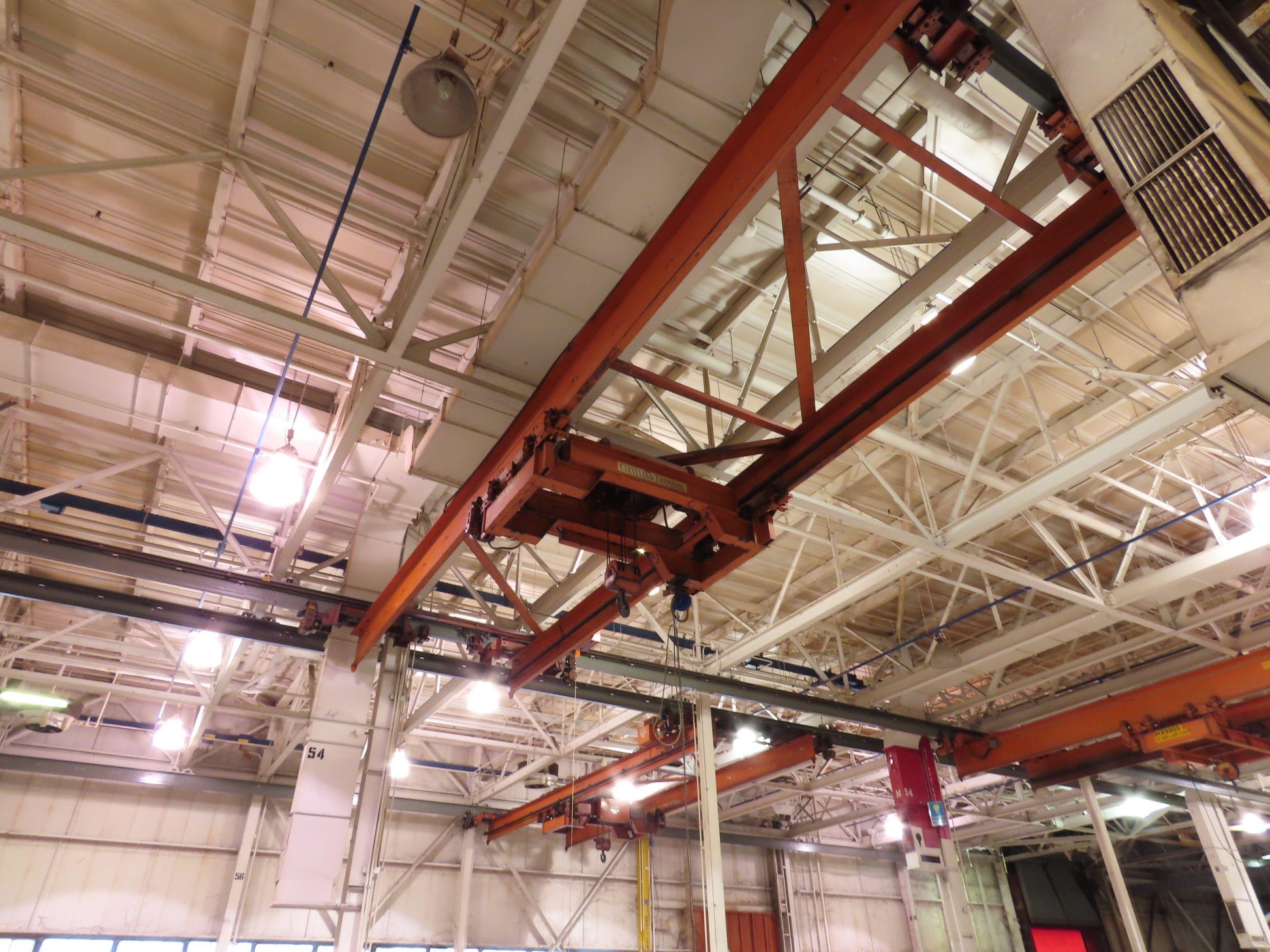

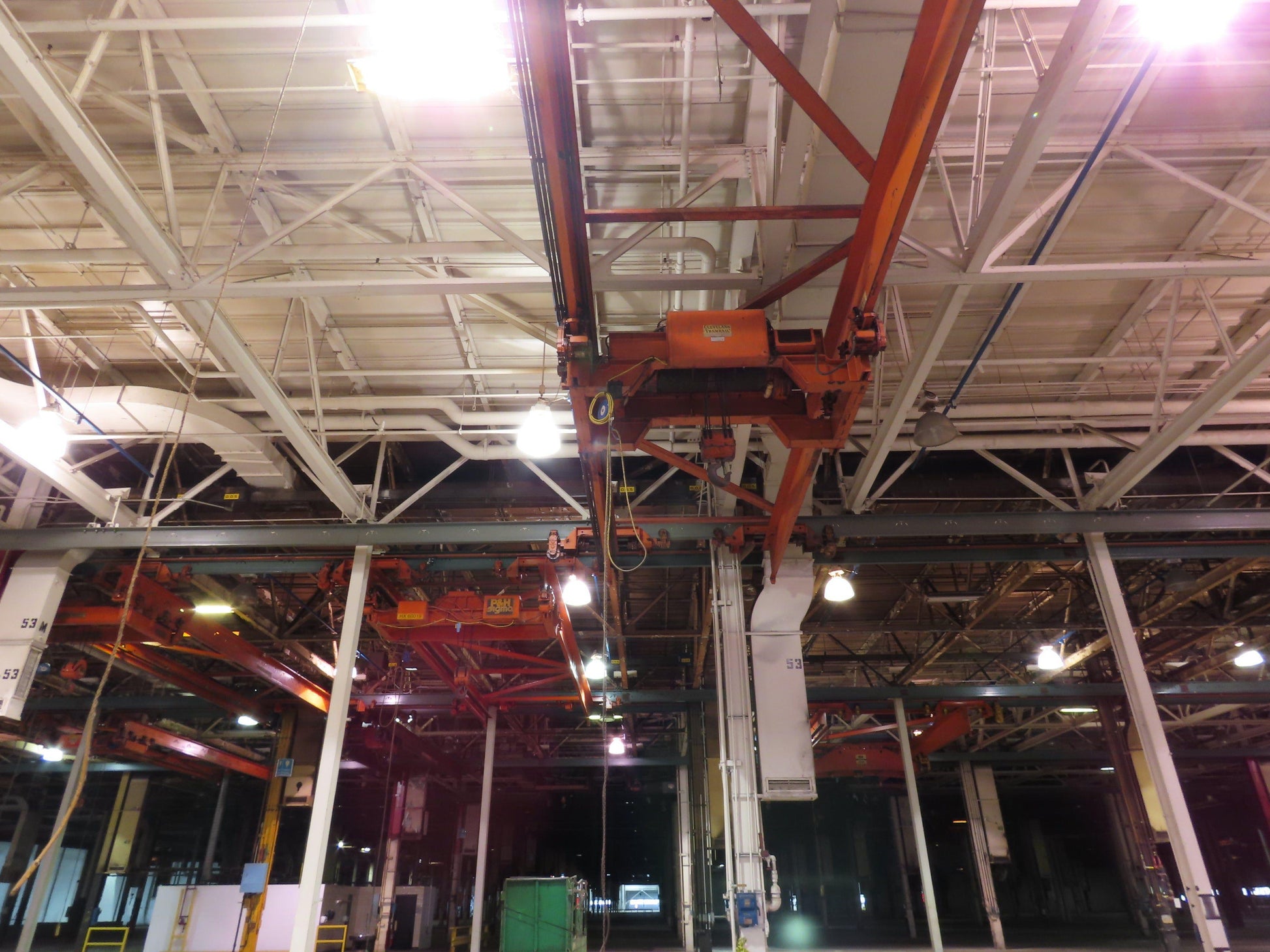

Cleveland Tramrail P&H 11 Ton Double Girder Underhung Bridge Crane 34' 10" Span

Cleveland Tramrail P&H 11 Ton Double Girder Underhung Bridge Crane 34' 10" Span

SKU #268216

Product Condition: Used

Your Price
$15,389.98
$17,999.98 $15,389.98
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail P&H
Model

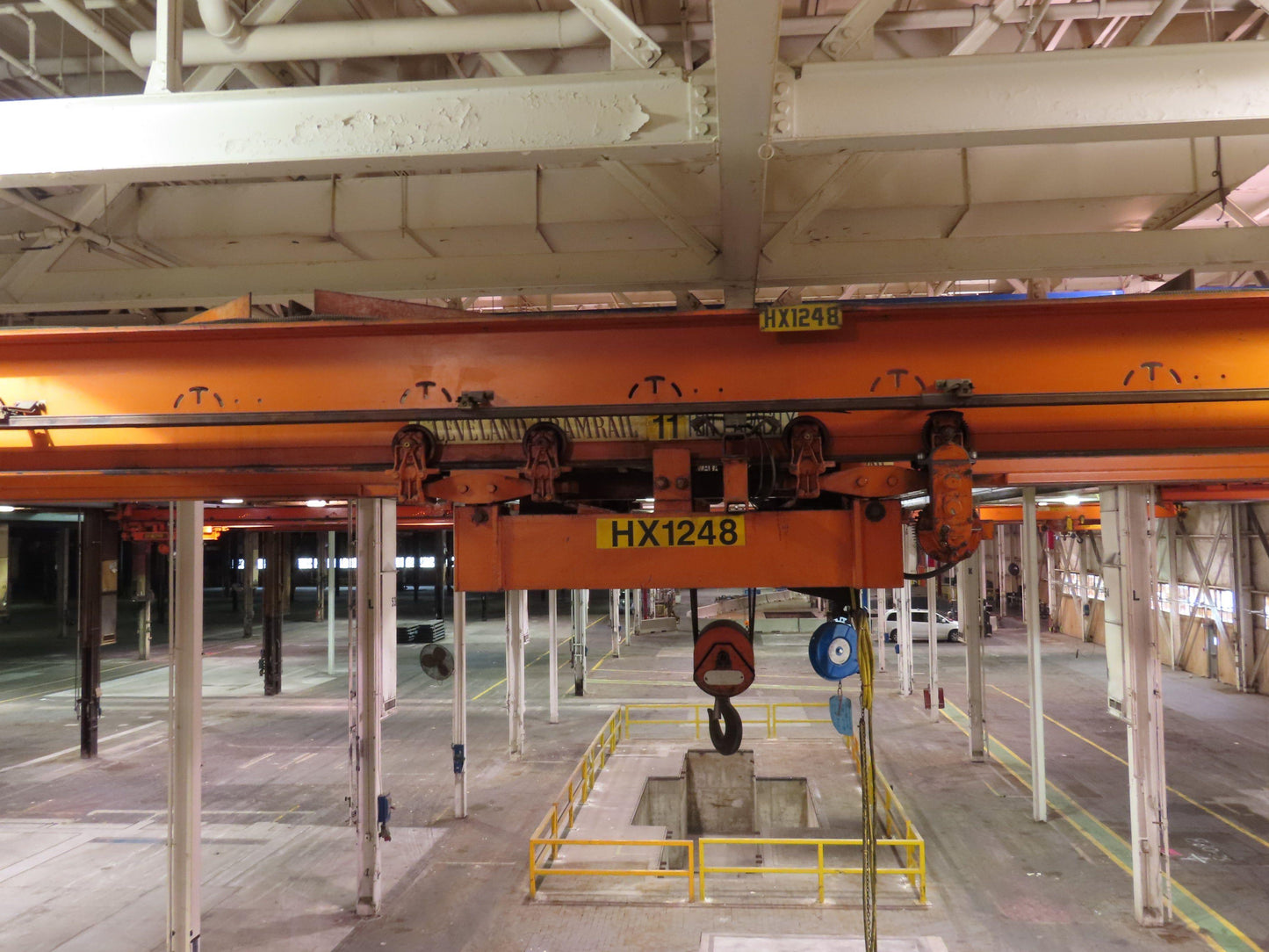

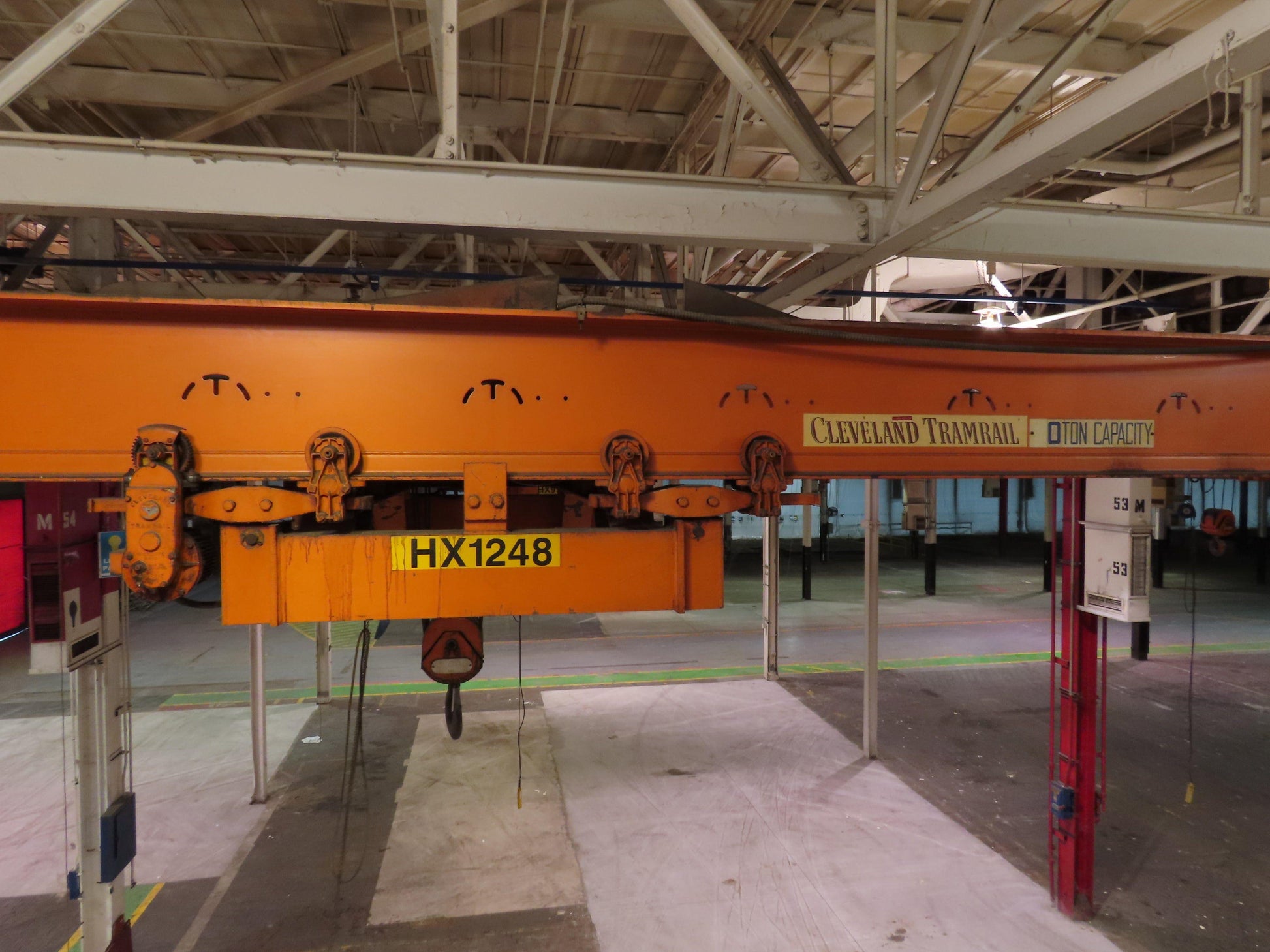

HX1248
MPN
N/A
Condition
Used
  • Capacity (tons): 11
  • Capacity (lb): 22000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 34' 10"

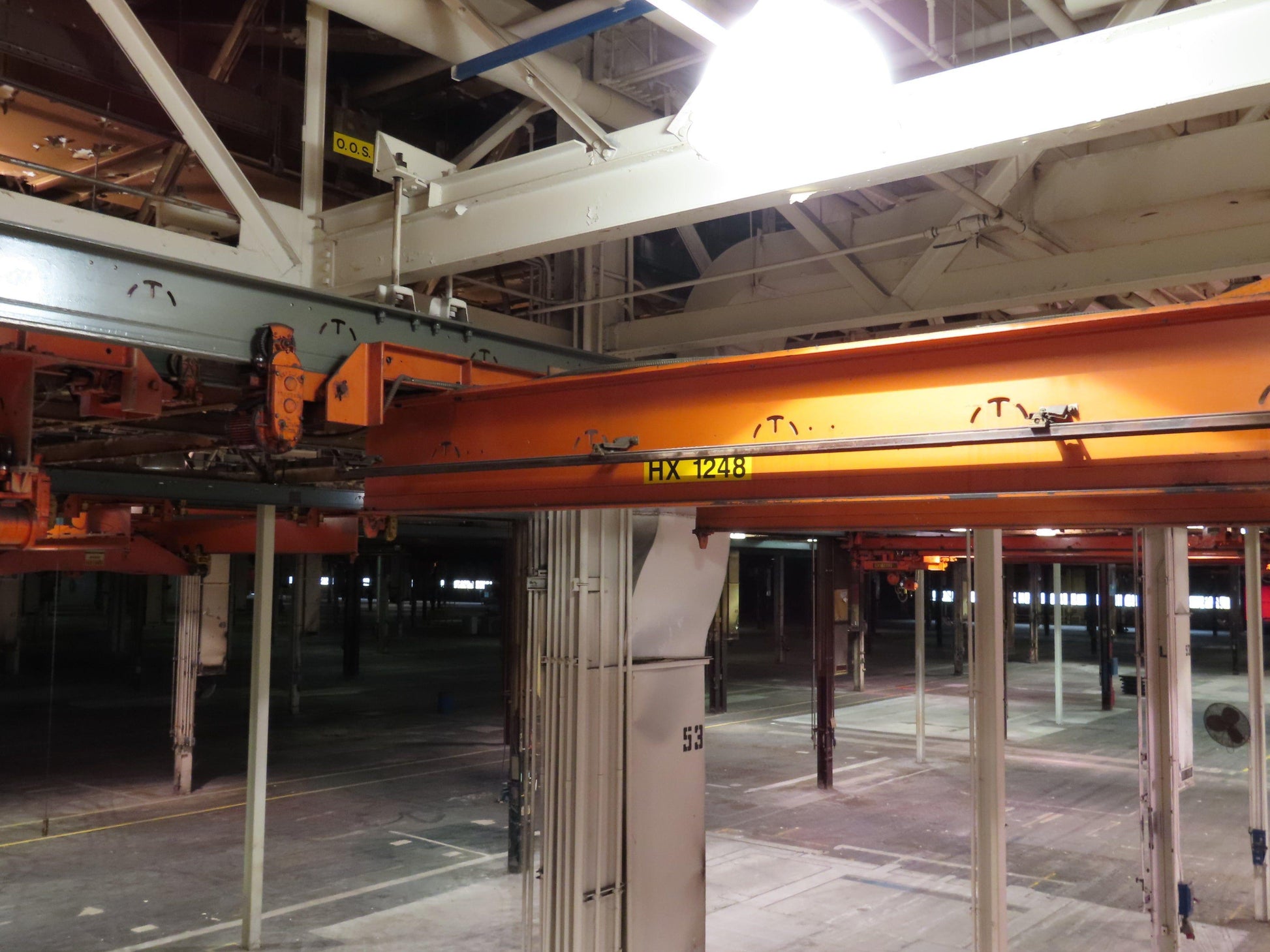

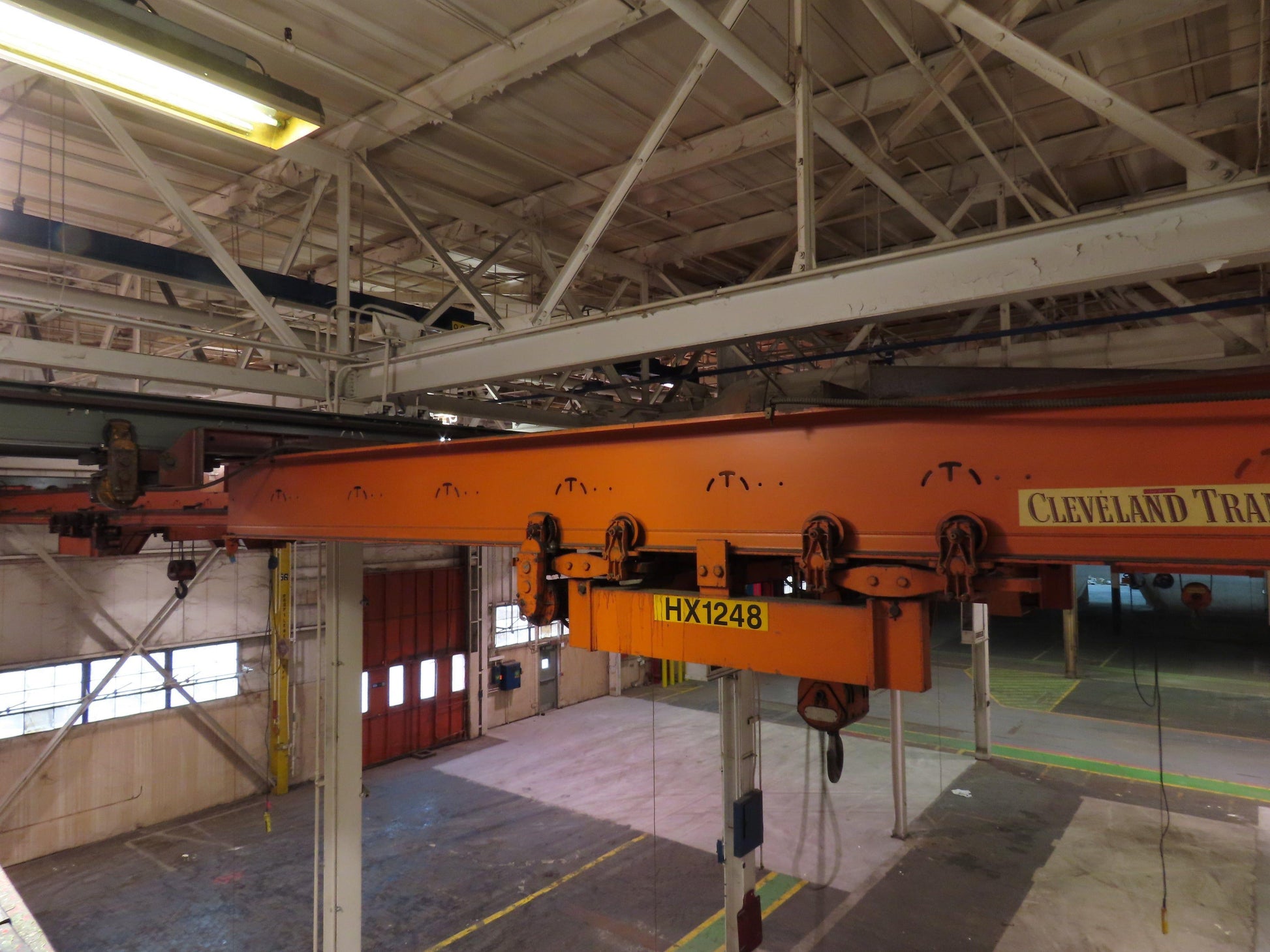

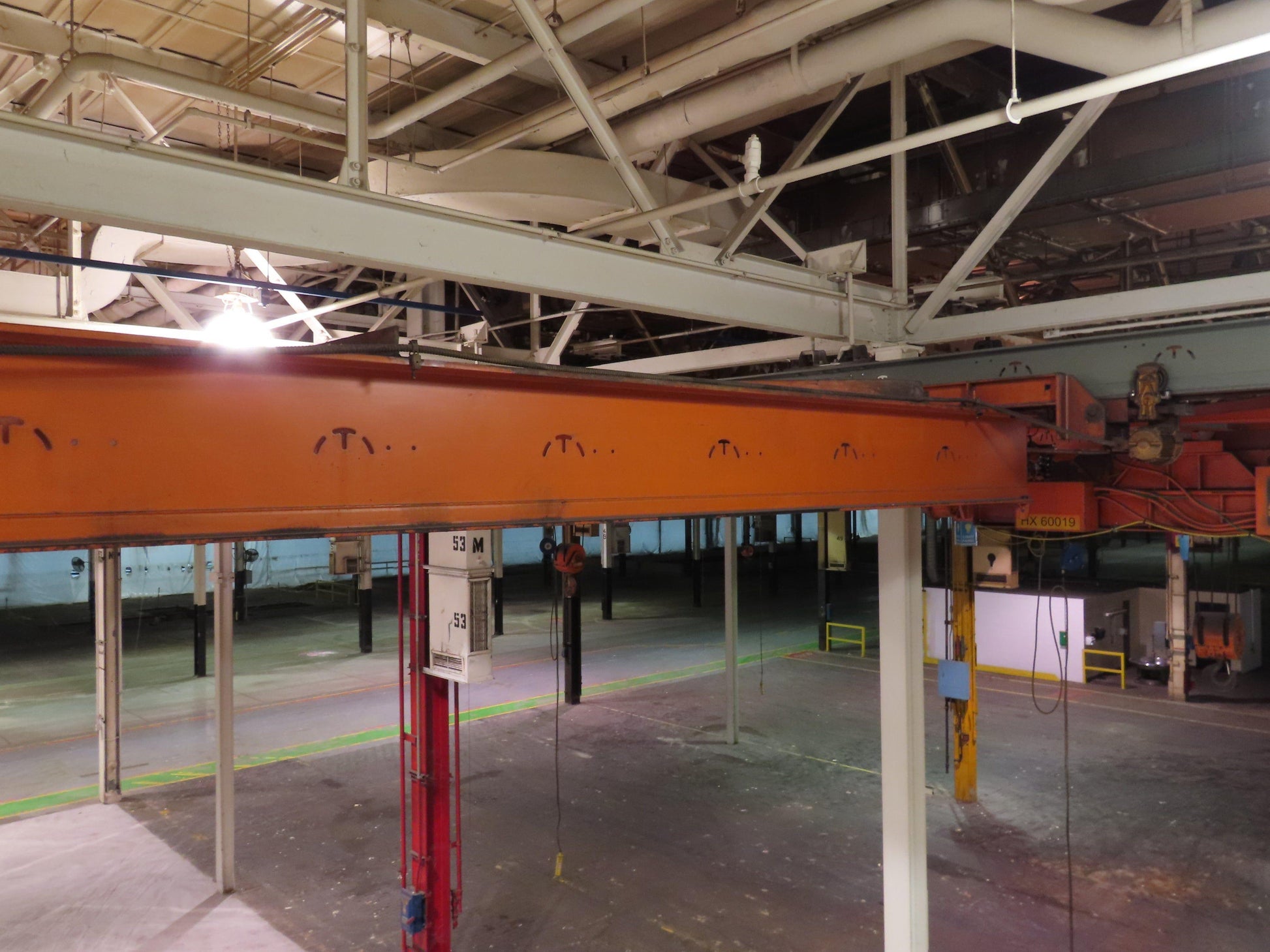

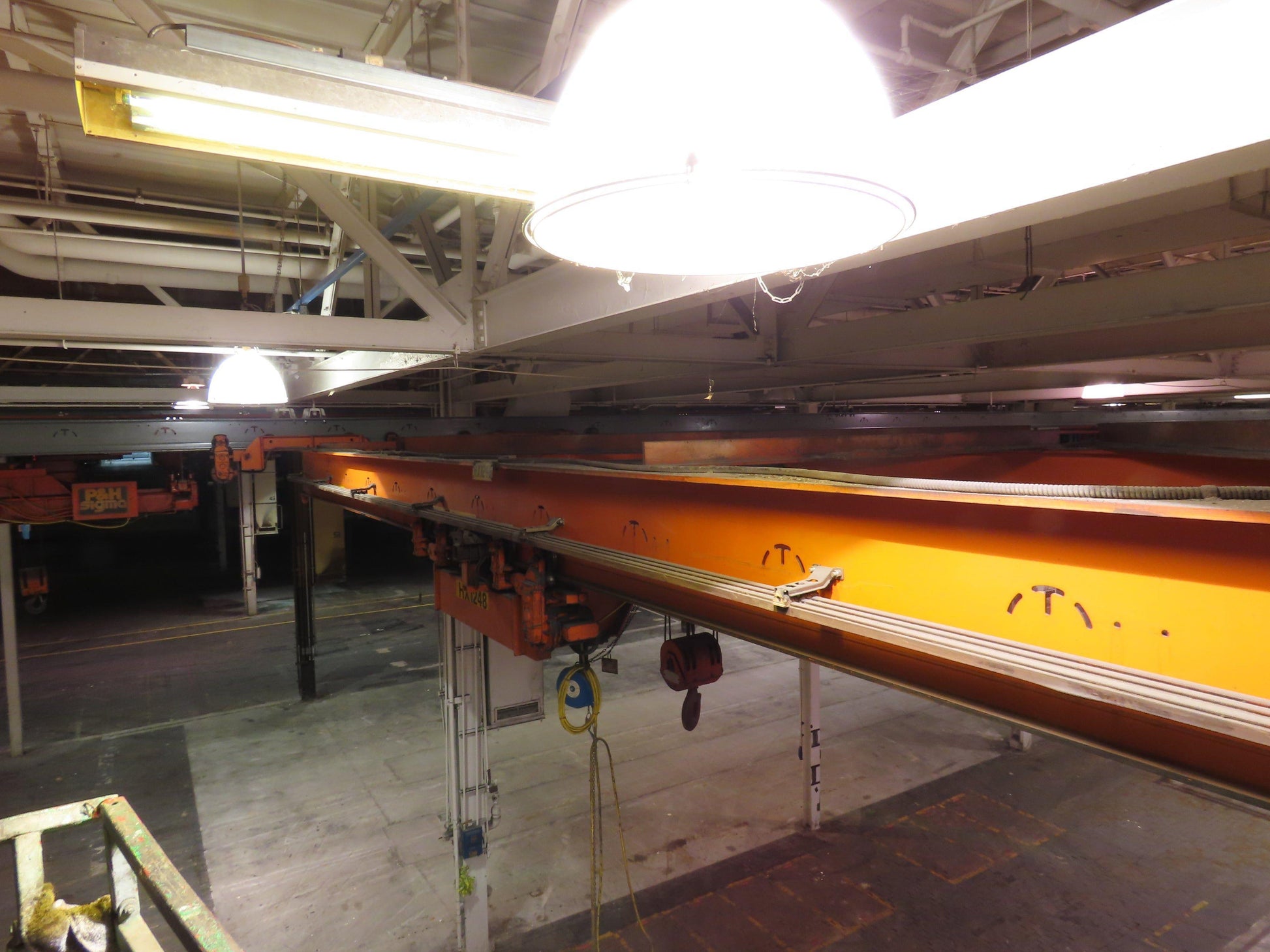

  • Main Girder Beam Size (Height x Width x Length): 20"H x 11"W x 37' 10"L

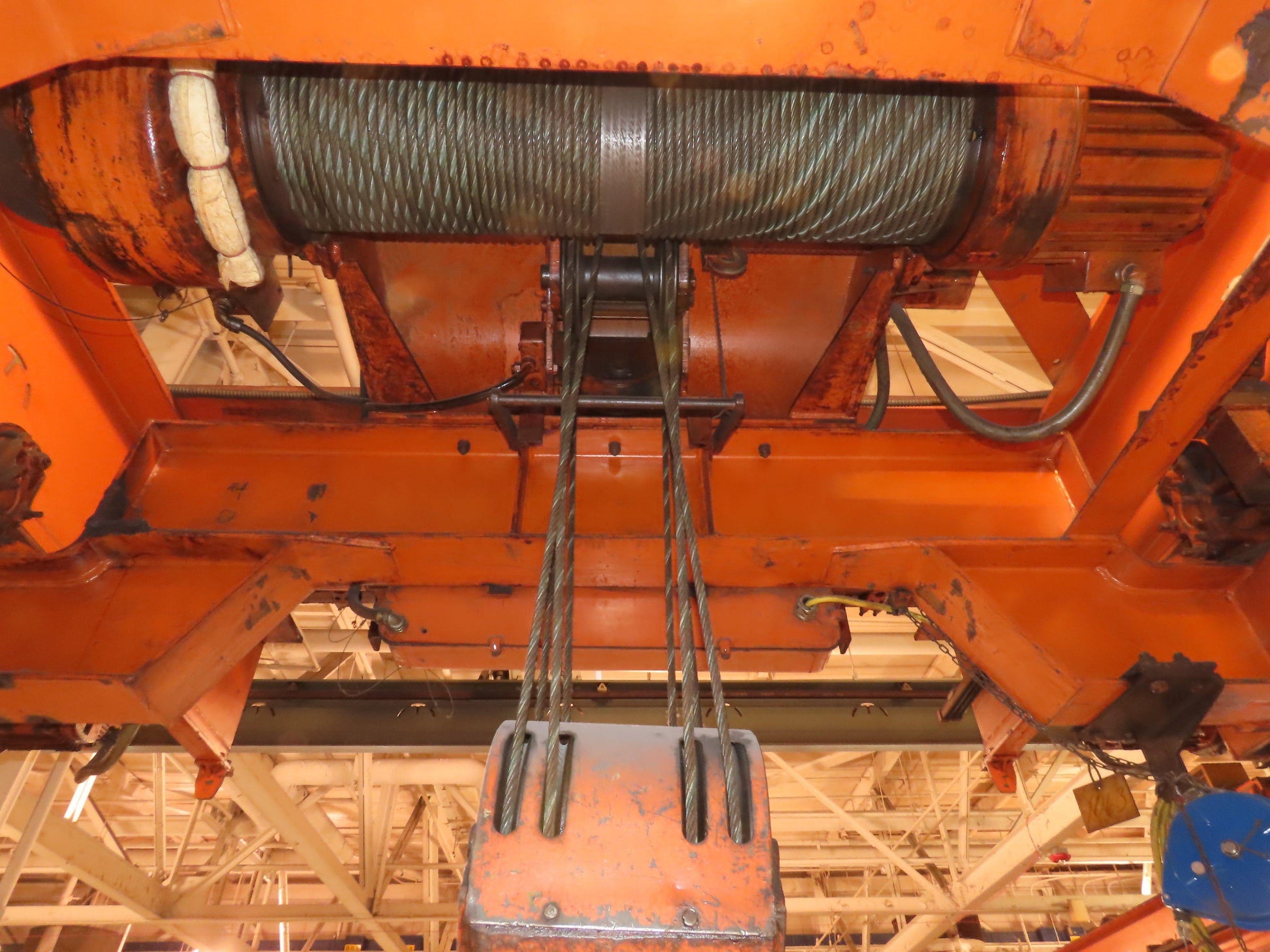

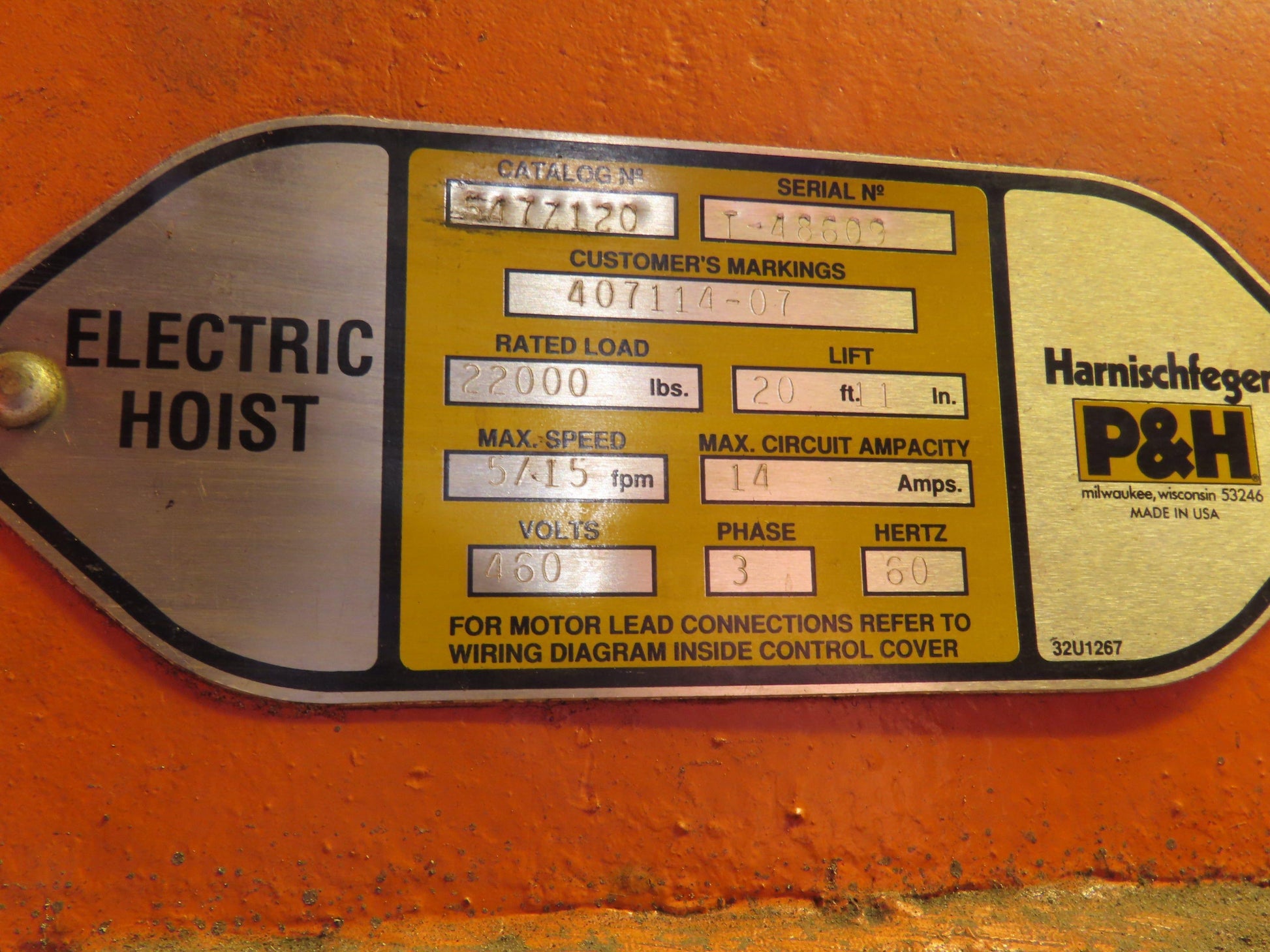

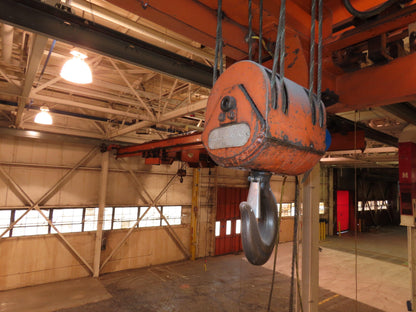

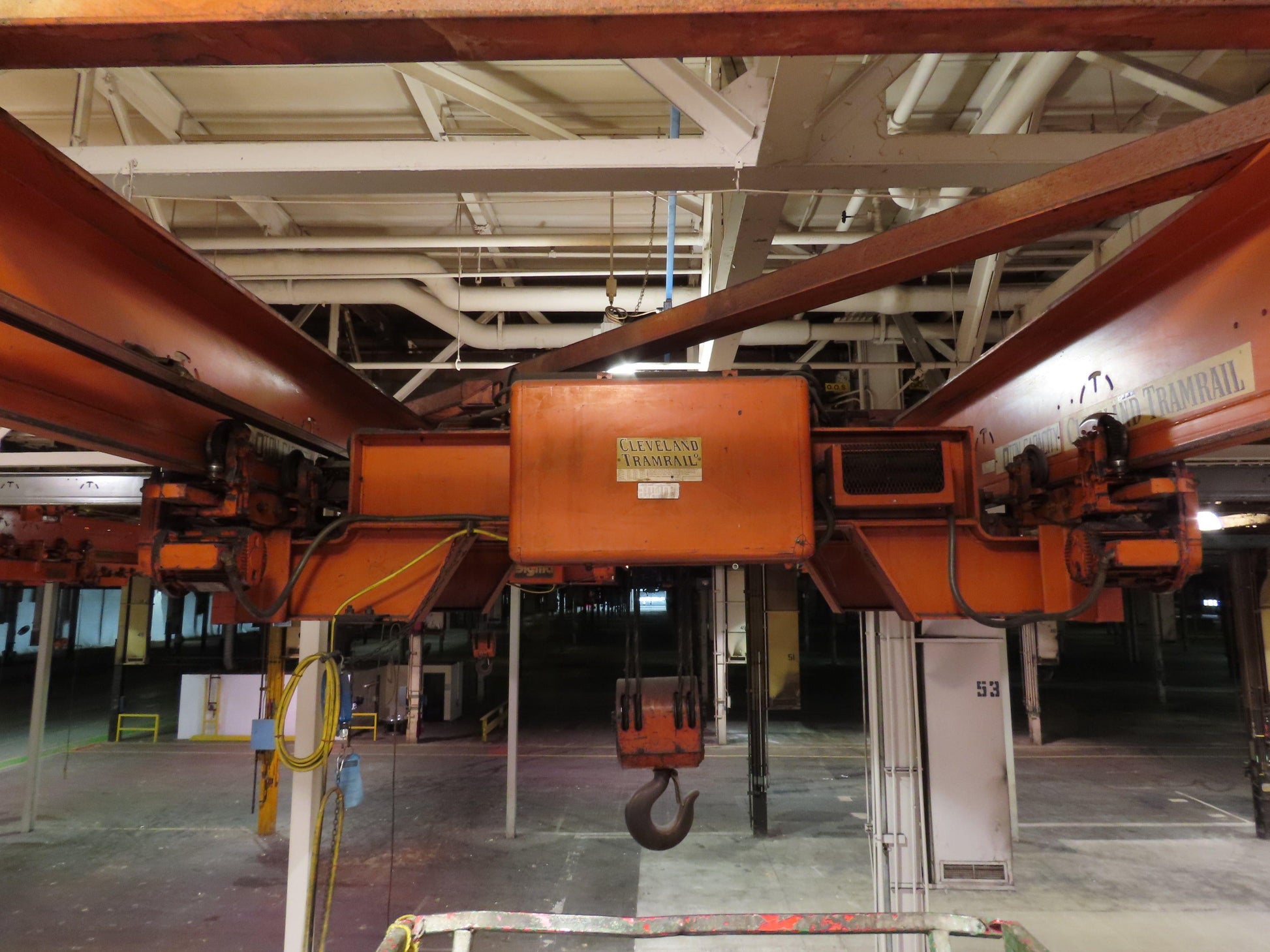

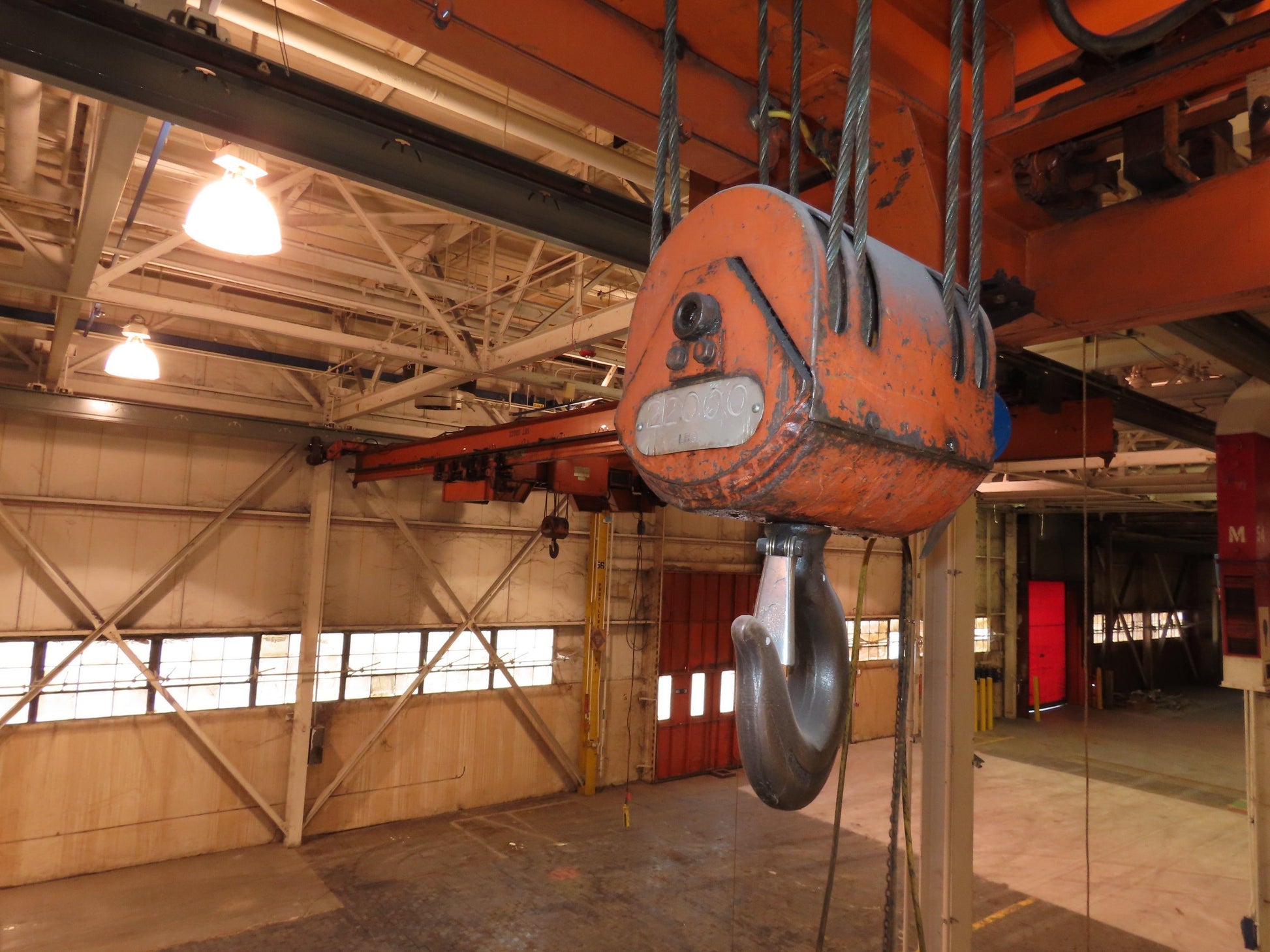

  • Hoist Brand: P&H
  • Lift Travel (feet): 20' 11"
  • Lift Speed (feet per minute): 5/15 FPM 2-Speed
  • Pendant/Control Length From Bottom of Hoist (ft): 24'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 48"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 68"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 72"
  • Bridge Crane is in working condition.  Tested on site before removal.

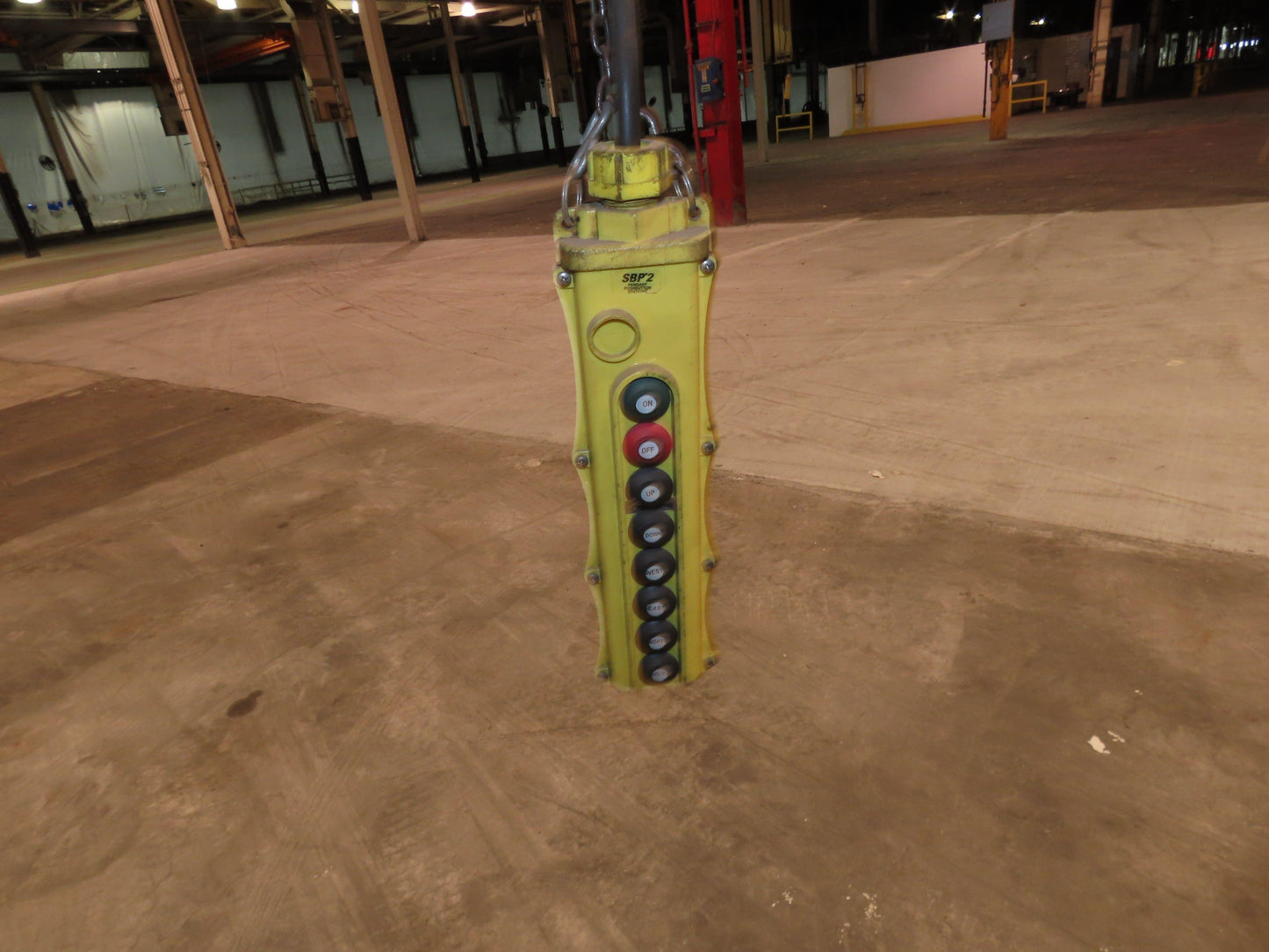

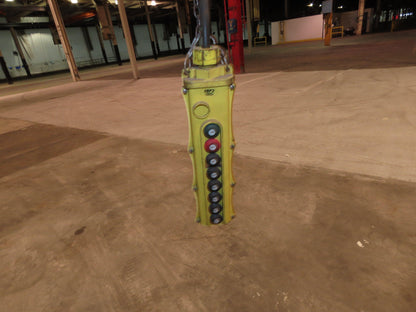

  • Includes corded pendant only.  Not set up for wireless.

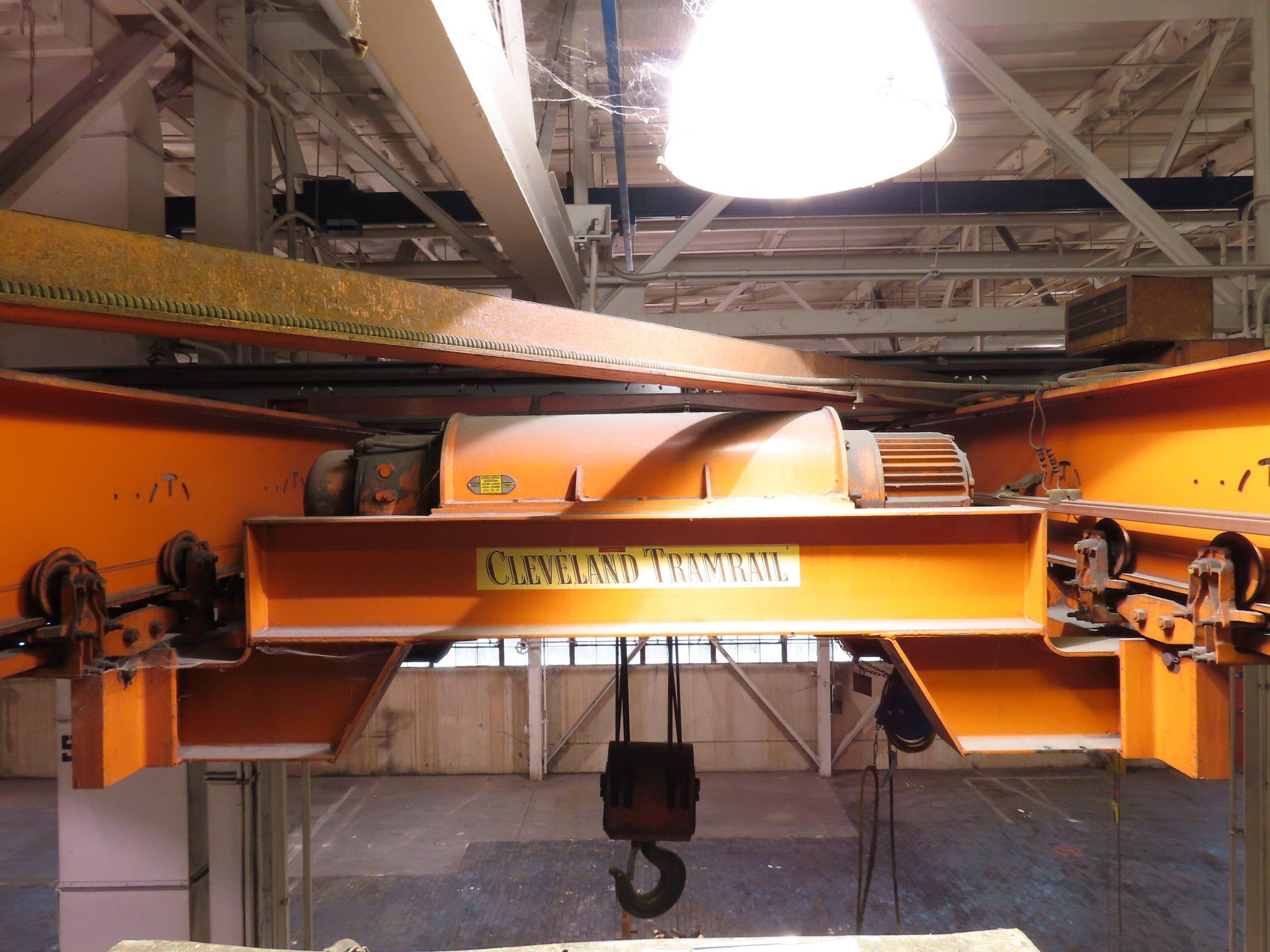

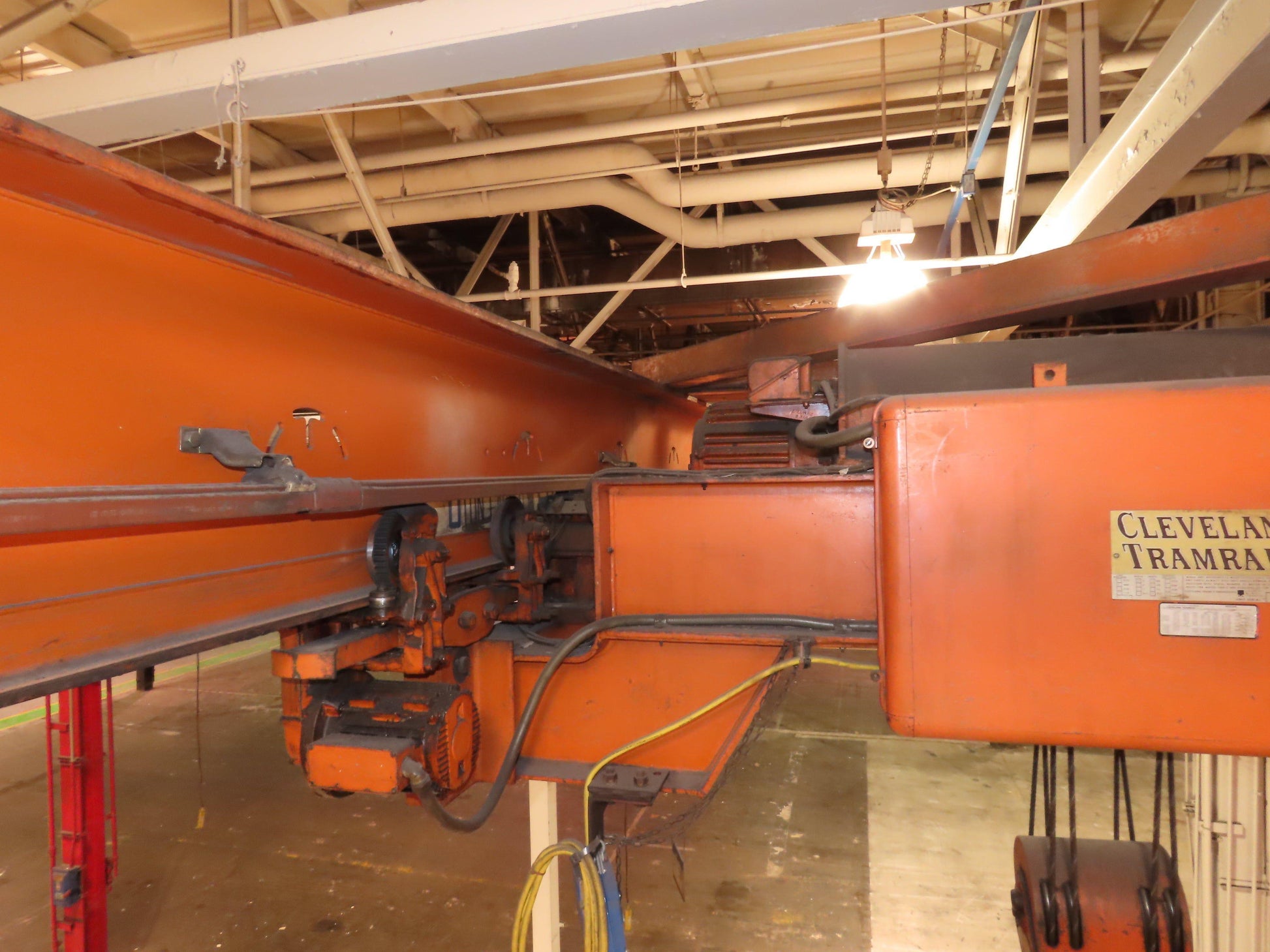

  • Single speed bridge and trolley, 2-speed hoist.

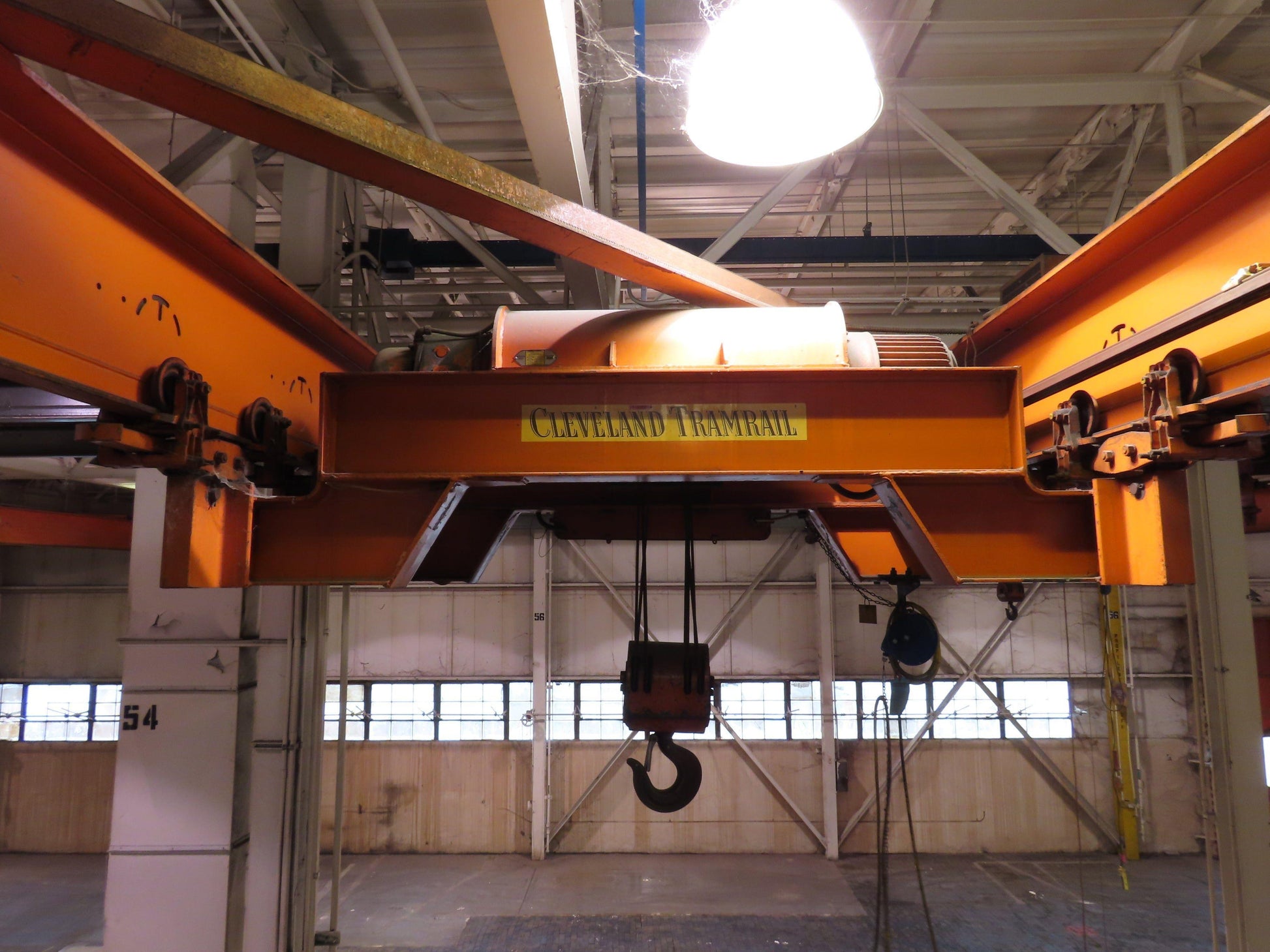

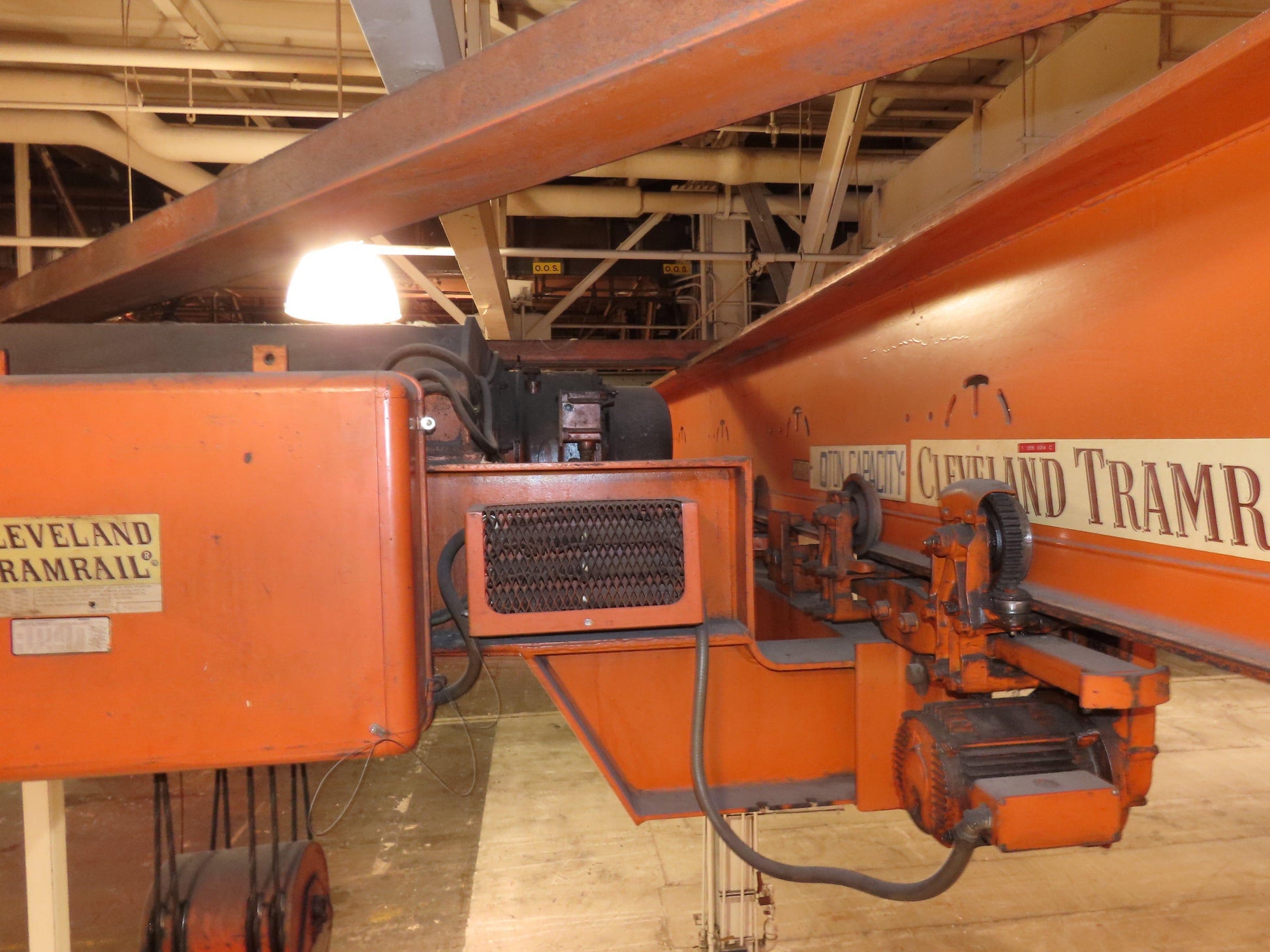

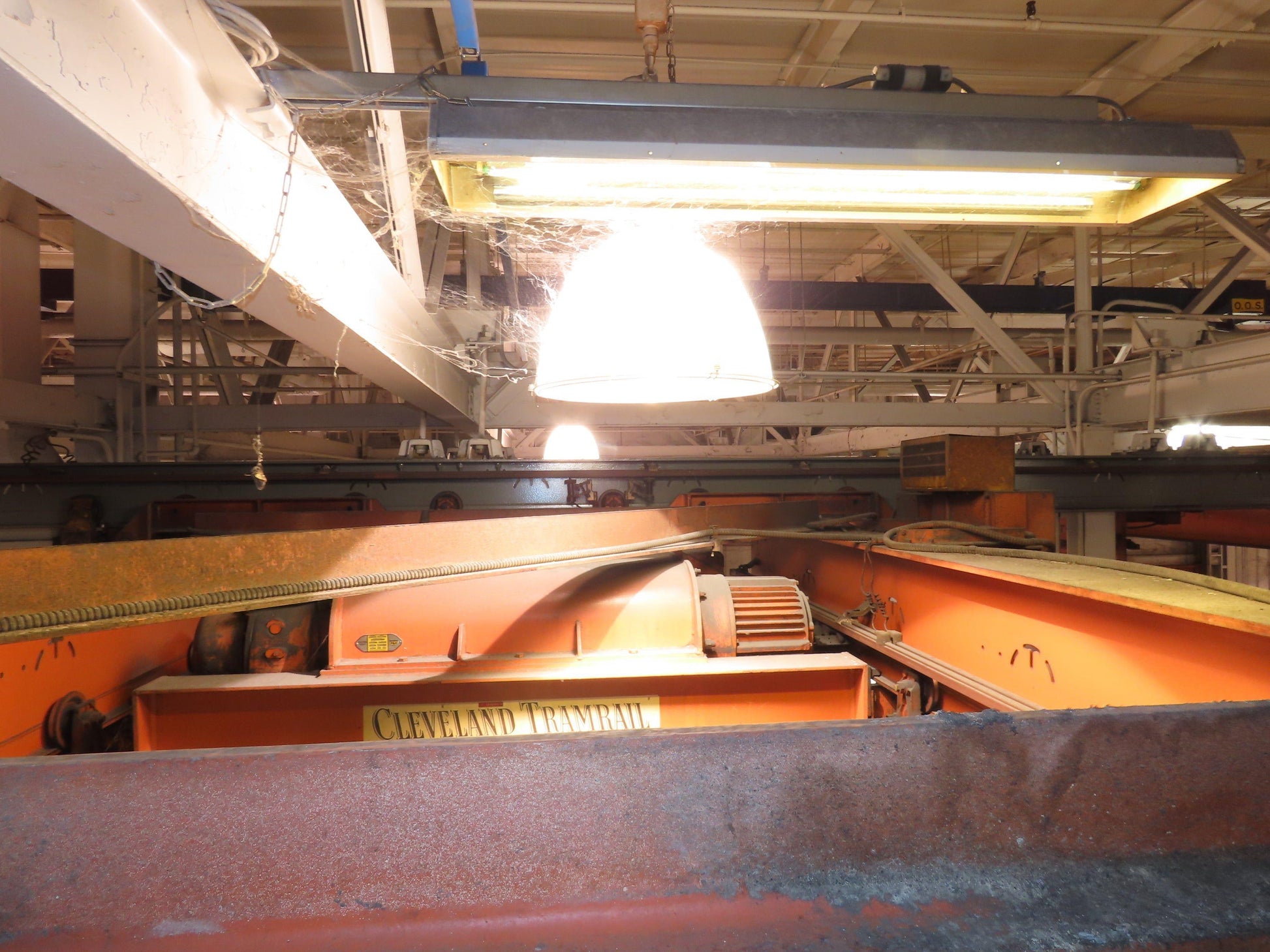

  • Trolley carriage length: 87"

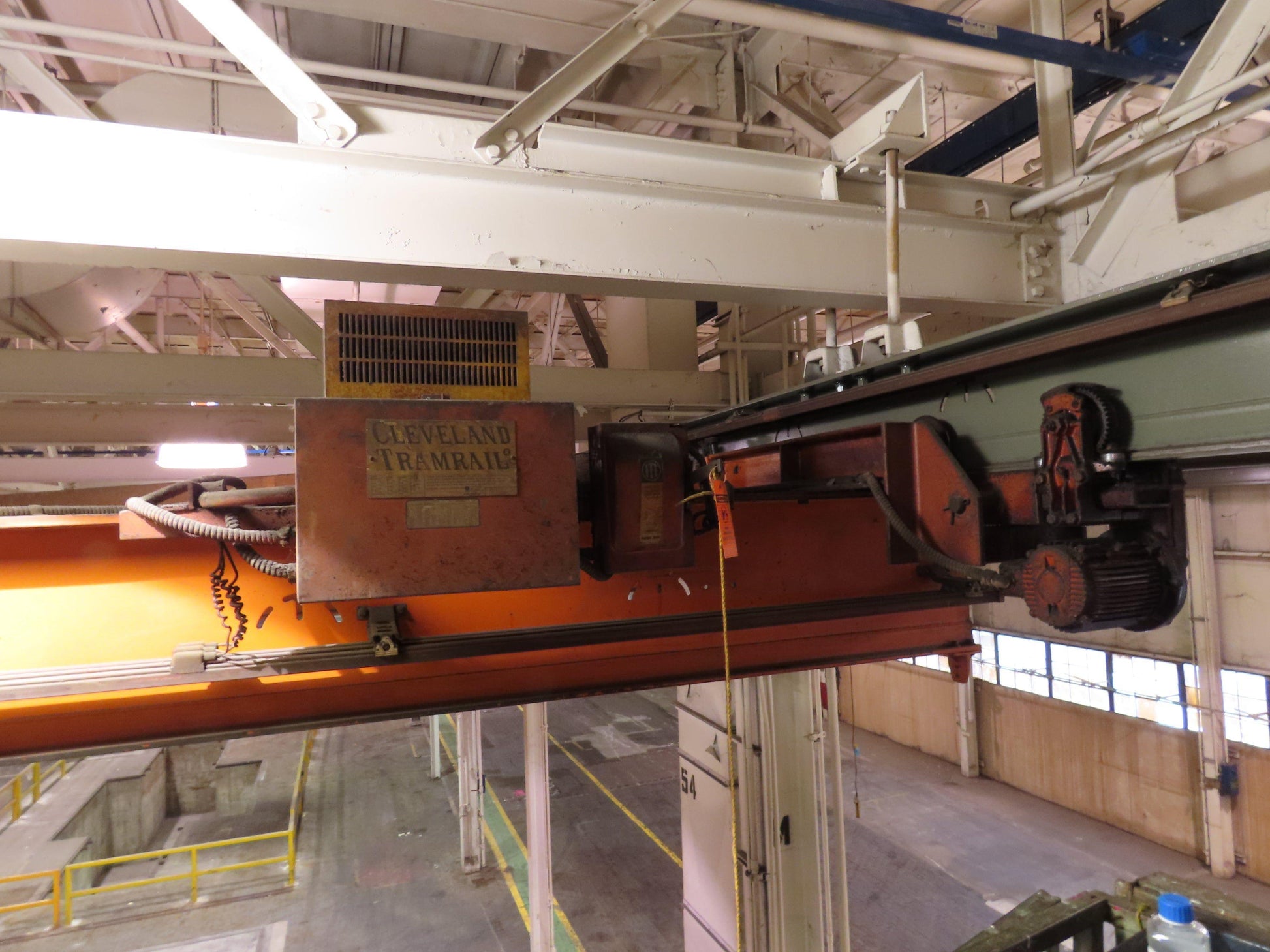

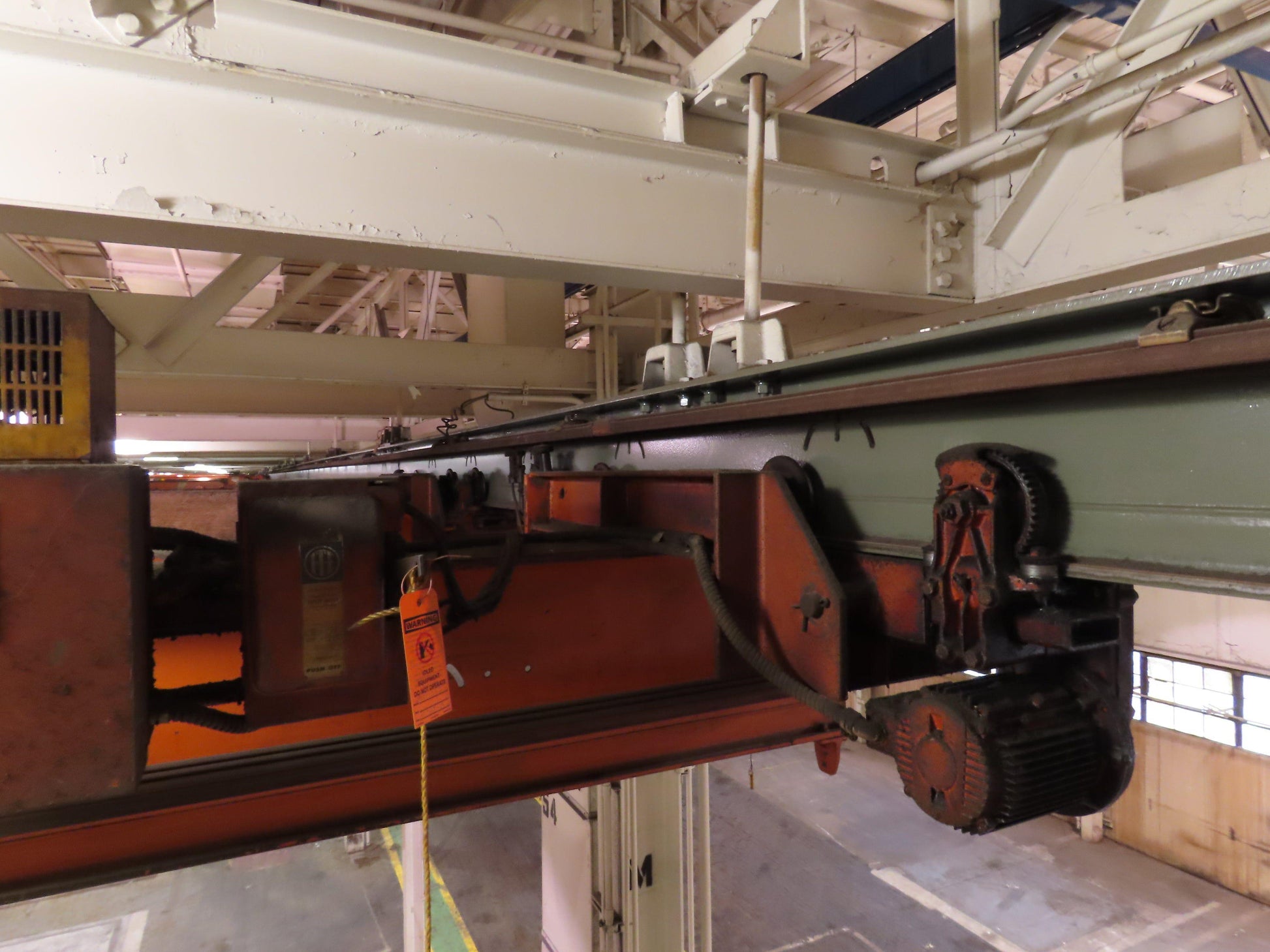

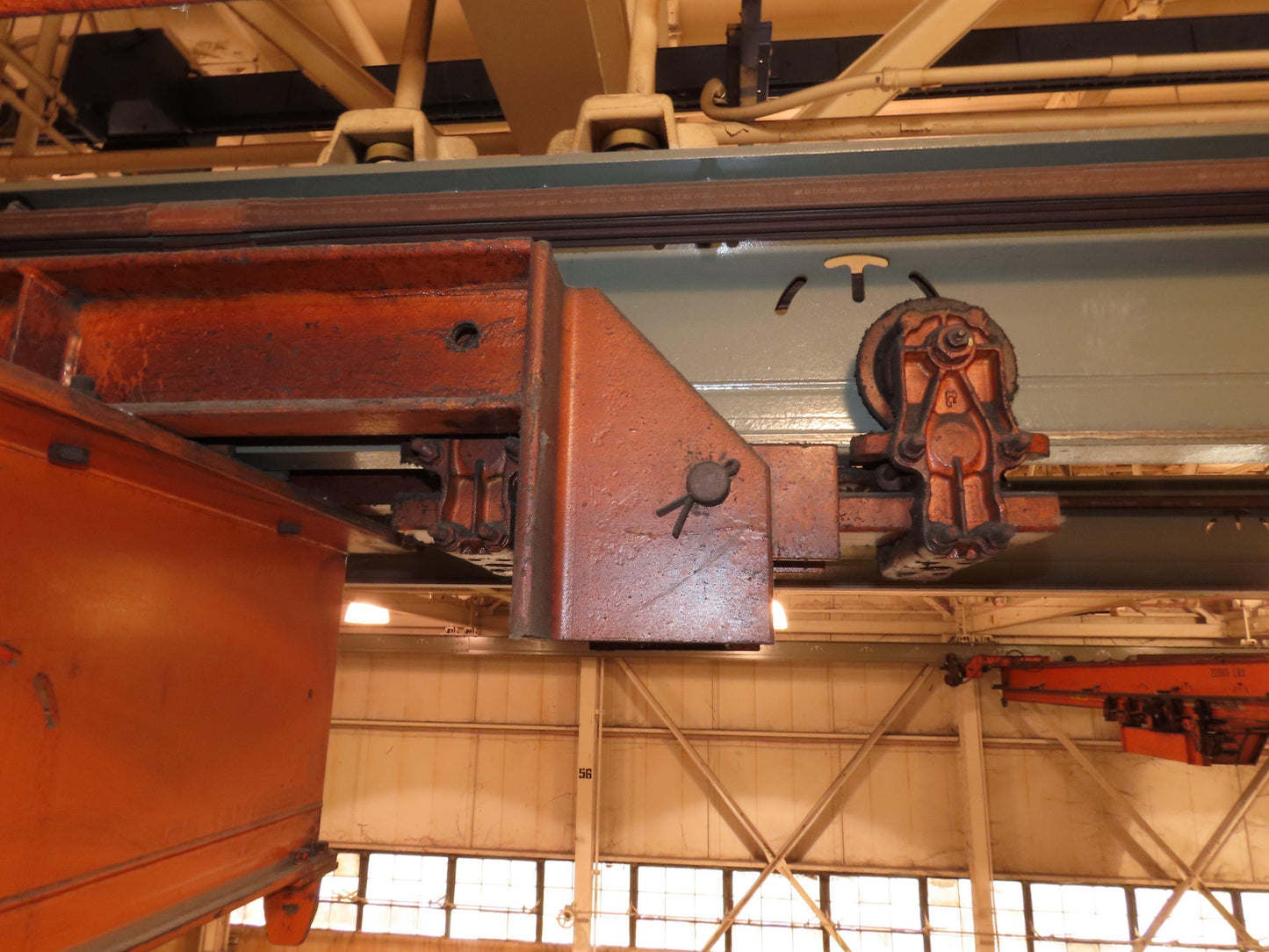

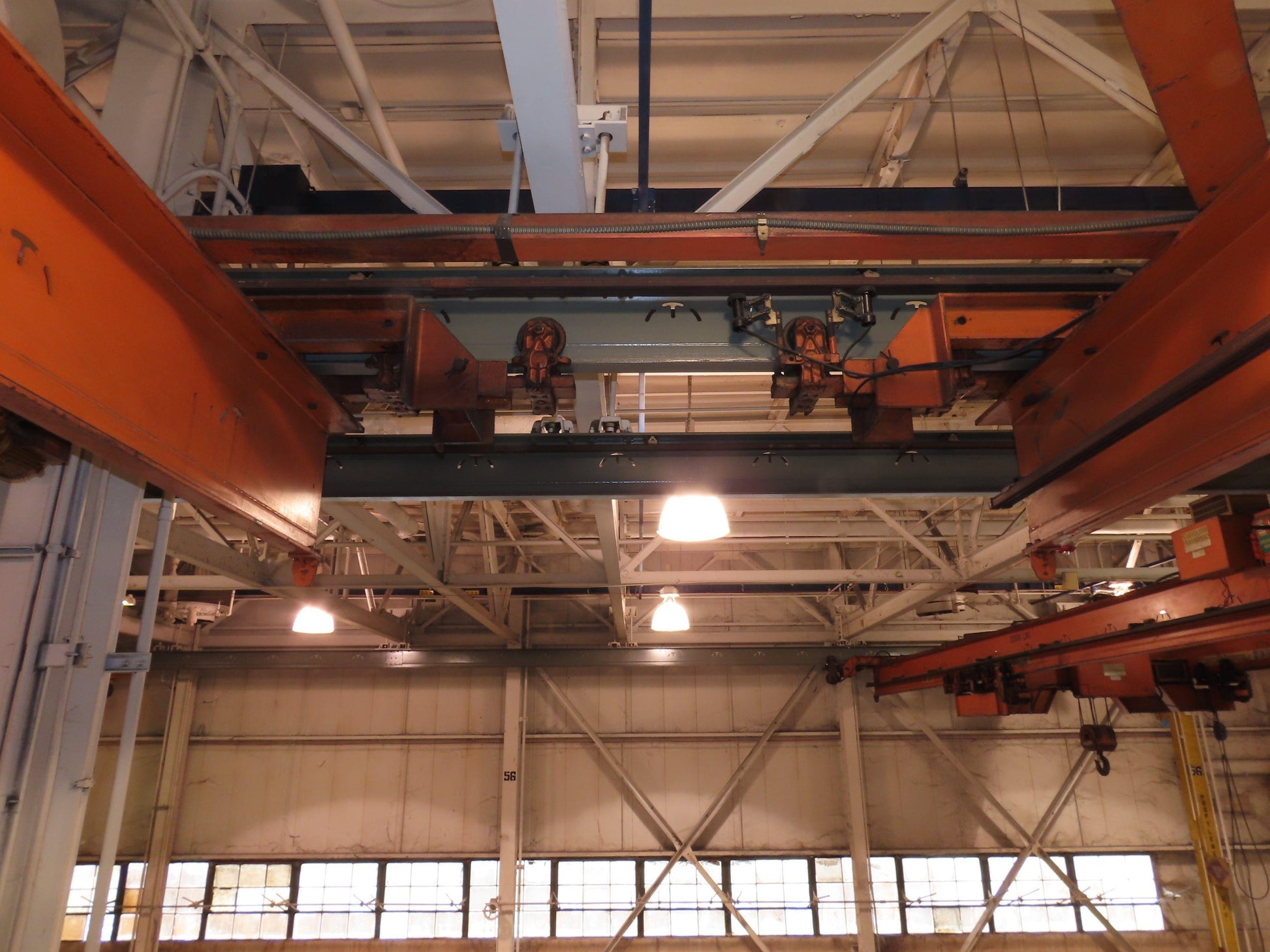

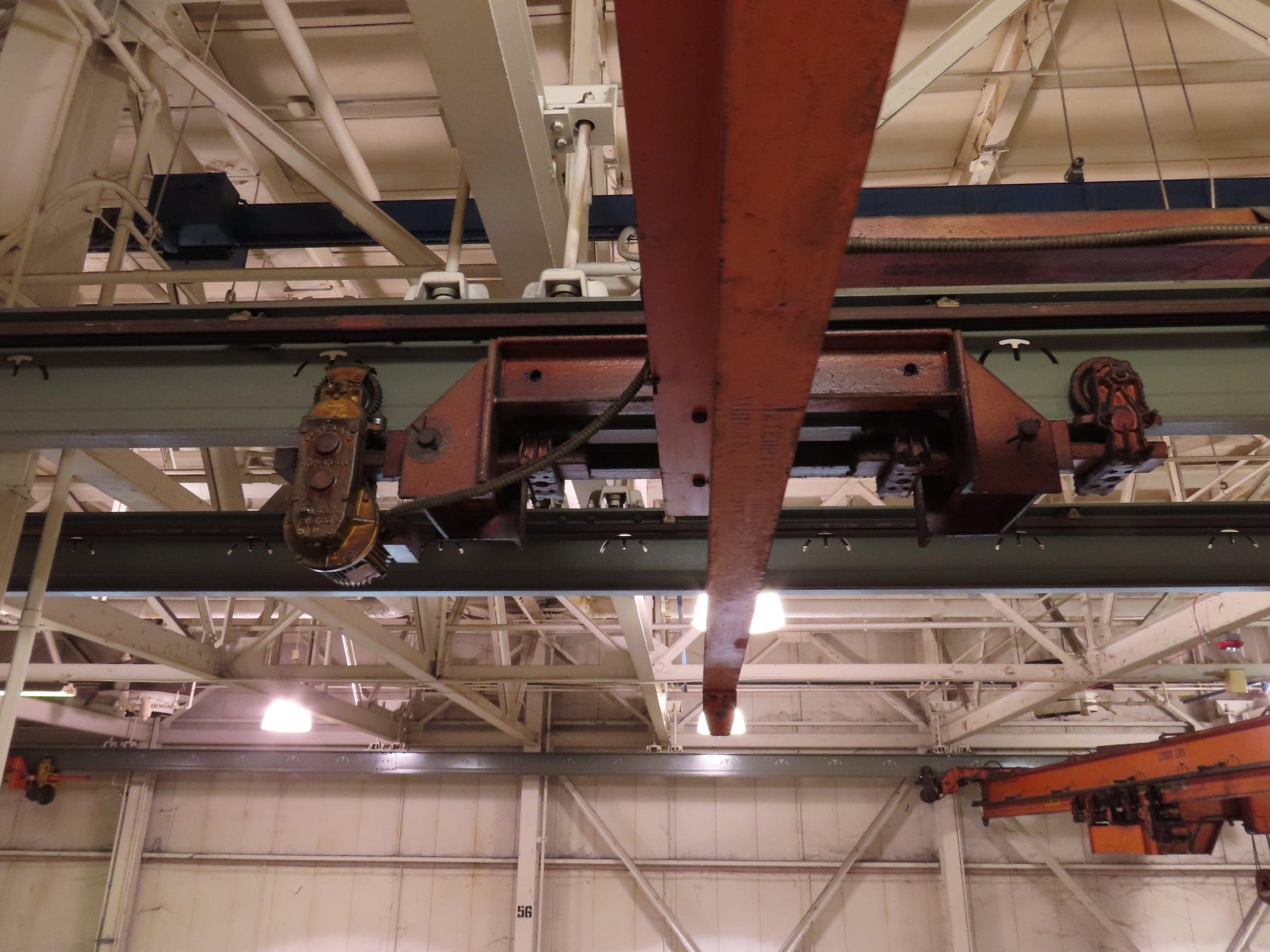

  • End truck length:  78"
  • End truck wheel size:  5"
  • Girder beam span: 8' 6"

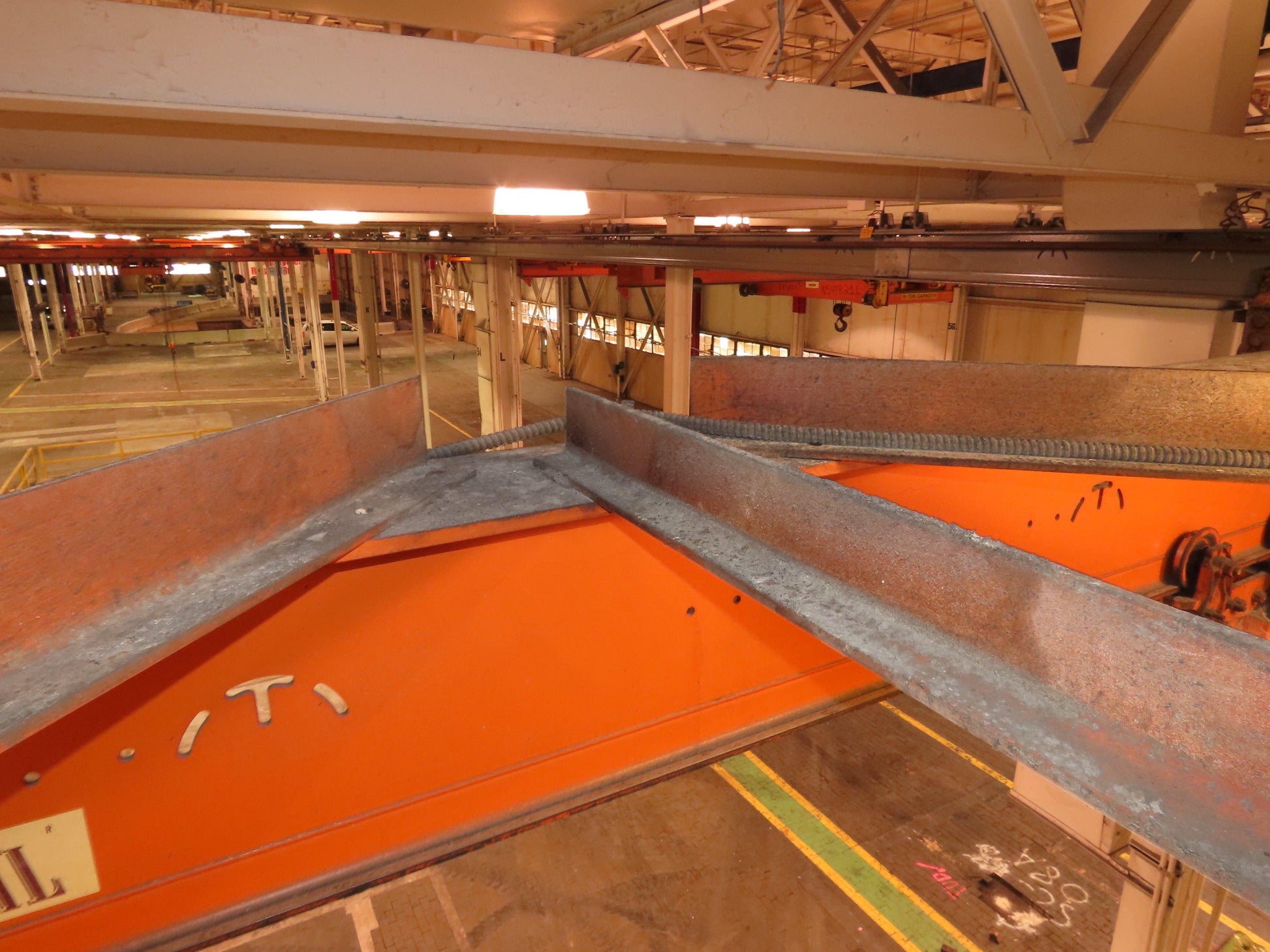

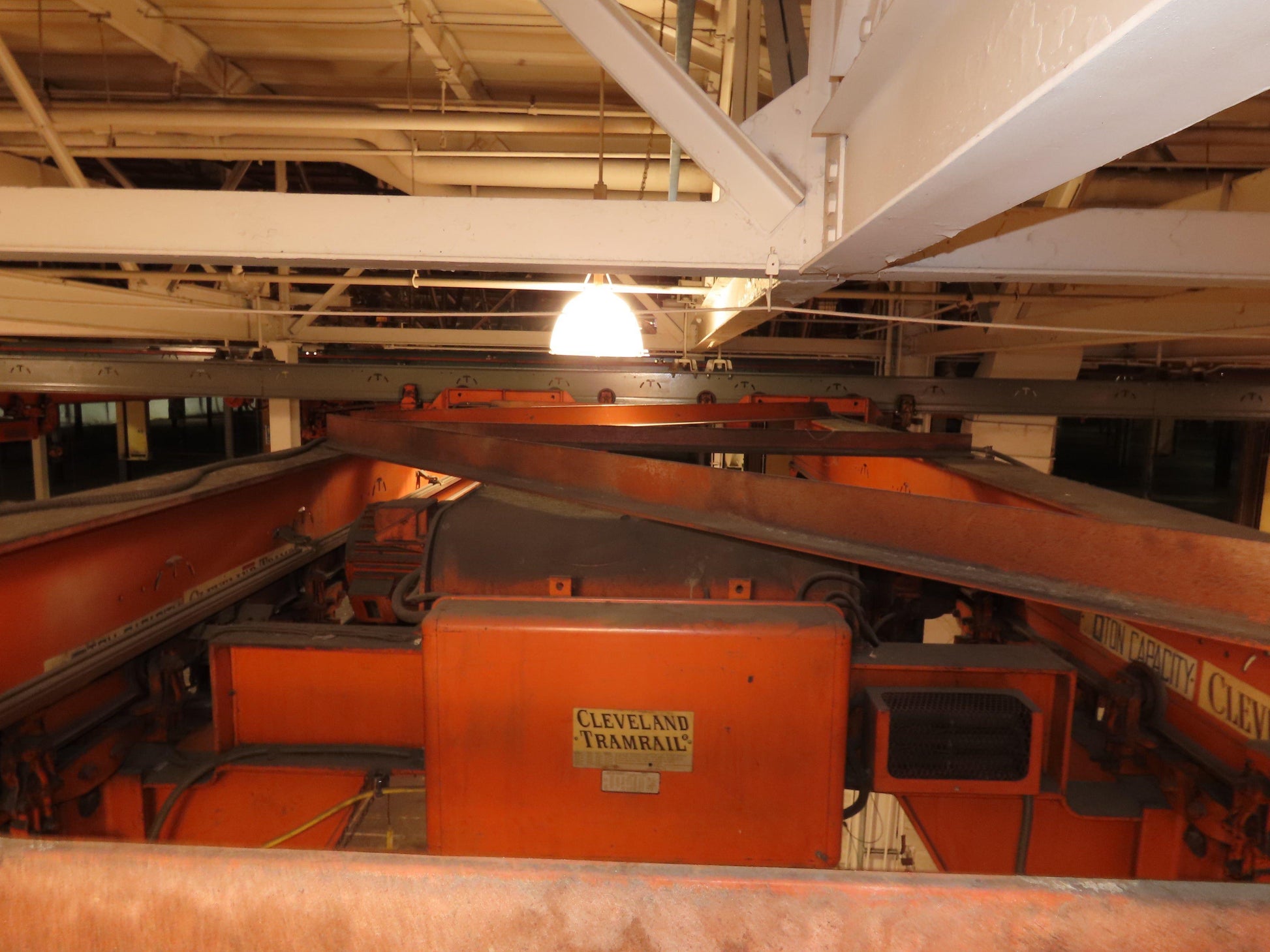

  • Top braces are welded on.
