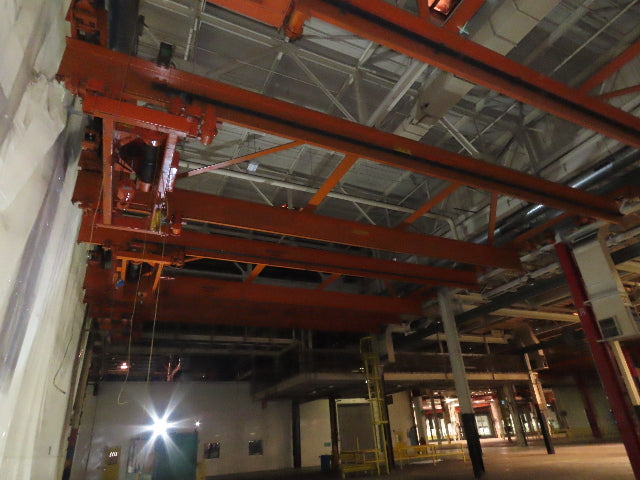

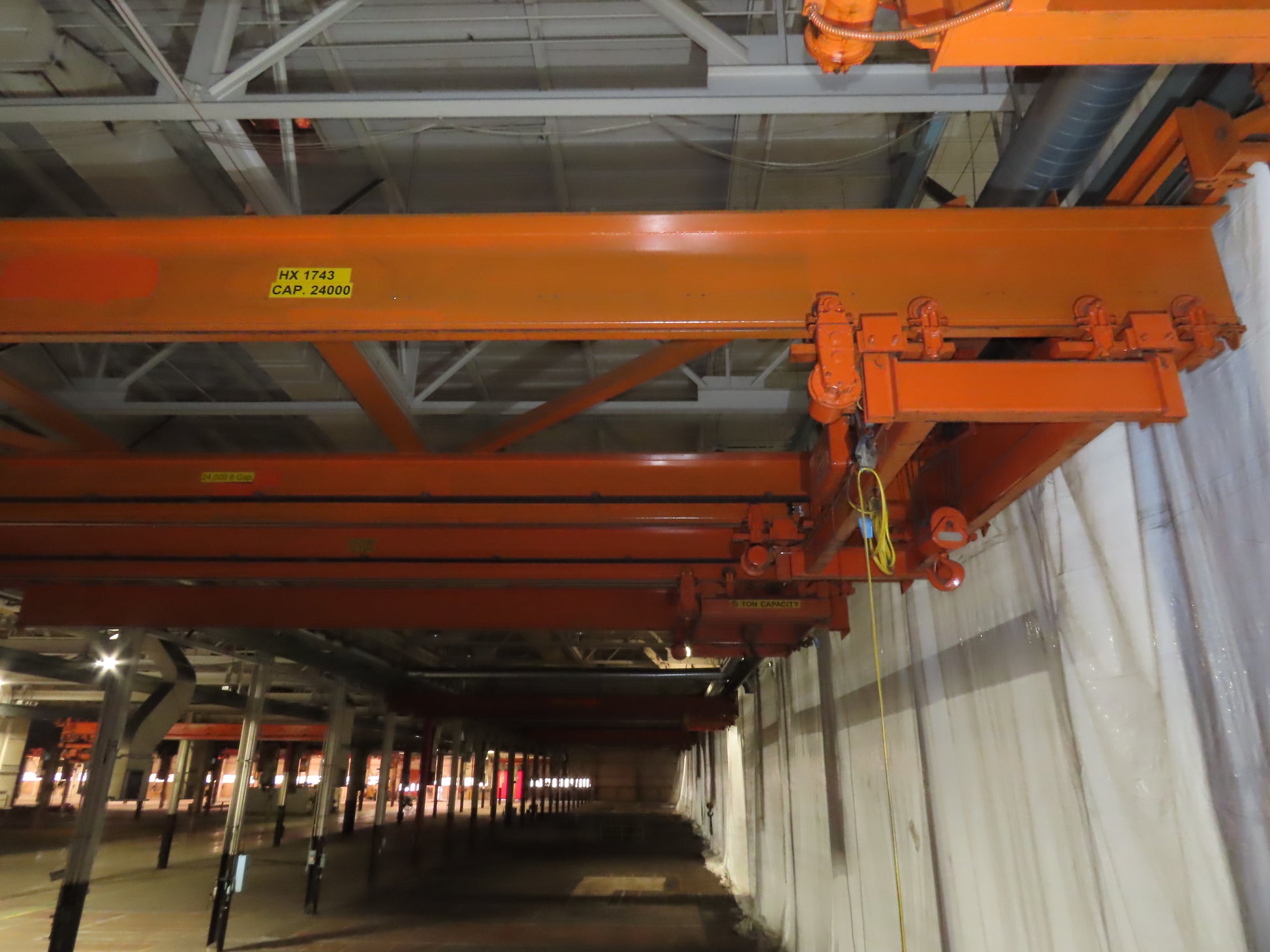

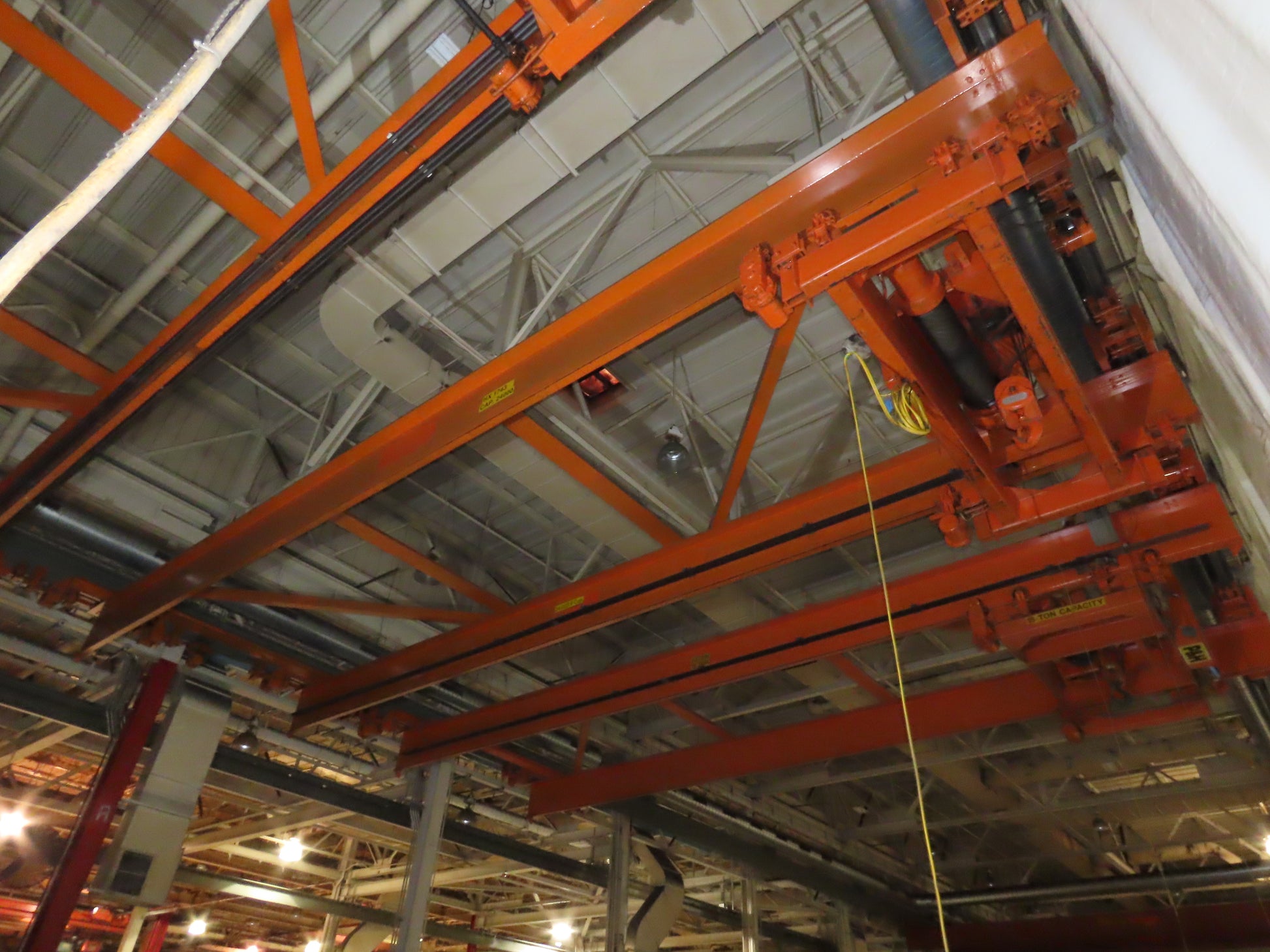

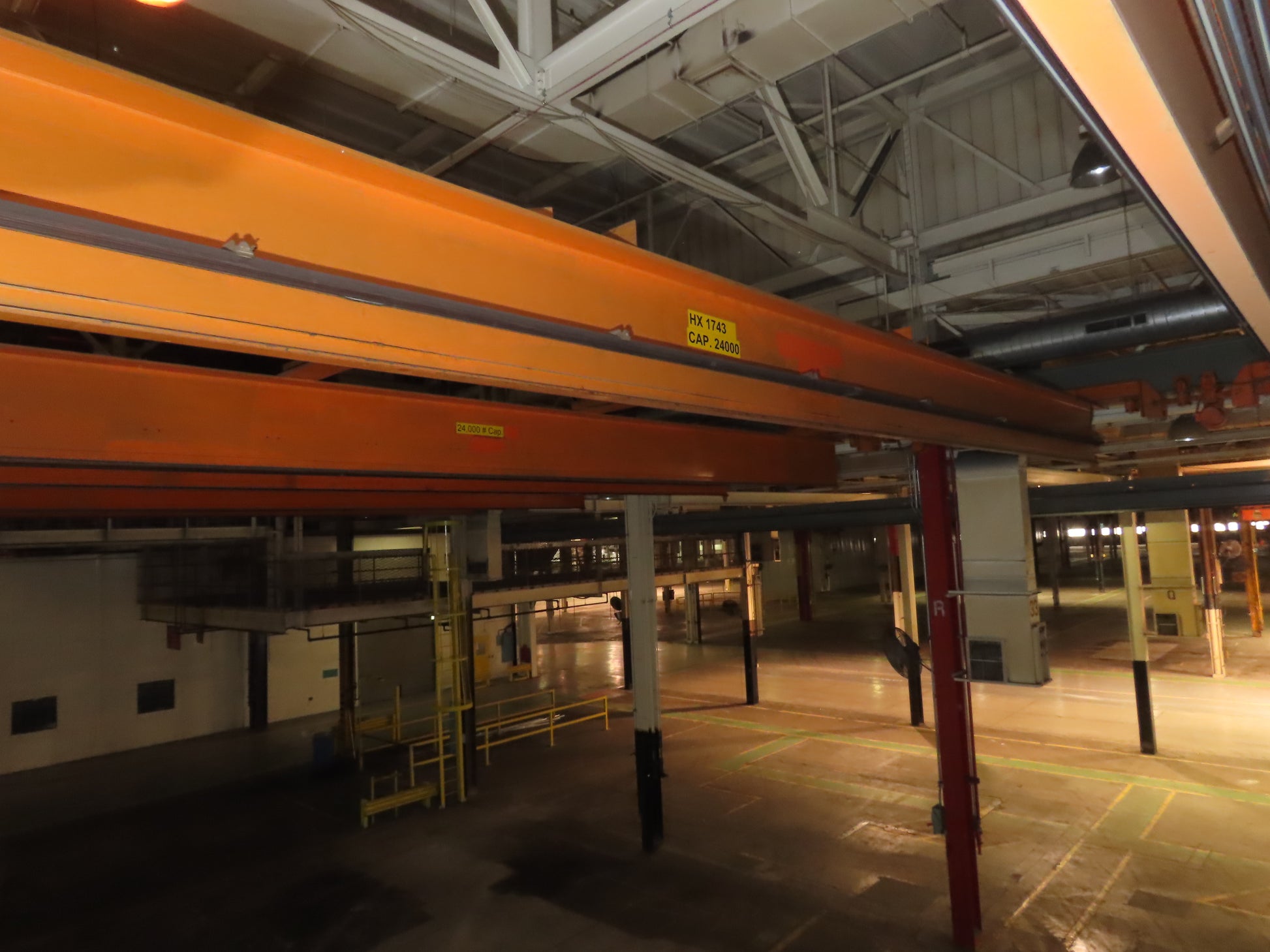

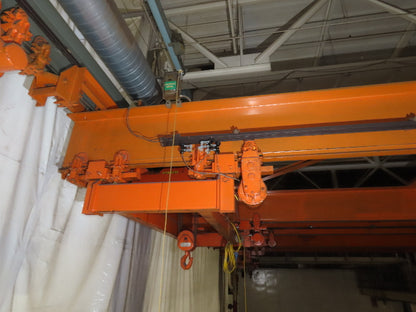

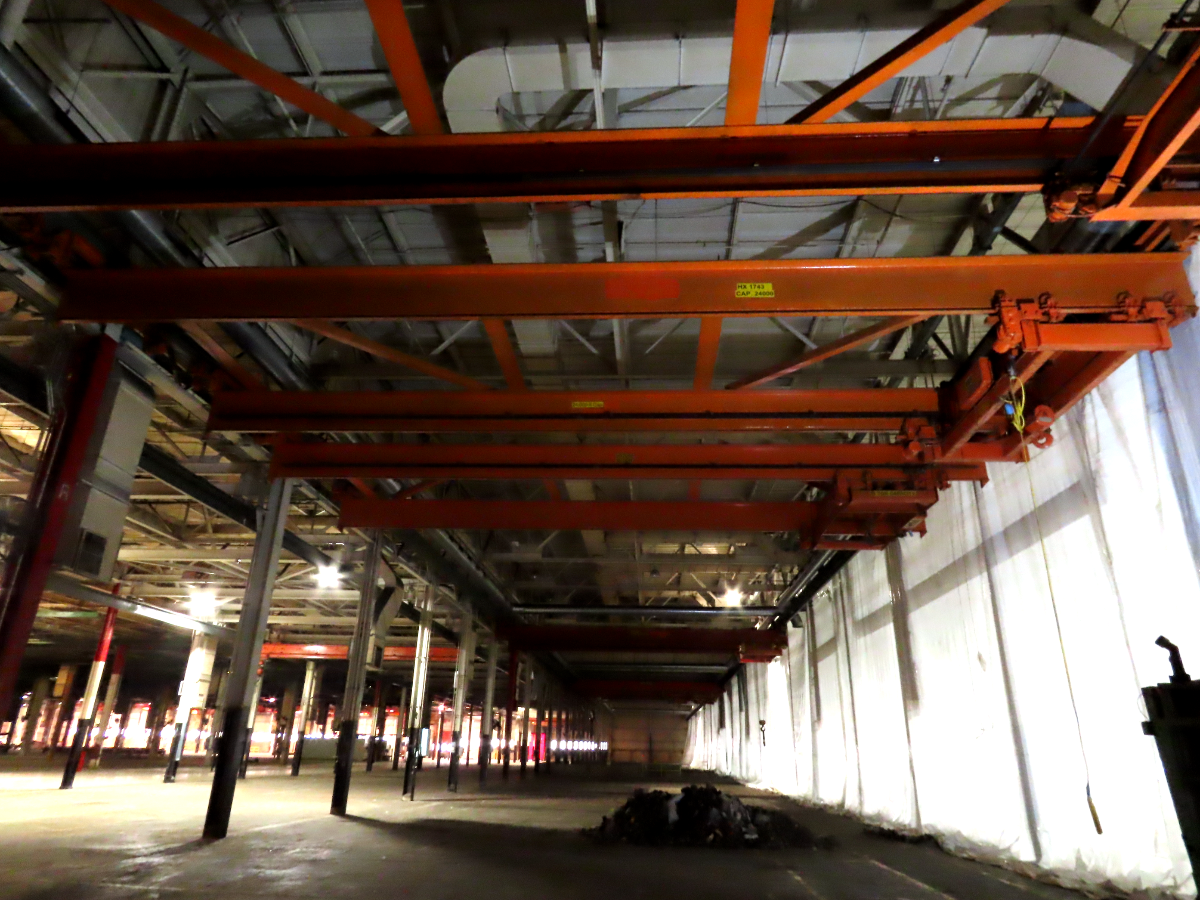

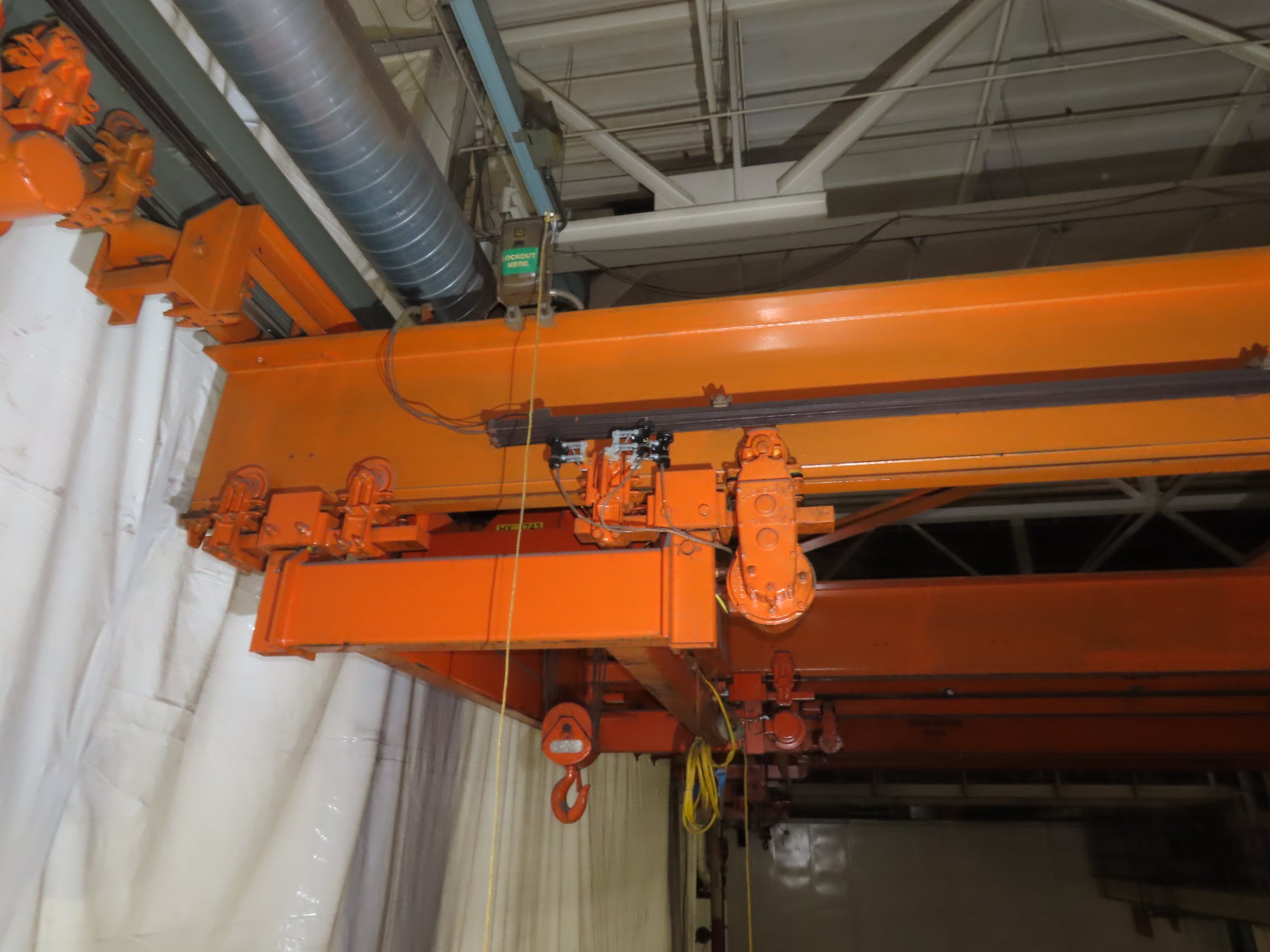

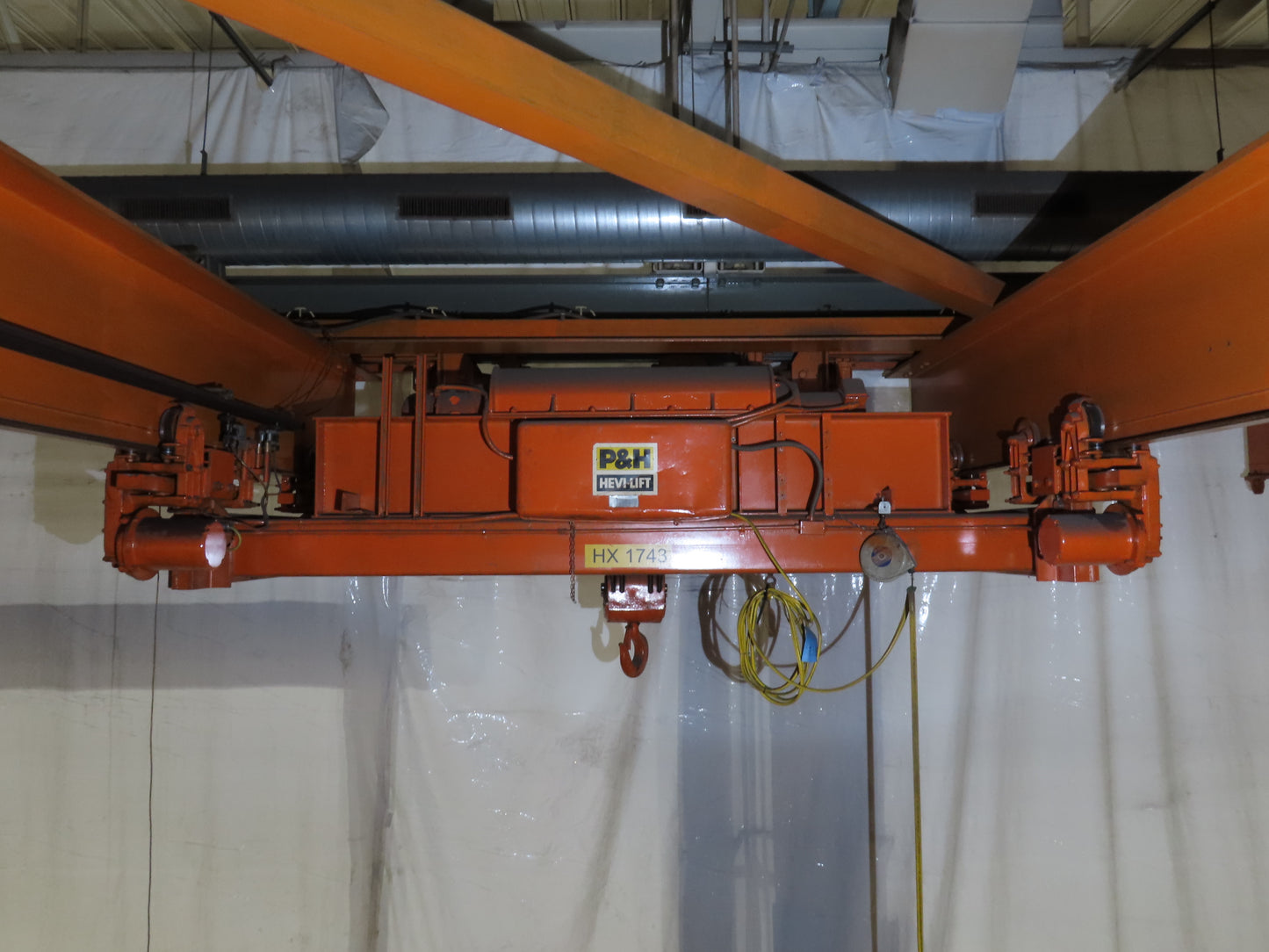

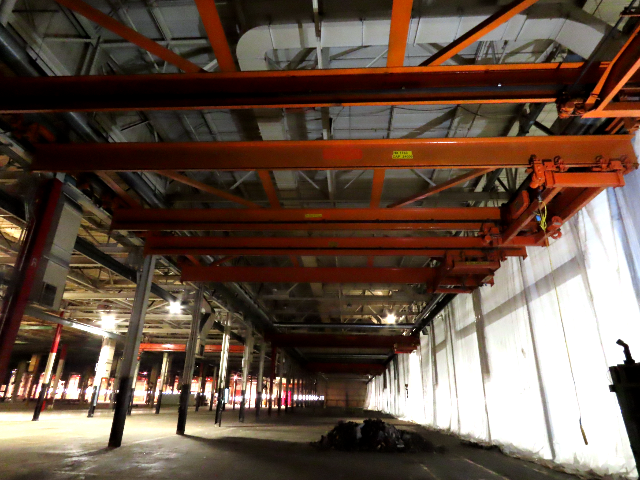

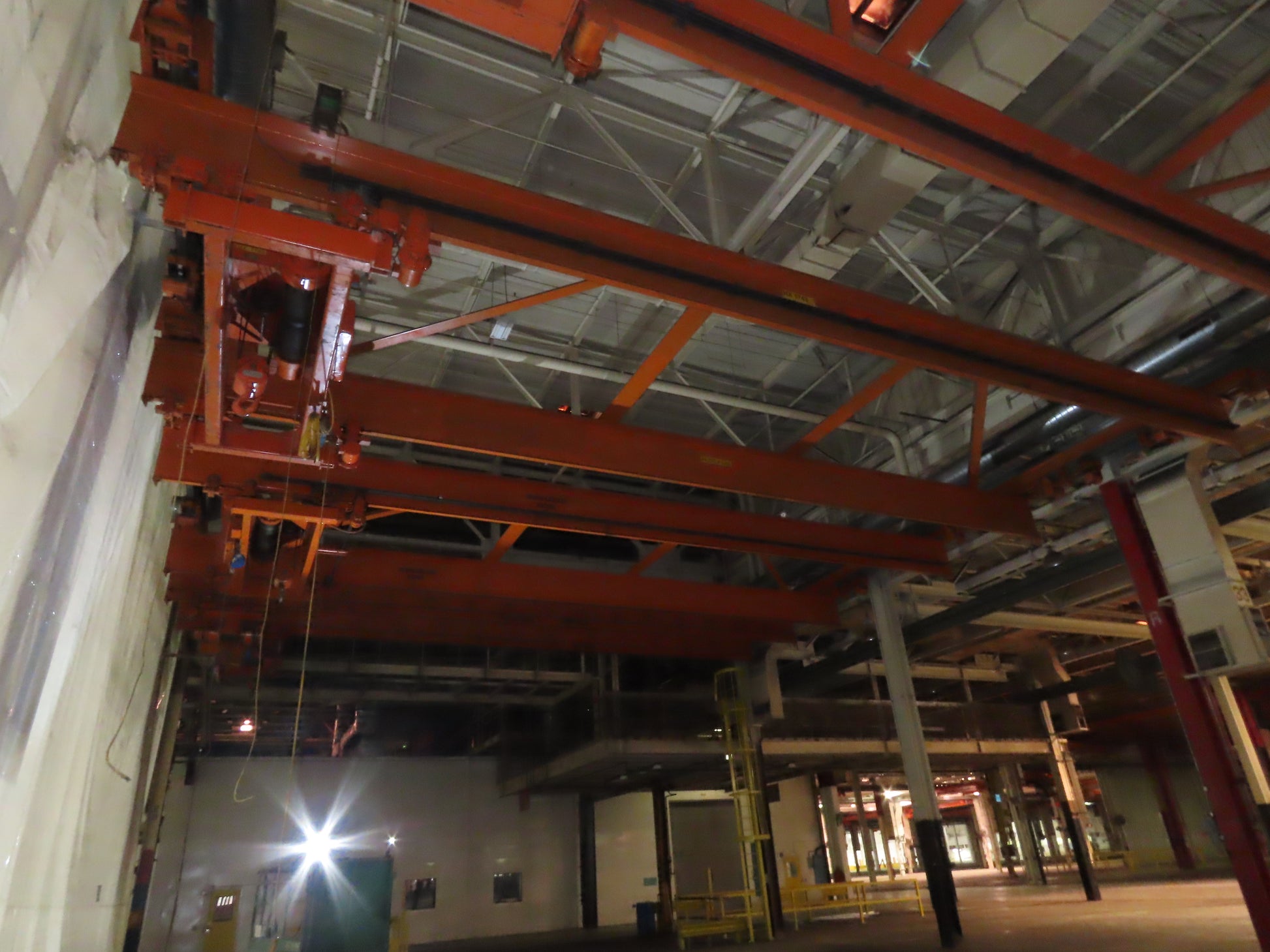

Cleveland Tramrail P&H 12 Ton Double Girder Underhung Bridge Crane 45' Span

Cleveland Tramrail P&H 12 Ton Double Girder Underhung Bridge Crane 45' Span

SKU #268230

Product Condition: Used

Your Price
$15,389.99
$17,999.99 $15,389.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail P&H
Model

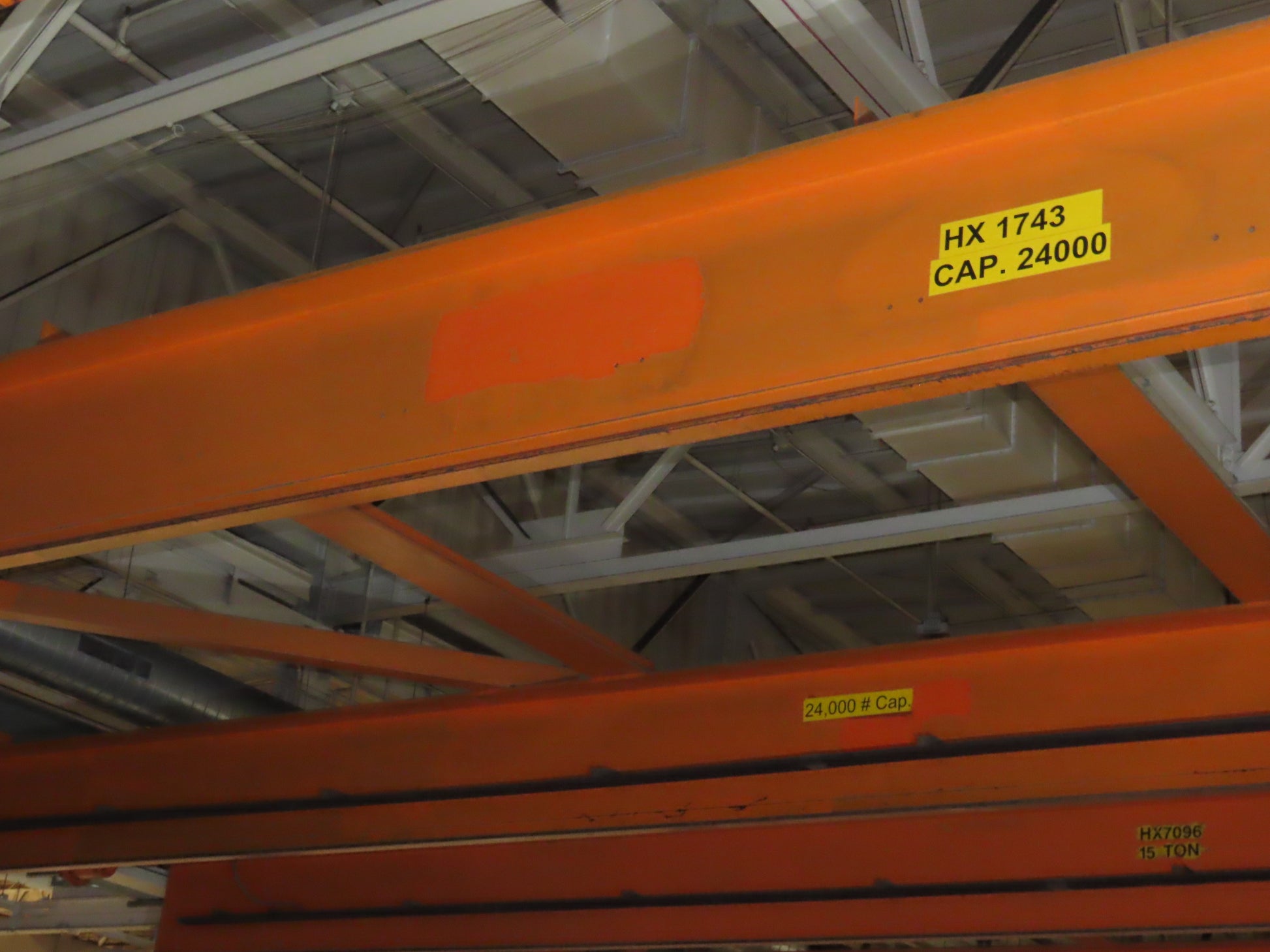

HX1743
MPN
N/A
Condition
Used
  • Capacity (tons): 12

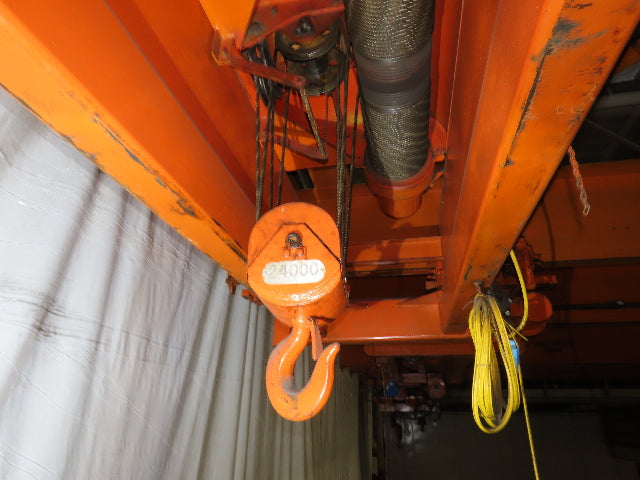

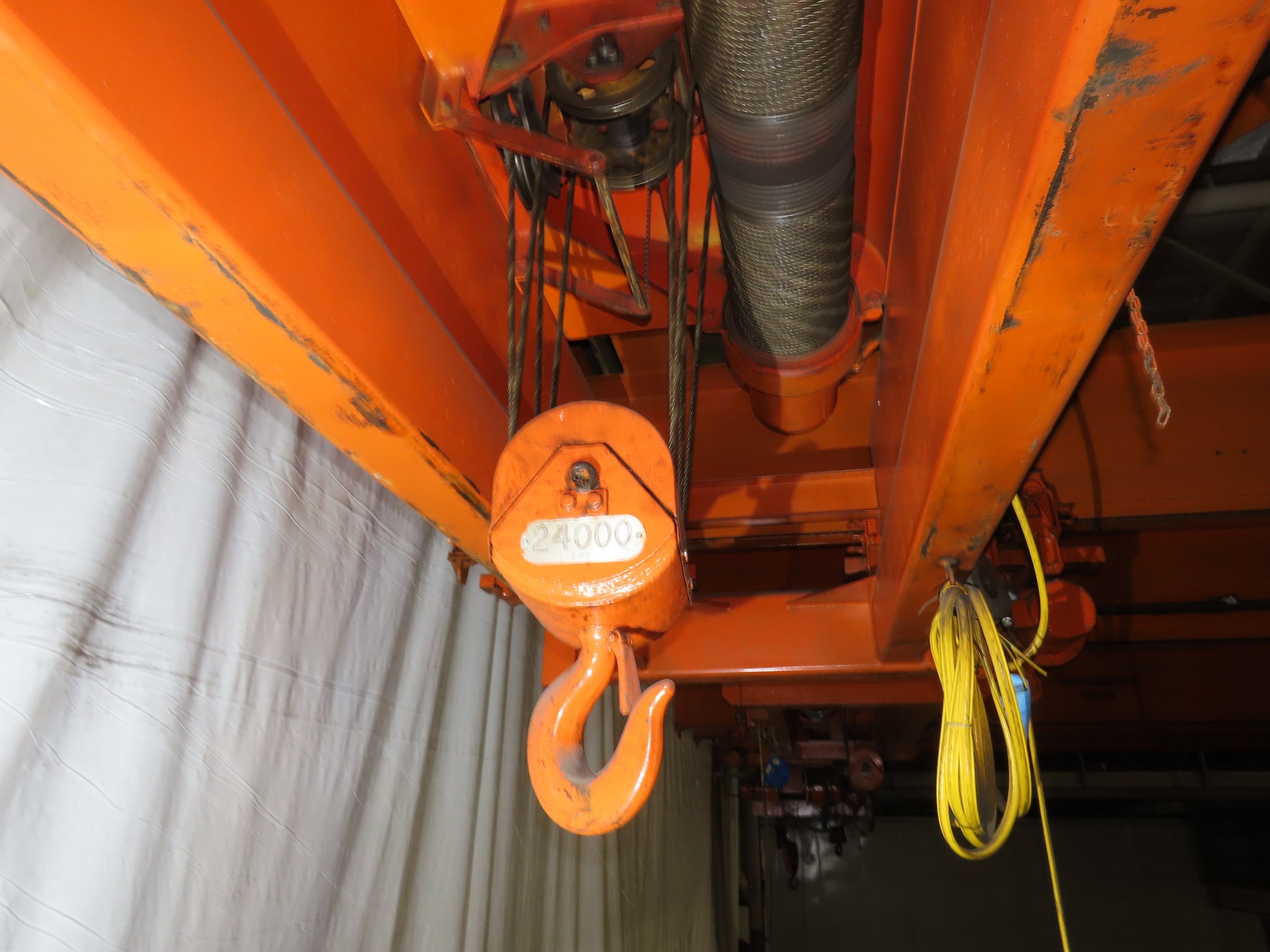

  • Capacity (lb): 24000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45'
  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 47'L

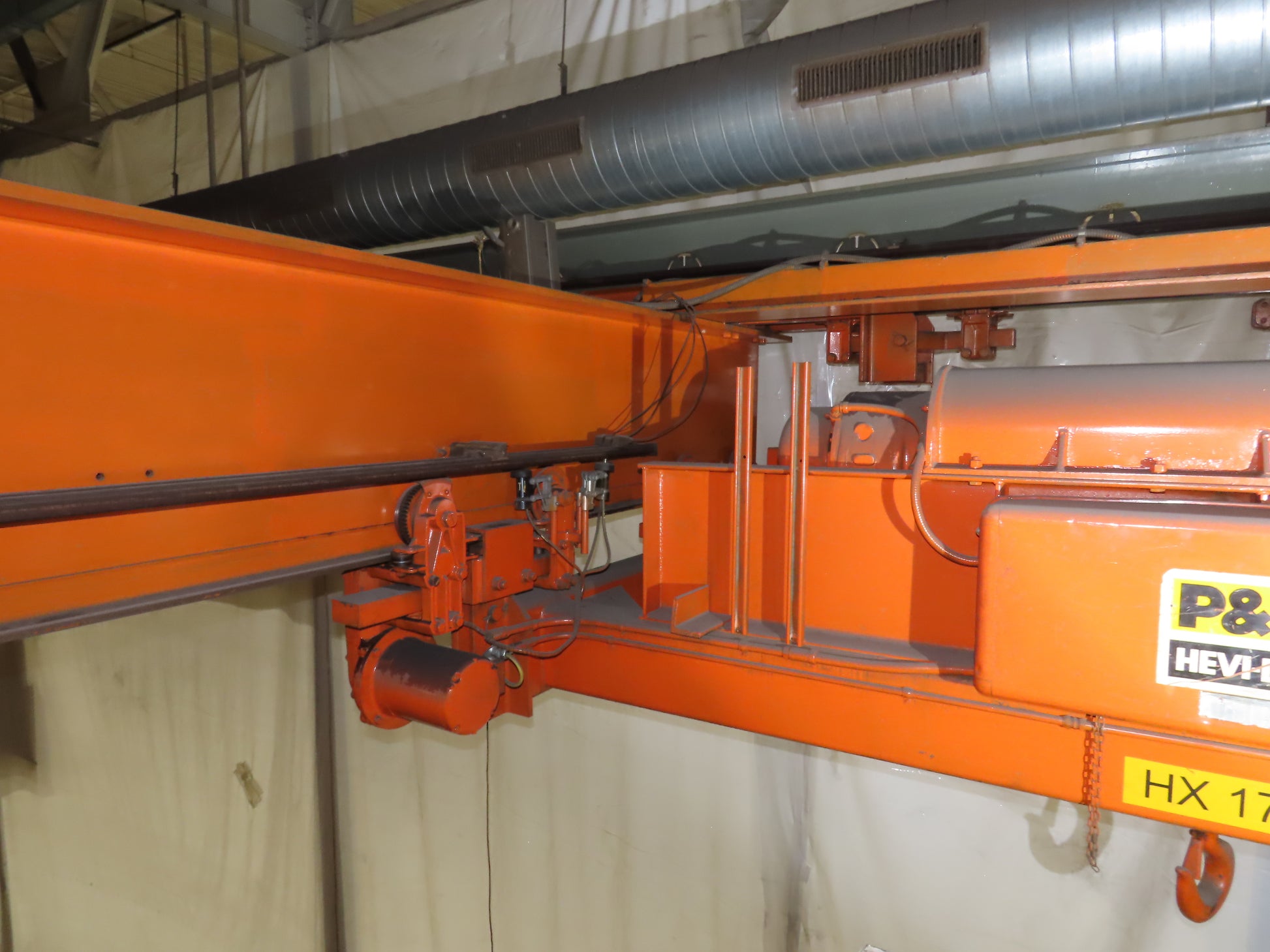

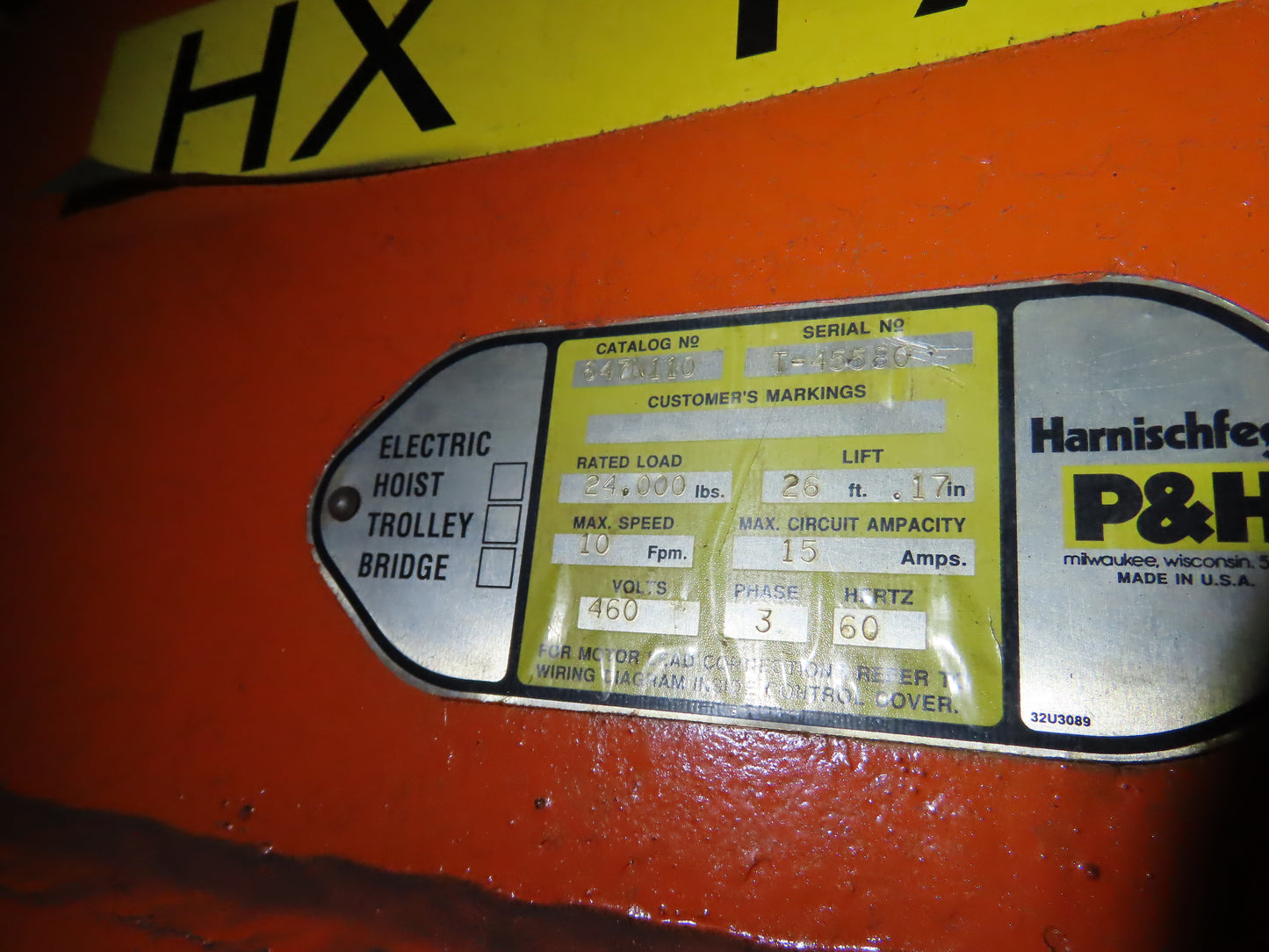

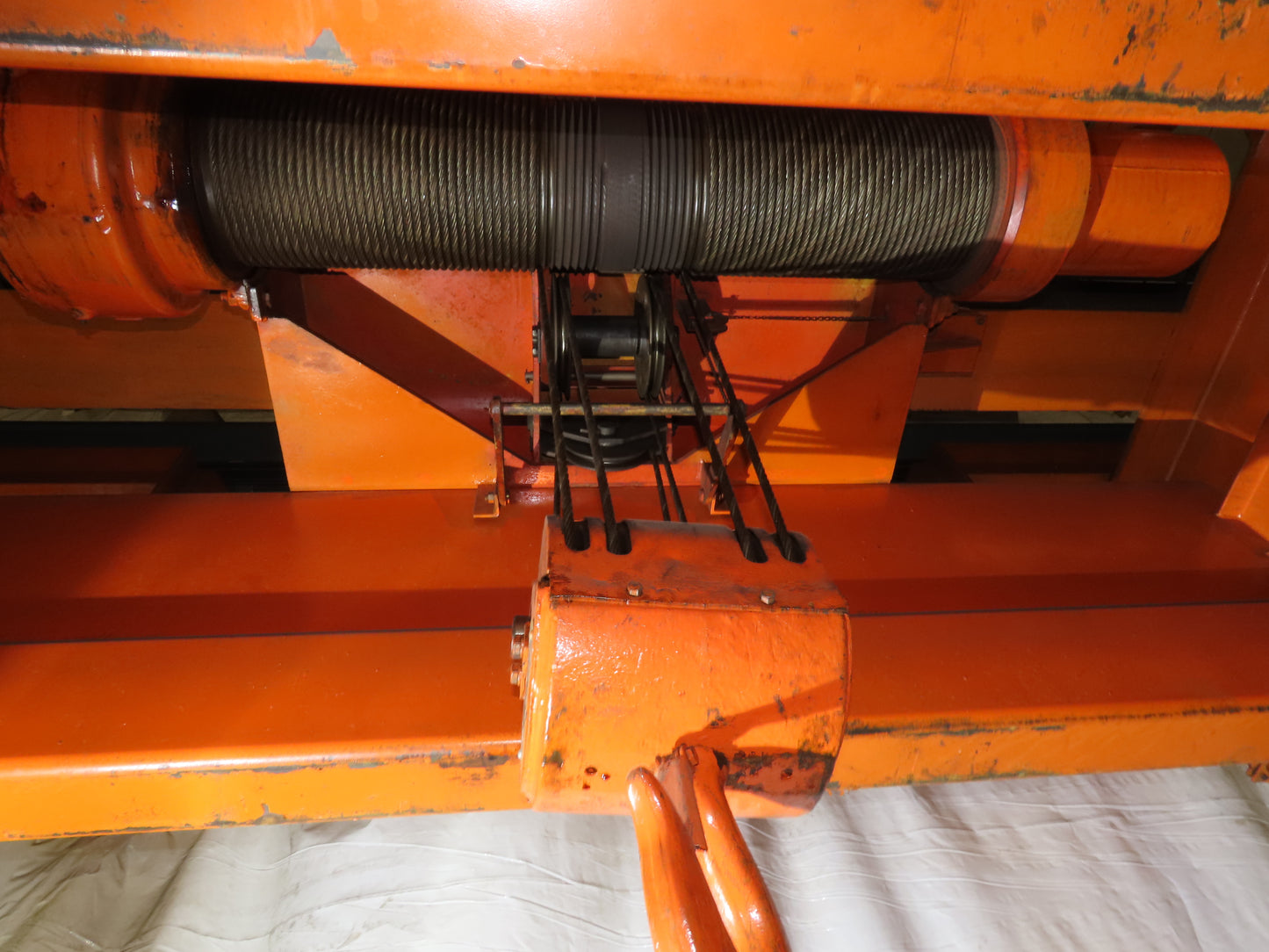

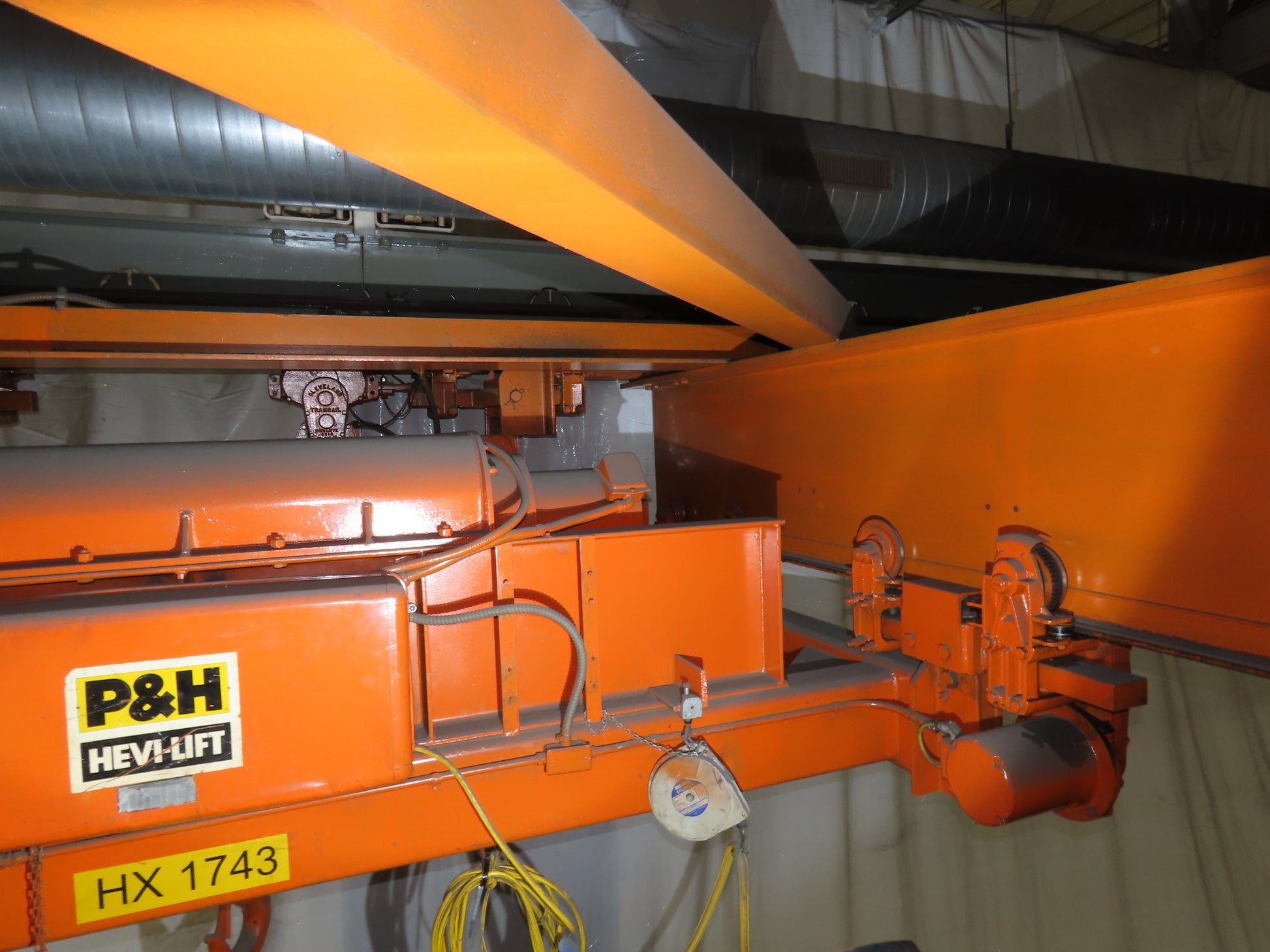

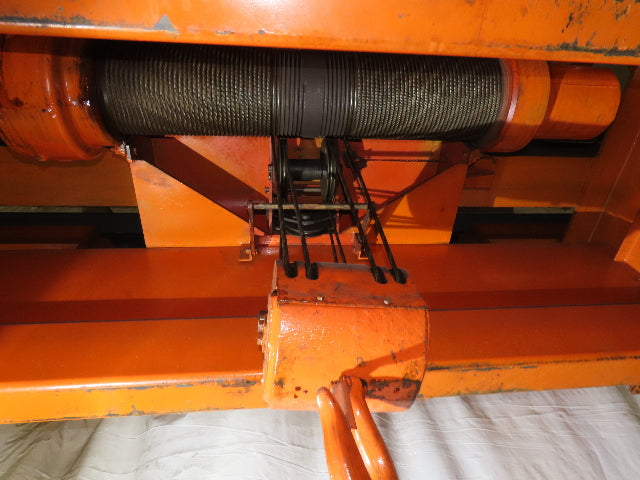

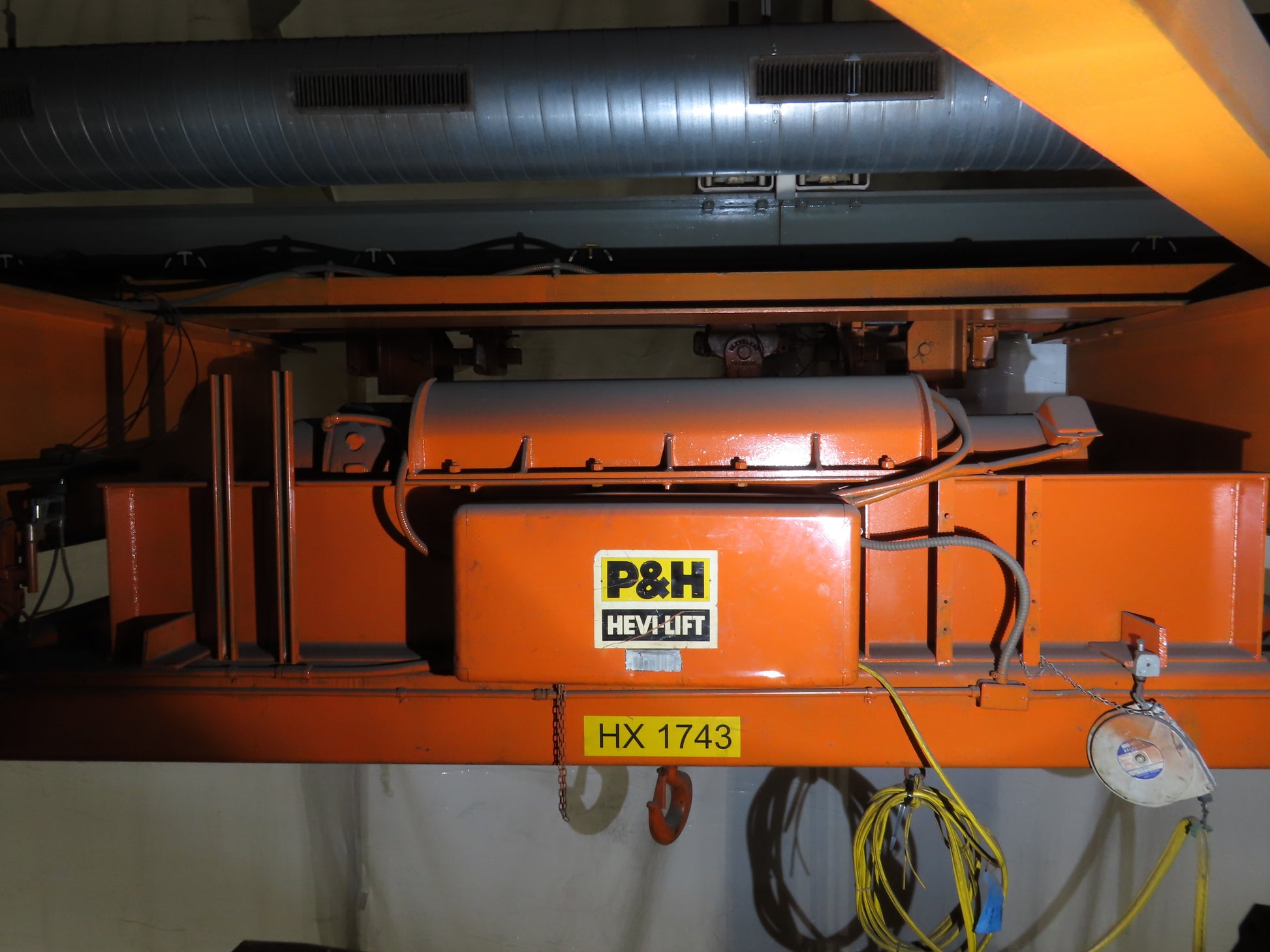

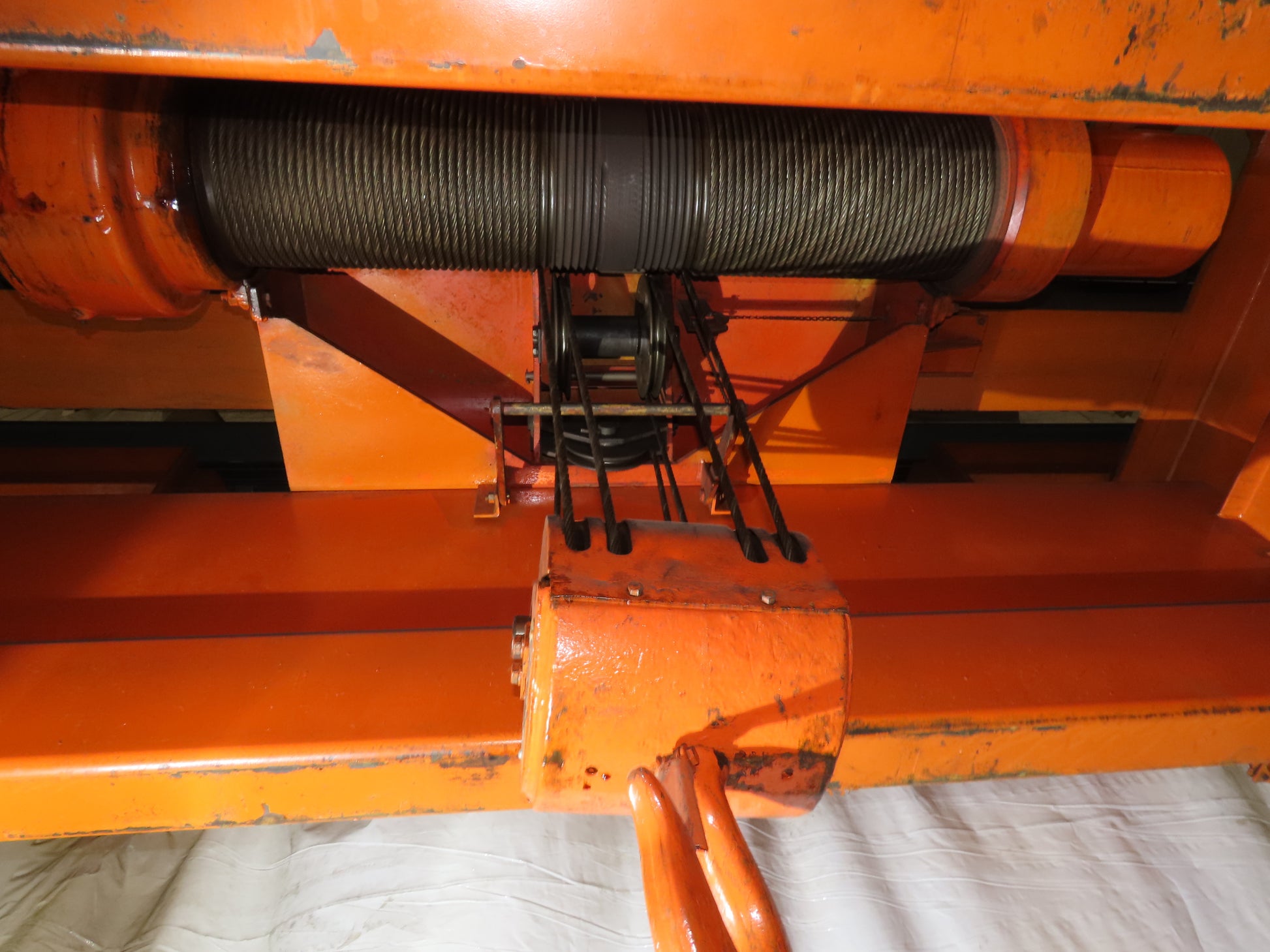

  • Hoist Brand: P&H
  • Lift Travel (feet): 26'
  • Lift Speed (feet per minute): 10 FPM Single speed
  • Pendant/Control Length From Bottom of Hoist (ft): 24'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 32"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 62"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 70"
  • Bridge Crane in good used condition.  We were unable to test the crane due to the power being cut.

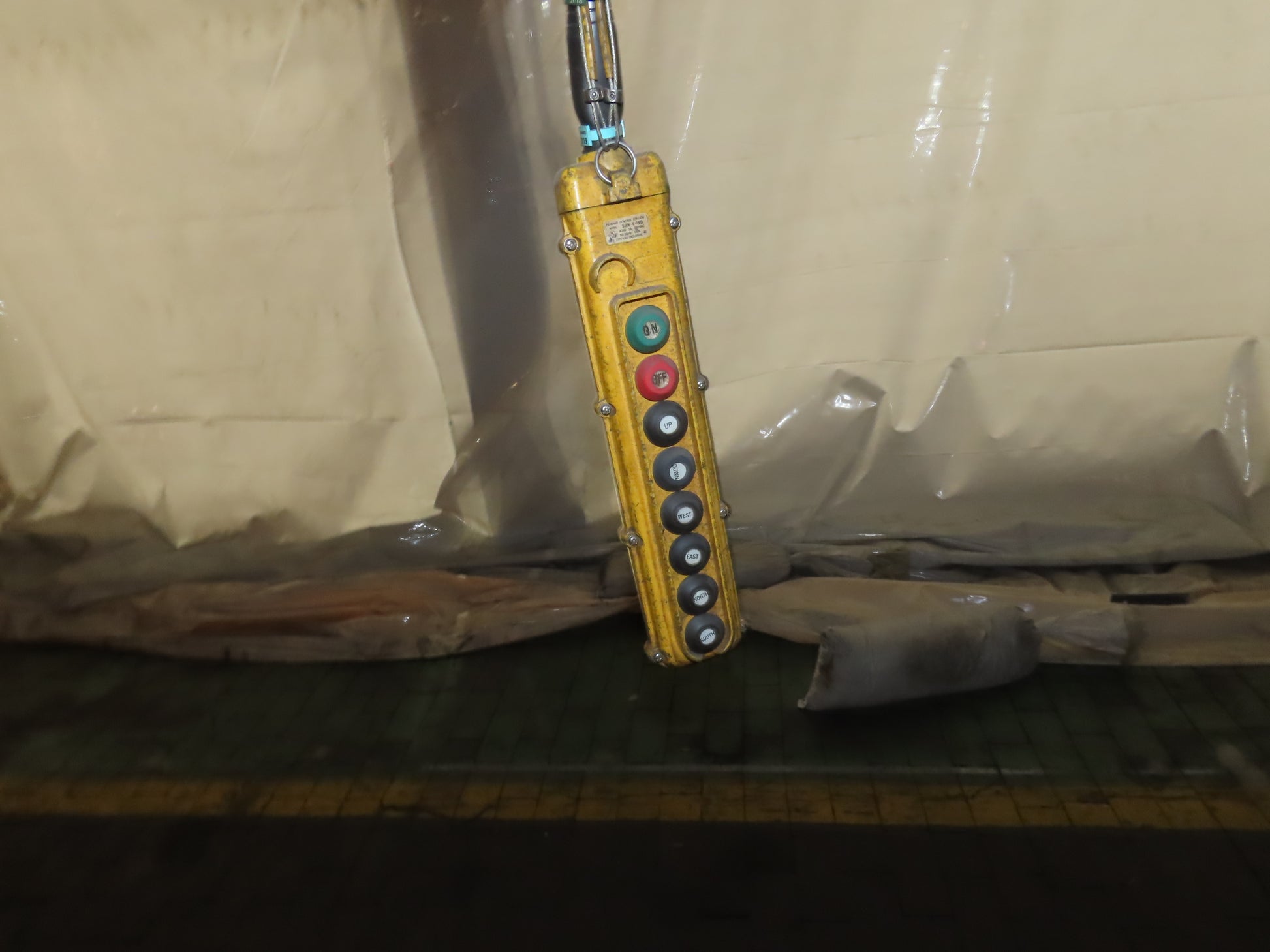

  • Includes corded pendant only.  Not set up for wireless.
  • Single speed bridge and trolley, single speed hoist.

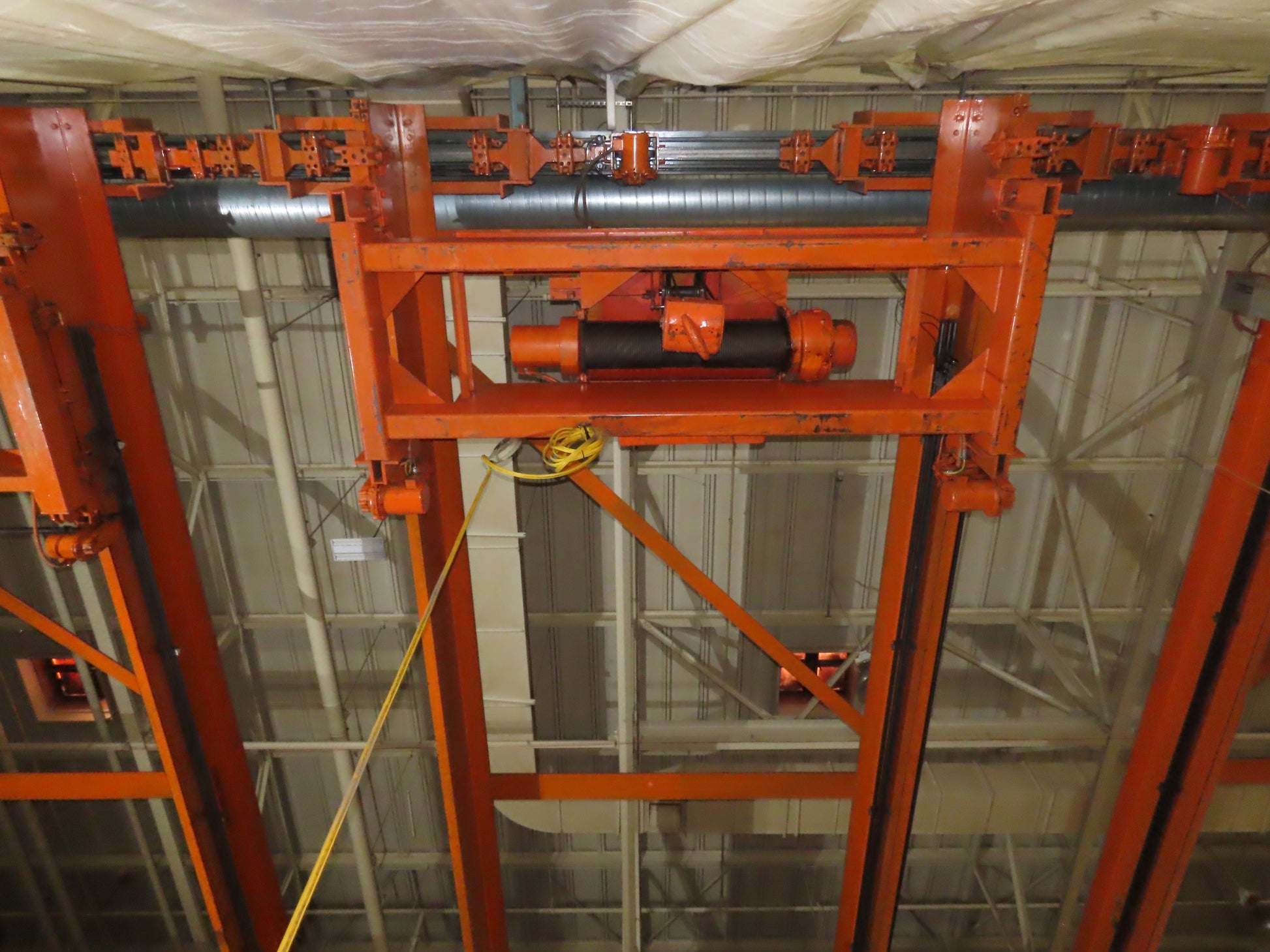

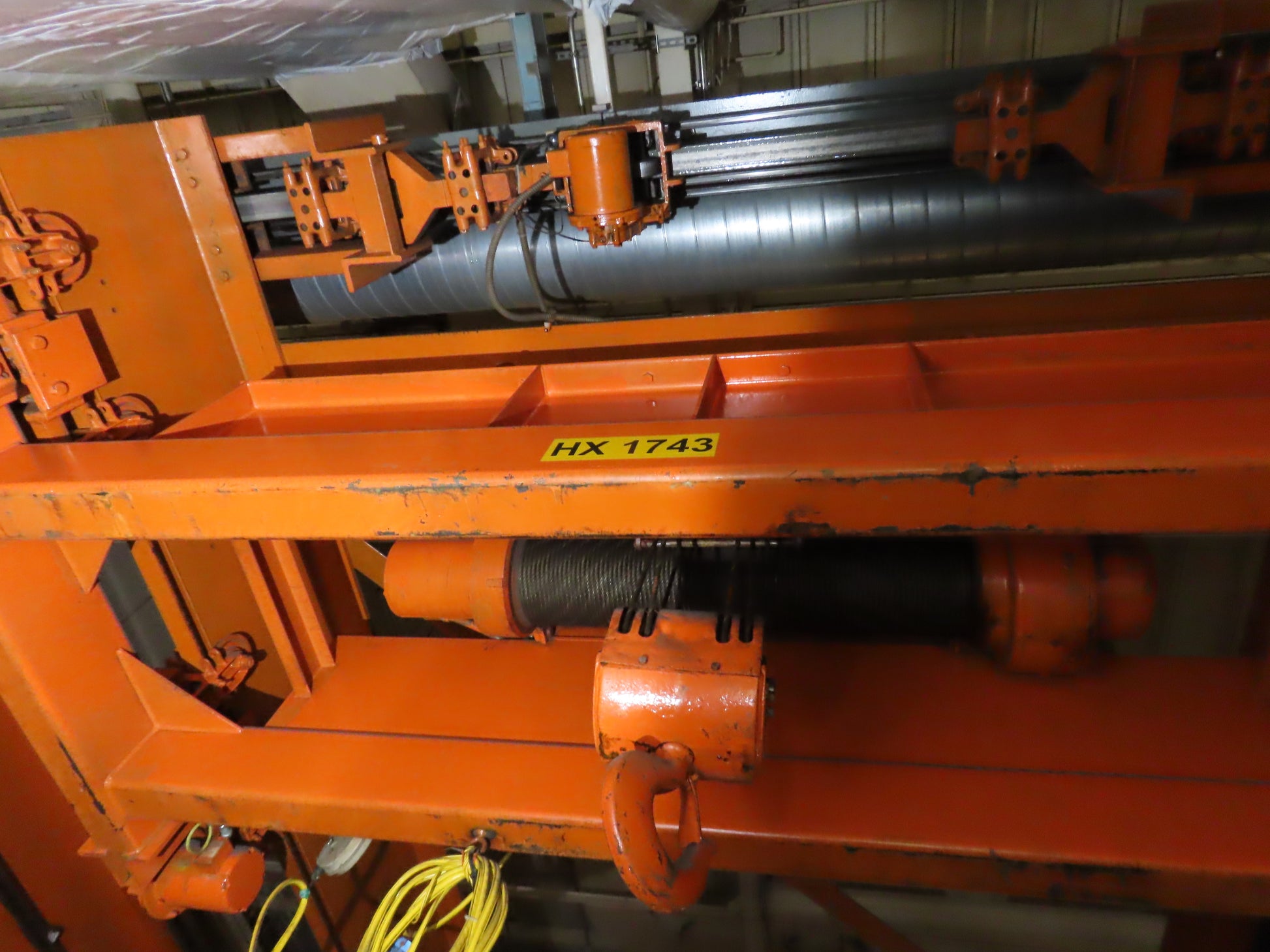

  • Trolley carriage length: 92"

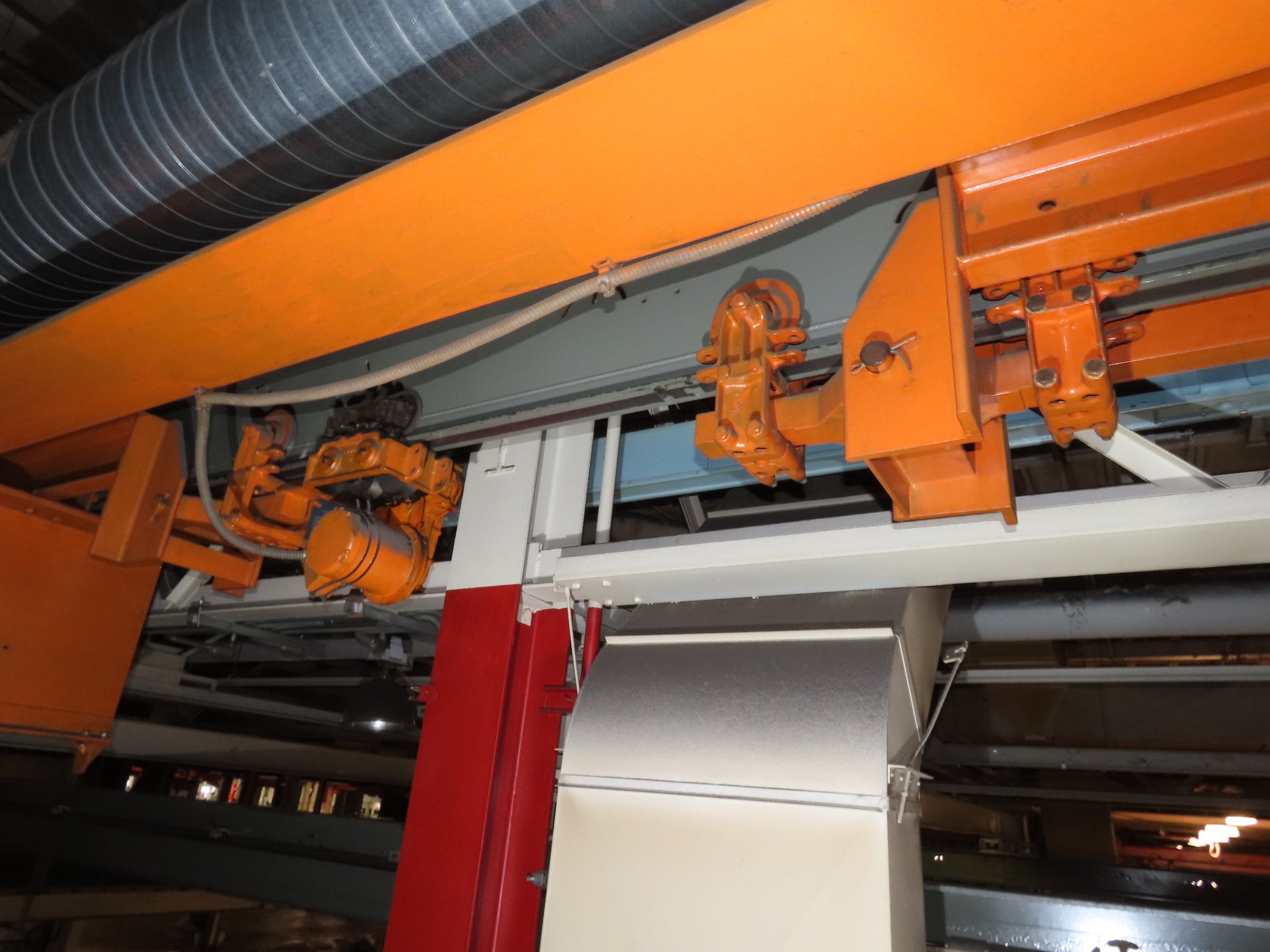

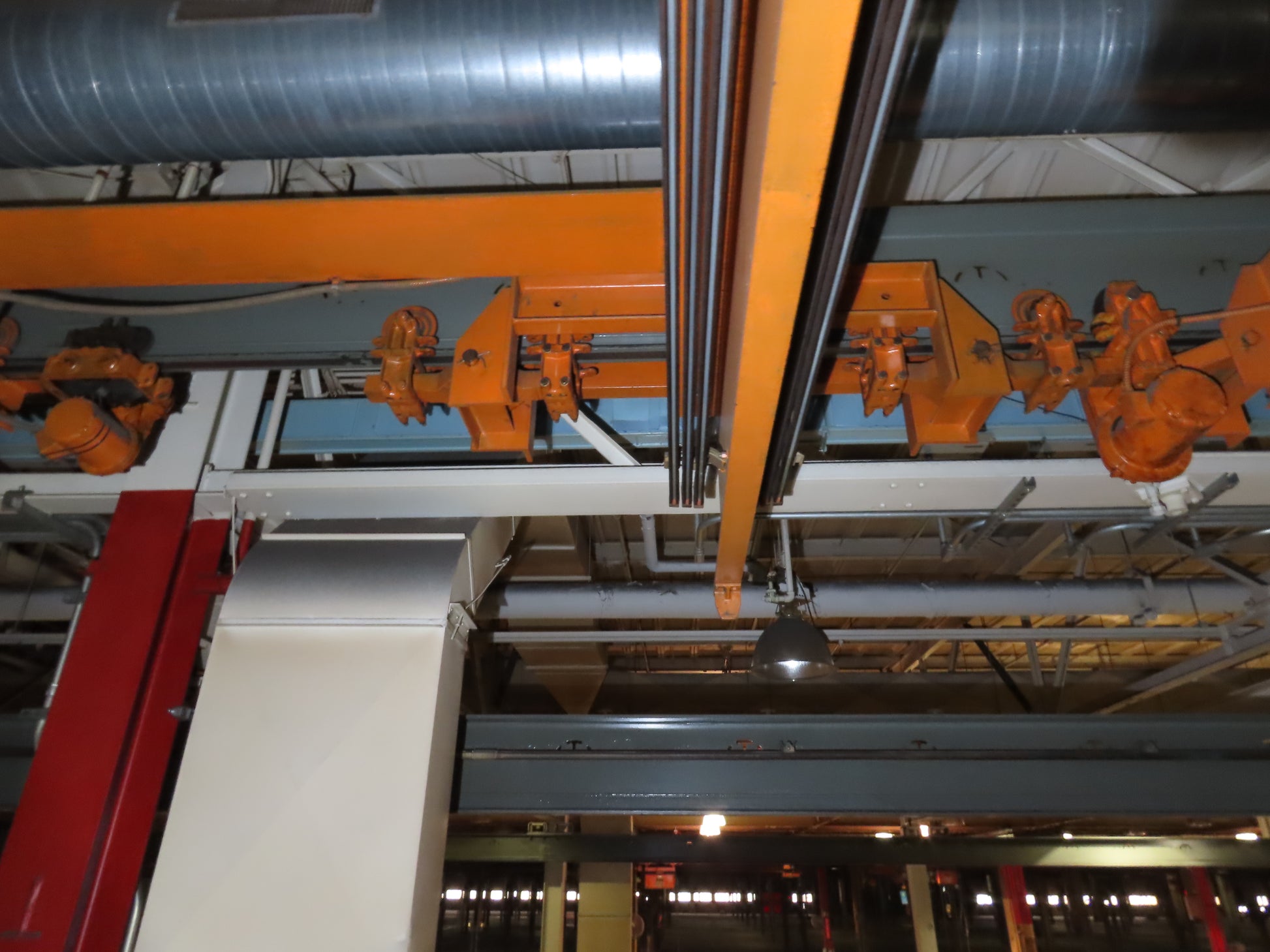

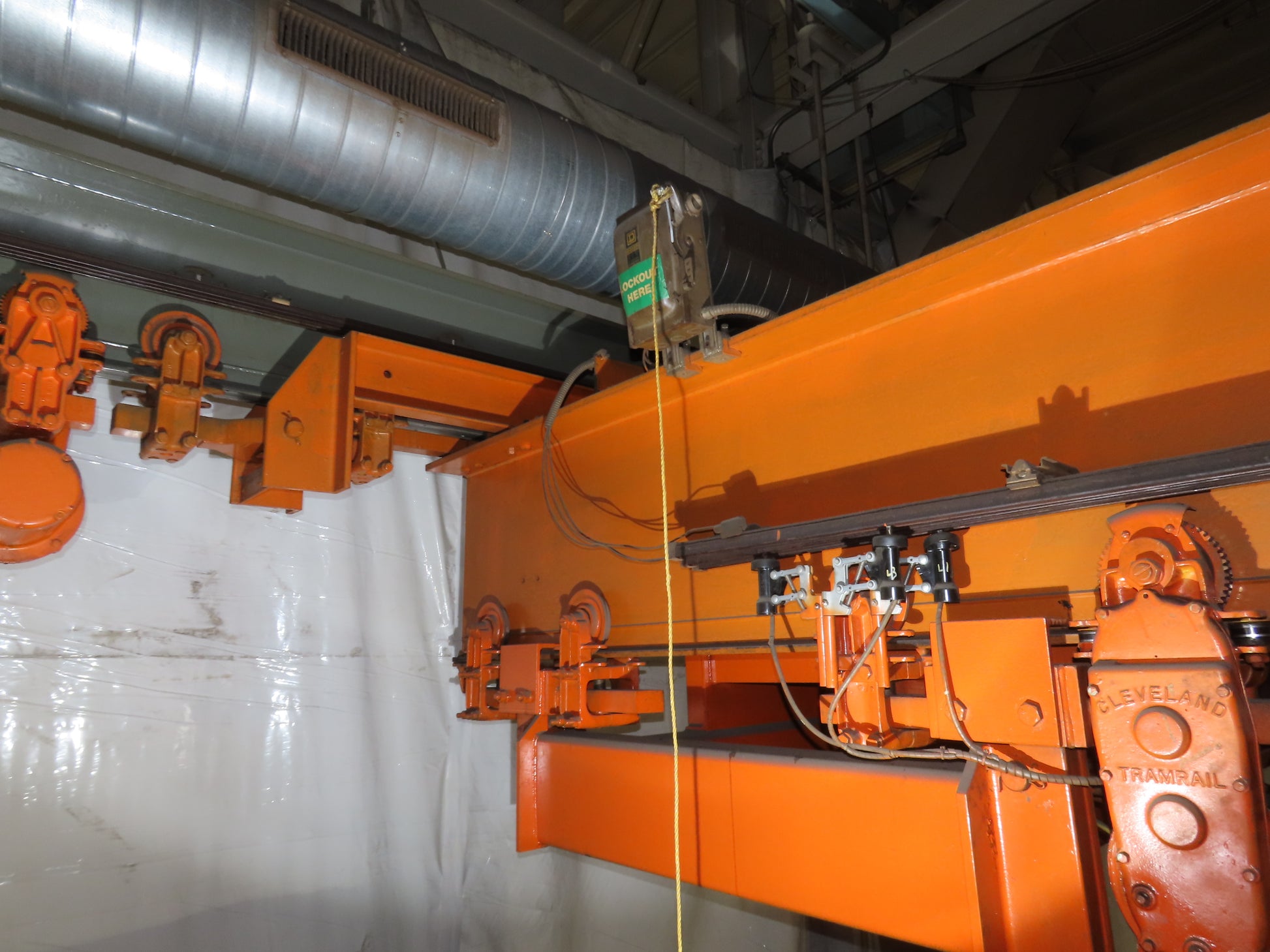

  • End truck length:  96"
  • End truck wheel size:  6"
  • Girder beam span: 12'

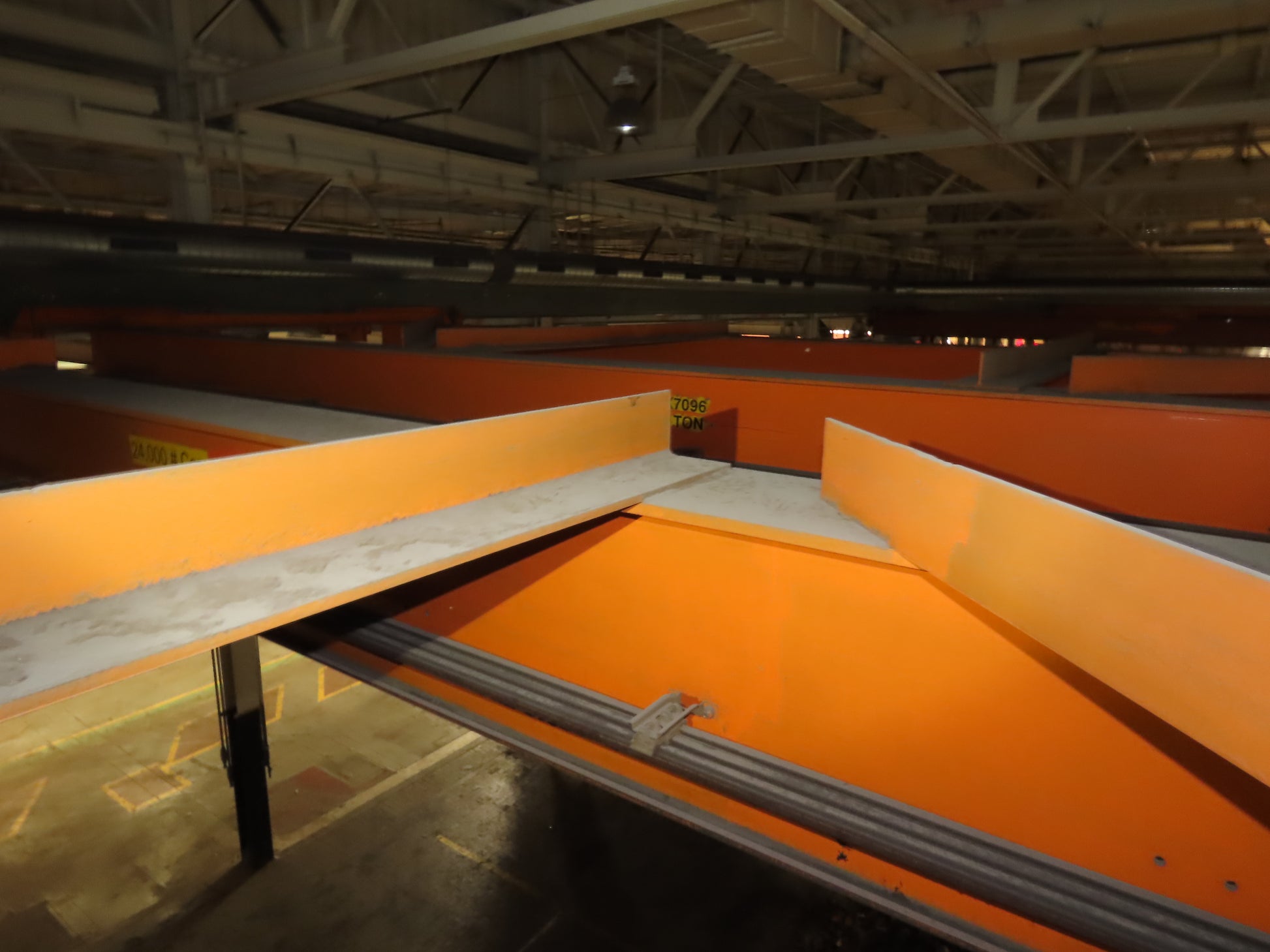

  • Top braces are welded on.
