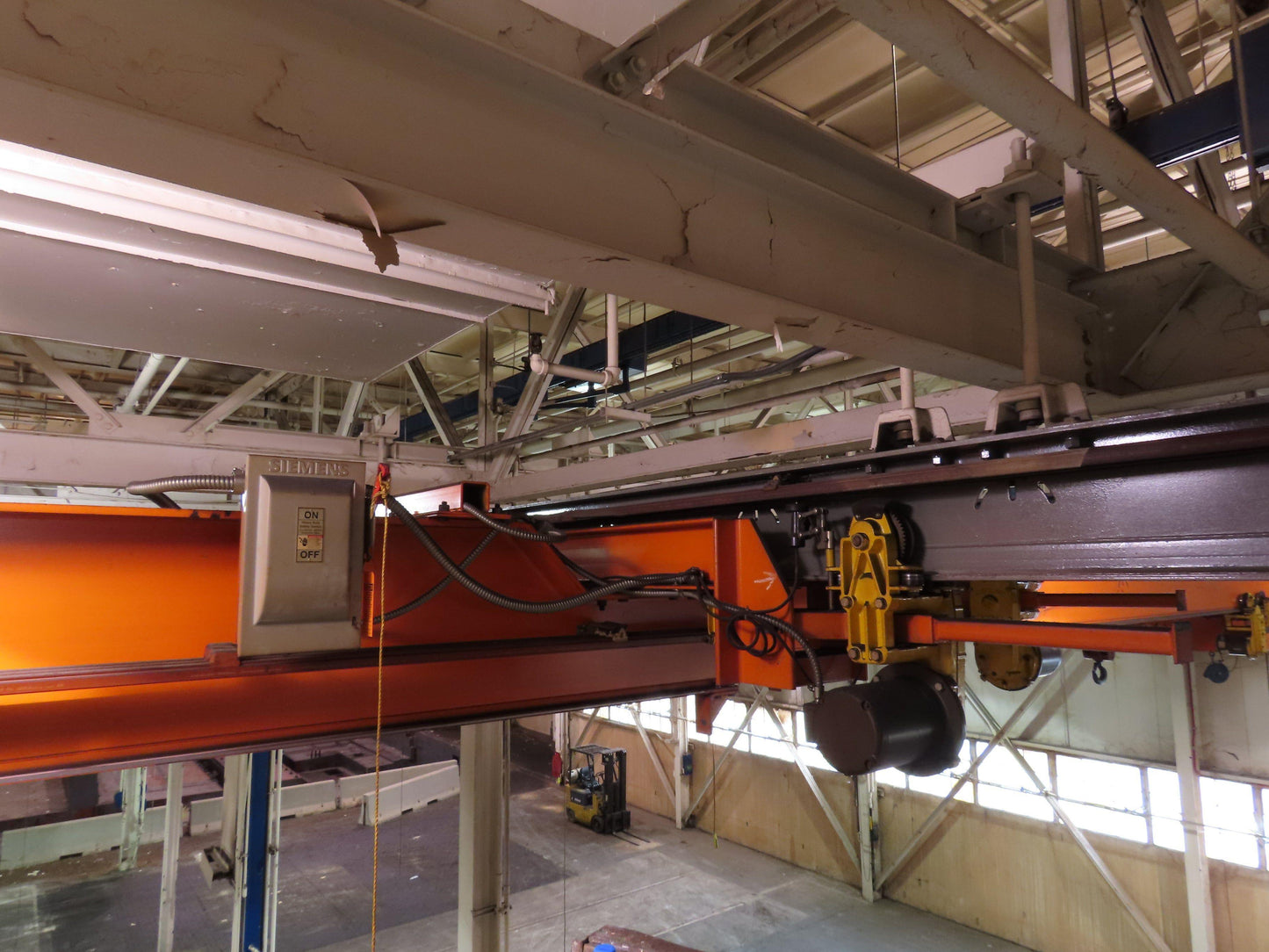

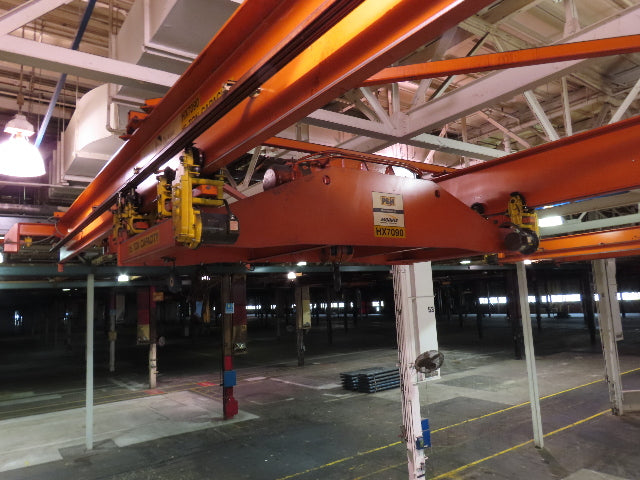

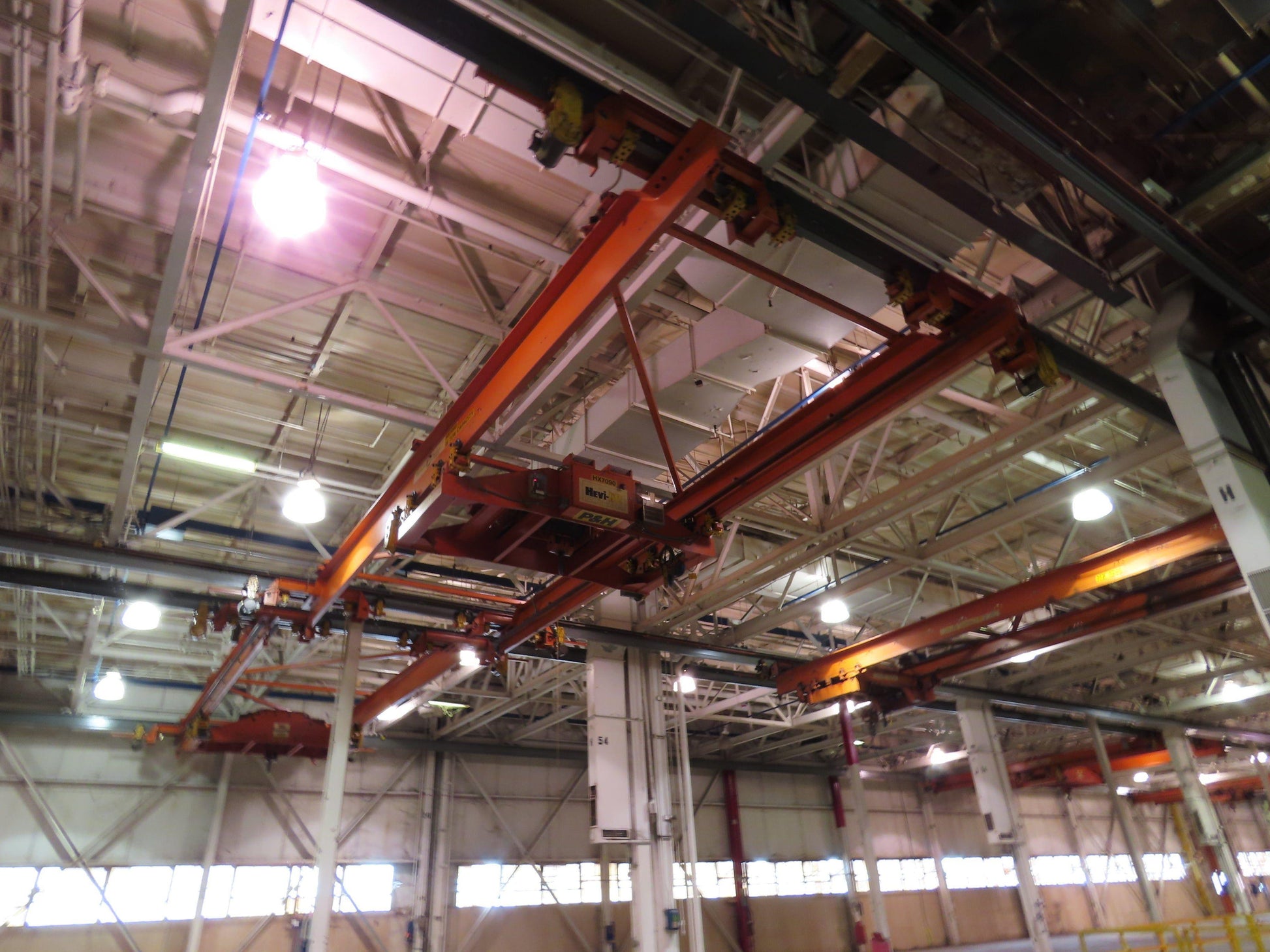

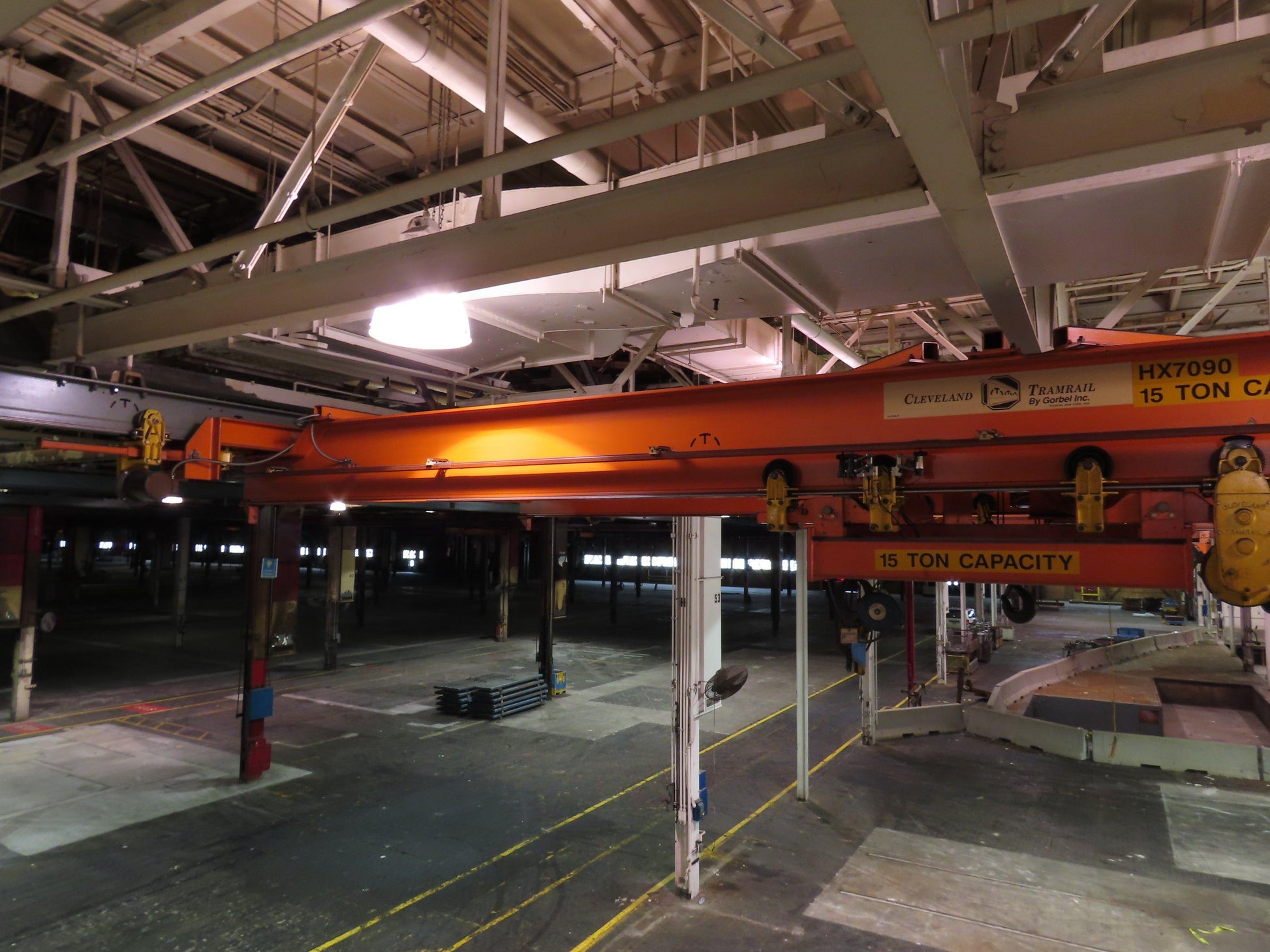

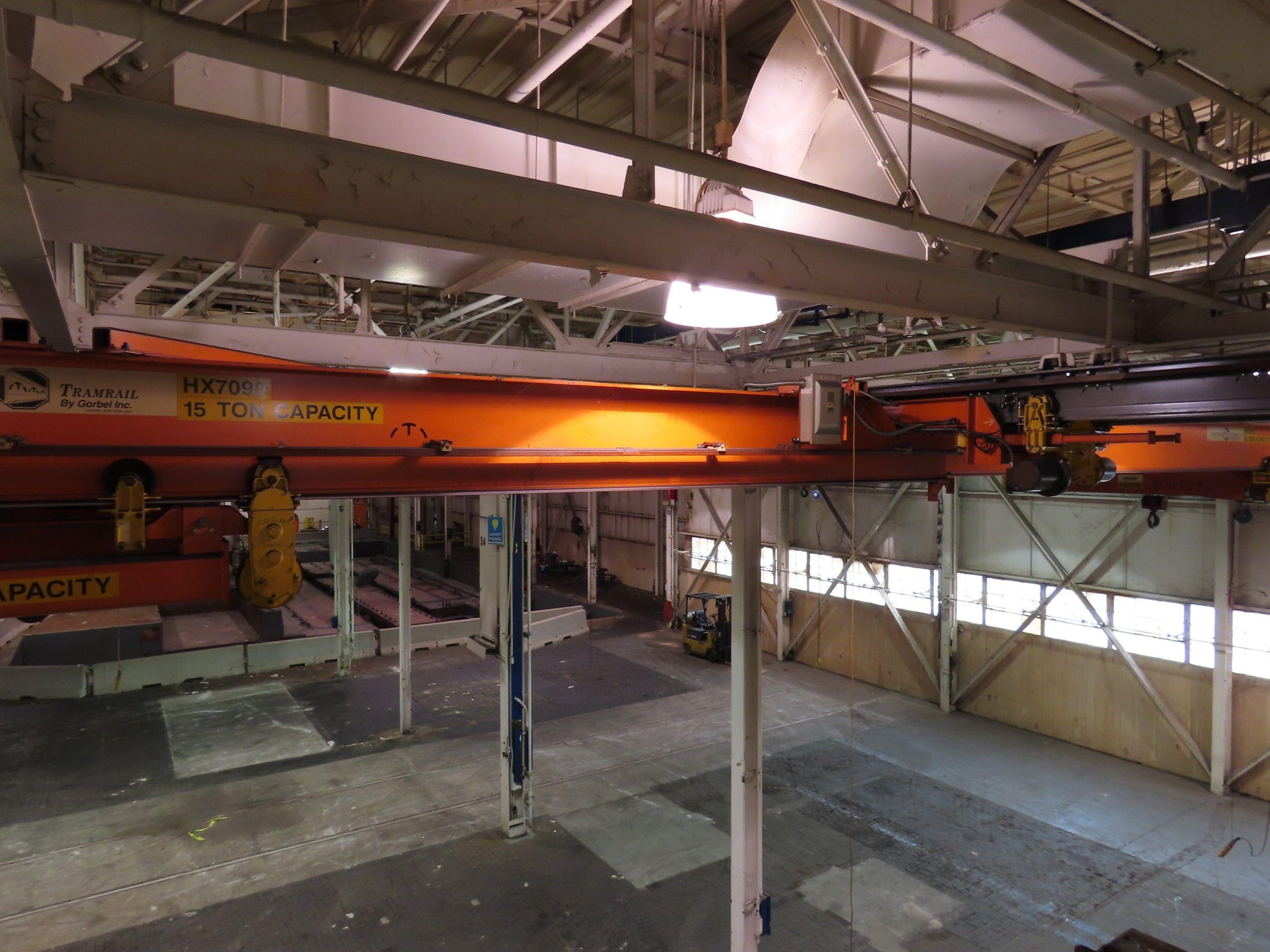

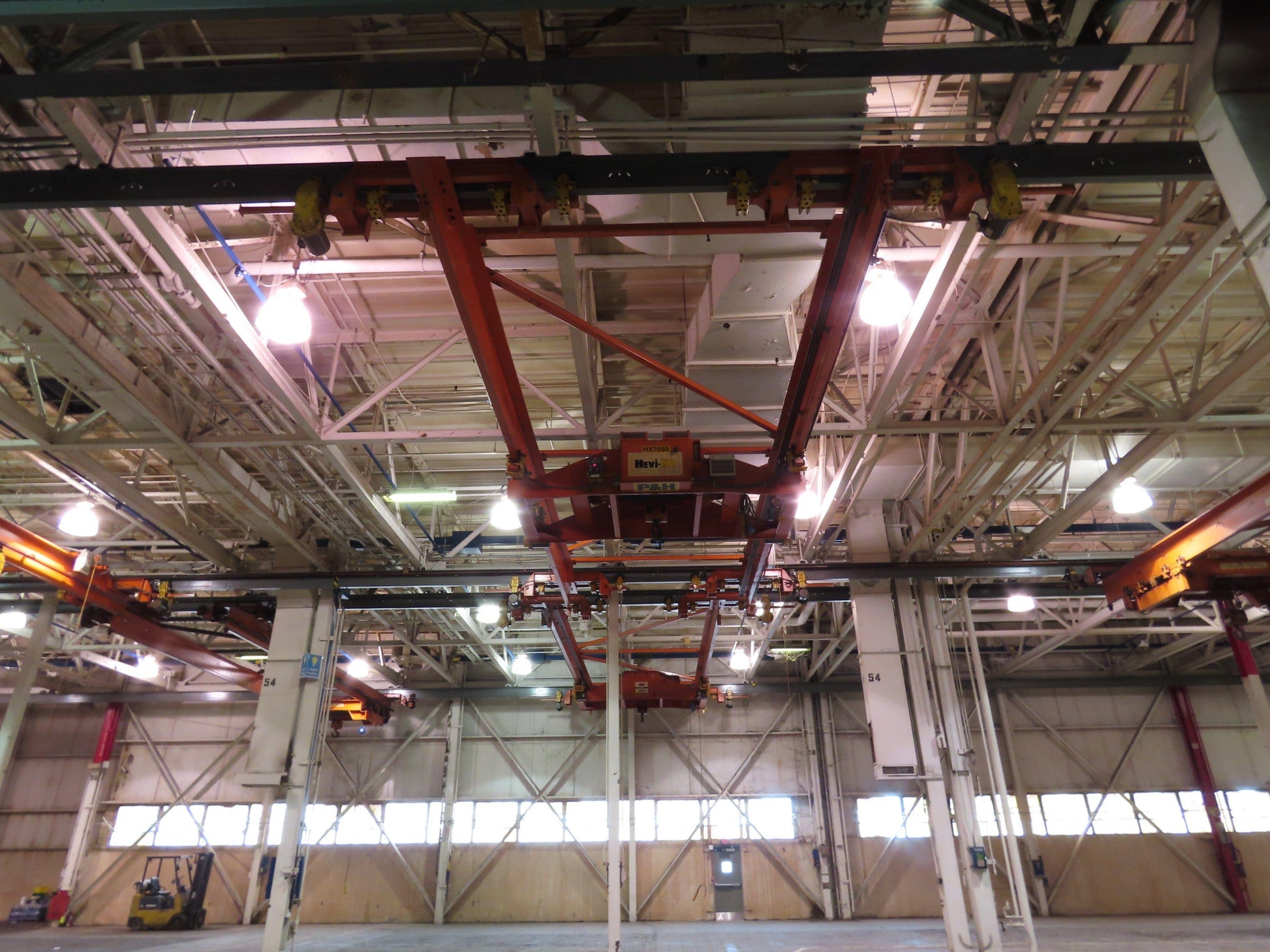

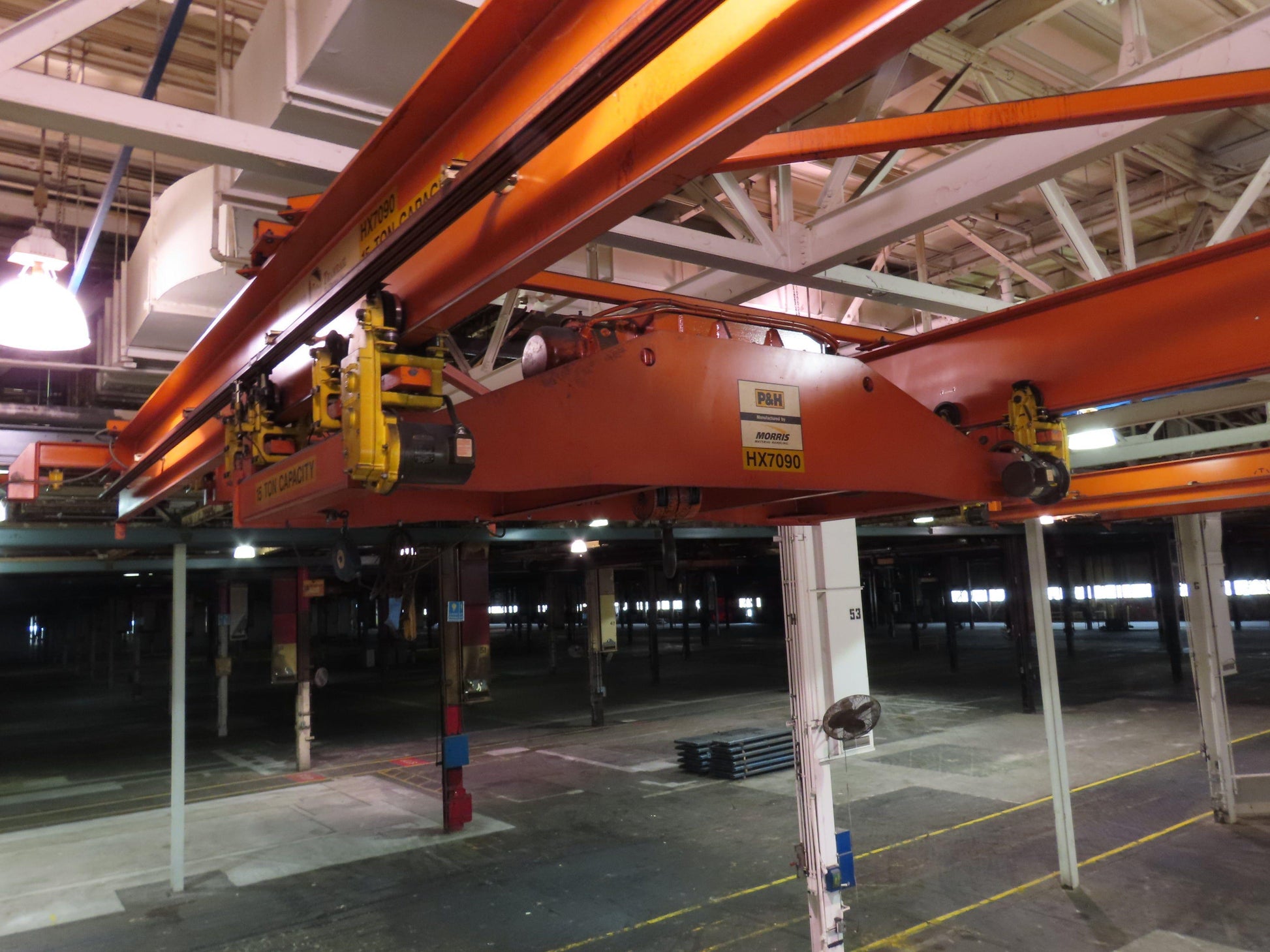

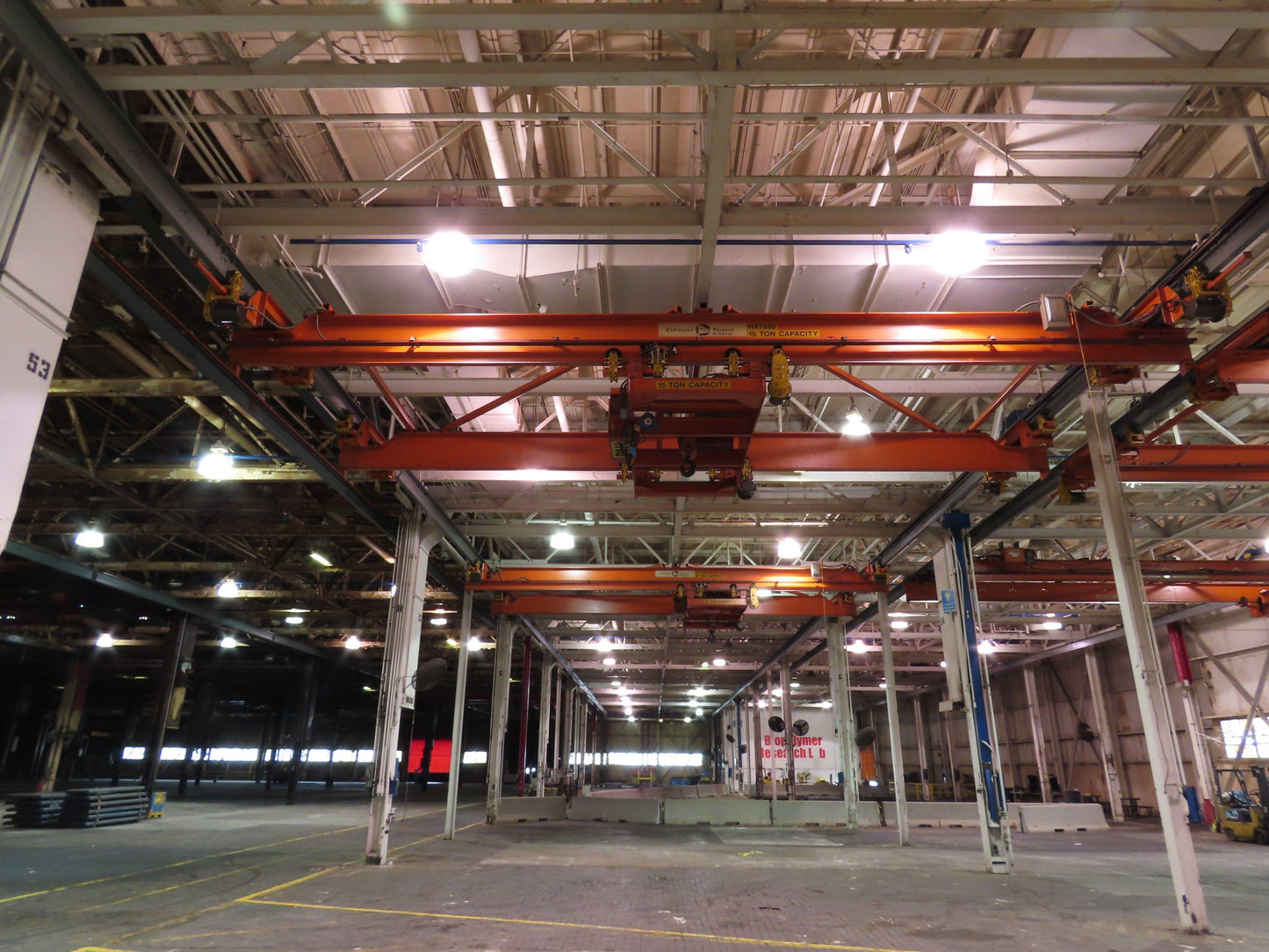

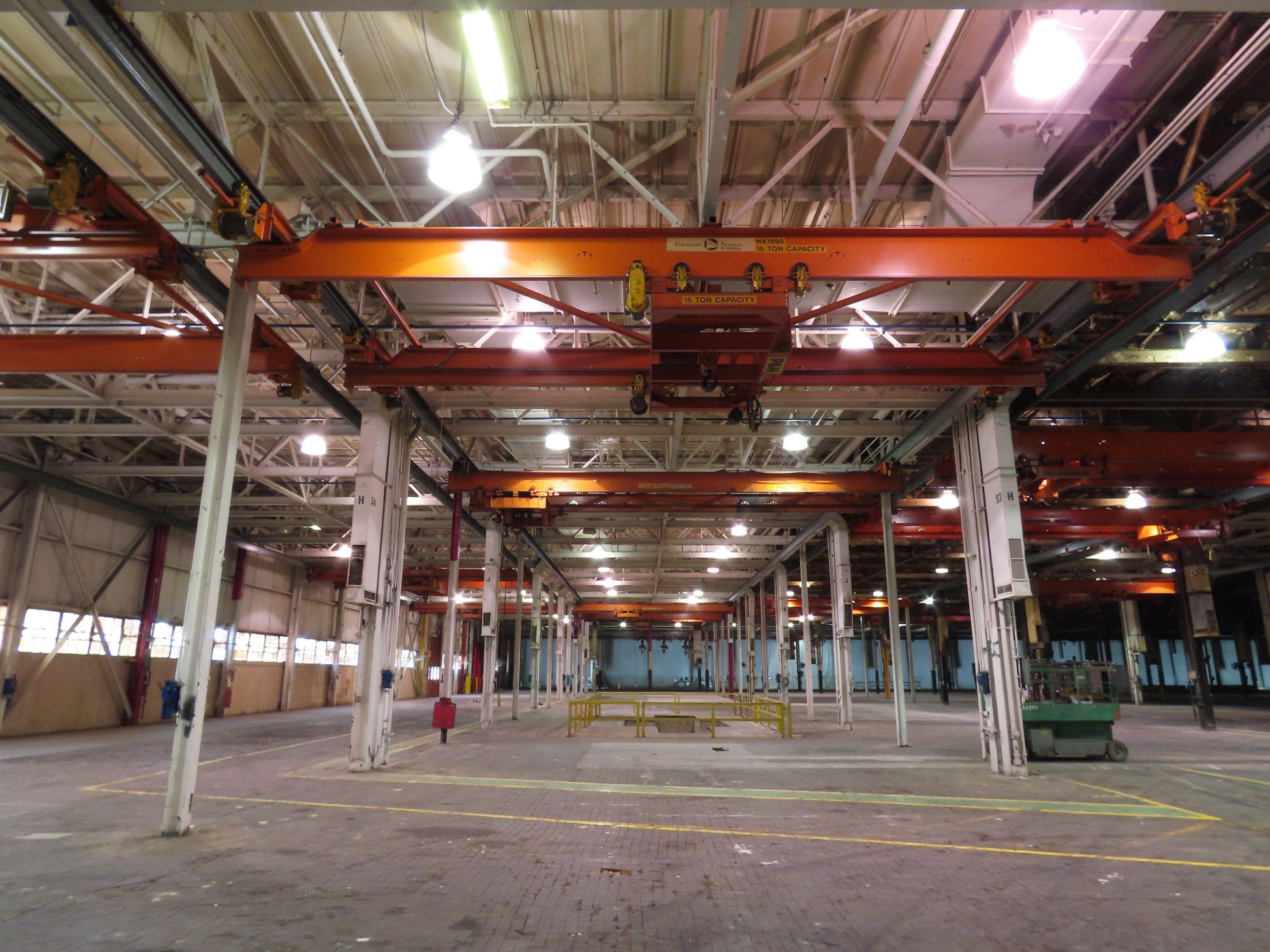

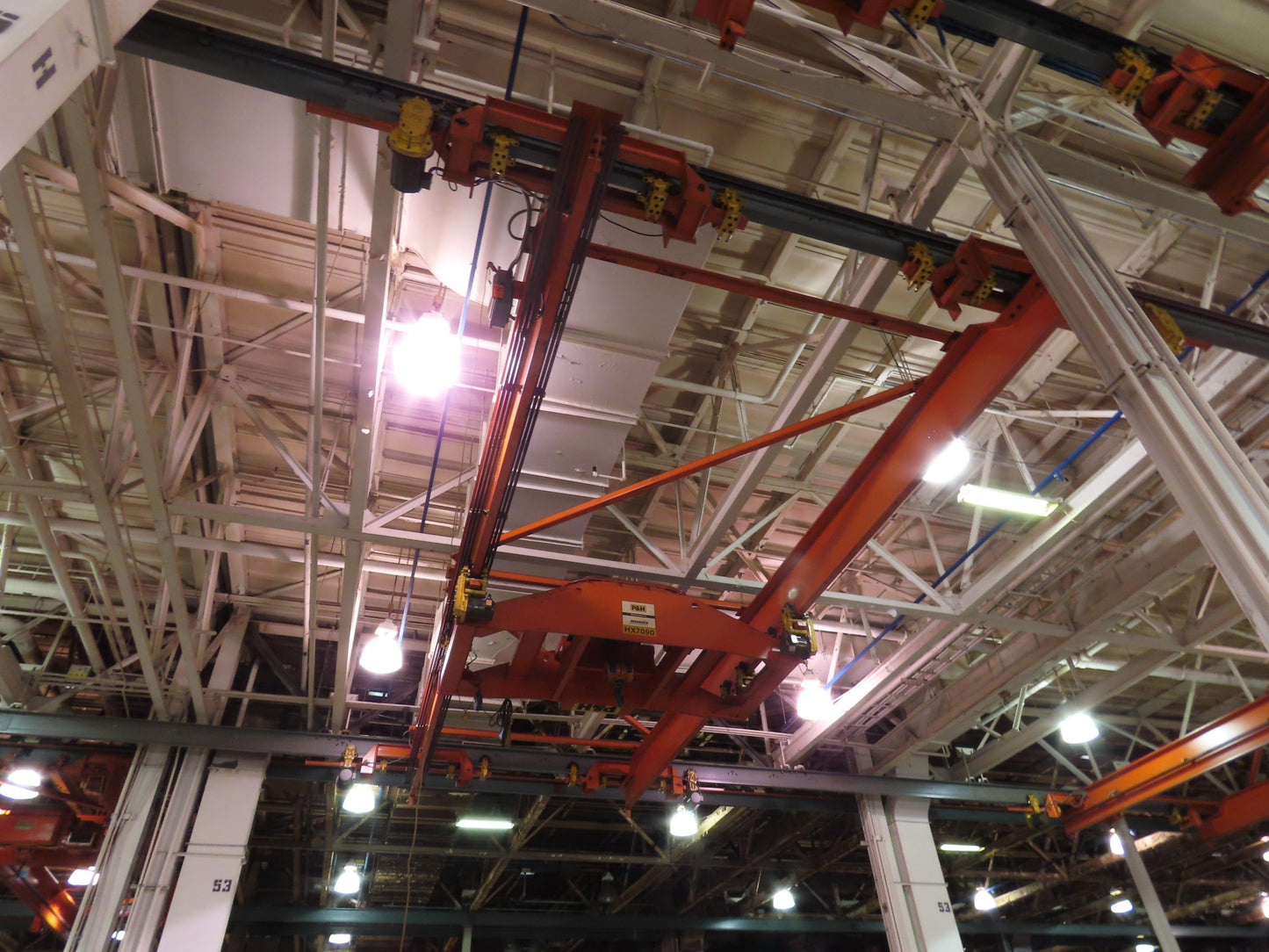

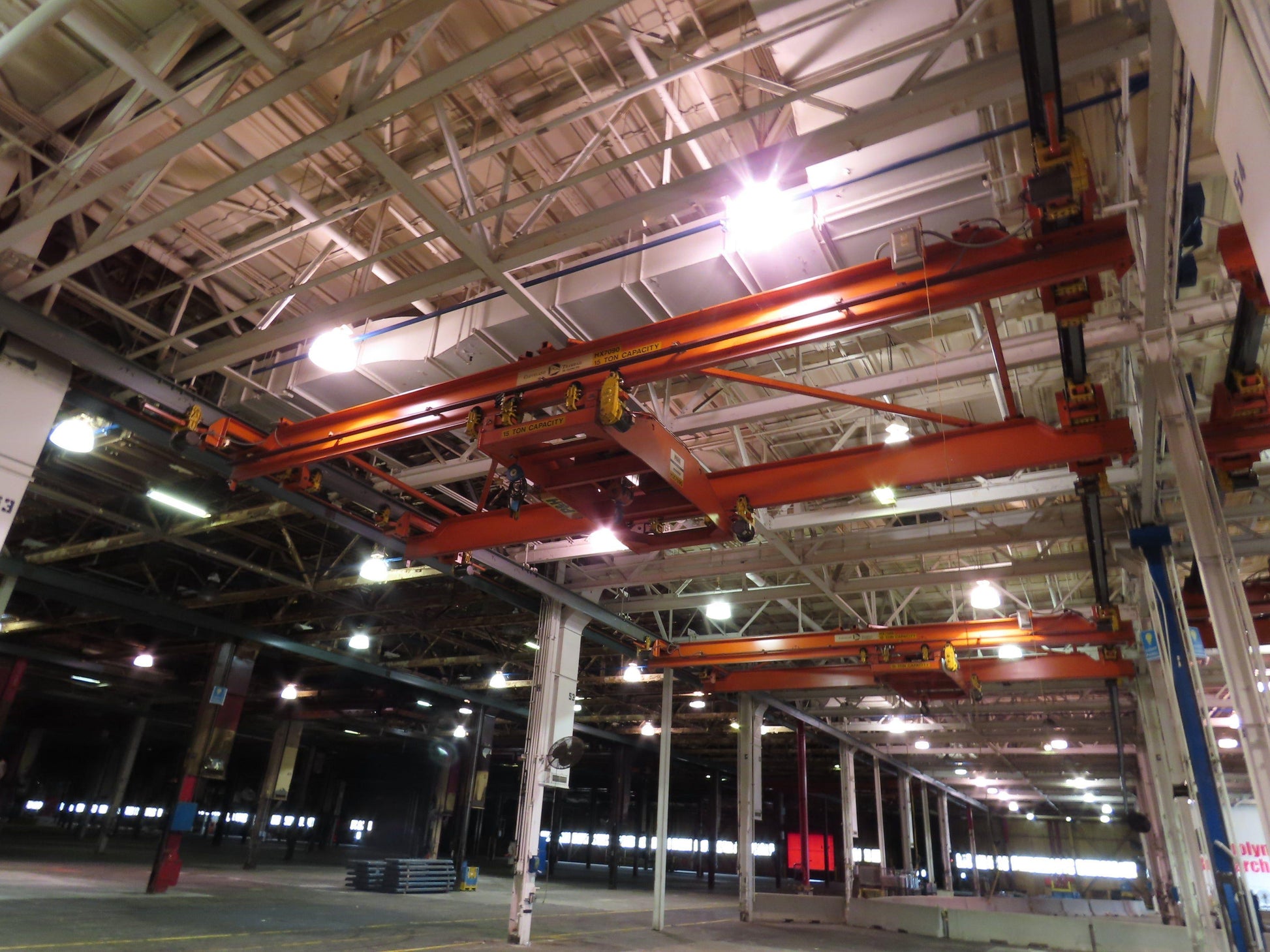

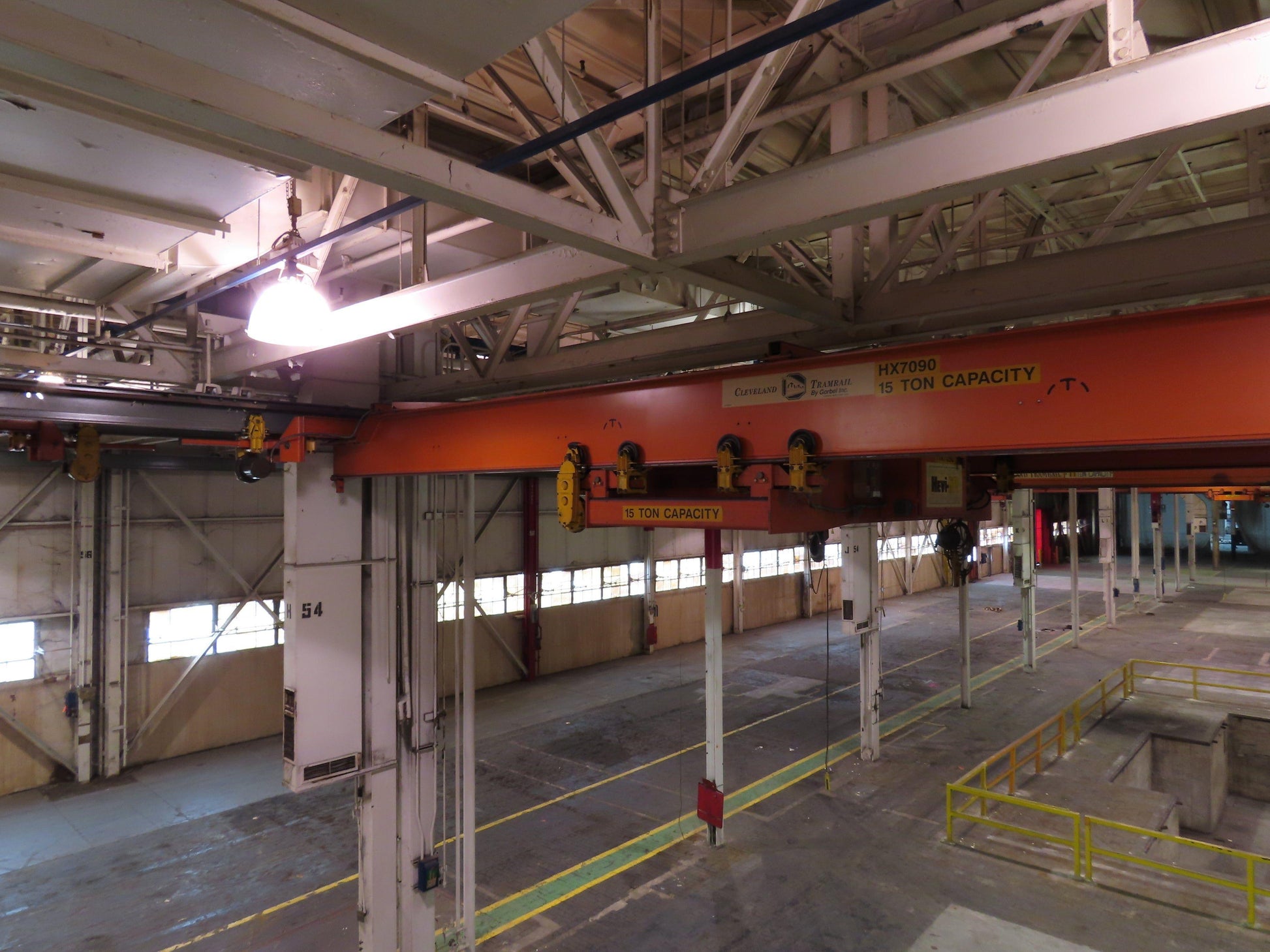

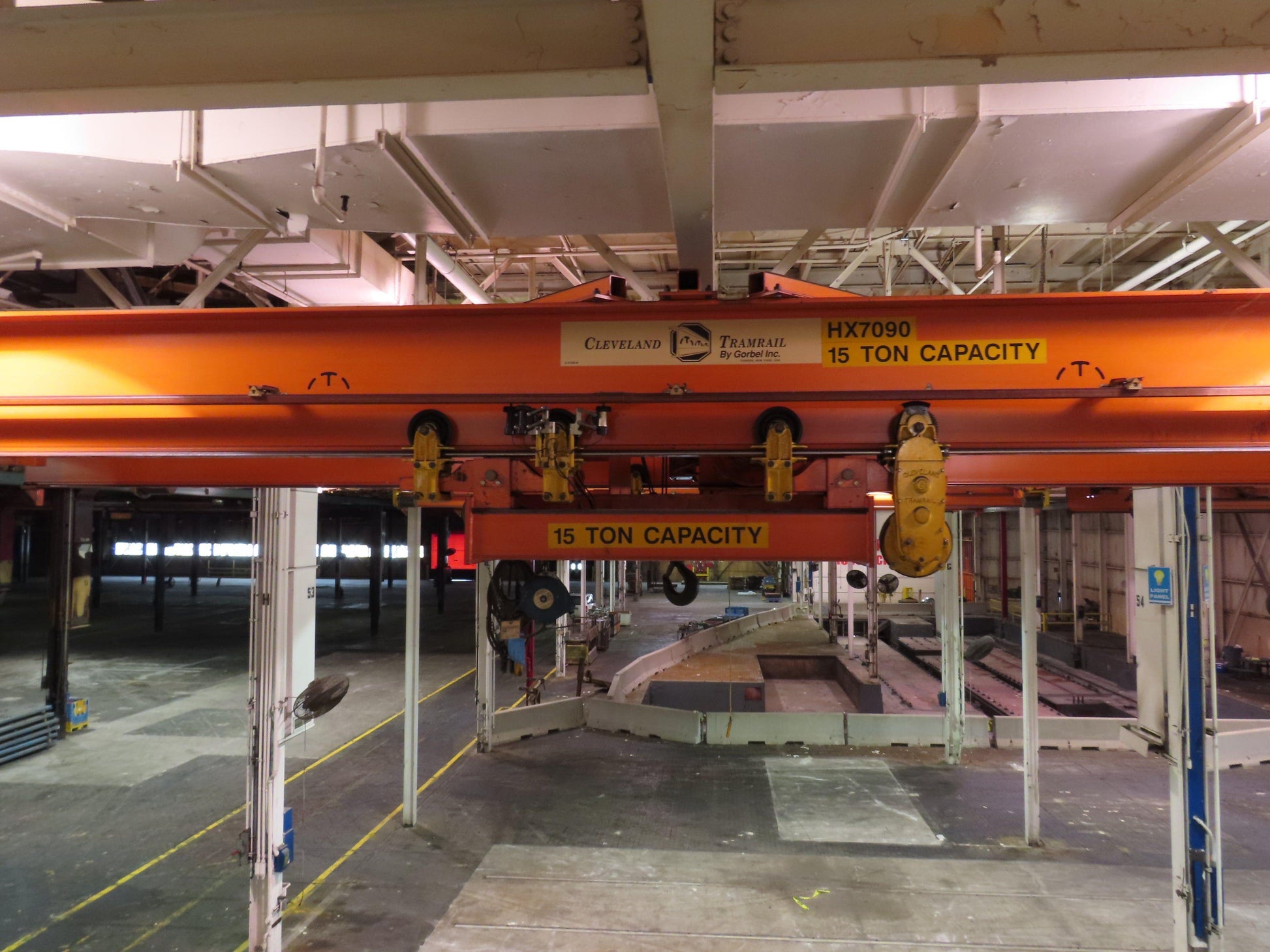

Cleveland Tramrail P&H 15 Ton Double Girder Bridge Crane 34' 10" Span w/Remote

Cleveland Tramrail P&H 15 Ton Double Girder Bridge Crane 34' 10" Span w/Remote

SKU #268218

Product Condition: Used

Your Price
$20,092.49
$23,499.99 $20,092.49
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail P&H
Model

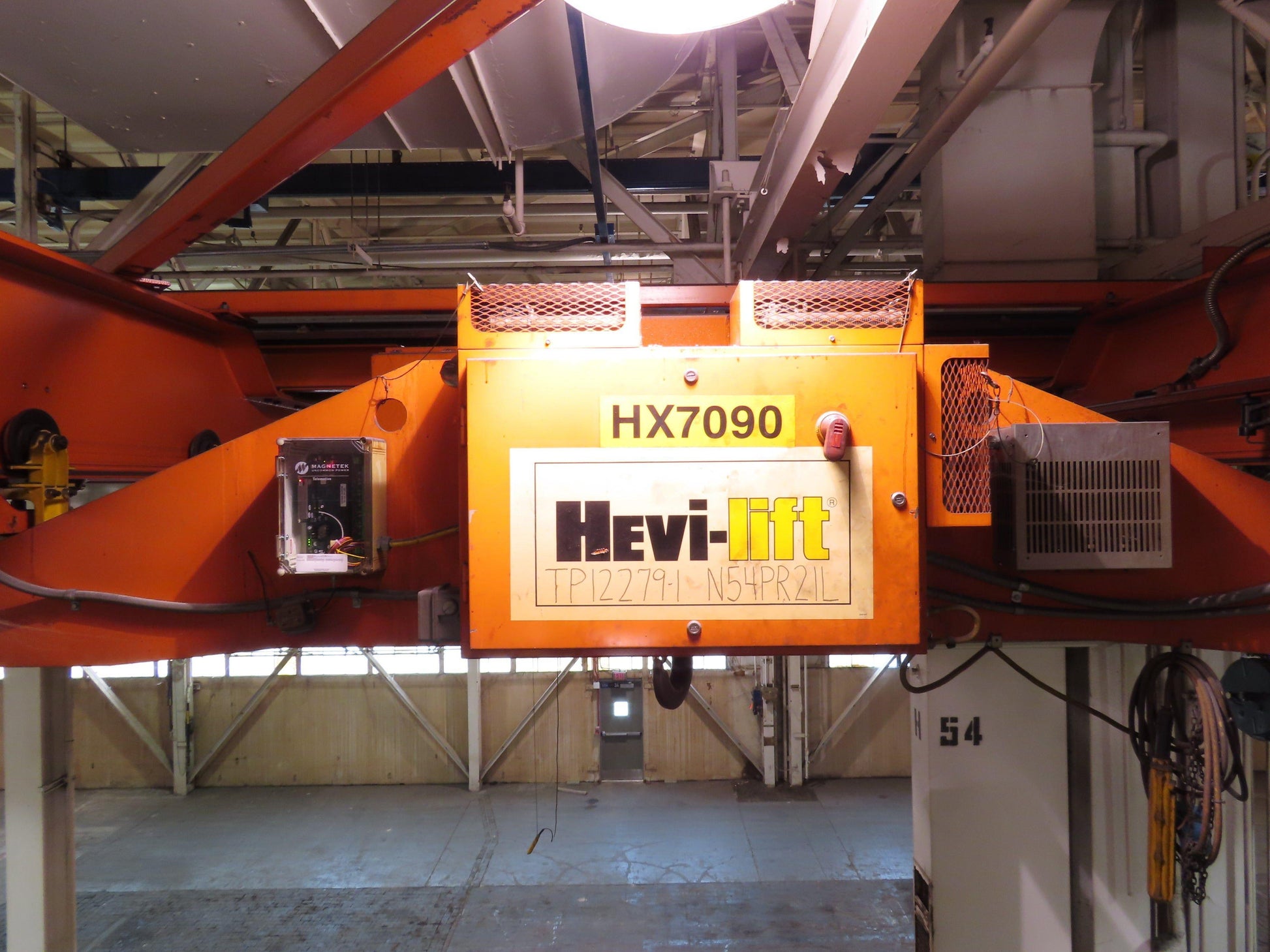

HX7090
MPN
N/A
Condition
Used
  • Capacity (tons): 15

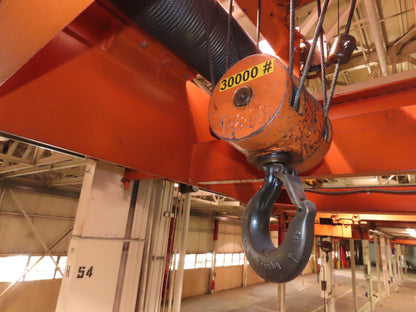

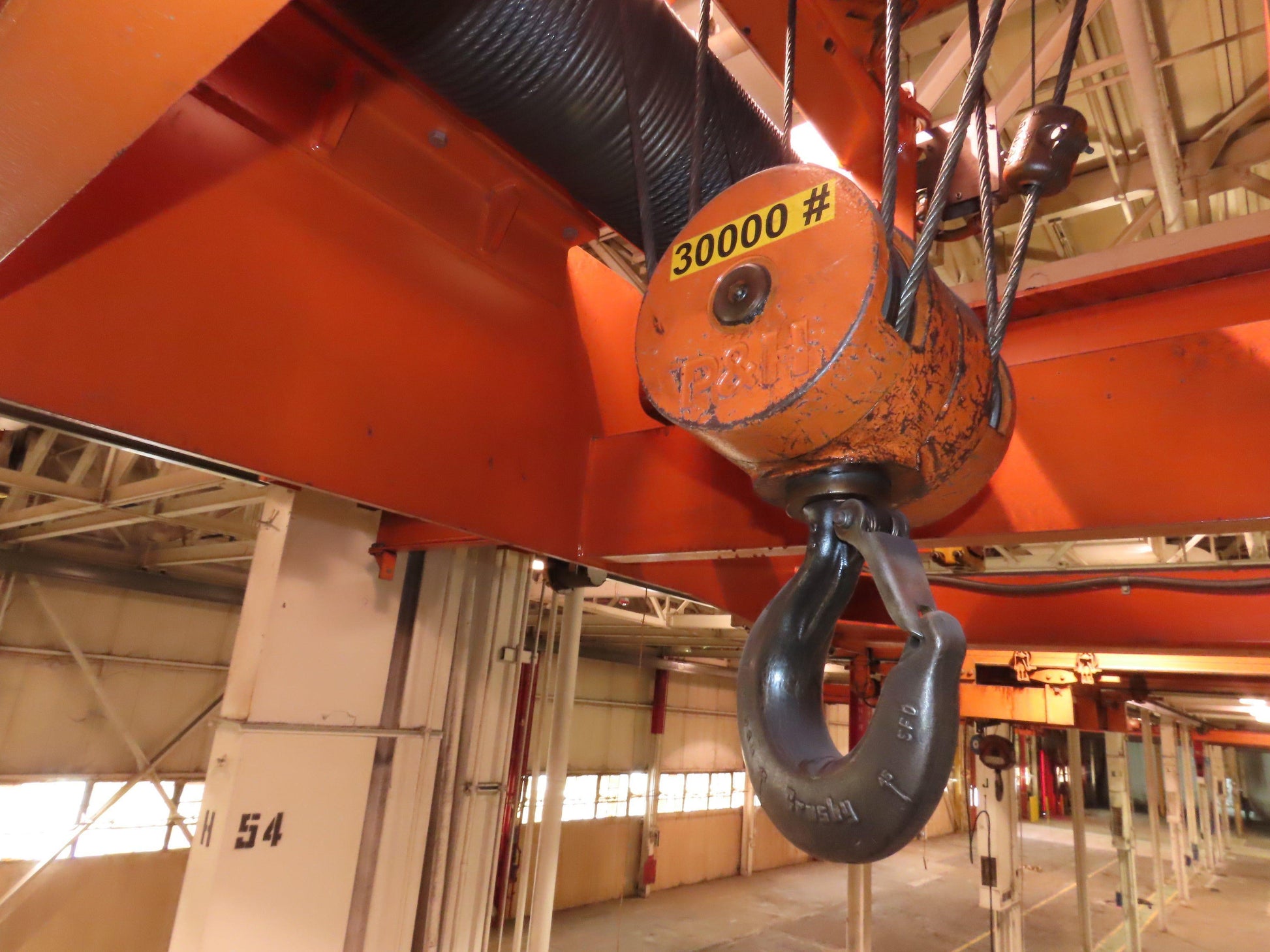

  • Capacity (lb): 30000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 34' 10"

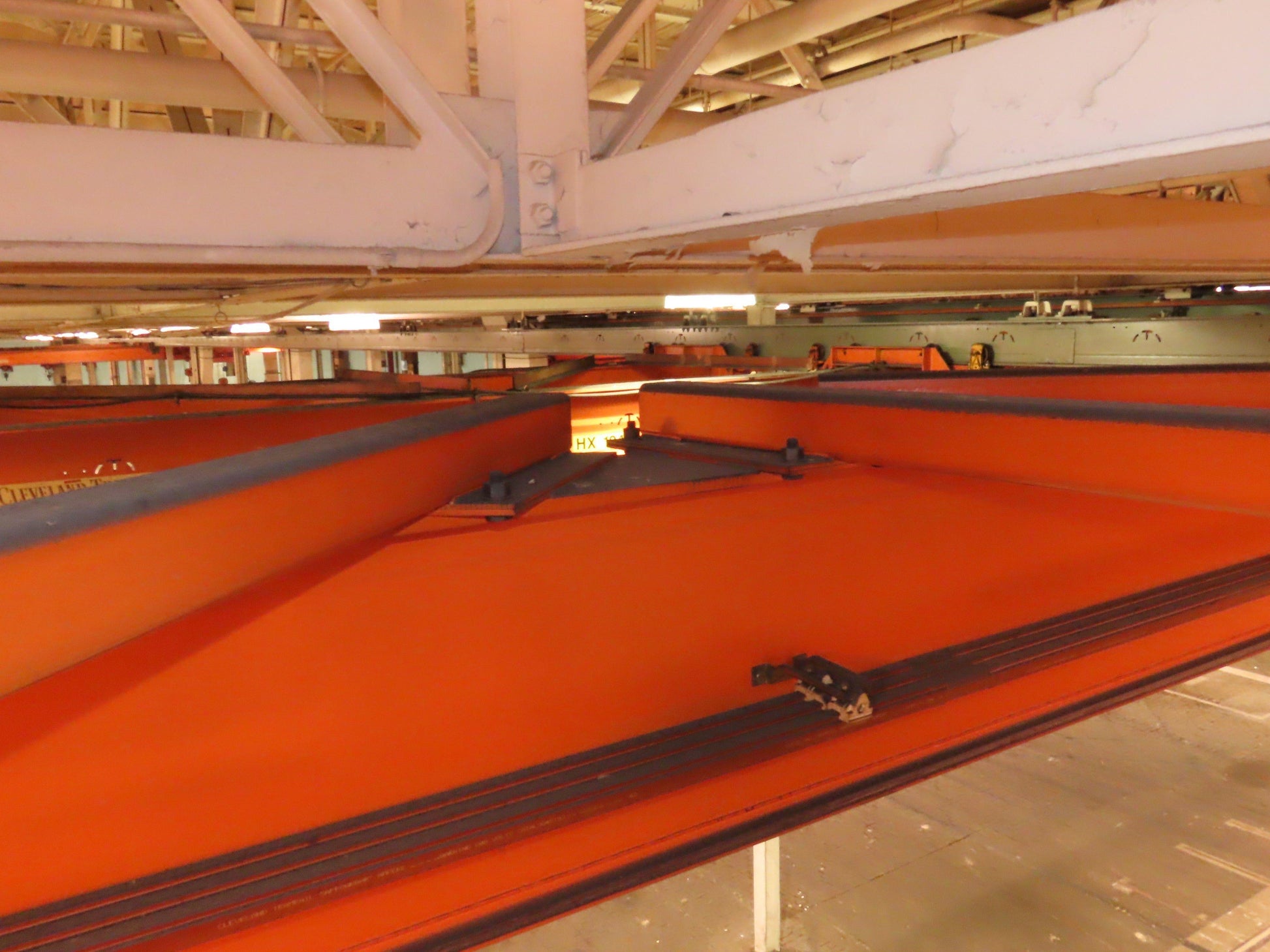

  • Main Girder Beam Size (Height x Width x Length): 24"H x 12.5"W x 37' 10"L (Height slopes down to 16" at the ends)

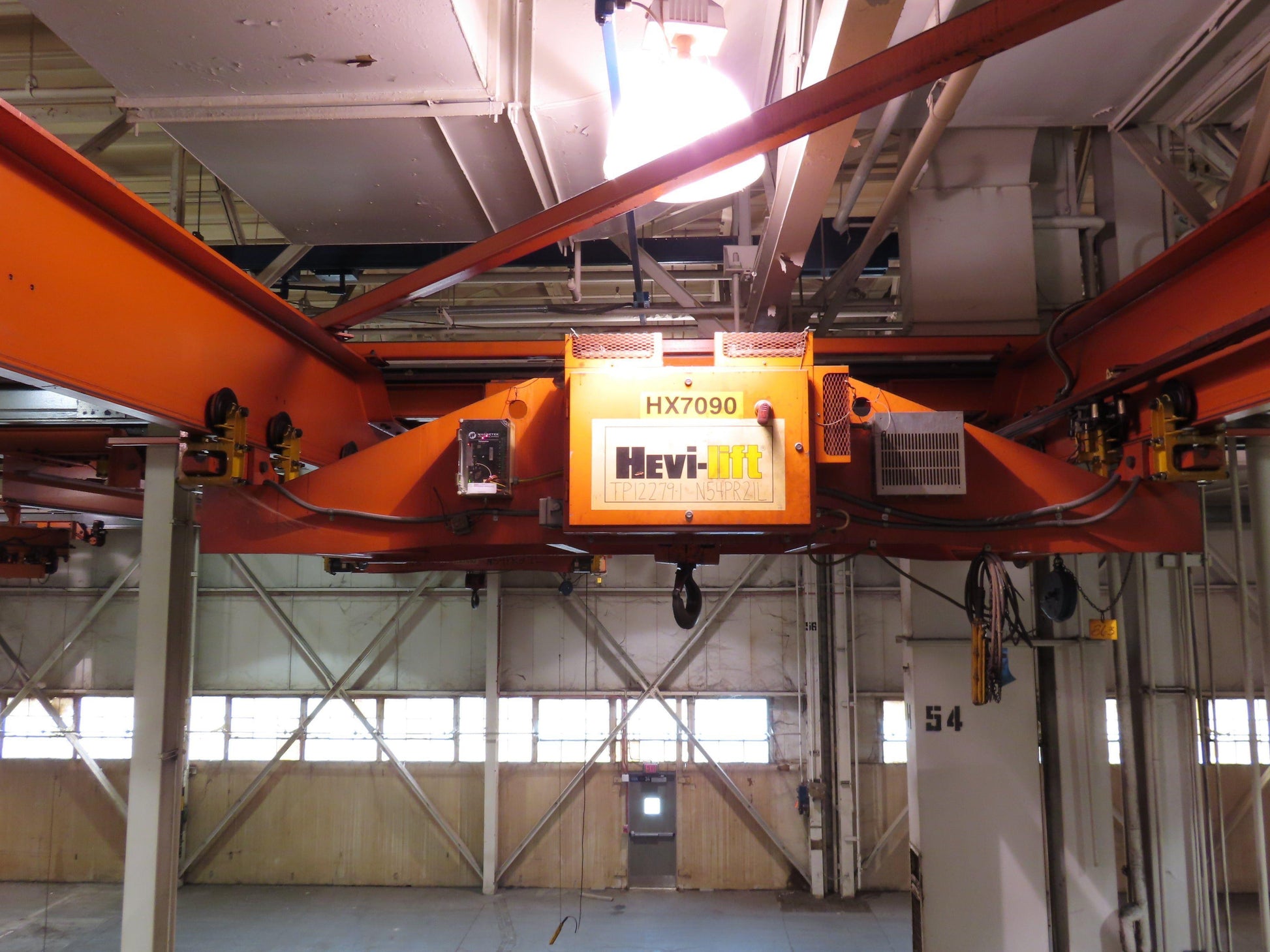

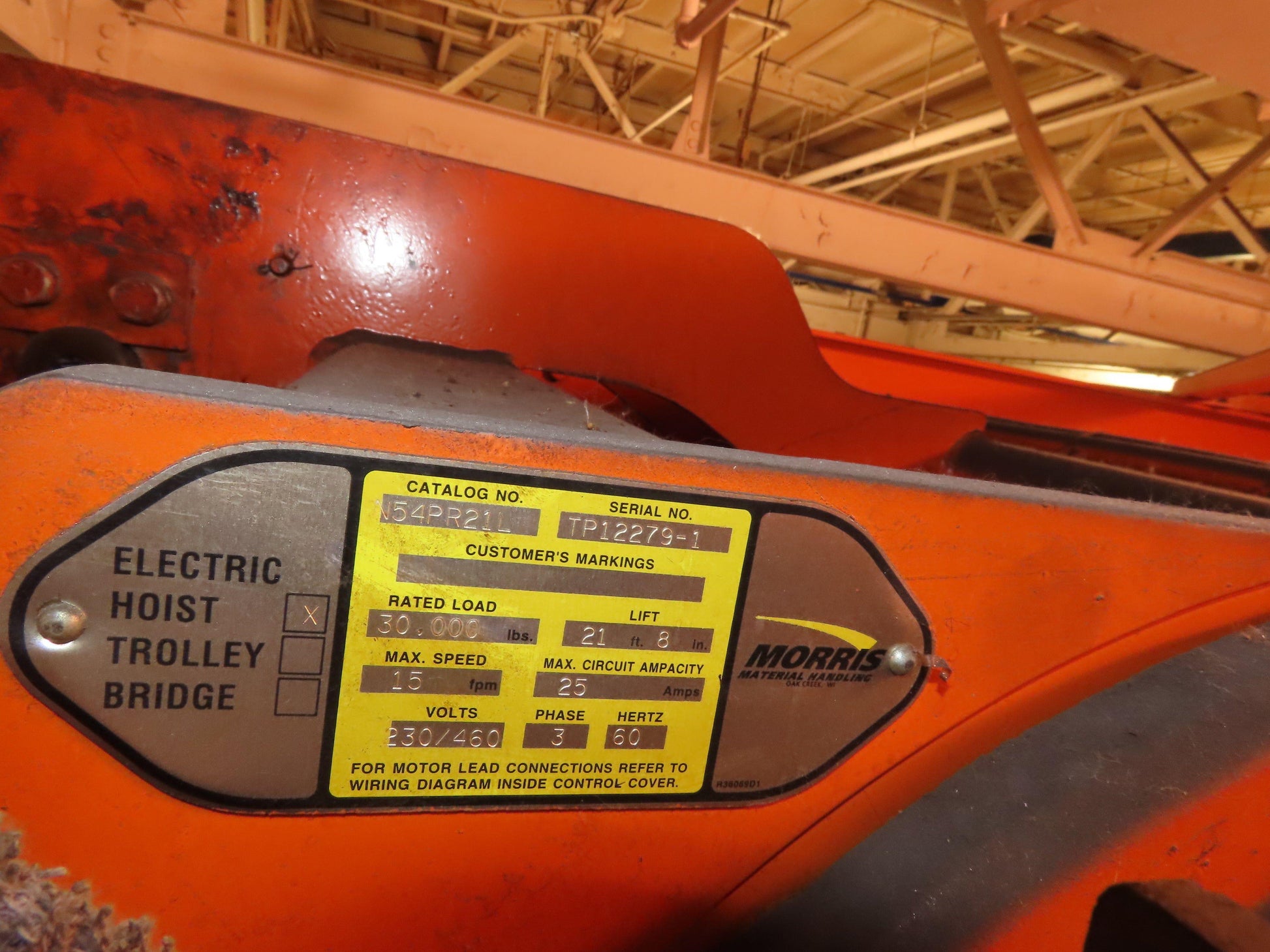

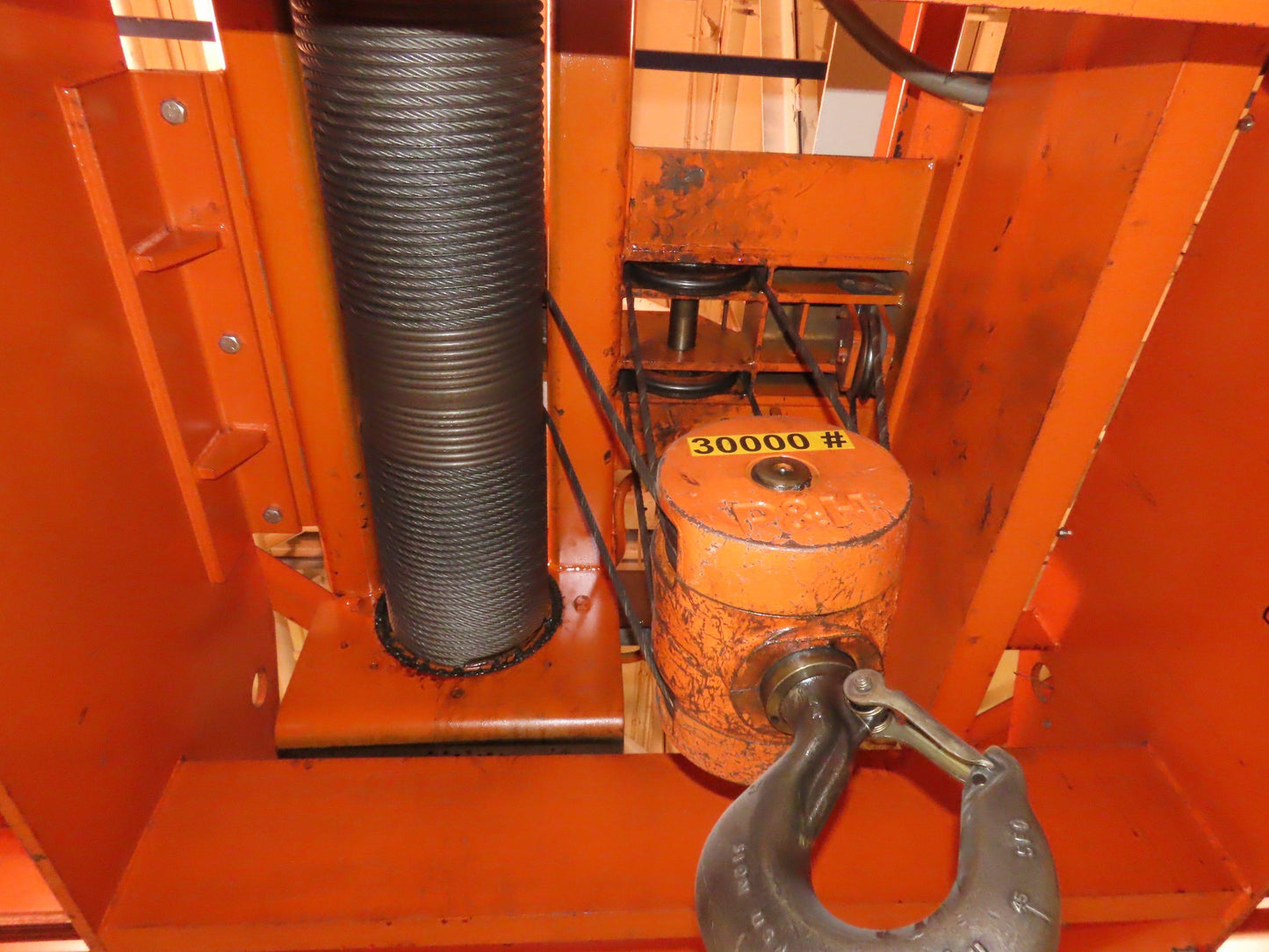

  • Hoist Brand: P&H
  • Lift Travel (feet): 21' 8"

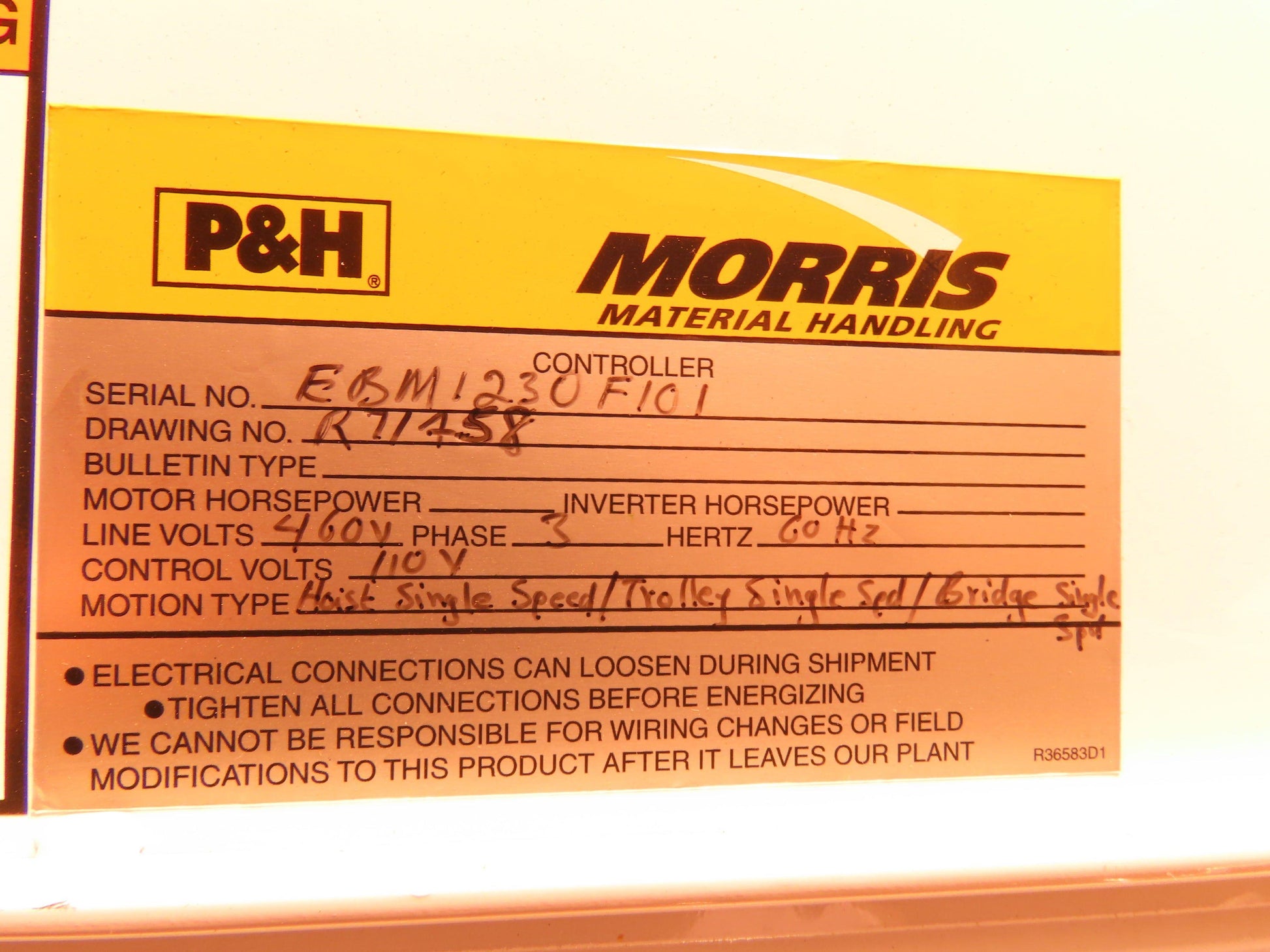

  • Lift Speed (feet per minute): 5/15 FPM 2-Speed (Tag says single speed hoist but this is set up as 2-speed)

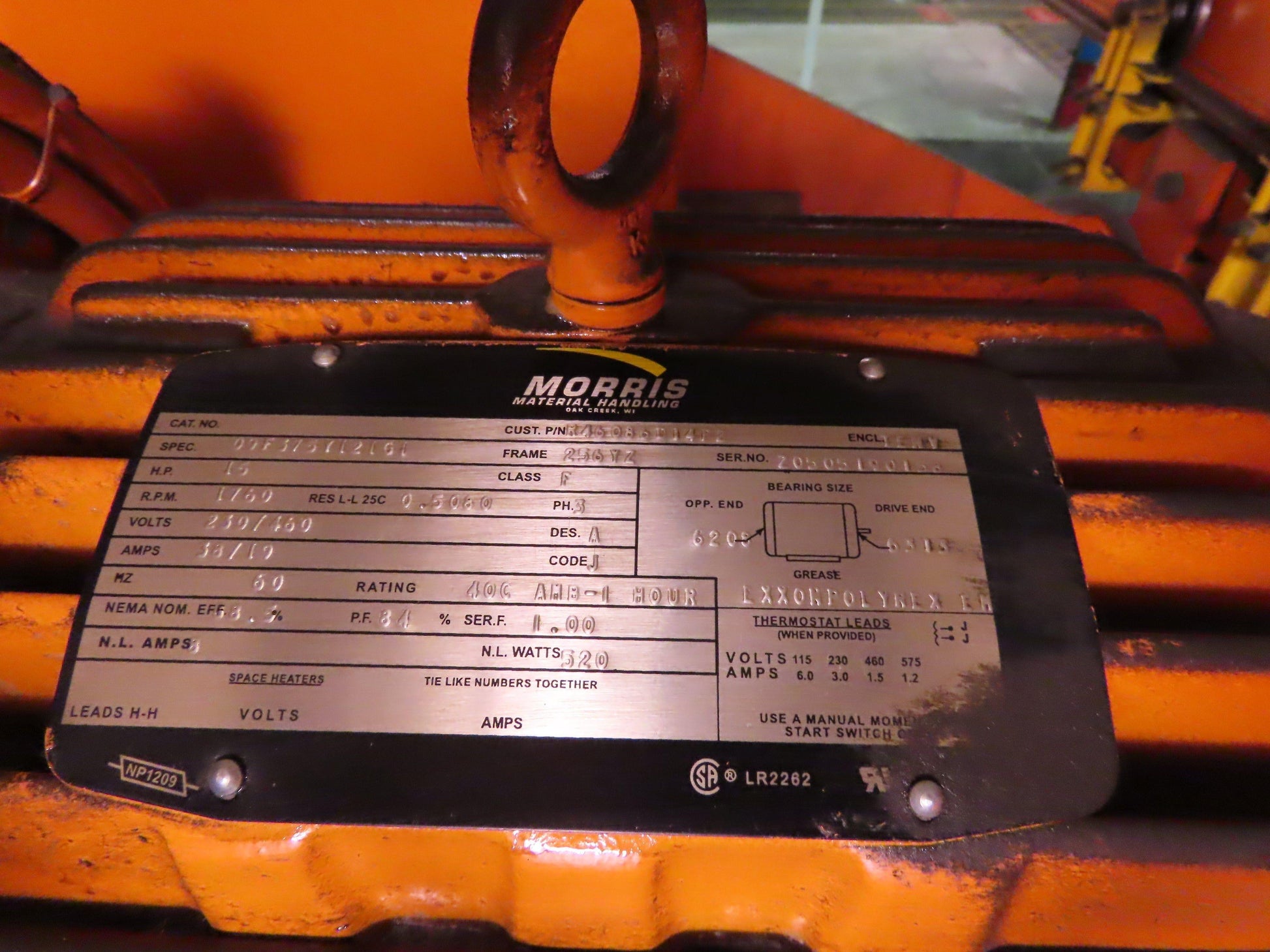

  • Motor Horse Power: 15
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 32"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 46"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 62"
  • Bridge Crane is in working condition.  Tested on site before removal.

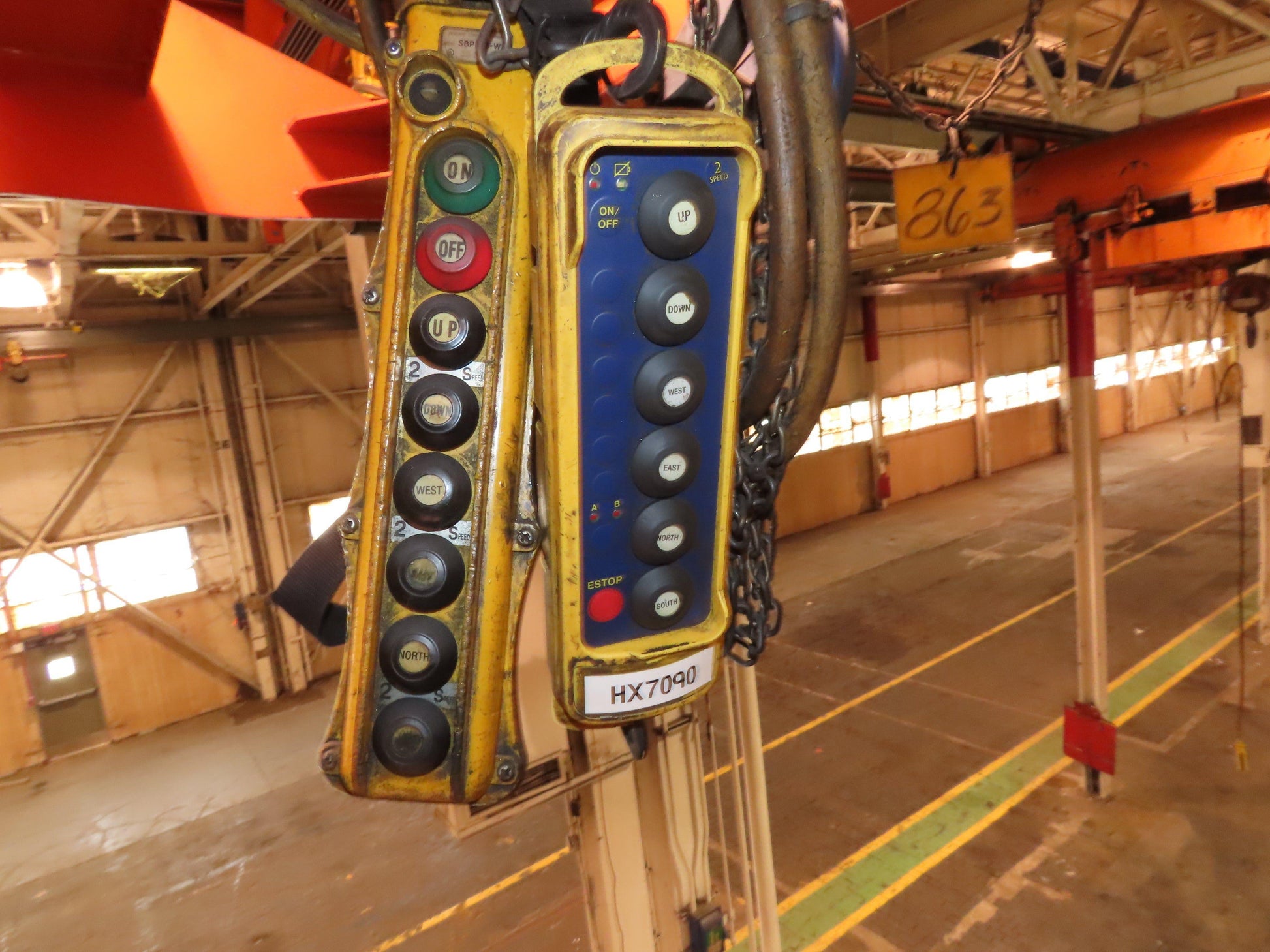

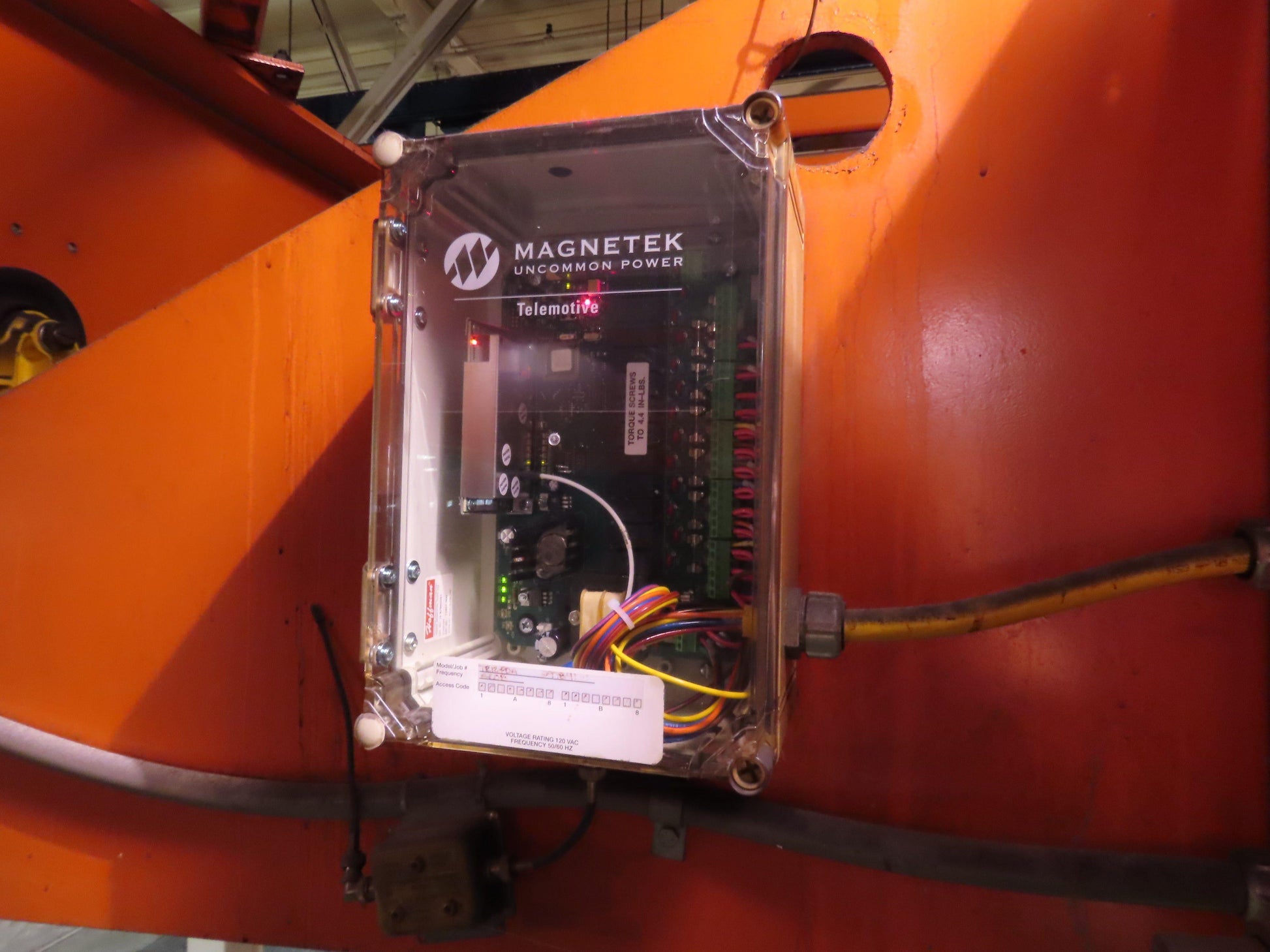

  • Includes corded and wireless pendants.
  • Single speed bridge and trolley, 2-speed hoist. Bridge and trolley speeds are both 75 FPM.

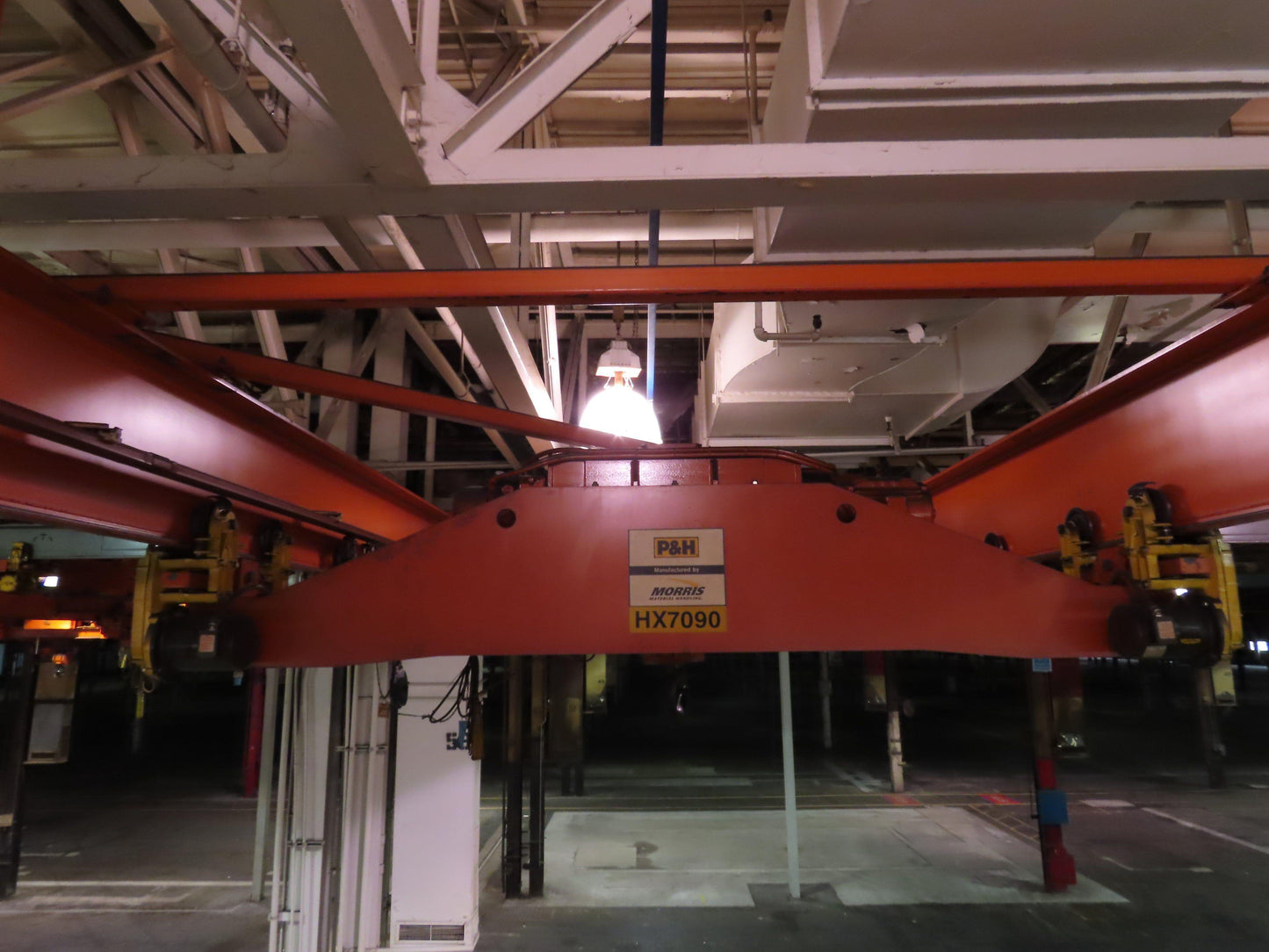

  • Trolley carriage length: 88"

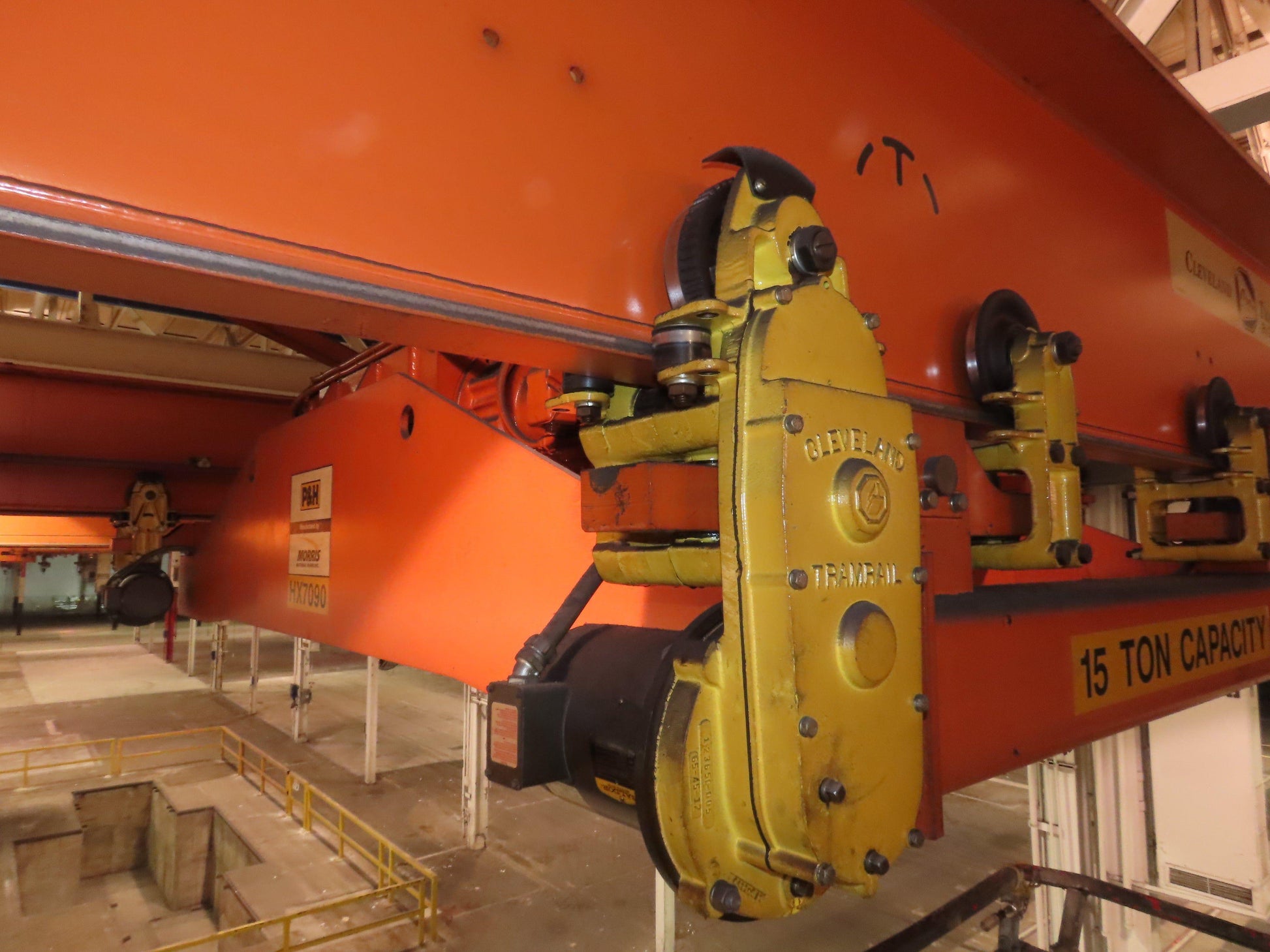

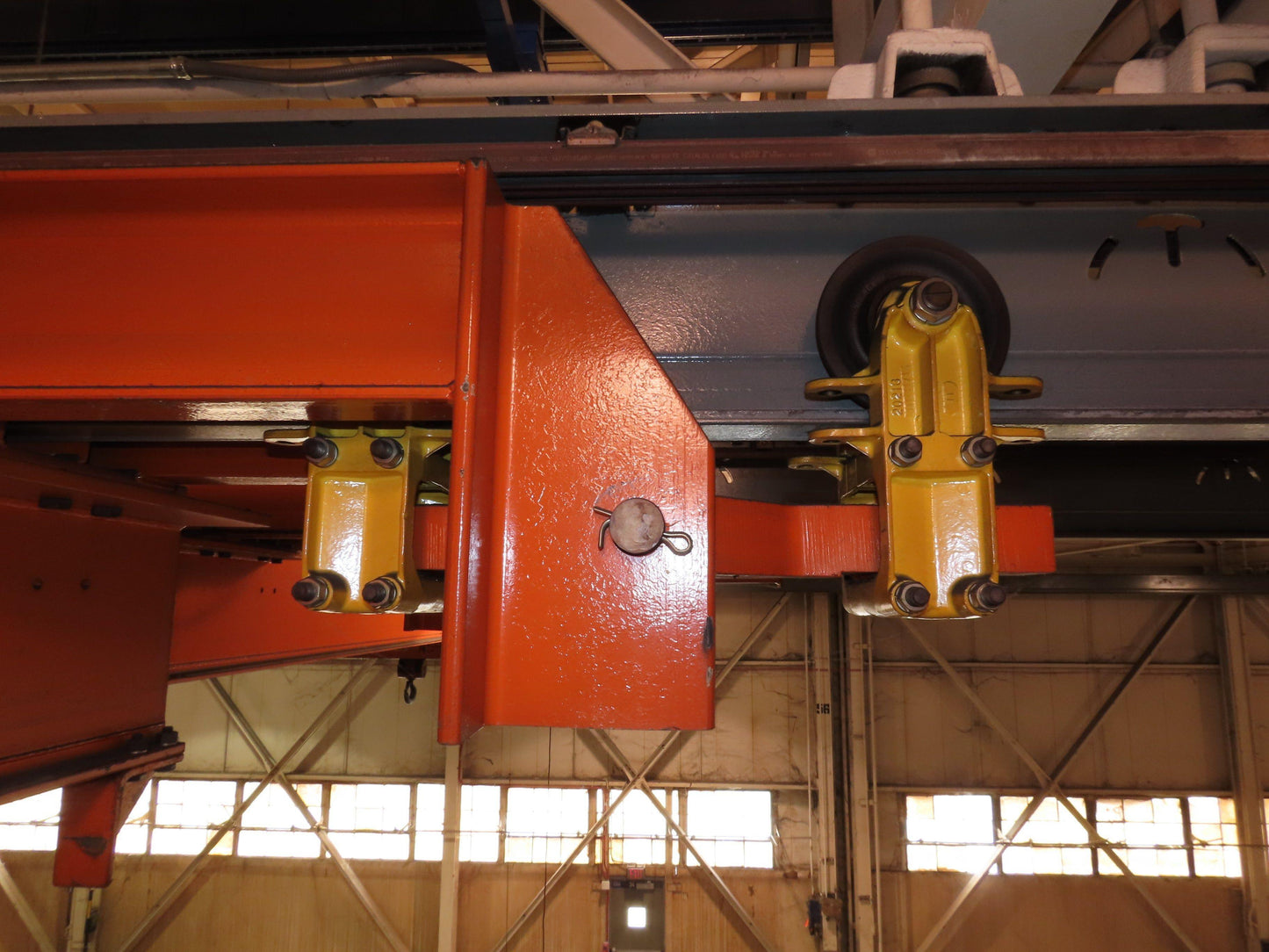

  • End truck length:  92" + a 20" stop bar on the outside ends.
  • End truck wheel size:  6"
  • Girder beam span: 12'
  • Top braces are bolted on.
