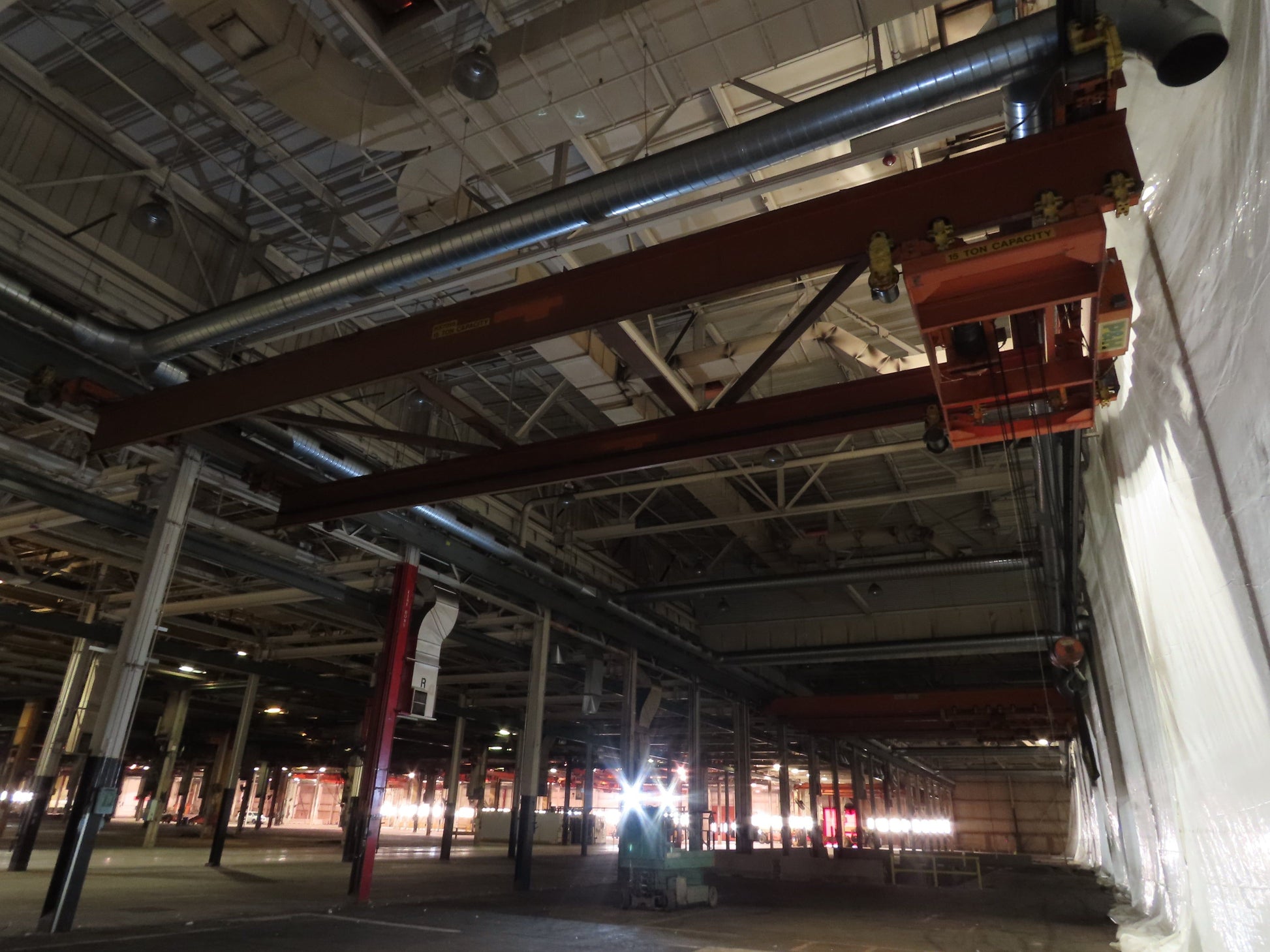

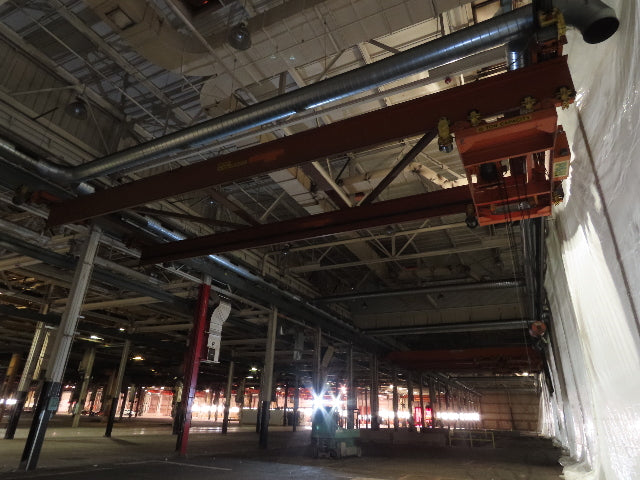

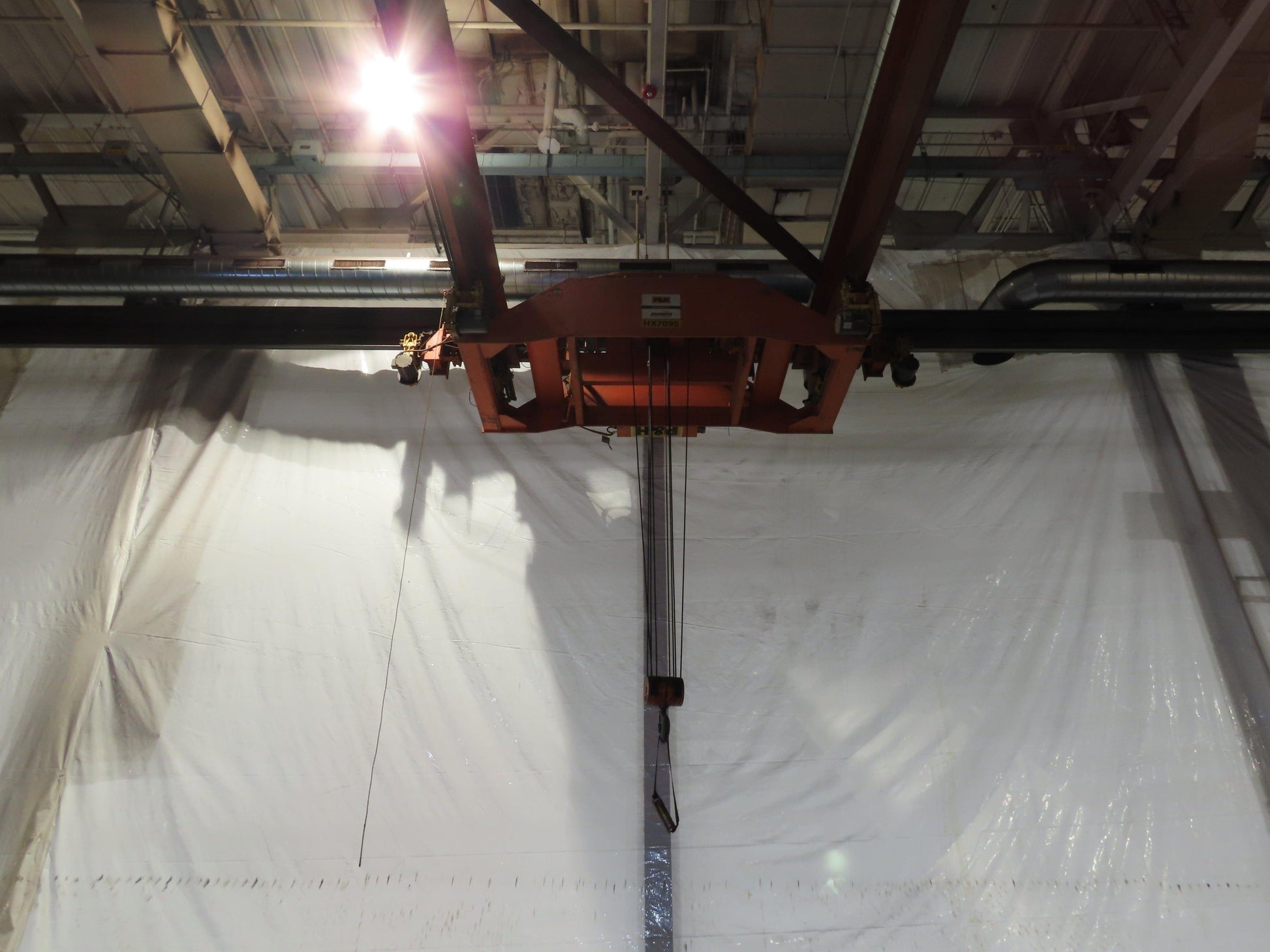

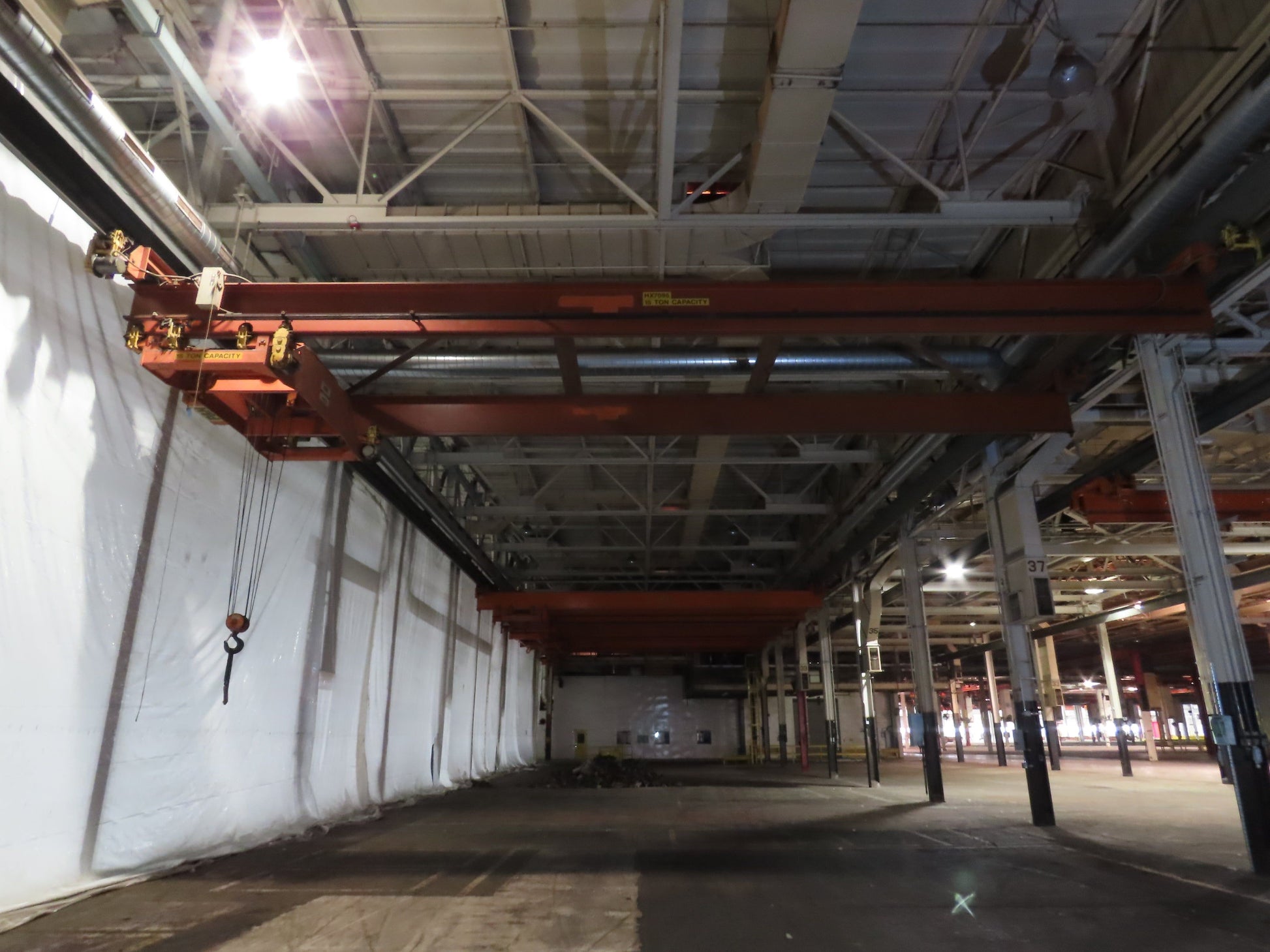

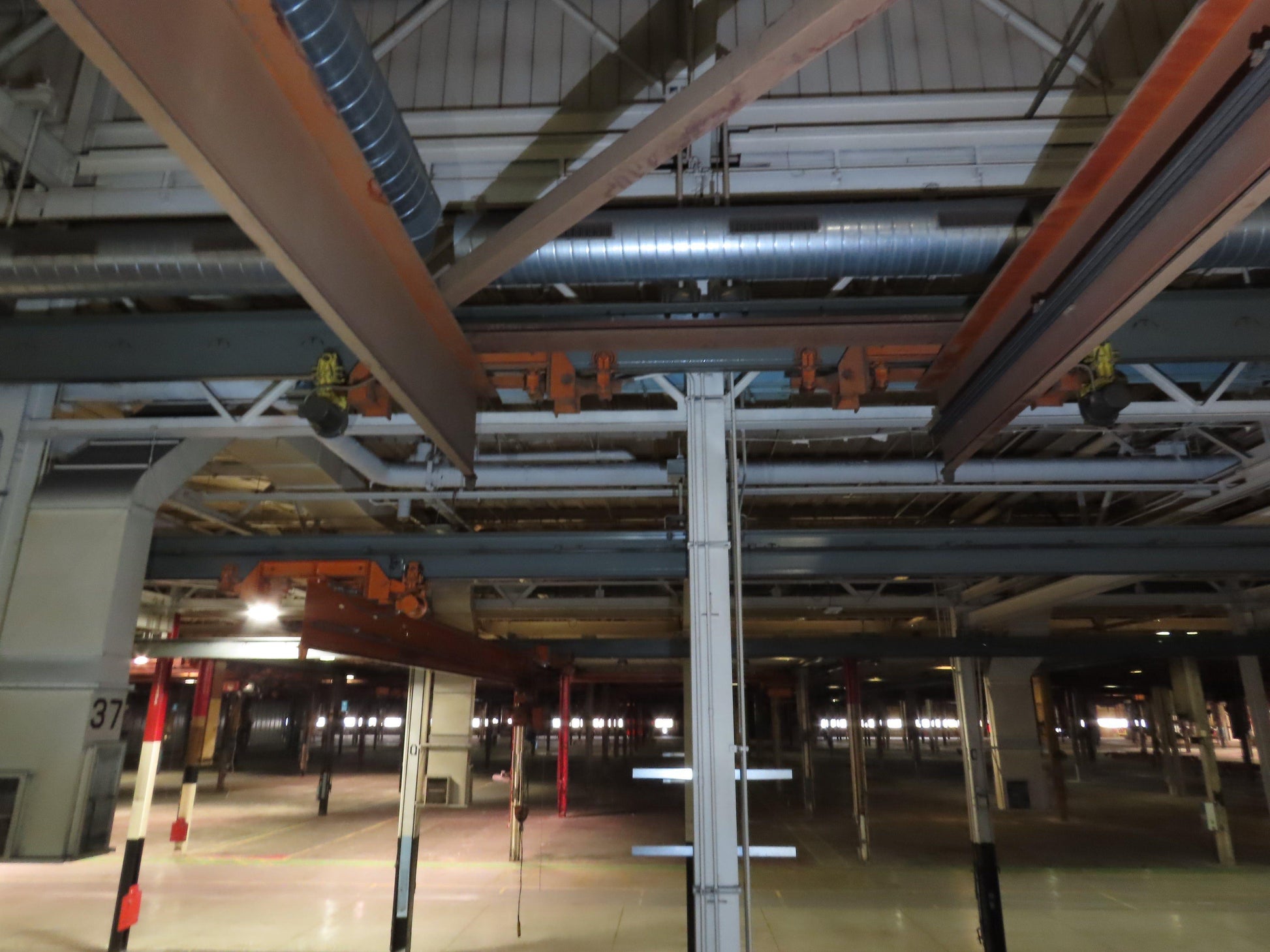

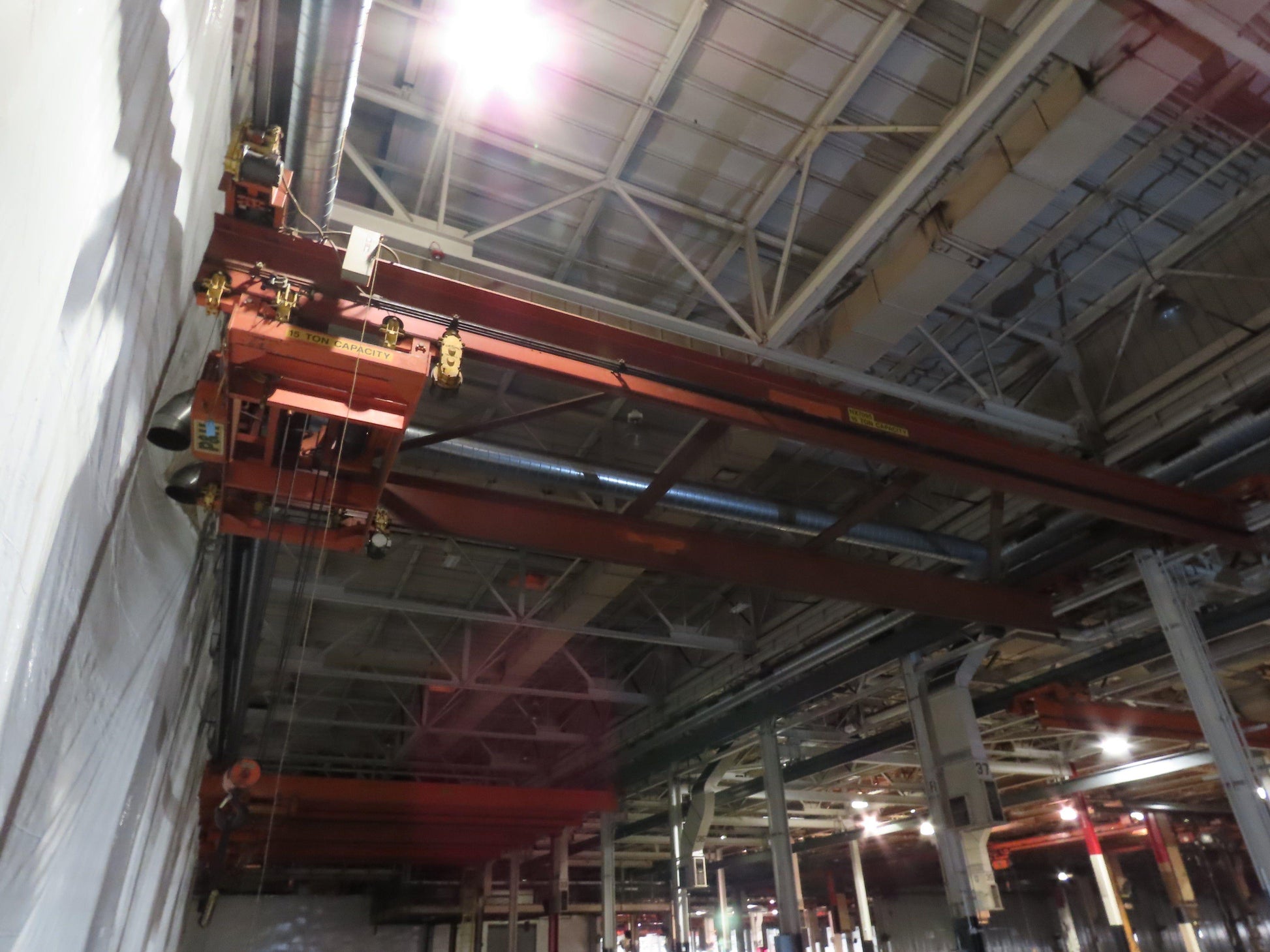

Cleveland Tramrail P&H 15 Ton Double Girder Bridge Crane 45' Span w/Remote

Cleveland Tramrail P&H 15 Ton Double Girder Bridge Crane 45' Span w/Remote

SKU #268228

Product Condition: Used

Your Price
$21,374.99
$24,999.99 $21,374.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail P&H
Model
HX7095
MPN
N/A
Condition
Used

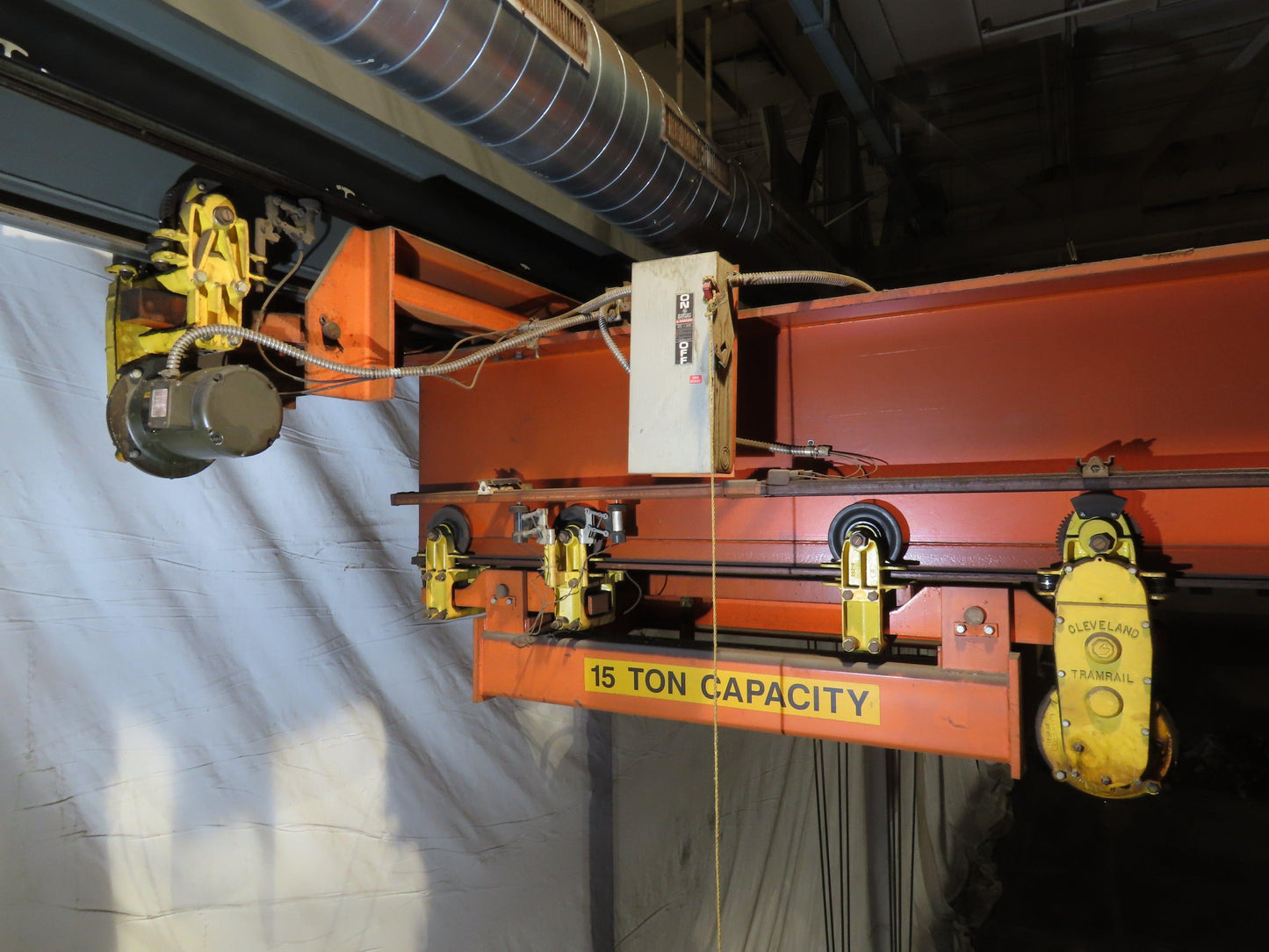

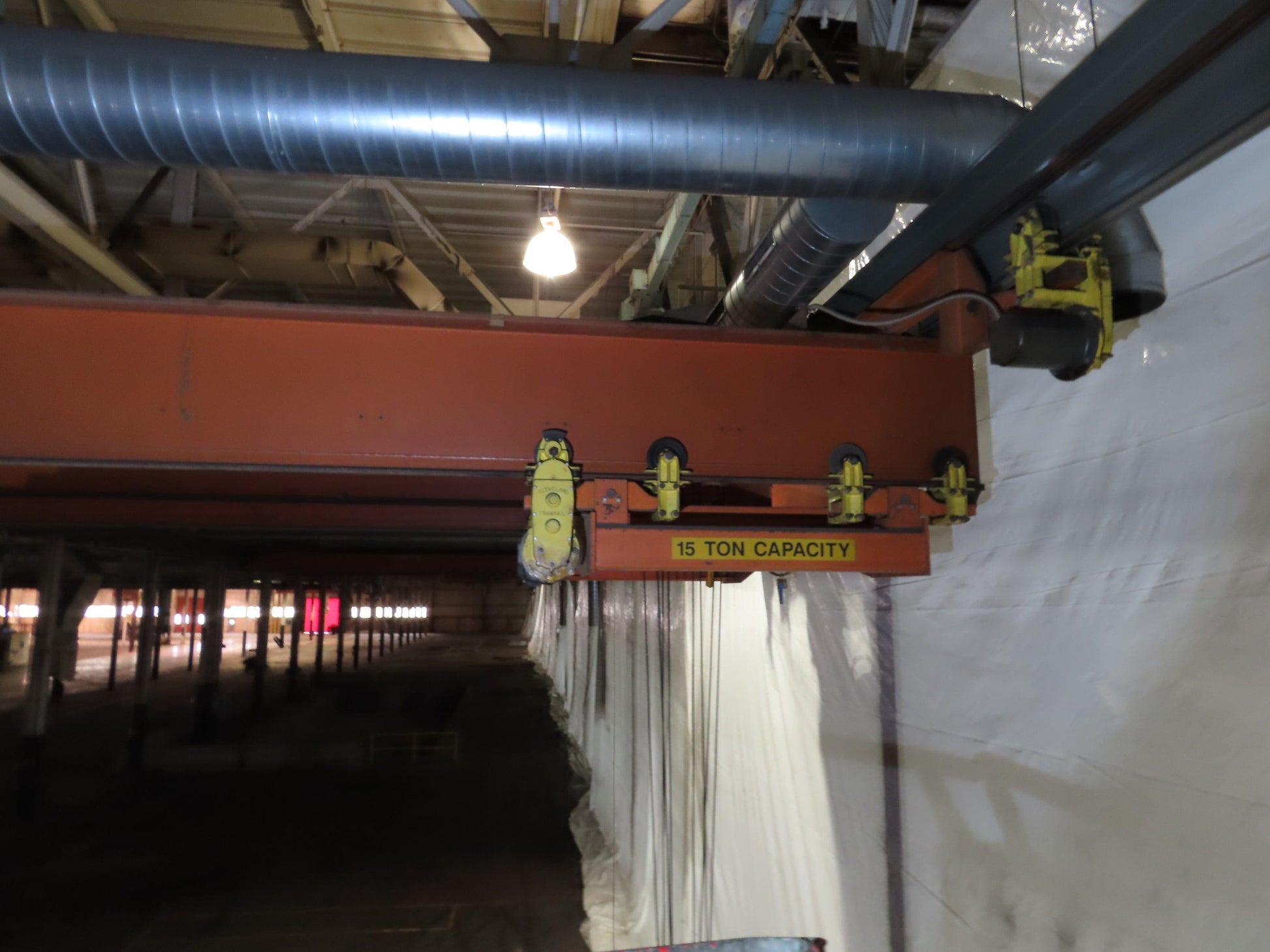

  • Capacity (tons): 15
  • Capacity (lb): 30000

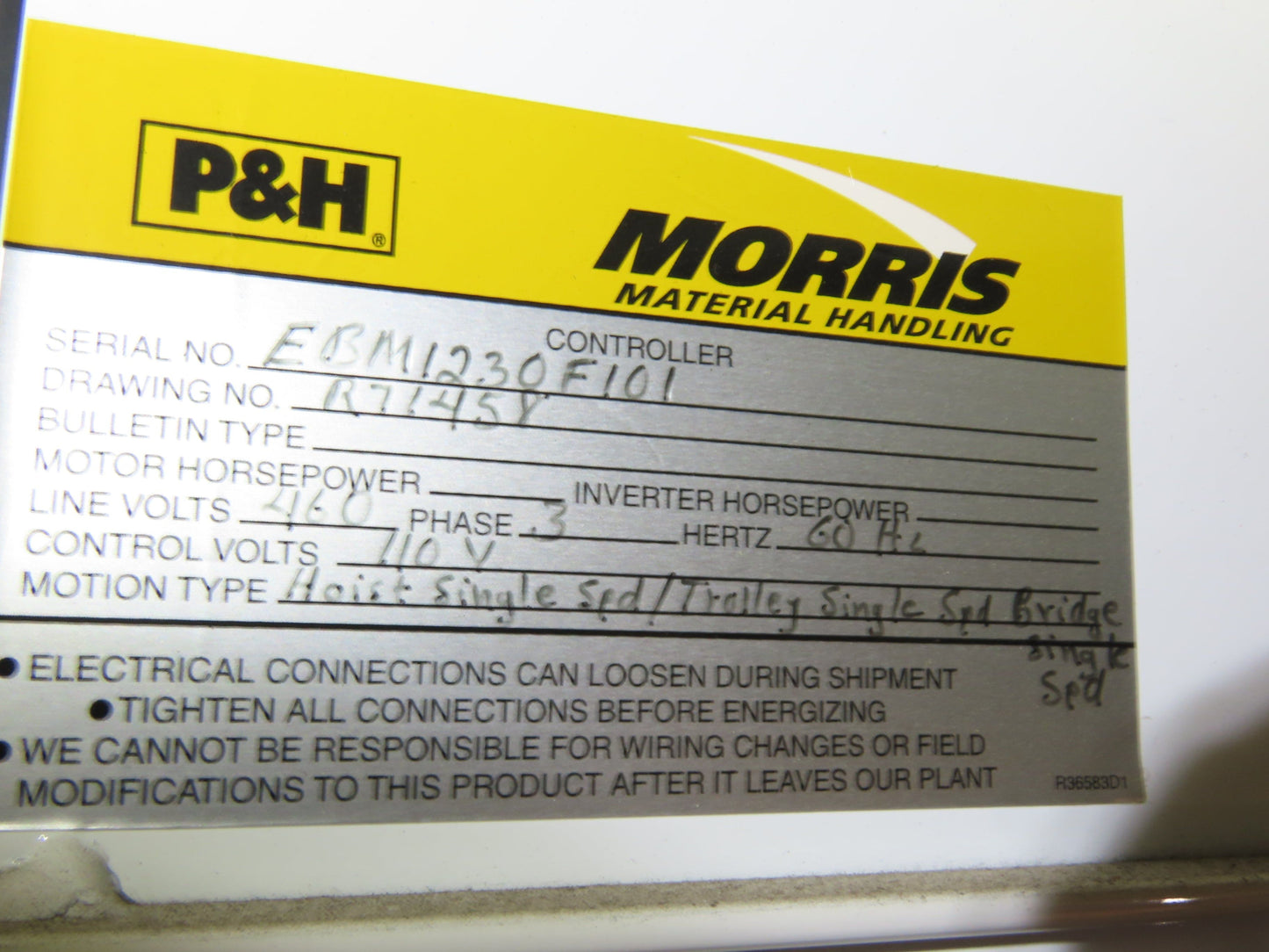

  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45'

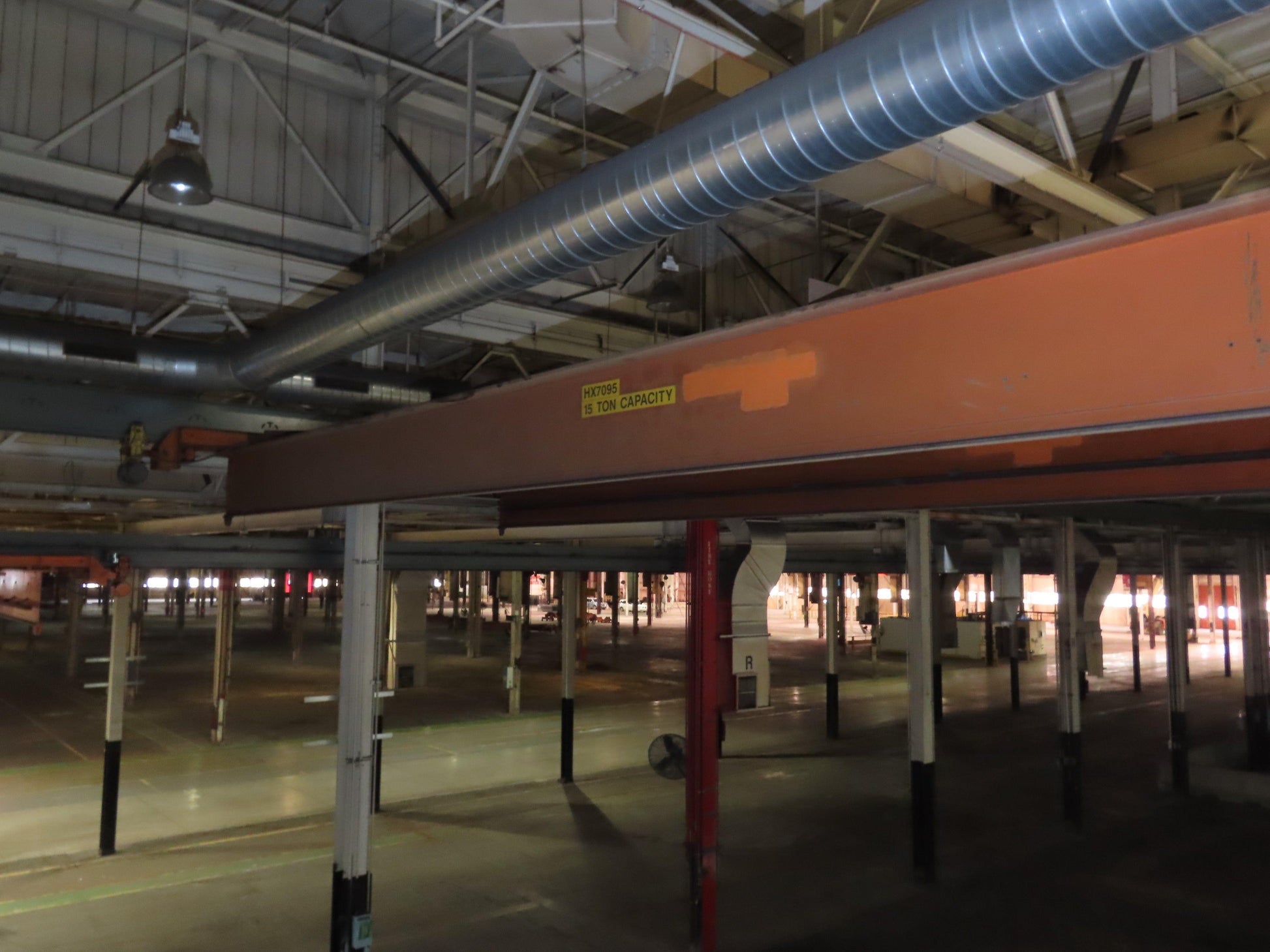

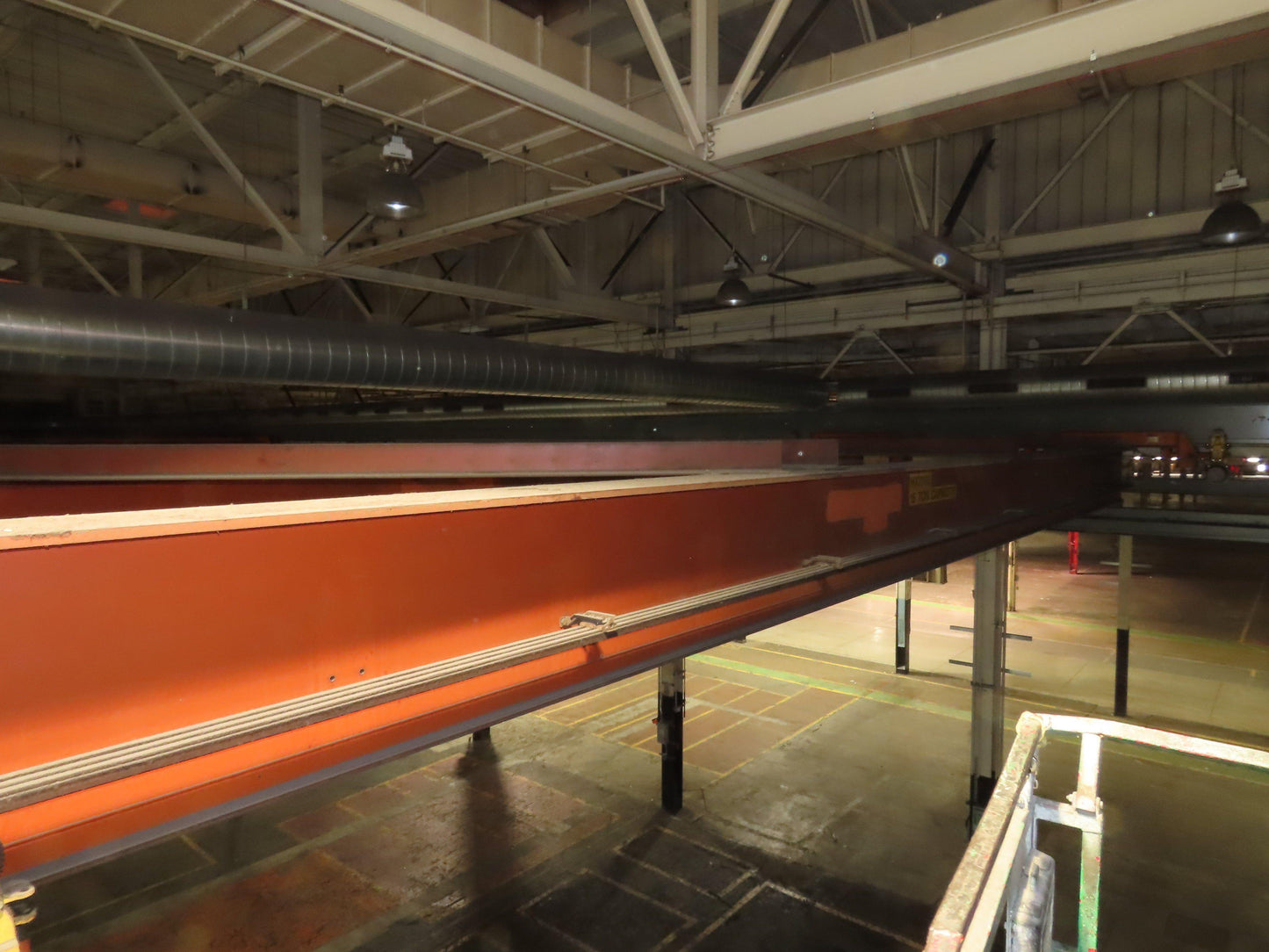

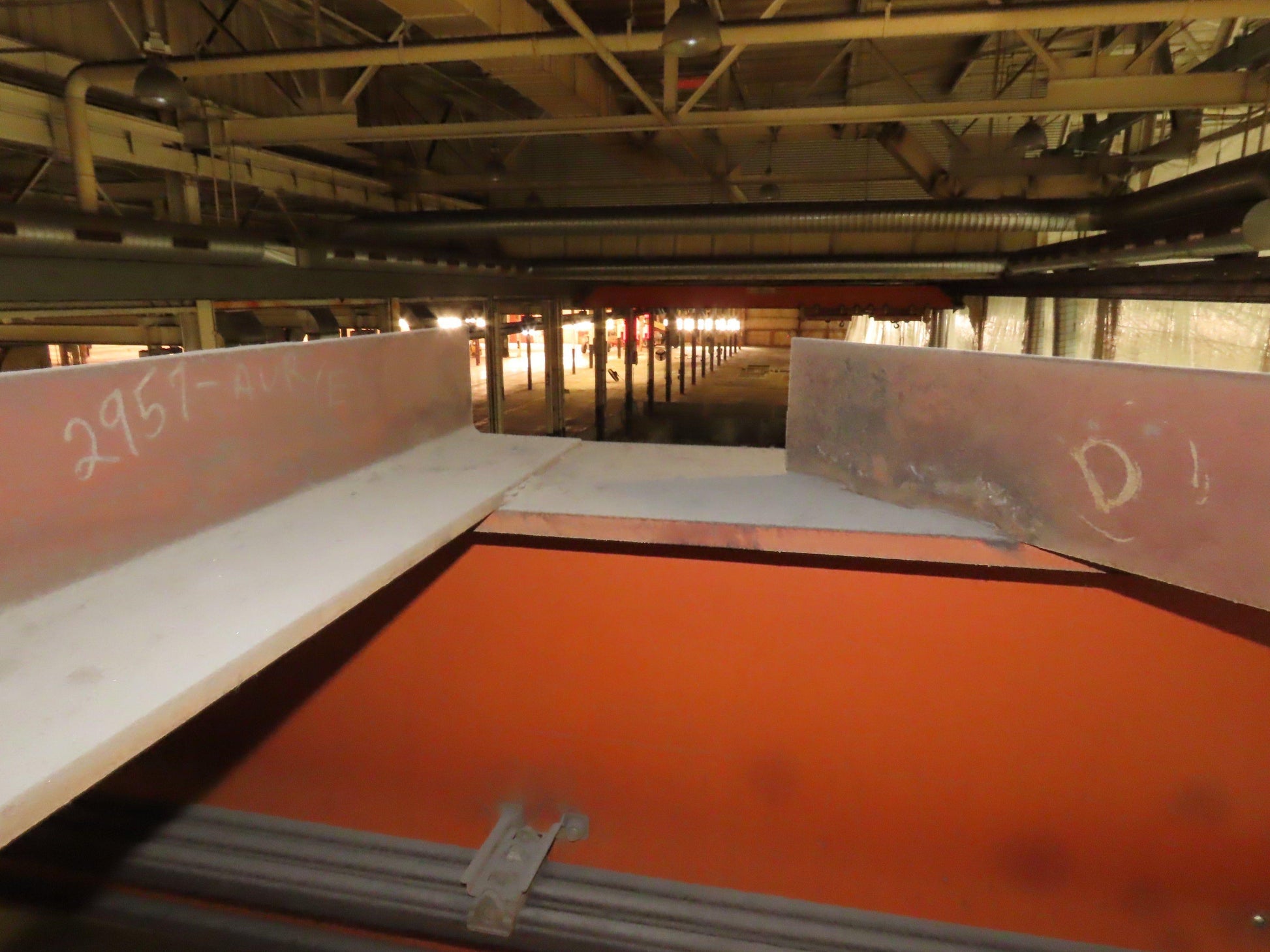

  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 47'L

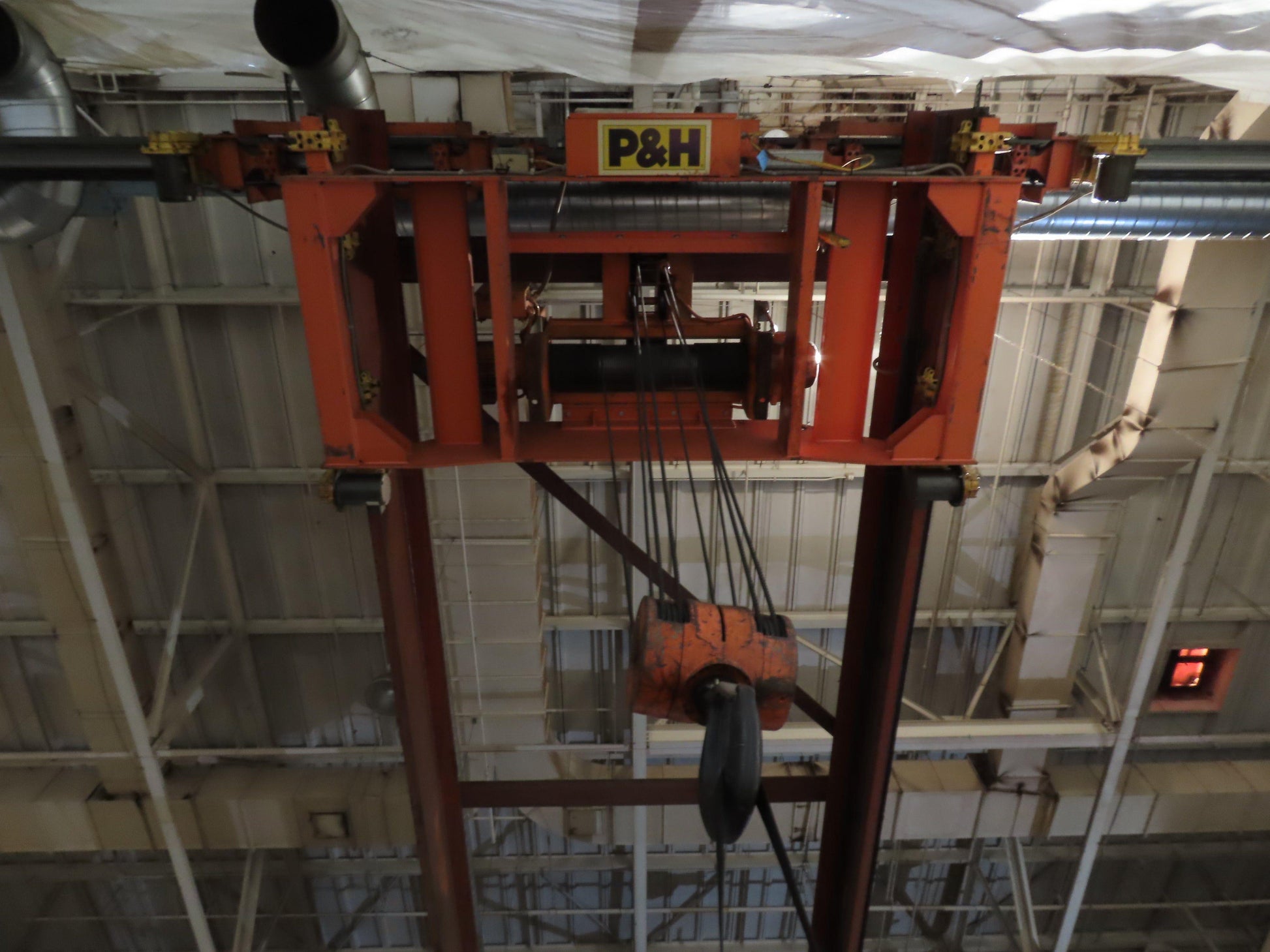

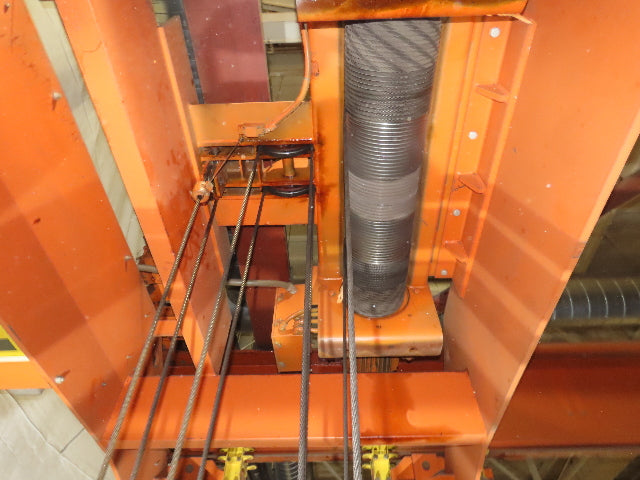

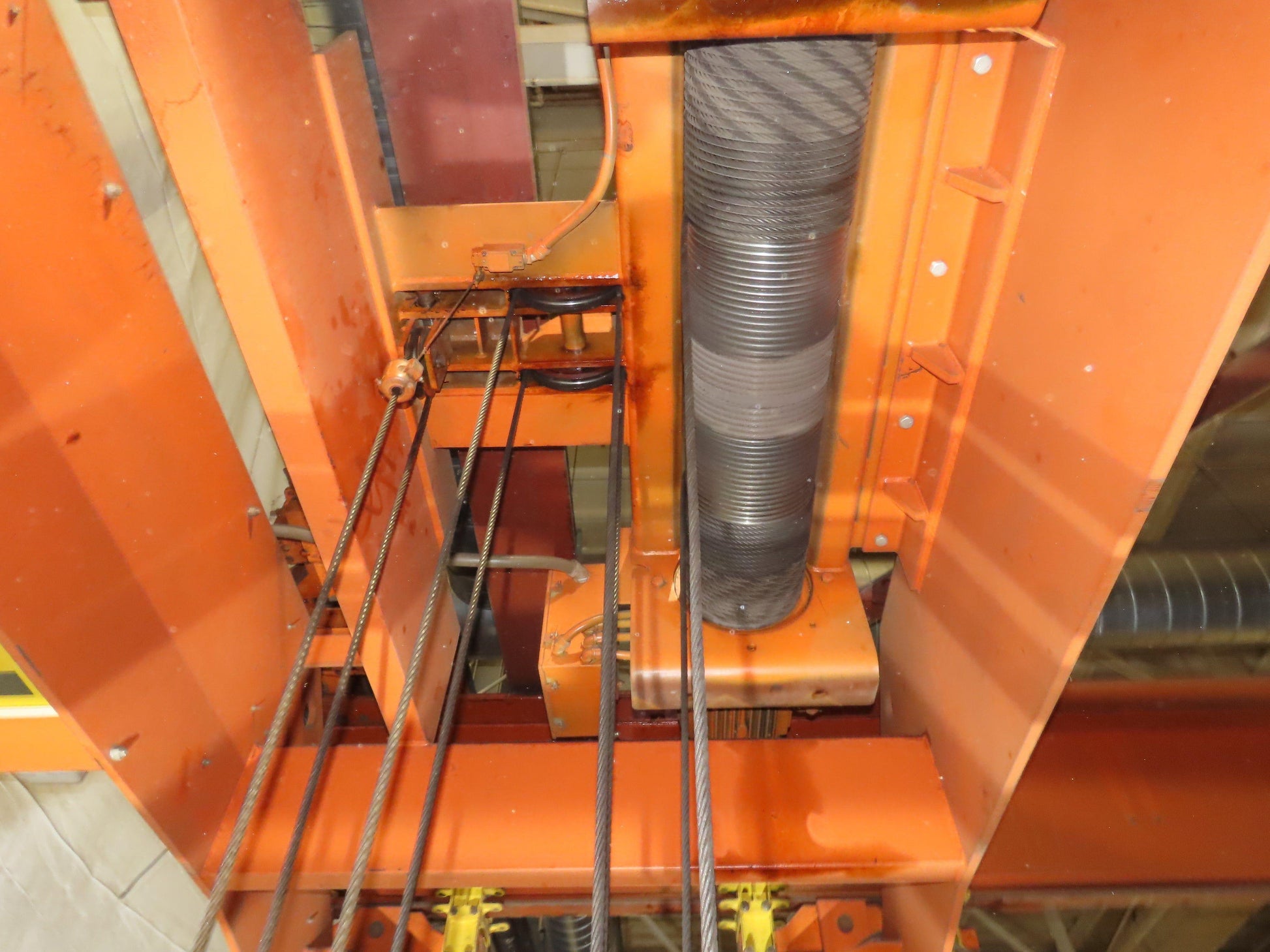

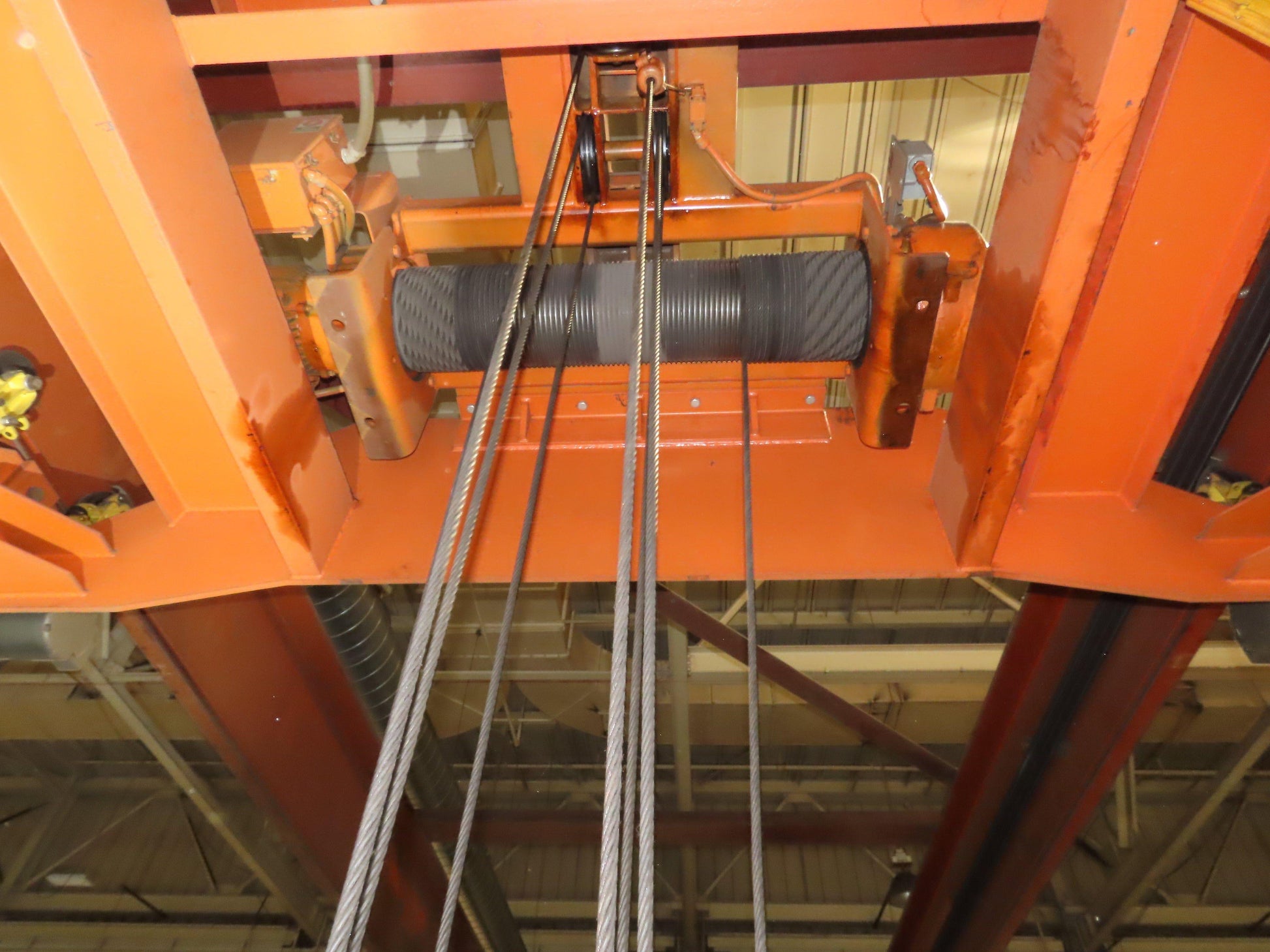

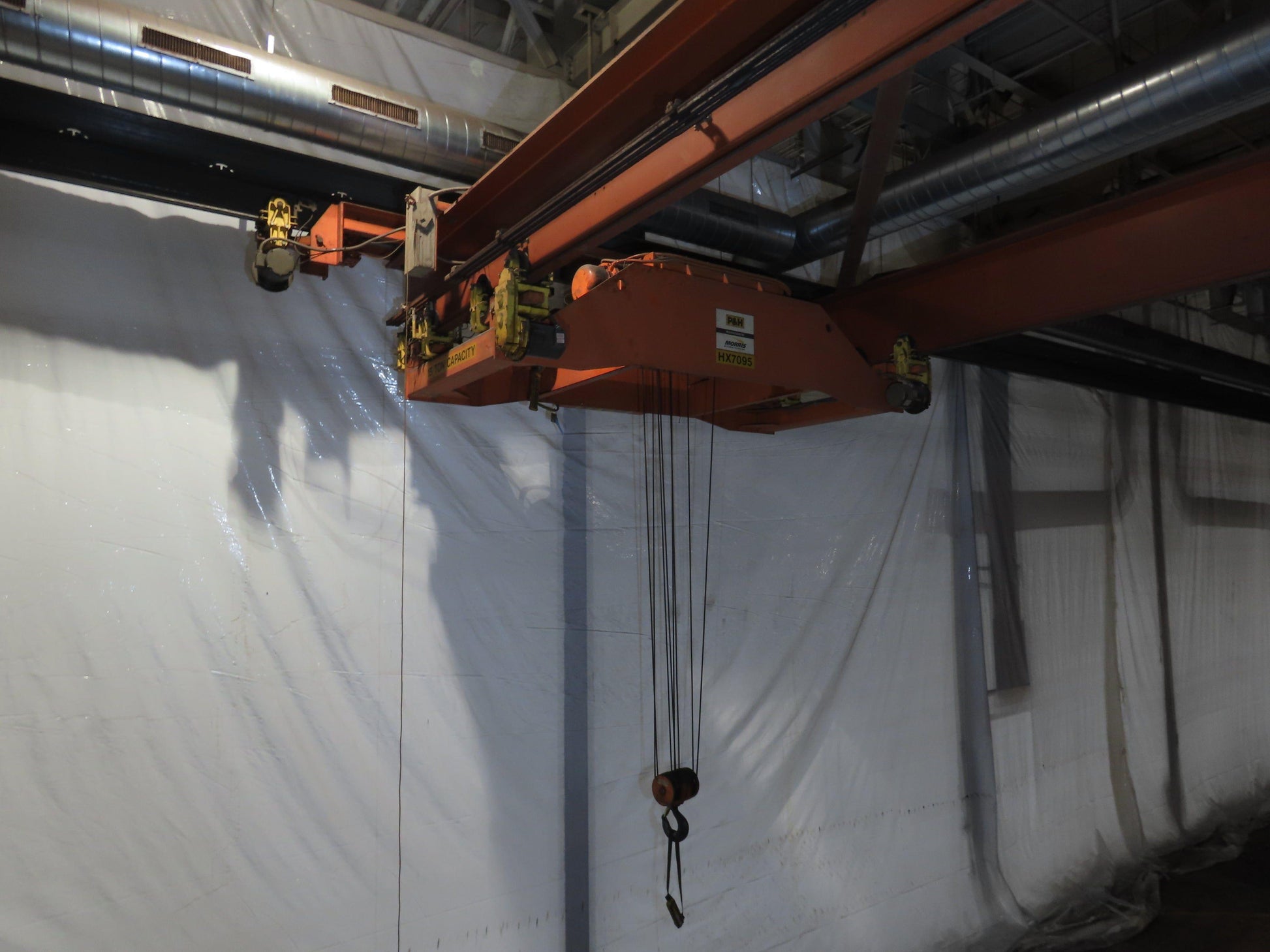

  • Hoist Brand: P&H
  • Lift Travel (feet): 27' 7"
  • Lift Speed (feet per minute): 15 FPM Single Speed

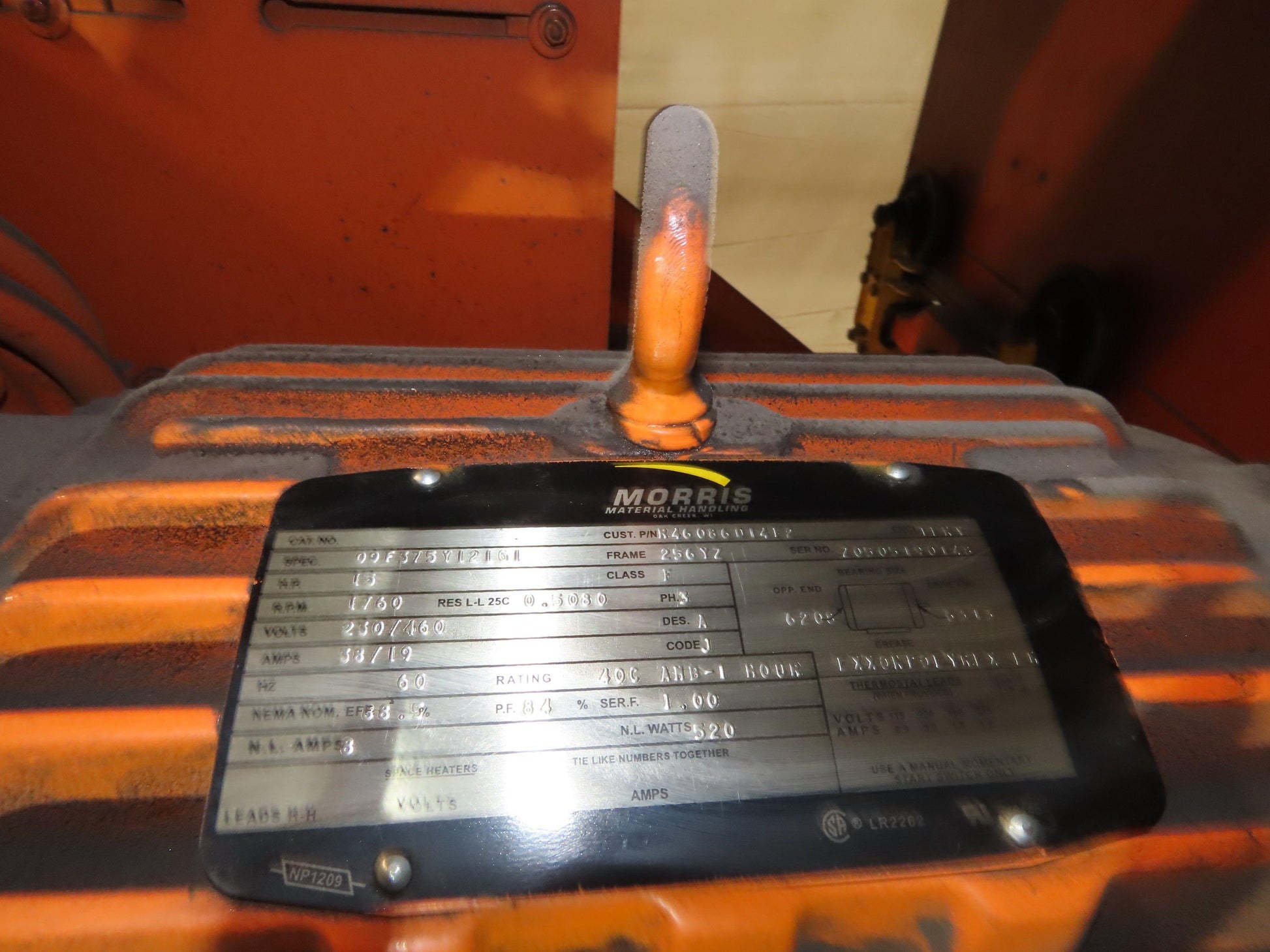

  • Motor Horse Power: 15
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 25"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 54"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 64"
  • Bridge Crane in good used condition.  We were unable to test the crane due to the power being cut.

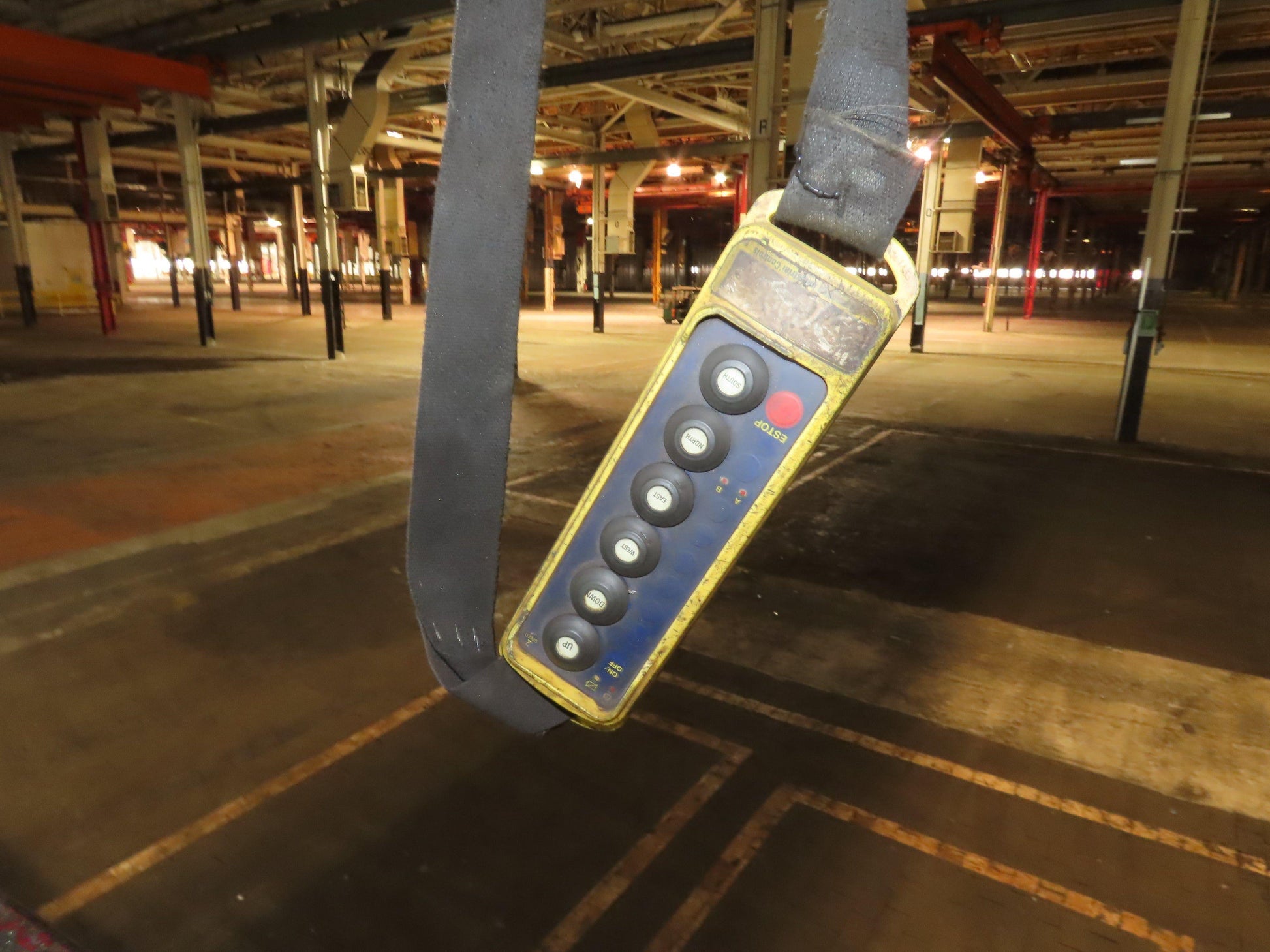

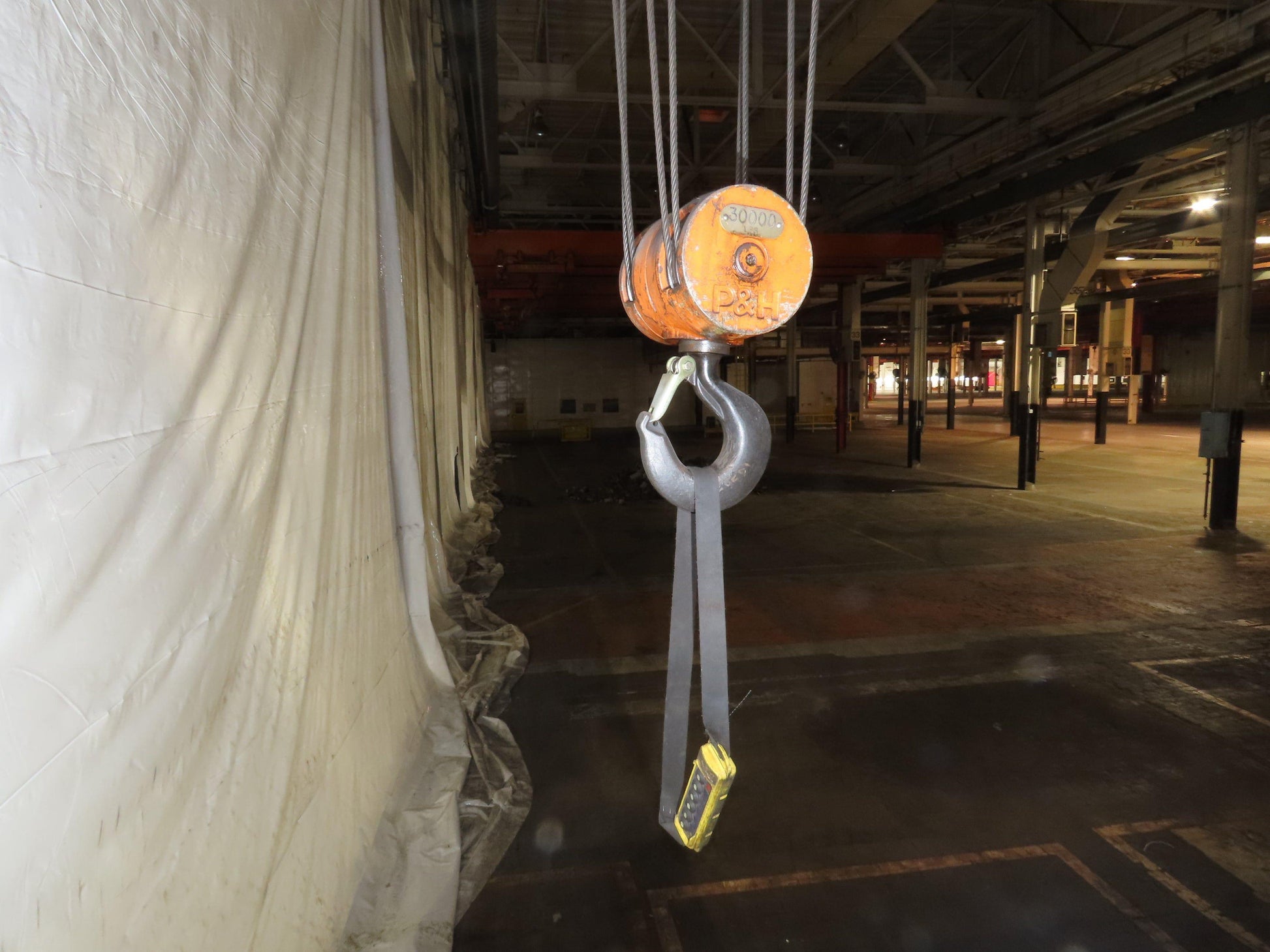

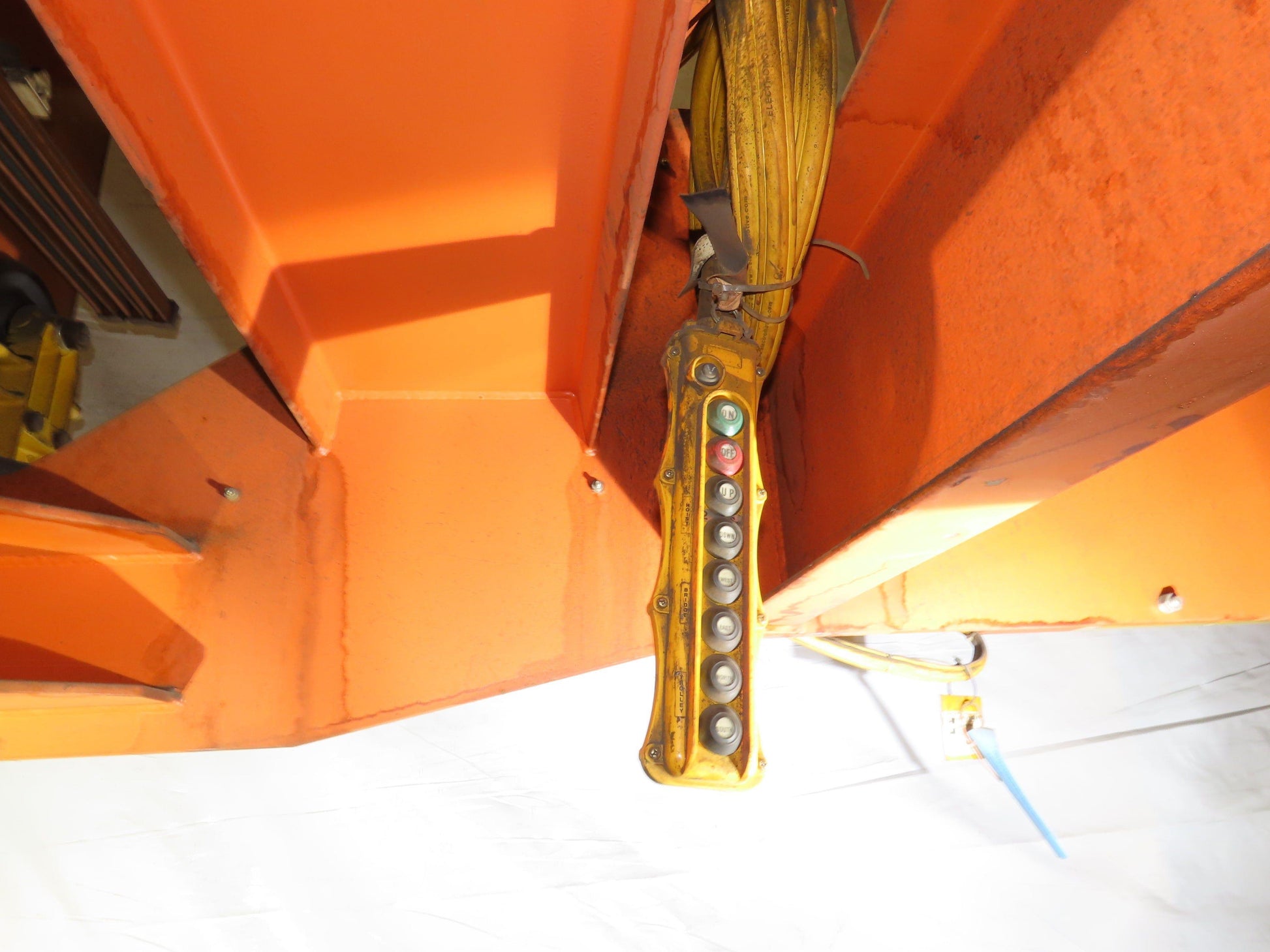

  • Includes corded and wireless pendants.

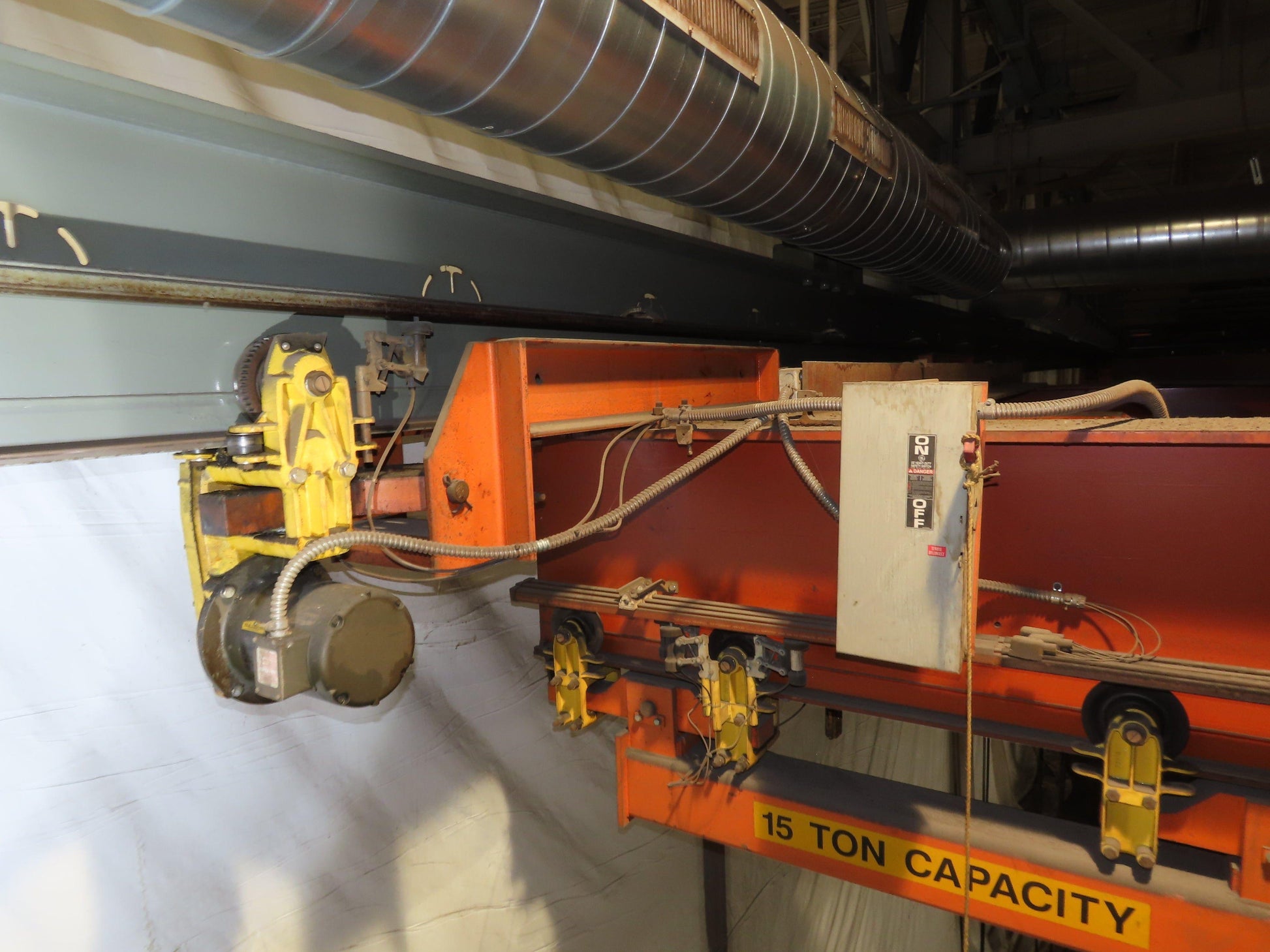

  • Single speed bridge and trolley, single speed hoist.
  • Trolley carriage length: 88"

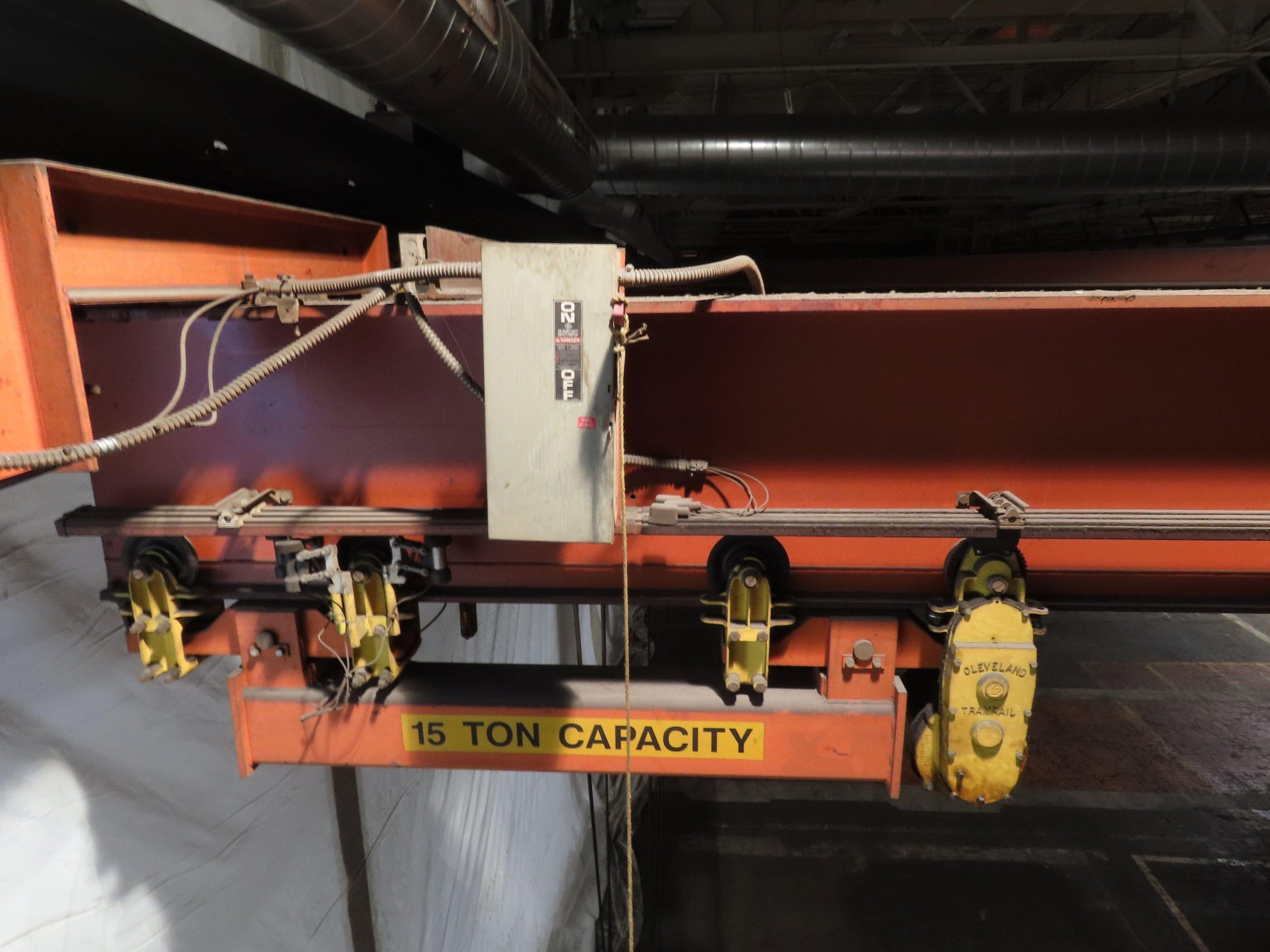

  • End truck length:  94"
  • End truck wheel size:  6"
  • Girder beam span: 12'
  • Top braces are welded on.
