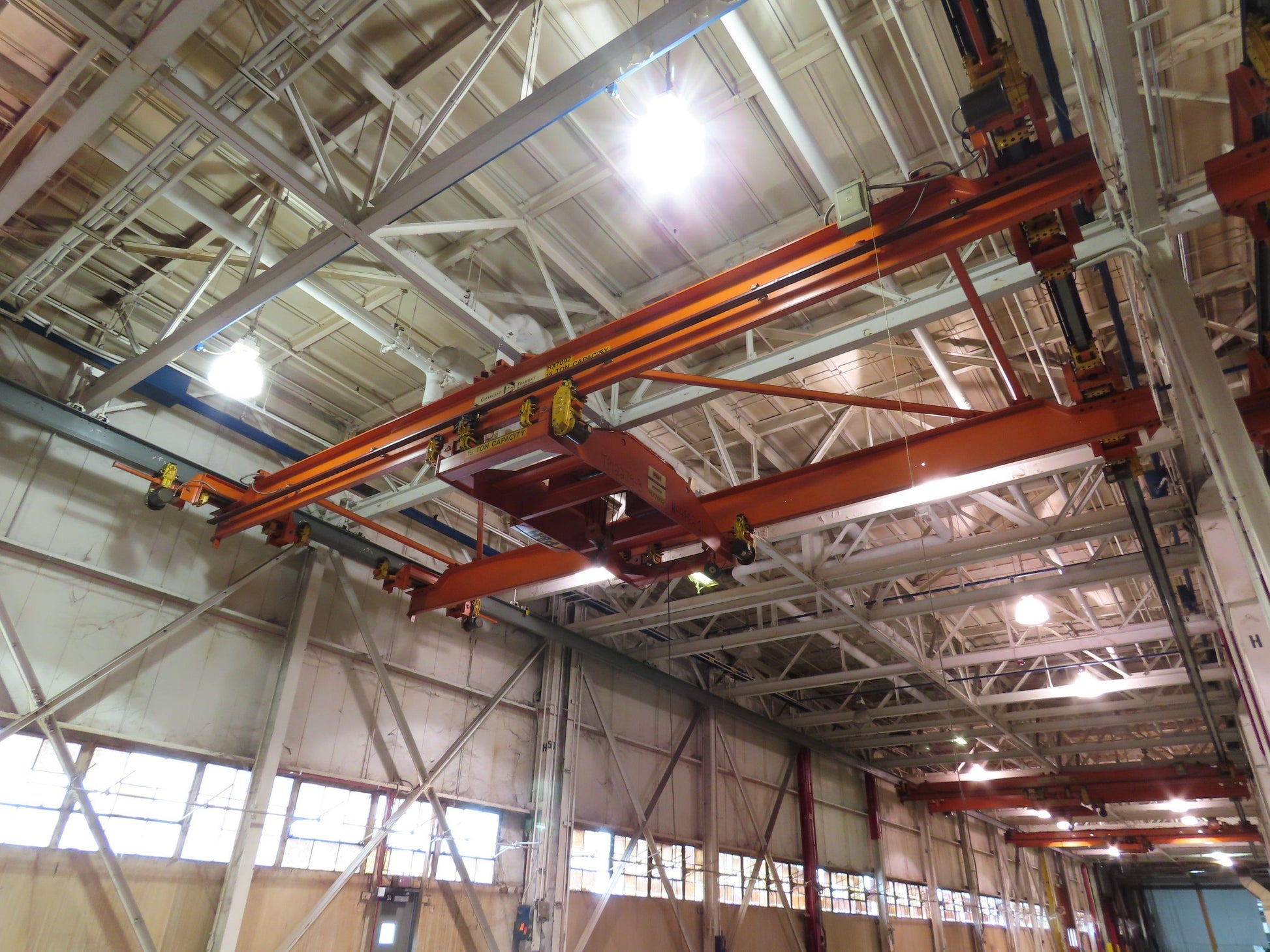

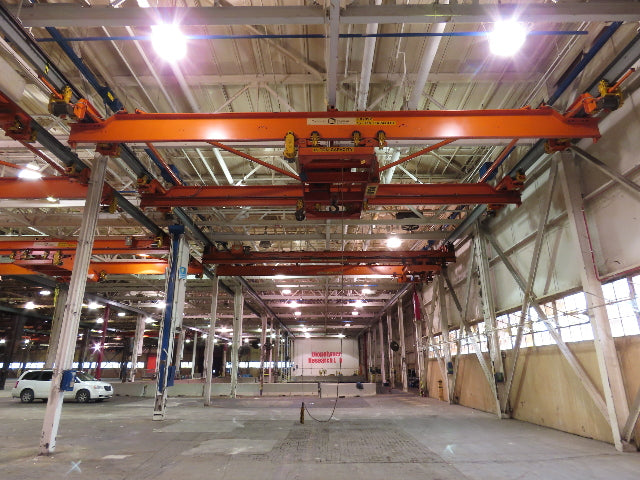

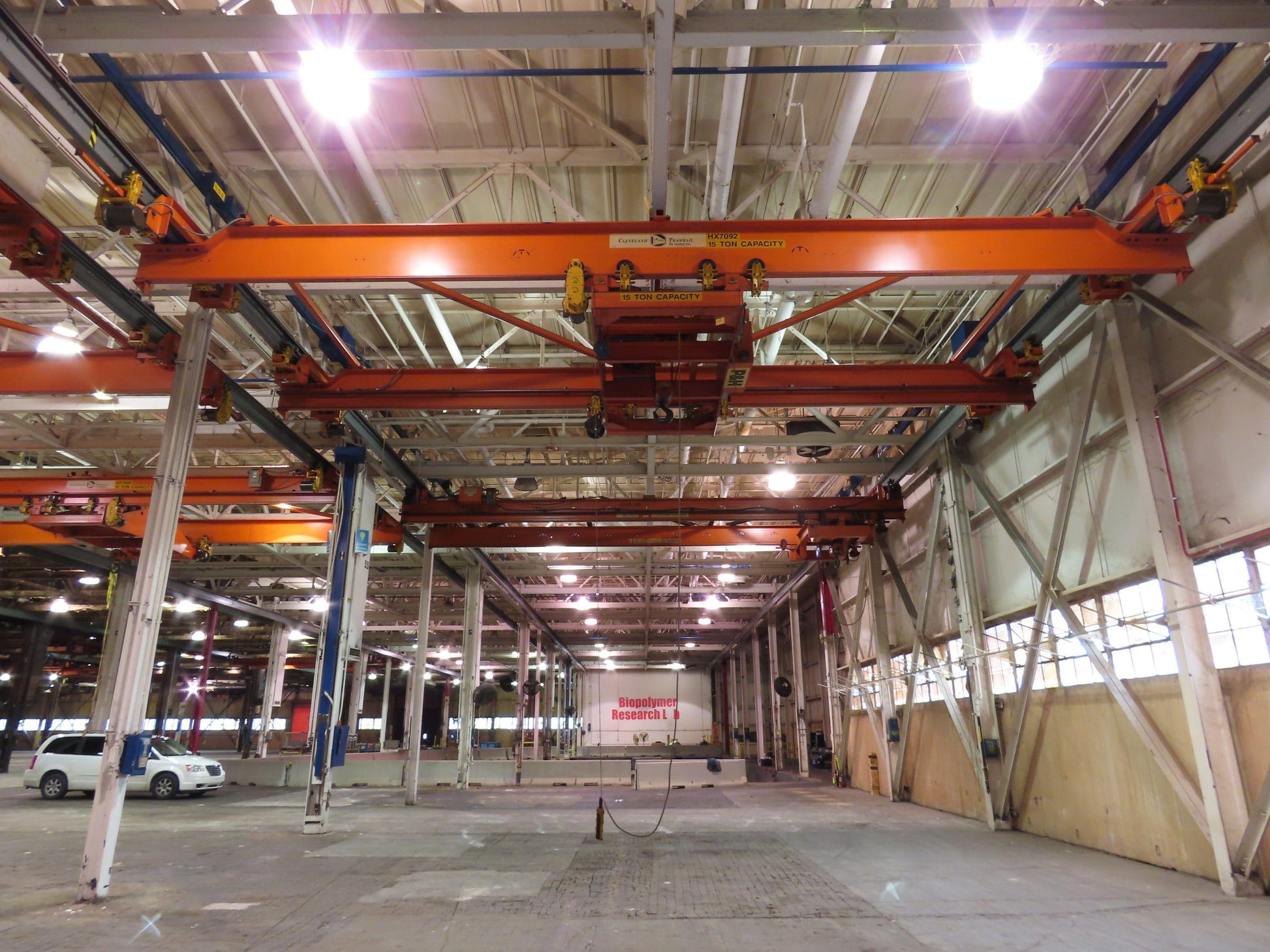

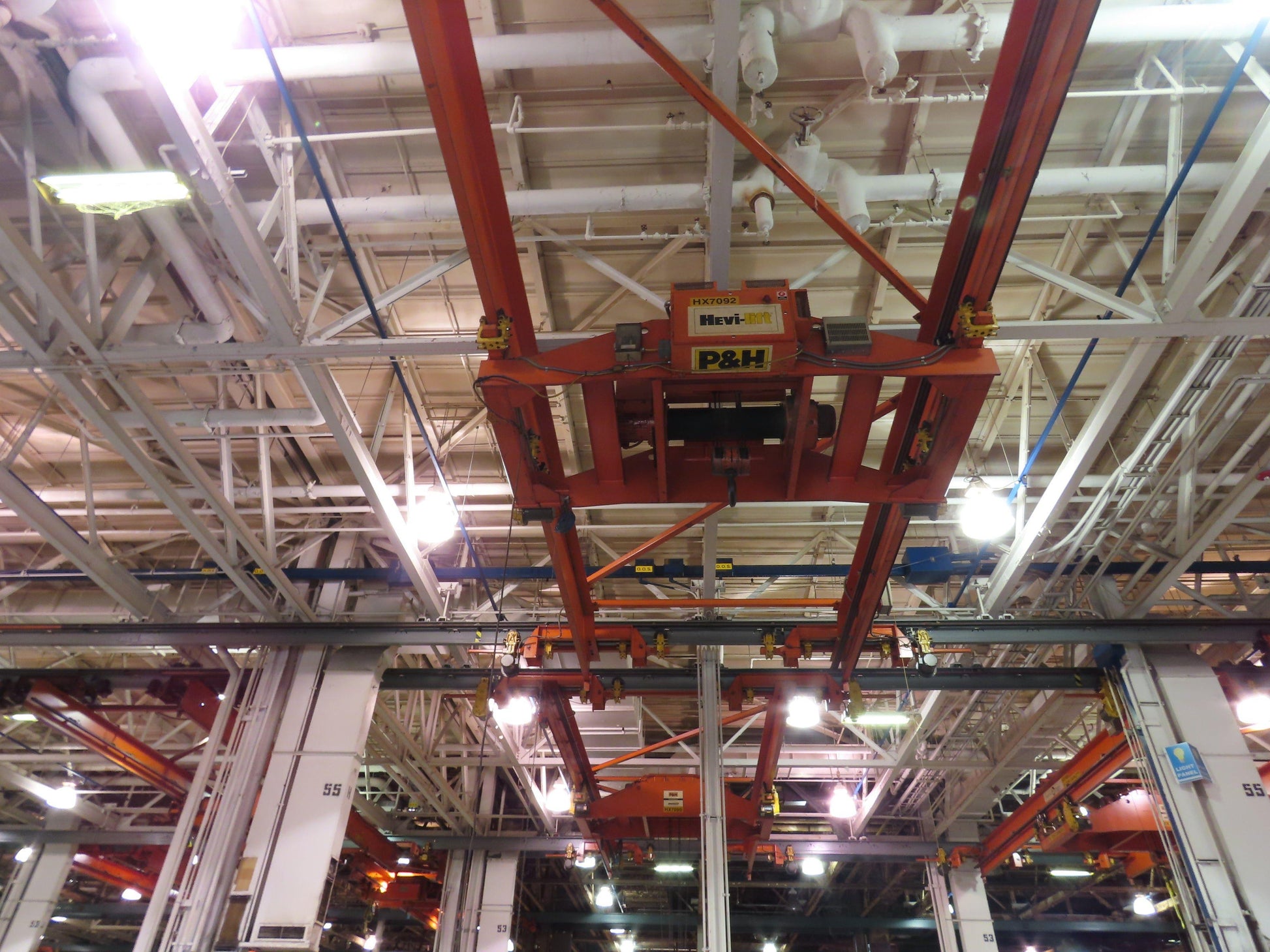

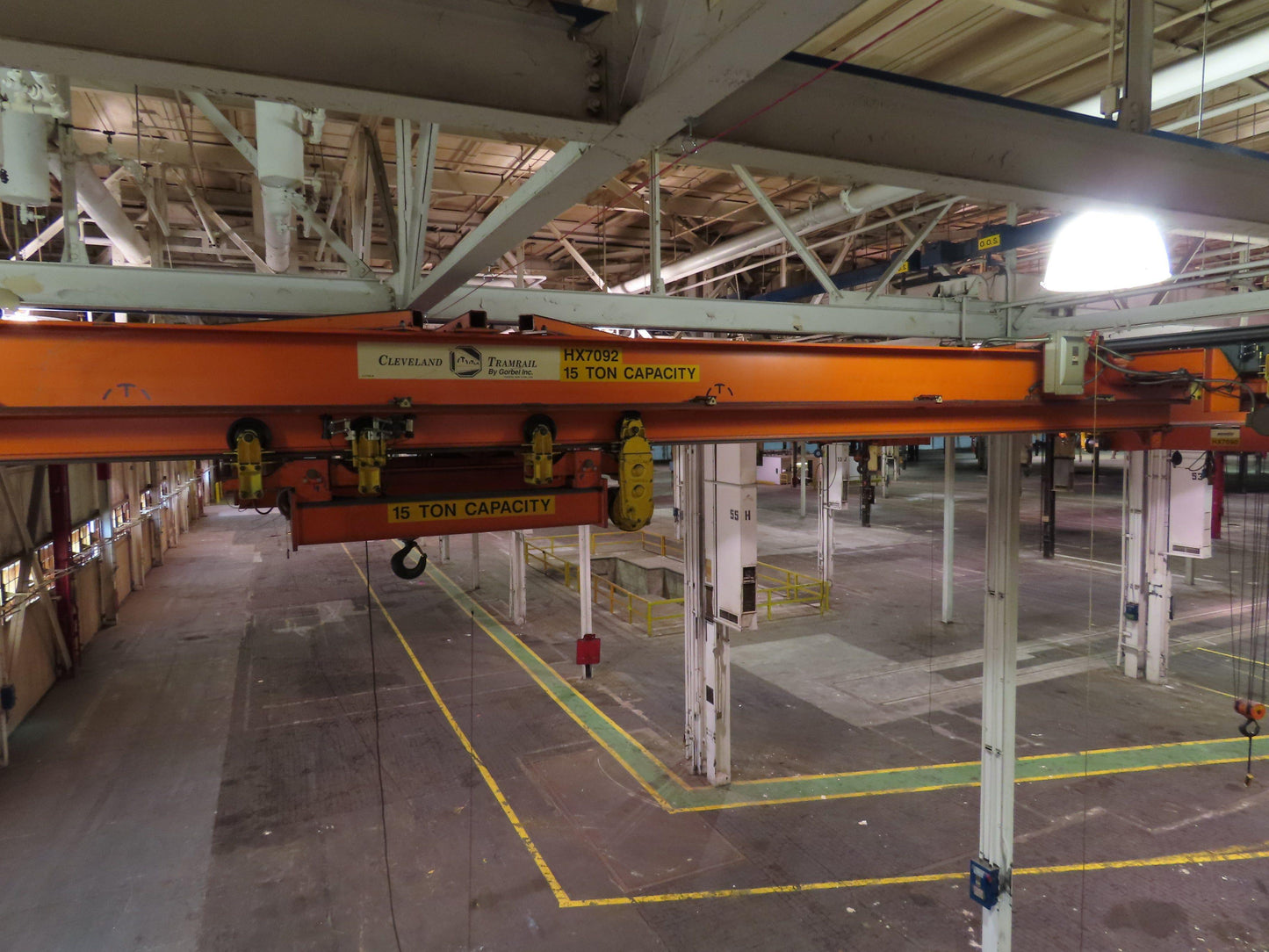

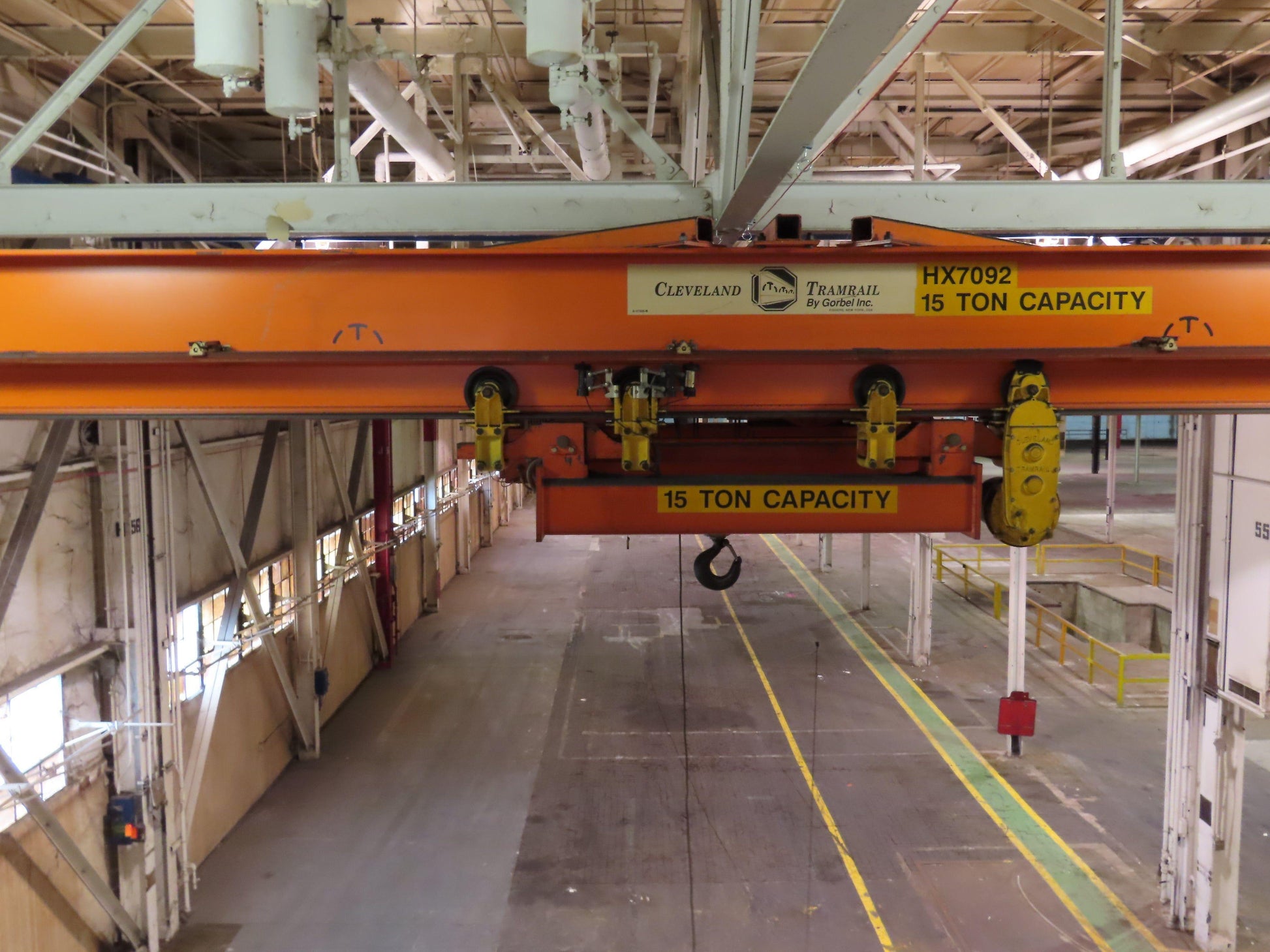

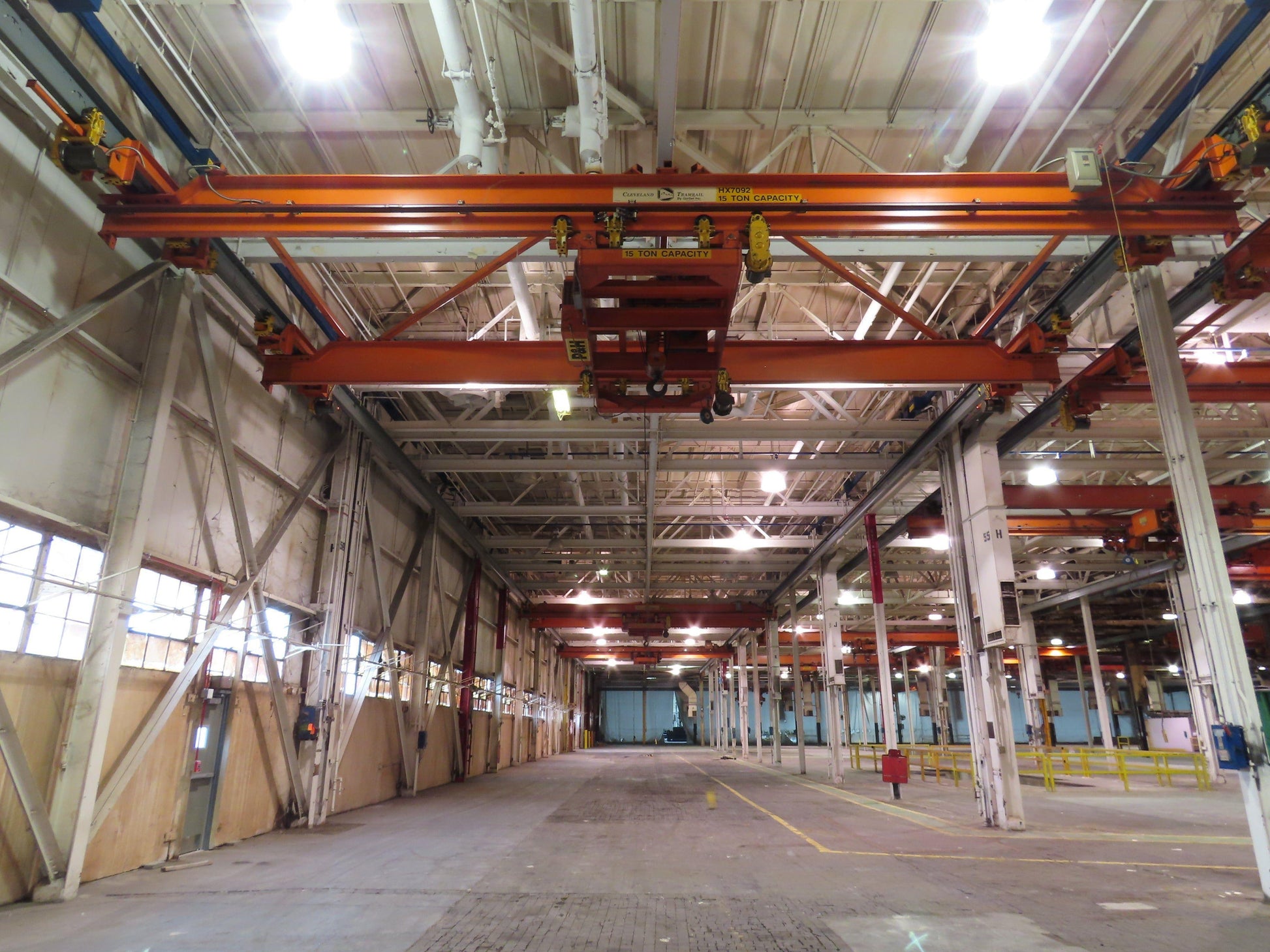

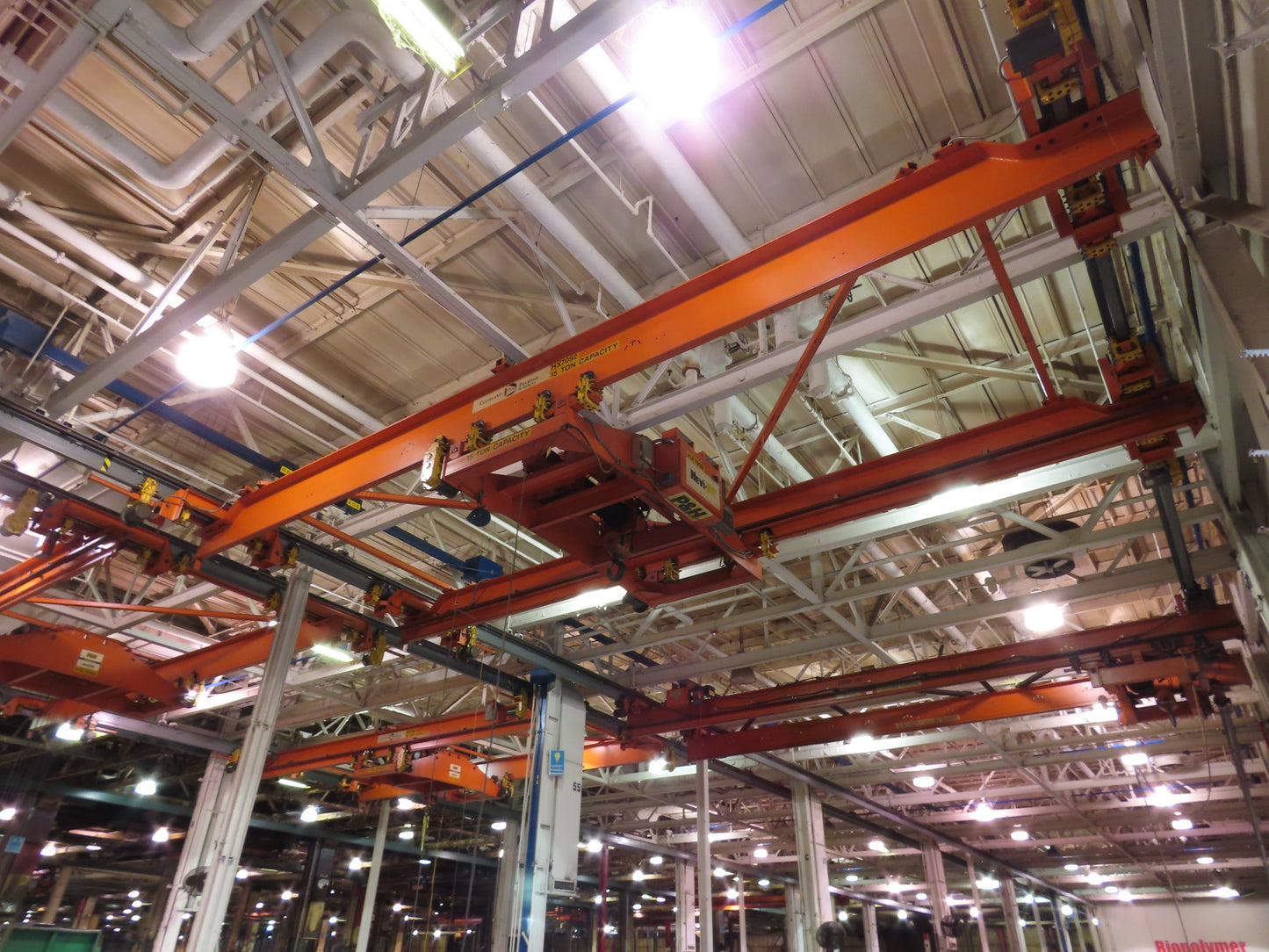

Cleveland Tramrail P&H 15 Ton Double Girder Underhung Bridge Crane 34' 10" Span

Cleveland Tramrail P&H 15 Ton Double Girder Underhung Bridge Crane 34' 10" Span

SKU #268207

Product Condition: Used

Your Price
$19,664.99
$22,999.99 $19,664.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 15
  • Capacity (lb): 30000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 34' 10"

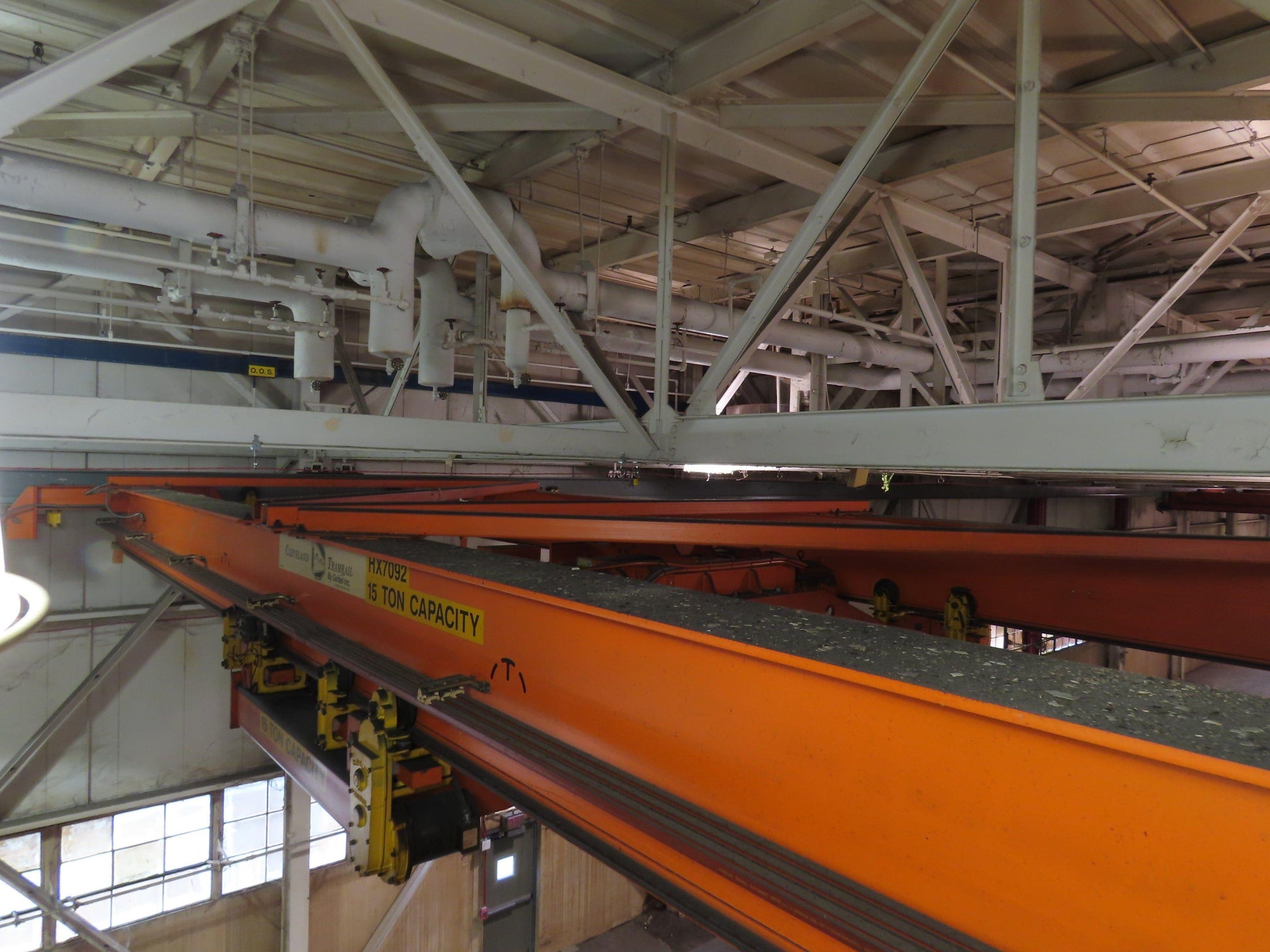

  • Main Girder Beam Size (Height x Width x Length): 24"H x 12.5"W x 37' 10"L

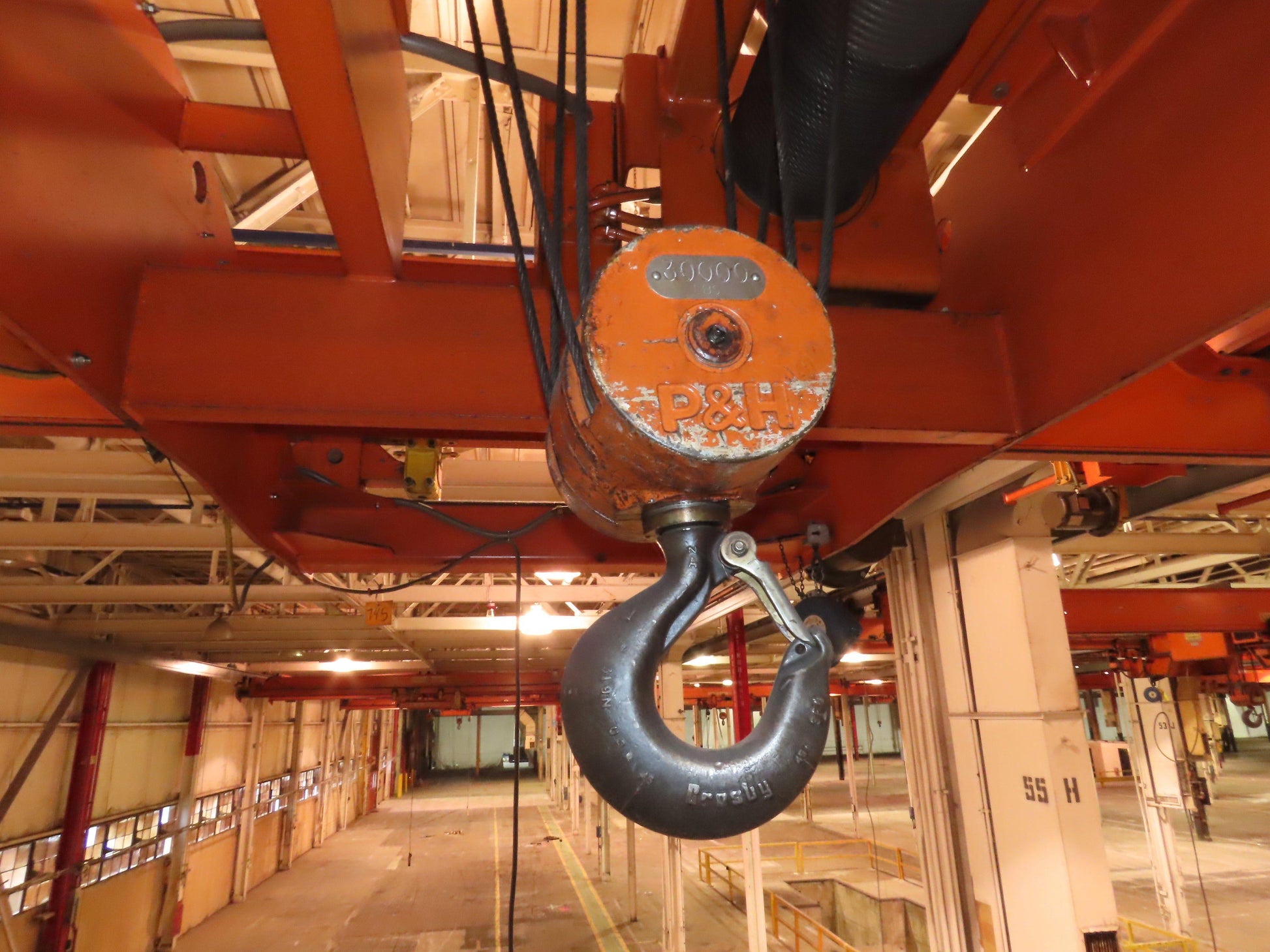

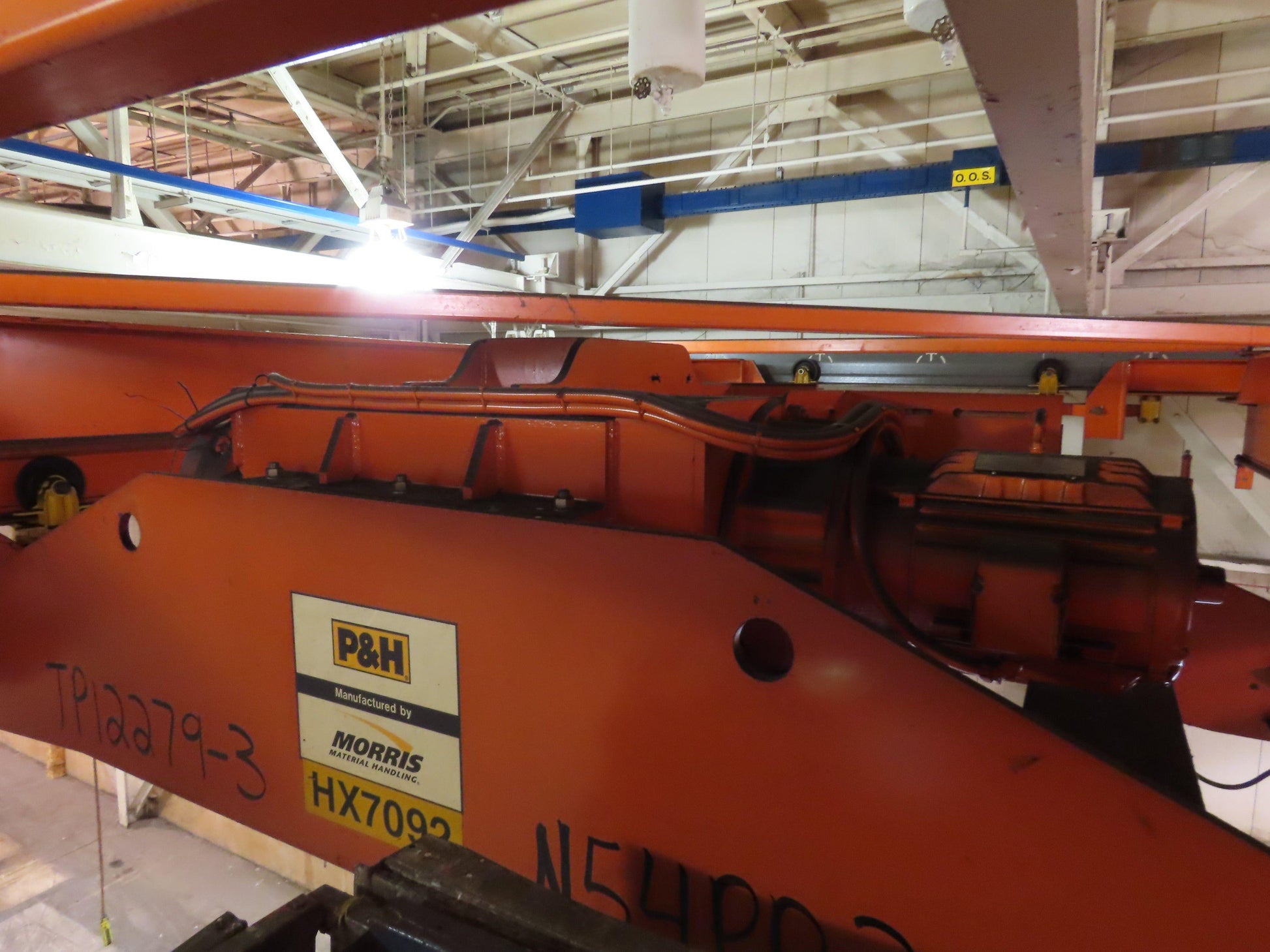

  • Hoist Brand: P&H
  • Lift Travel (feet): 21' 8"

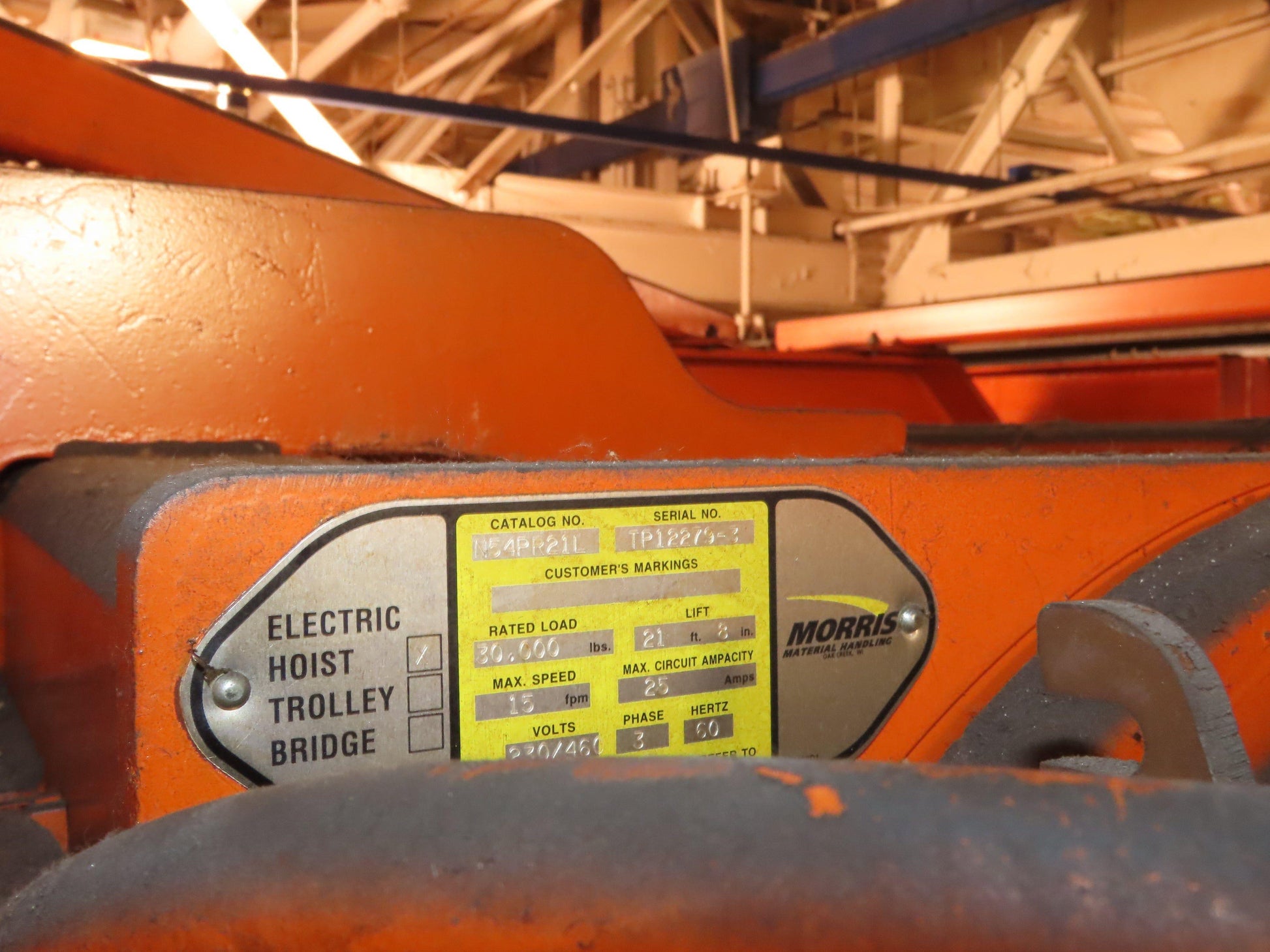

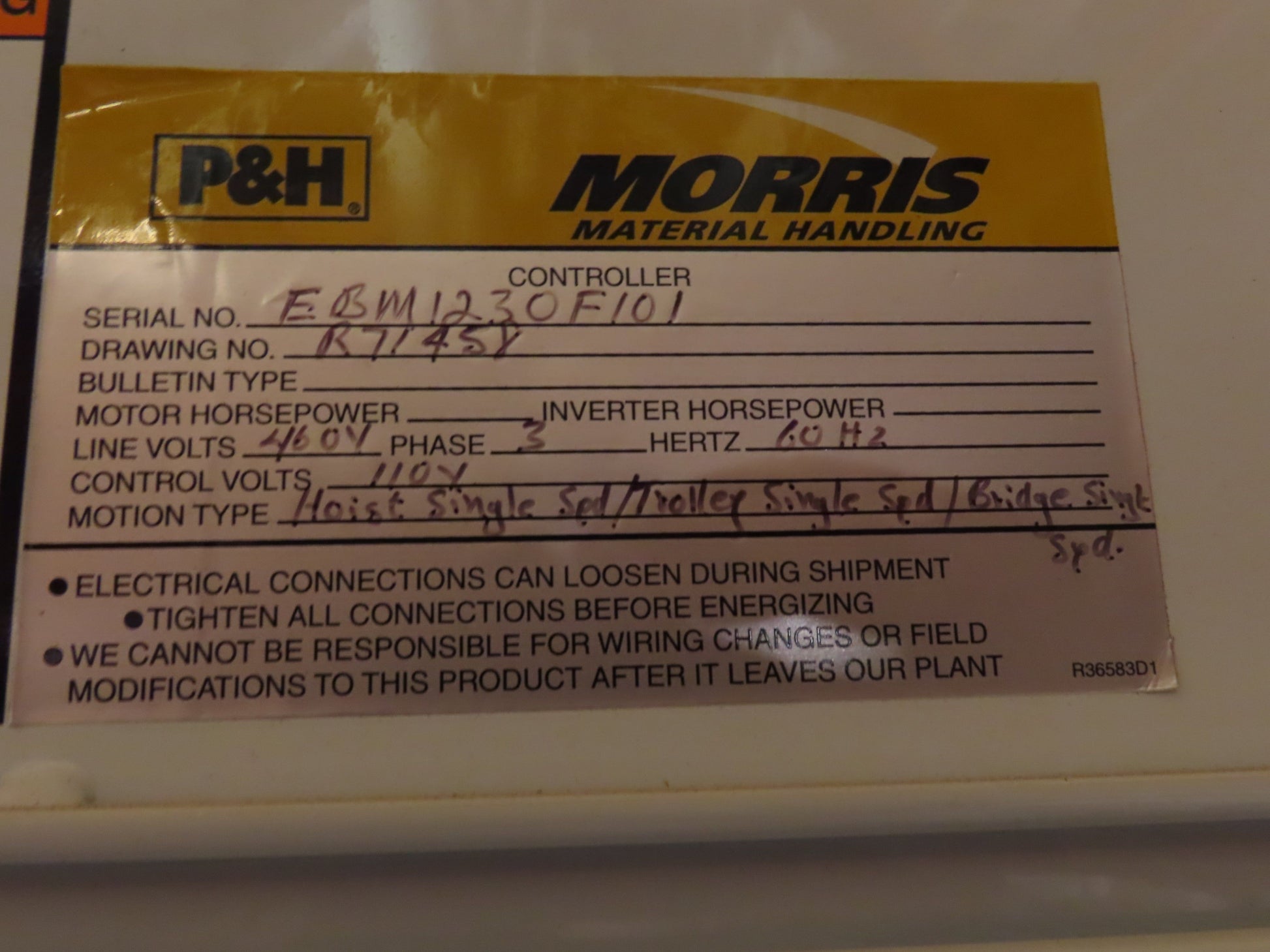

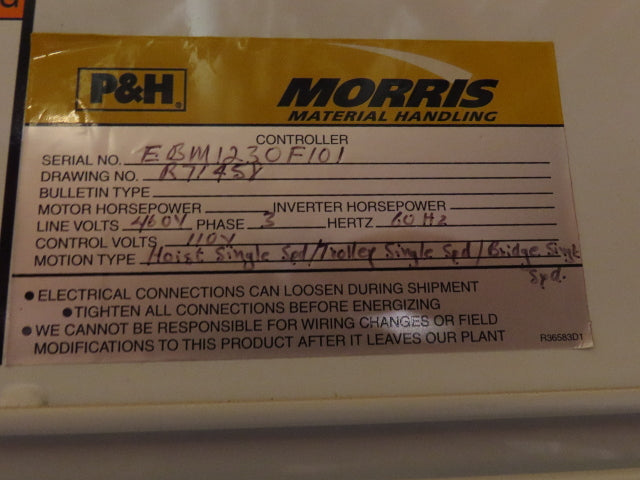

  • Lift Speed (feet per minute): 5/15 FPM 2-speed (Tag says single speed hoist but this is set up as 2-speed)

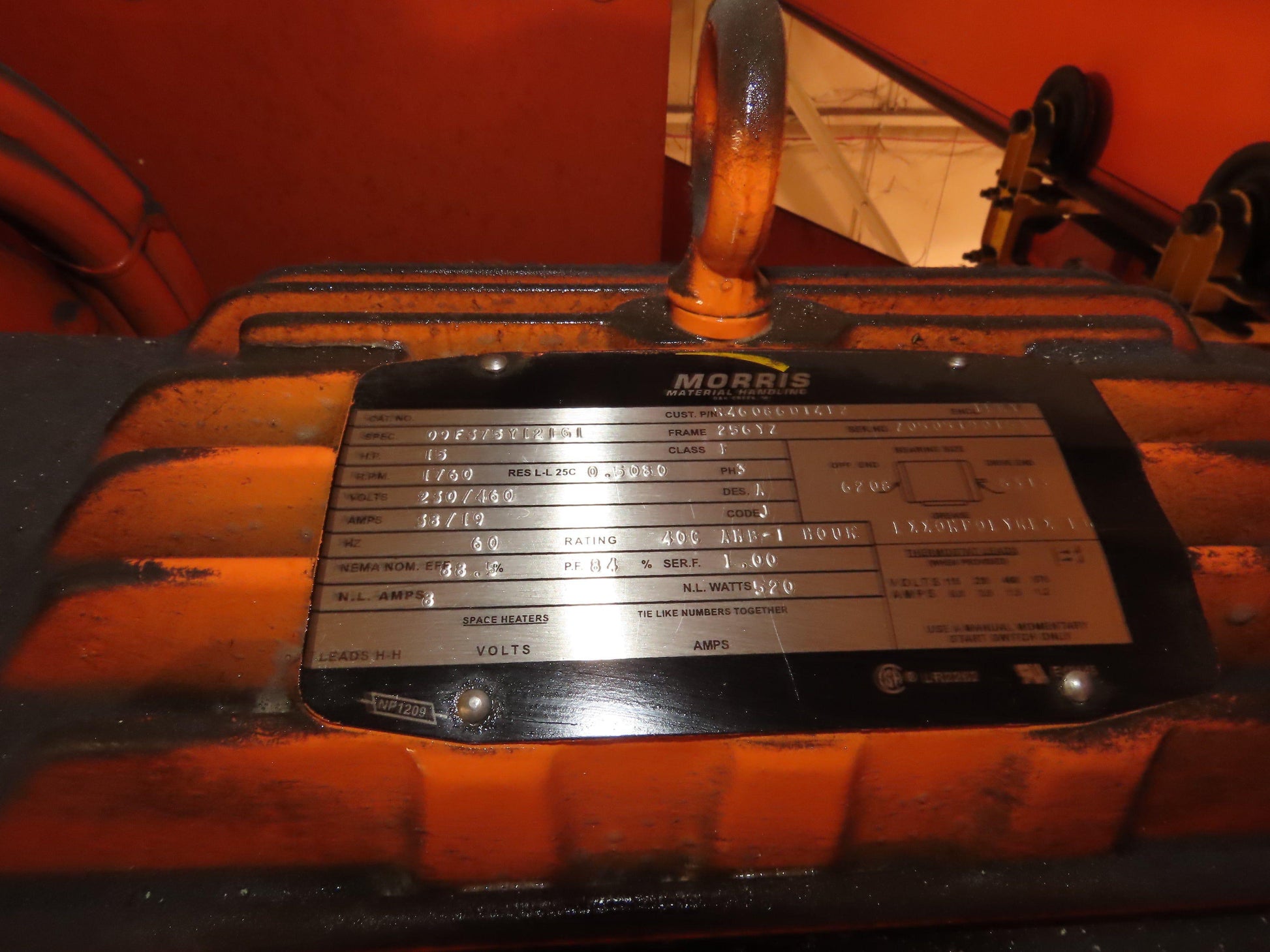

  • Motor Horse Power: 15

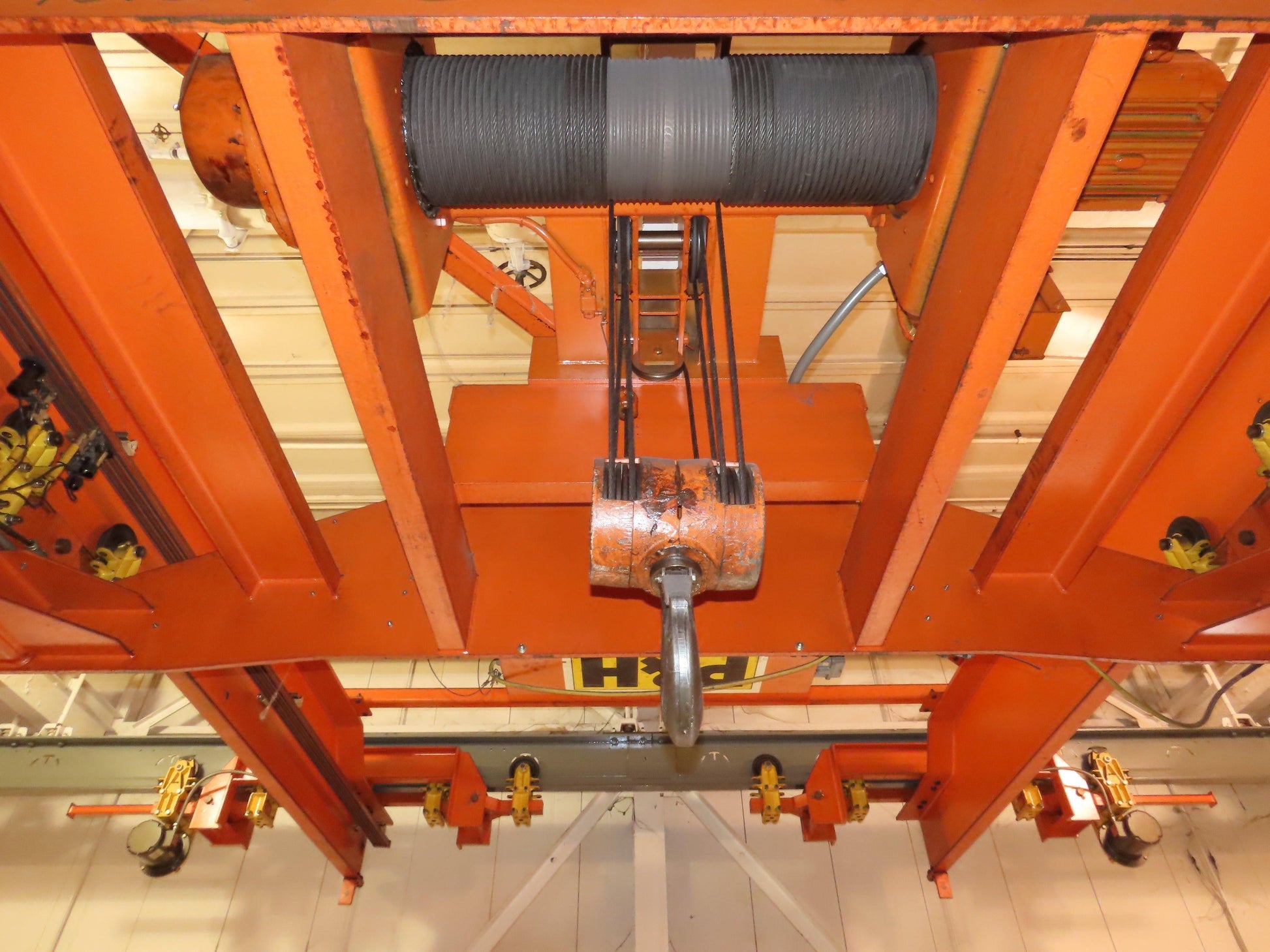

  • Lifting Medium: Cable

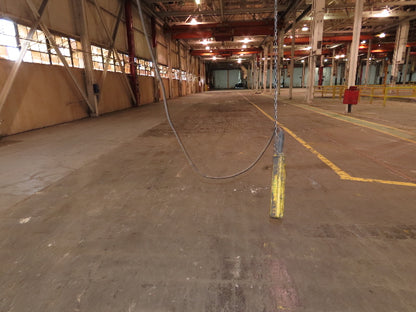

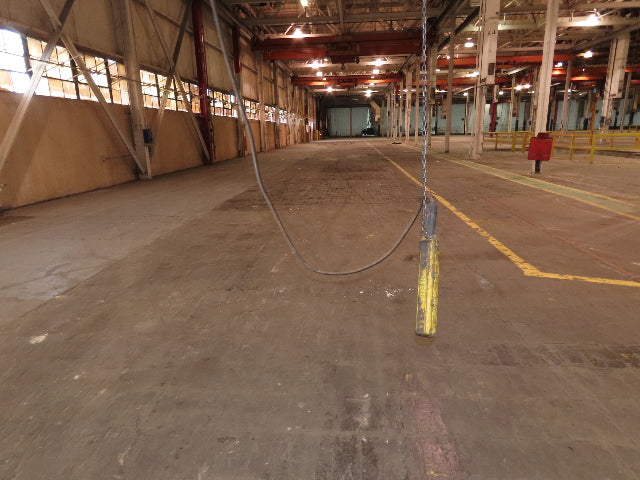

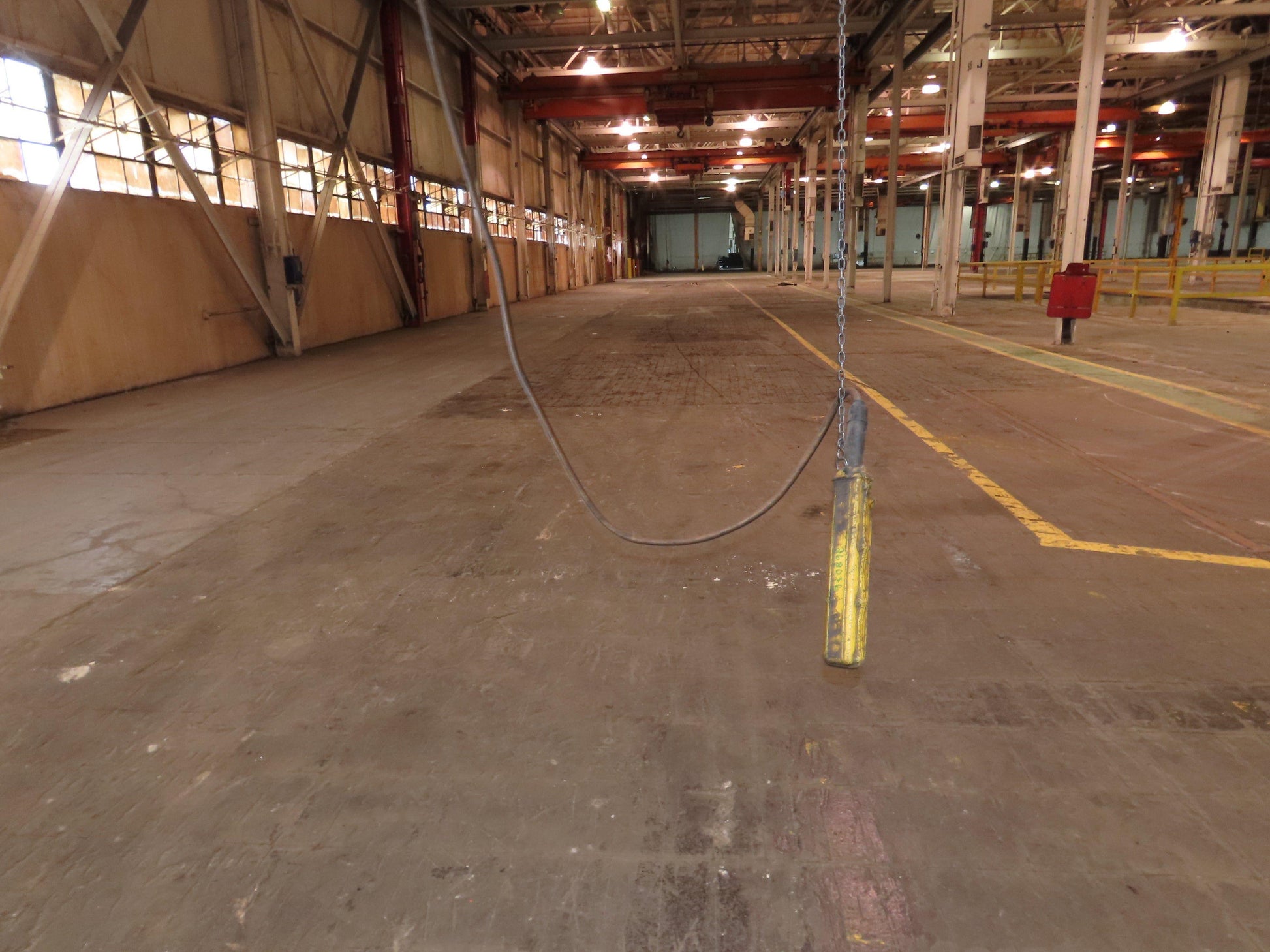

  • Pendant/Control Length From Bottom of Hoist (ft): 20'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 40"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 55"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 70"
  • Bridge Crane is in working condition.  Tested on site before removal.

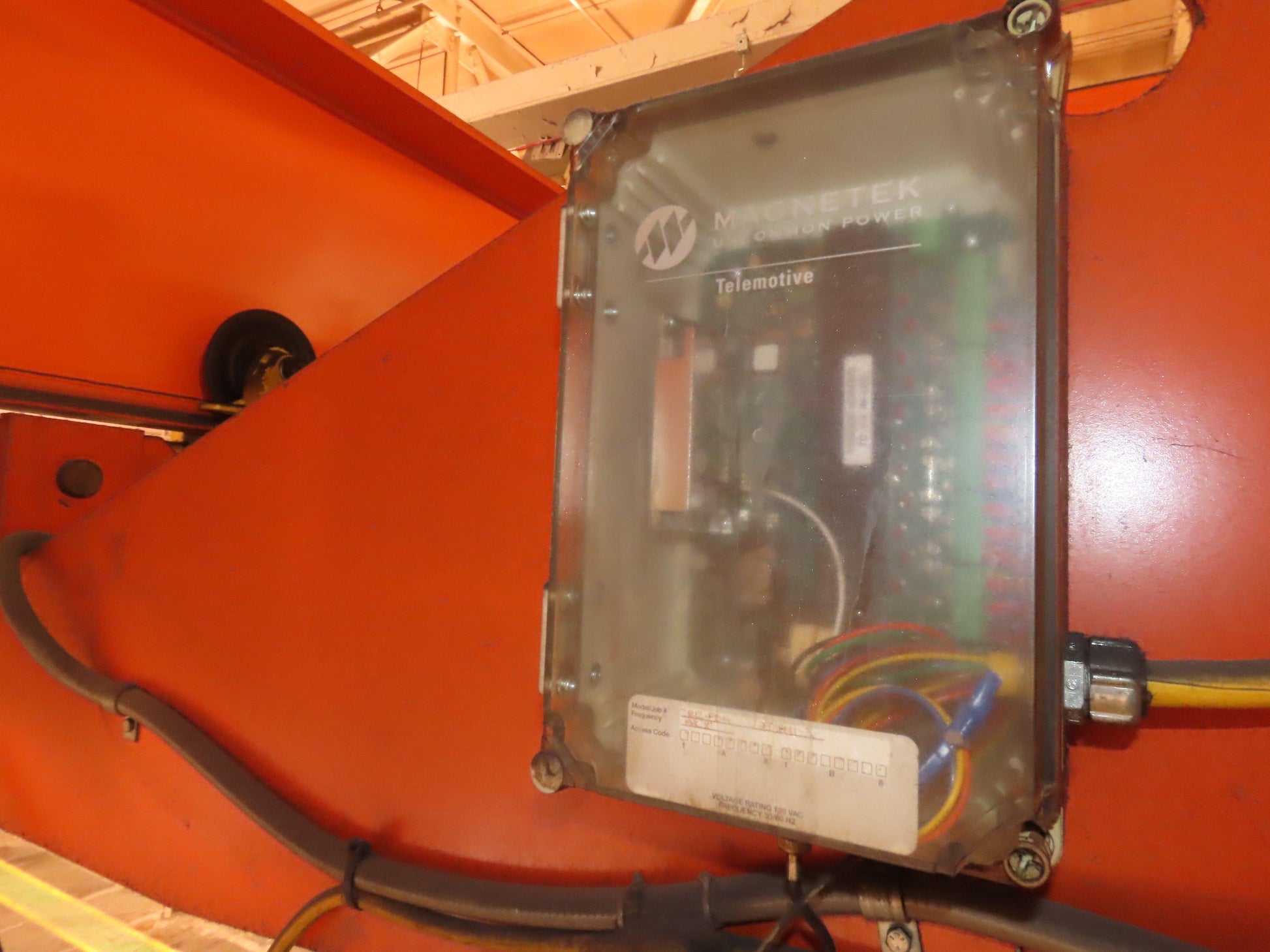

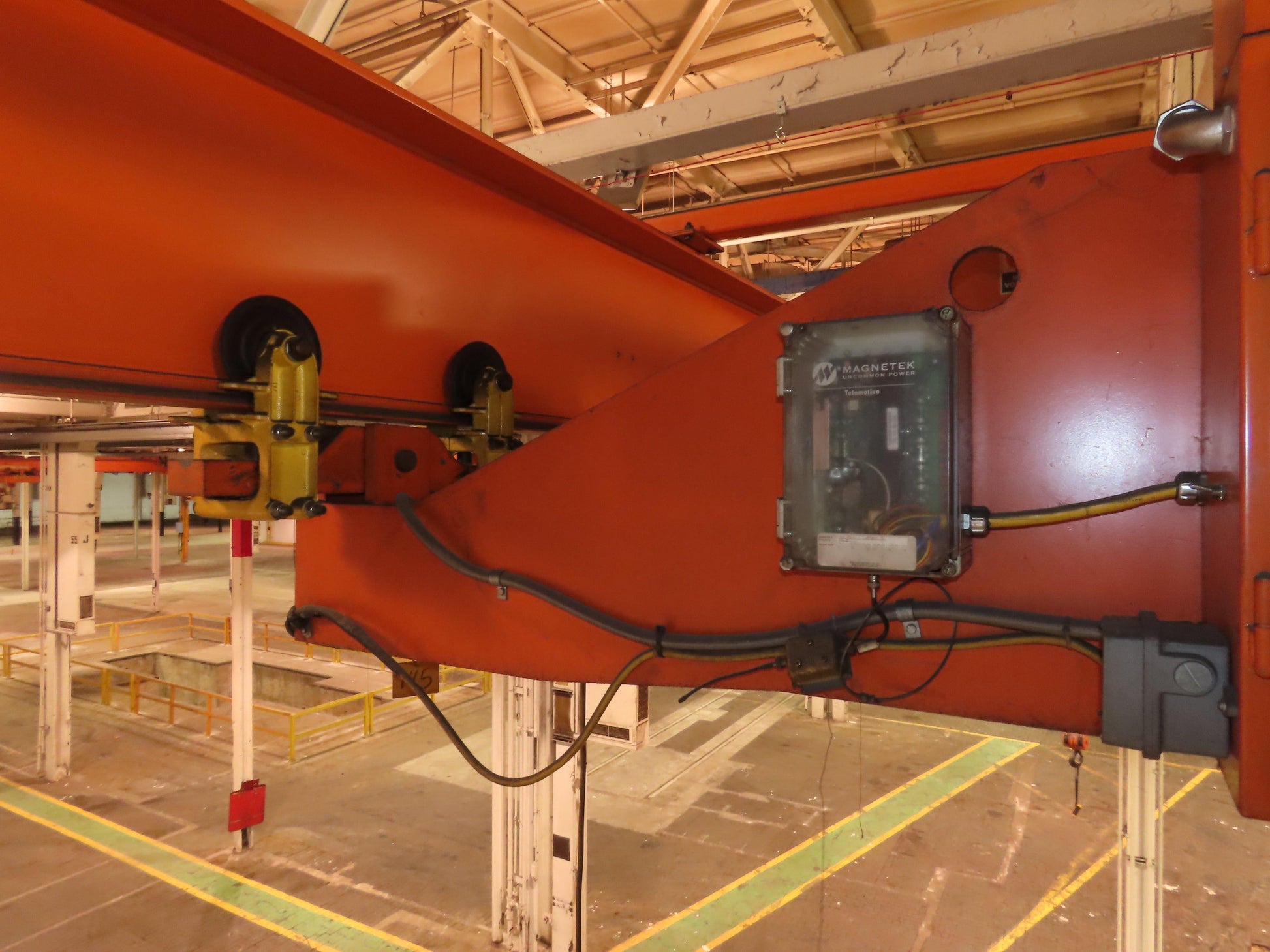

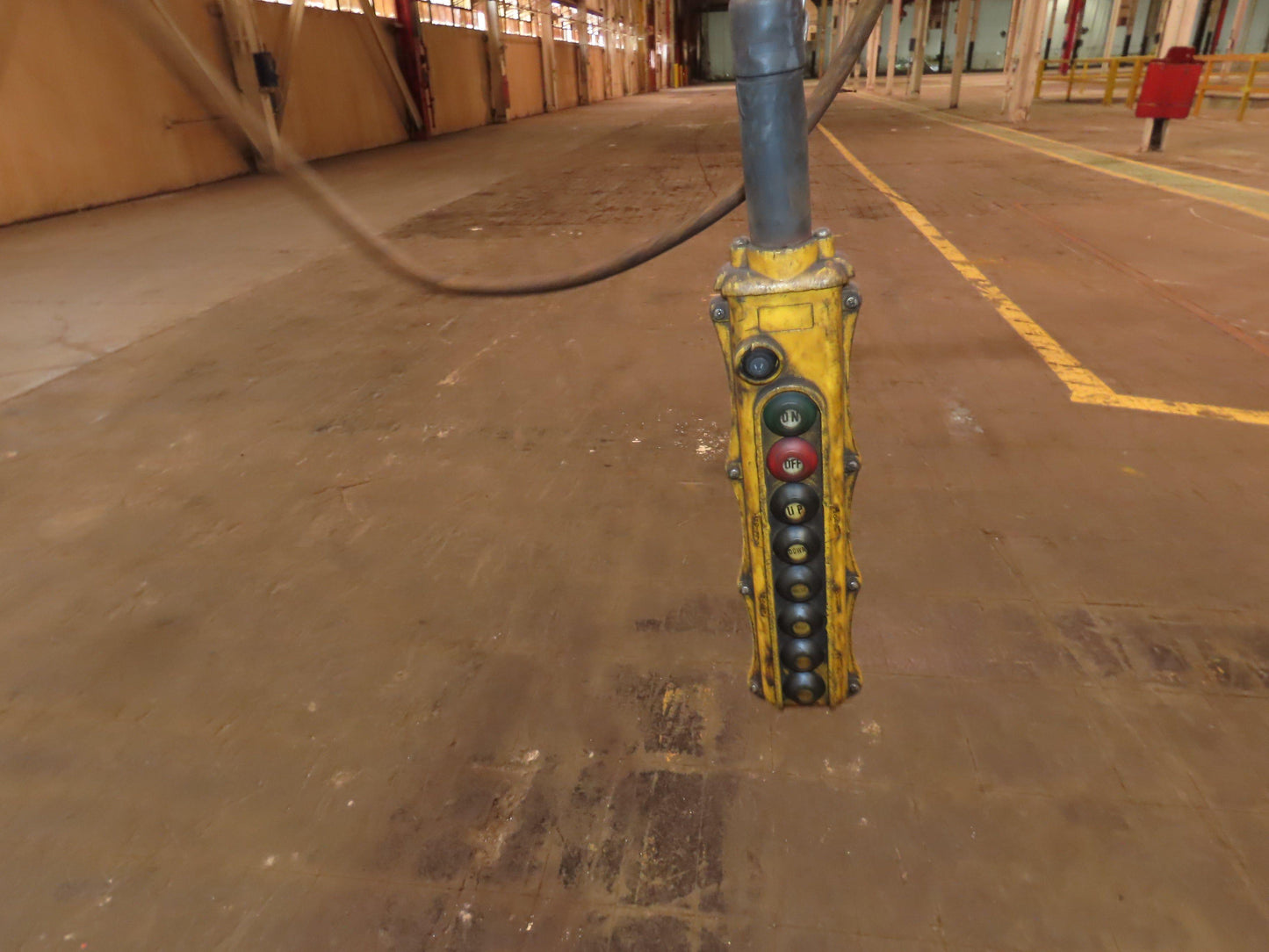

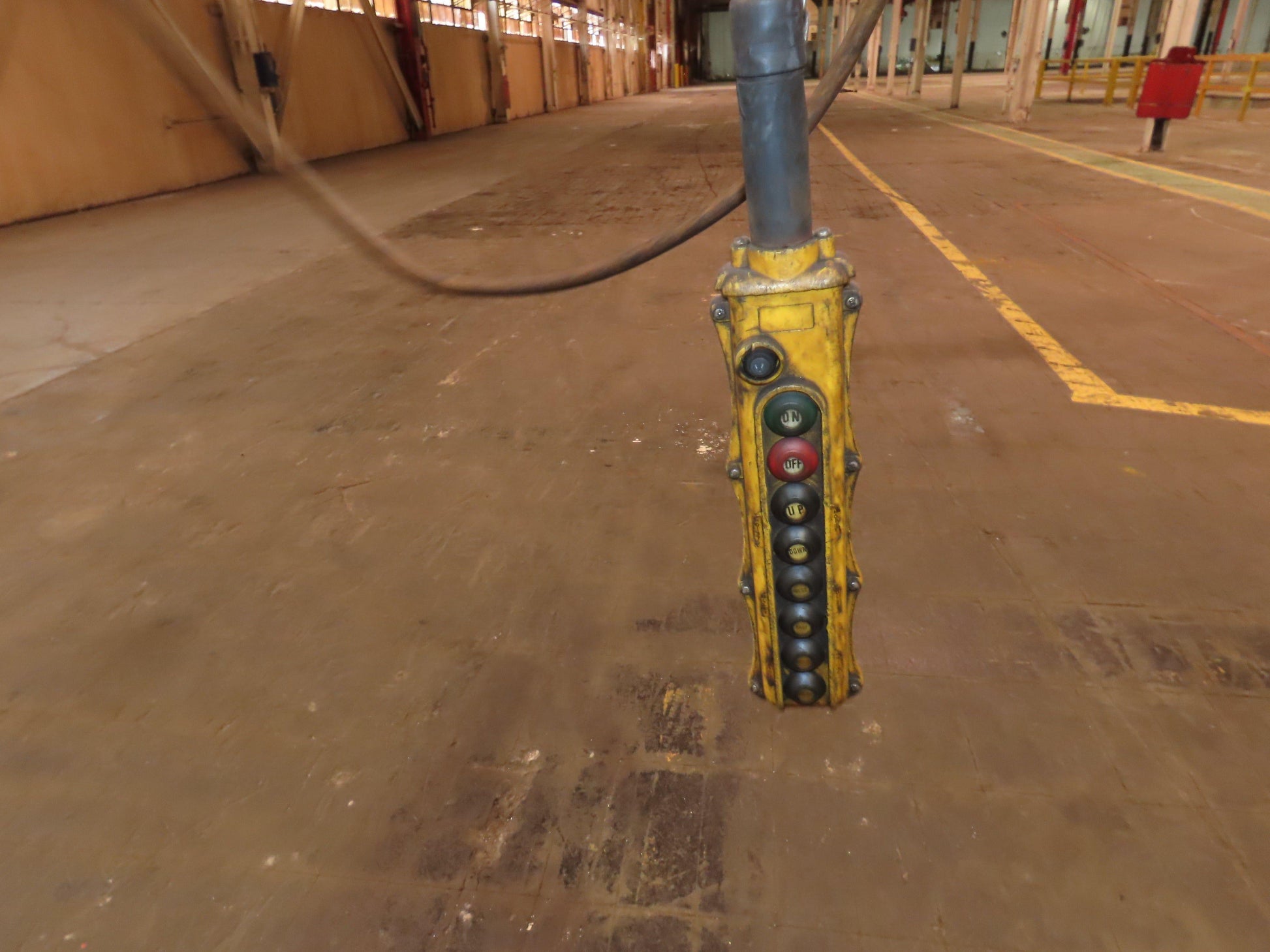

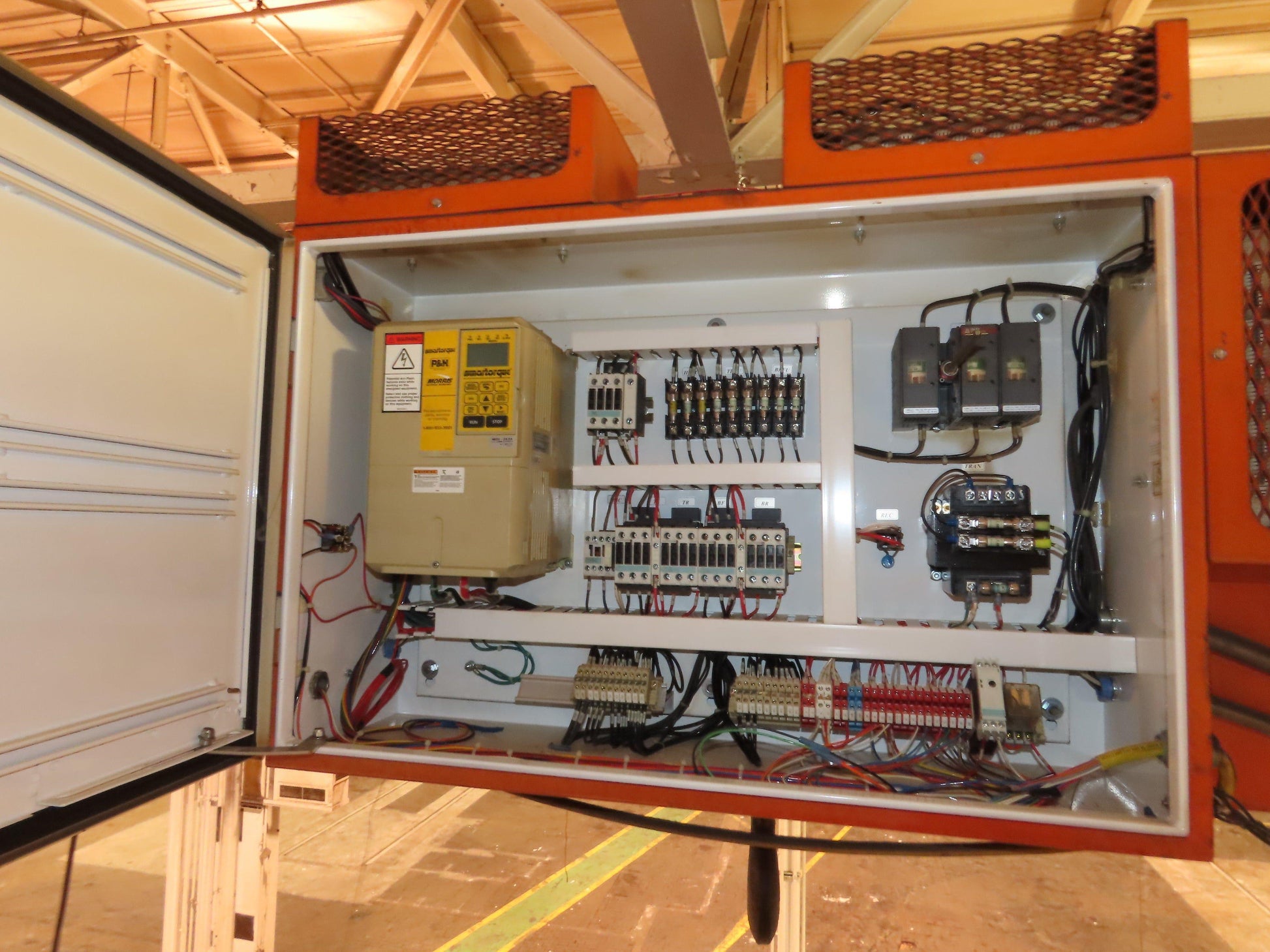

  • Includes corded pendant only. Set up with wireless receiver but is missing the remote.
  • Single speed bridge and trolley, 2-speed hoist.

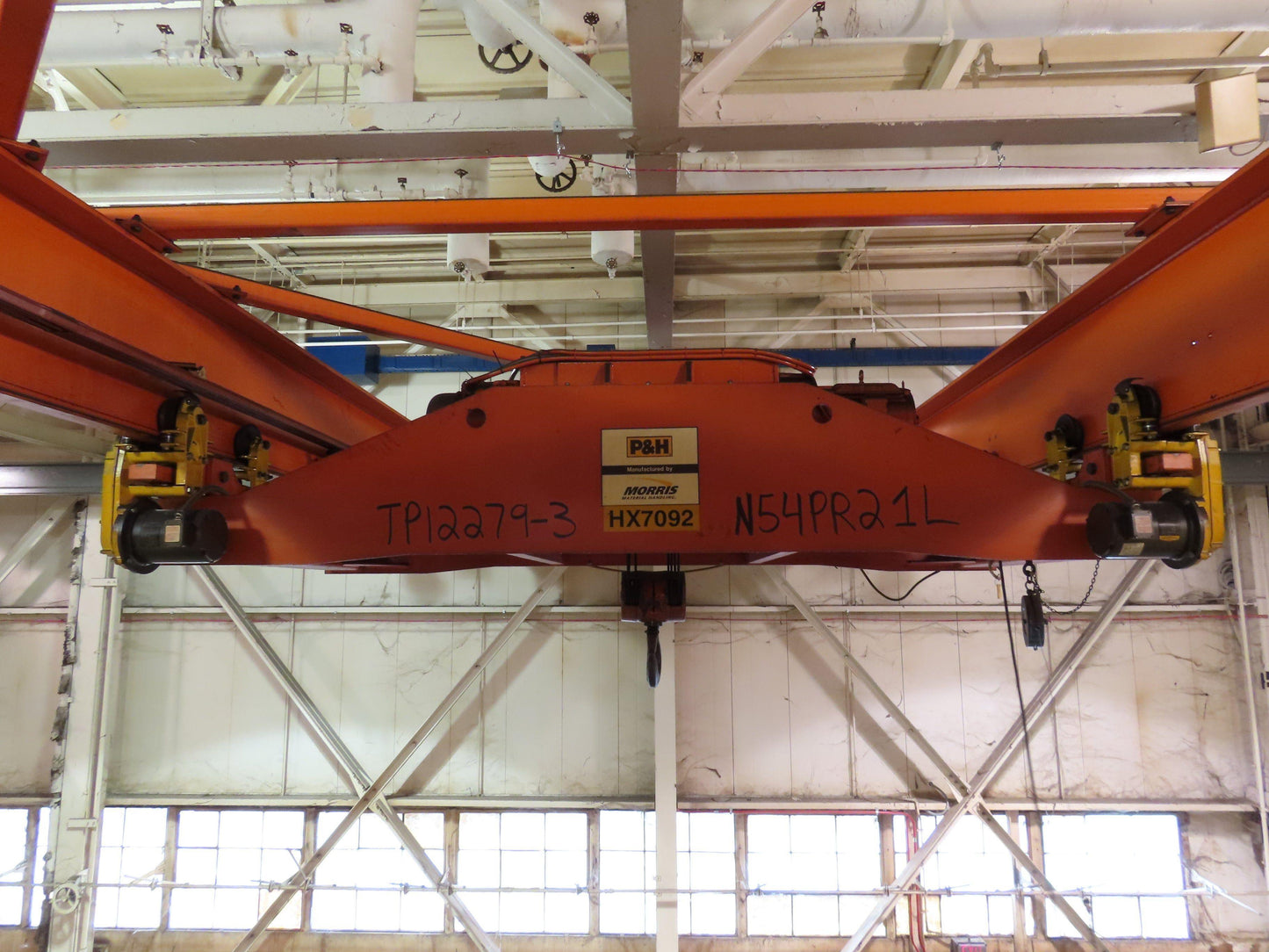

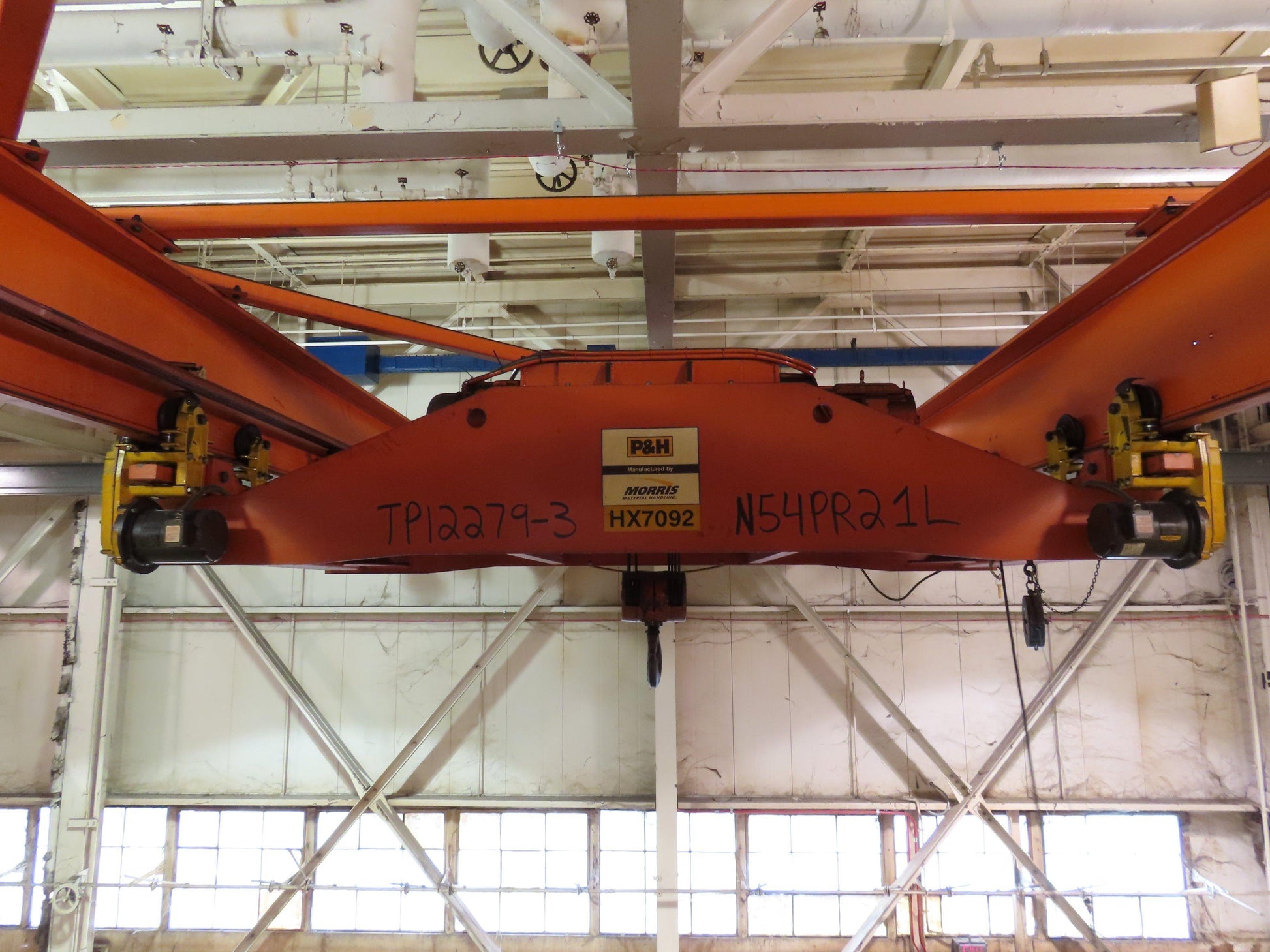

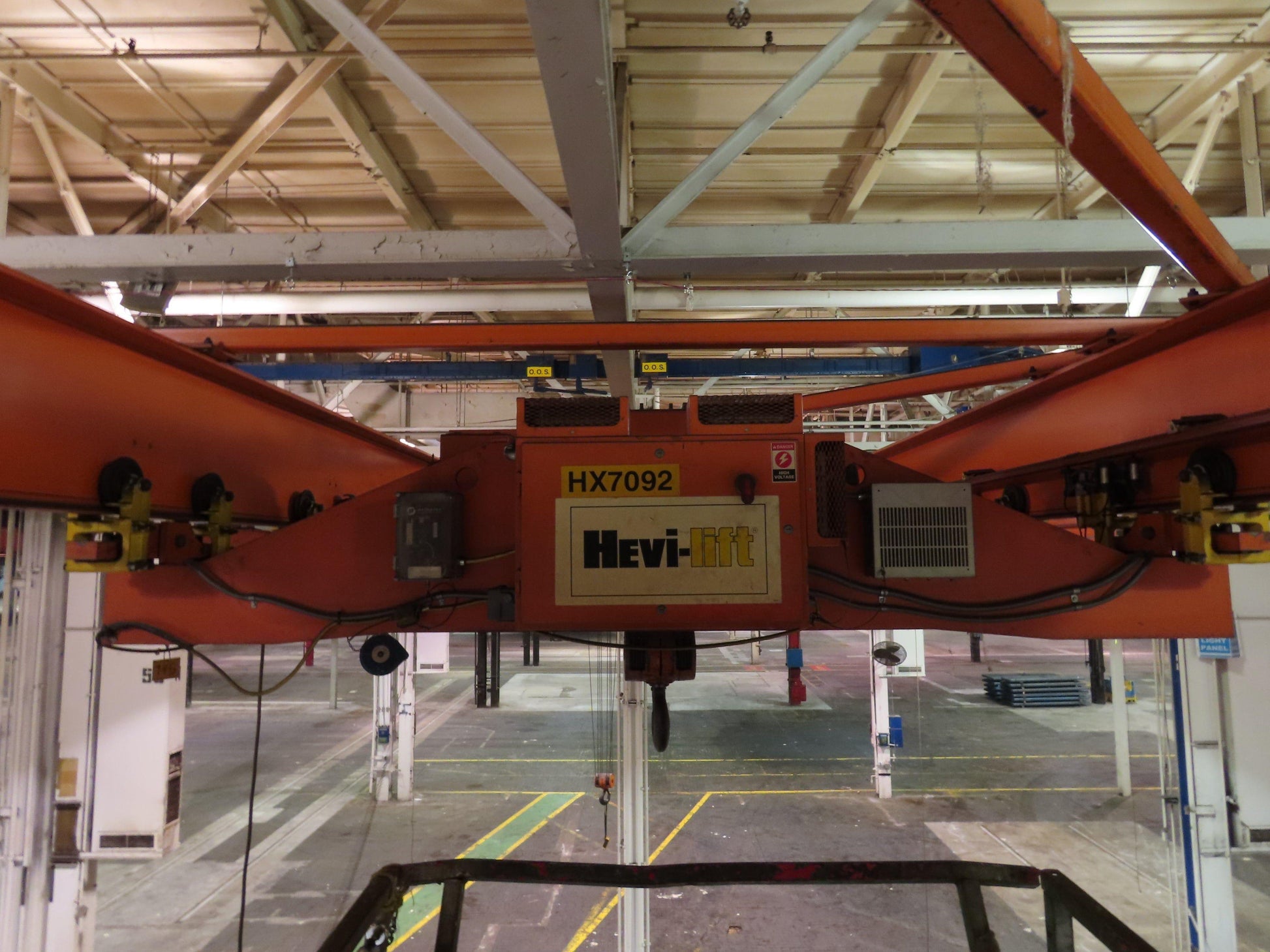

  • Trolley carriage length: 88"

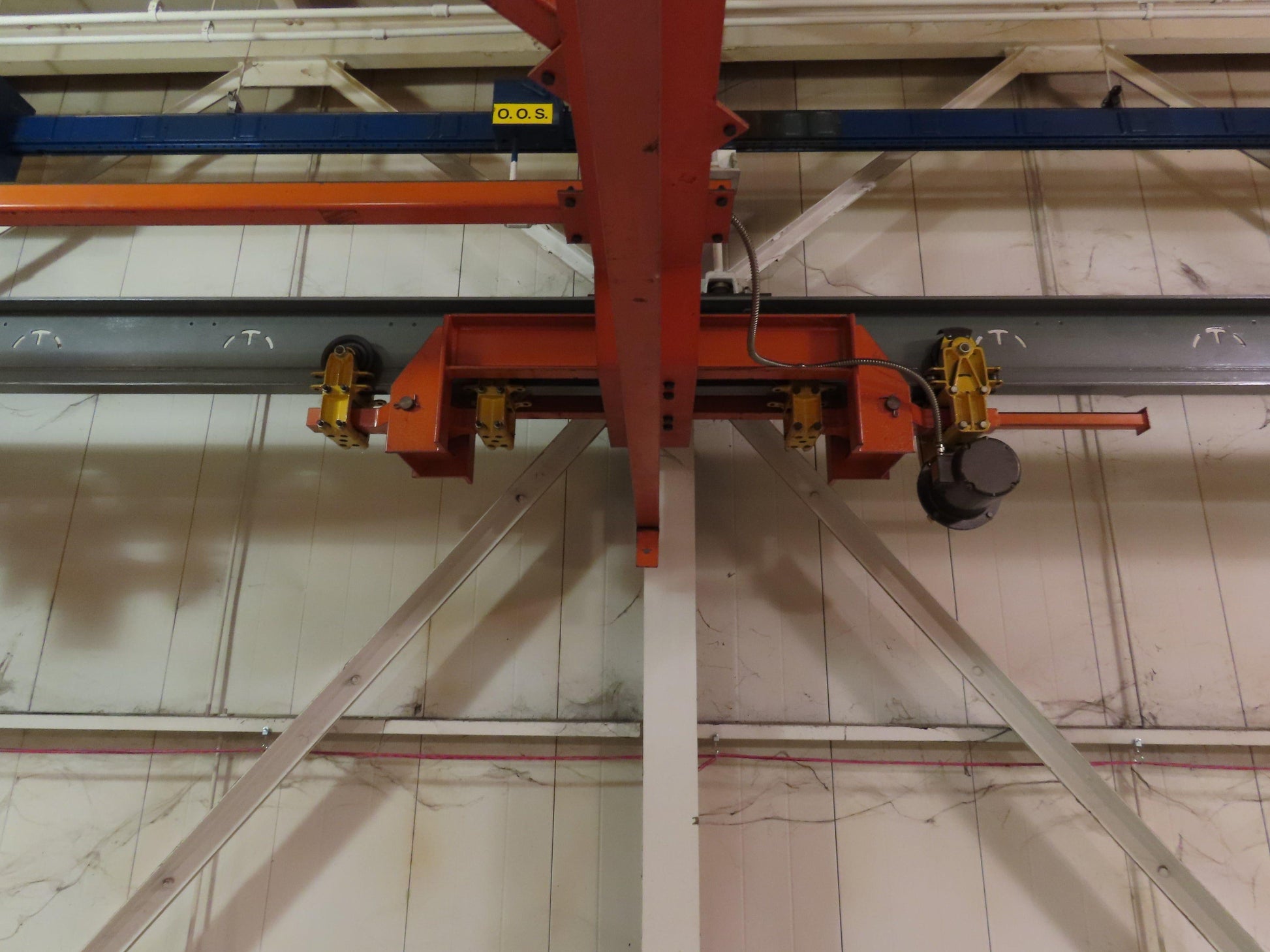

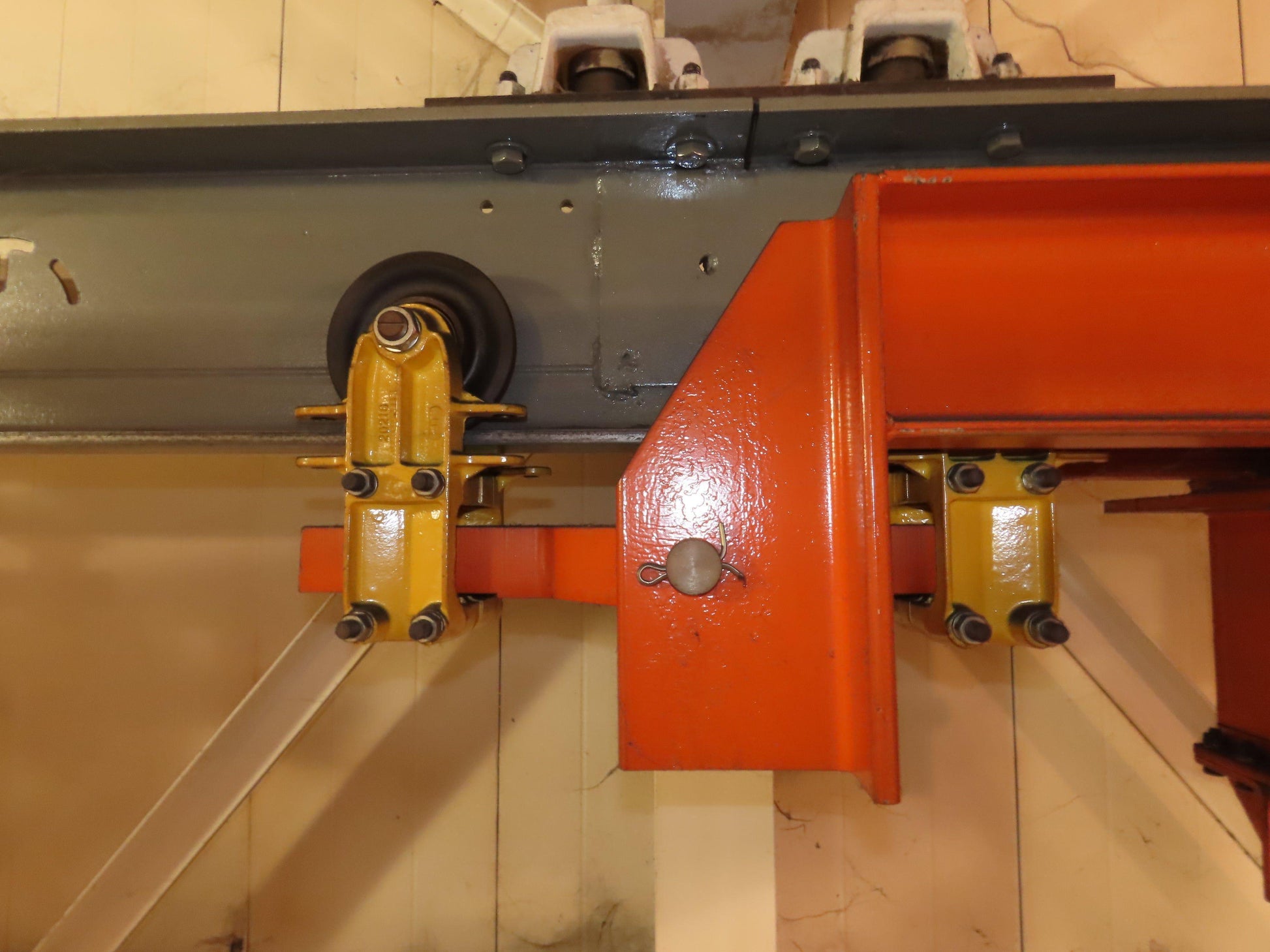

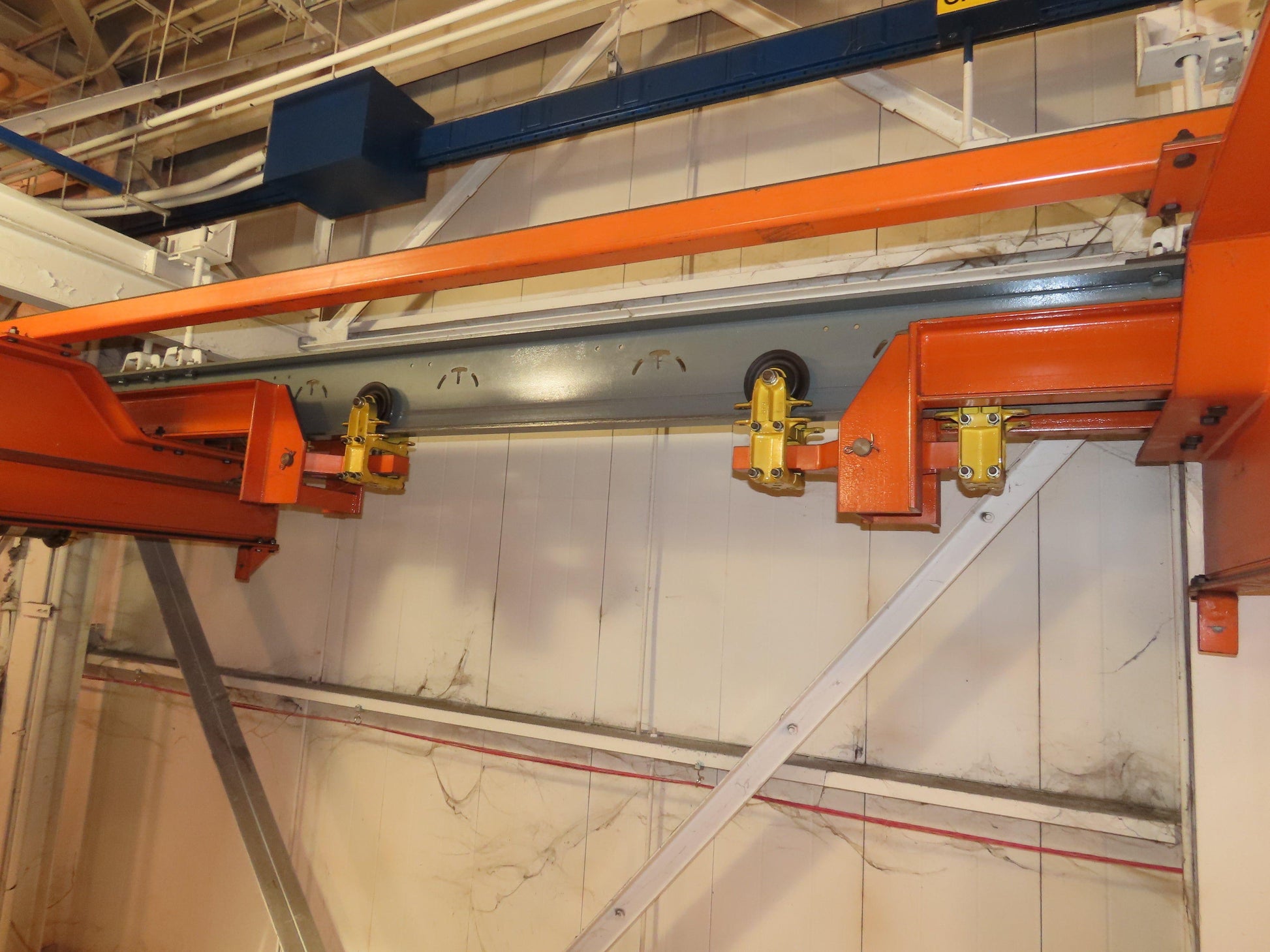

  • End truck length:  94" + 20" stop bar on outside end.
  • End truck wheel size:  6"
  • Girder beam span: 12'
  • Top braces are bolted on.
