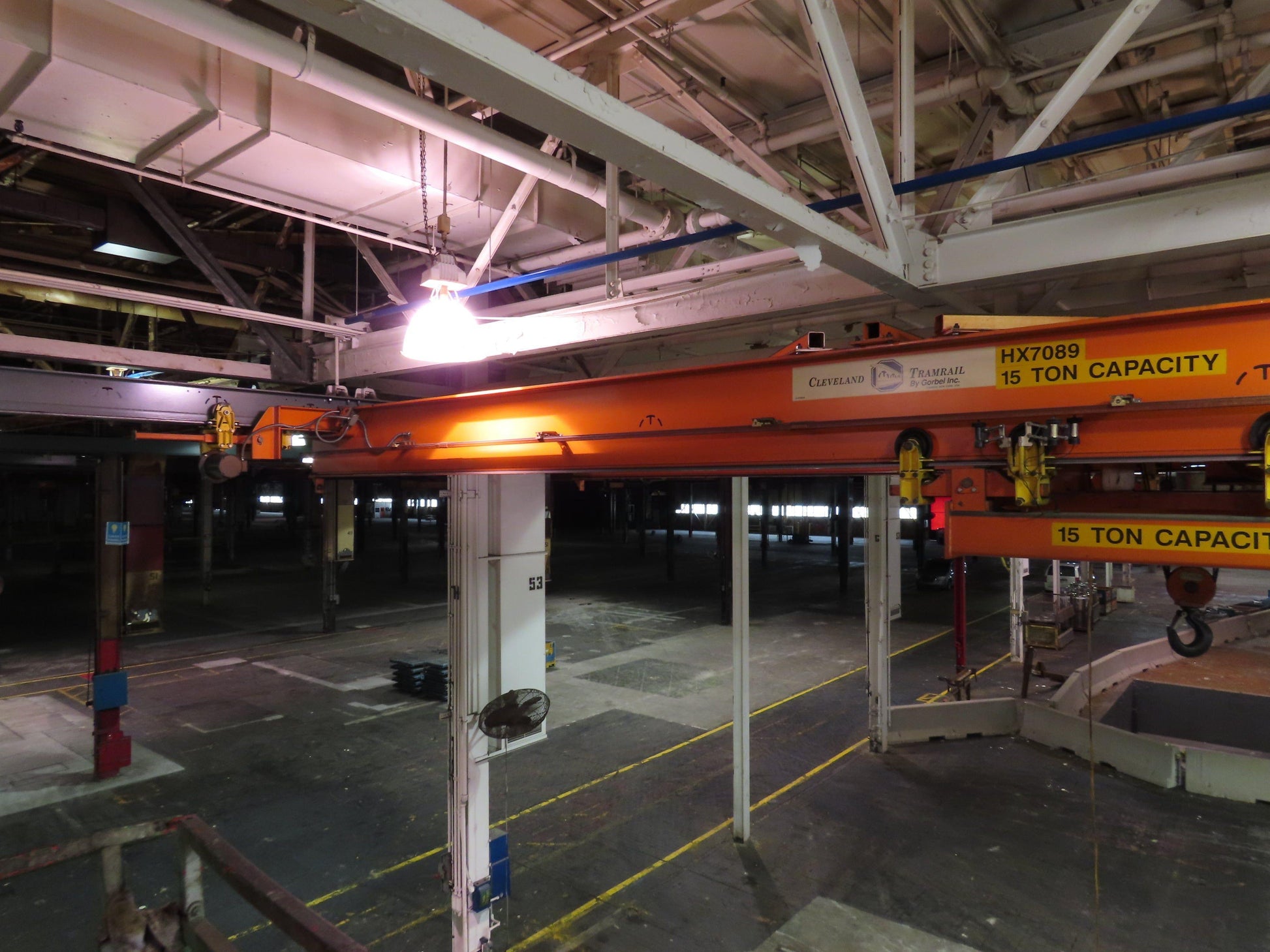

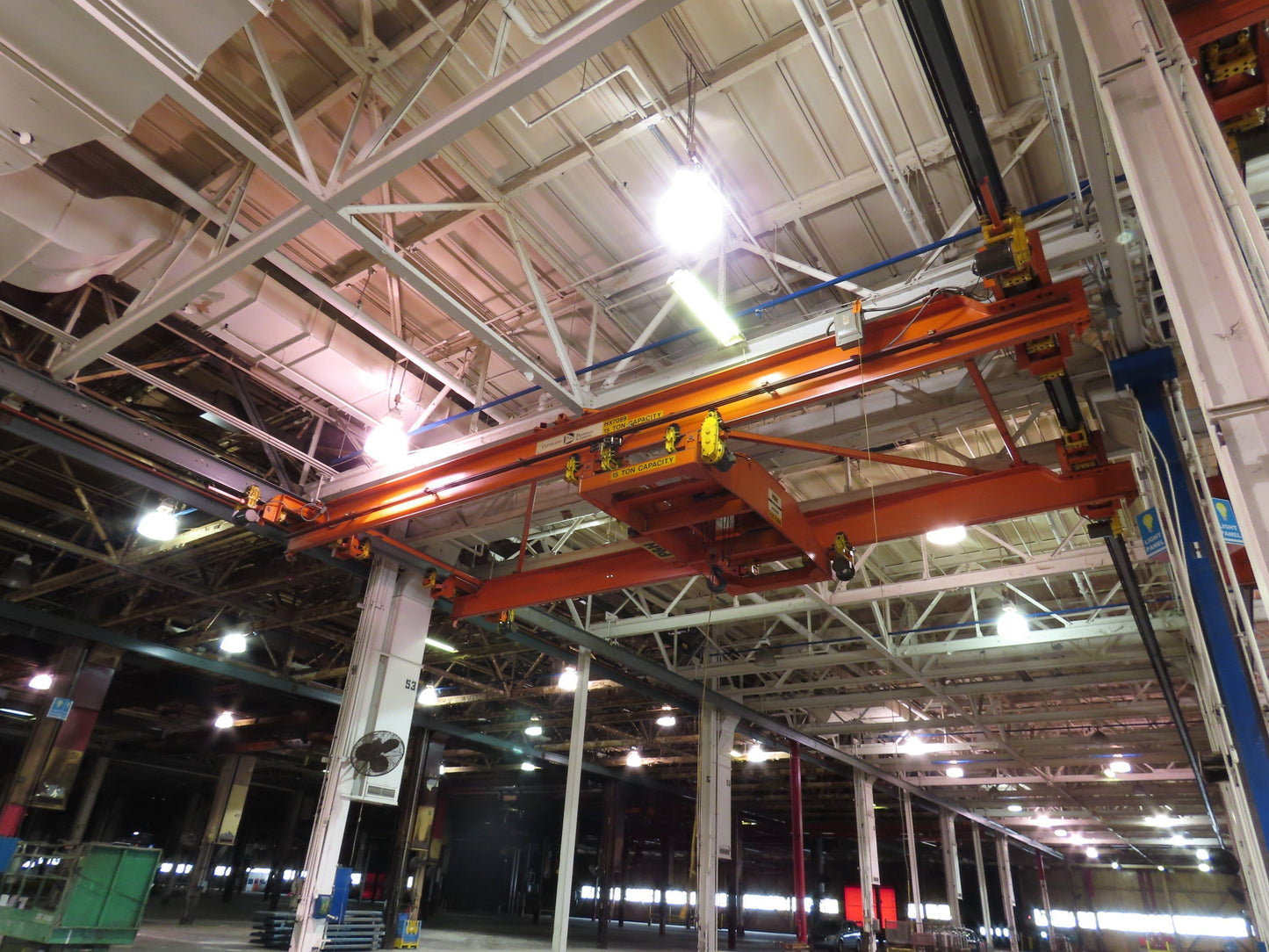

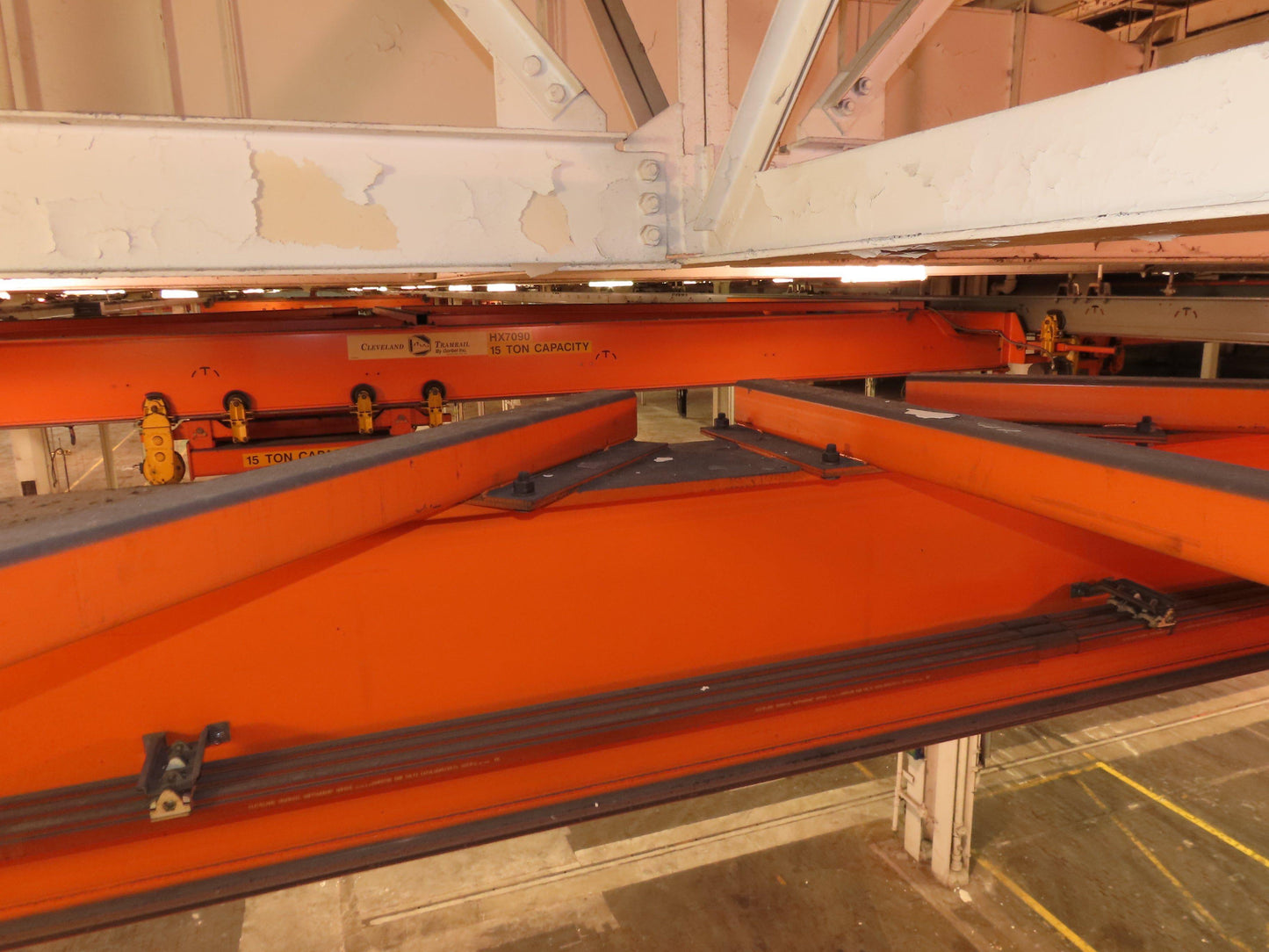

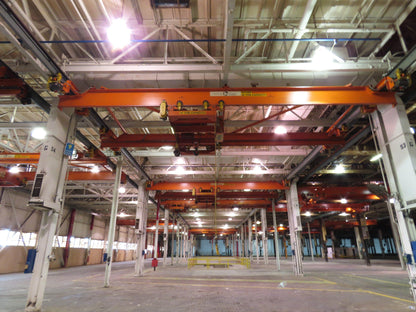

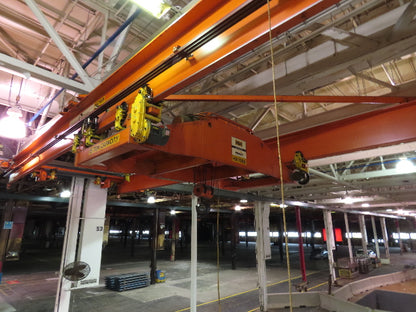

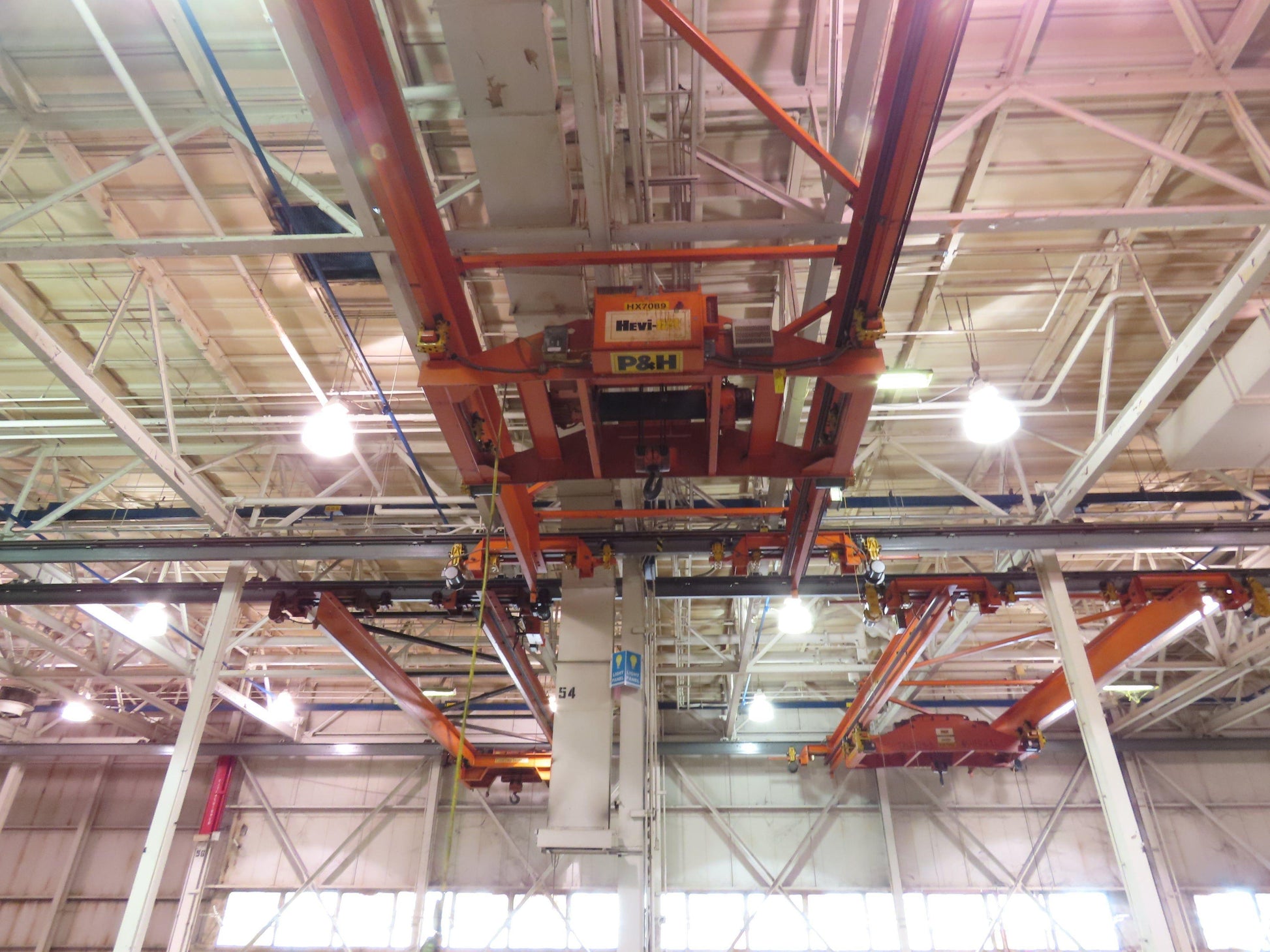

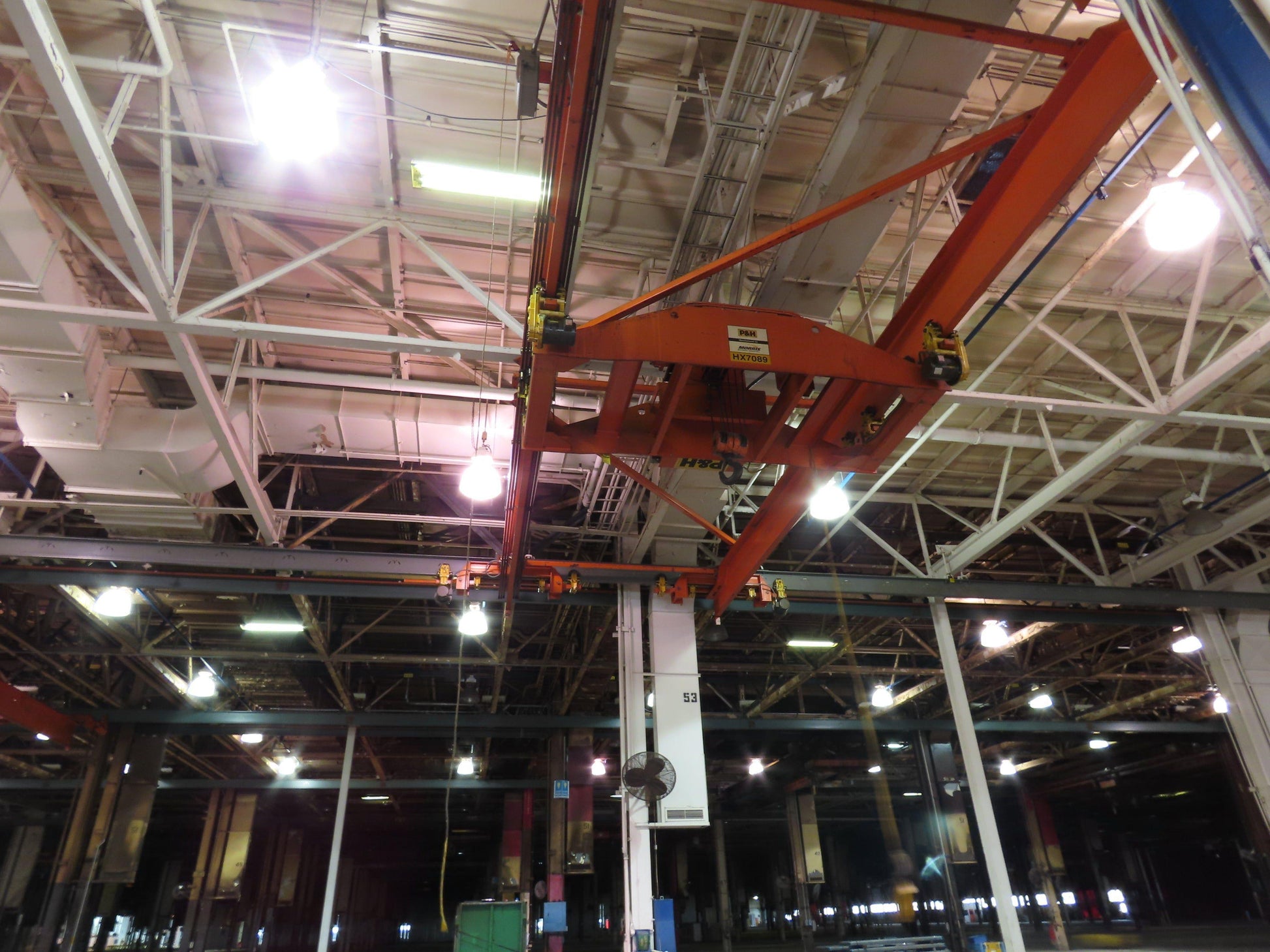

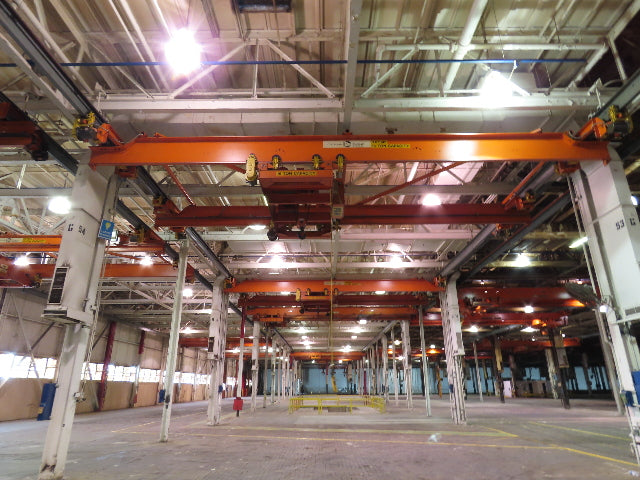

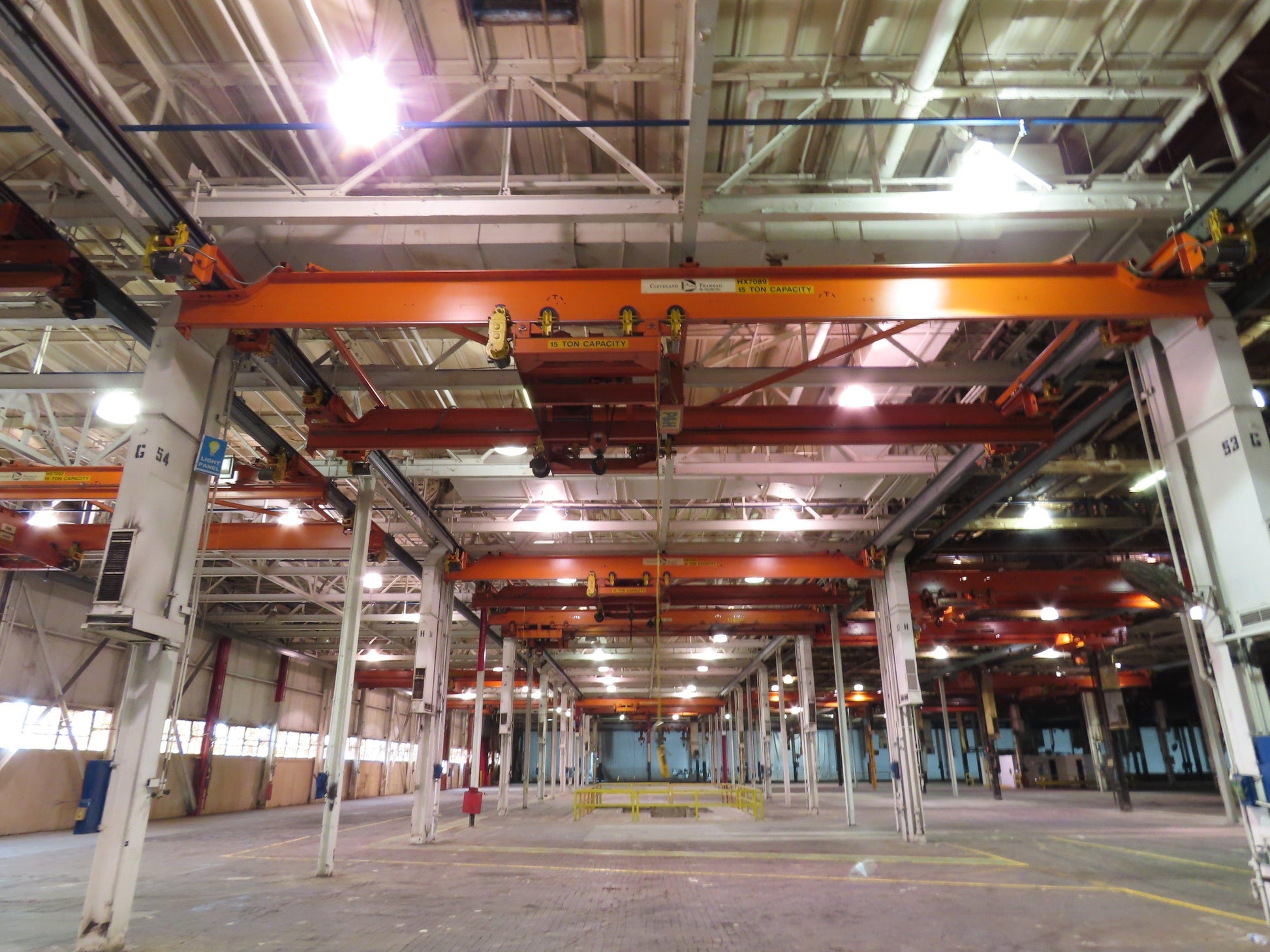

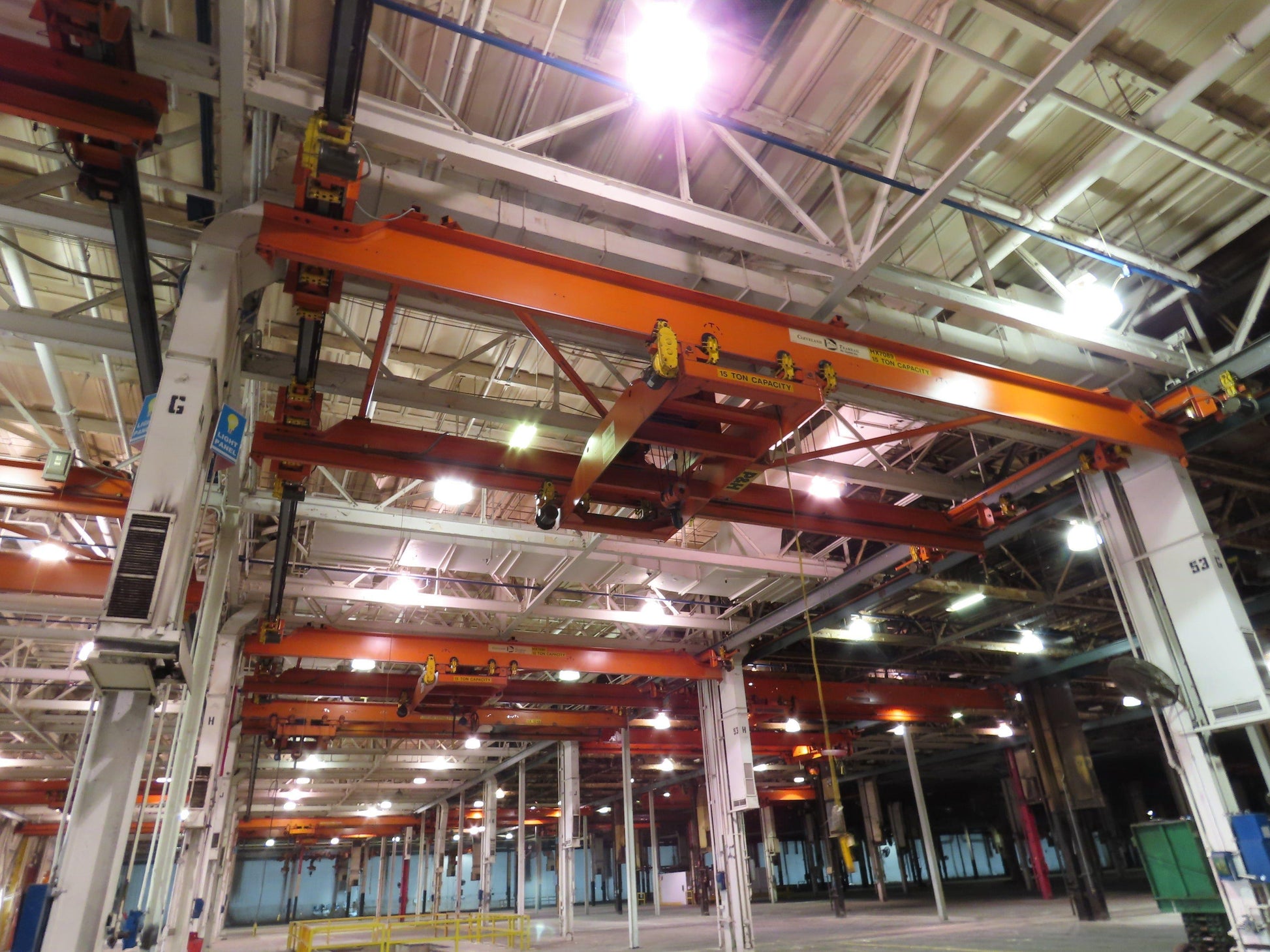

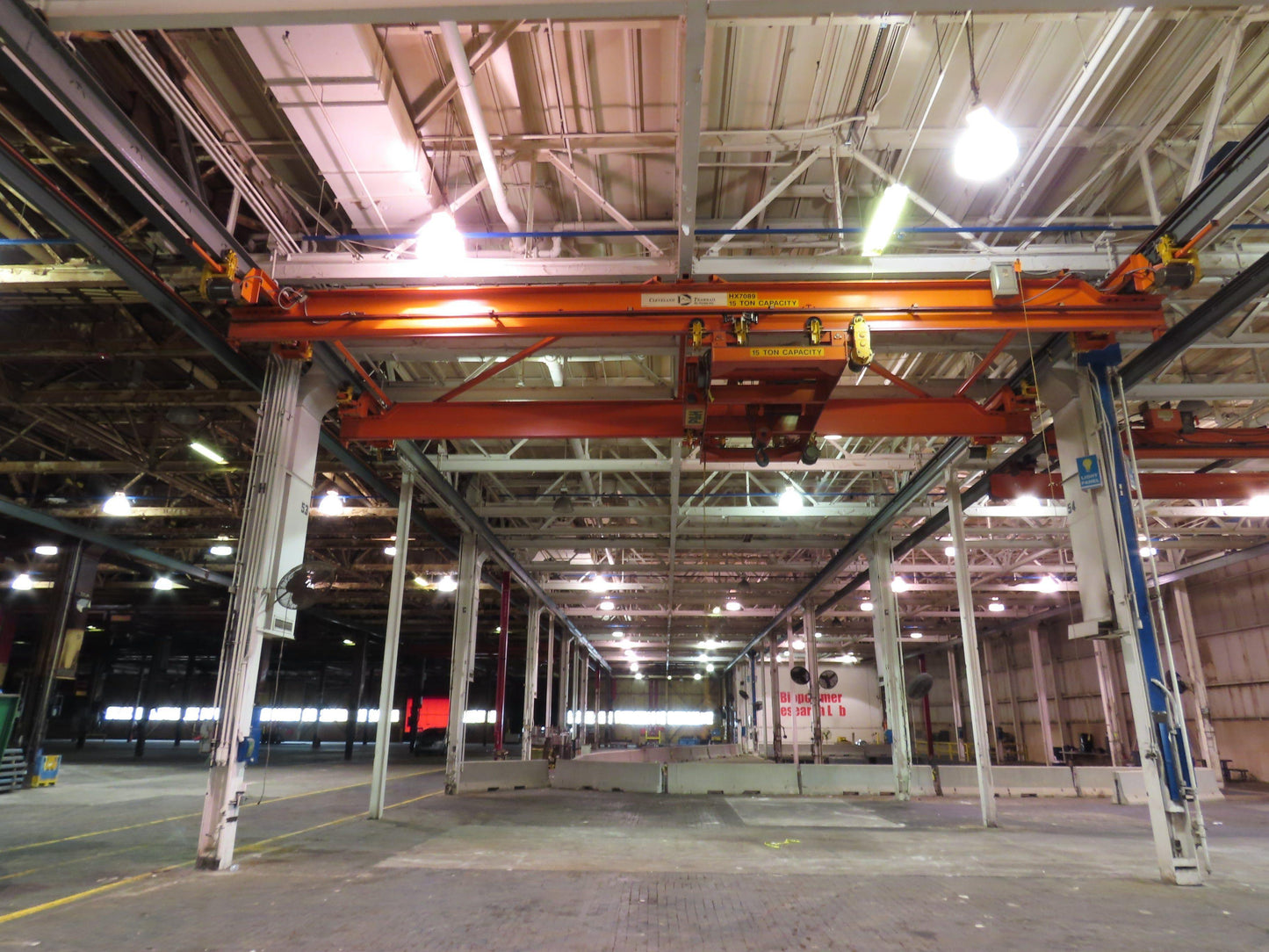

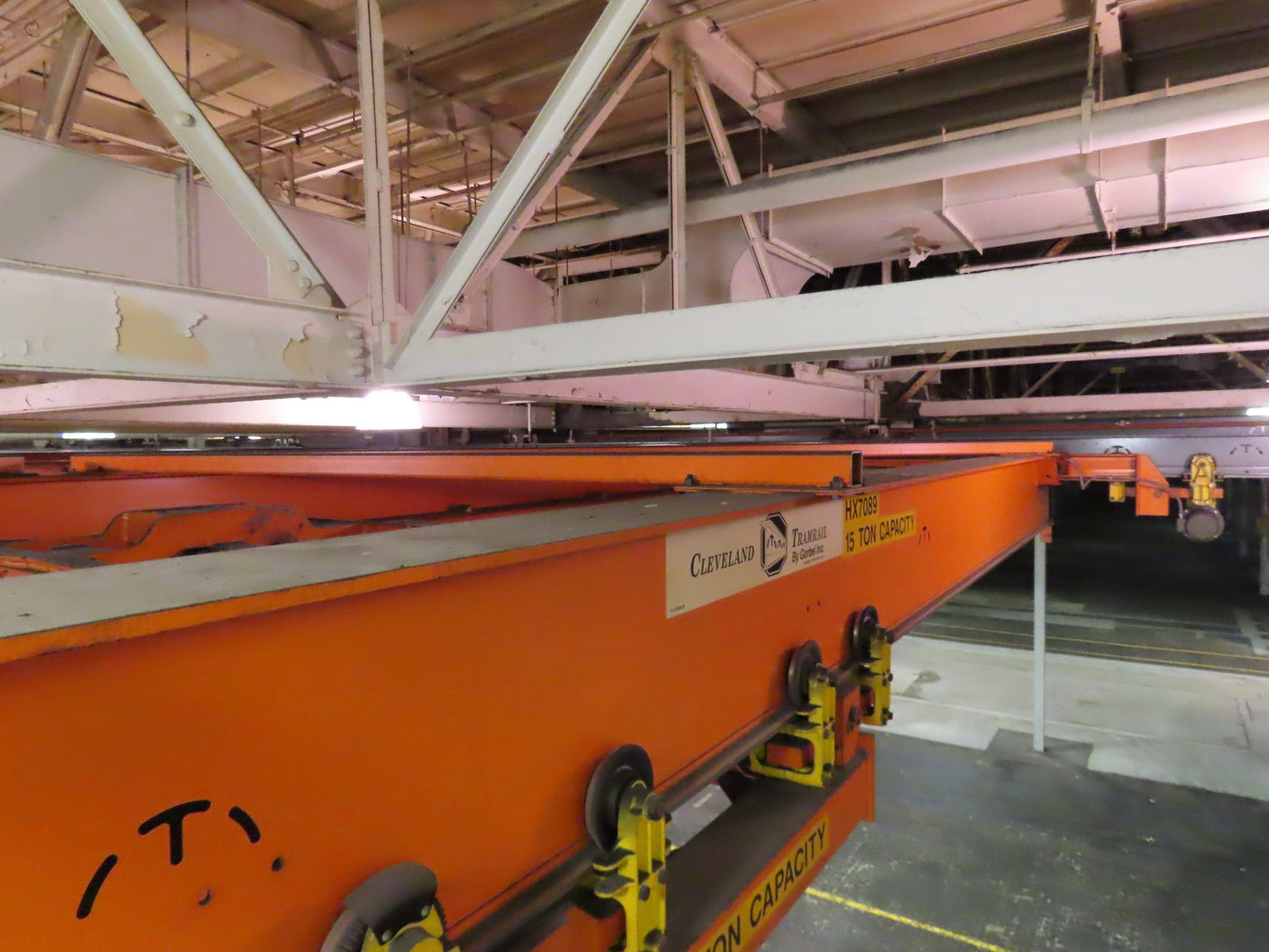

Cleveland Tramrail P&H 15 Ton Double Girder Underhung Bridge Crane 34' 10" Span

Cleveland Tramrail P&H 15 Ton Double Girder Underhung Bridge Crane 34' 10" Span

SKU #268219

Product Condition: Used

Your Price
$19,237.48
$22,499.98 $19,237.48
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail P&H
Model

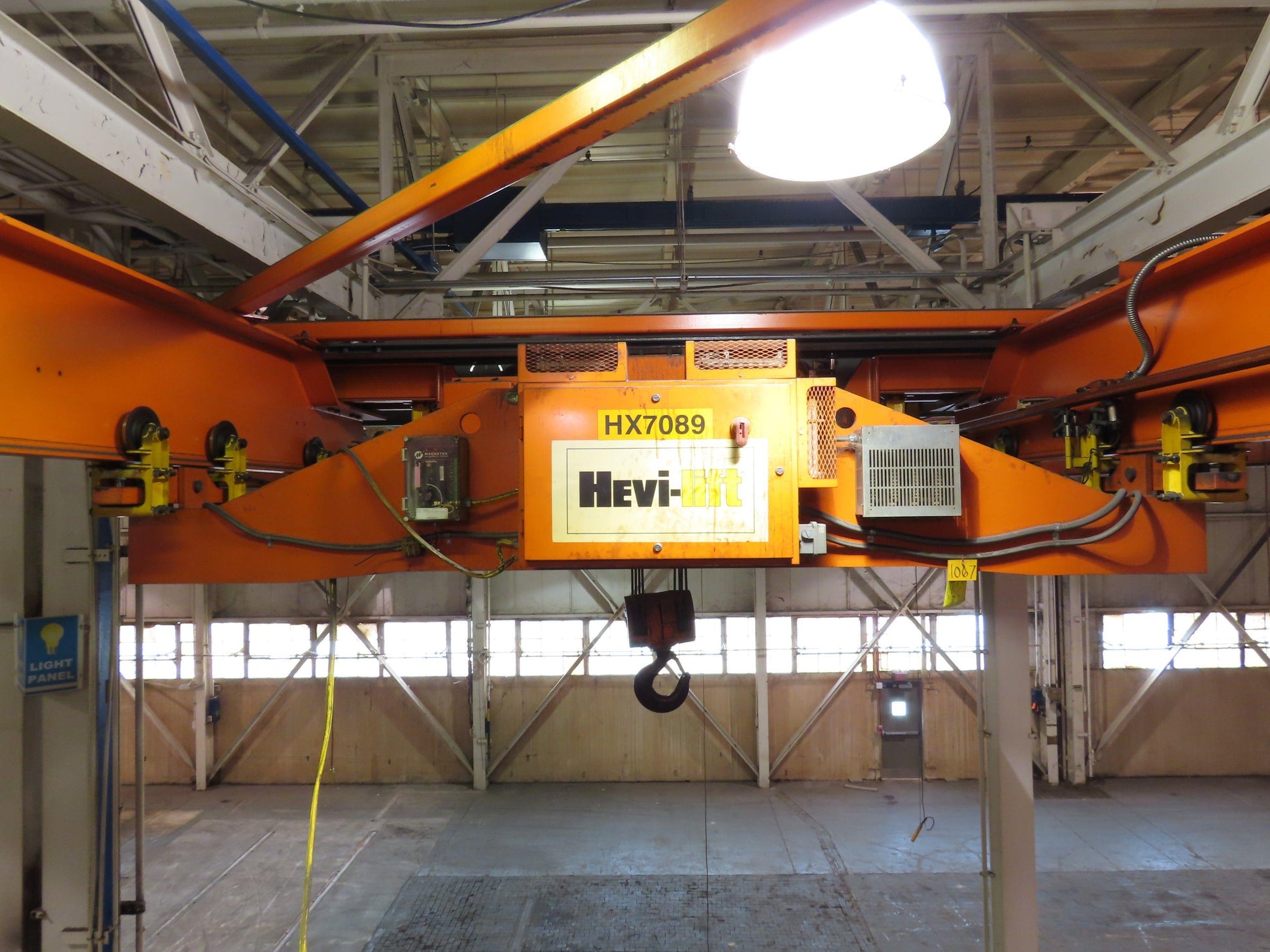

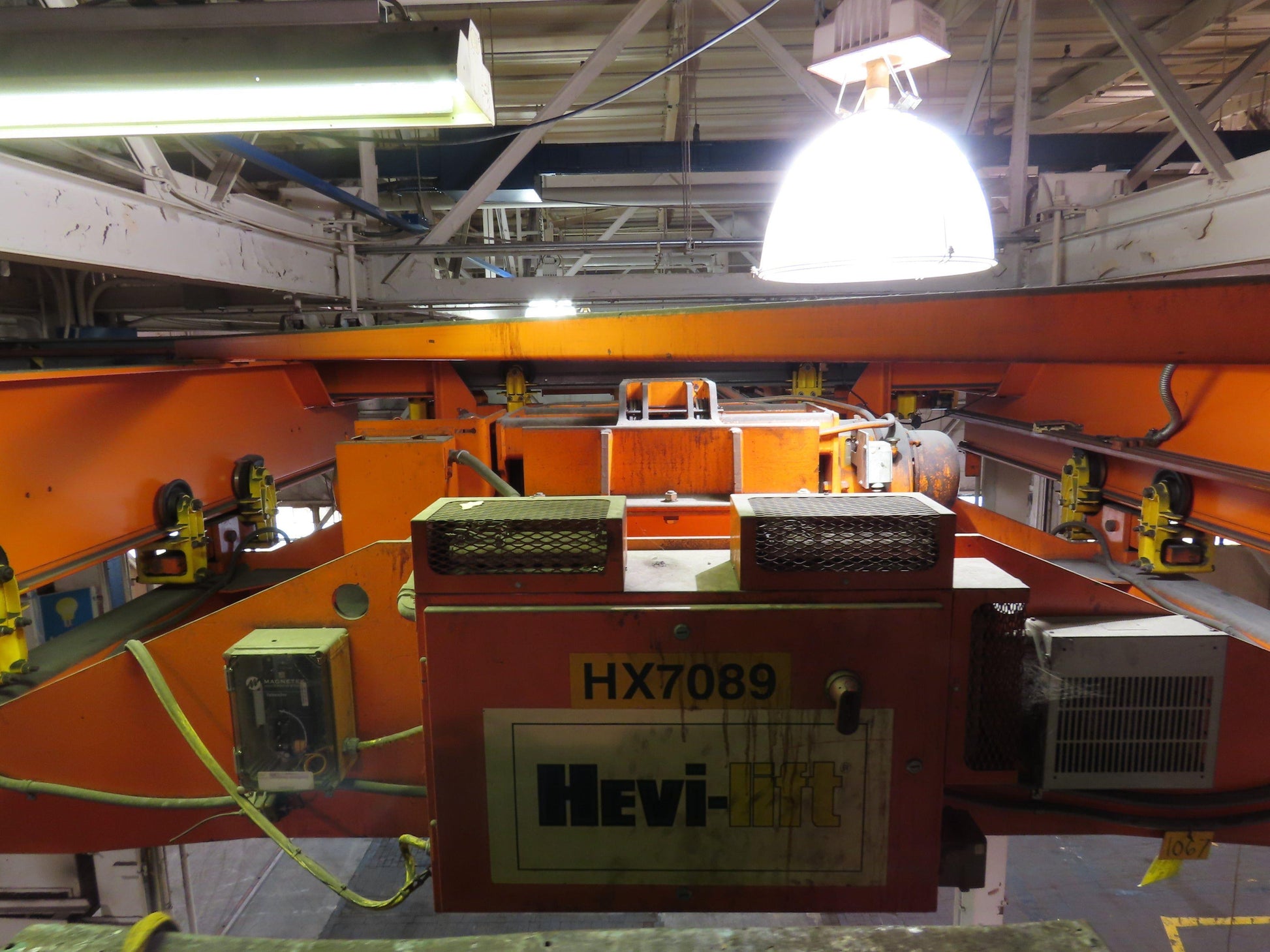

HX7089
MPN
N/A
Condition
Used
  • Capacity (tons): 15
  • Capacity (lb): 30000

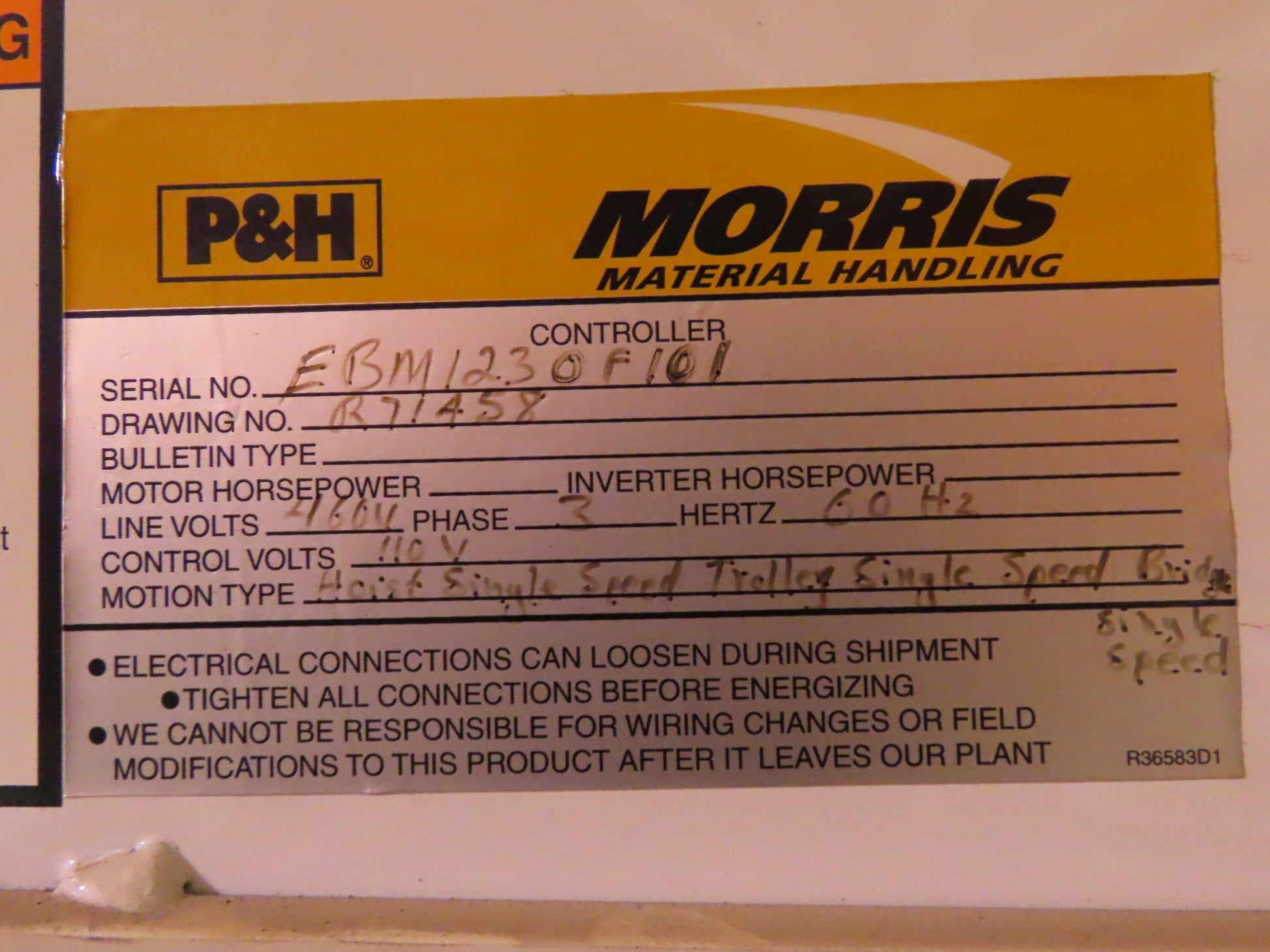

  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 34' 10"
  • Main Girder Beam Size (Height x Width x Length): 24"H x 12.5"W x 37' 10"L

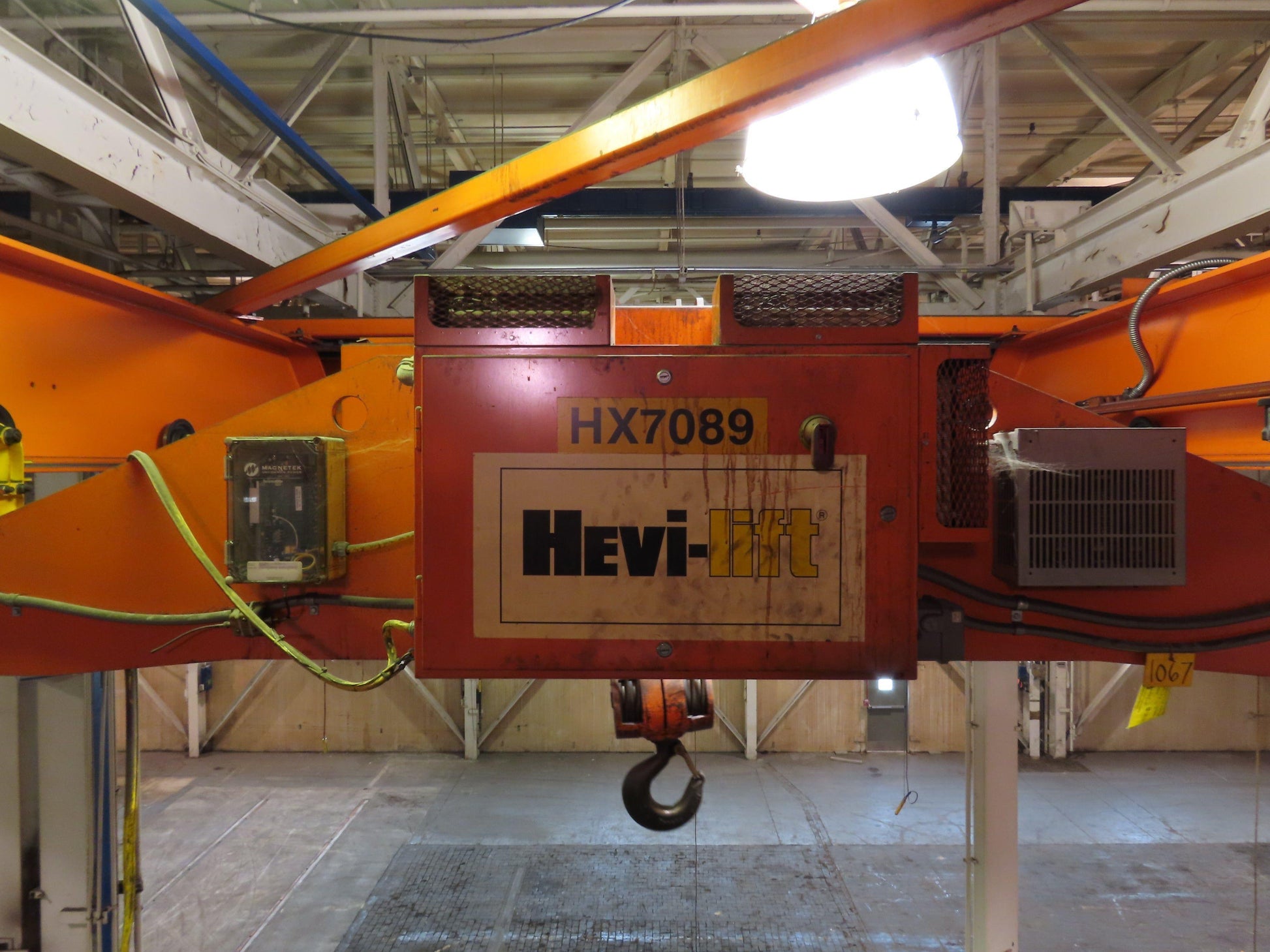

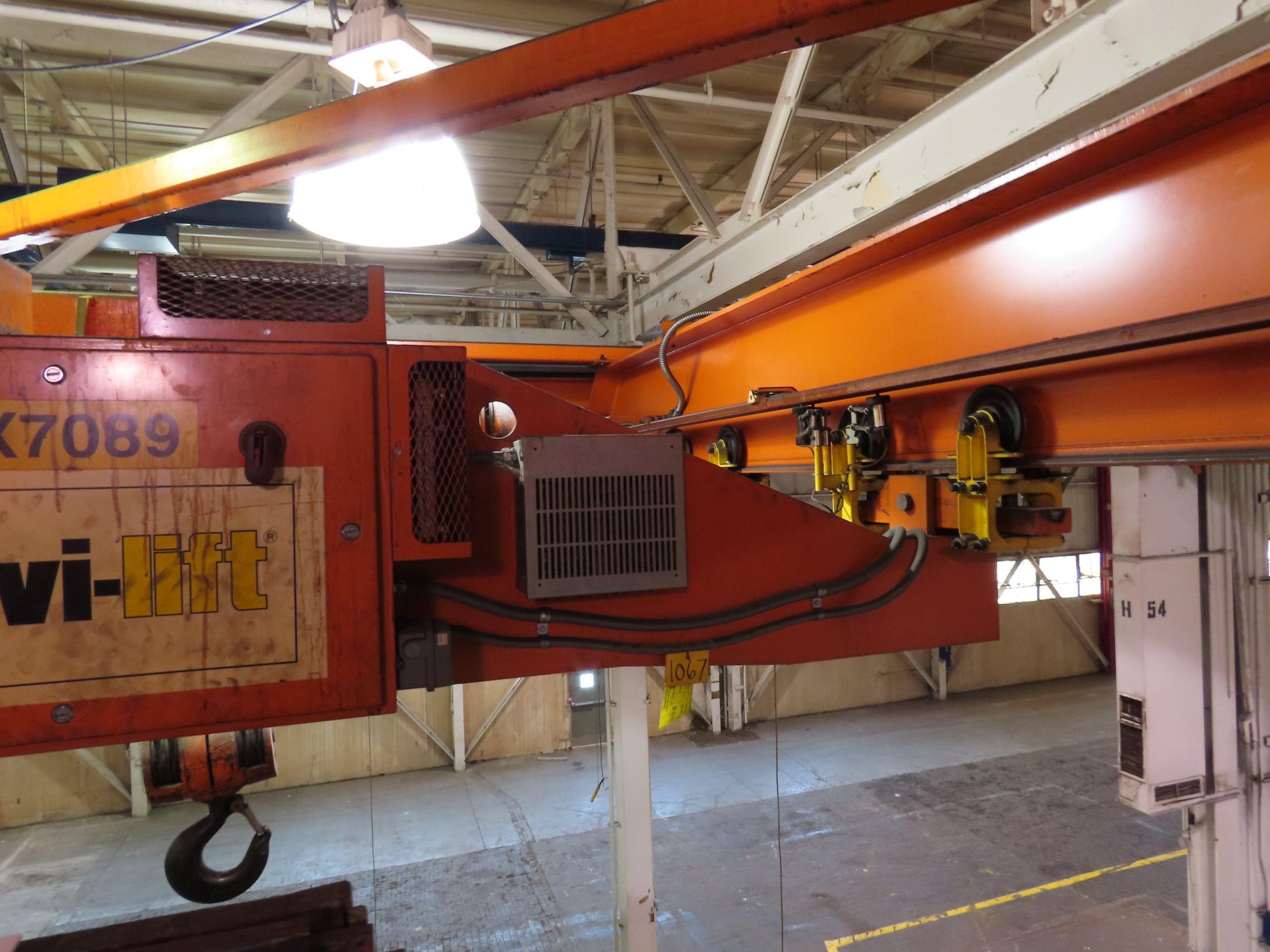

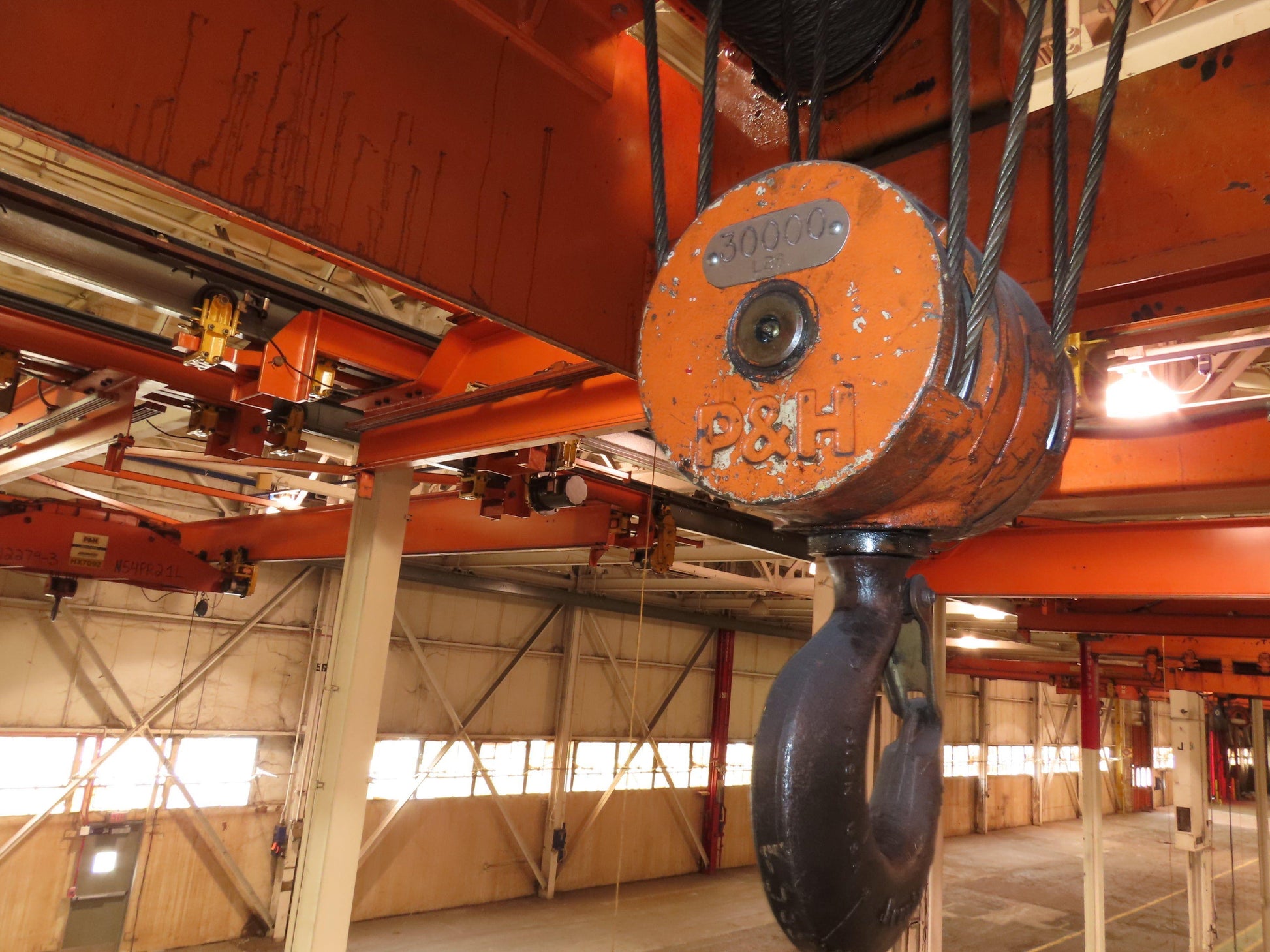

  • Hoist Brand: P&H
  • Lift Travel (feet): 21' 8"
  • Lift Speed (feet per minute): 15 FPM Single speed

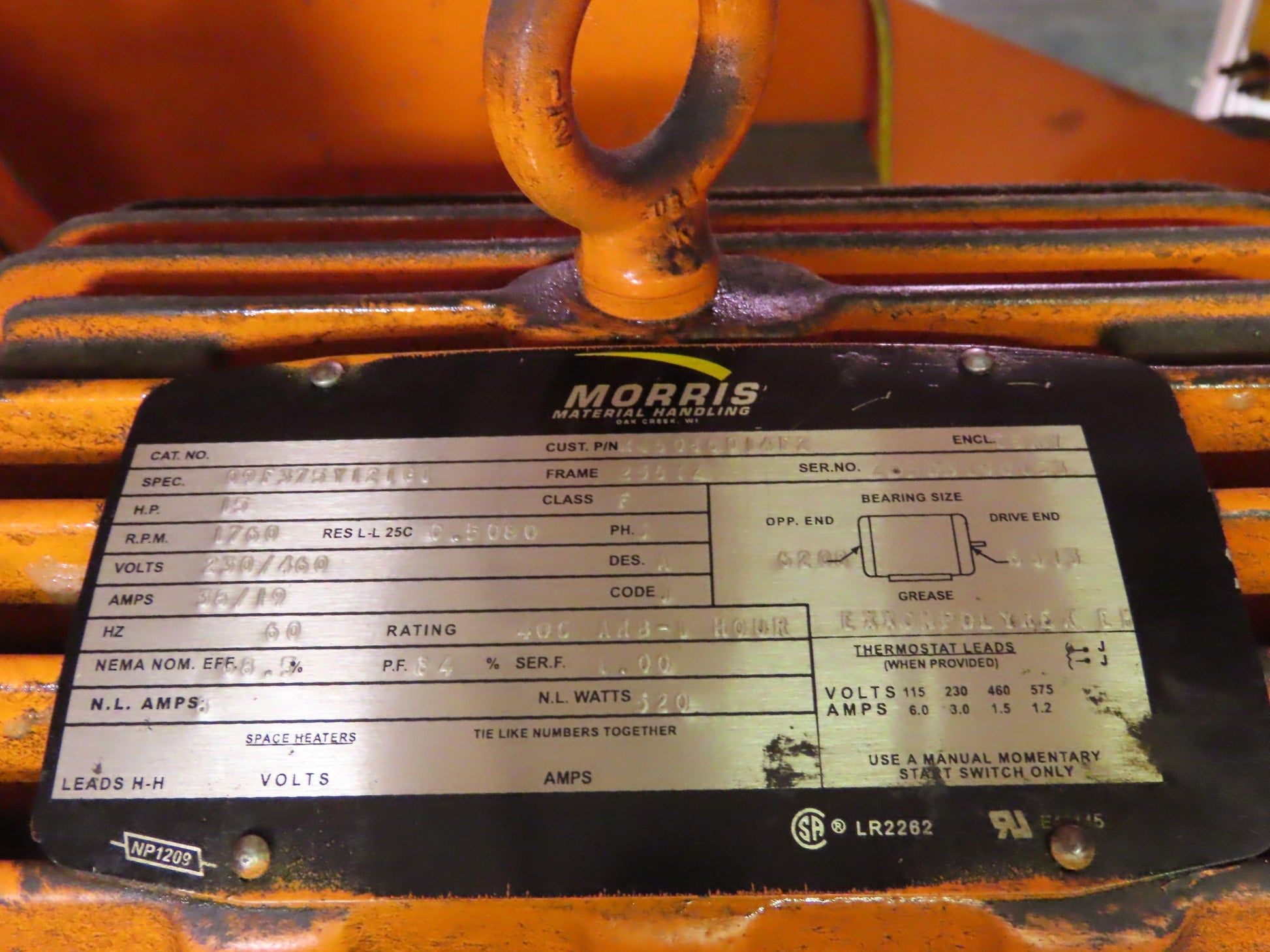

  • Motor Horse Power: 15
  • Pendant/Control Length From Bottom of Hoist (ft): 15'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 45"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 60"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 75"
  • Bridge Crane is in working condition.  Tested on site before removal.

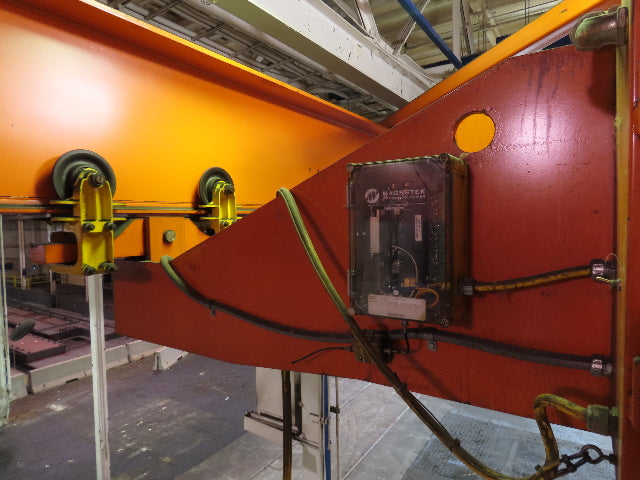

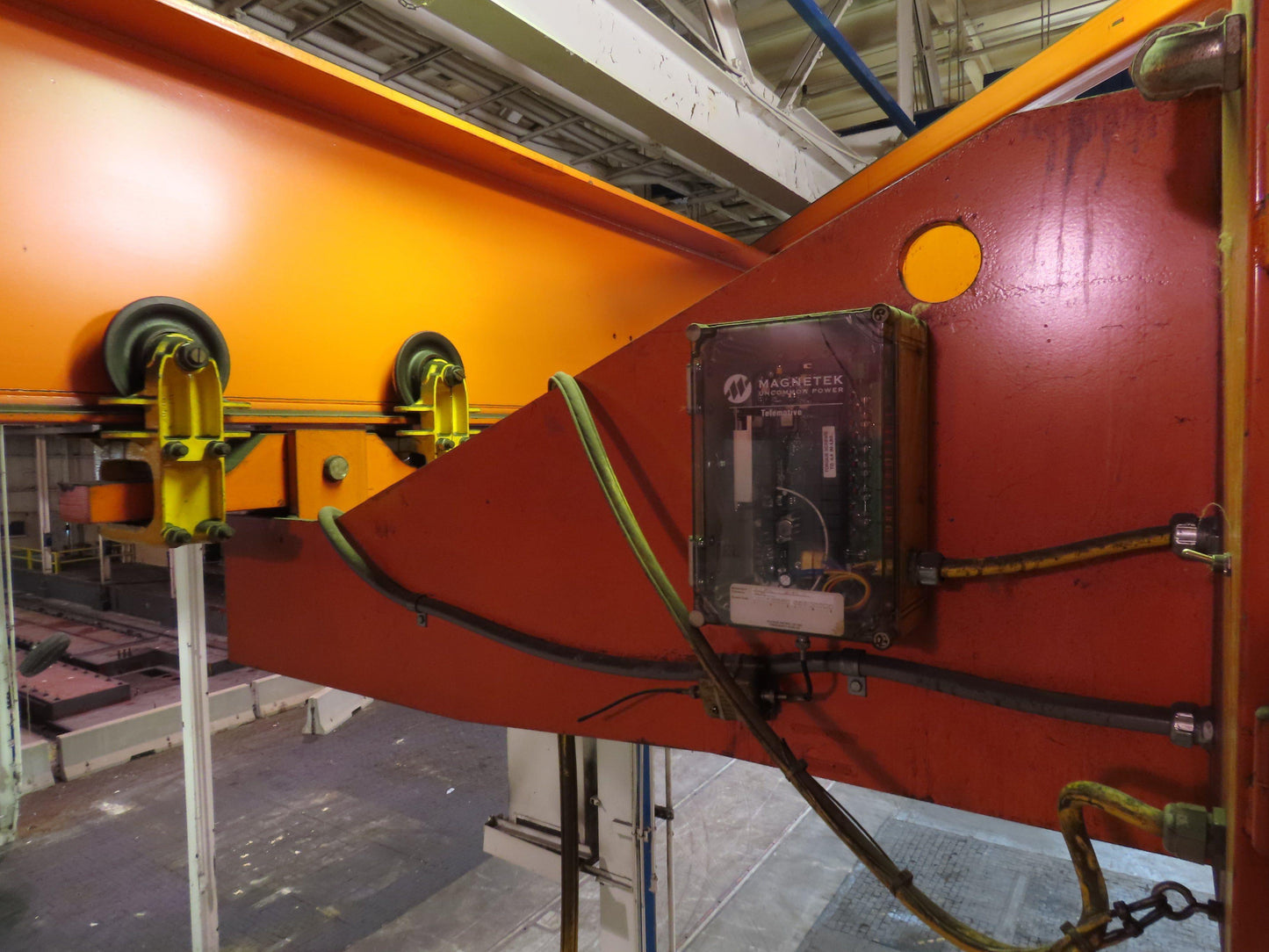

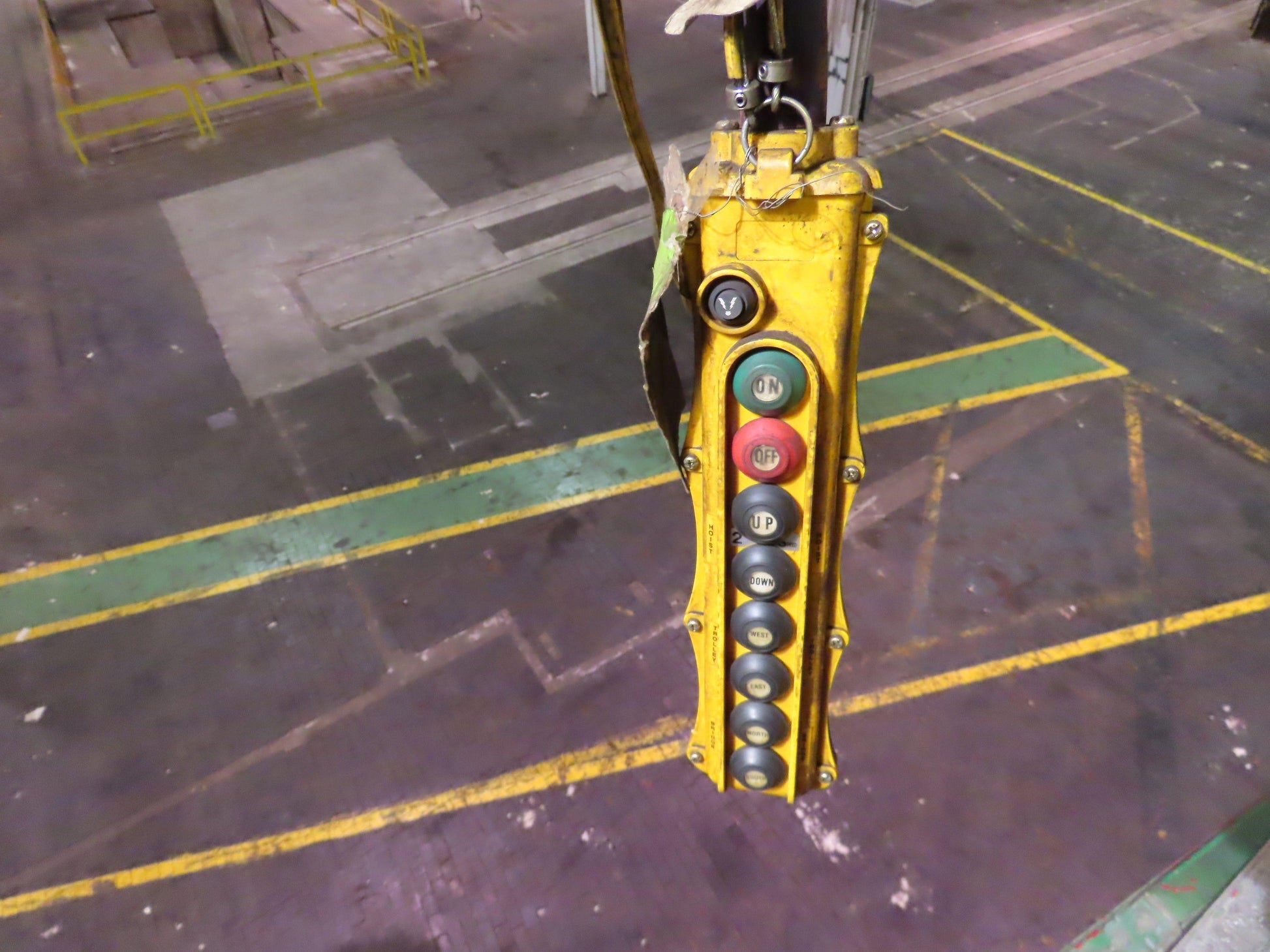

  • Includes corded pendant only.  Set up with wireless receiver but is missing the remote.

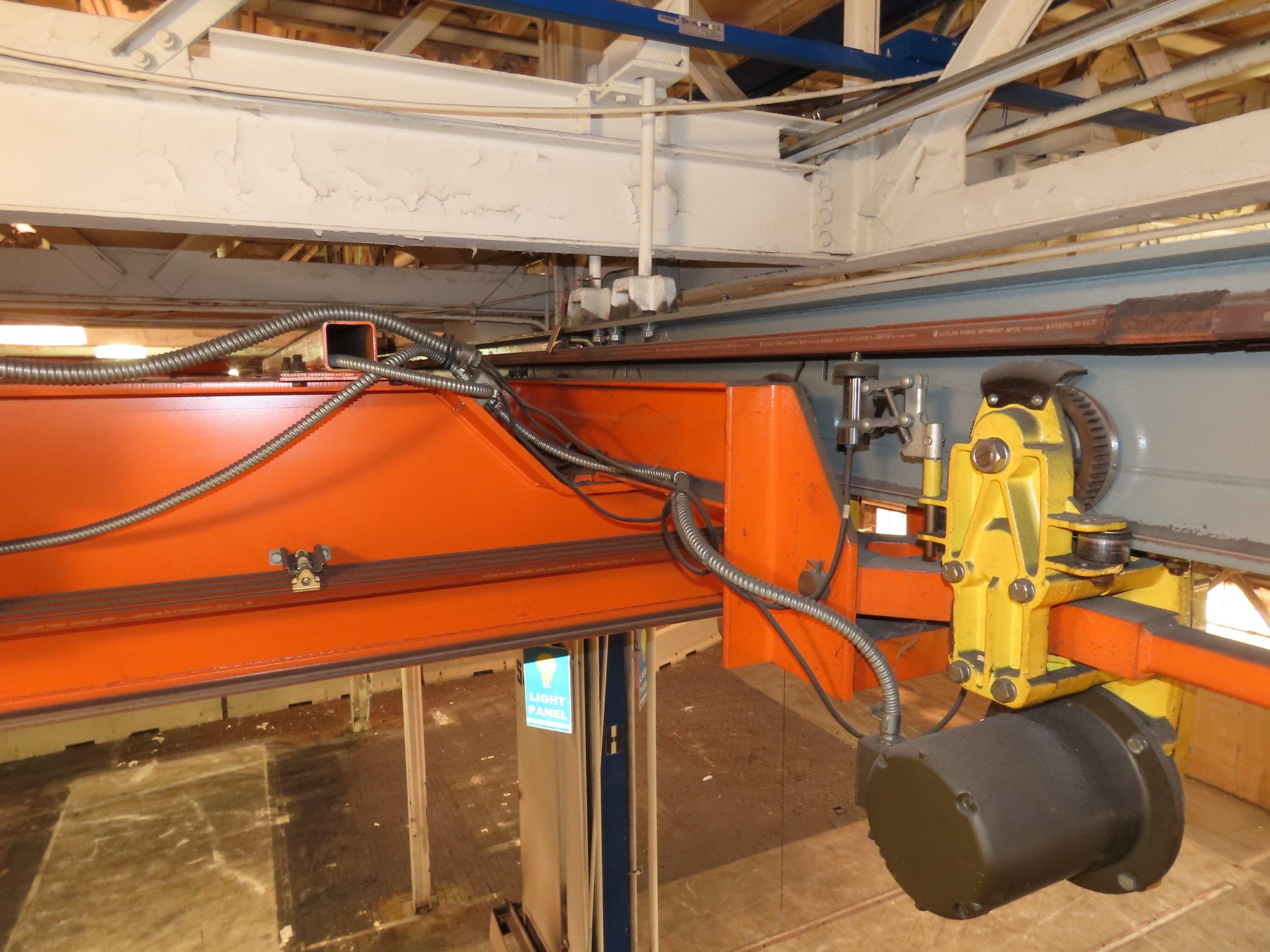

  • Single speed bridge and trolley single speed hoist.

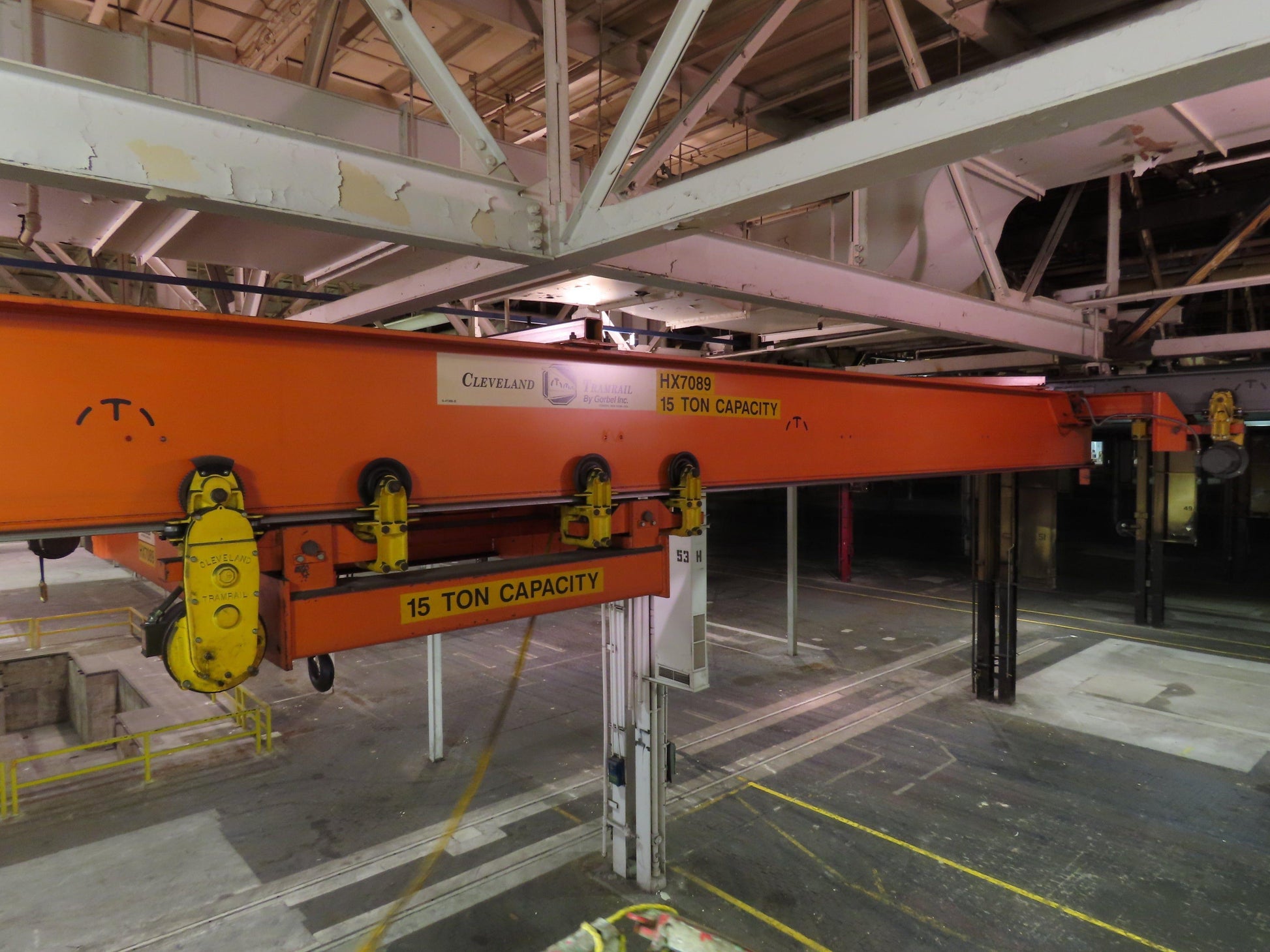

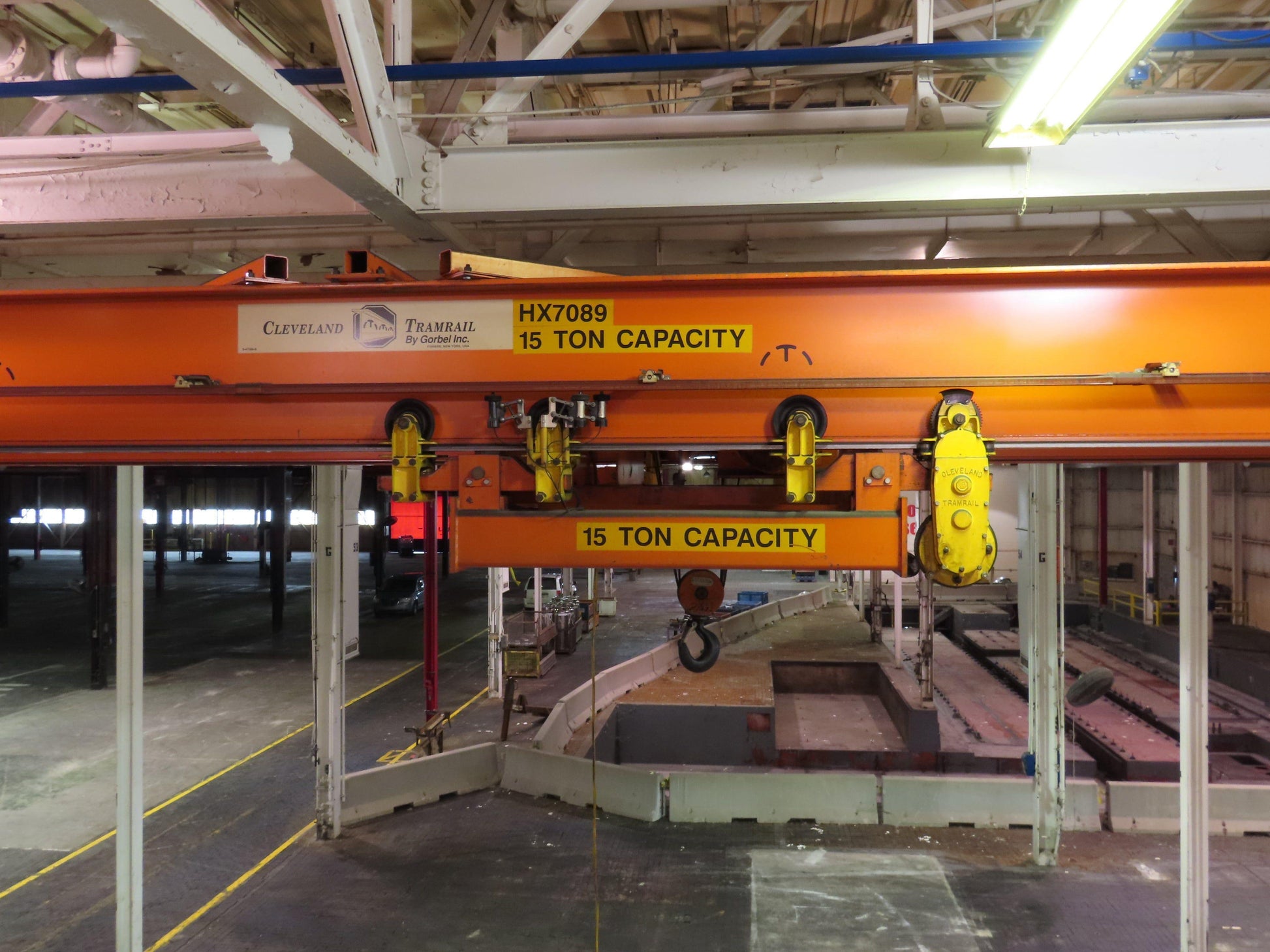

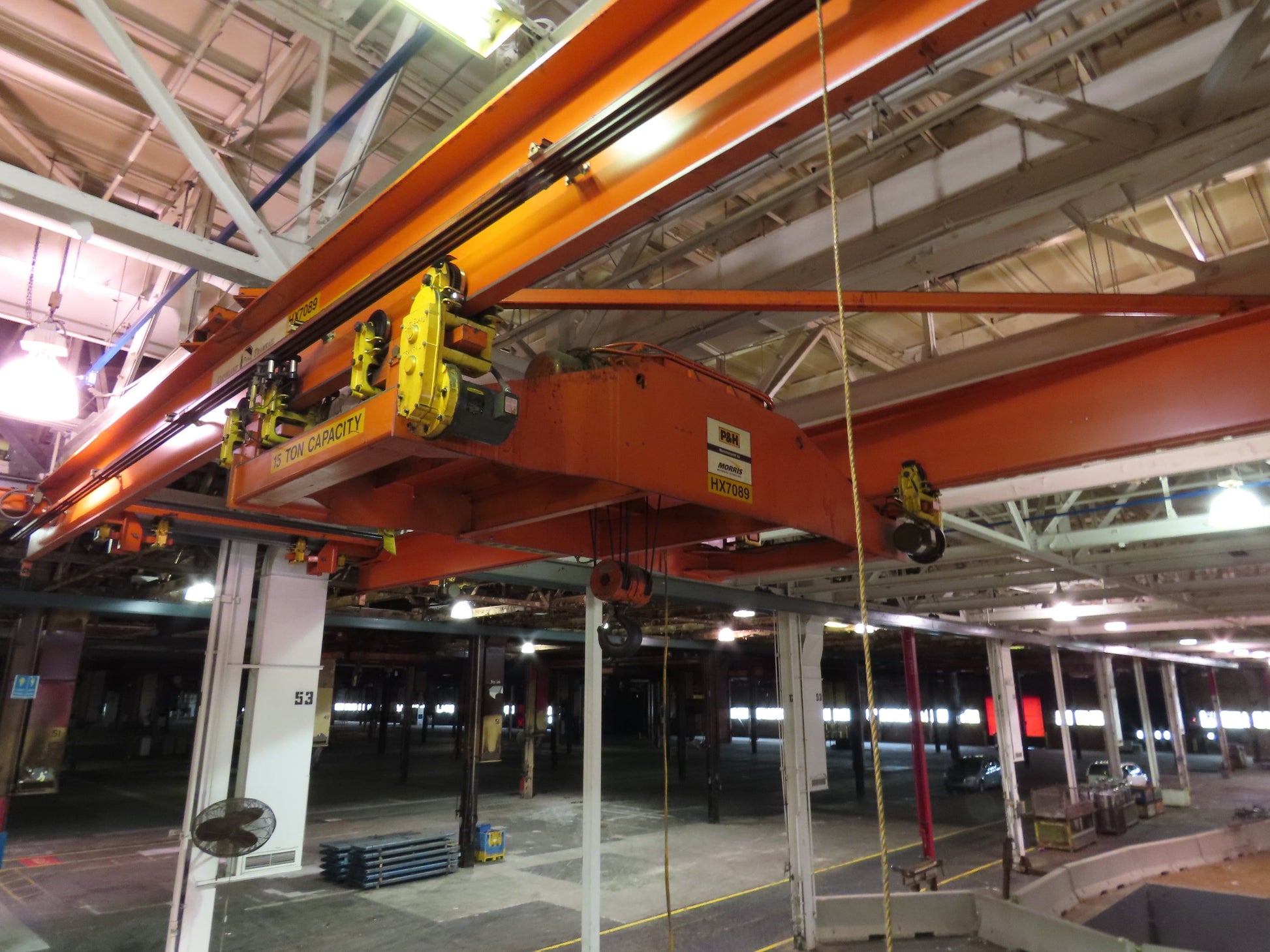

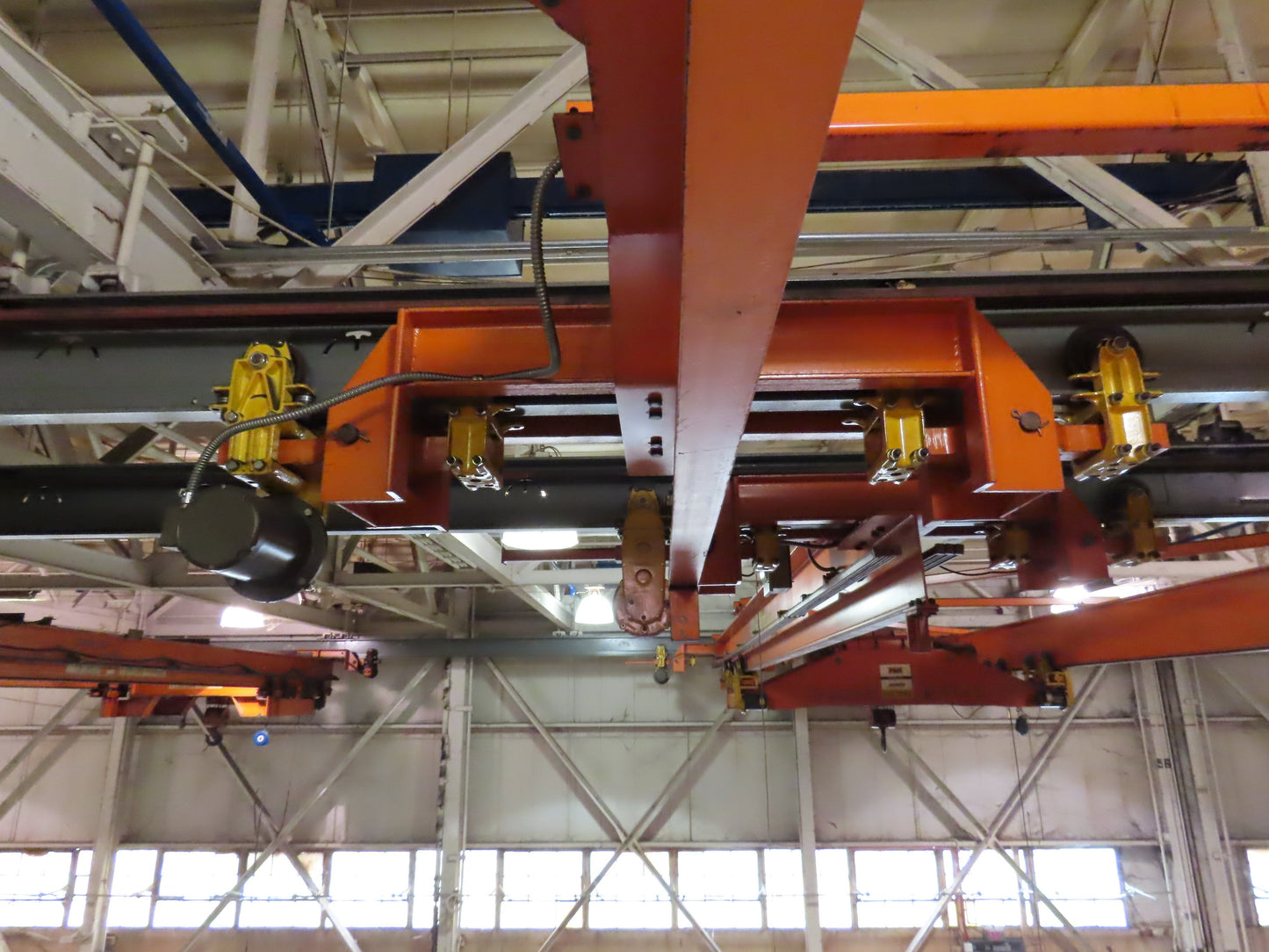

  • Trolley carriage length: 88"

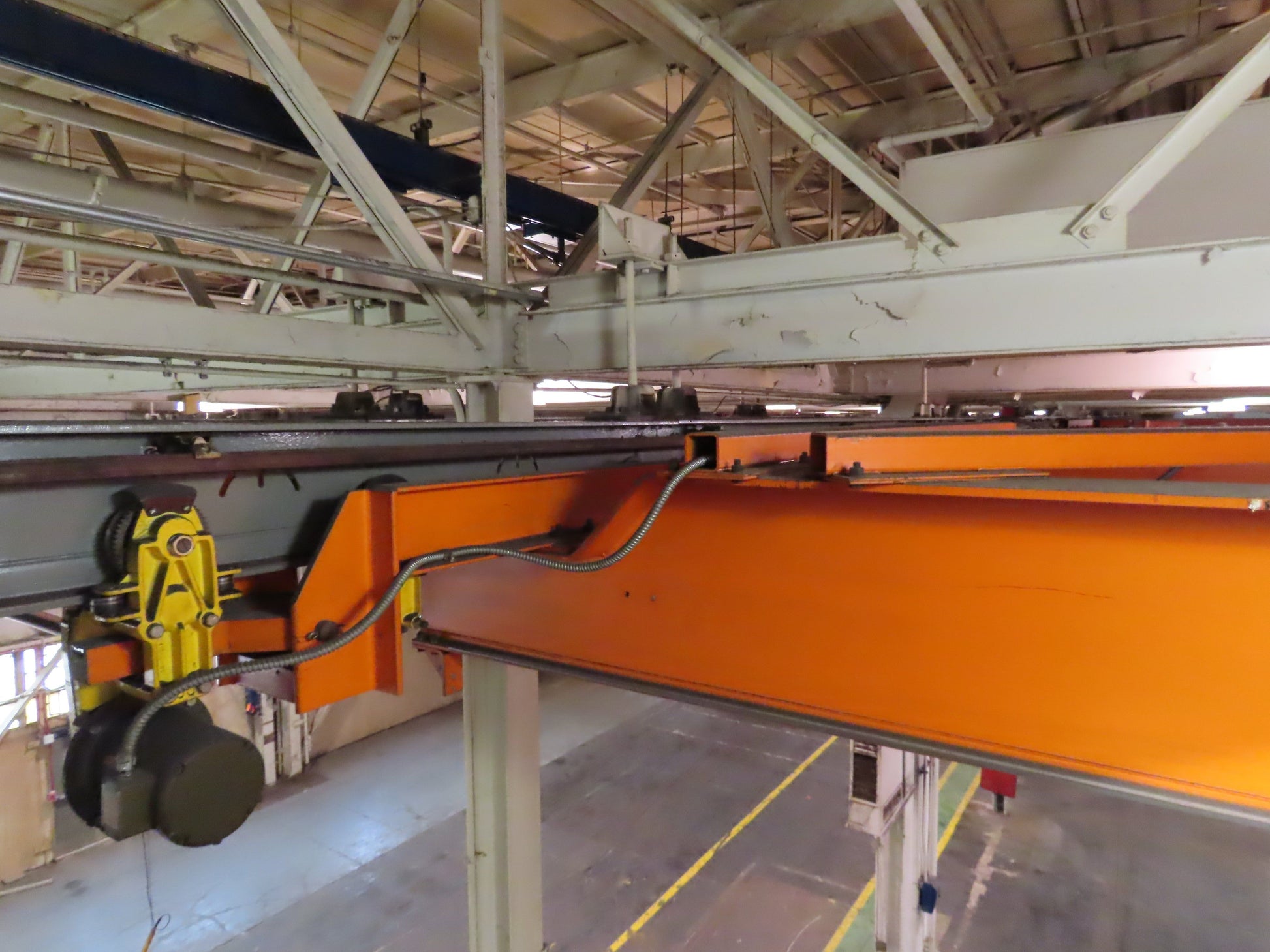

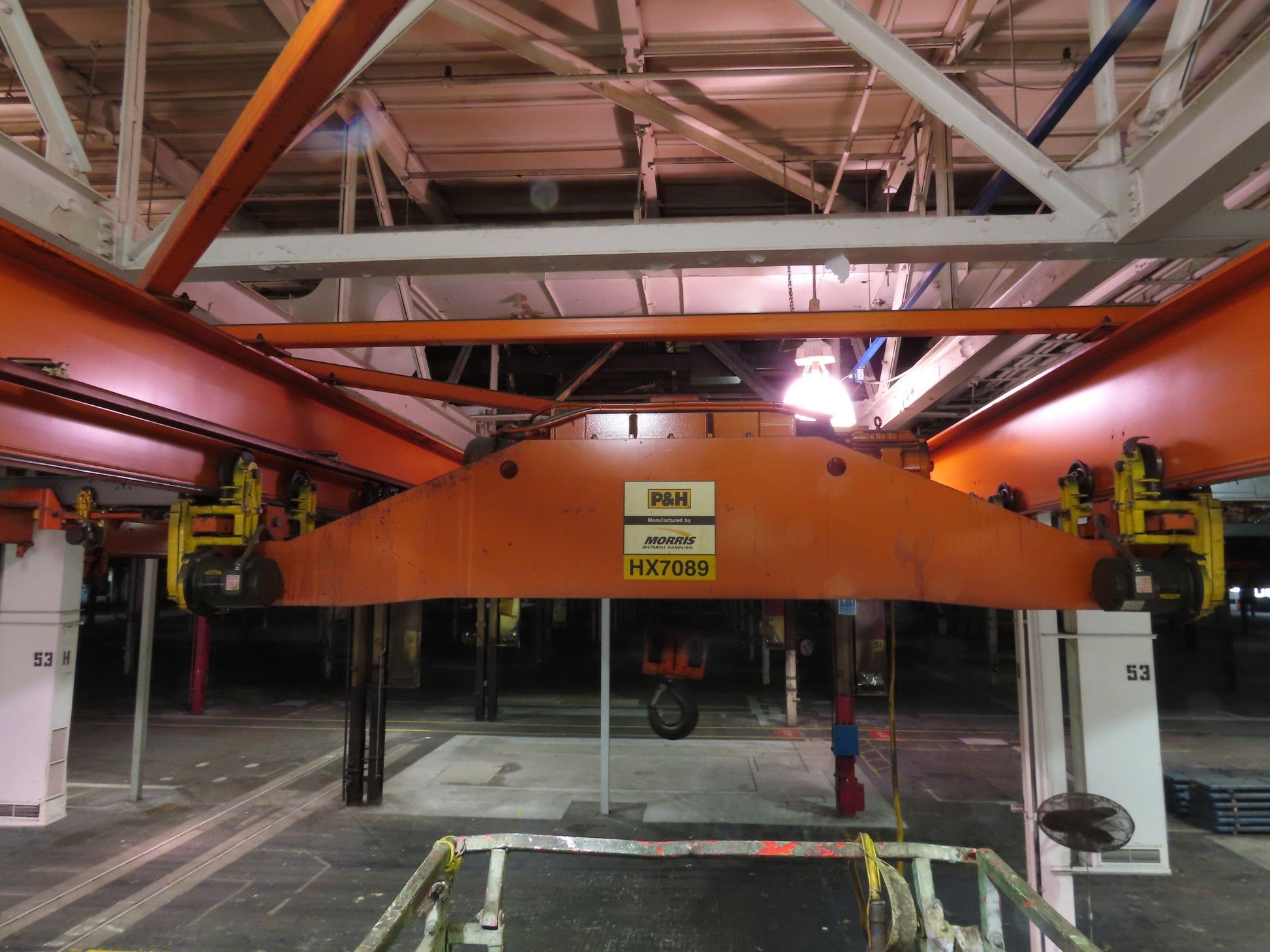

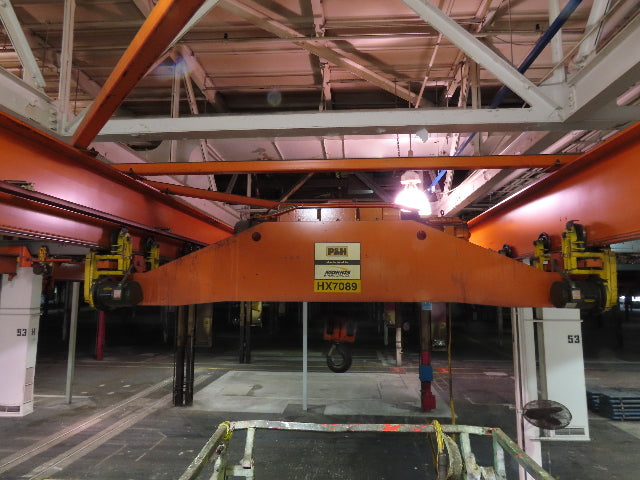

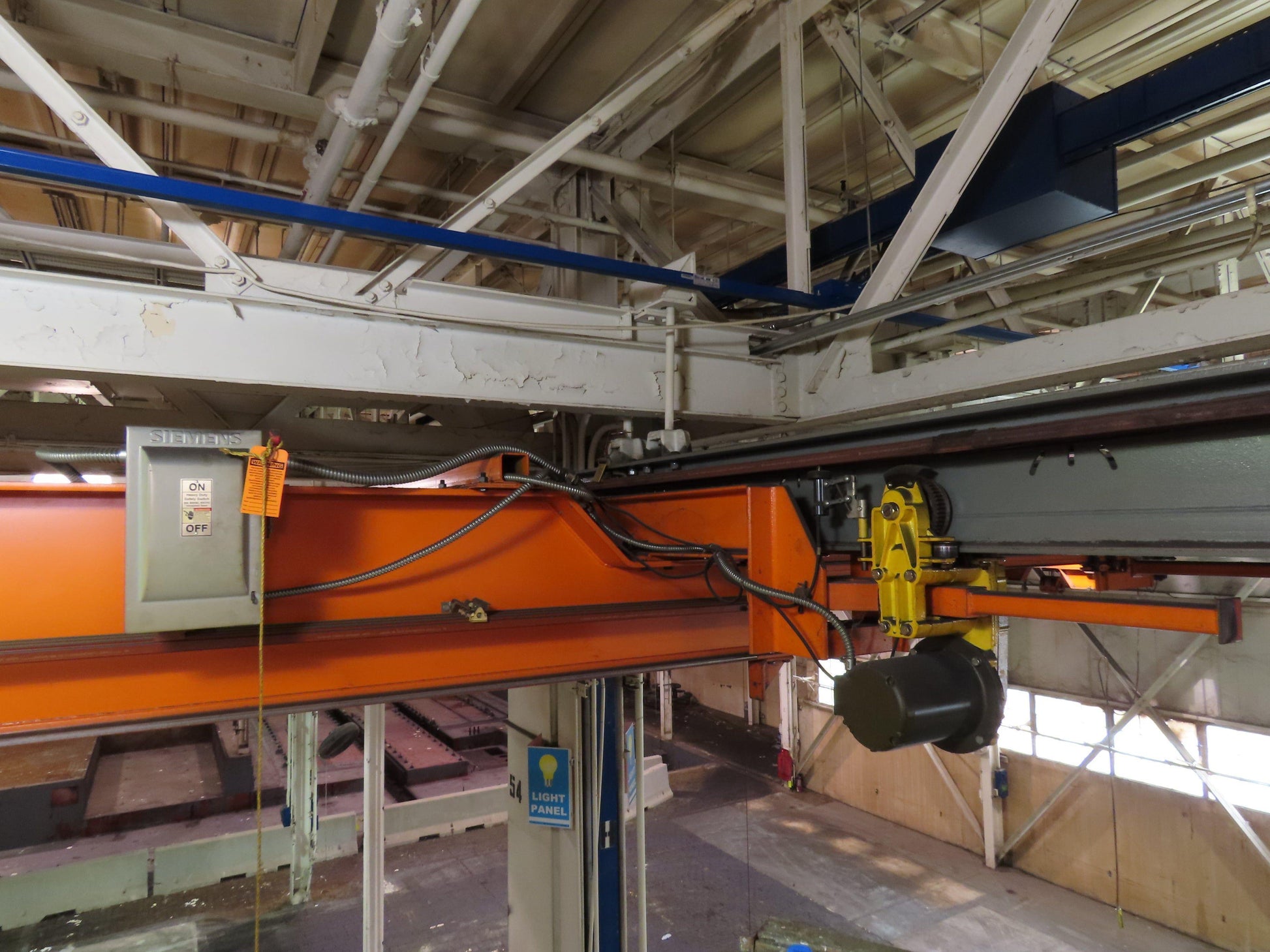

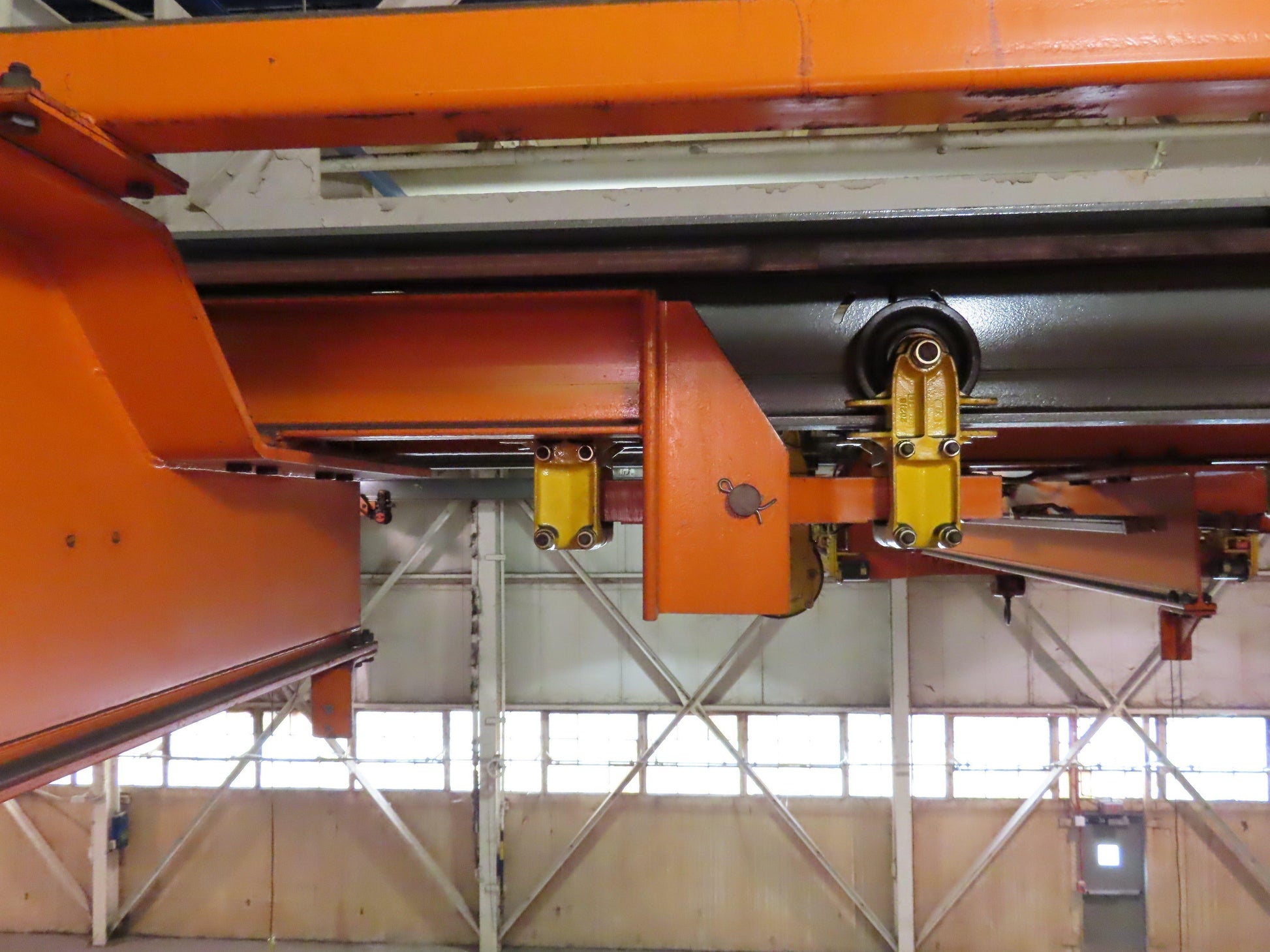

  • End truck length:  92" + a 20" stop bar on the outside ends.
  • End truck wheel size:  6"
  • Girder beam span: 12'
  • Top braces are bolted on.
