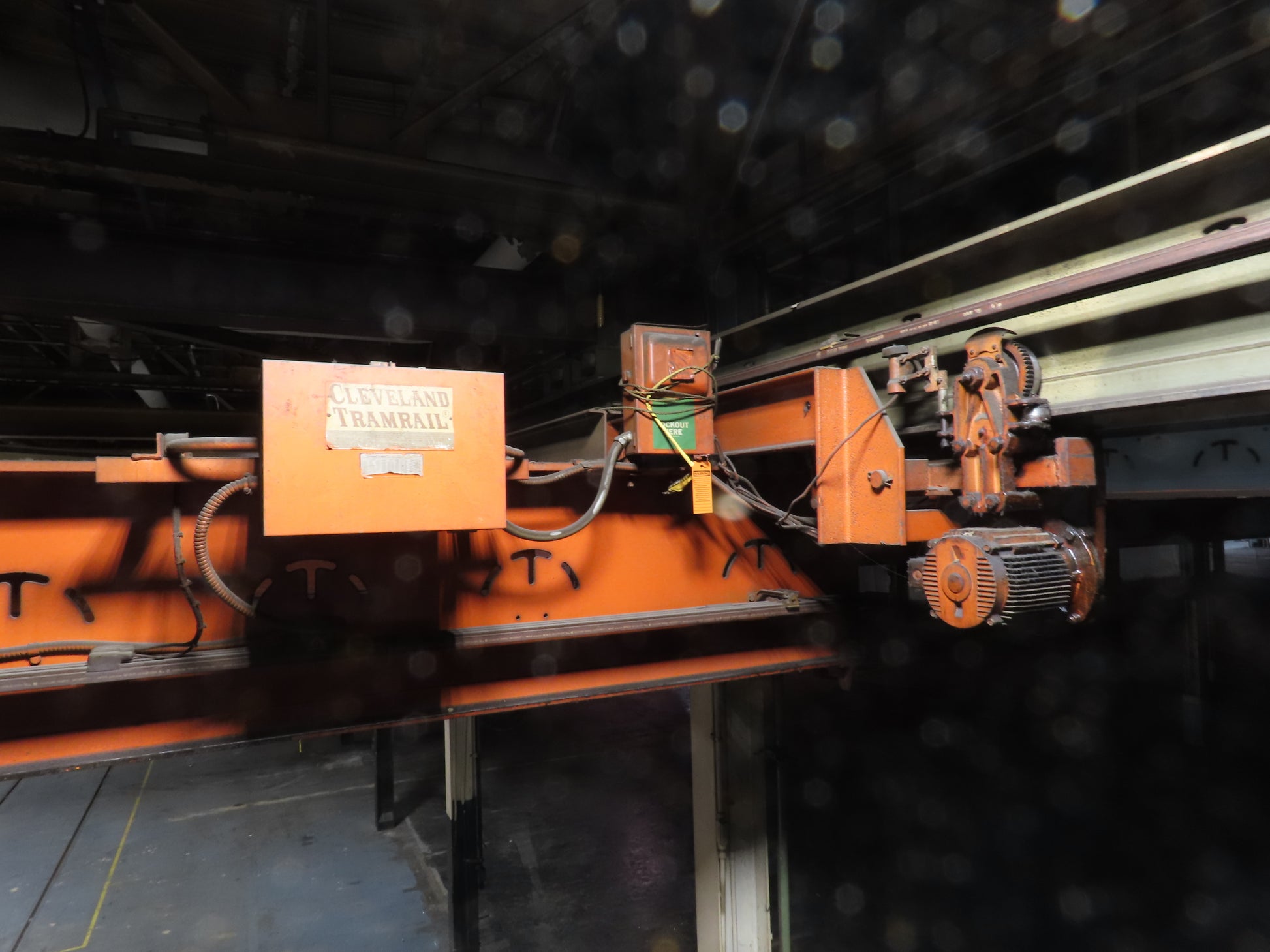

Cleveland Tramrail P&H

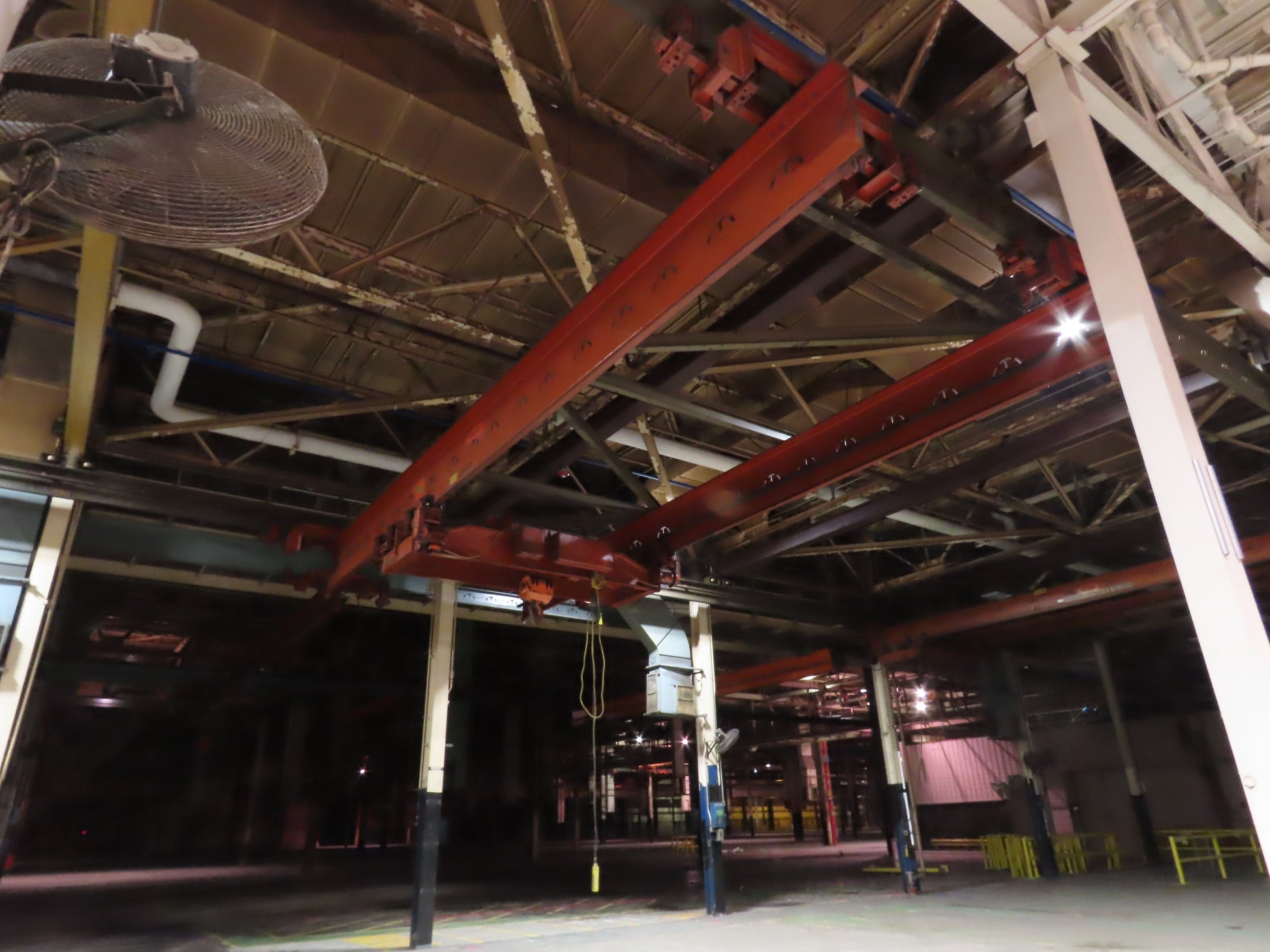

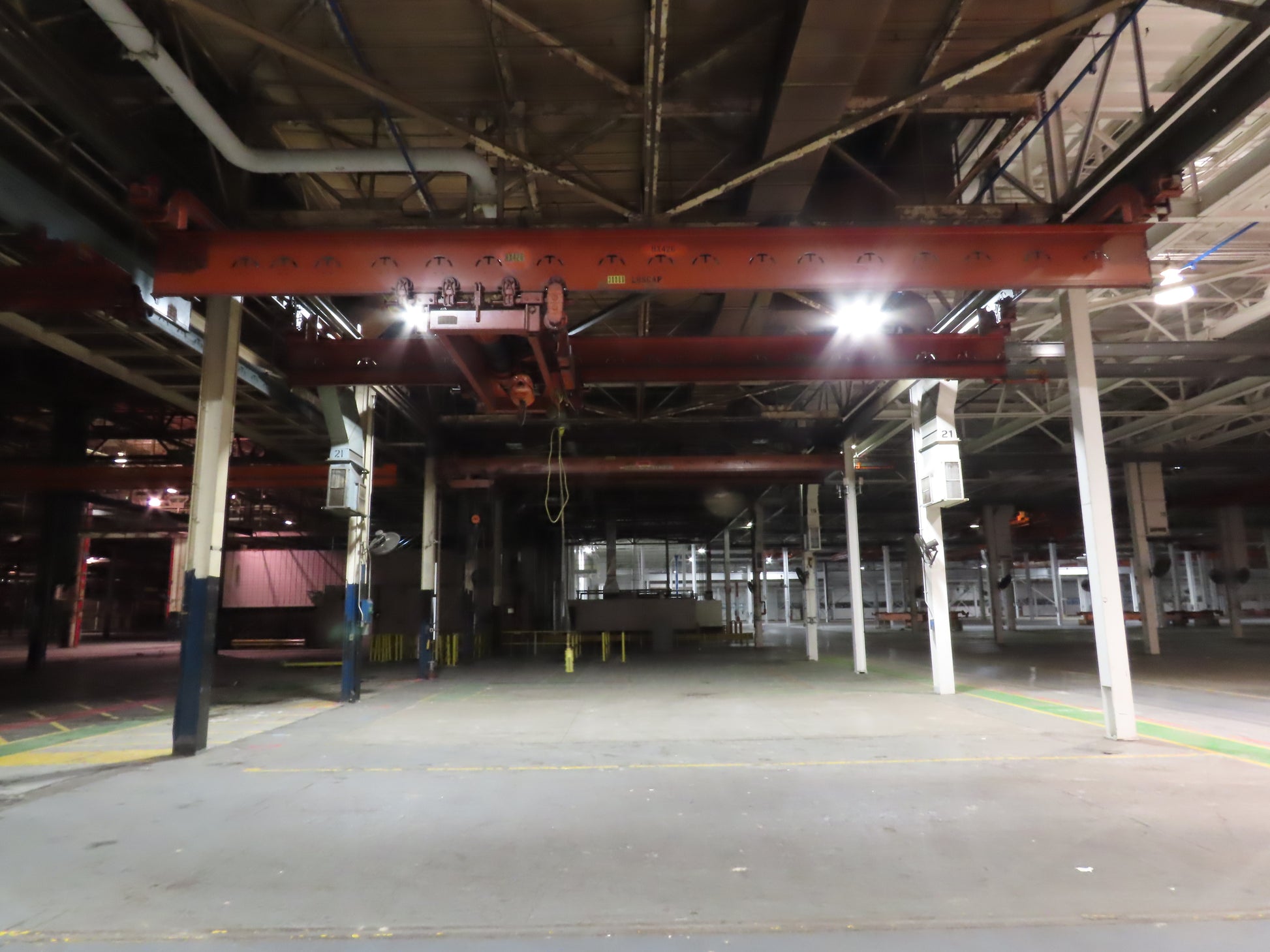

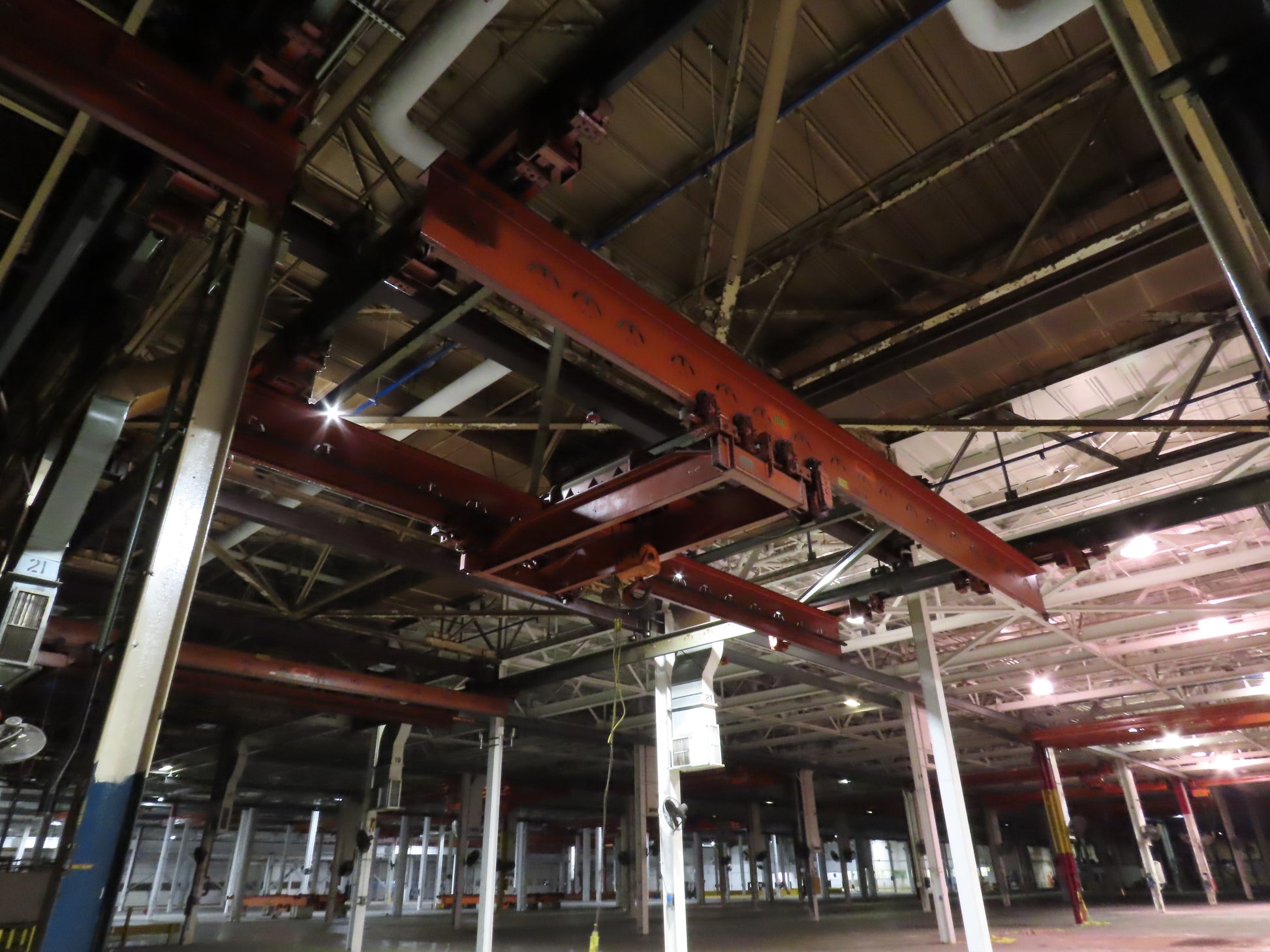

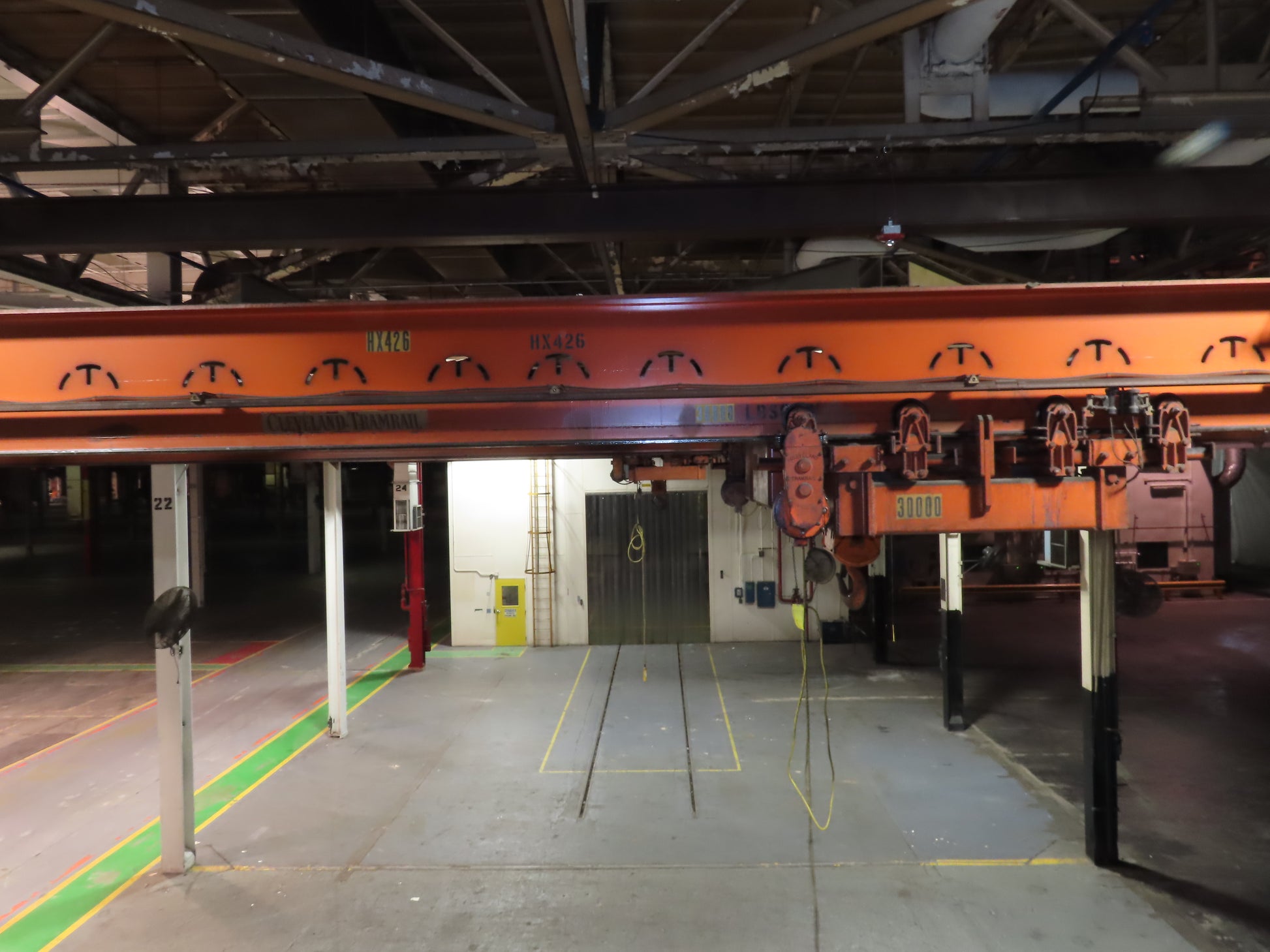

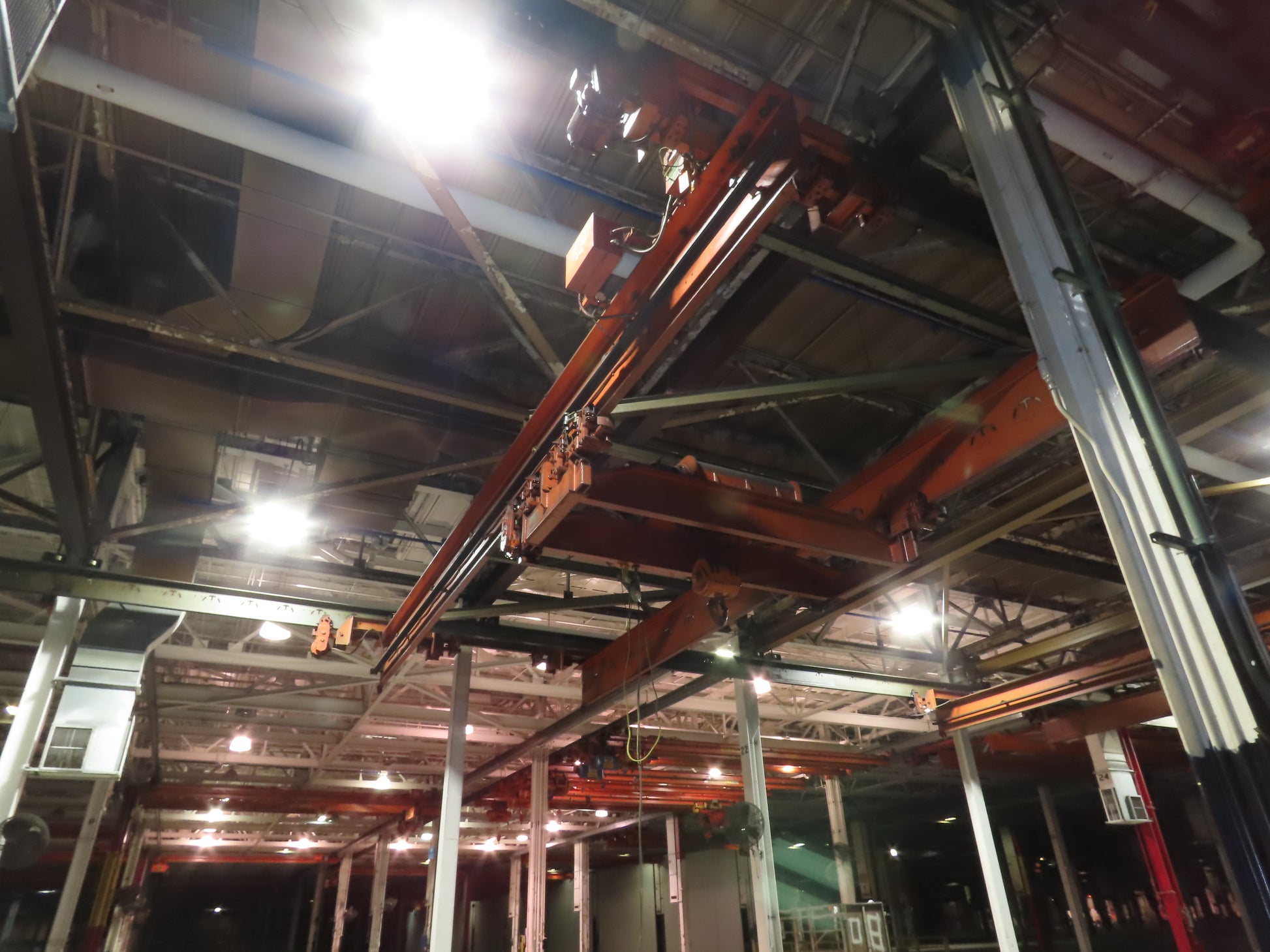

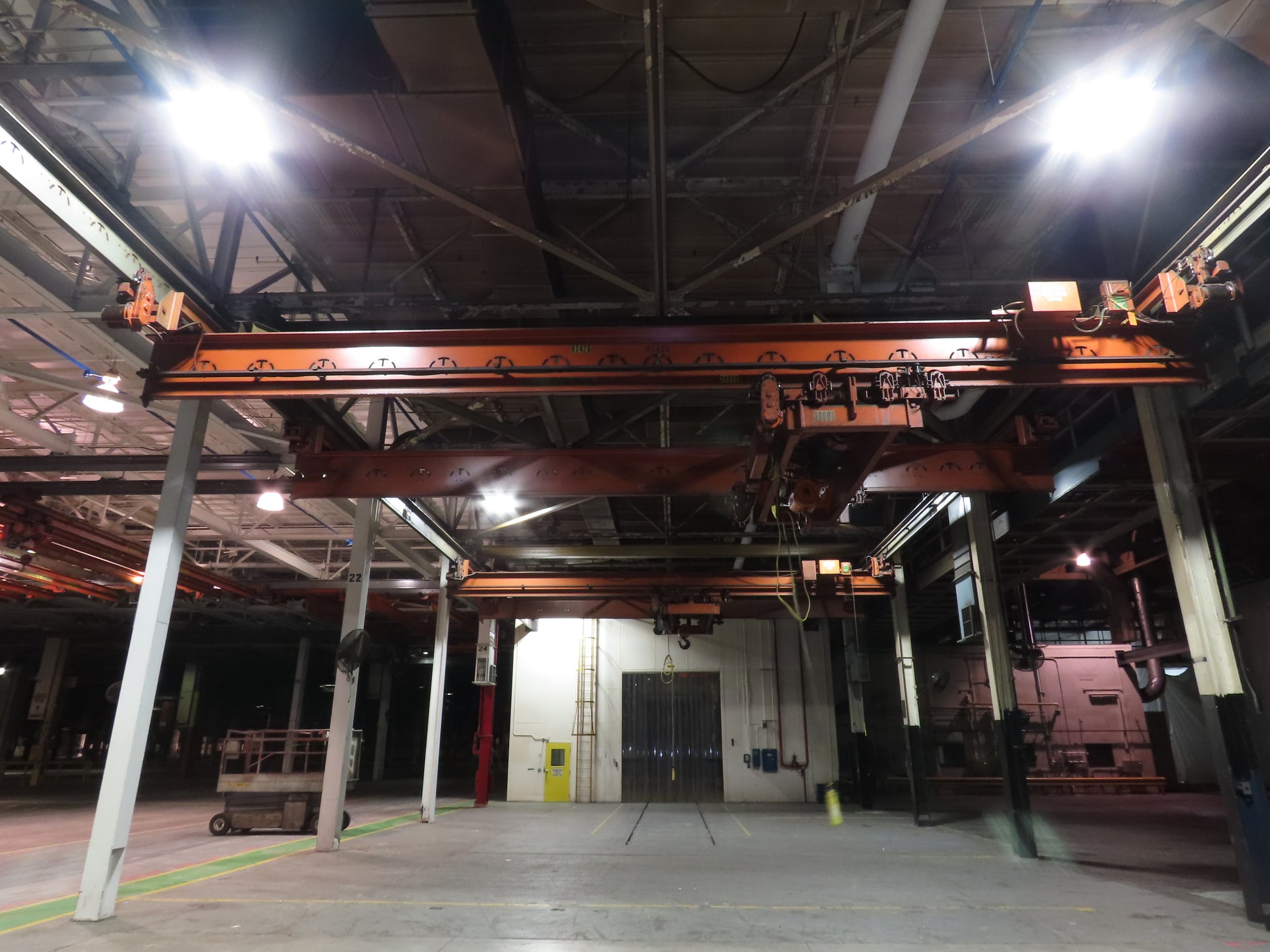

Cleveland Tramrail P&H 15 Ton Double Girder Underhung Bridge Crane 34' 10" Span

Cleveland Tramrail P&H 15 Ton Double Girder Underhung Bridge Crane 34' 10" Span

SKU #268235

Your Price
$18,809.96
$21,999.95 $18,809.96
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 15
  • Capacity (lb): 30000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 34' 10"

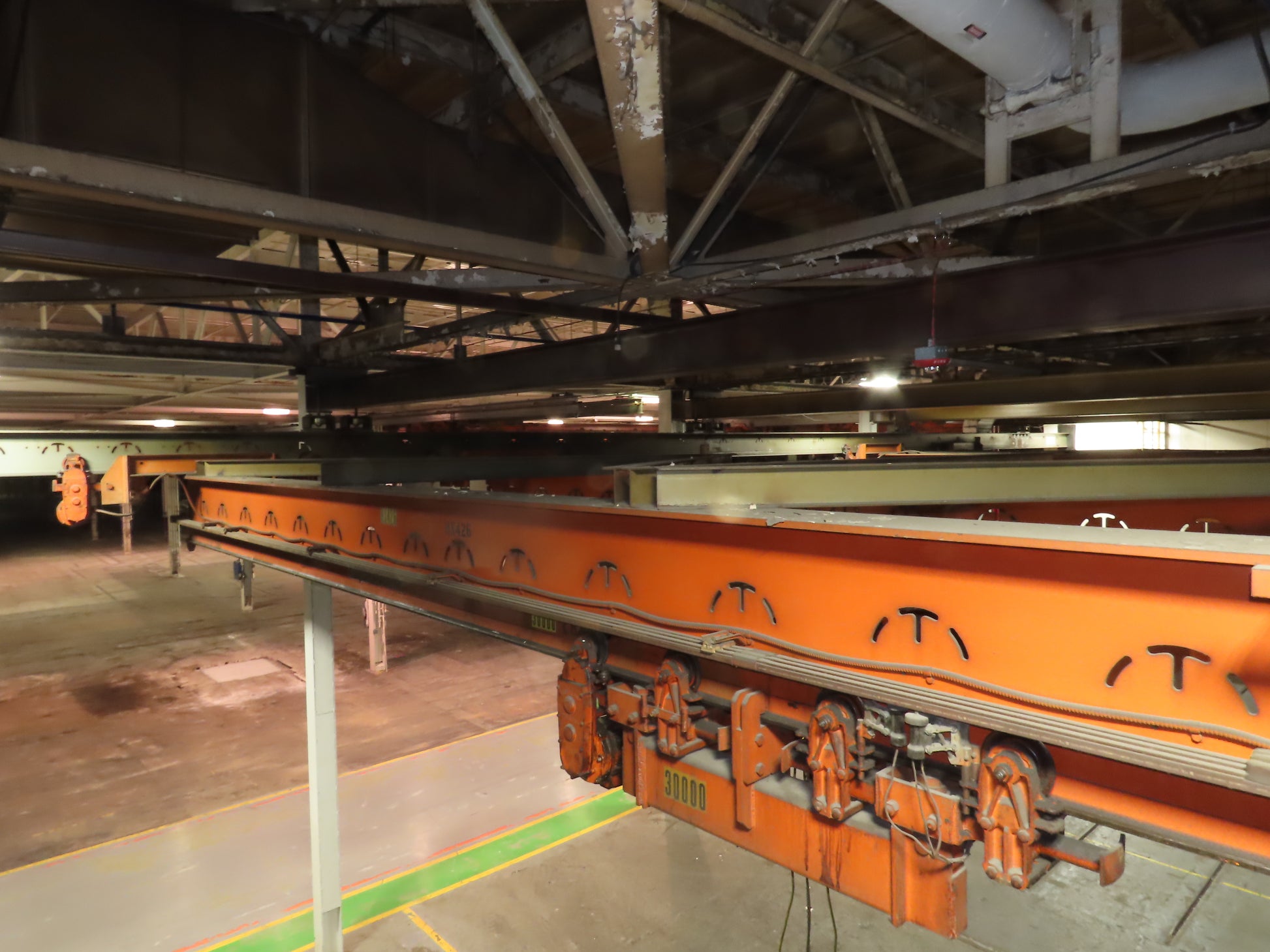

  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 37' 10"L

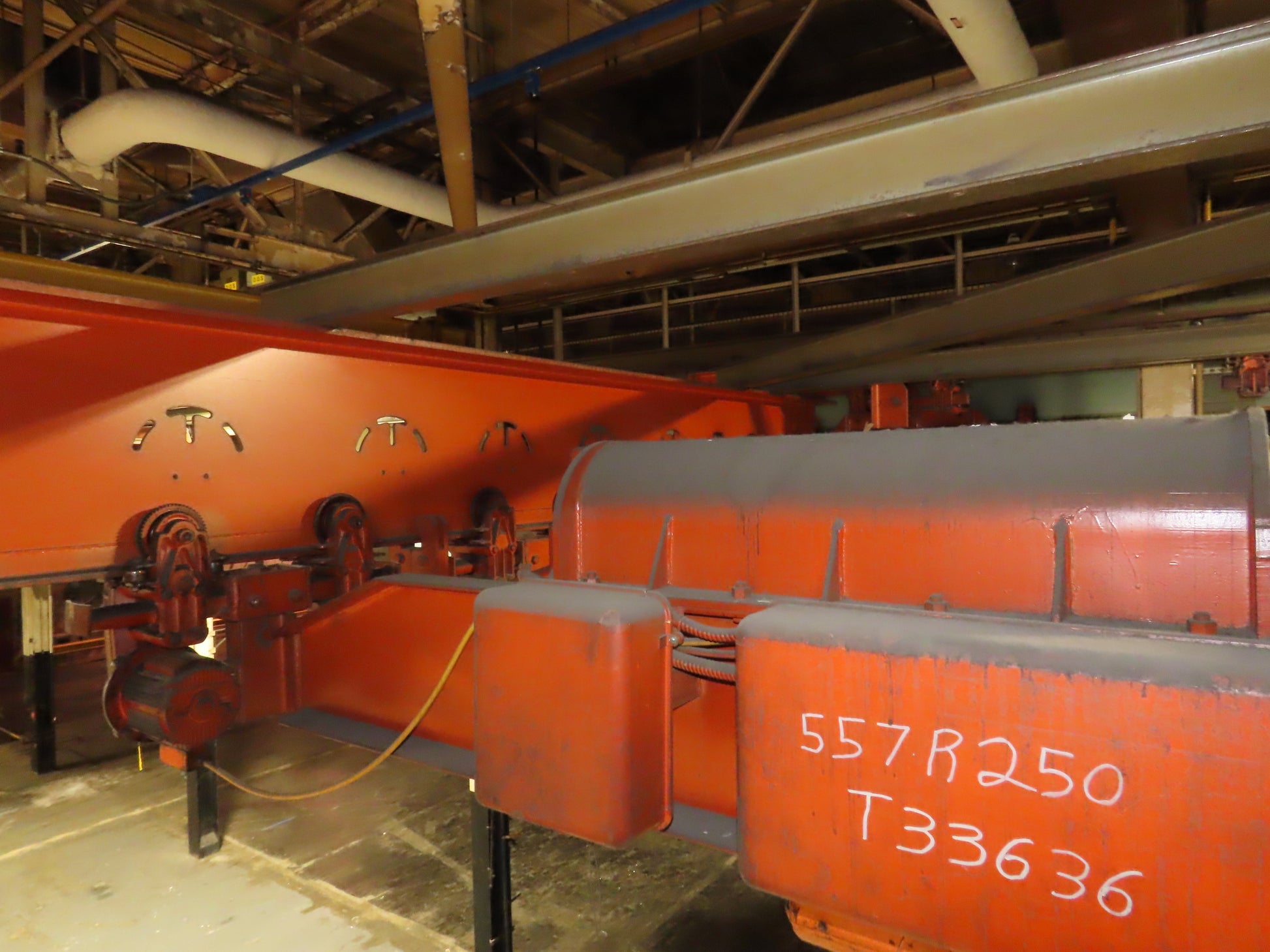

  • Hoist Brand: P&H
  • Lift Travel (feet): 22'
  • Lift Speed (feet per minute): 5/15 FPM 2-speed
  • Pendant/Control Length From Bottom of Hoist (ft): 20'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 42"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 72"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 86"
  • Bridge Crane is in working condition.  Tested on site before removal.

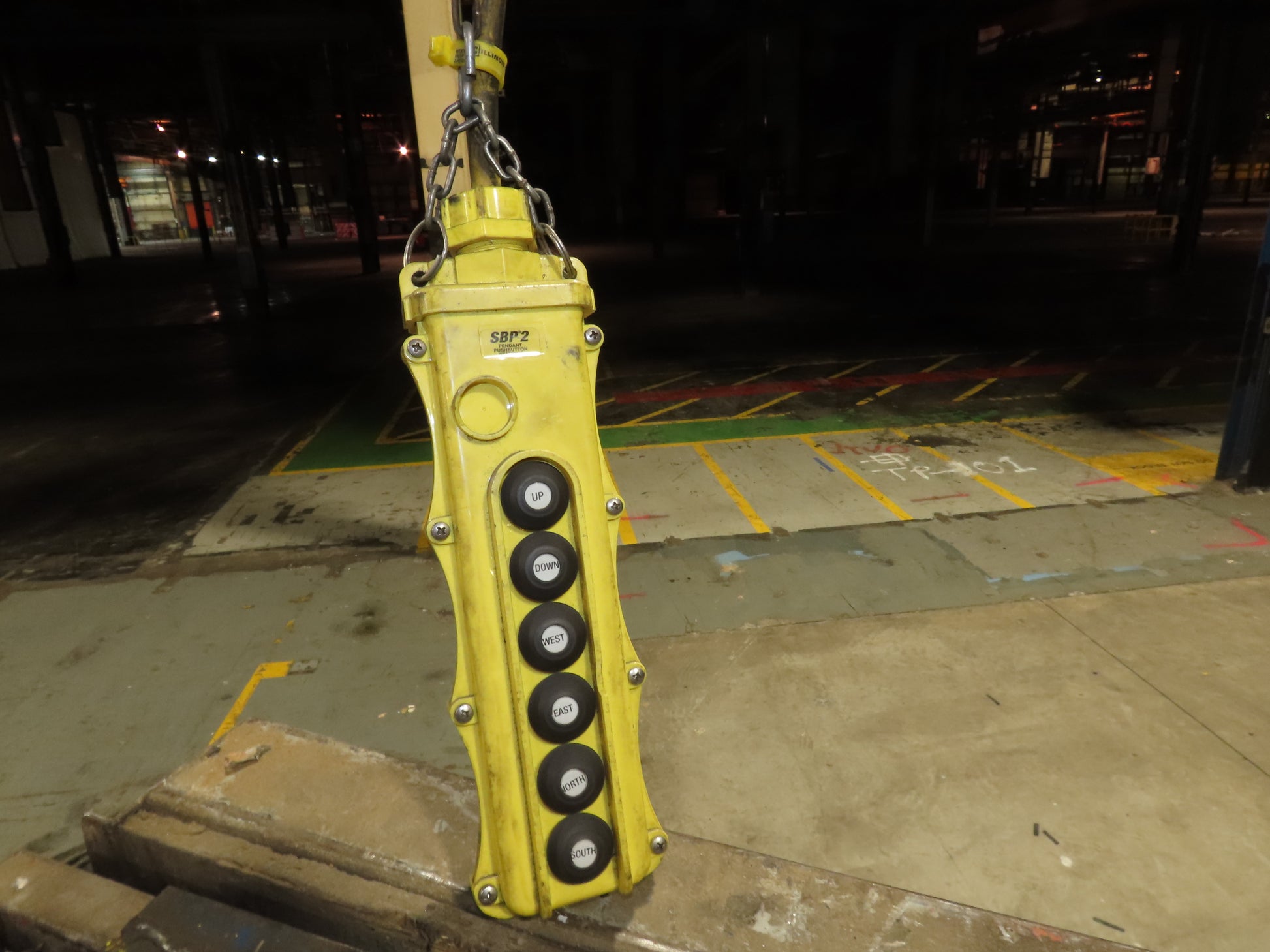

  • Includes corded pendant only. Not set up for wireless.

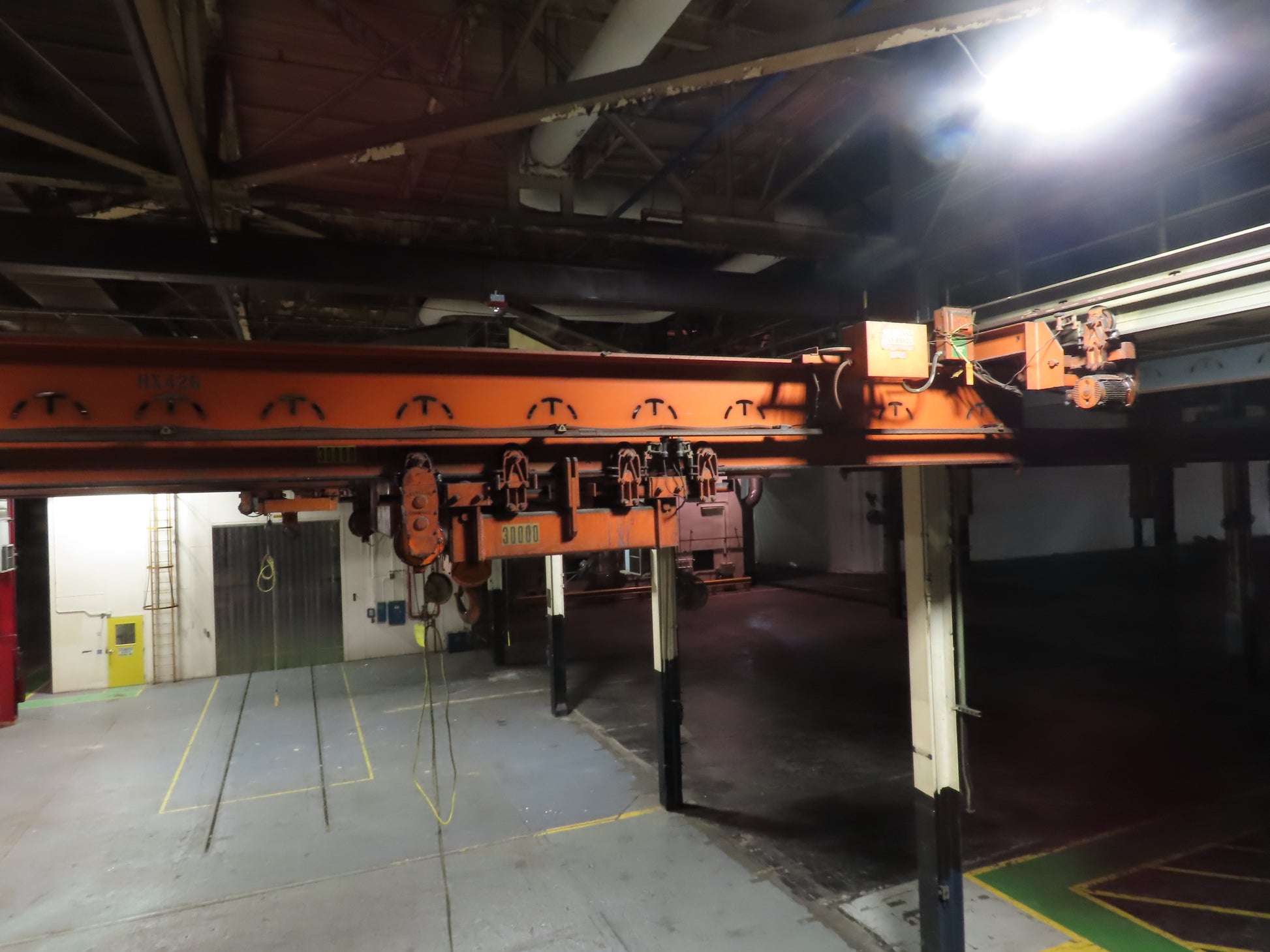

  • Single speed bridge and trolley, 2 speed hoist.

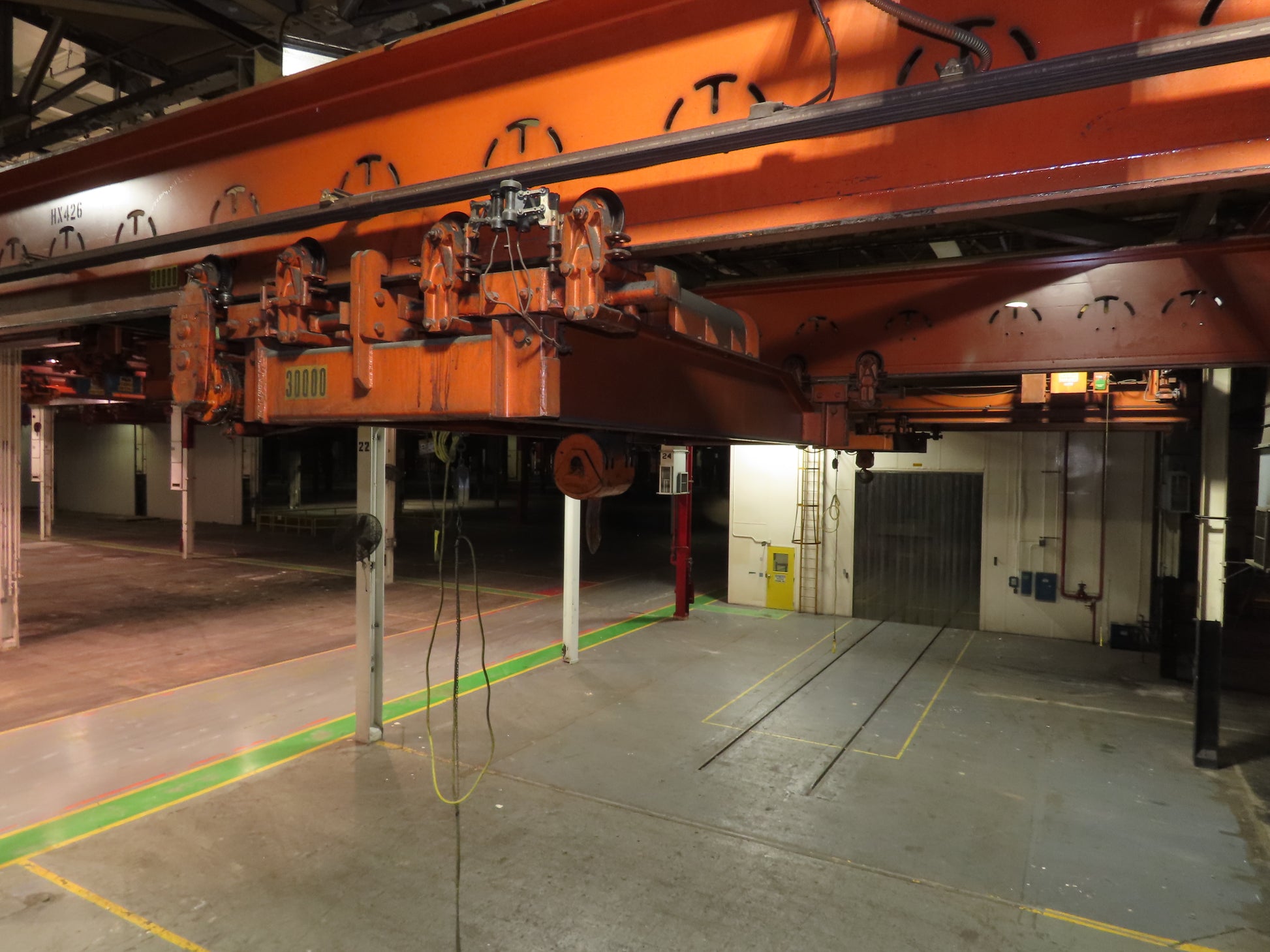

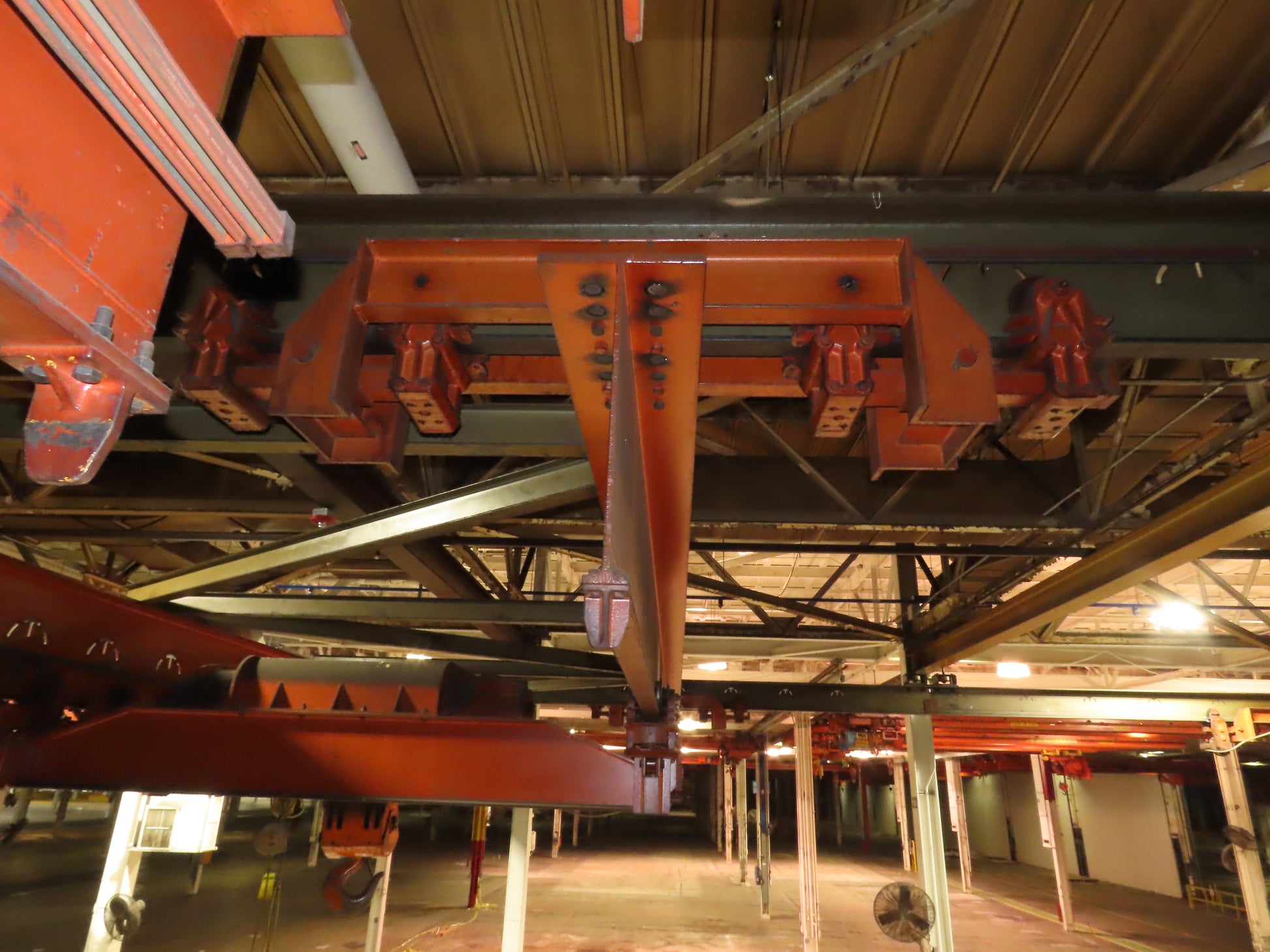

  • Trolley carriage length: 88"

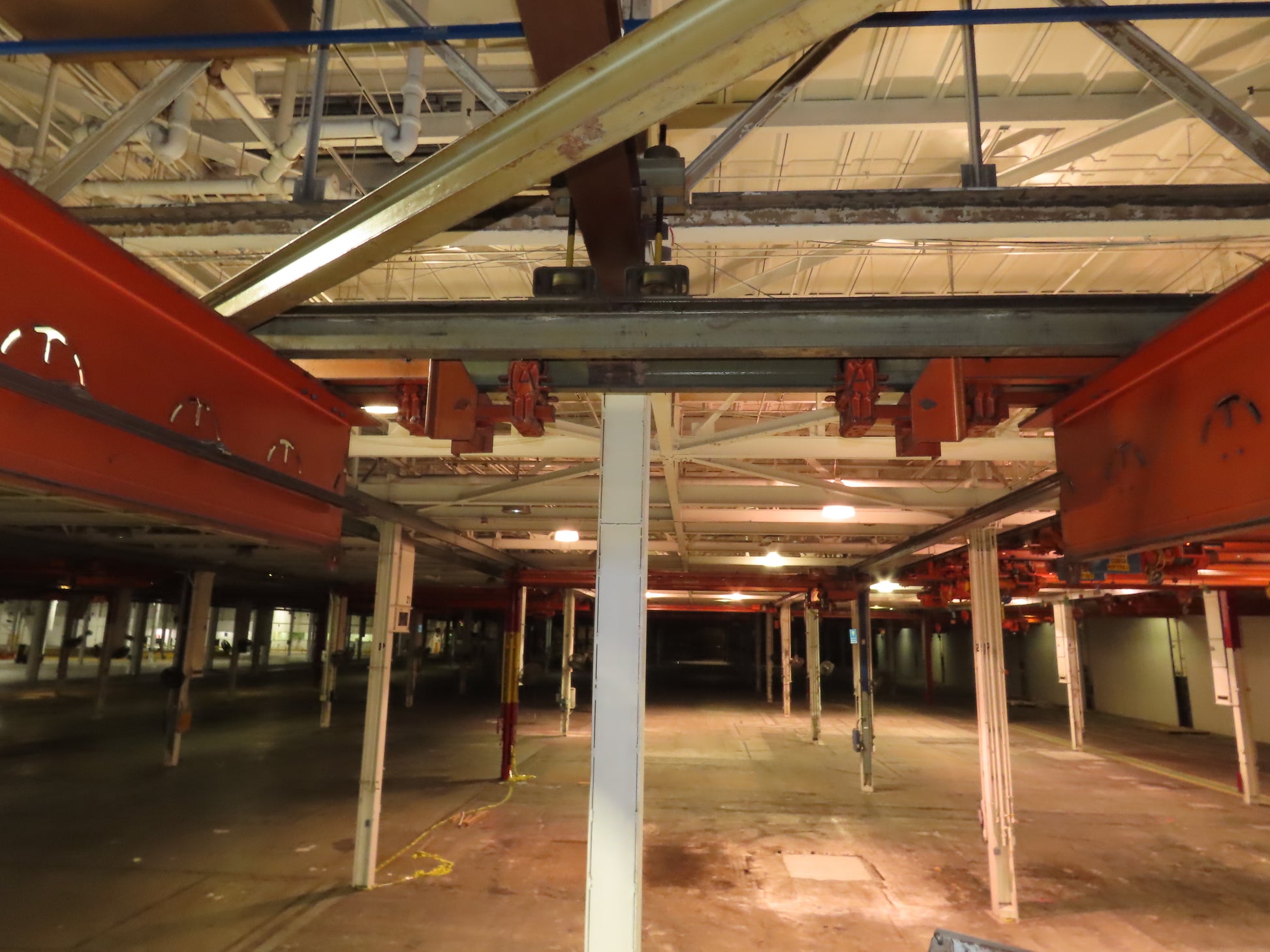

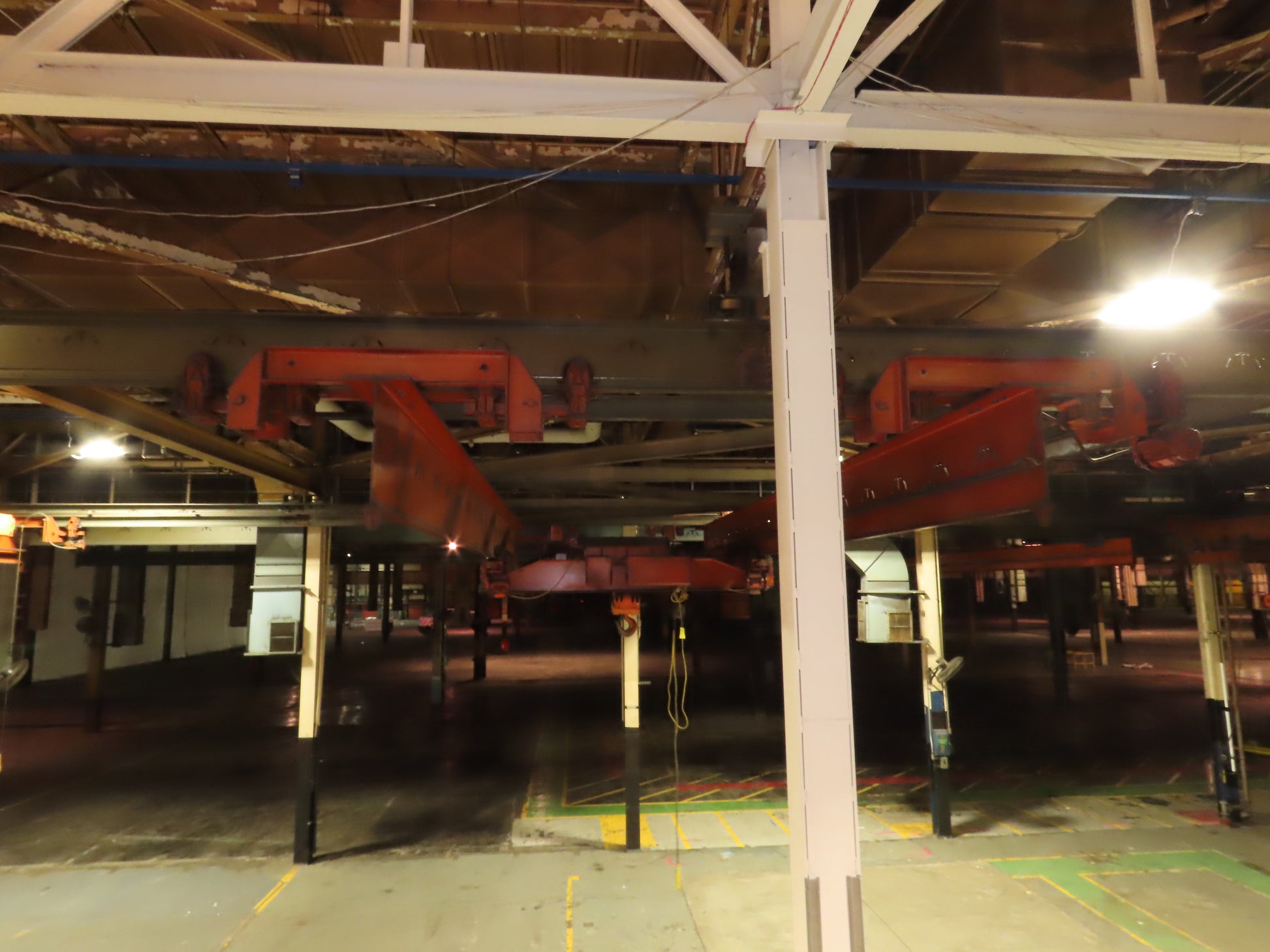

  • End truck length:  96"
  • End truck wheel size:  6"
  • Girder beam span: 12'
  • Top braces are welded on.
