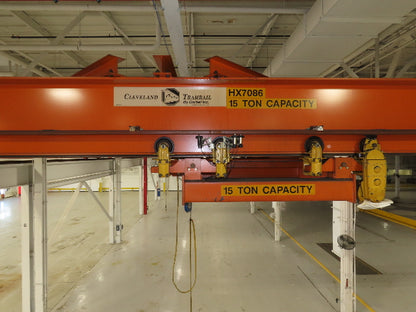

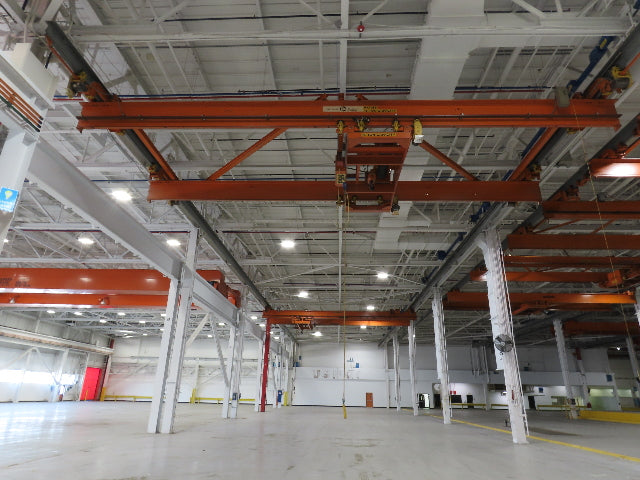

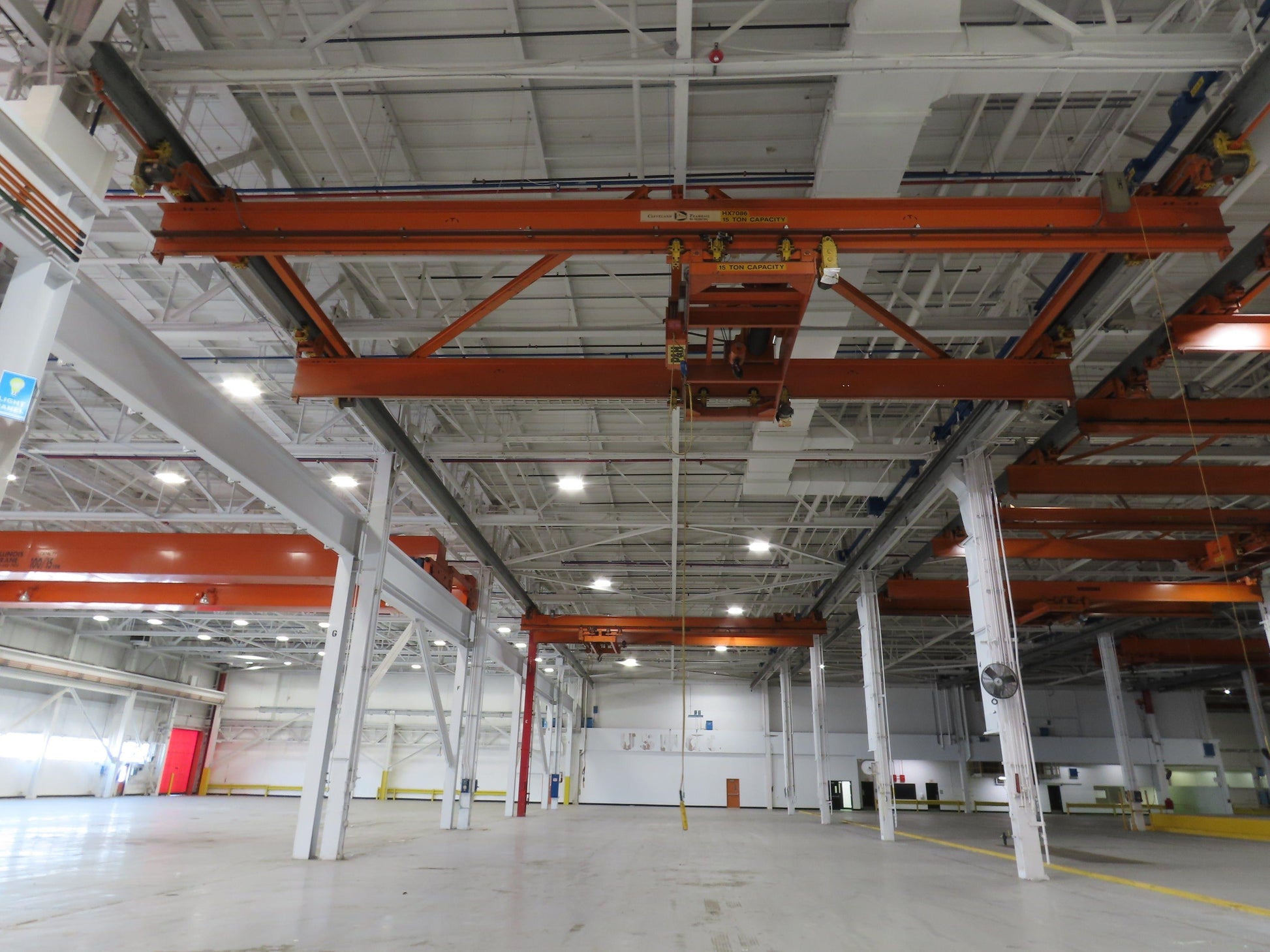

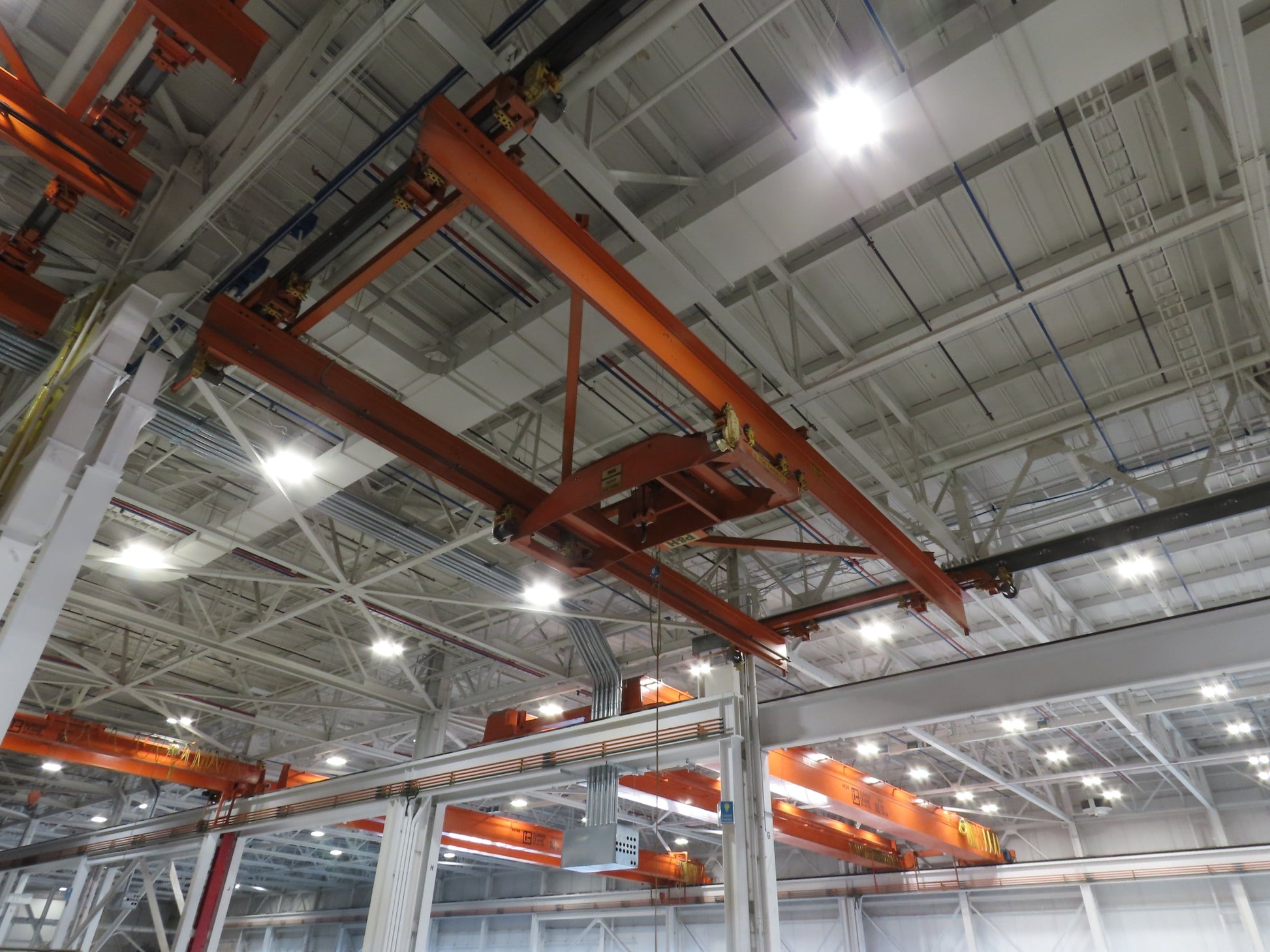

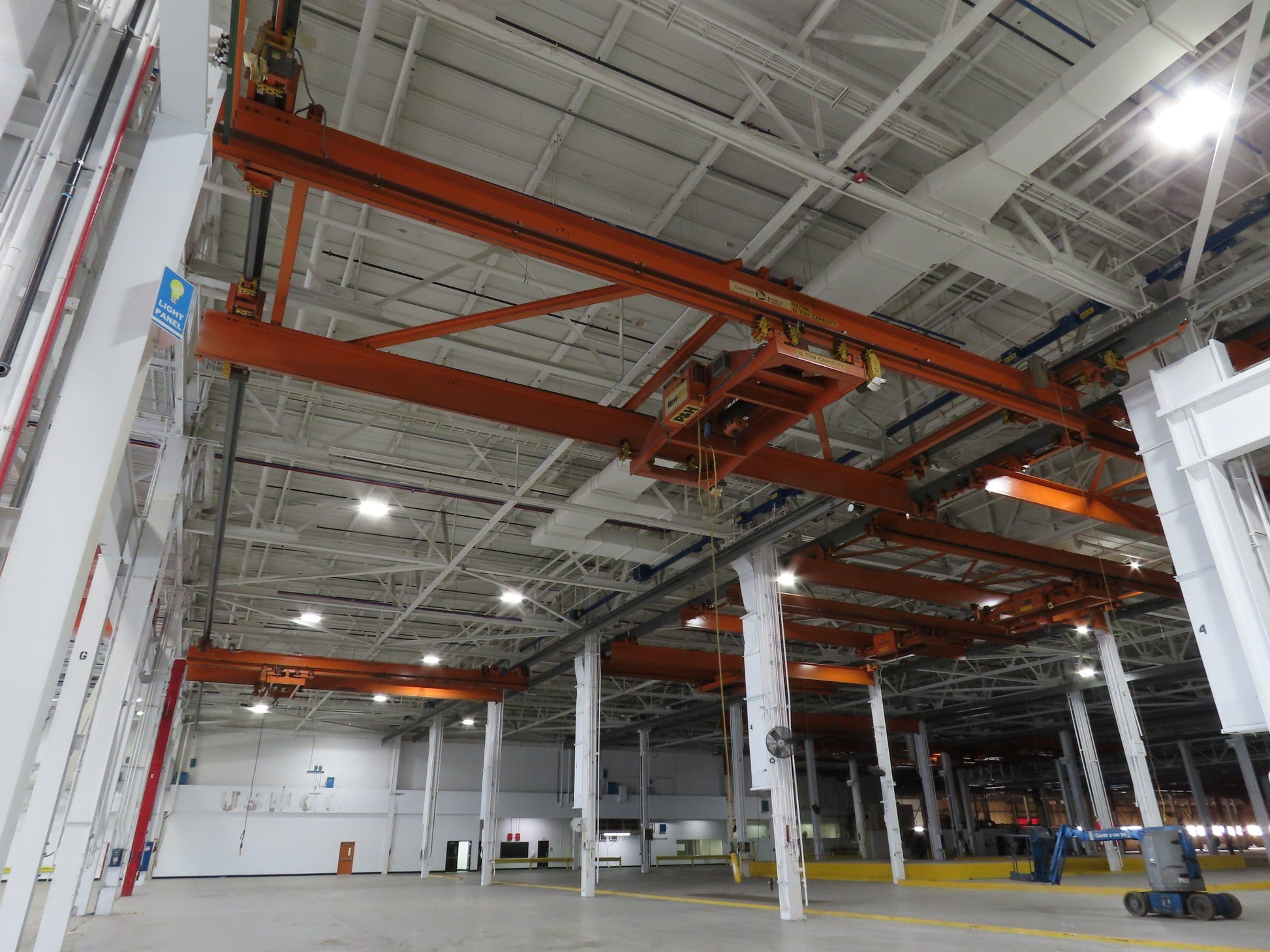

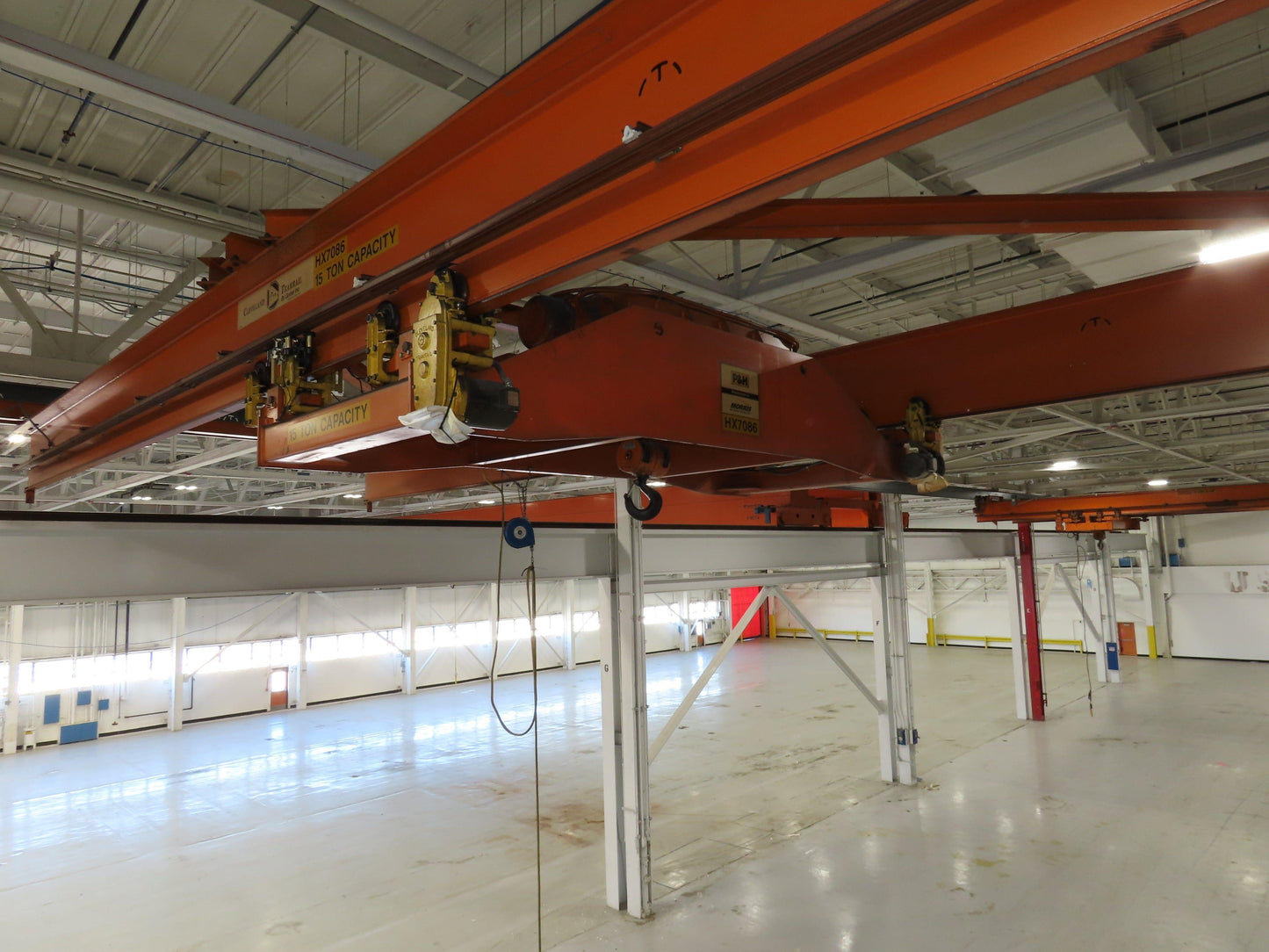

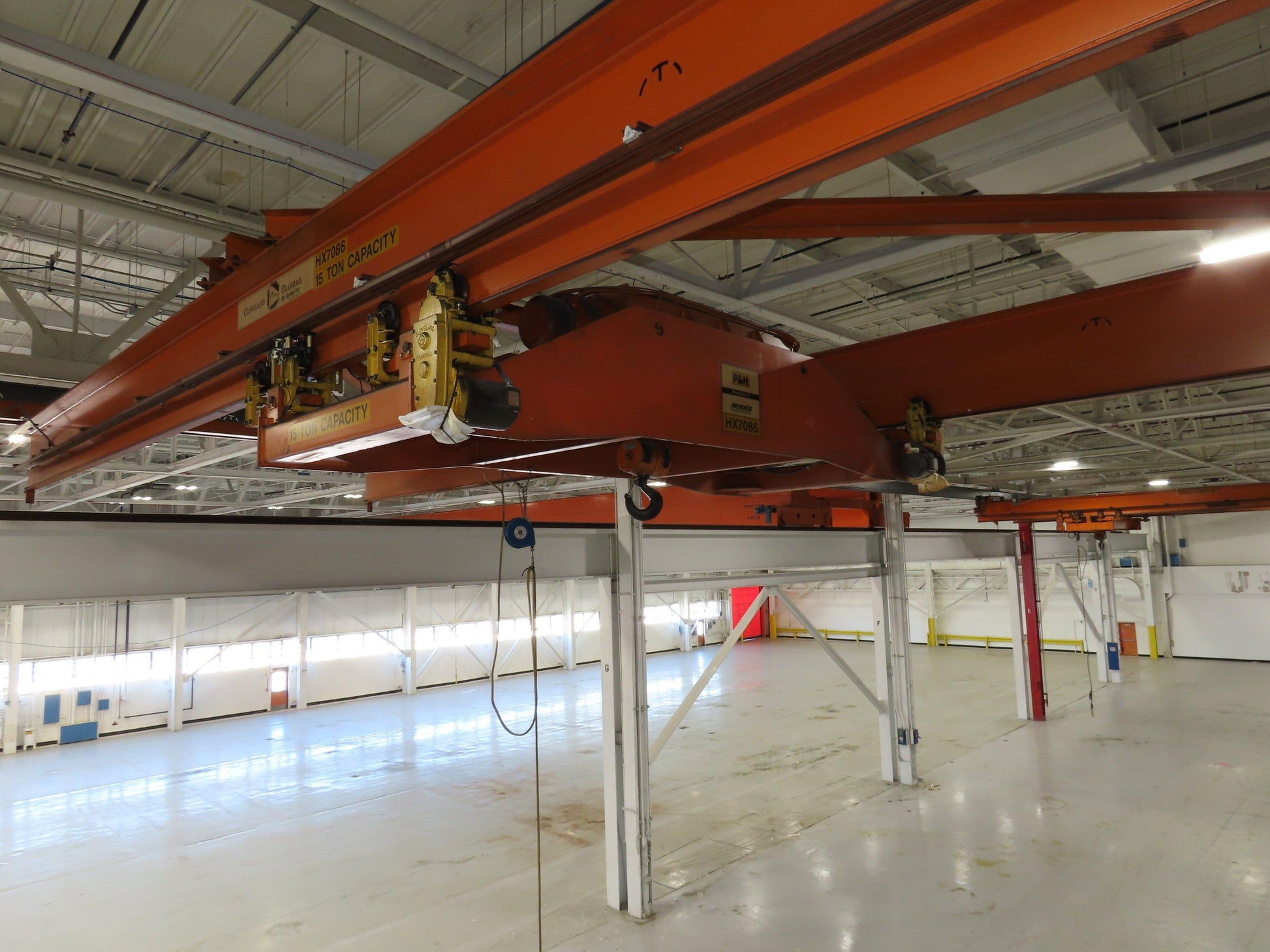

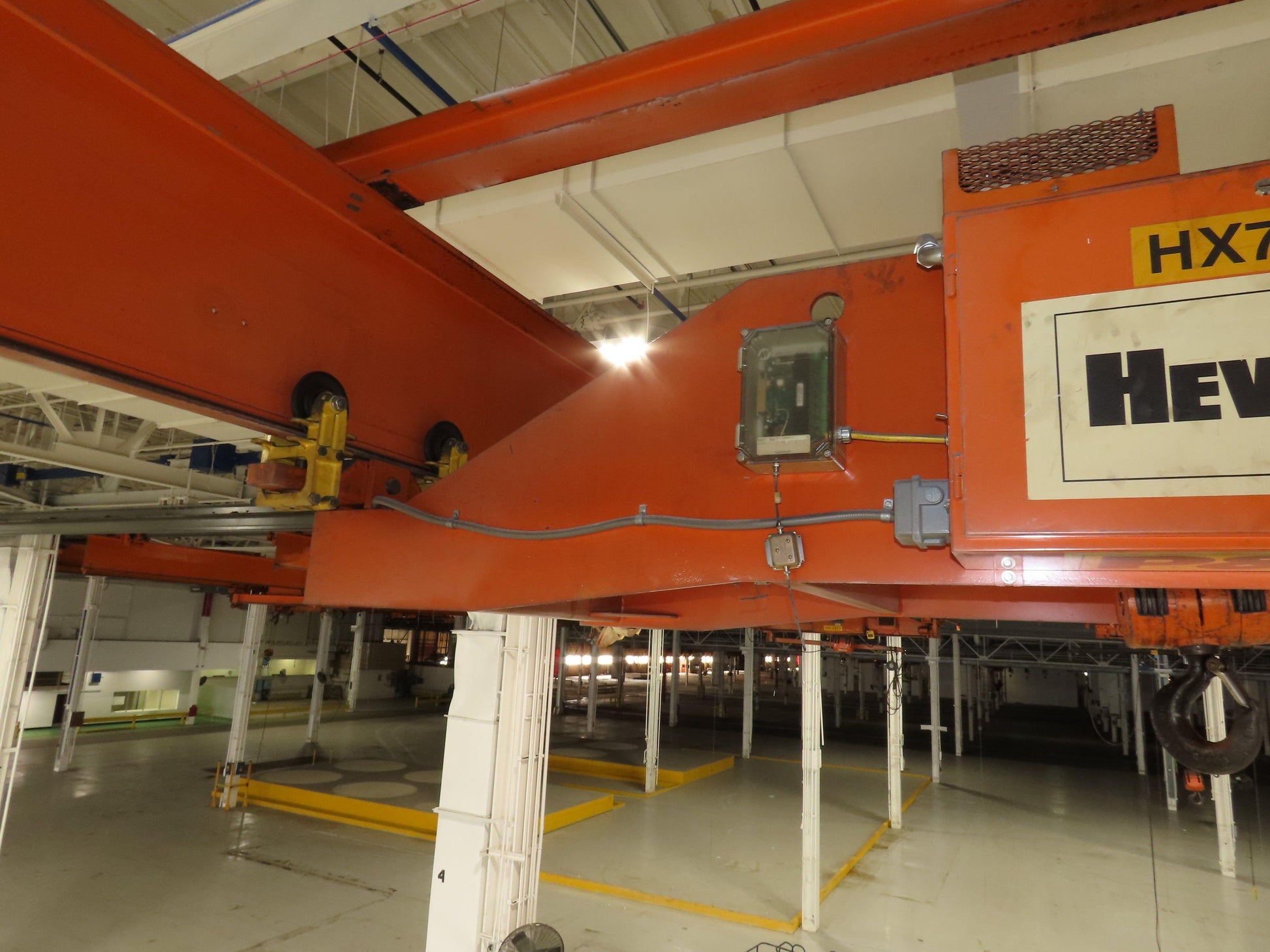

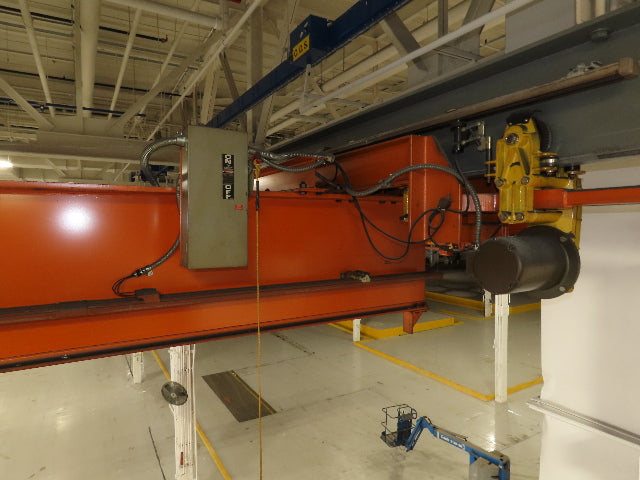

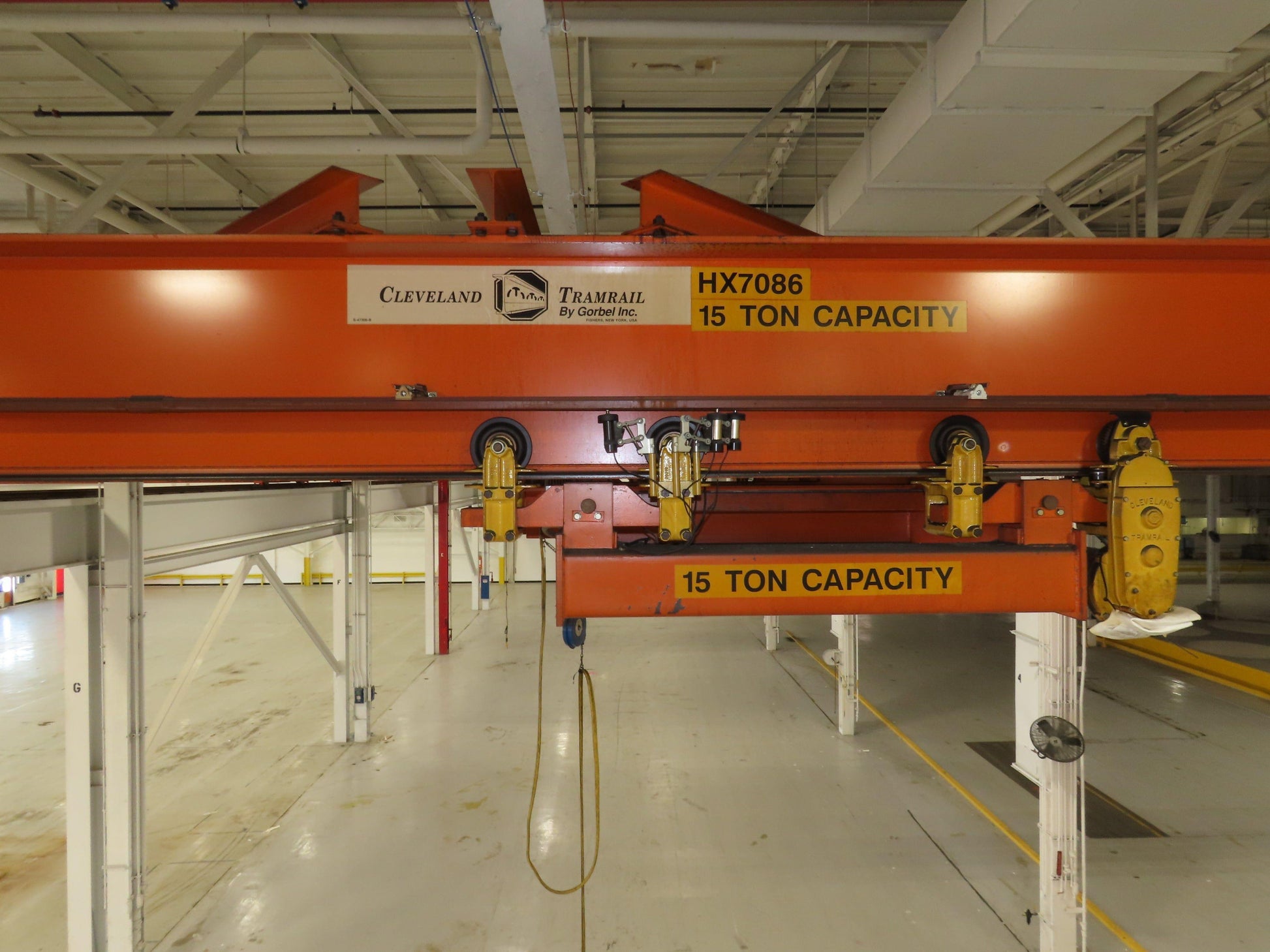

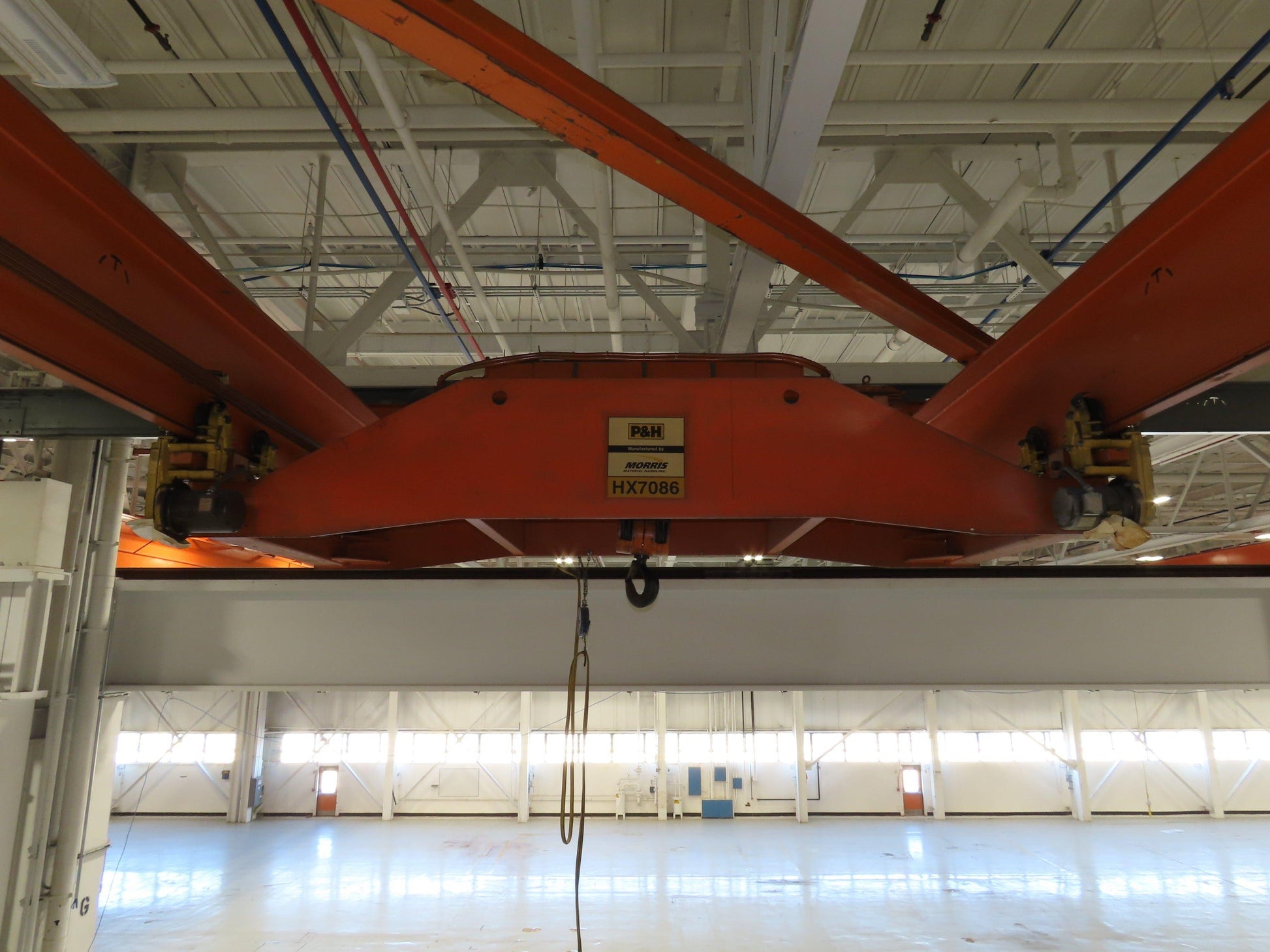

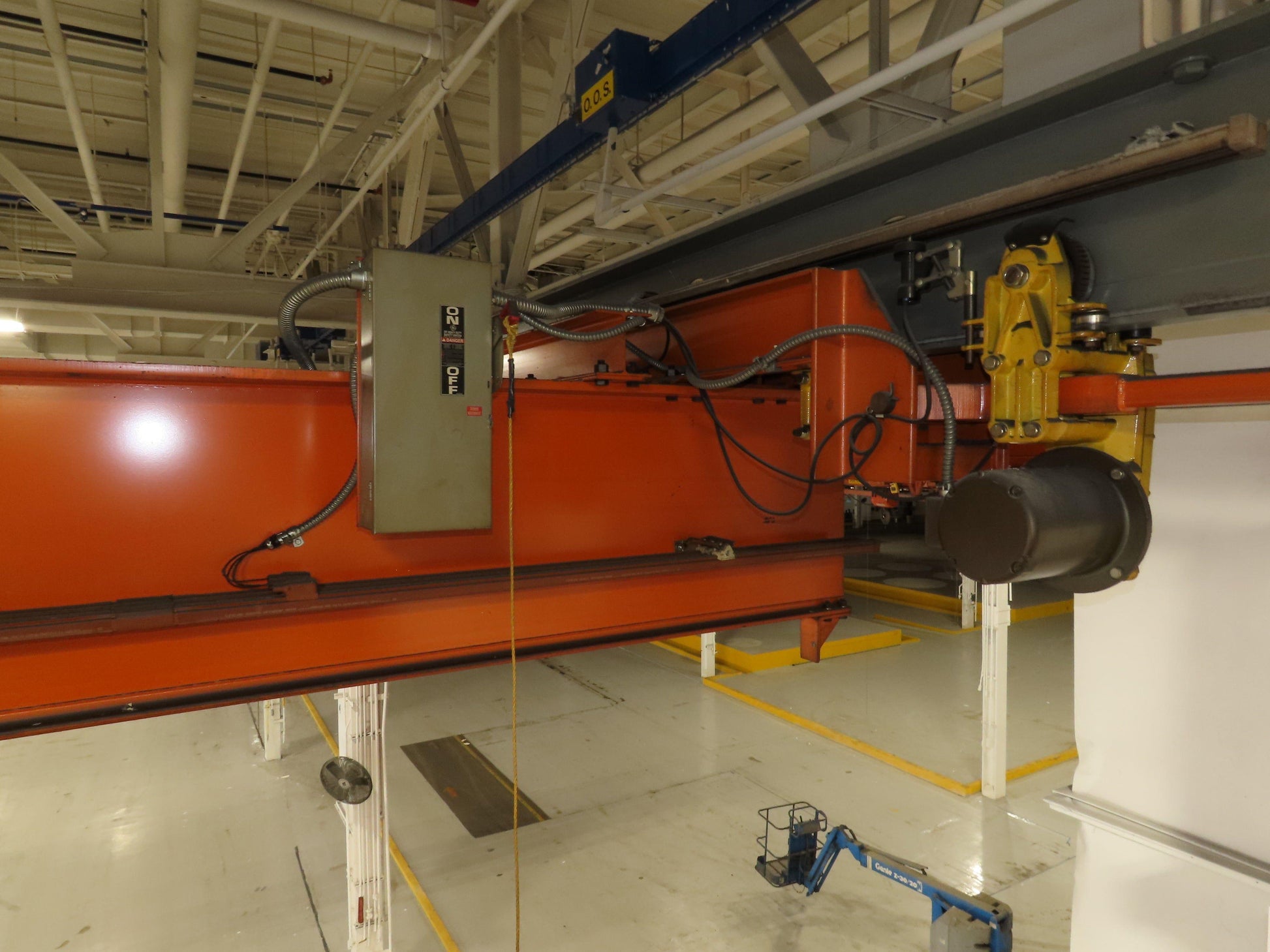

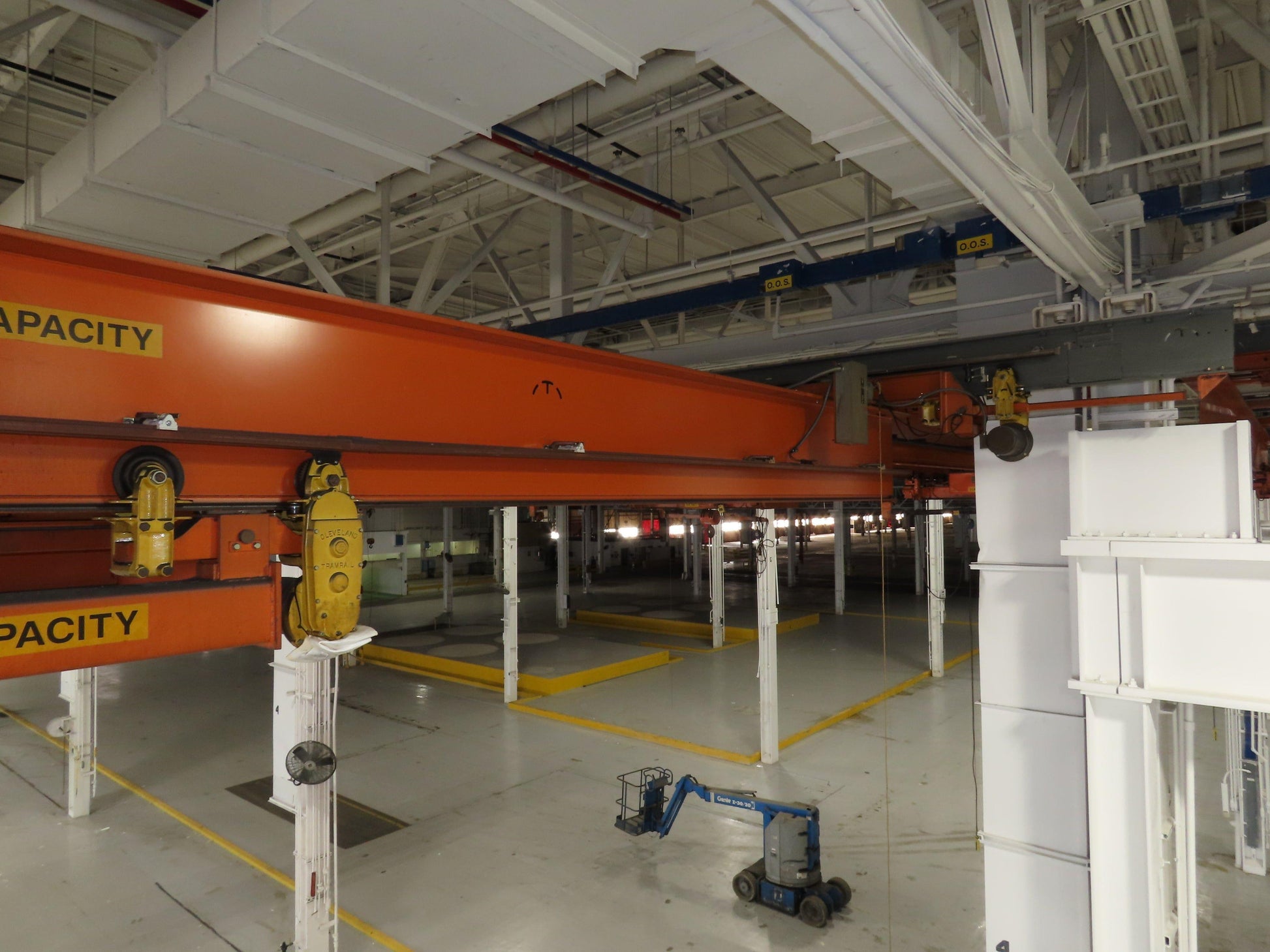

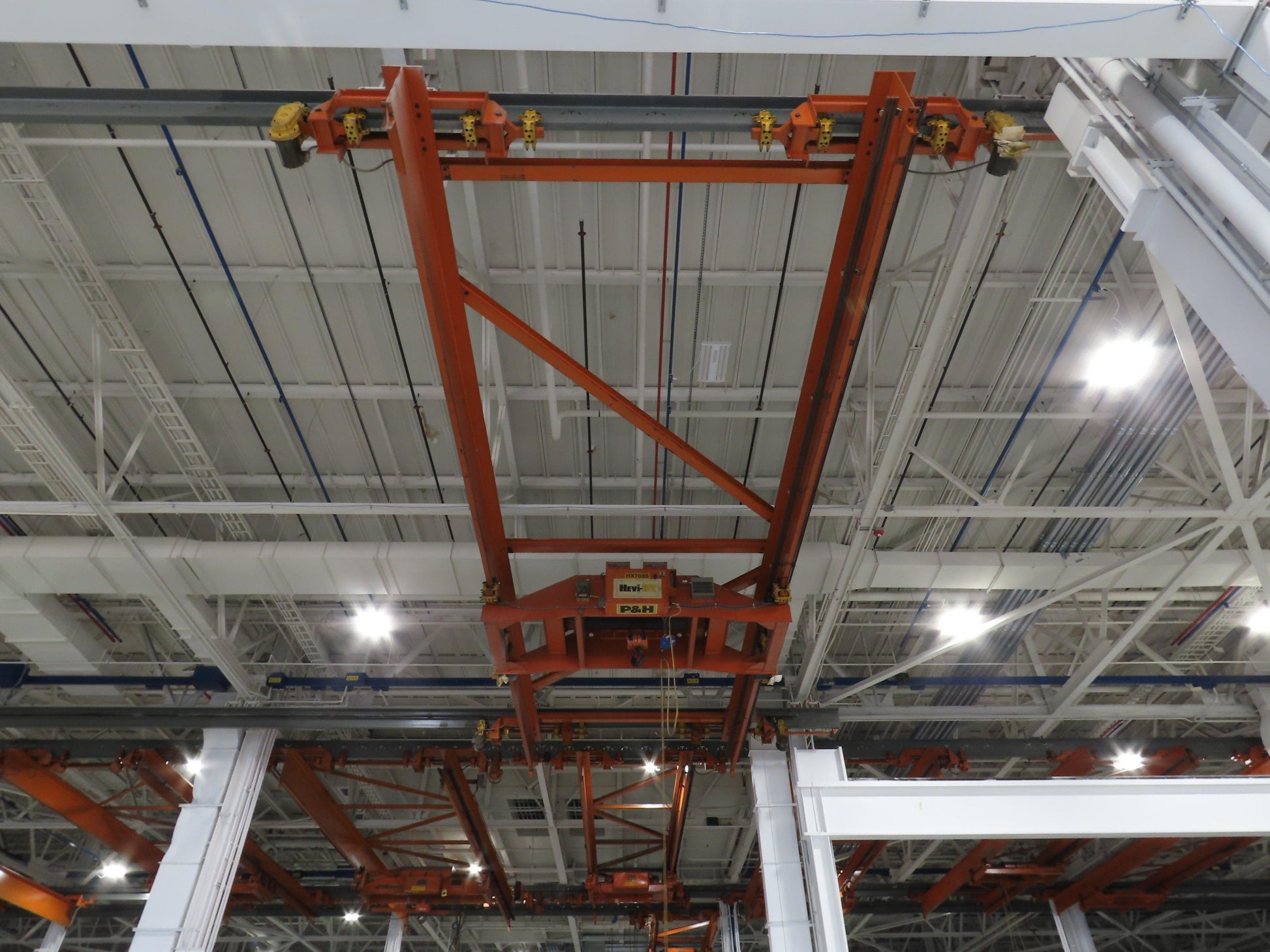

Cleveland Tramrail P&H 15 Ton Double Girder Underhung Bridge Crane 43' Span

Cleveland Tramrail P&H 15 Ton Double Girder Underhung Bridge Crane 43' Span

SKU #268196

Your Price
$20,092.49
$23,499.99 $20,092.49
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 15
  • Capacity (lb): 30000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 43'
  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 46' 6"L

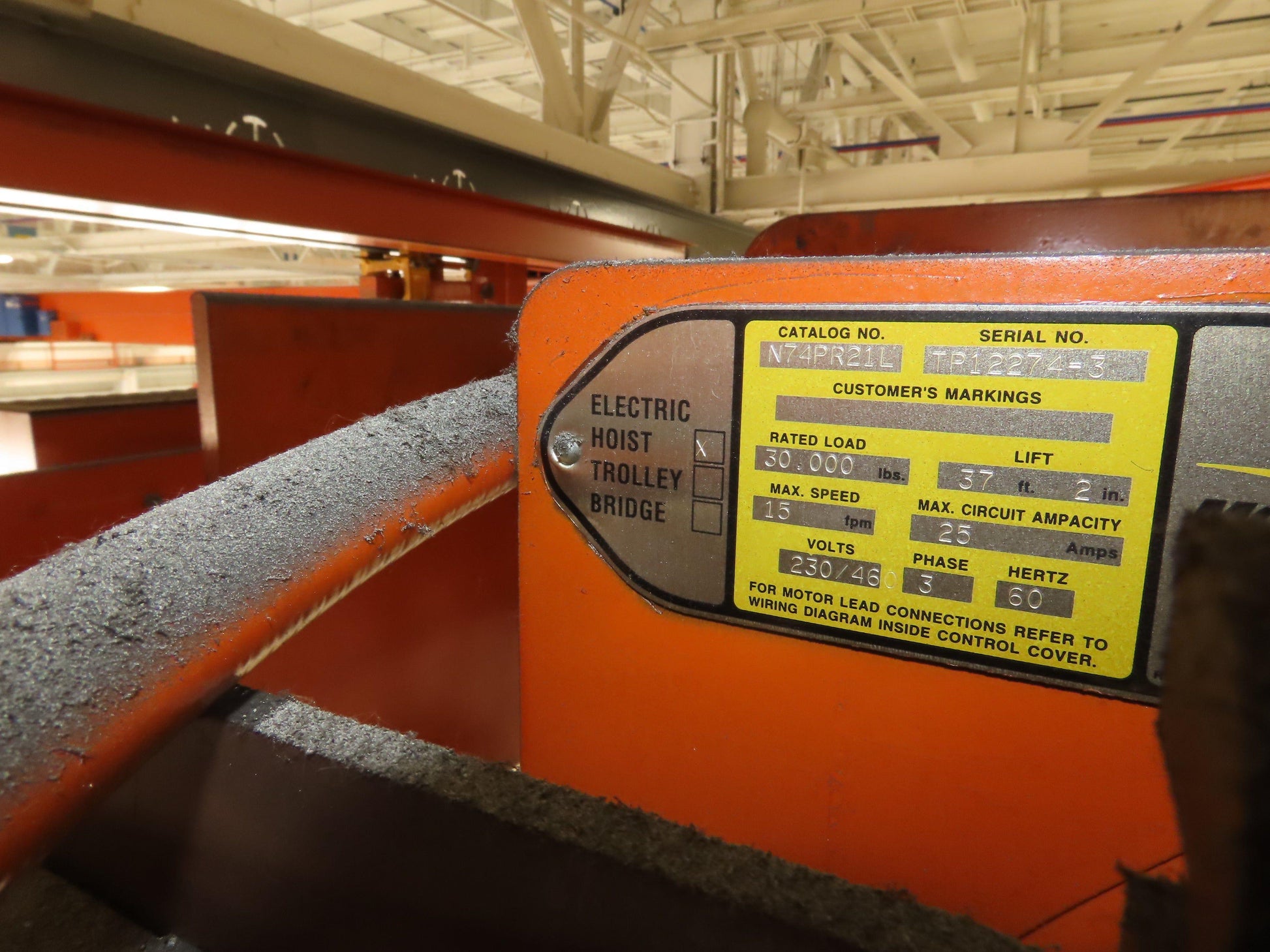

  • Hoist Brand: P&H
  • Hoist Model: N74PR21L
  • Lift Travel (feet): 37' 2"
  • Lift Speed (feet per minute): 15

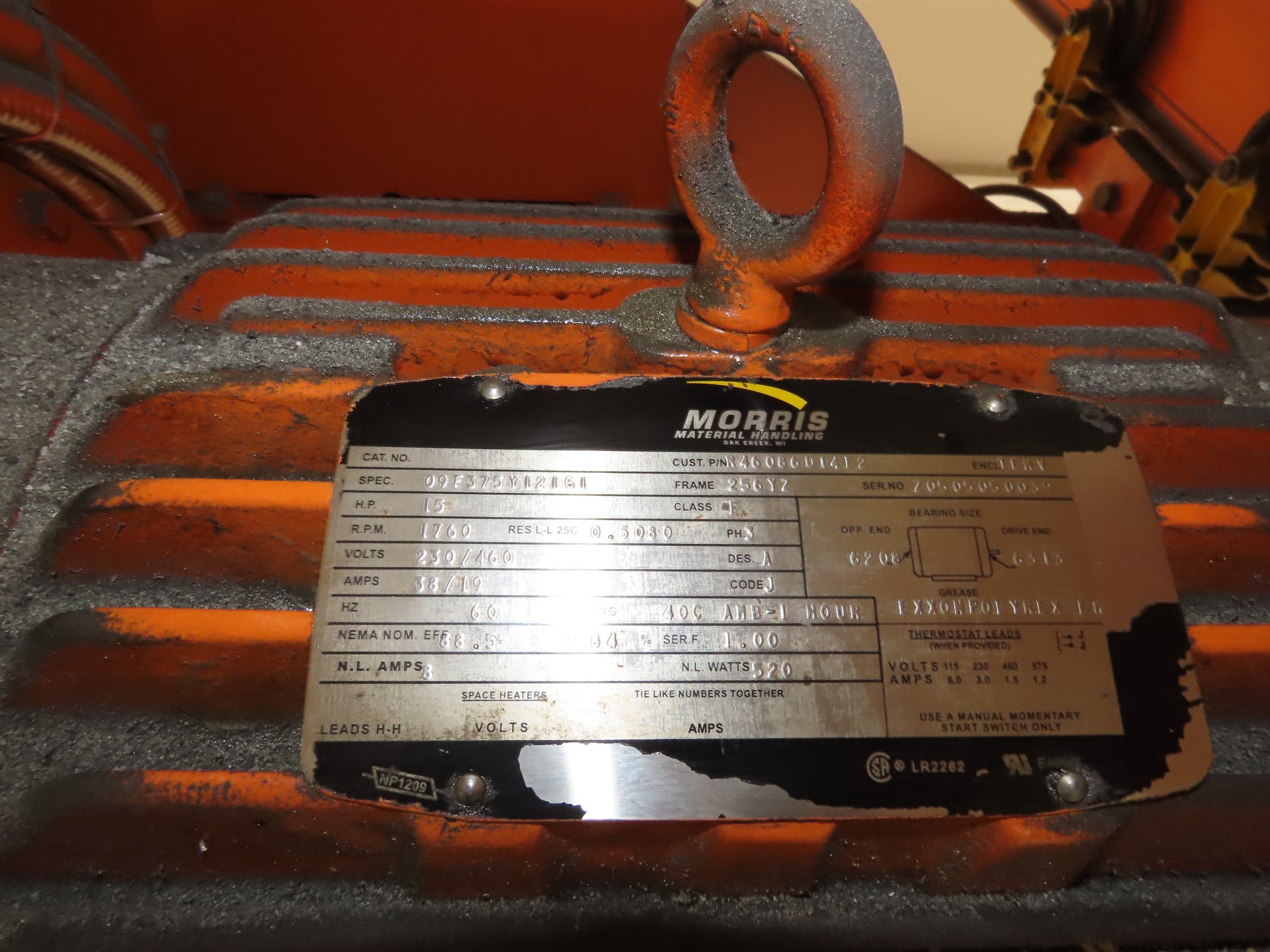

  • Motor Horse Power: 15

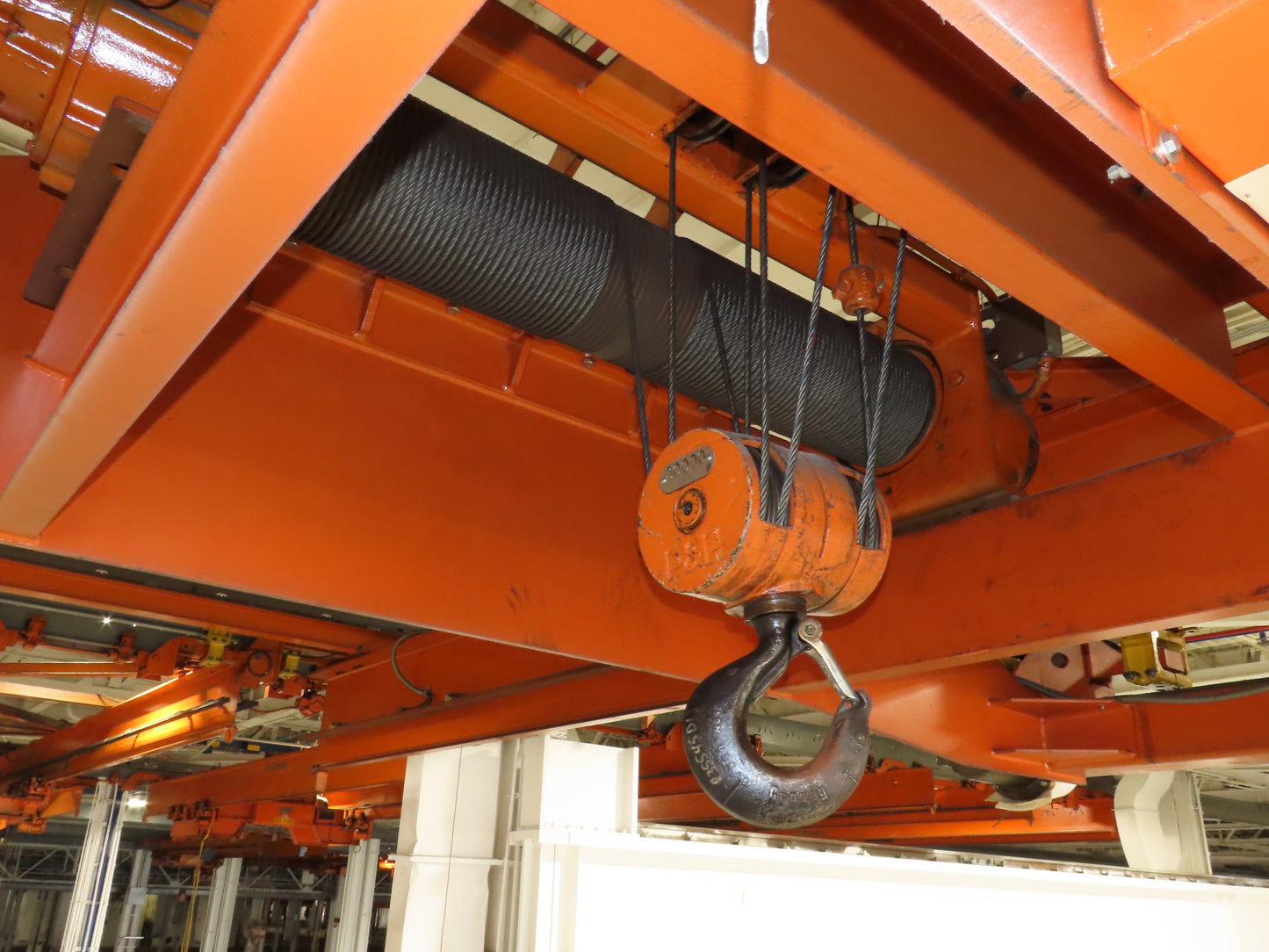

  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 26'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 30"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 60"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 68"
  • Bridge Crane is in working condition.  Tested on site before removal.

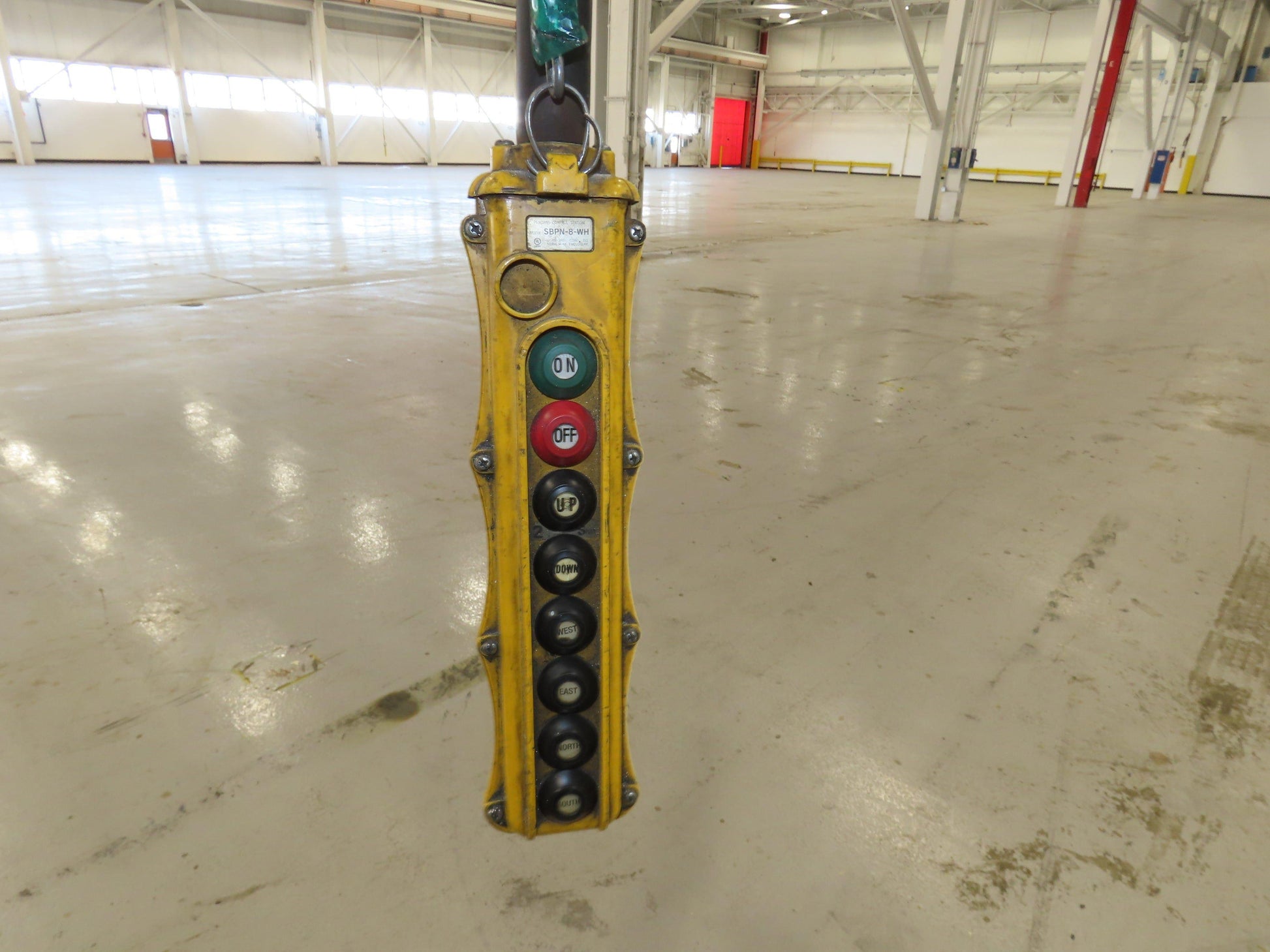

  • Includes corded pendant only.  Set up with wireless receiver but is missing the remote.

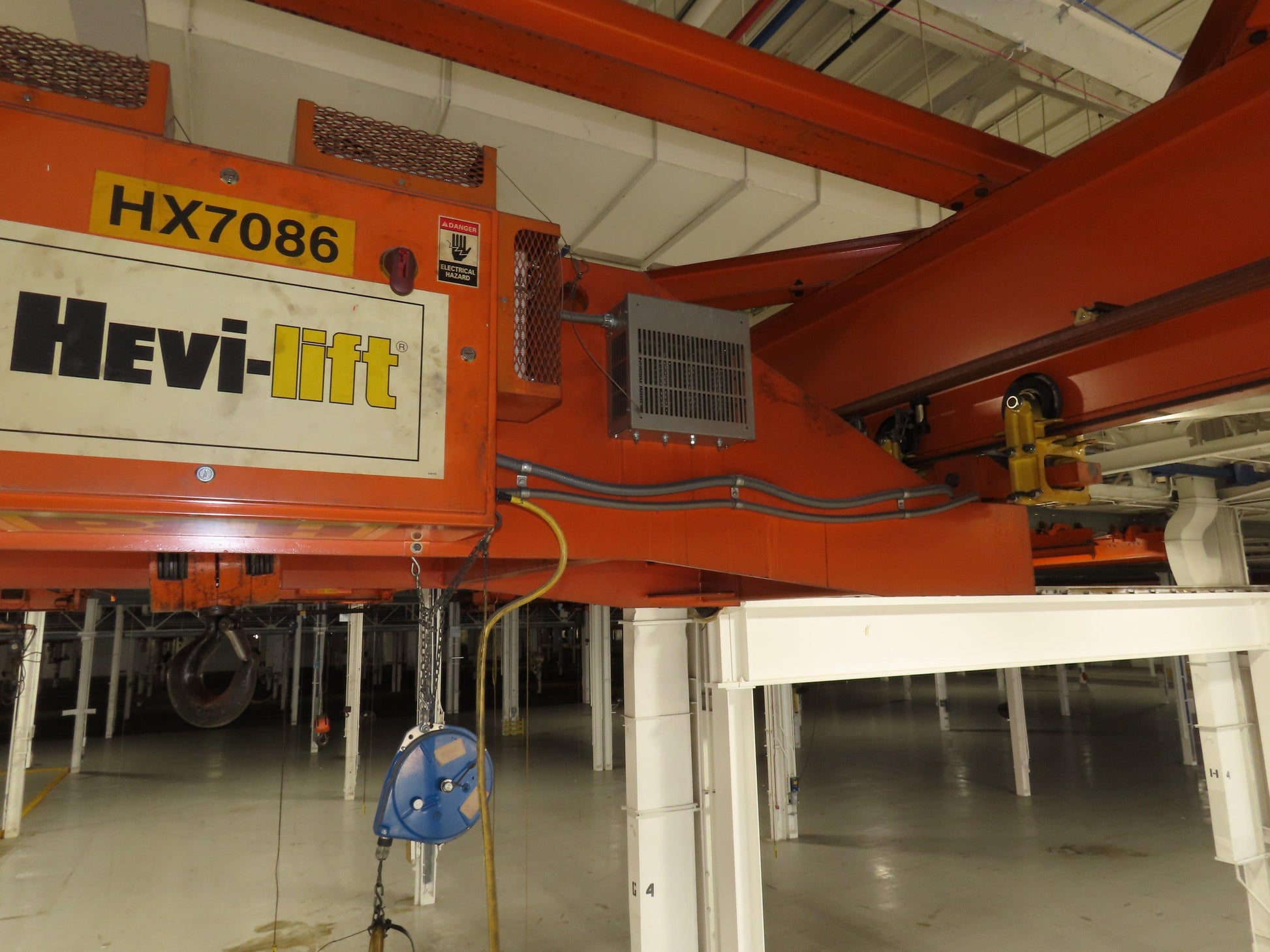

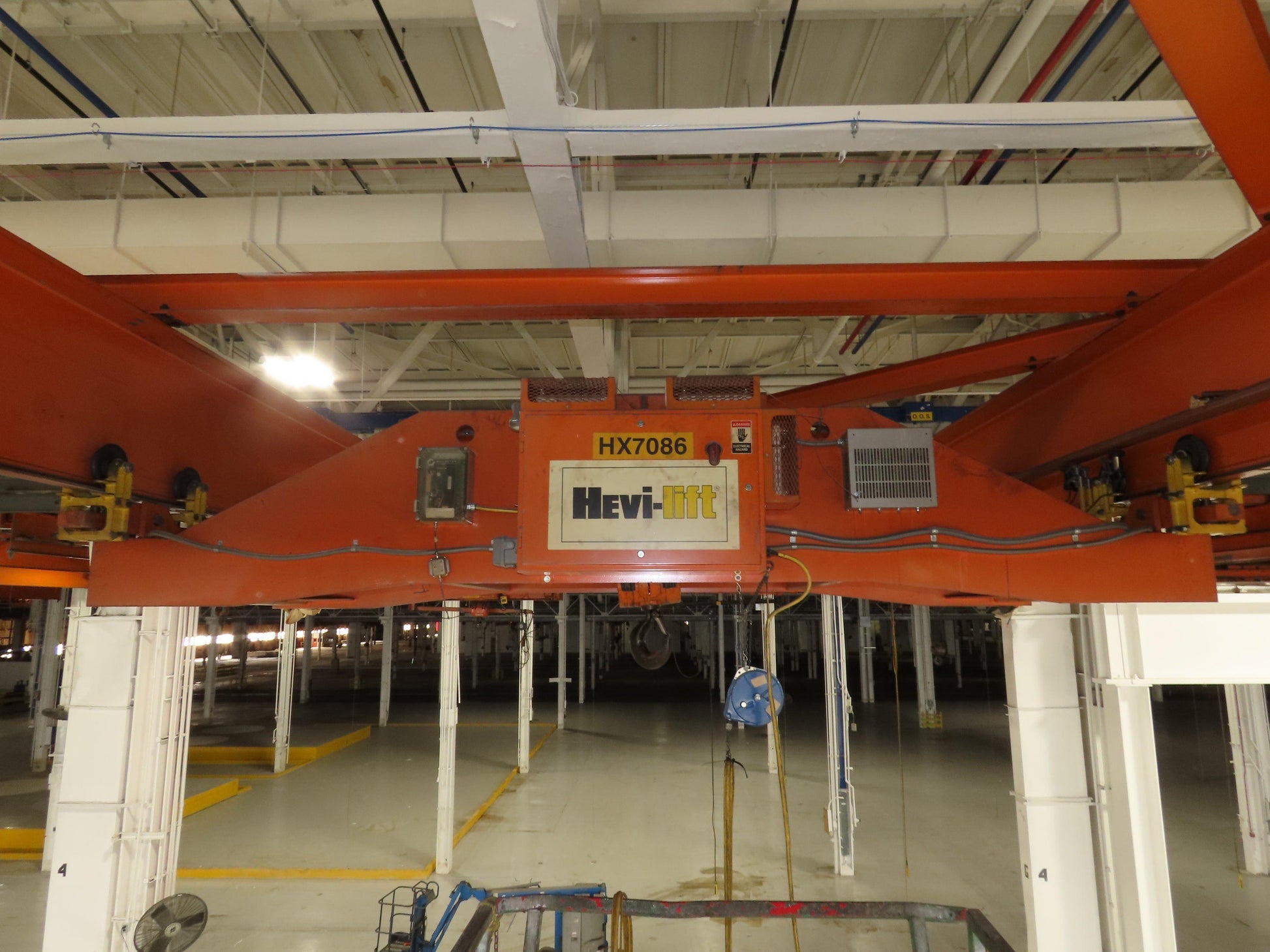

  • Trolley carriage length: 88"

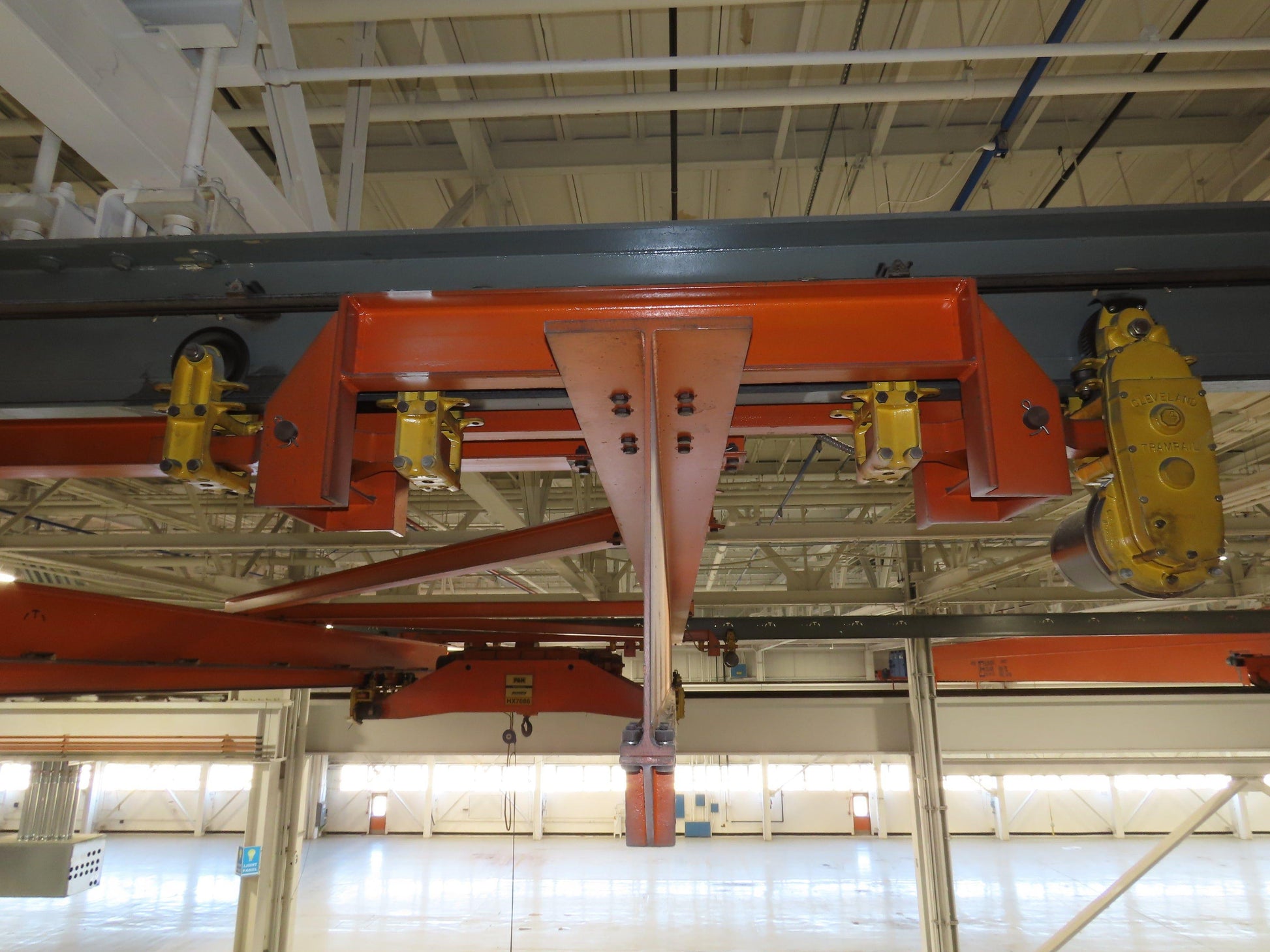

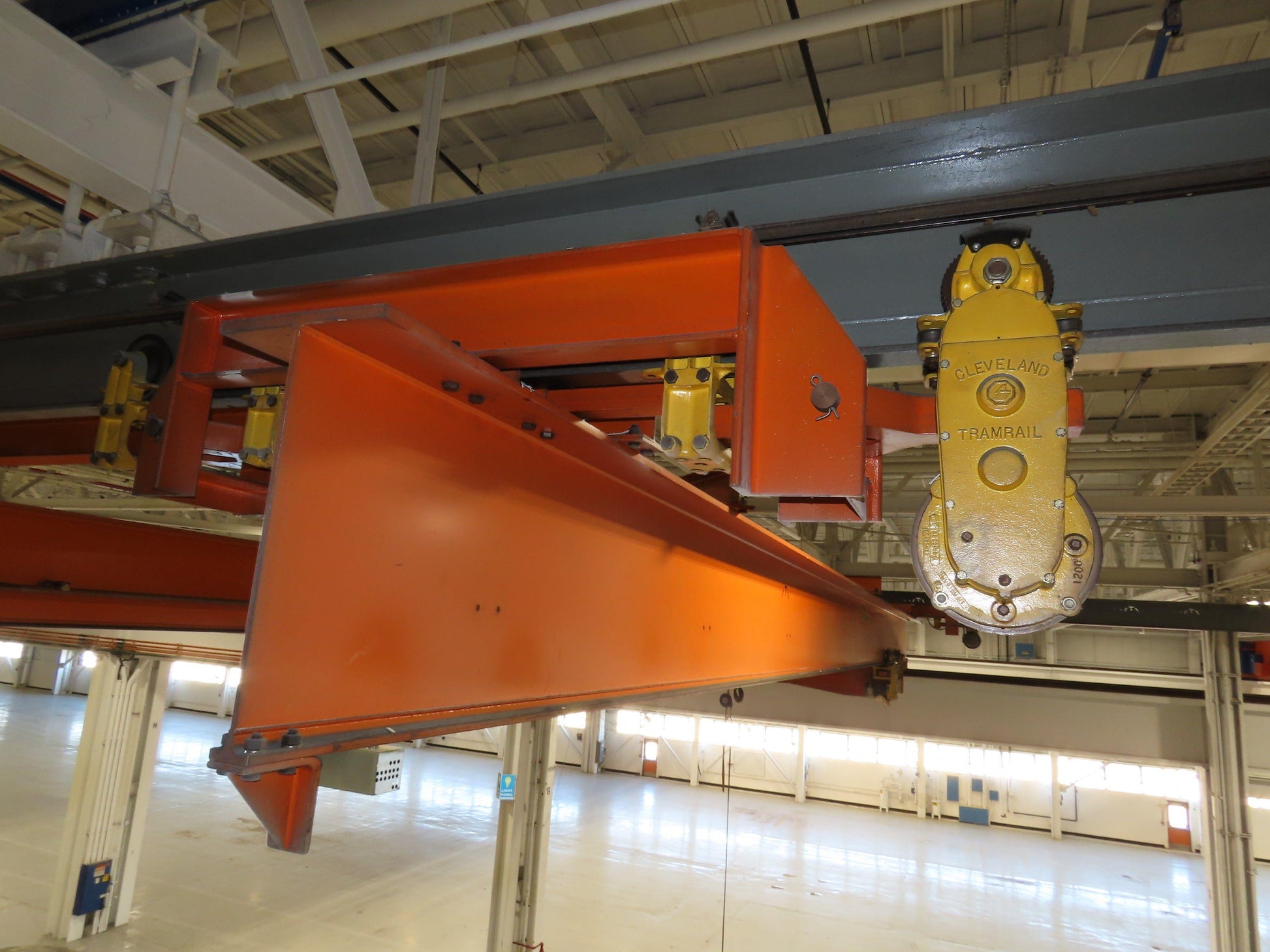

  • End truck length:  96"
  • End truck wheel size:  6"
  • Girder beam span: 14'

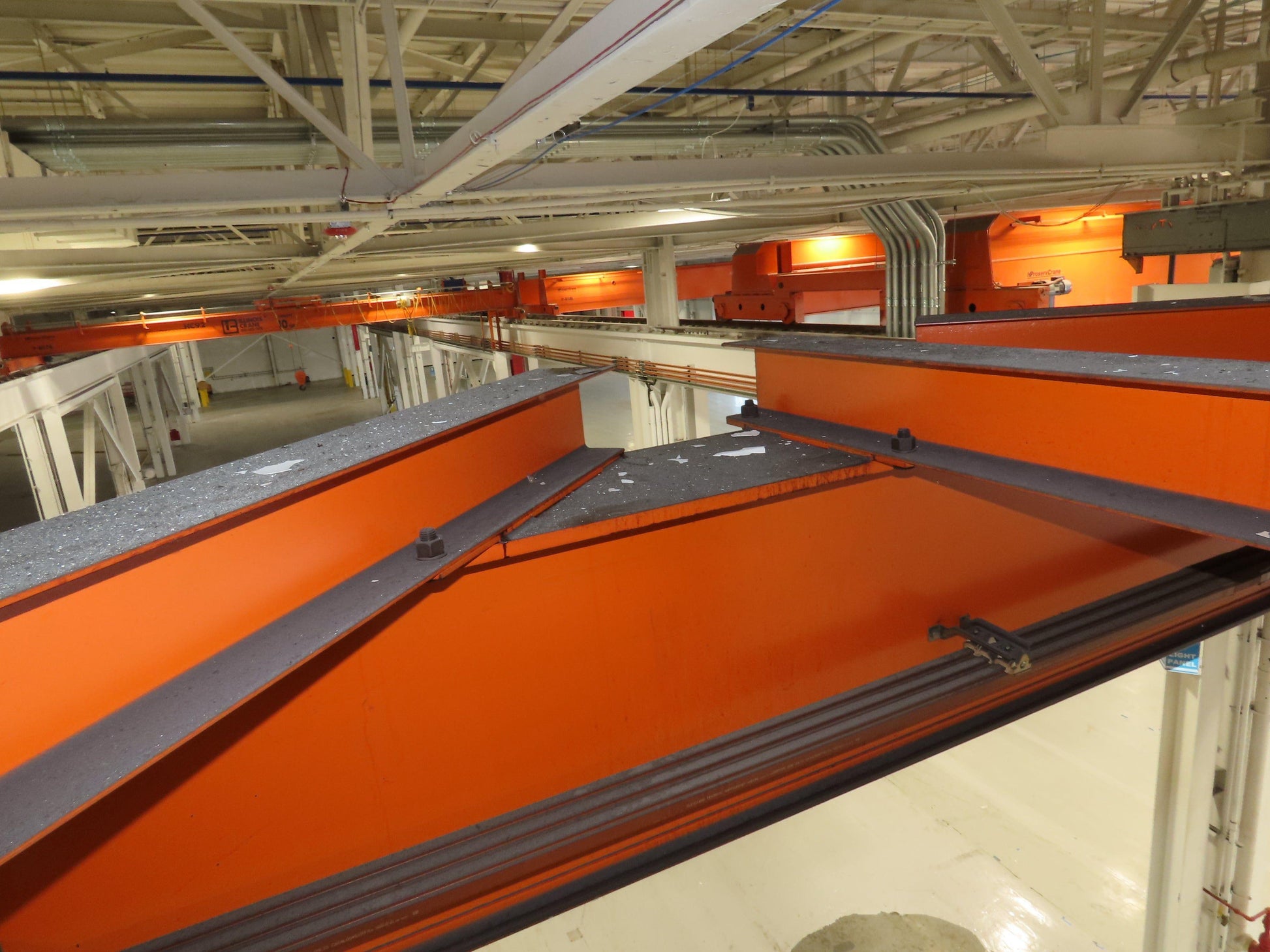

  • Top braces are bolted on.
