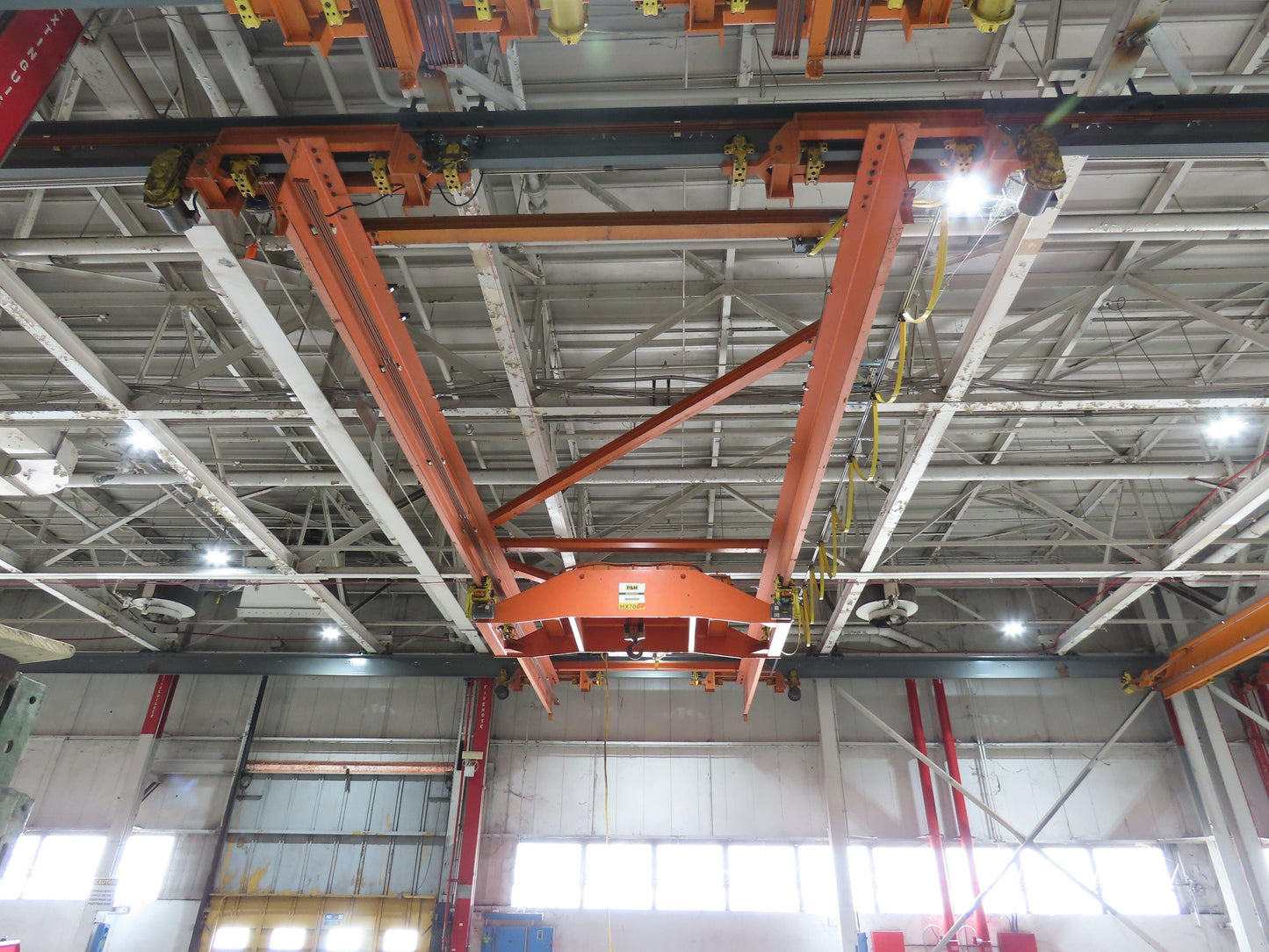

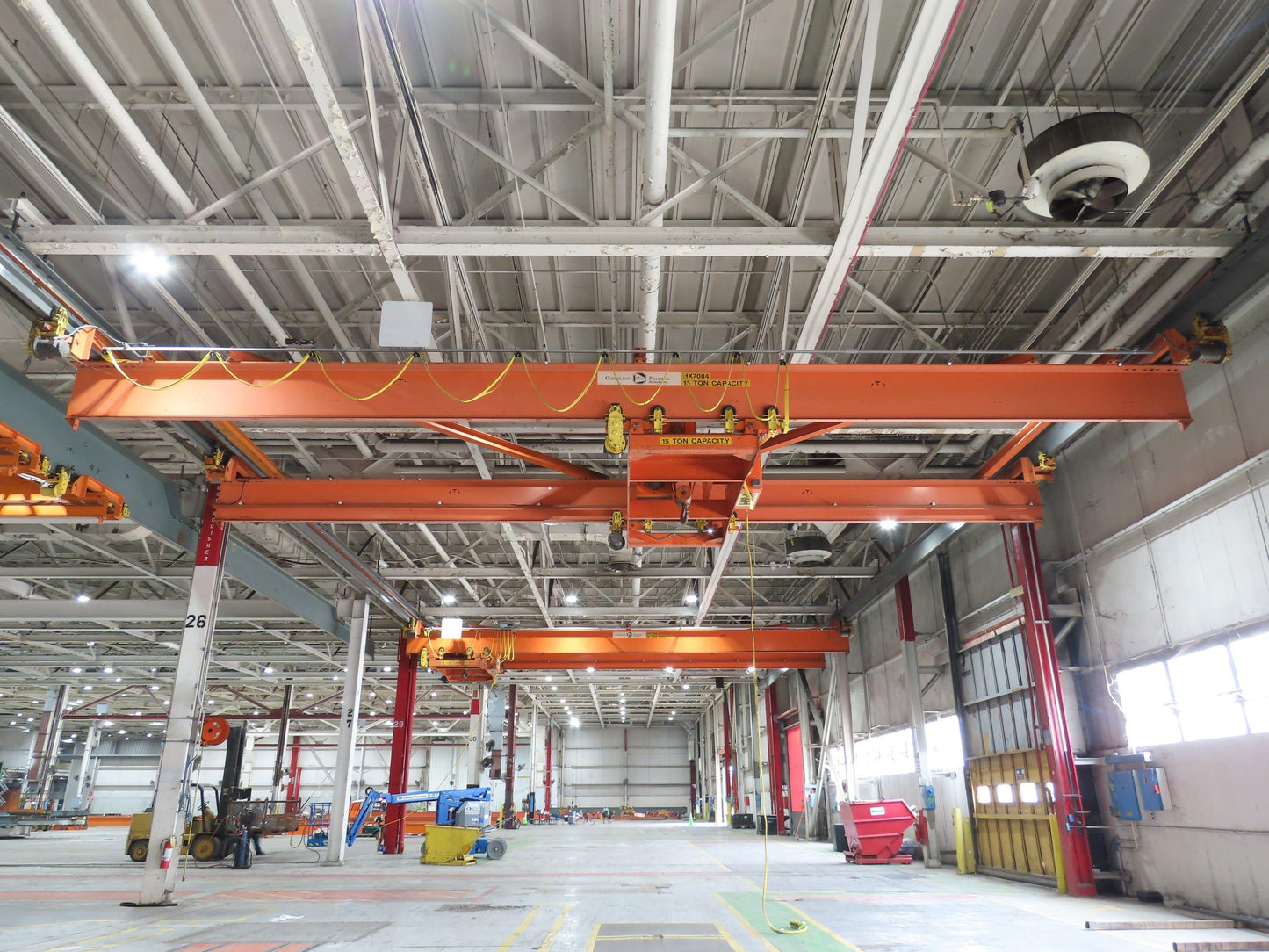

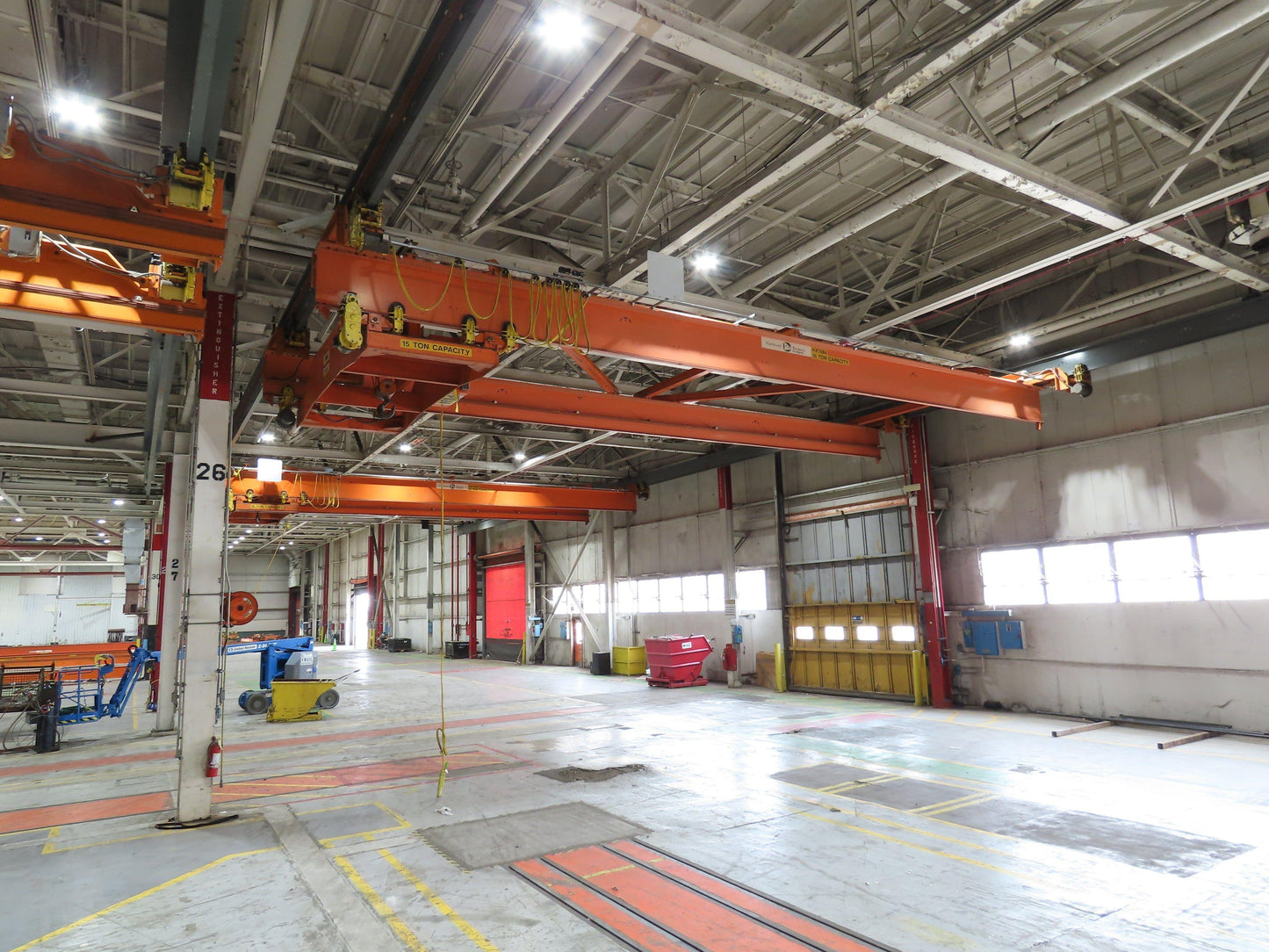

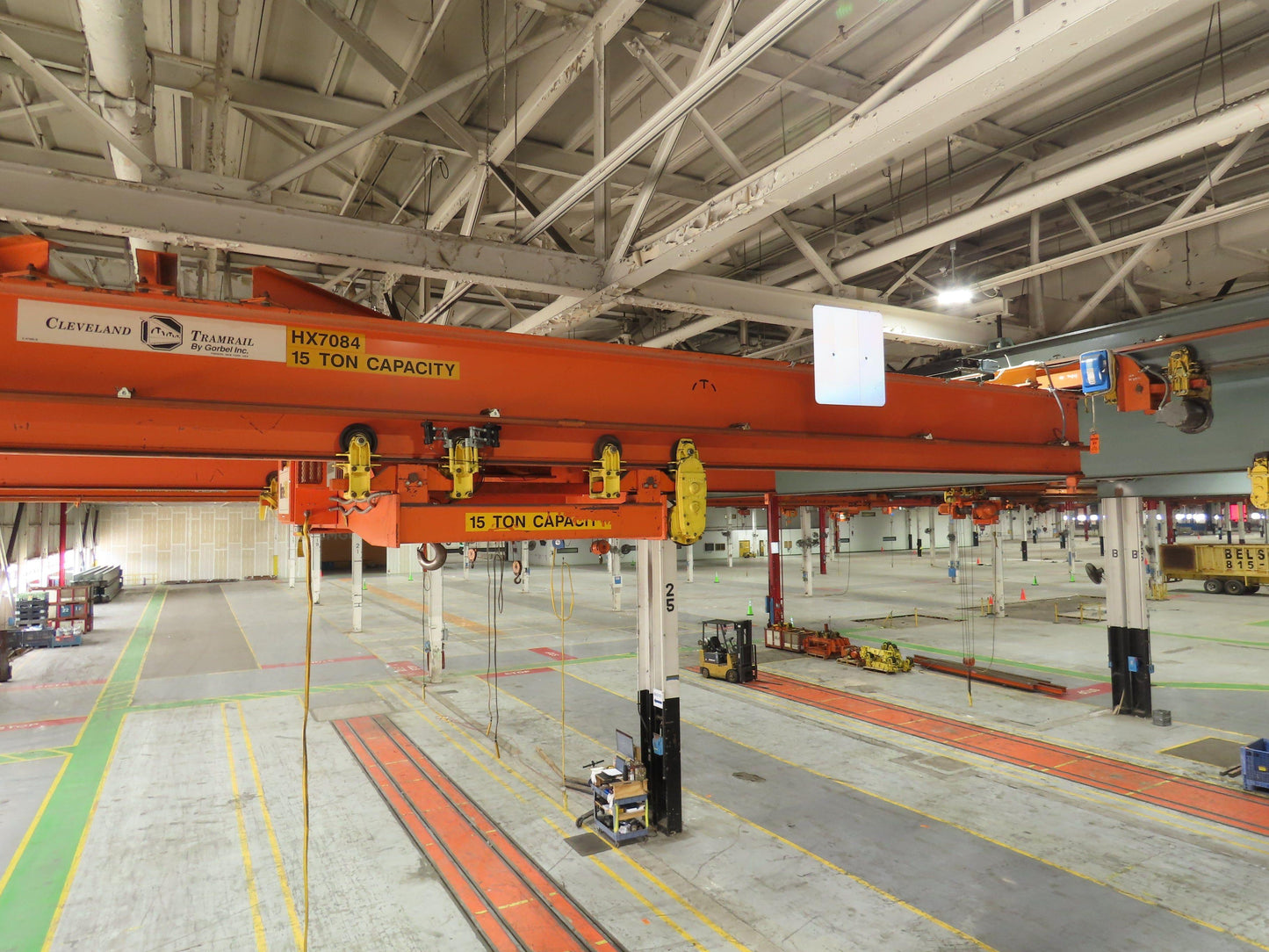

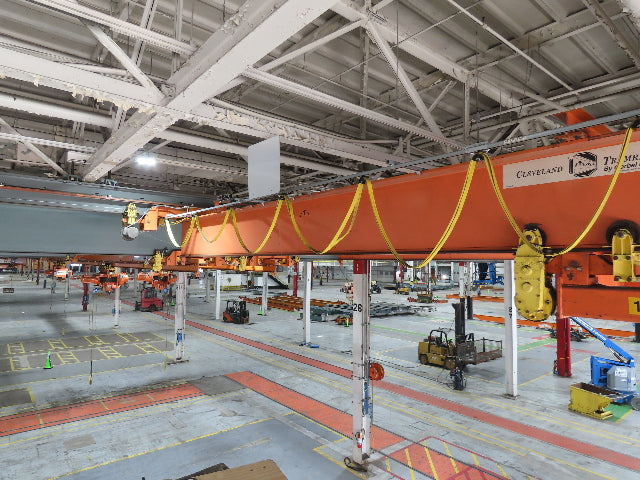

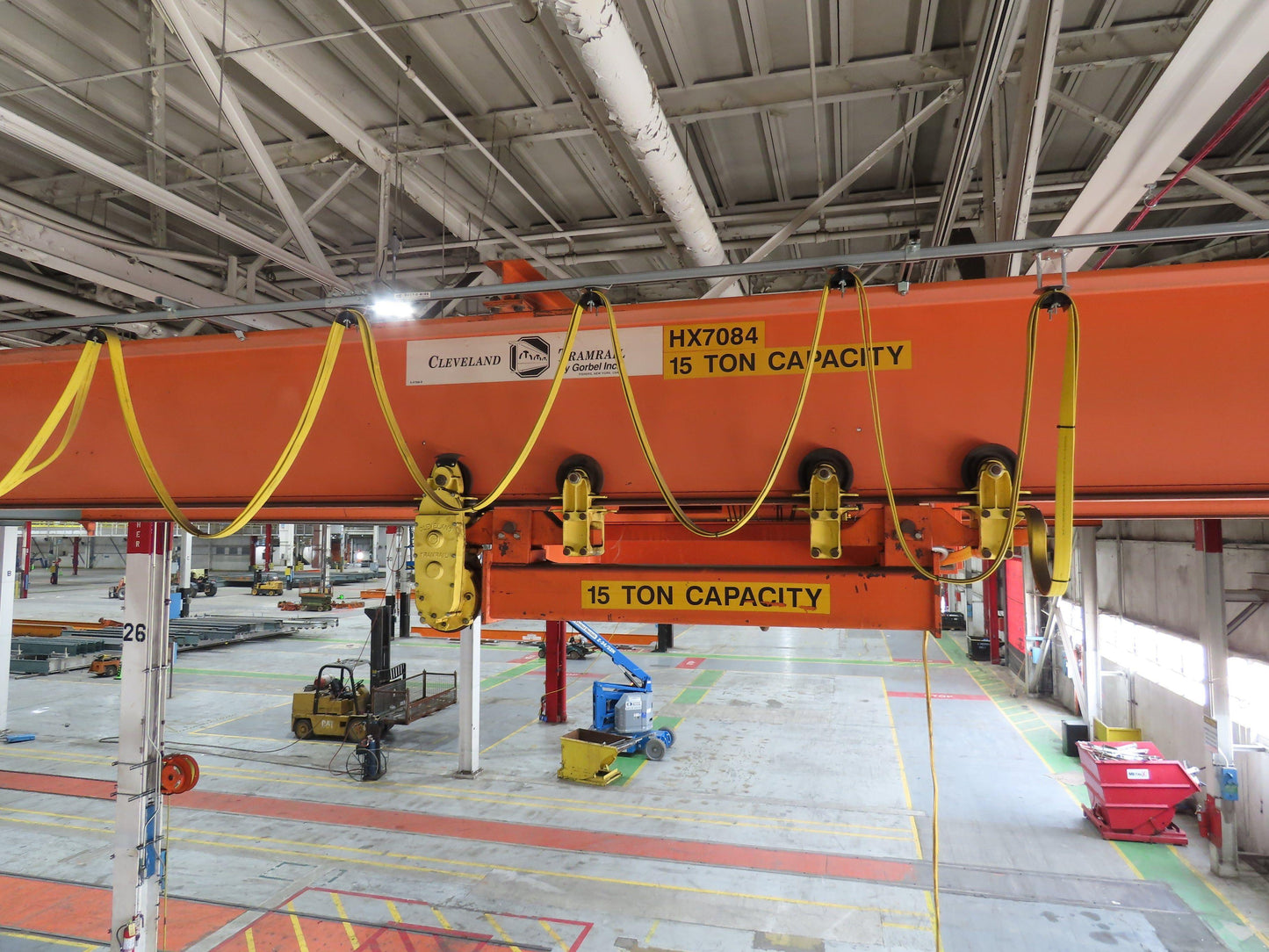

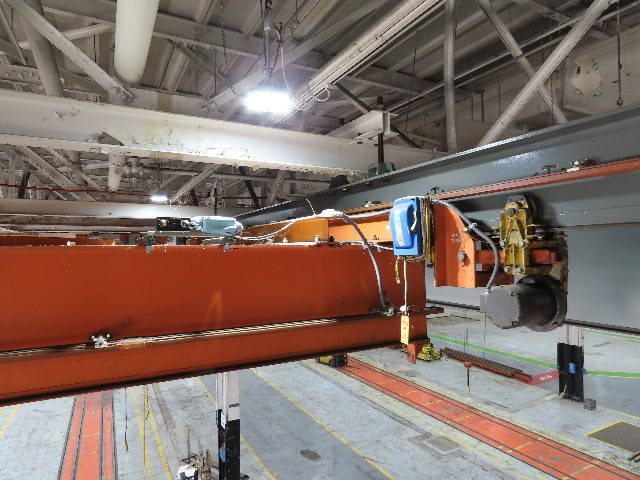

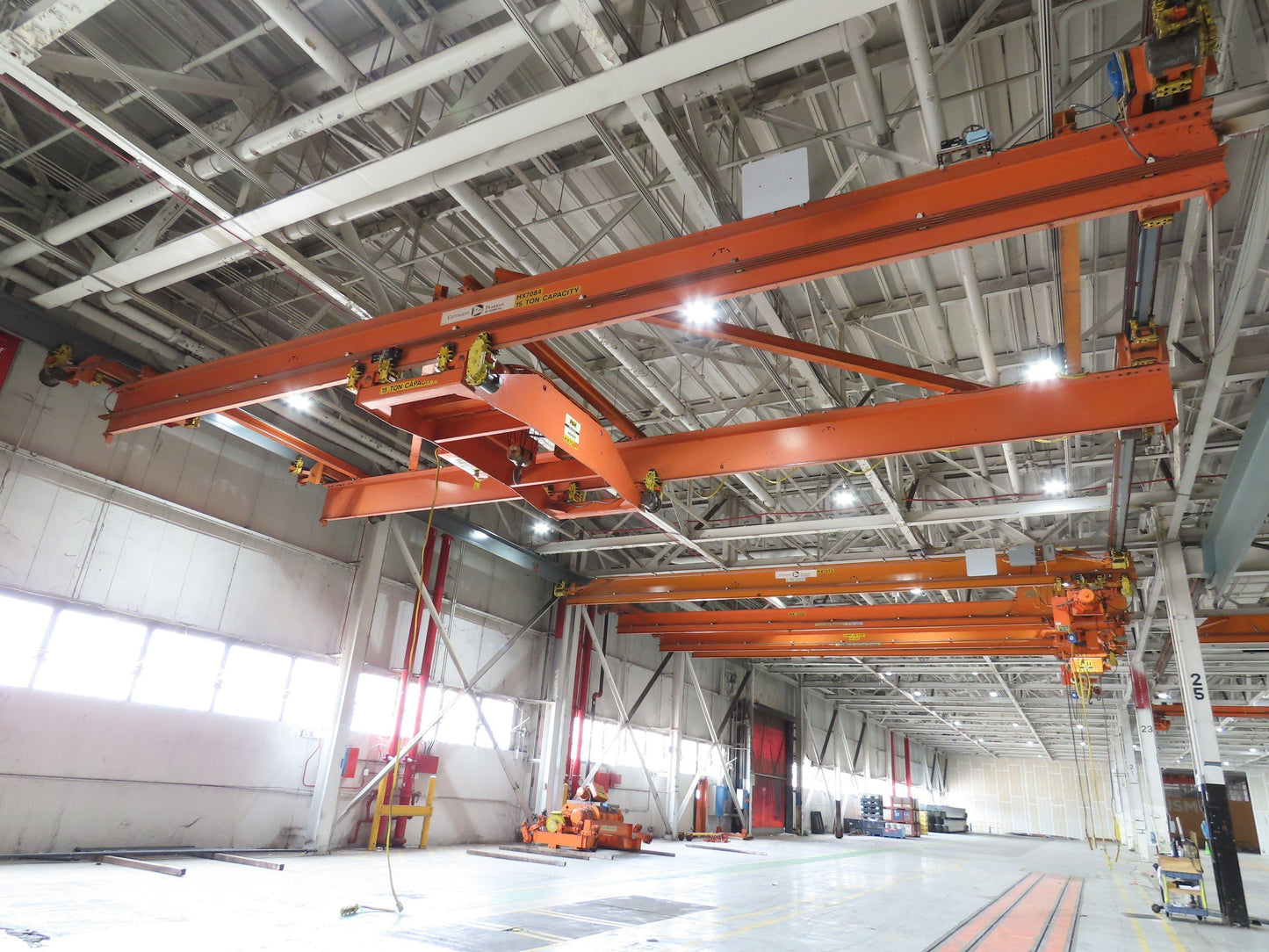

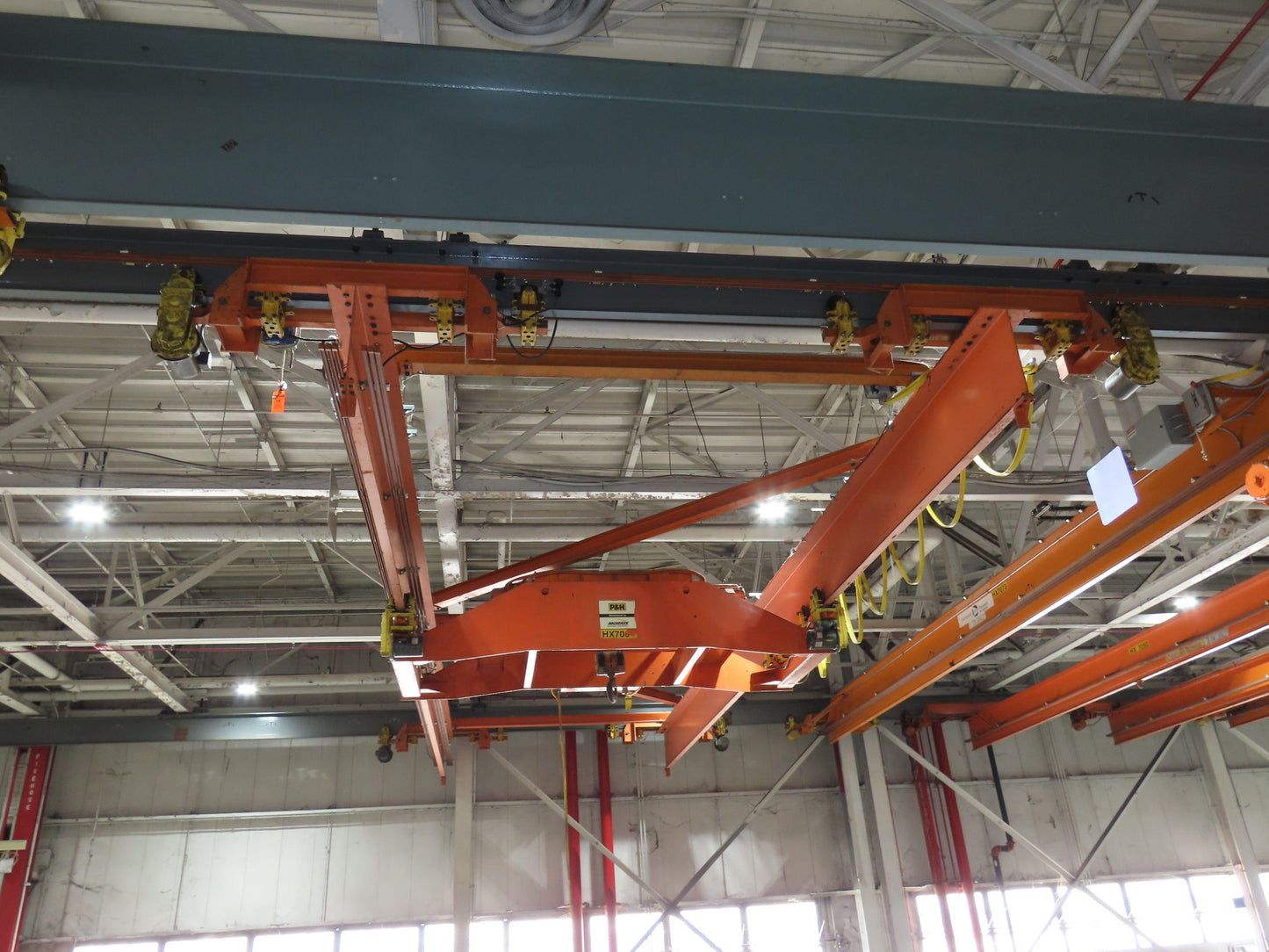

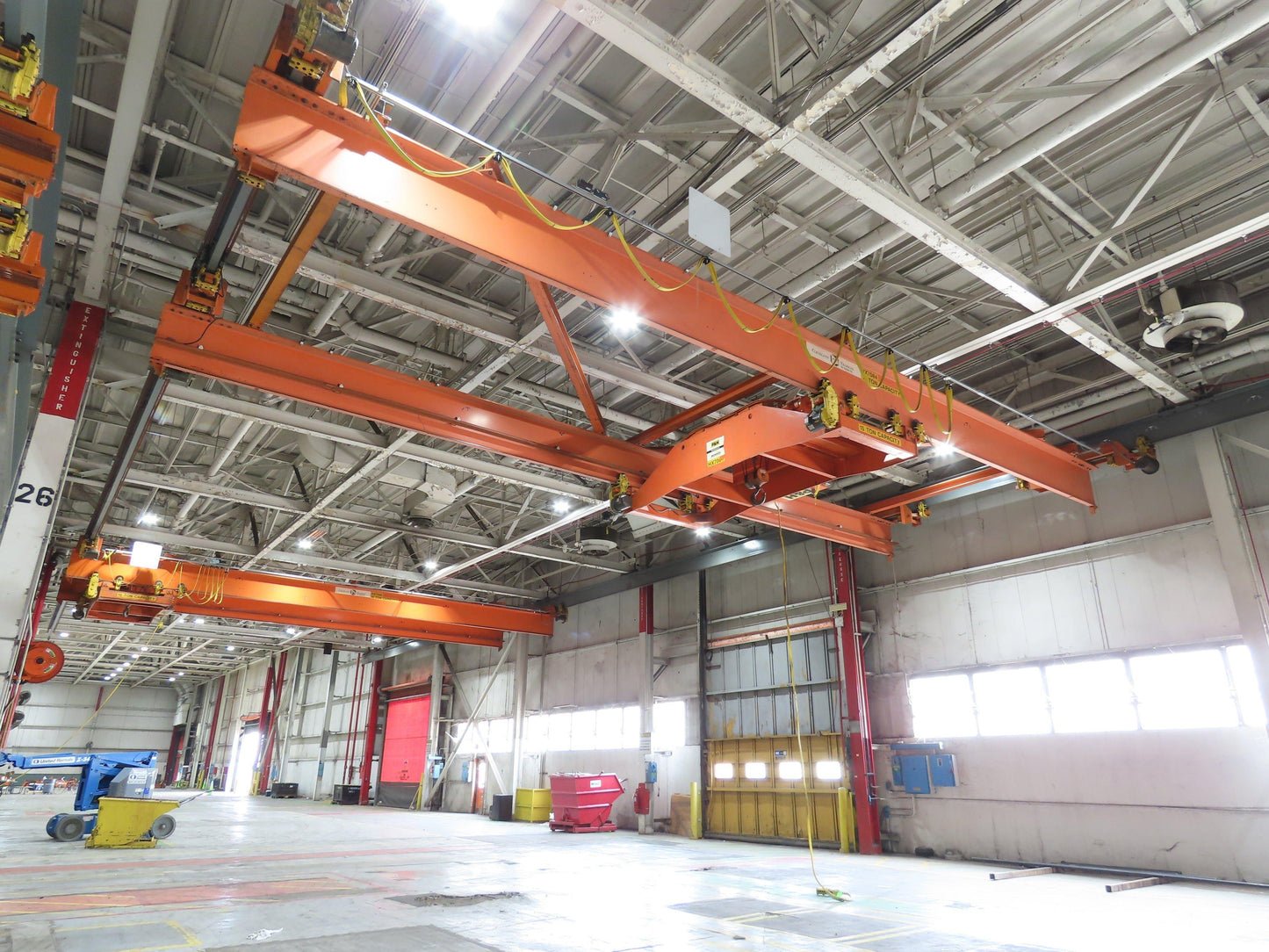

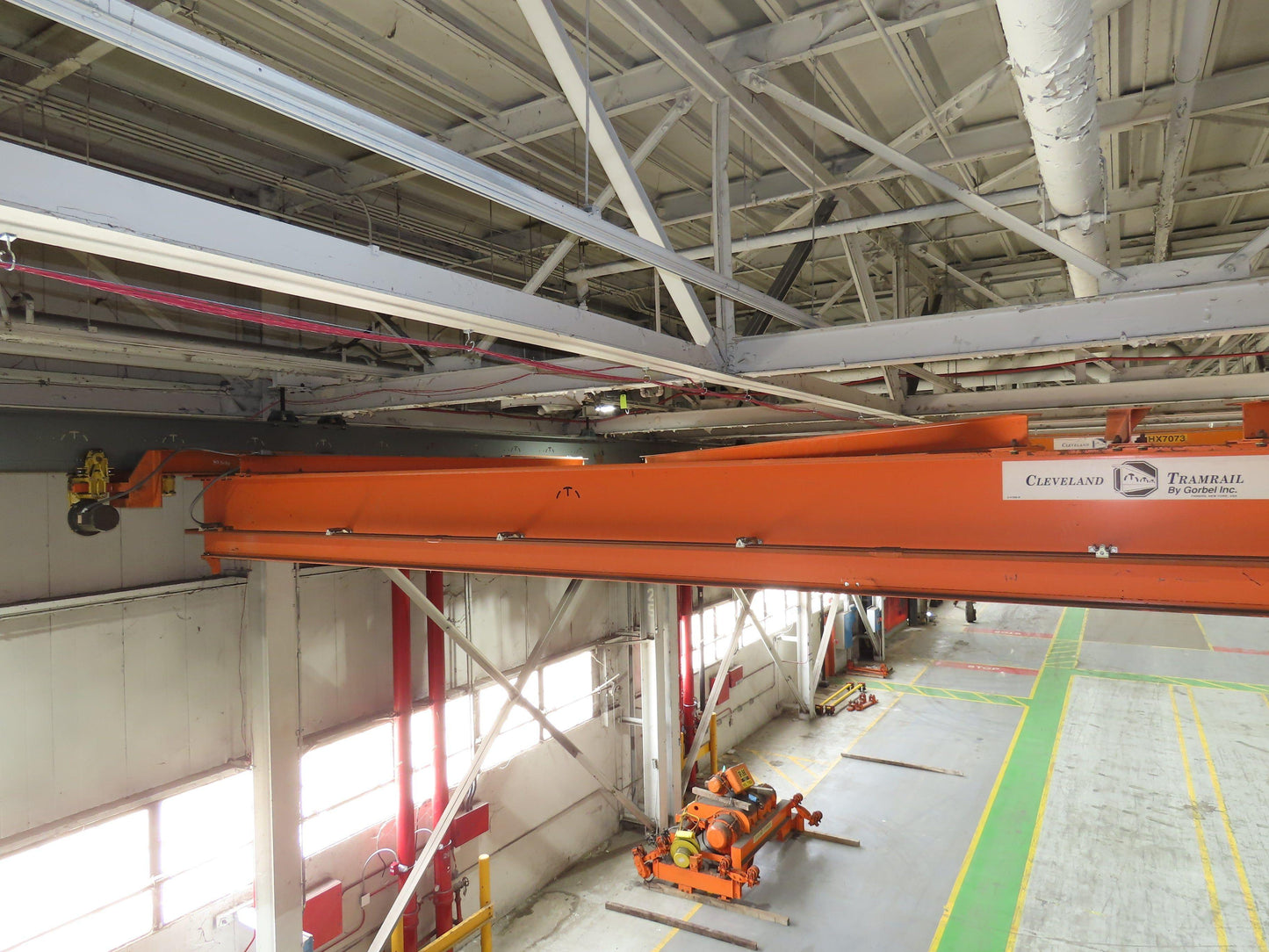

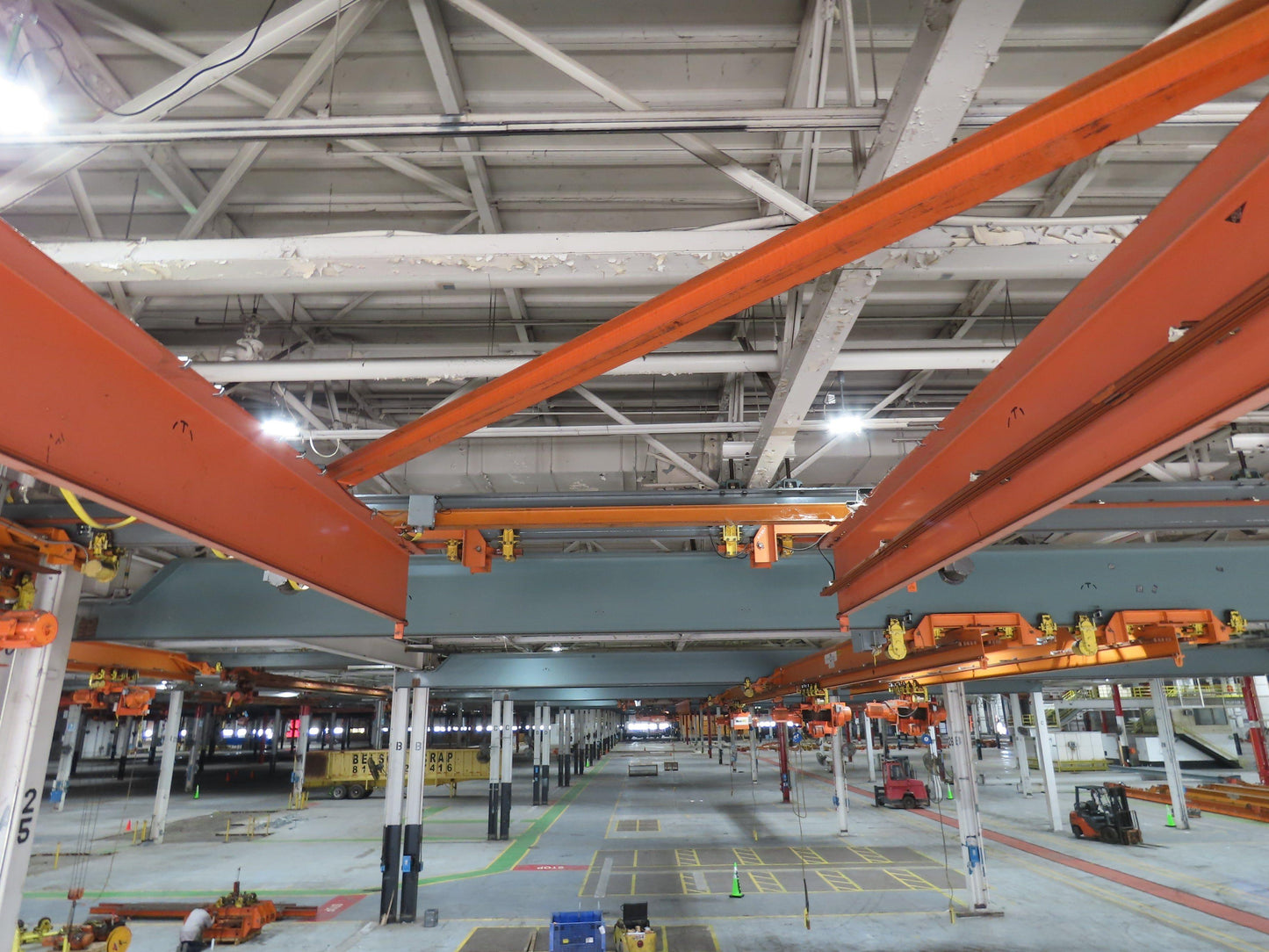

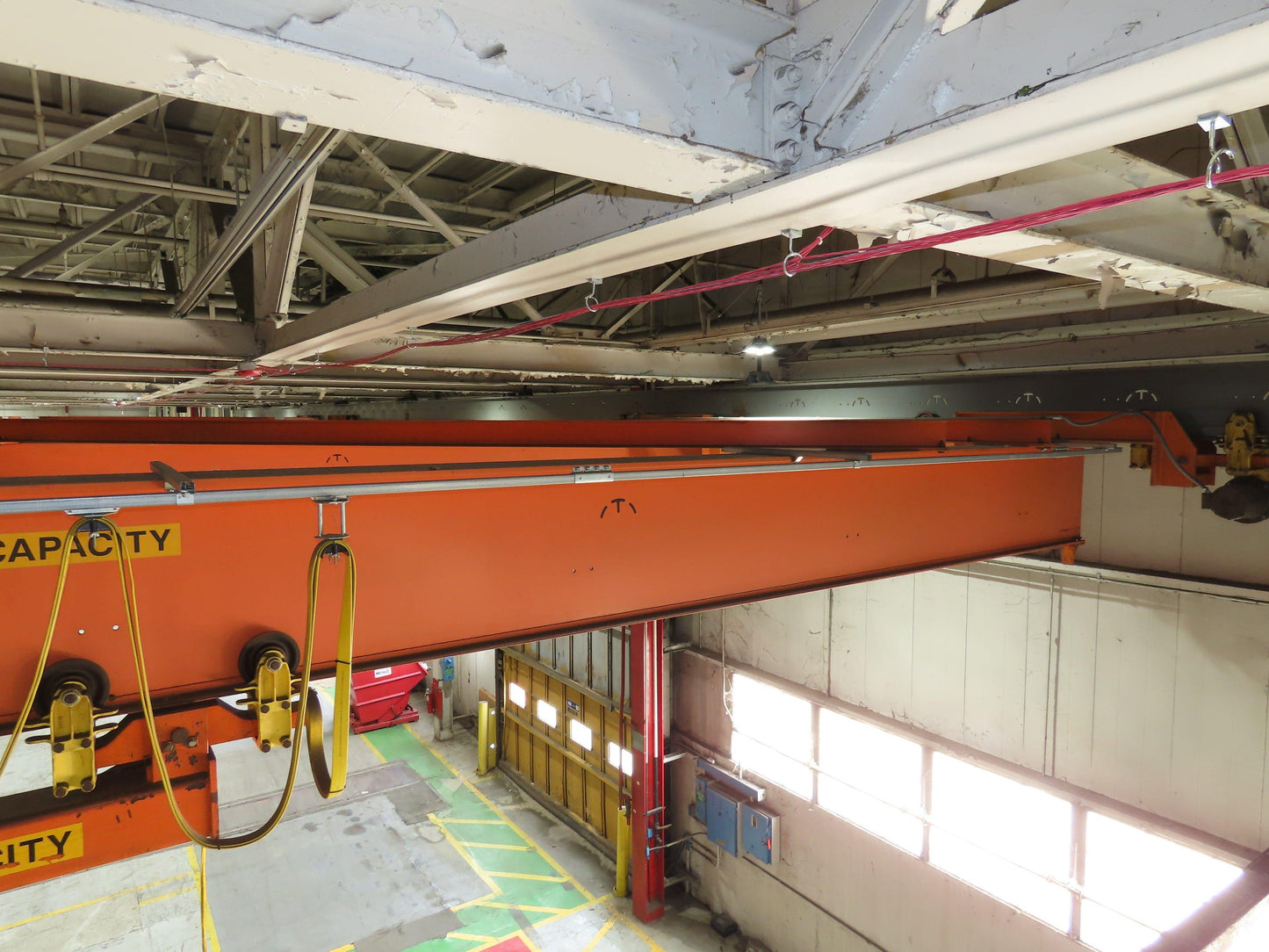

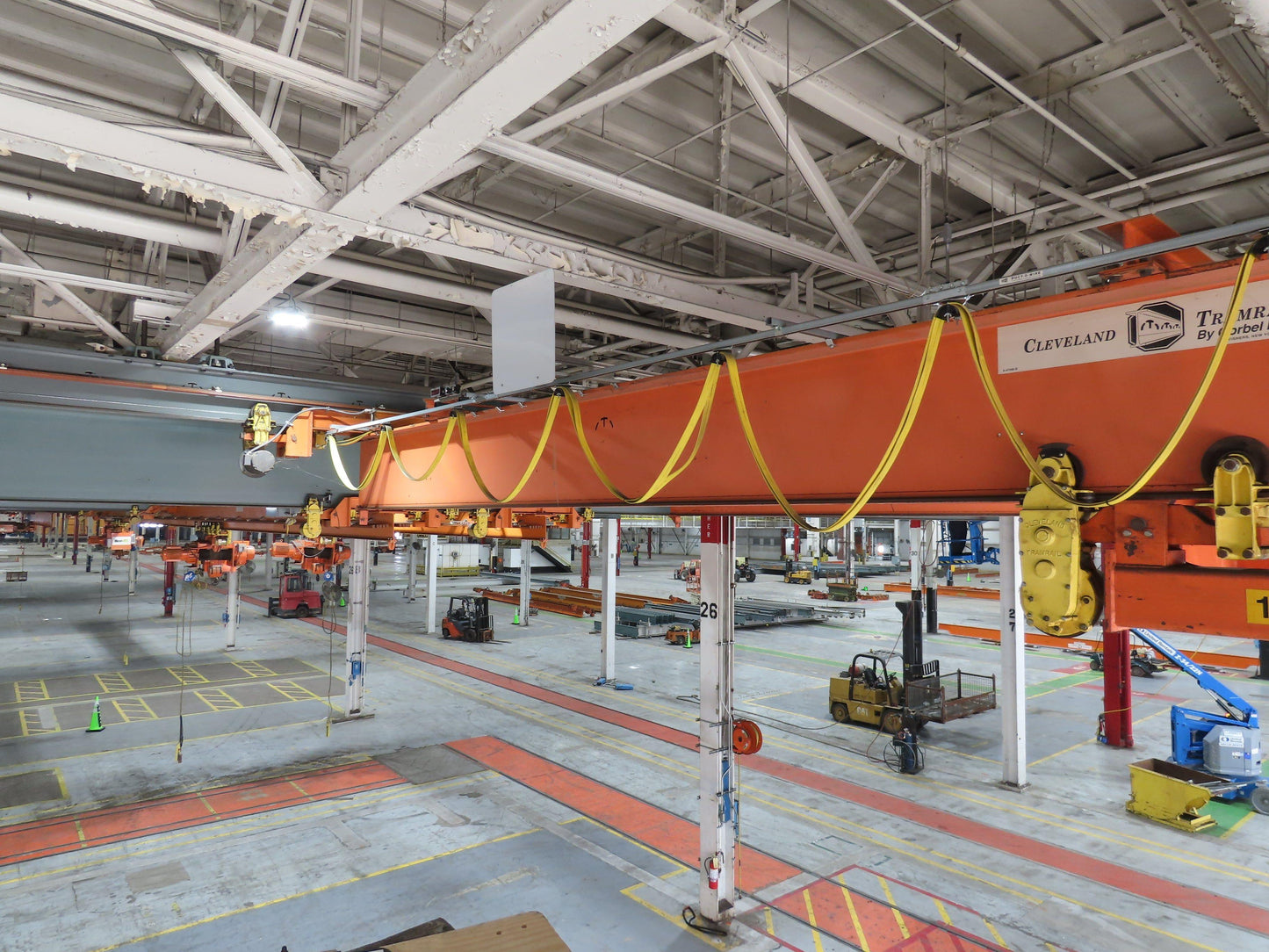

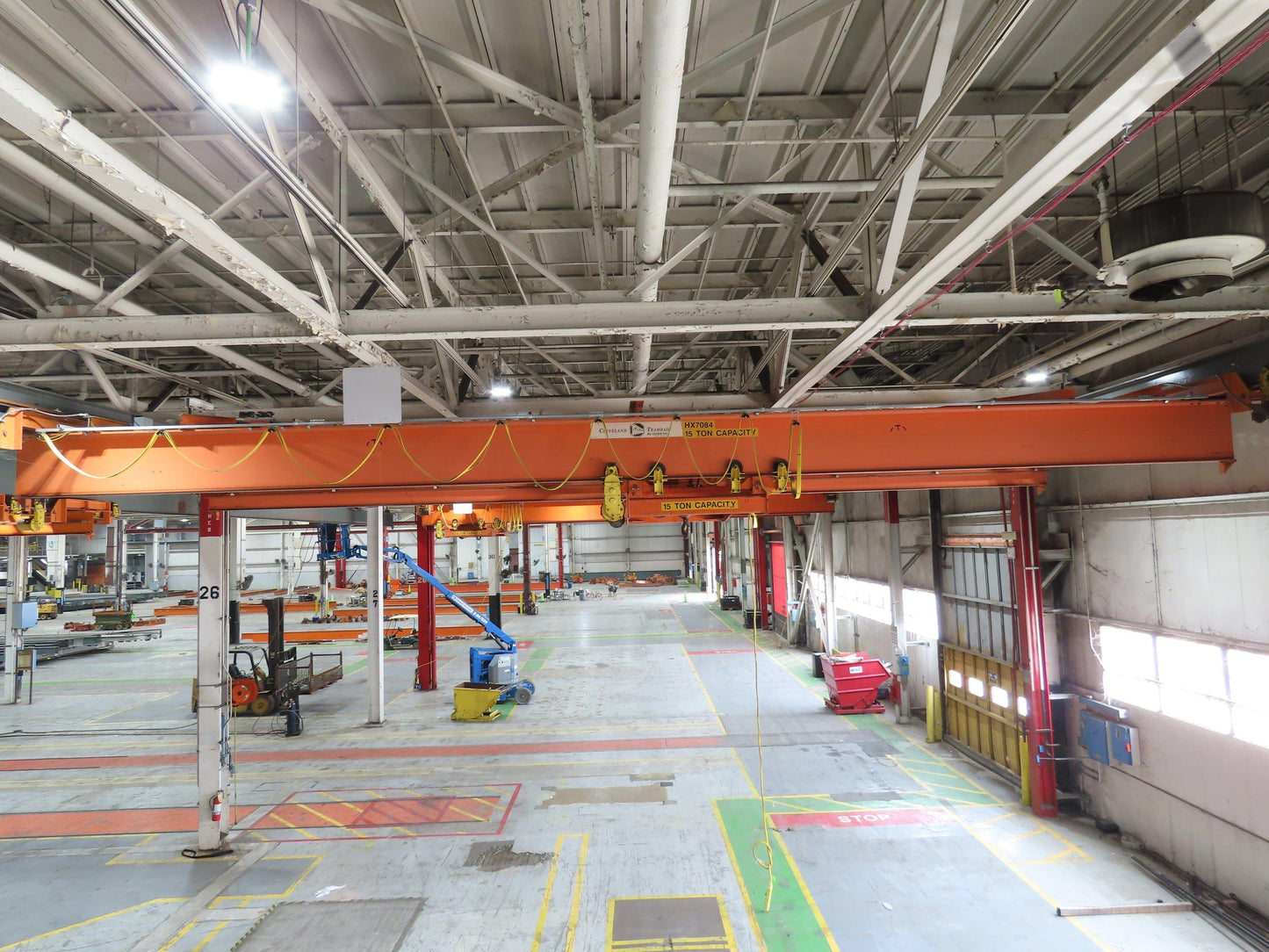

Cleveland Tramrail P&H 15 Ton Double Girder Underhung Bridge Crane 44' 6" Span

Cleveland Tramrail P&H 15 Ton Double Girder Underhung Bridge Crane 44' 6" Span

SKU #262130

Your Price
$20,519.99
$23,999.99 $20,519.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 5
  • Capacity (lb): 10000

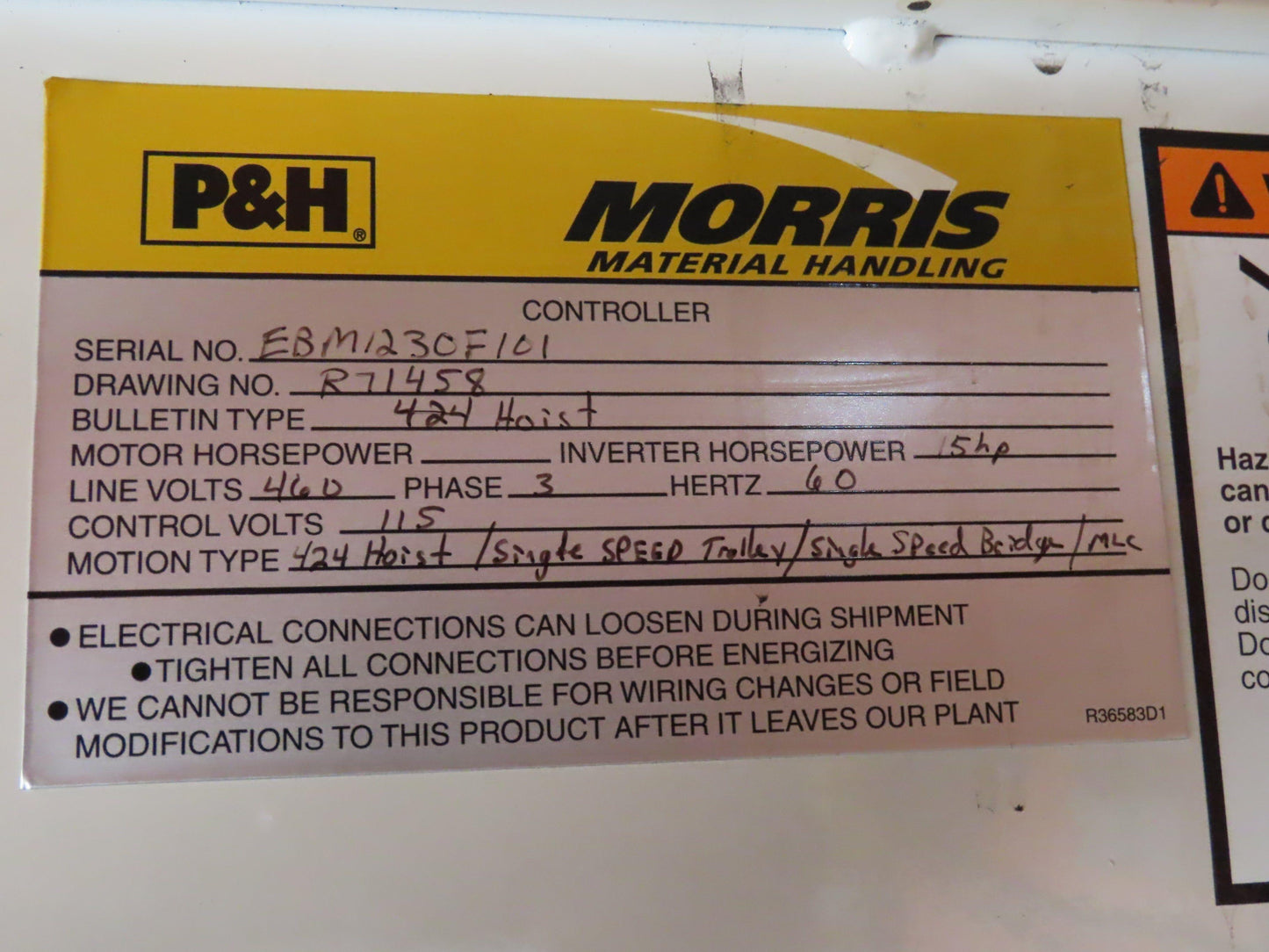

  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 44' 6"
  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 46' 6" Length (3.25" bottom flange)
  • Bridge Speed (feet per minute): Single

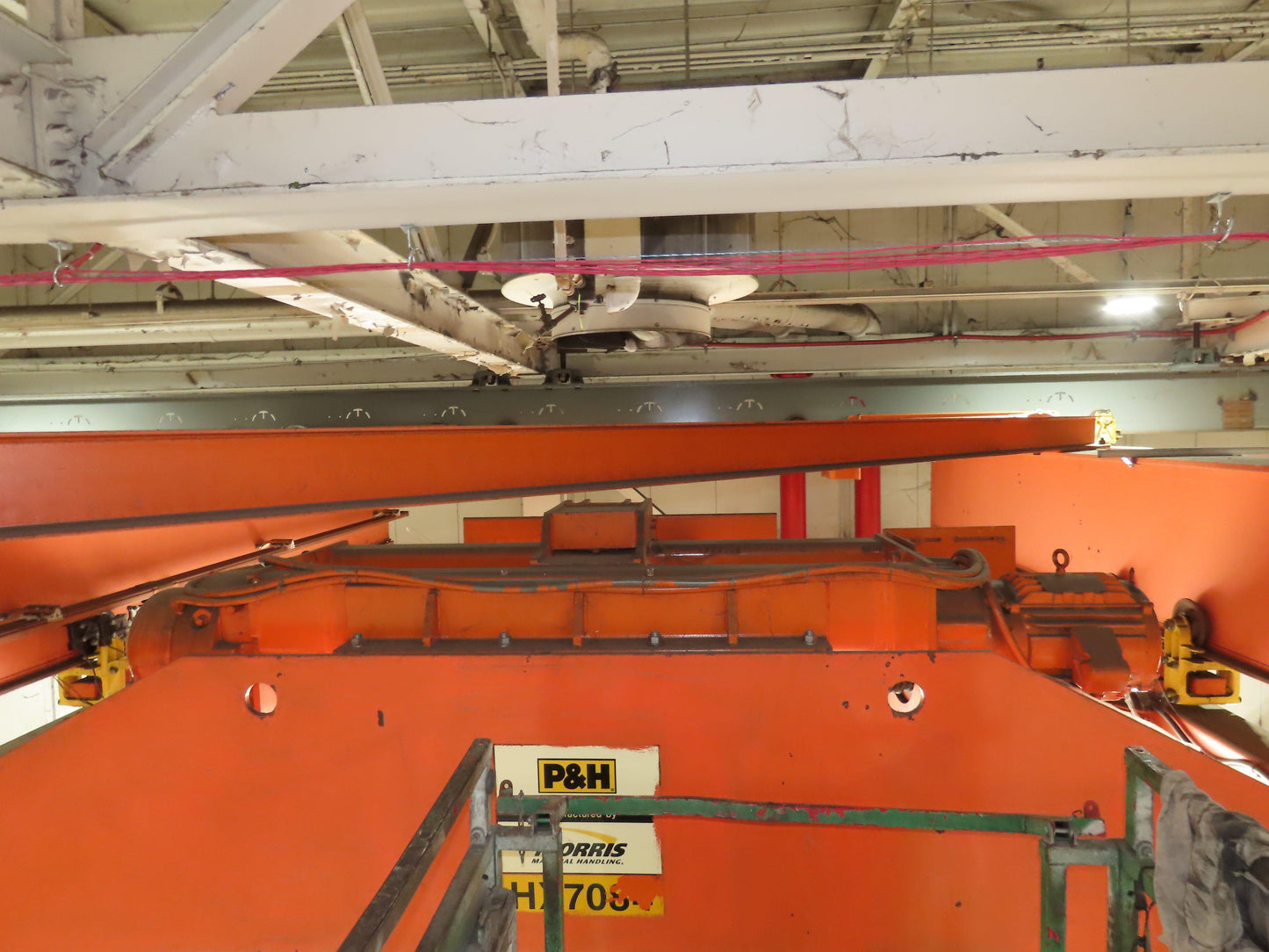

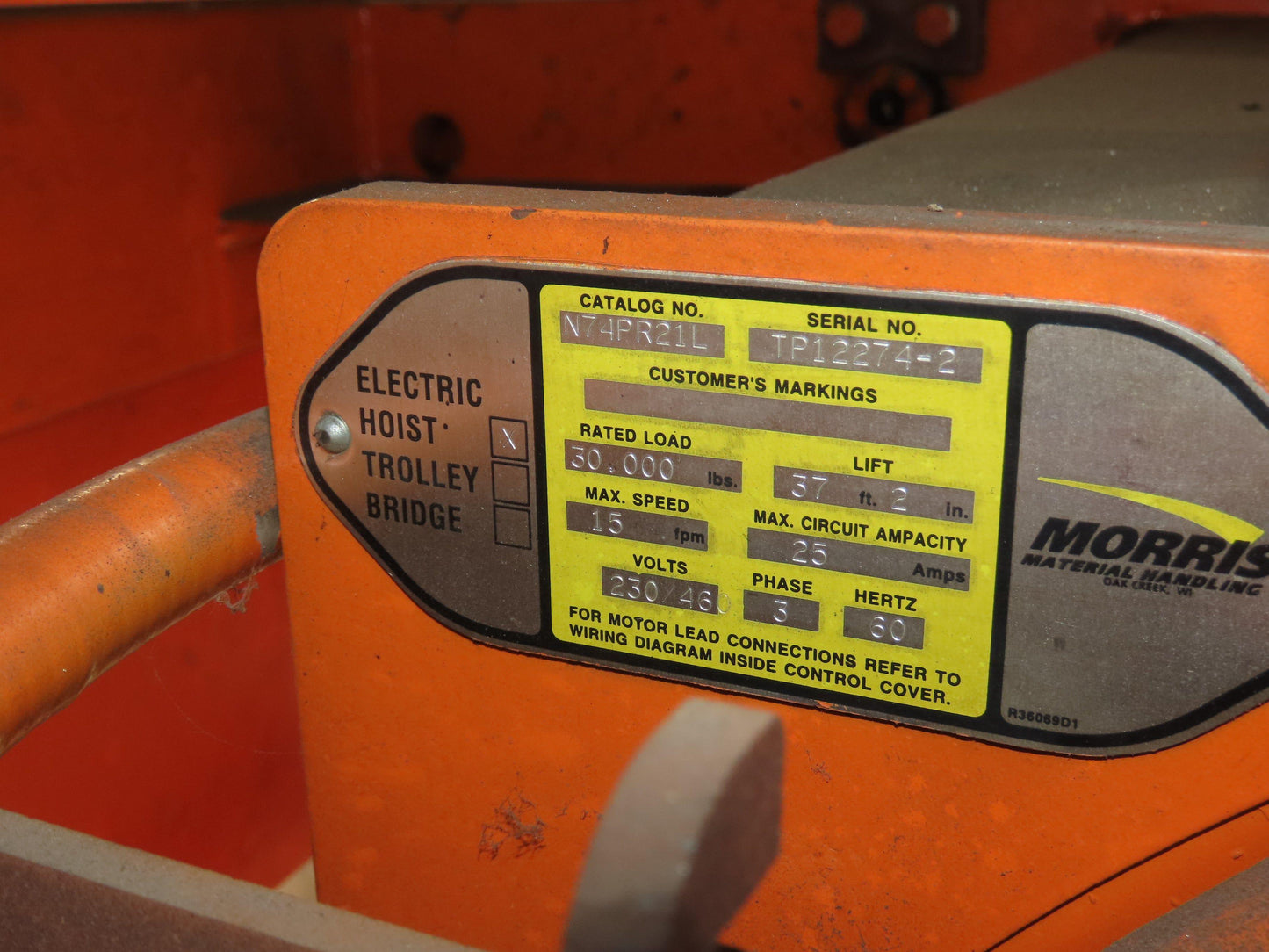

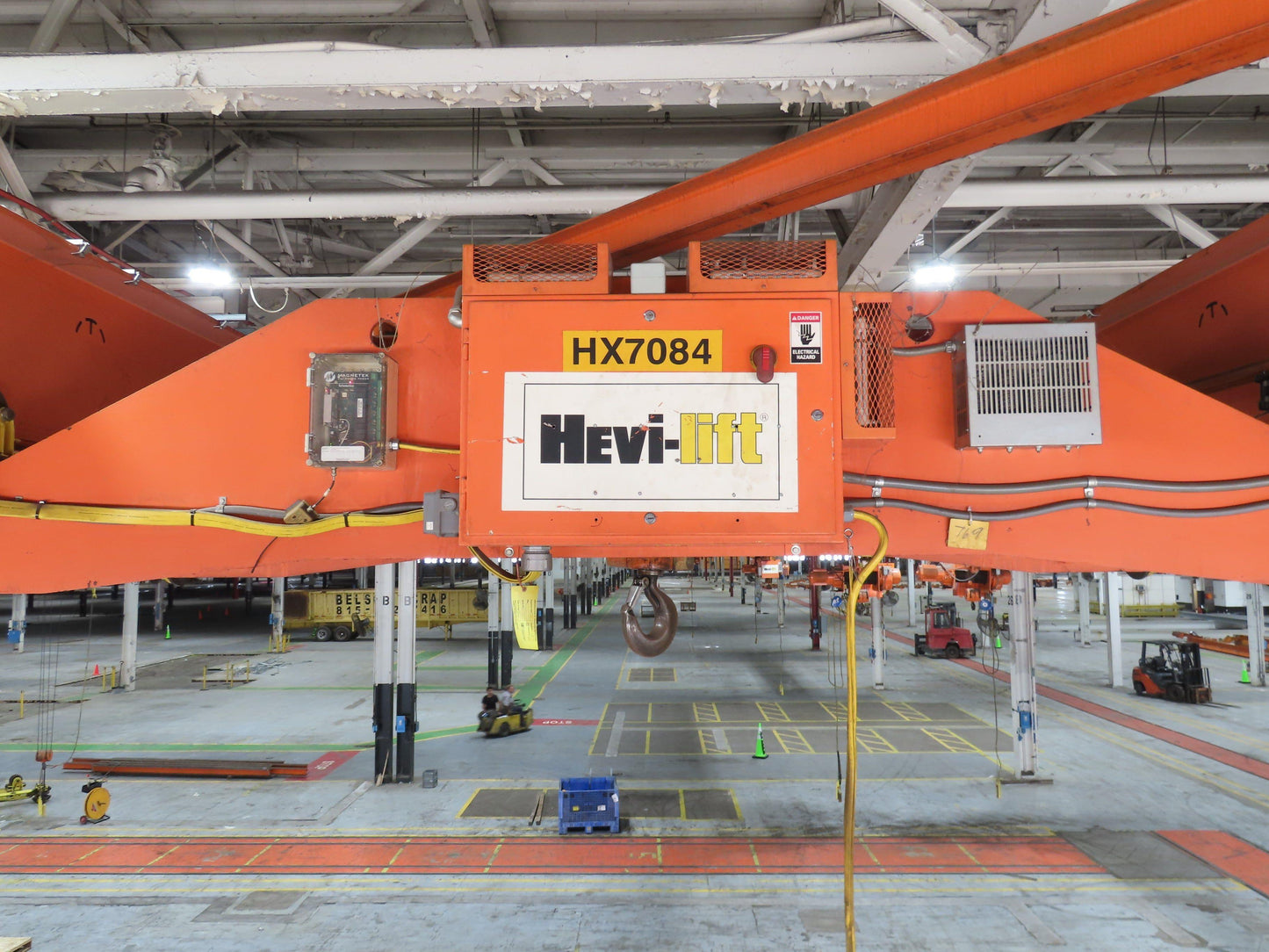

  • Hoist Brand: Morris P&H
  • Lift Travel (feet): 37'
  • Lift Speed (feet per minute): 15

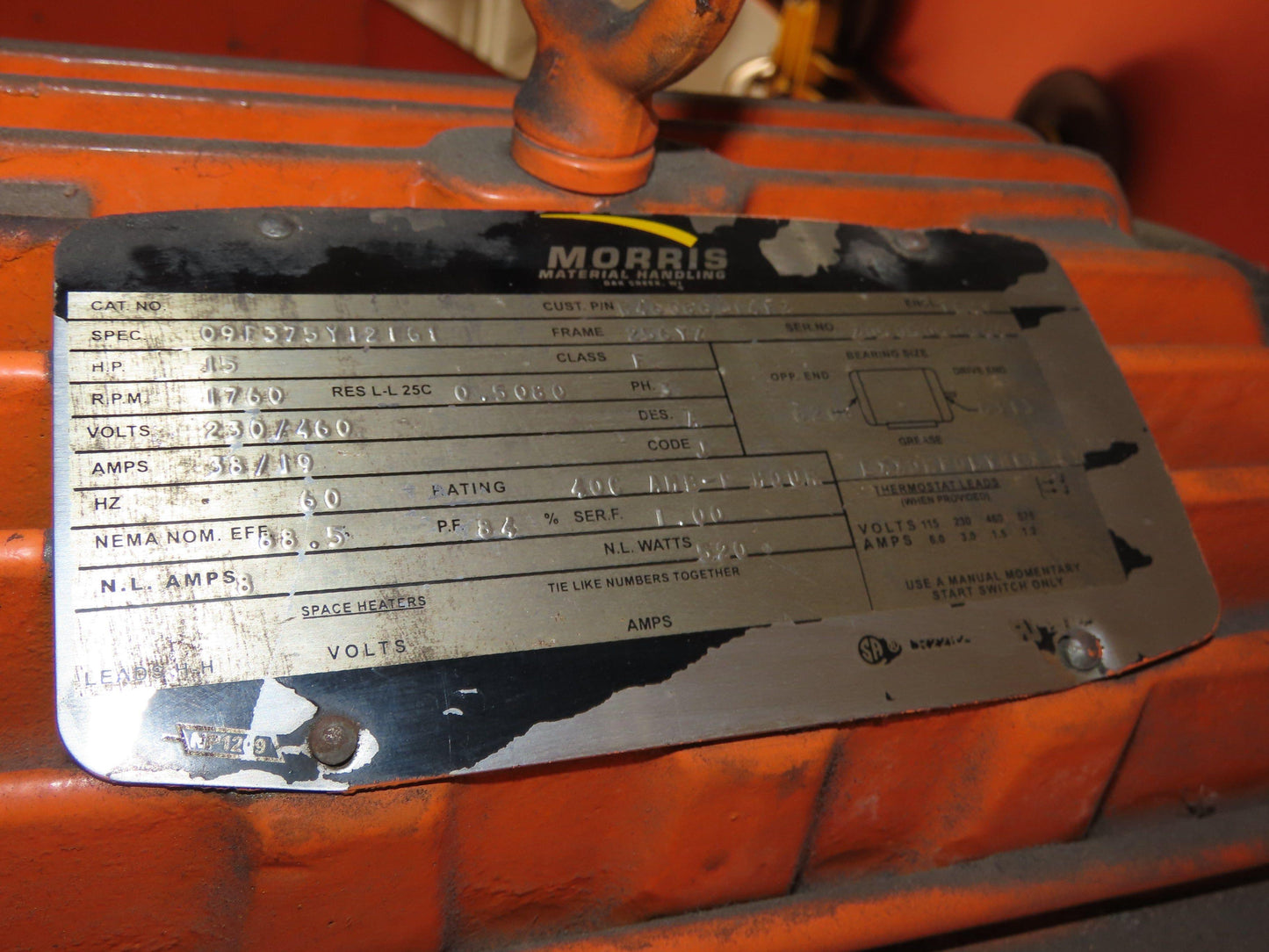

  • Motor Horse Power: 15

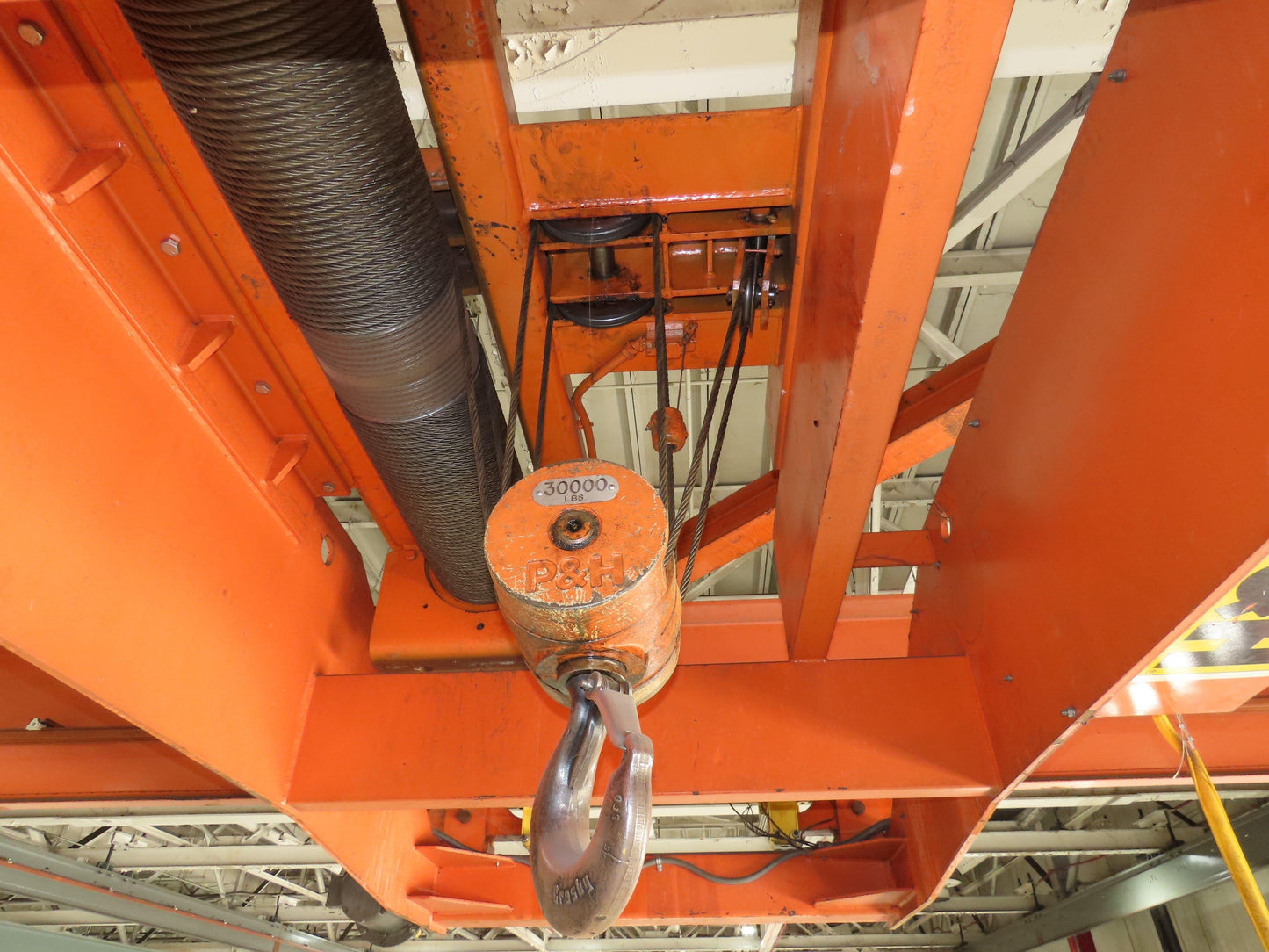

  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 22' 8"
  • Hoist Power Trolley Speed (feet per minute): 75
  • Hoist Trolley Length of Travel: 38'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 20"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 58"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 50"
  • Bridge Crane is in working condition.  Tested on site before removal.

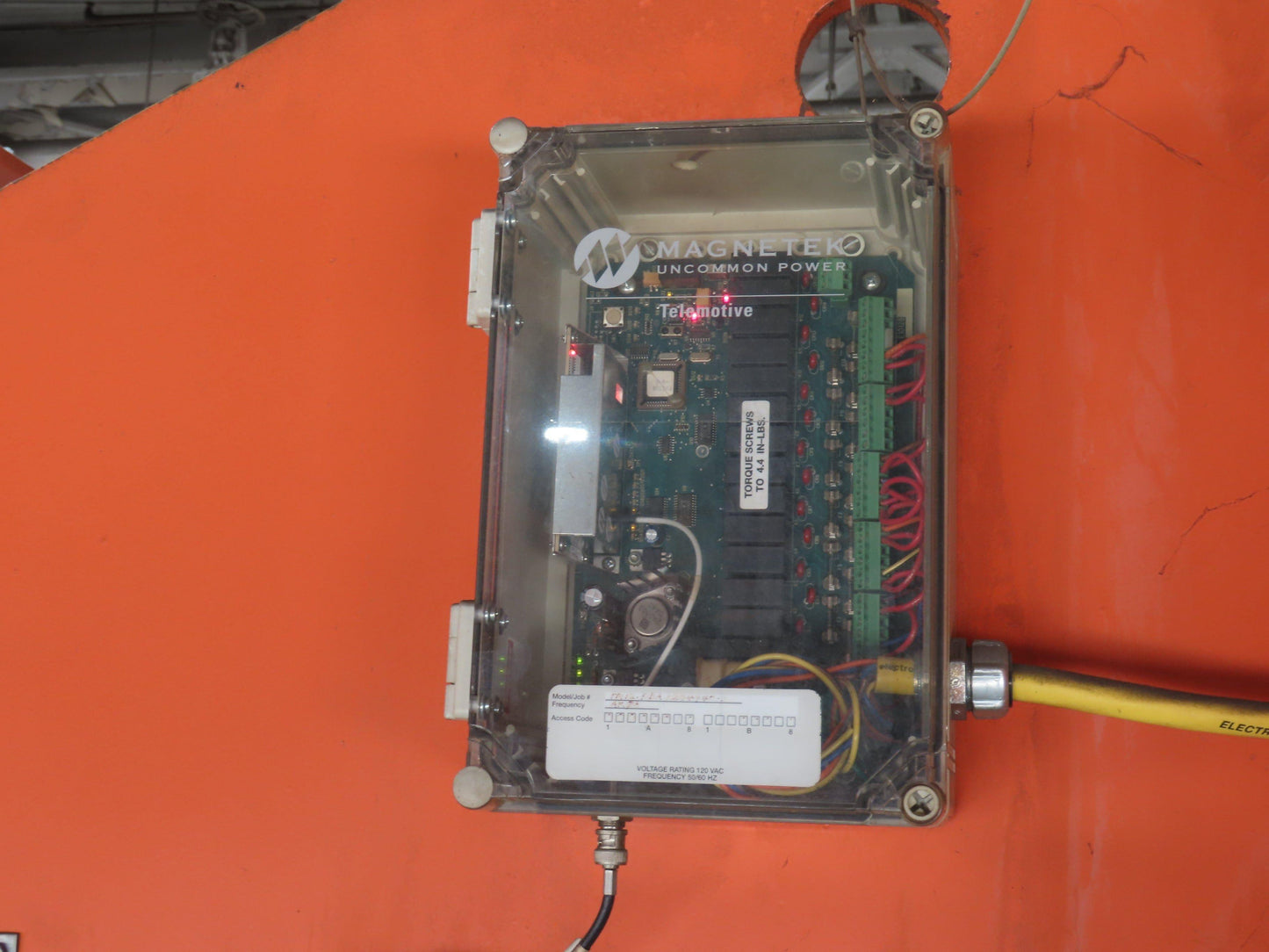

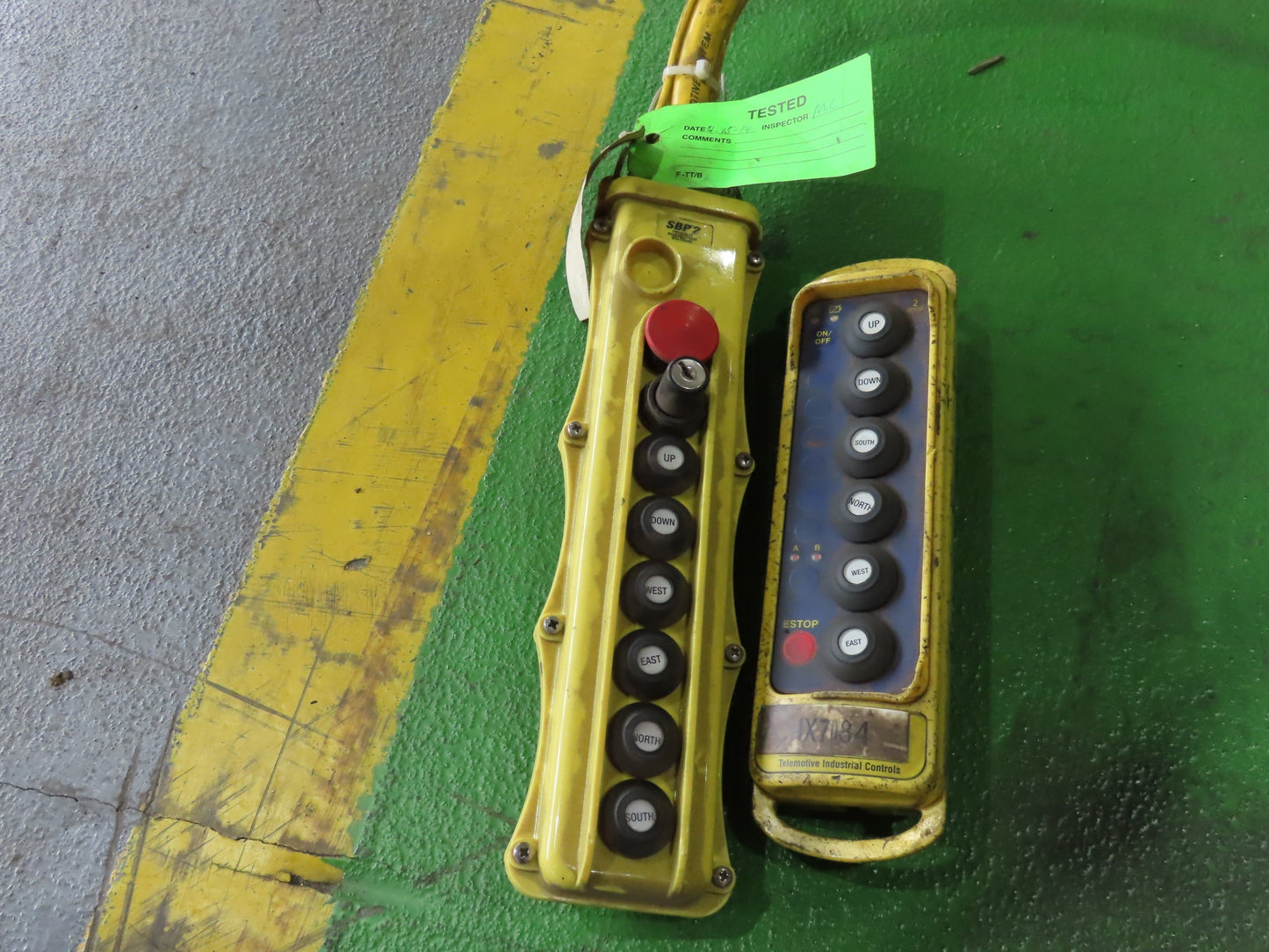

  • Includes corded and wireless pendants.
  • Single speed bridge and trolley. 2-speed hoist.

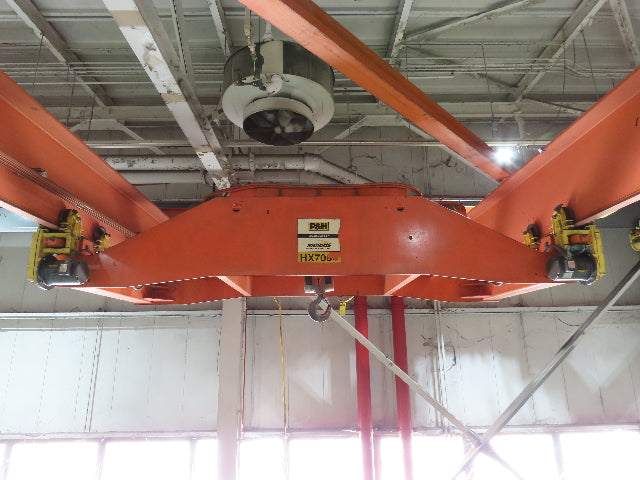

  • Trolley carriage 14' 10"L x 86"W
  • Girder beam span: 14'
  • Overall width: 22' (End truck to end truck)

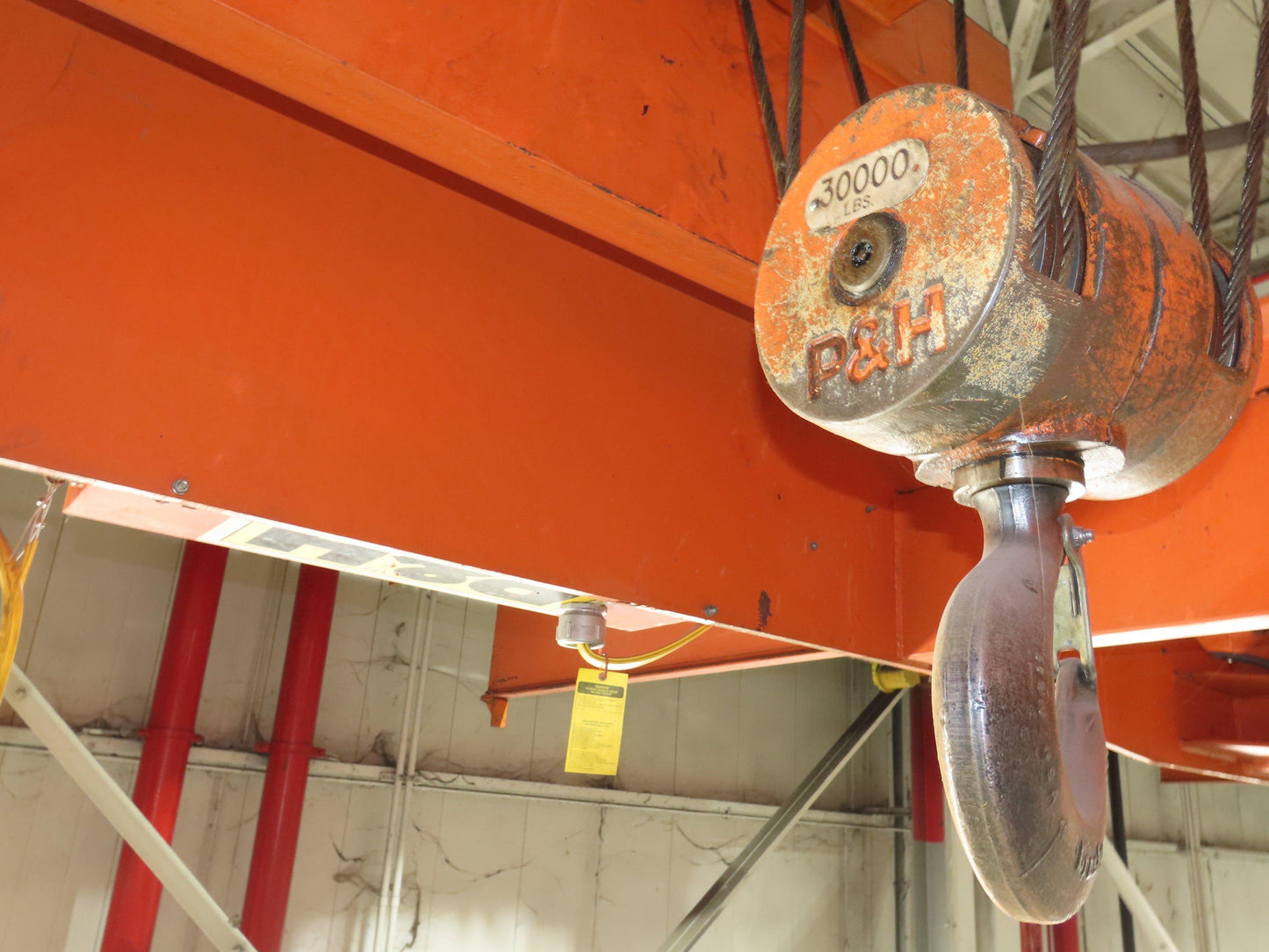

  • The hook height is set up with an alarm that sounds when the hook is 4" close to fully retracted.   (The hook distance measurements are with hook fully retracted)
