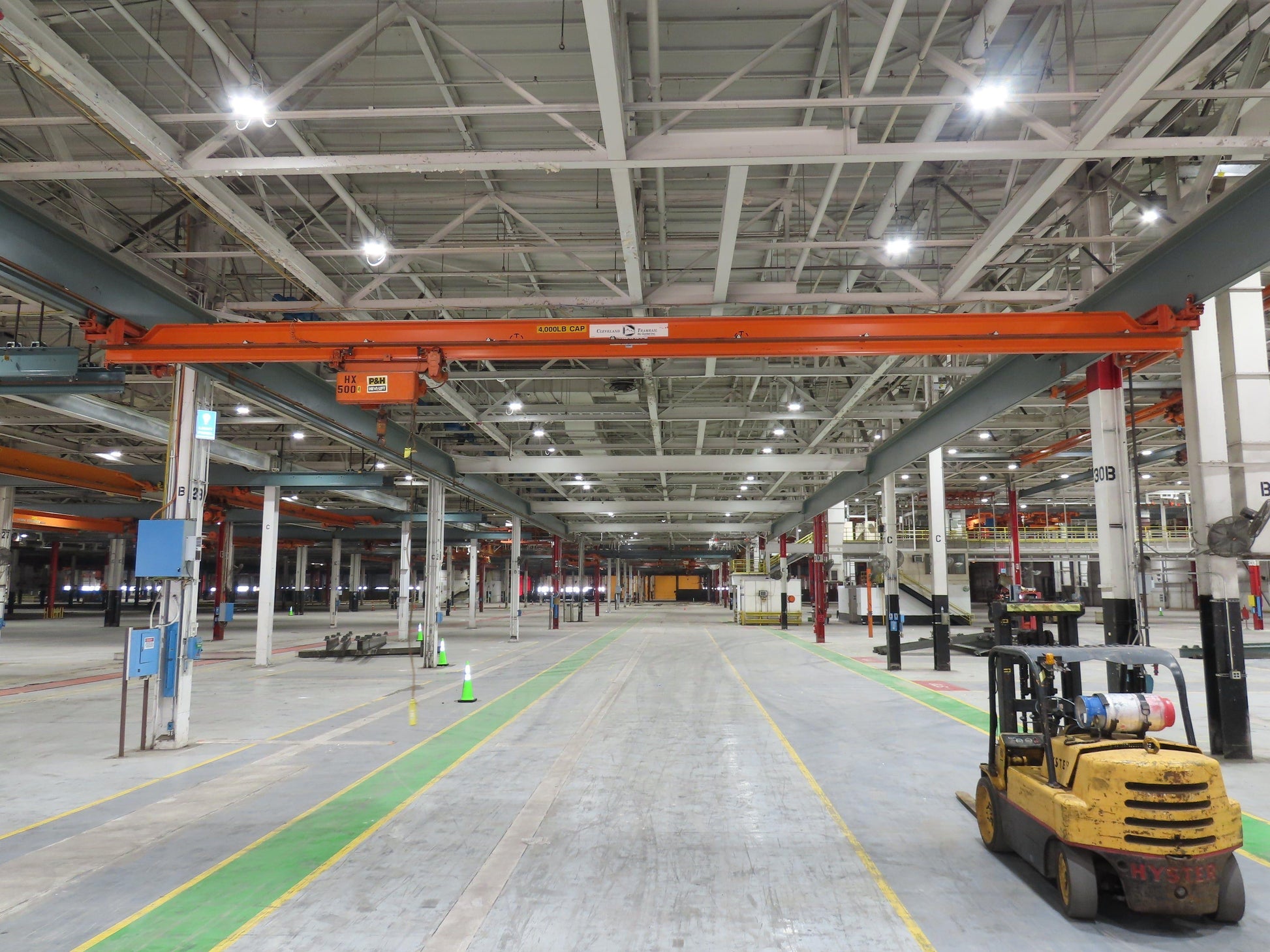

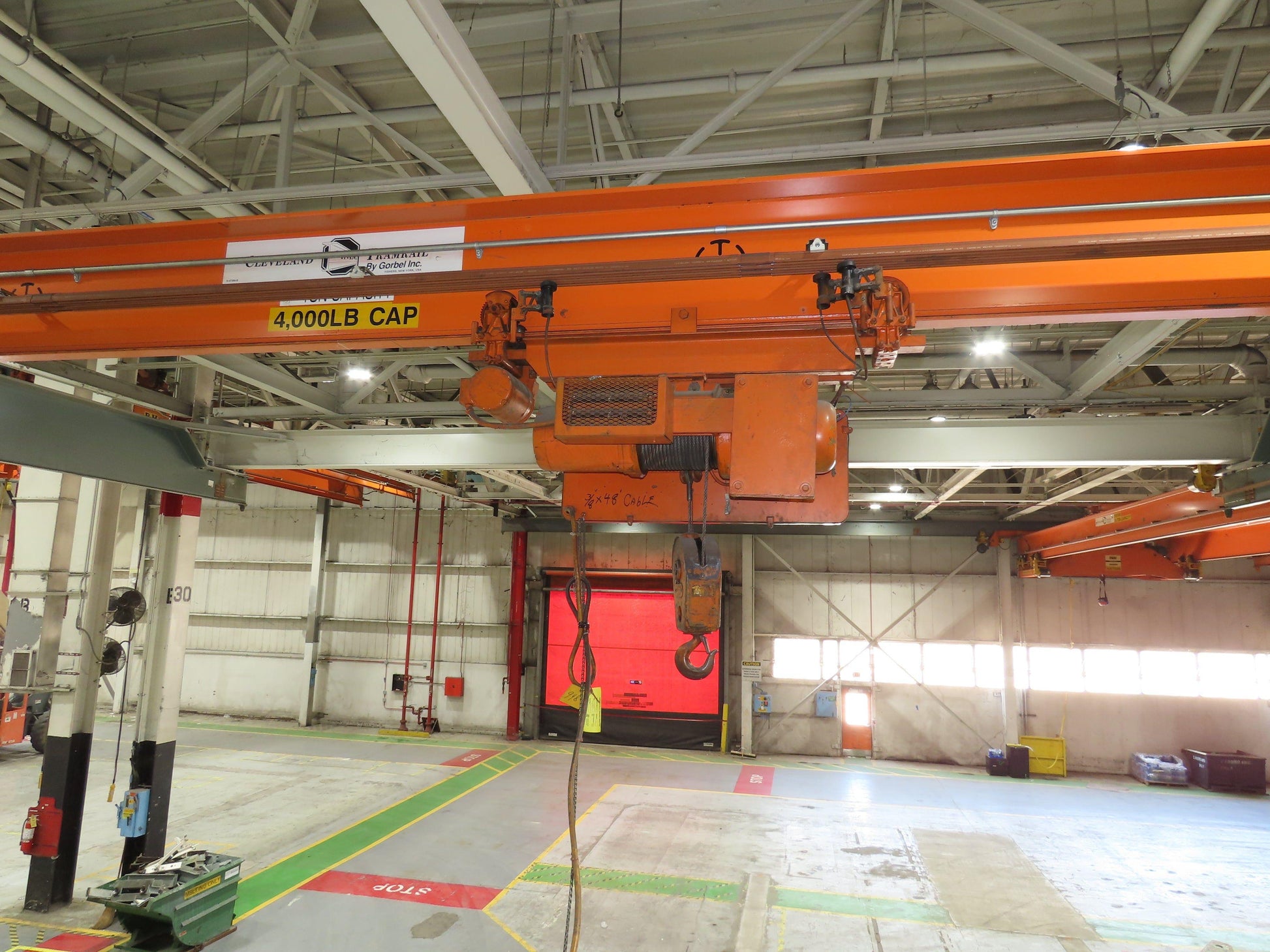

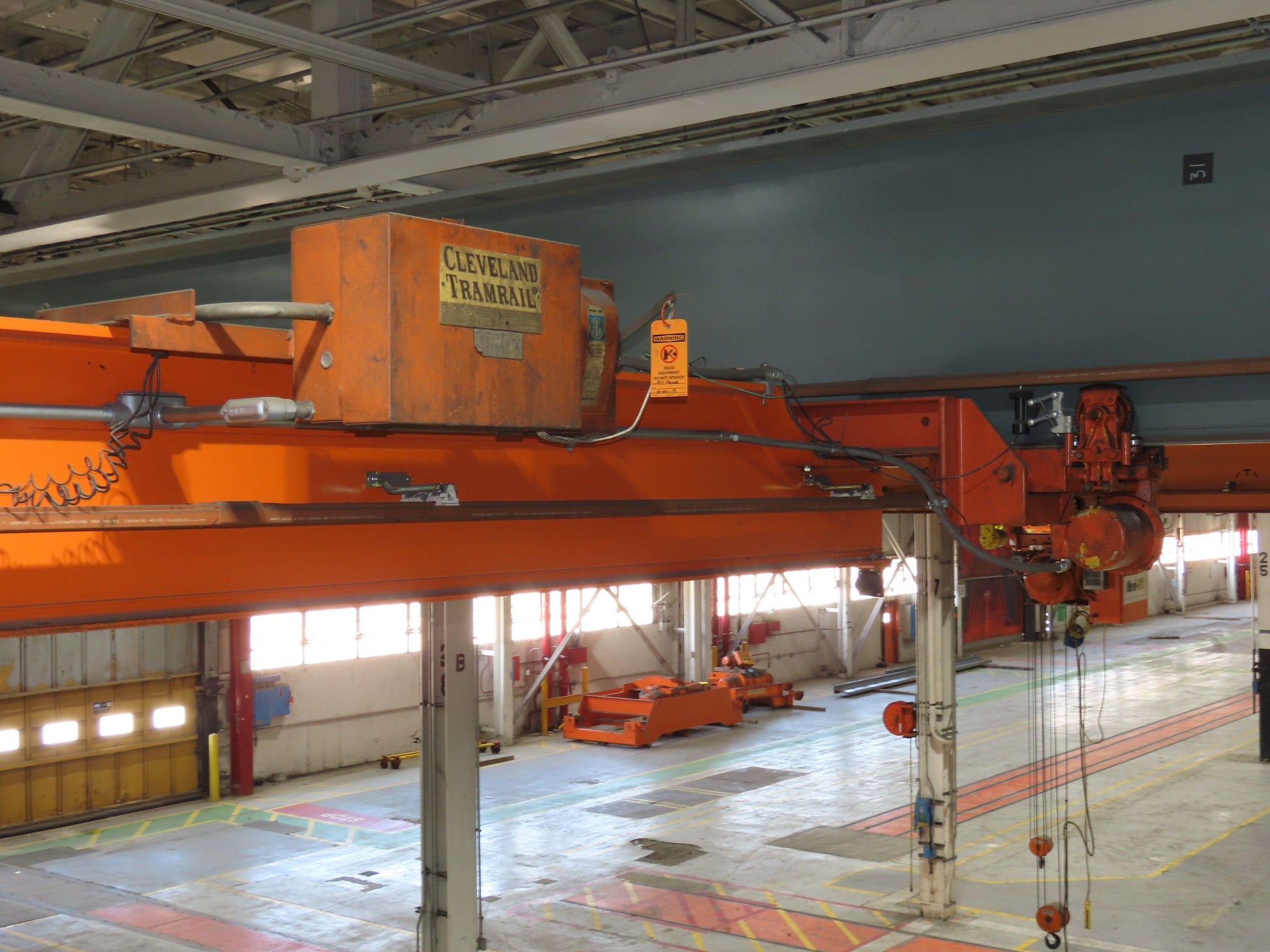

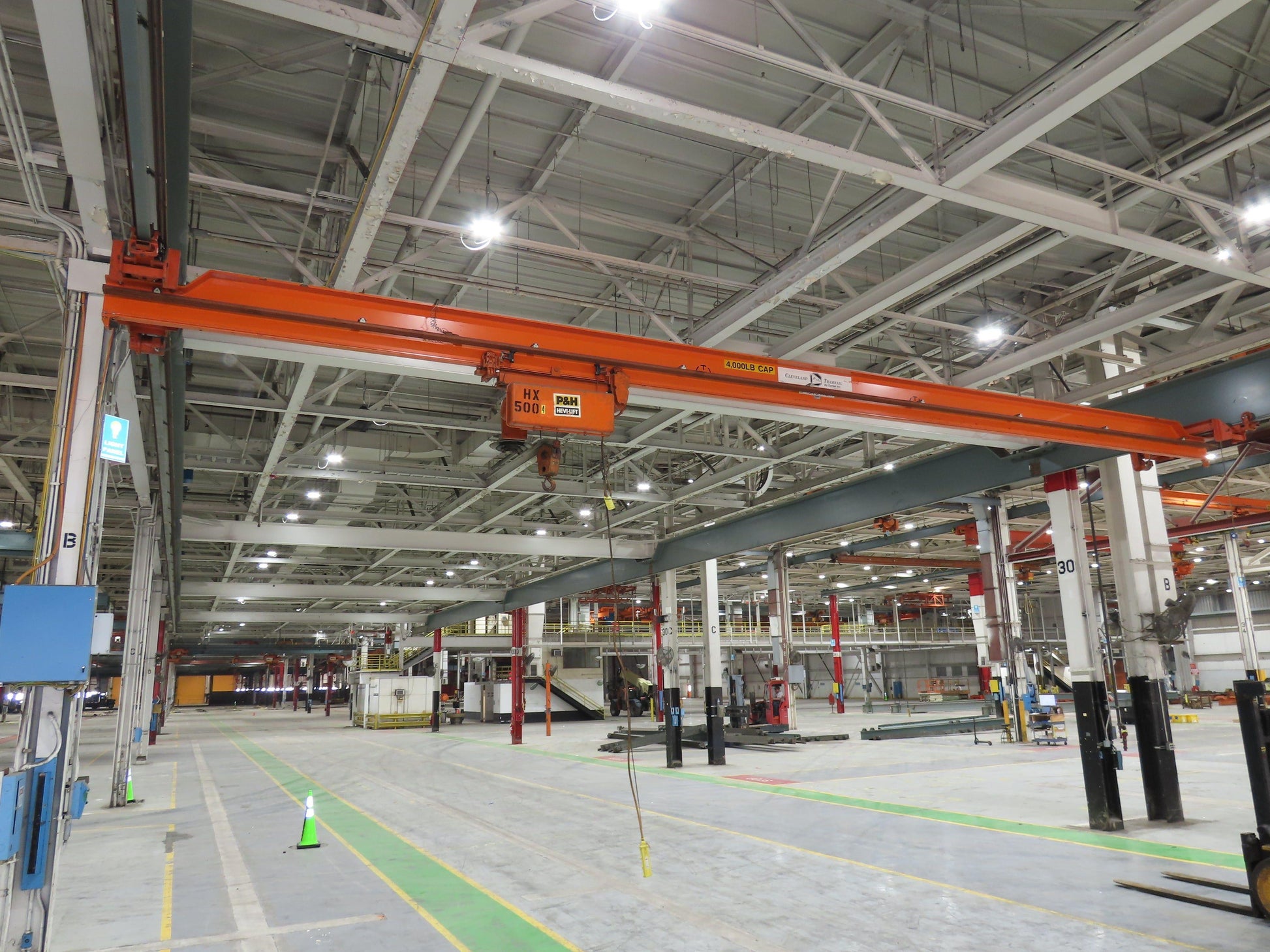

Cleveland Tramrail P&H 2 Ton Single Girder Underhung Bridge Crane 45' 10" Span

Cleveland Tramrail P&H 2 Ton Single Girder Underhung Bridge Crane 45' 10" Span

SKU #261983

Product Condition: Used

Your Price
$6,412.49
$7,499.99 $6,412.49
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail
Model

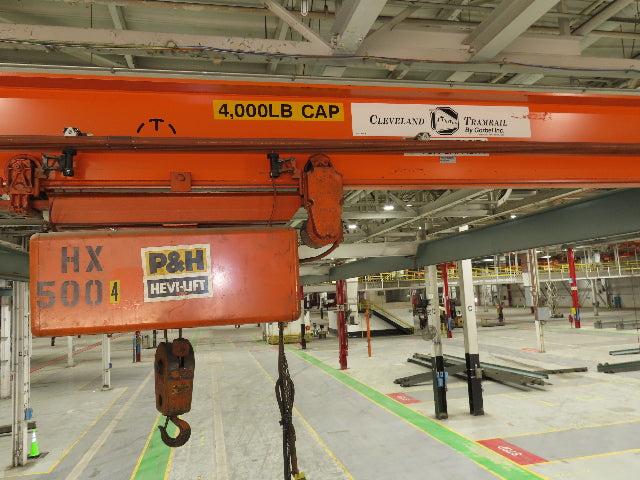

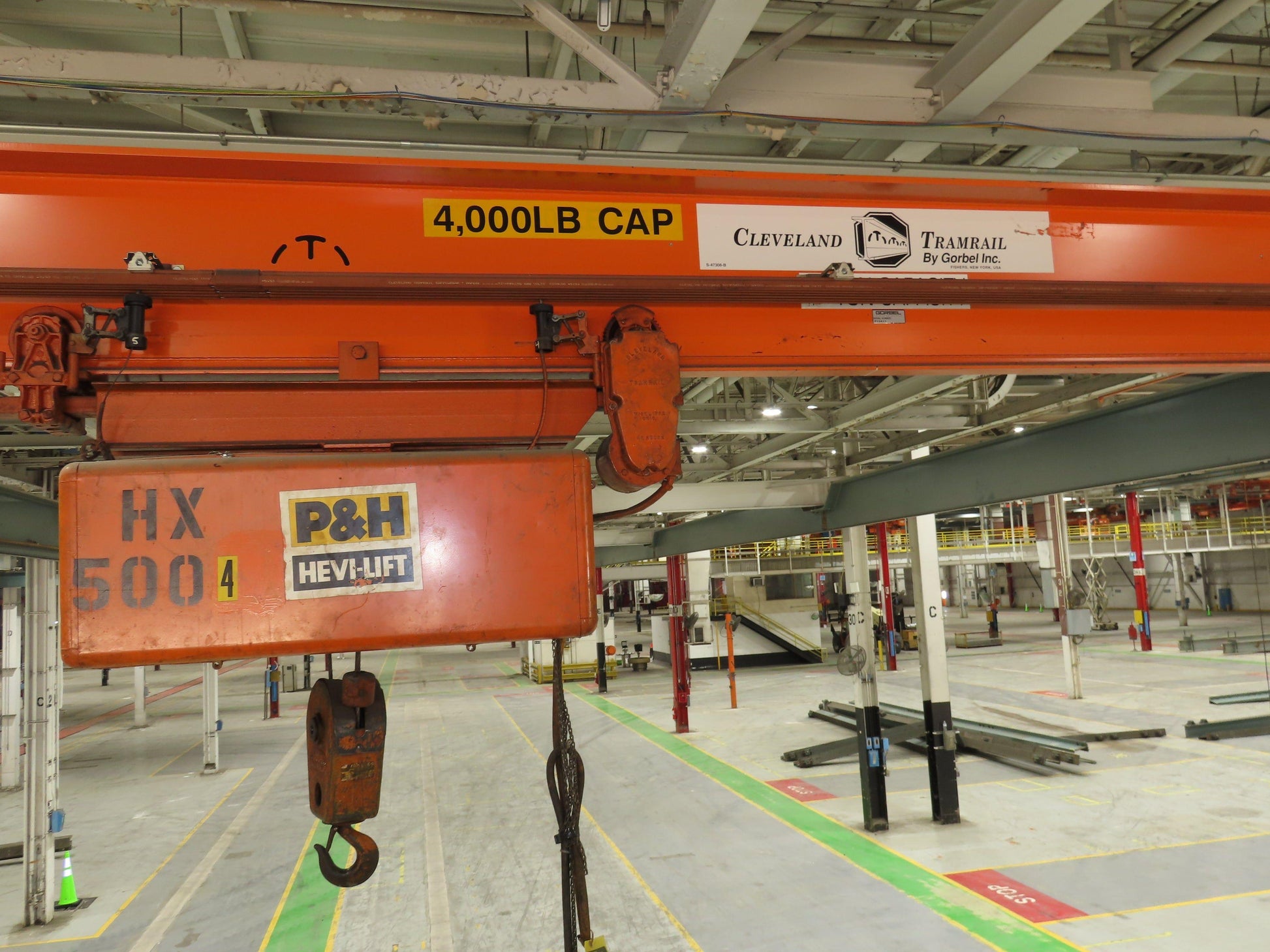

P&H Hevi-Lift
MPN
HX5004
Condition
Used
  • Capacity (tons): 2
  • Capacity (lb): 4000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung

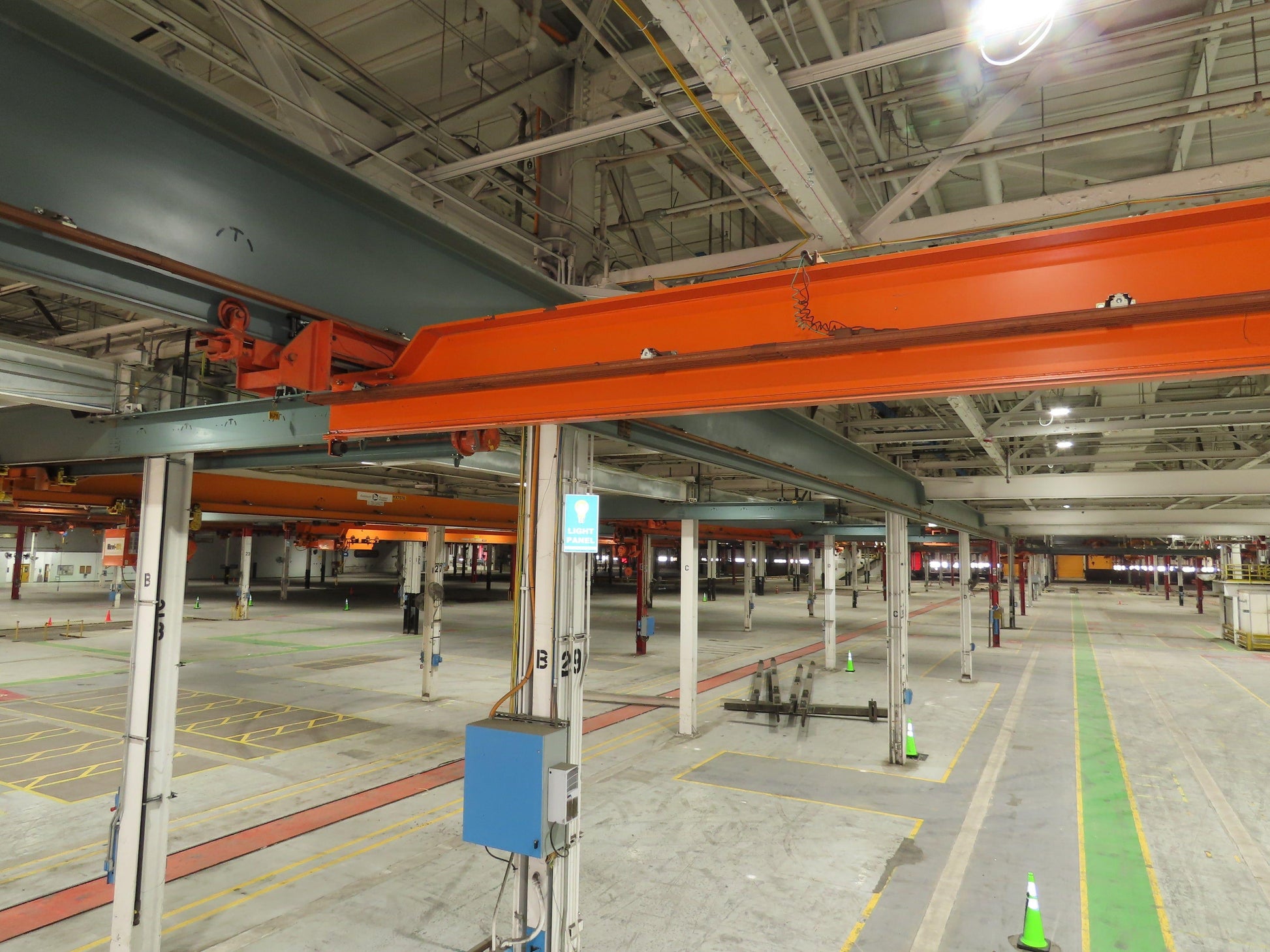

  • Runway Beam Distance Between Centers (Span): 45' 10"
  • Main Girder Beam Size (Height x Width x Length): 20"H x 11"W x 47' 10" Length (3.25" flange)

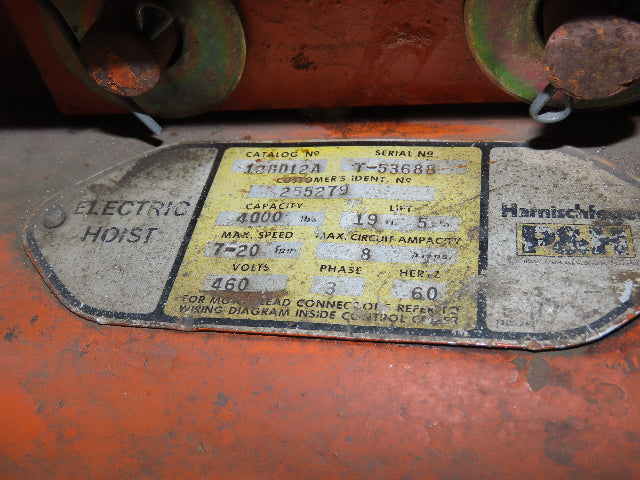

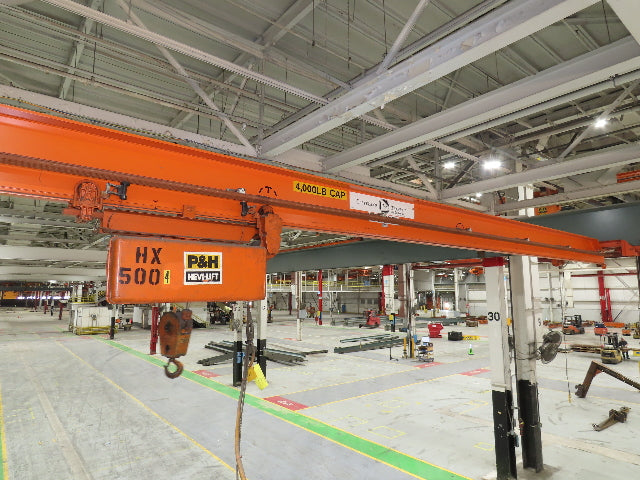

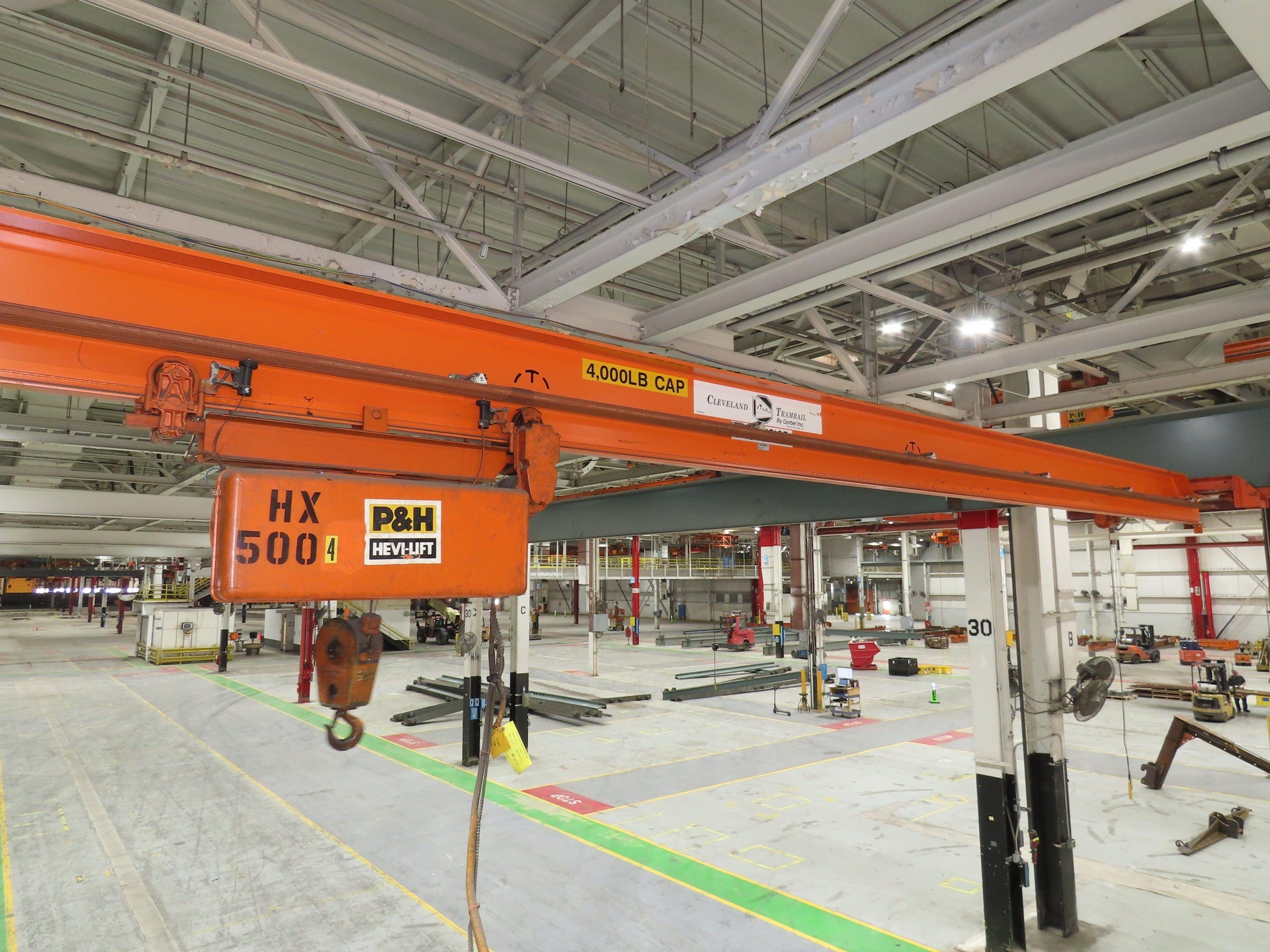

  • Hoist Brand: P&H

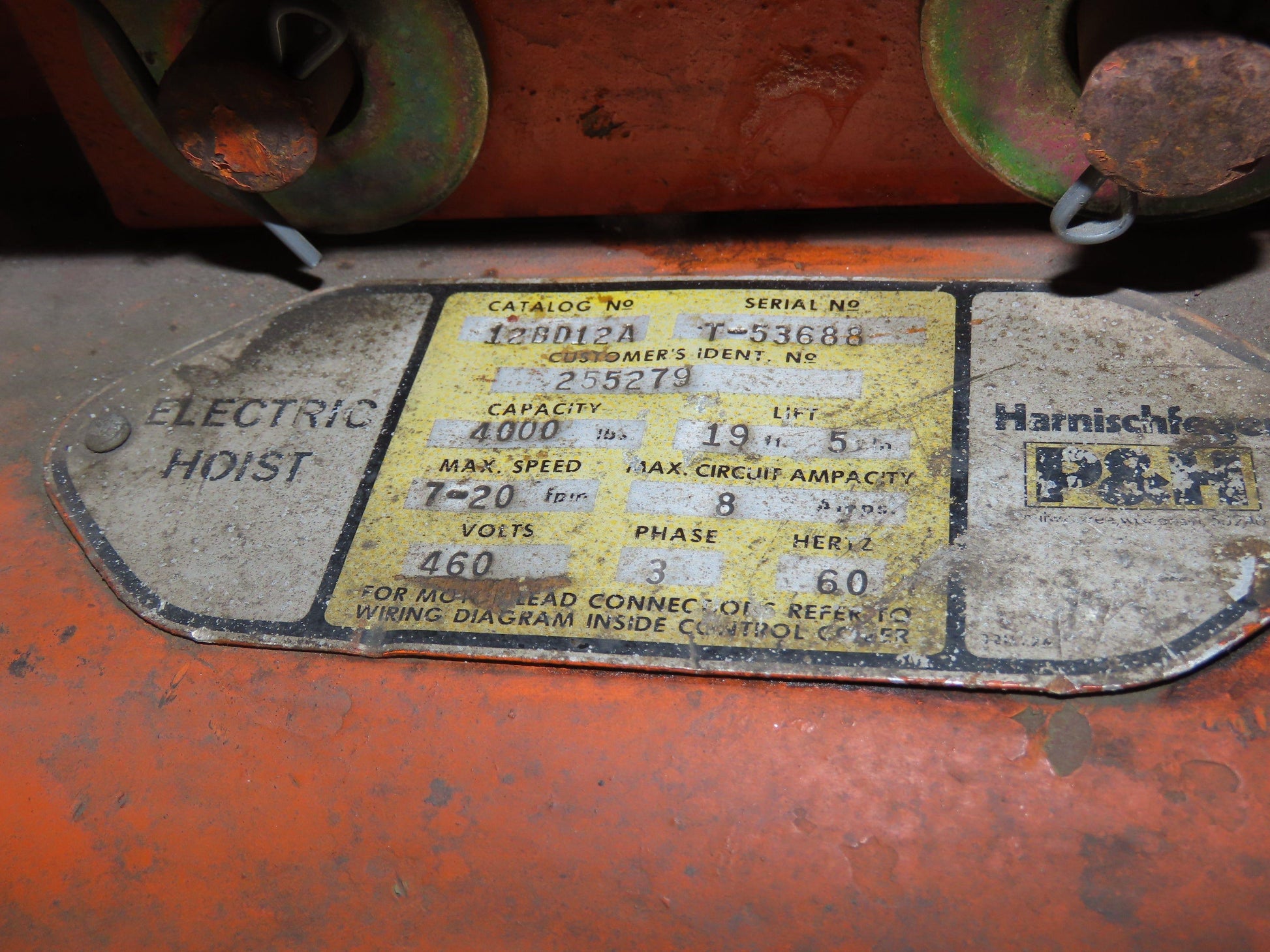

  • Hoist Model: 12BD12A
  • Lift Travel (feet): 18' 8"
  • Lift Speed (feet per minute): 7 /20 (2-speed)

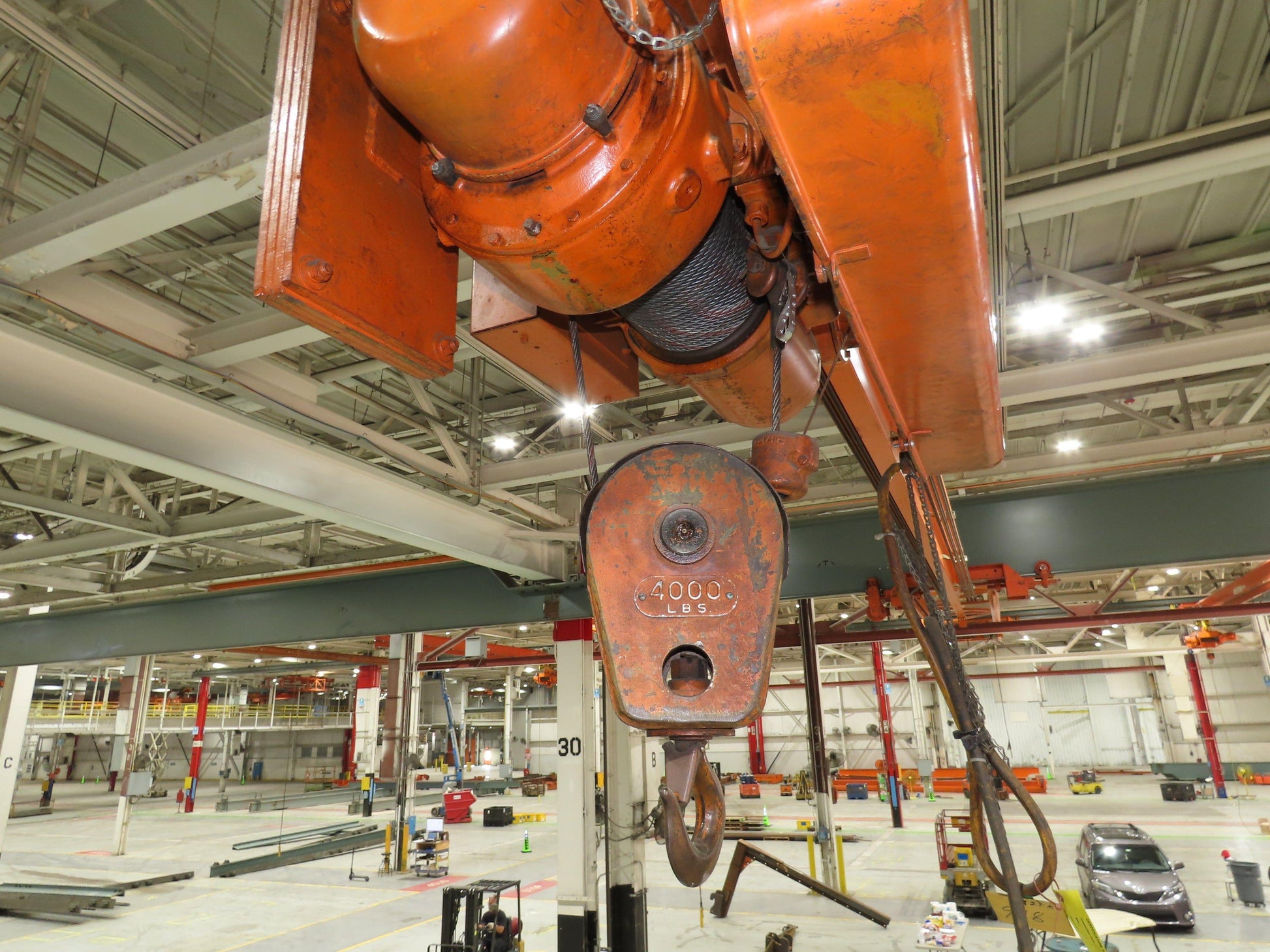

  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 12' 8"

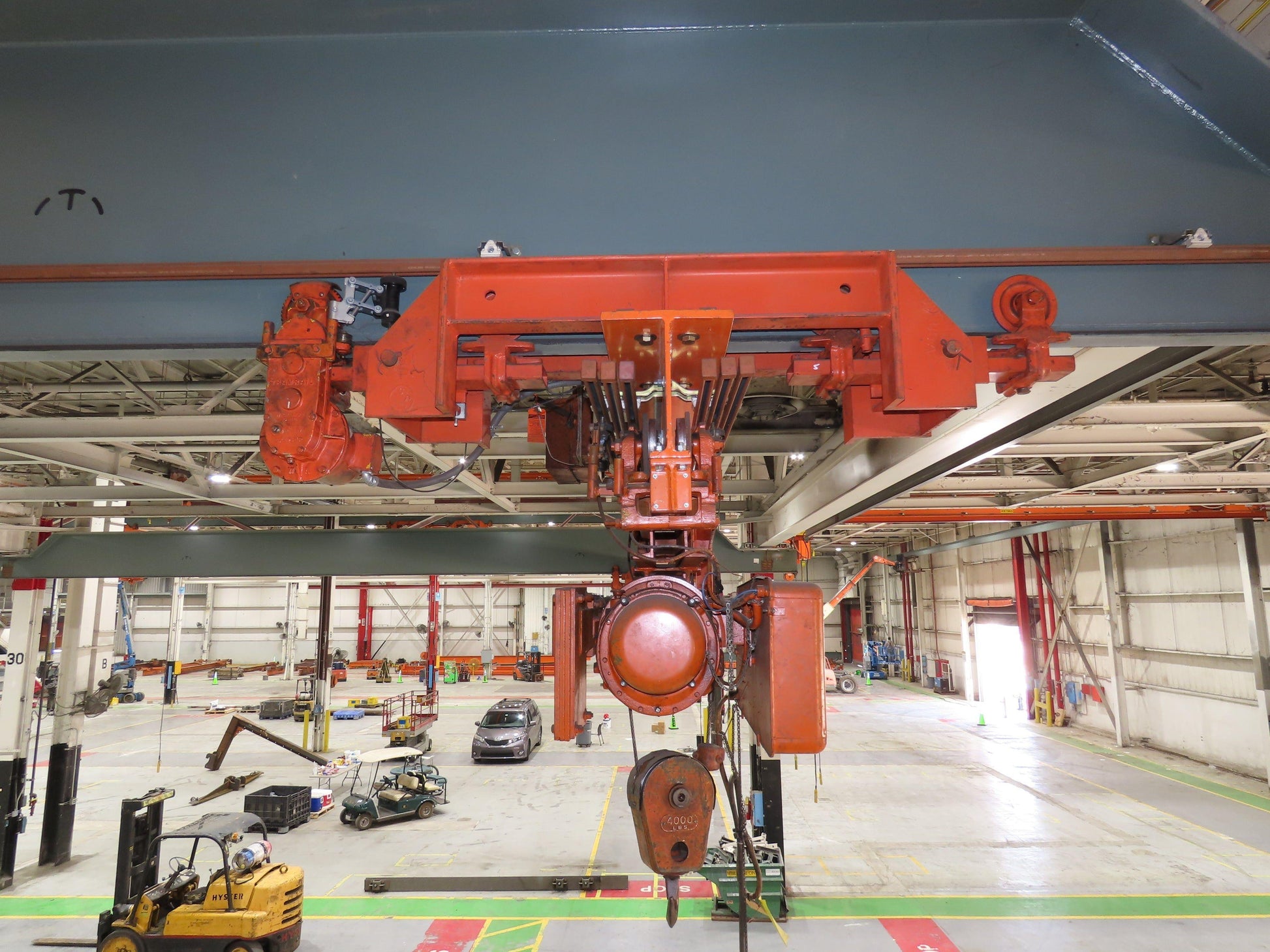

  • Hoist Power Trolley Speed (feet per minute): 80
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 48"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 76"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 62"
  • Bridge Crane is in working condition.  Tested on site before removal.

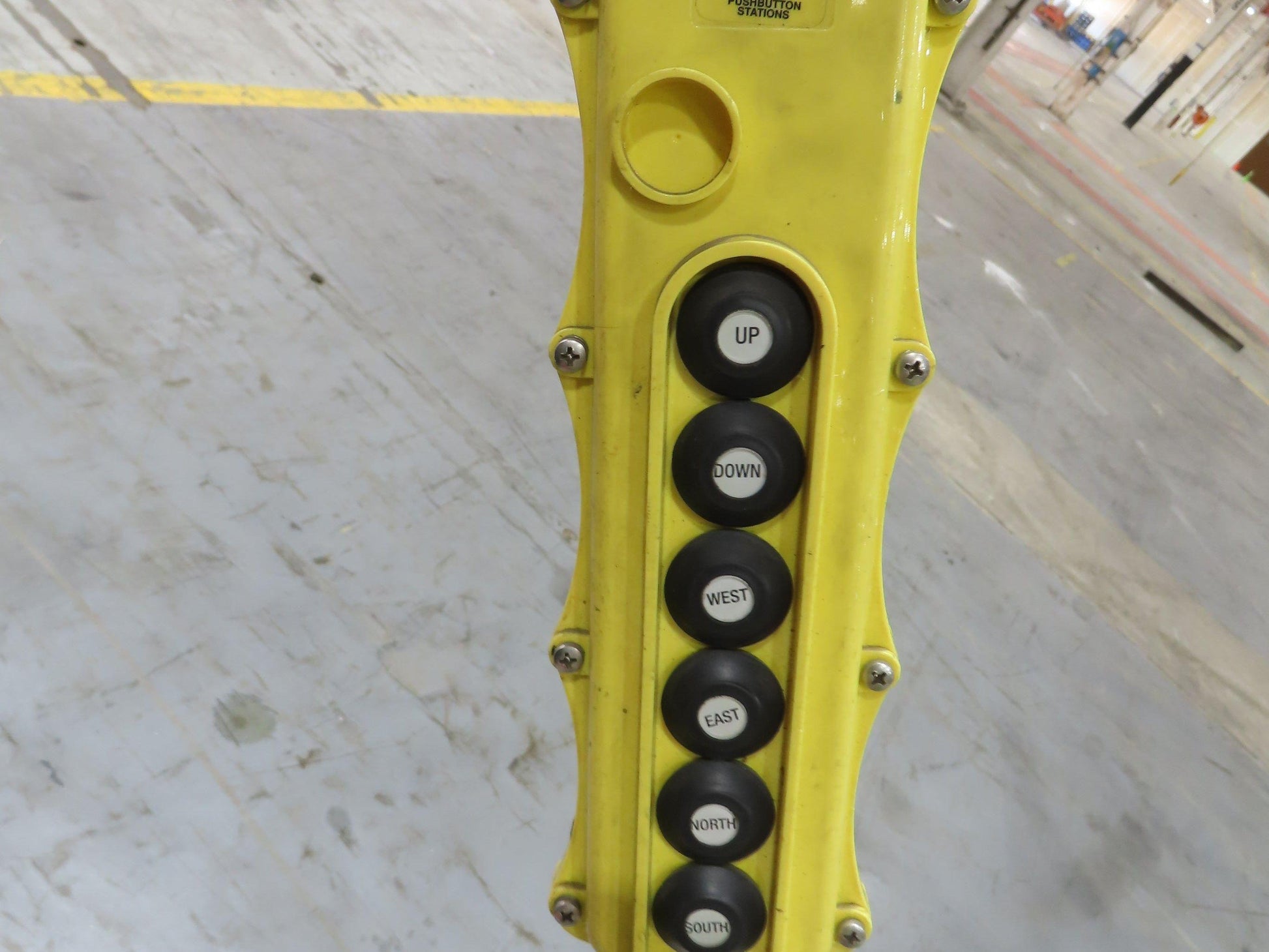

  • Includes corded pendant.
  • Single speed bridge and trolley.
  • 2-speed hoist.
