Cleveland Tramrail

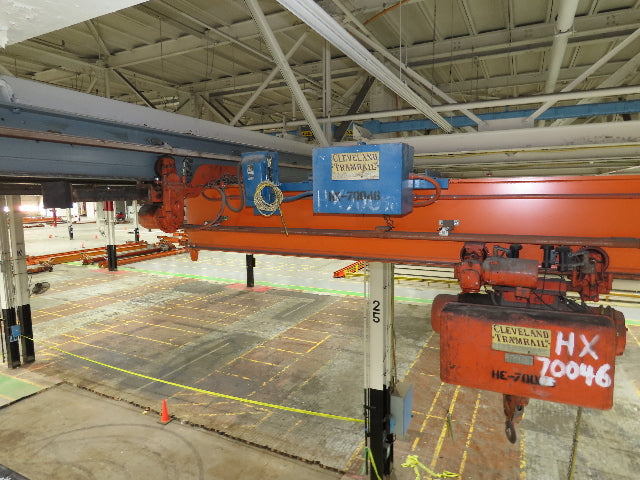

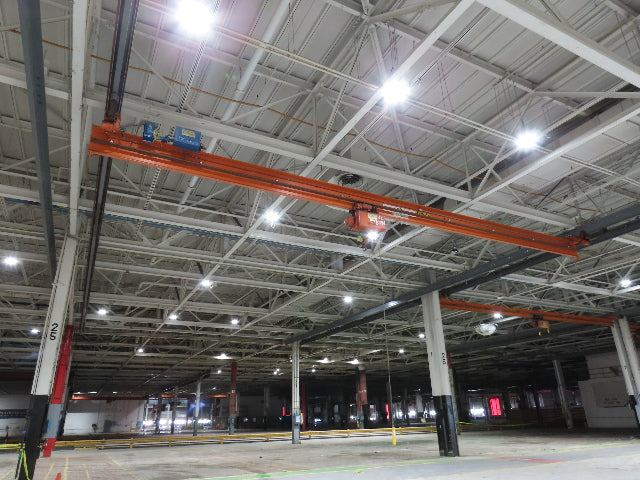

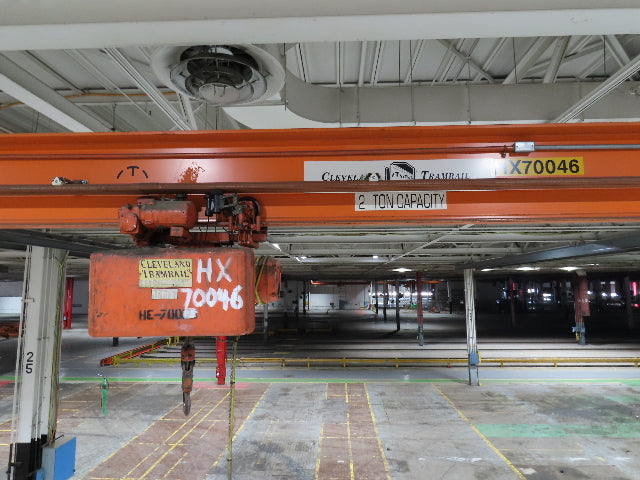

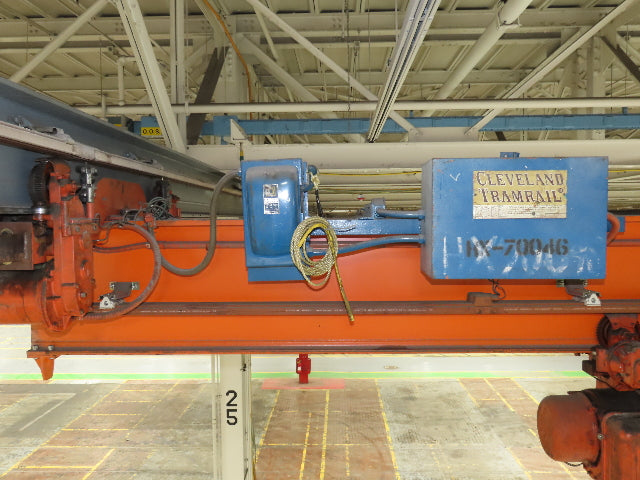

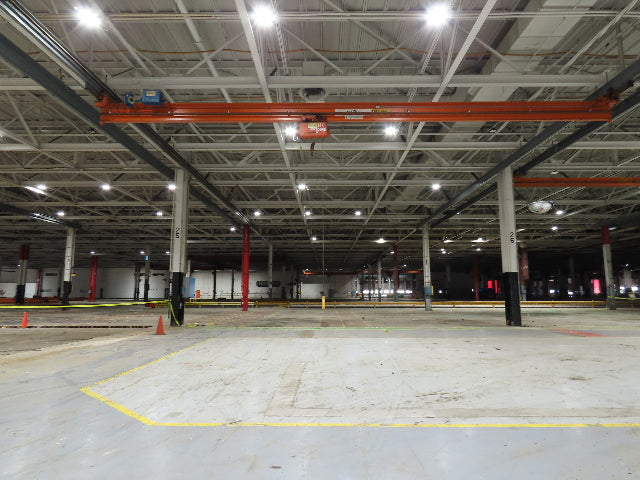

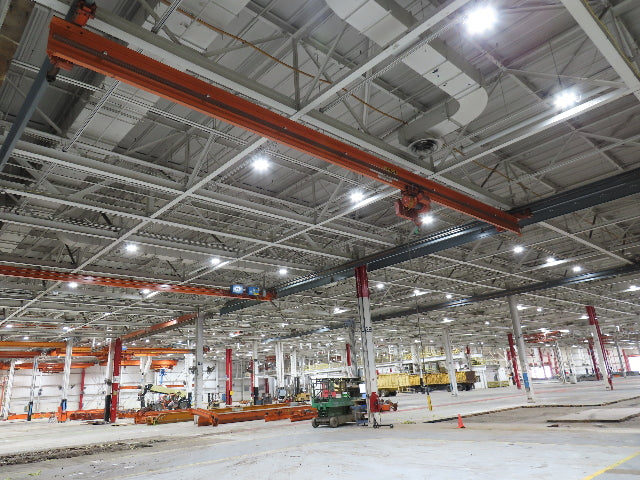

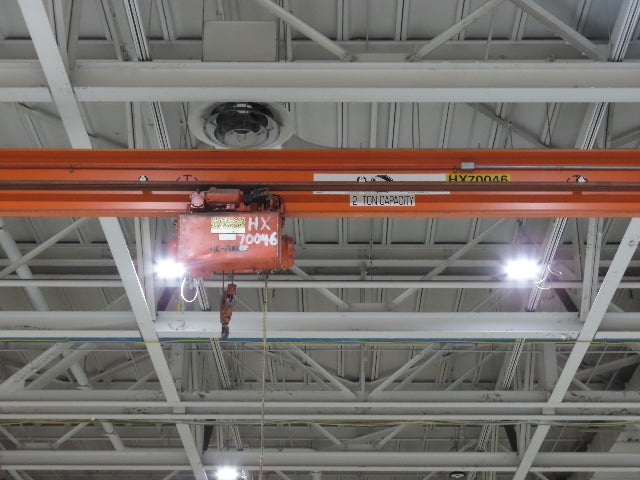

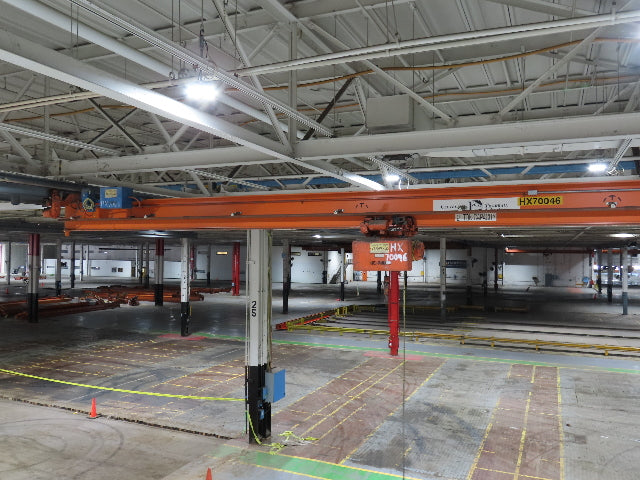

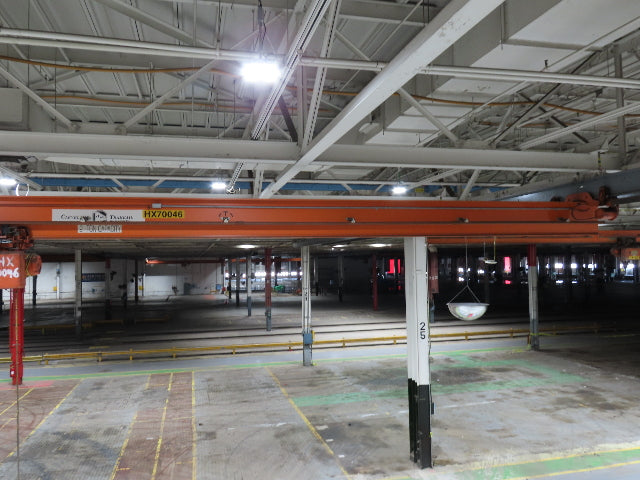

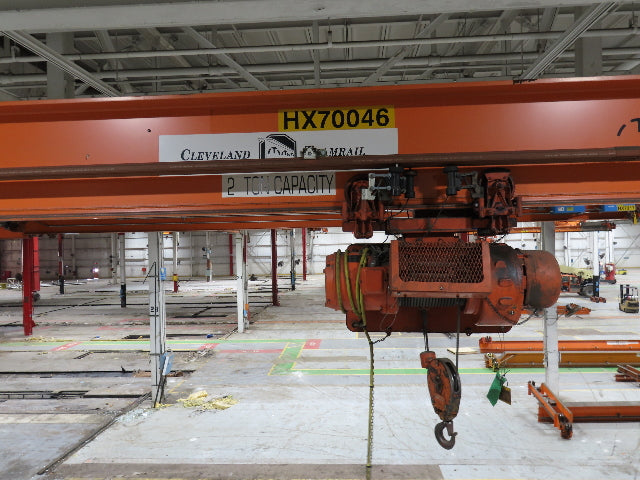

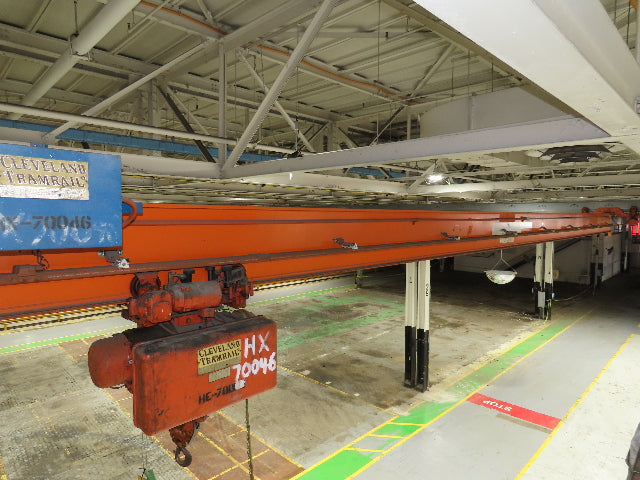

Cleveland Tramrail P&H 2 Ton Single Girder Underhung Bridge Crane 45' 10" Span

Cleveland Tramrail P&H 2 Ton Single Girder Underhung Bridge Crane 45' 10" Span

SKU #262389

Your Price
$7,124.99
$7,124.99
Sale Sold out
Shipping calculated at checkout.
  • Capacity (tons): 2
  • Capacity (lb): 4000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45' 10"

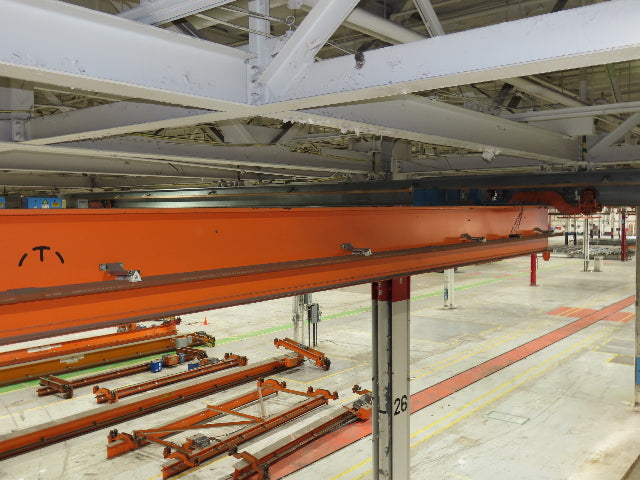

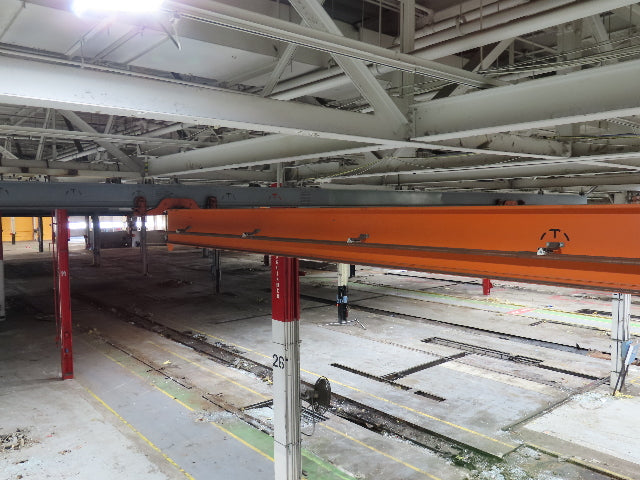

  • Main Girder Beam Size (Height x Width x Length): 20"H x 11"W x 47' 10" Length (3.25" bottom flange)
  • Bridge Speed (feet per minute): Single speed

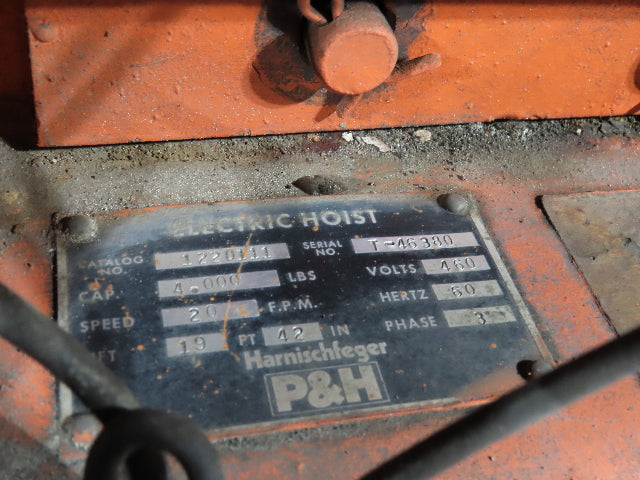

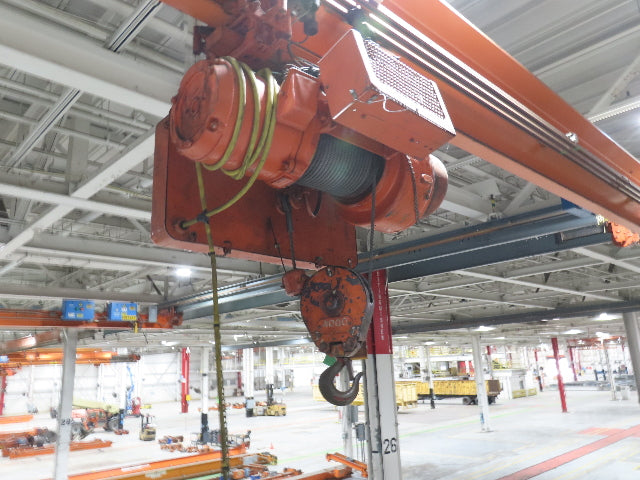

  • Hoist Brand: P&H
  • Lift Travel (feet): 19'
  • Lift Speed (feet per minute): 20

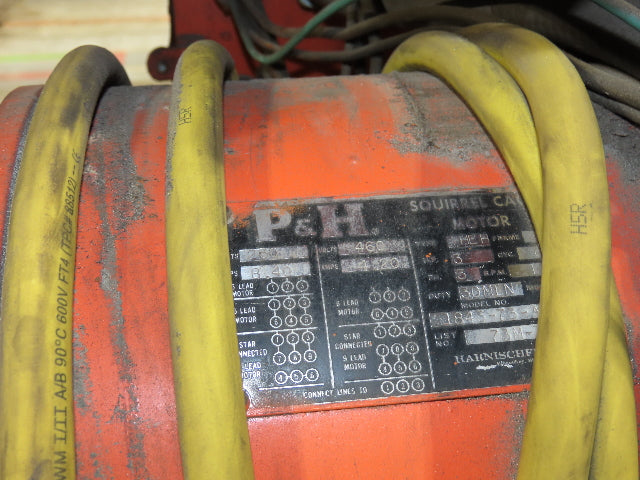

  • Motor Horse Power: 3

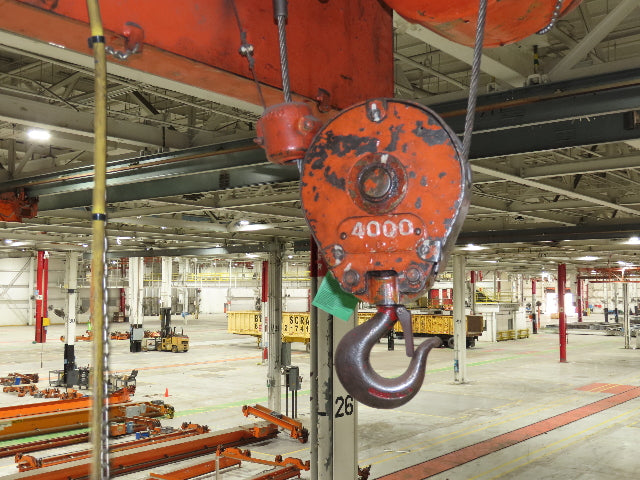

  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 15' 4"
  • Hoist Power Trolley Speed (feet per minute): 80
  • Hoist Trolley Length of Travel: 44' 8"
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 41"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 61"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 70"
  • Bridge Crane is in working condition.  Tested on site before removal.

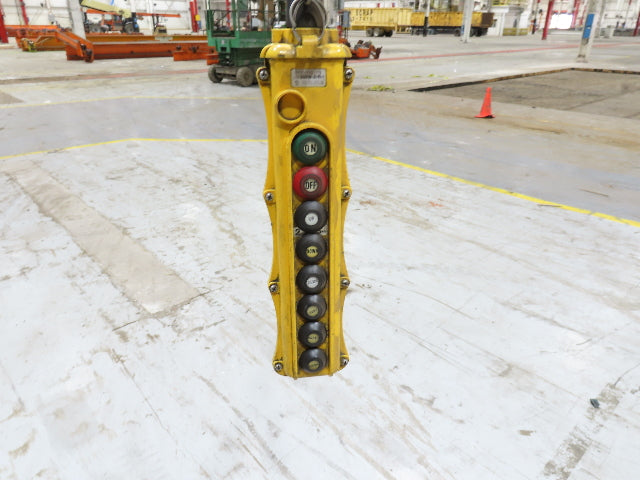

  • Includes corded pendant only.  Not set up for wireless.
  • Single speed bridge, trolley and hoist.

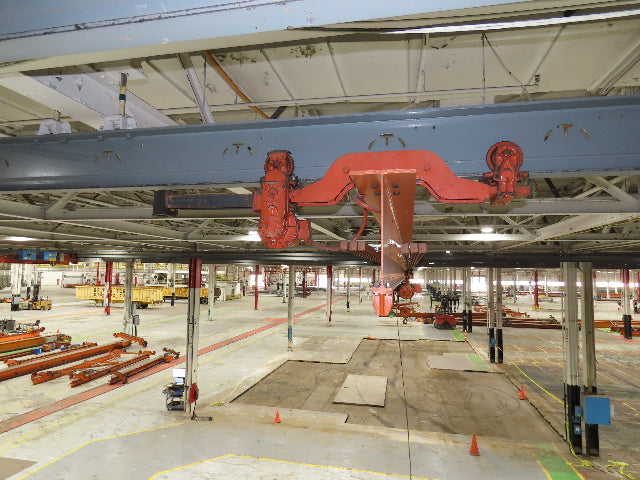

  • End truck length: 52"  (not measuring the bolt-on bumpers)
