Cleveland Tramrail

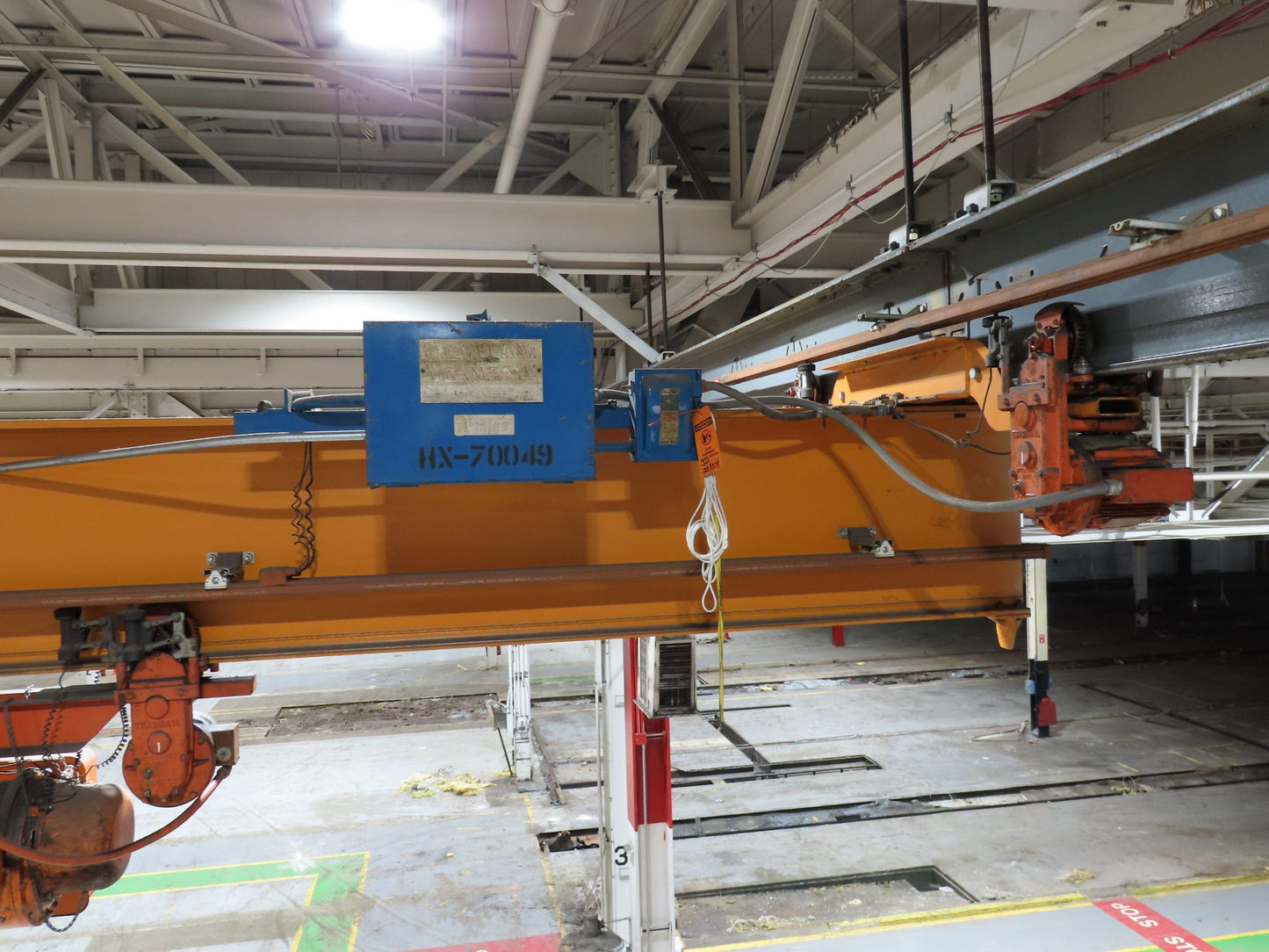

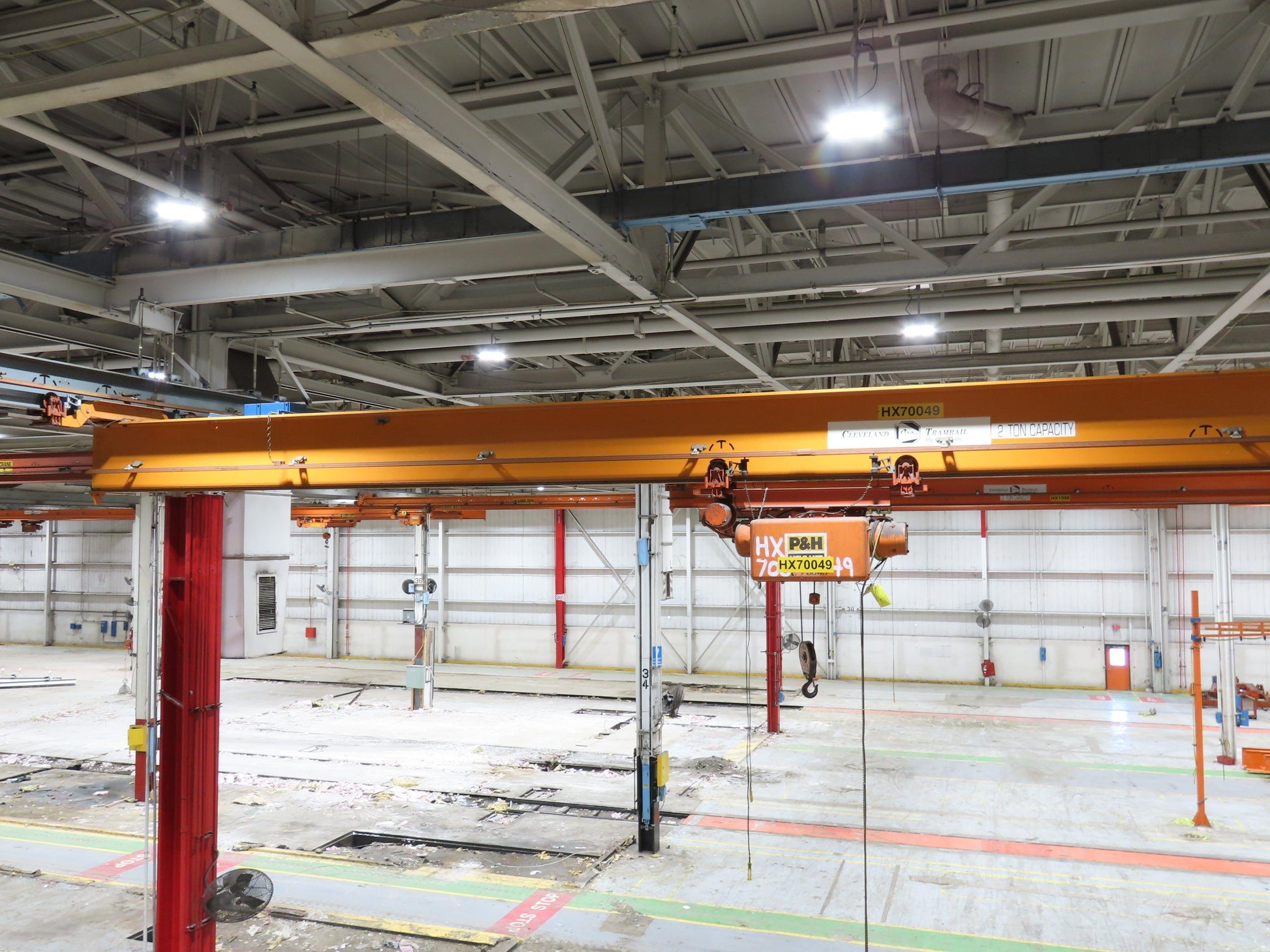

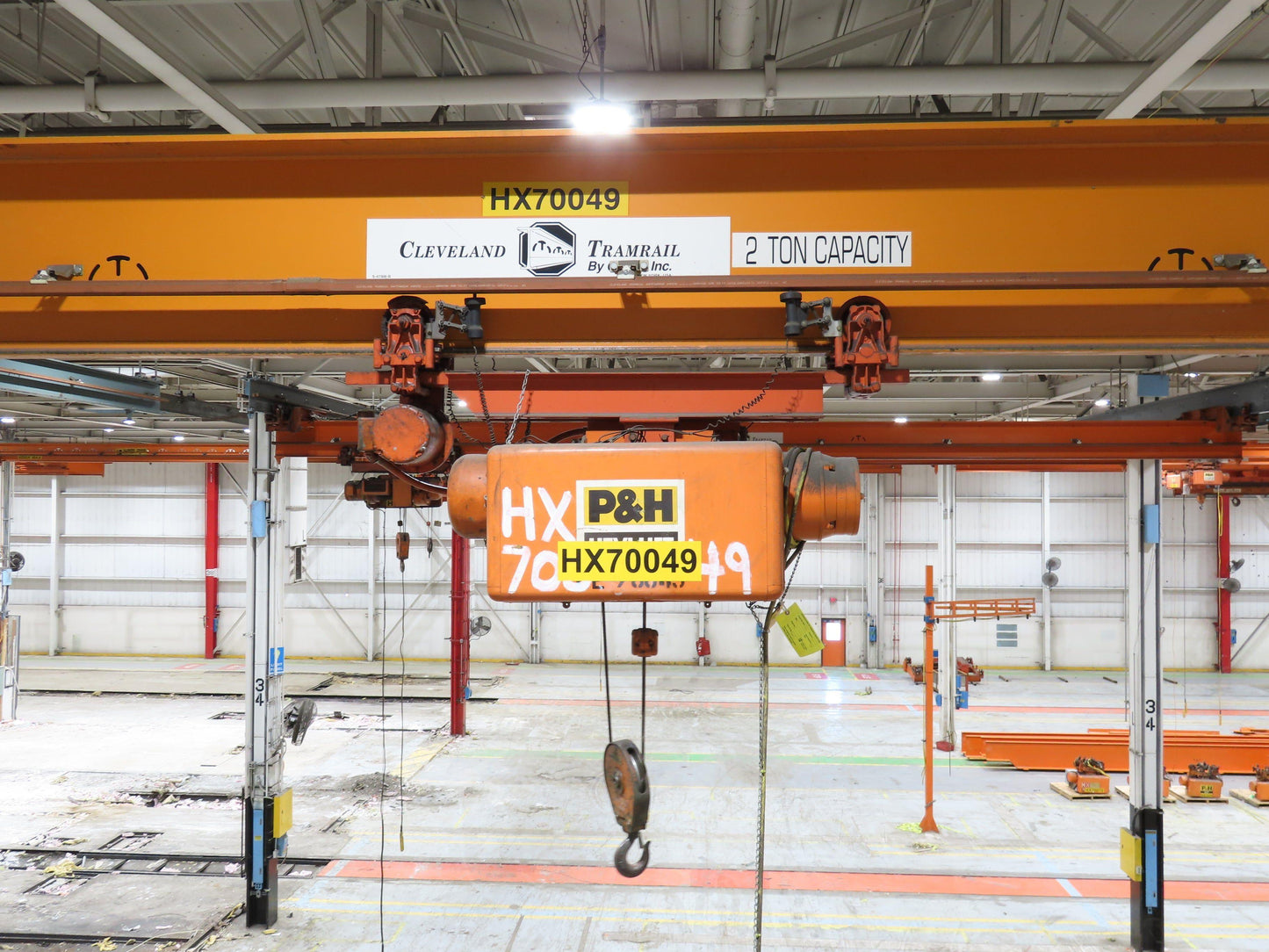

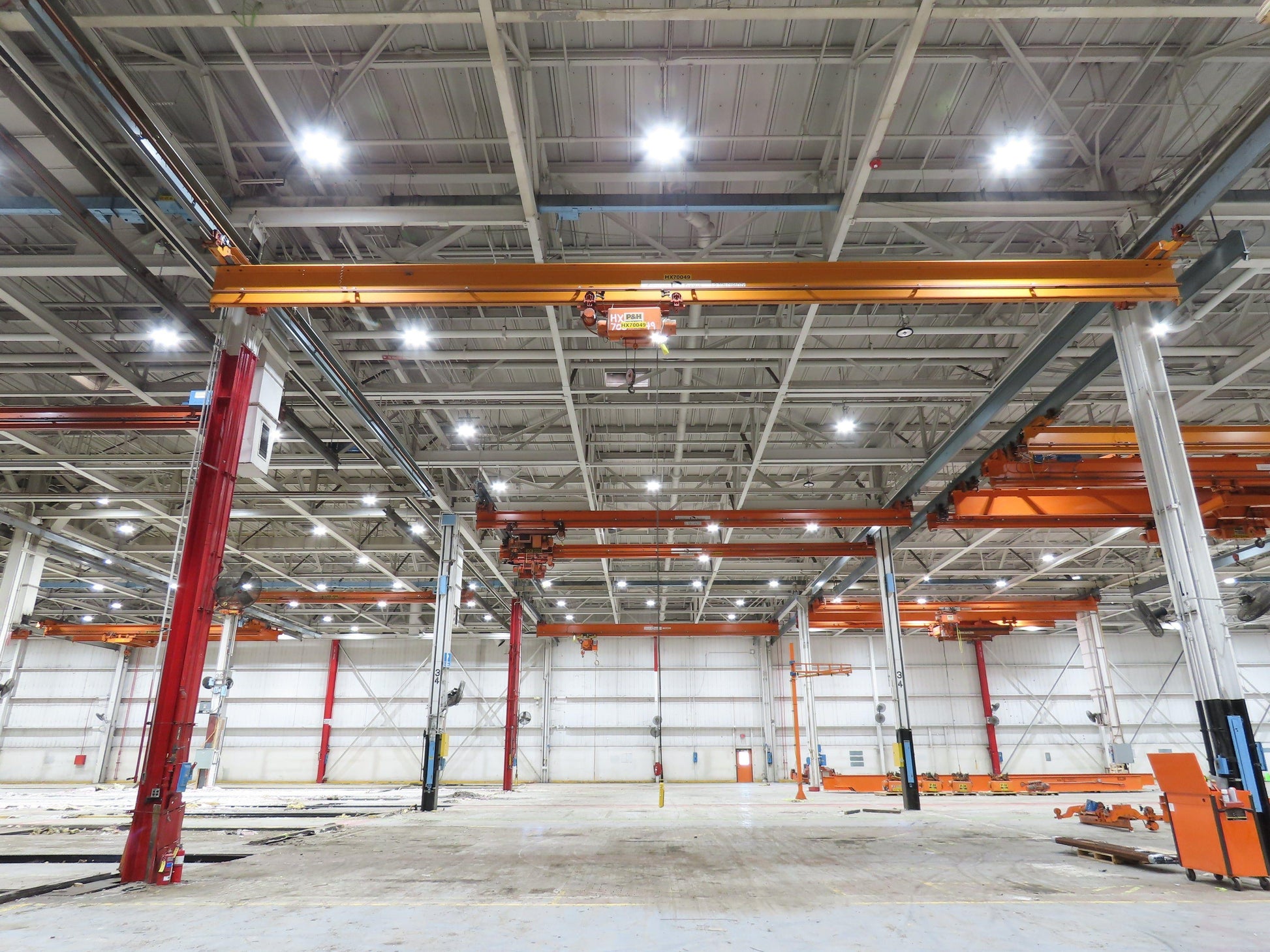

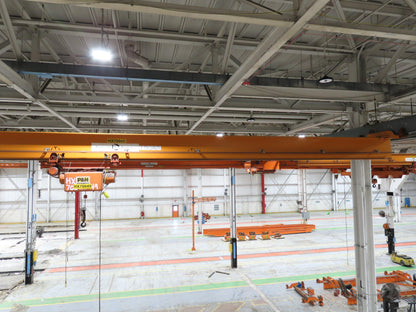

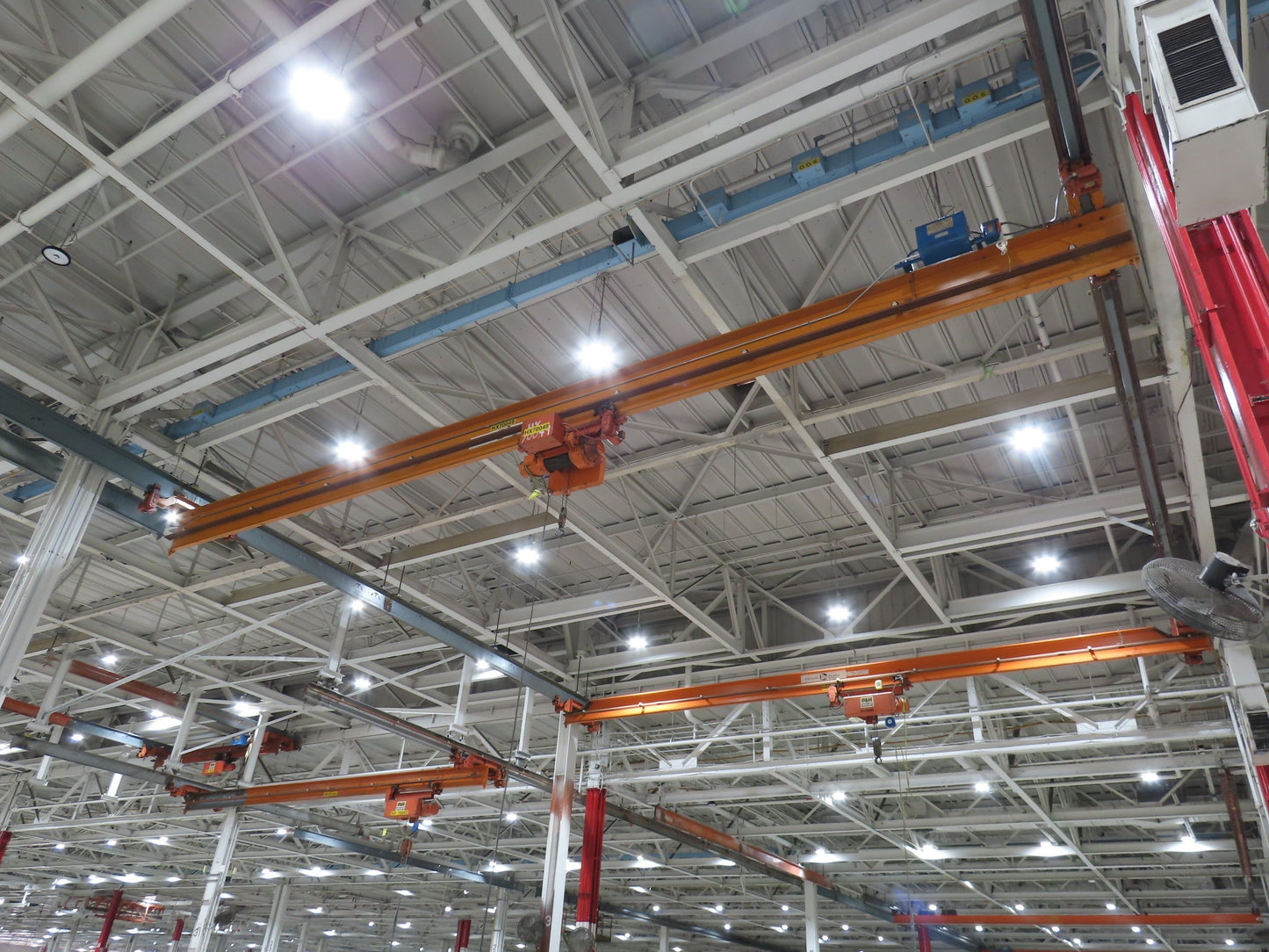

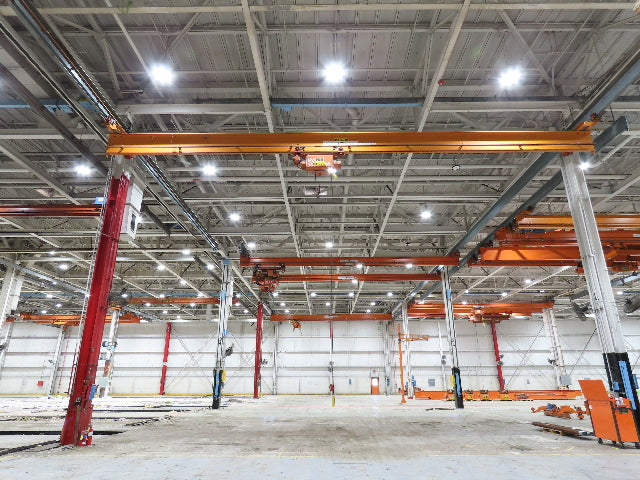

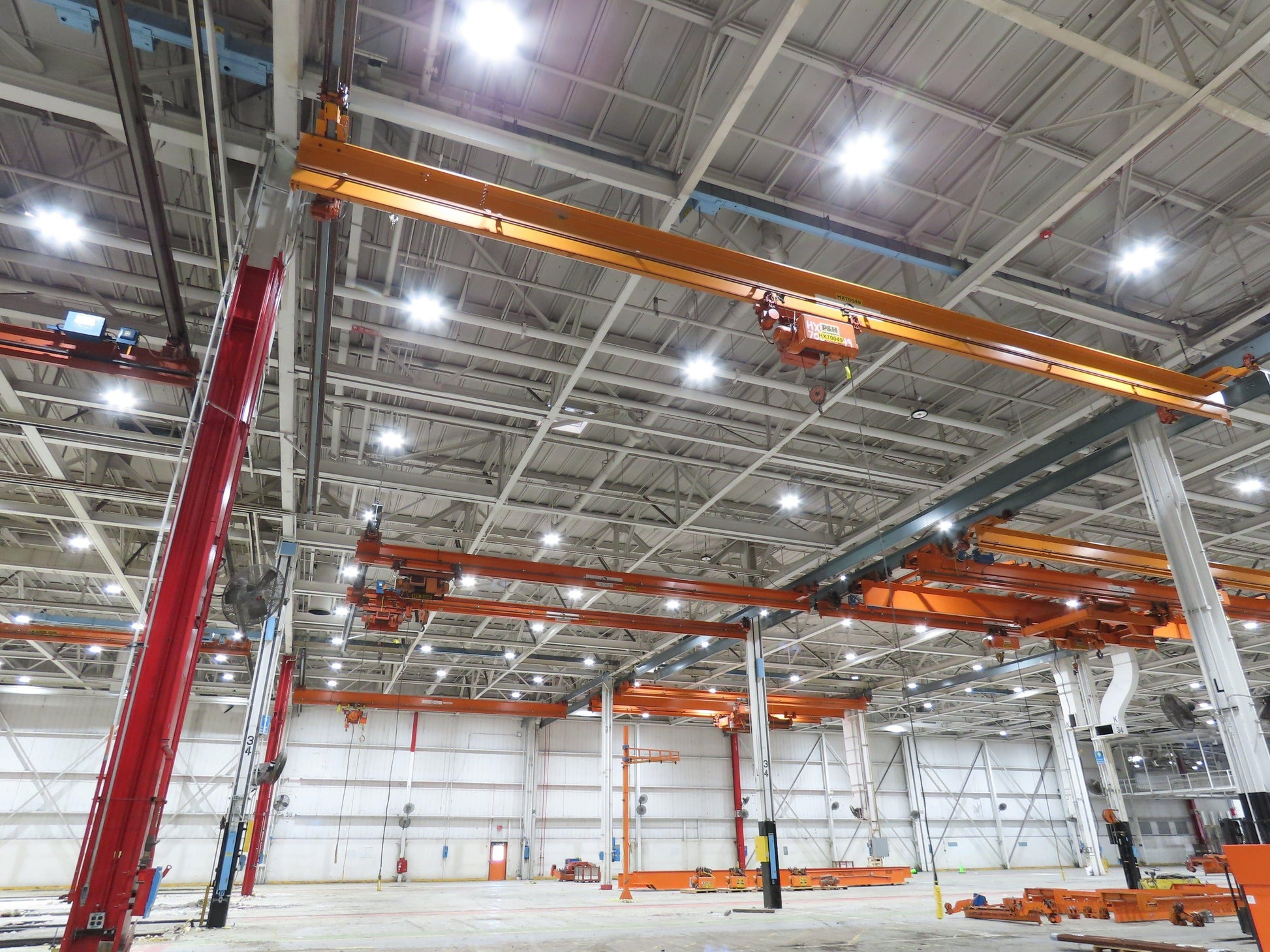

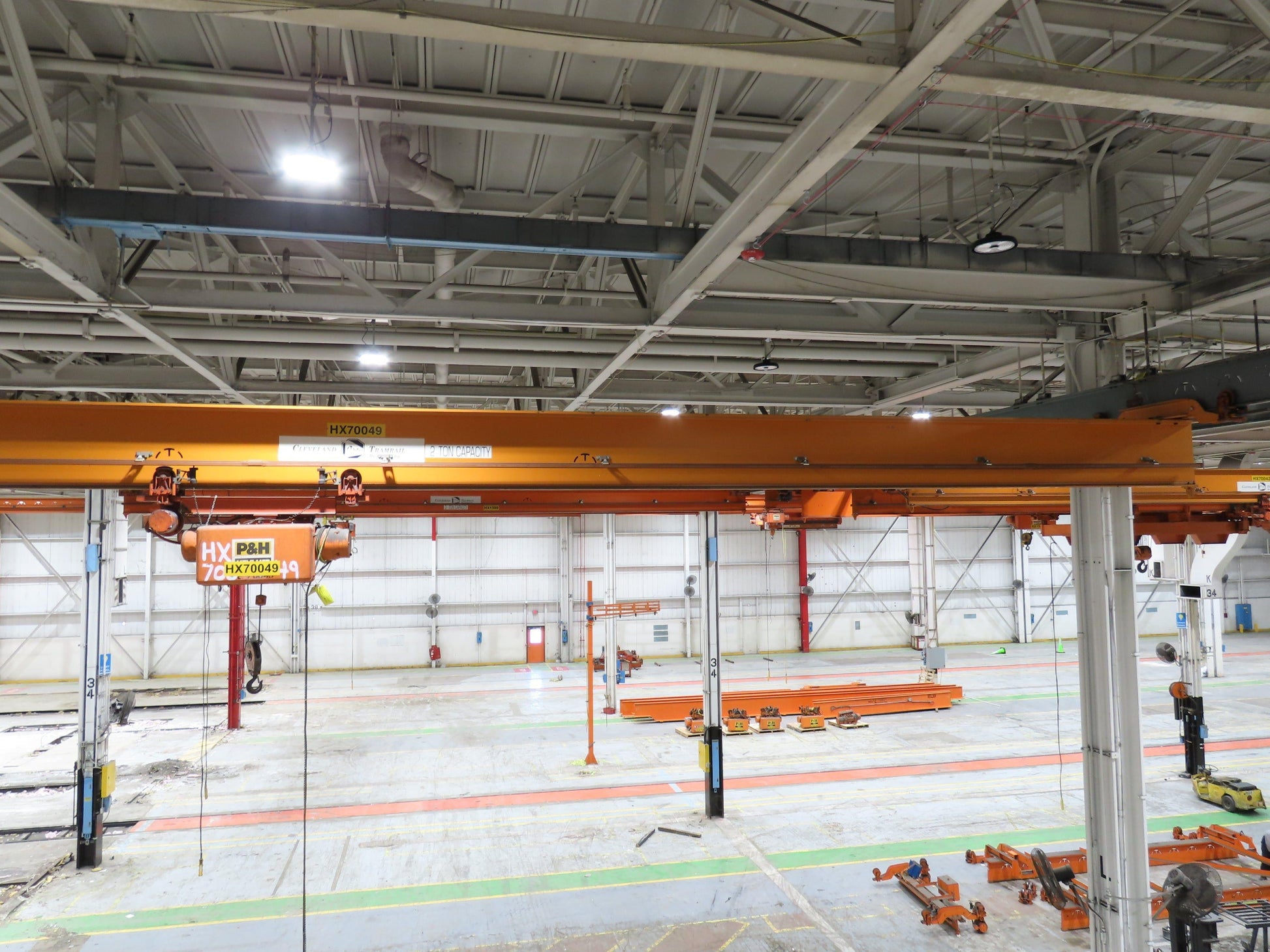

Cleveland Tramrail P&H 2 Ton Single Girder Underhung Bridge Crane 45' 10" Span

Cleveland Tramrail P&H 2 Ton Single Girder Underhung Bridge Crane 45' 10" Span

SKU #262405

Your Price
$6,412.49
$7,499.99 $6,412.49
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 2
  • Capacity (lb): 4000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45' 10"

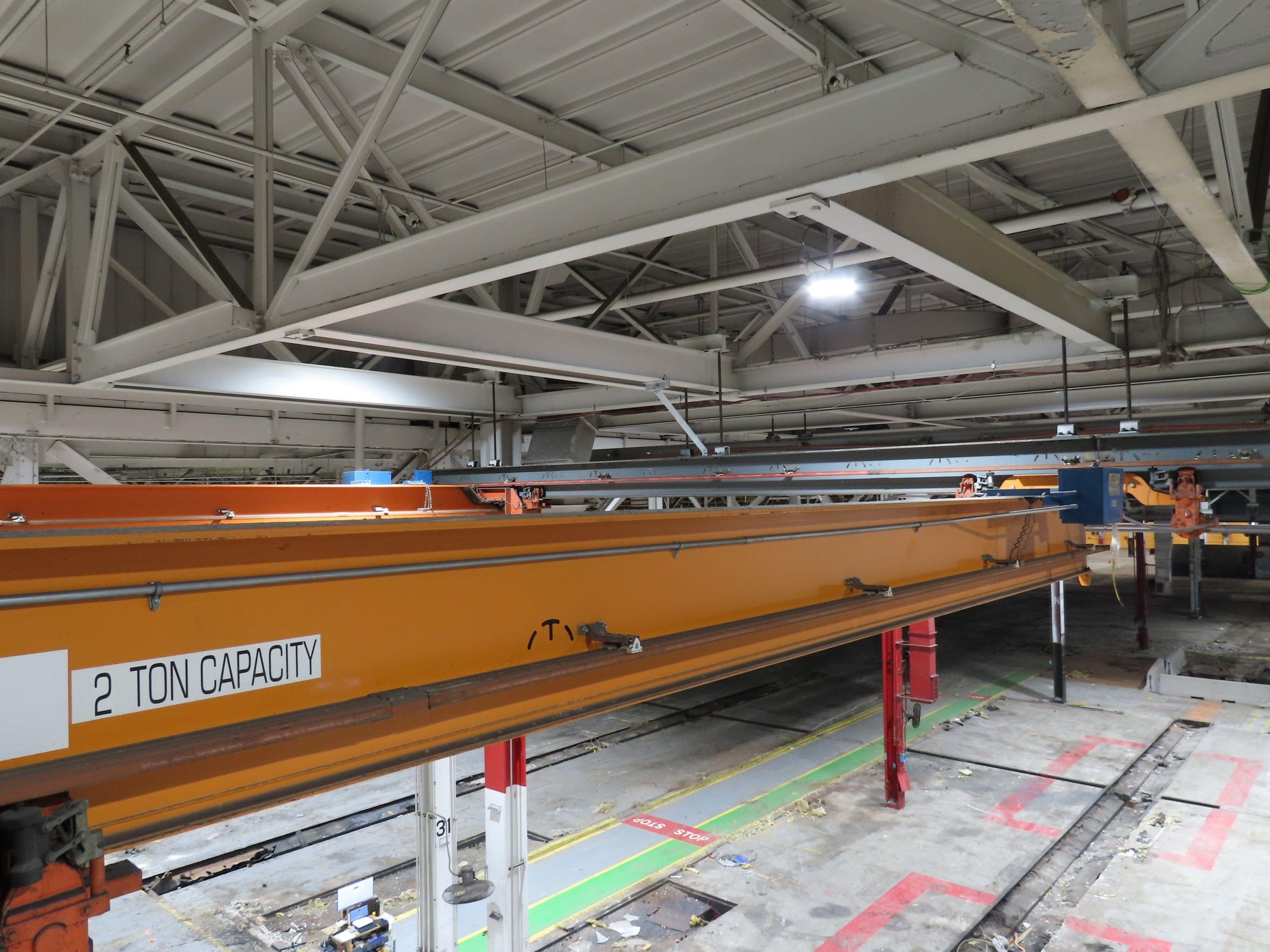

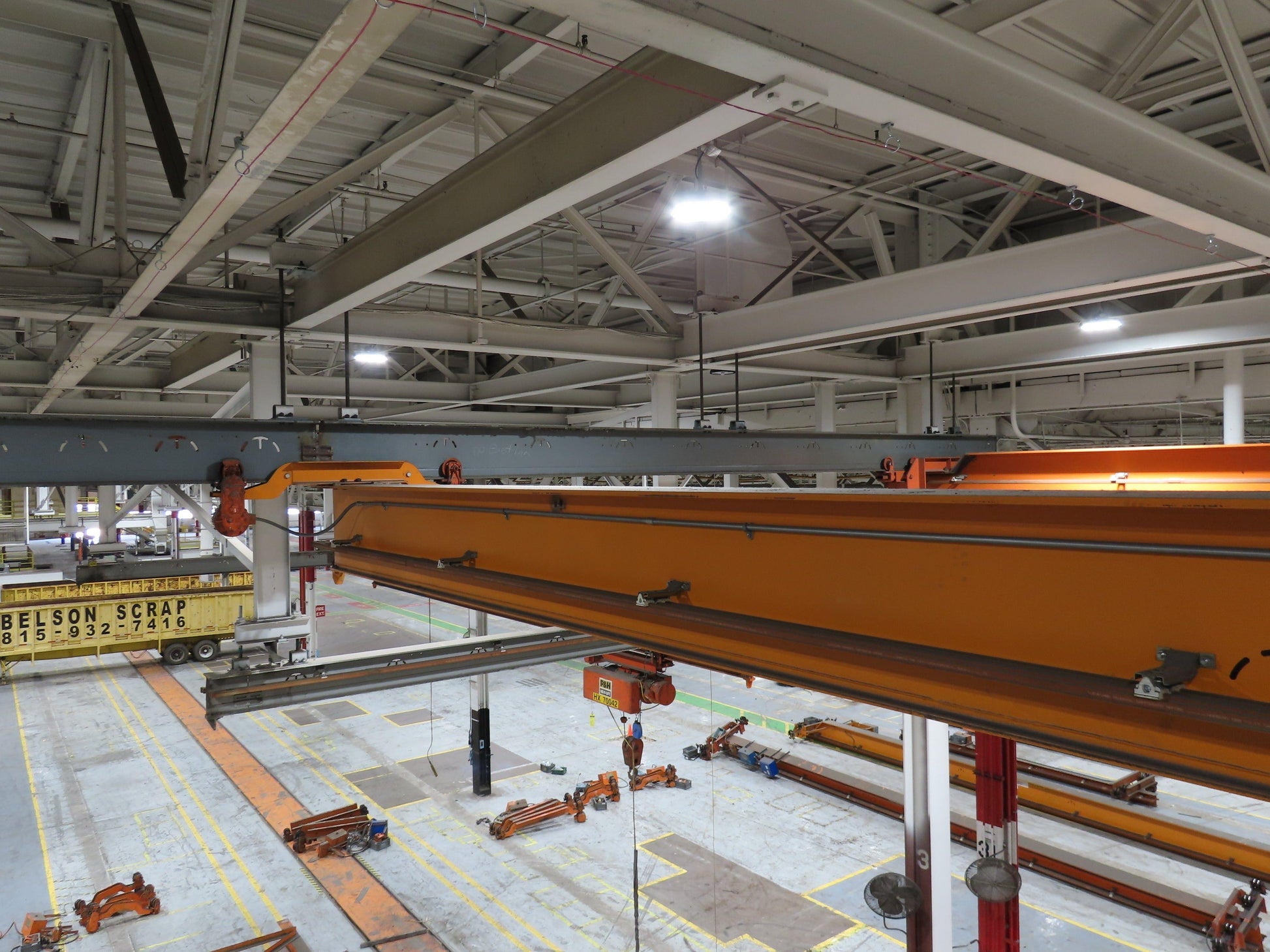

  • Main Girder Beam Size (Height x Width x Length): 24"H x 12.5"W x 47' 10" Length (3.25" bottom flange)
  • Bridge Speed (feet per minute): Single speed

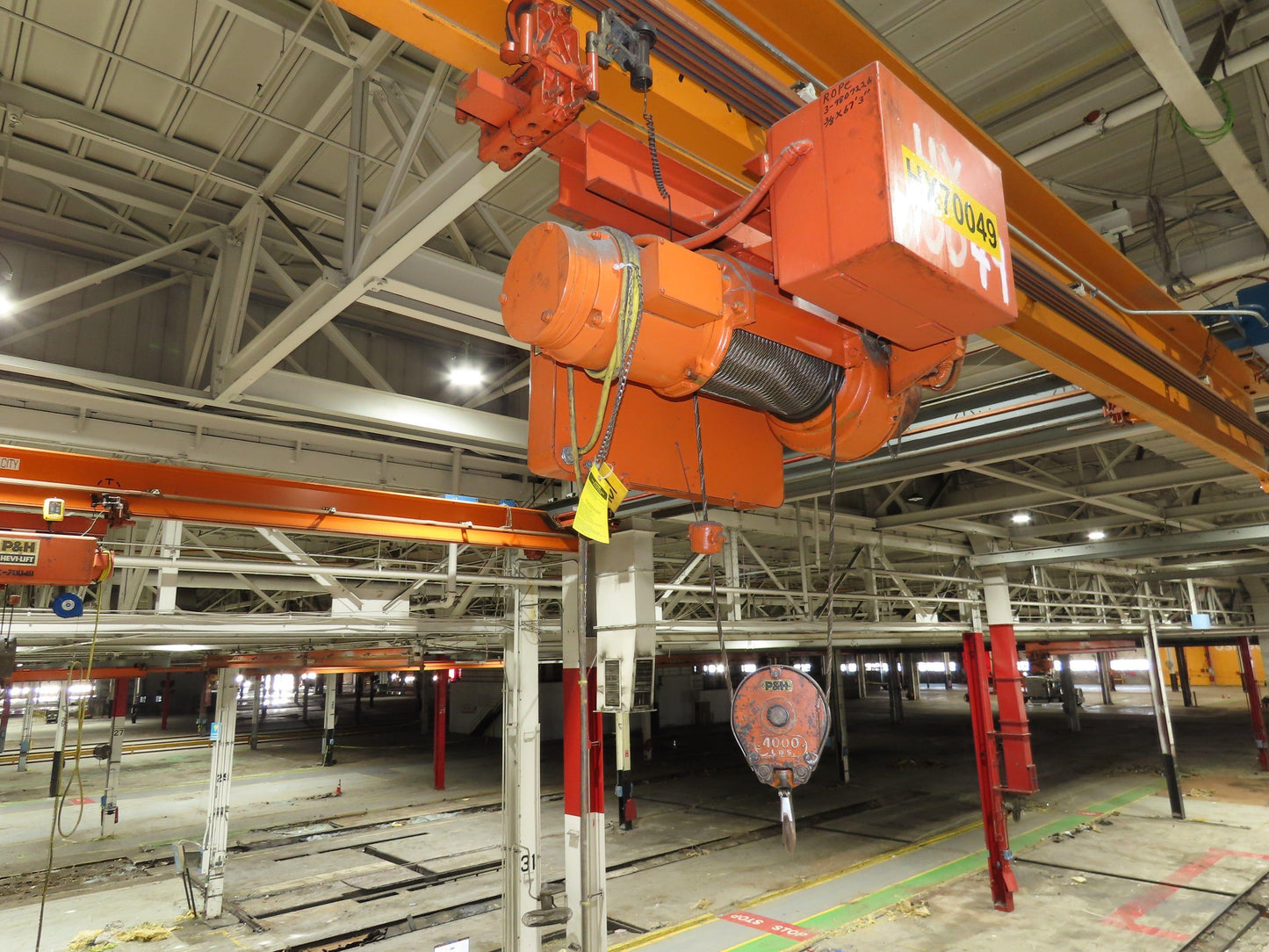

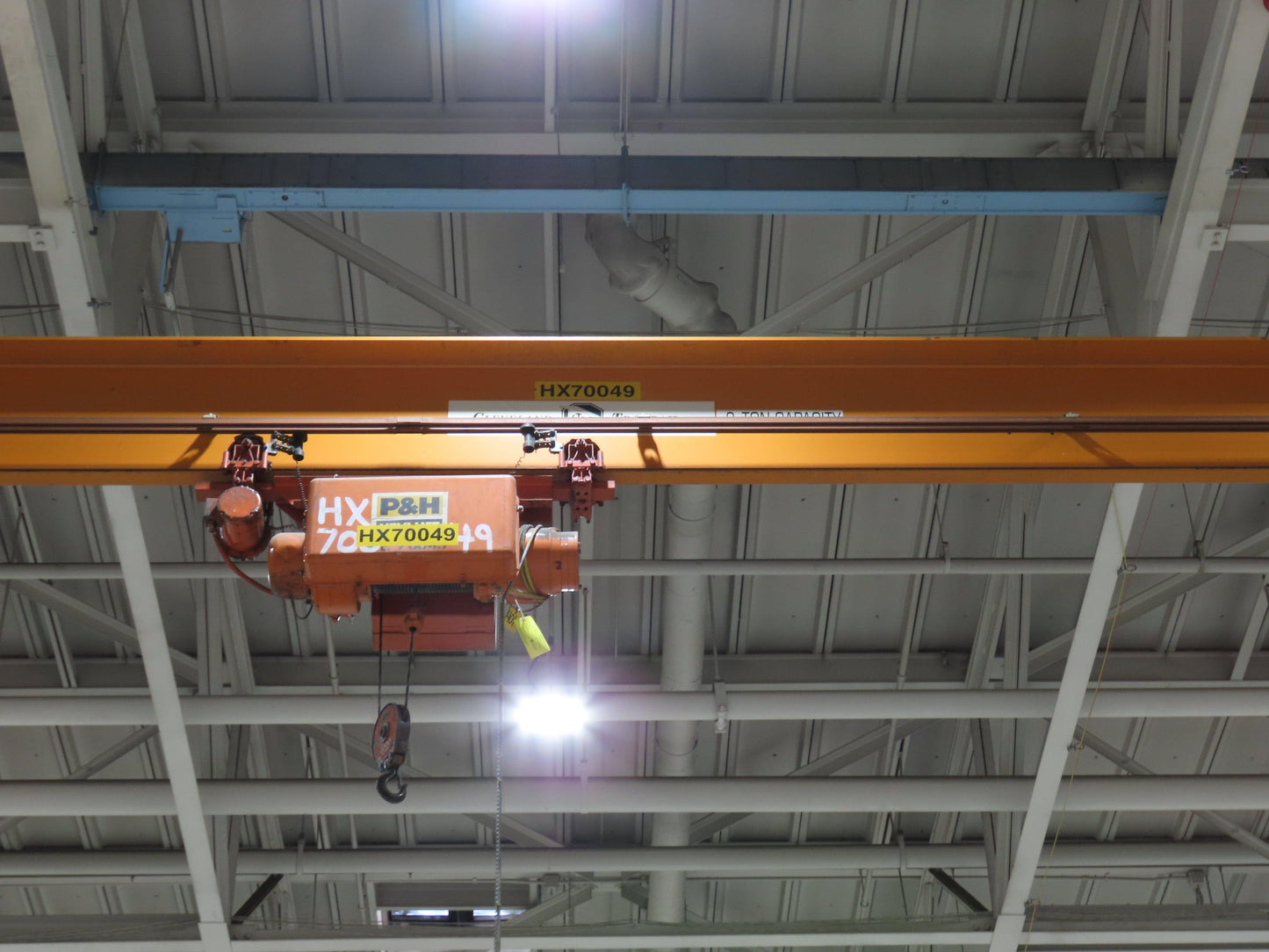

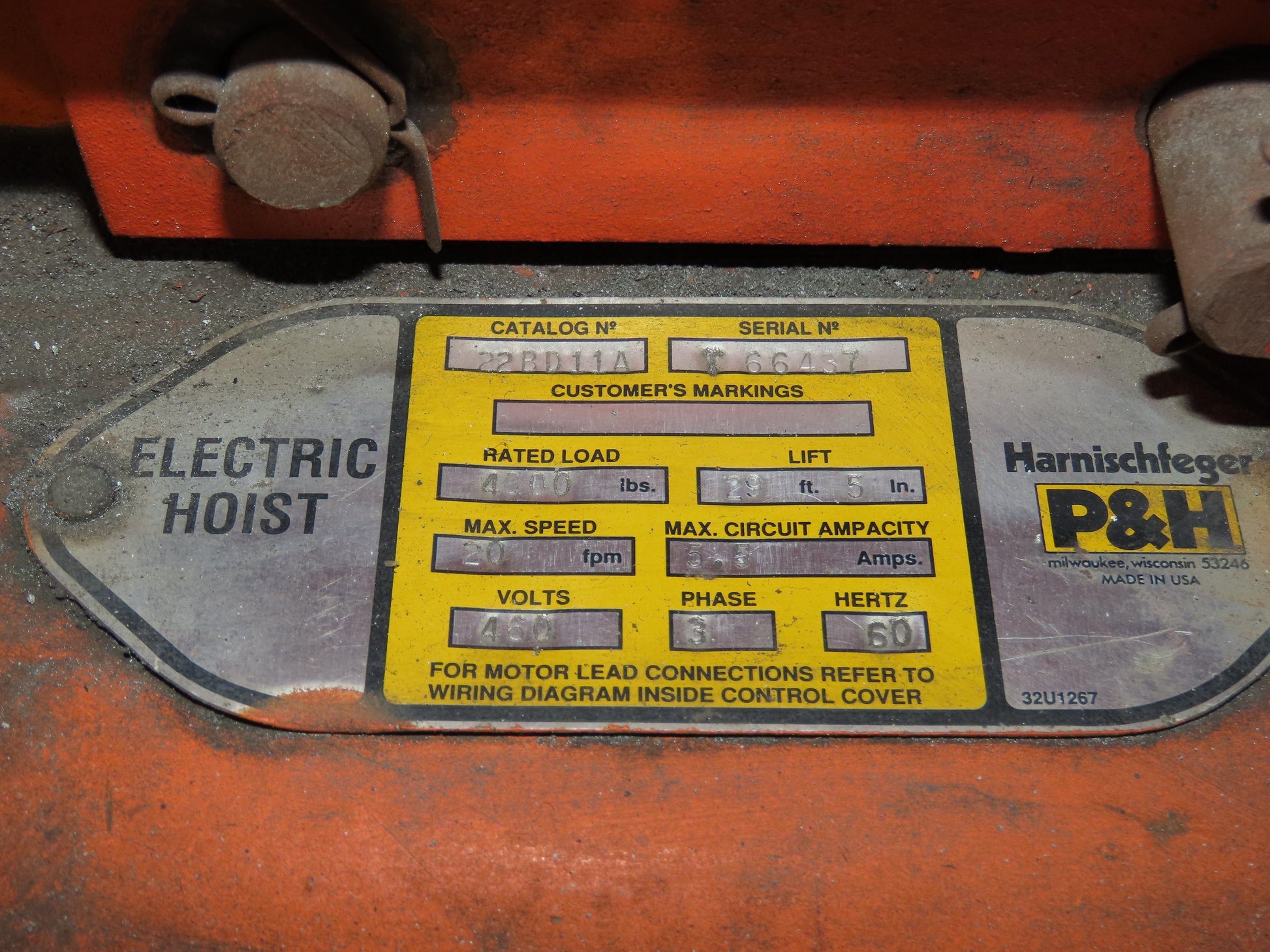

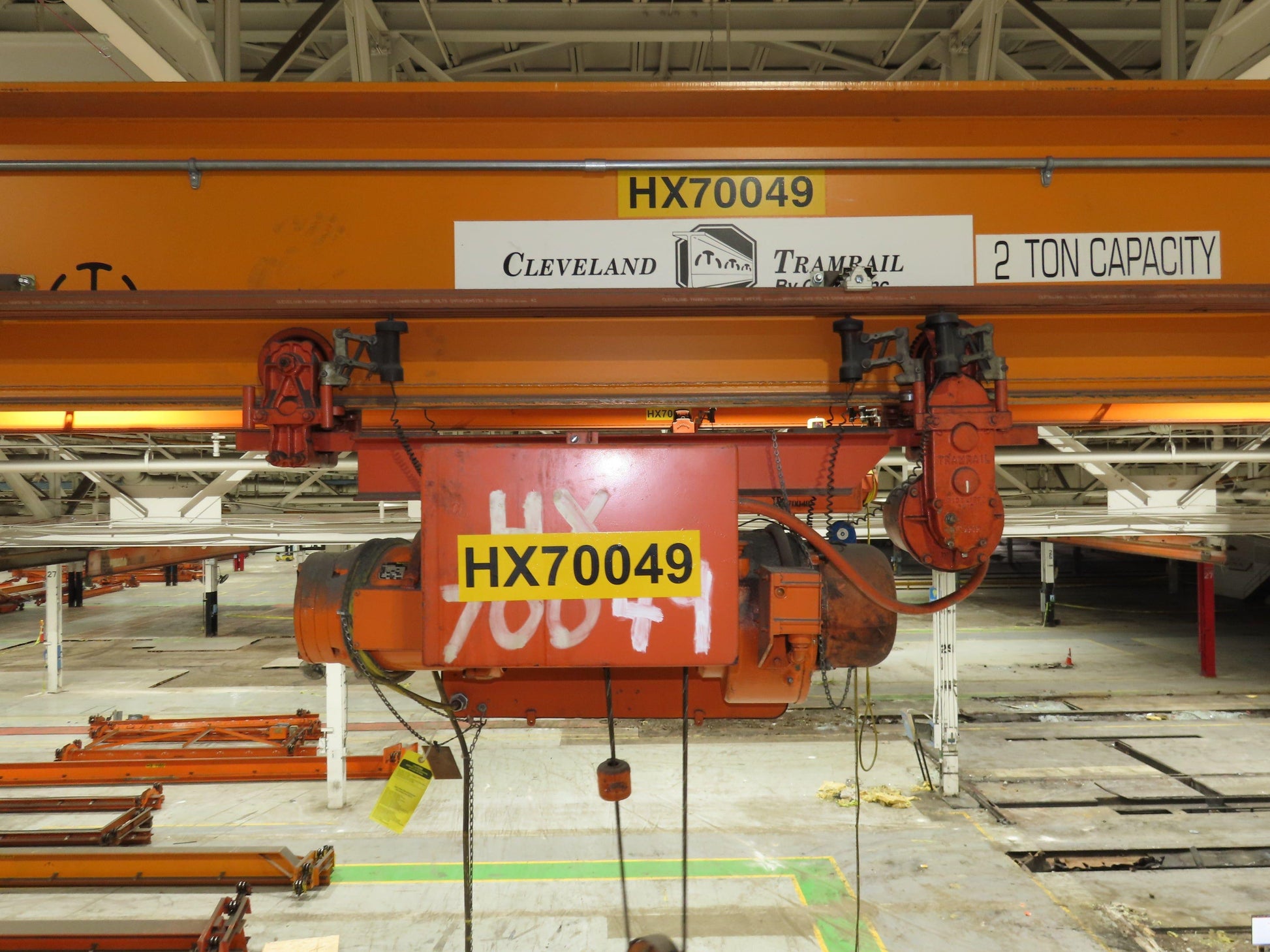

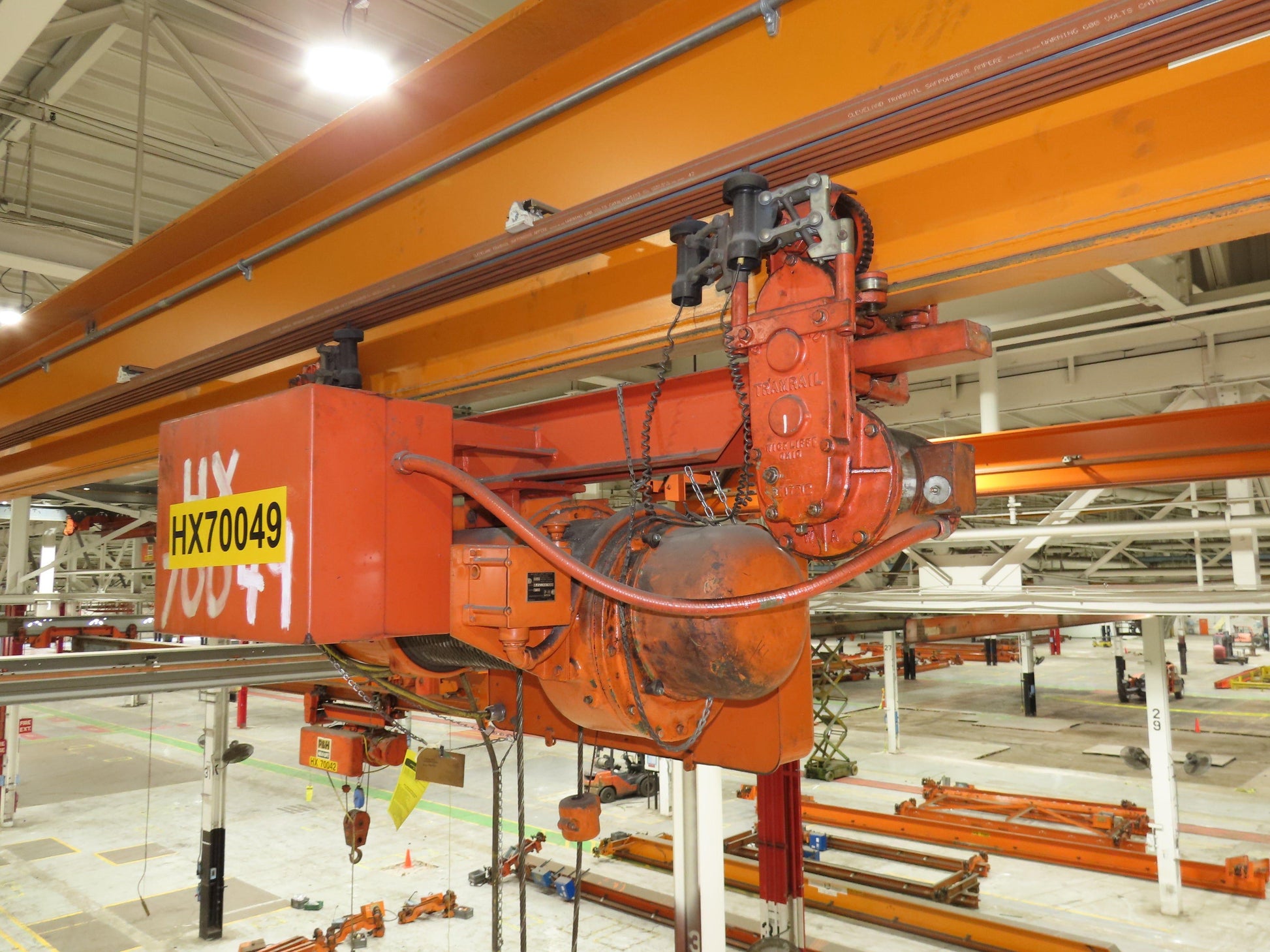

  • Hoist Brand: P&H
  • Lift Travel (feet): 29' 5"
  • Lift Speed (feet per minute): 20

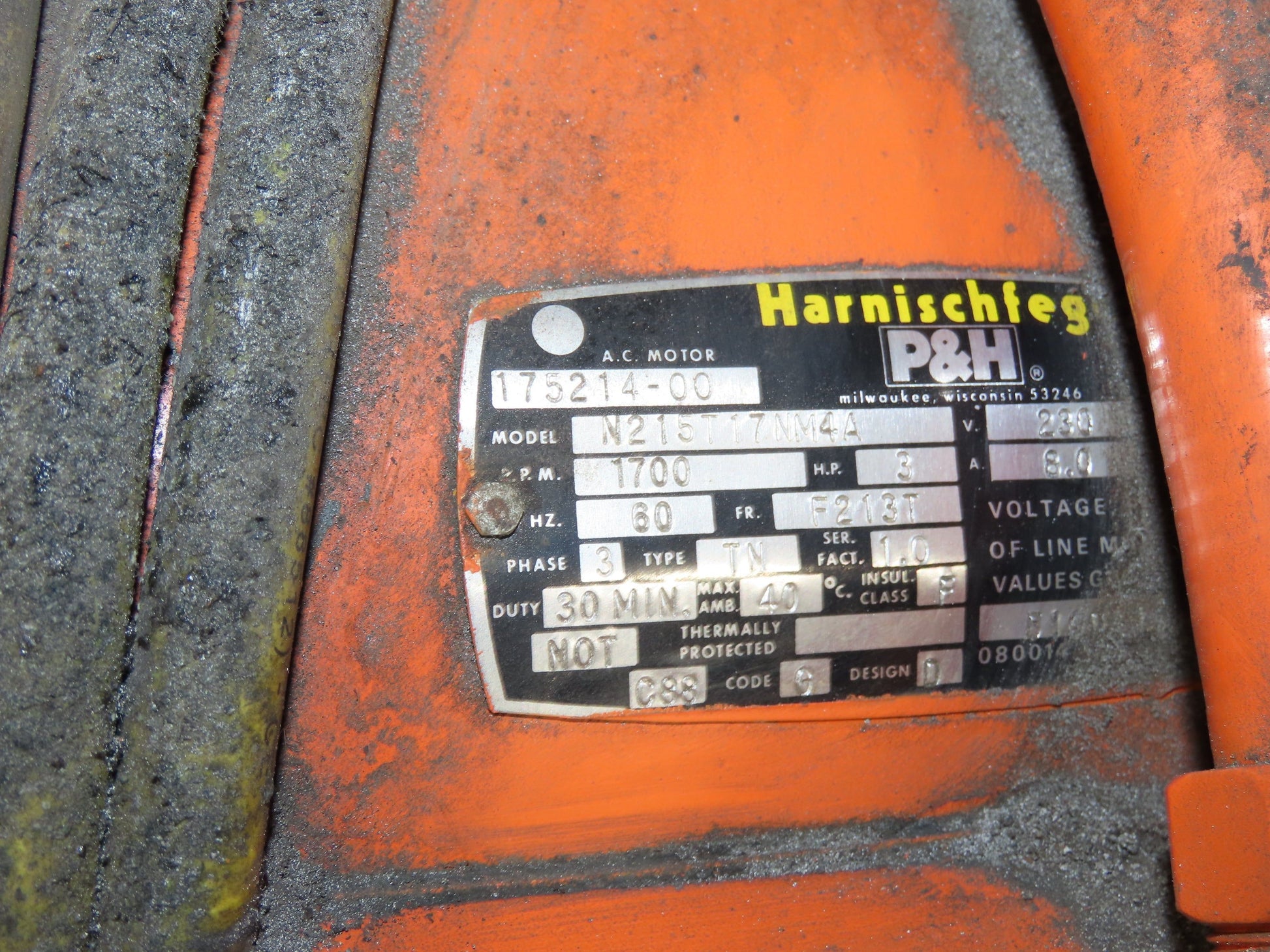

  • Motor Horse Power: 3

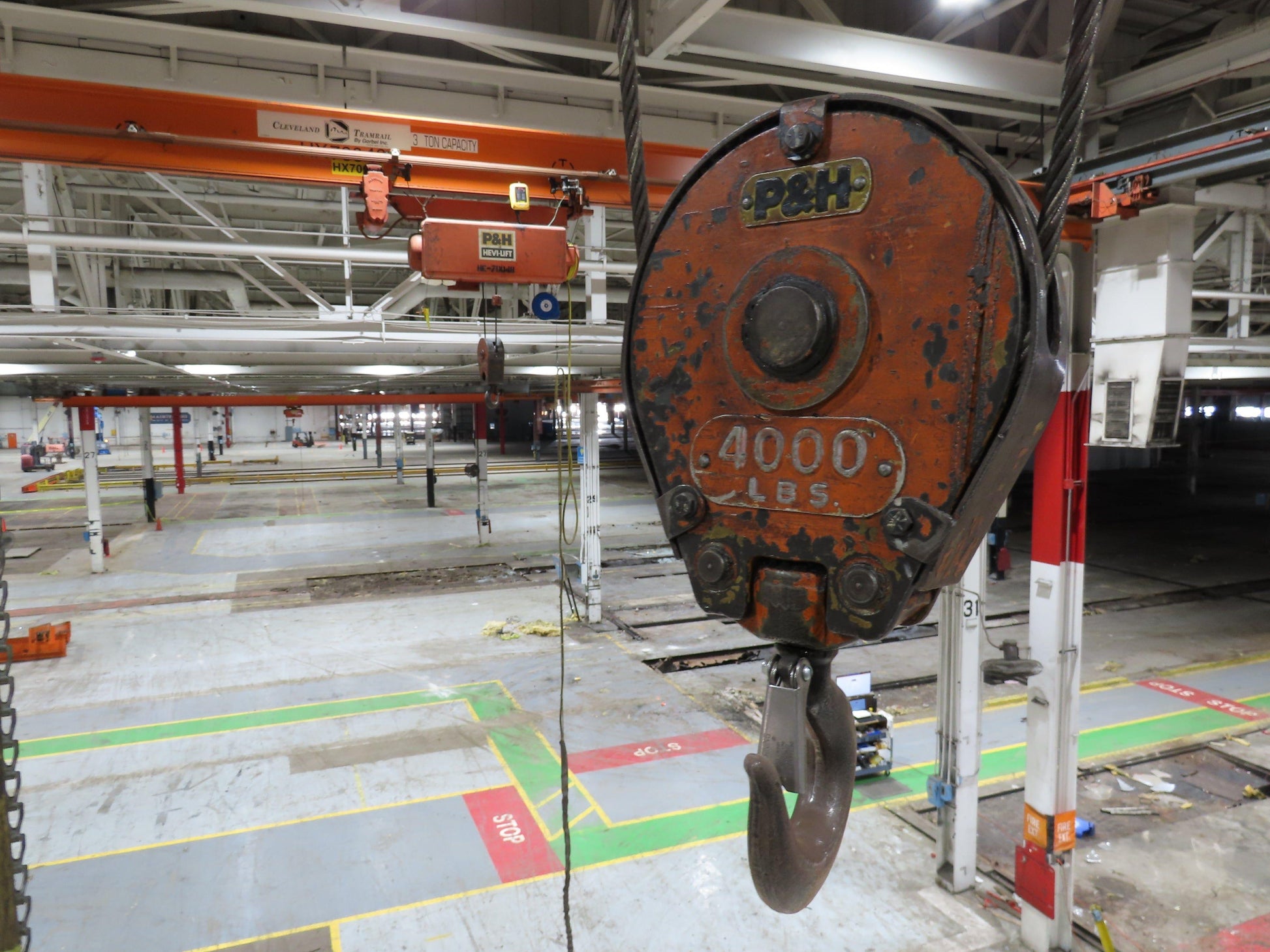

  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 20' 8"
  • Hoist Power Trolley Speed (feet per minute): 80
  • Hoist Trolley Length of Travel: 41' 8"
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 60"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 84"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 92"
  • Bridge Crane is in working condition.  Tested on site before removal.

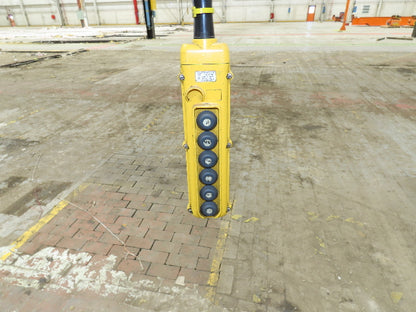

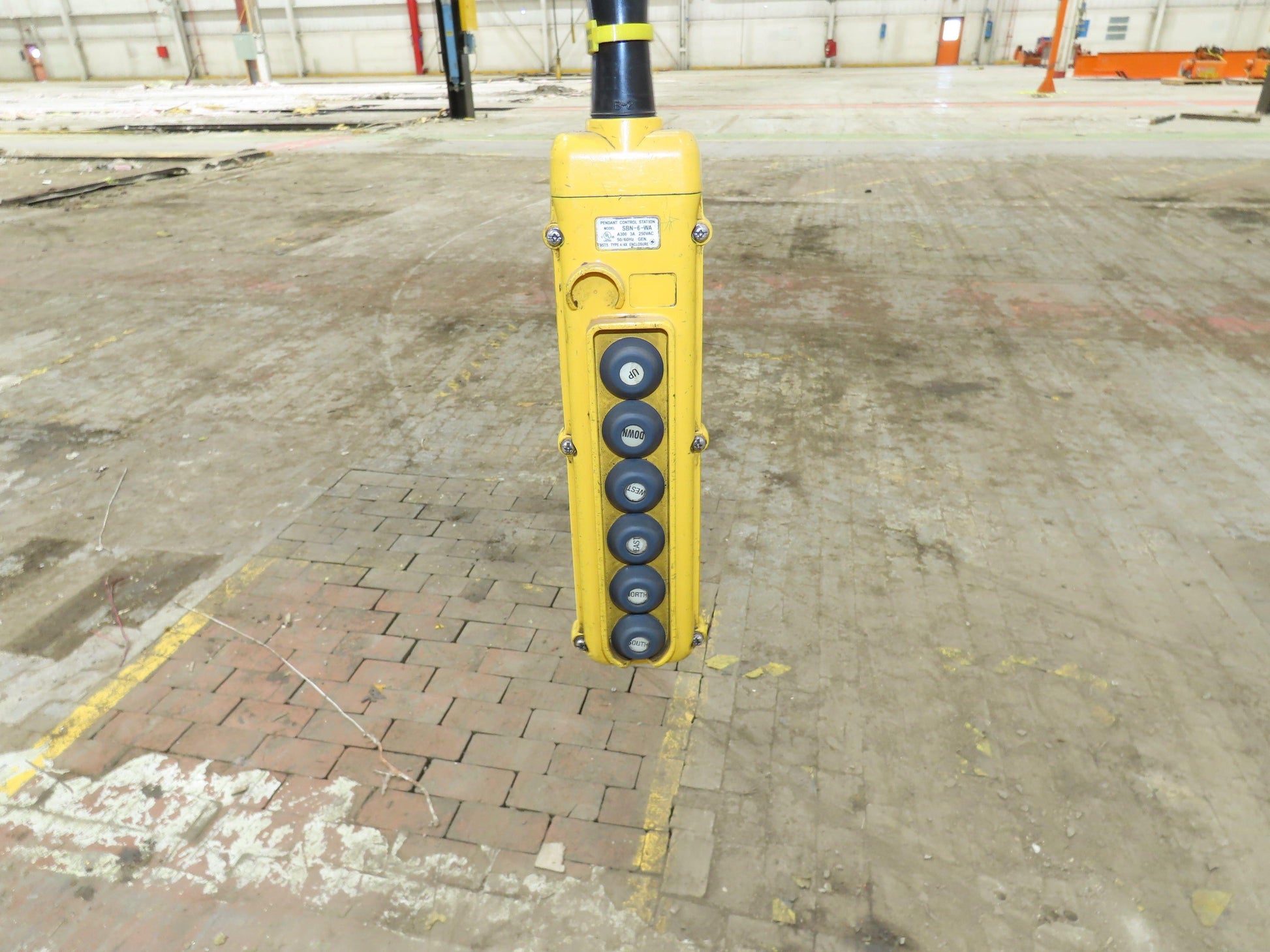

  • Includes corded pendant only.  Not set up for wireless.
  • Single speed bridge, trolley and hoist.

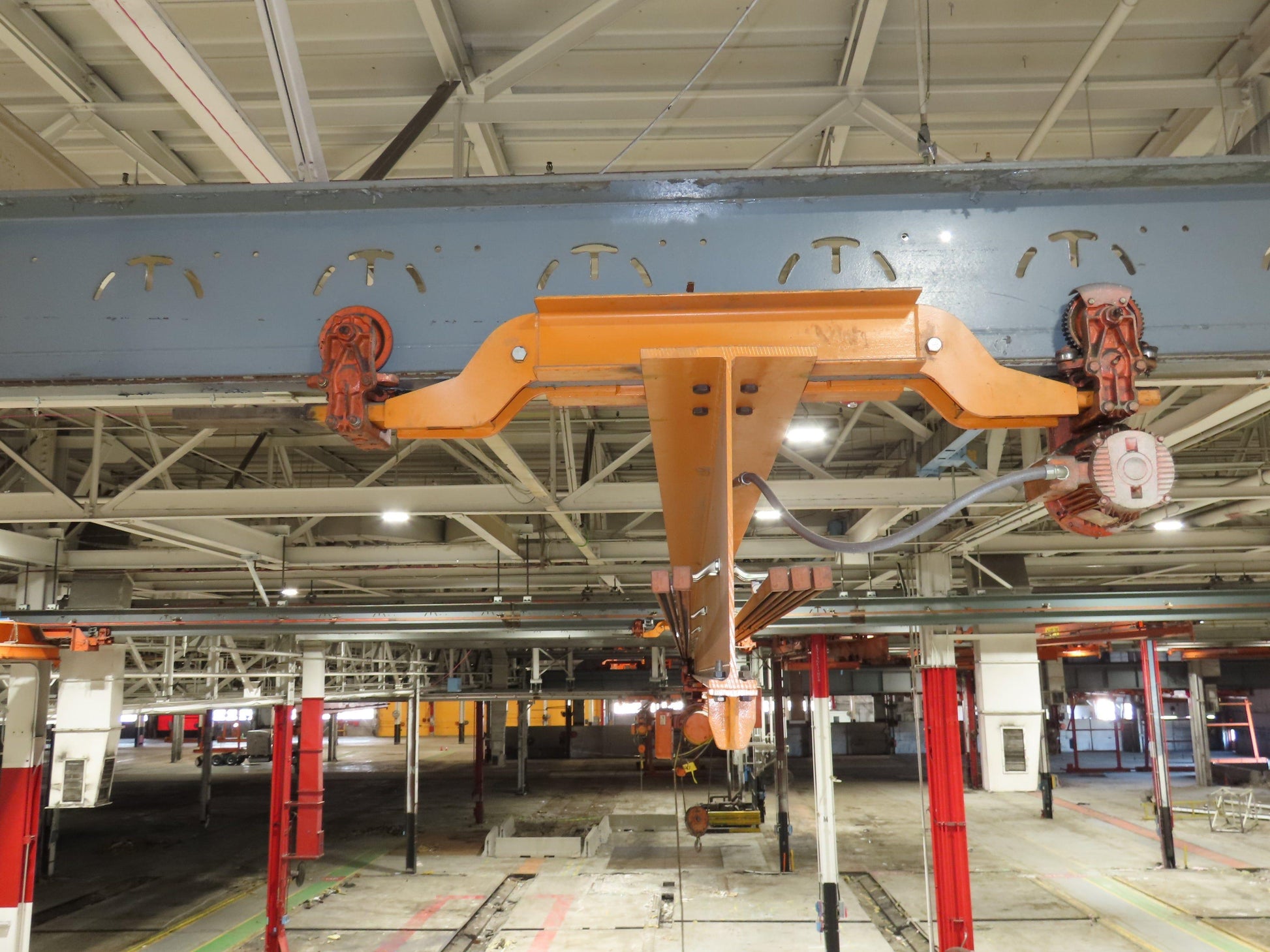

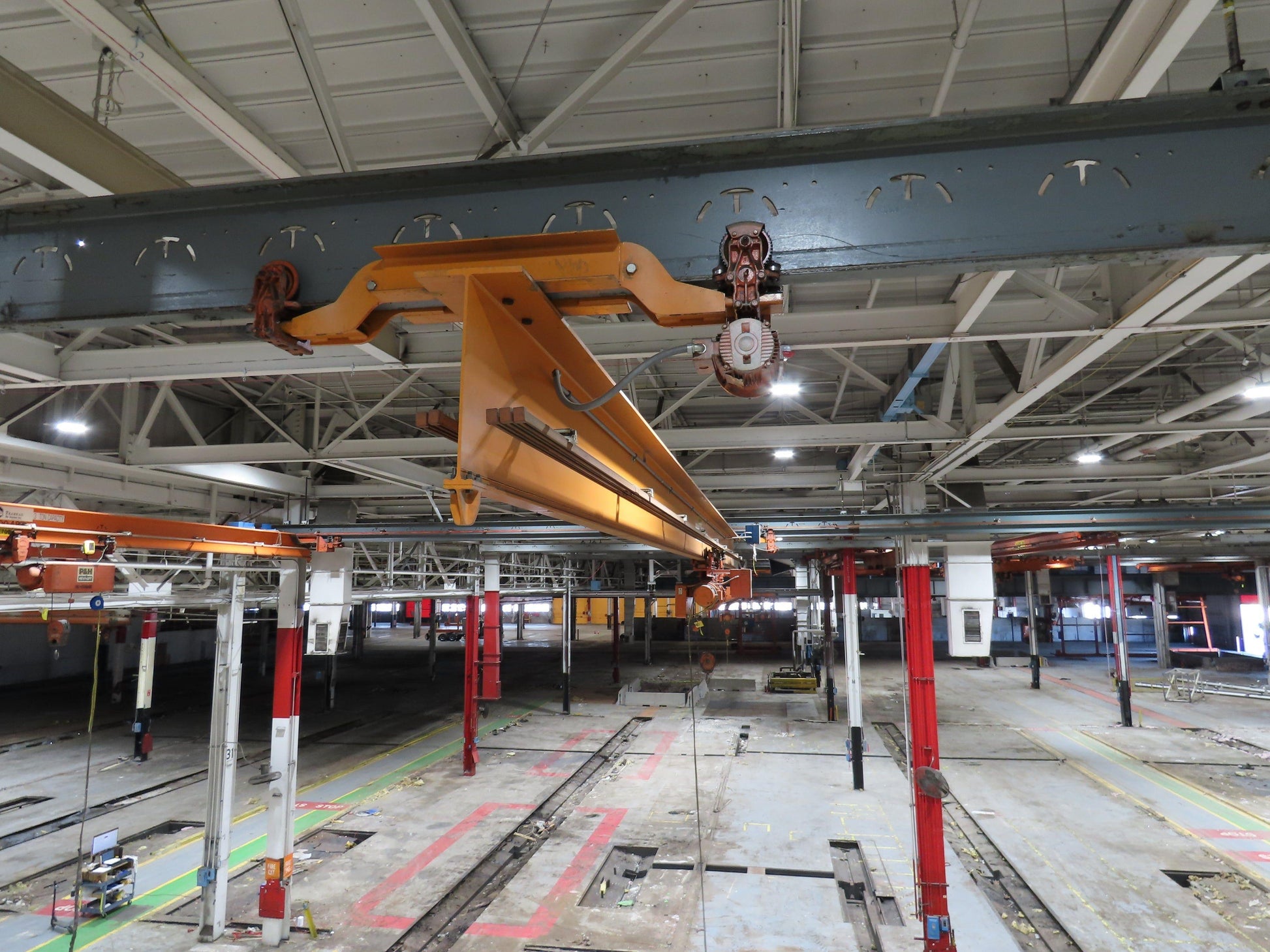

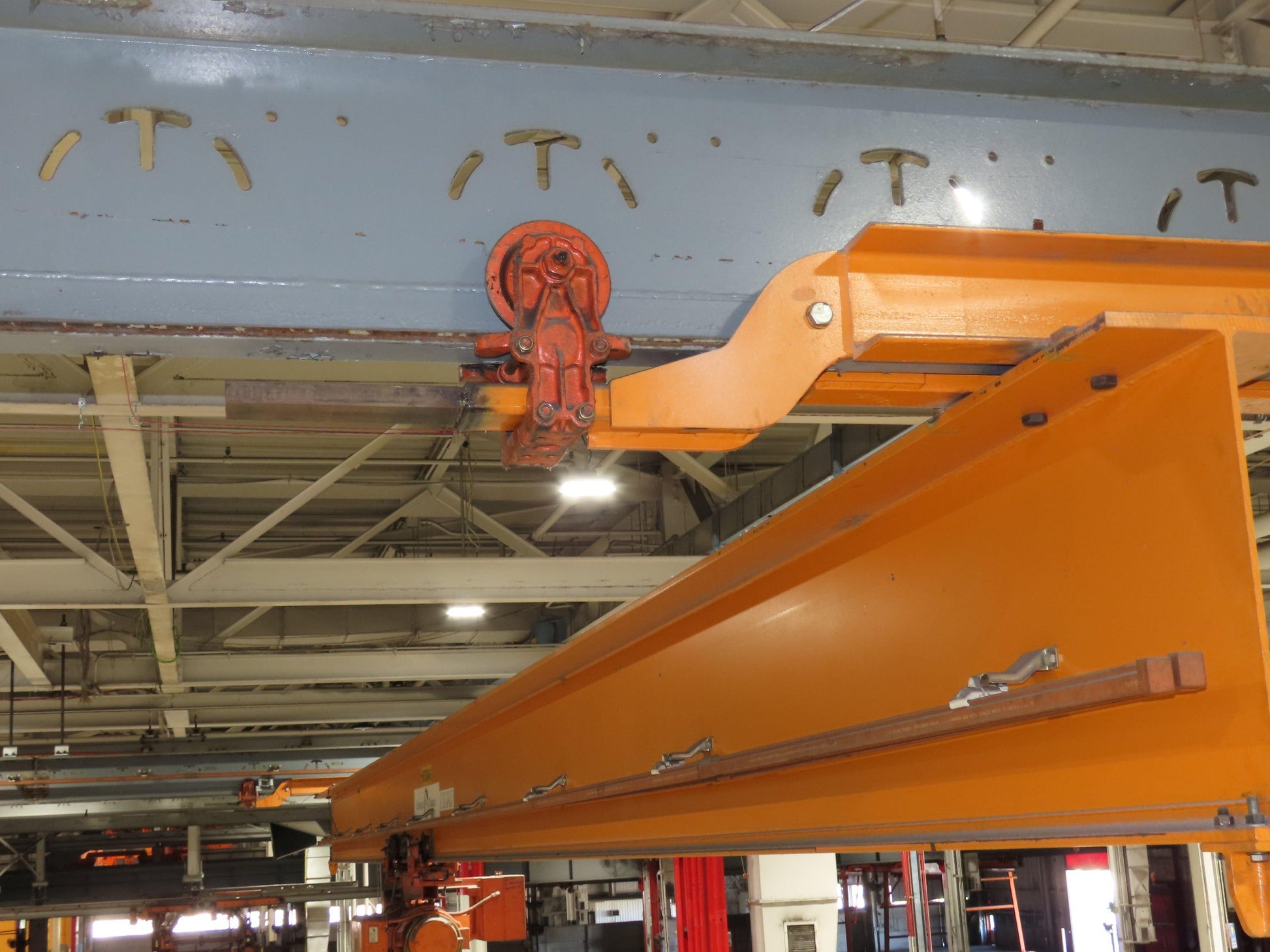

  • End truck length: 80"
