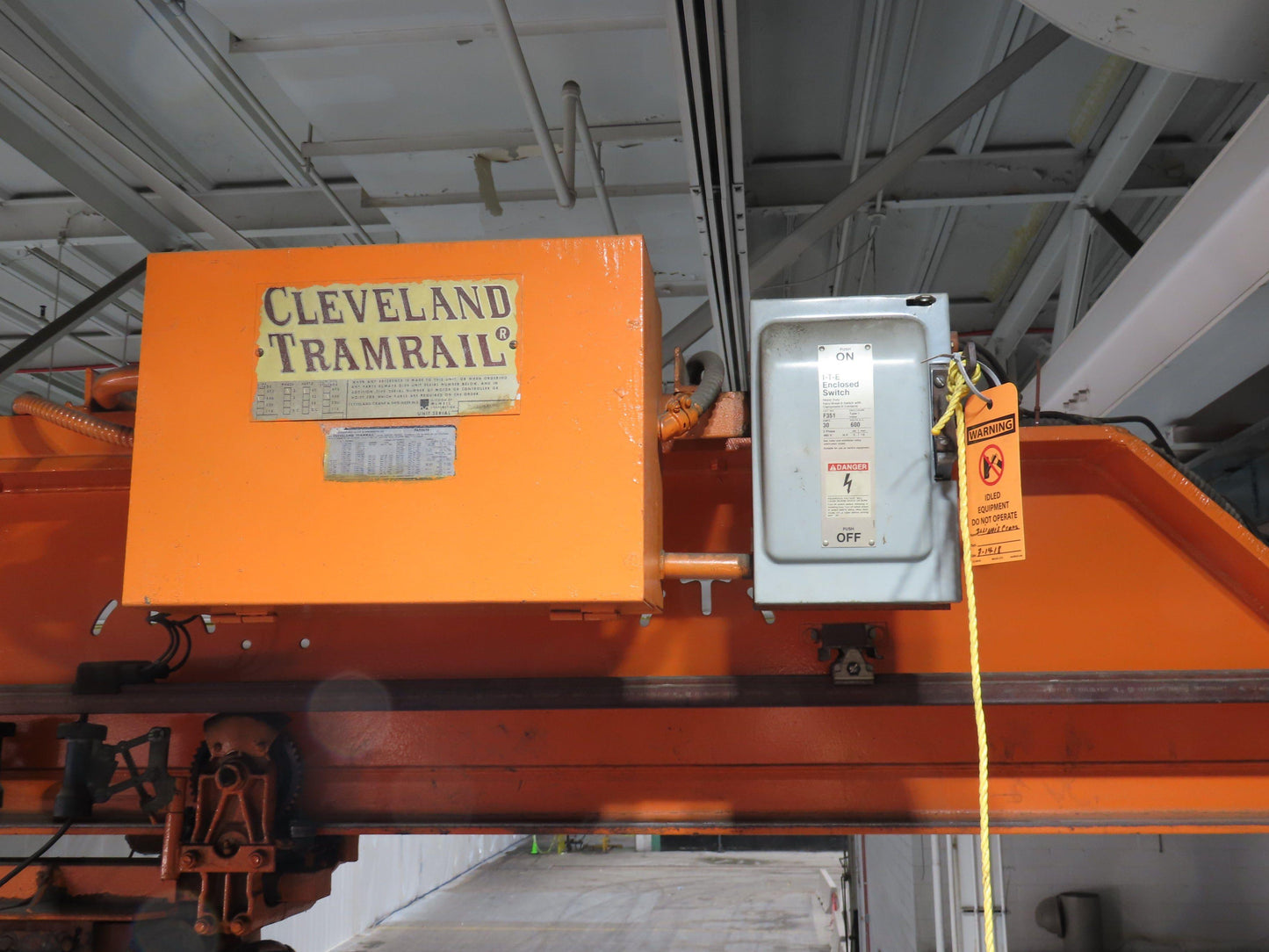

Cleveland Tramrail

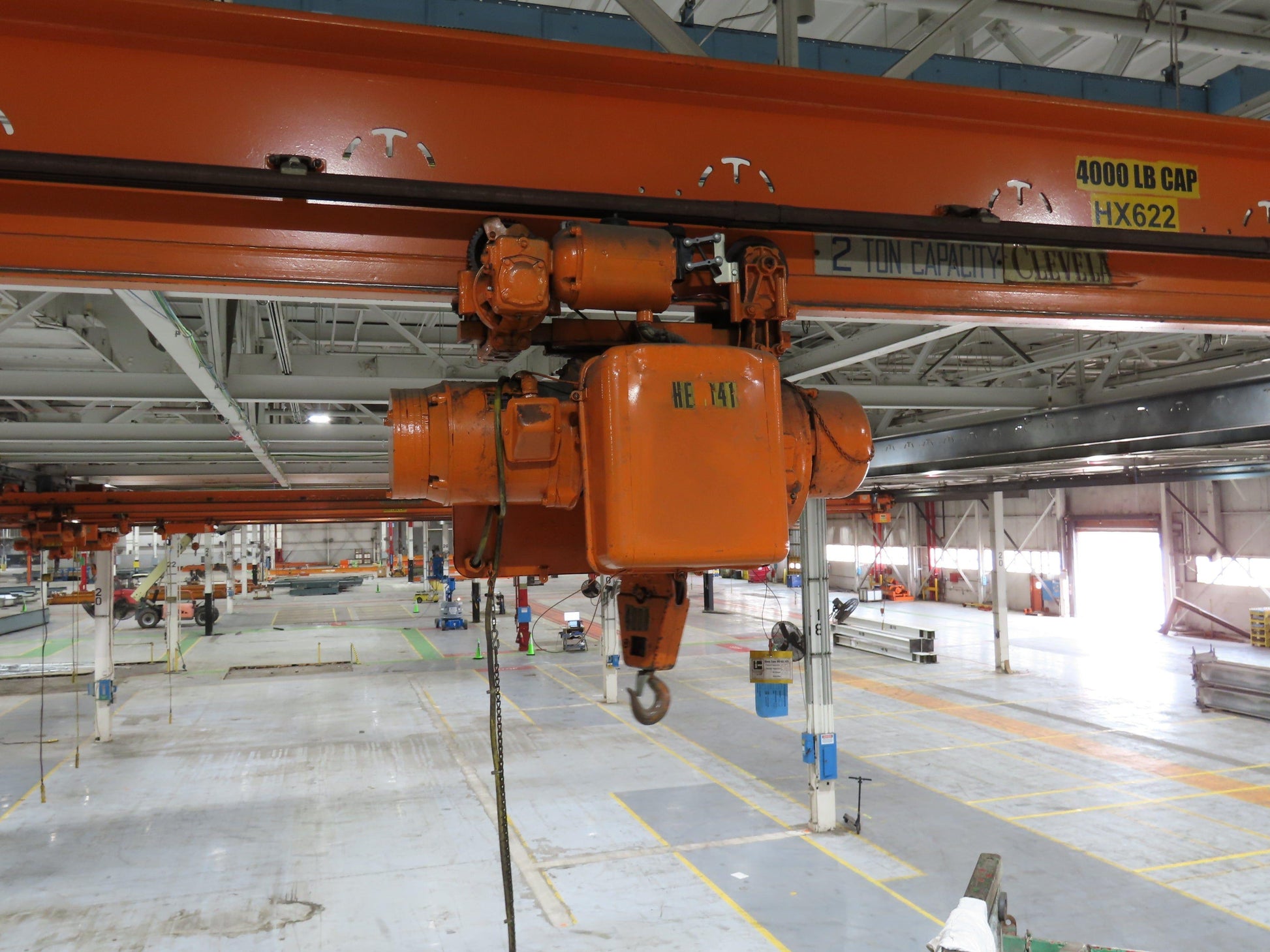

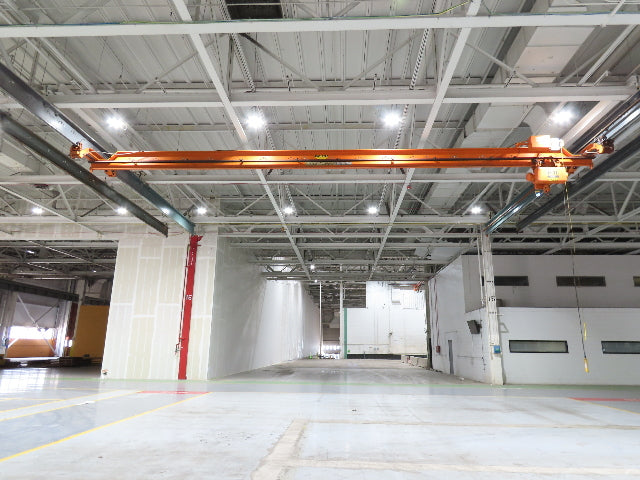

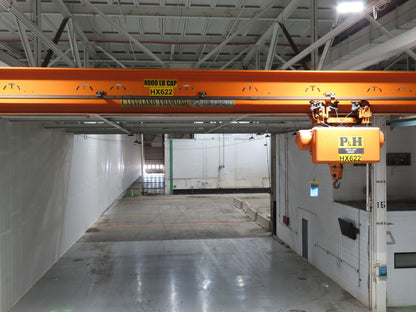

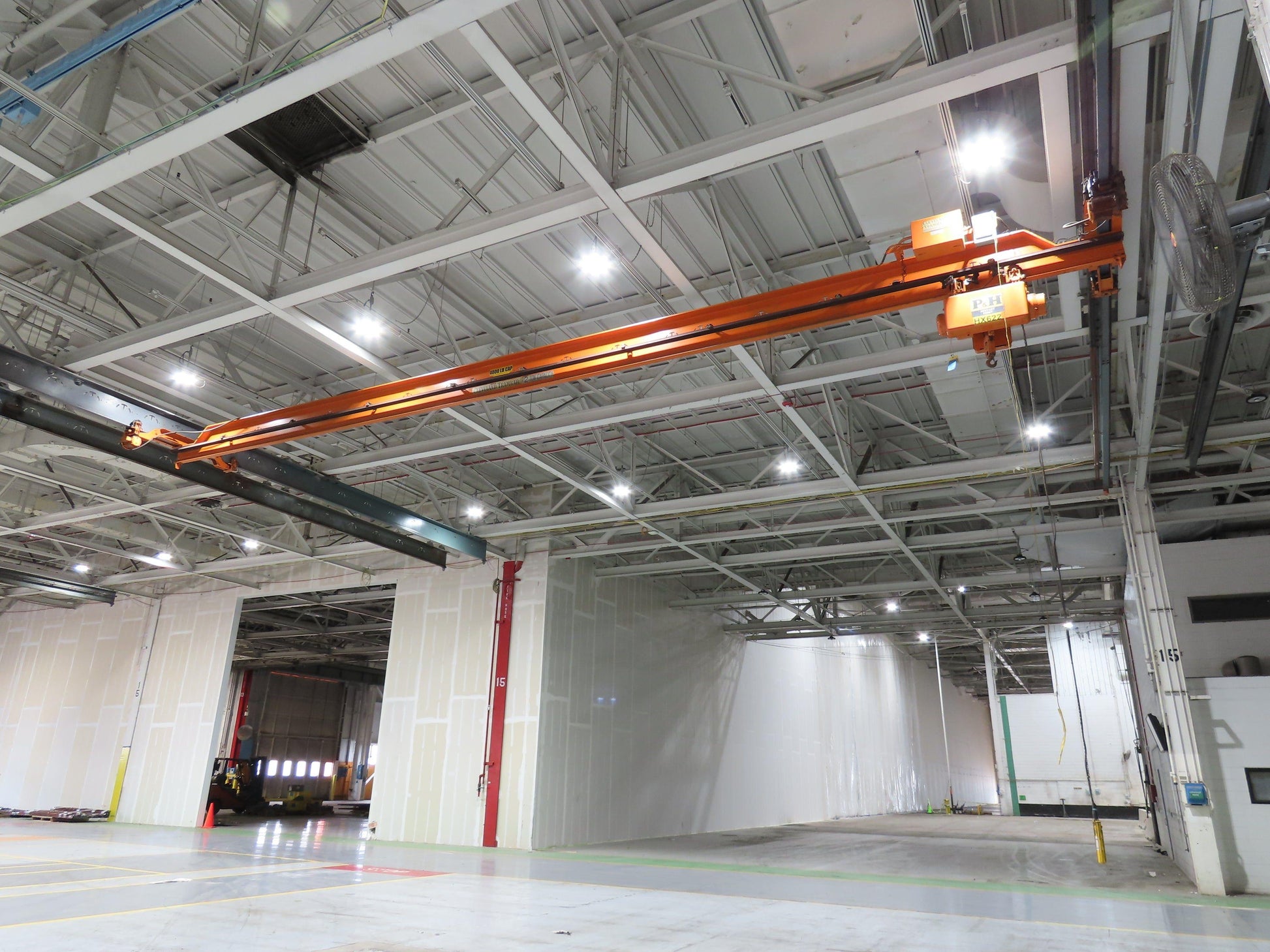

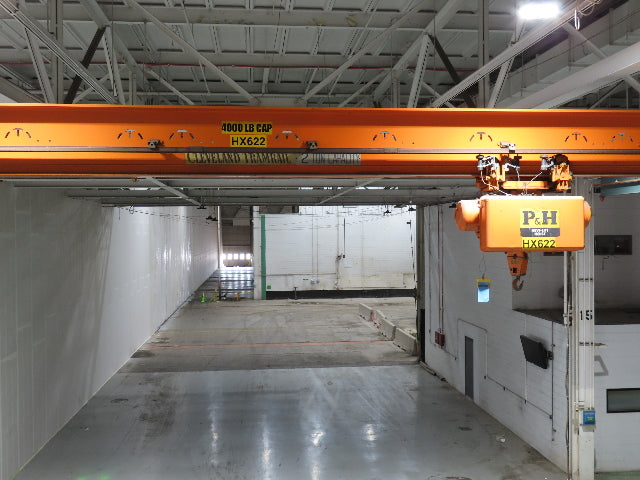

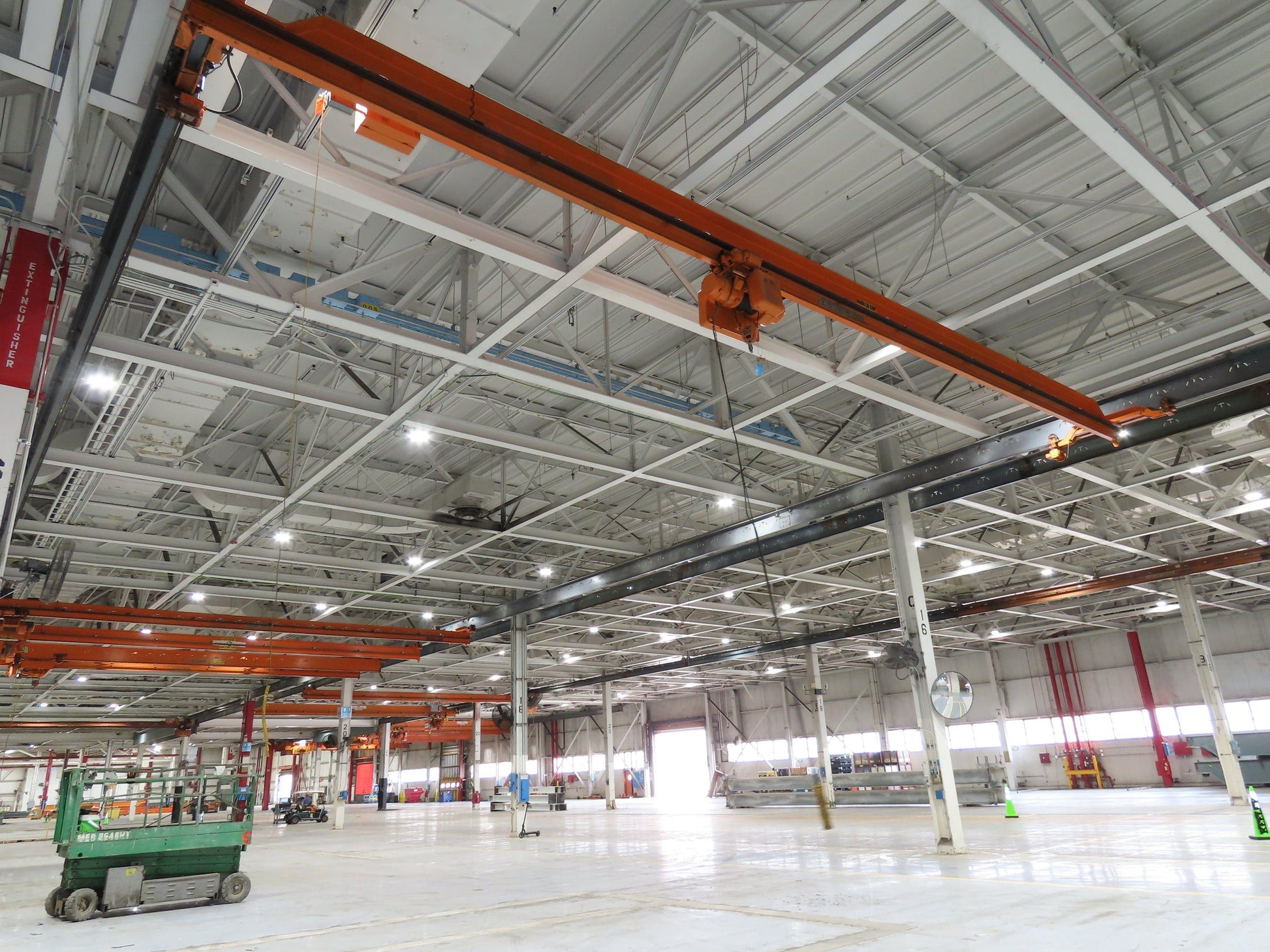

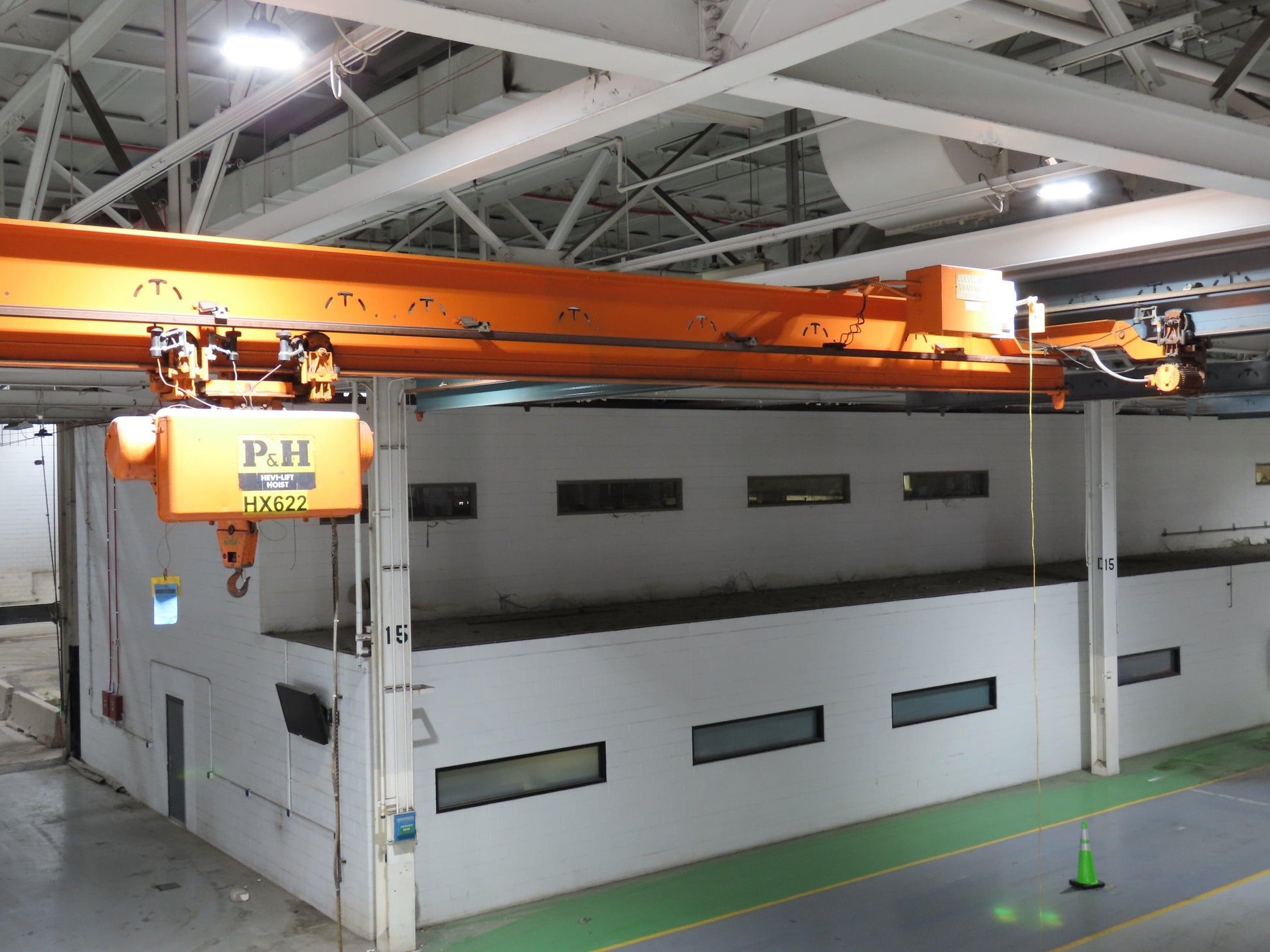

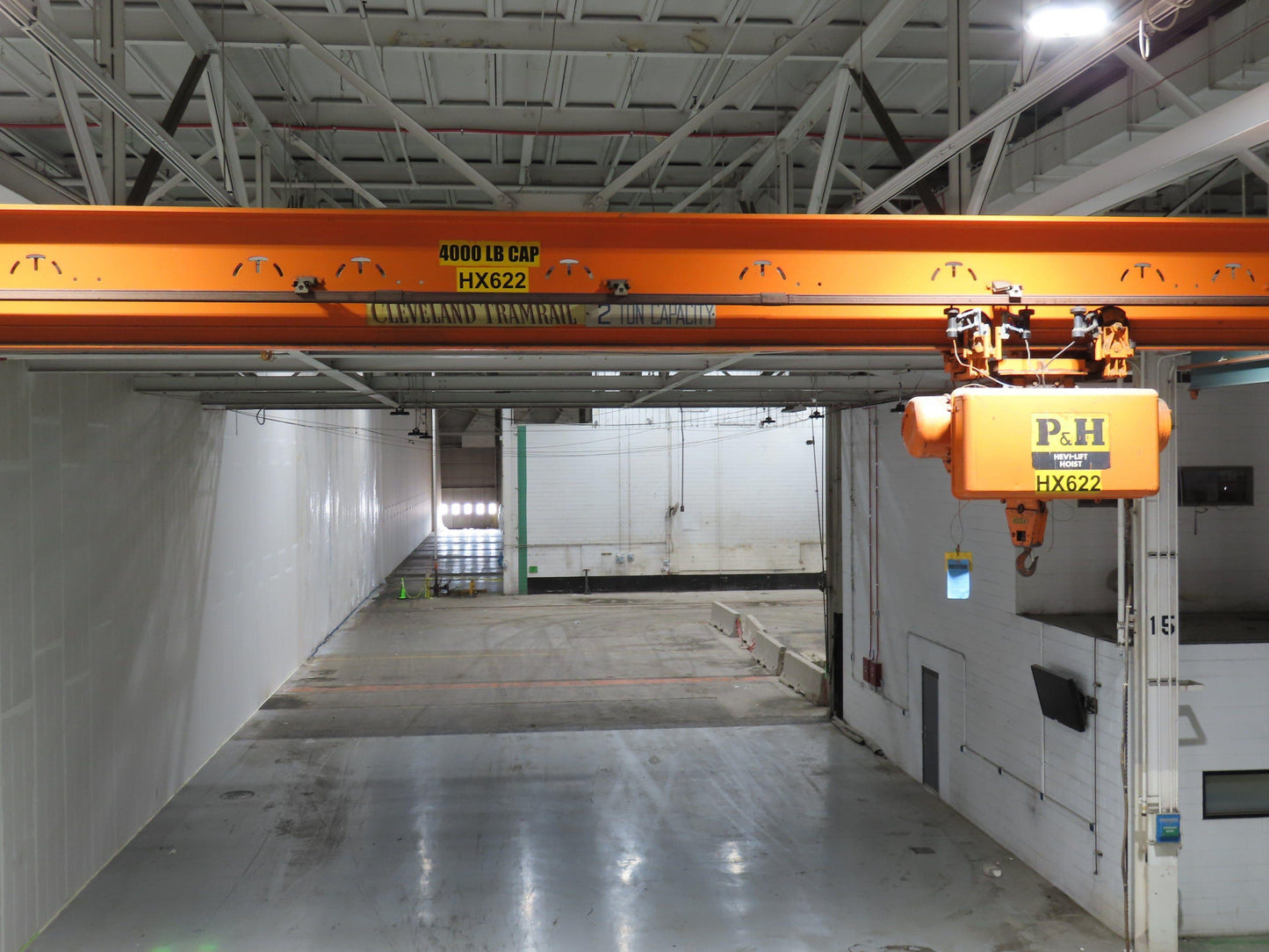

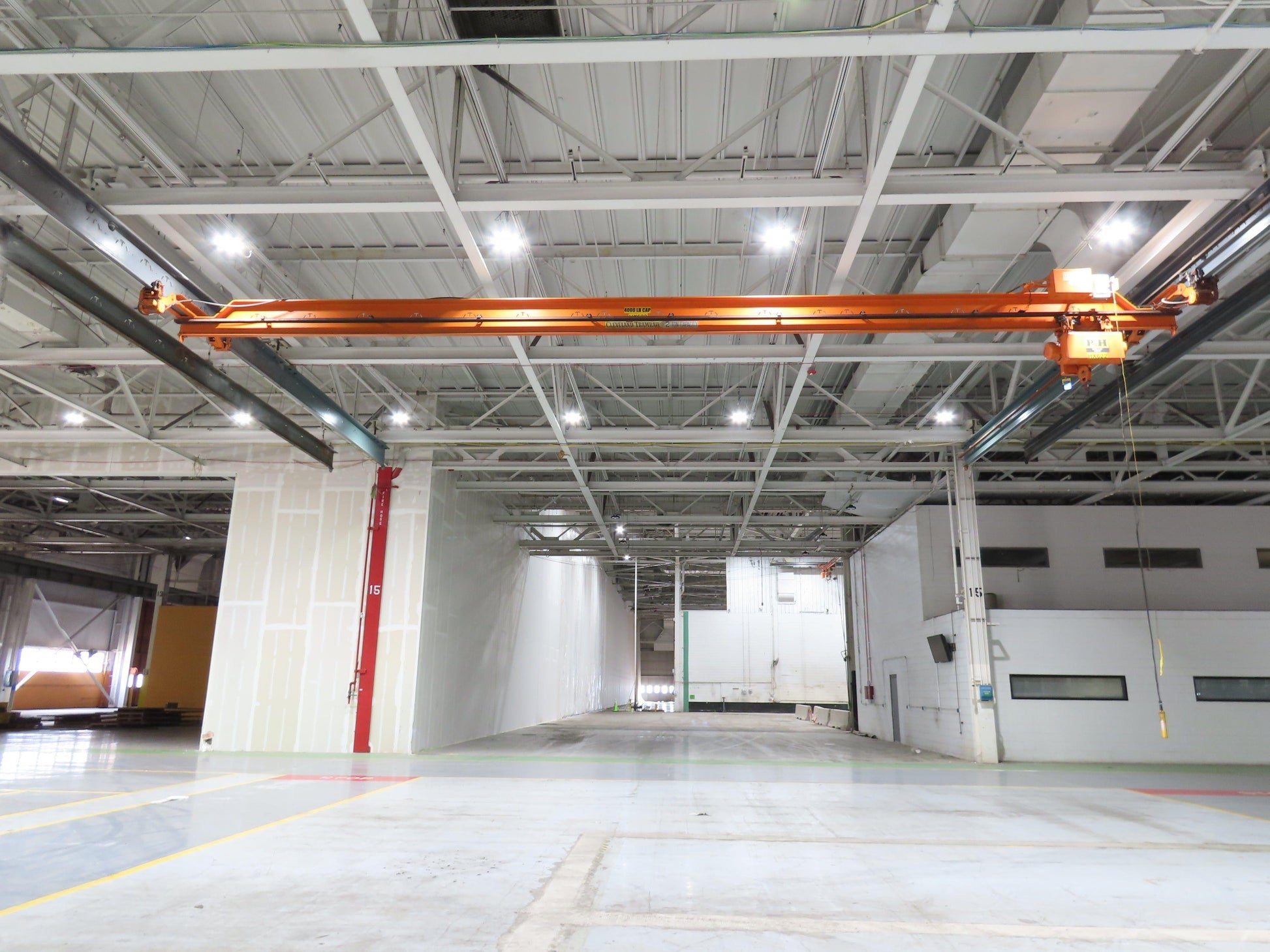

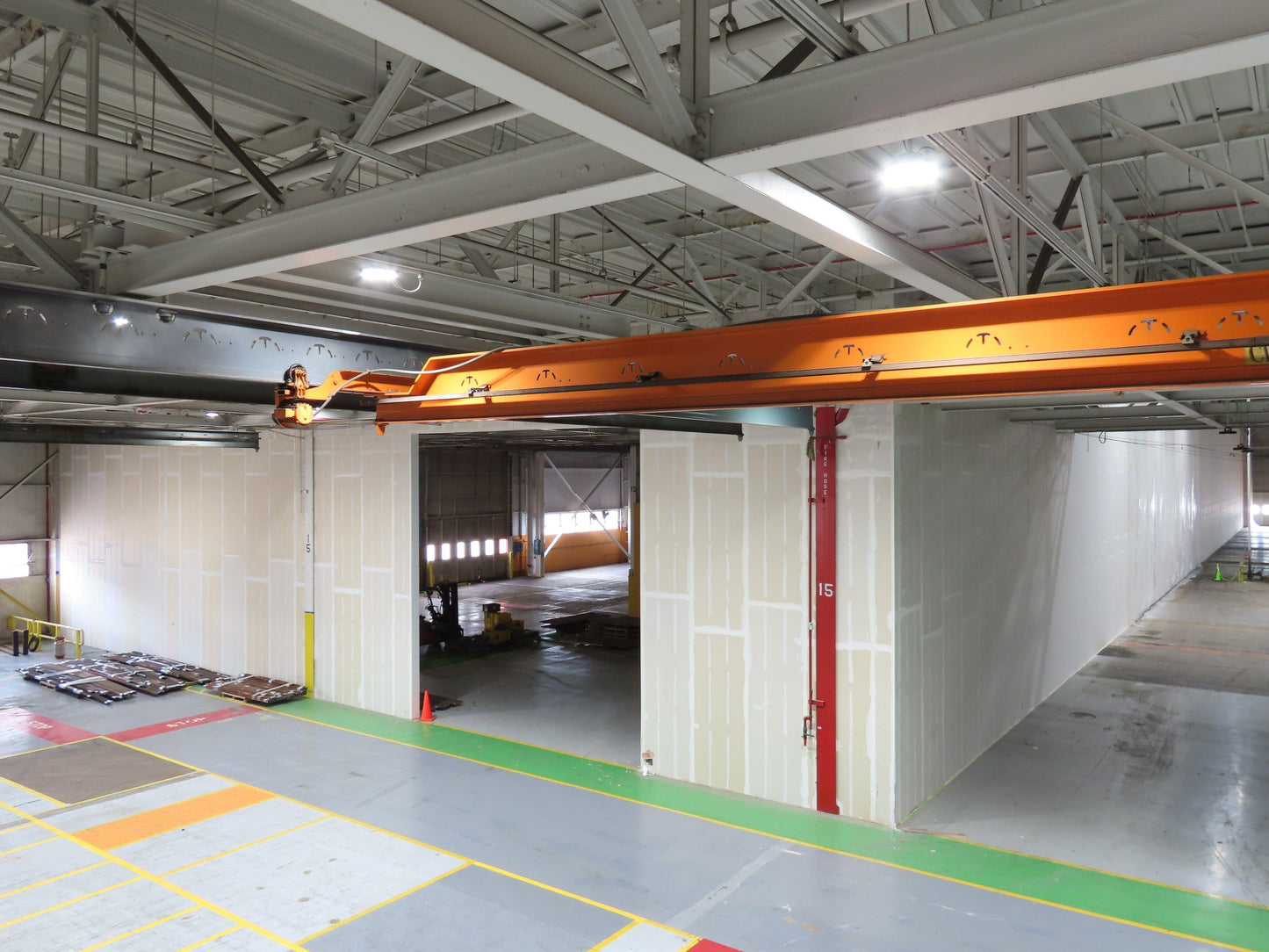

Cleveland Tramrail P&H 2 Ton Single Girder Underhung Bridge Crane 45' 10" Span

Cleveland Tramrail P&H 2 Ton Single Girder Underhung Bridge Crane 45' 10" Span

SKU #262203

Product Condition: Used

Your Price
$6,412.49
$7,499.99 $6,412.49
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail
Model
P&H Hevi-Lift
MPN
HX622
Condition
Used
  • Capacity (tons): 2
  • Capacity (lb): 4000

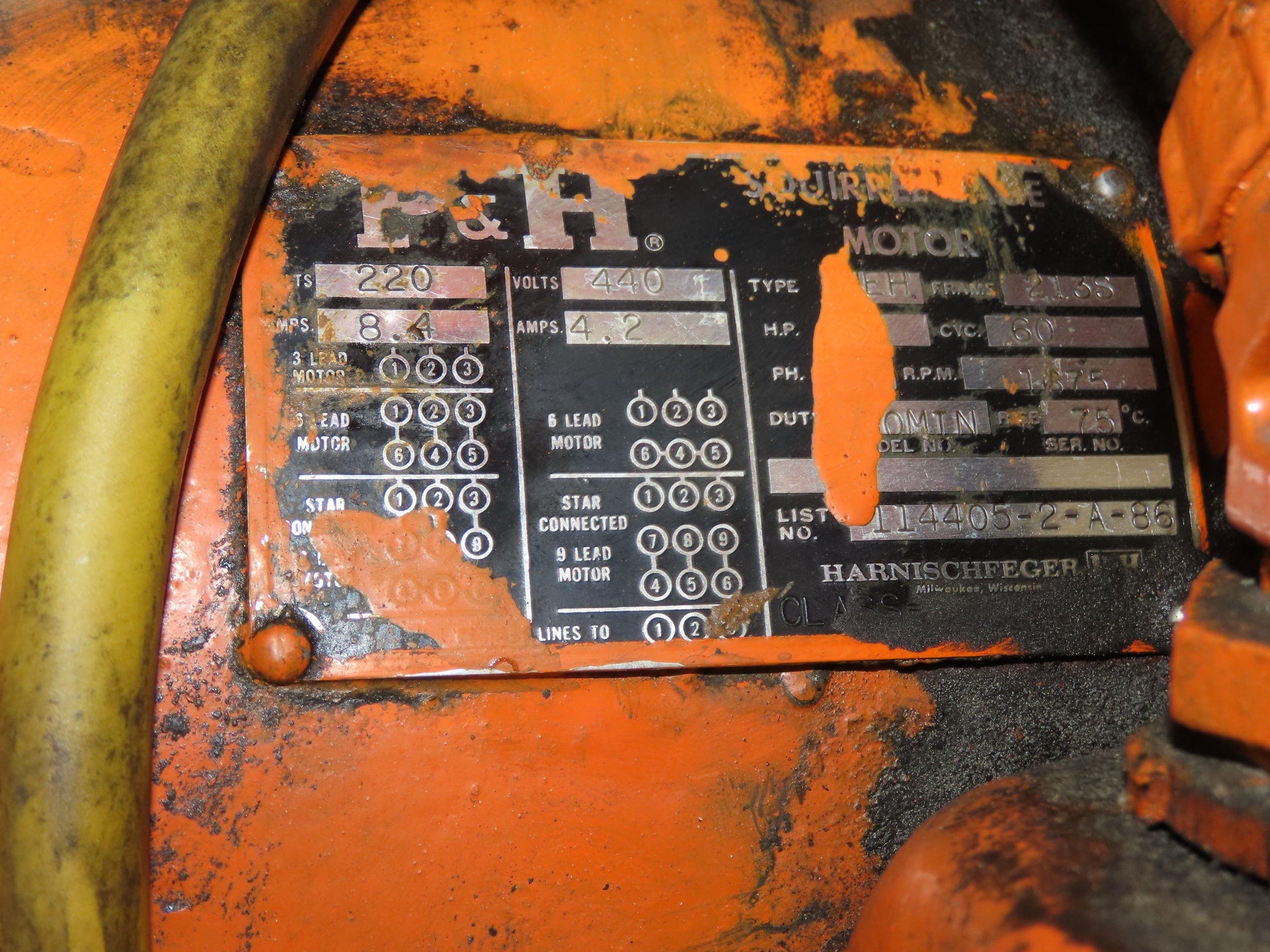

  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung45' 10"
  • Runway Beam Distance Between Centers (Span): 45' 10"

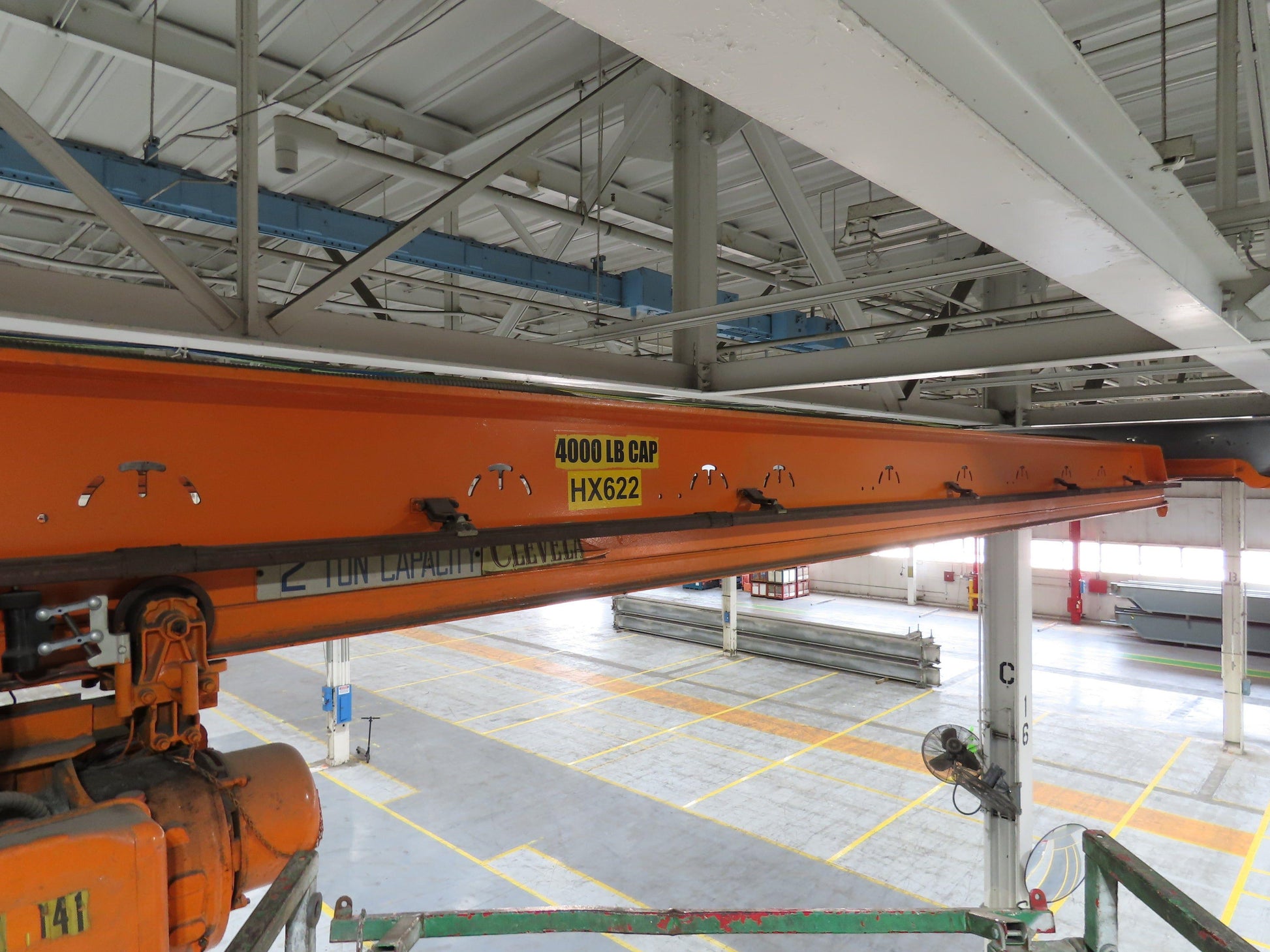

  • Main Girder Beam Size (Height x Width x Length): 9.5"H x 11"W x 46' 9" Length ( 3.25" bottom flange)
  • Bridge Speed (feet per minute): Single speed

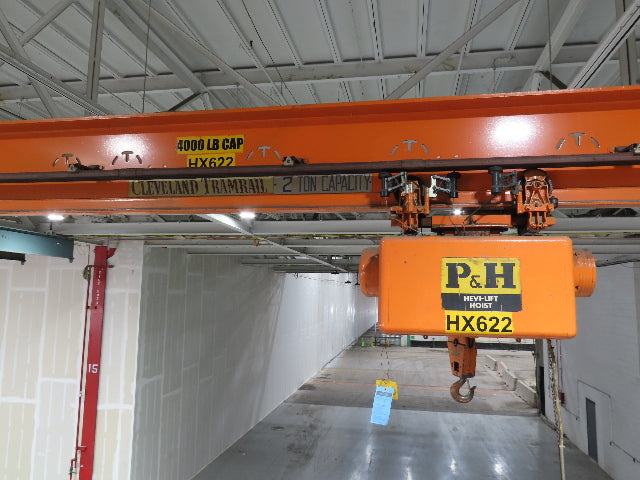

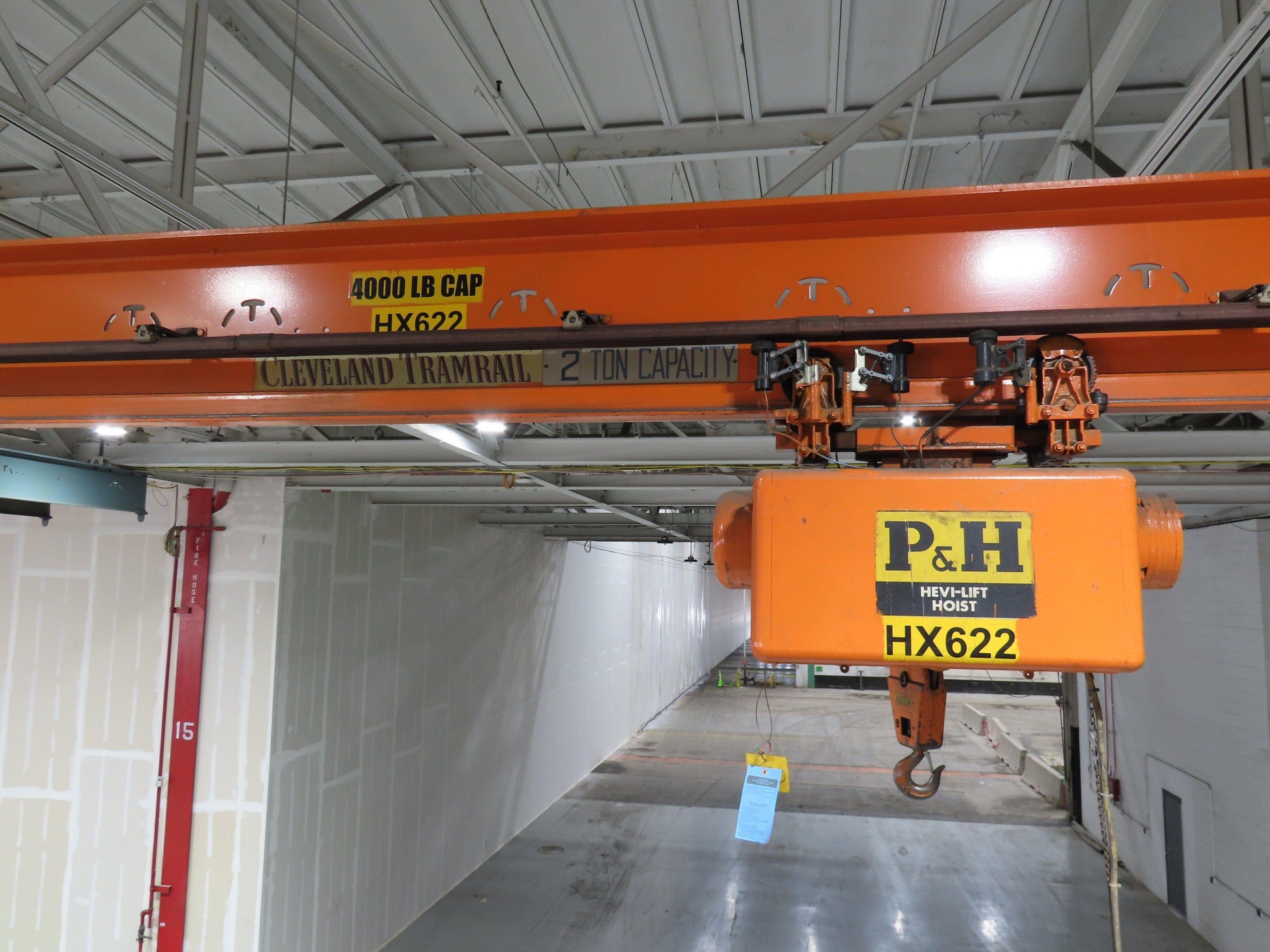

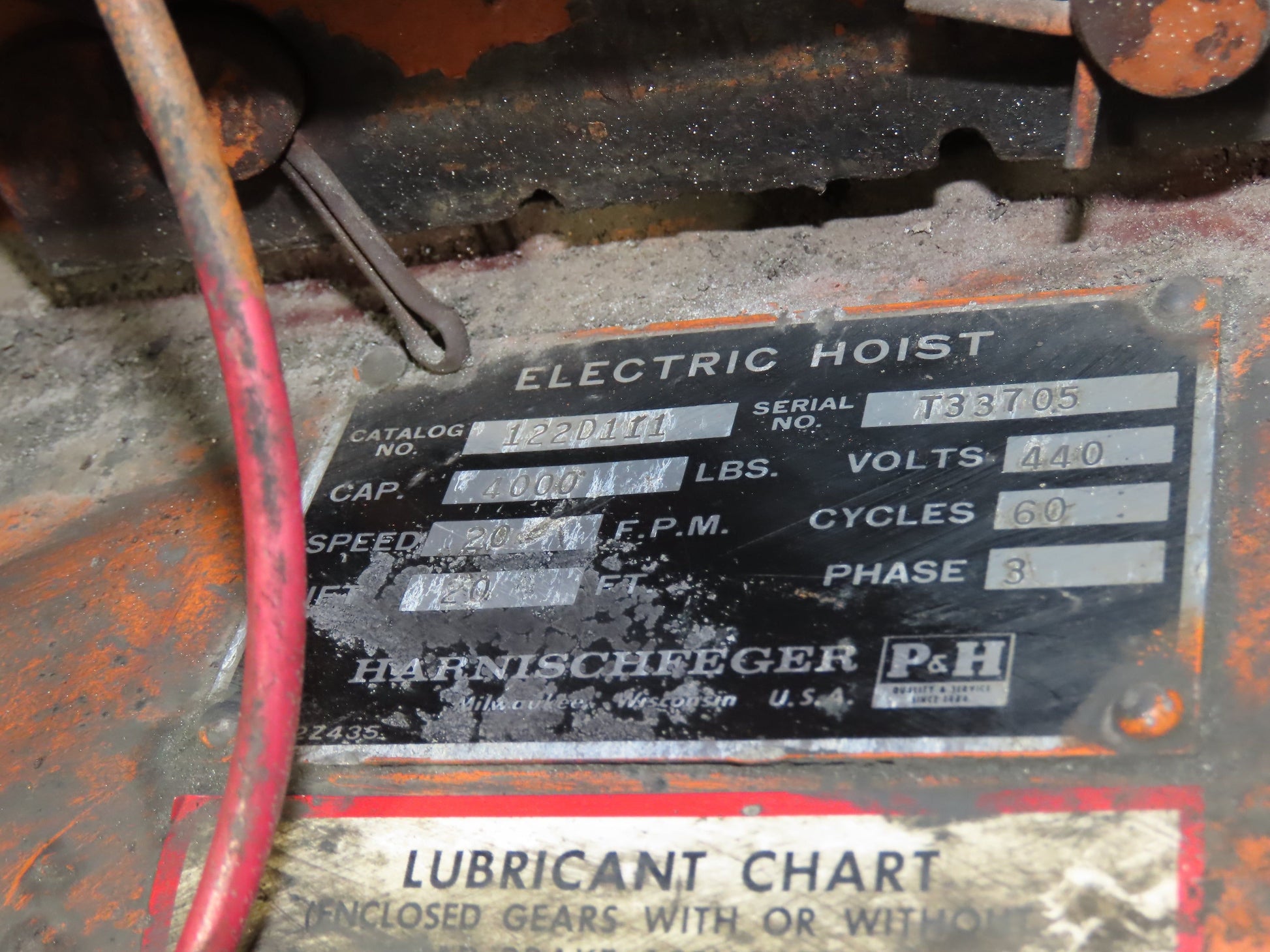

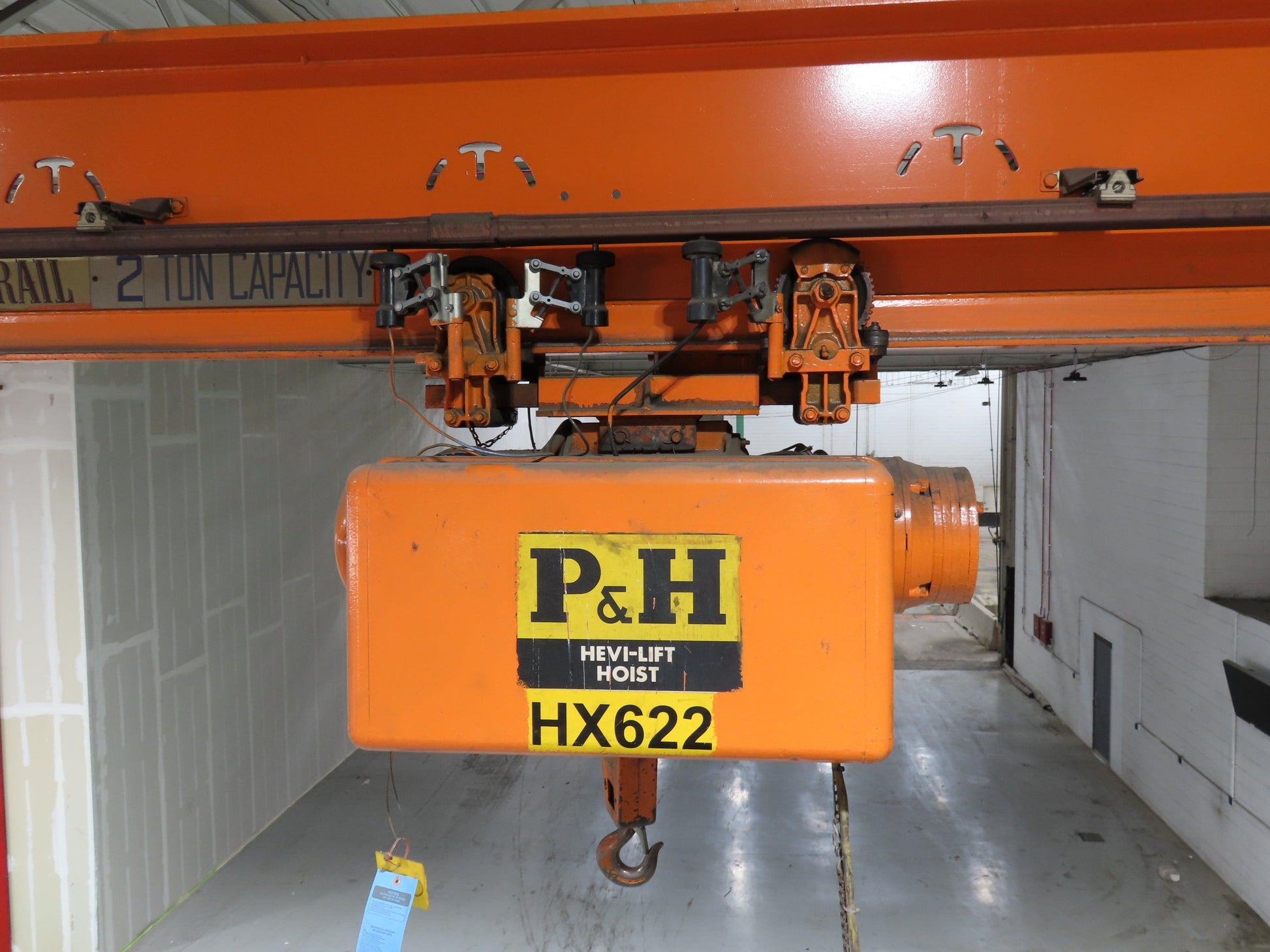

  • Hoist Brand: P&H
  • Lift Travel (feet): 20'
  • Lift Speed (feet per minute): 20
  • Motor Horse Power: 3

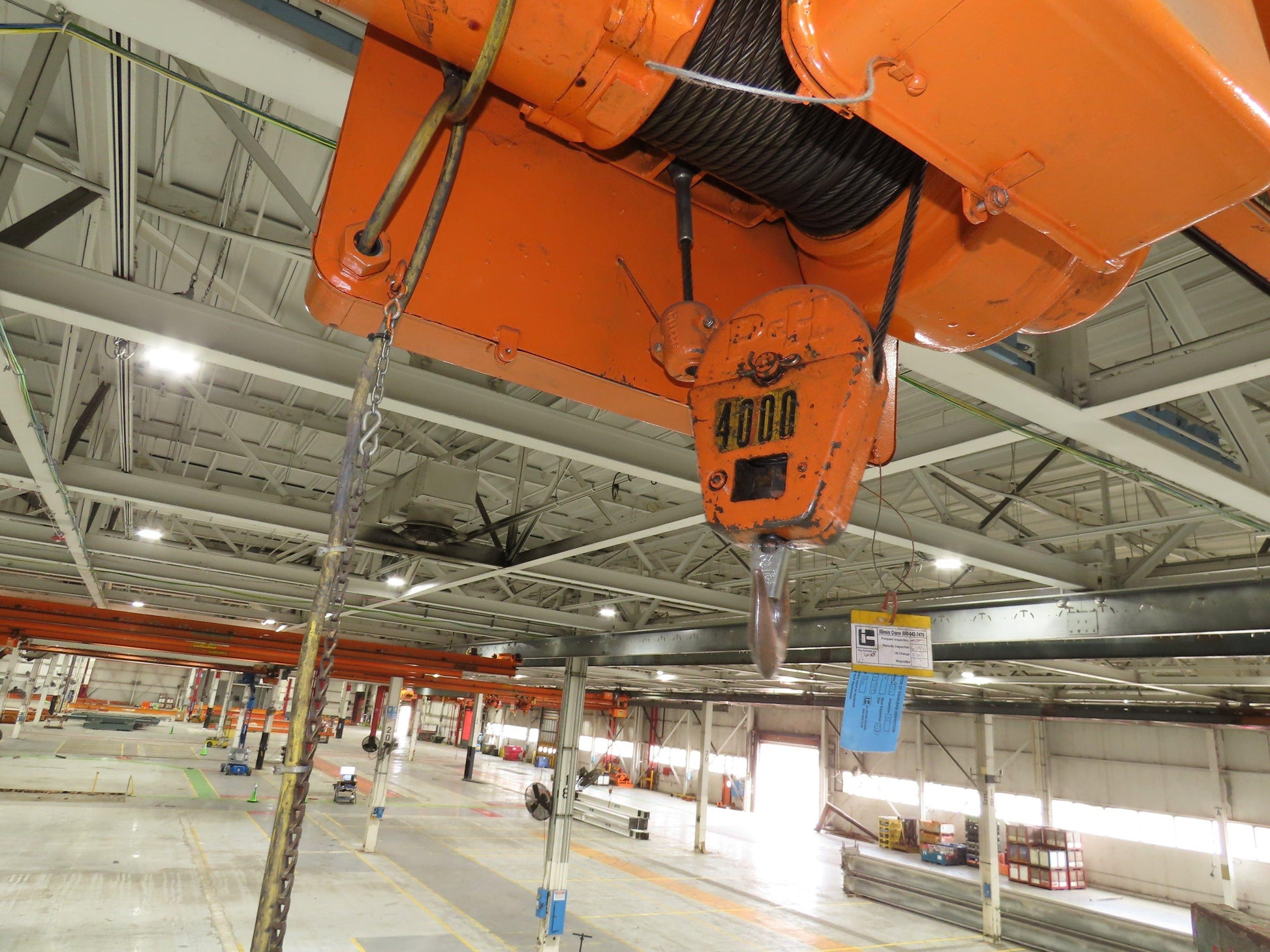

  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 15' 10"
  • Hoist Power Trolley Speed (feet per minute): 80
  • Hoist Trolley Length of Travel: 43' 6"
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 34"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 50"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 45"
  • Bridge Crane is in working condition.  Tested on site before removal.

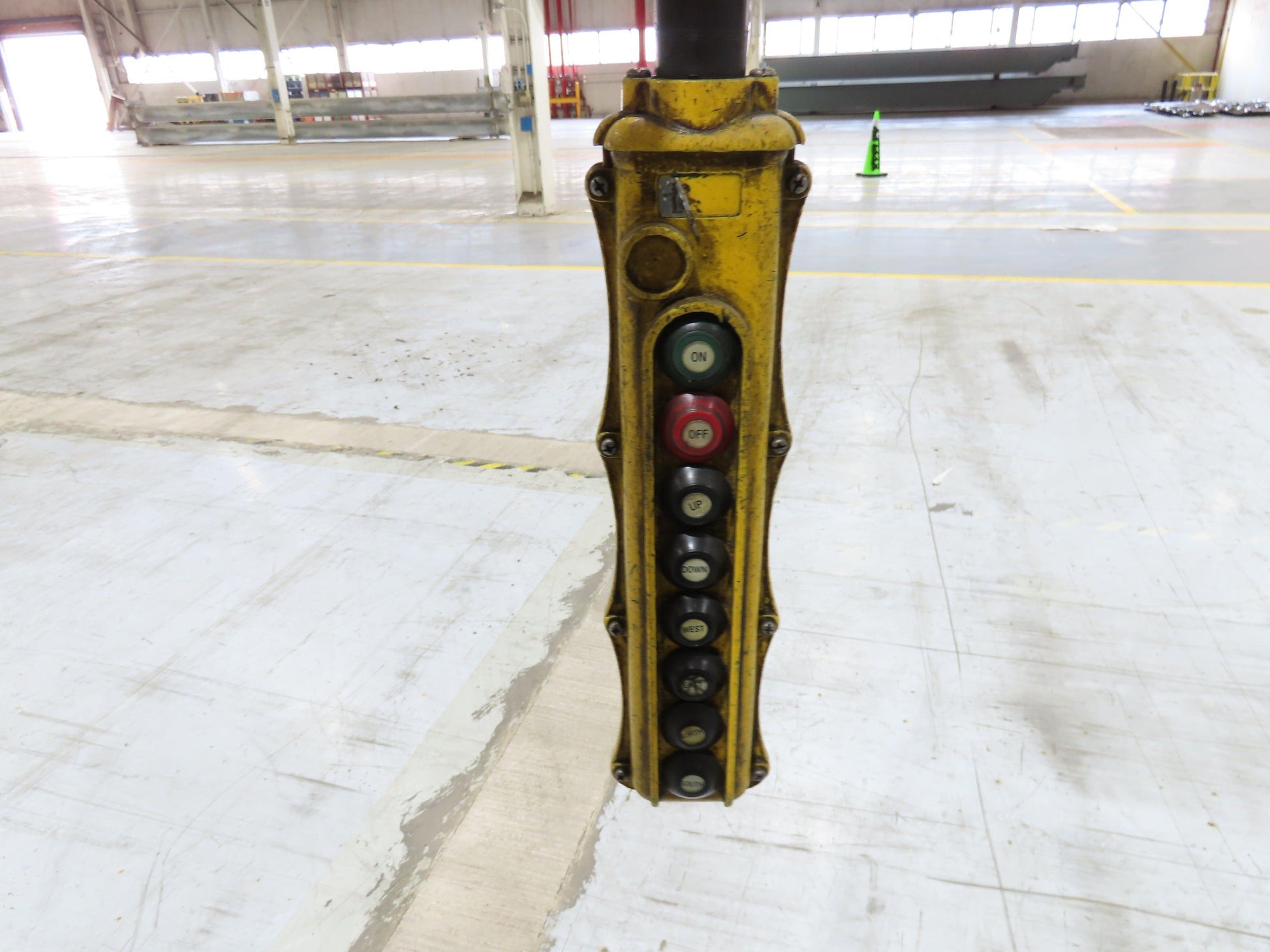

  • Includes corded pendant only.  Not set up for wireless.
  • Single speed bridge, trolley and hoist.

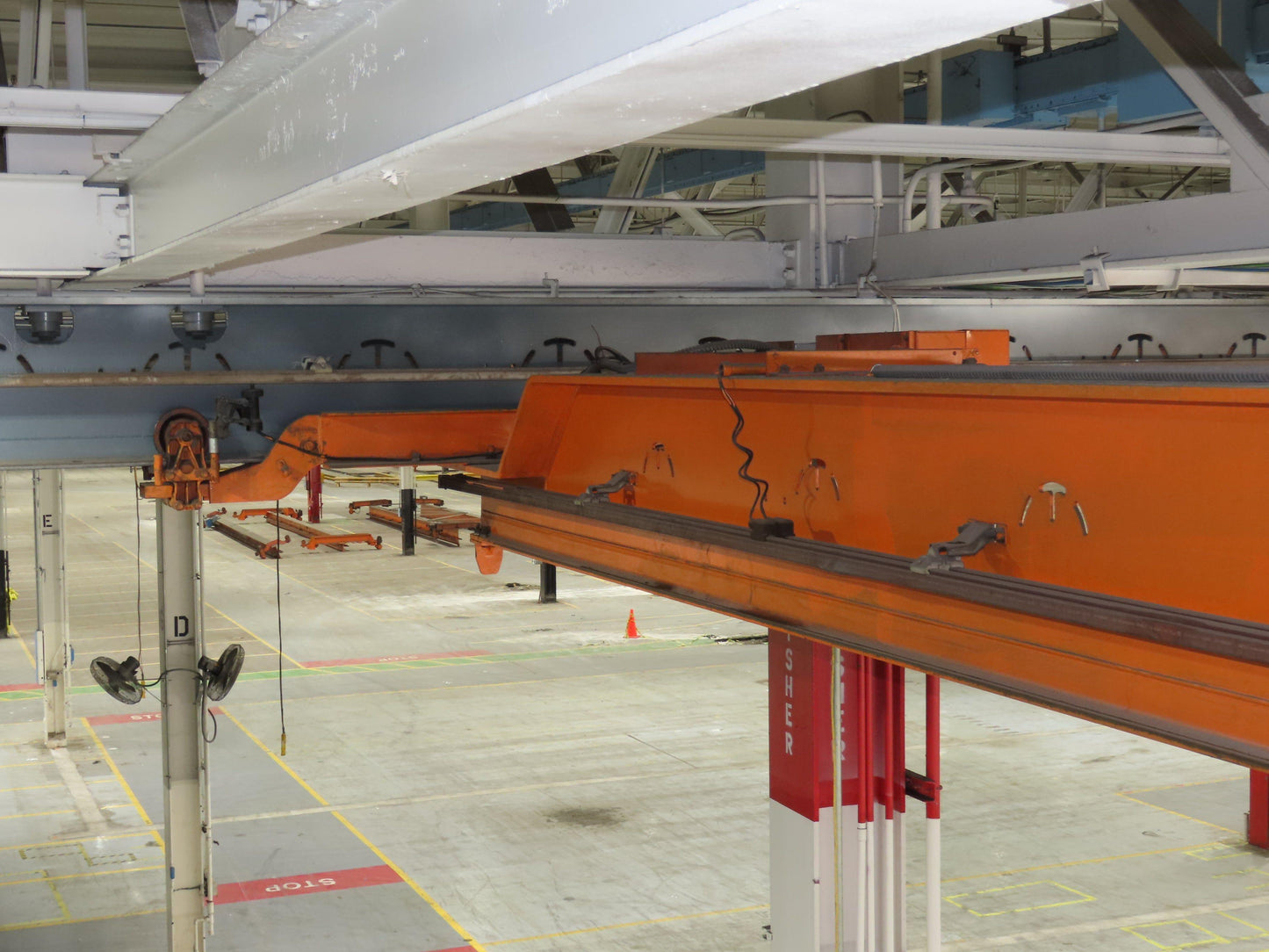

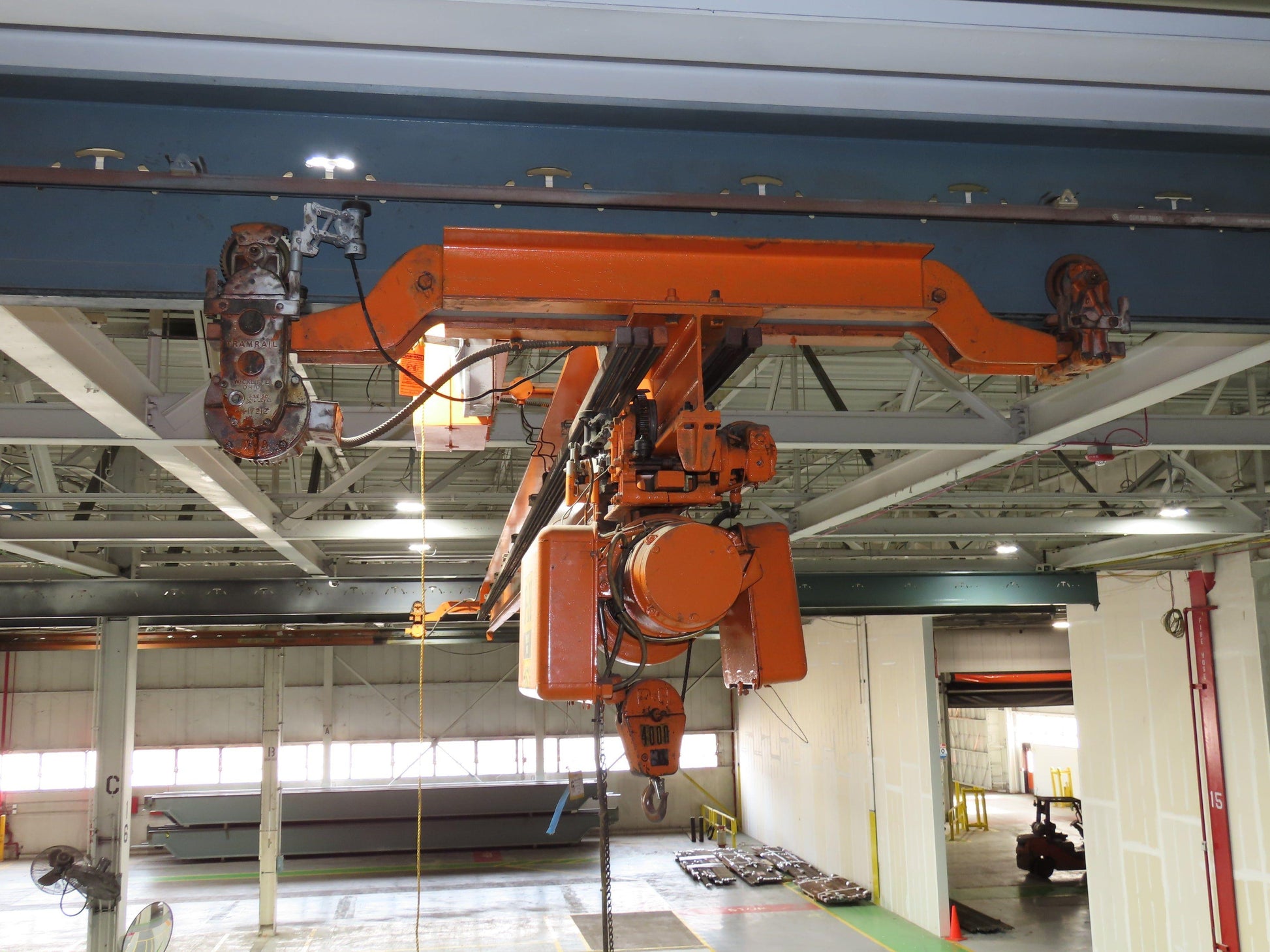

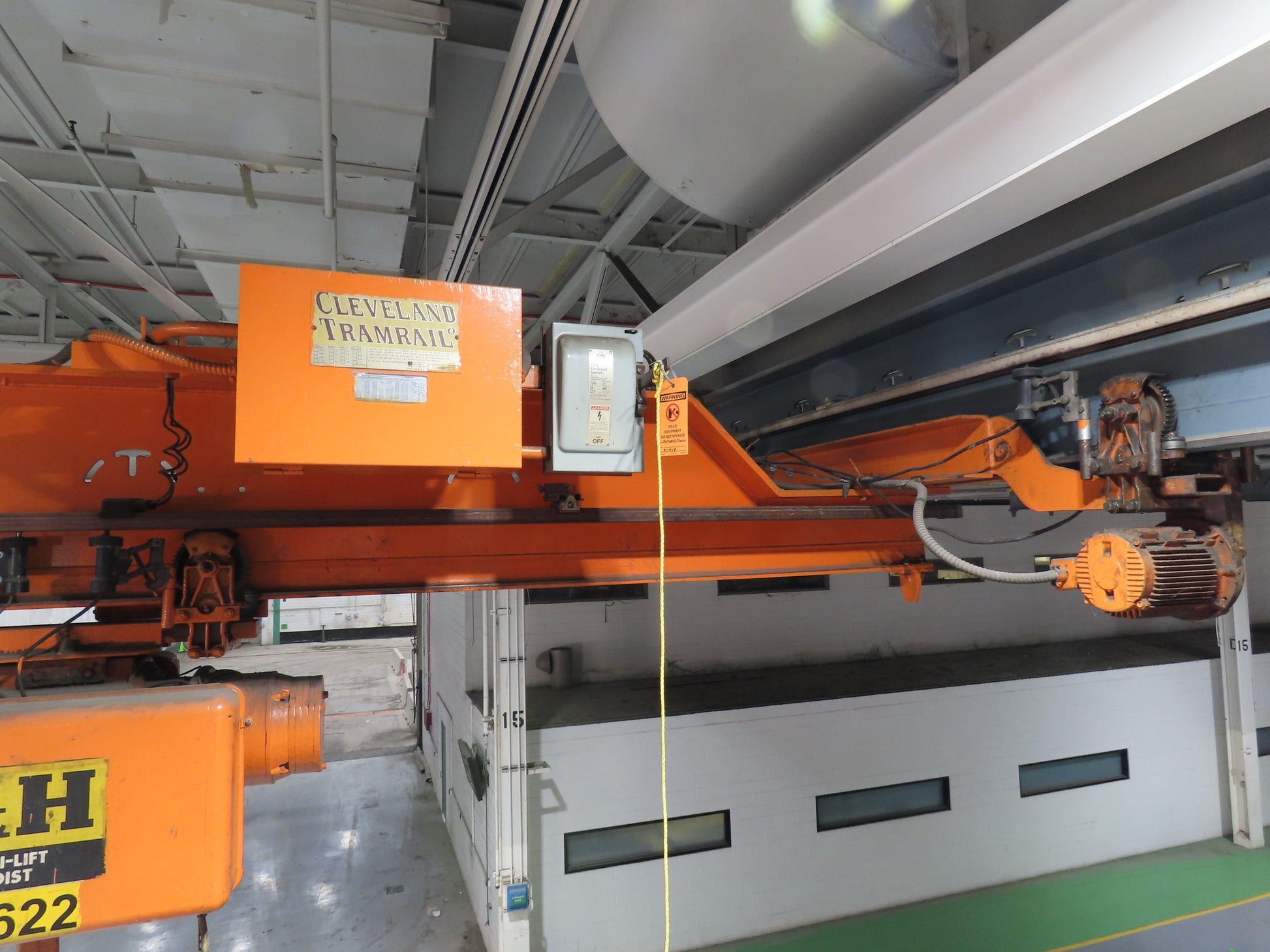

  • End truck length: 80"
