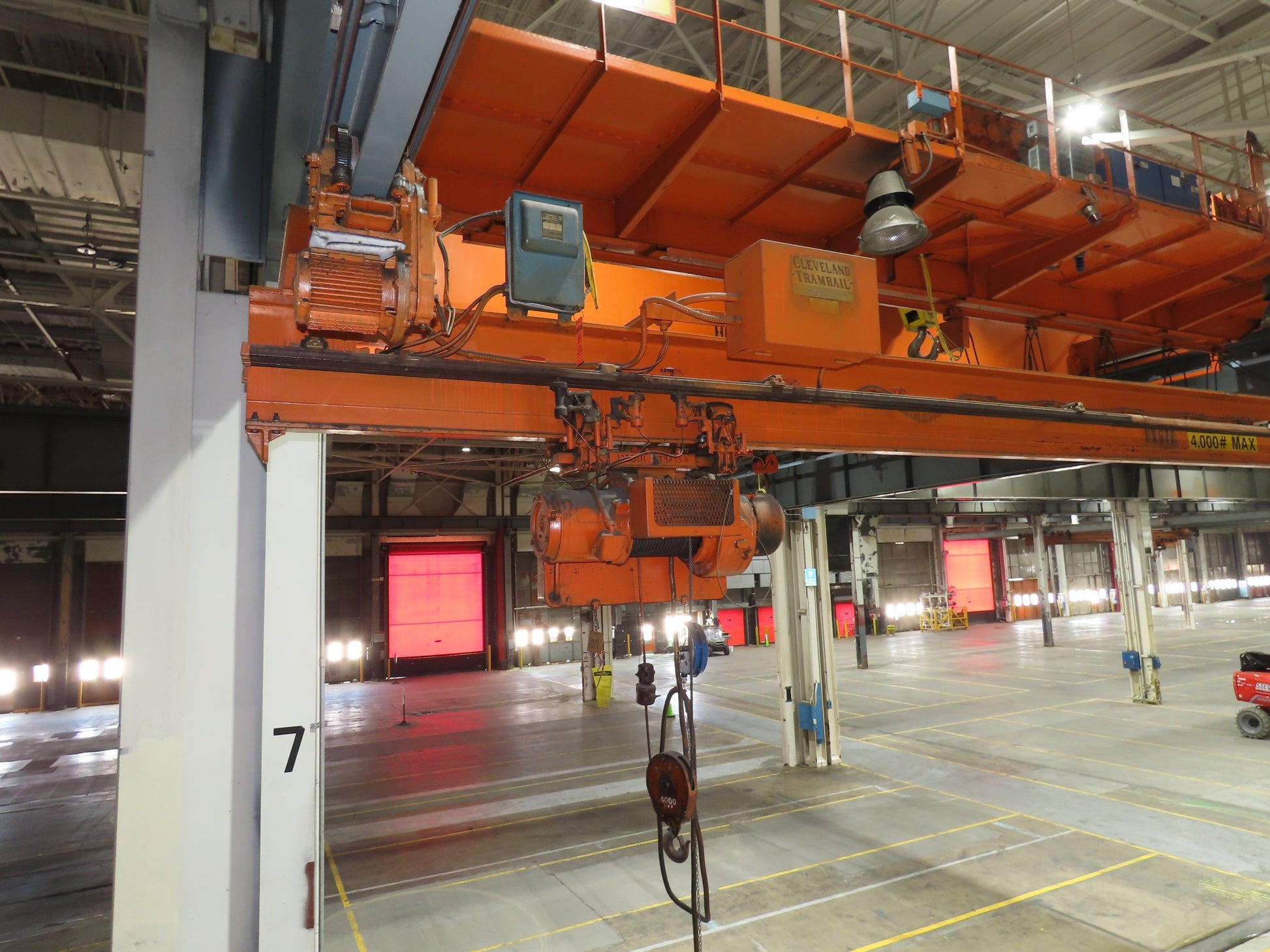

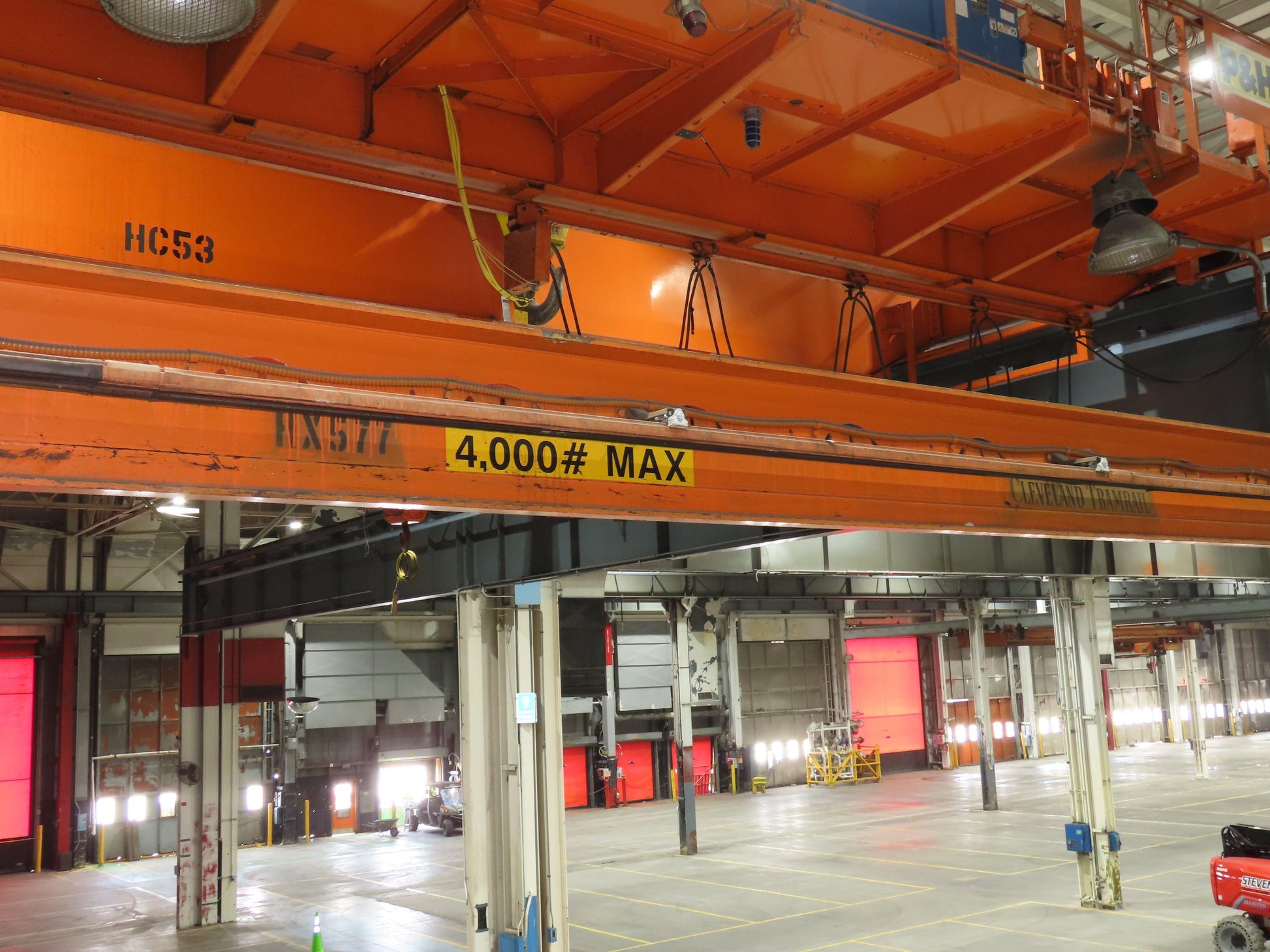

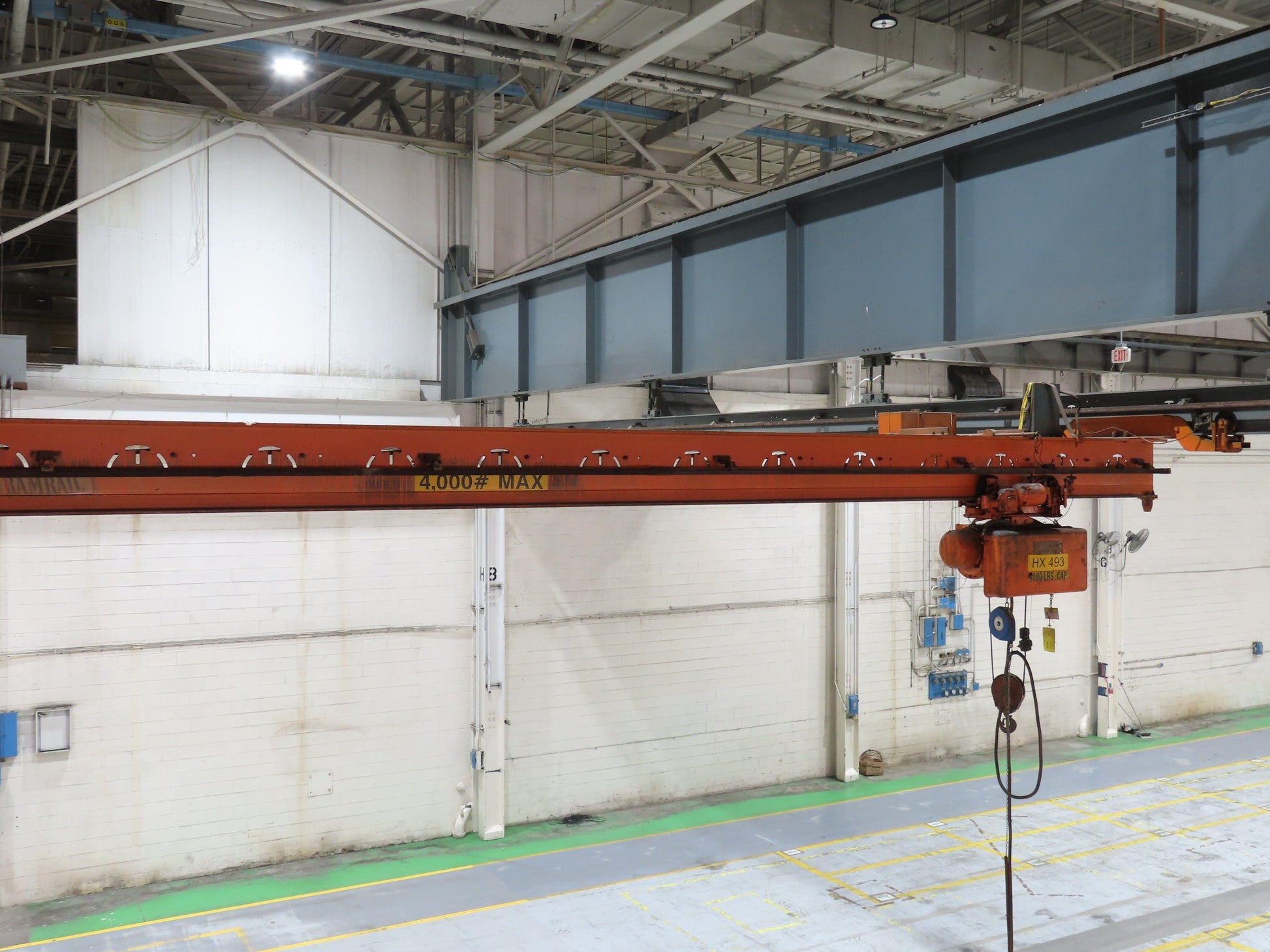

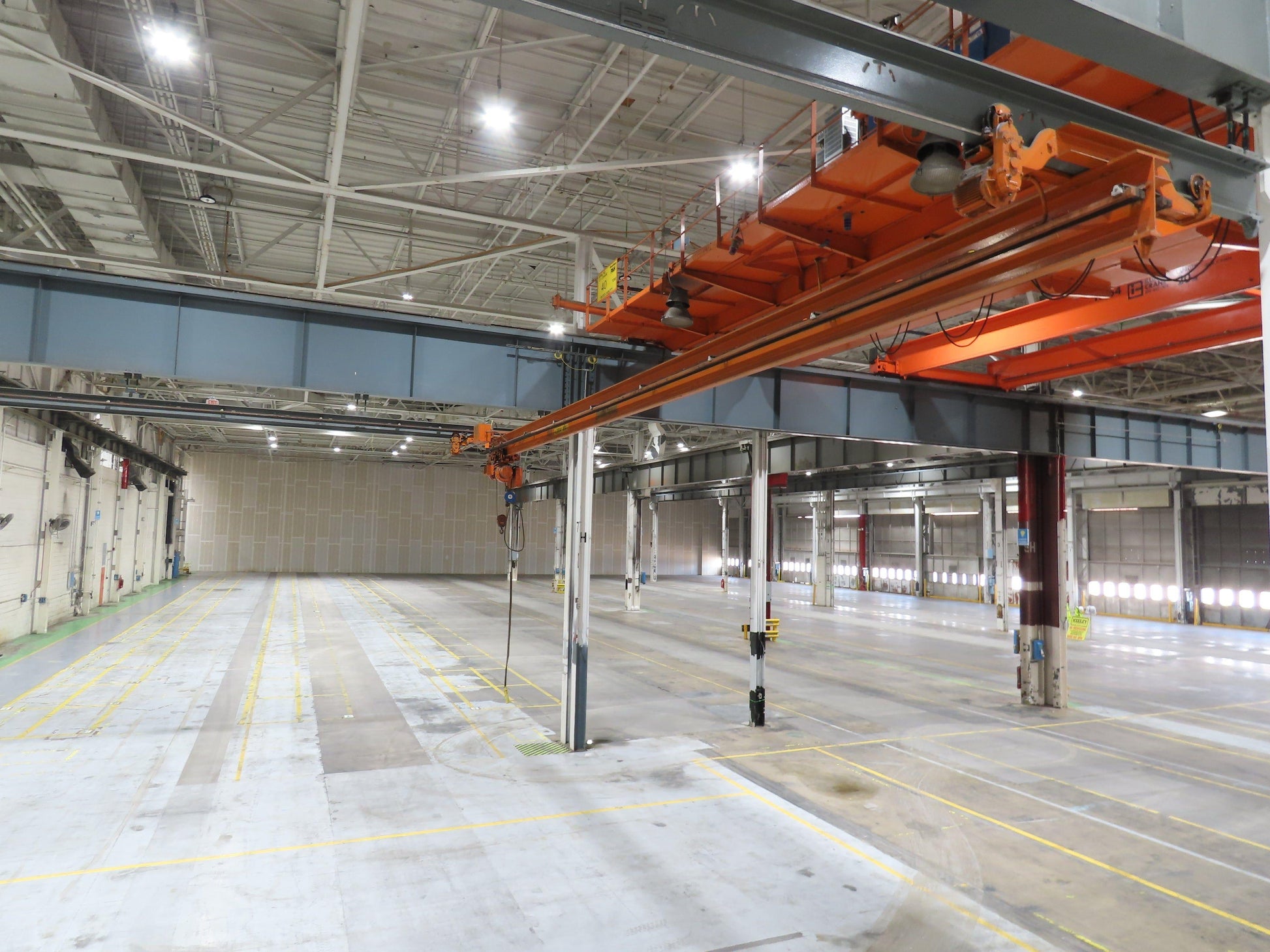

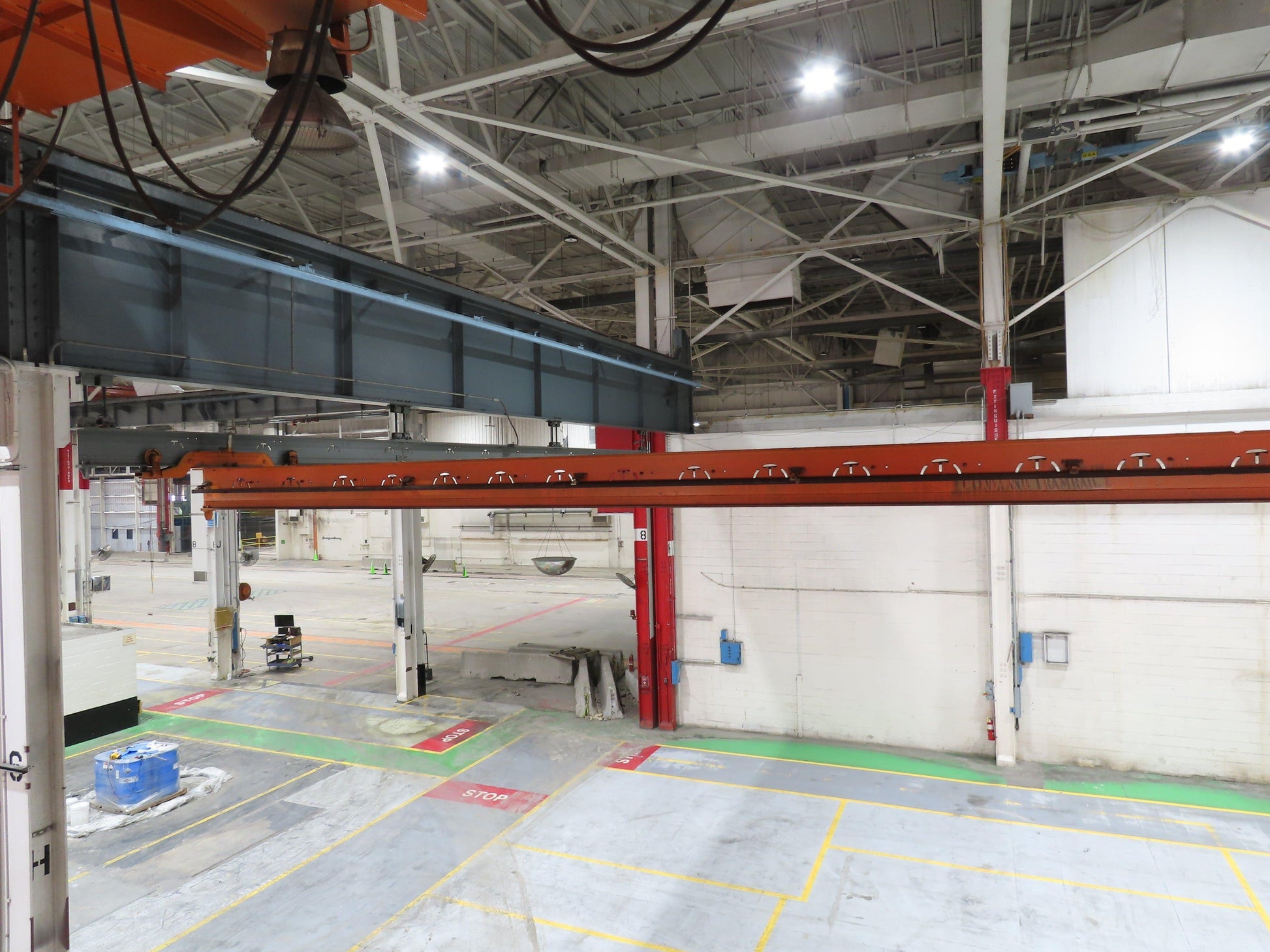

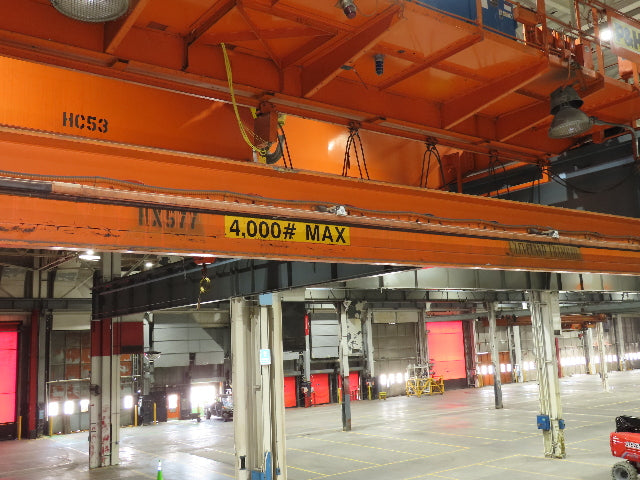

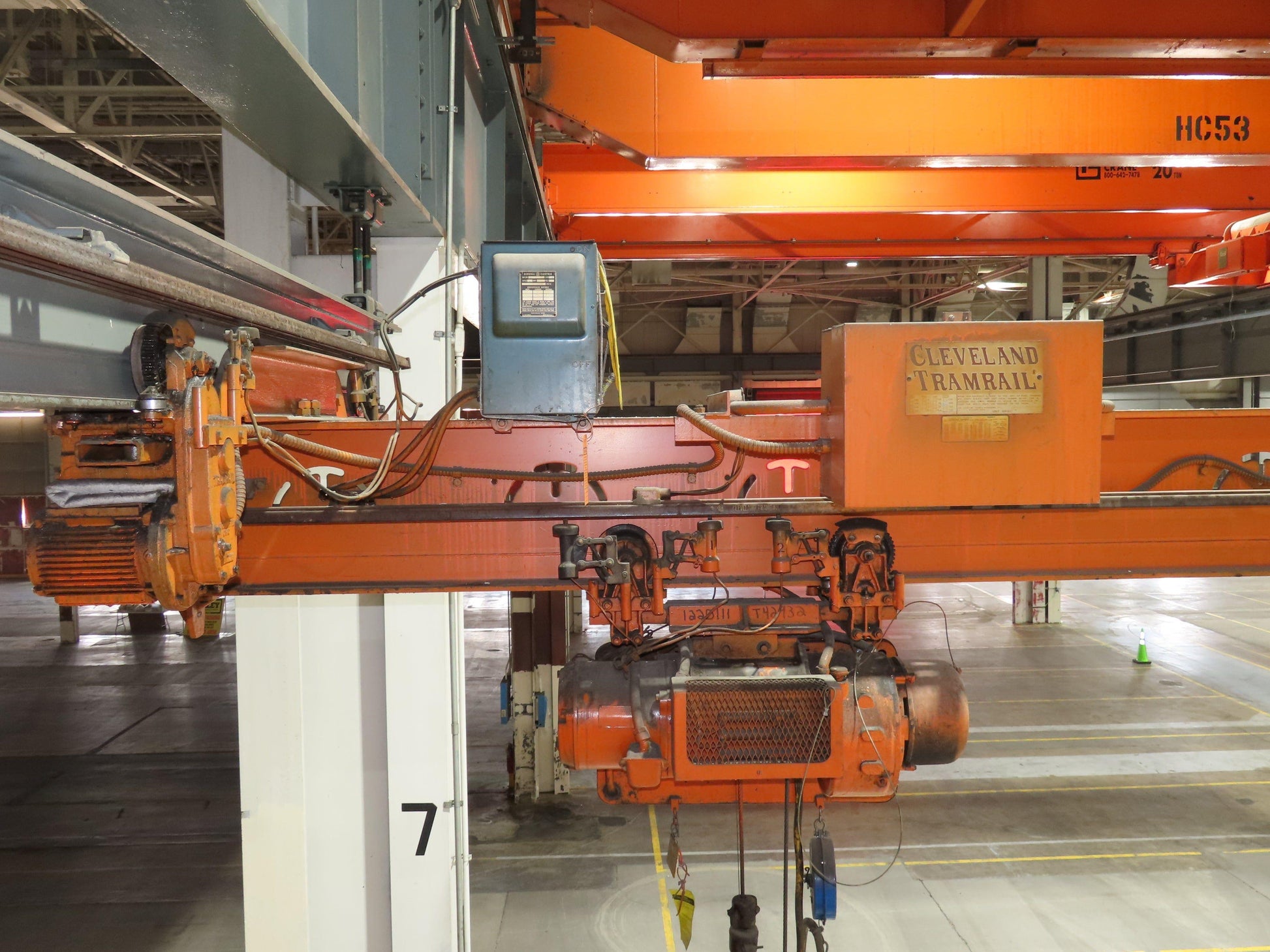

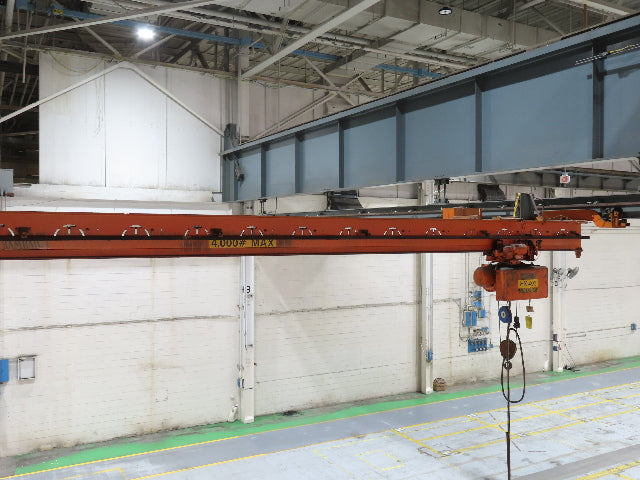

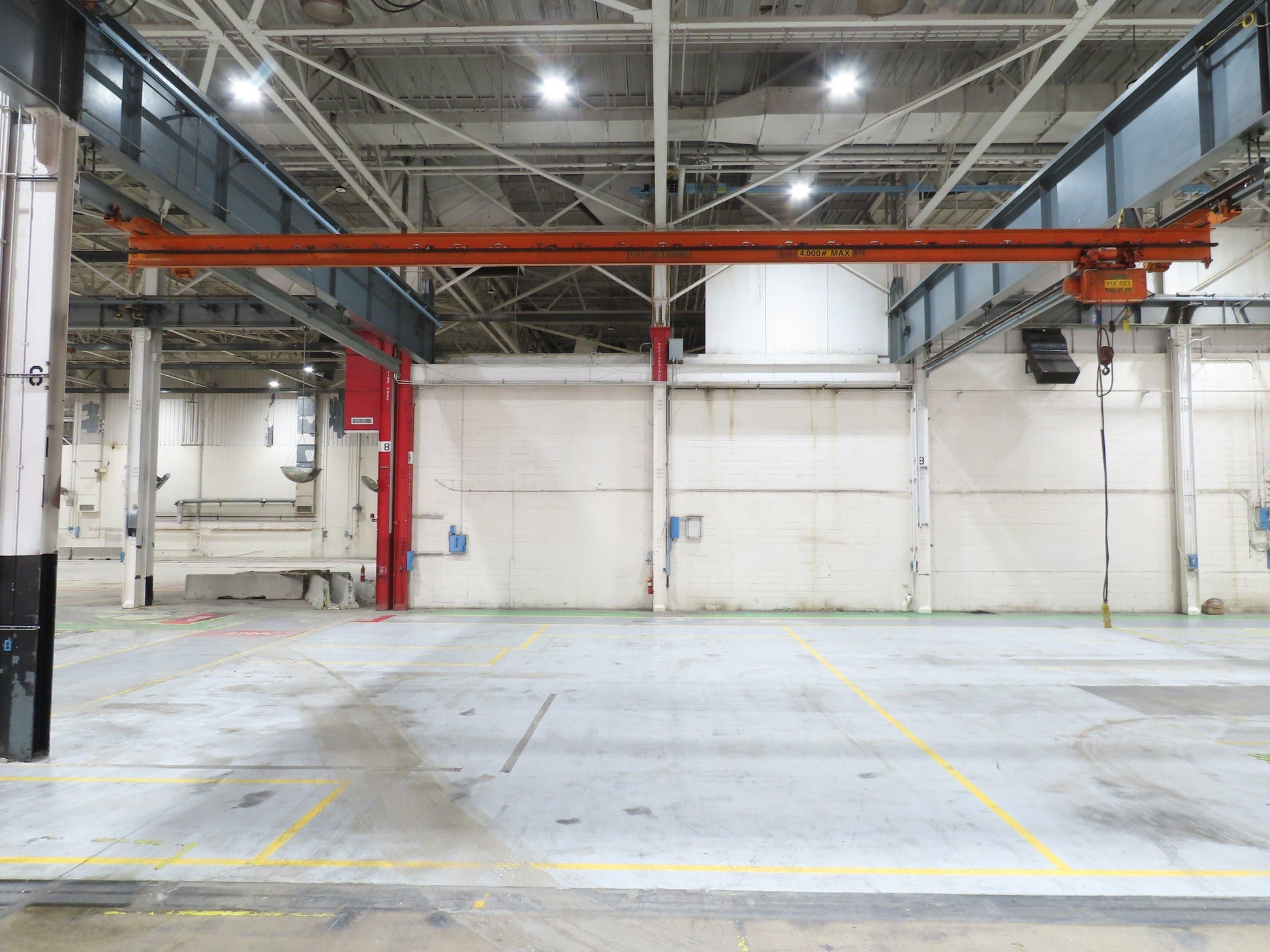

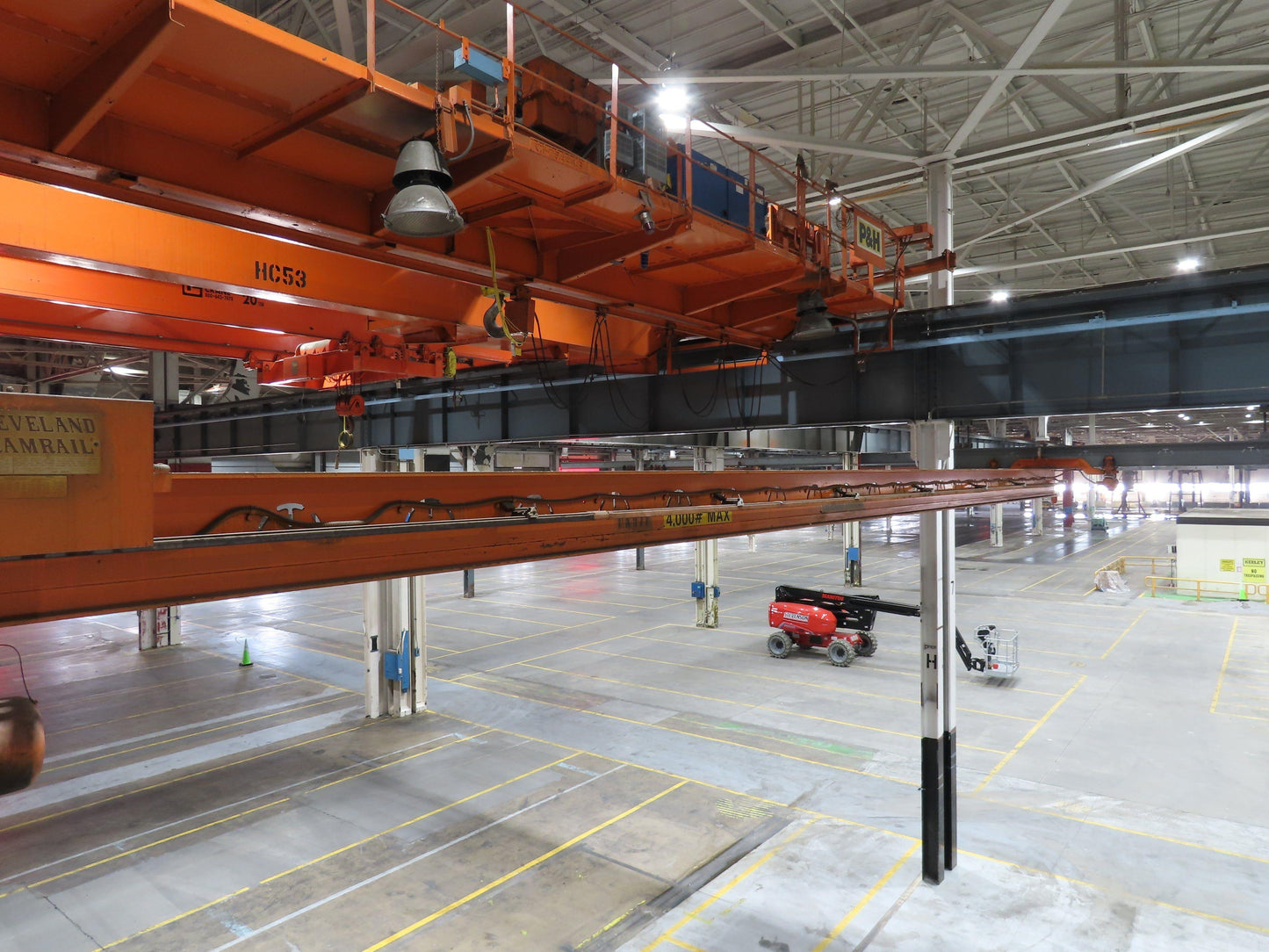

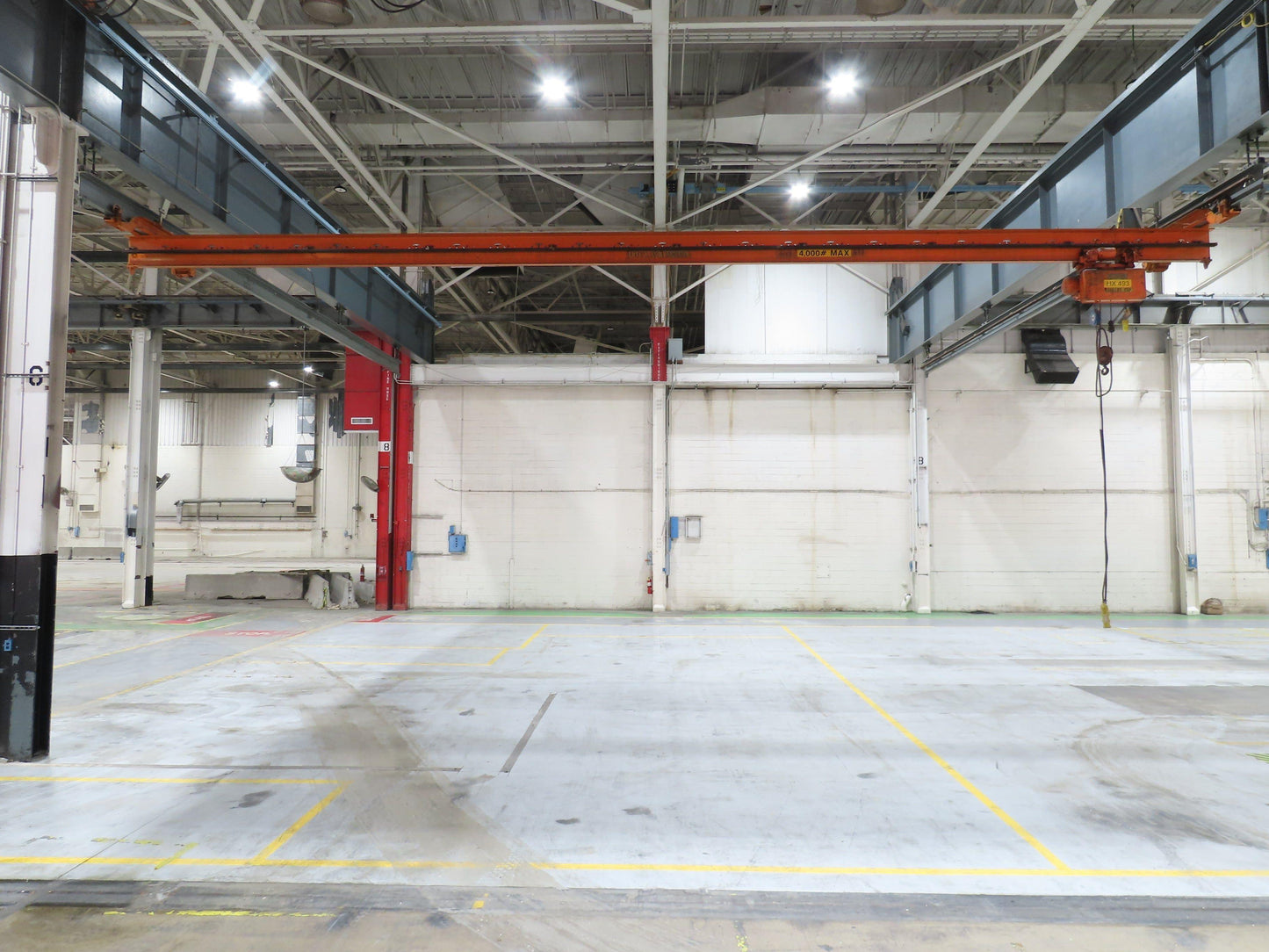

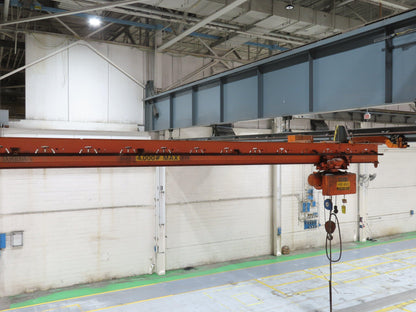

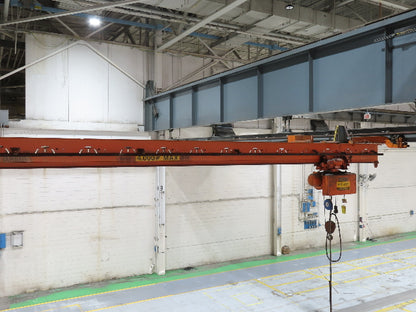

Cleveland Tramrail P&H 2 Ton Single Girder Underhung Bridge Crane 46' Span

Cleveland Tramrail P&H 2 Ton Single Girder Underhung Bridge Crane 46' Span

SKU #262714

Your Price
$6,412.49
$7,499.99 $6,412.49
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 2
  • Capacity (lb): 4000

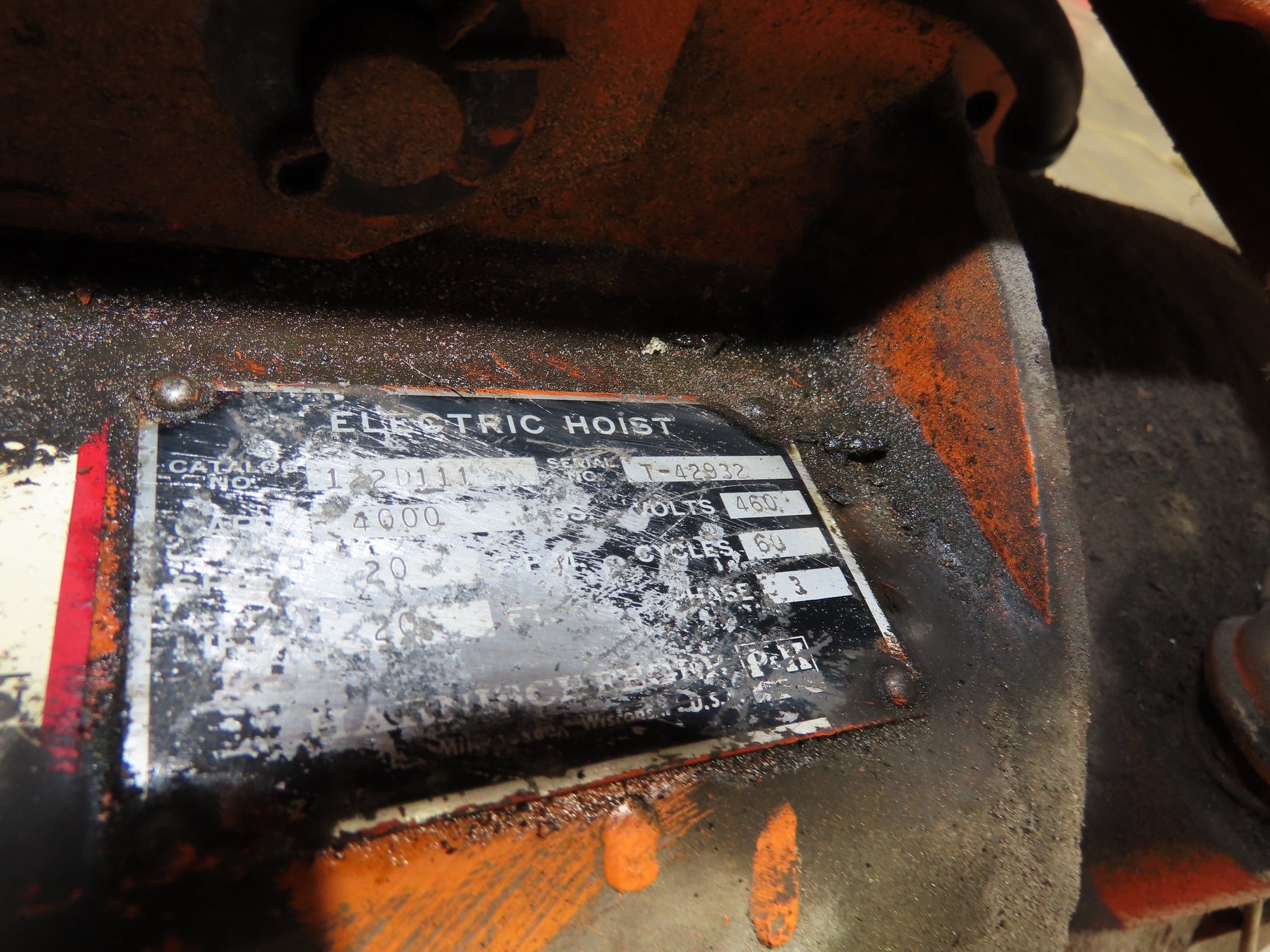

  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 46'
  • Main Girder Beam Size (Height x Width x Length): 16"H x 9.5"W x 47' 9" Length (3.25" bottom flange)

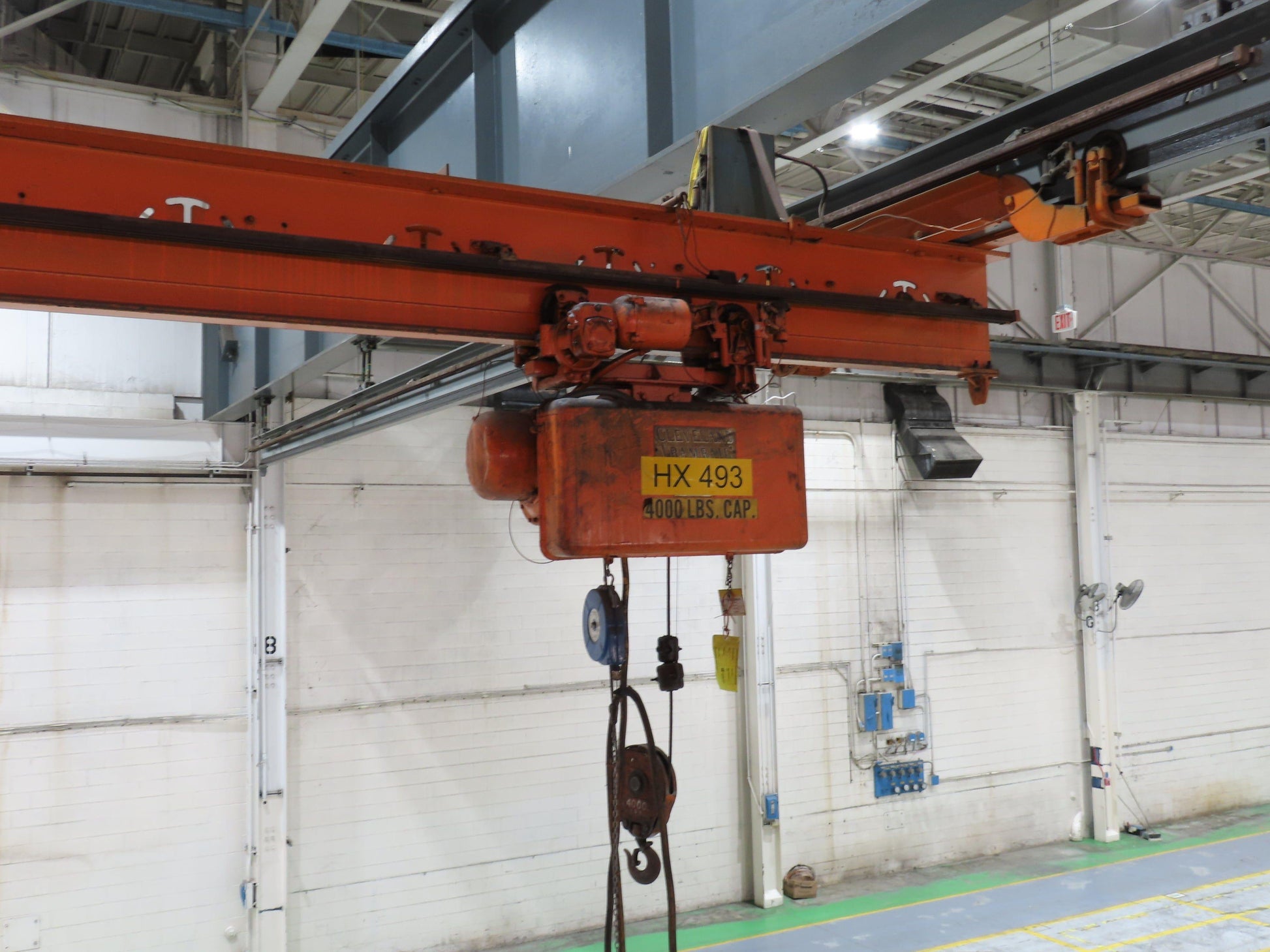

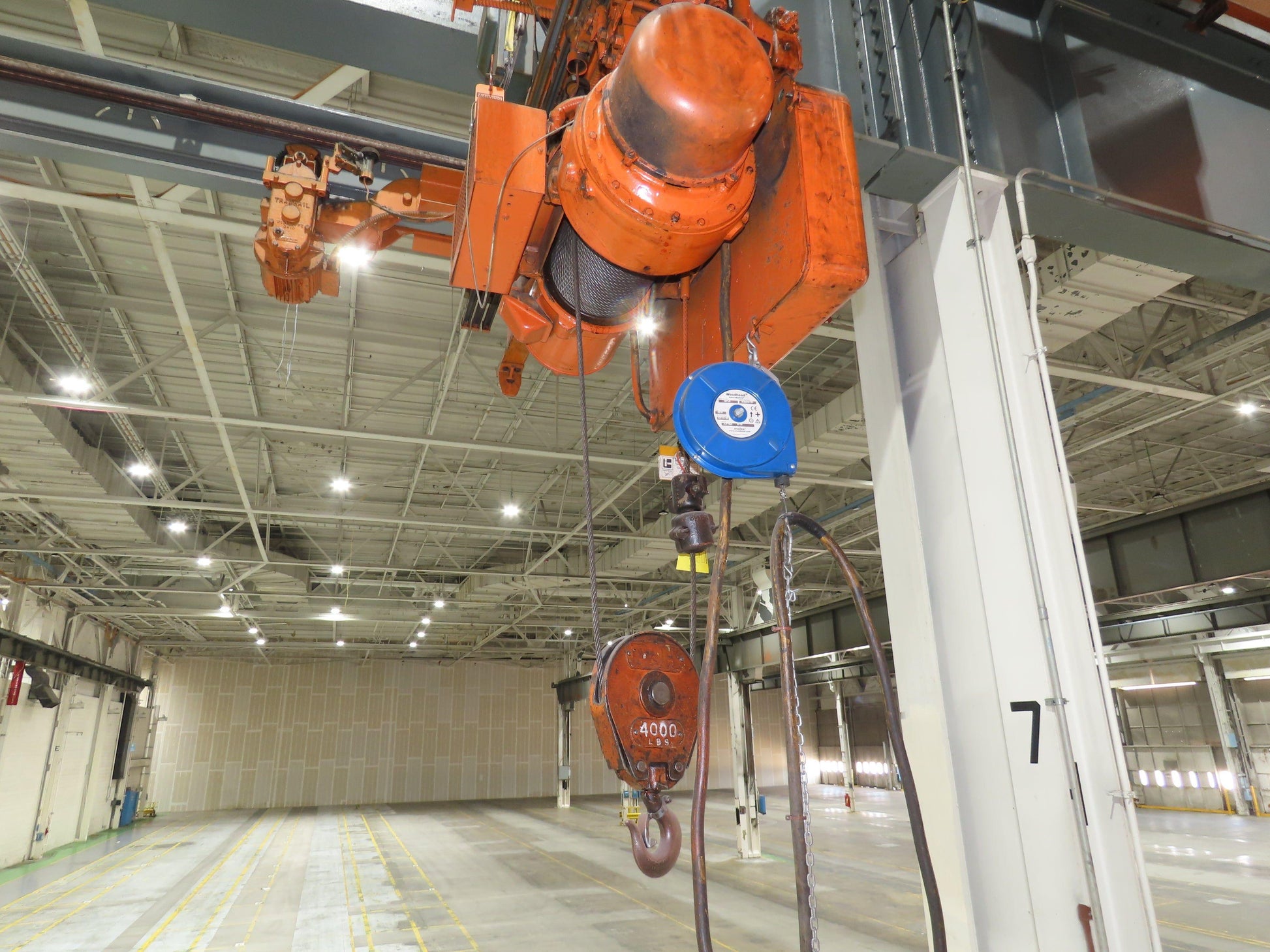

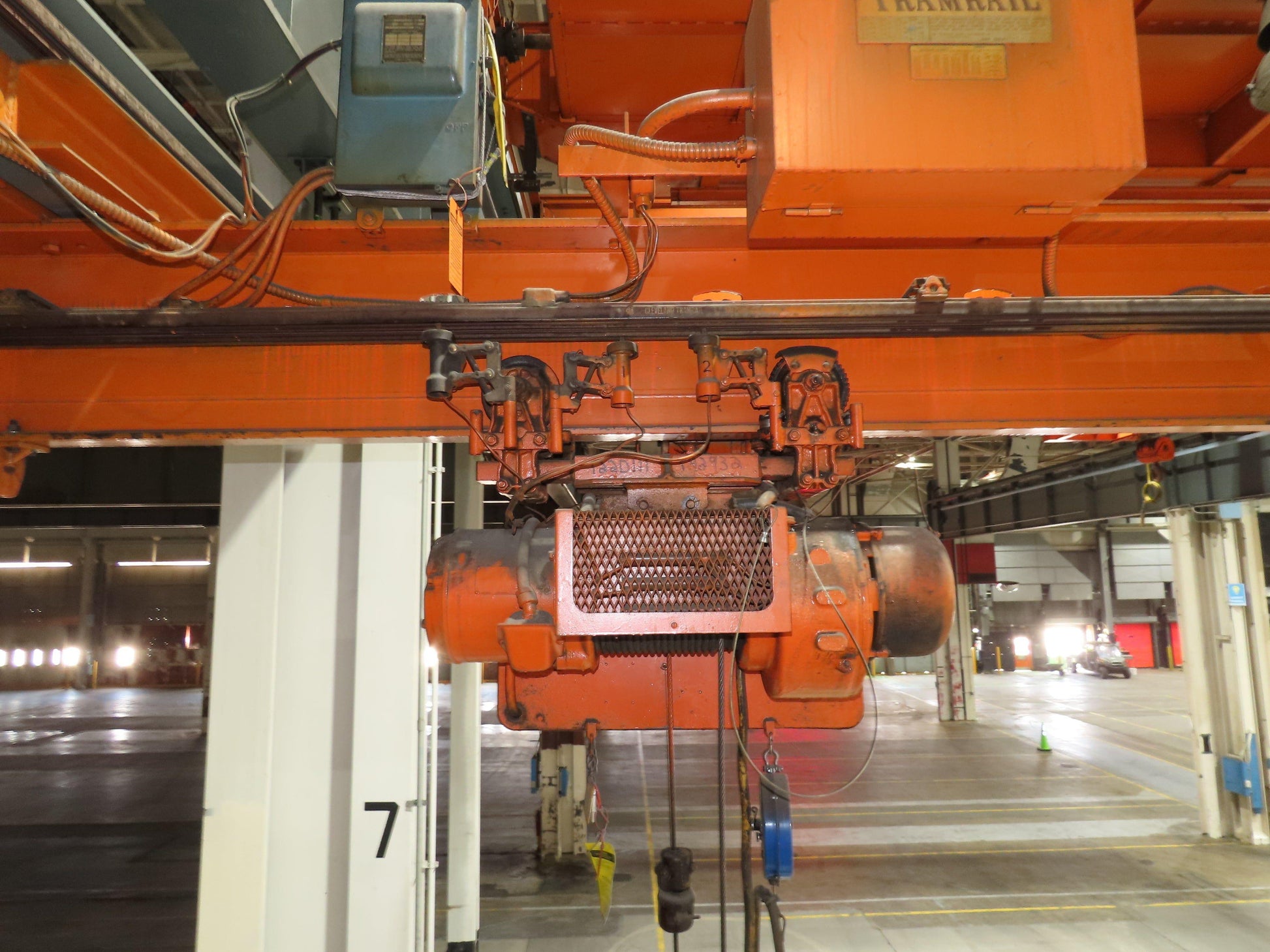

  • Hoist Brand: P&H
  • Lift Travel (feet): 20
  • Lift Speed (feet per minute): 20
  • Motor Horse Power: 3
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 28'
  • Hoist Trolley Length of Travel: 44' 6"
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 48"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 65"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 80"
  • Bridge Crane is in working condition.

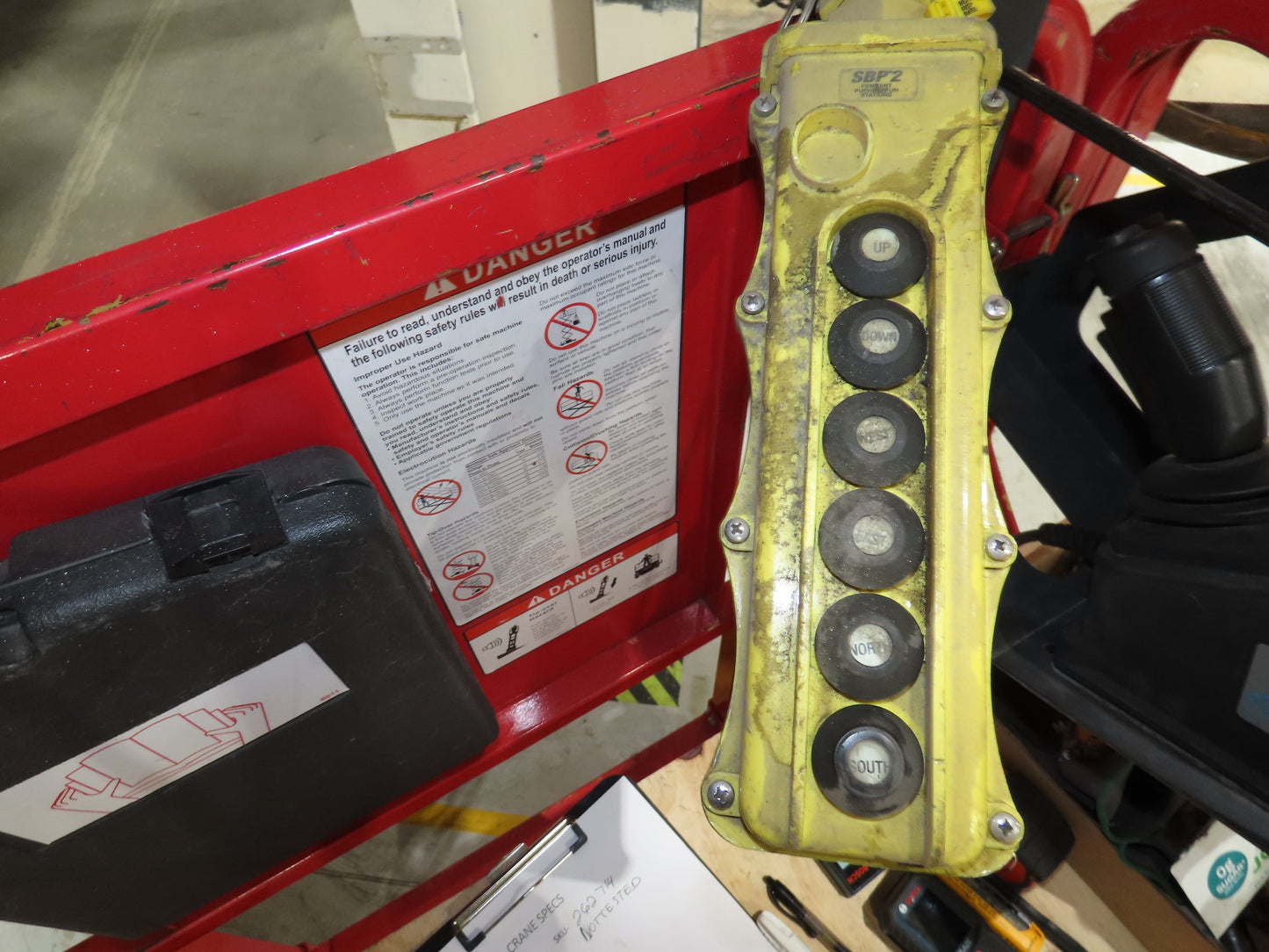

  • Includes corded pendant only.  Not set up for wireless.
  • Single speed bridge, trolley and hoist.

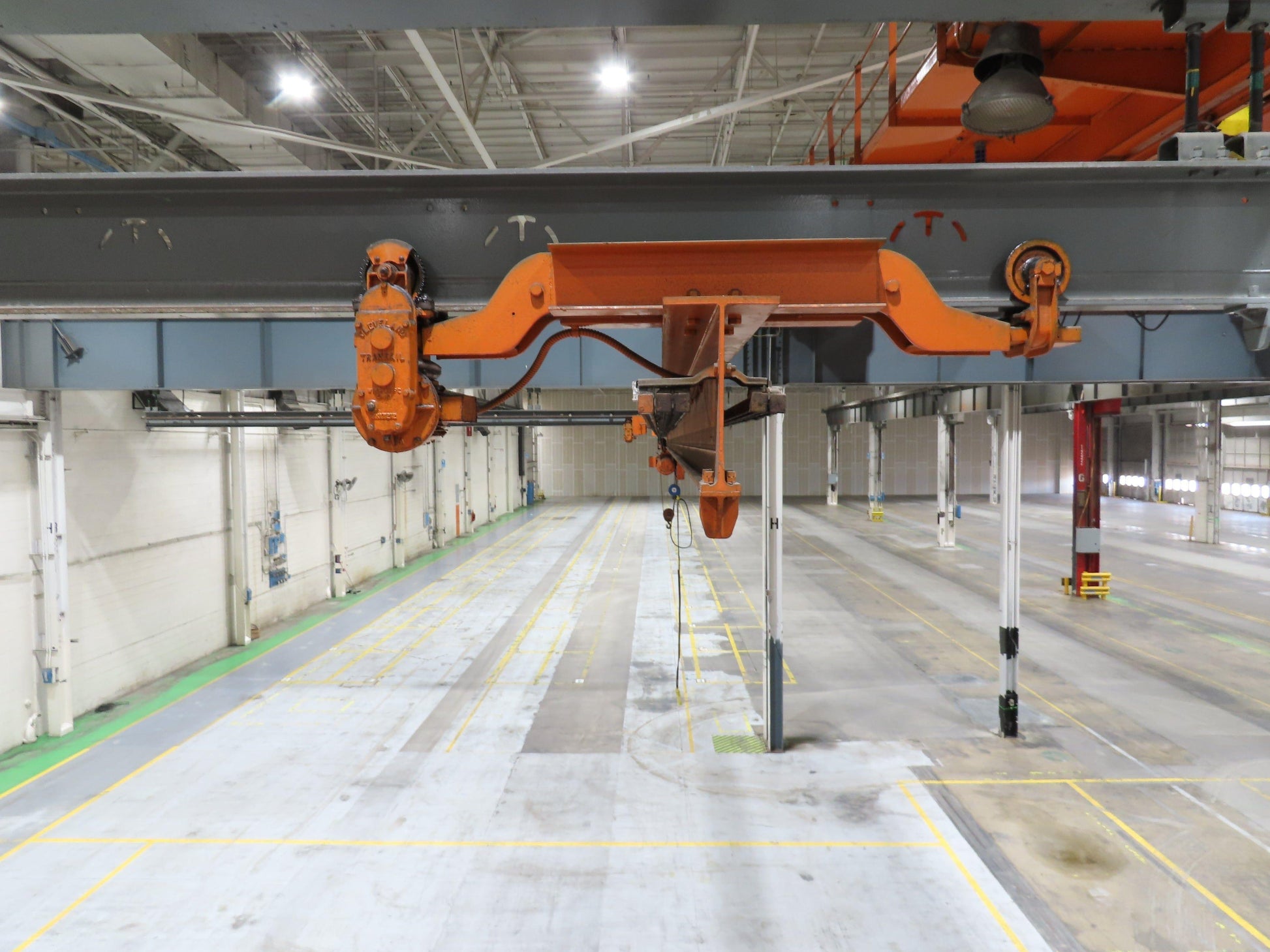

  • End truck length: 68"
