Cleveland Tramrail

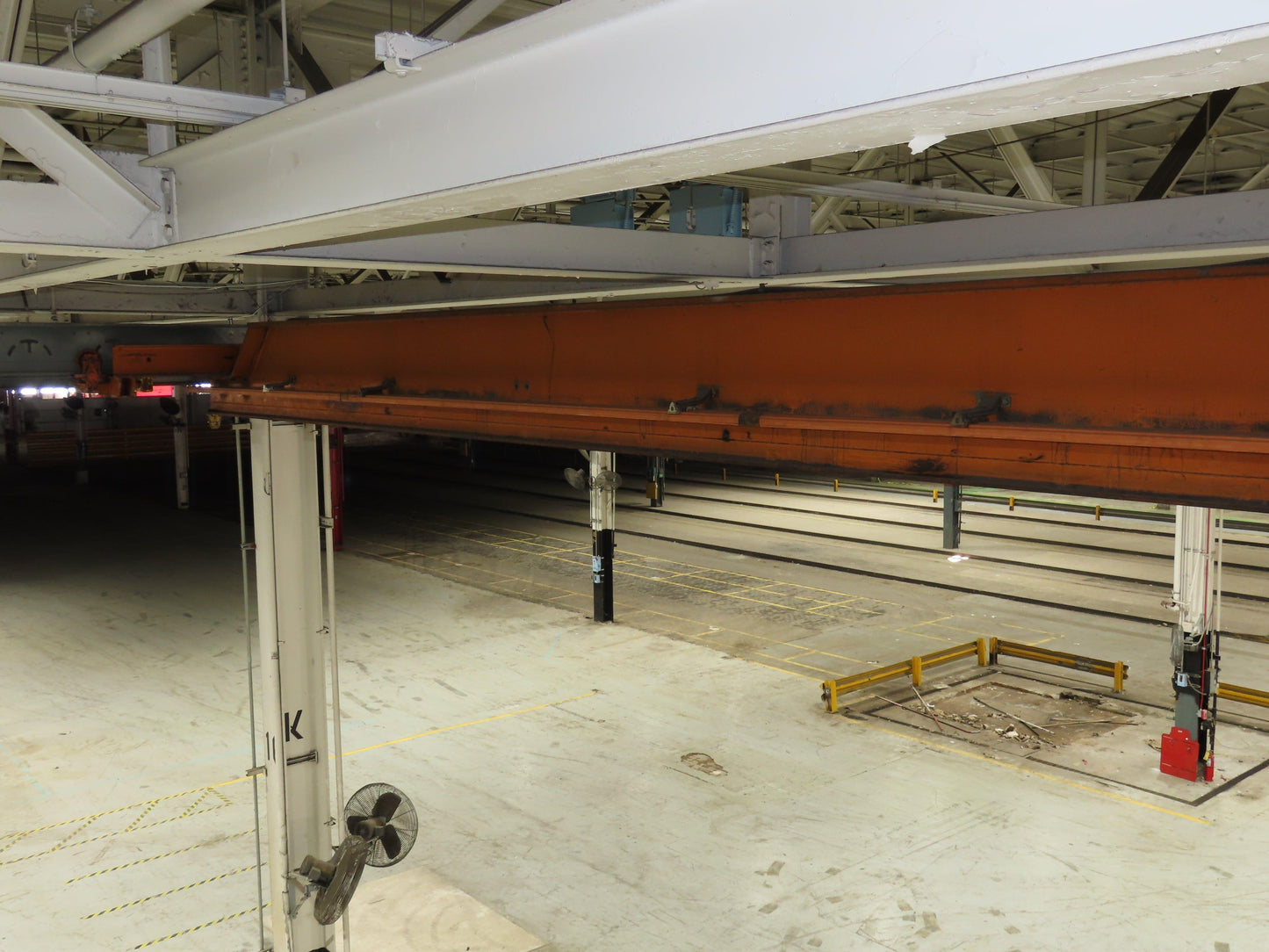

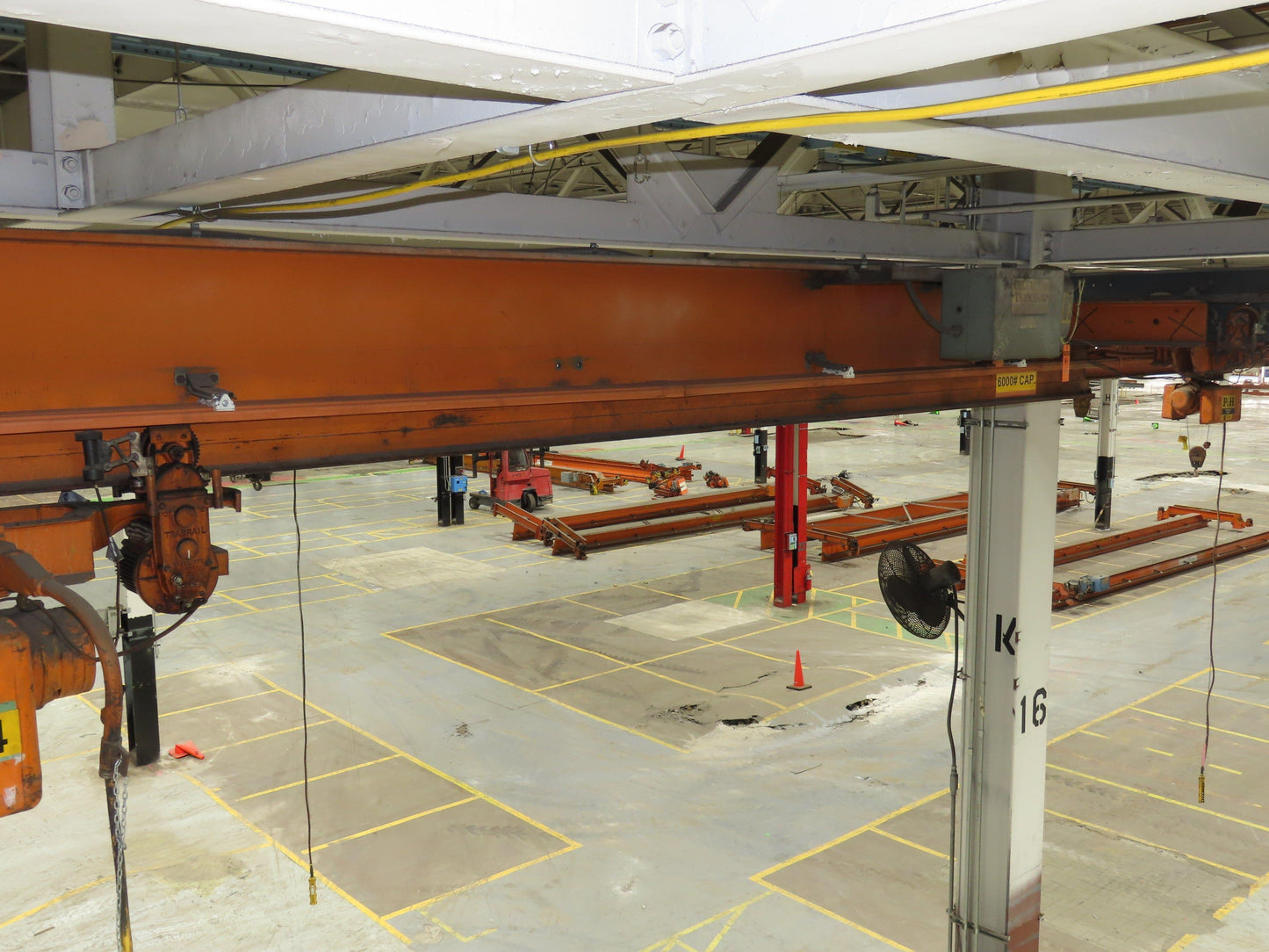

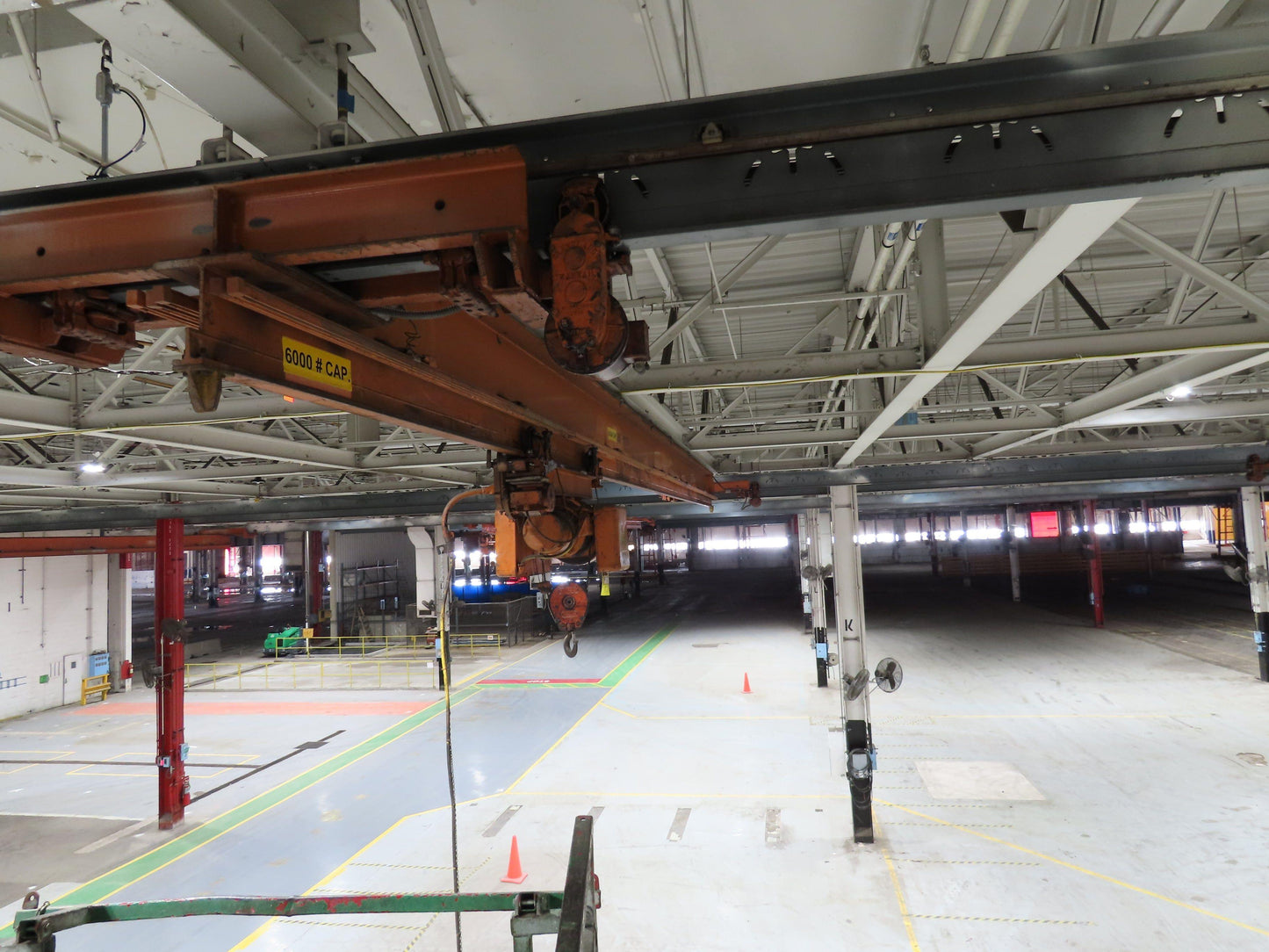

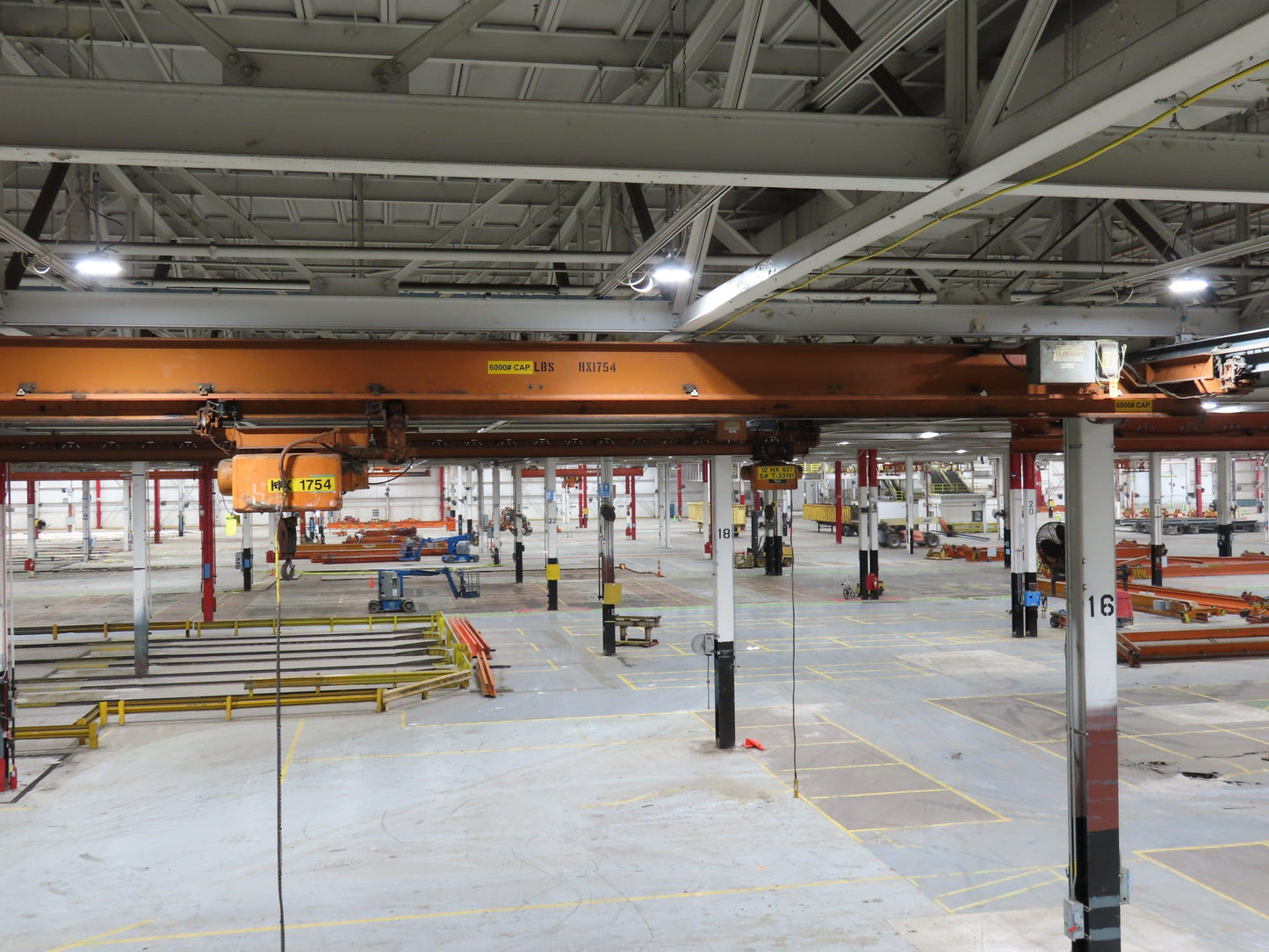

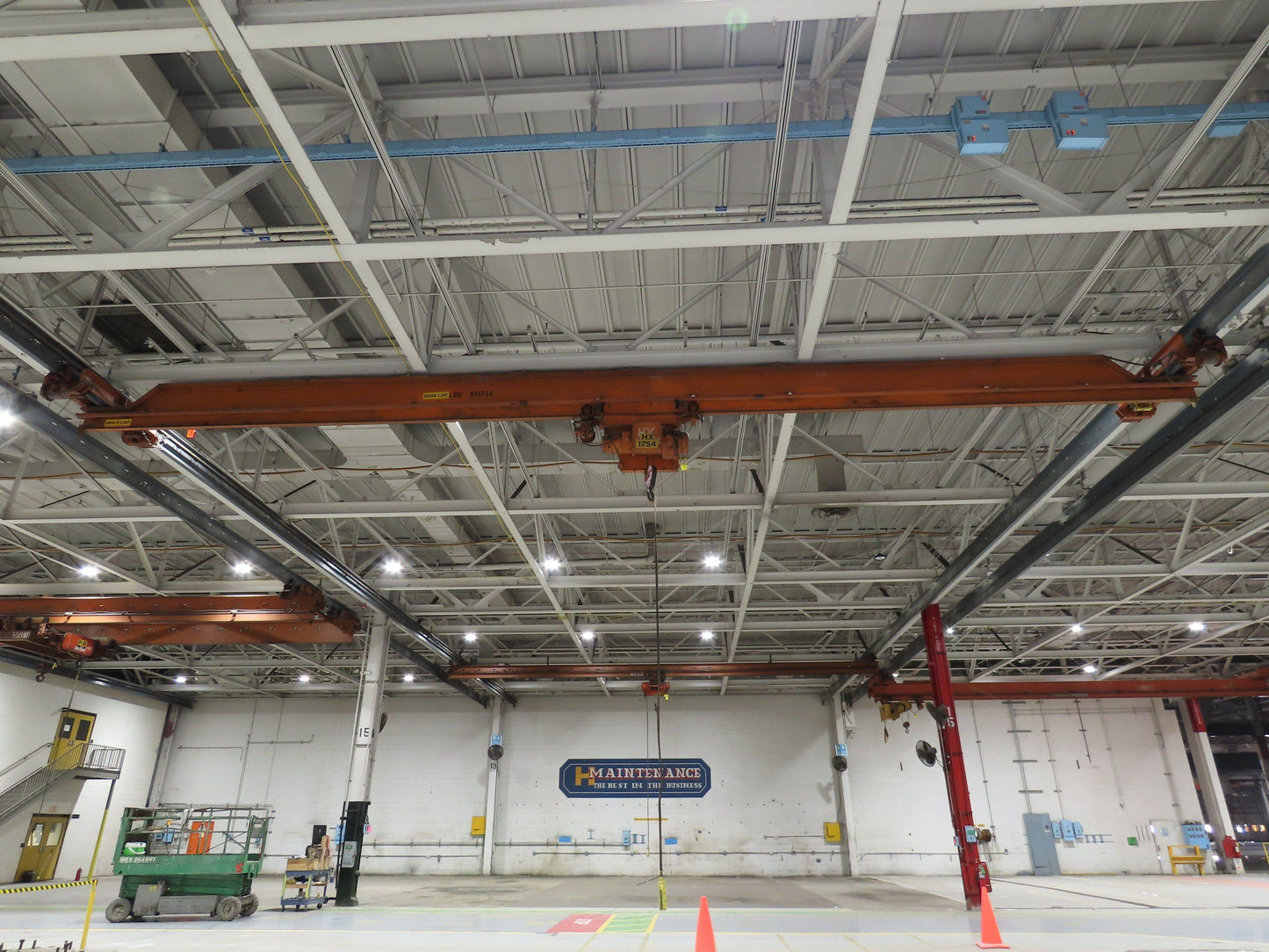

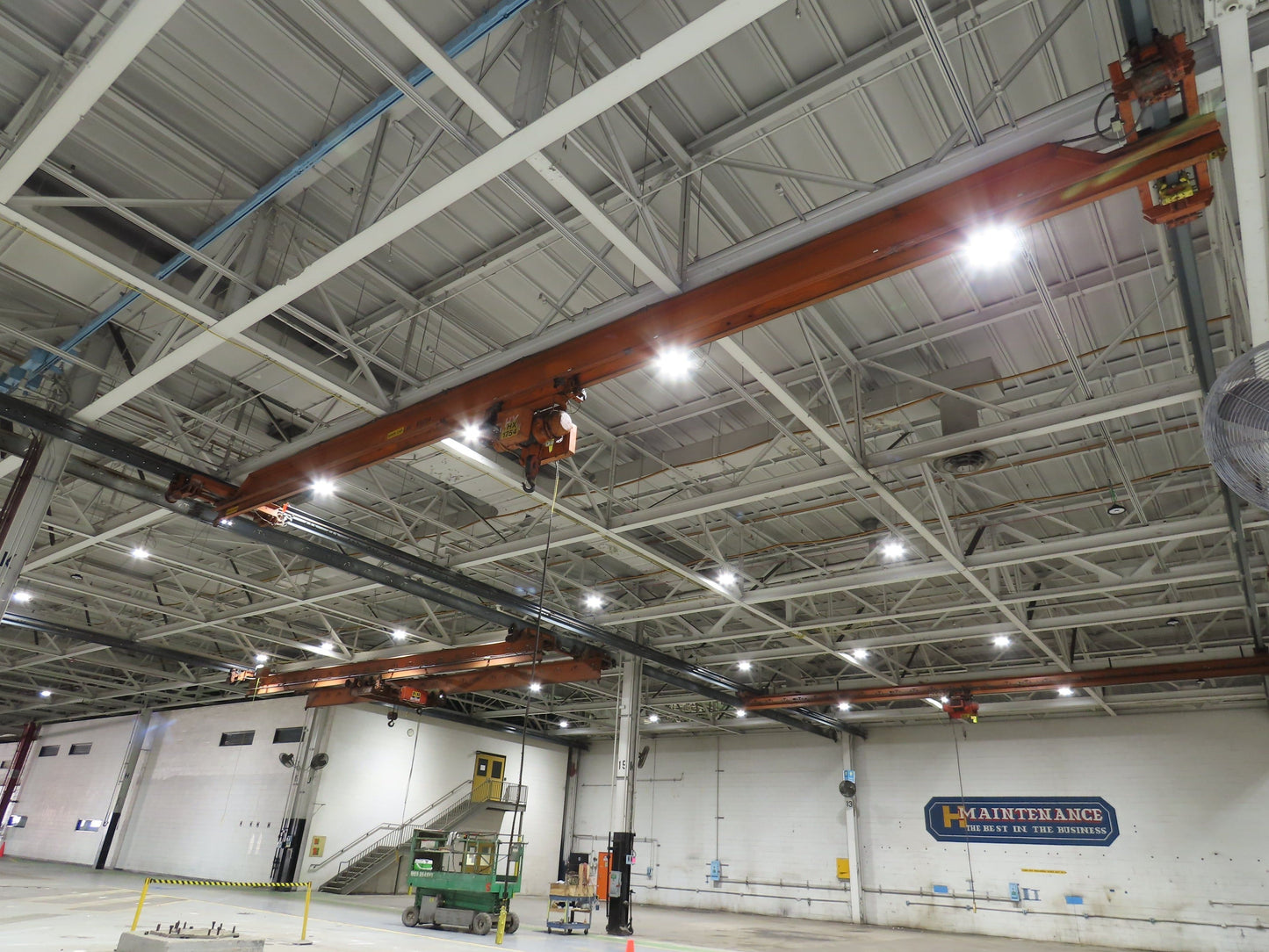

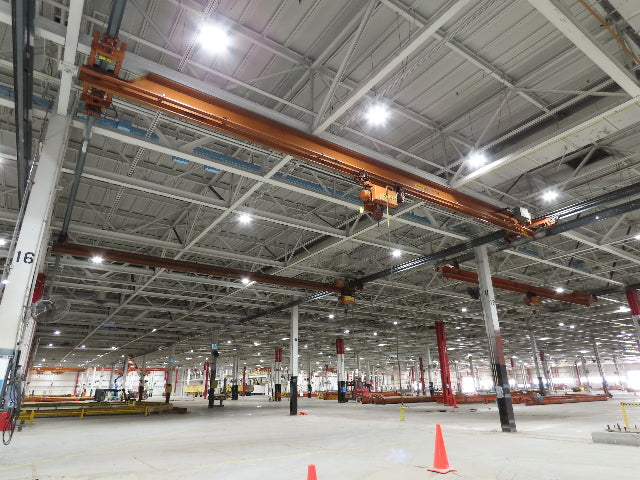

Cleveland Tramrail P&H 3 Ton Single Girder Underhung Bridge Crane 45' 10" Span

Cleveland Tramrail P&H 3 Ton Single Girder Underhung Bridge Crane 45' 10" Span

SKU #262363

Your Price
$7,267.49
$8,499.99 $7,267.49
Sale Sold out
Shipping calculated at checkout.

1 in stock

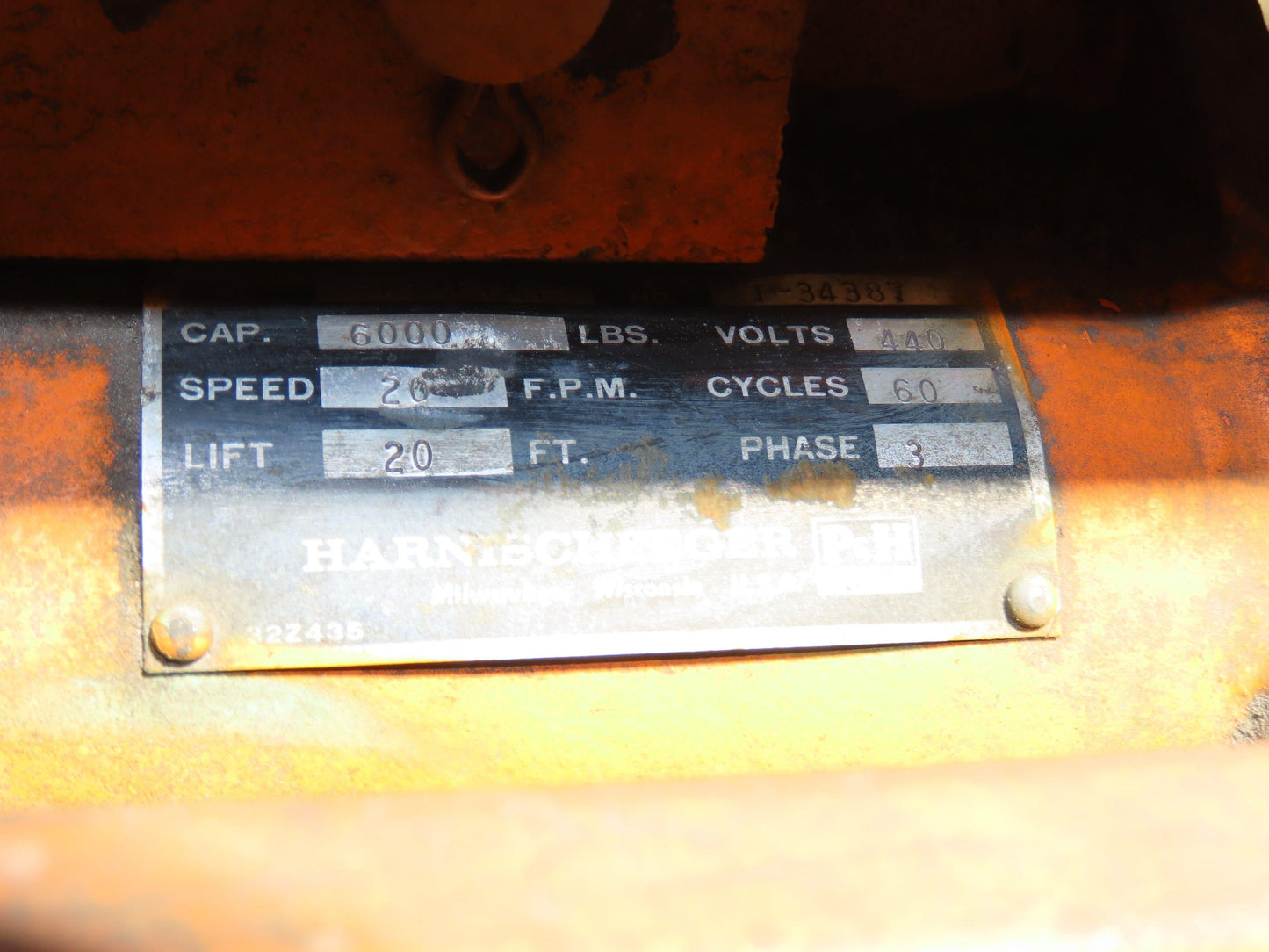

  • Capacity (tons): 3
  • Capacity (lb): 6000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45' 10"
  • Main Girder Beam Size (Height x Width x Length): 24"H x 11"W x 48' Length (3.25" bottom flange) Beam height slopes down to 10.5"H at the ends.
  • Bridge Speed (feet per minute): Single

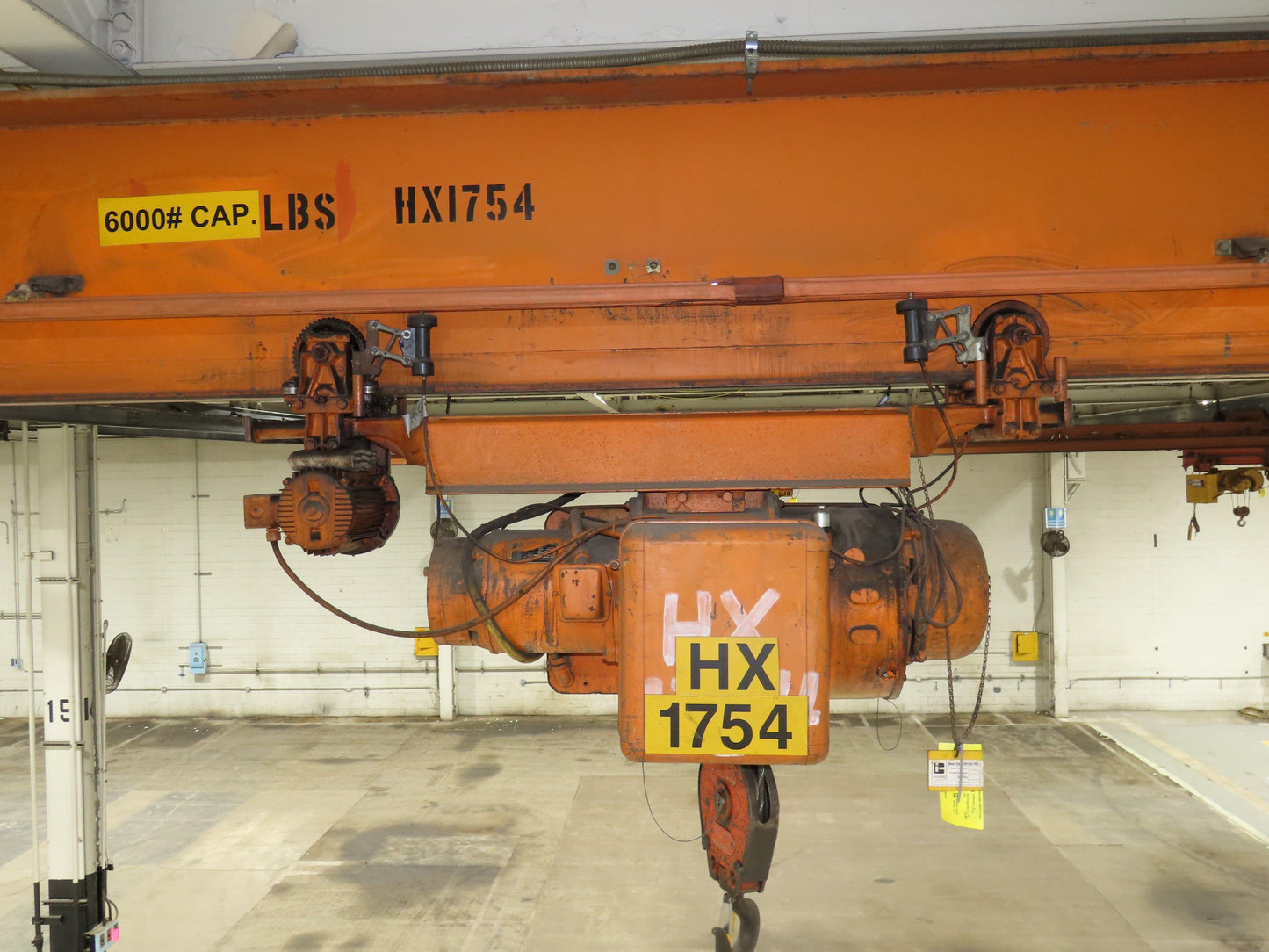

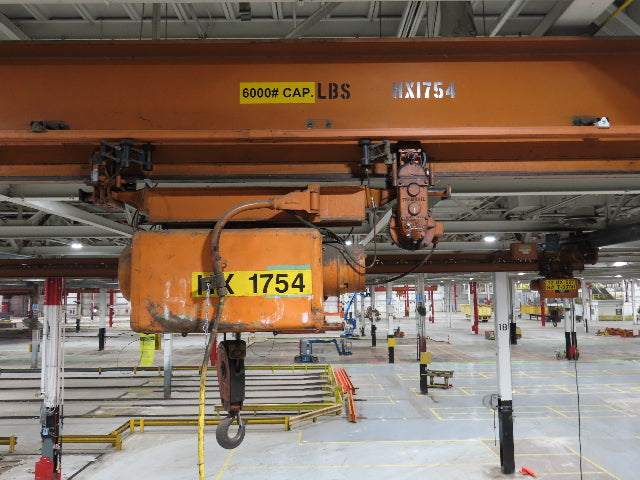

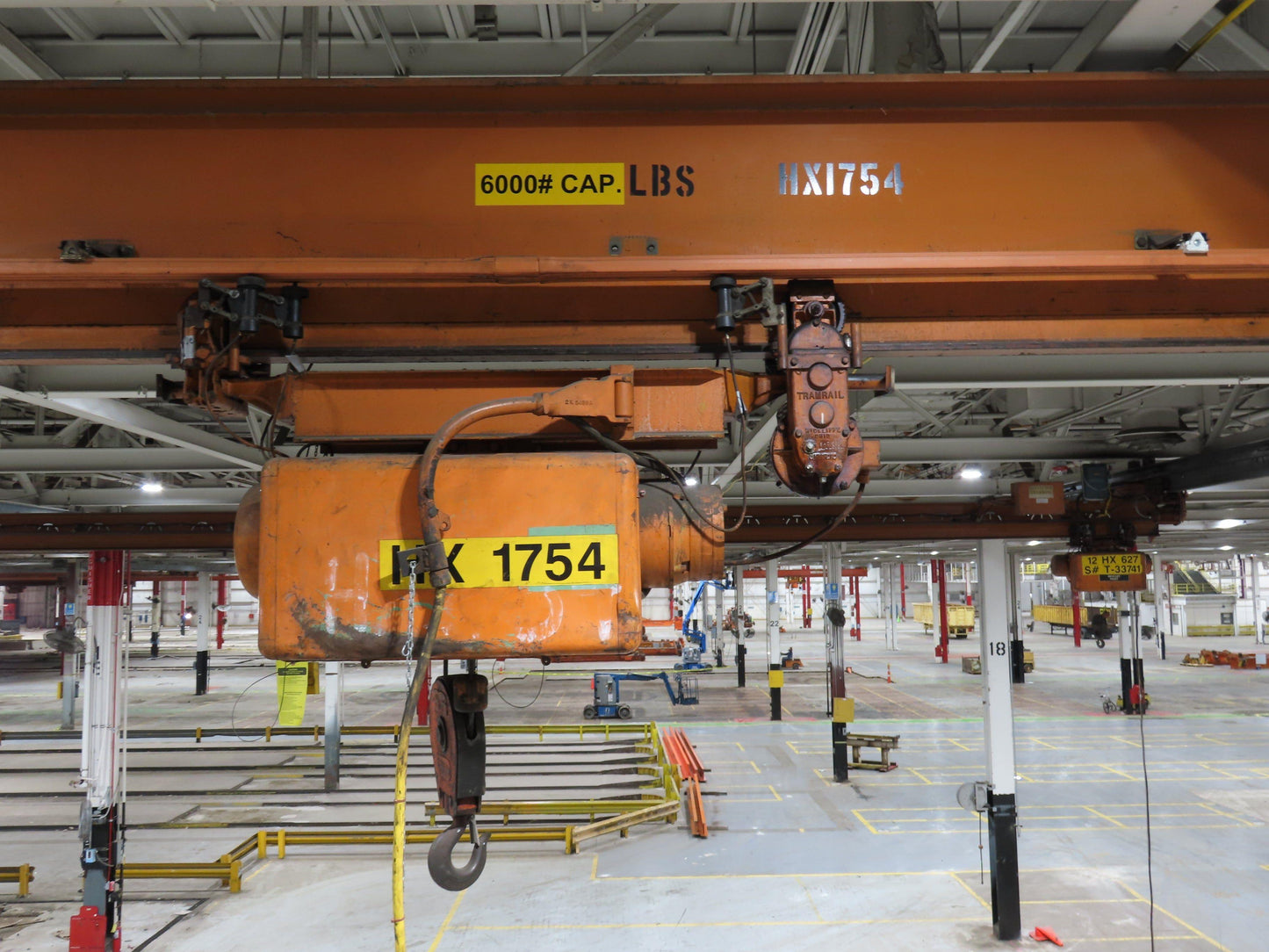

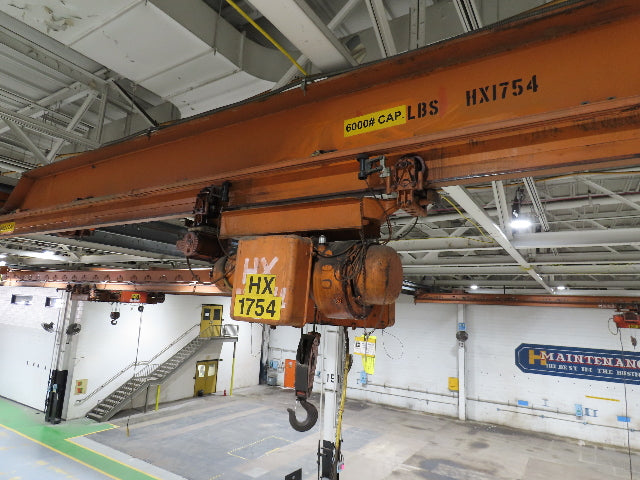

  • Hoist Brand: P&H
  • Lift Travel (feet): 20'
  • Lift Speed (feet per minute): 20
  • Motor Horse Power: 5
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 18'
  • Hoist Power Trolley Speed (feet per minute): 60
  • Hoist Trolley Length of Travel: 42' 8"
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 48"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 60"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 72"
  • Bridge Crane is in working condition.  Tested on site before removal.
  • Includes corded pendant only.  Not set up for wireless.
  • Single speed bridge, trolley and hoist.

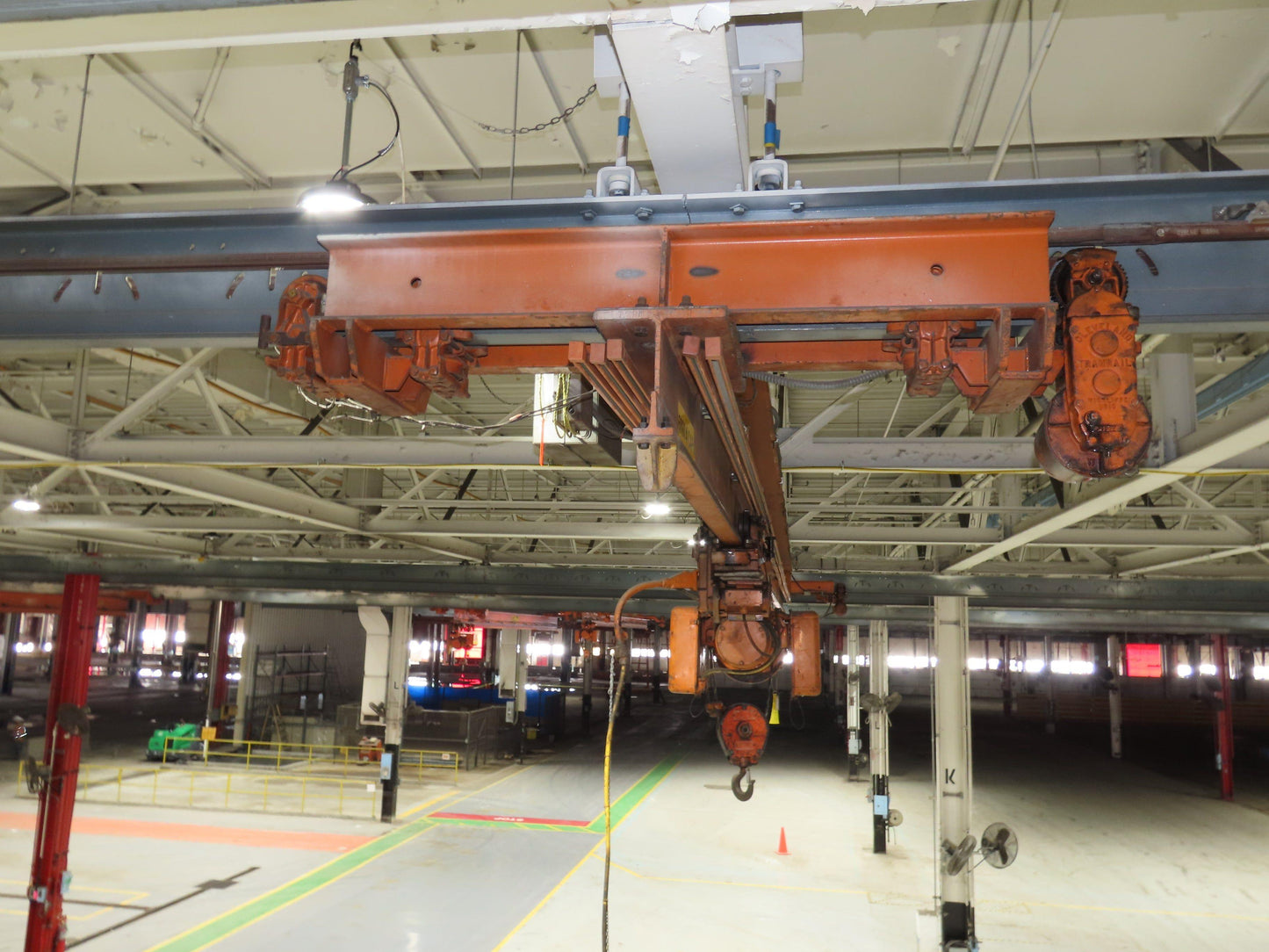

  • End truck length: 80"
