Cleveland Tramrail

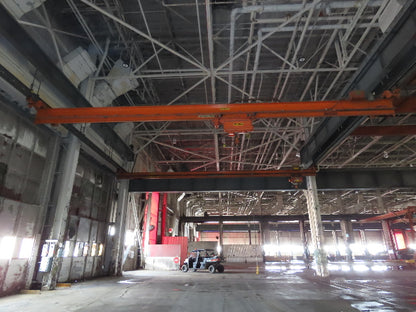

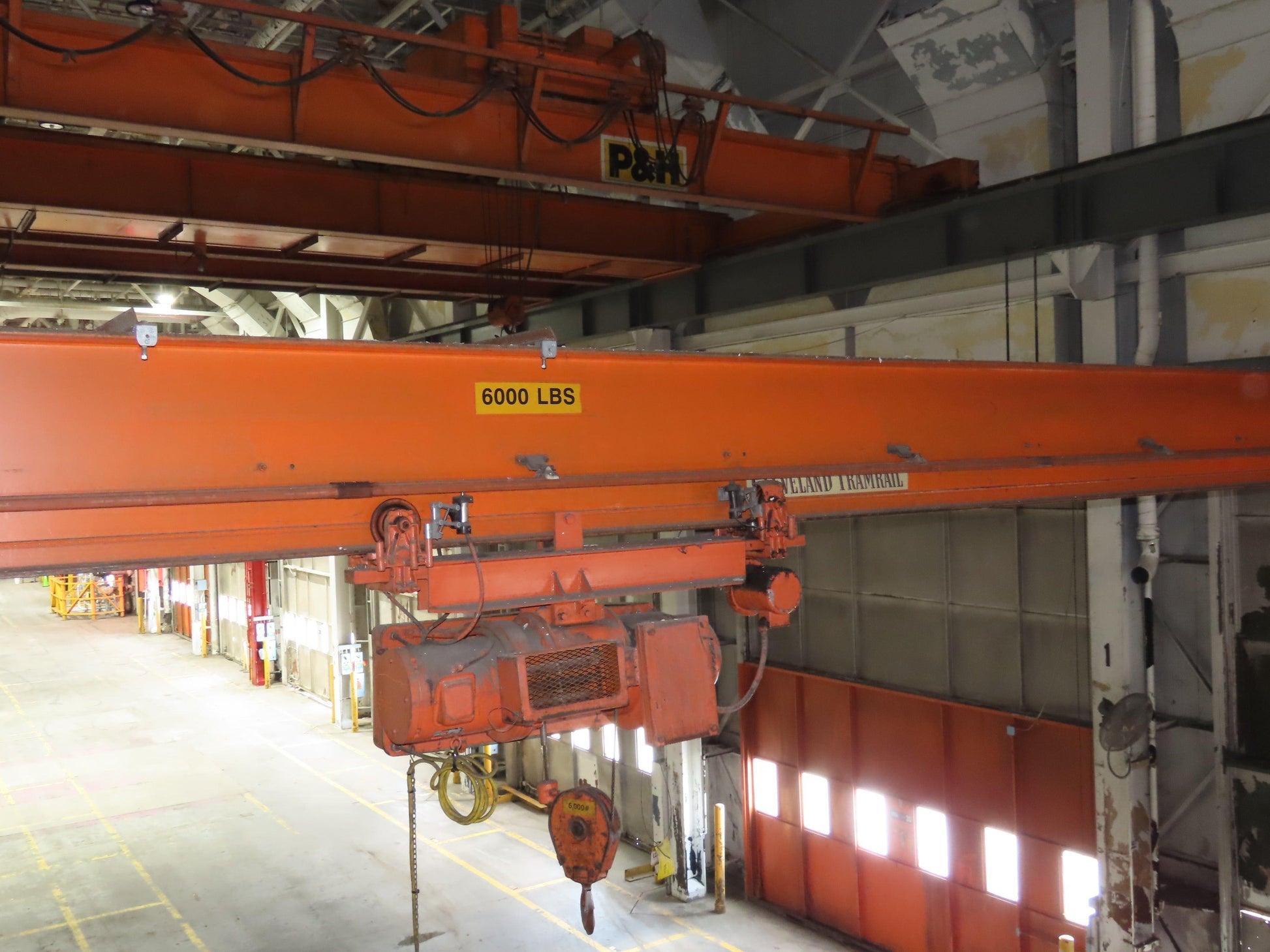

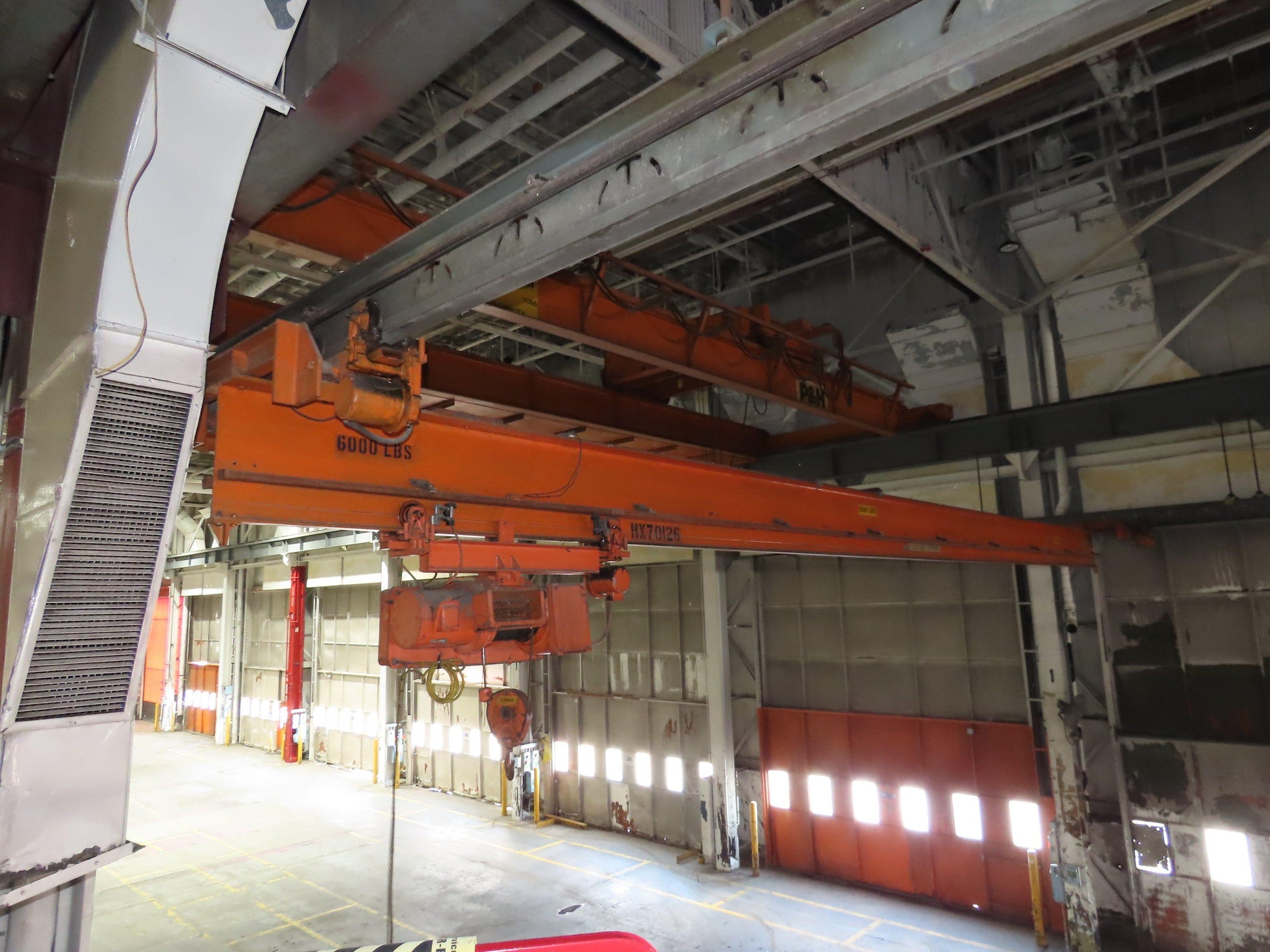

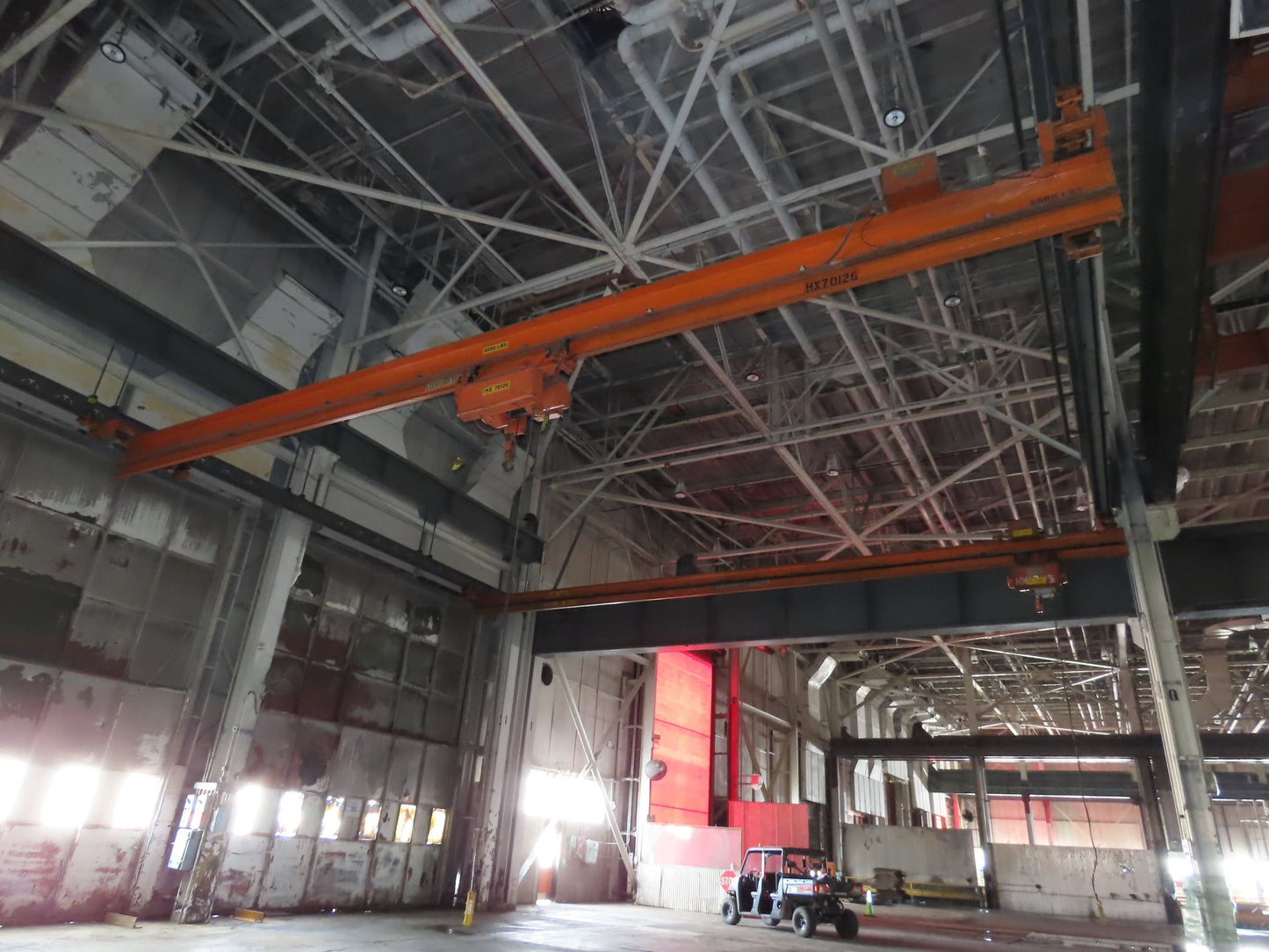

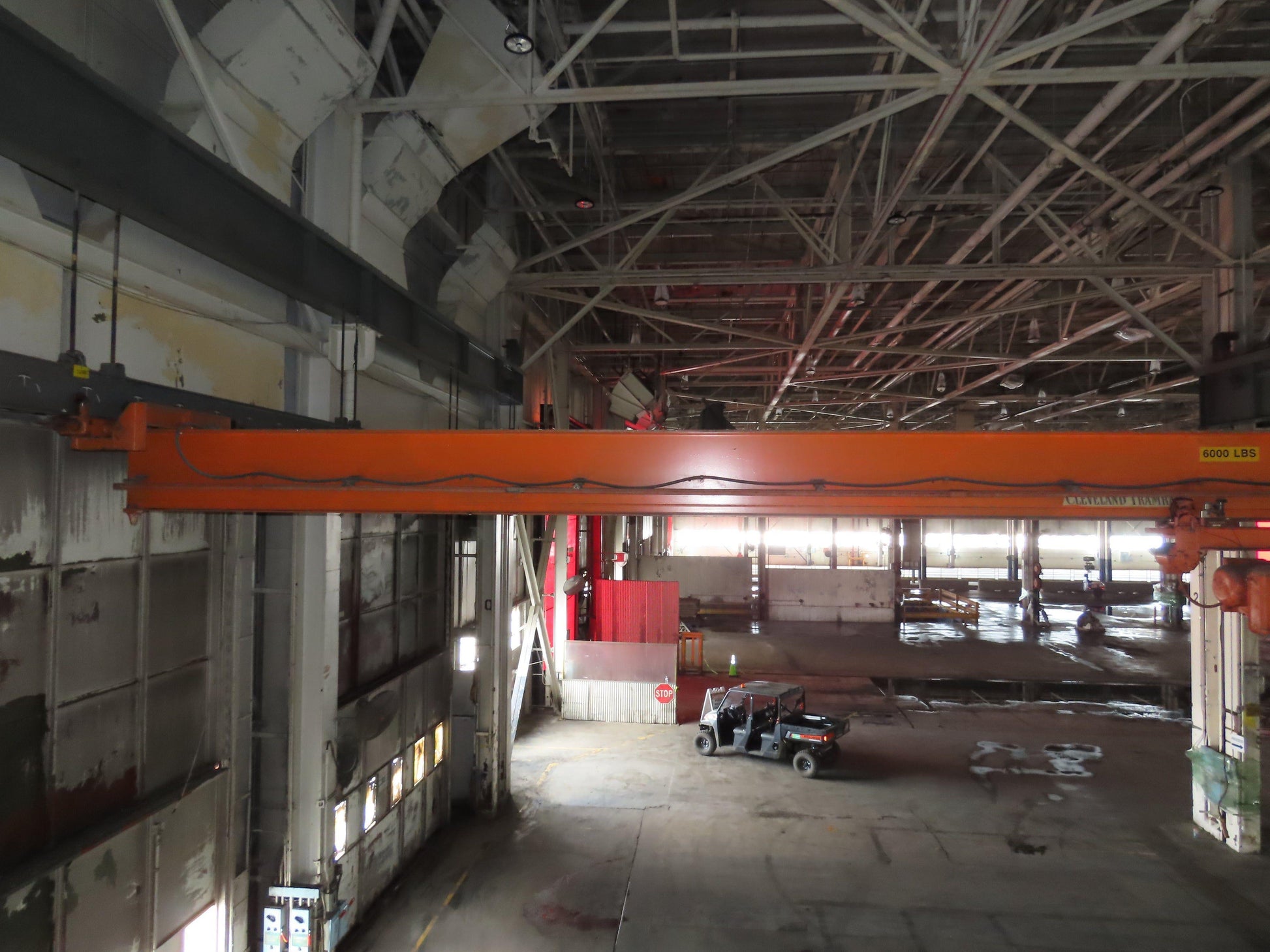

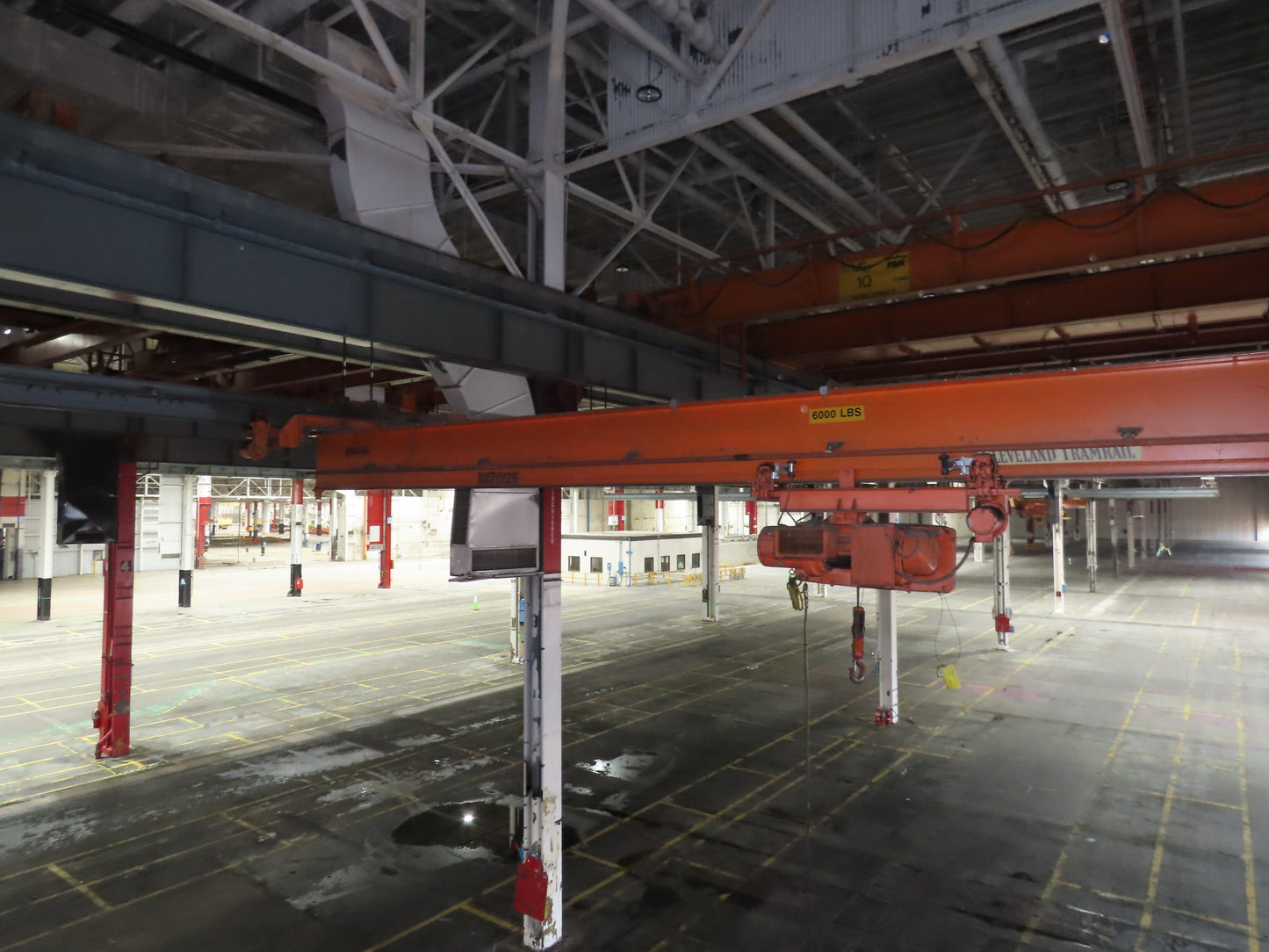

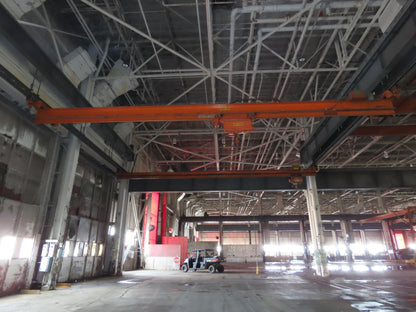

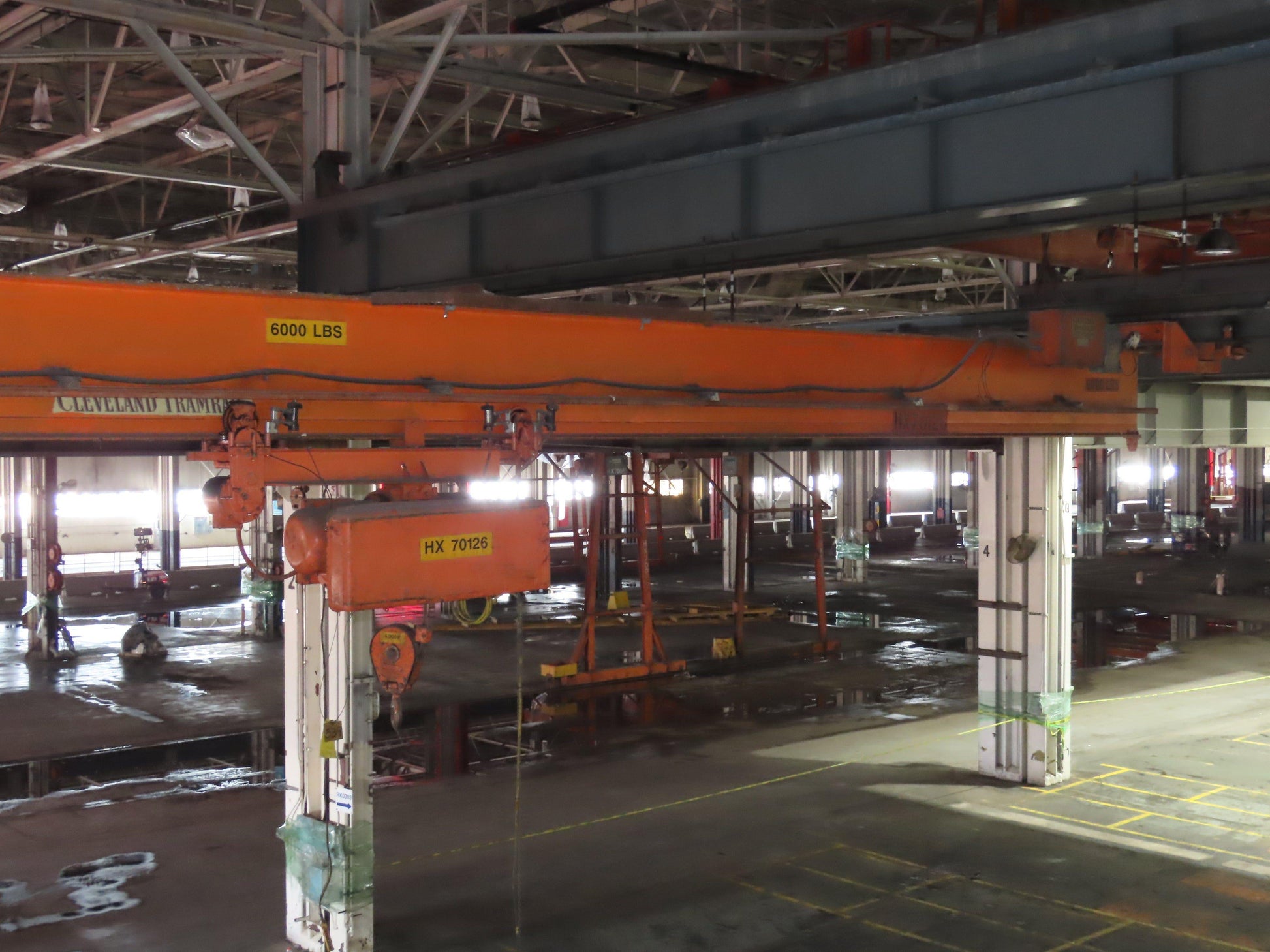

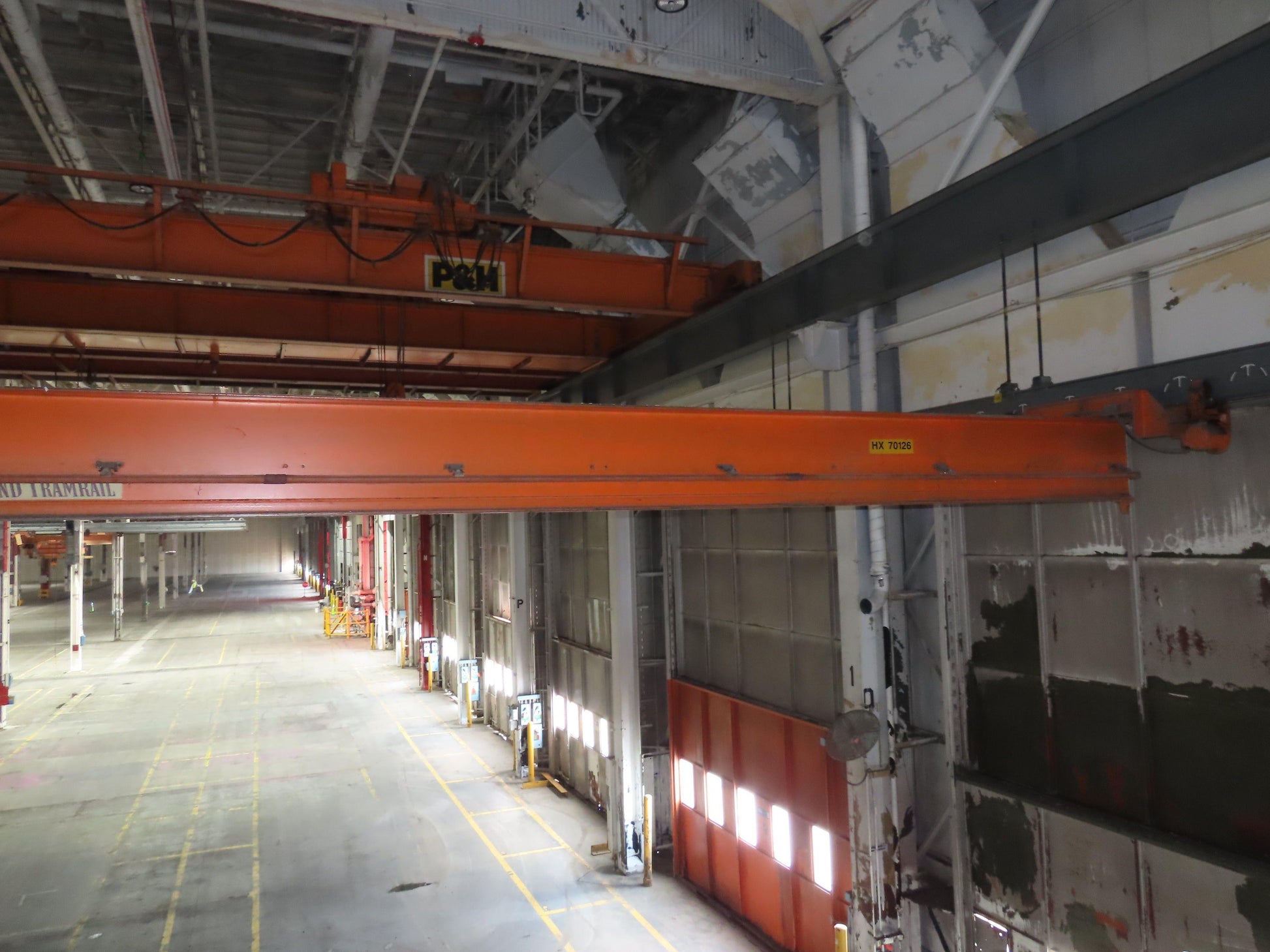

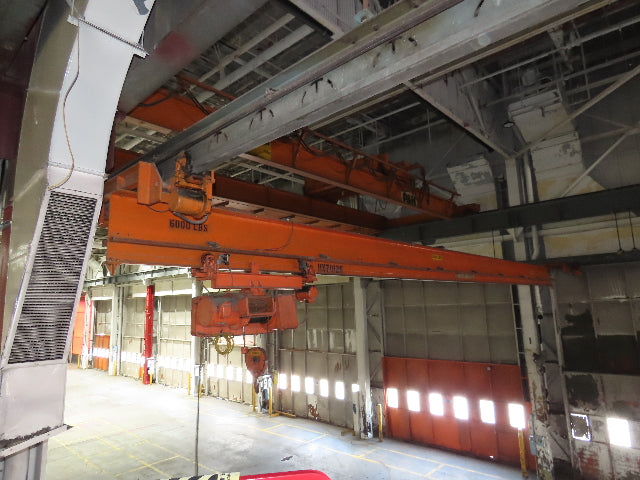

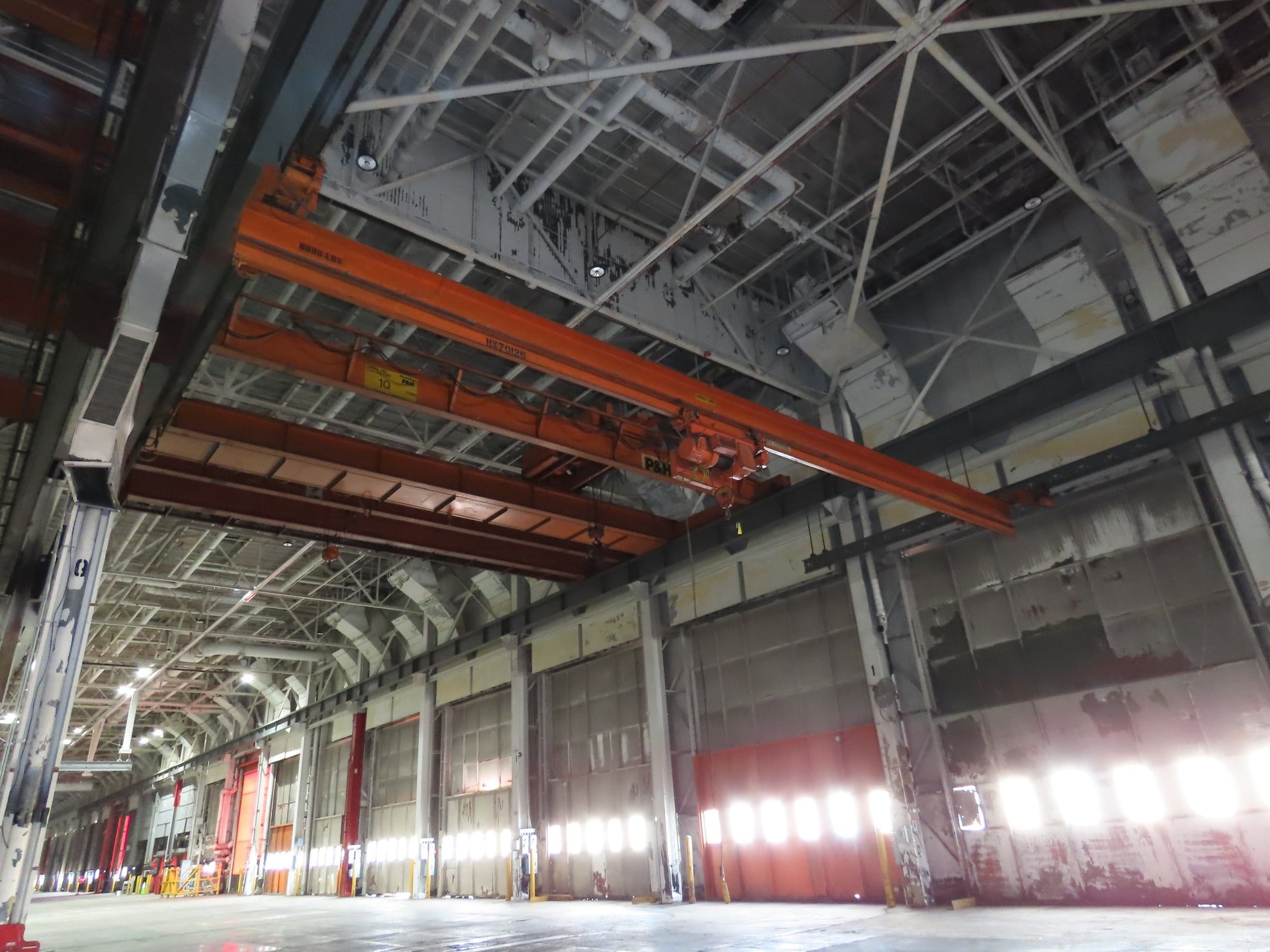

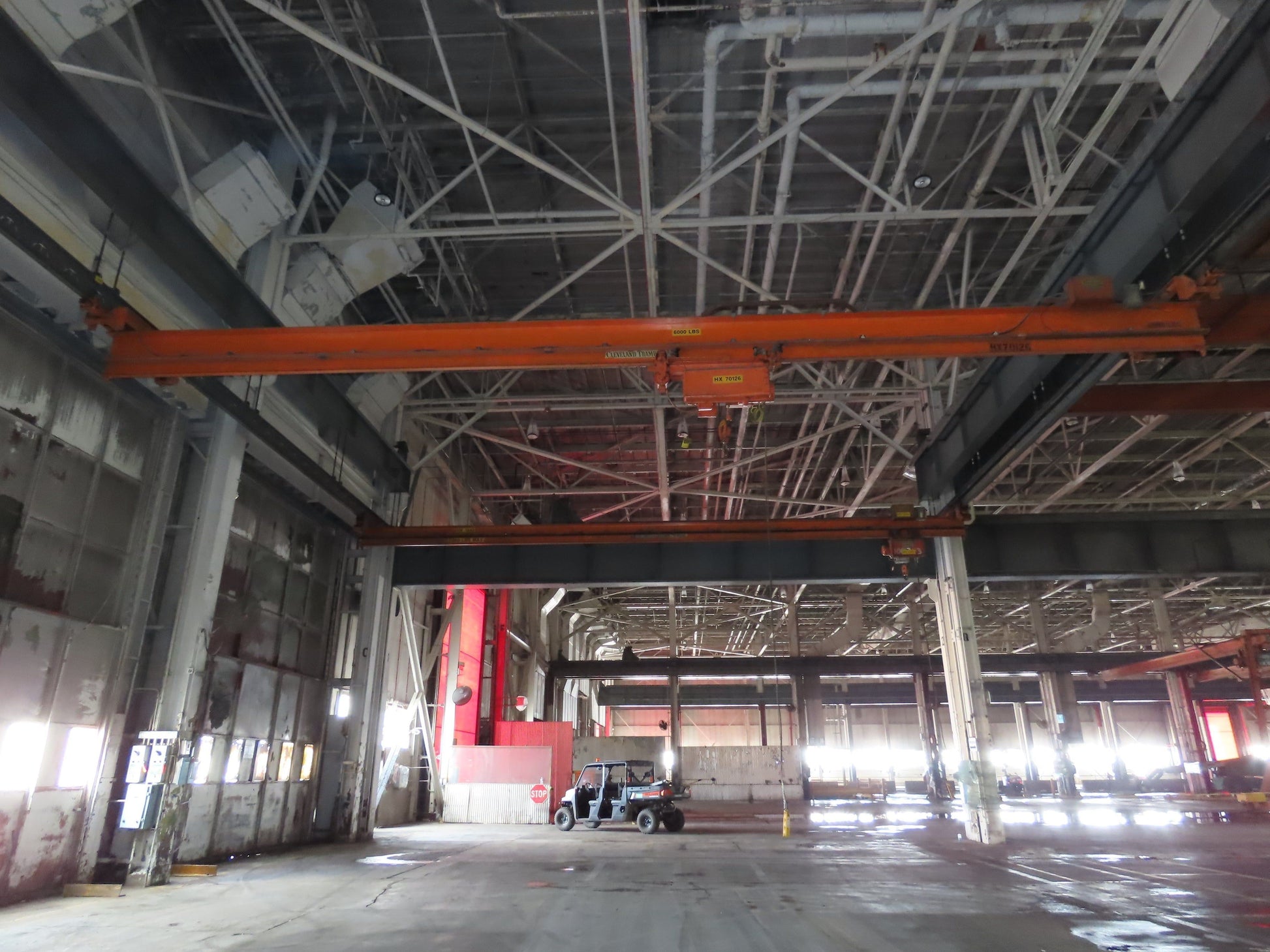

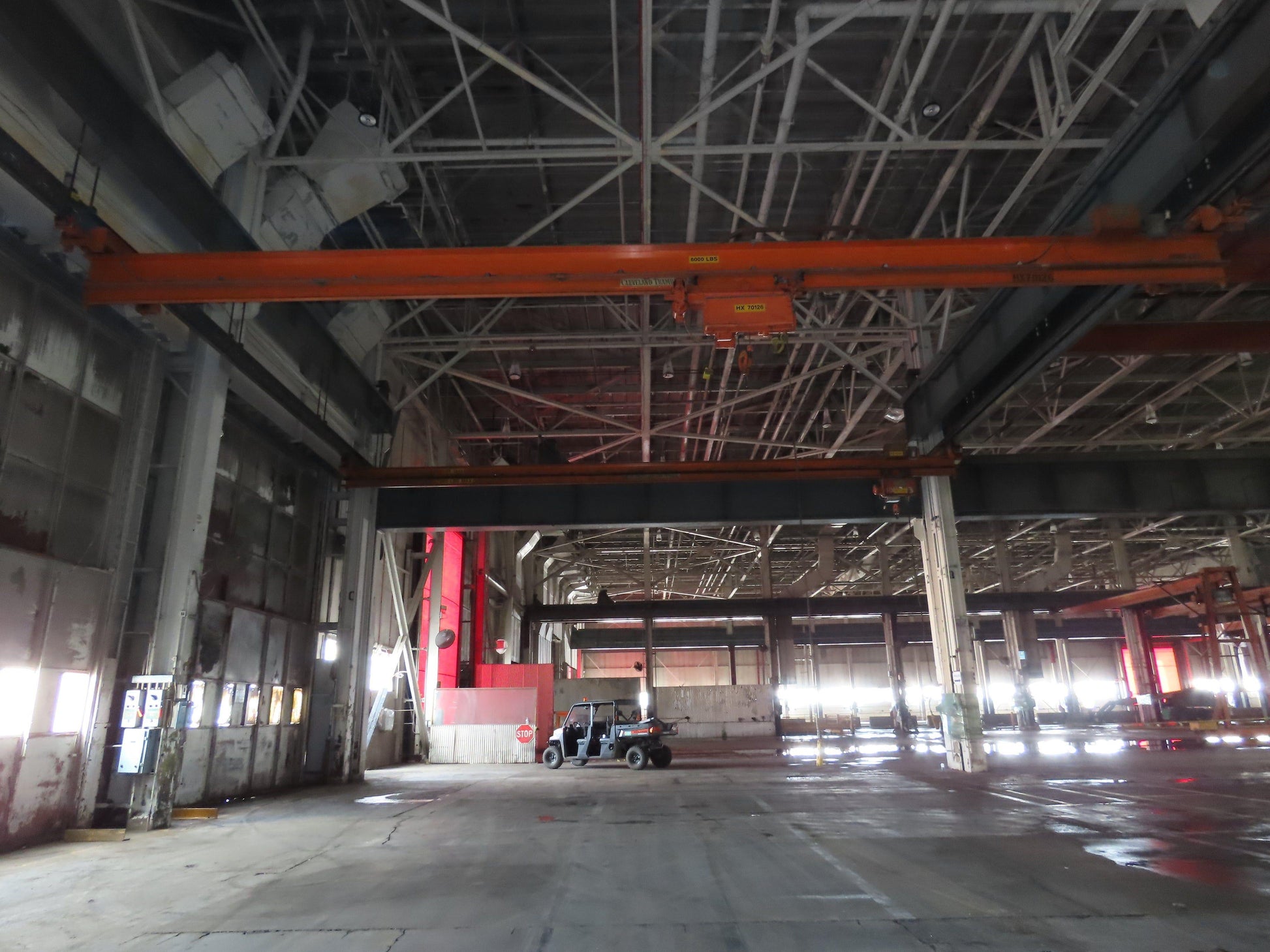

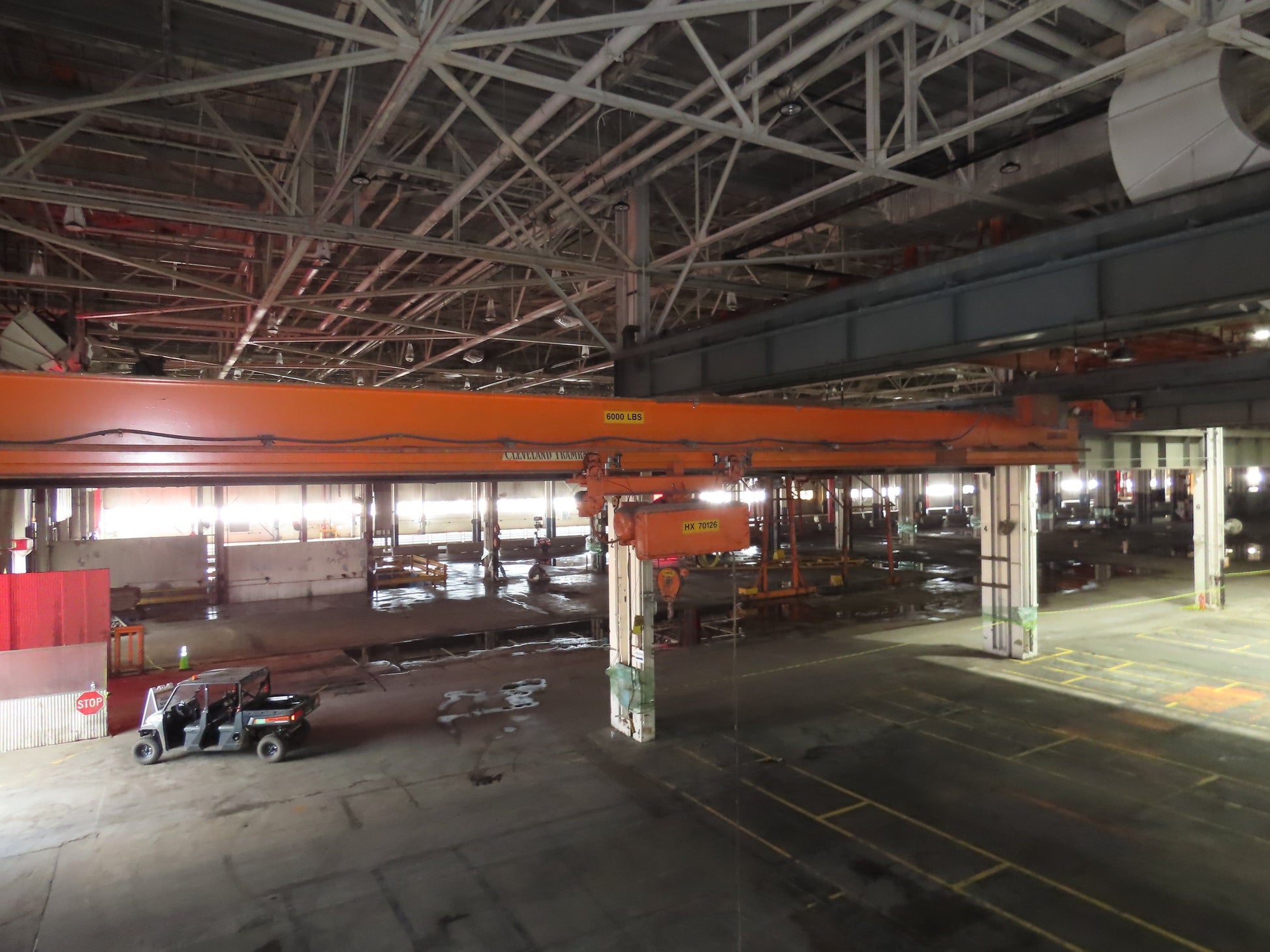

Cleveland Tramrail P&H 3 Ton Single Girder Underhung Bridge Crane 46' Span

Cleveland Tramrail P&H 3 Ton Single Girder Underhung Bridge Crane 46' Span

SKU #262716

Product Condition: Used

Your Price
$7,694.99
$8,999.99 $7,694.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail
Model
P&H Hevi-Lift
MPN

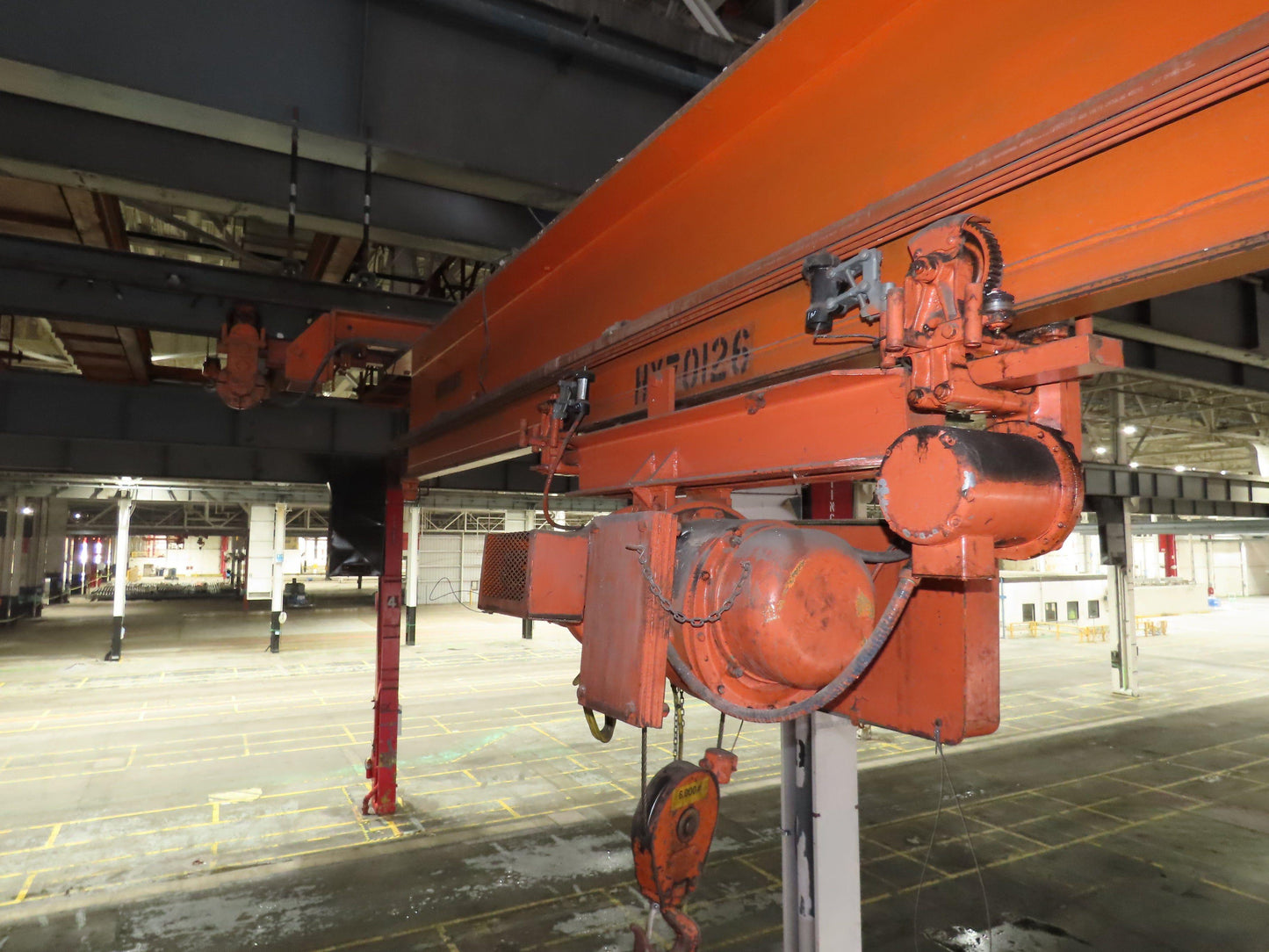

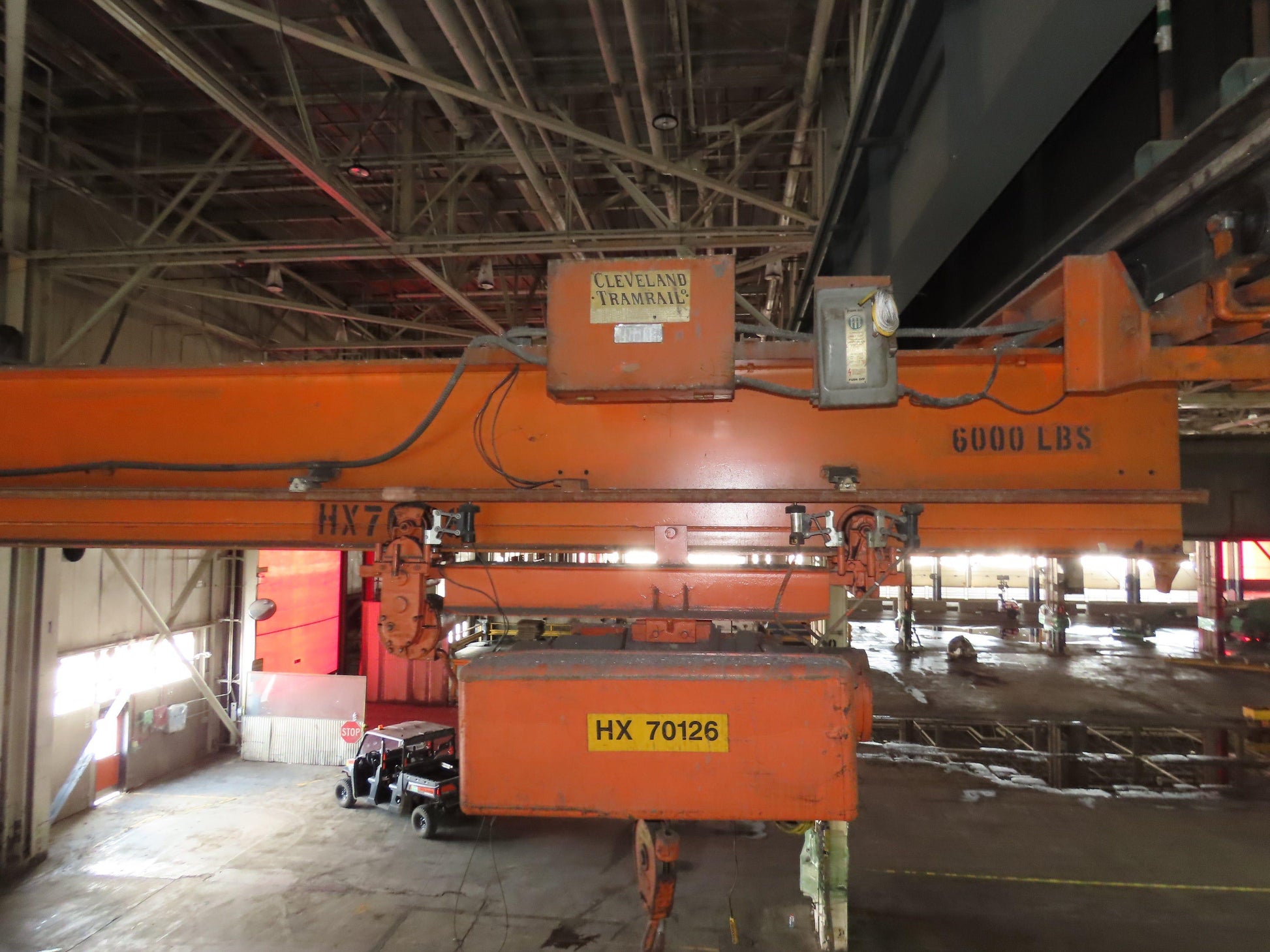

HX70126
Condition
Used
  • Capacity (tons): 3
  • Capacity (lb): 6000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 46'

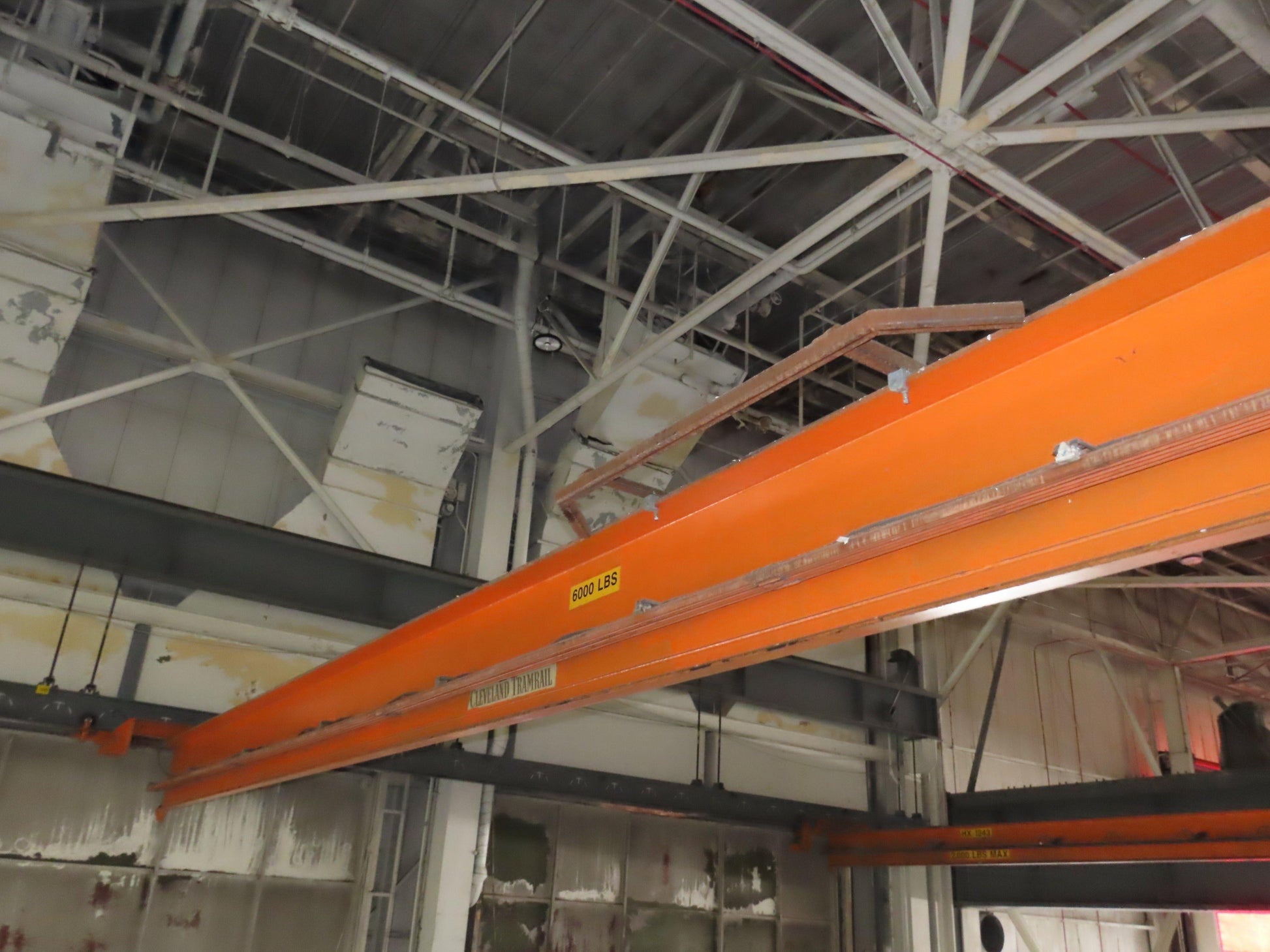

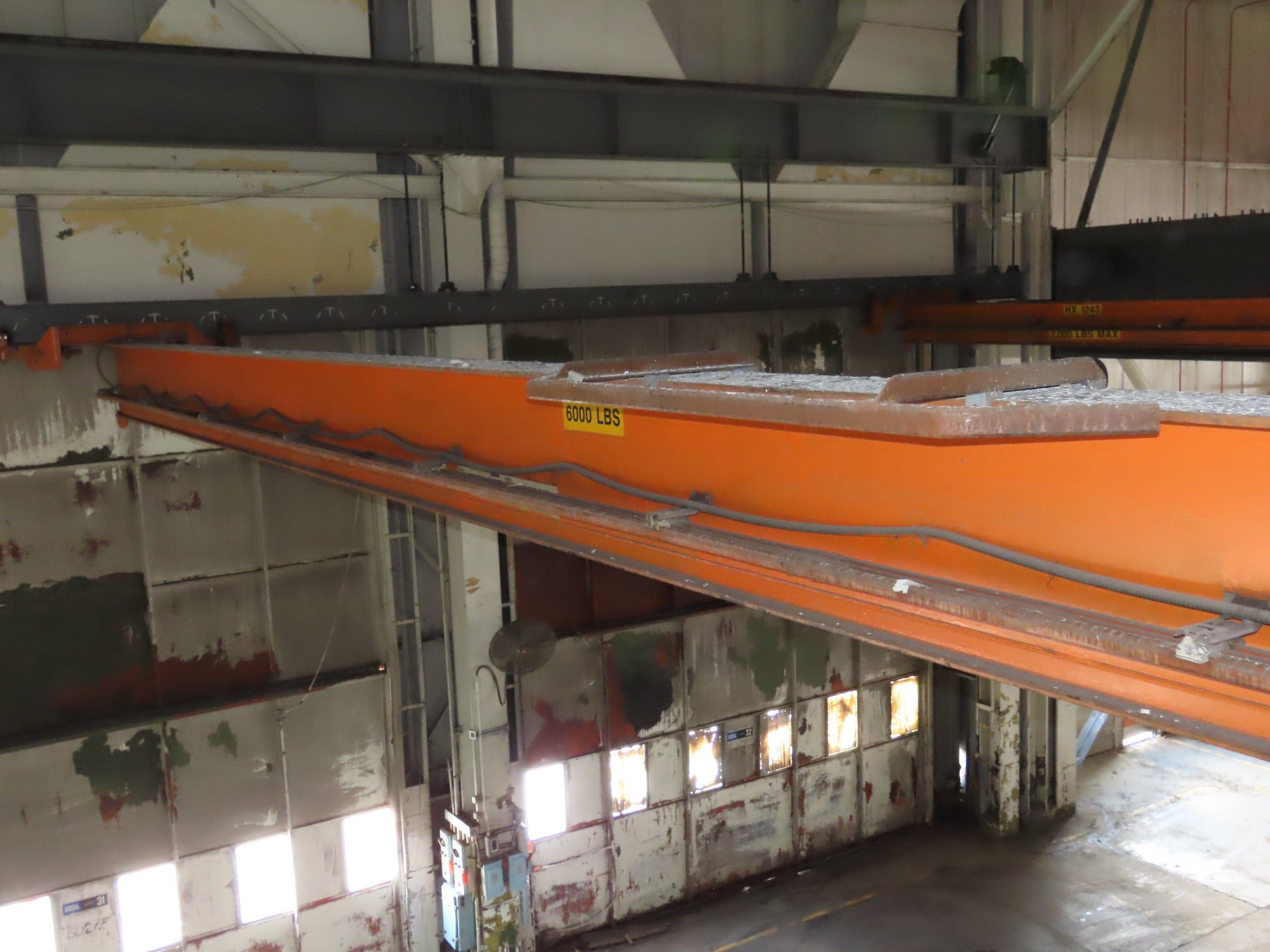

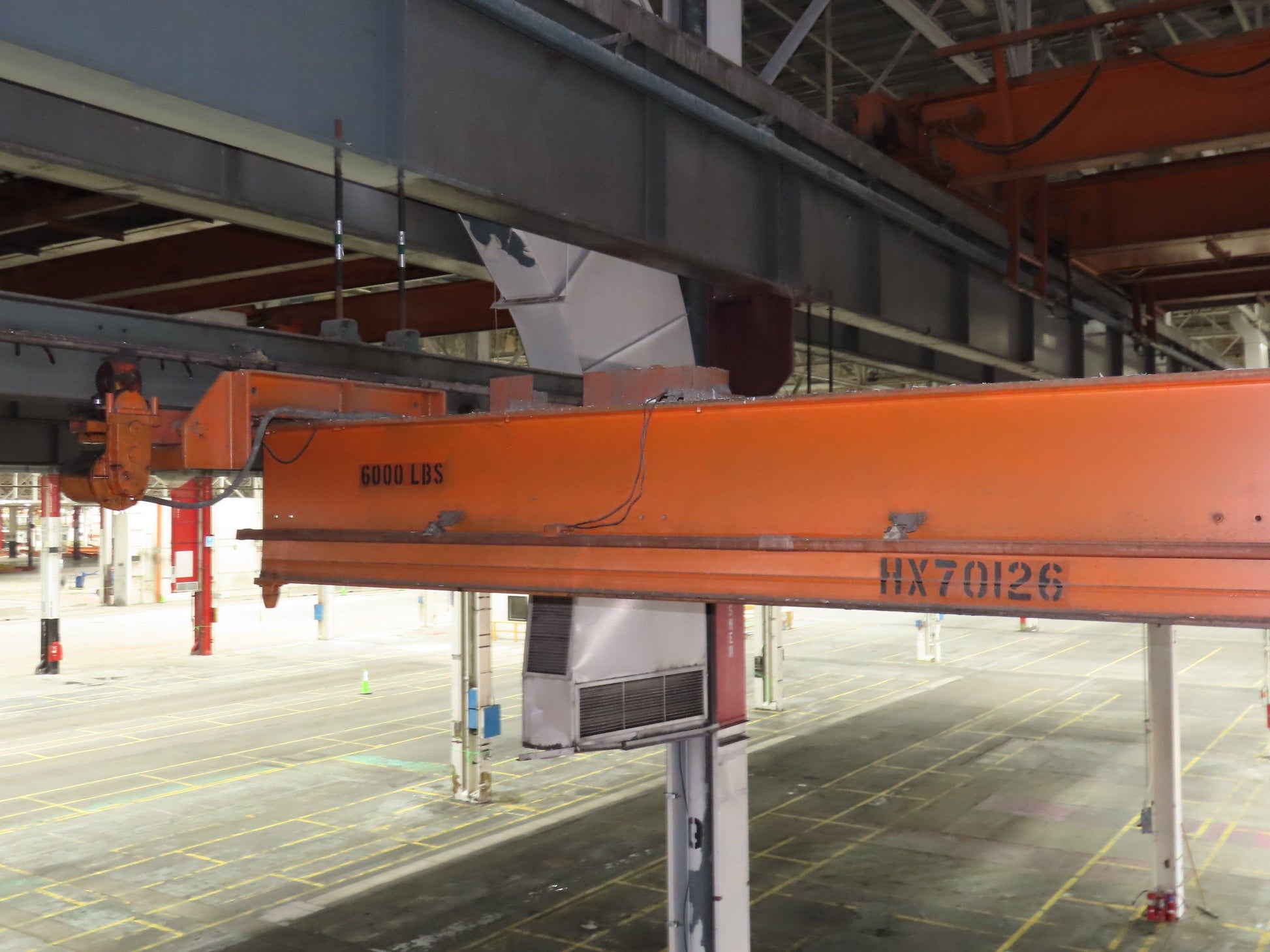

  • Main Girder Beam Size (Height x Width x Length): 24"H x 12.5"W x 47' 10" Length (3.25" bottom flange)

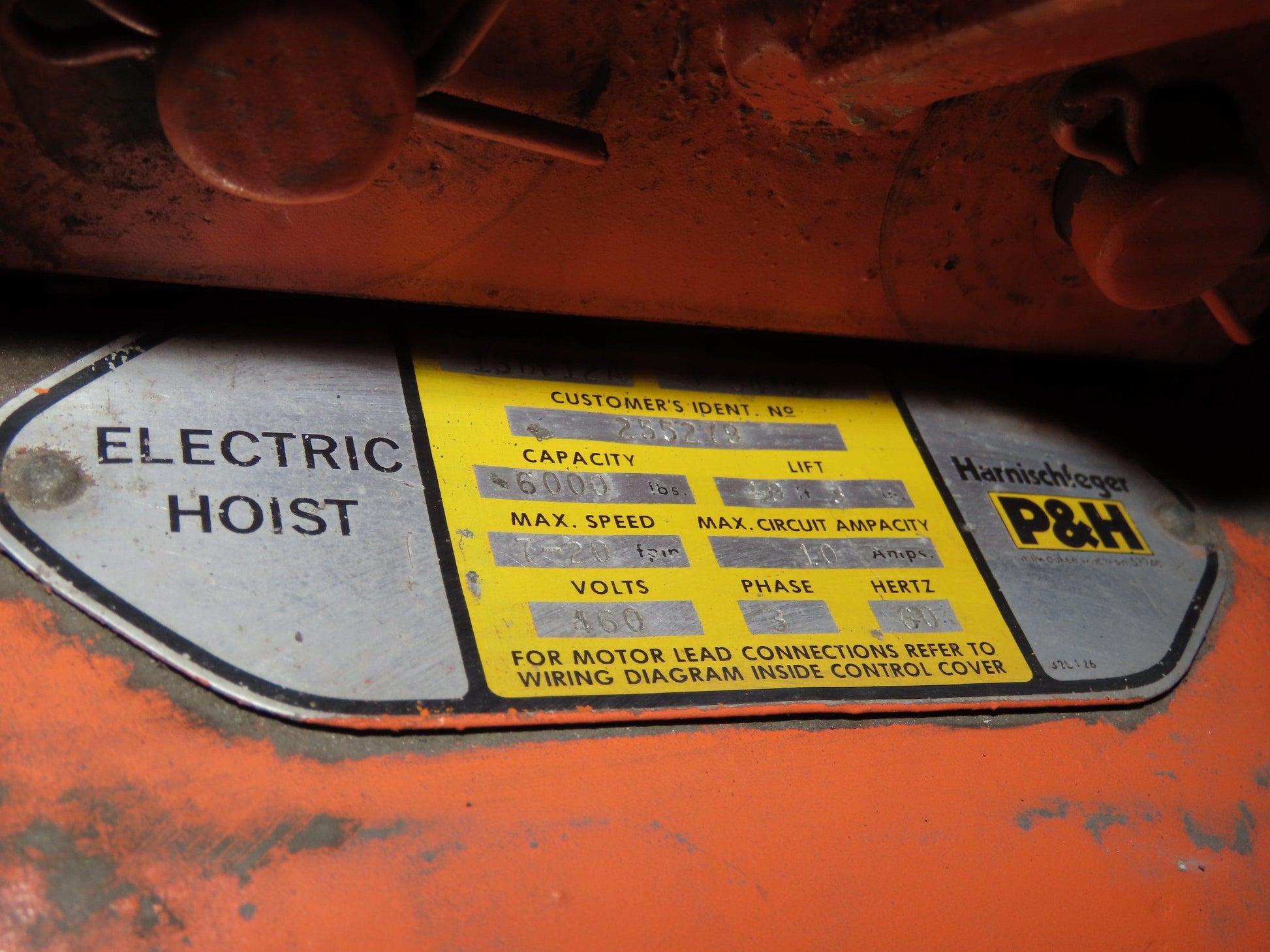

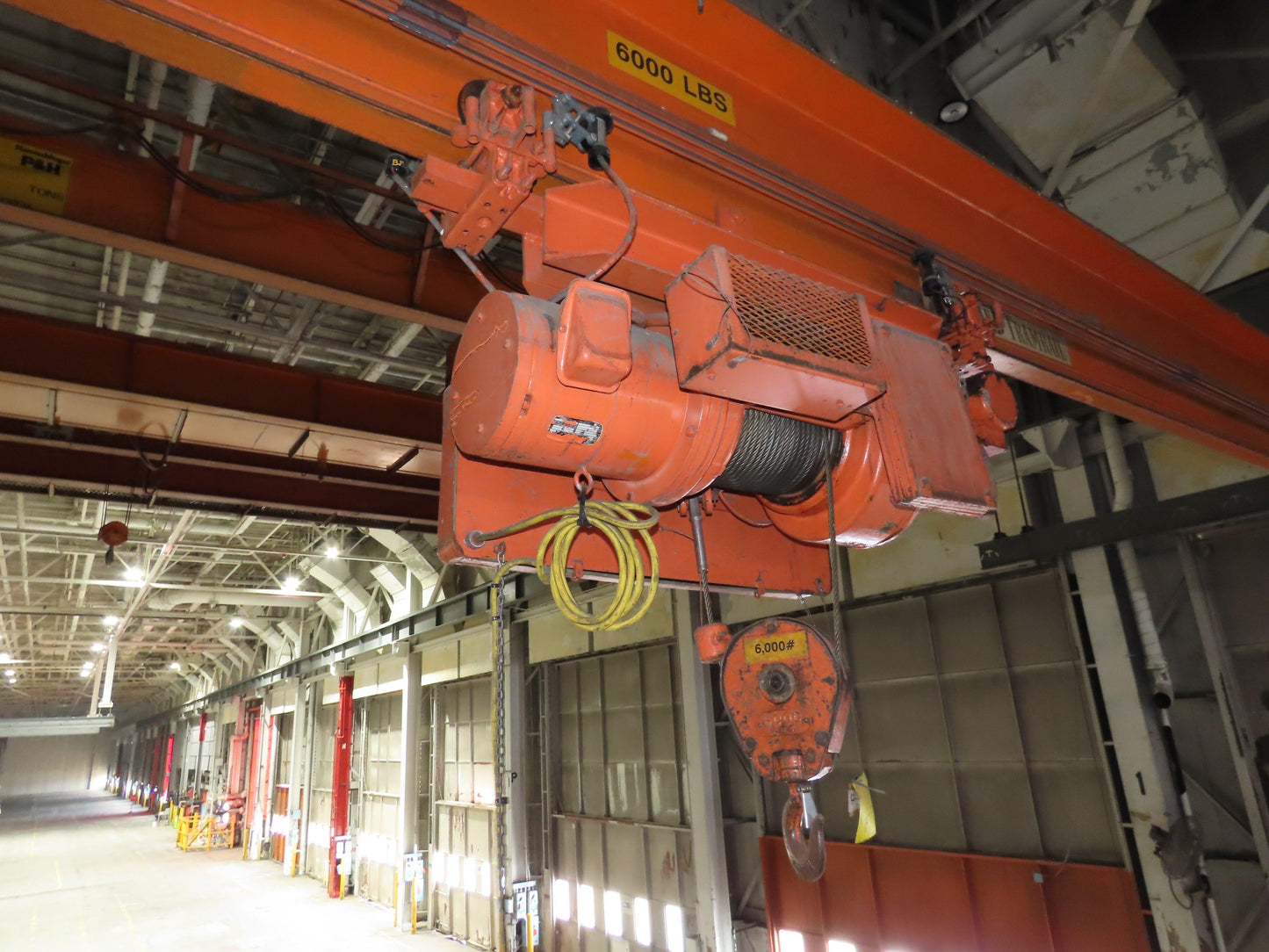

  • Hoist Brand: P&H
  • Lift Travel (feet): 19' 3"
  • Lift Speed (feet per minute): 7/20
  • Motor Horse Power: 5
  • Lifting Medium: Cablw
  • Pendant/Control Length From Bottom of Hoist (ft): 20'
  • Hoist Power Trolley Speed (feet per minute): 60
  • Hoist Trolley Length of Travel: 41' 6"
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 48"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 73"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 80"
  • Bridge Crane is in working condition.  Tested on site before removal.

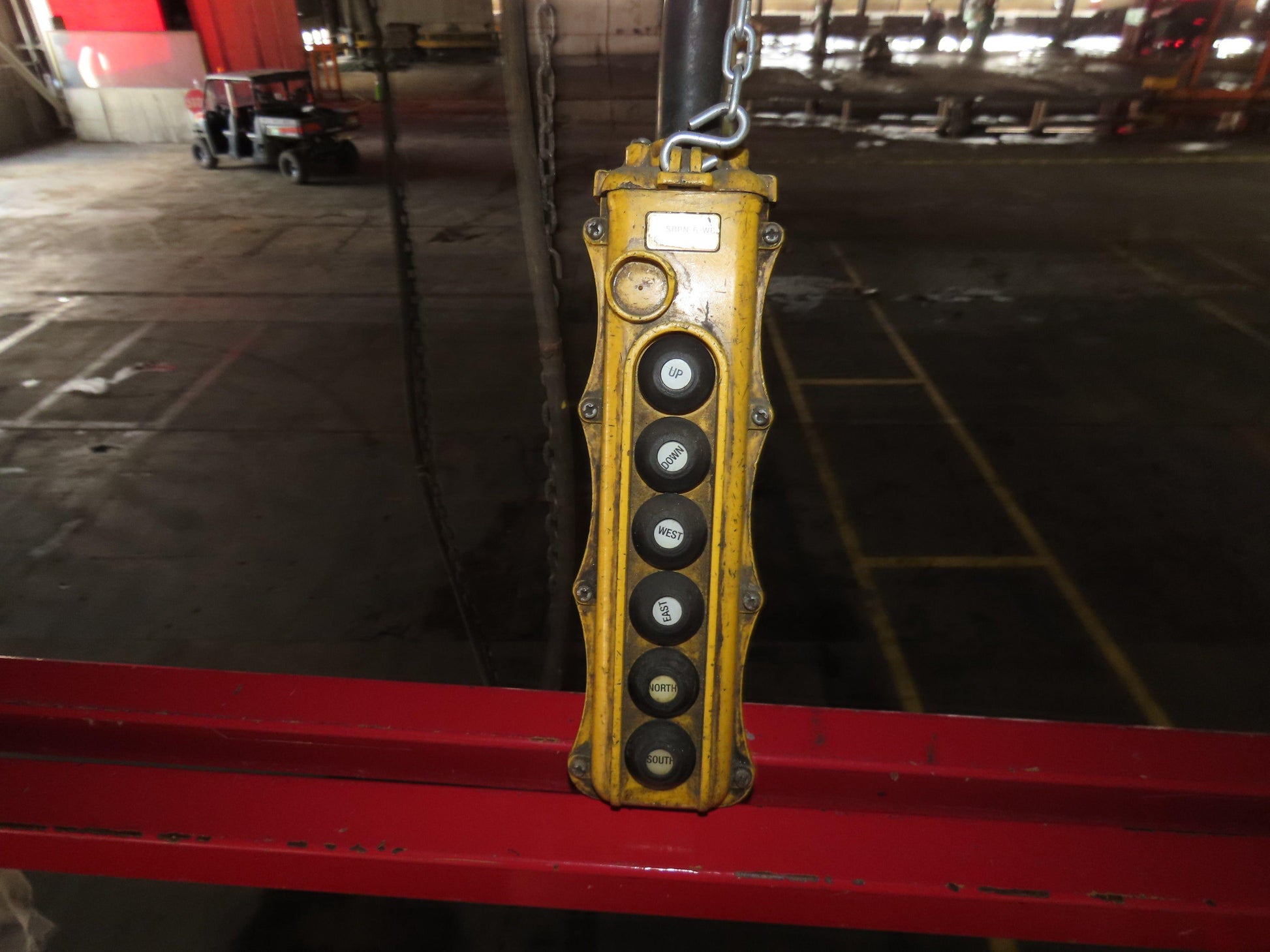

  • Includes corded pendant only.  Not set up for wireless.
  • Single speed bridge and trolley, 2-speed hoist.

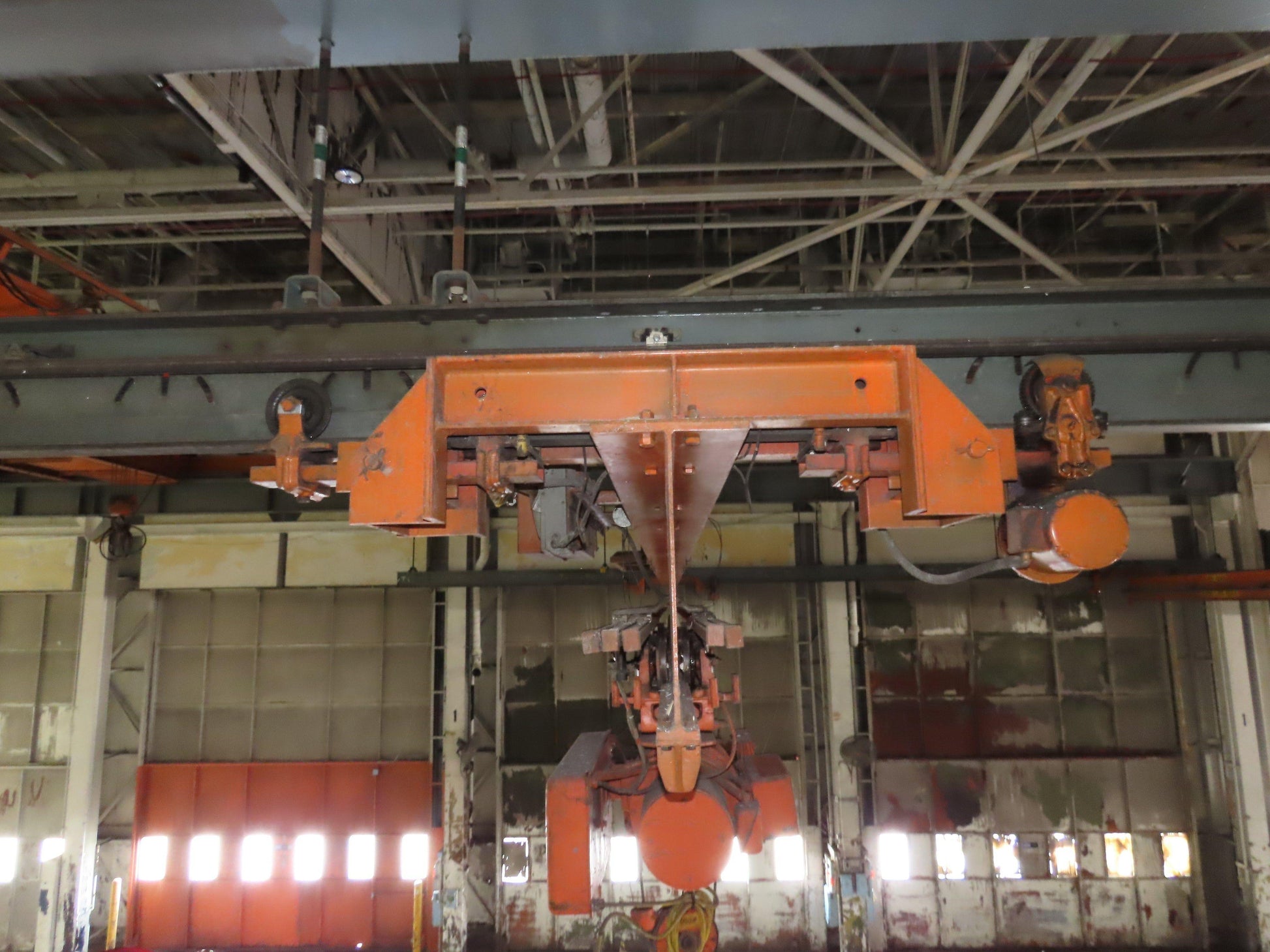

  • End truck length: 76"
