Cleveland Tramrail

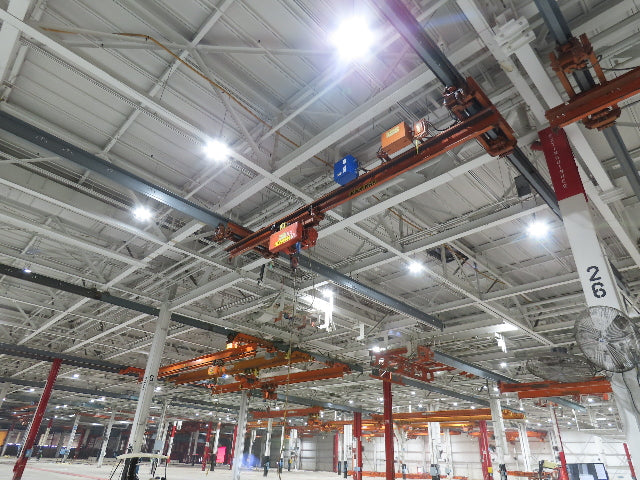

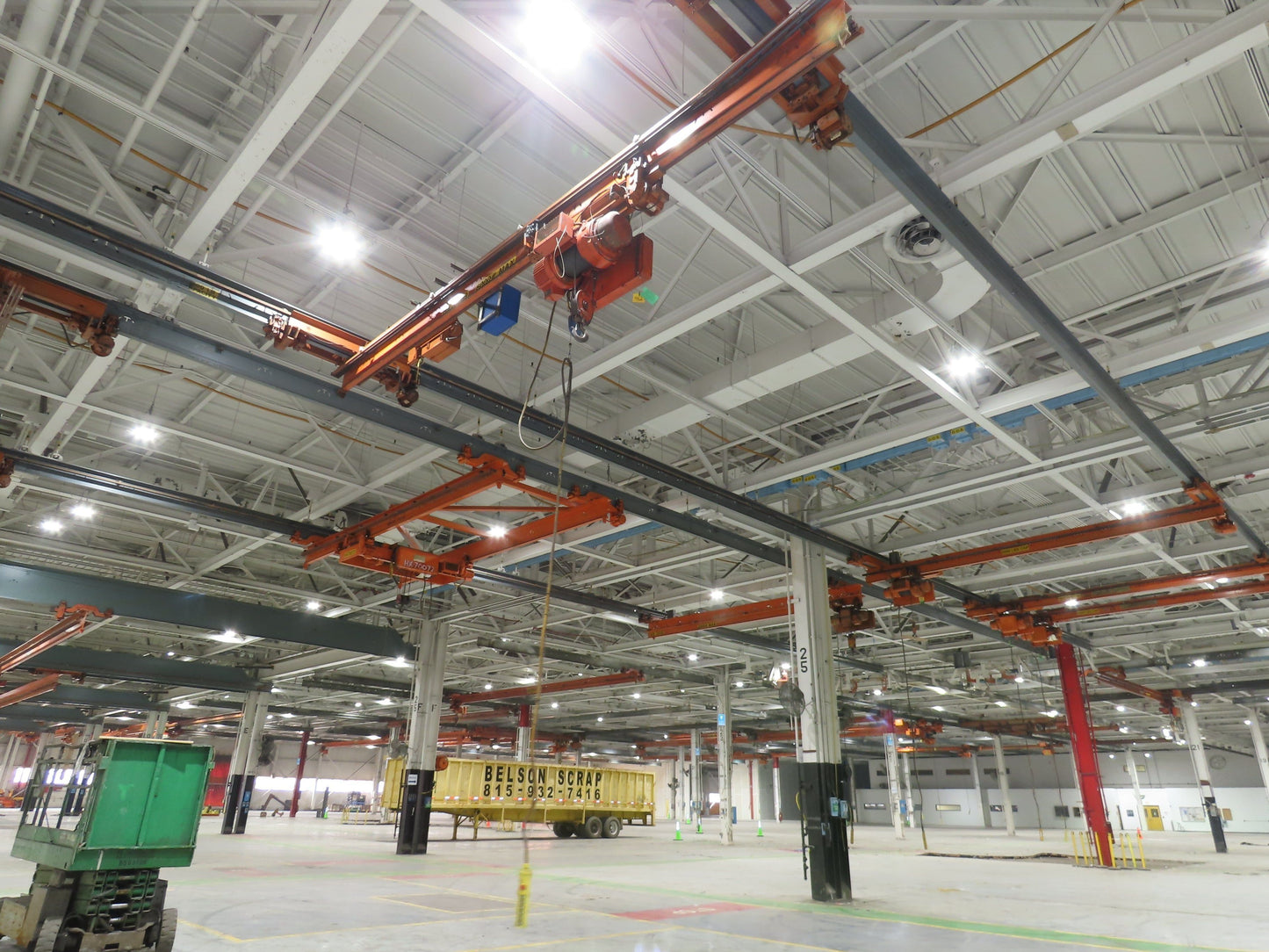

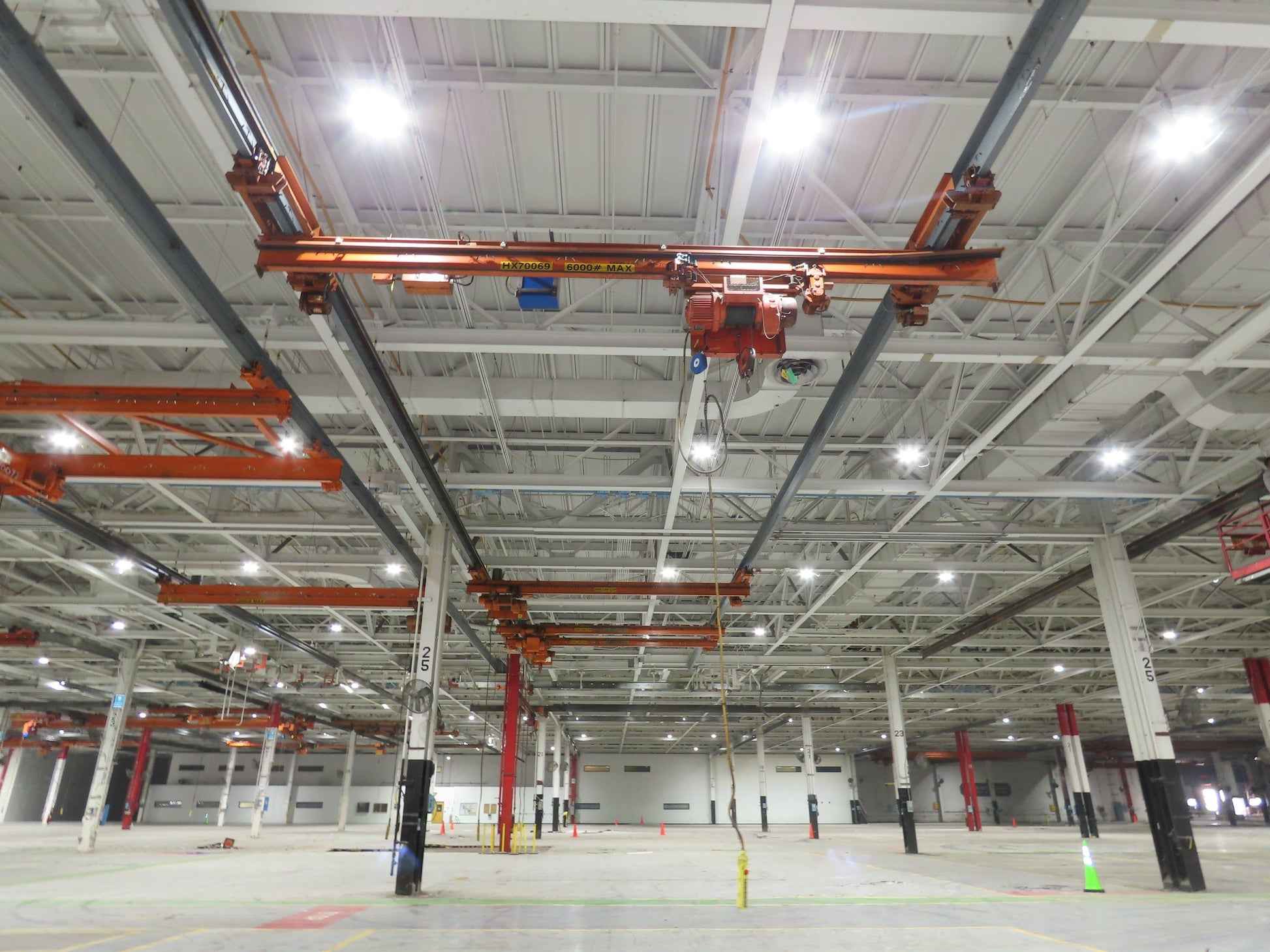

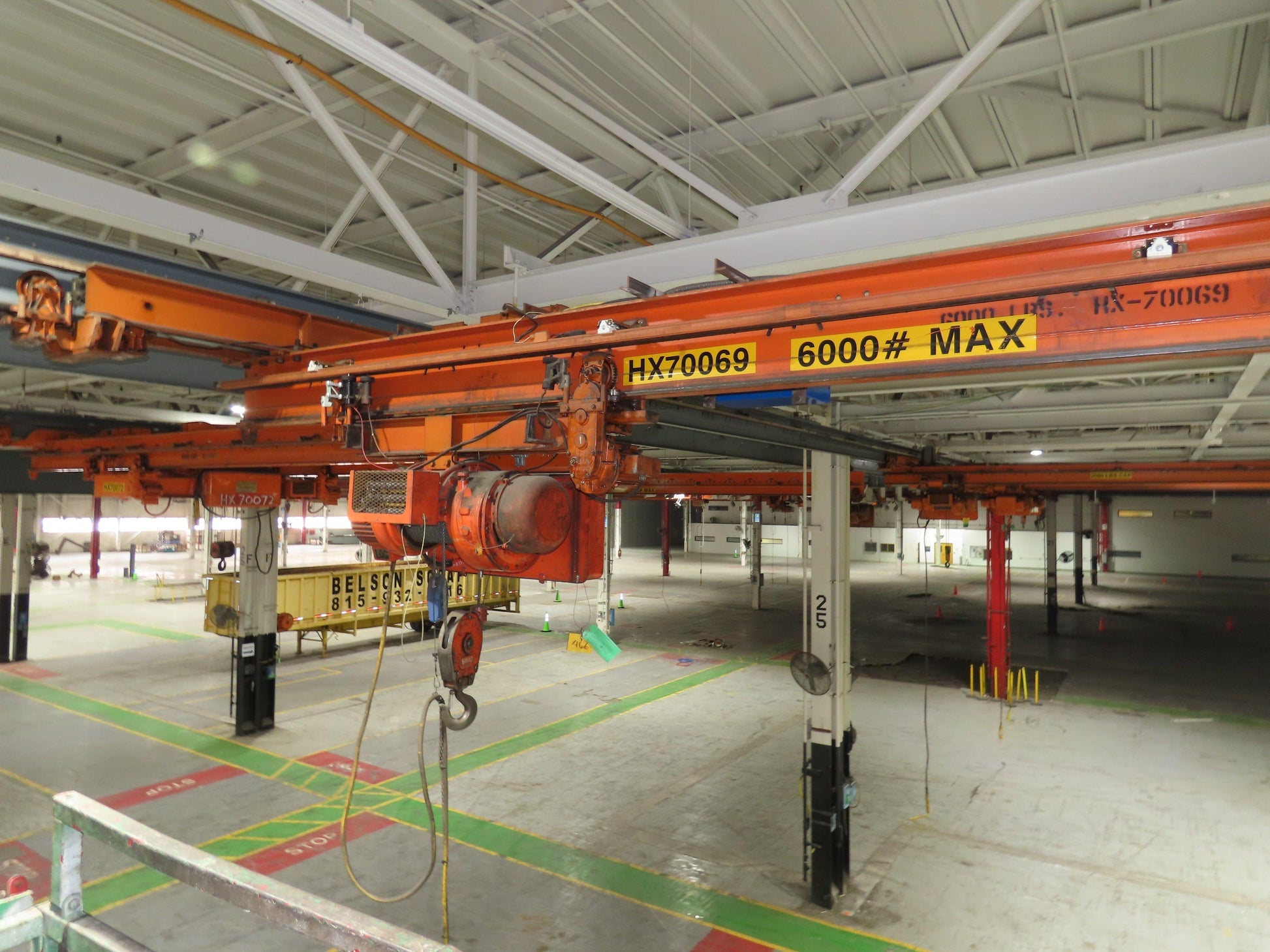

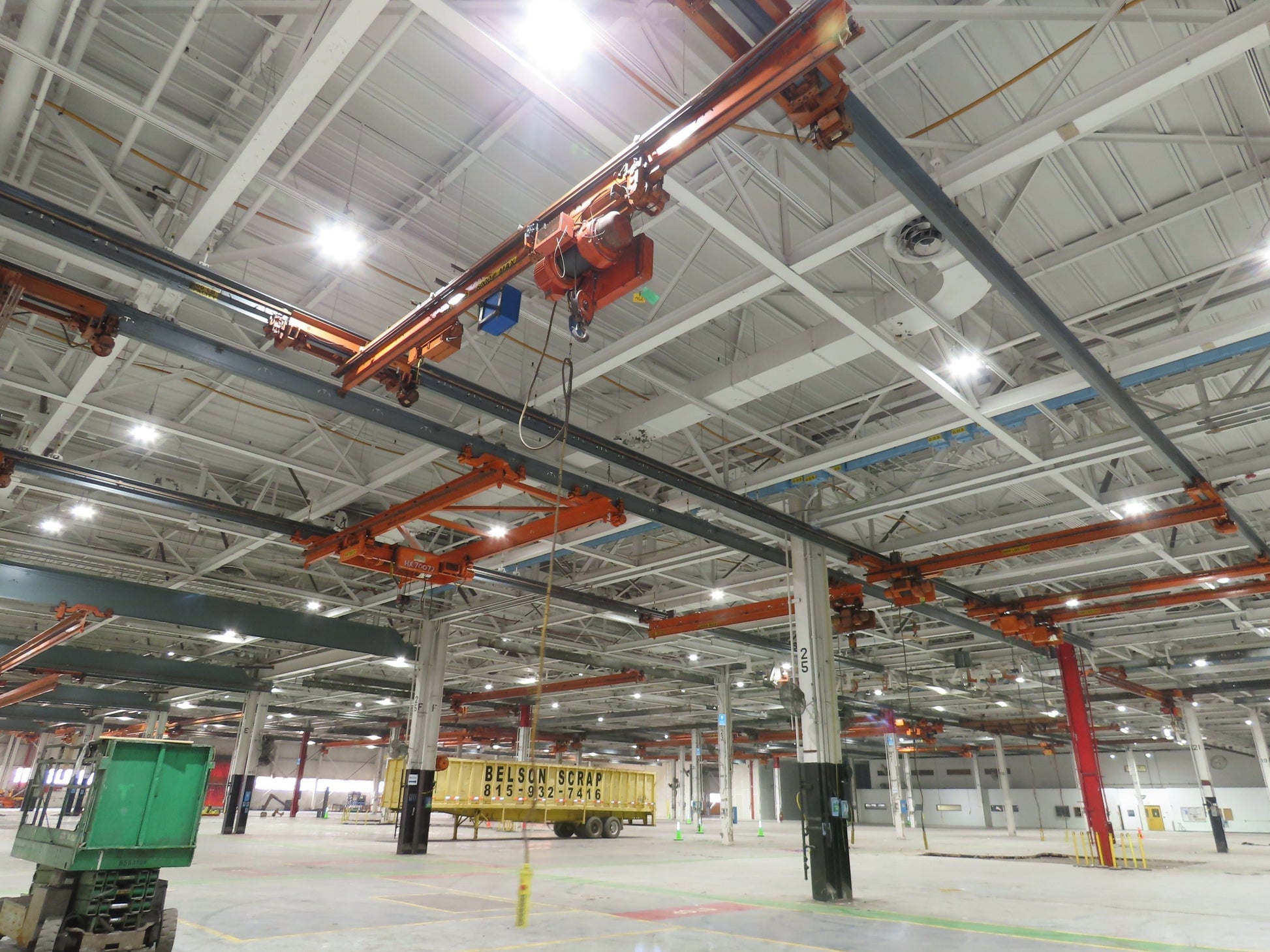

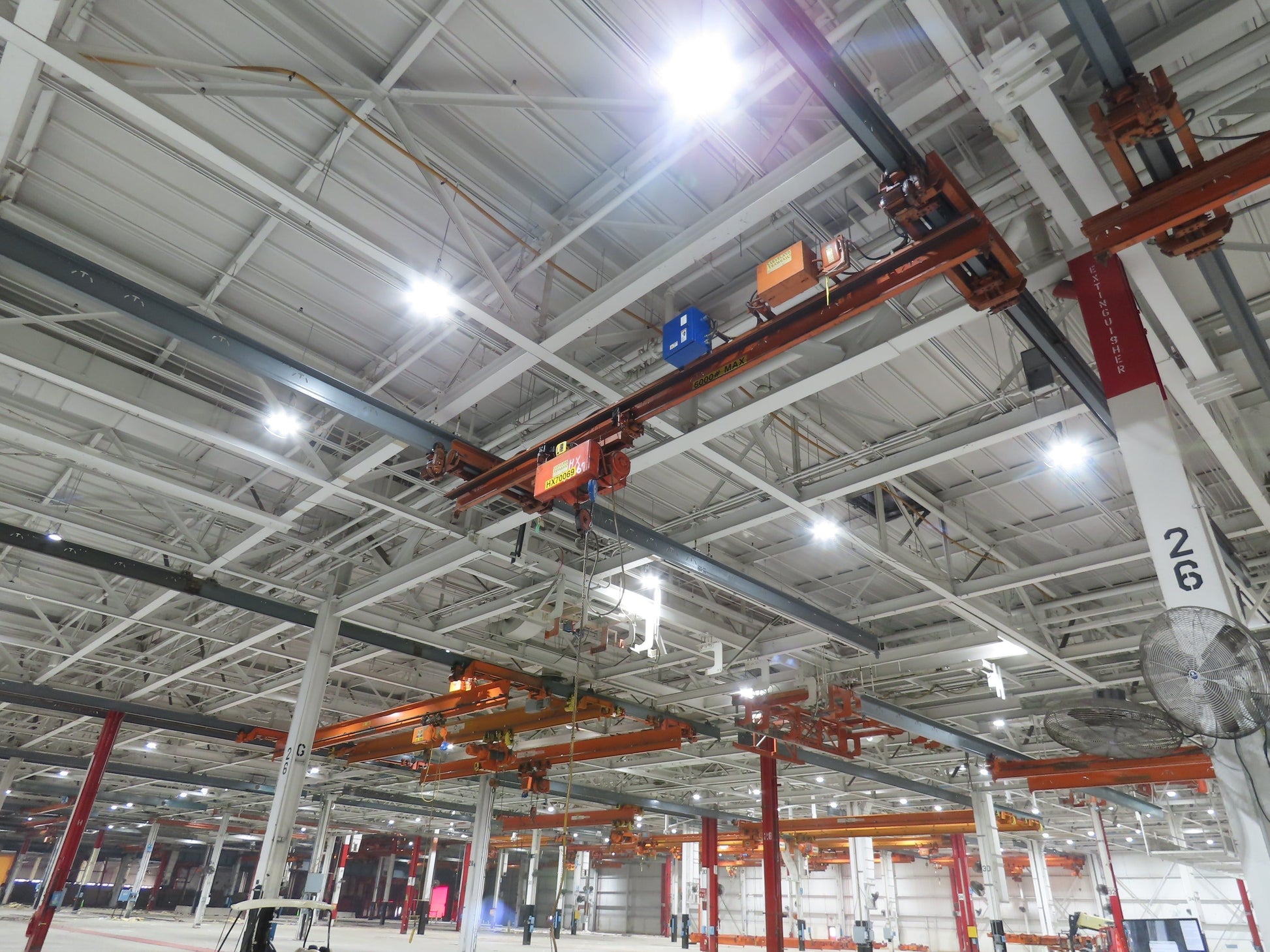

Cleveland Tramrail P&H 3 Ton Underhung Bridge Crane 21' Span Magnetek Remote

Cleveland Tramrail P&H 3 Ton Underhung Bridge Crane 21' Span Magnetek Remote

SKU #262078

Your Price
$6,412.49
$7,499.99 $6,412.49
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Bridge Crane is in working condition. Tested on site before removal.

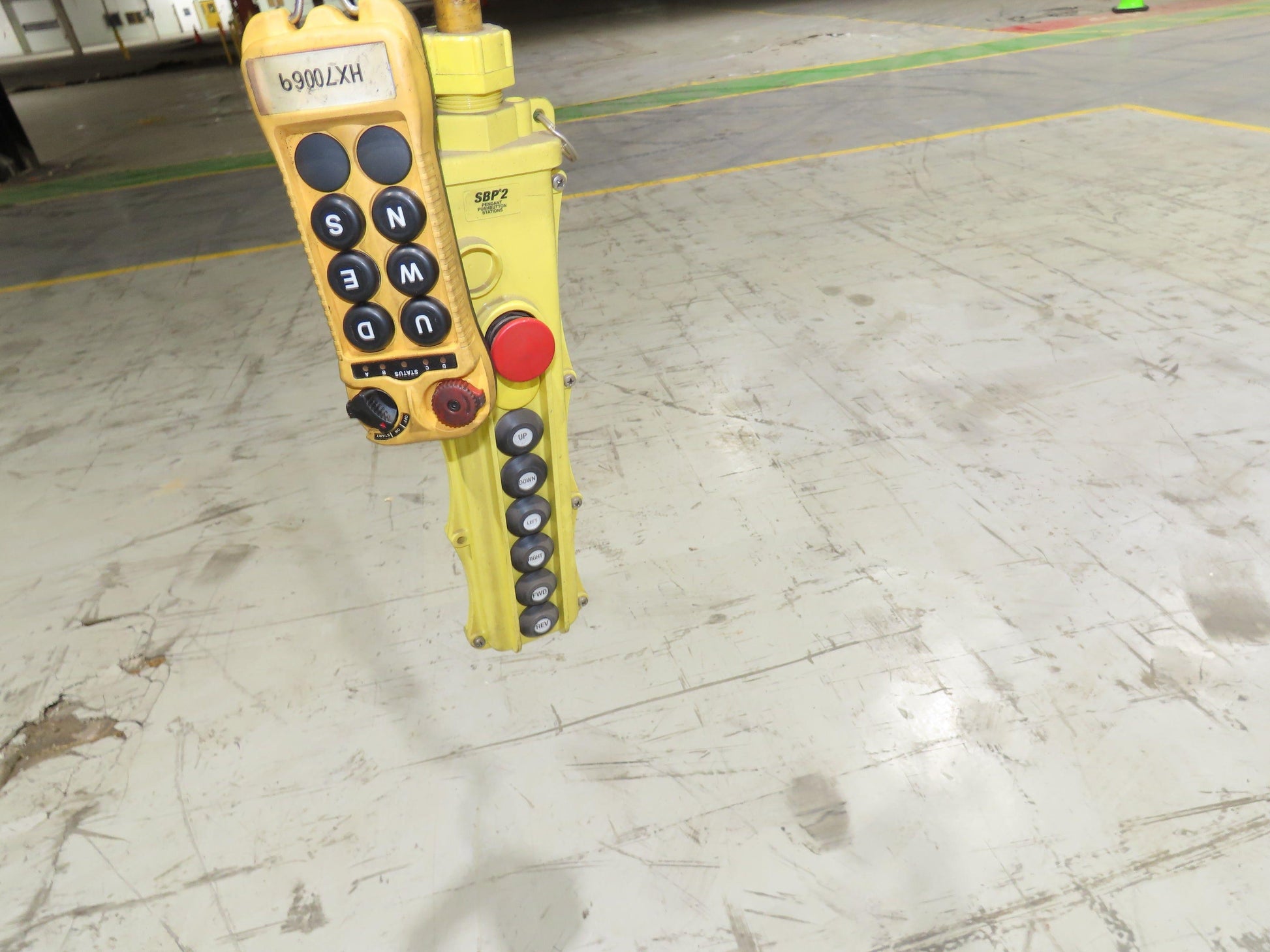

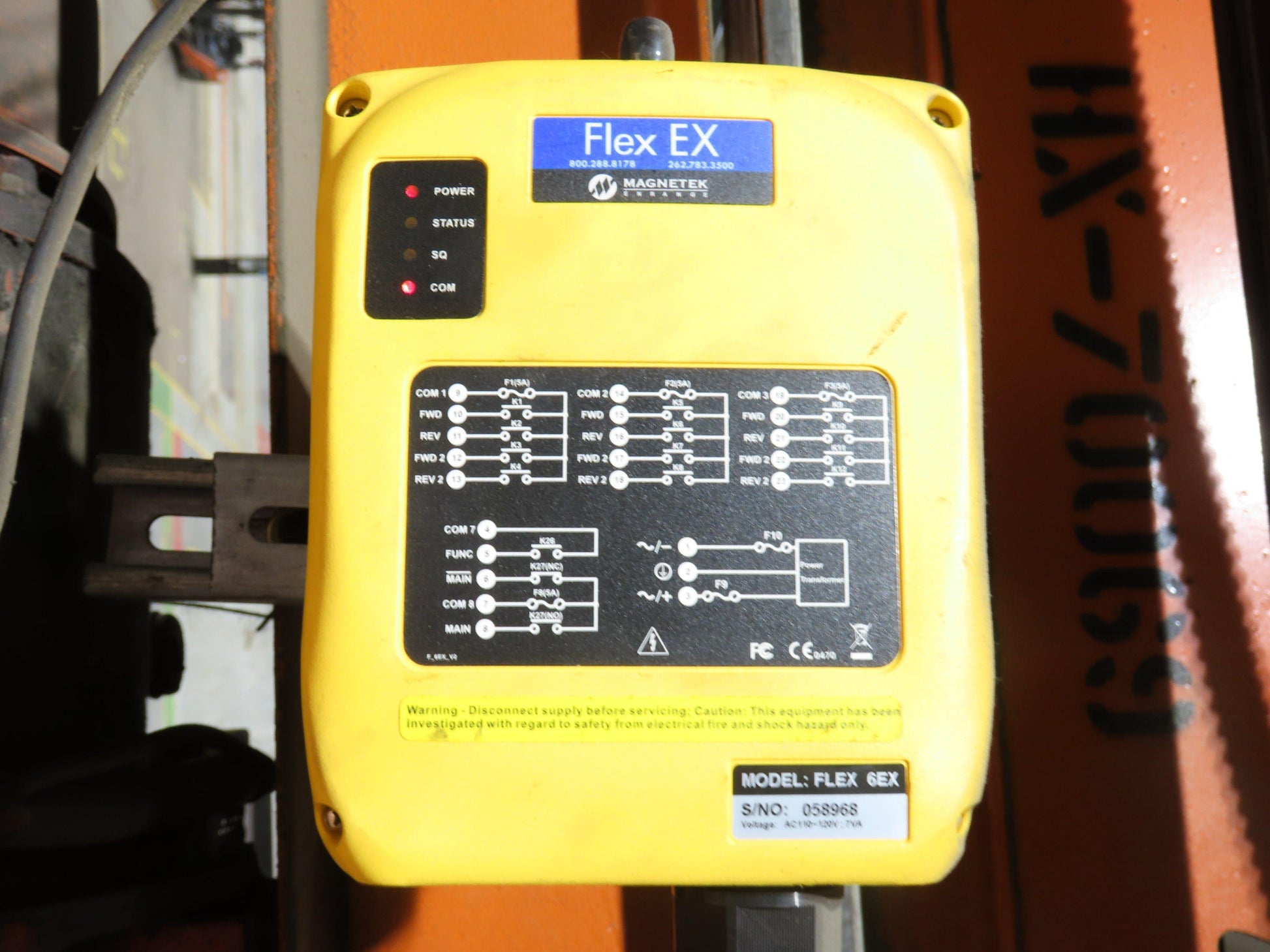

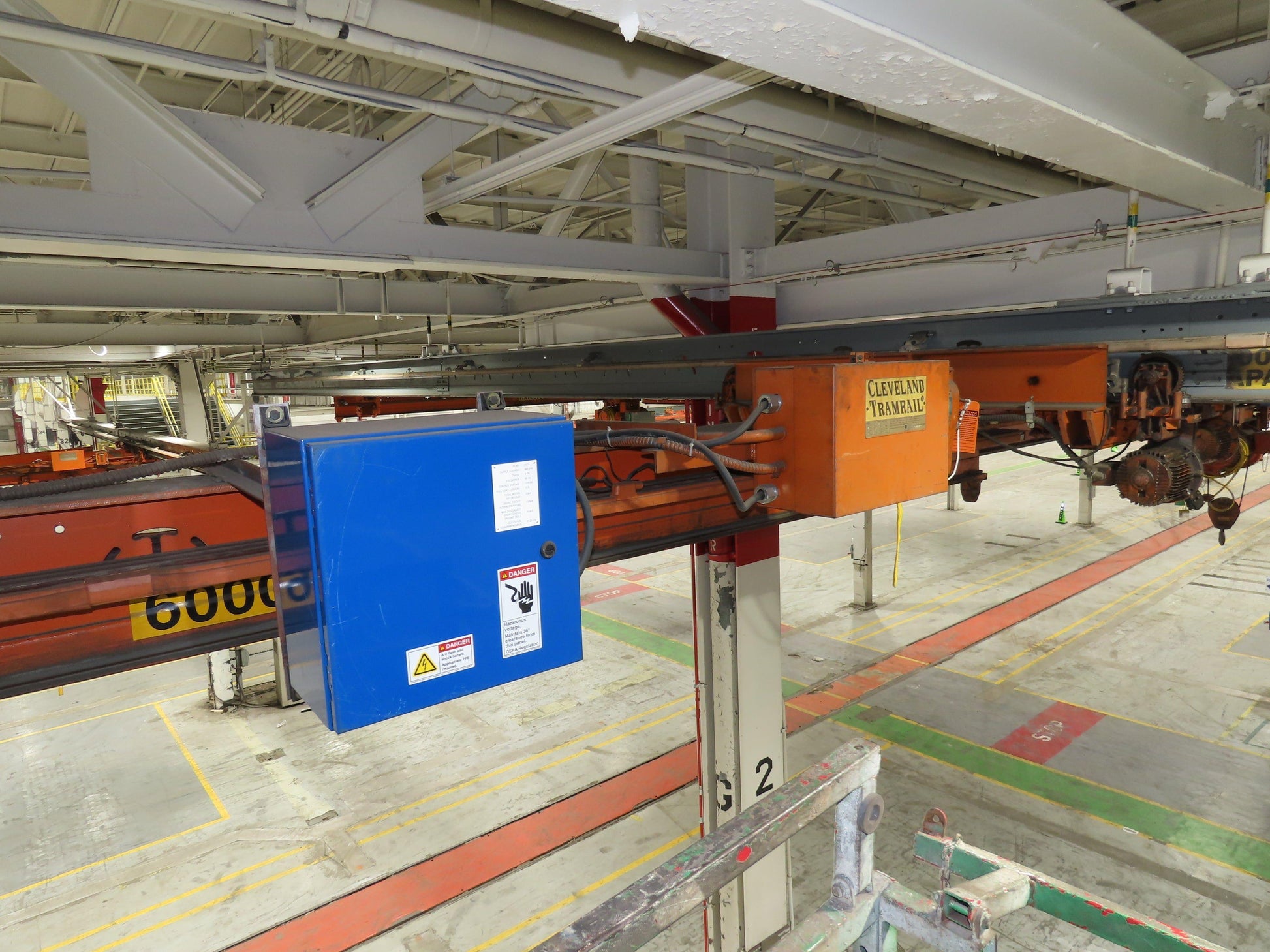

  • Includes corded and wireless pendants.

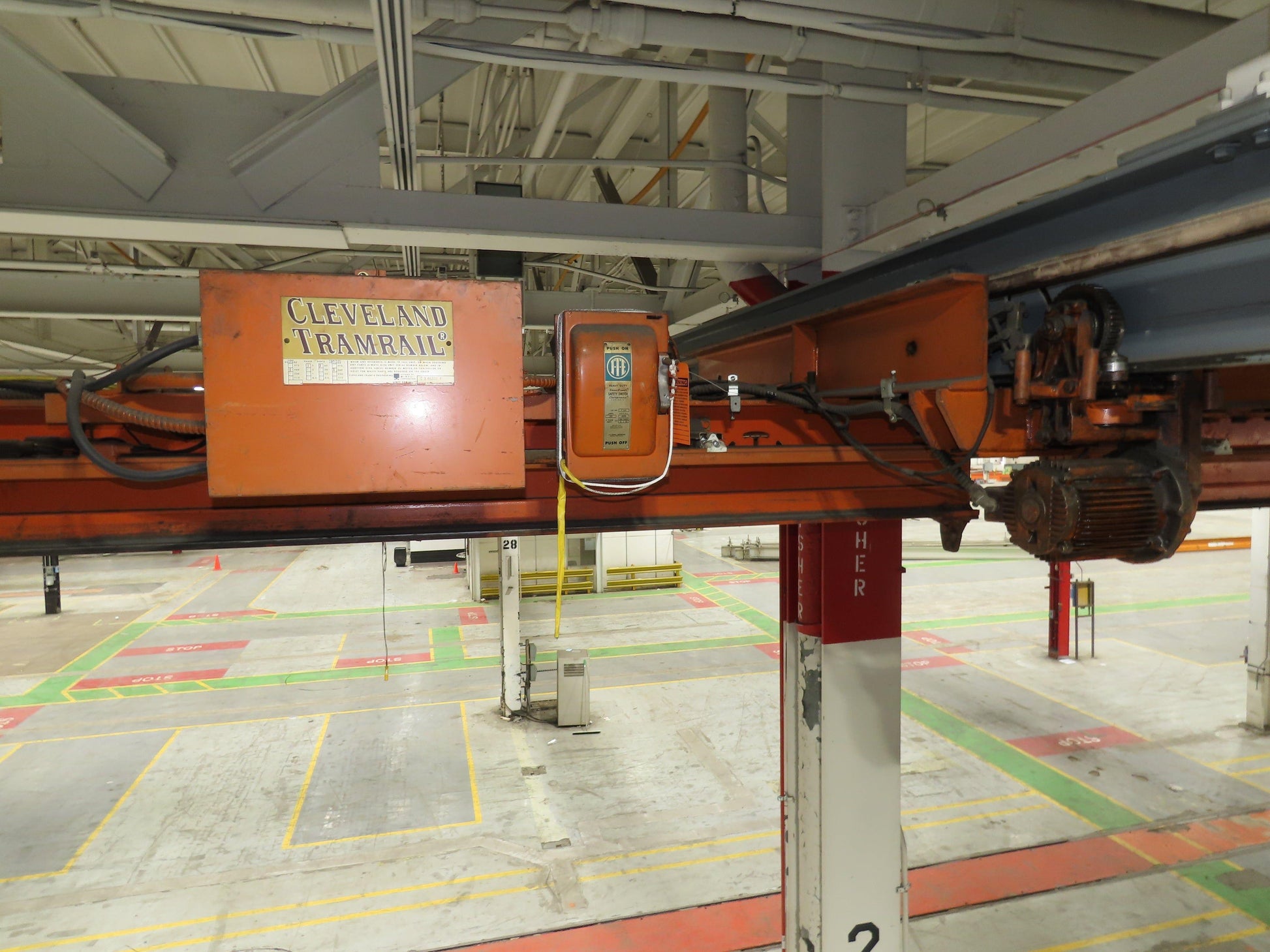

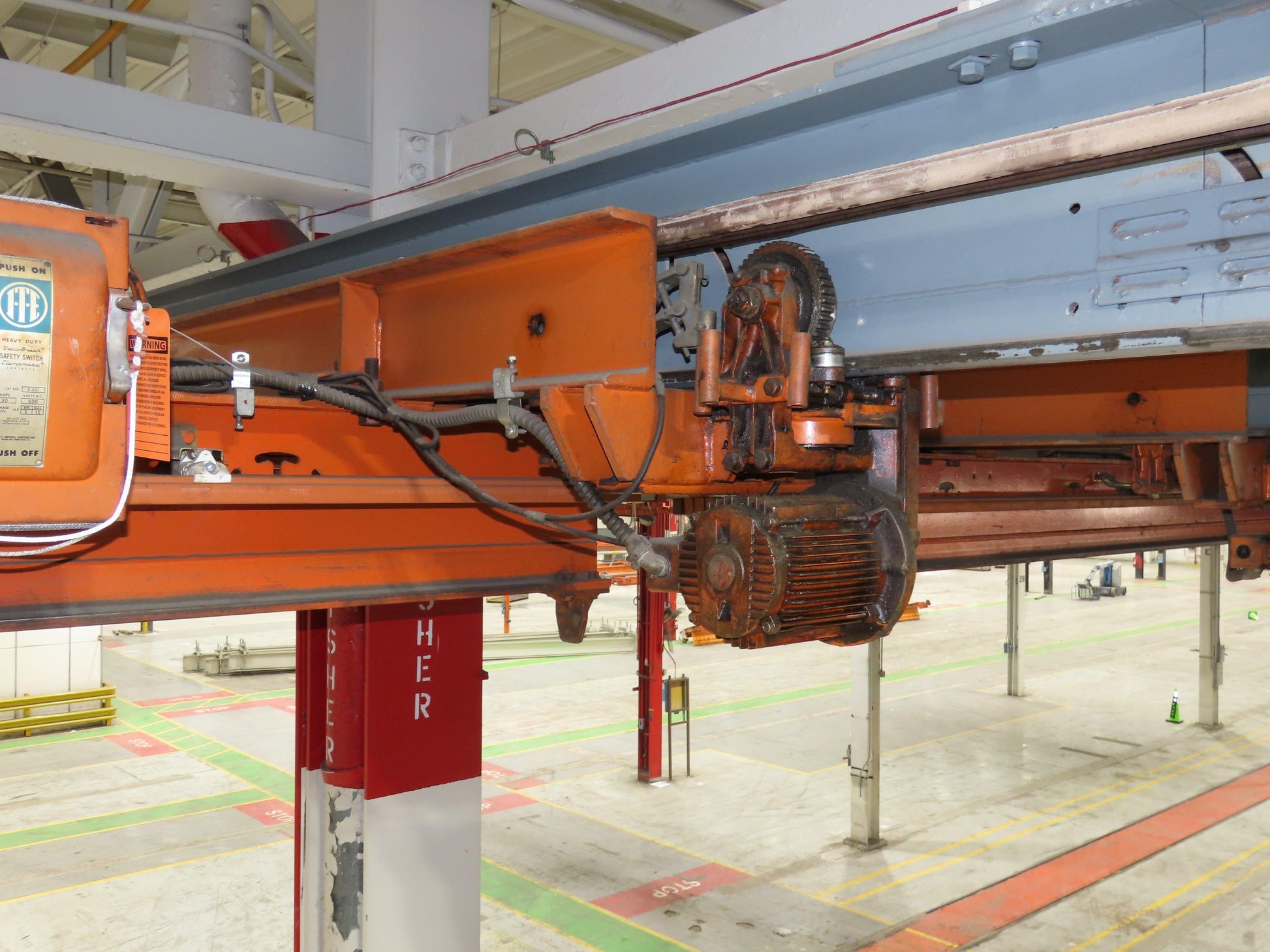

  • Single speed bridge and trolley, 2-speed hoist.
  • Capacity (tons): 3
  • Capacity (lb): 6000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 21'

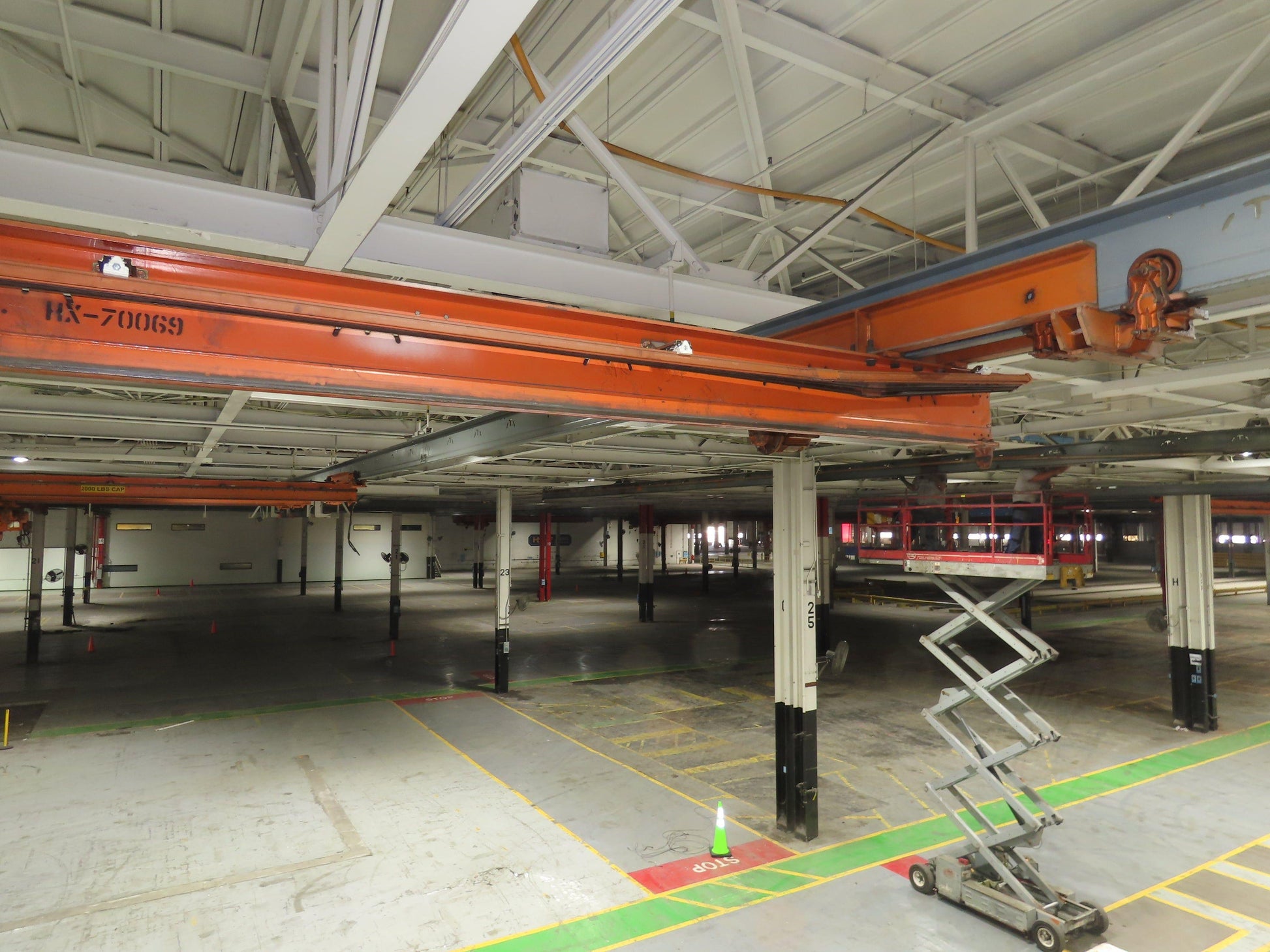

  • Main Girder Beam Size (Height x Width x Length): 12.5"H x 8"W x 24' Length (3.25" bottom flange

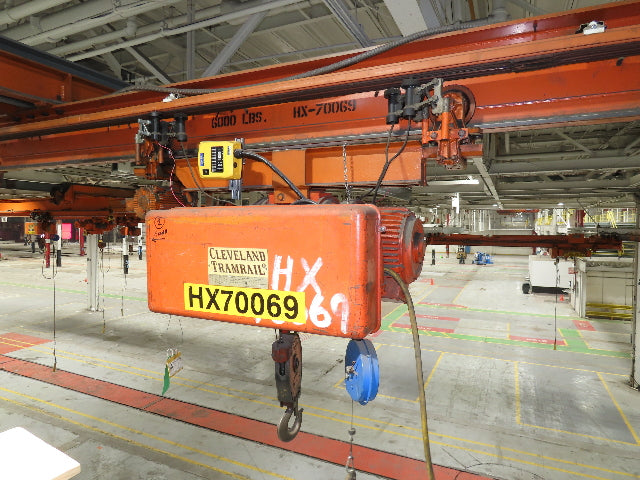

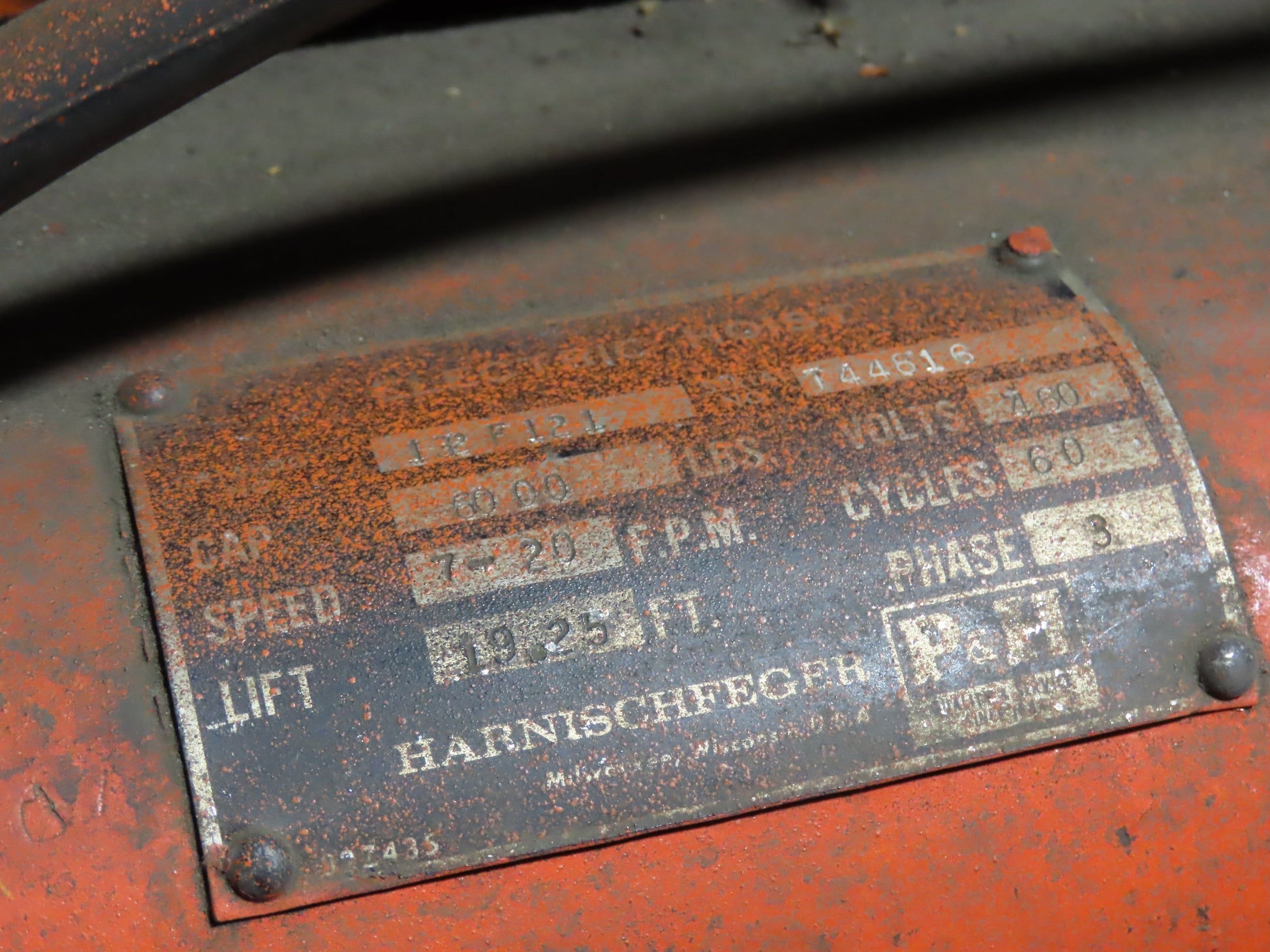

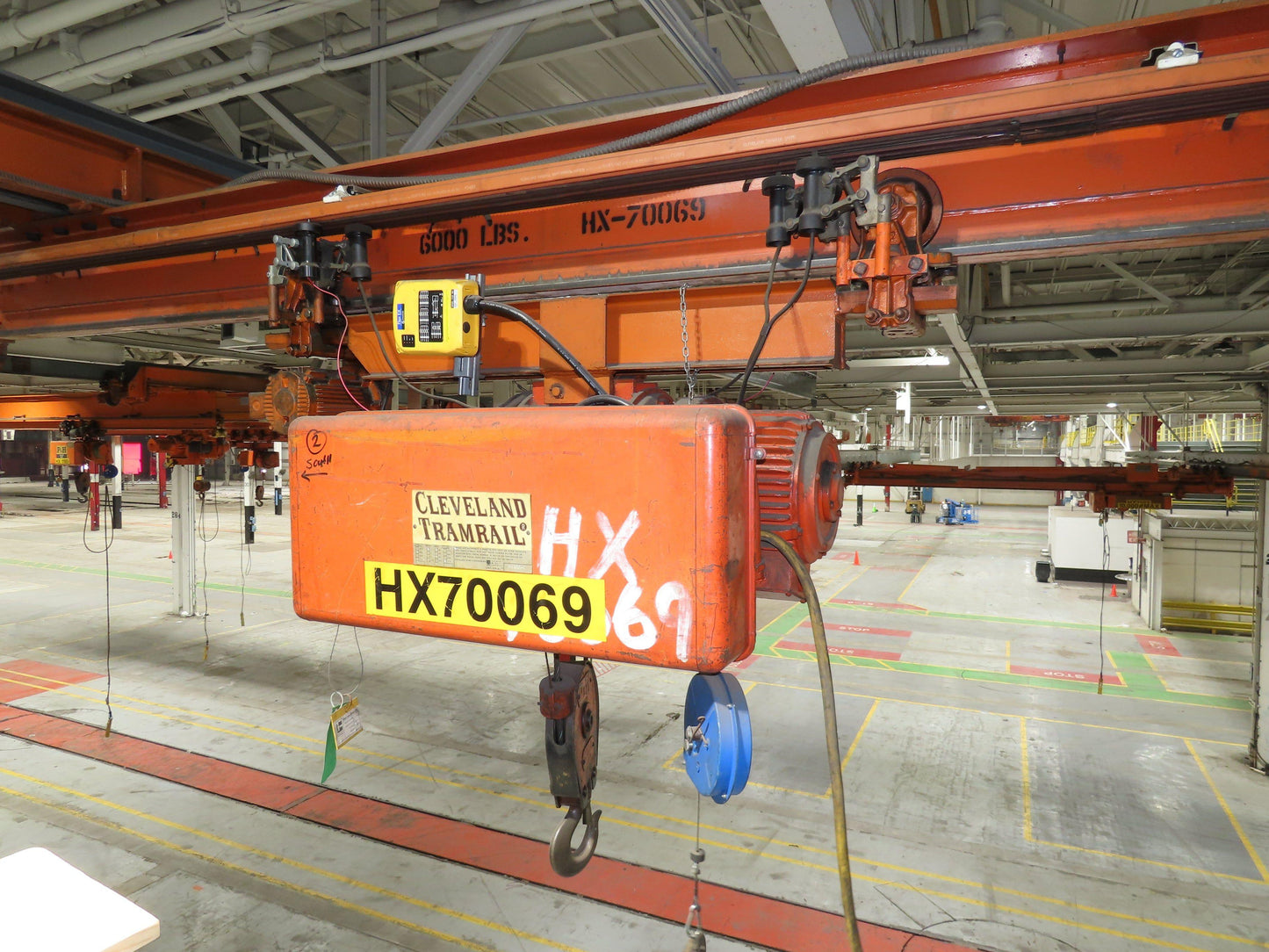

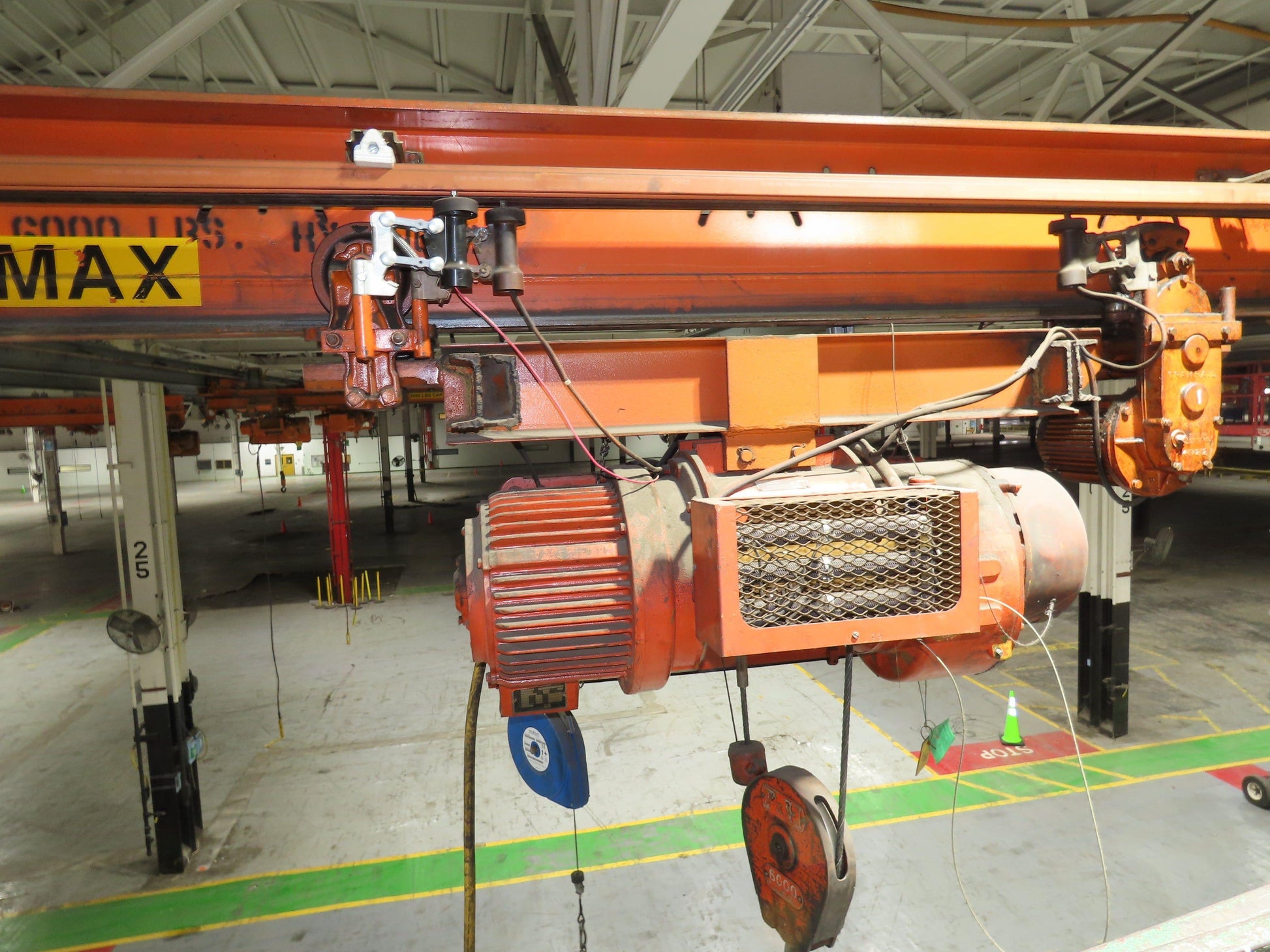

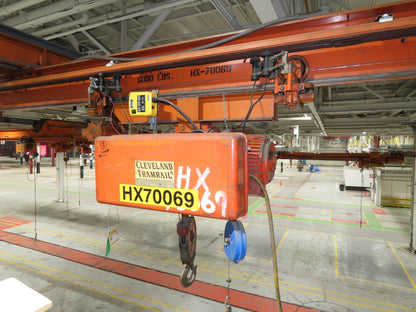

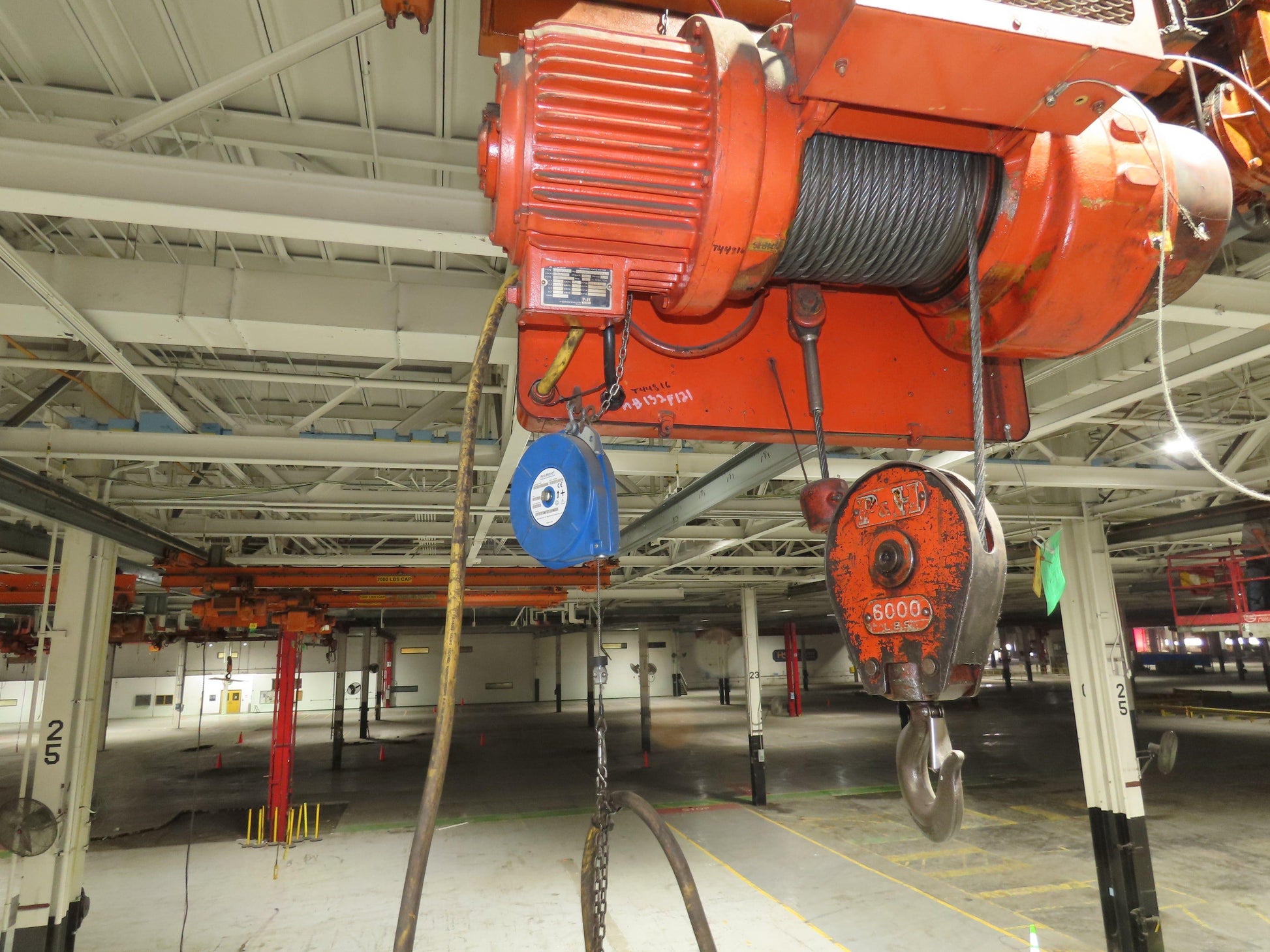

  • Hoist Brand: Morris P&H
  • Lift Travel (feet): 19'
  • Lift Speed (feet per minute): 7/20

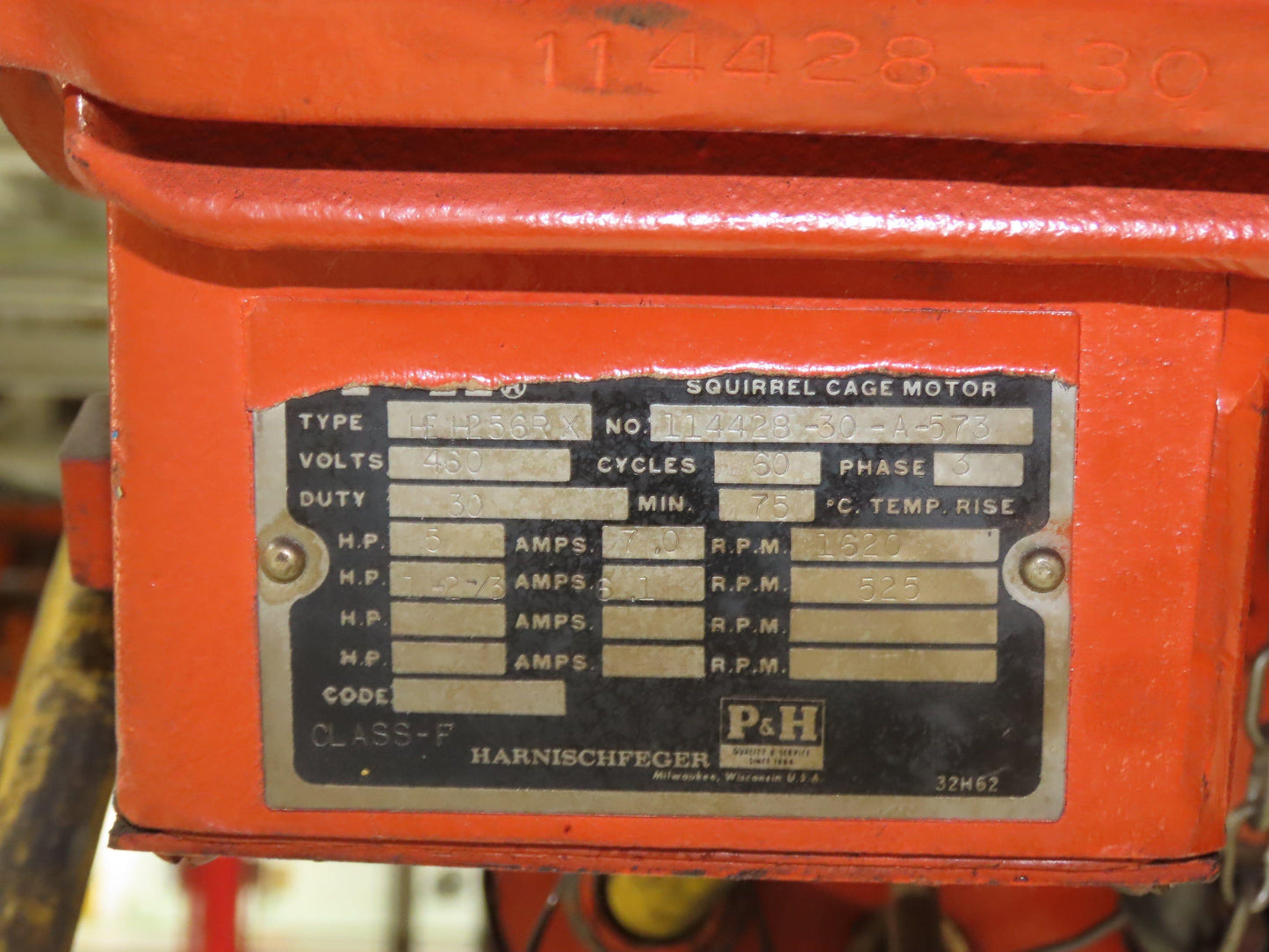

  • Motor Horse Power: 5
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 20'
  • Hoist Power Trolley Speed (feet per minute): 80
  • Hoist Trolley Length of Travel: 18'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 50"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 72"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 64"
