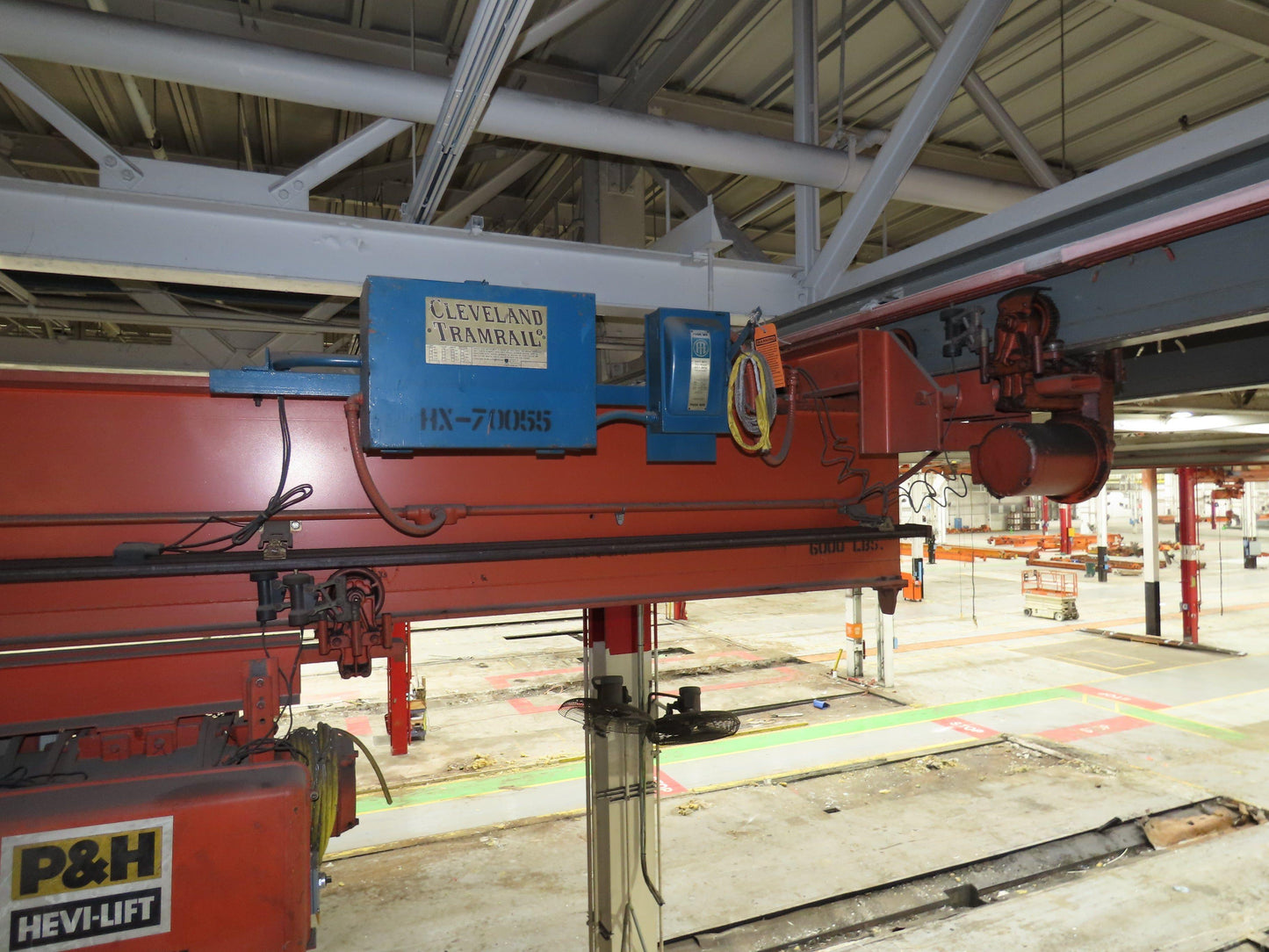

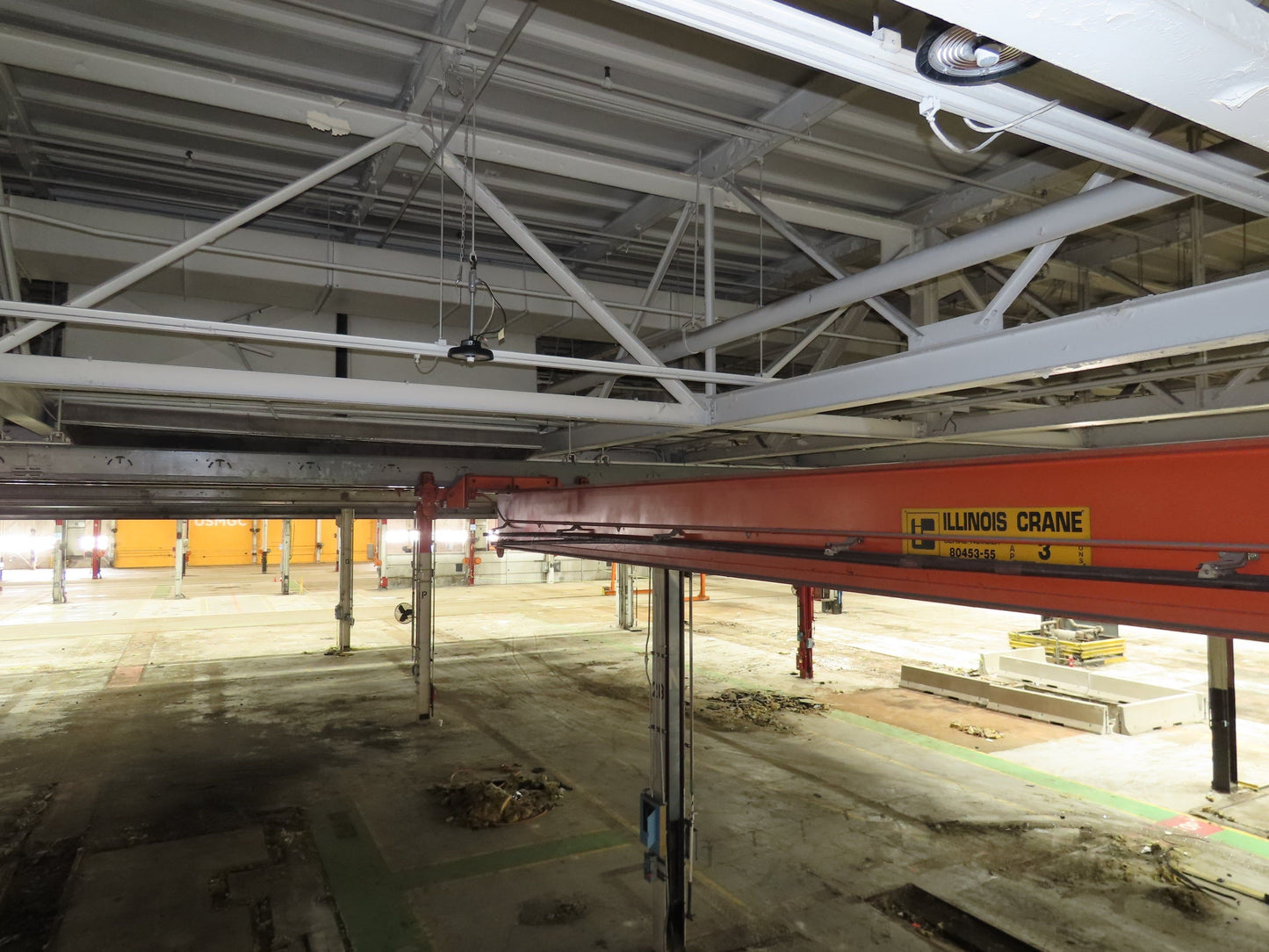

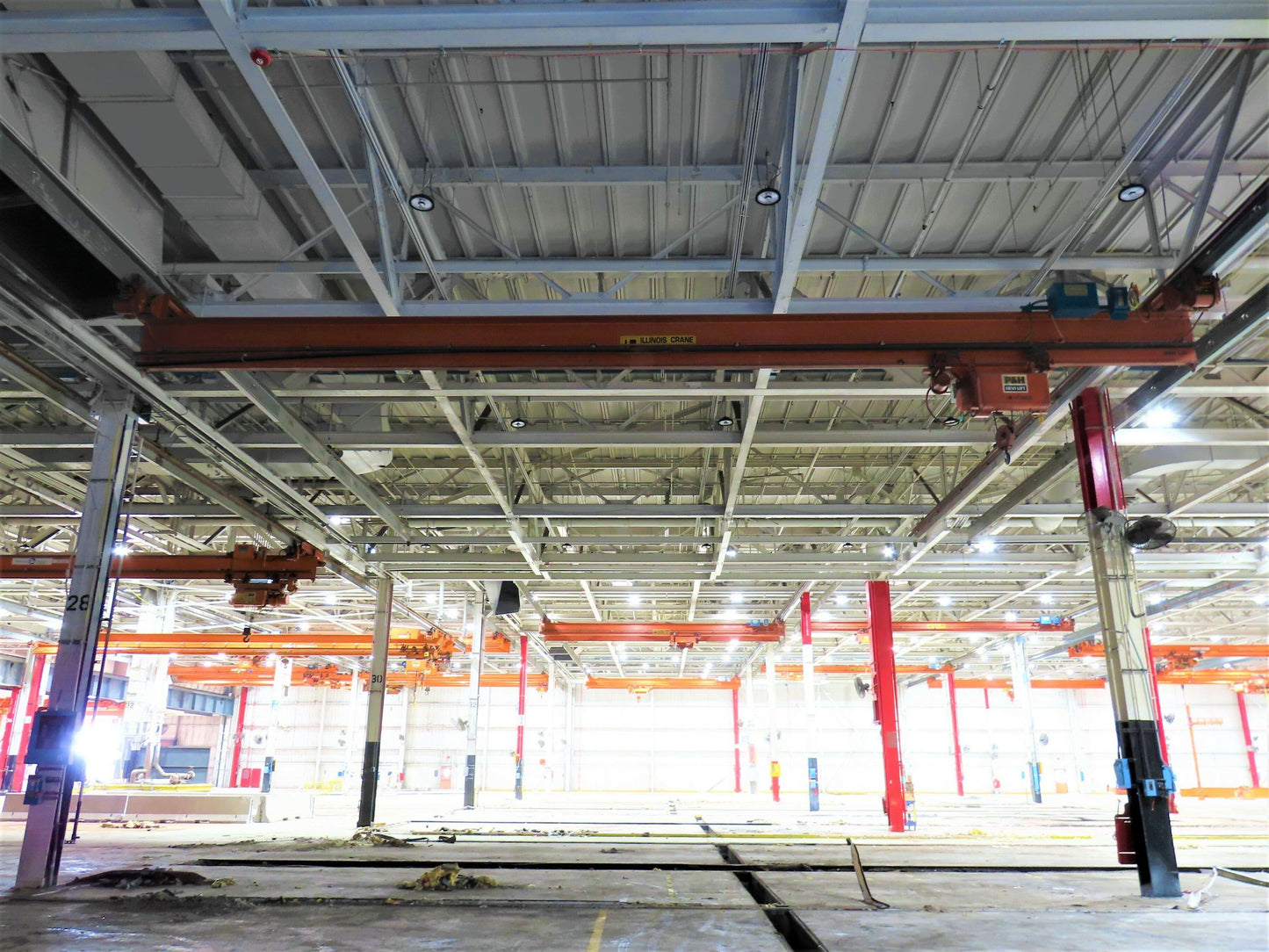

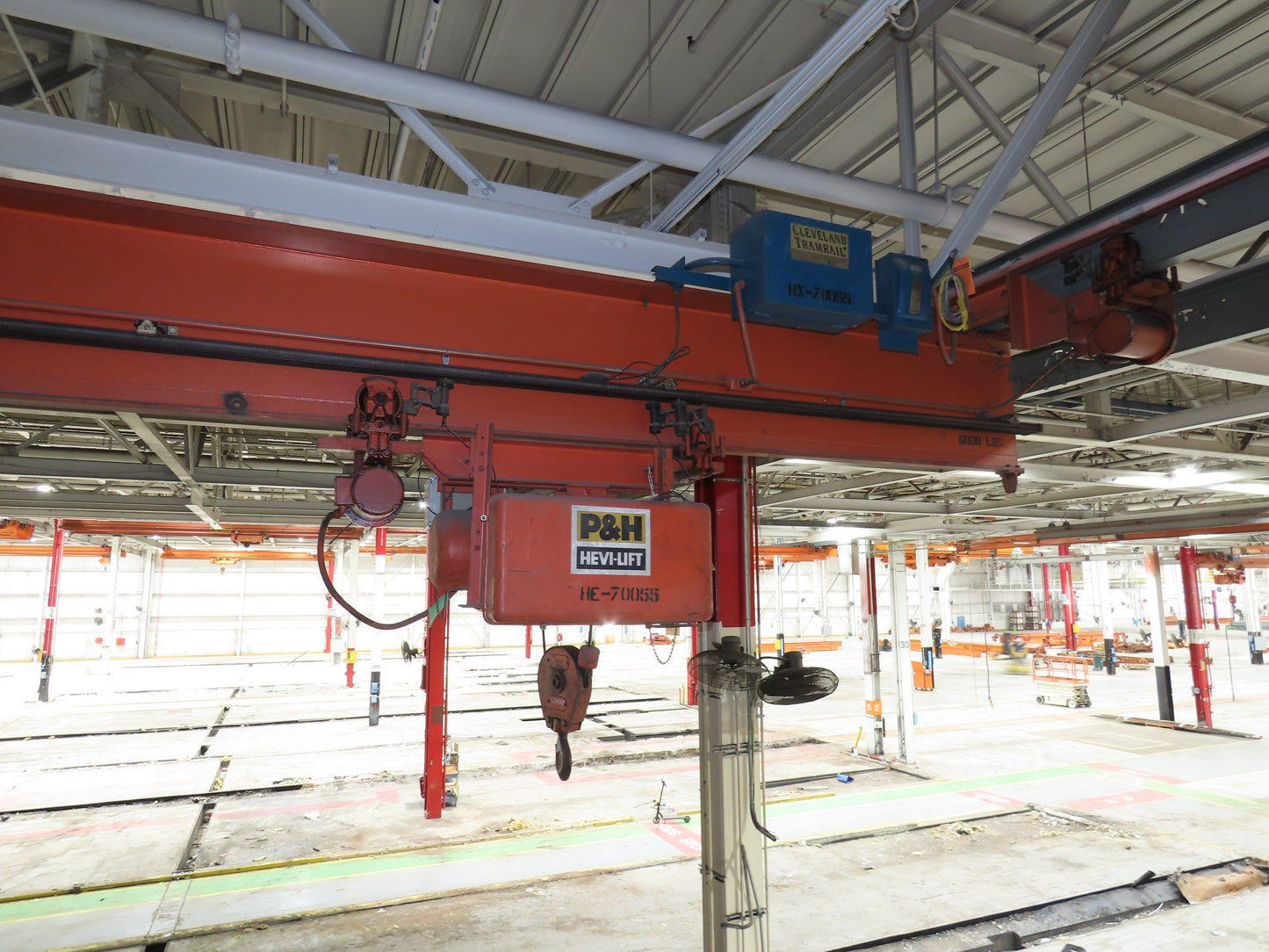

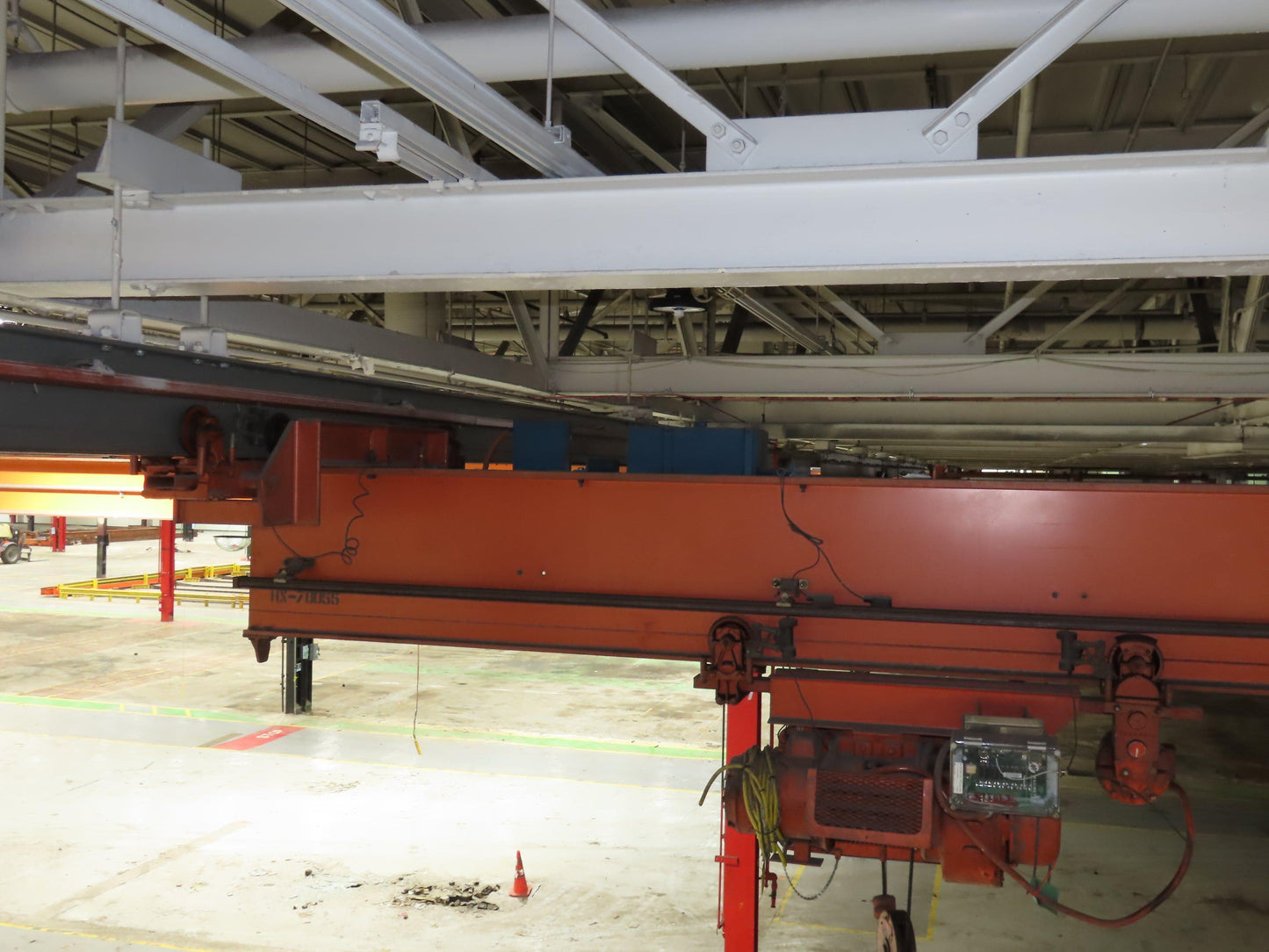

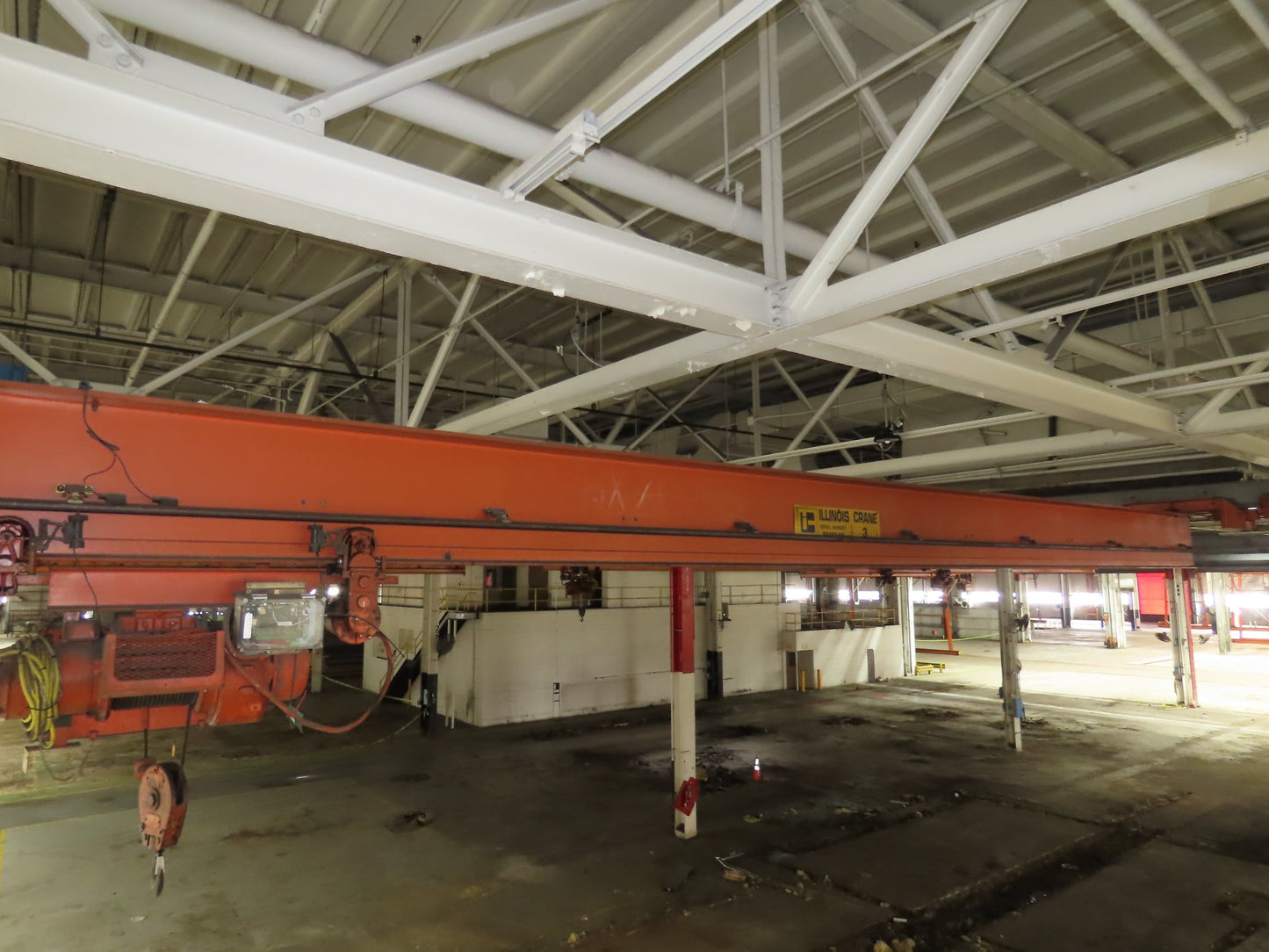

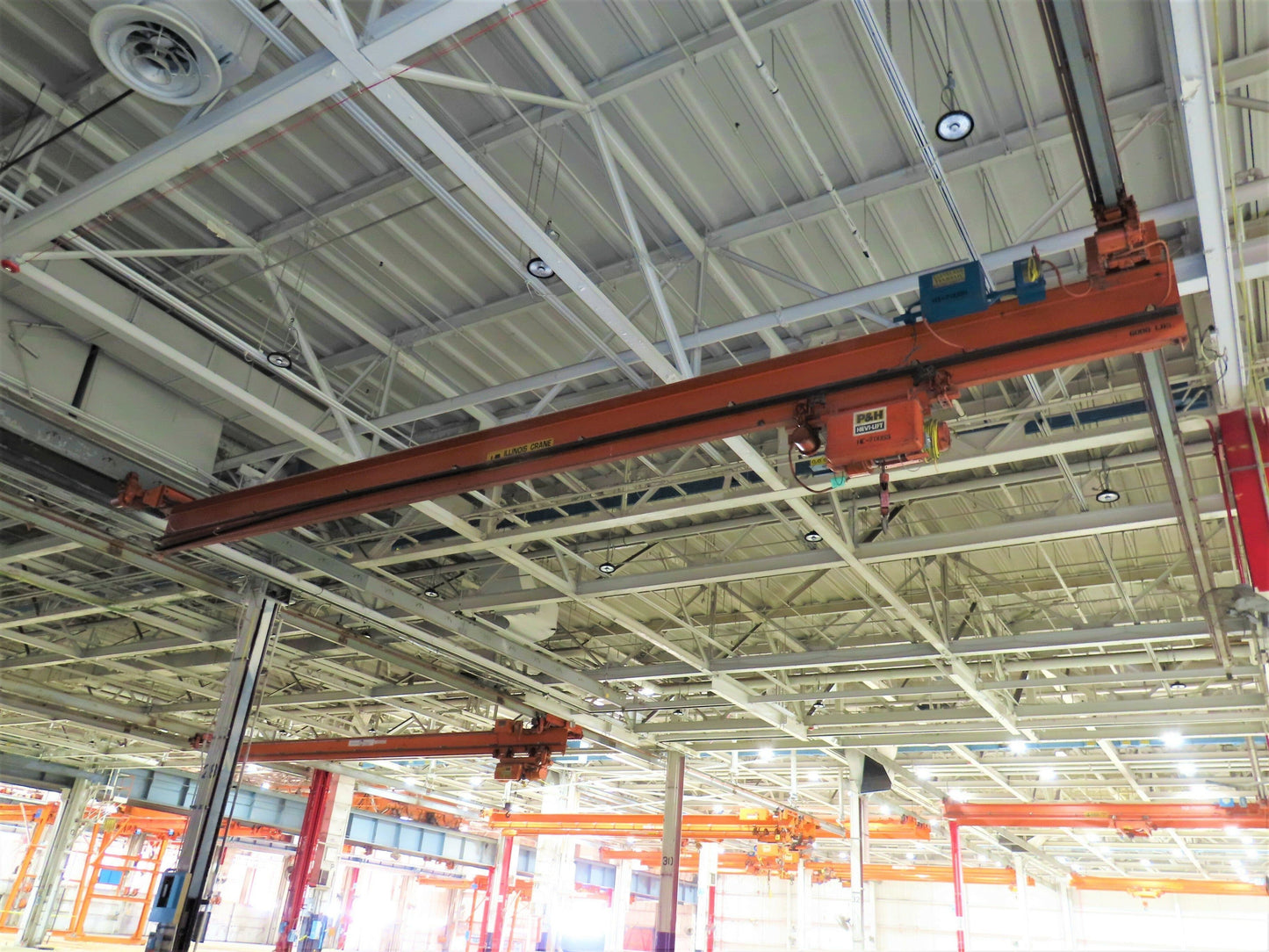

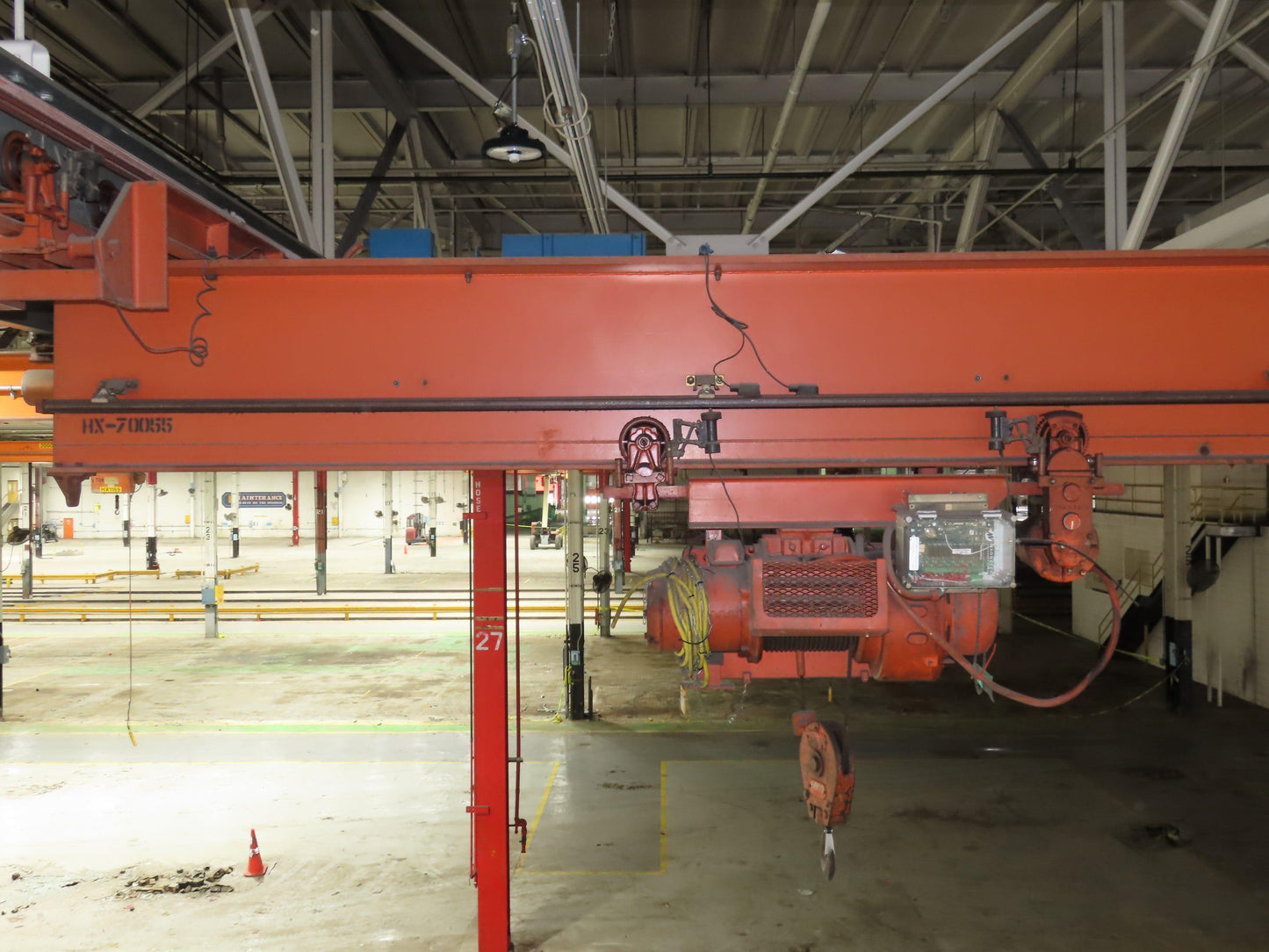

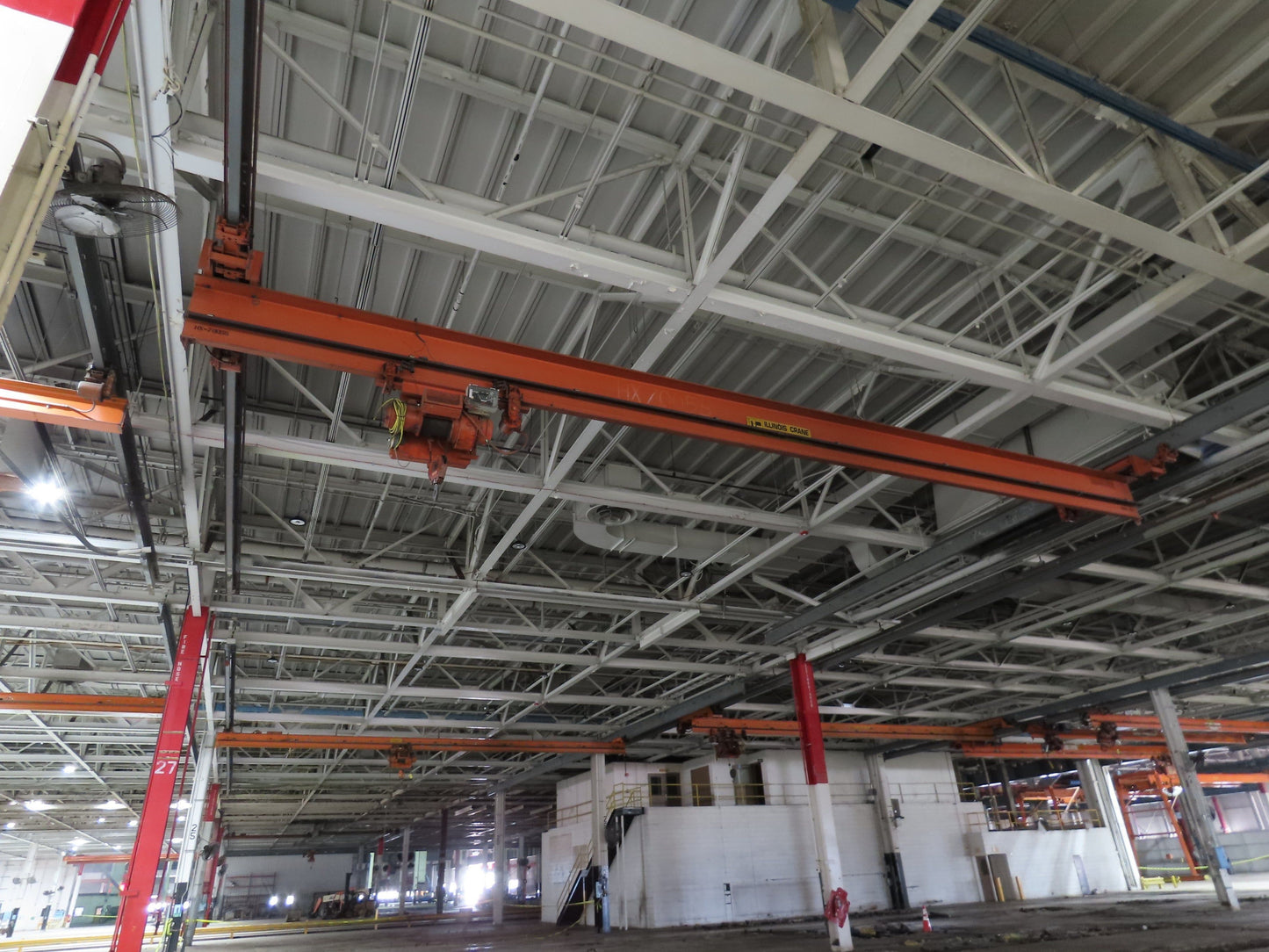

Cleveland Tramrail P&H 3 Ton Underhung Bridge Crane 39' 6" Span Magnetek Remote

Cleveland Tramrail P&H 3 Ton Underhung Bridge Crane 39' 6" Span Magnetek Remote

SKU #262487

Product Condition: Used

Your Price
$6,412.49
$7,499.99 $6,412.49
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail
Model
P&H Hevi-Lift
MPN
HX70055 / HE-70055
Condition
Used
  • Capacity (tons): 3
  • Capacity (lb): 6000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 39' 6"

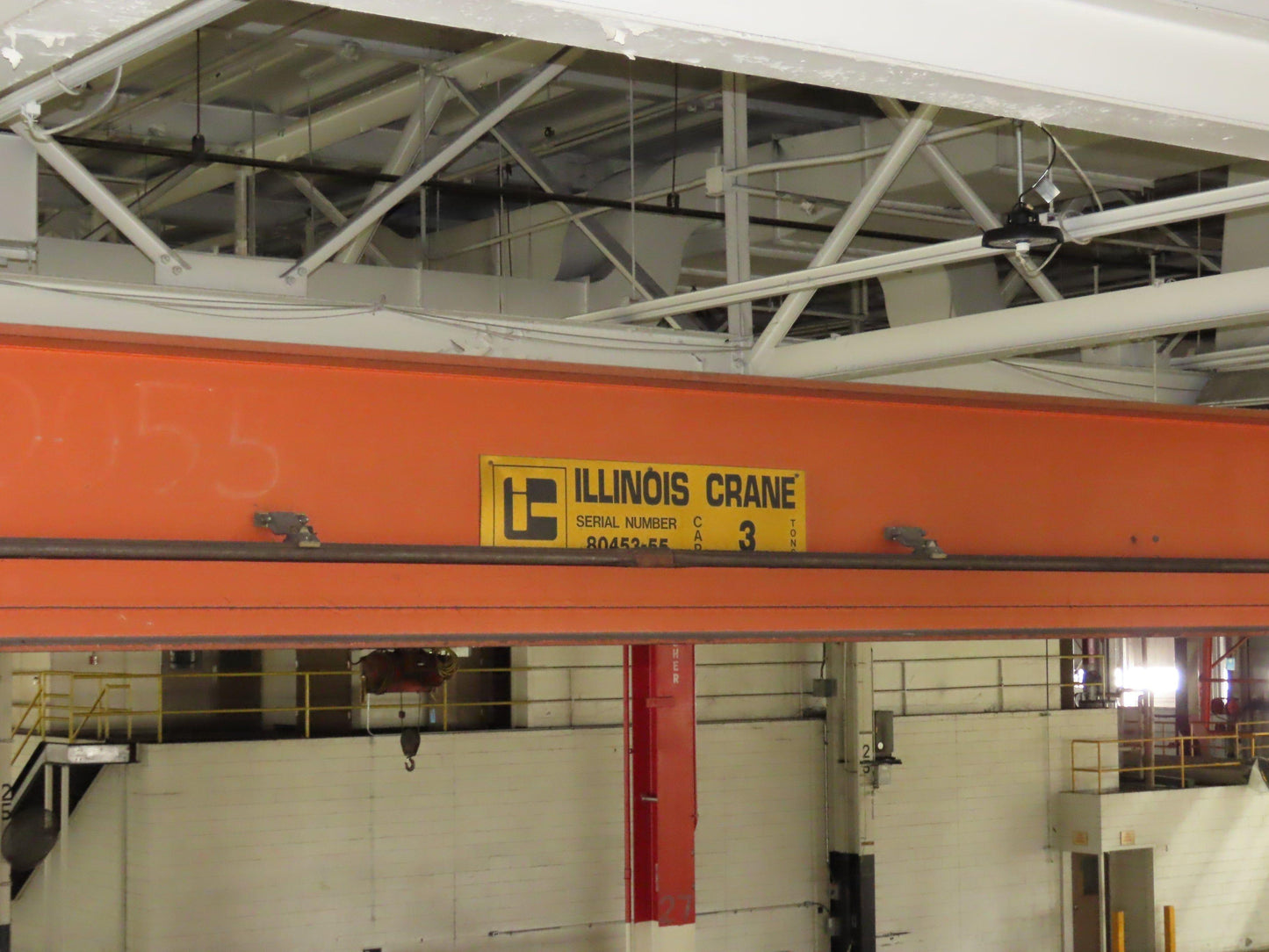

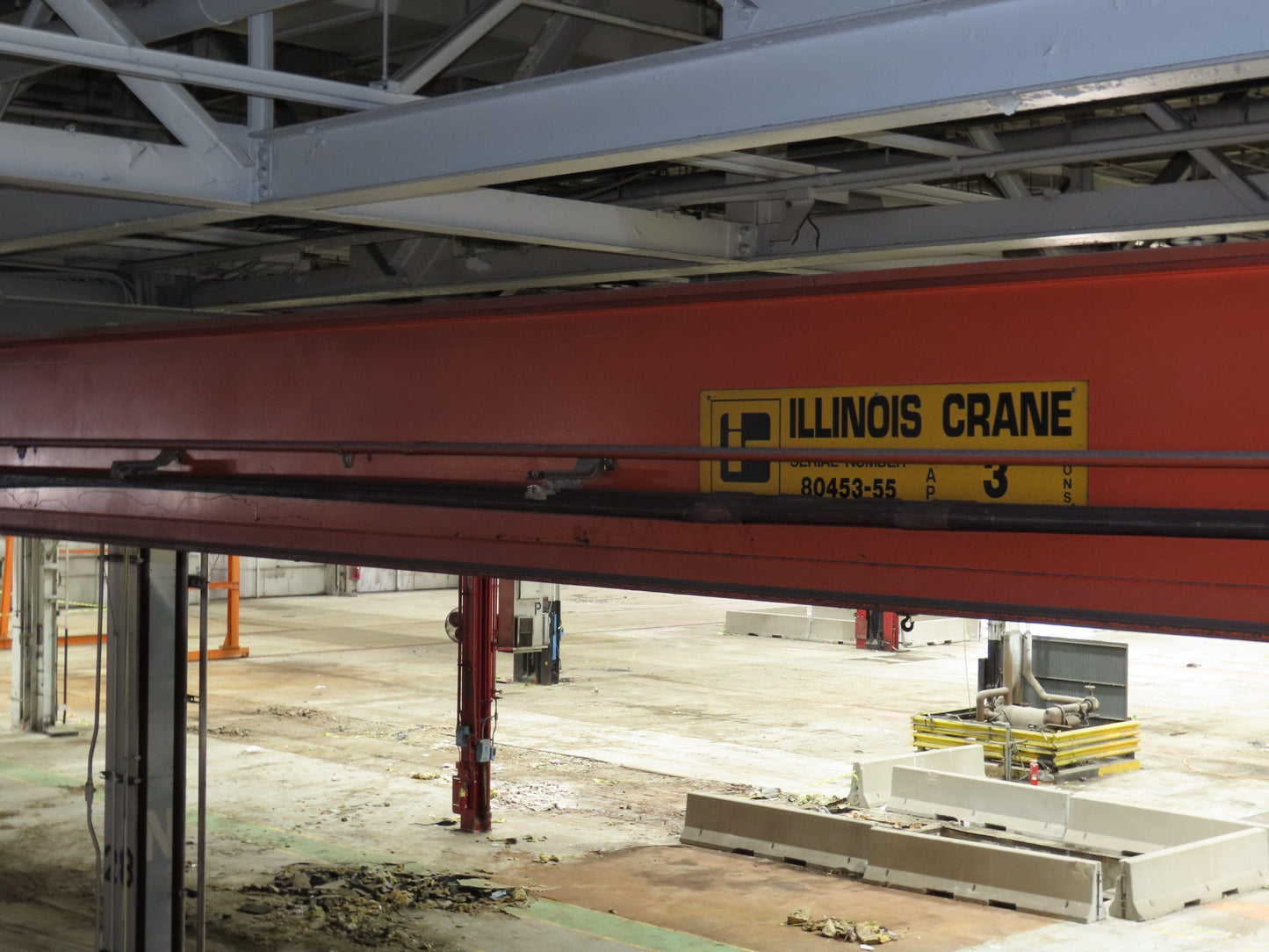

  • Main Girder Beam Size (Height x Width x Length): 24"H x 14"W x 41' 7" Length (3.25" bottom flange)
  • Bridge Speed (feet per minute): Single speed

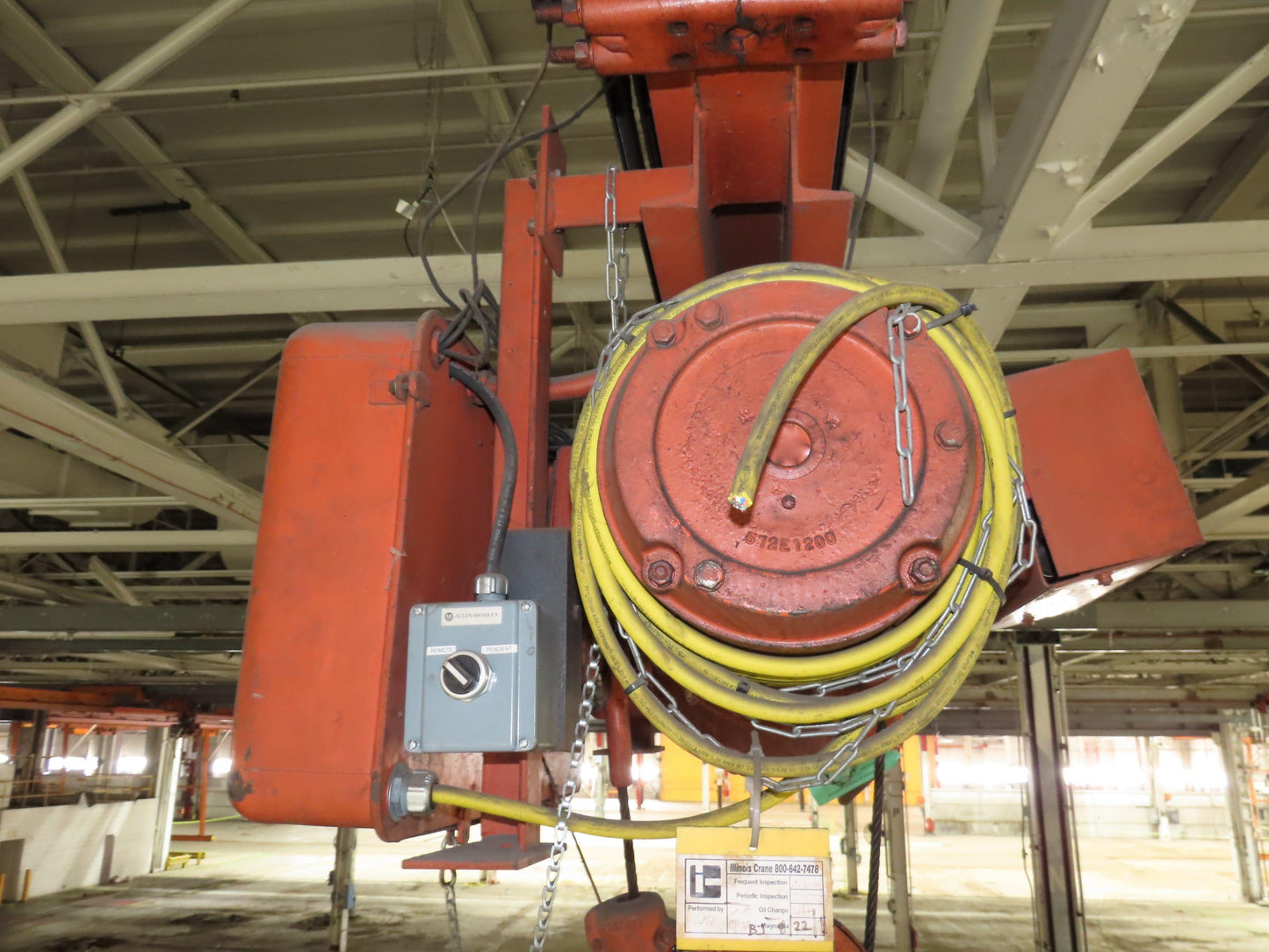

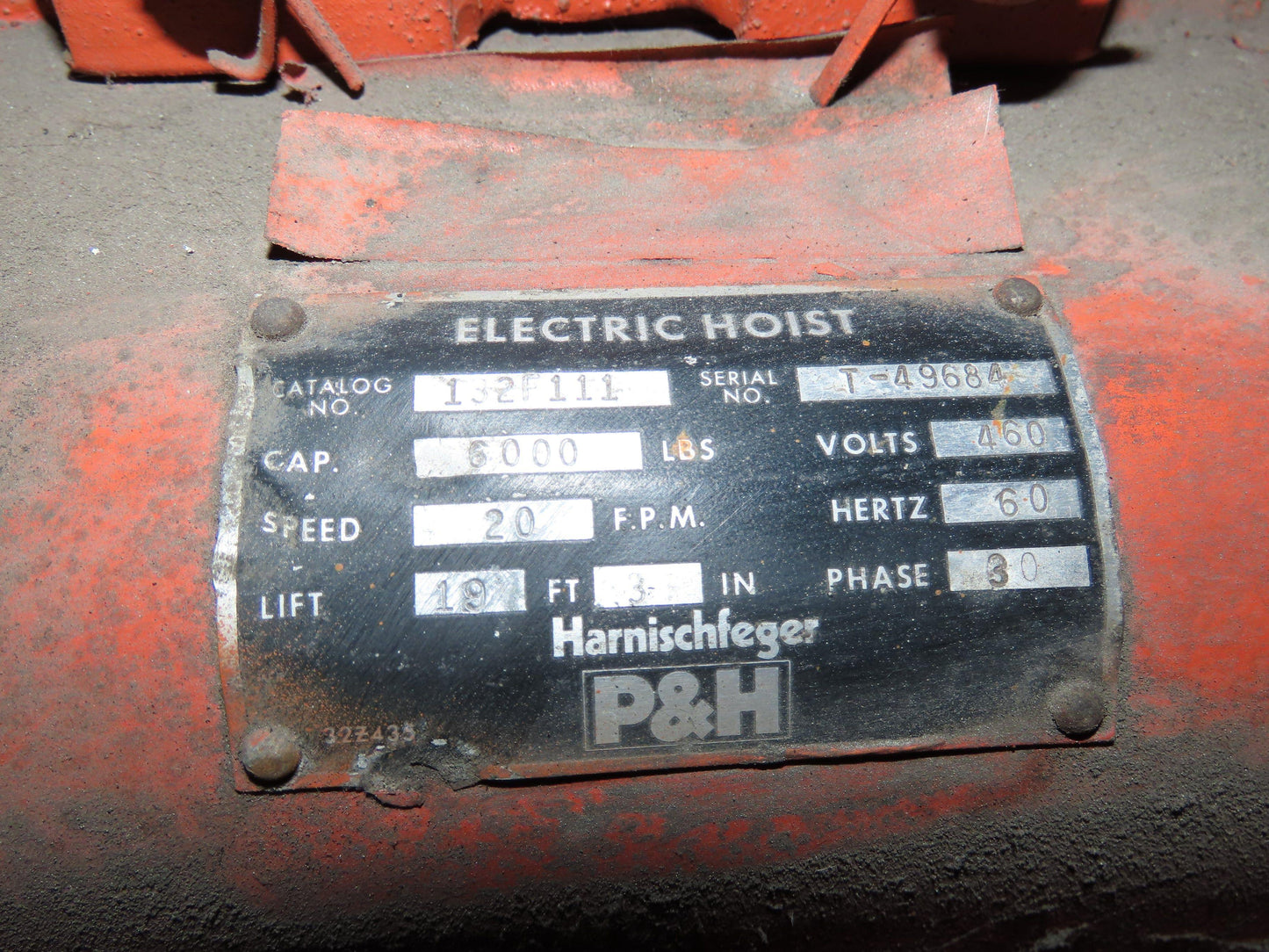

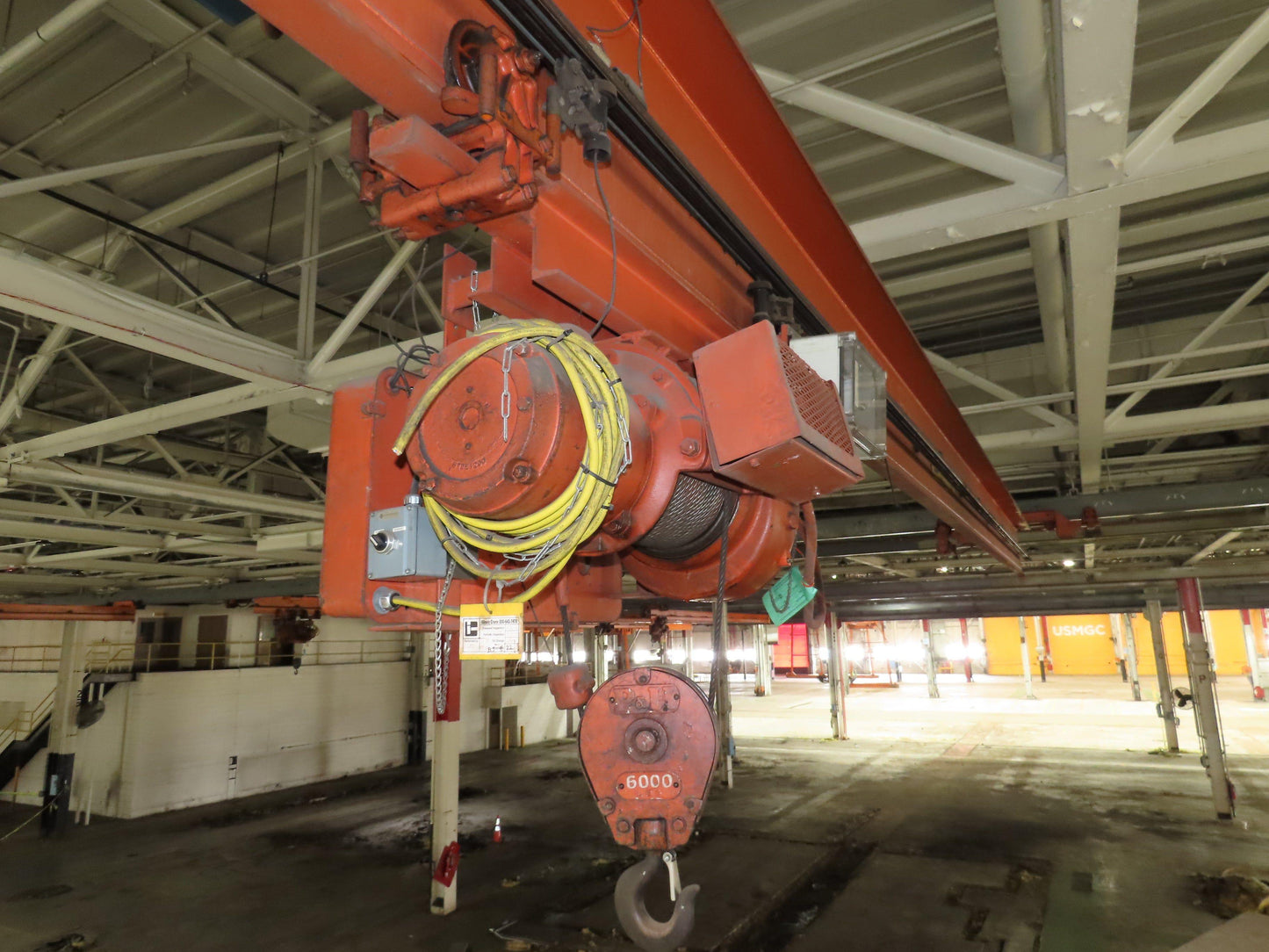

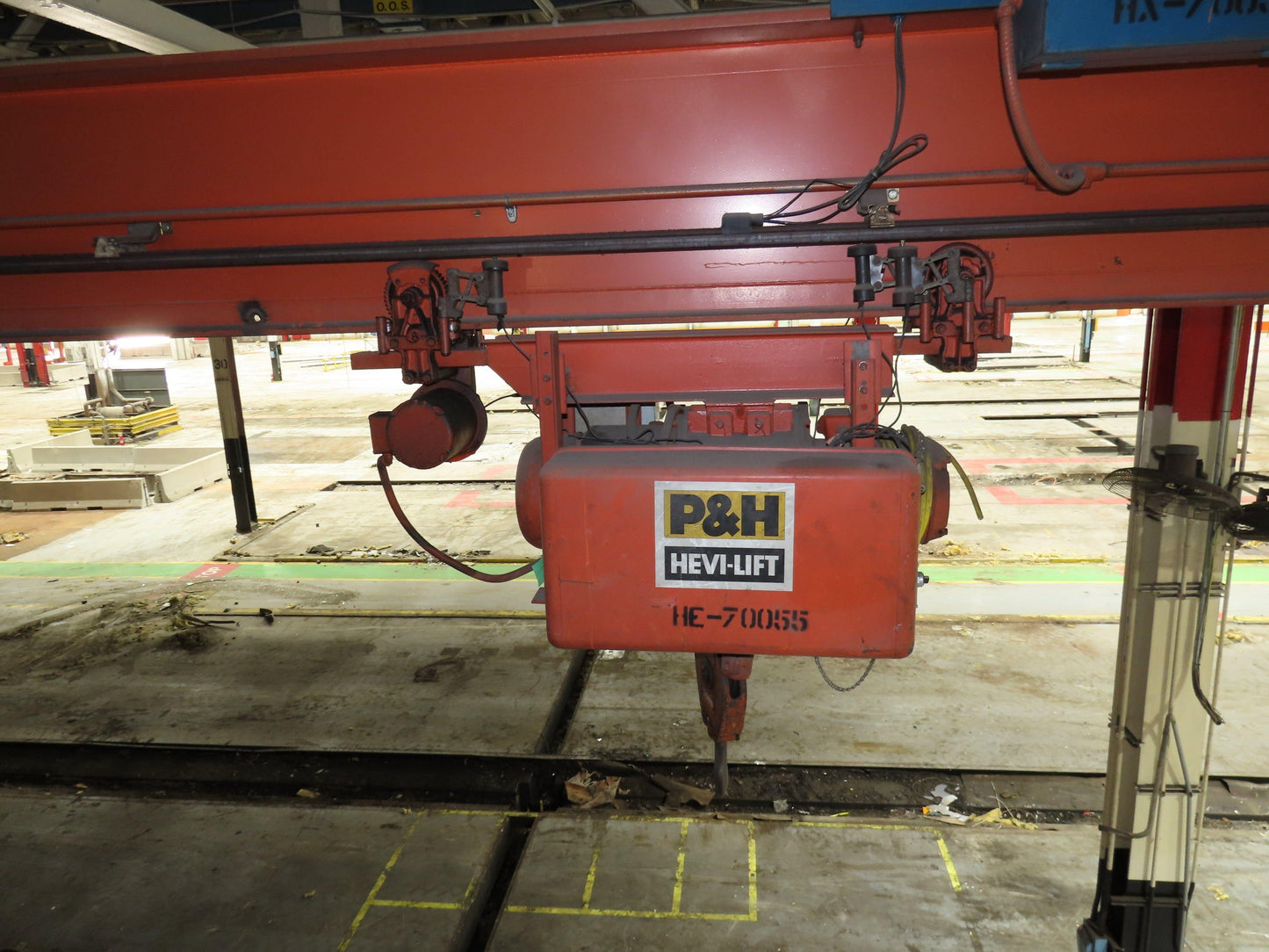

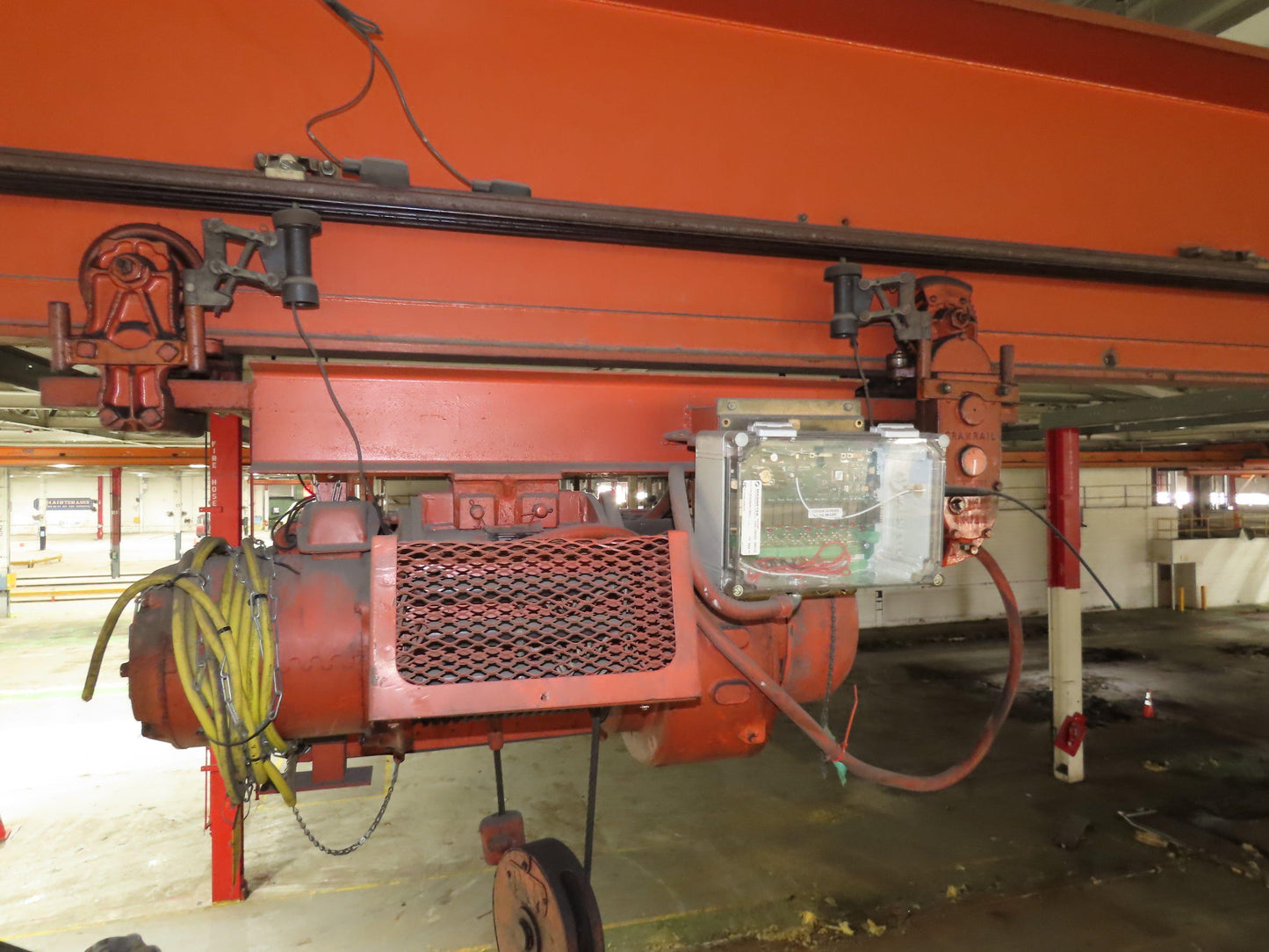

  • Hoist Brand: P&H
  • Lift Travel (feet): 19' 3"
  • Lift Speed (feet per minute): 20

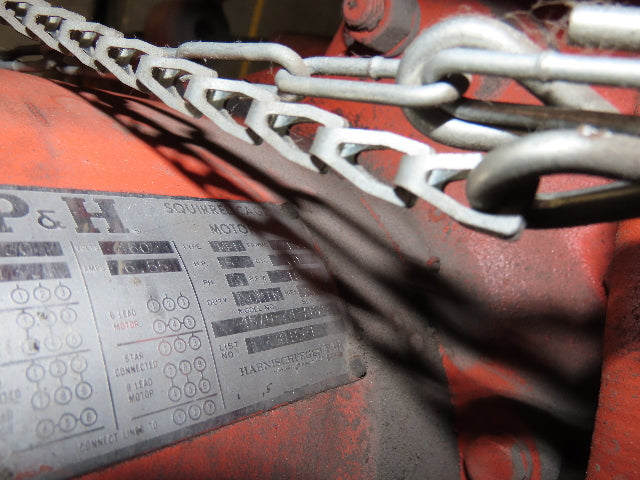

  • Motor Horse Power: 5
  • Lifting Medium: Cable
  • Hoist Power Trolley Speed (feet per minute): 80
  • Hoist Trolley Length of Travel: 44' 8"
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 48"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 73"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 80"
  • Bridge Crane is in working condition.  Tested on site before removal.

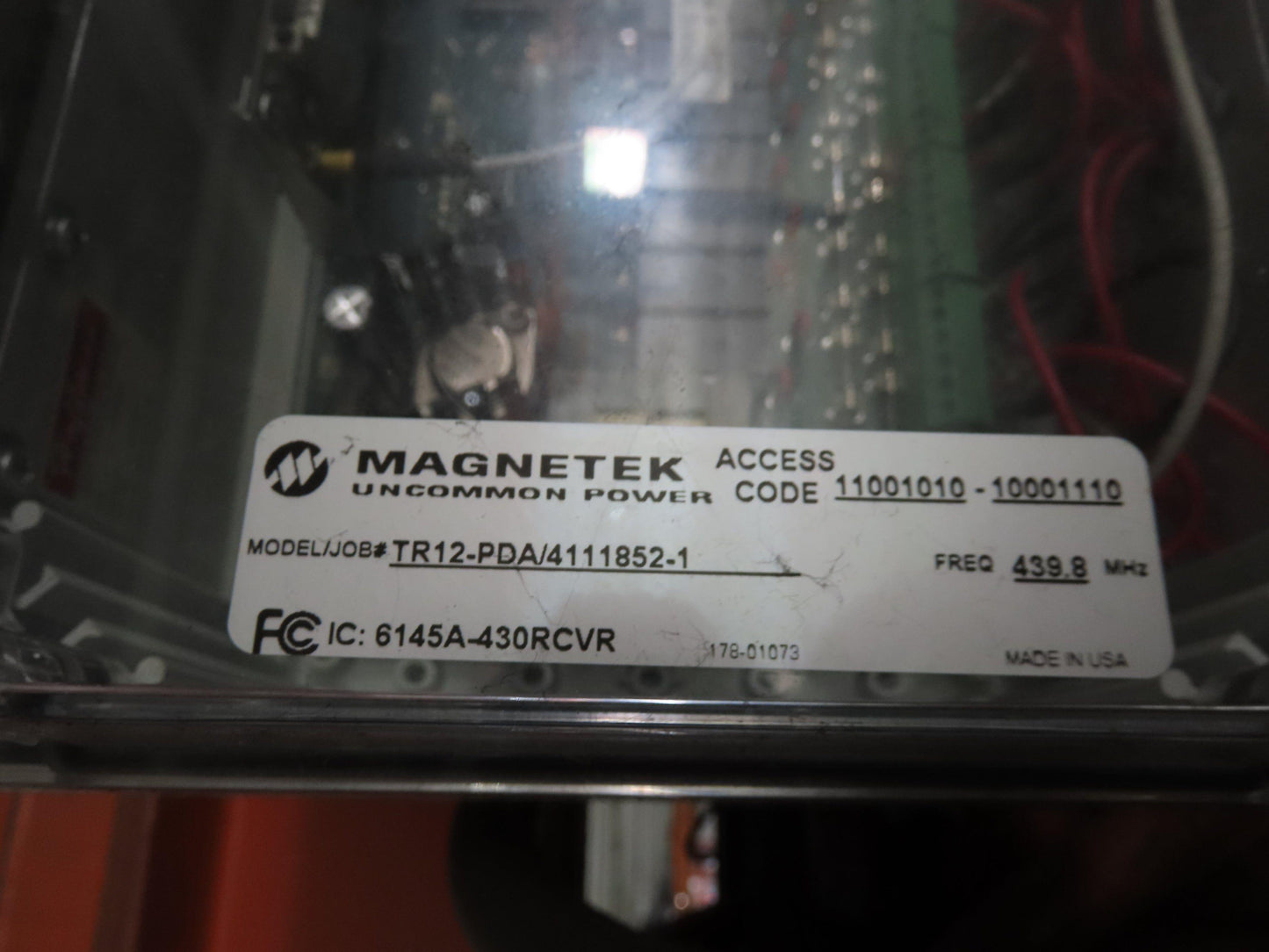

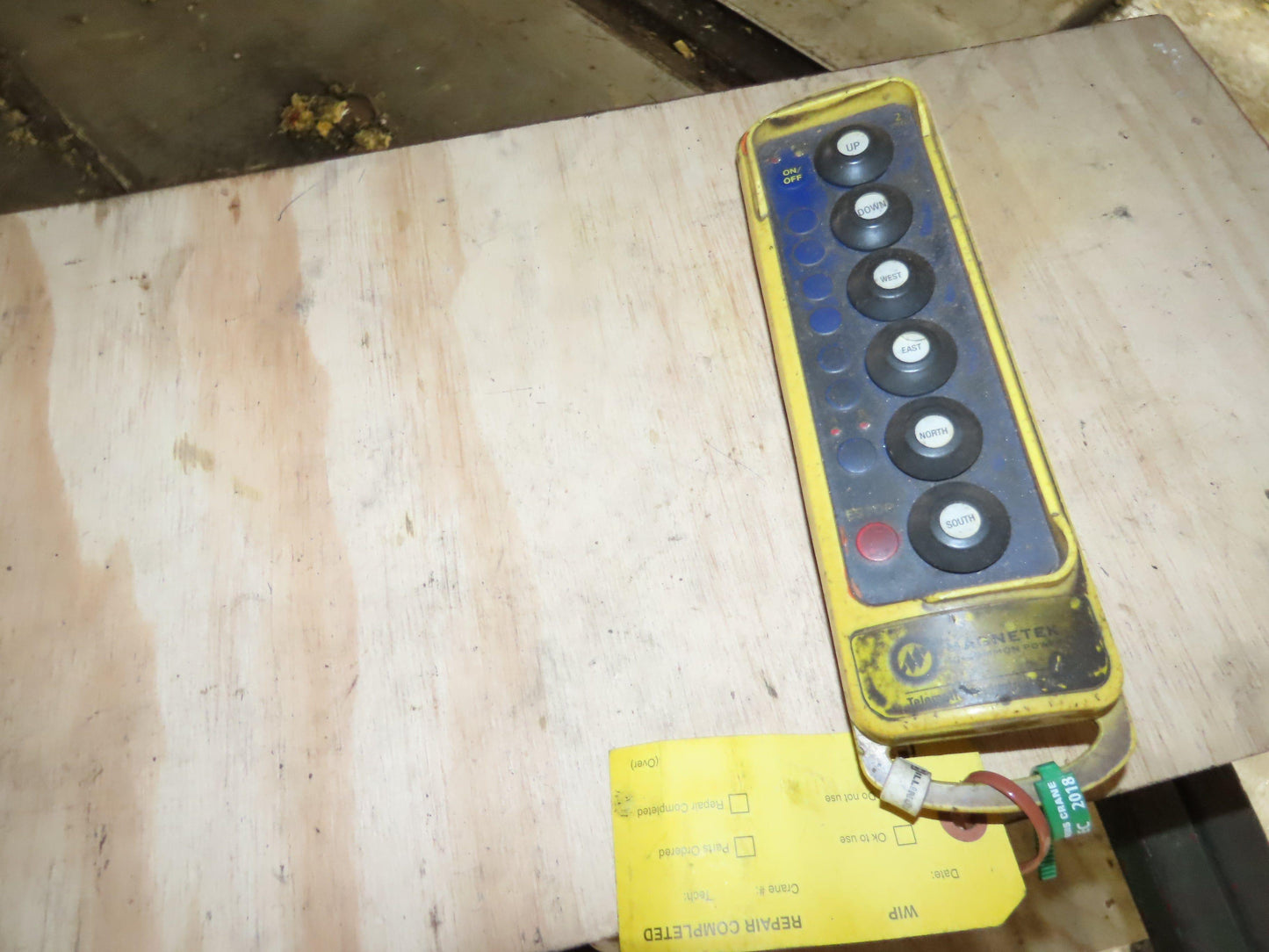

  • Includes corded and wireless pendants.
  • Single speed bridge, trolley and hoist.
  • End truck length: 76"
