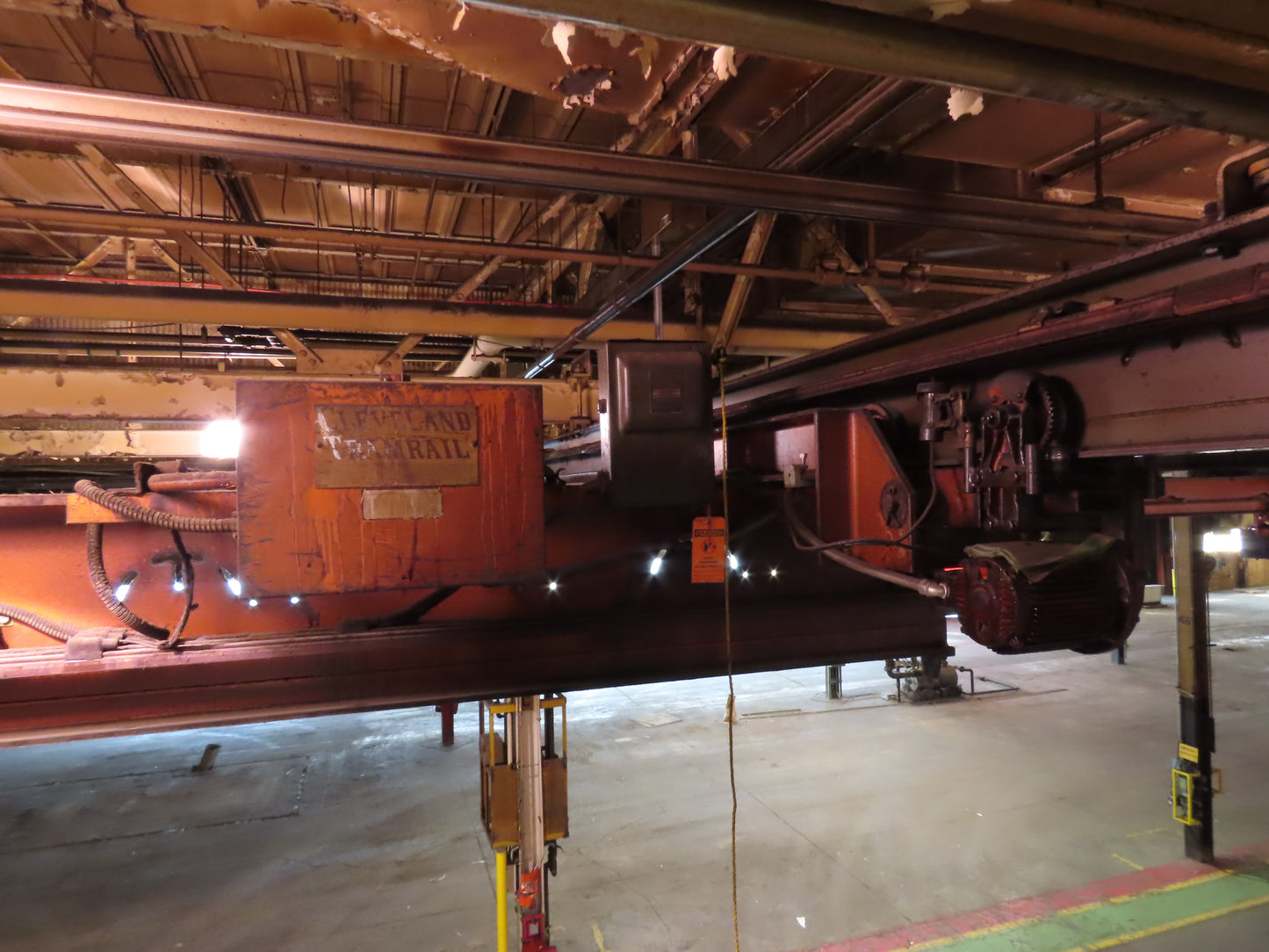

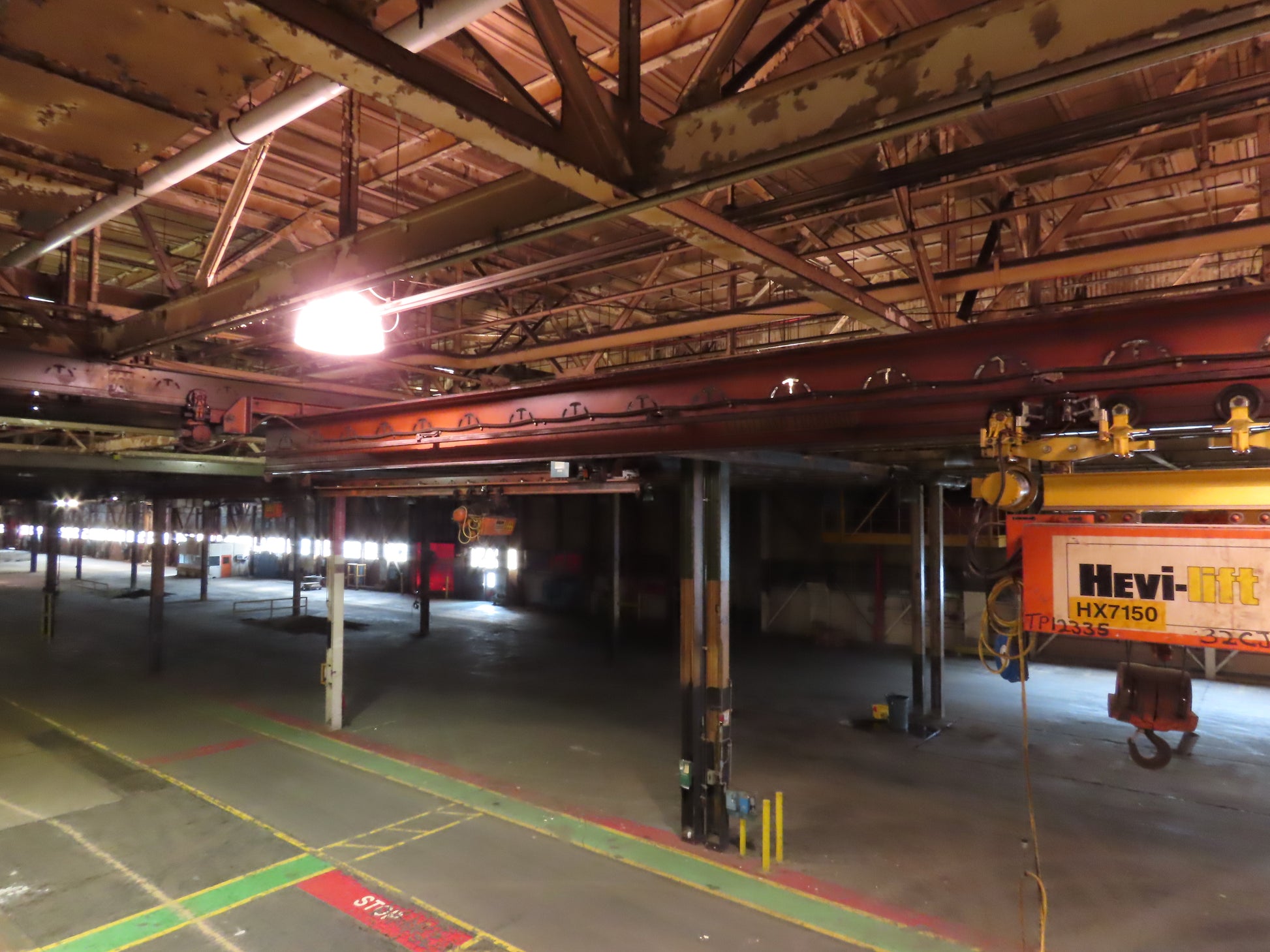

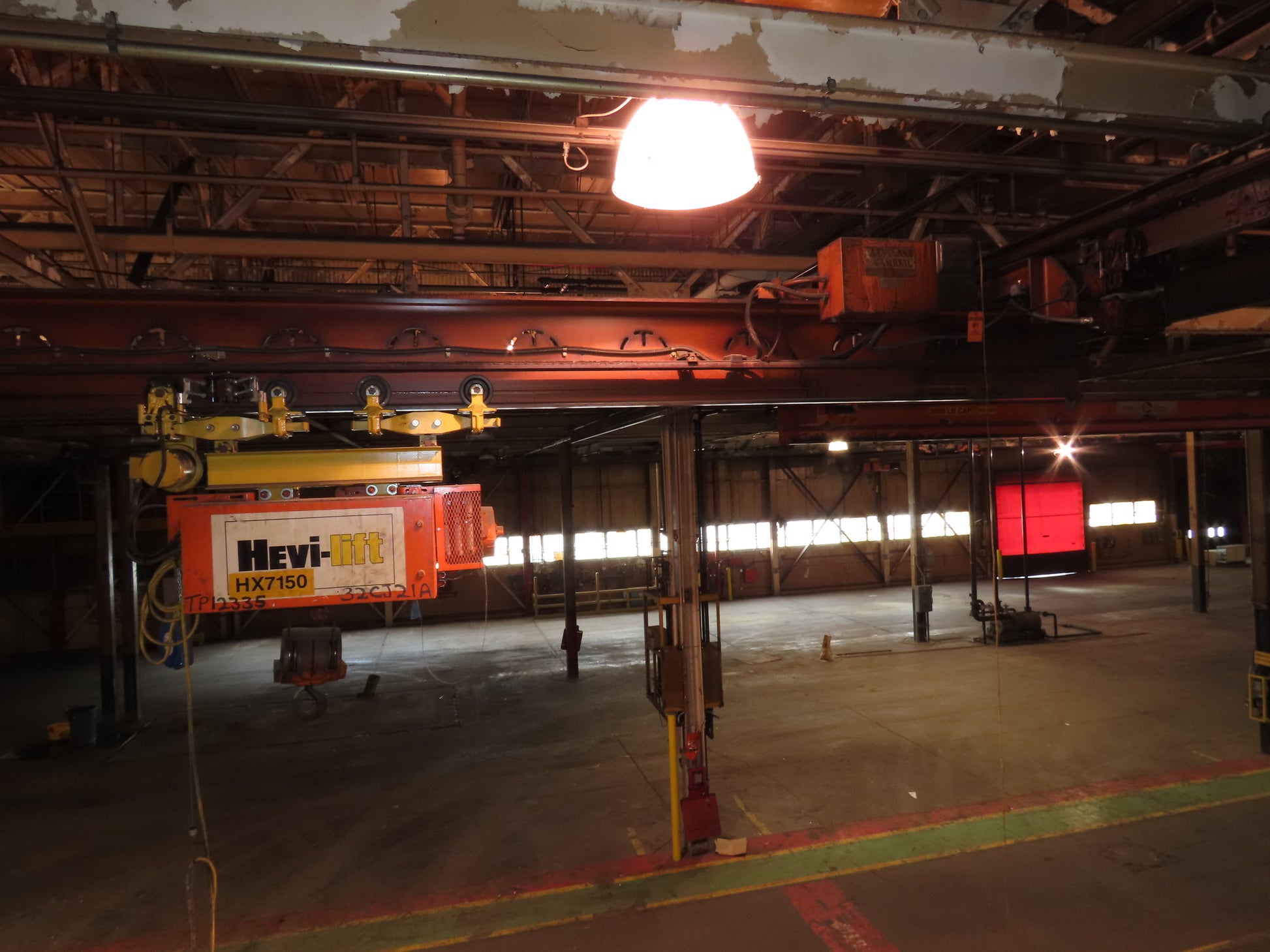

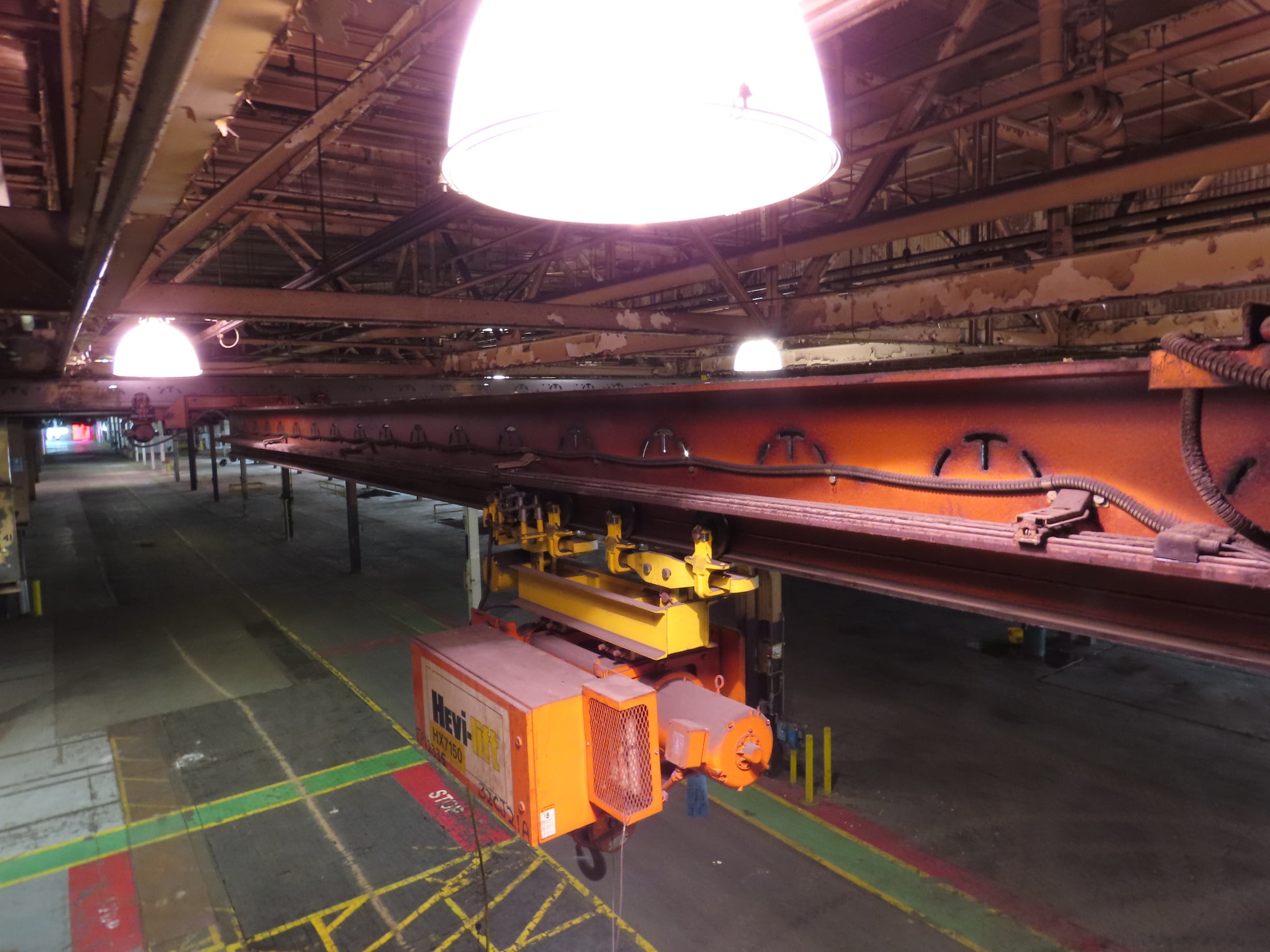

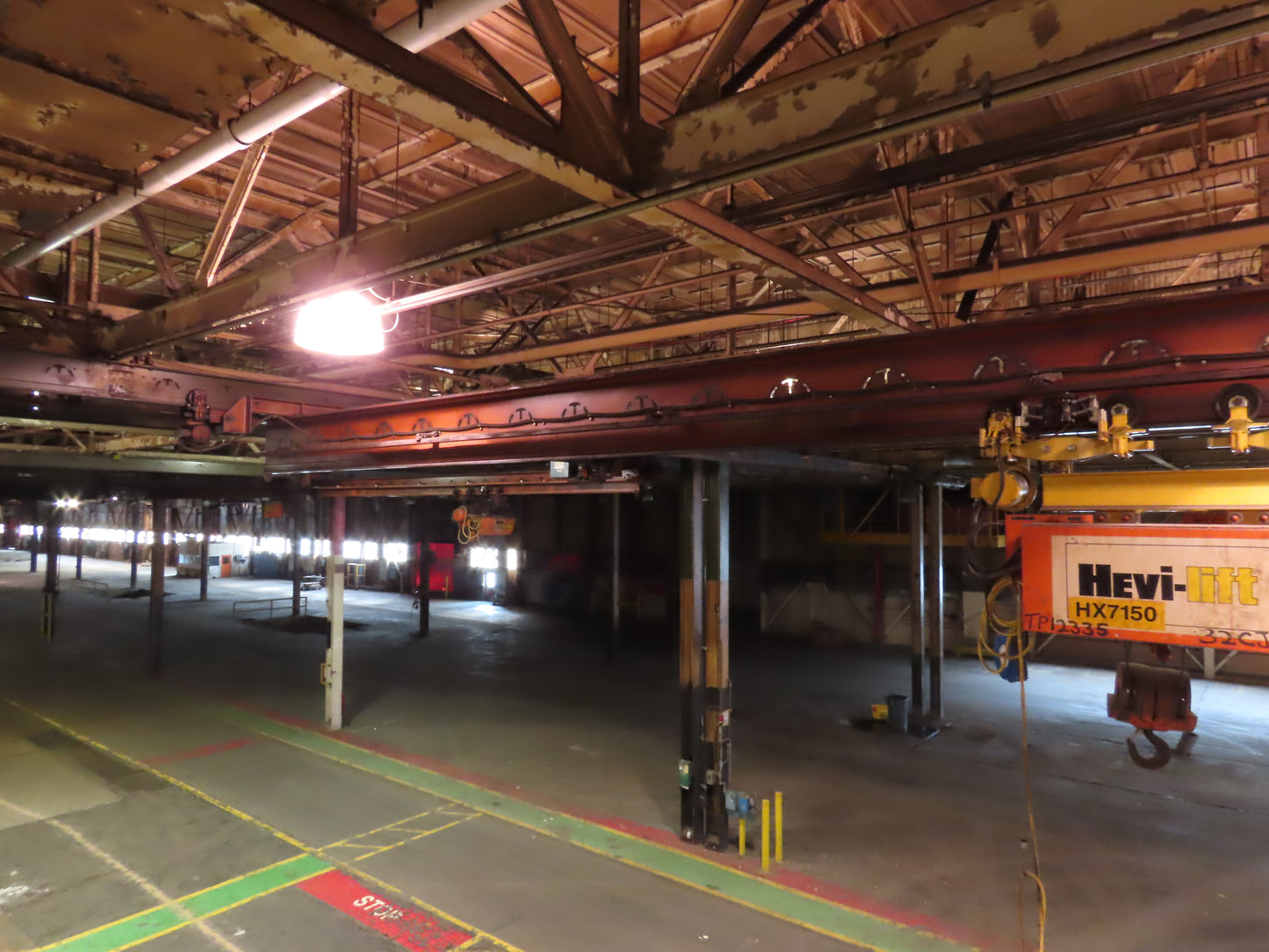

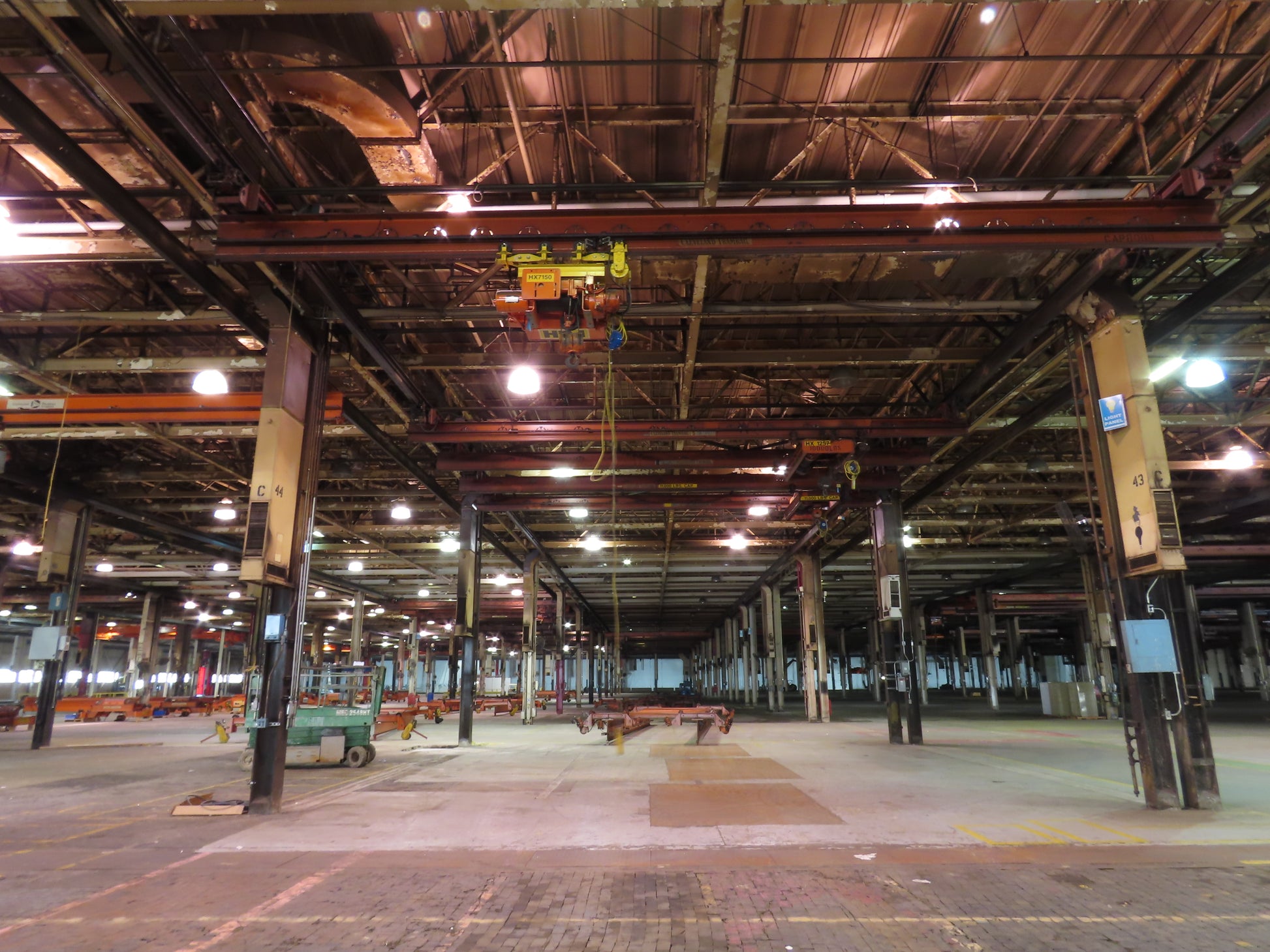

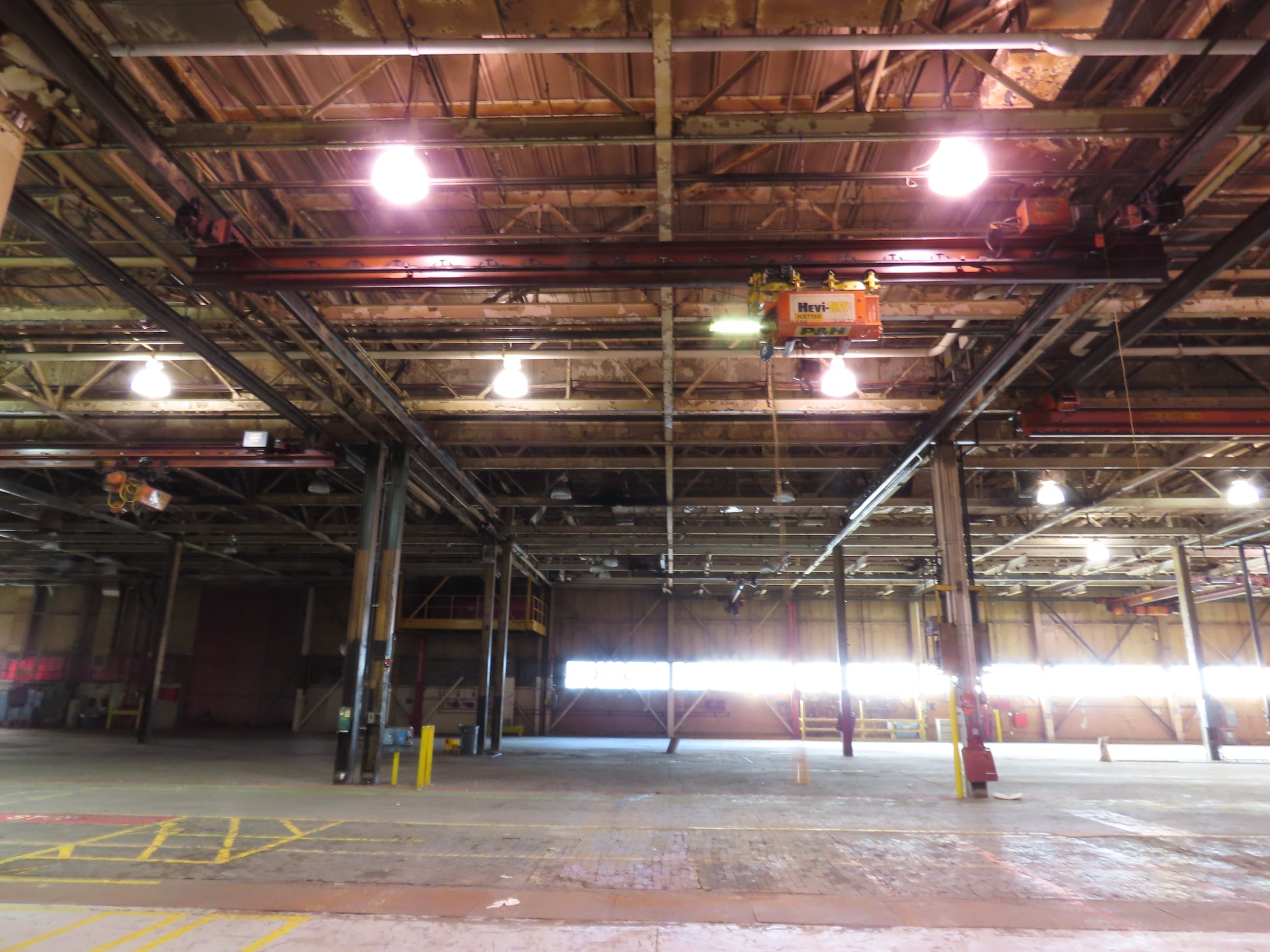

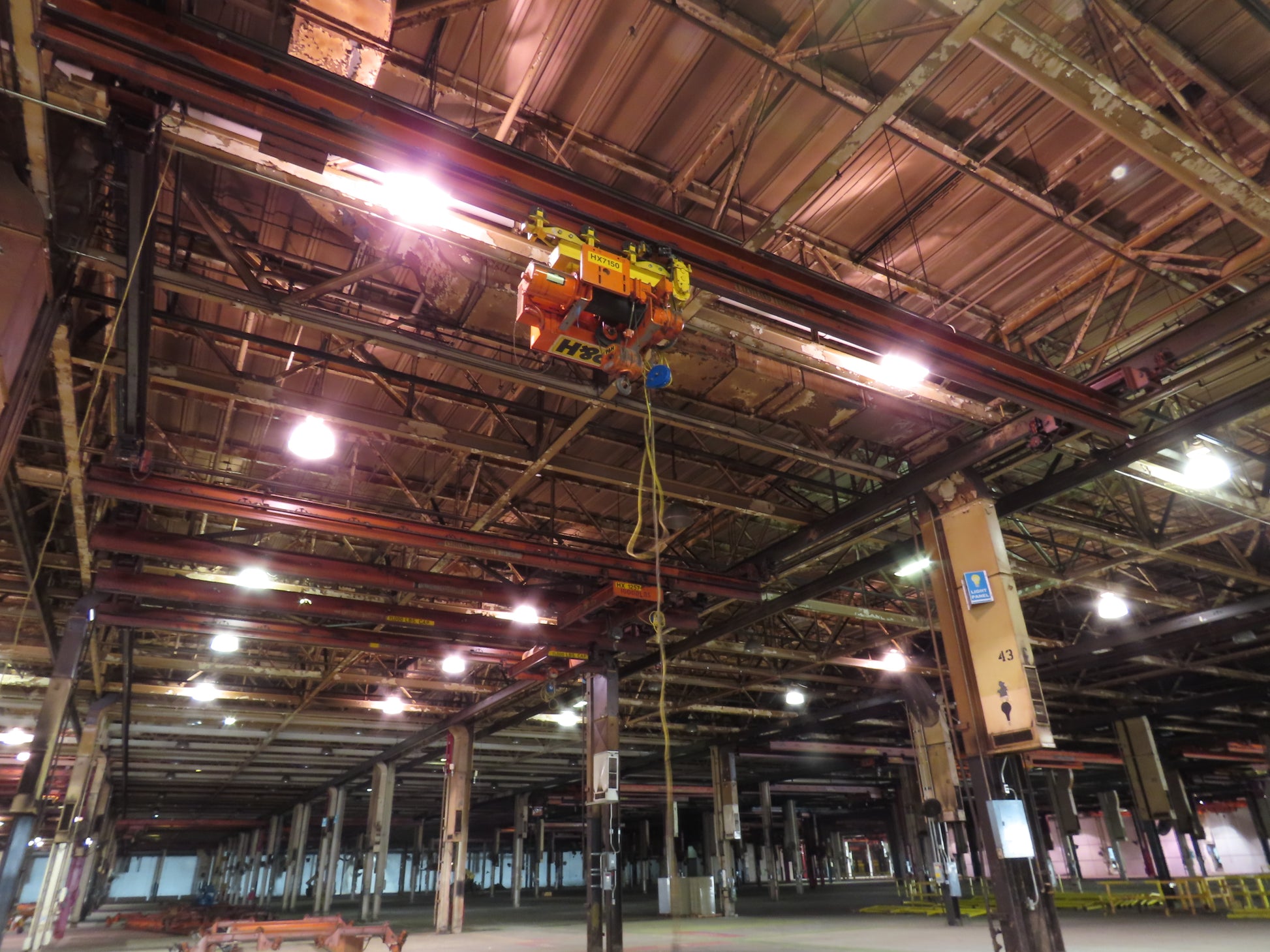

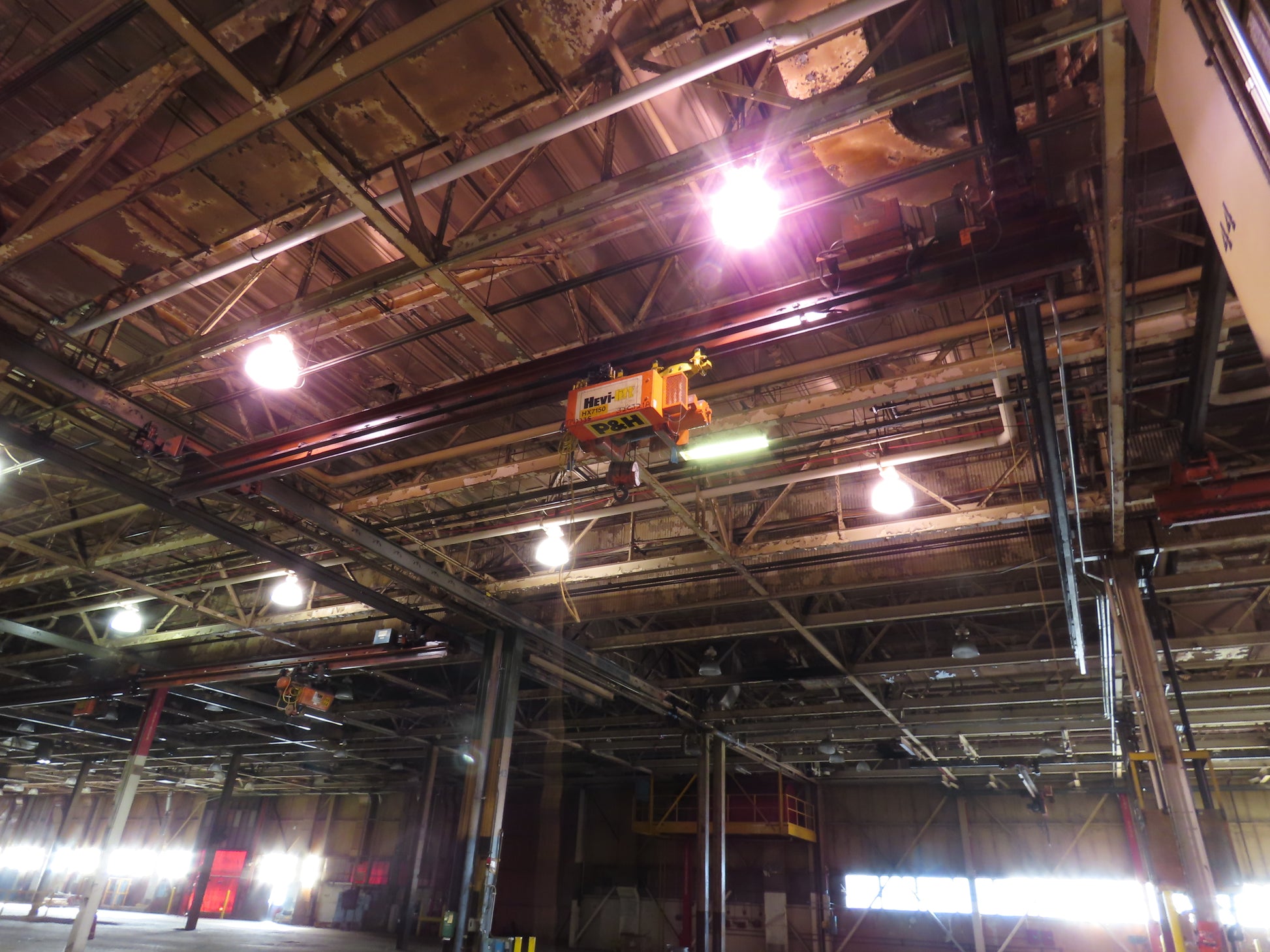

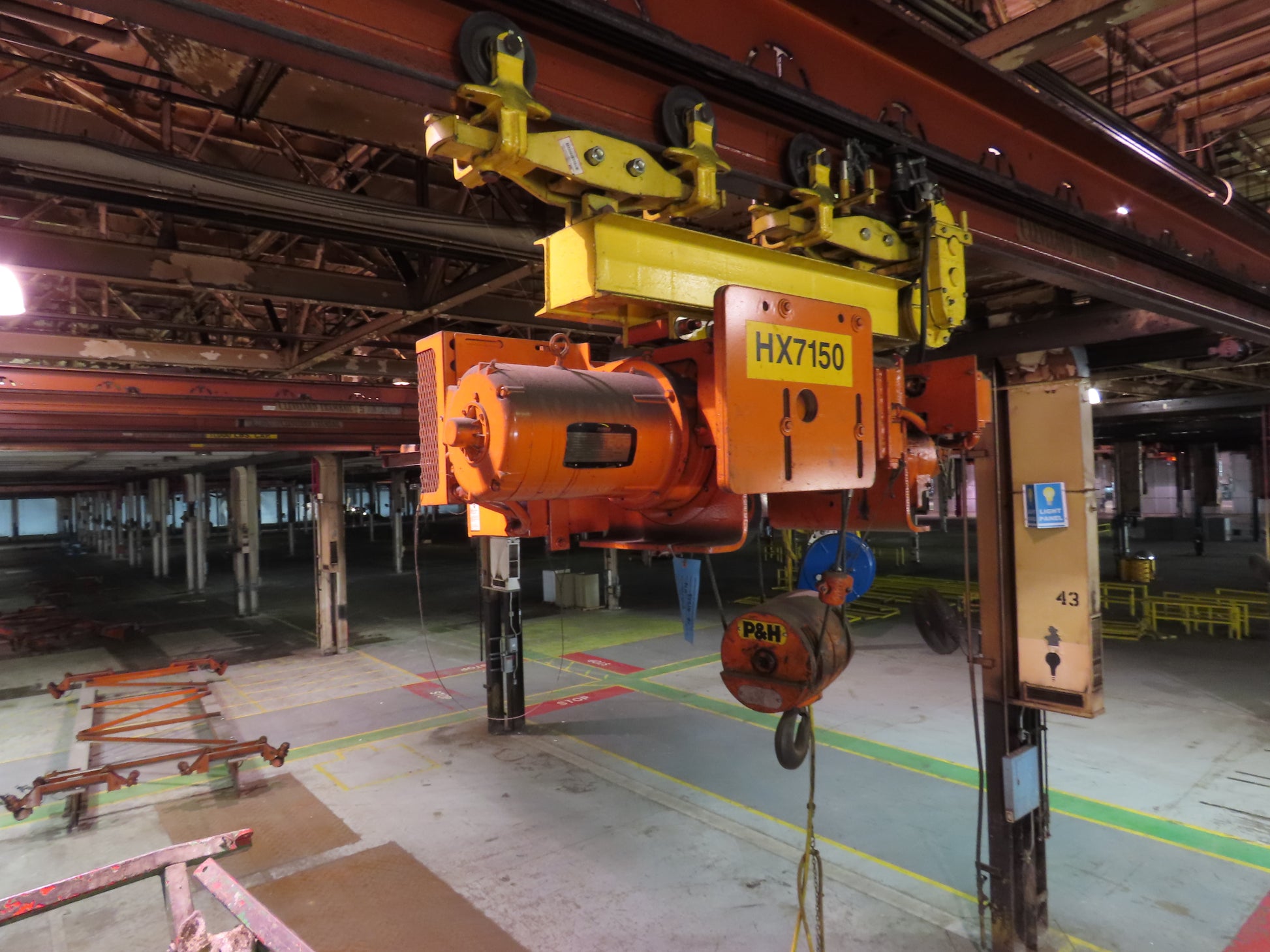

Cleveland Tramrail P&H 4 Ton Single Girder Underhung Bridge Crane 34' 10" Span

Cleveland Tramrail P&H 4 Ton Single Girder Underhung Bridge Crane 34' 10" Span

SKU #268245

Product Condition: Used

Your Price
$8,549.99
$9,999.99 $8,549.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail P&H
Model

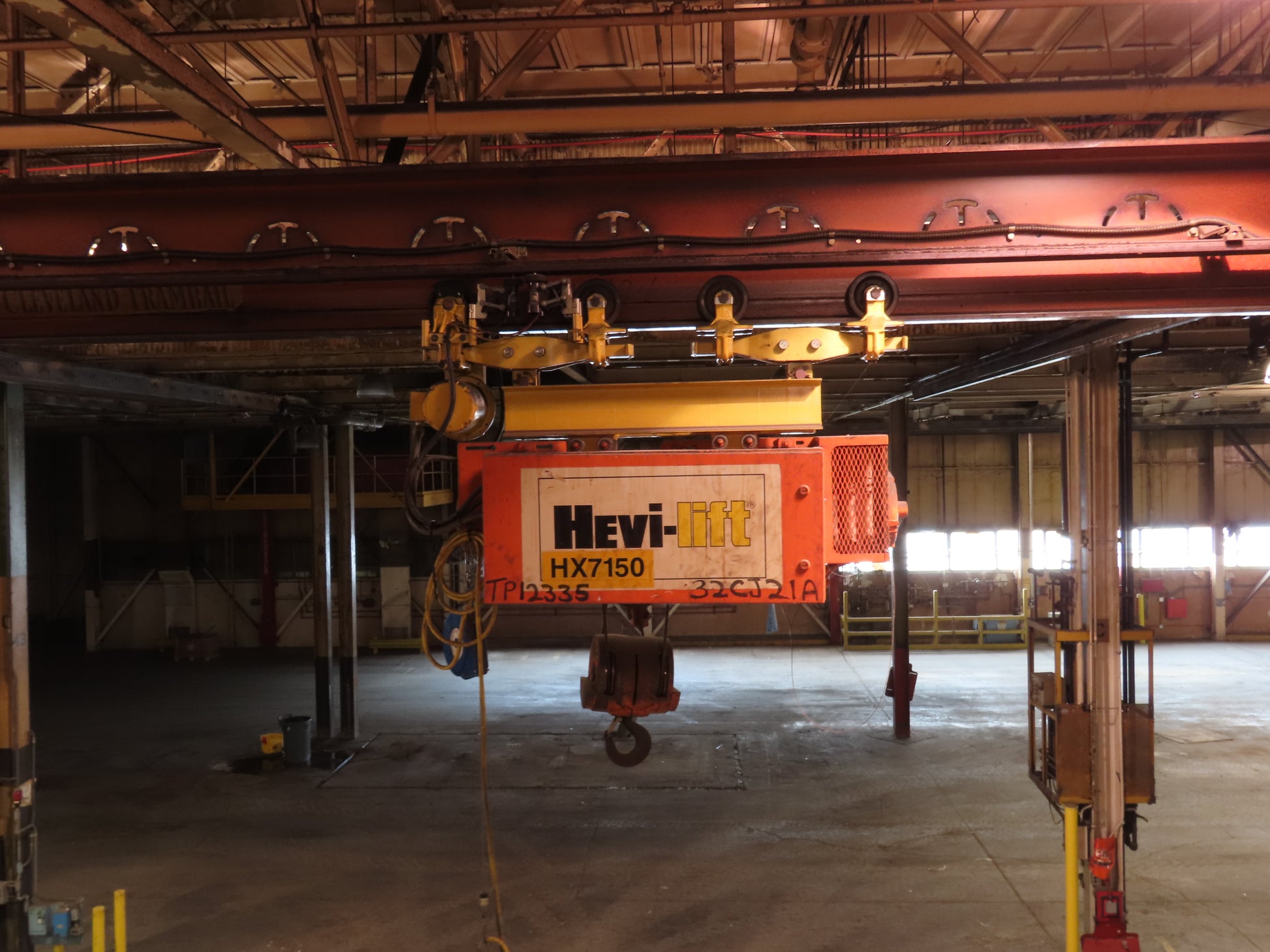

HX7150
MPN
N/A
Condition
Used

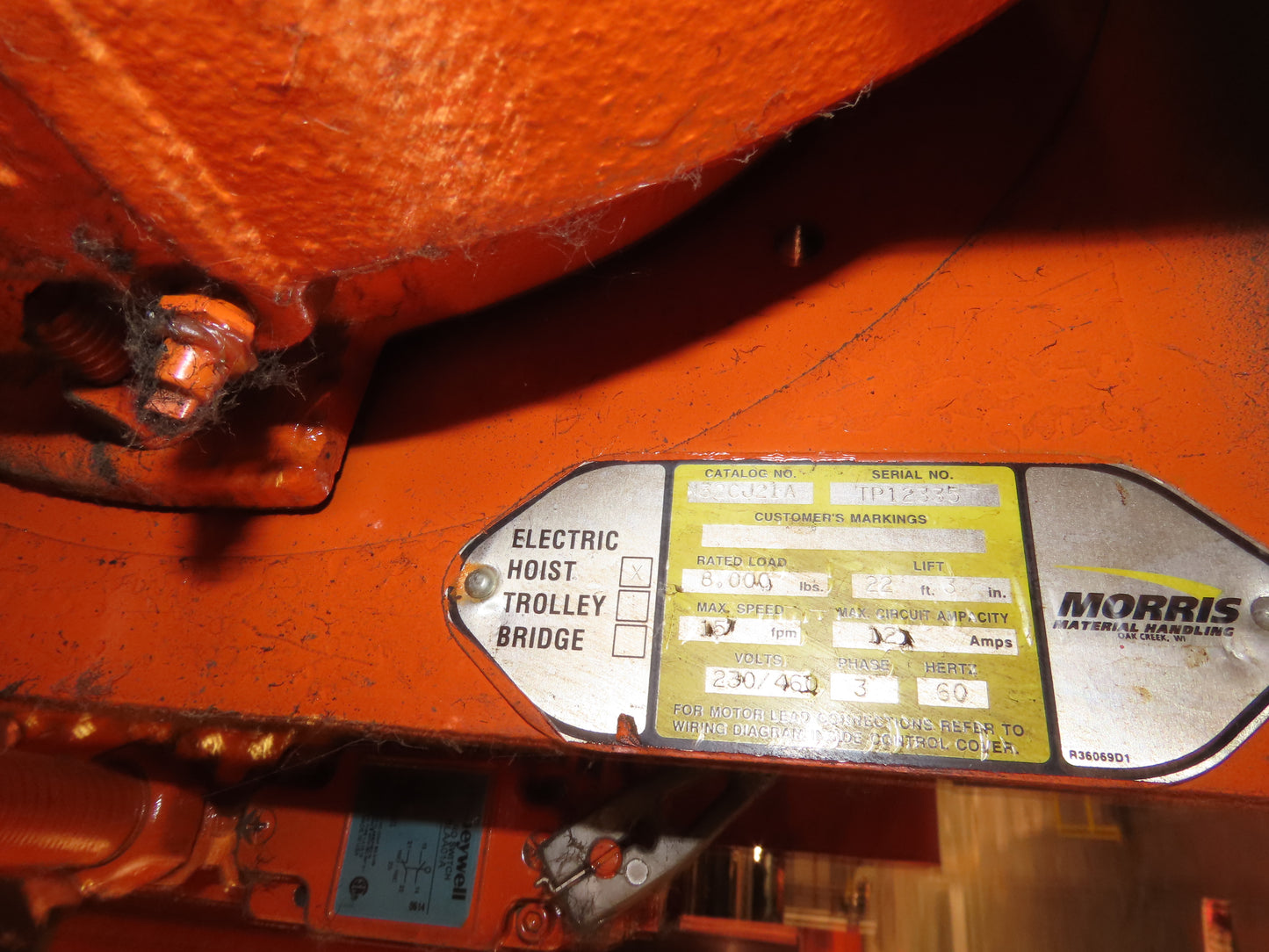

  • Capacity (tons): 4
  • Capacity (lb): 8000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 34' 10"

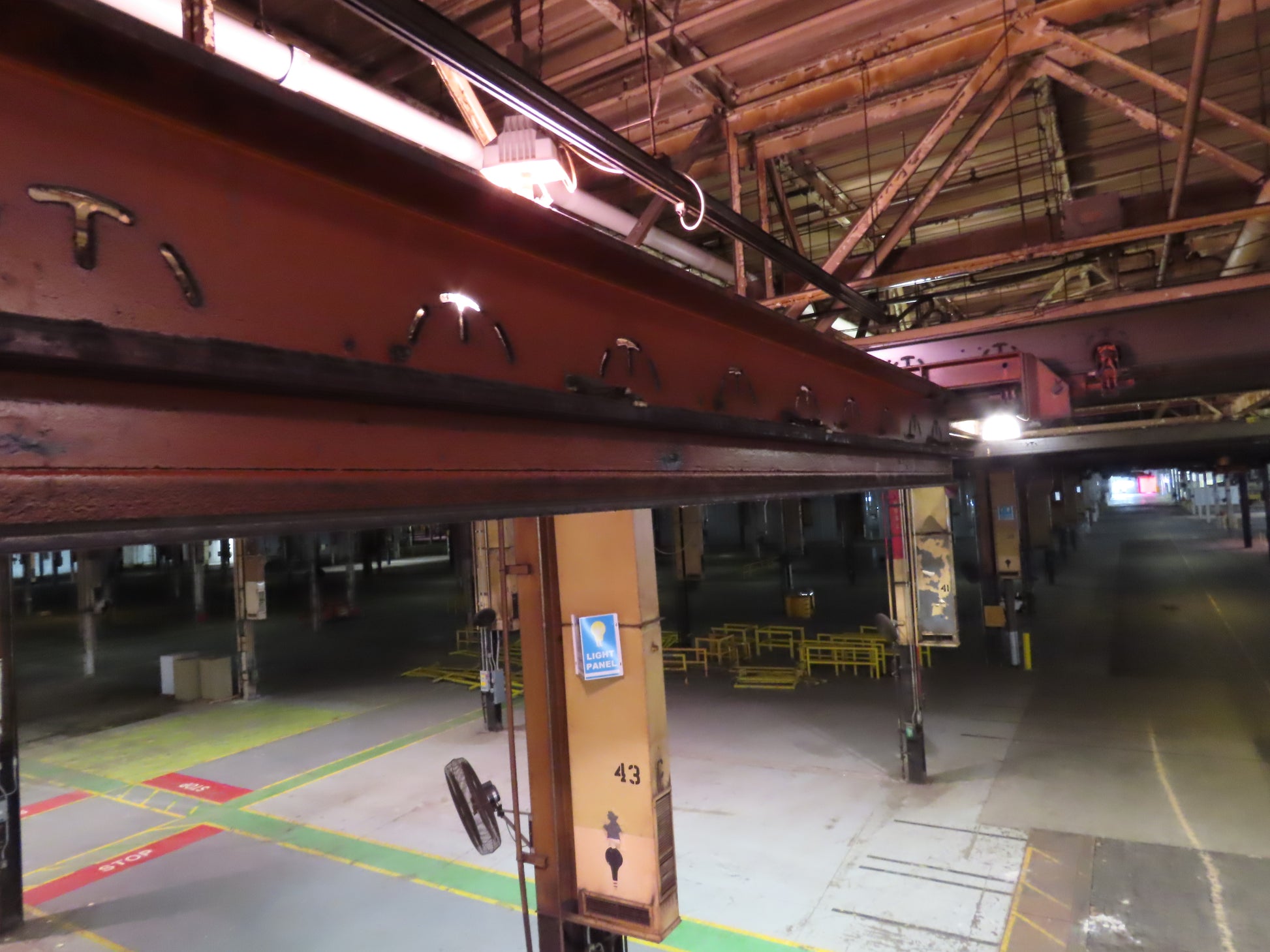

  • Main Girder Beam Size (Height x Width x Length): 20"H x 11"W x 37' 10"L

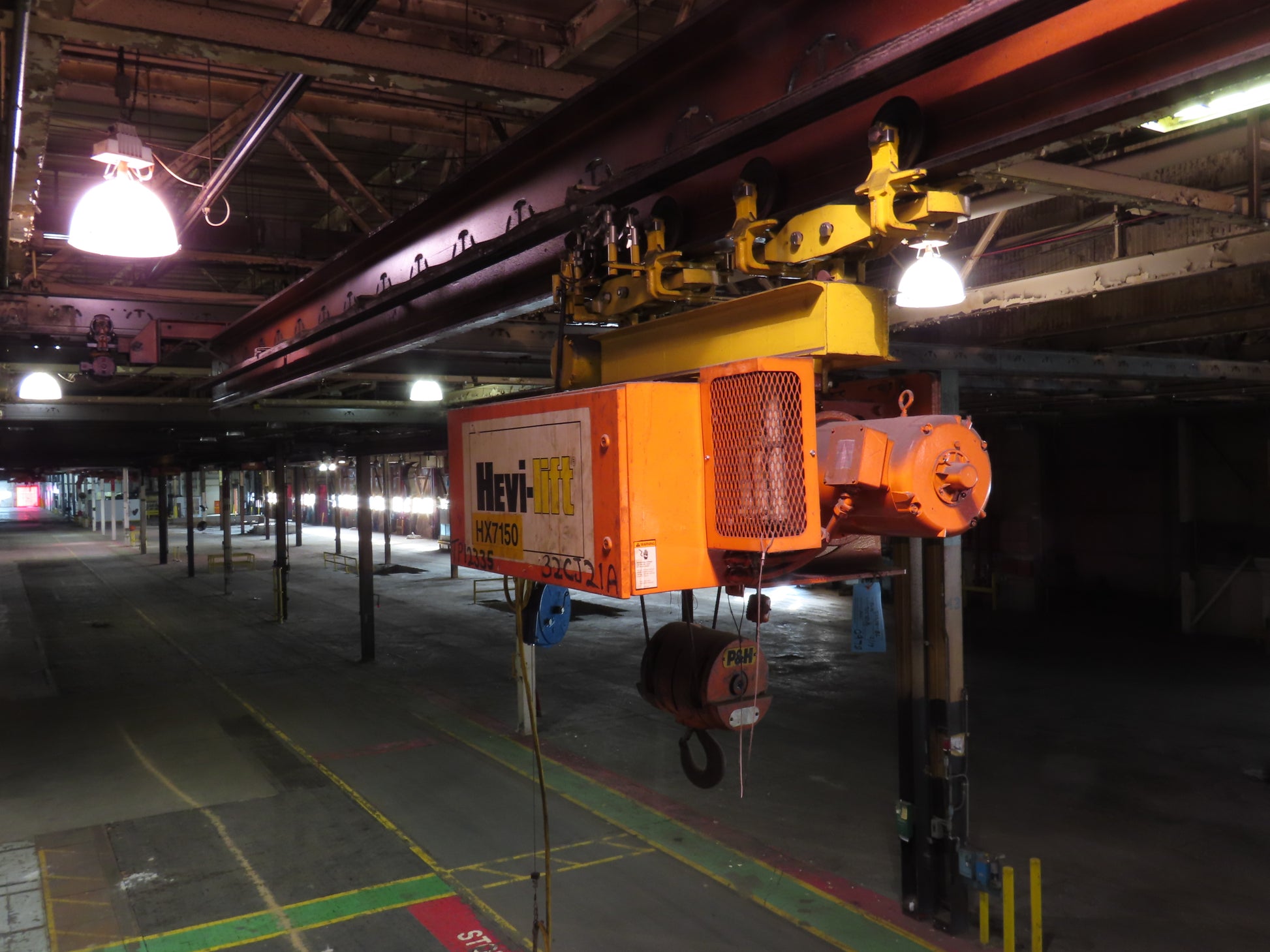

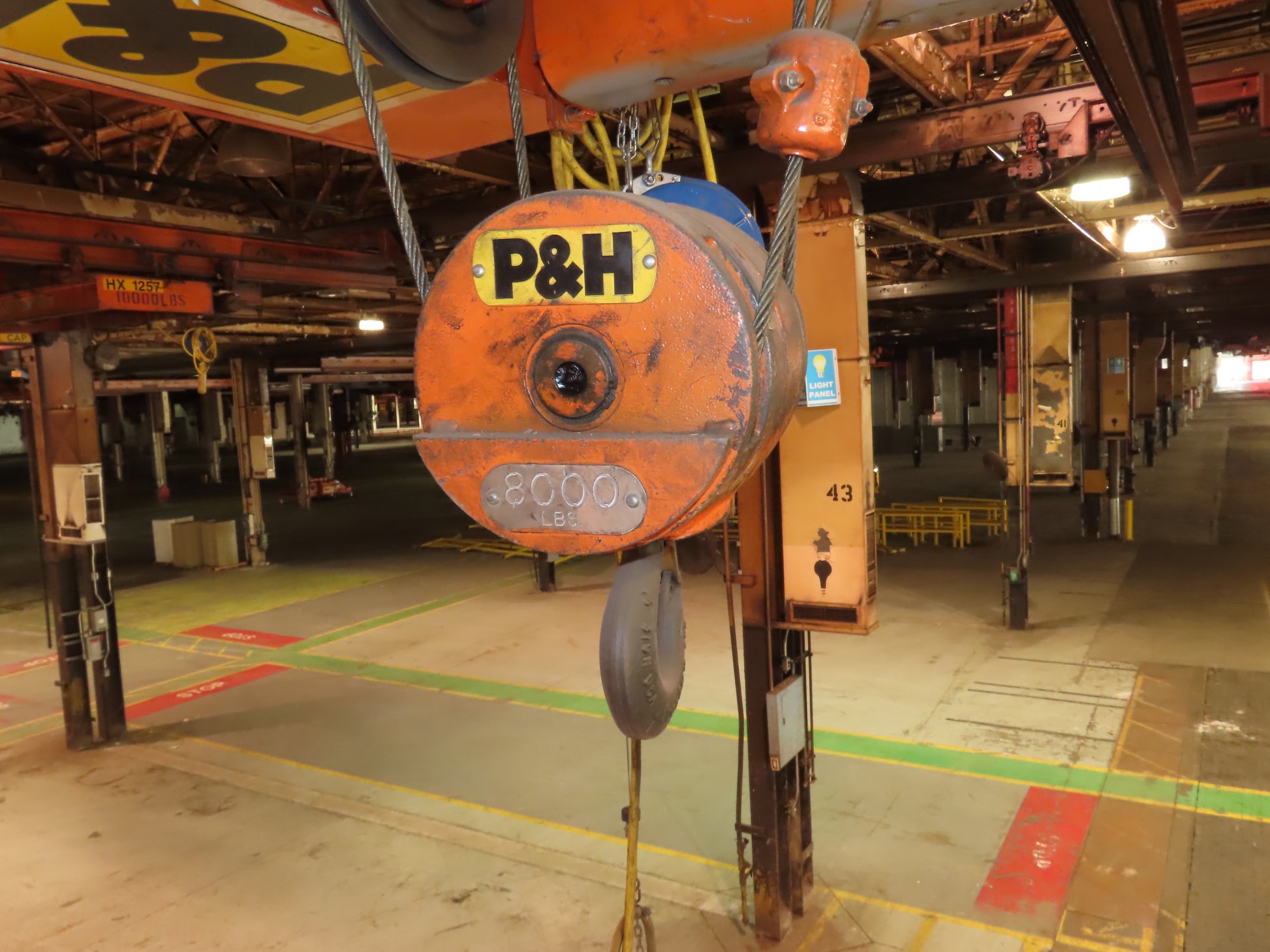

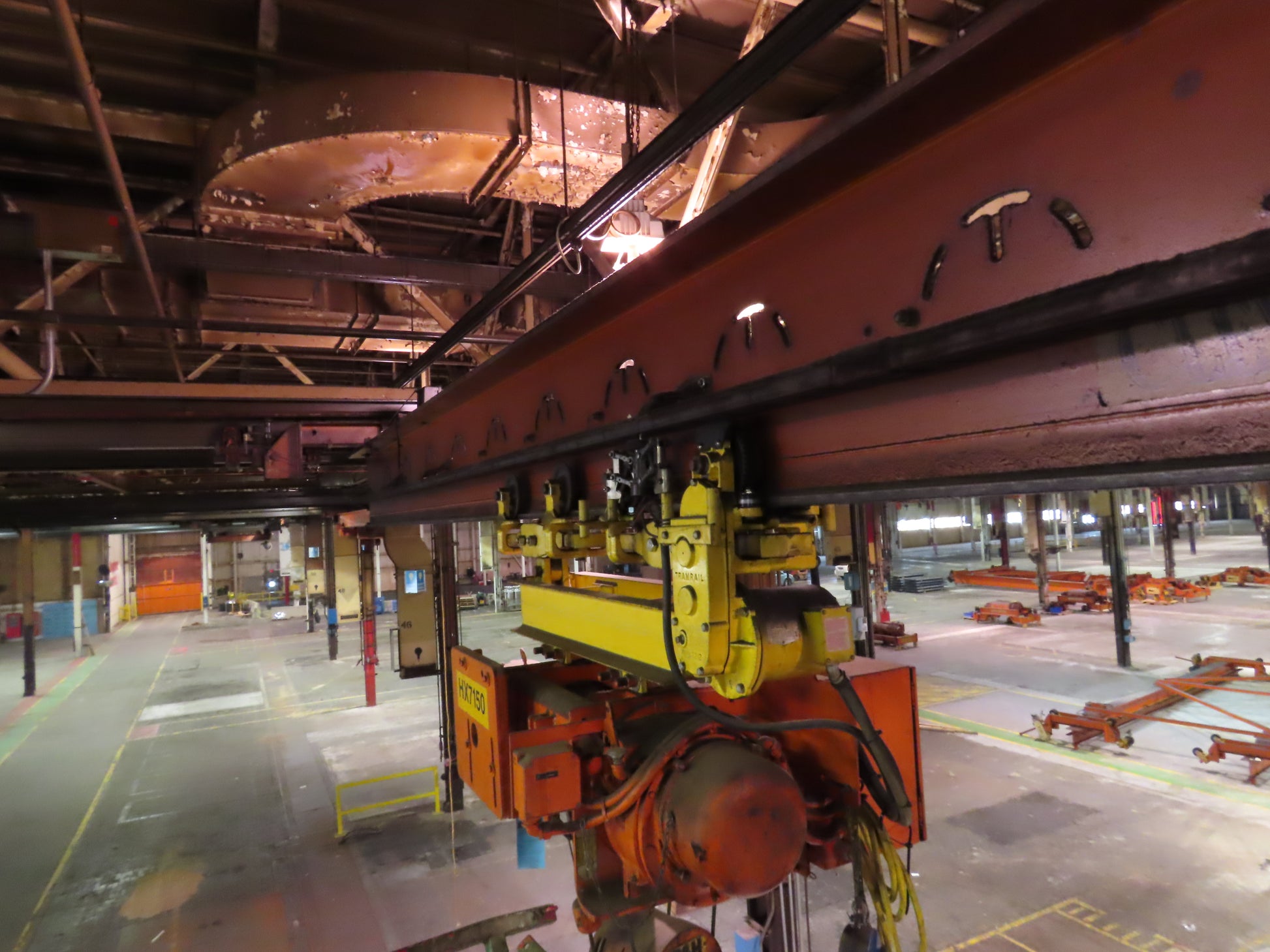

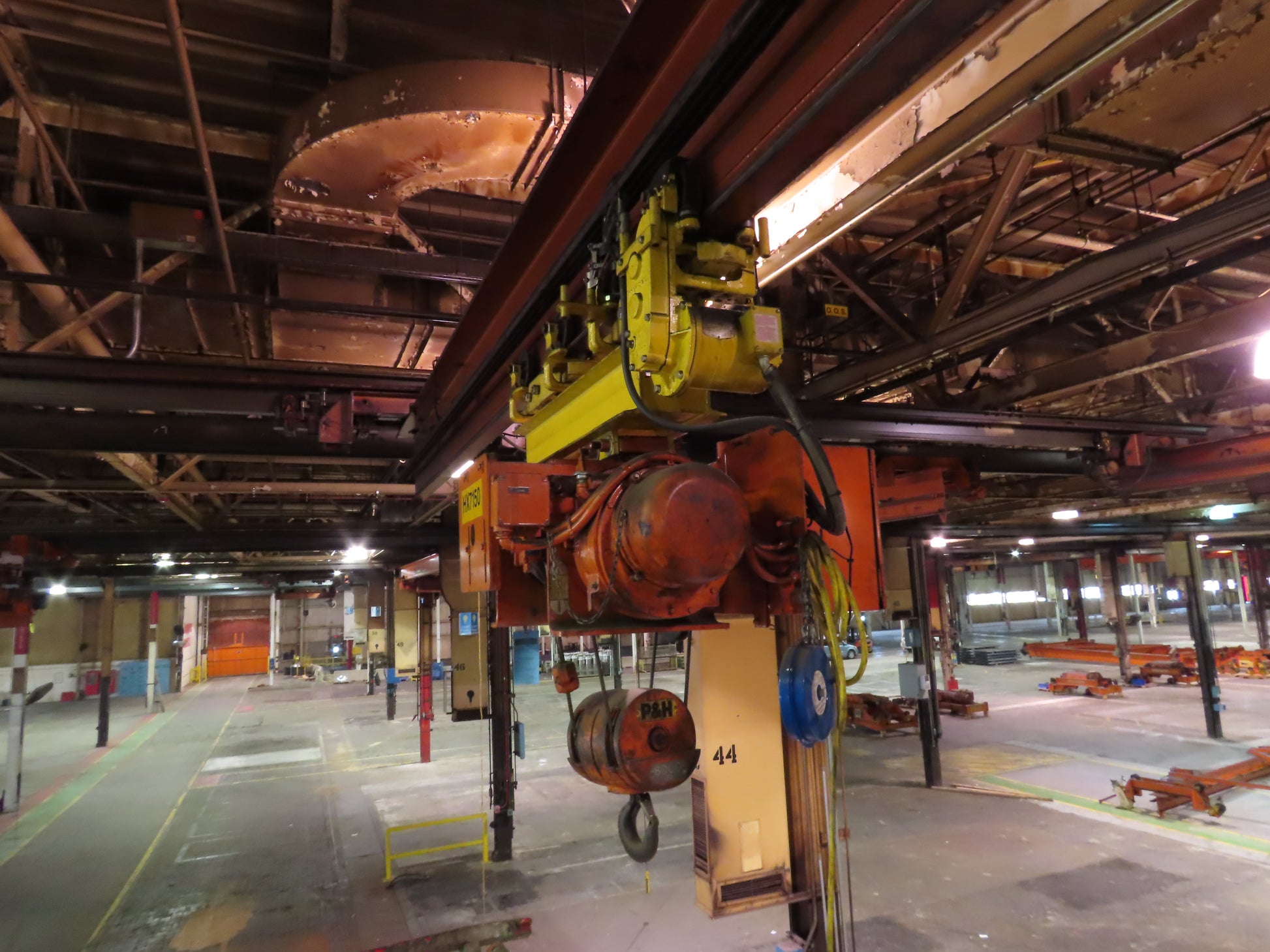

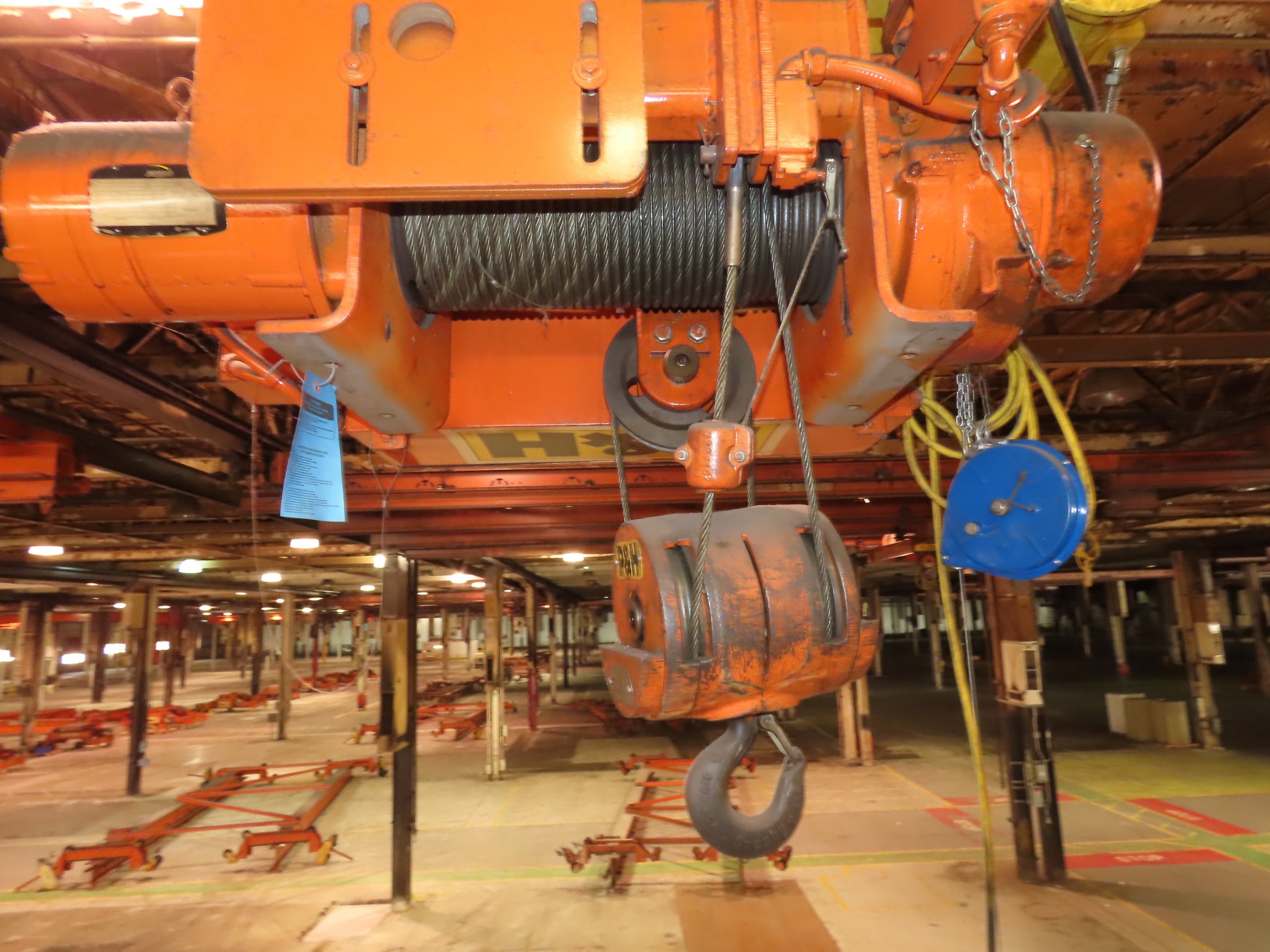

  • Hoist Brand: P&H
  • Lift Travel (feet): 22' 3"
  • Lift Speed (feet per minute): 15 FPM Single speed

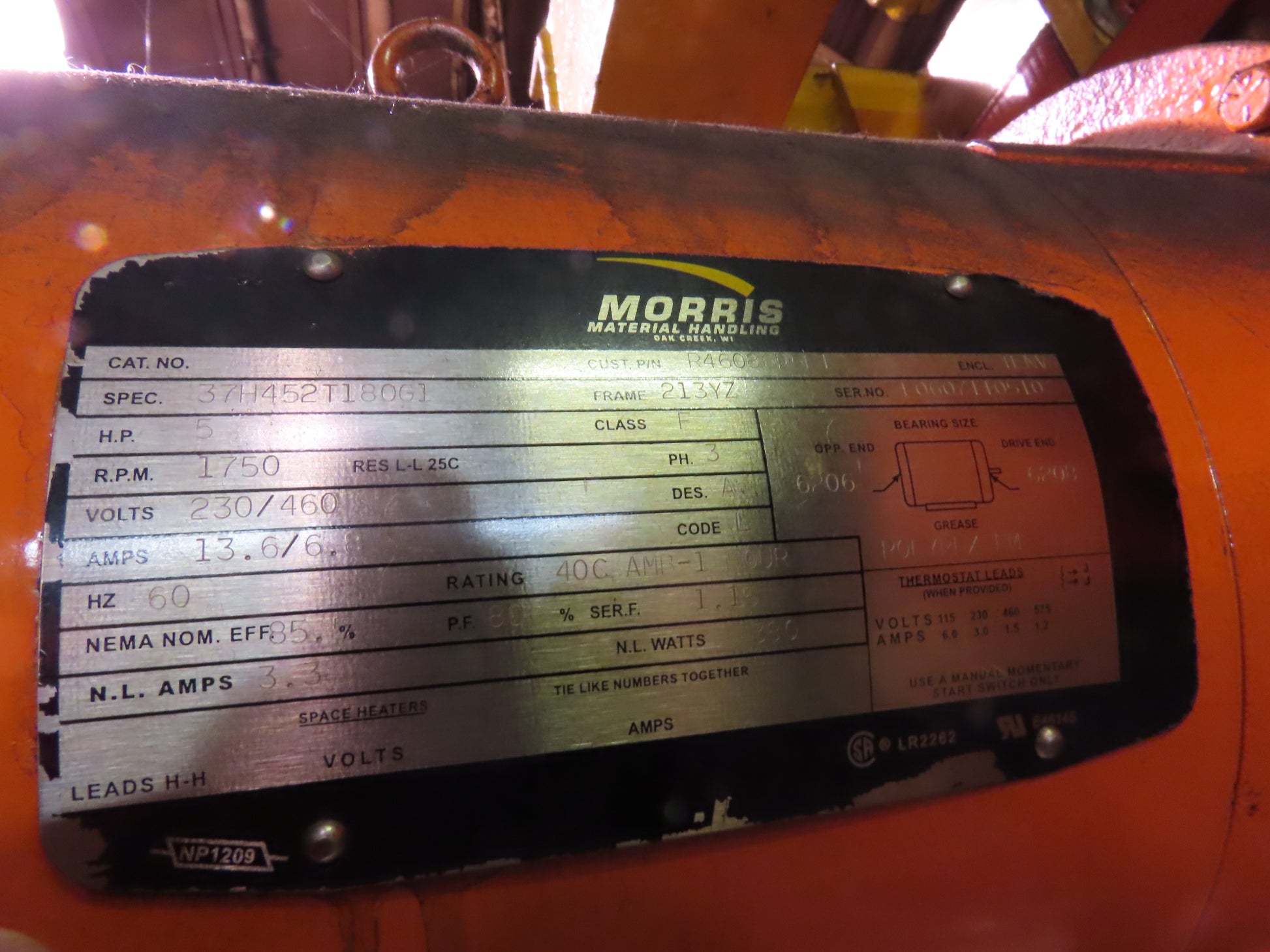

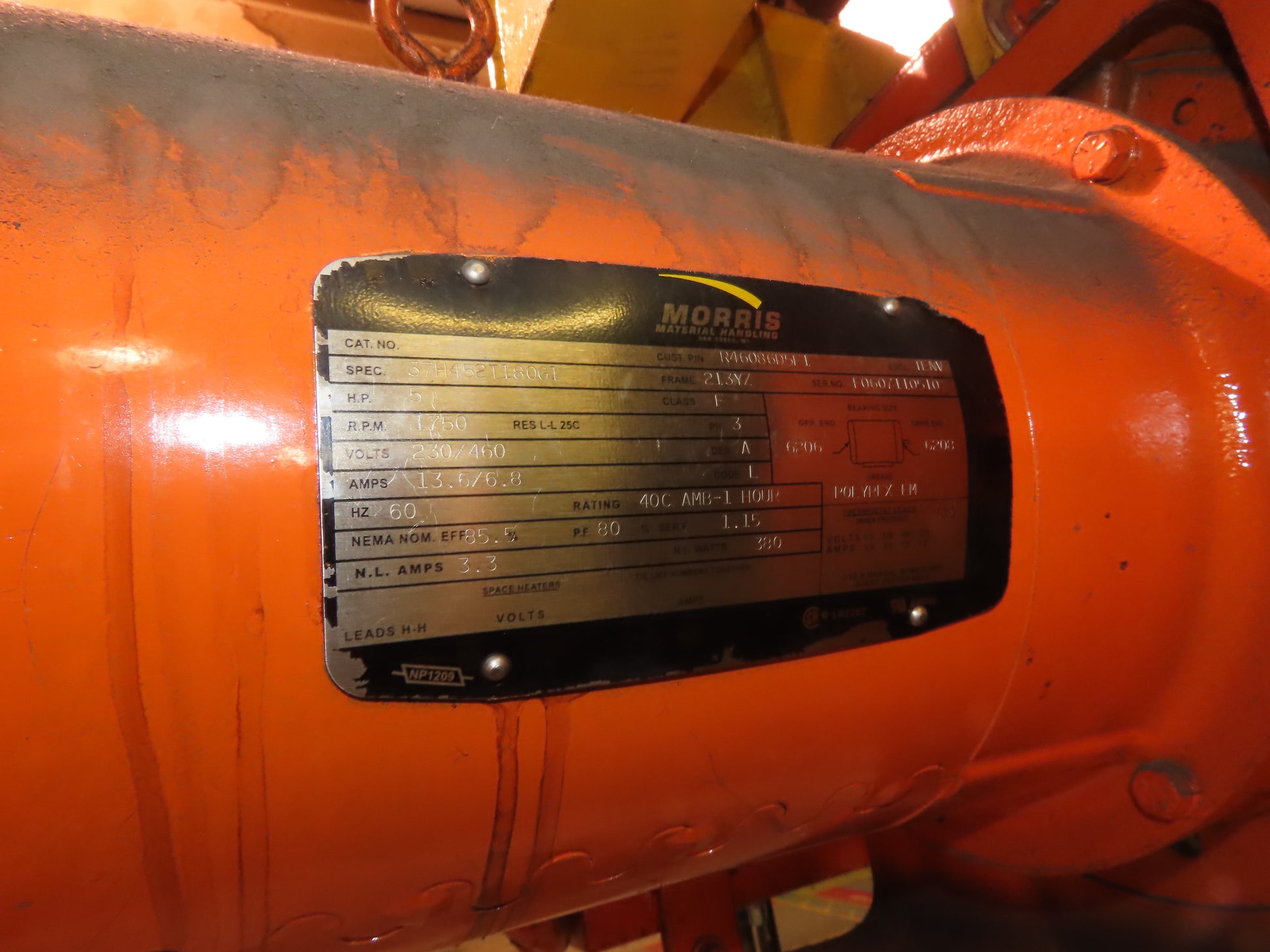

  • Motor Horse Power: 5
  • Pendant/Control Length From Bottom of Hoist (ft): 22'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 54"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 76"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 88"
  • Bridge Crane is in working condition.  Tested on site before removal.

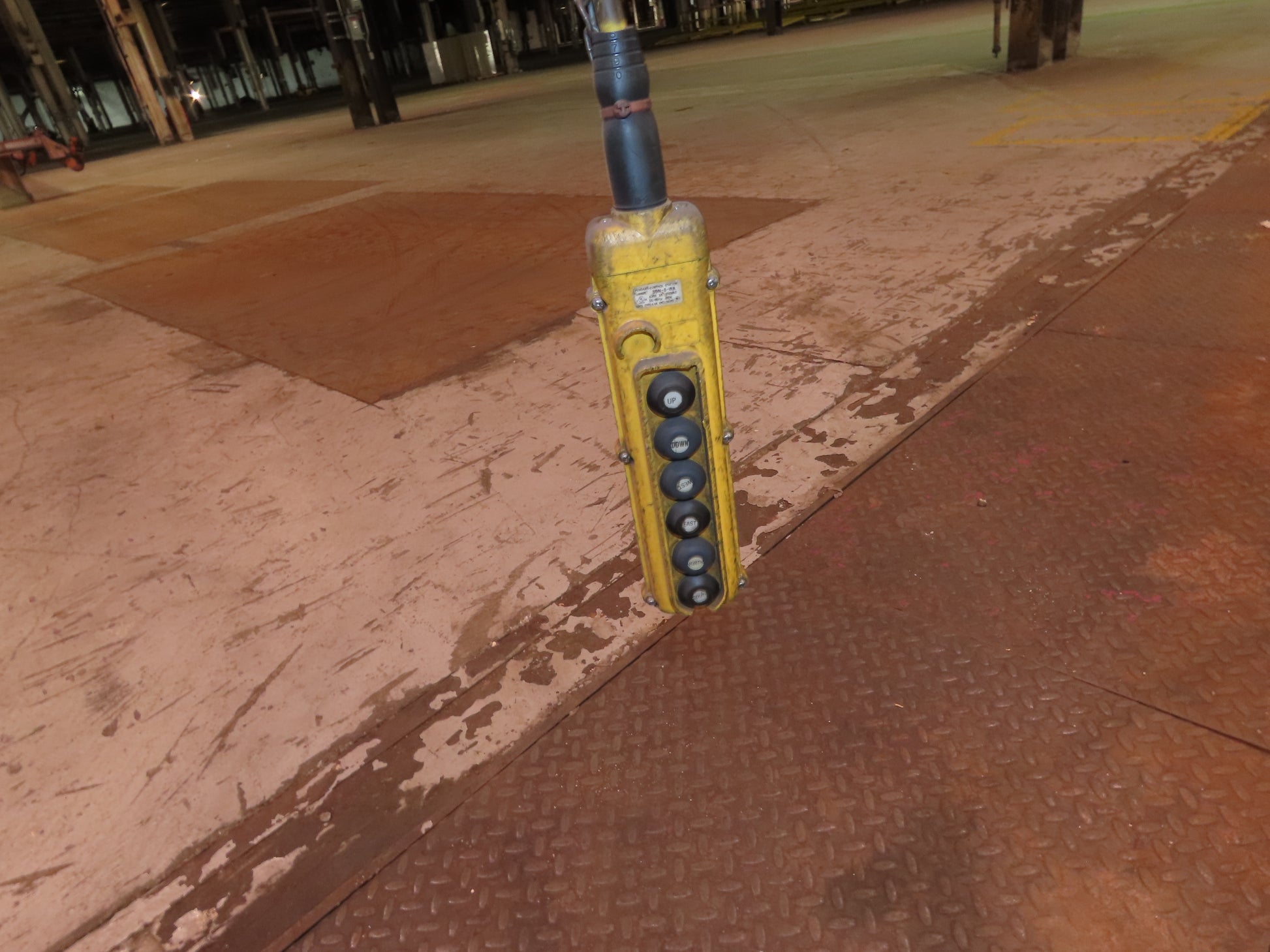

  • Includes corded pendant only. Not set up for wireless.
  • Single speed bridge, trolley and hoist.

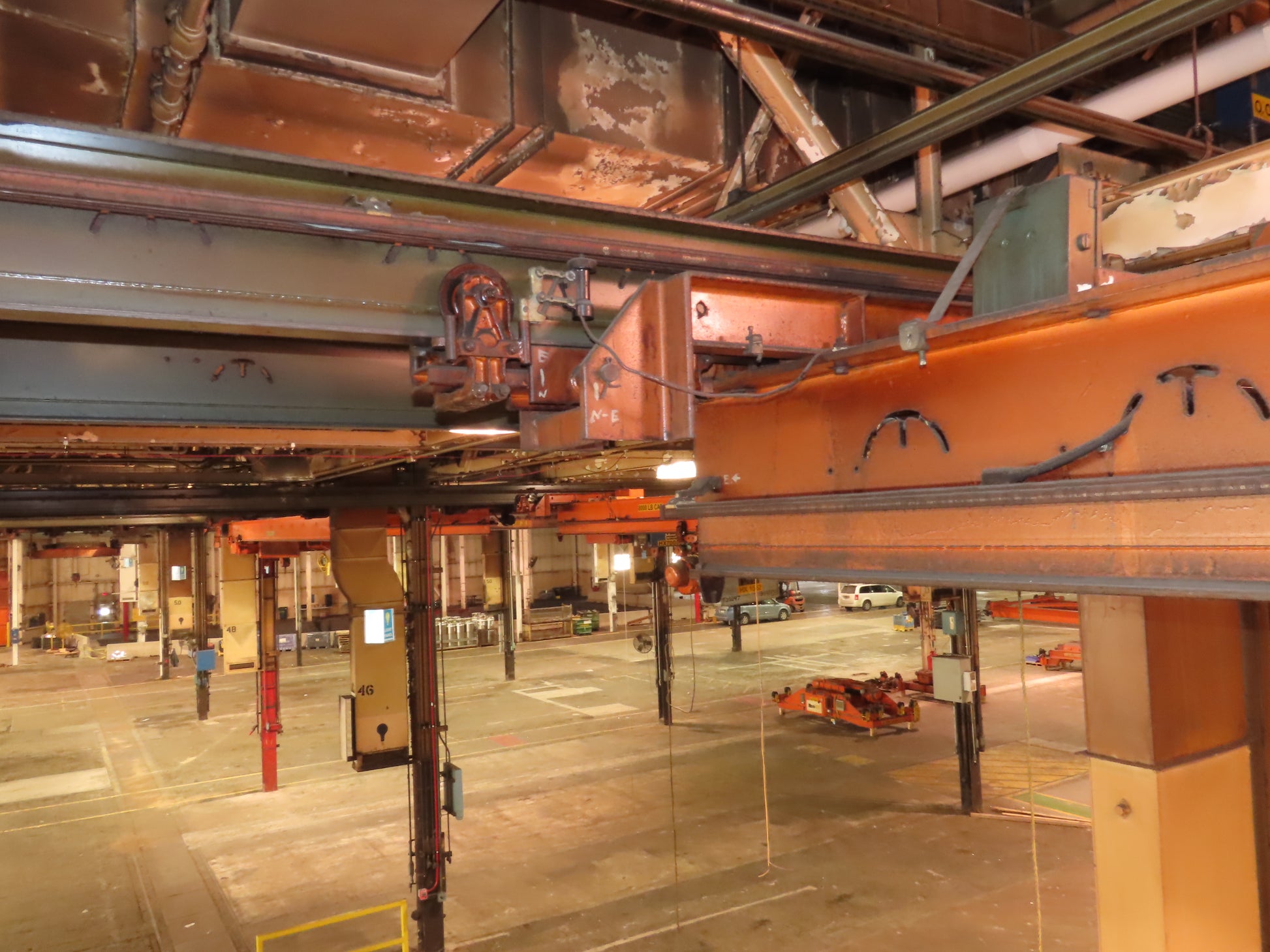

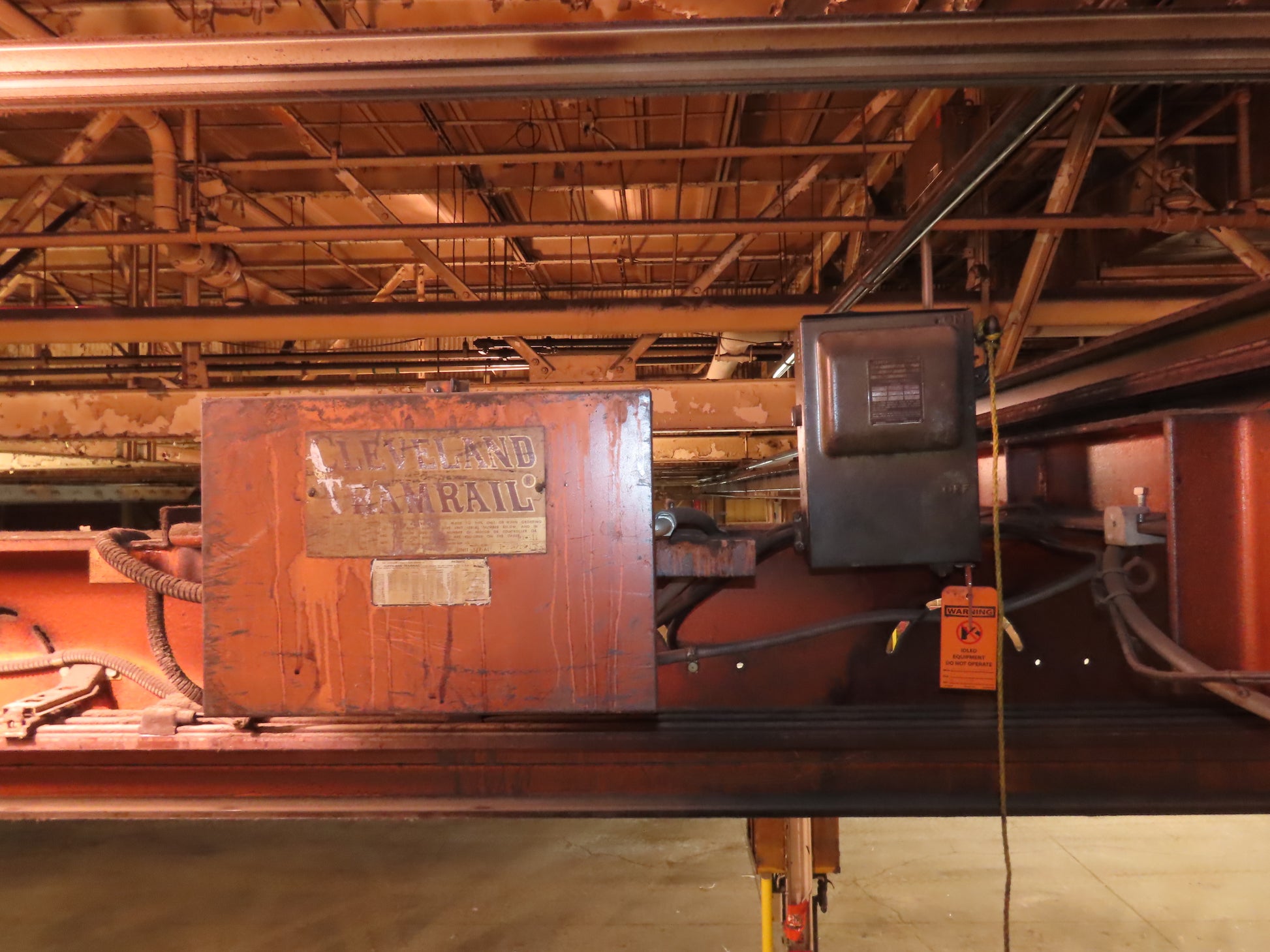

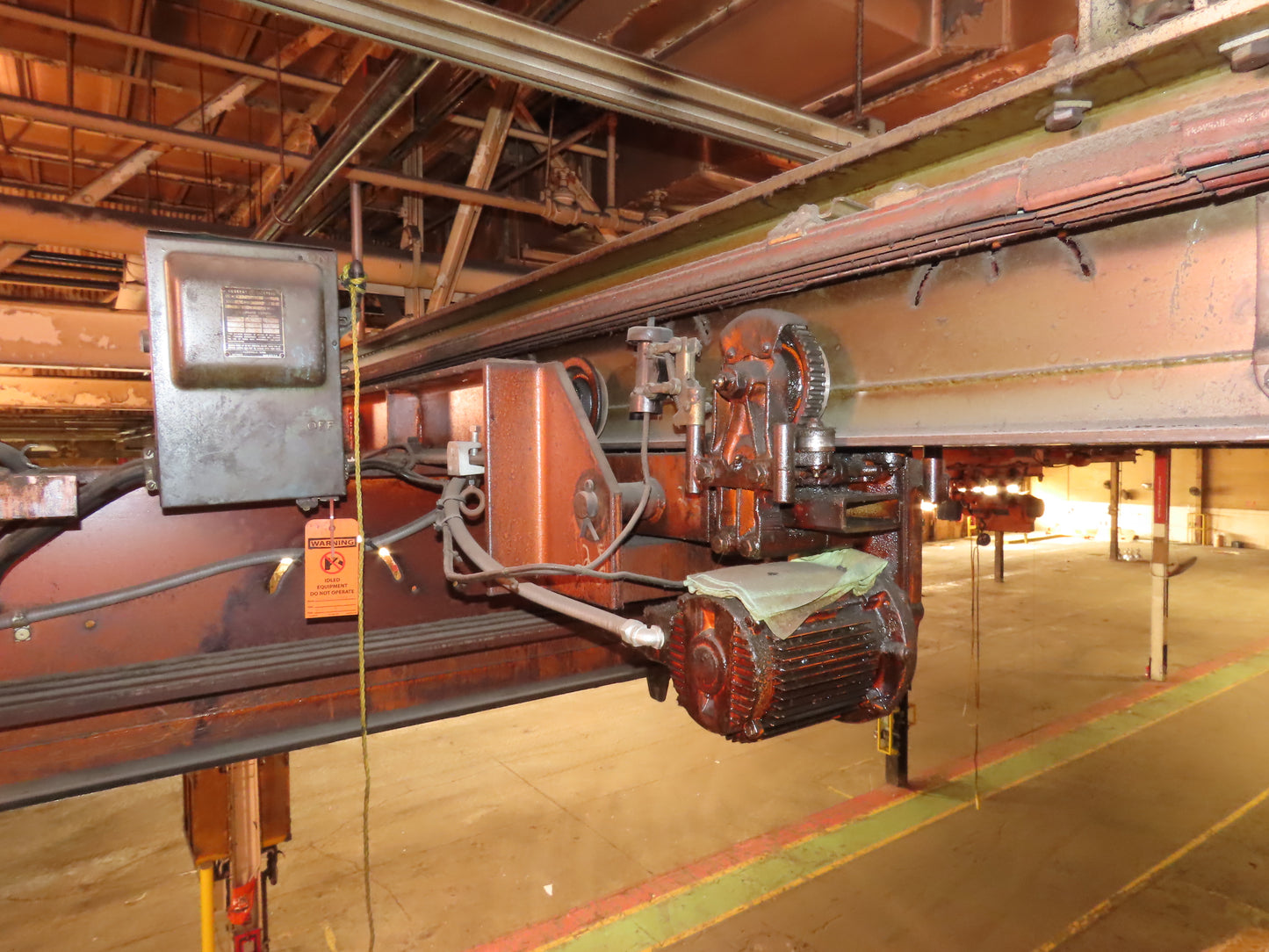

  • End truck length:  76"
  • End truck wheel size:  5"
