Cleveland Tramrail

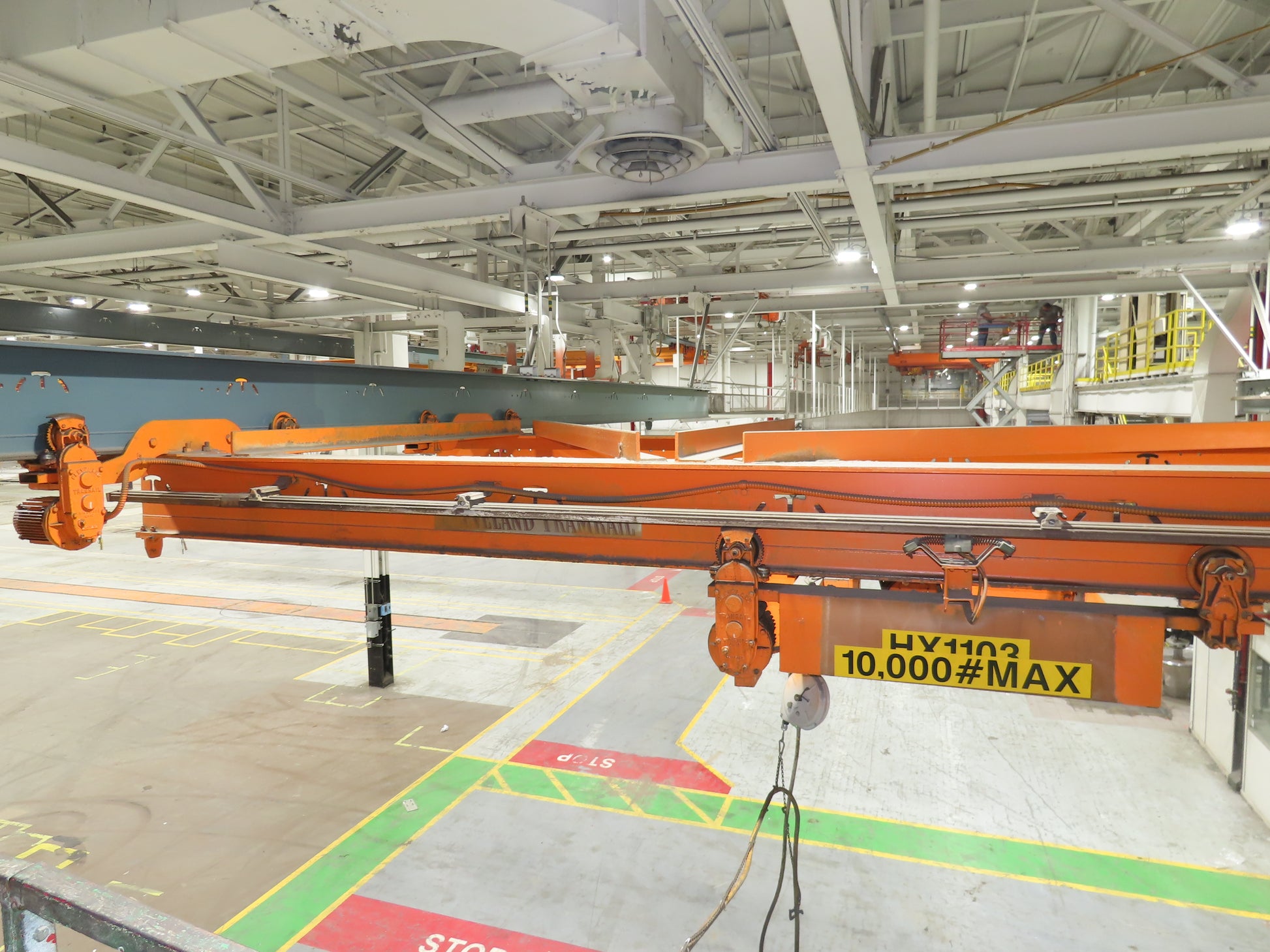

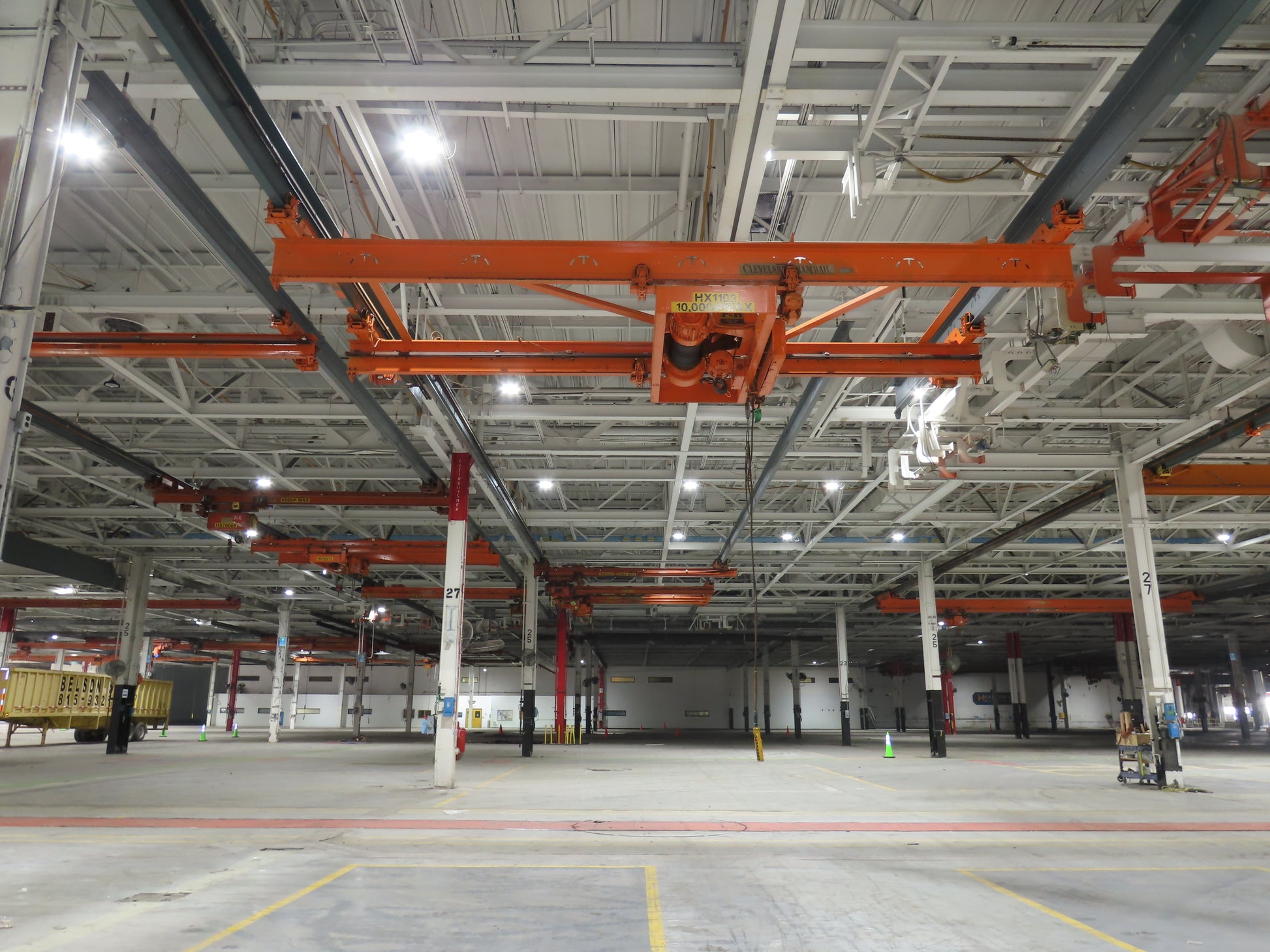

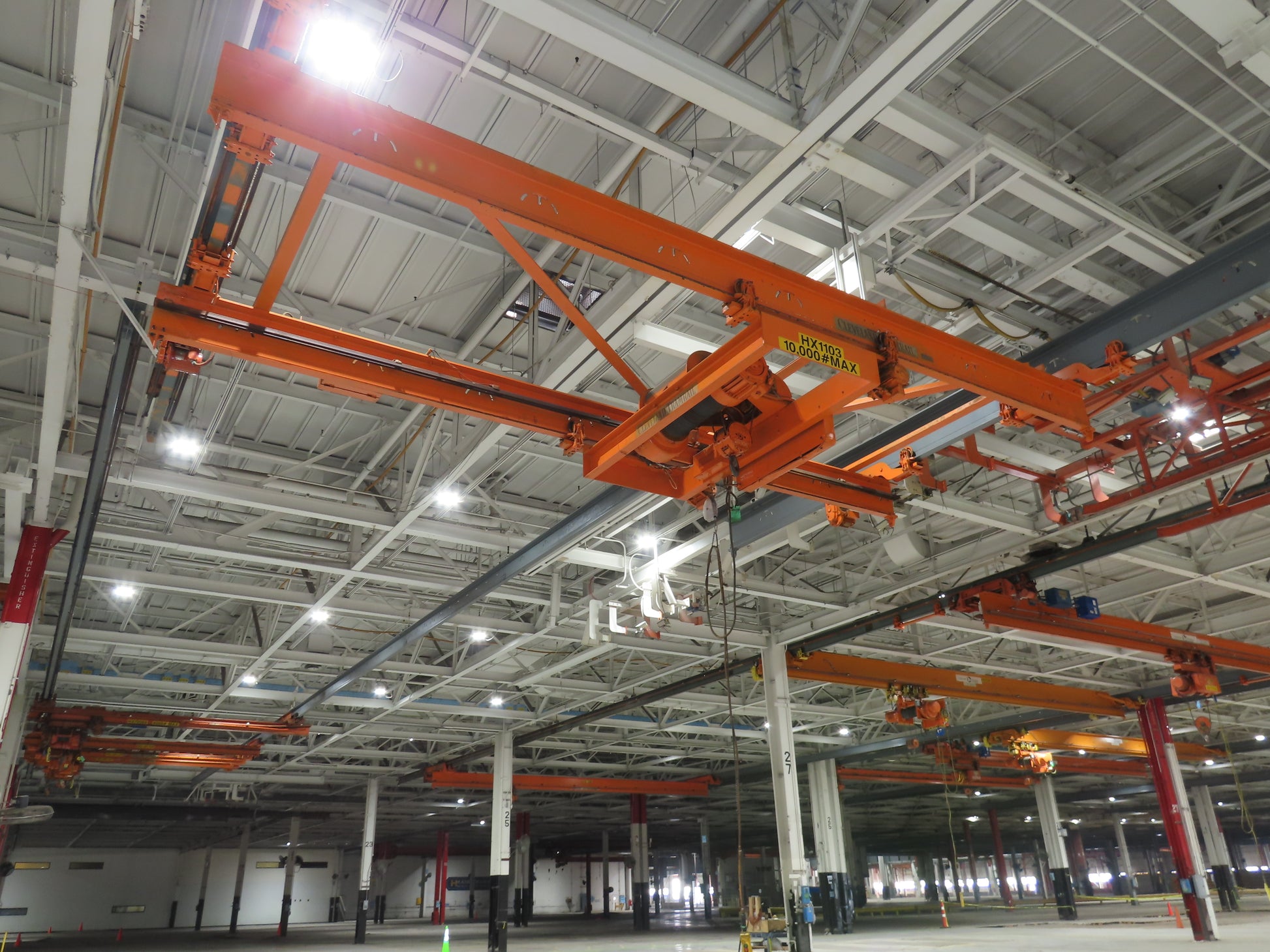

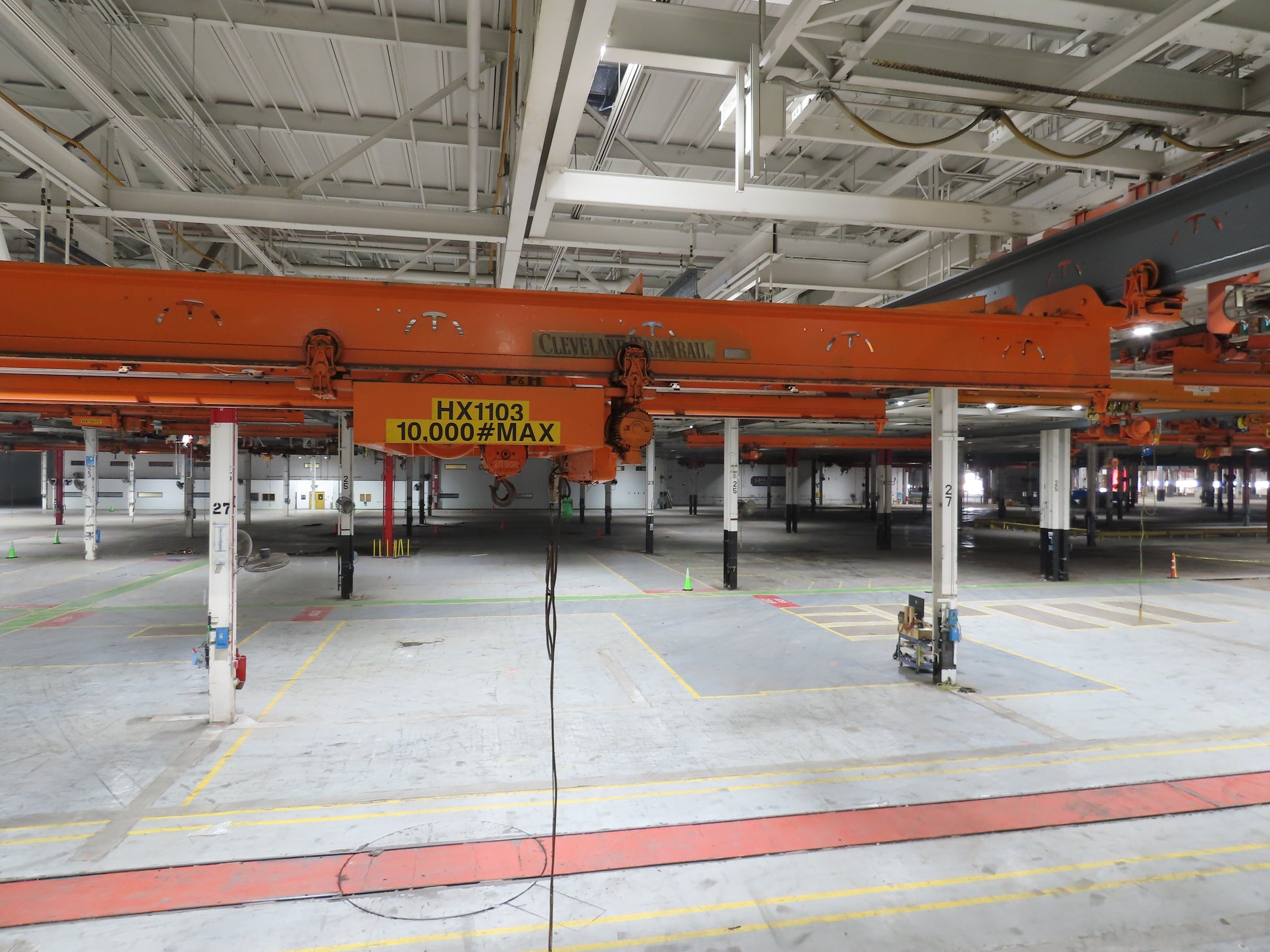

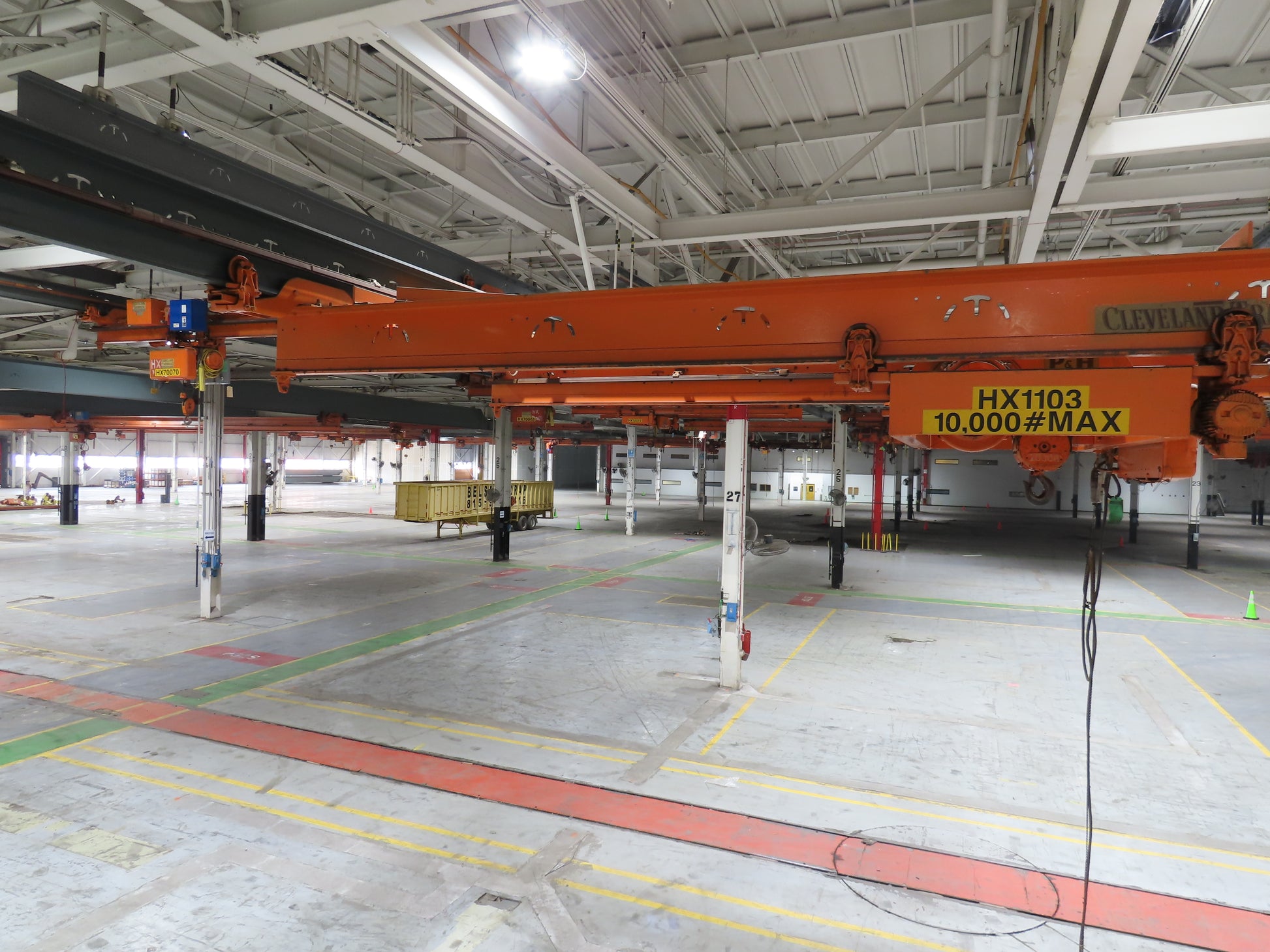

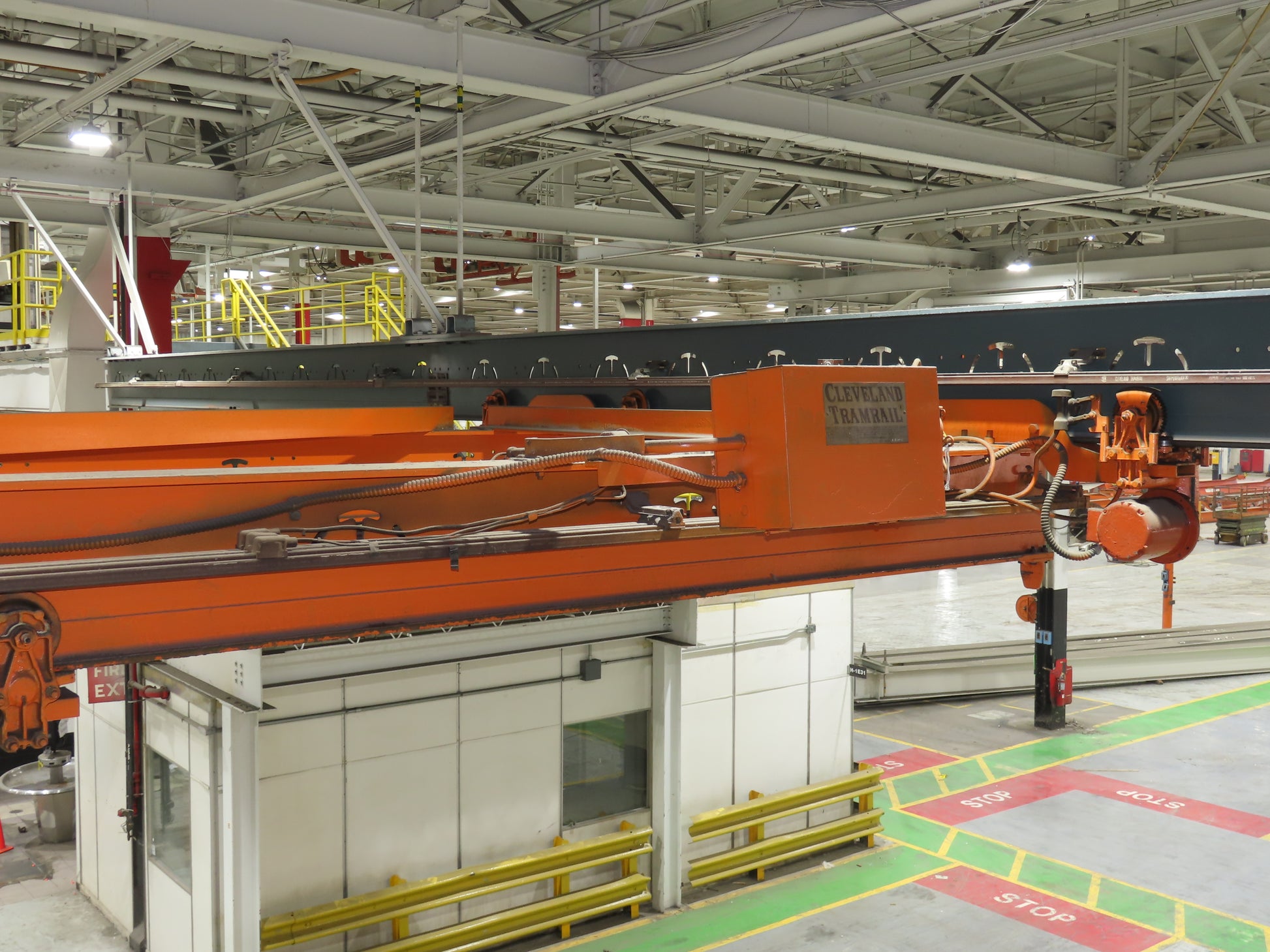

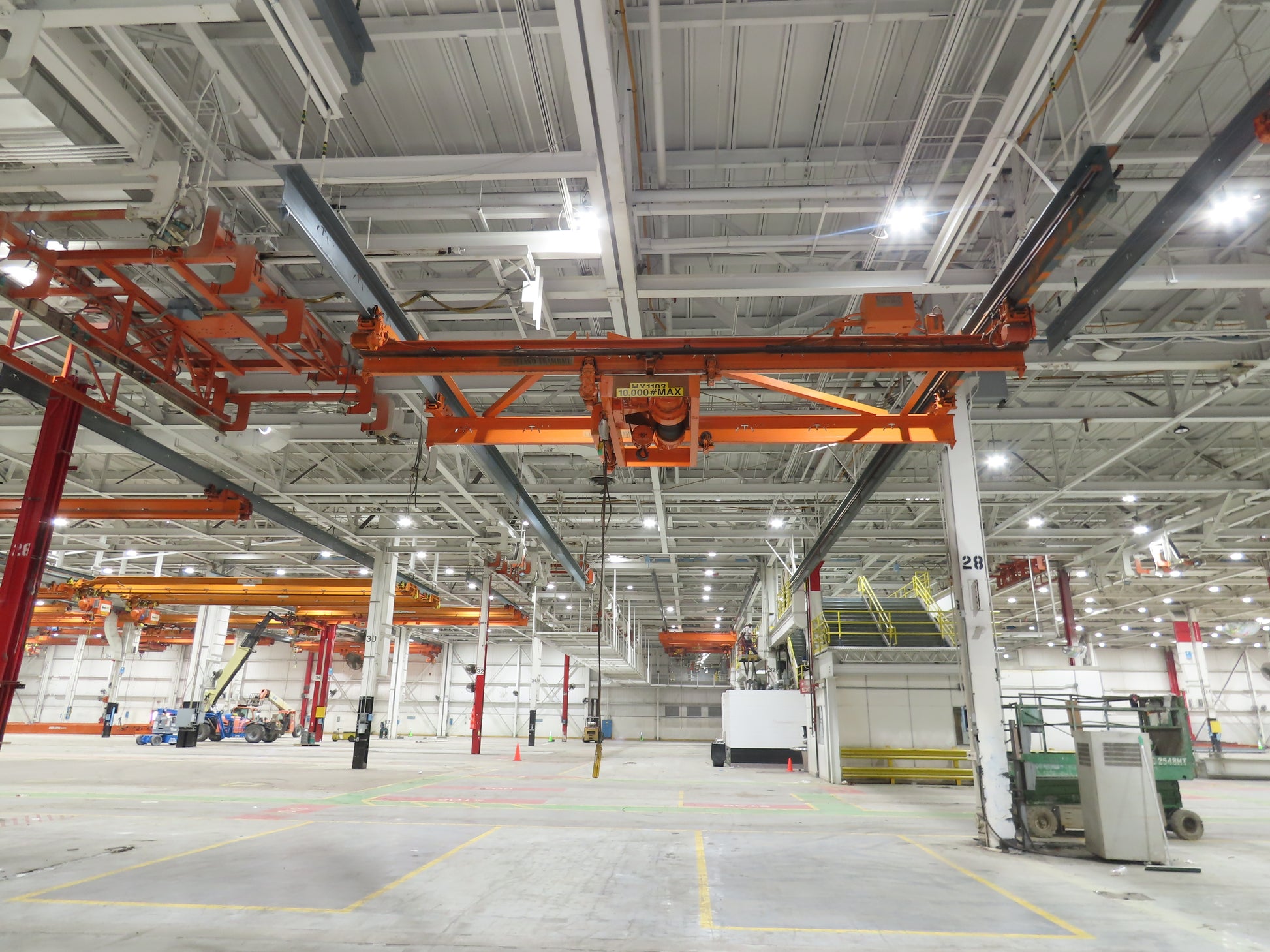

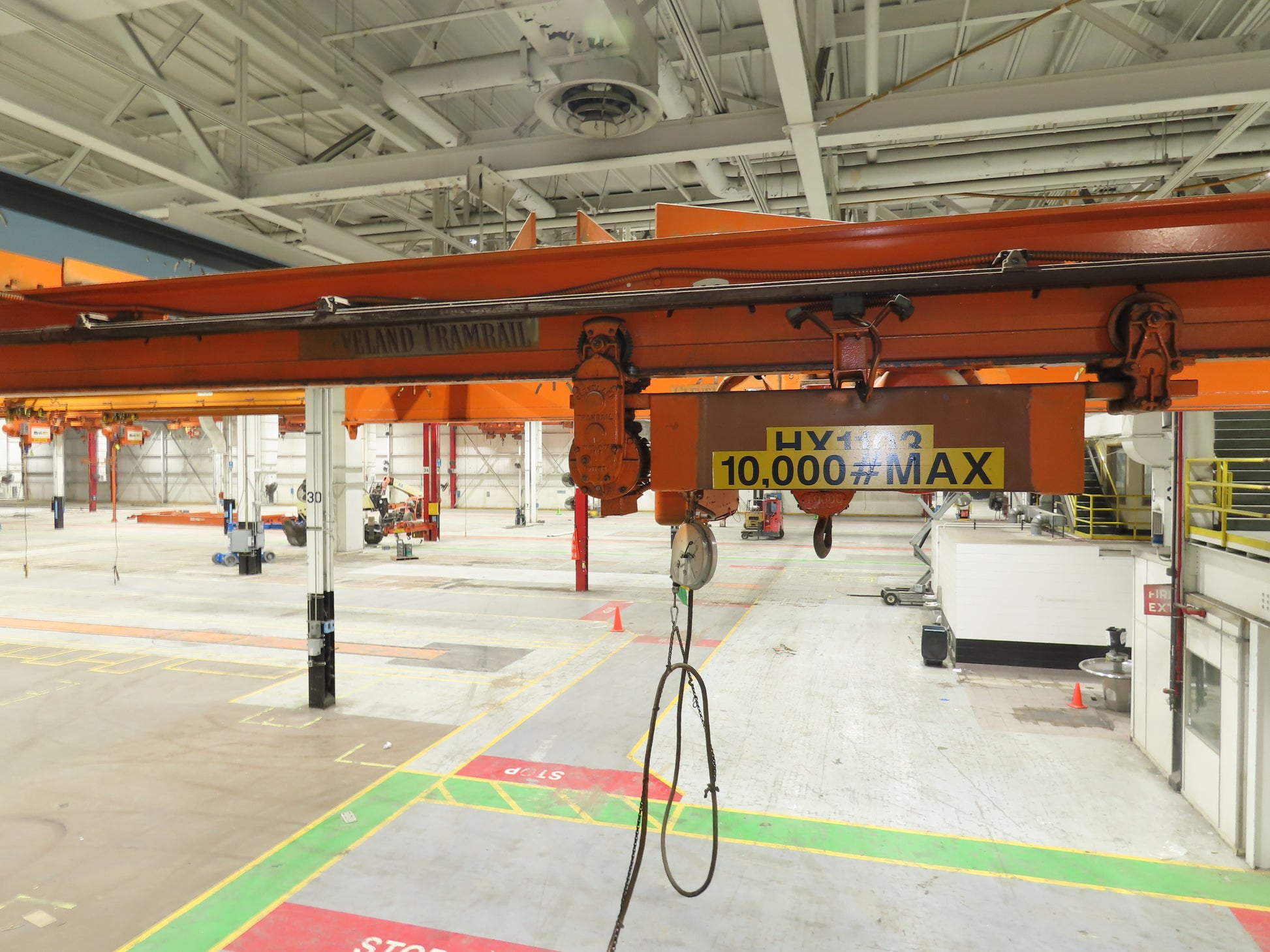

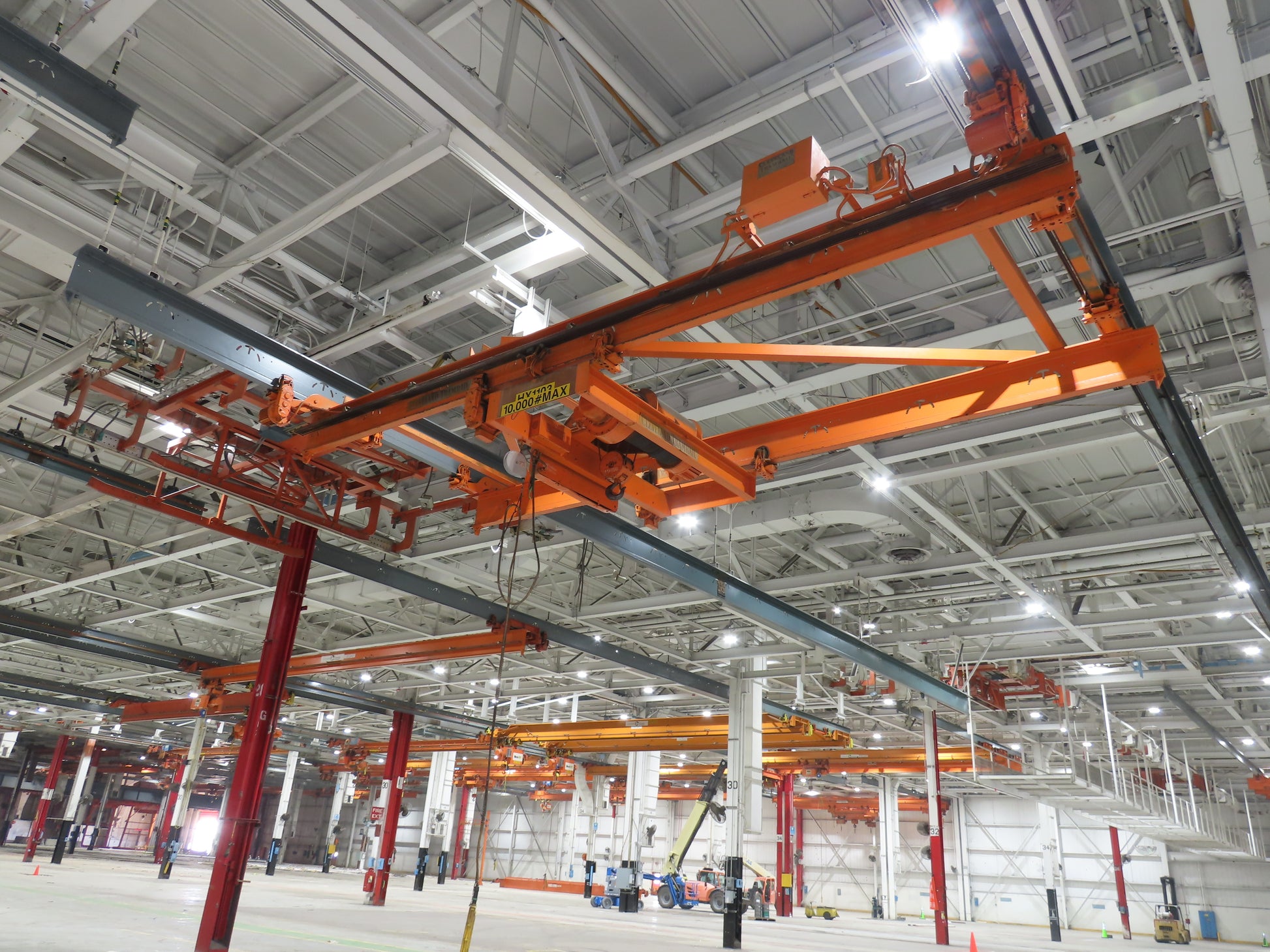

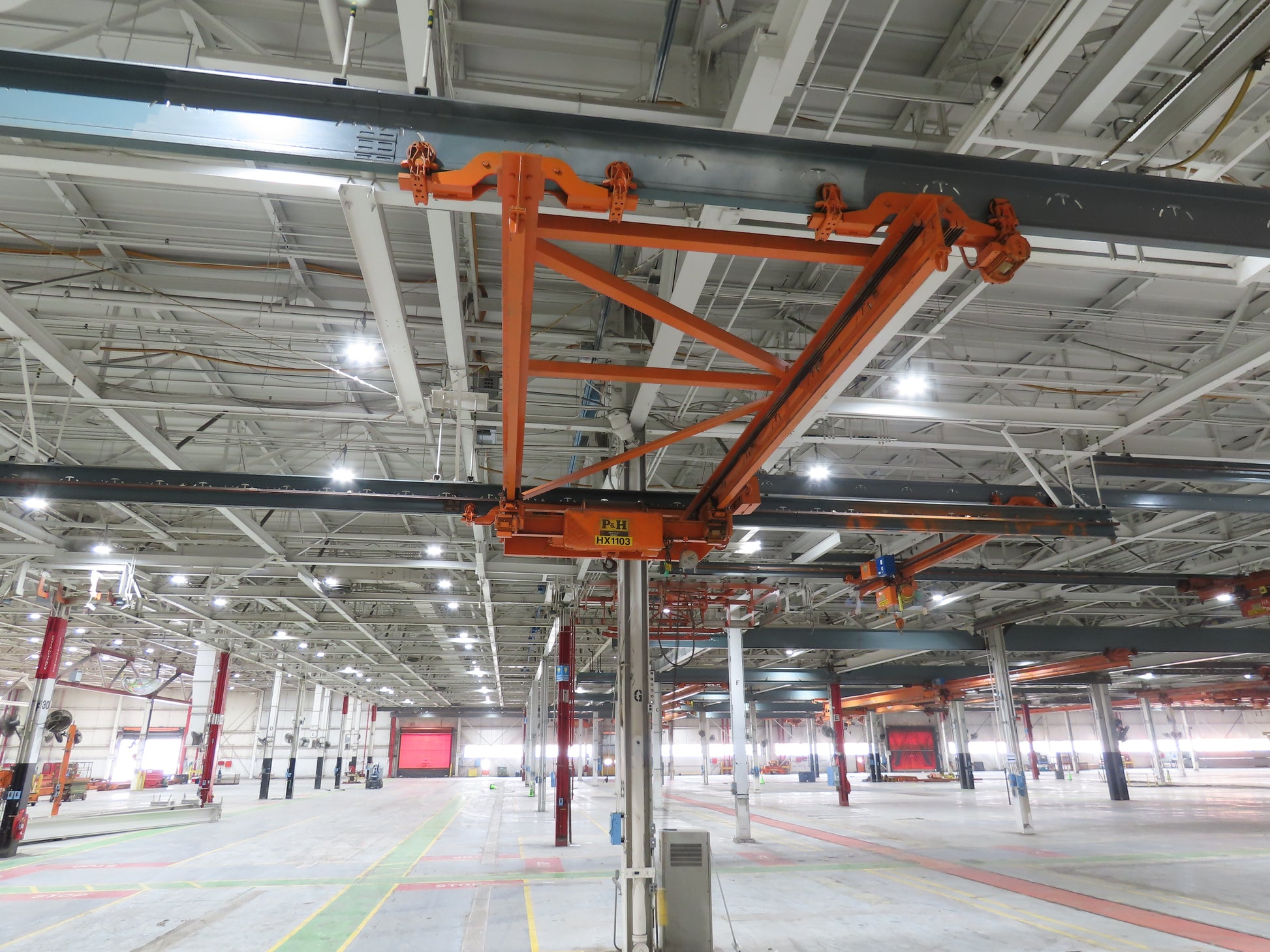

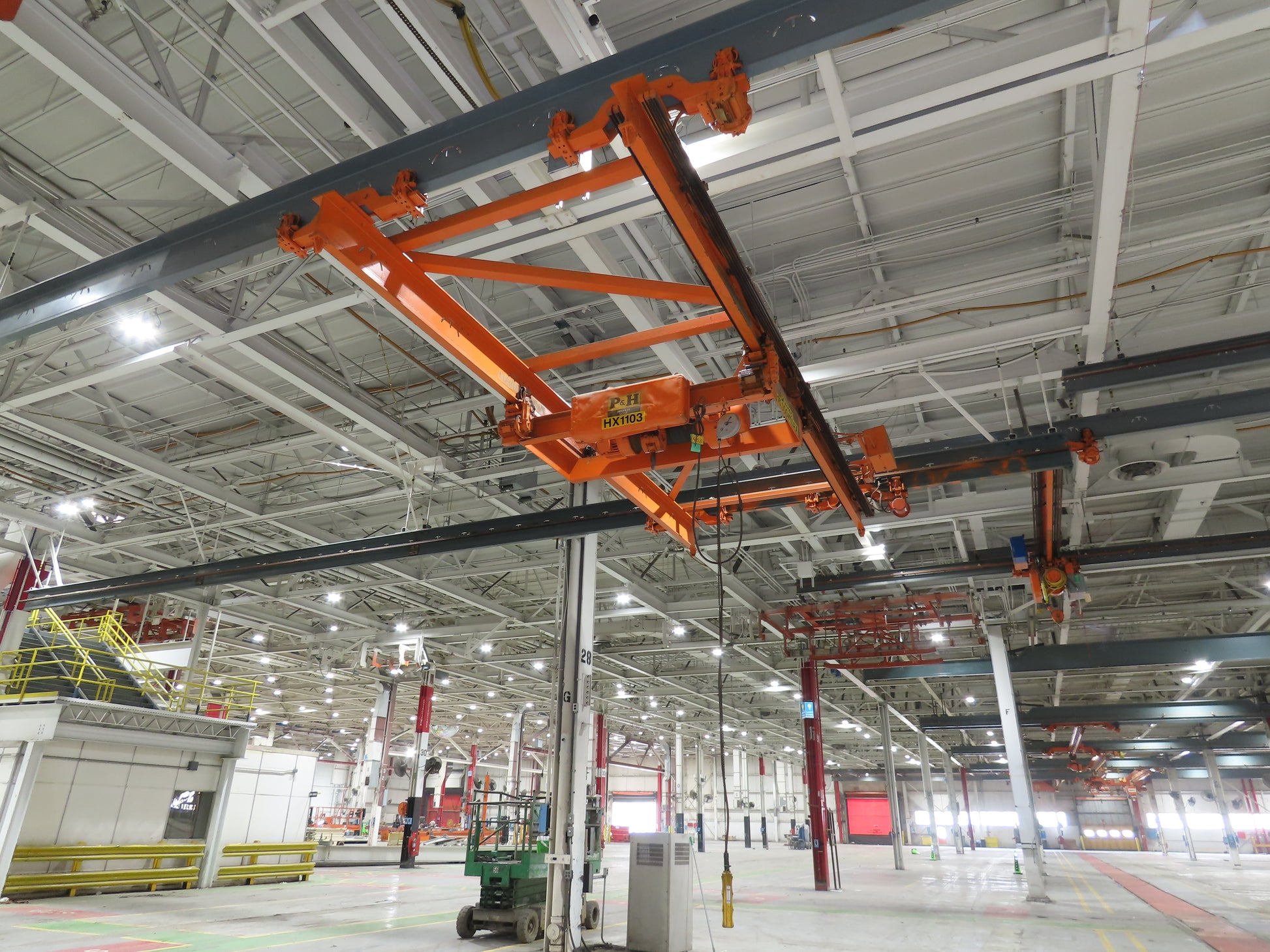

Cleveland Tramrail P&H 5 Ton Double Girder Underhung Bridge Crane 21' 8" Span

Cleveland Tramrail P&H 5 Ton Double Girder Underhung Bridge Crane 21' 8" Span

SKU #262077

Product Condition: Used

Your Price
$9,024.99
$9,999.99 $9,024.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
Cleveland Tramrail
Model
P&H Hevi-Lift
MPN
HX1103
Condition
Used
  • Capacity (tons): 5
  • Capacity (lb): 10000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 21' 8"

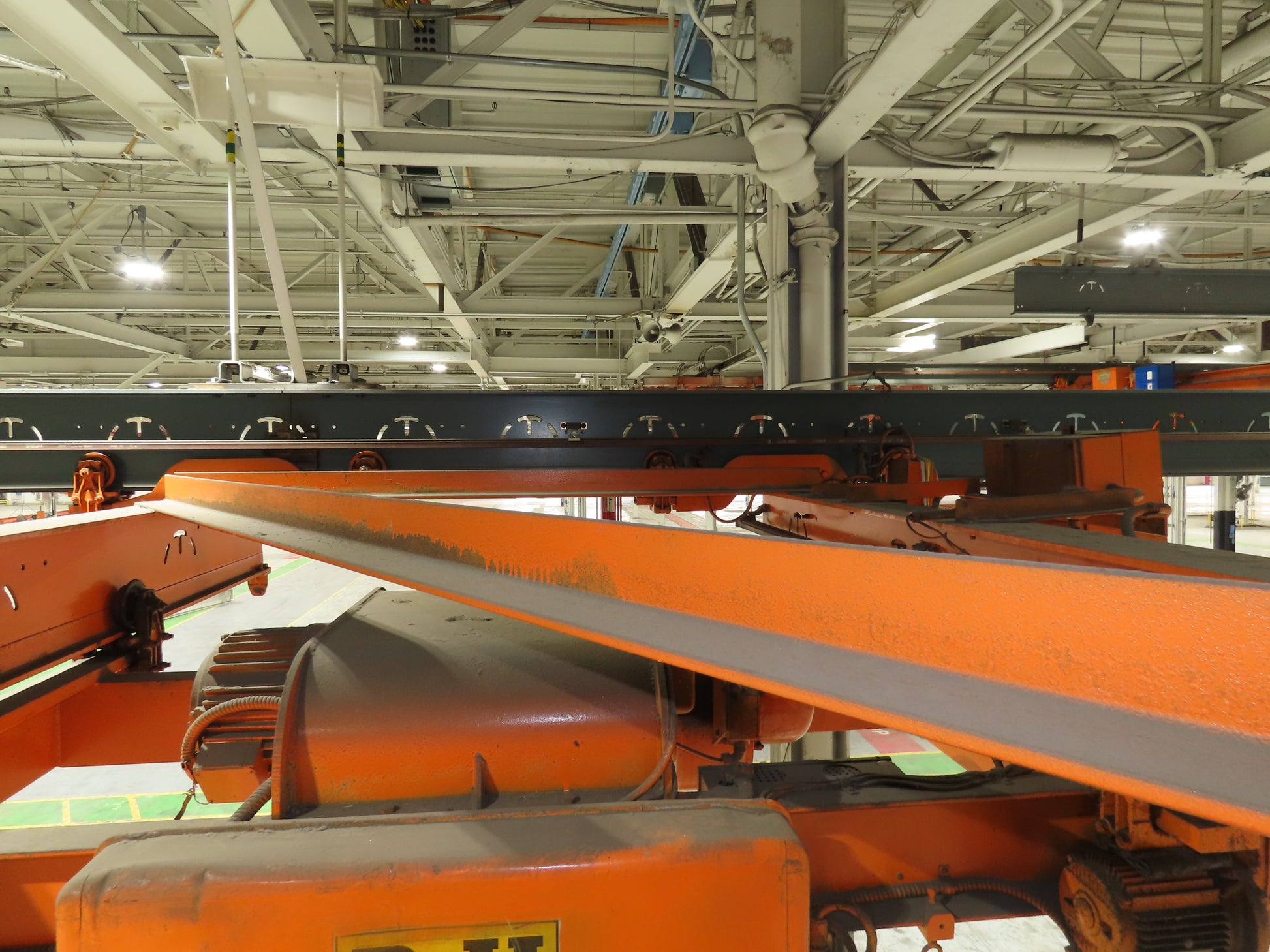

  • Main Girder Beam Size (Height x Width x Length): 14"H x 8"W x 23' 4" Length (3.25" flange)

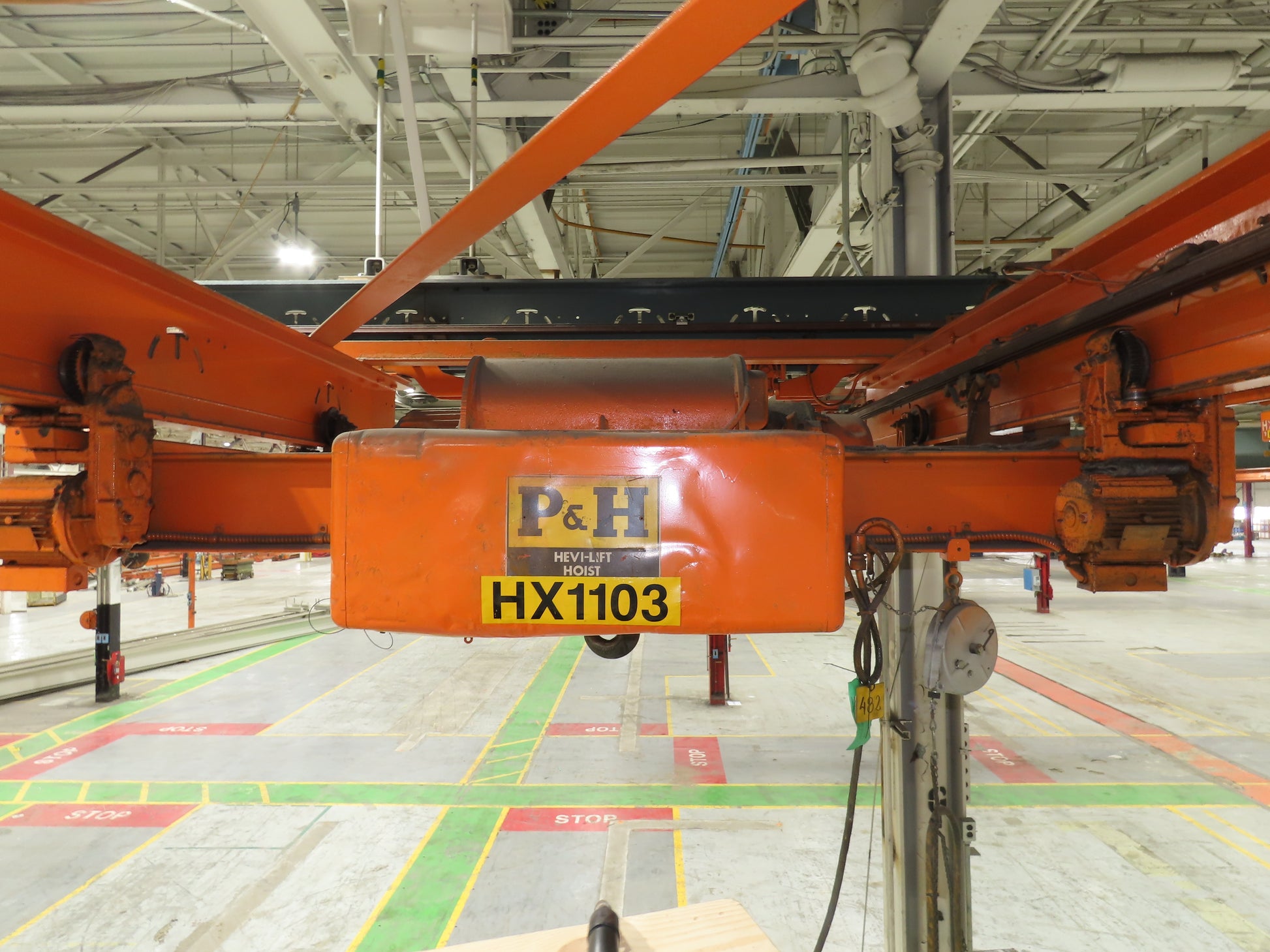

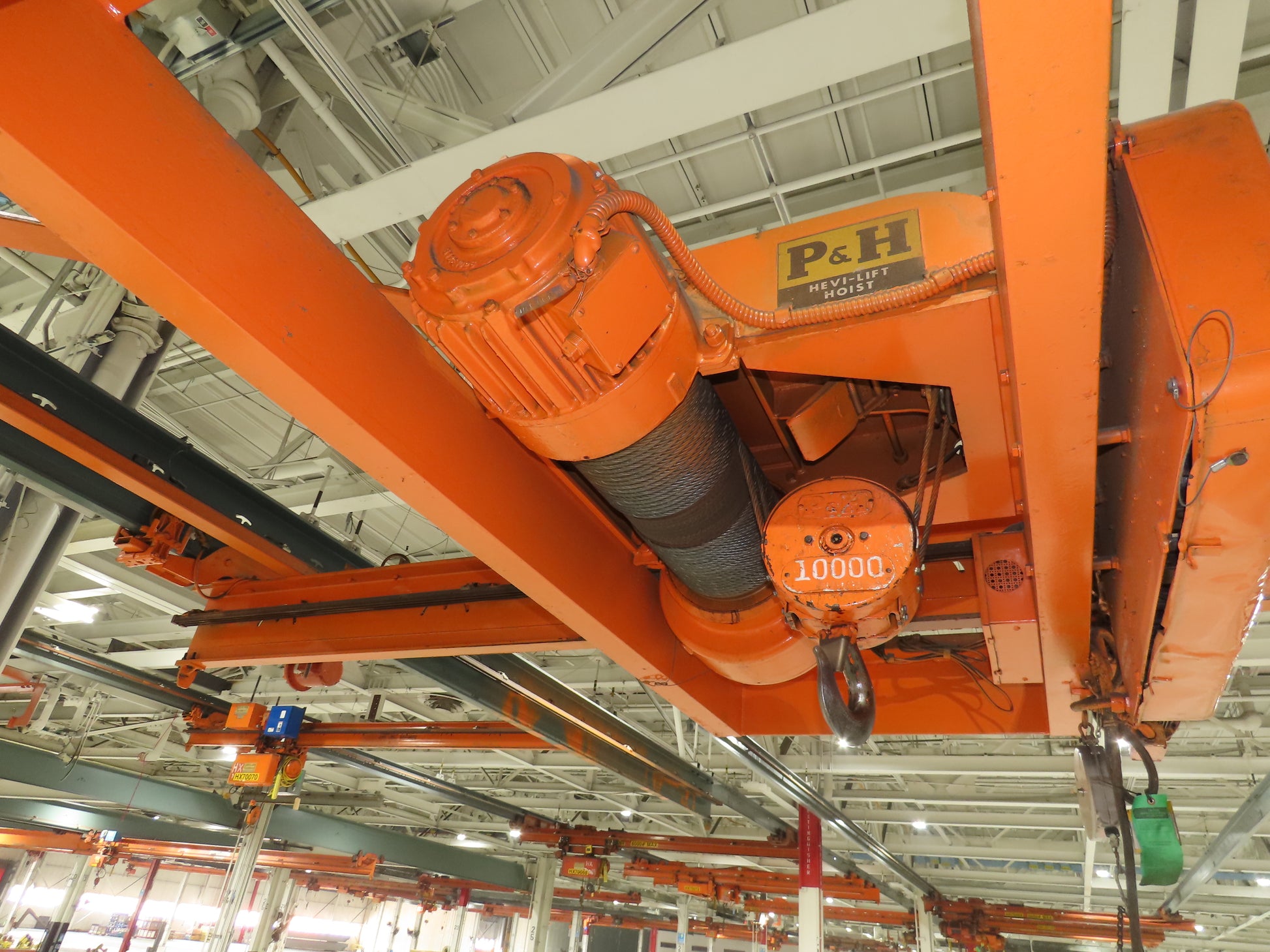

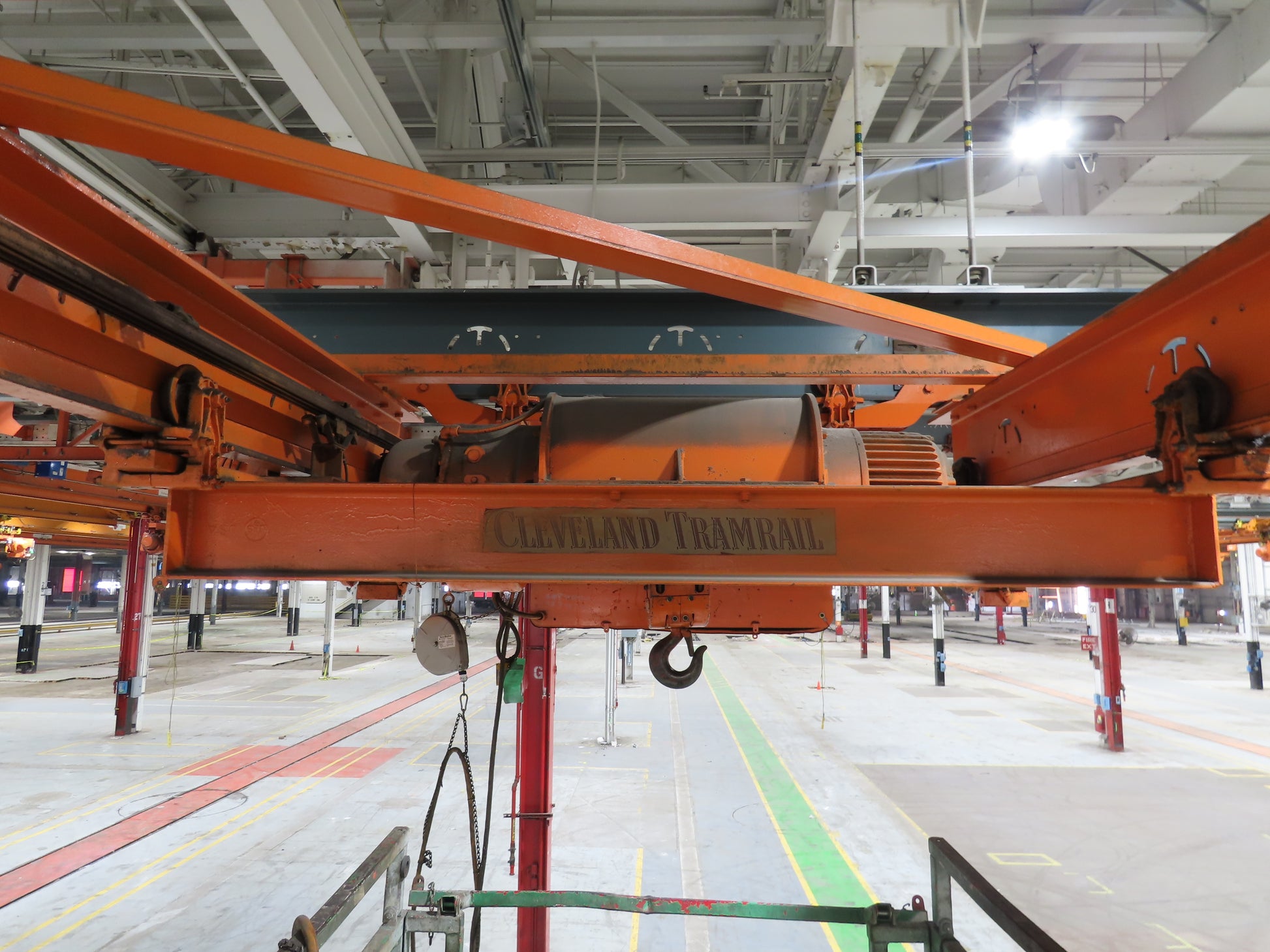

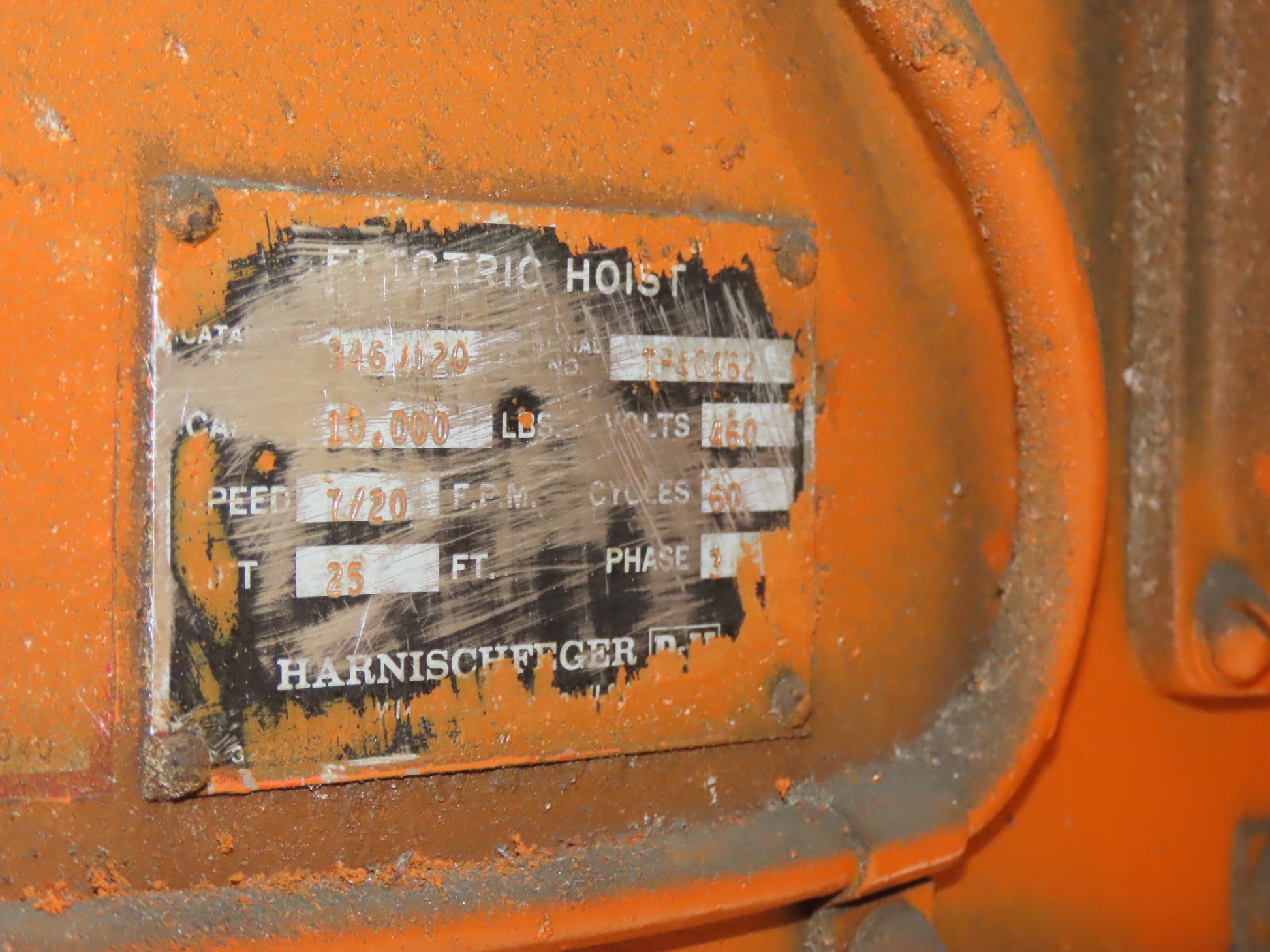

  • Hoist Brand: P&H
  • Lift Travel (feet): 25' total (limit switch stpos 13' 4")
  • Lift Speed (feet per minute): 7/20 (2-speed)

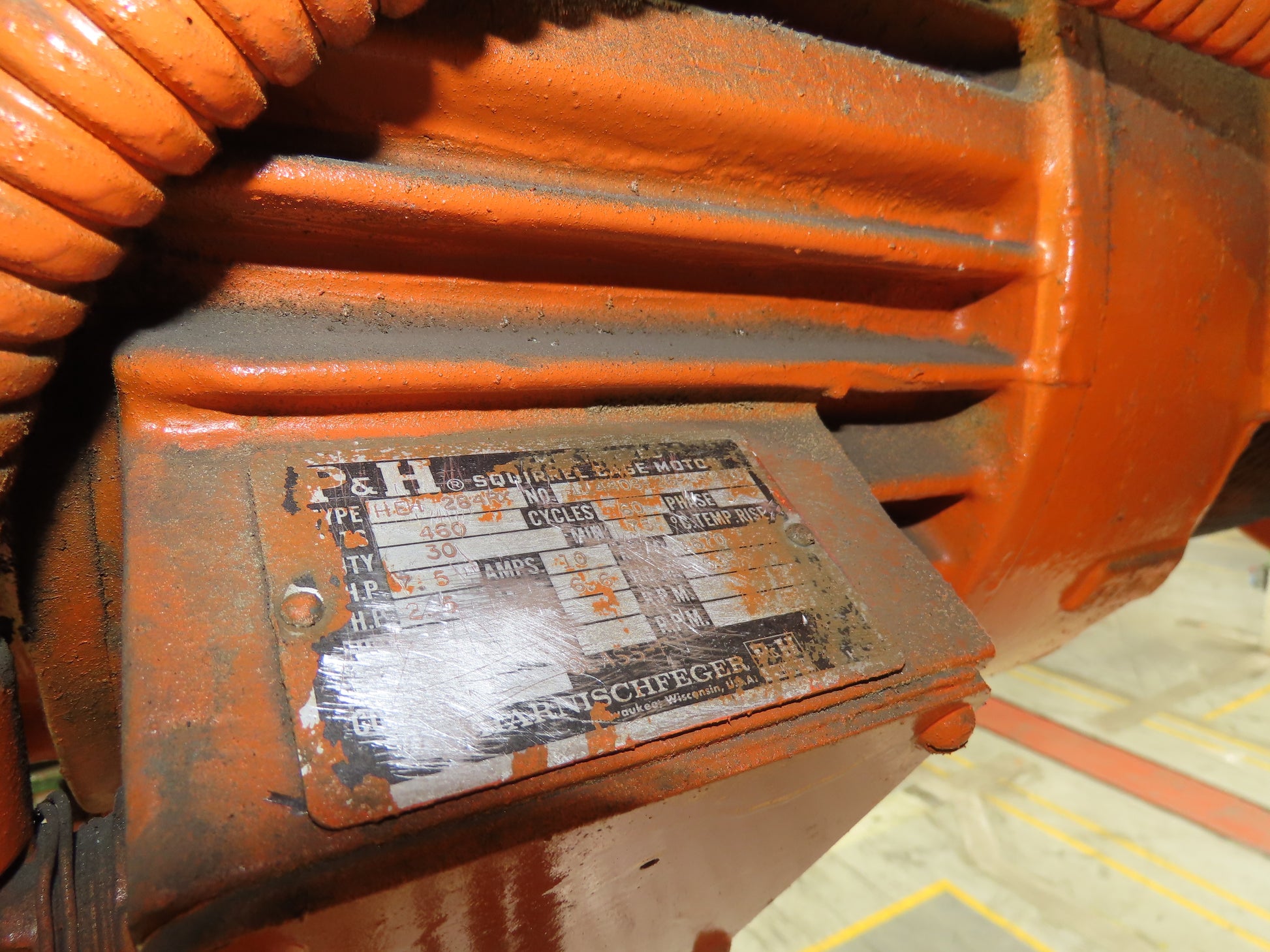

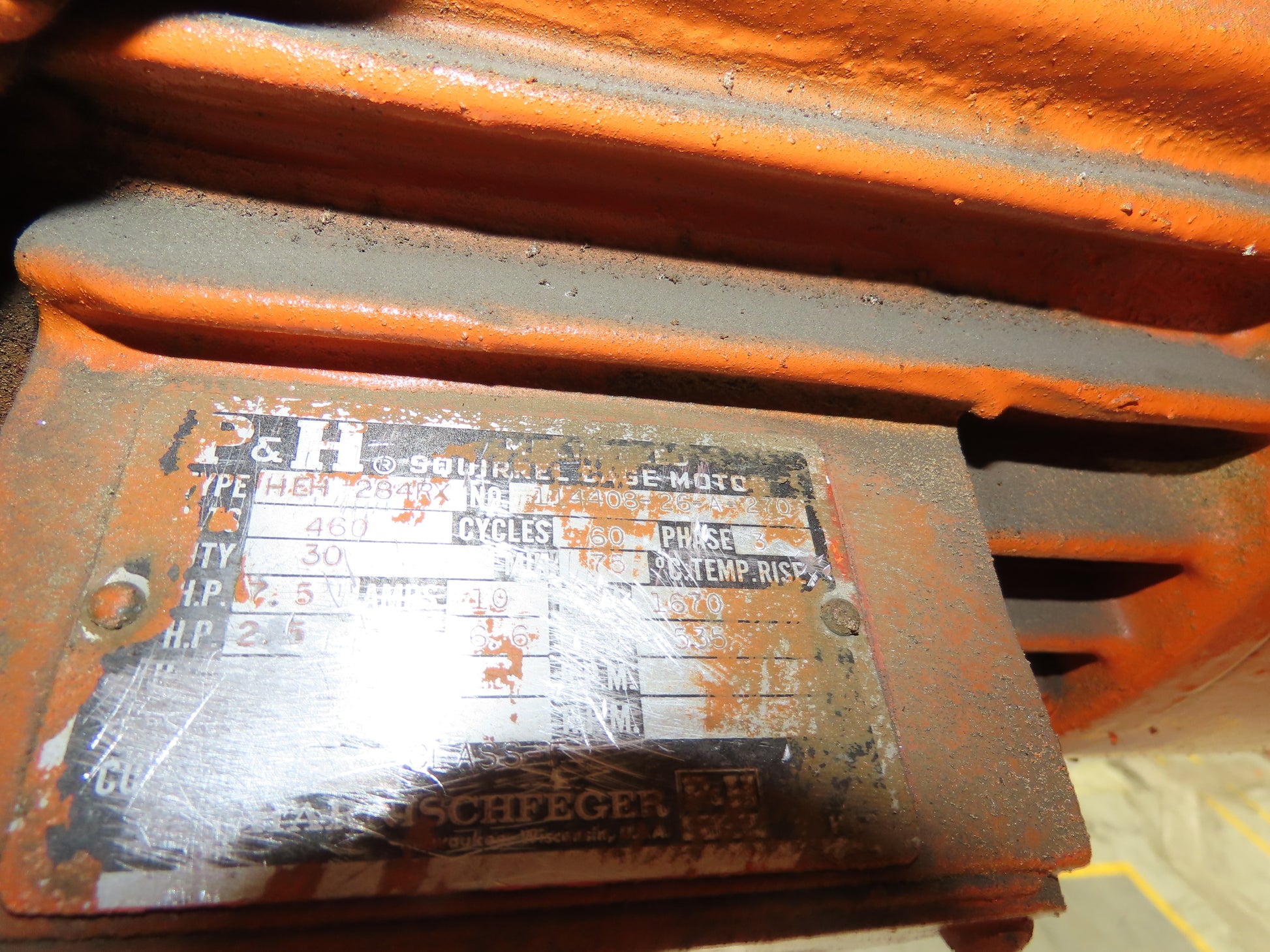

  • Motor Horse Power: 7.5

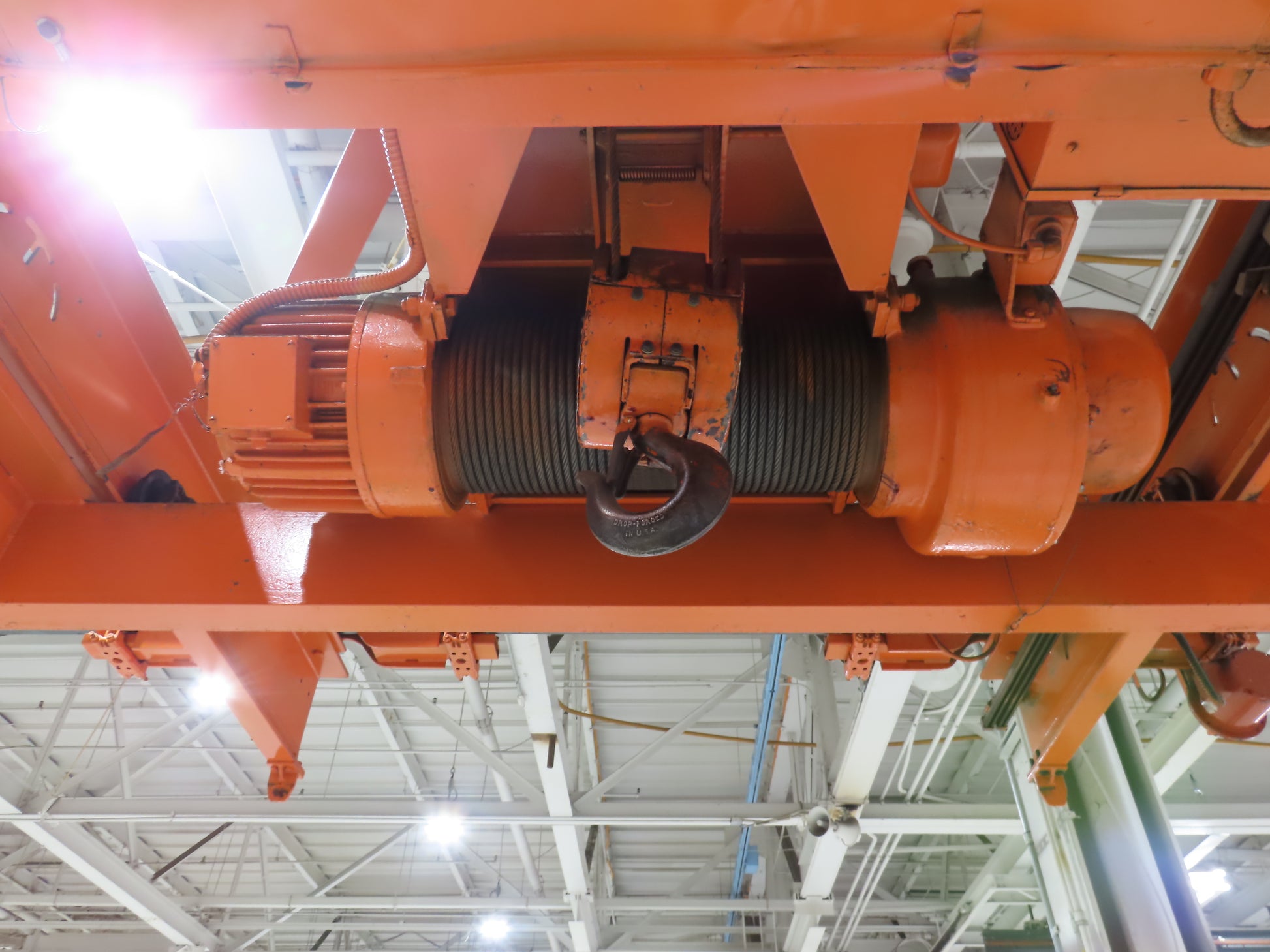

  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 18'
  • Hoist Power Trolley Speed (feet per minute): Single
  • Hoist Trolley Length of Travel: 17' 8"
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 30"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 52"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 45"
  • Bridge Crane is in working condition.  Tested on site before removal.

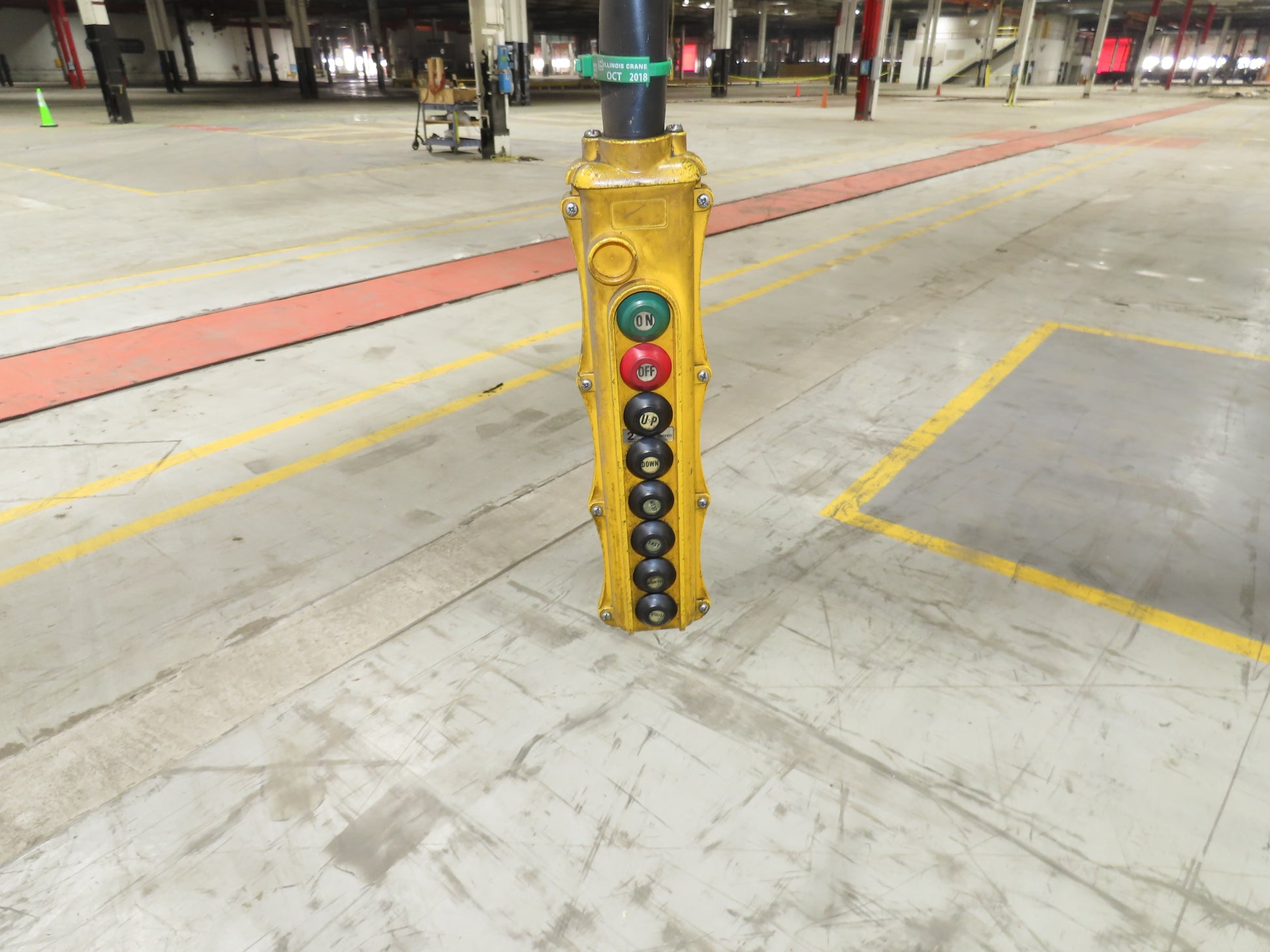

  • Includes corded pendant only.  Not set up for remote.
  • Single speed bridge and trolley, 2-speed hoist.
  • Girder beams span 90"
  • Overall width 11' 2"  (end truck to end truck)
