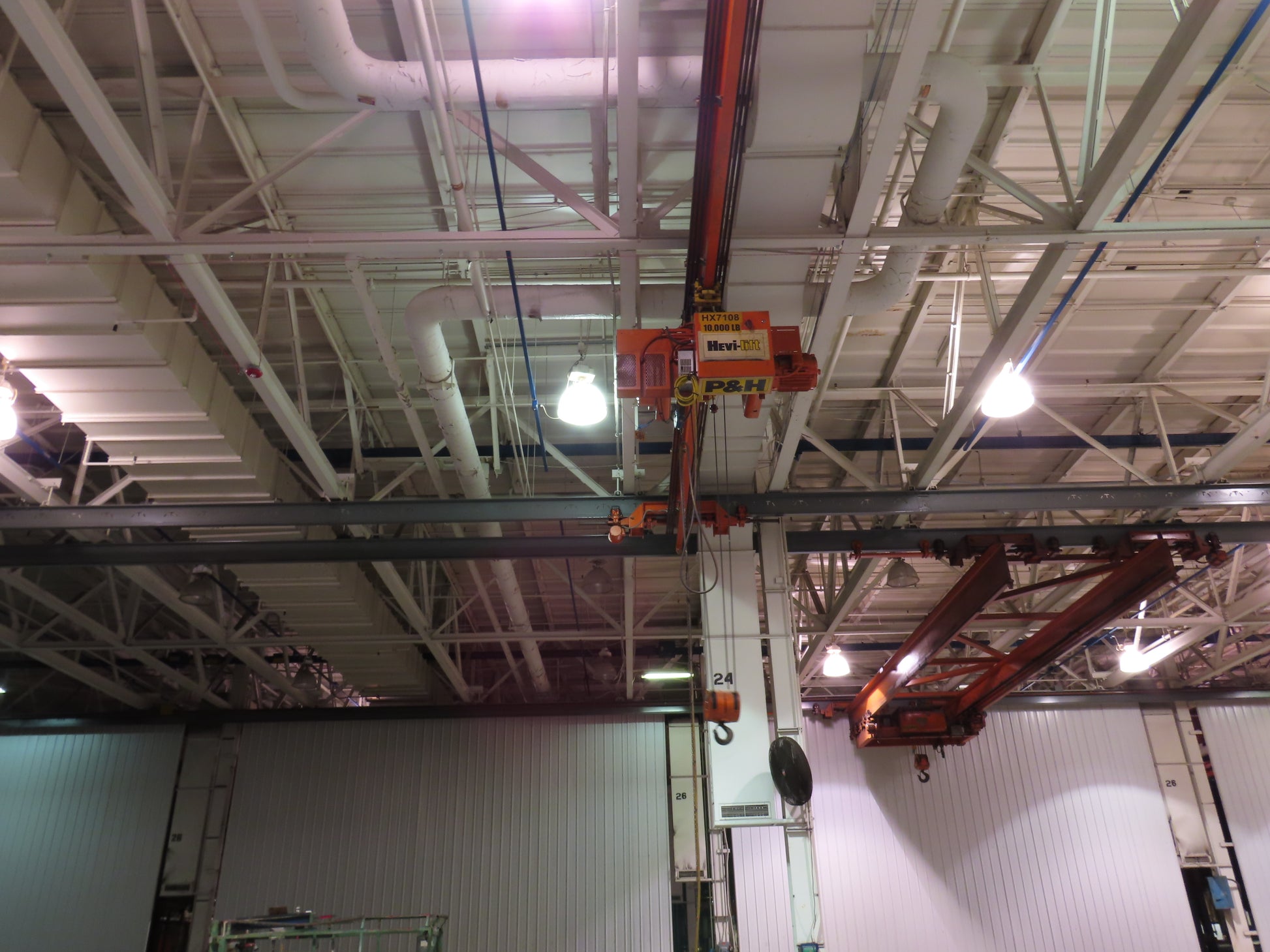

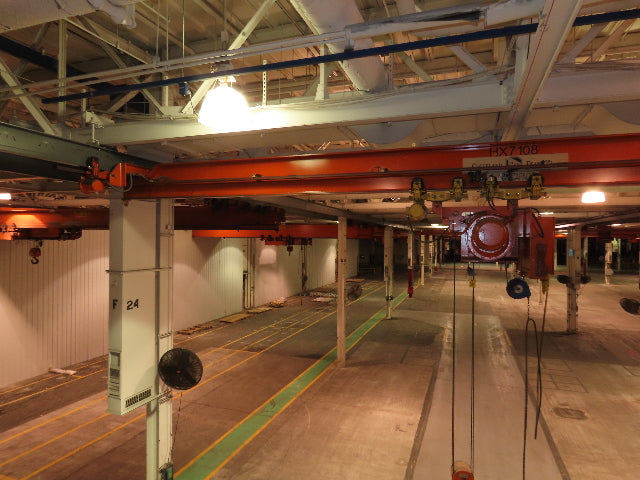

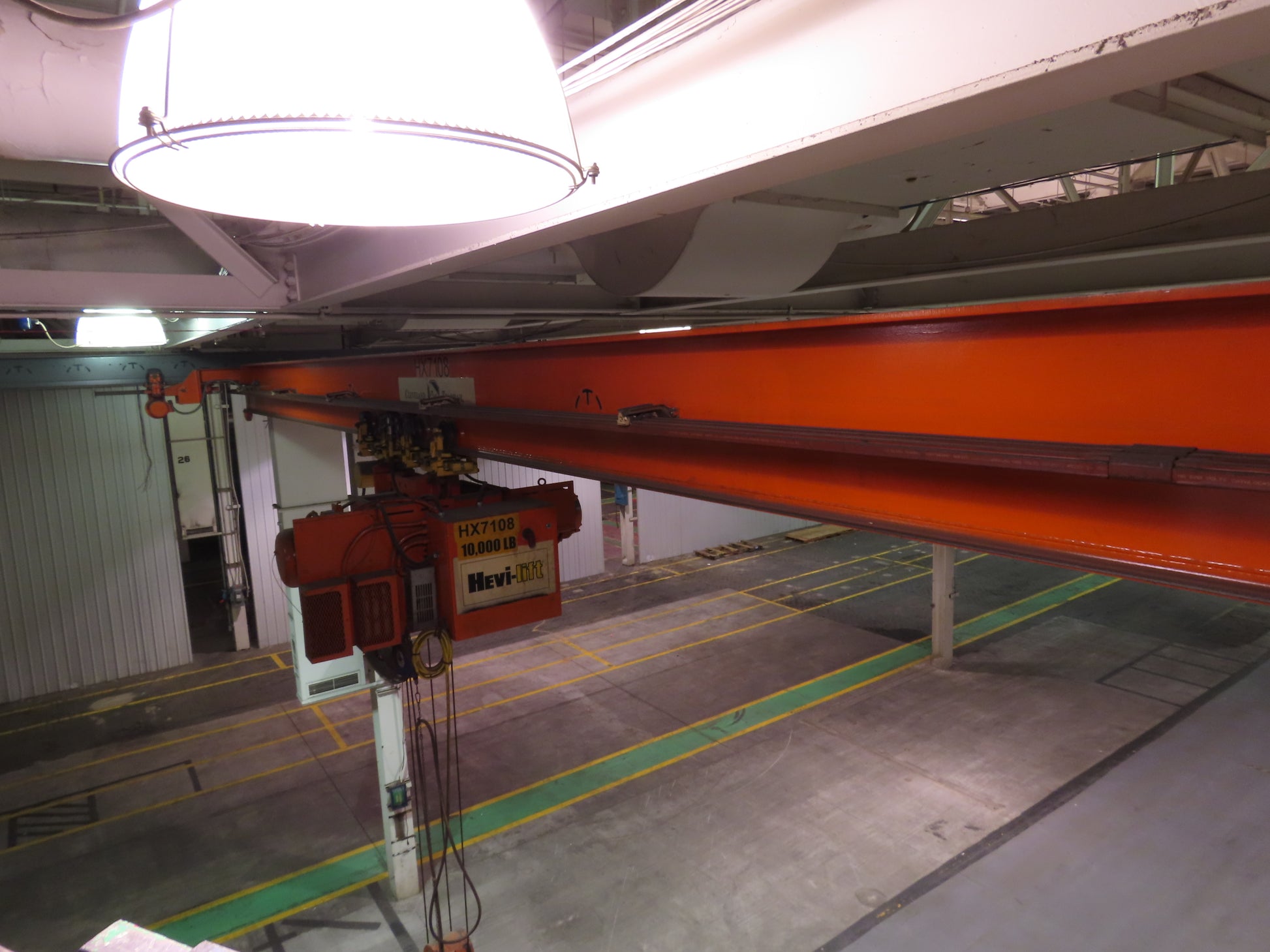

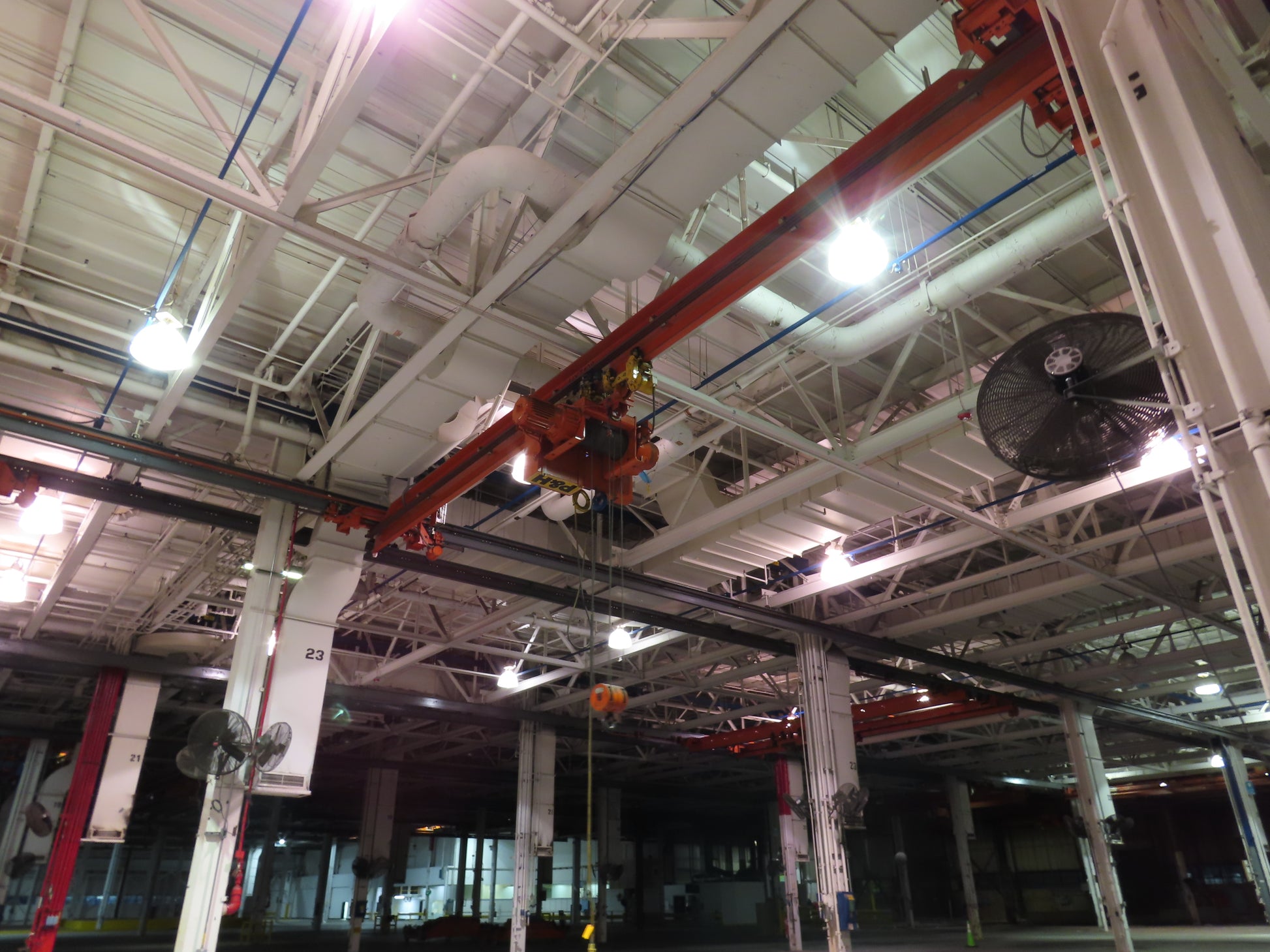

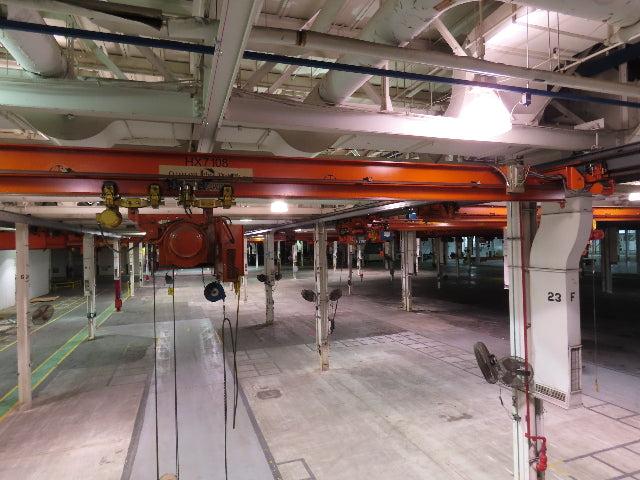

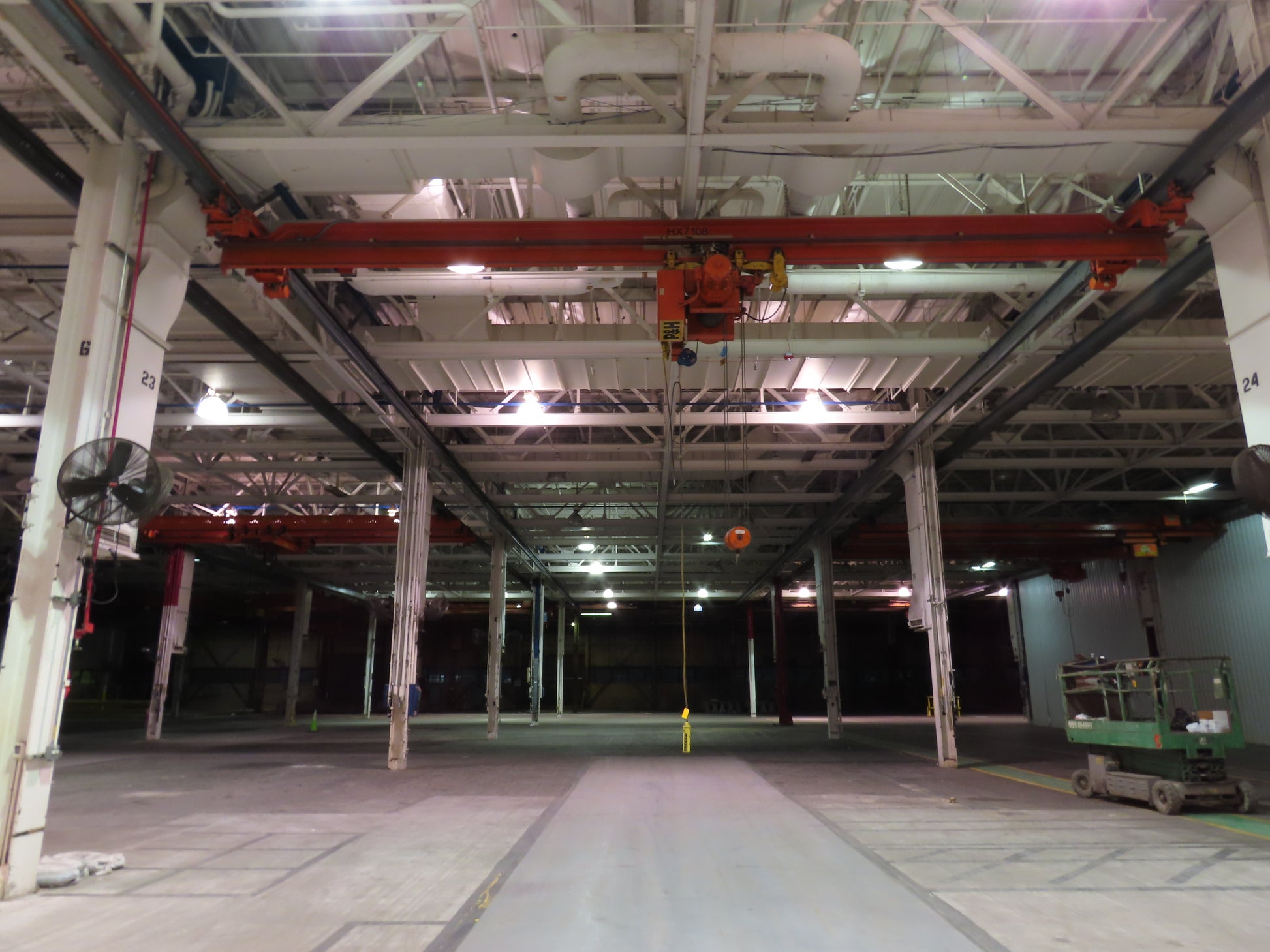

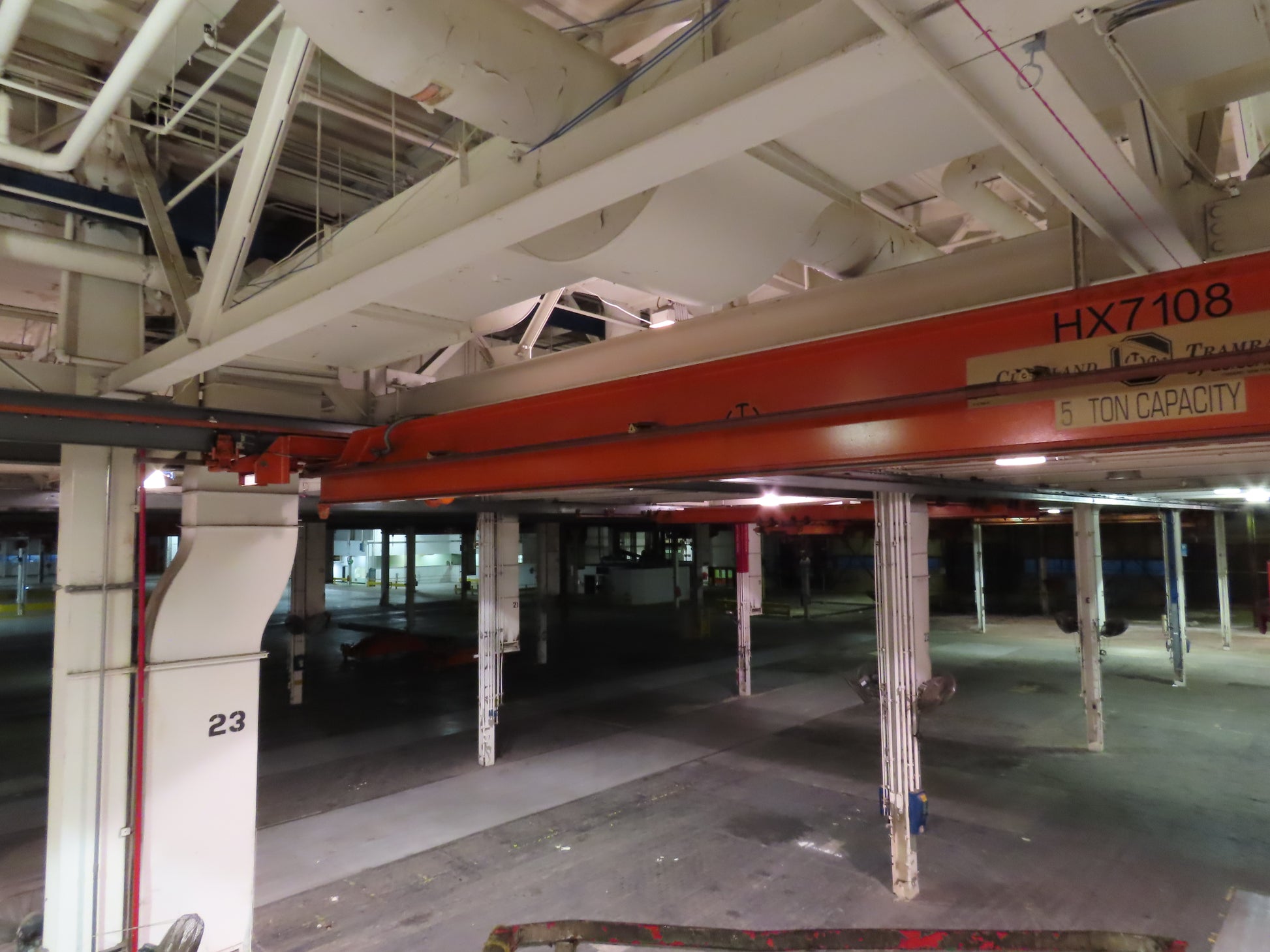

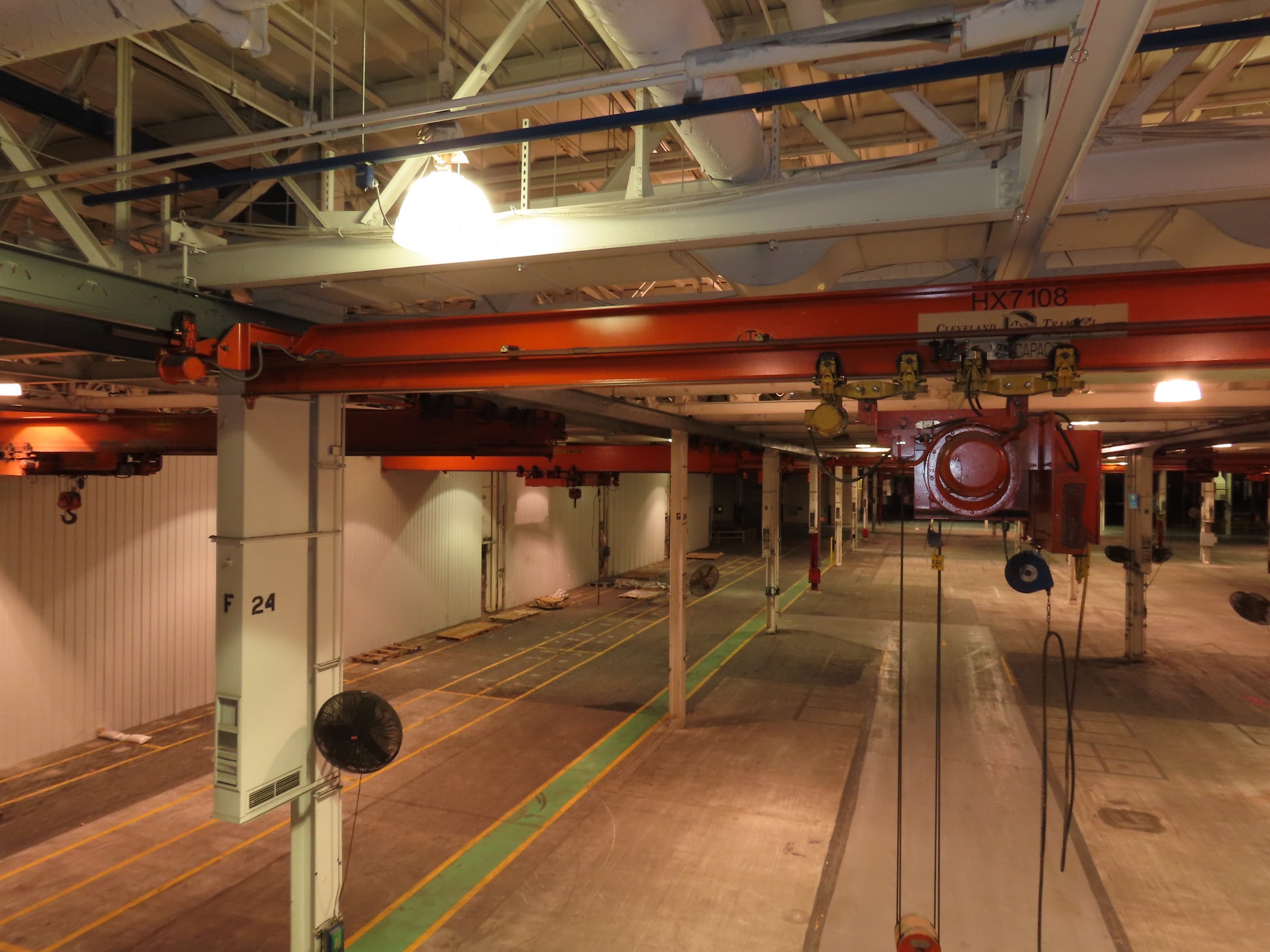

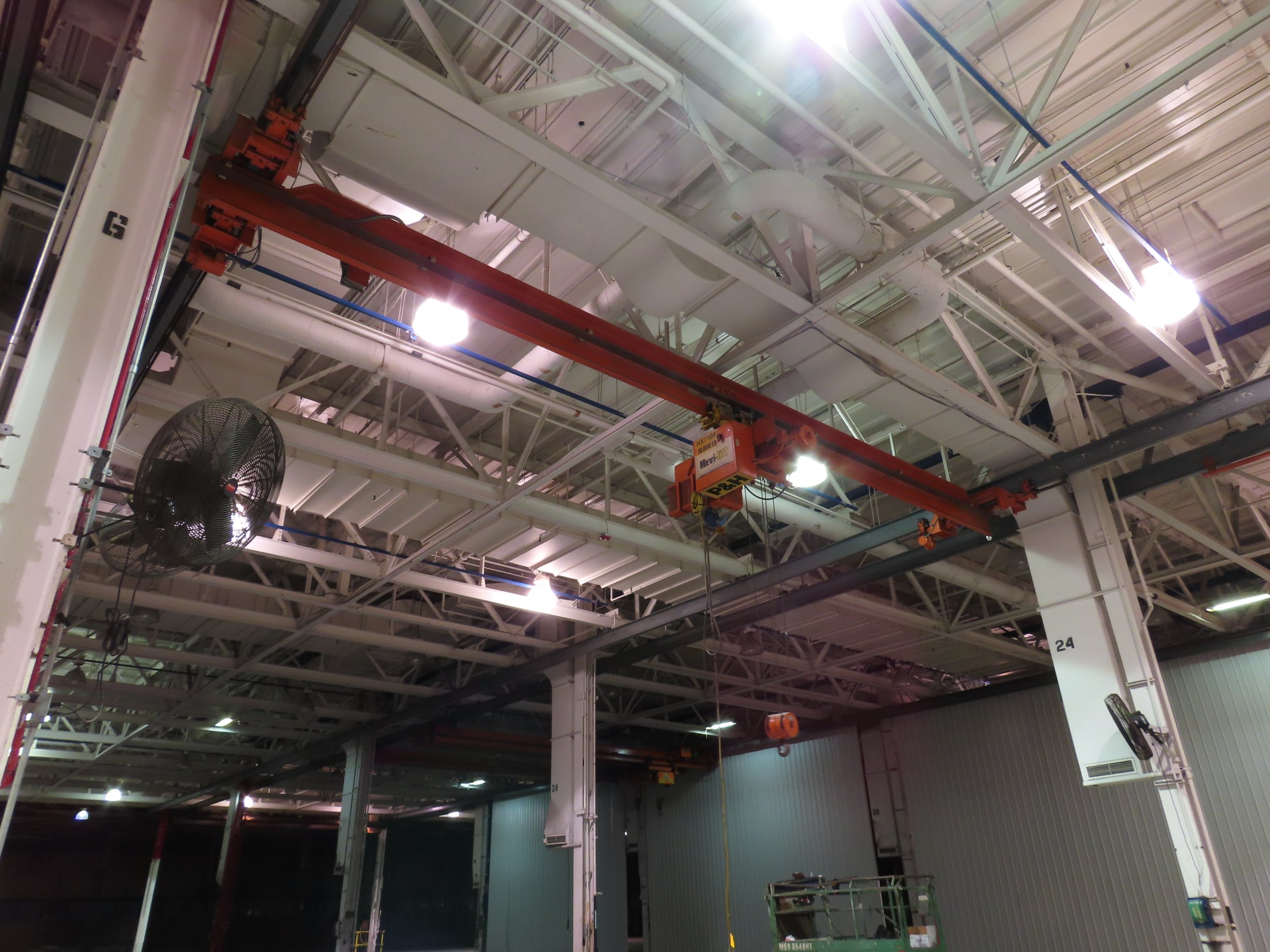

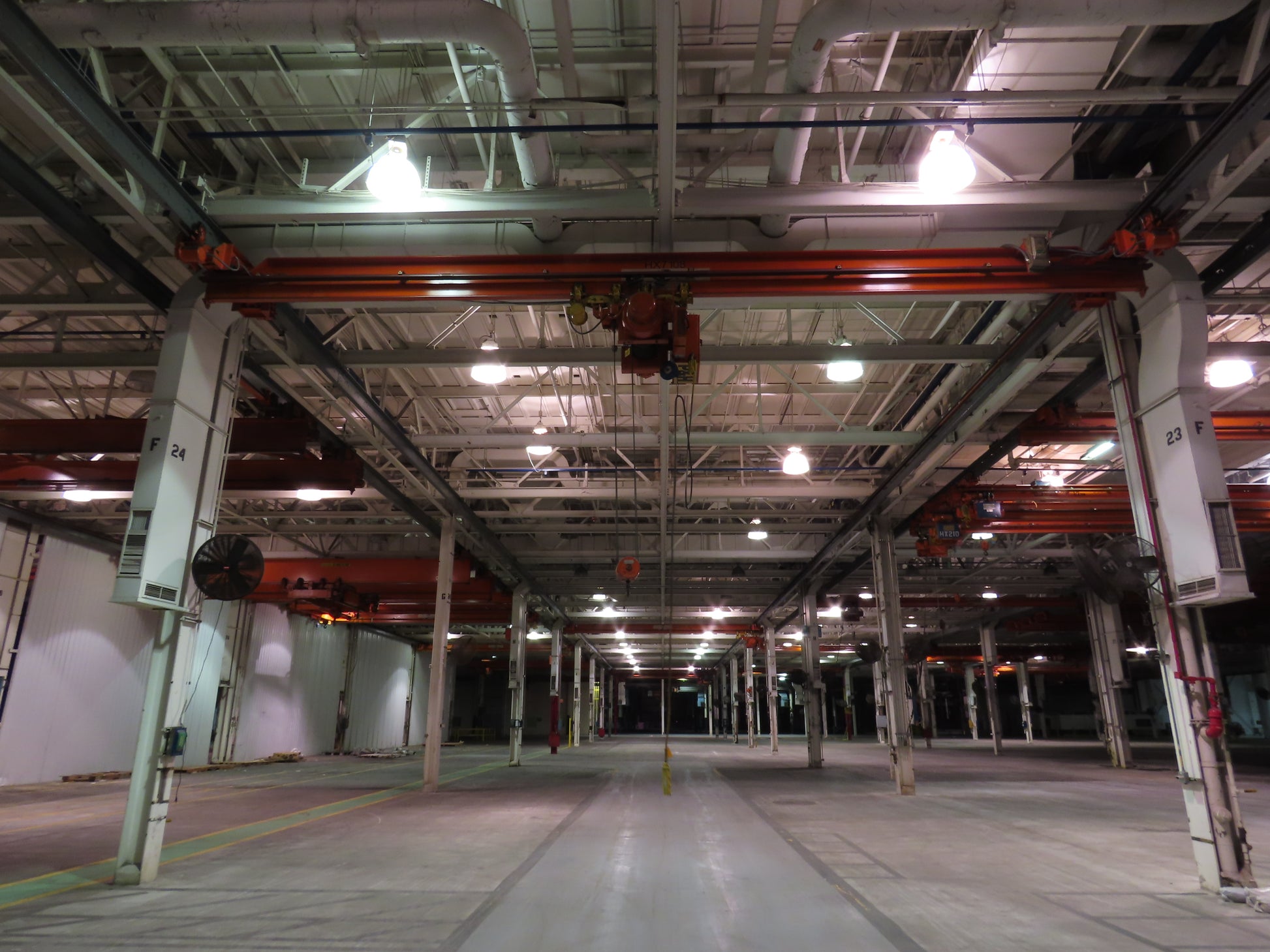

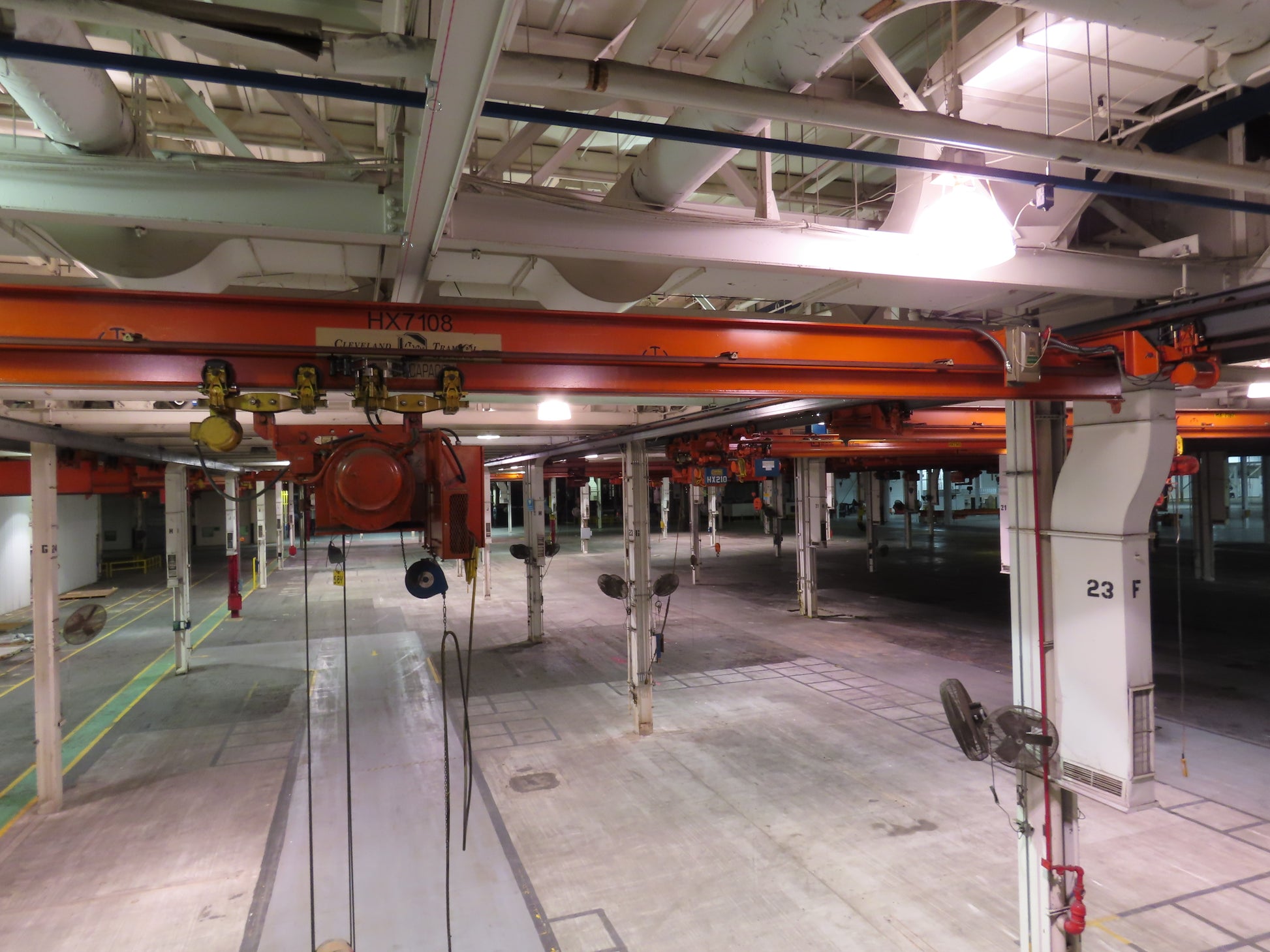

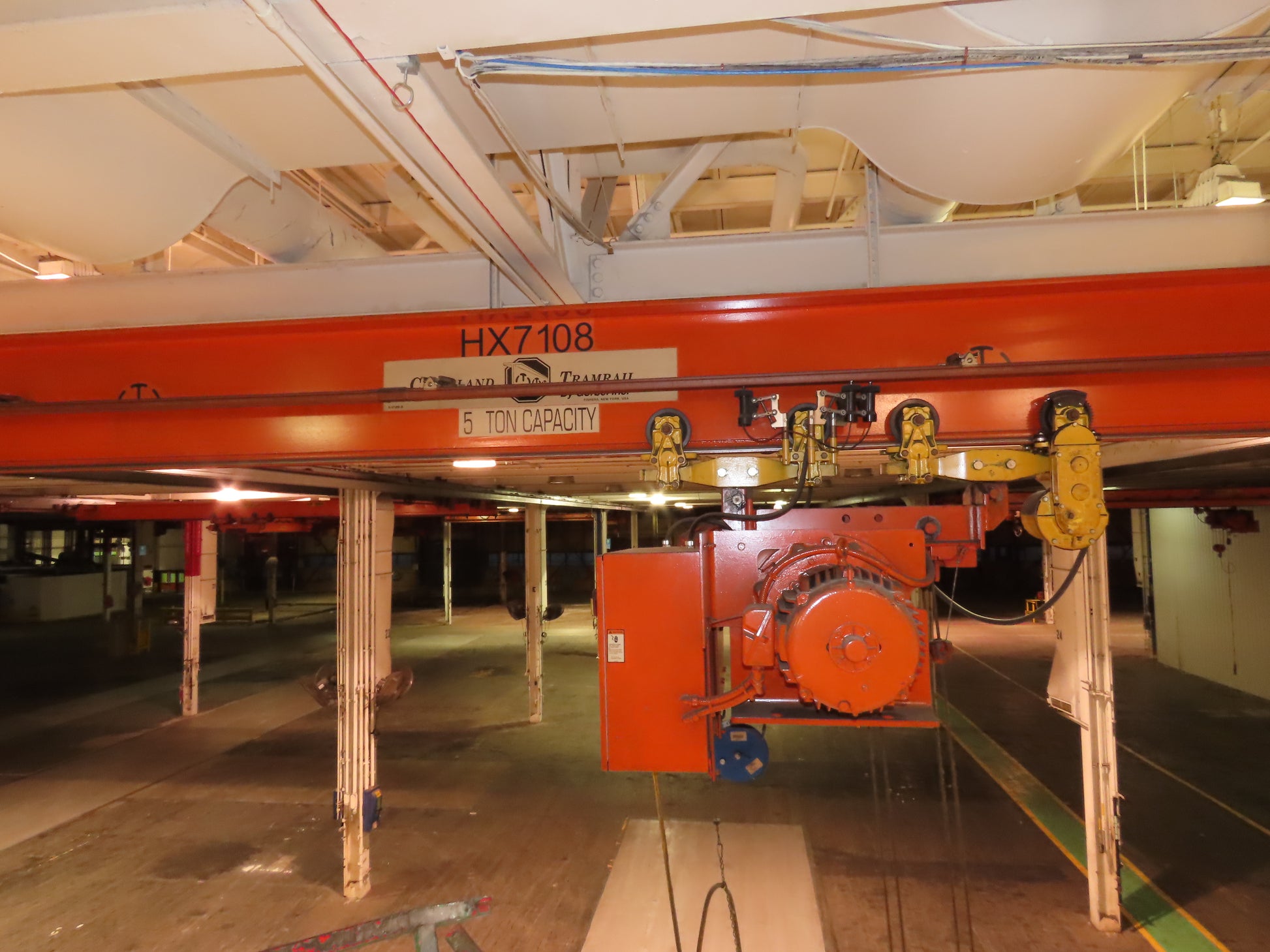

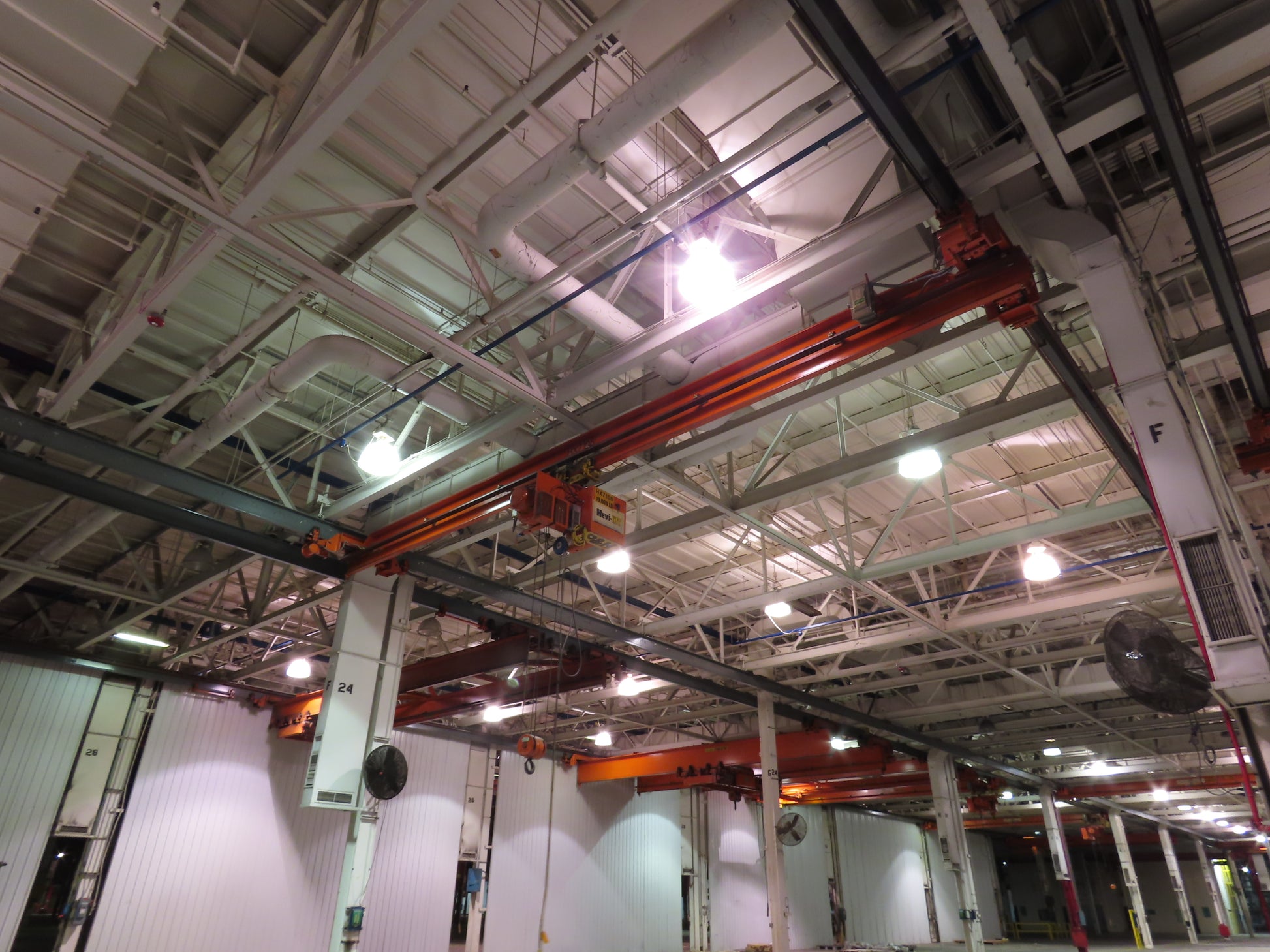

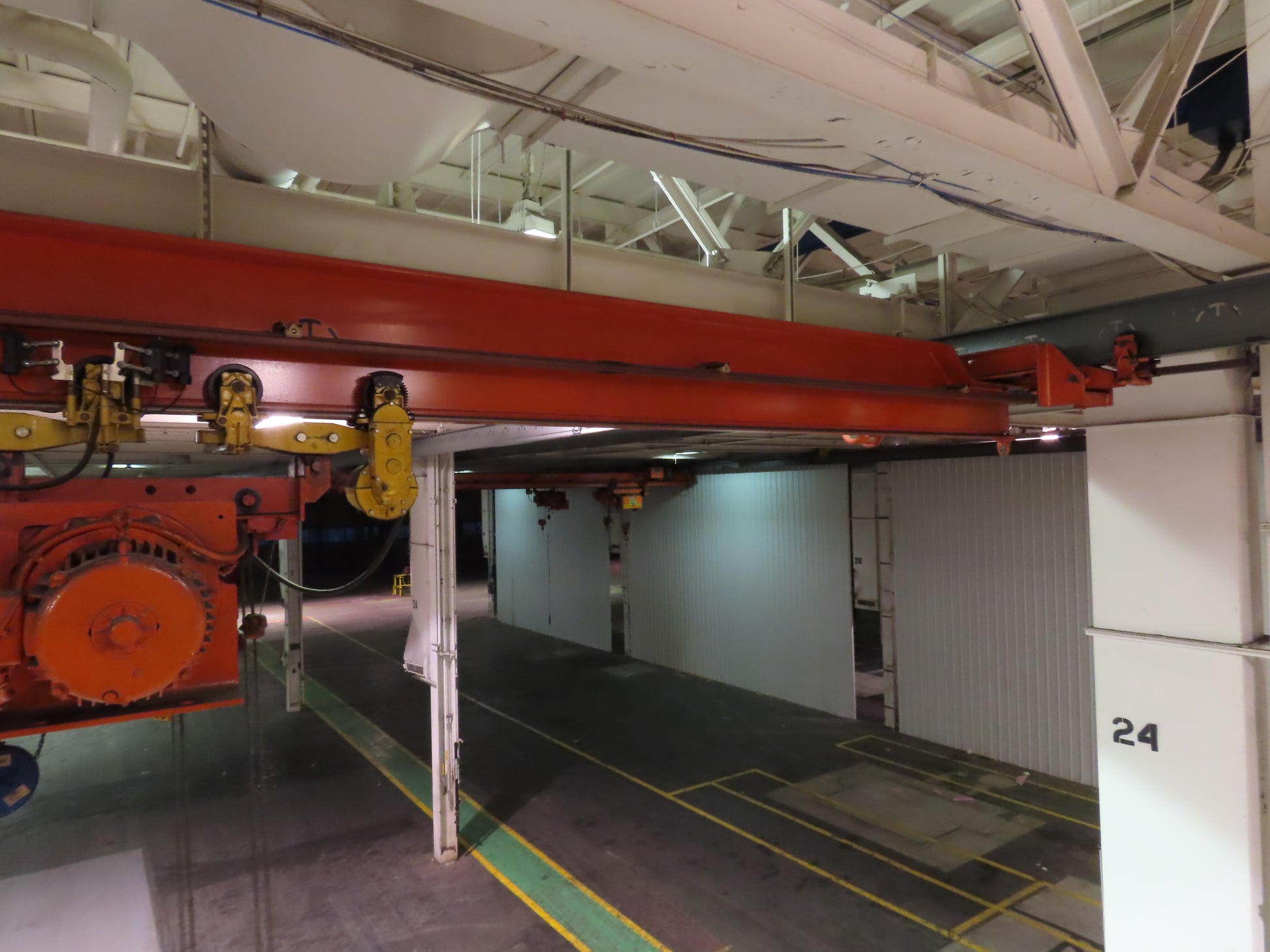

Cleveland Tramrail P&H 5 Ton Single Girder Underhung Bridge Crane 34' 10" Span

Cleveland Tramrail P&H 5 Ton Single Girder Underhung Bridge Crane 34' 10" Span

SKU #268239

Your Price
$10,259.98
$11,999.98 $10,259.98
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 5
  • Capacity (lb): 10000

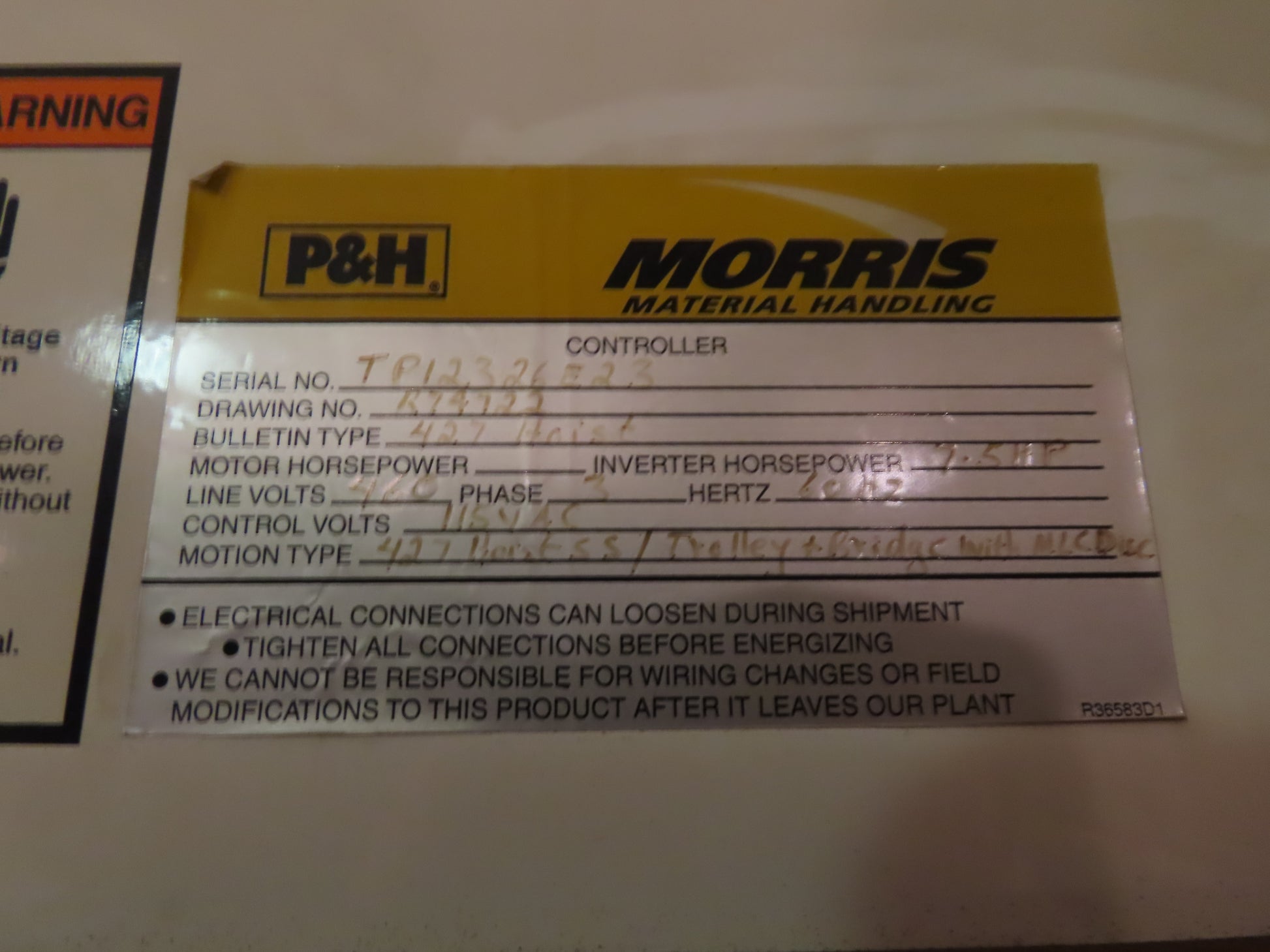

  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 34' 10"
  • Main Girder Beam Size (Height x Width x Length): 20"H x 11"W x 36' 10"L

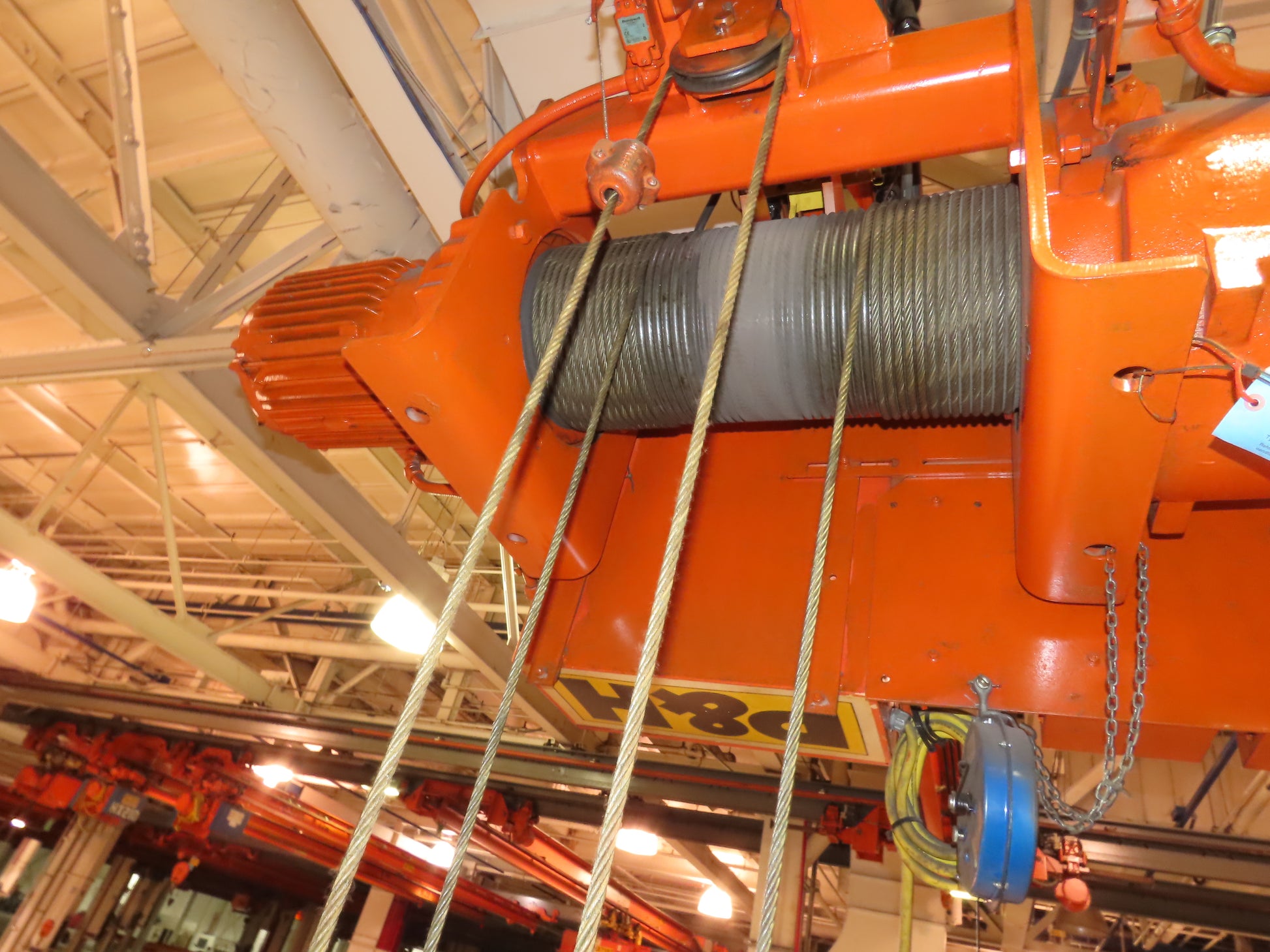

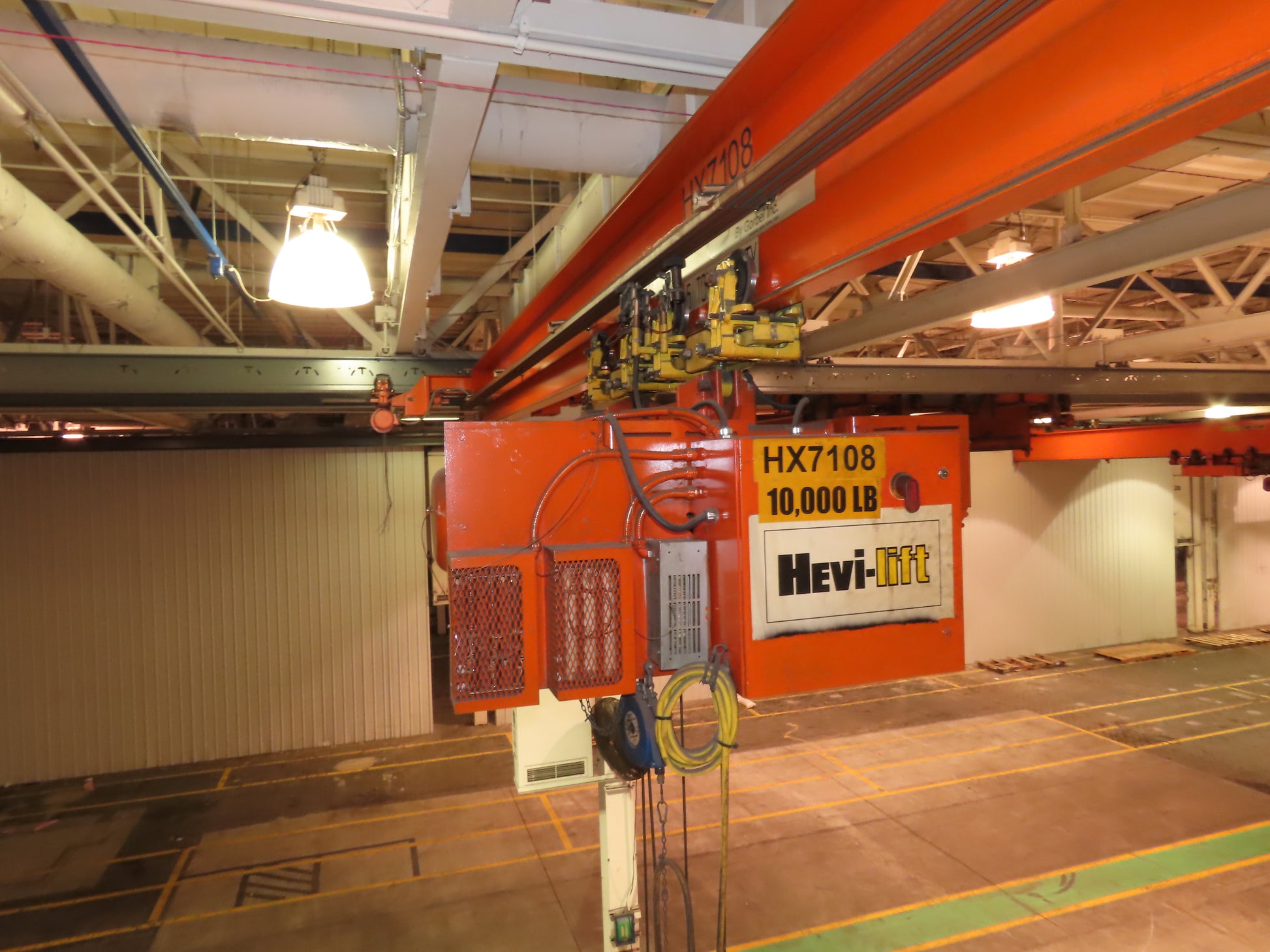

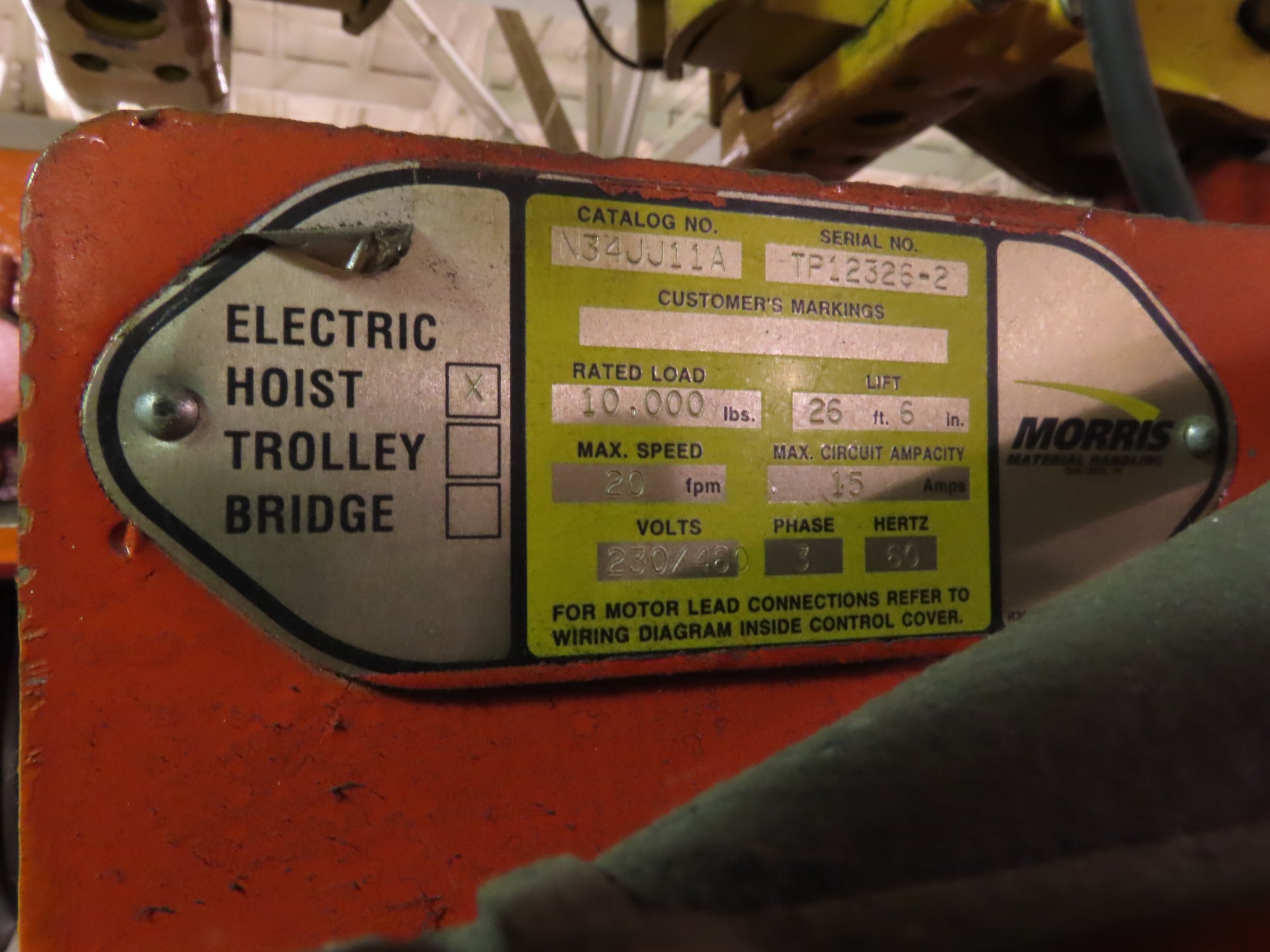

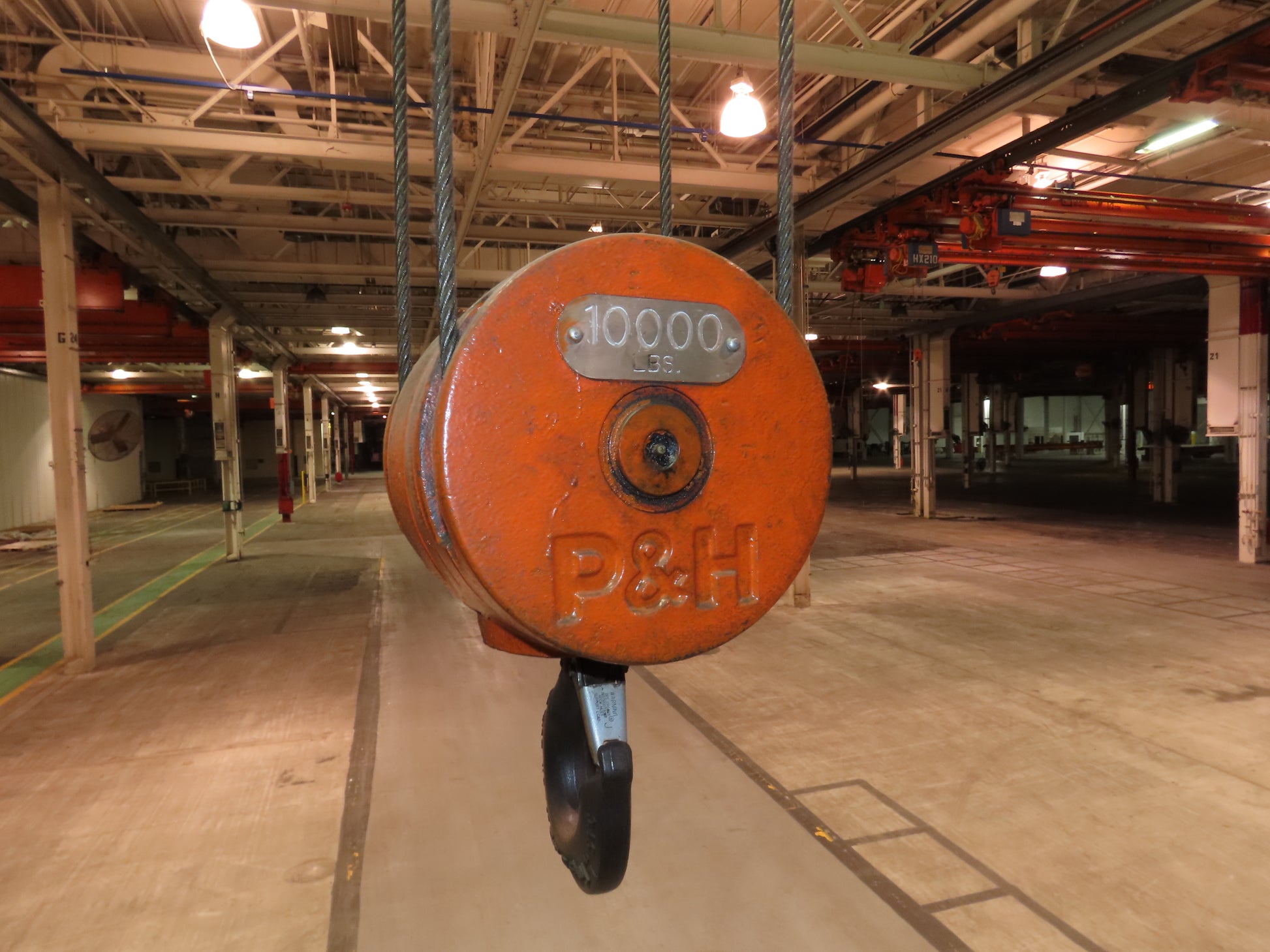

  • Hoist Brand: P&H
  • Lift Travel (feet): 26' 6"
  • Lift Speed (feet per minute): 5/20 FPM 2-Speed

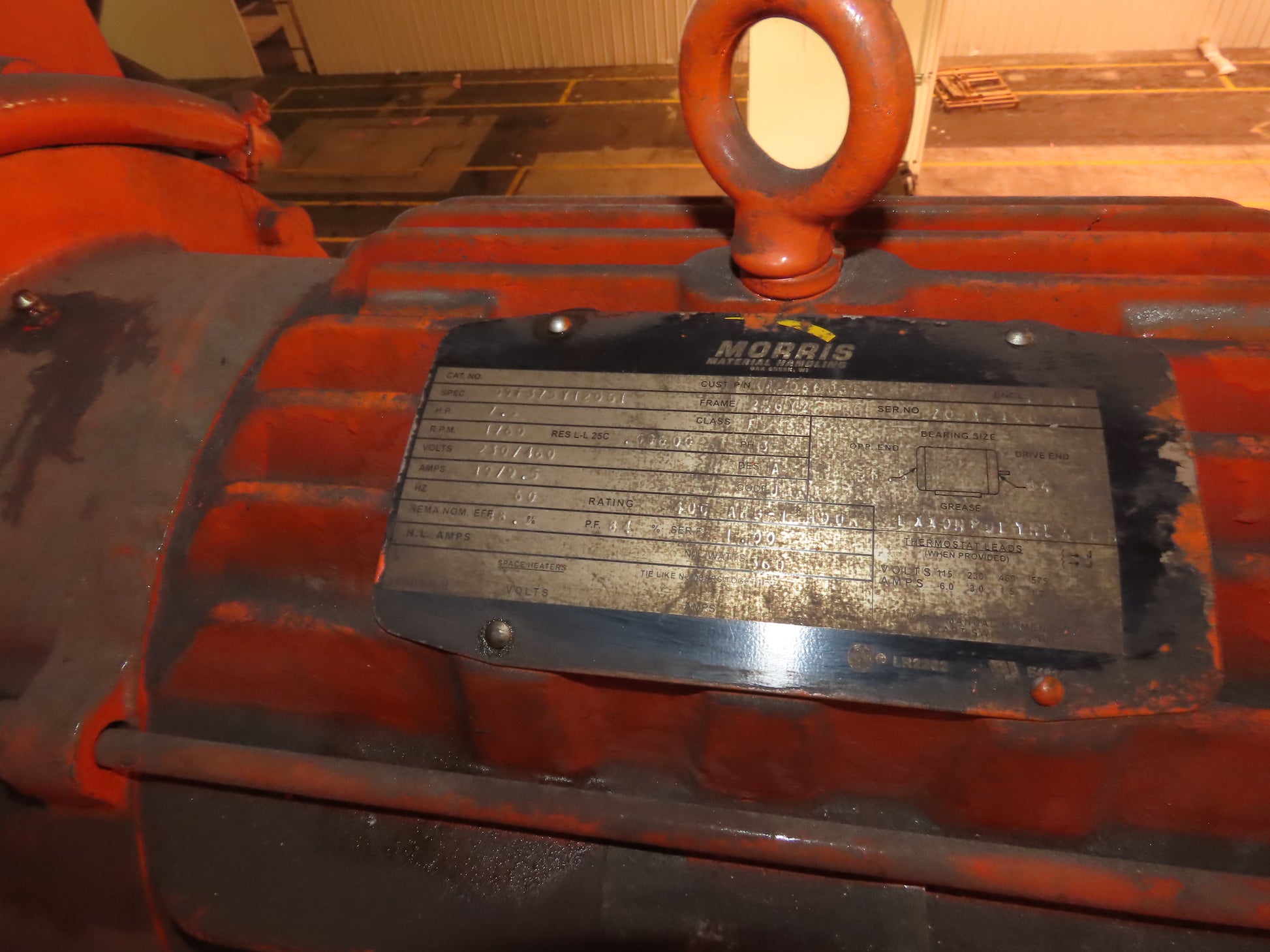

  • Motor Horse Power: 7.5
  • Pendant/Control Length From Bottom of Hoist (ft): 24'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 51"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 65"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 72"
  • Bridge Crane is in working condition.  Tested on site before removal.

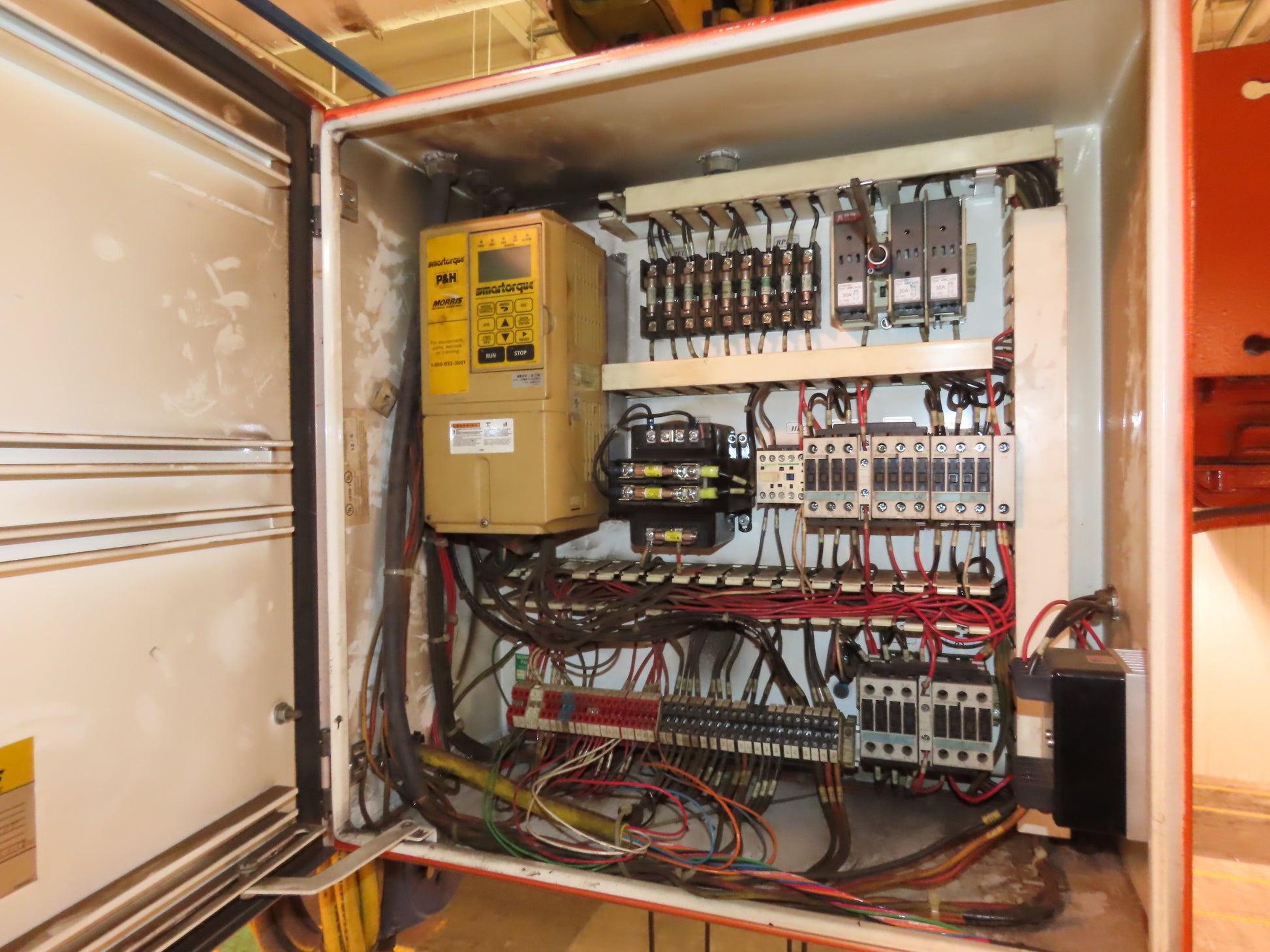

  • -Hoist has a minor electrical issue, the hook is not operating with the pendant.

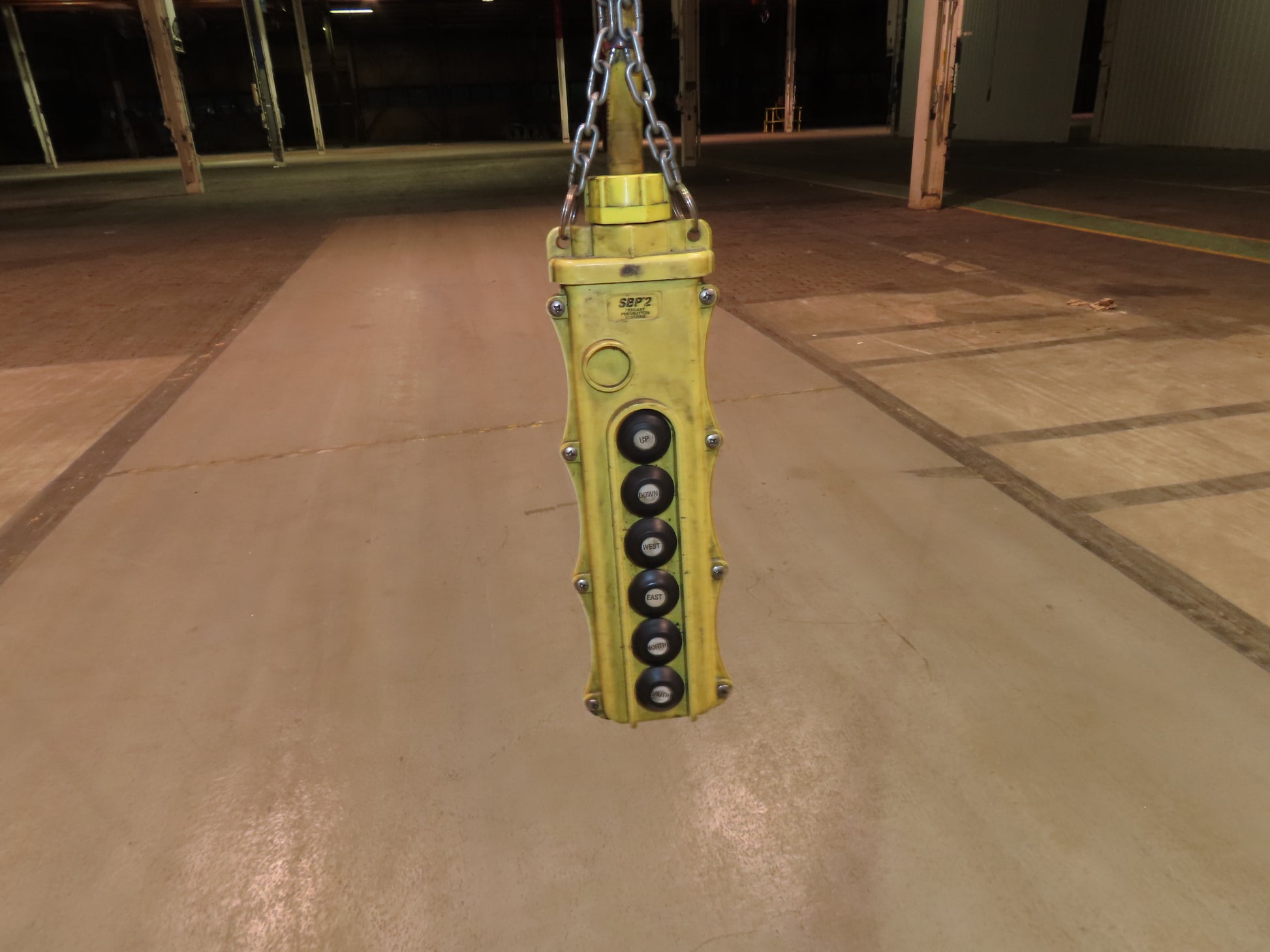

  • Includes corded pendant only. Not set up for wireless.
  • Single speed bridge and trolley,  2-speed hoist.

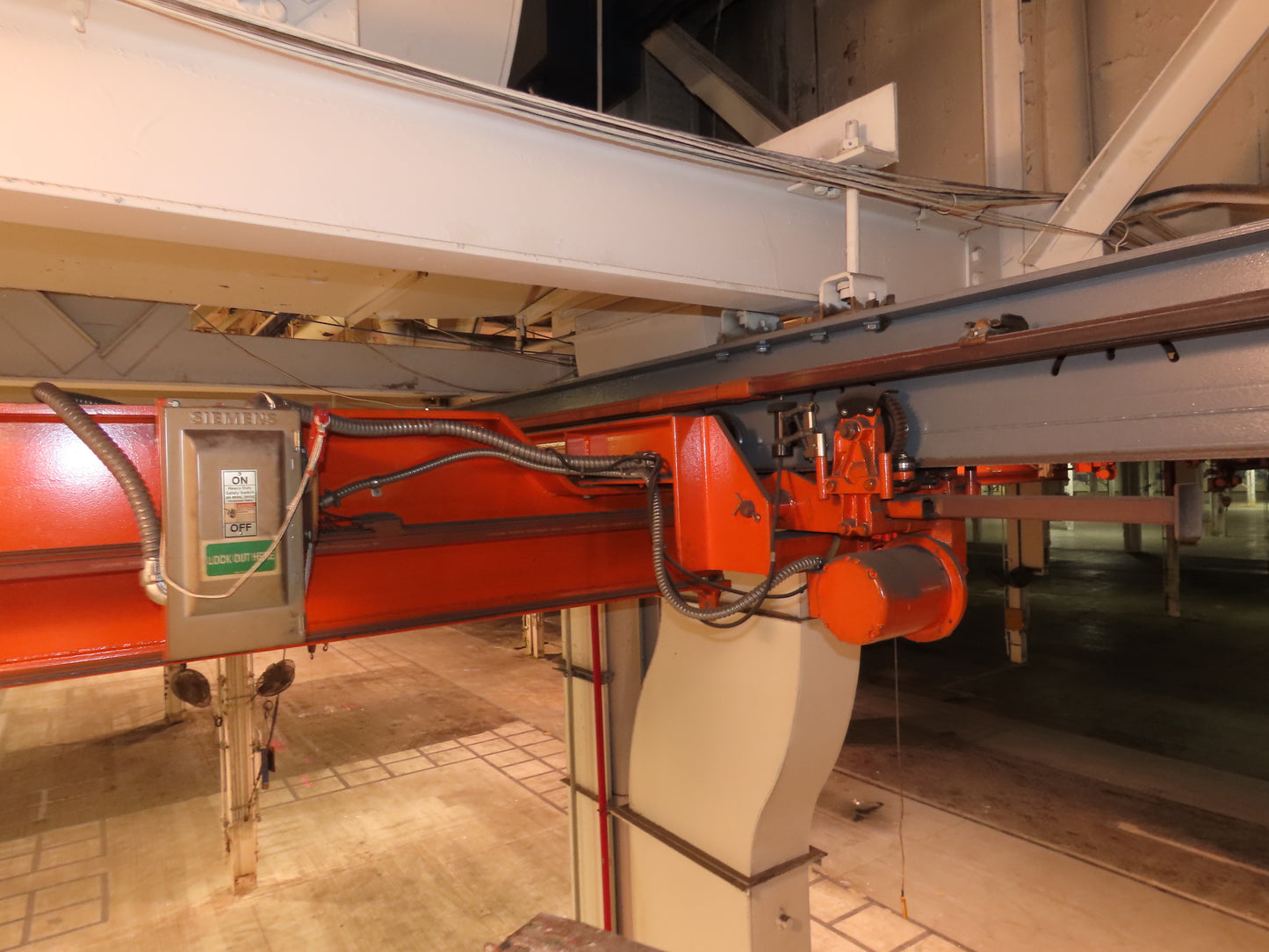

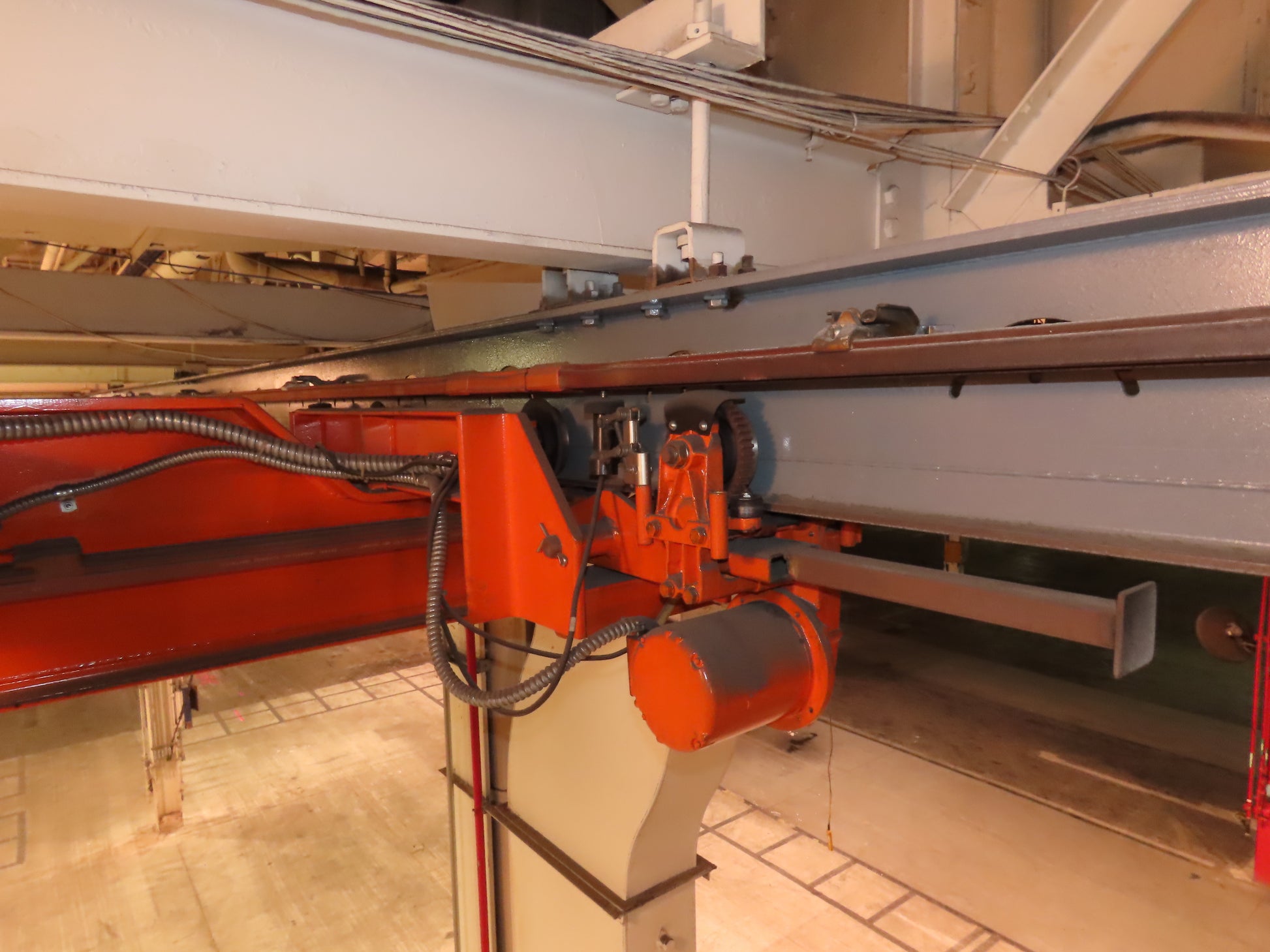

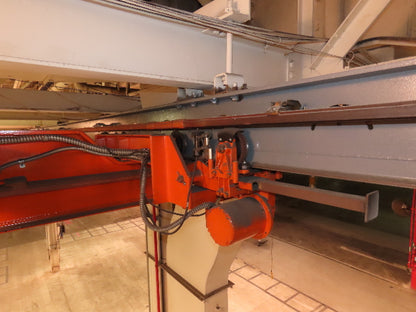

  • End truck length:  108"

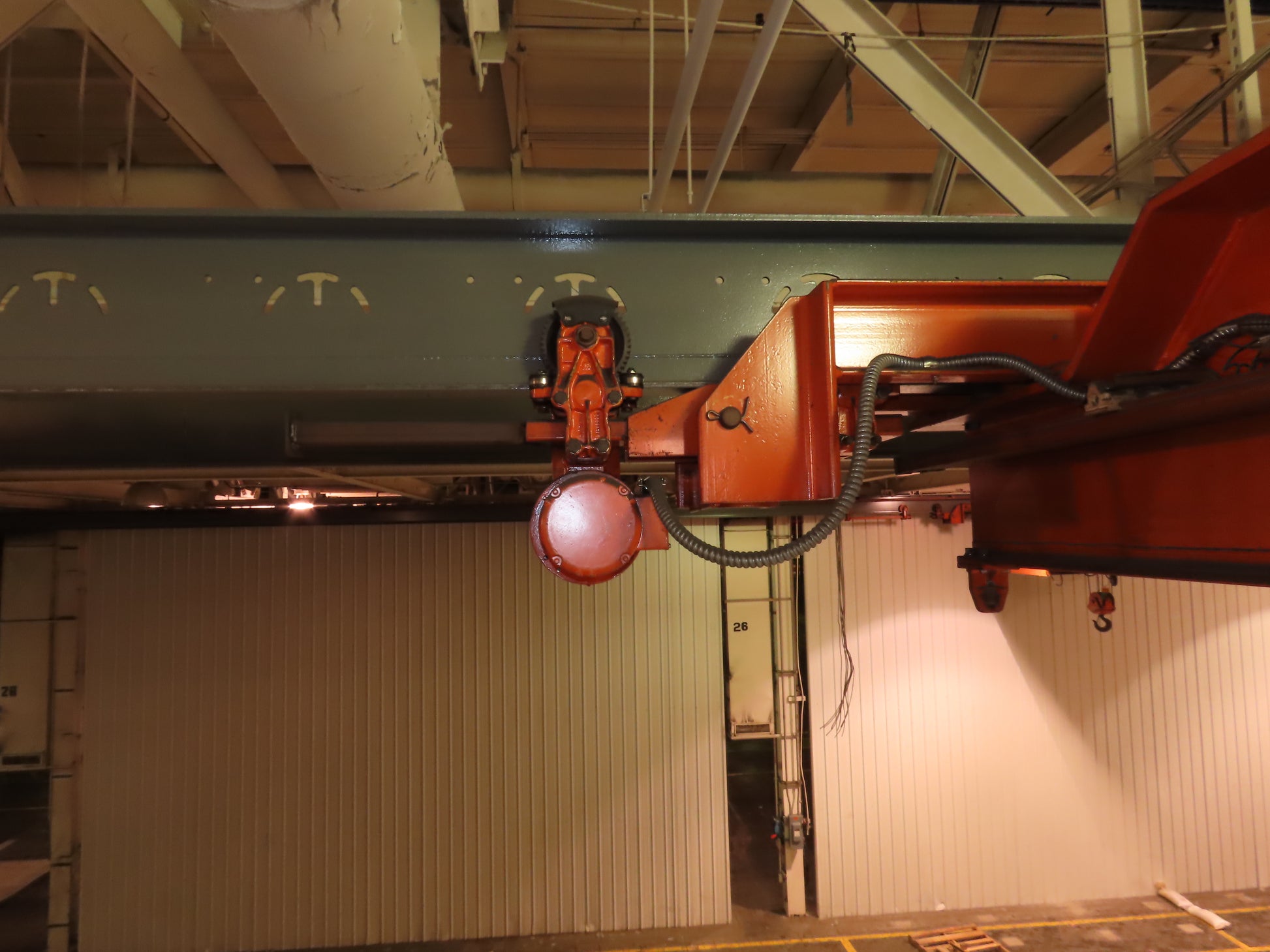

  • End truck wheel size:  5"

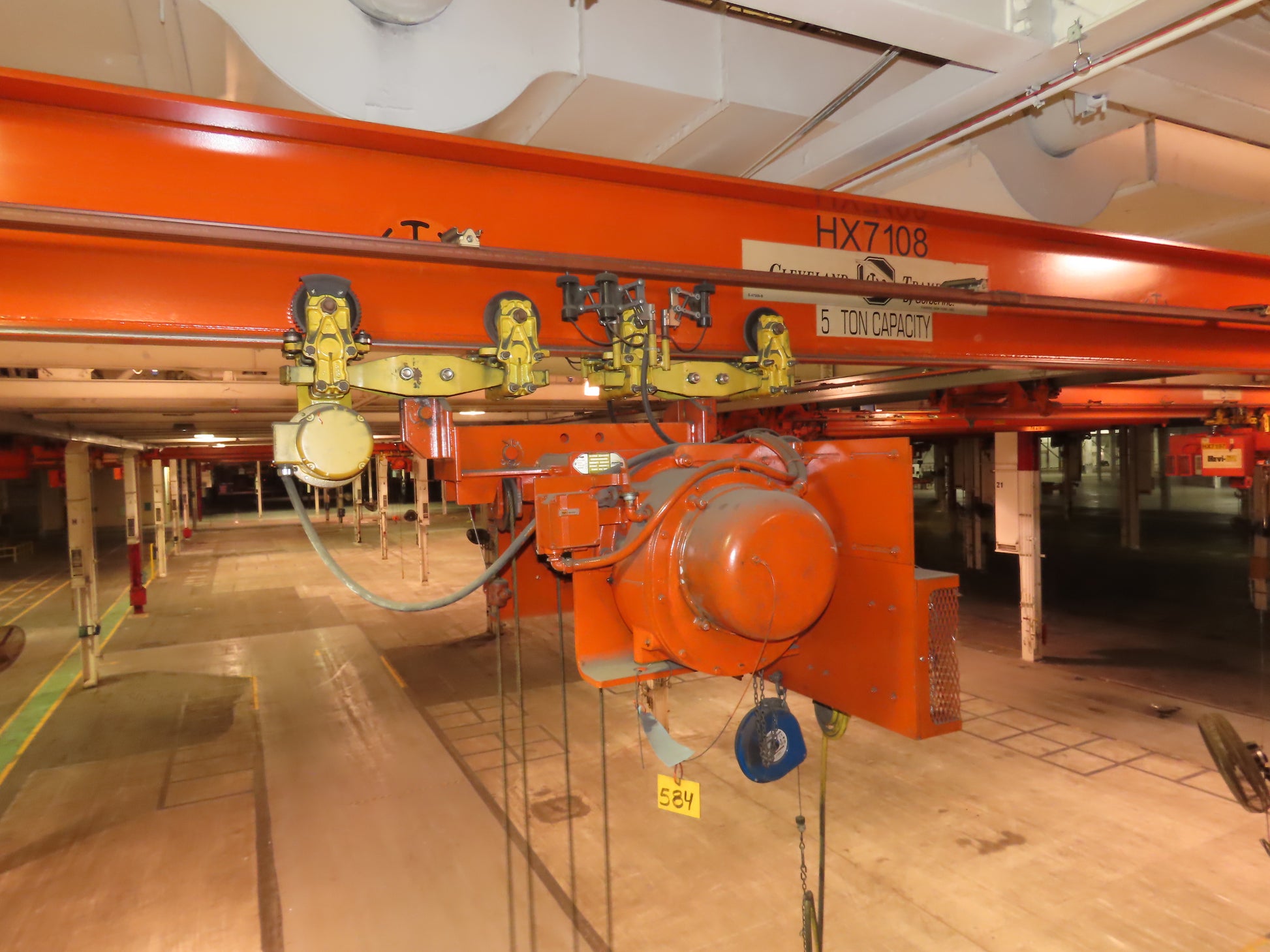

  • Hoist trolley length:  60"
