Cleveland Tramrail

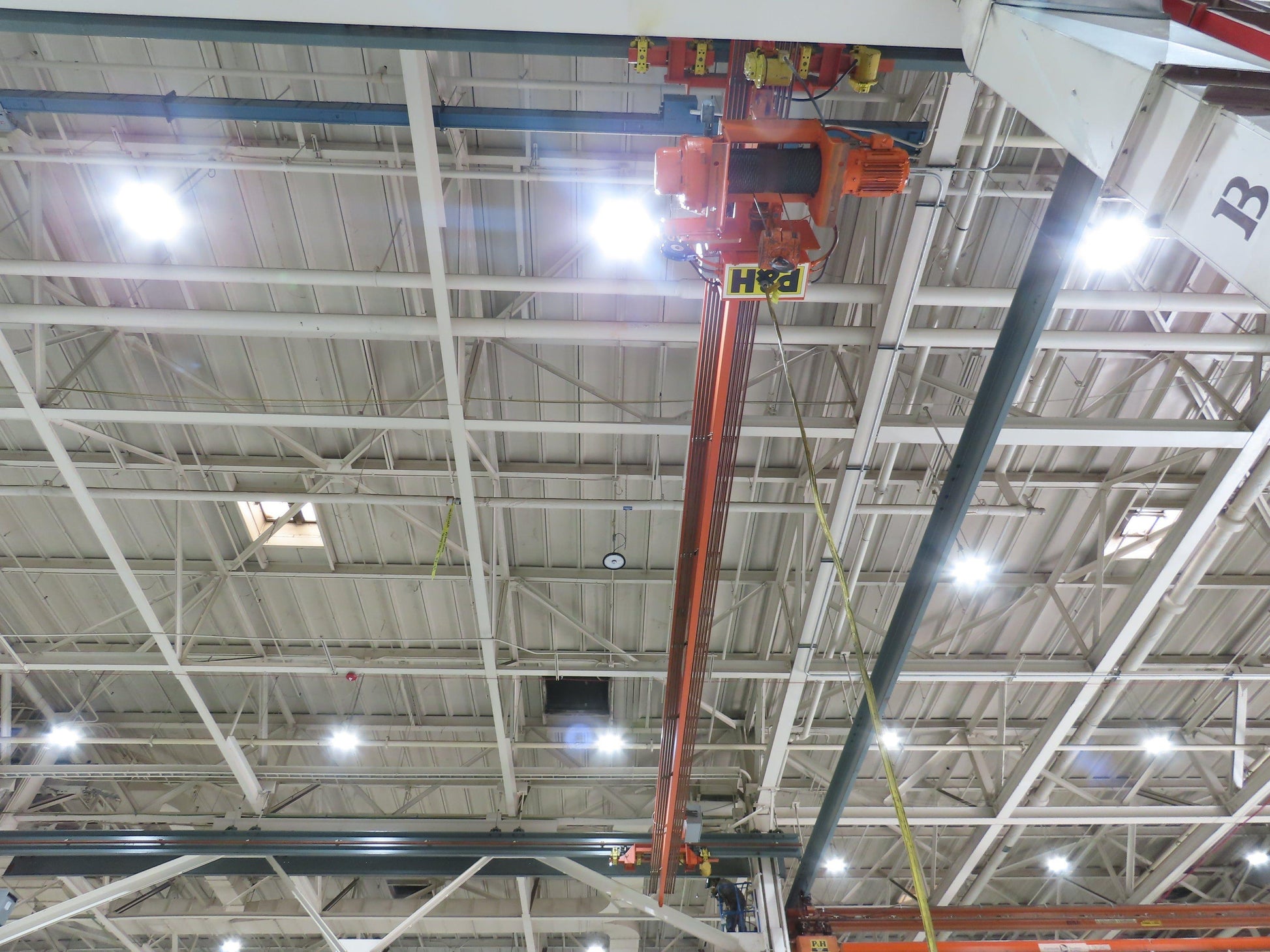

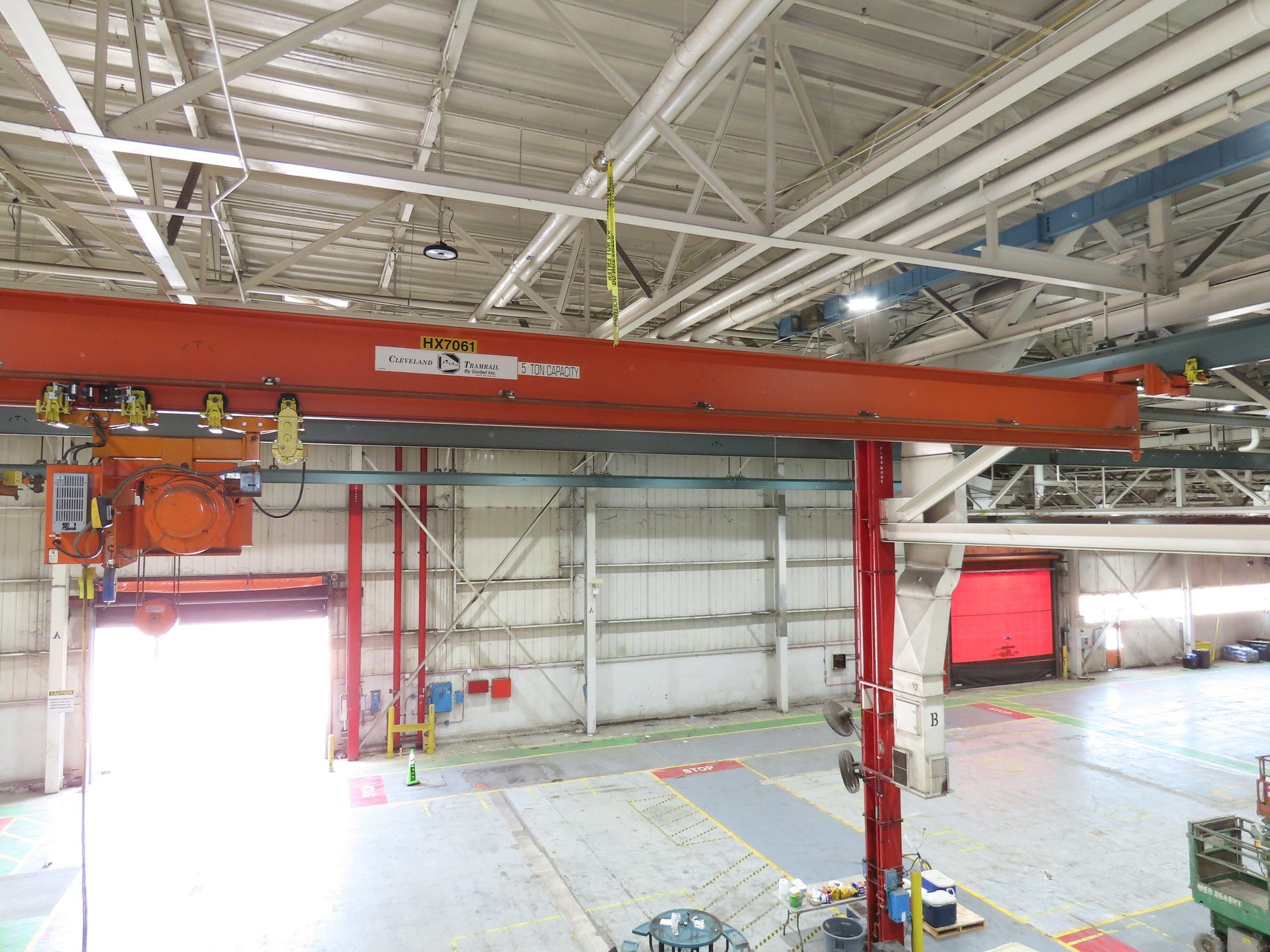

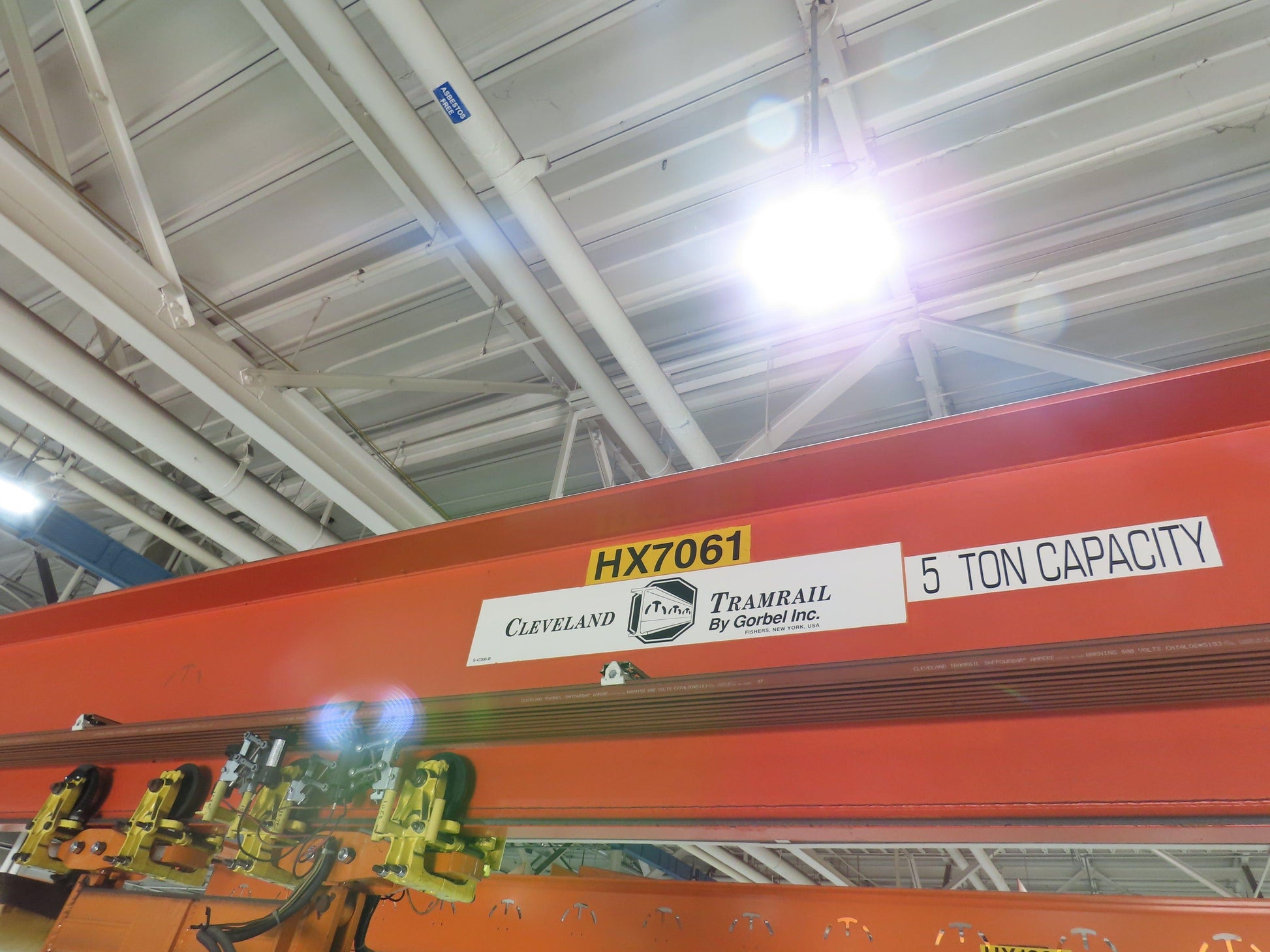

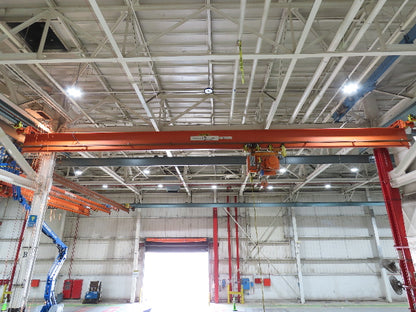

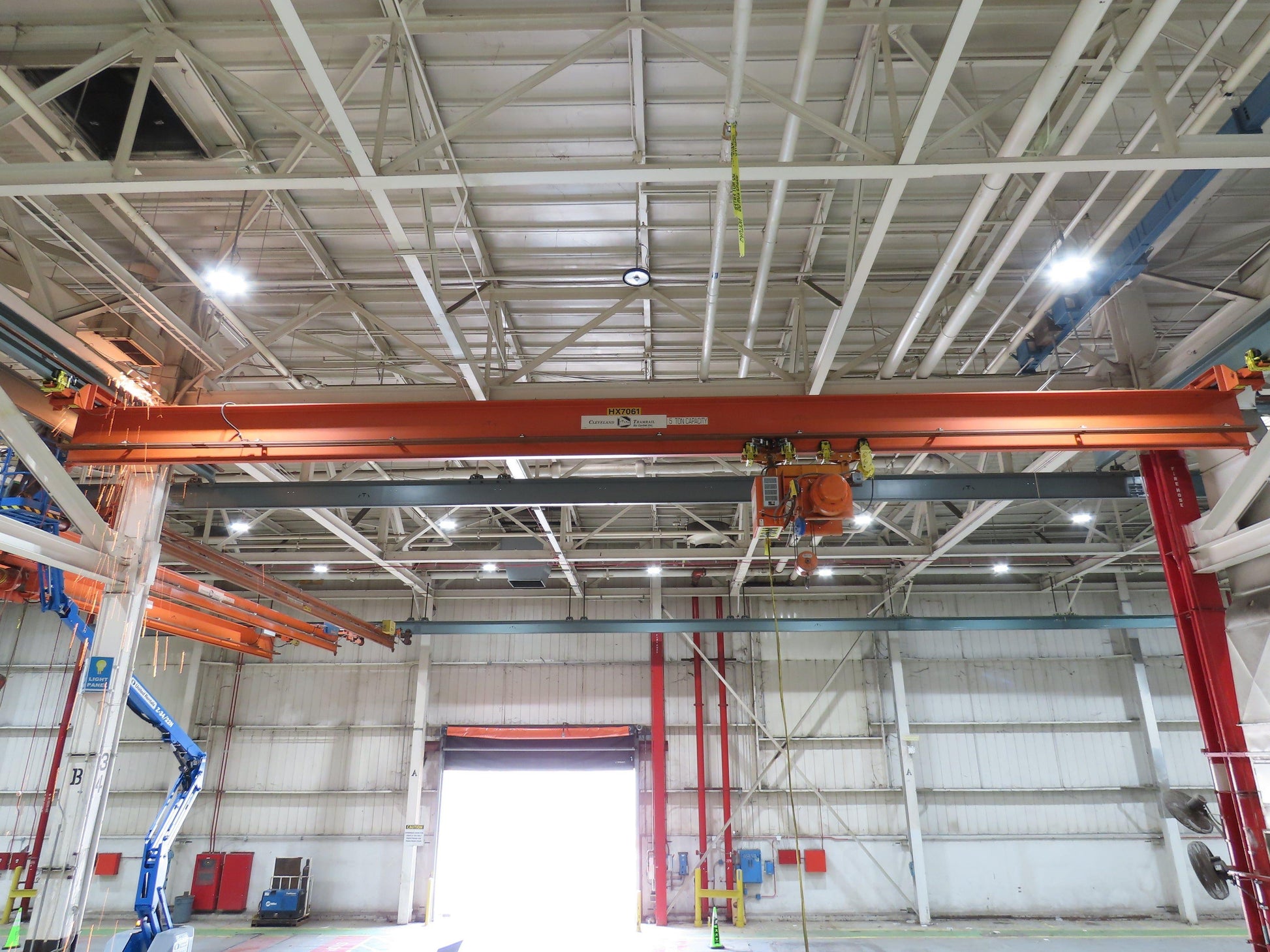

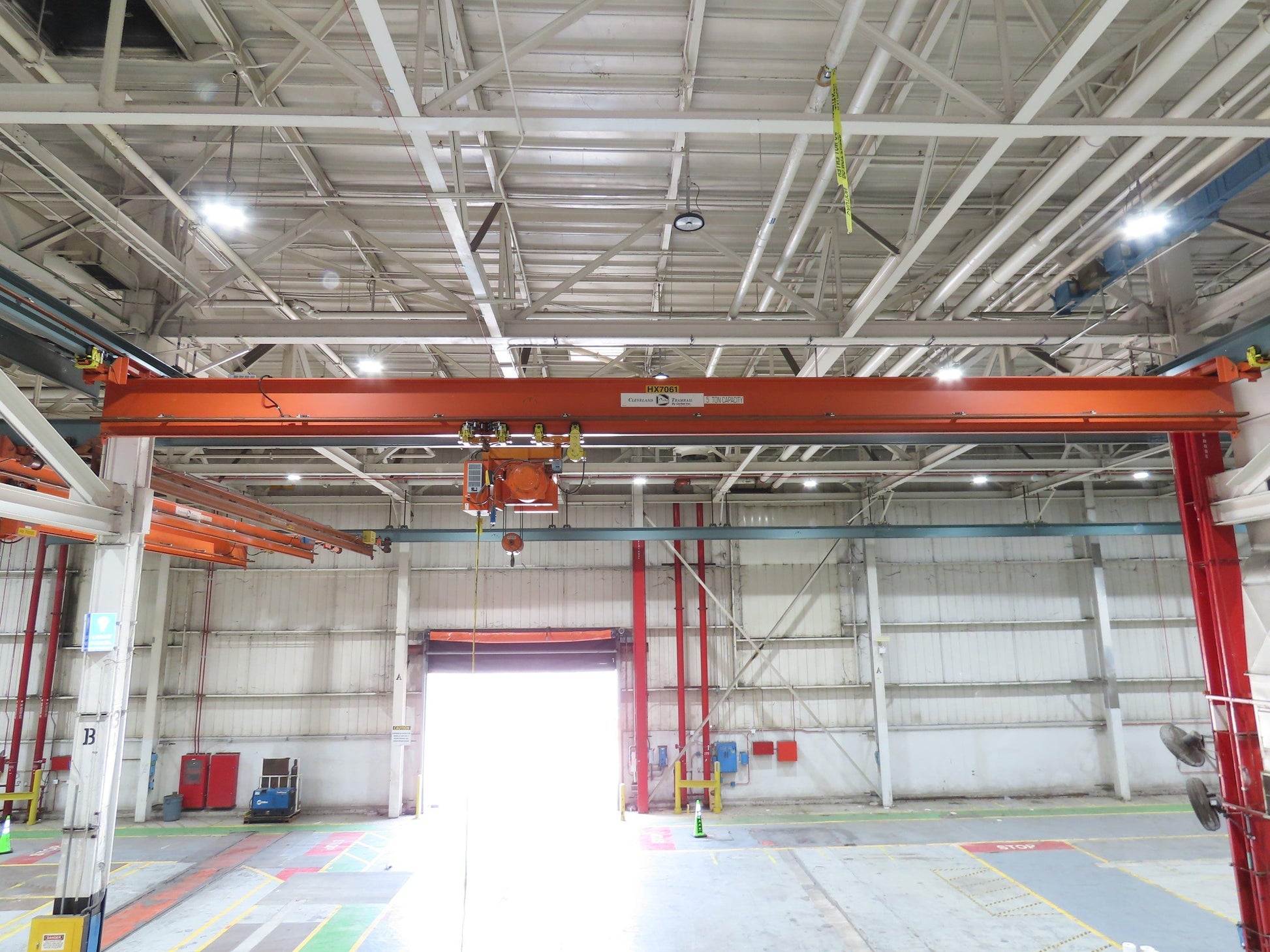

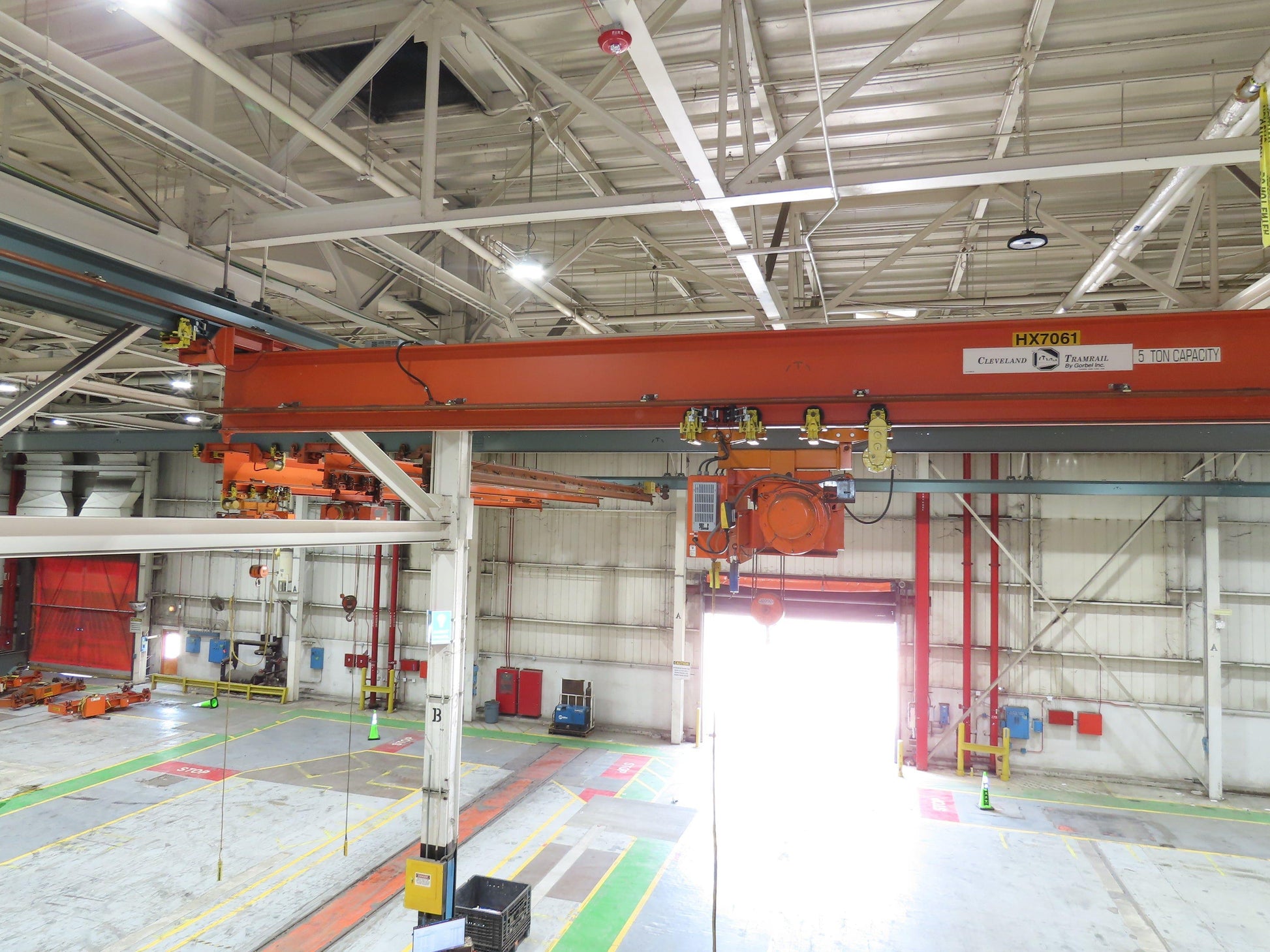

Cleveland Tramrail P&H 5 Ton Single Girder Underhung Bridge Crane 45' 10" Span

Cleveland Tramrail P&H 5 Ton Single Girder Underhung Bridge Crane 45' 10" Span

SKU #261945

Your Price
$12,824.99
$14,999.99 $12,824.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 5
  • Capacity (lb): 10000

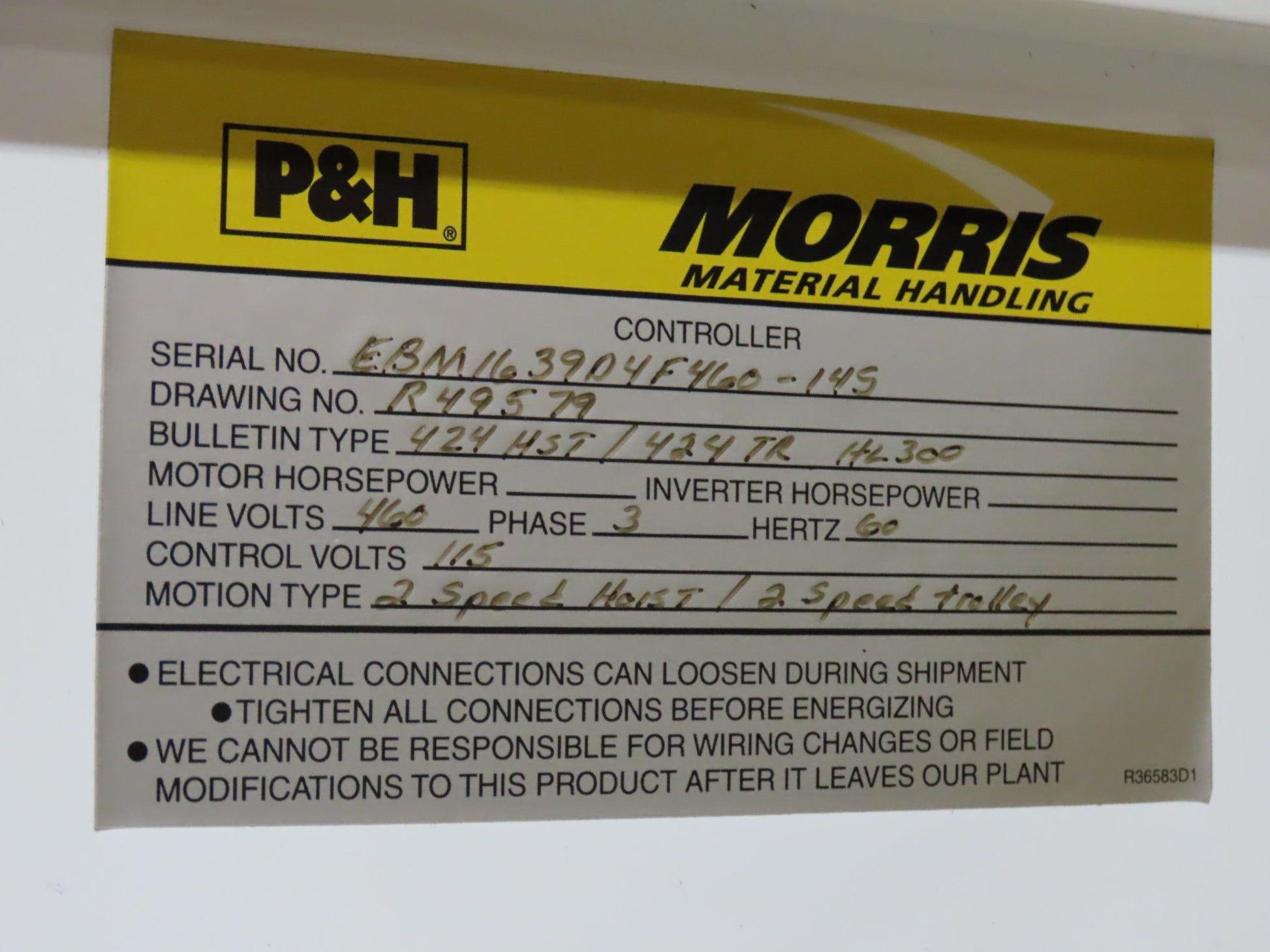

  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45' 10"
  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 47' 10" Length (3.25" flange)

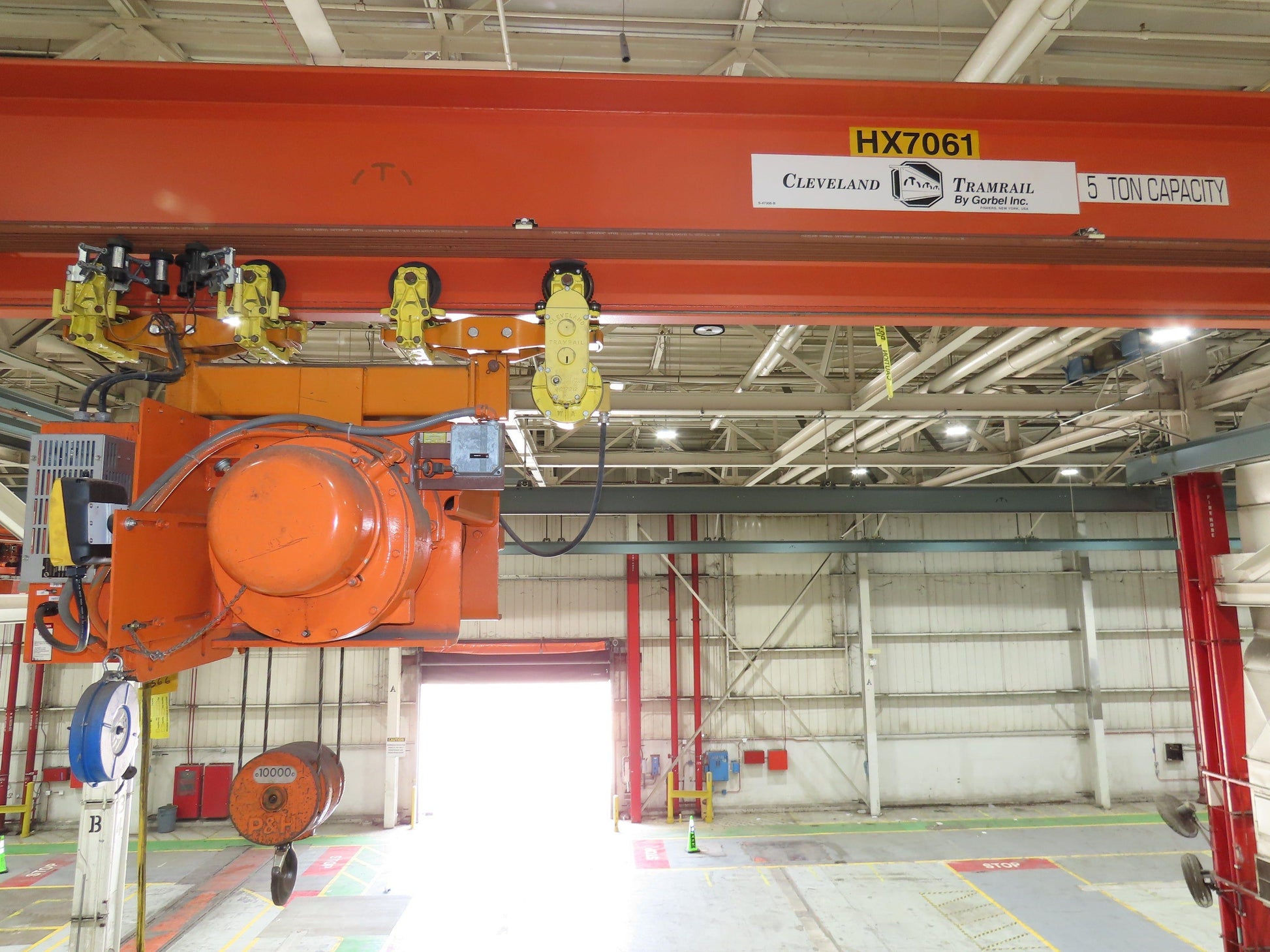

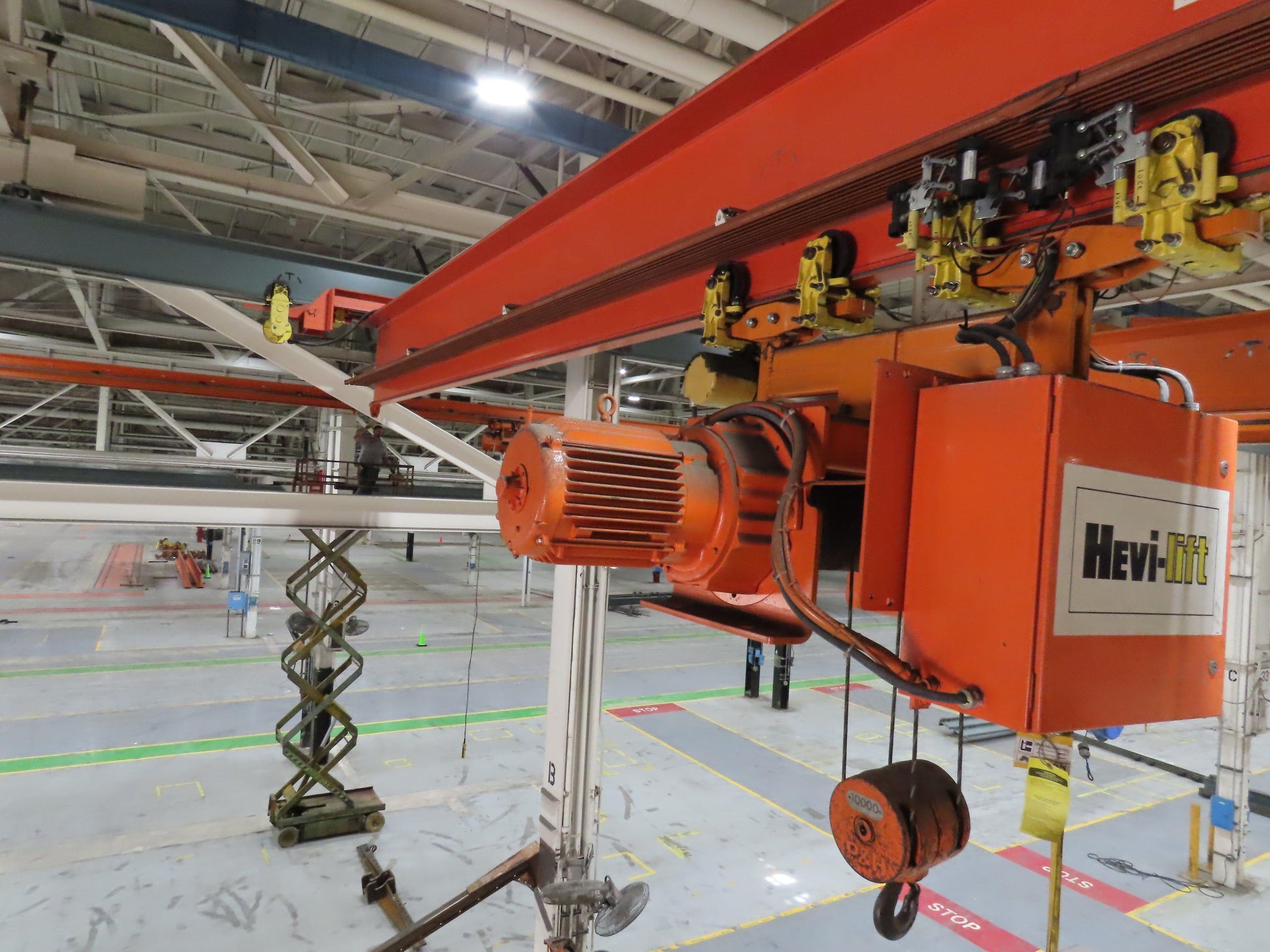

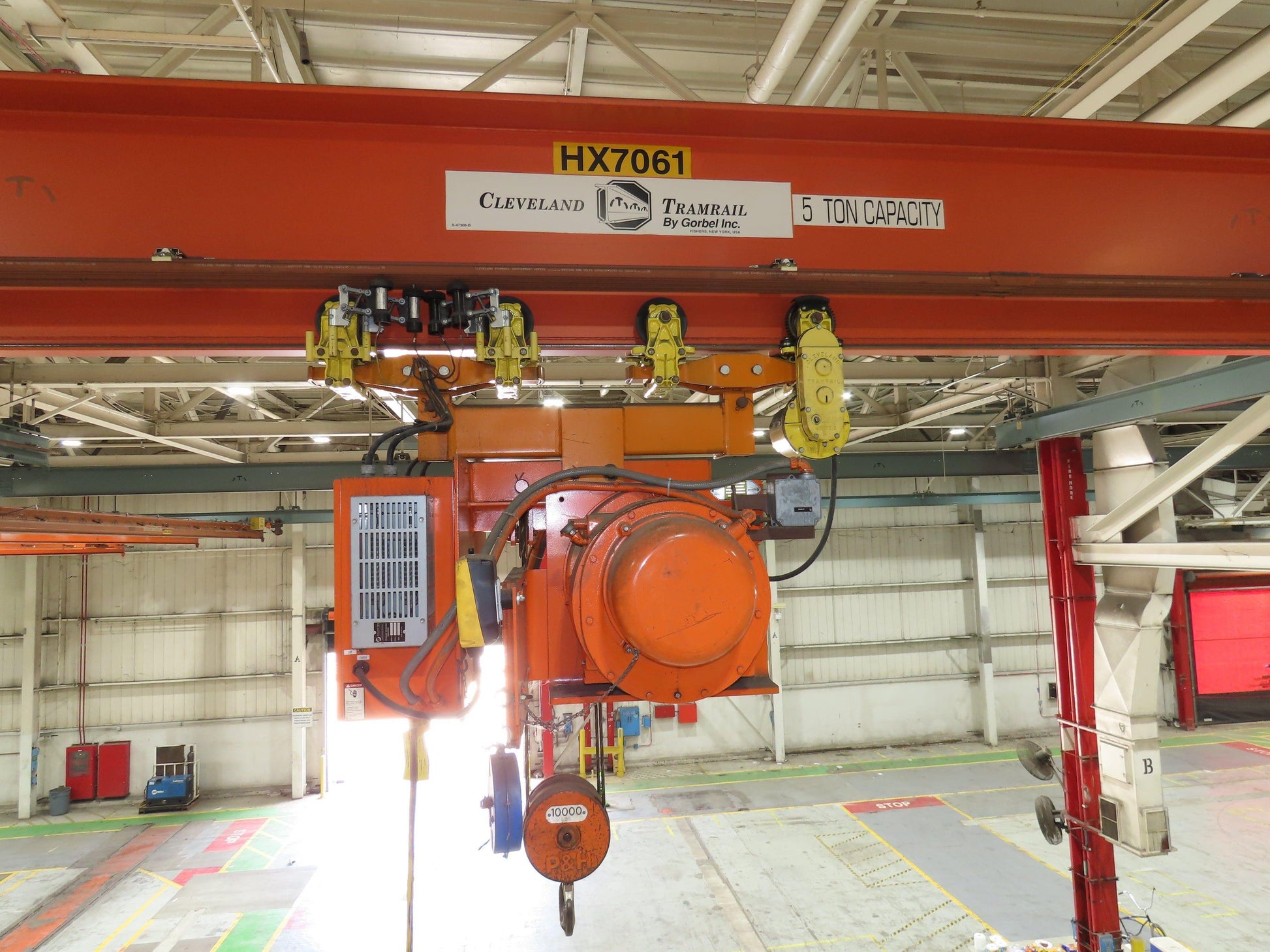

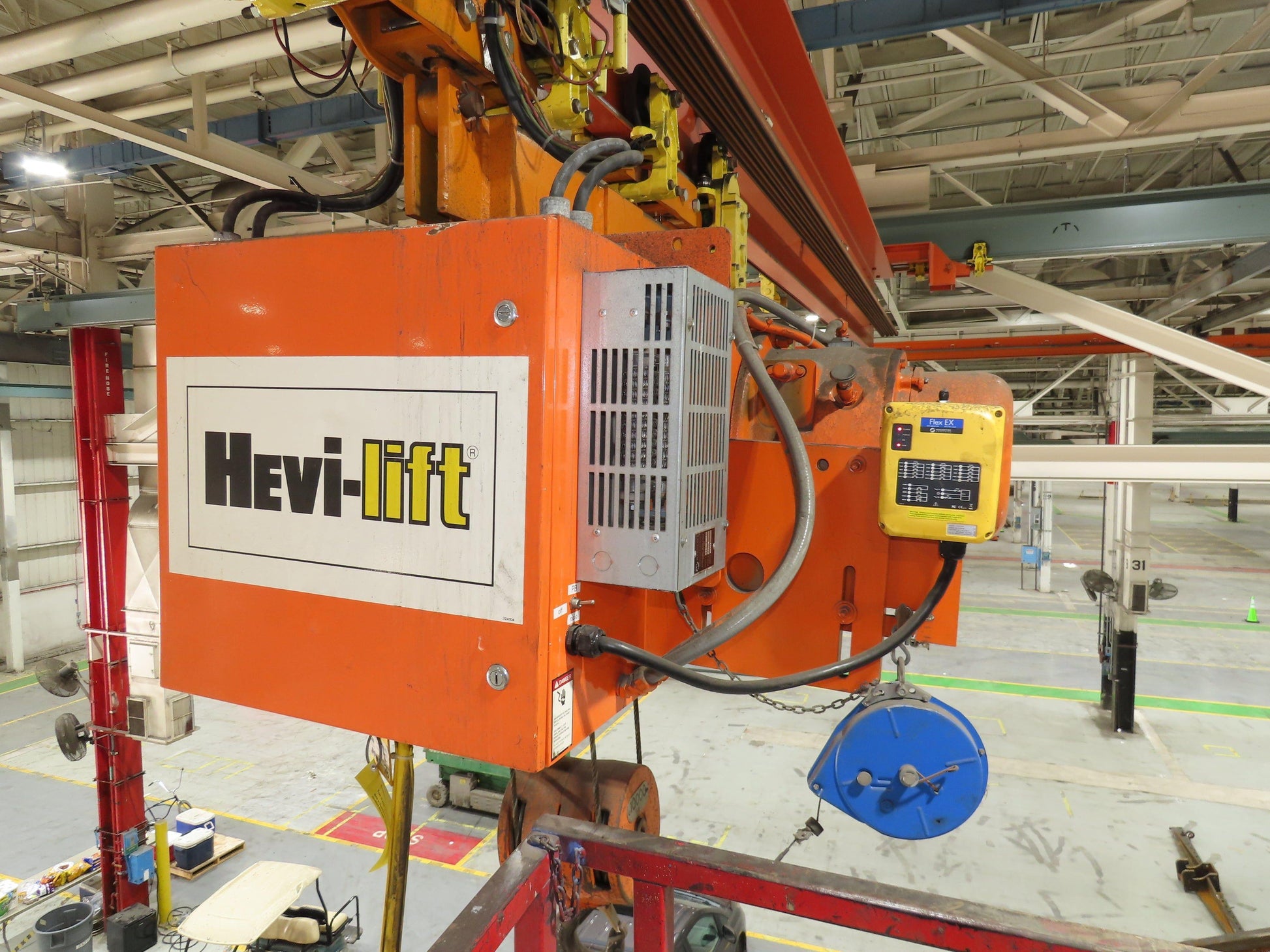

  • Hoist Brand: P&H

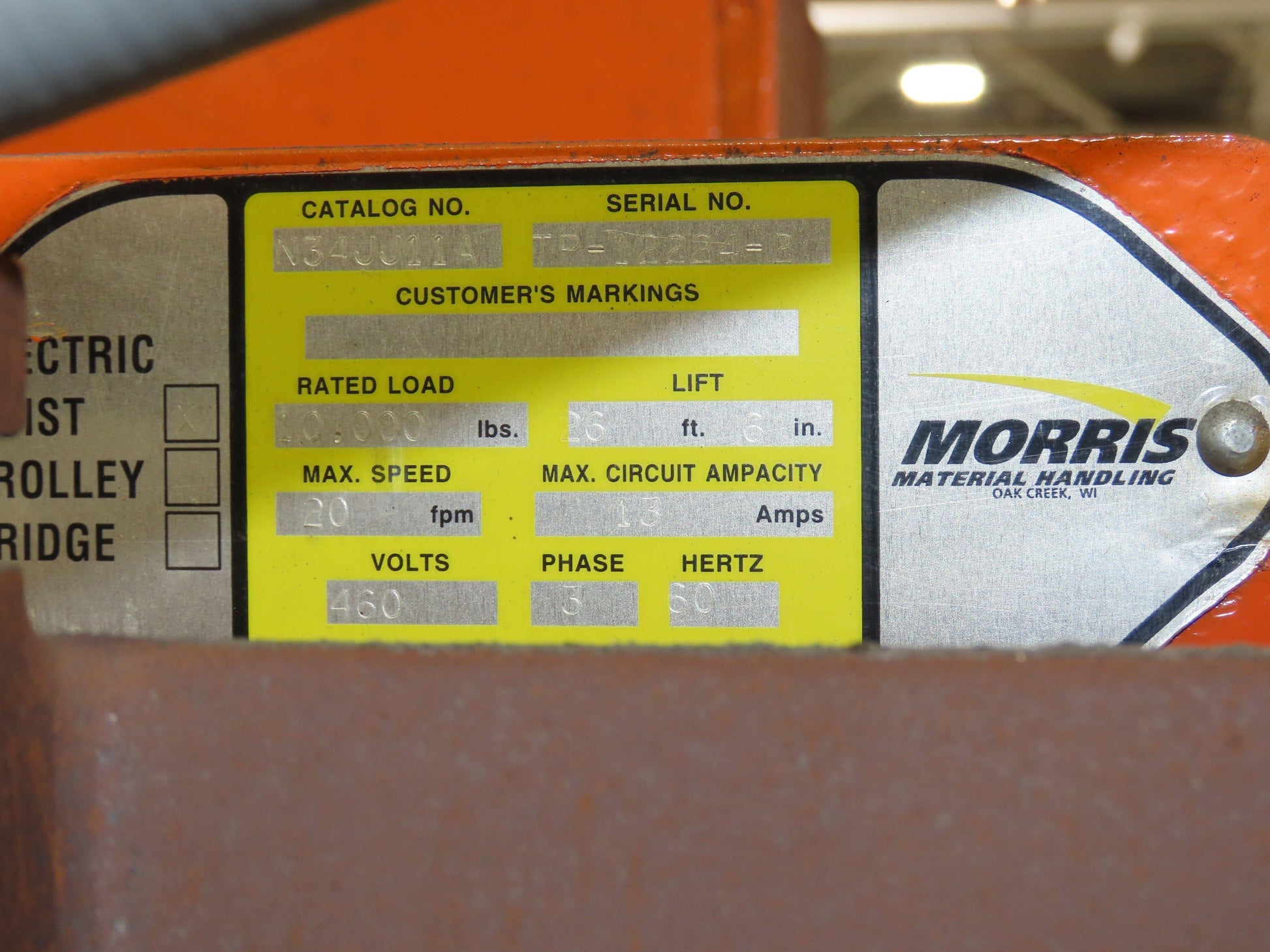

  • Hoist Model: N34JJ11A
  • Lift Travel (feet): 26' 6"
  • Lift Speed (feet per minute): 20 fpm max
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 30' 8"
  • Hoist Power Trolley Speed (feet per minute): 85 FPM
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 73"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 110"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 100"
  • Bridge Crane is in working condition.  Tested on site before removal.

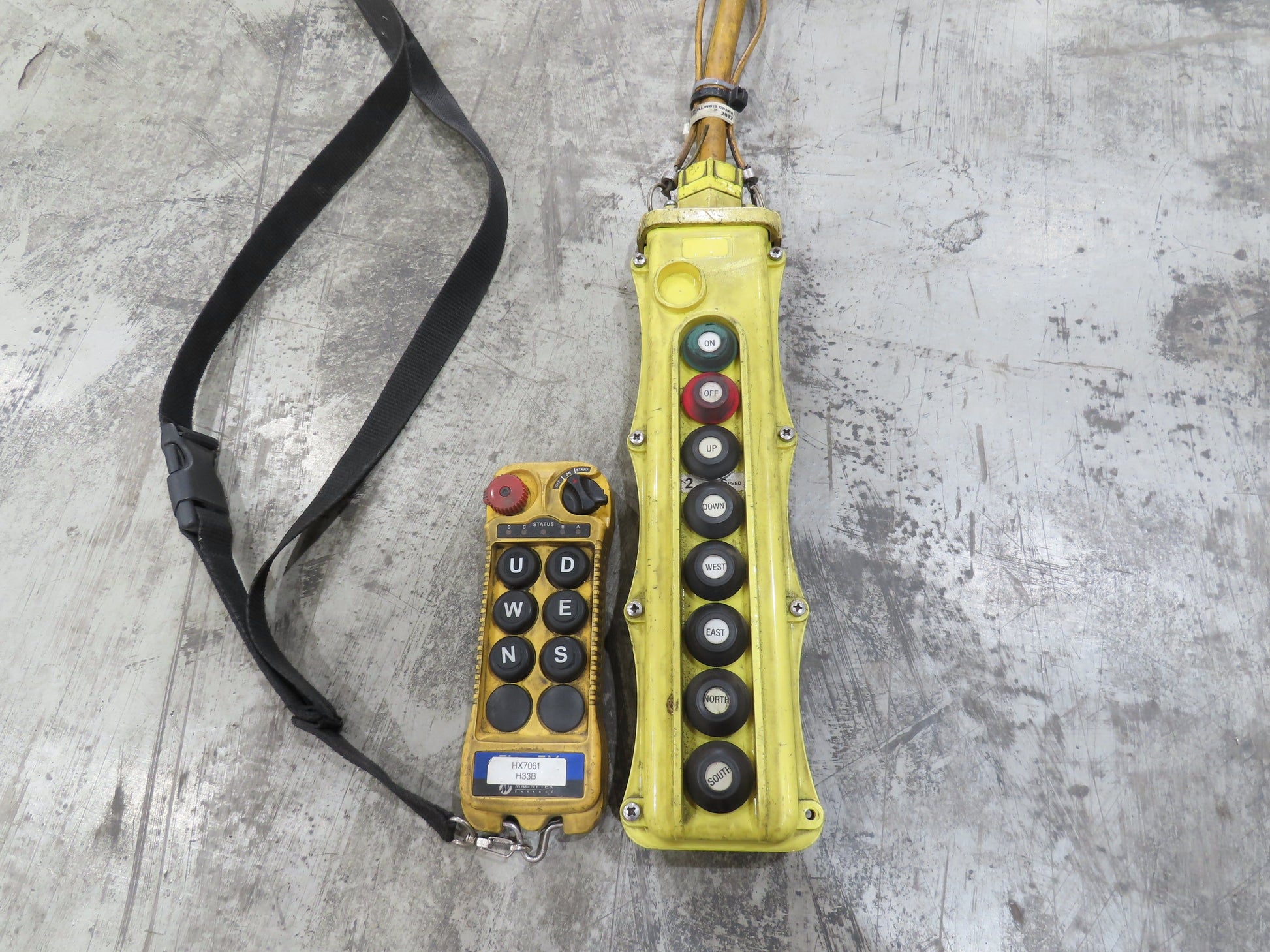

  • Includes corded and remote pendants.

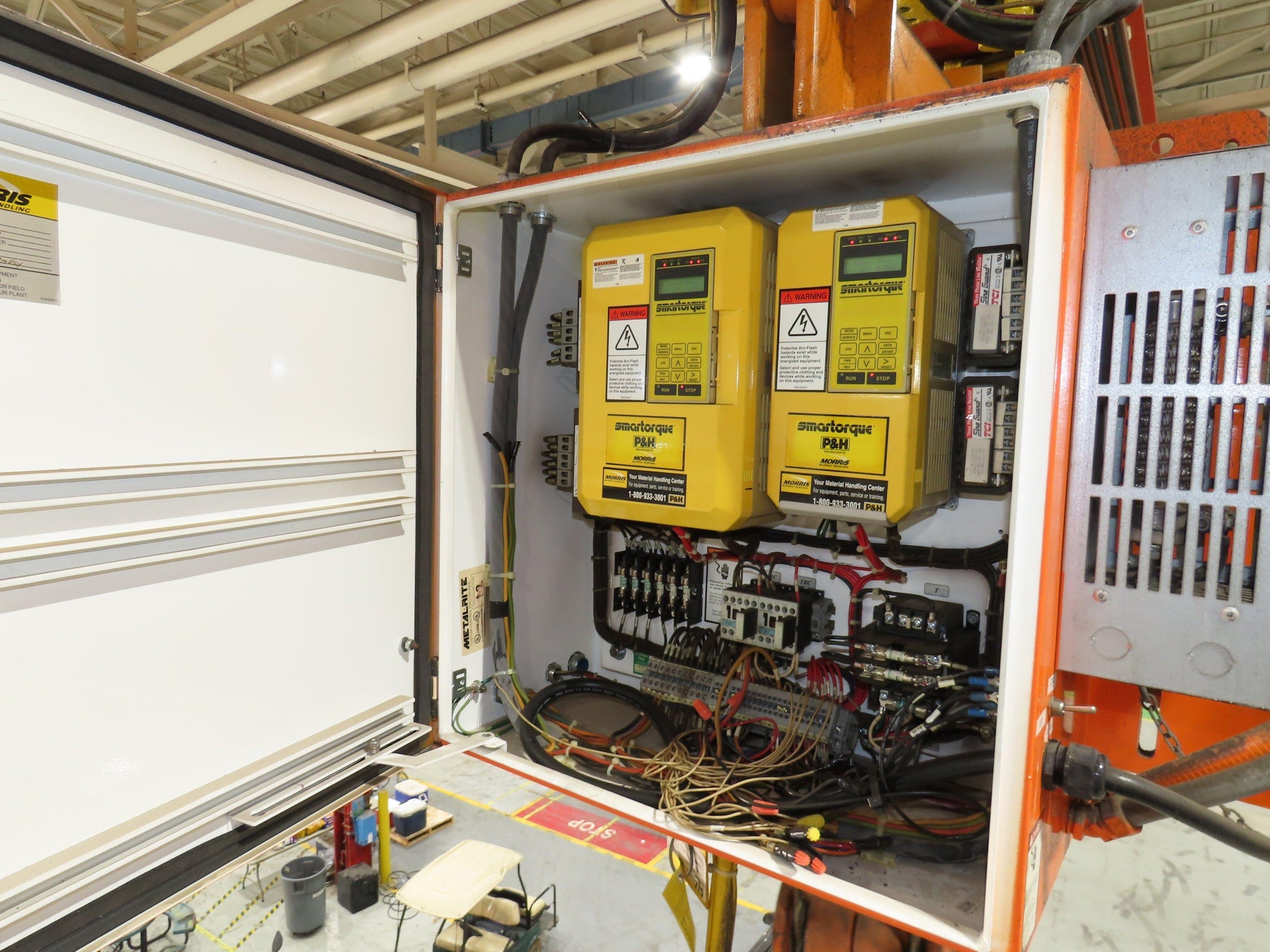

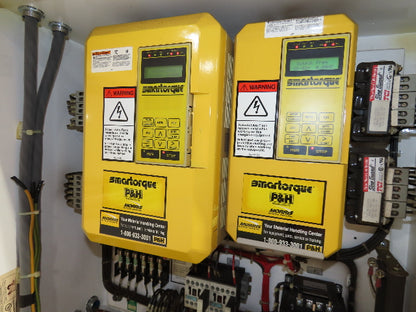

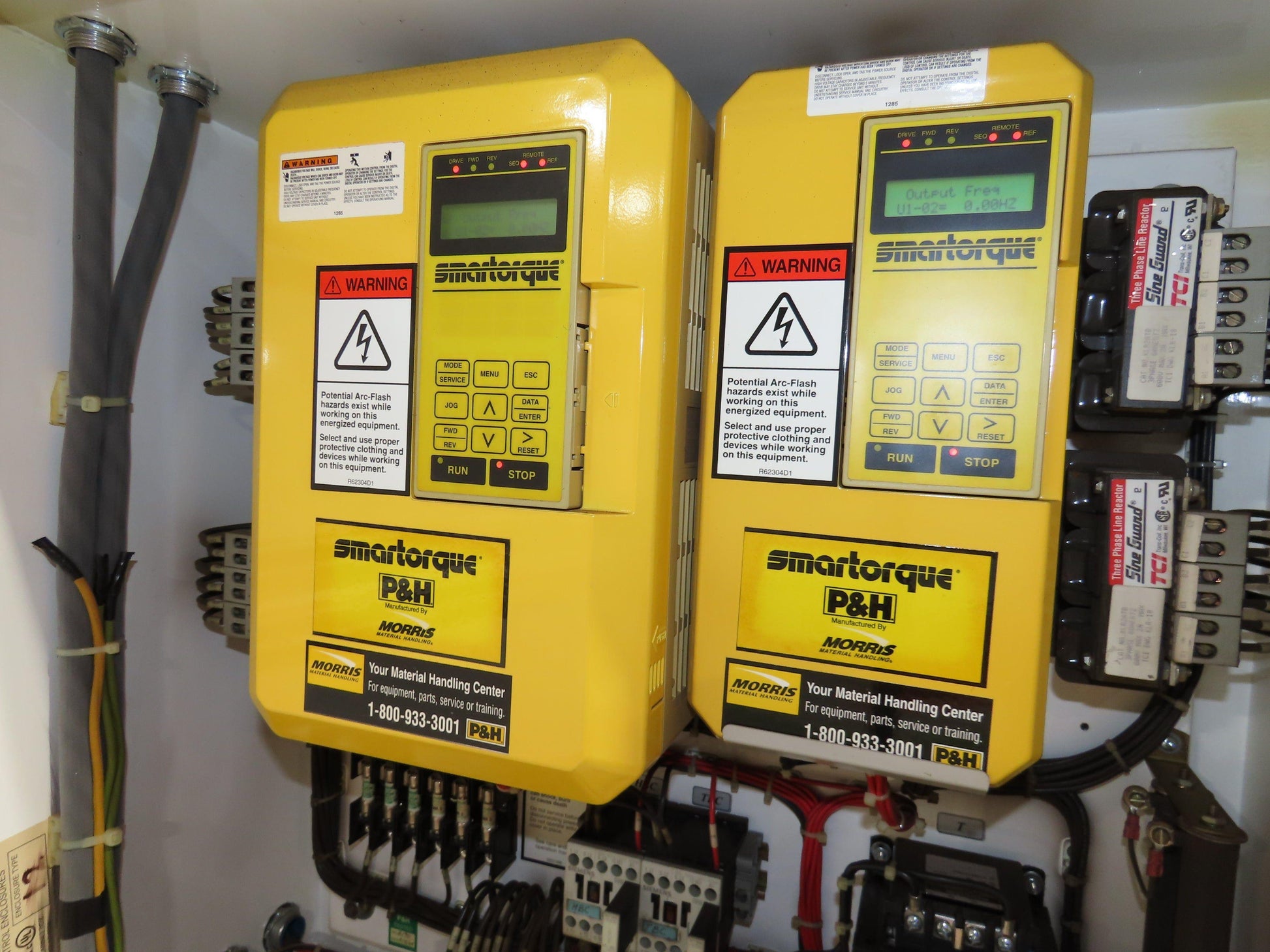

  • Set up with P&H Smartorque VFD drives.
  • 2-speed bridge, hoist and trolley.
