Cleveland Tramrail

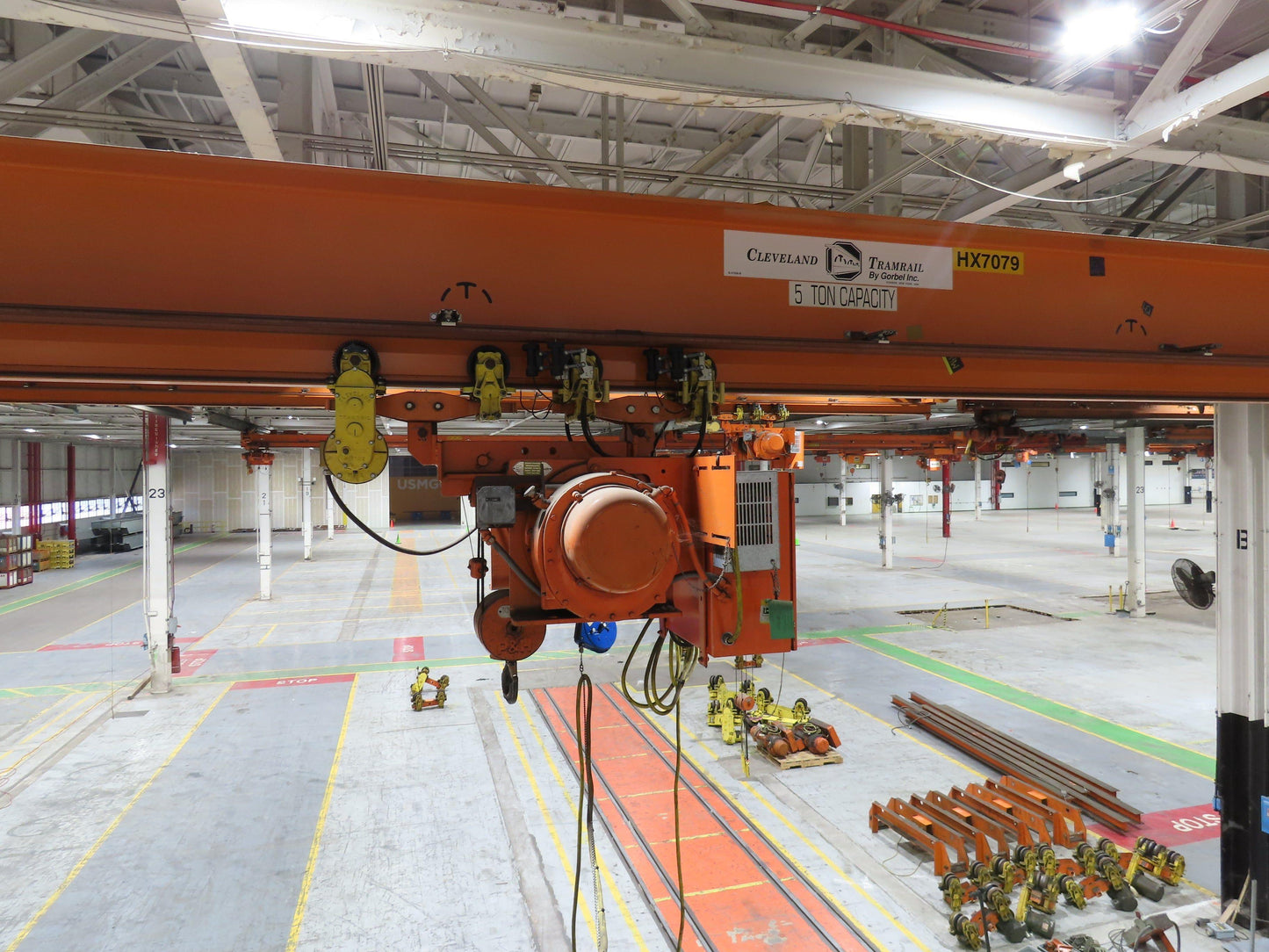

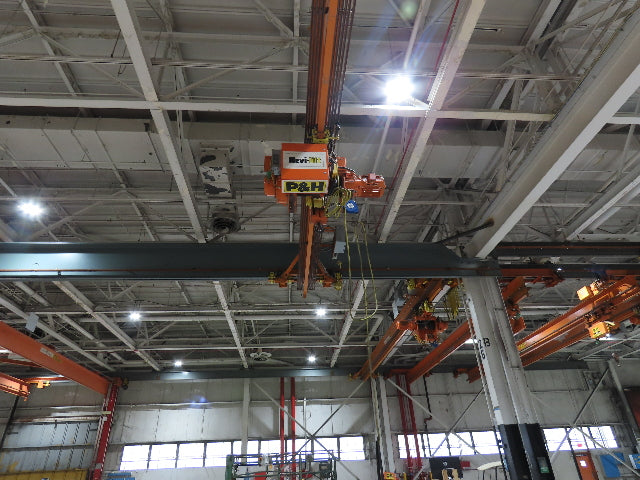

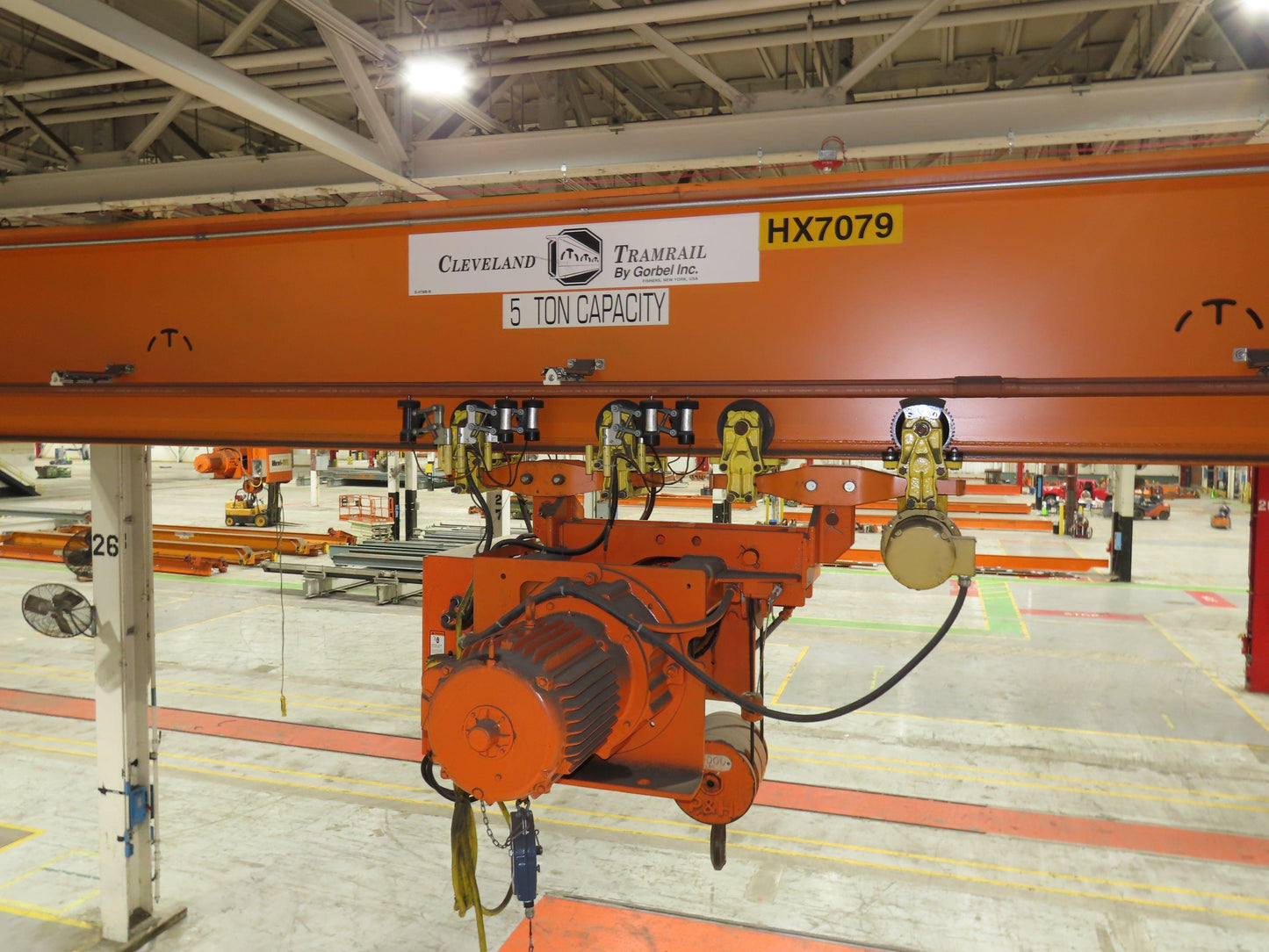

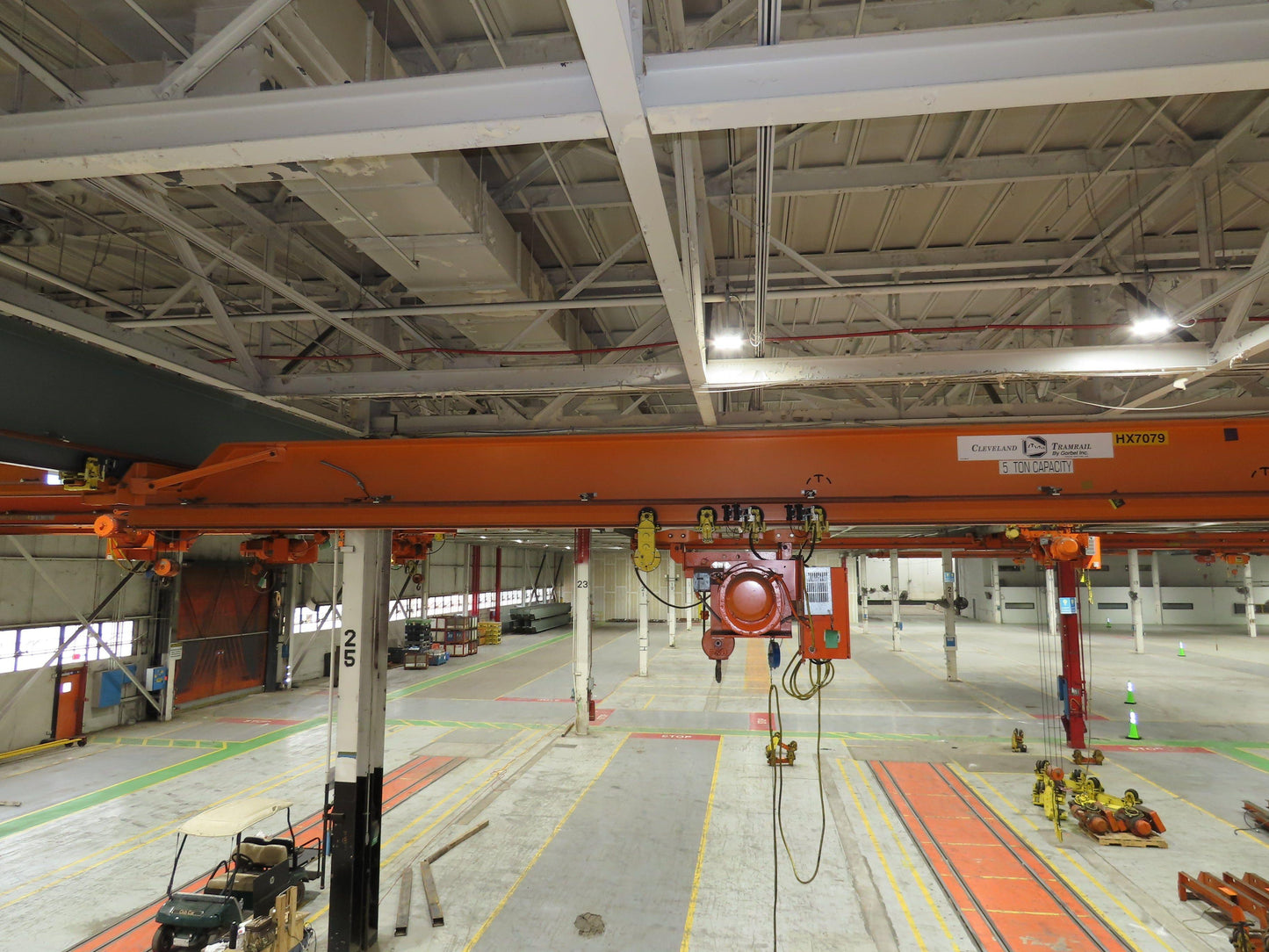

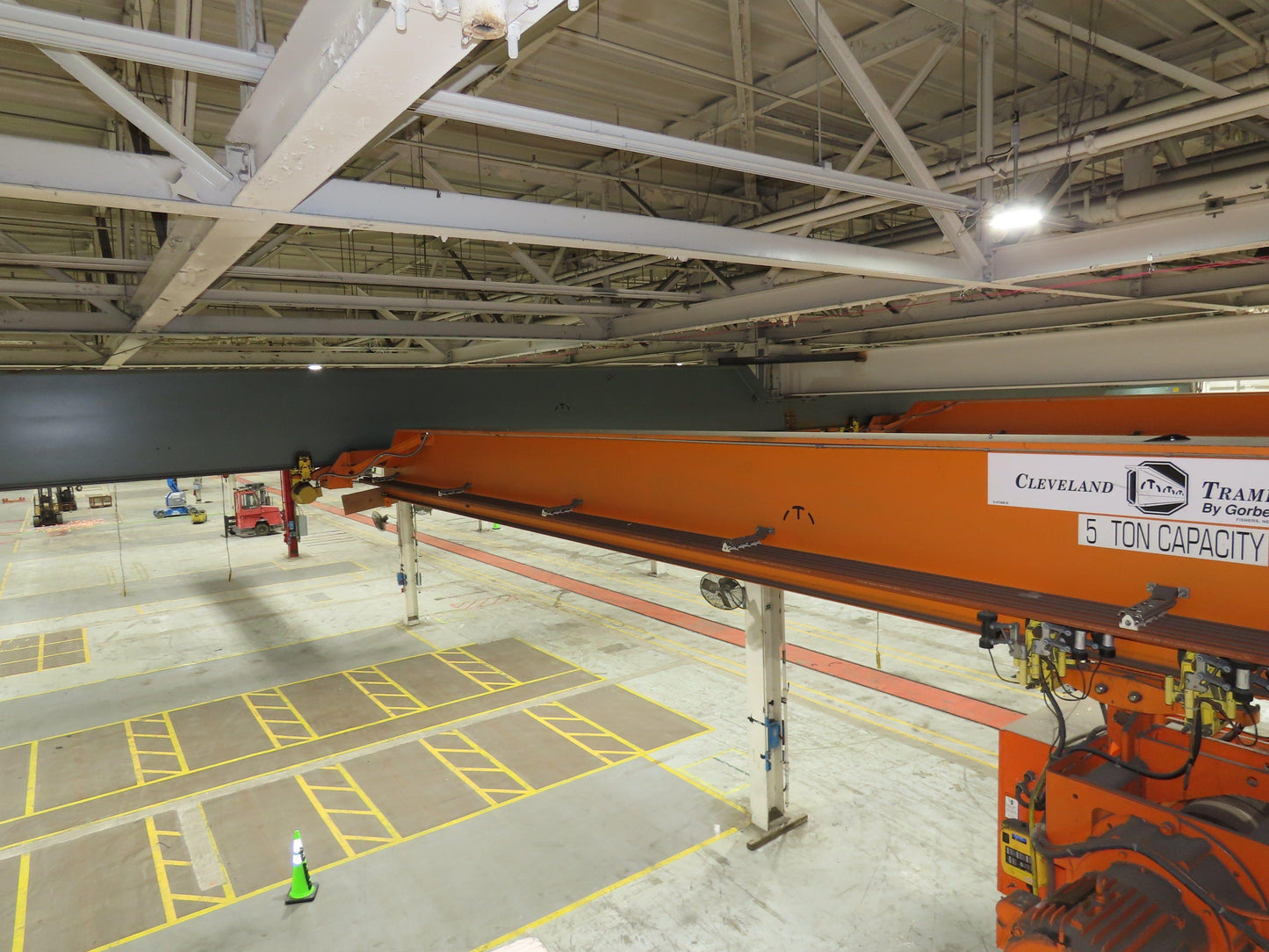

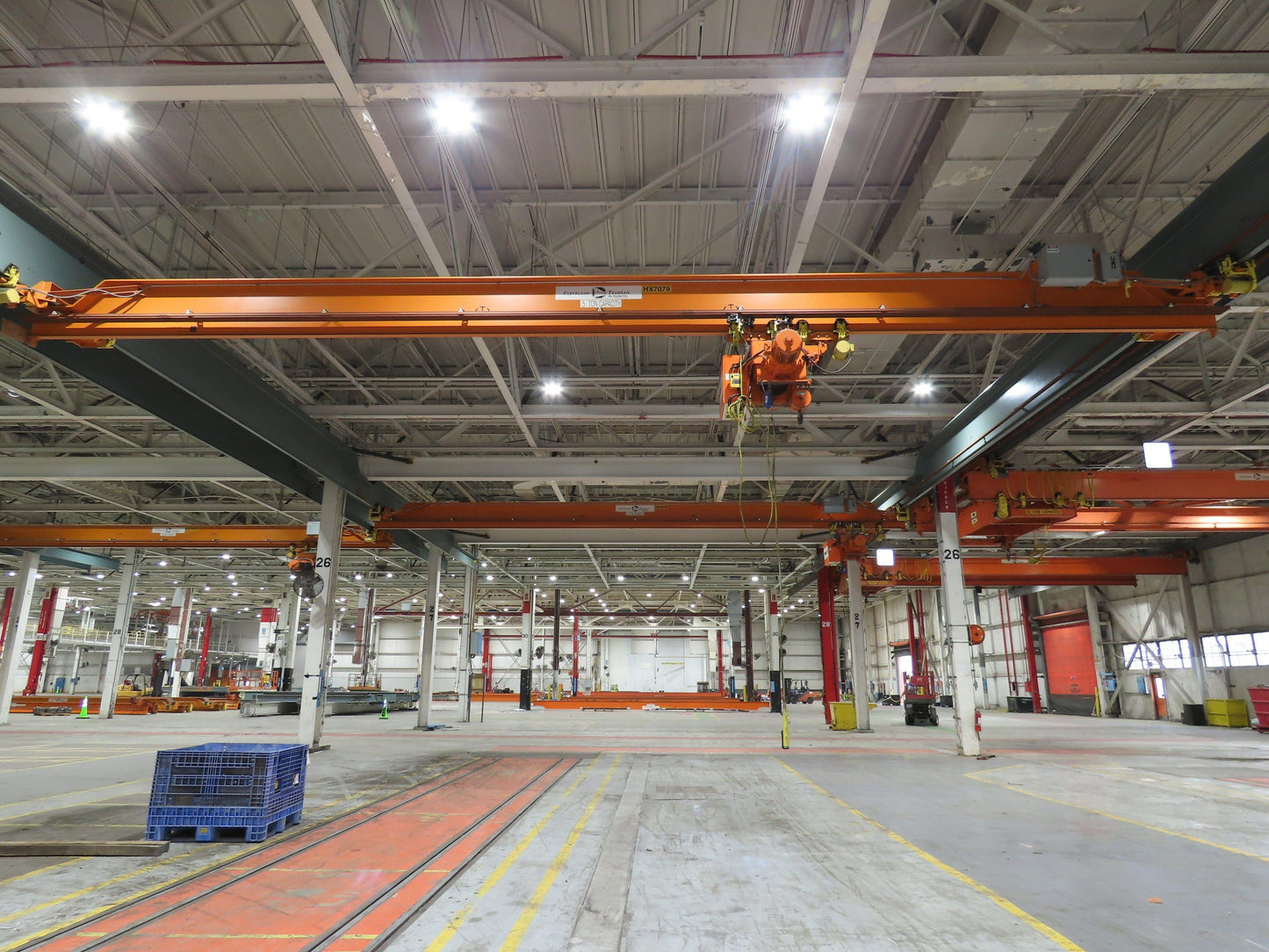

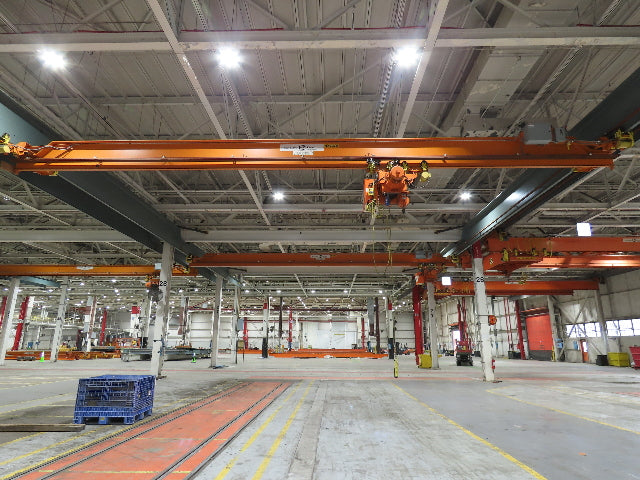

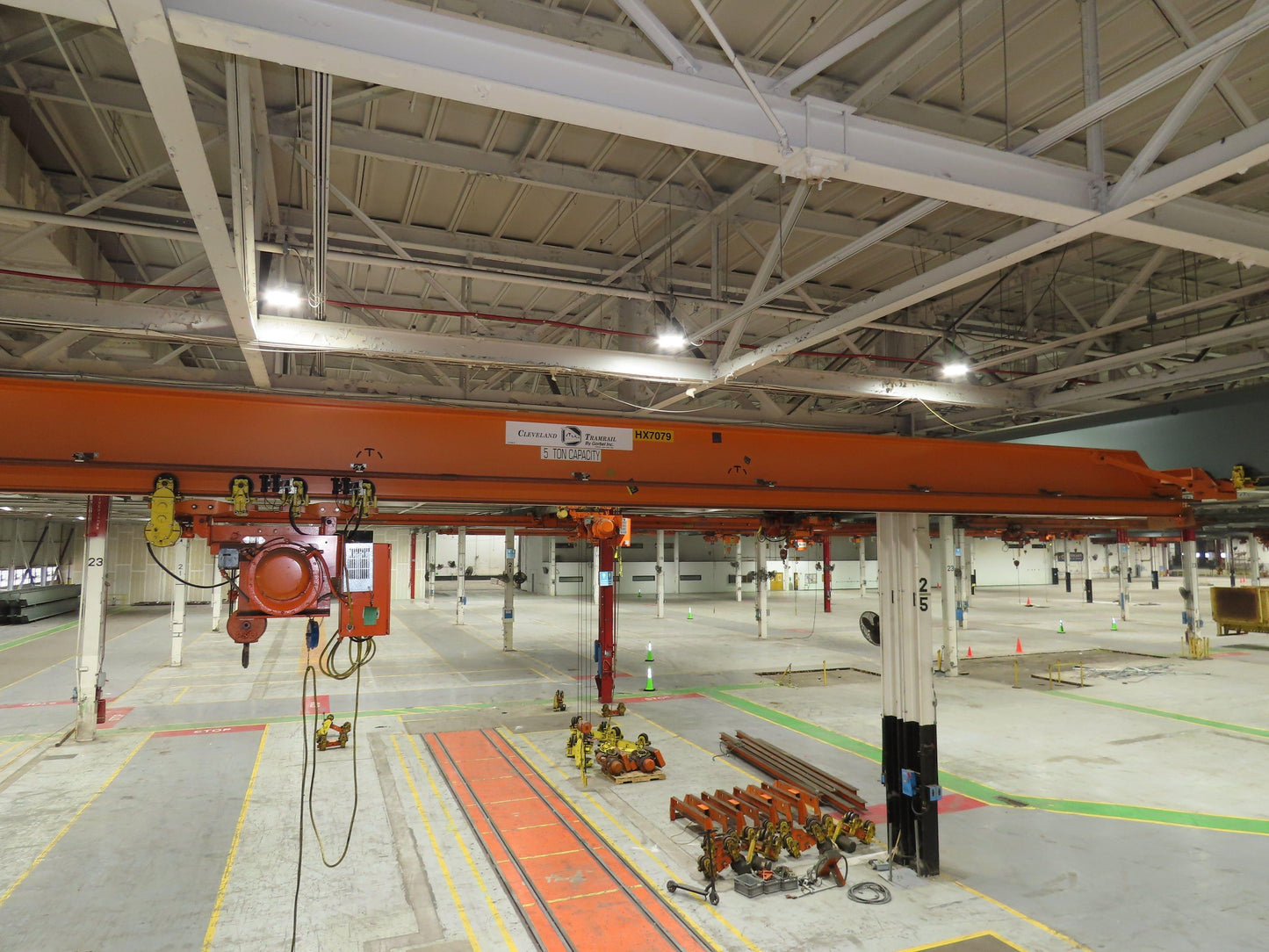

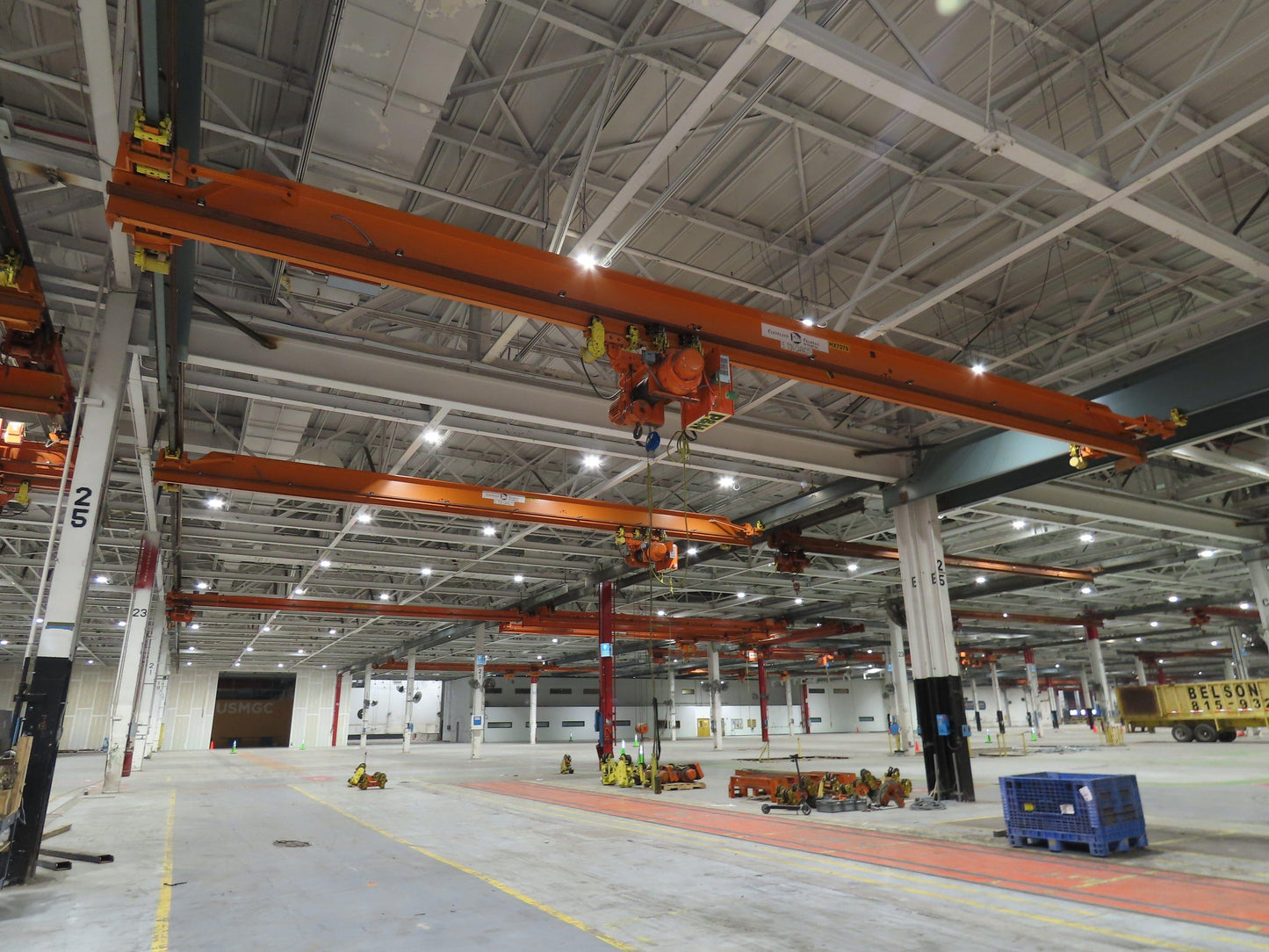

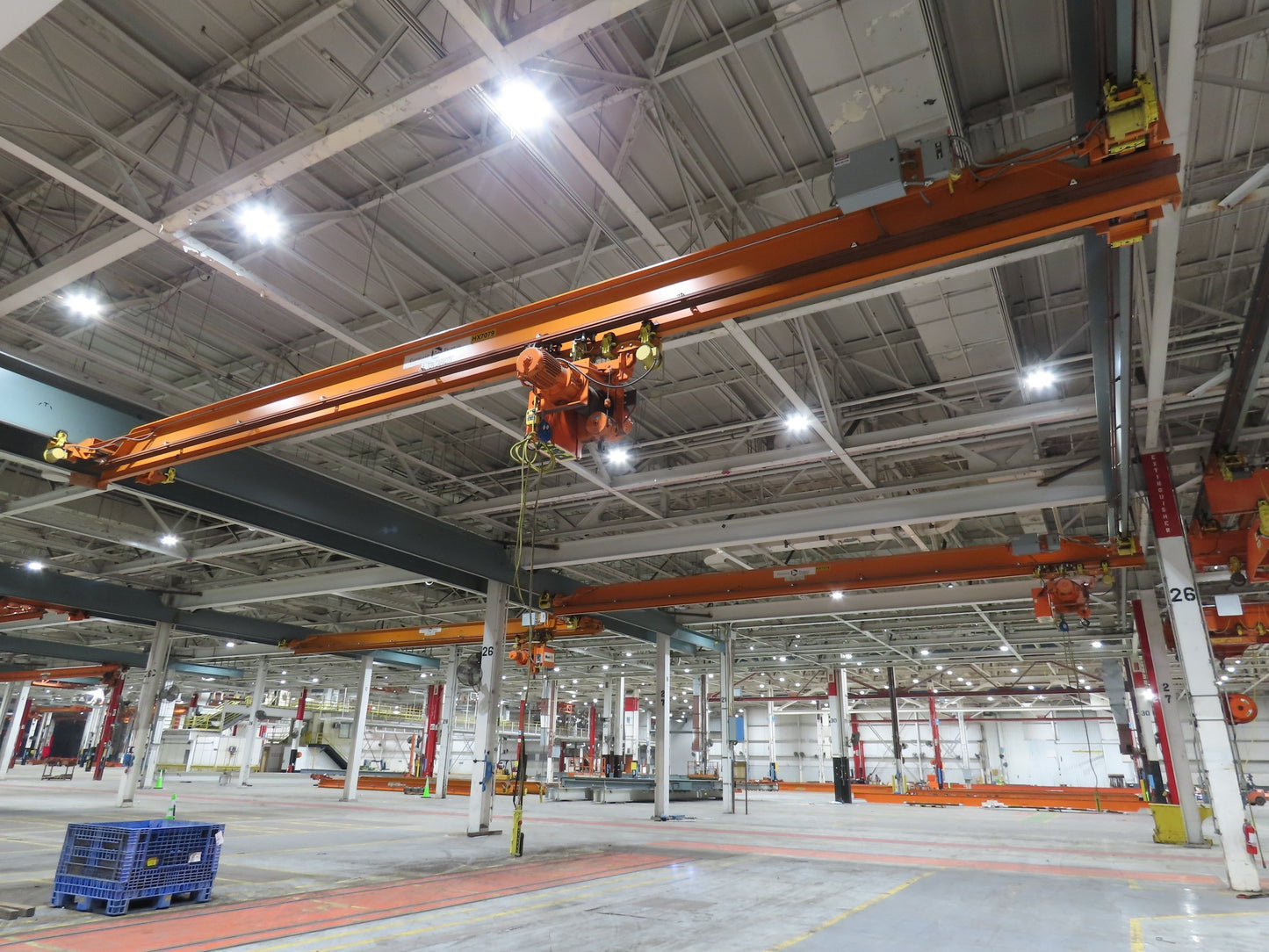

Cleveland Tramrail P&H 5 Ton Underhung Bridge Crane 45' 10" Span Magnetek Remote

Cleveland Tramrail P&H 5 Ton Underhung Bridge Crane 45' 10" Span Magnetek Remote

SKU #262114

Your Price
$11,114.99
$12,999.99 $11,114.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 5
  • Capacity (lb): 10000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45' 10"

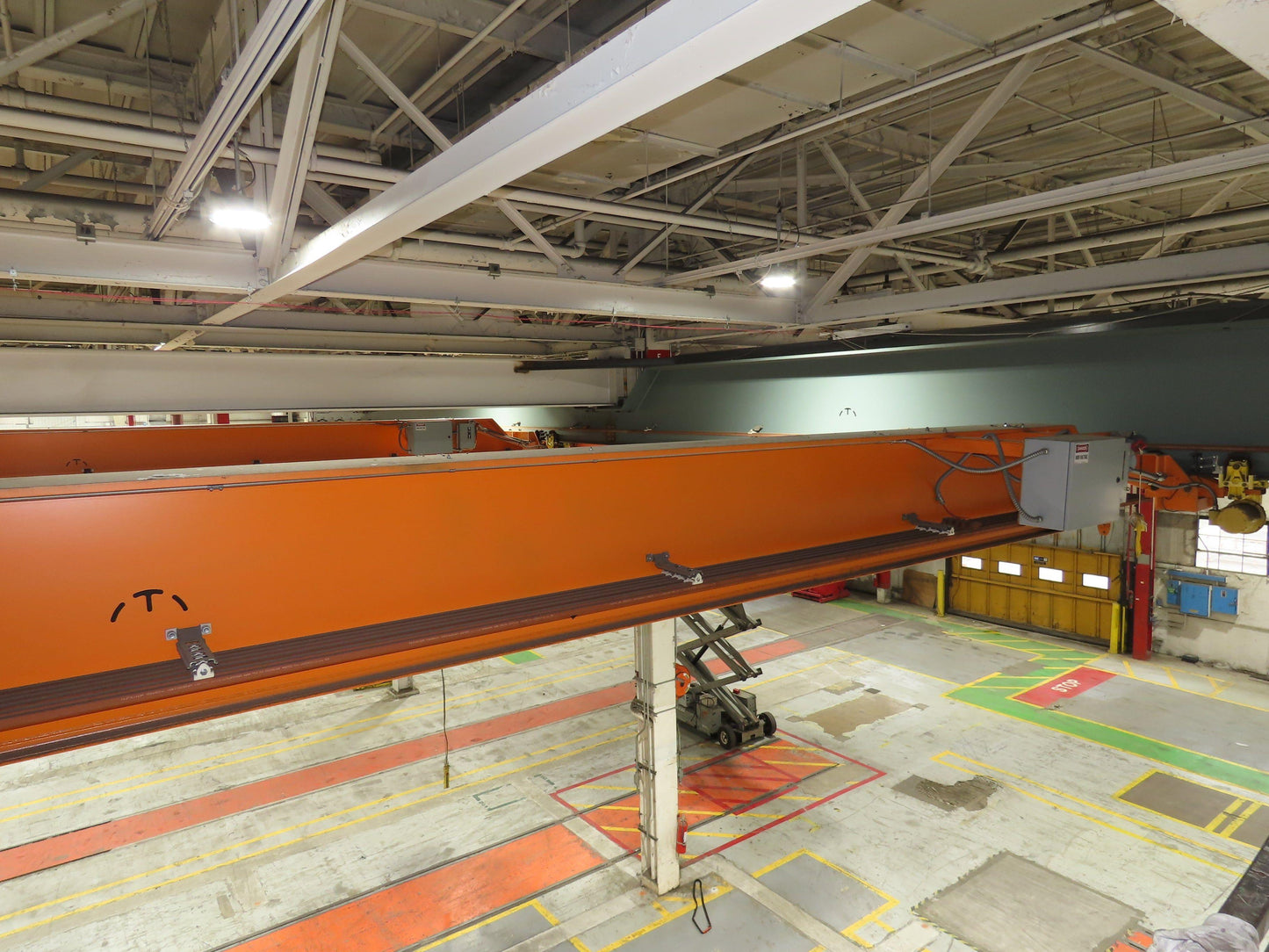

  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 47' 10" Length (3.25" bottom flange) Beam height slopes down to 14"H at the ends.
  • Bridge Speed (feet per minute): 2-speed

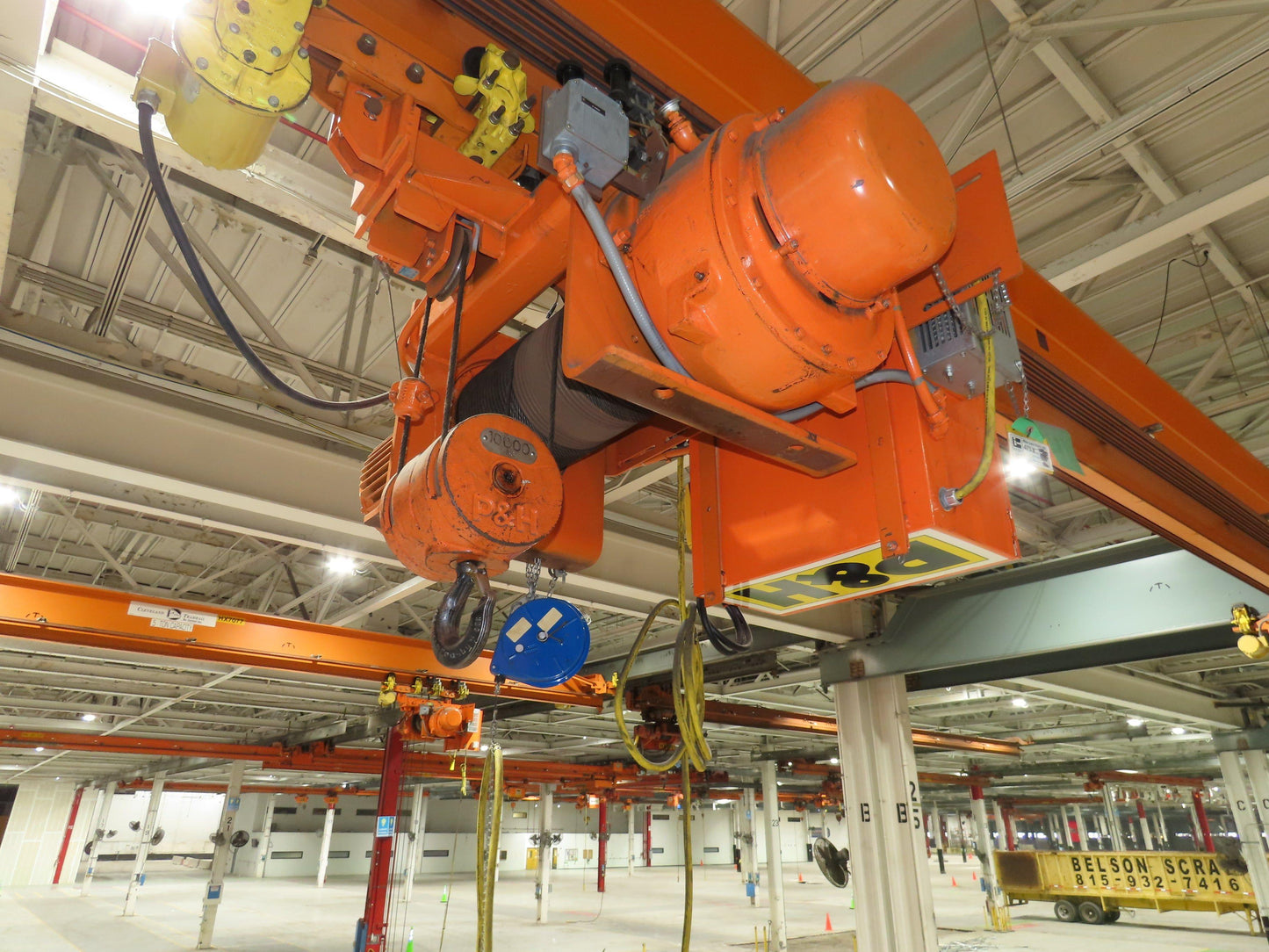

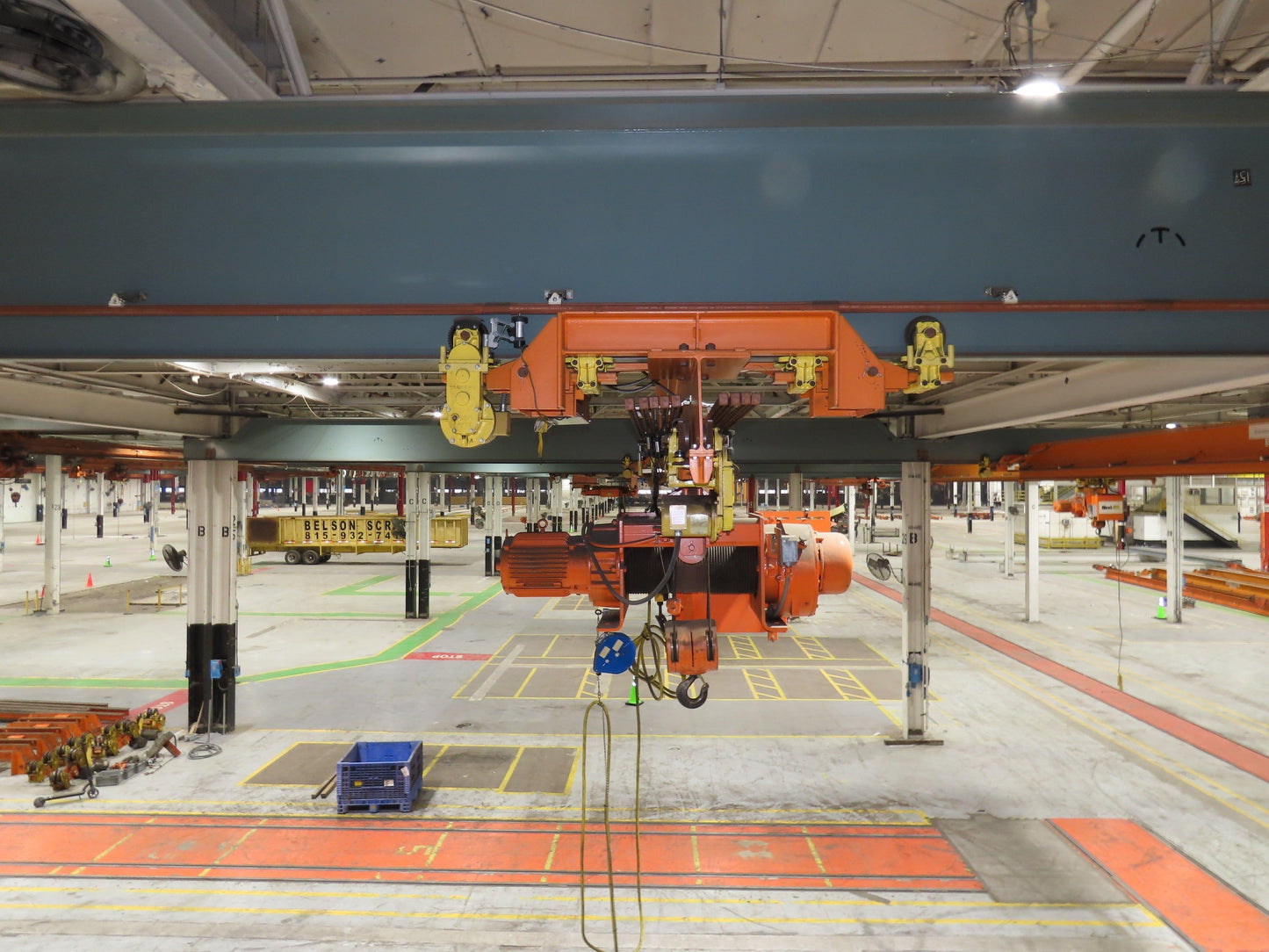

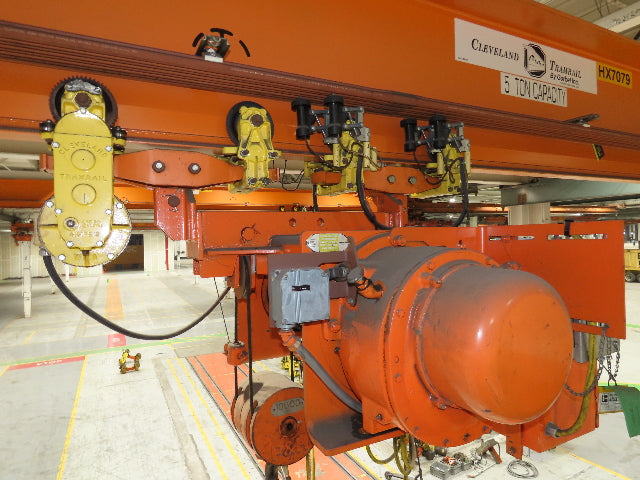

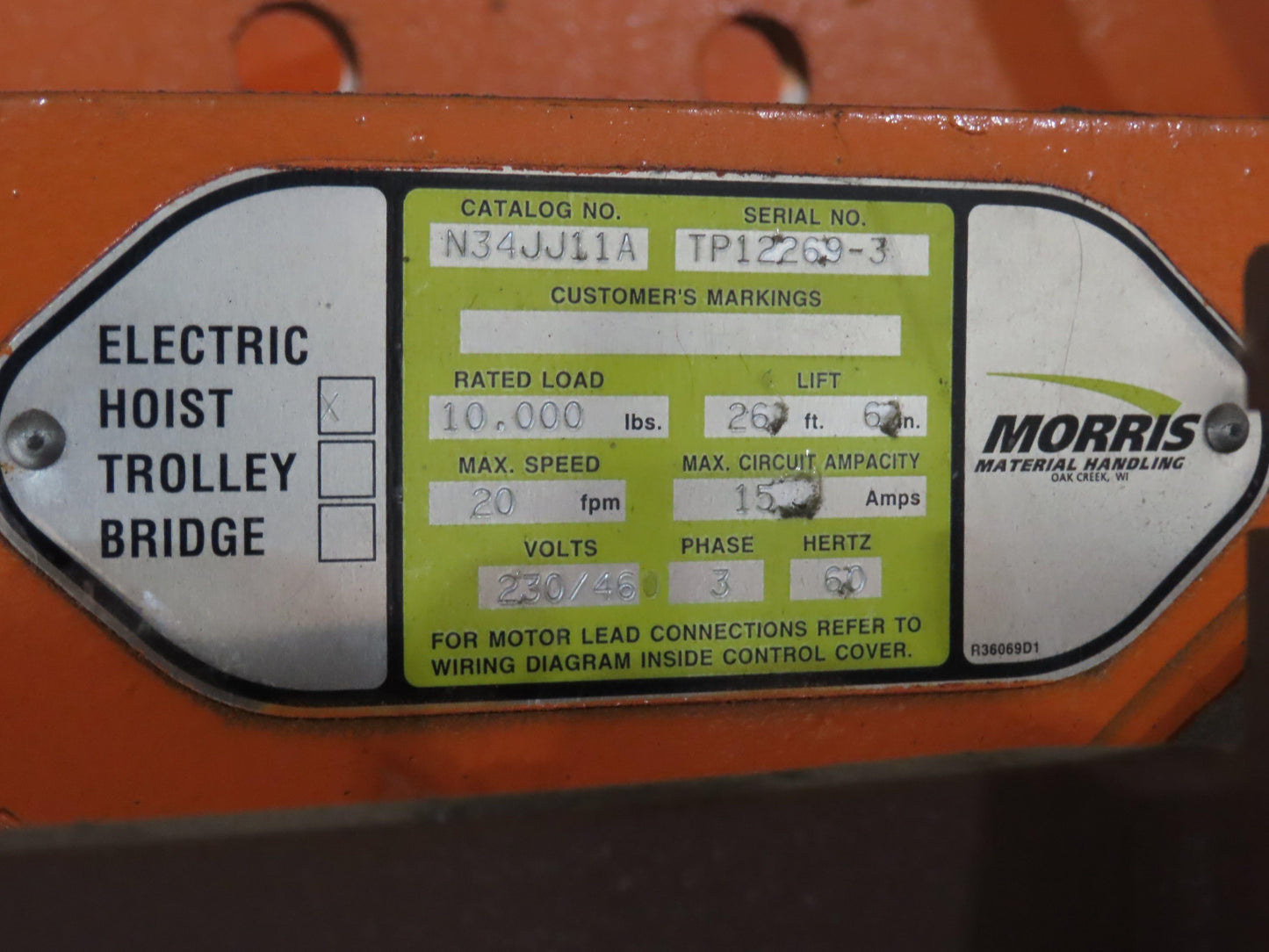

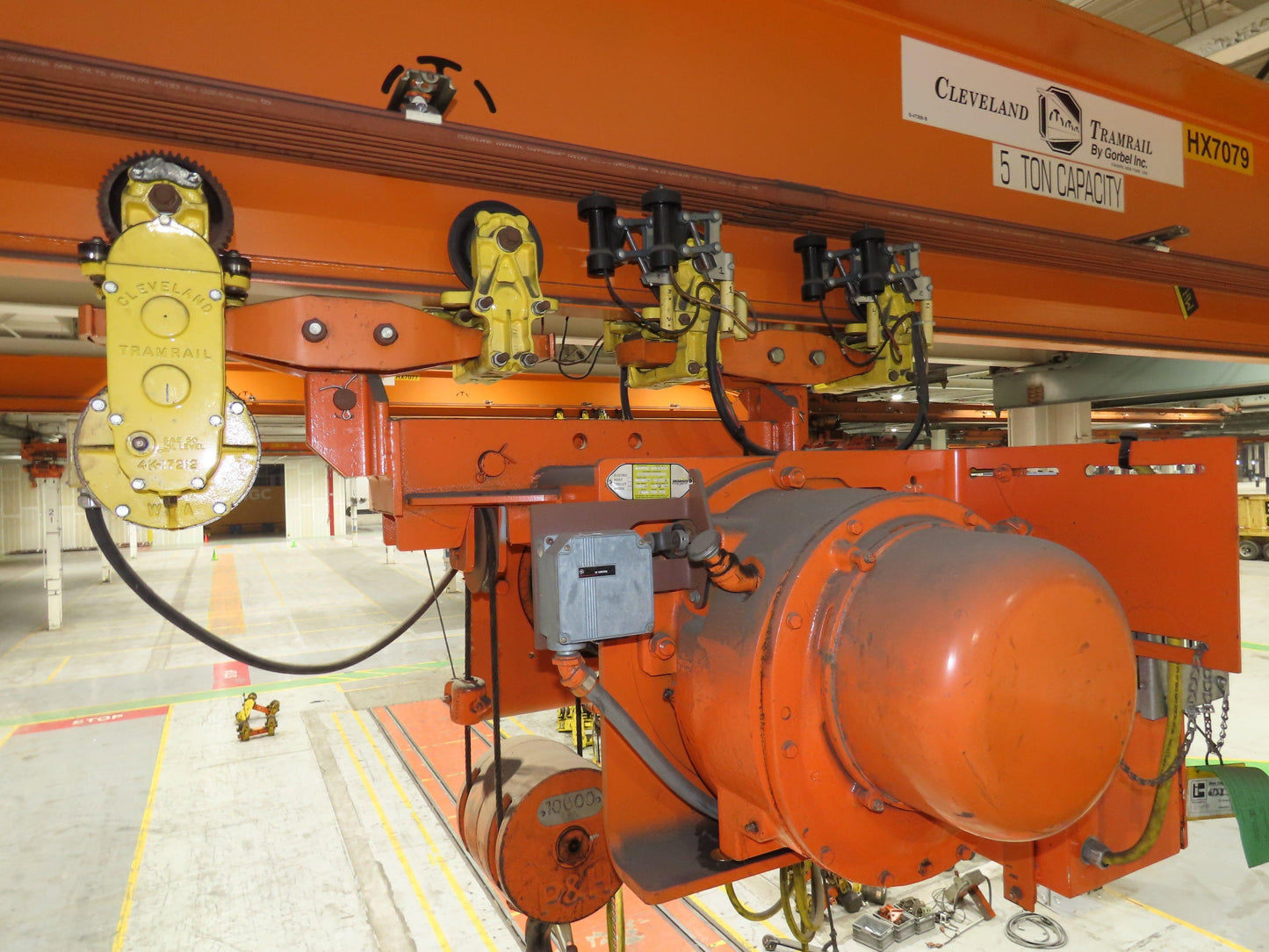

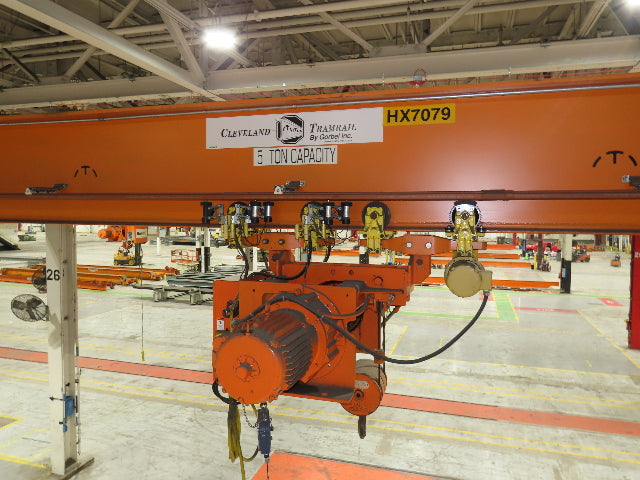

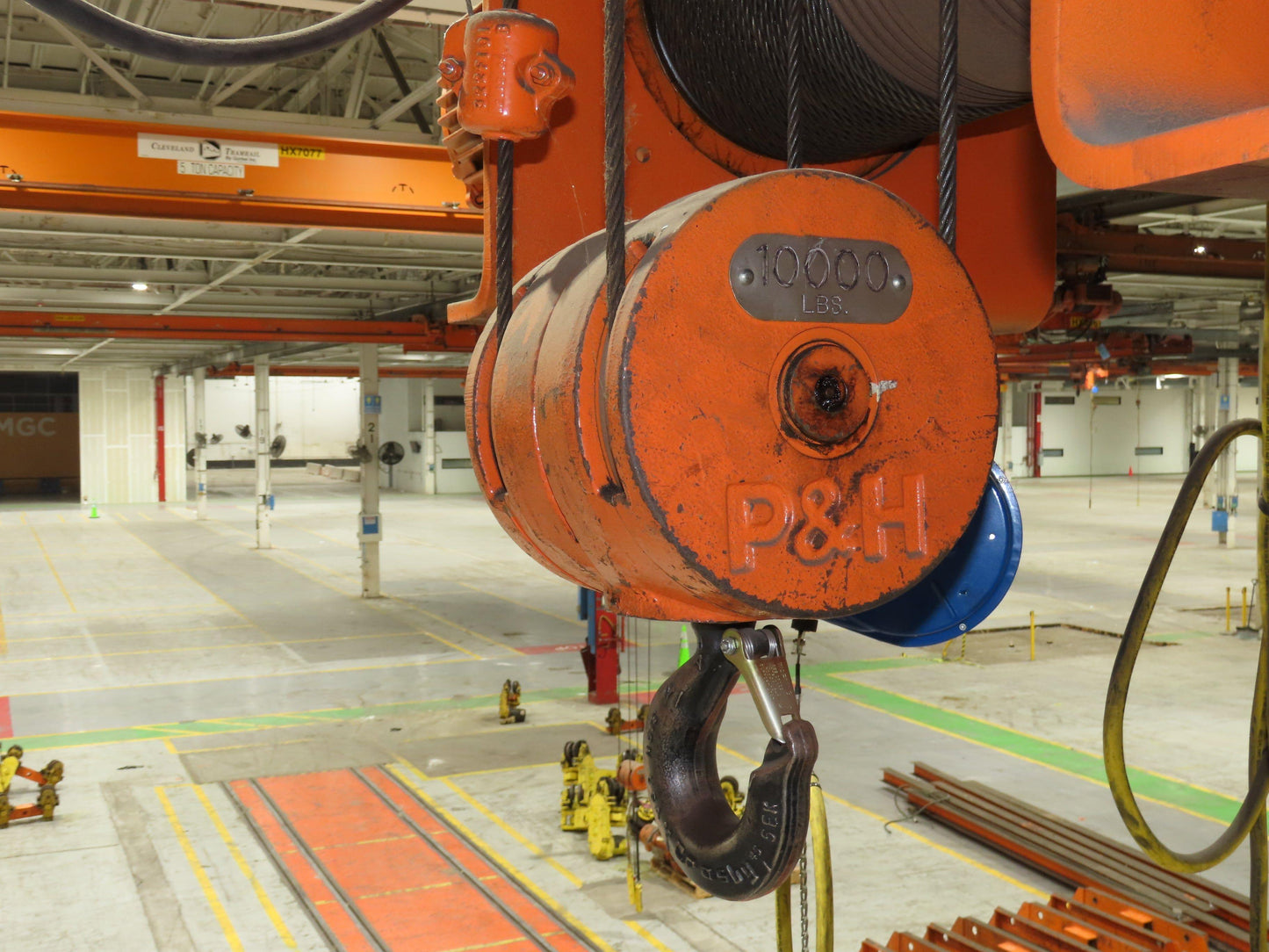

  • Hoist Brand: Morris P&H
  • Lift Travel (feet): 56' 6"
  • Lift Speed (feet per minute): 20

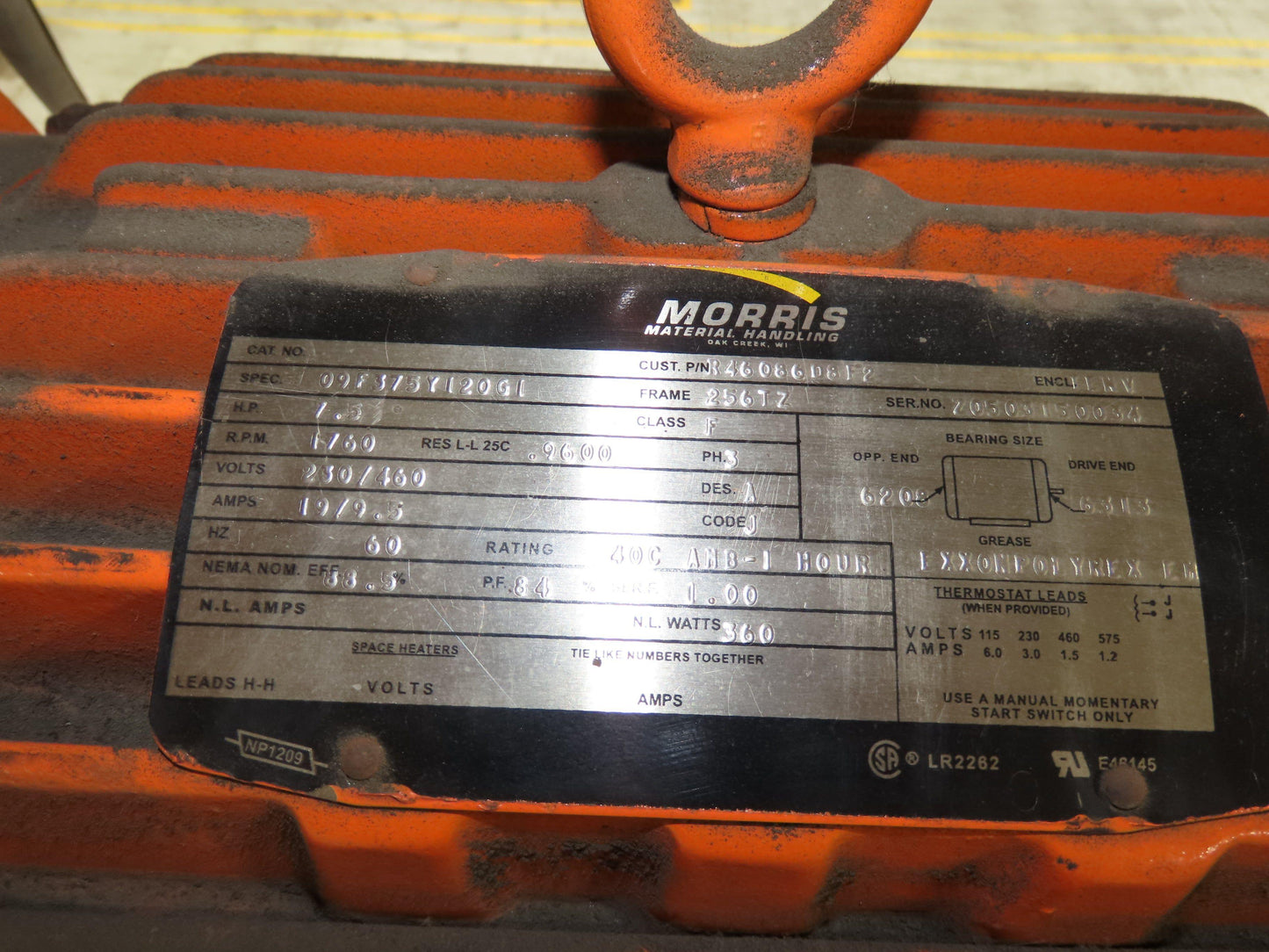

  • Motor Horse Power: 7.5
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 20'
  • Hoist Power Trolley Speed (feet per minute): 15-60
  • Hoist Trolley Length of Travel: 42'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 48"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 76"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 64"
  • Bridge Crane is in working condition.  Tested on site before removal.

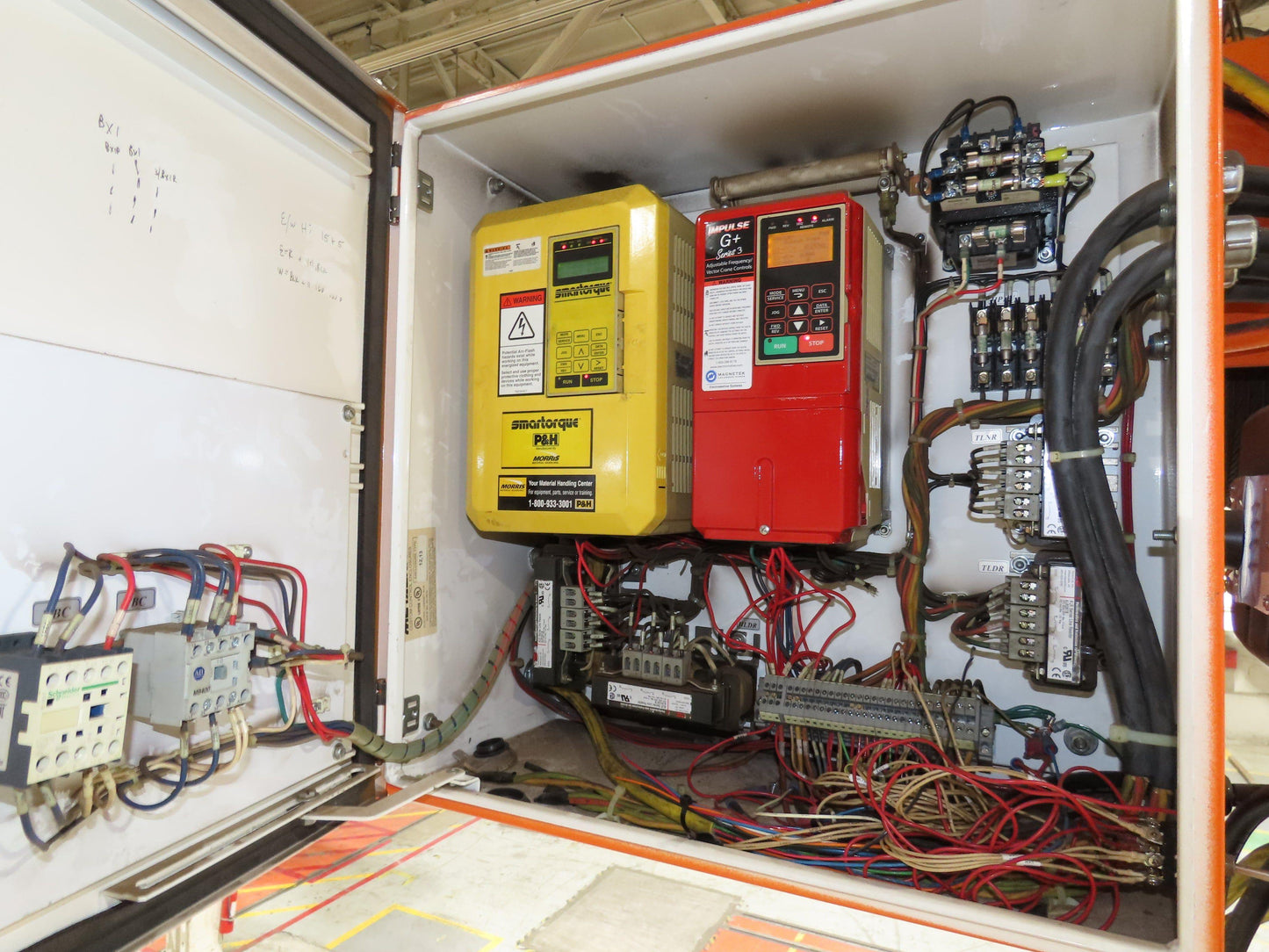

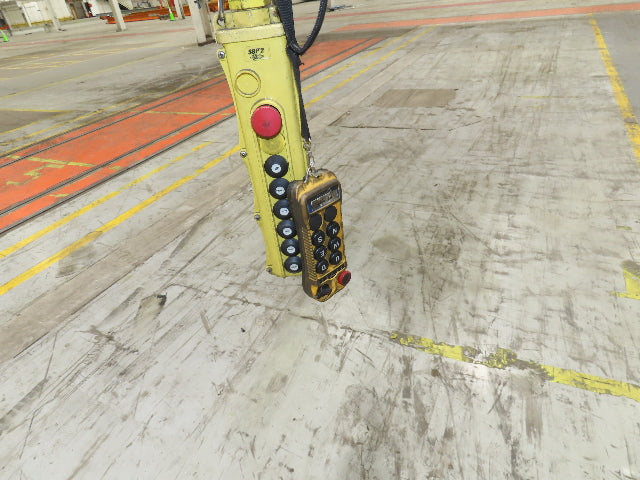

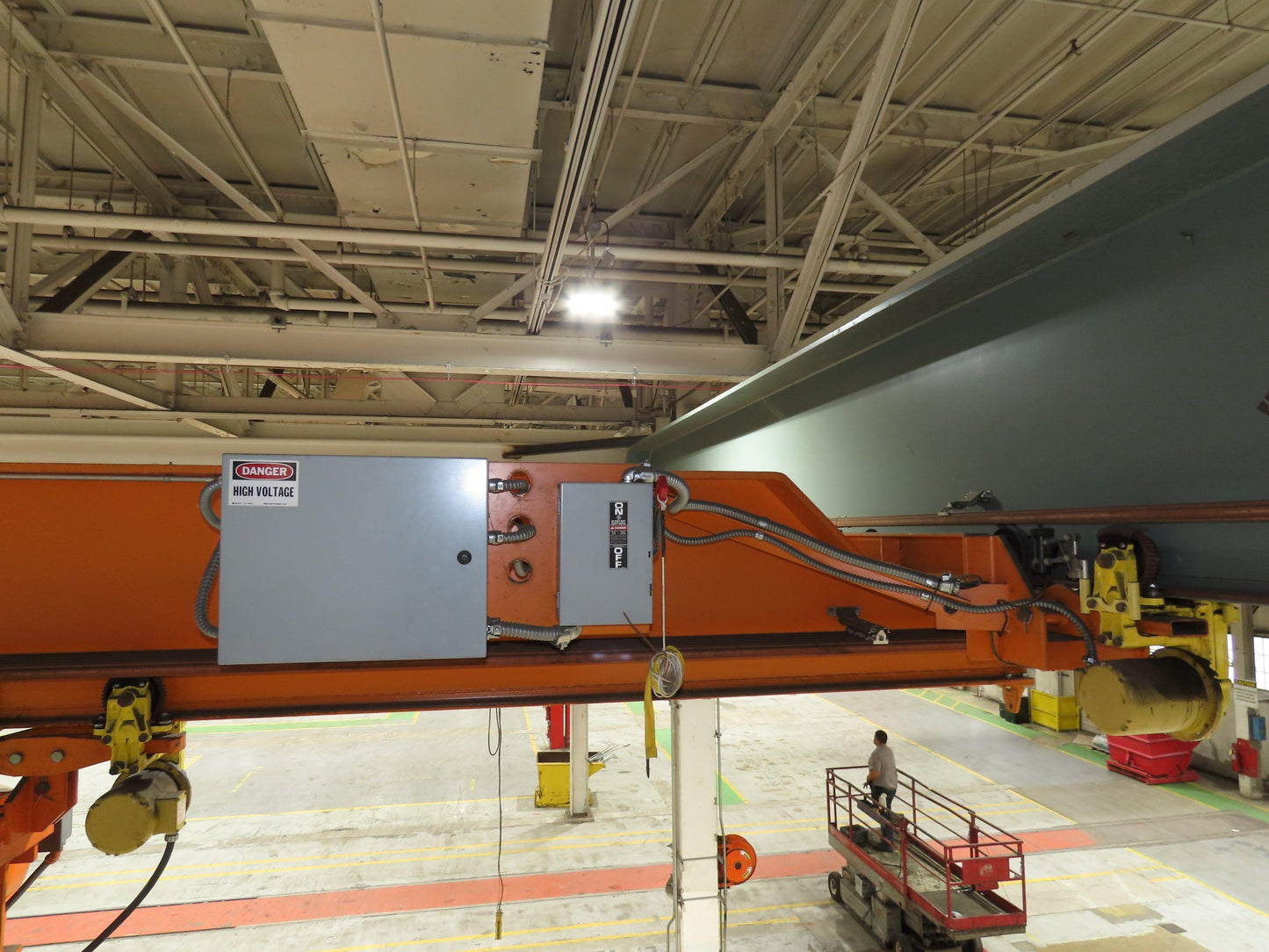

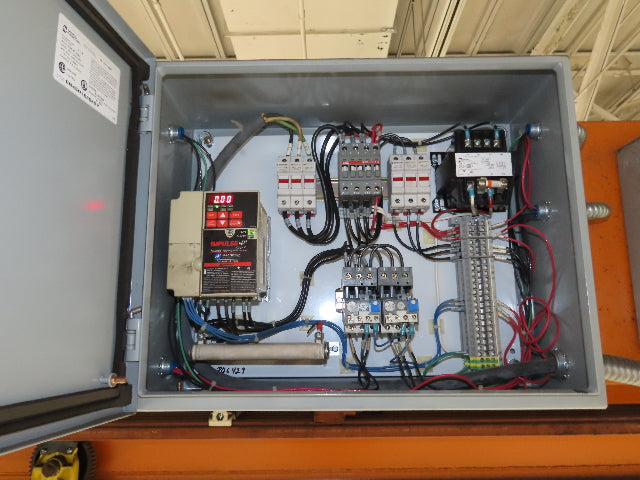

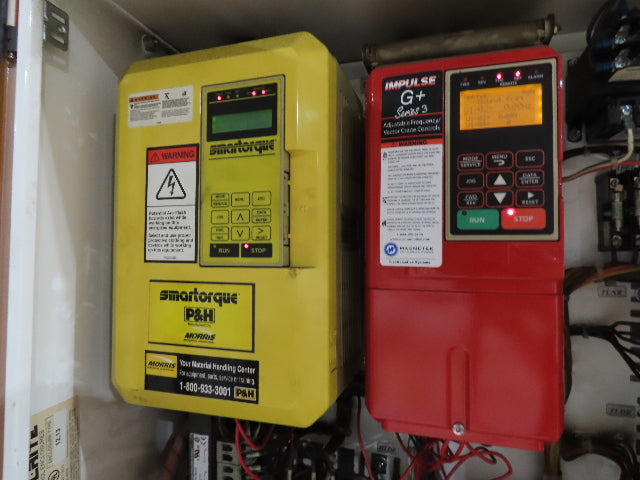

  • Set up with VFD drives. Includes corded and wireless pendants.

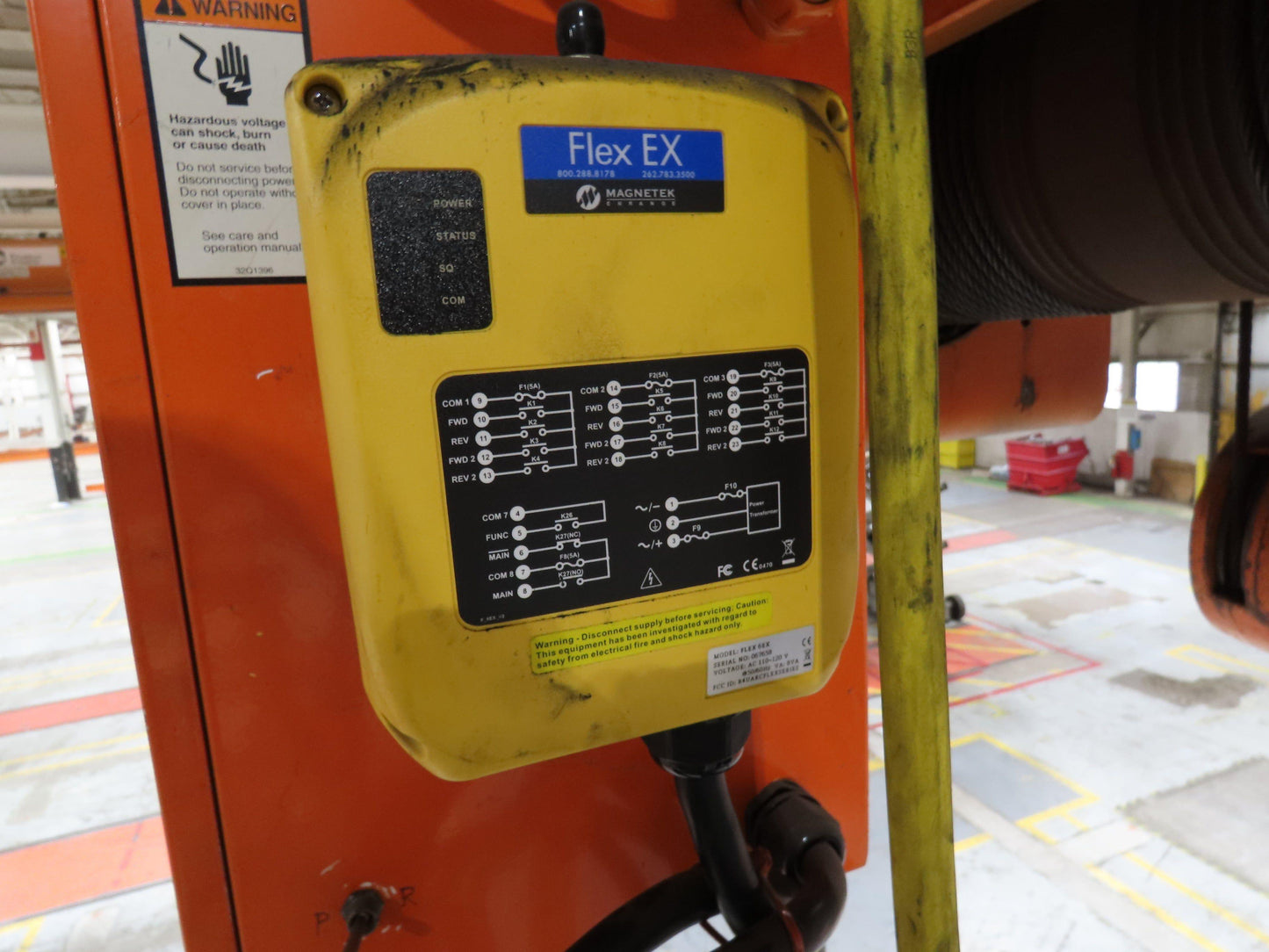

  • -Wireless remote system is not working properly on the hoist it is working for the bridge.  Could be a wiring issue.  Pendant works as it should.
  • 2-speed bridge, trolley and hoist.
  • Overall width: 78" (End truck to end truck)
