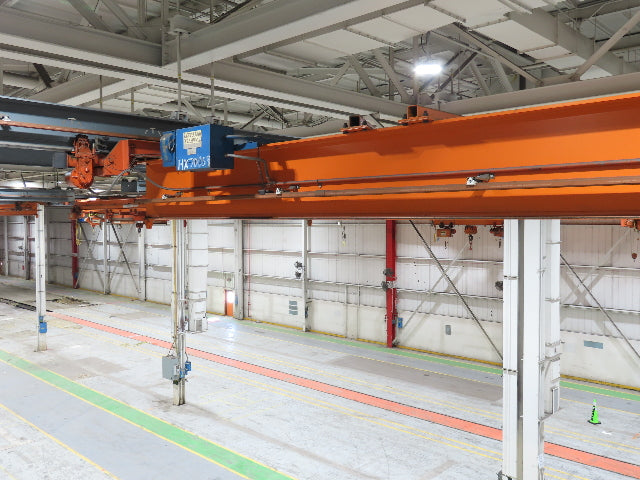

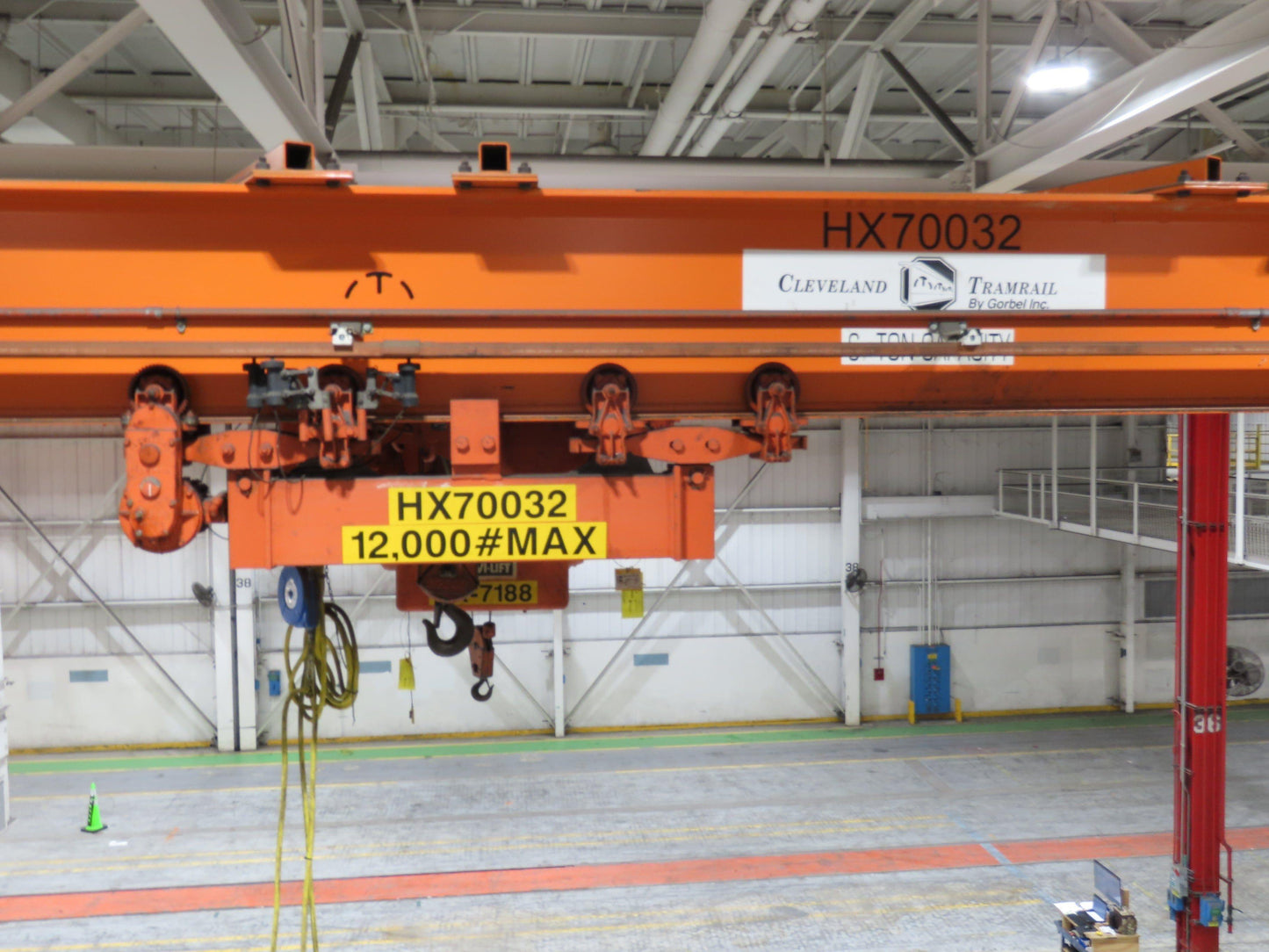

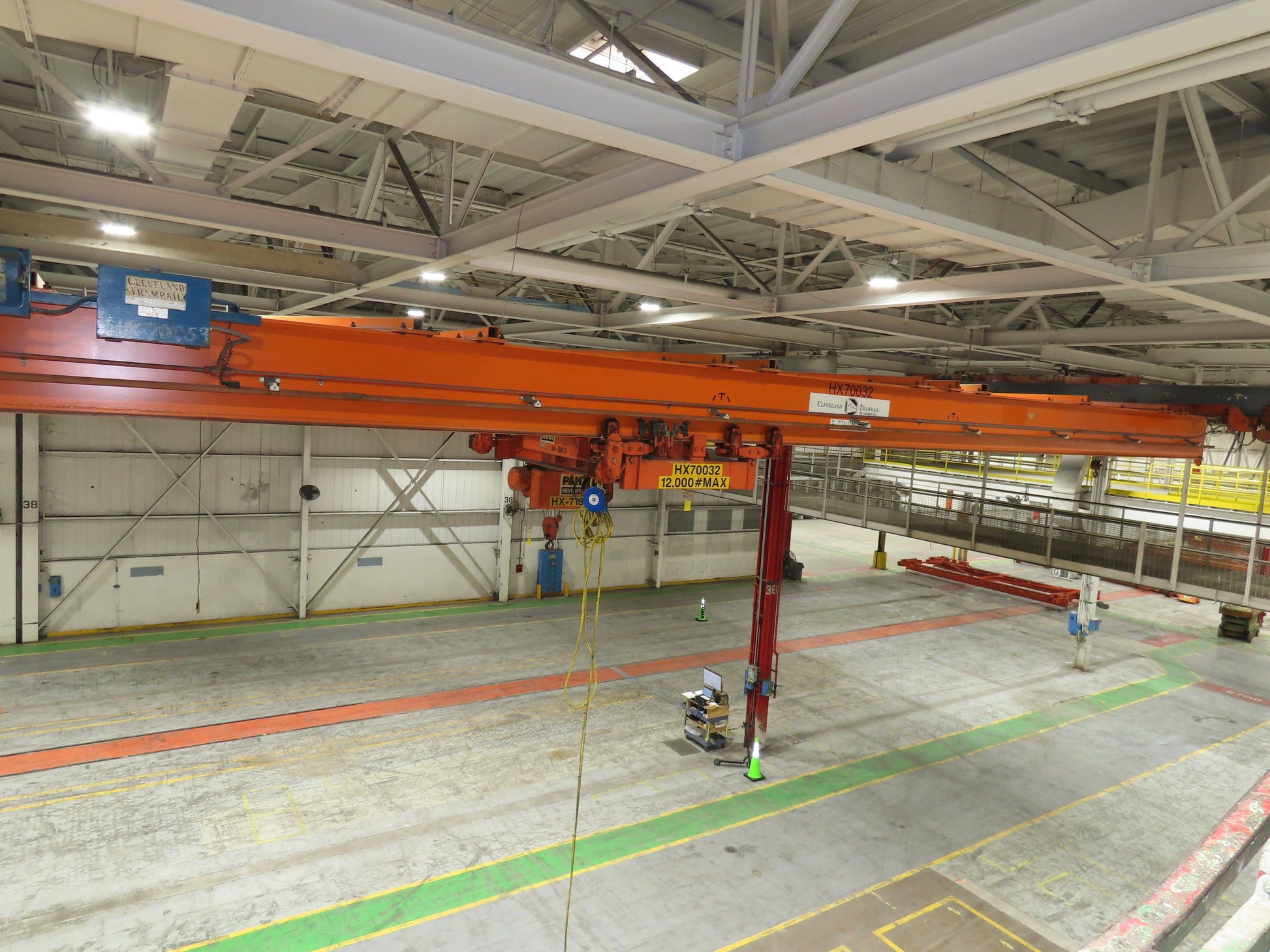

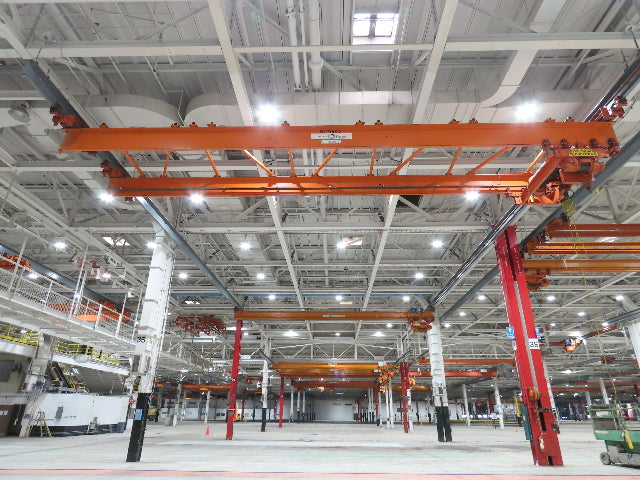

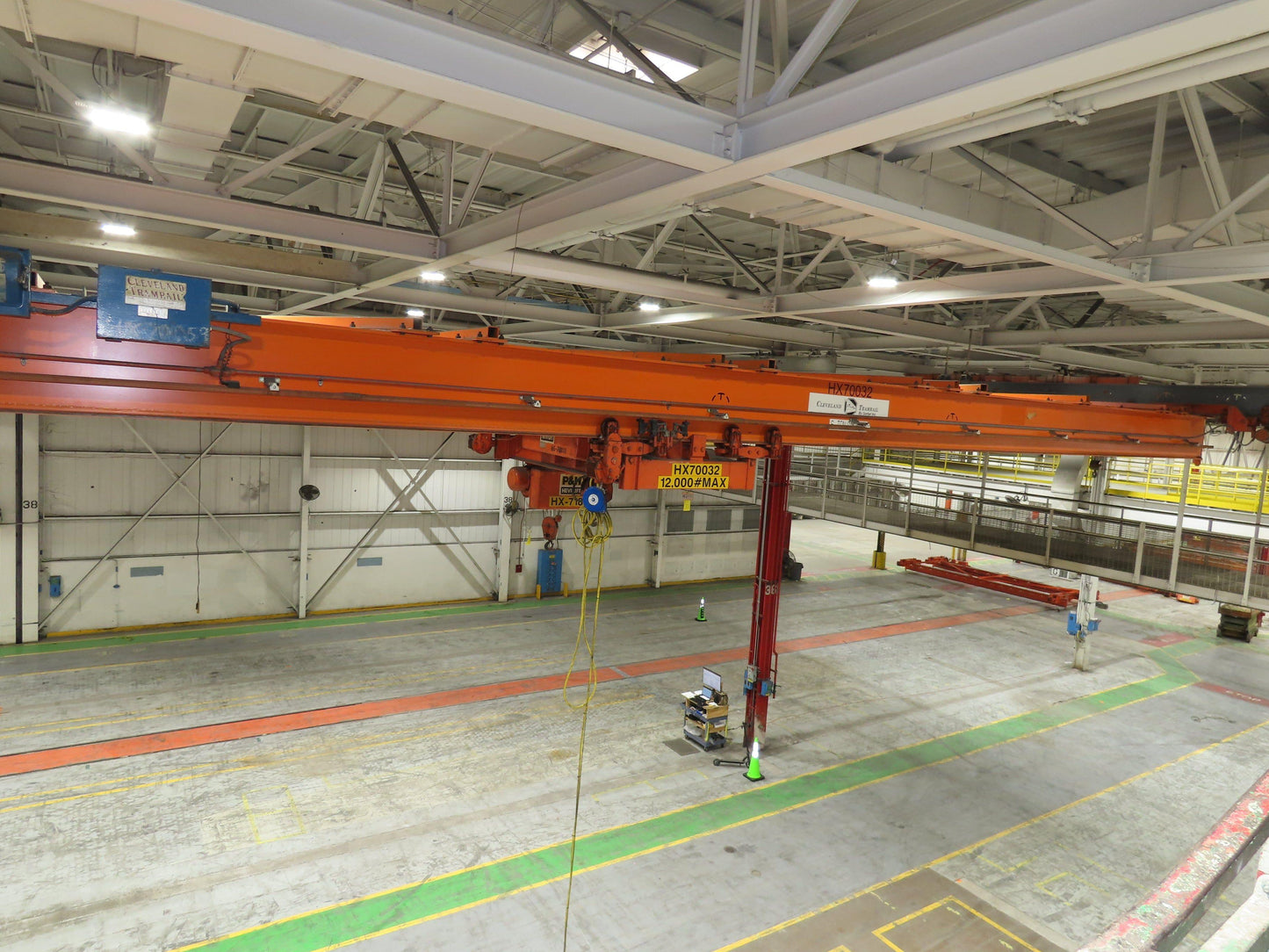

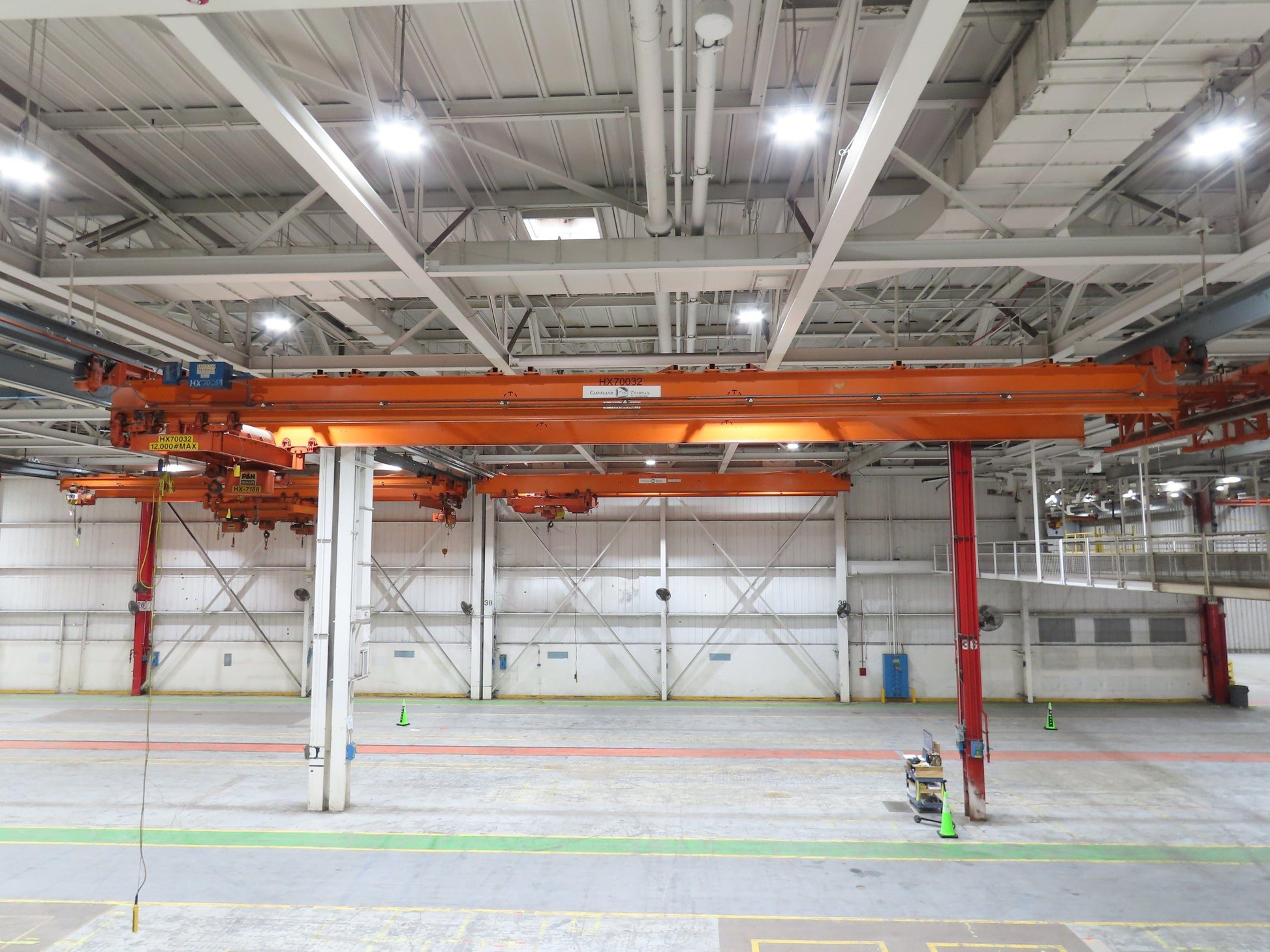

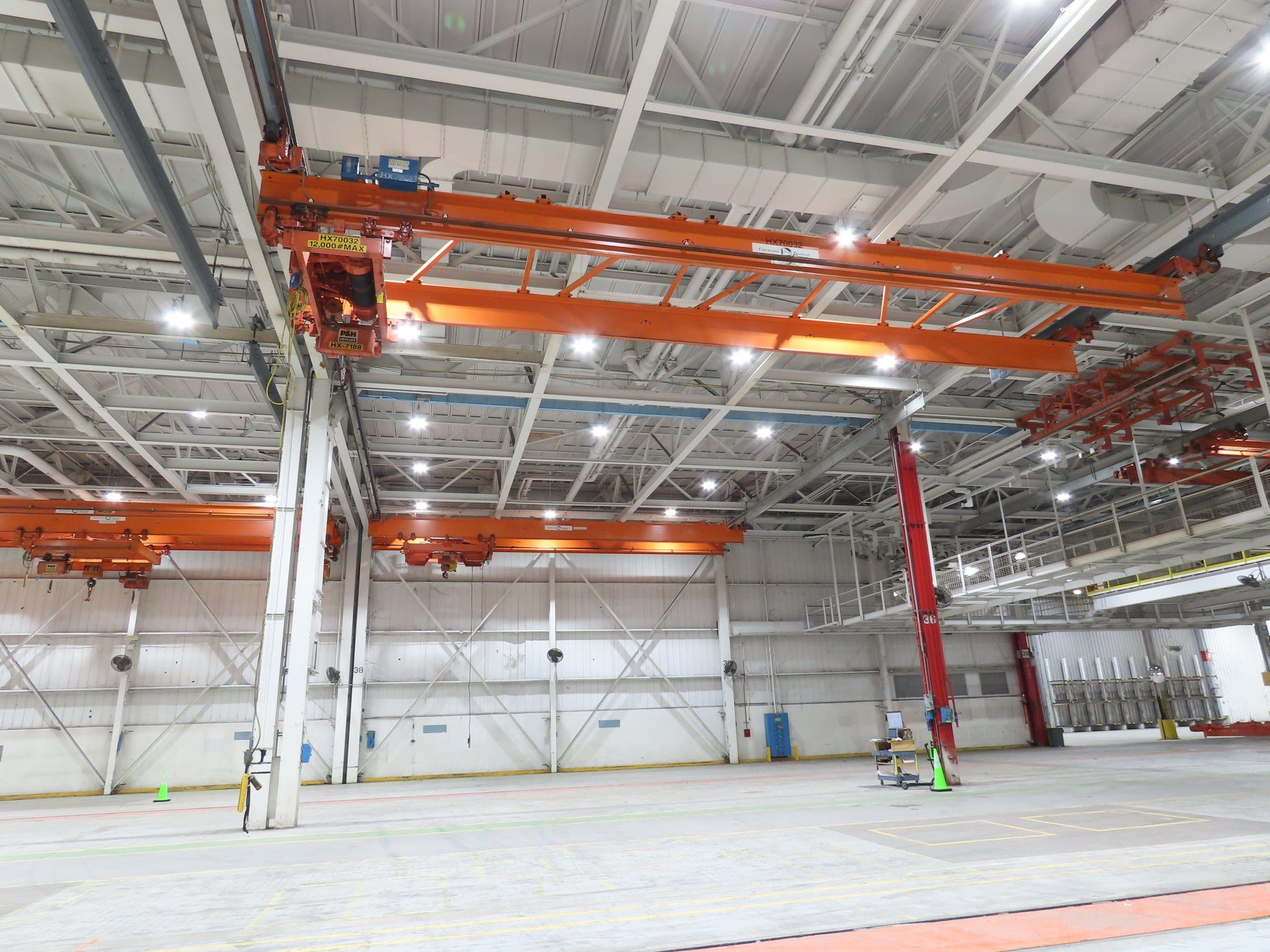

Cleveland Tramrail P&H 6 Ton Double Girder Underhung Bridge Crane 45' 10" Span

Cleveland Tramrail P&H 6 Ton Double Girder Underhung Bridge Crane 45' 10" Span

SKU #262033

Your Price
$14,962.49
$17,499.99 $14,962.49
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 6
  • Capacity (lb): 12000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45' 10"

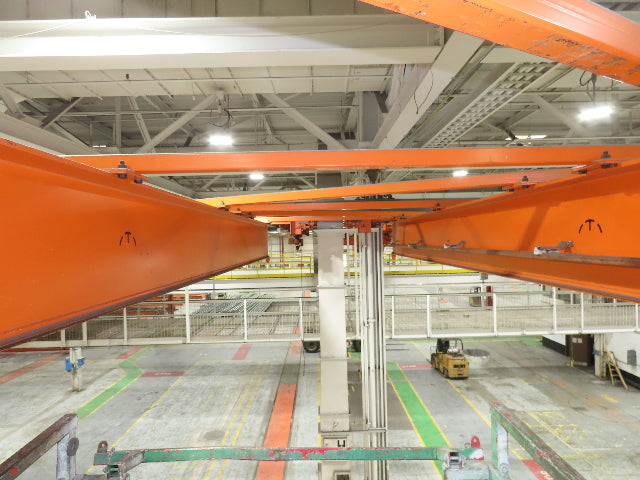

  • Main Girder Beam Size (Height x Width x Length): 24"H x 12.5"W x 47' 10" Length (3.25" flange)

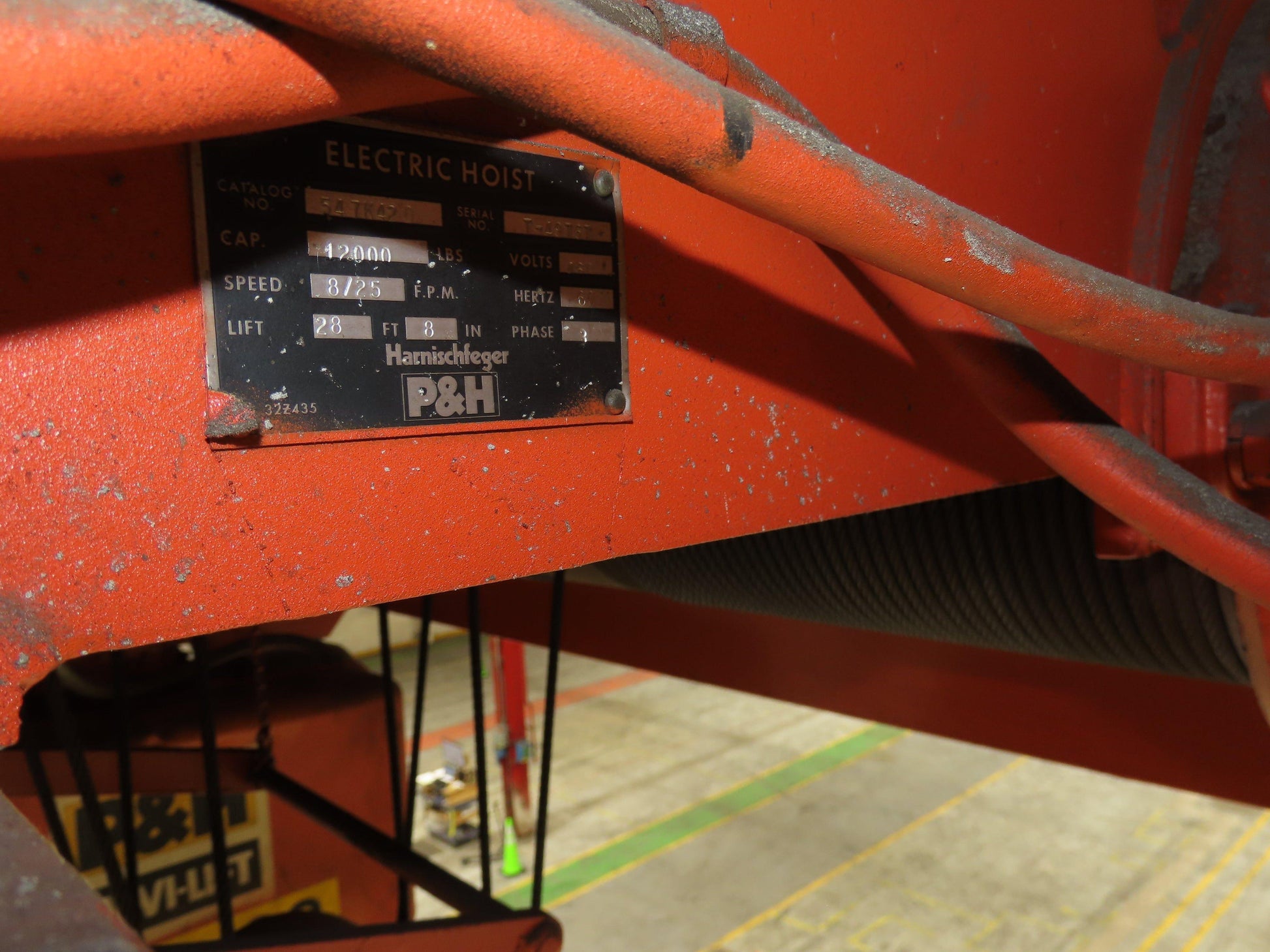

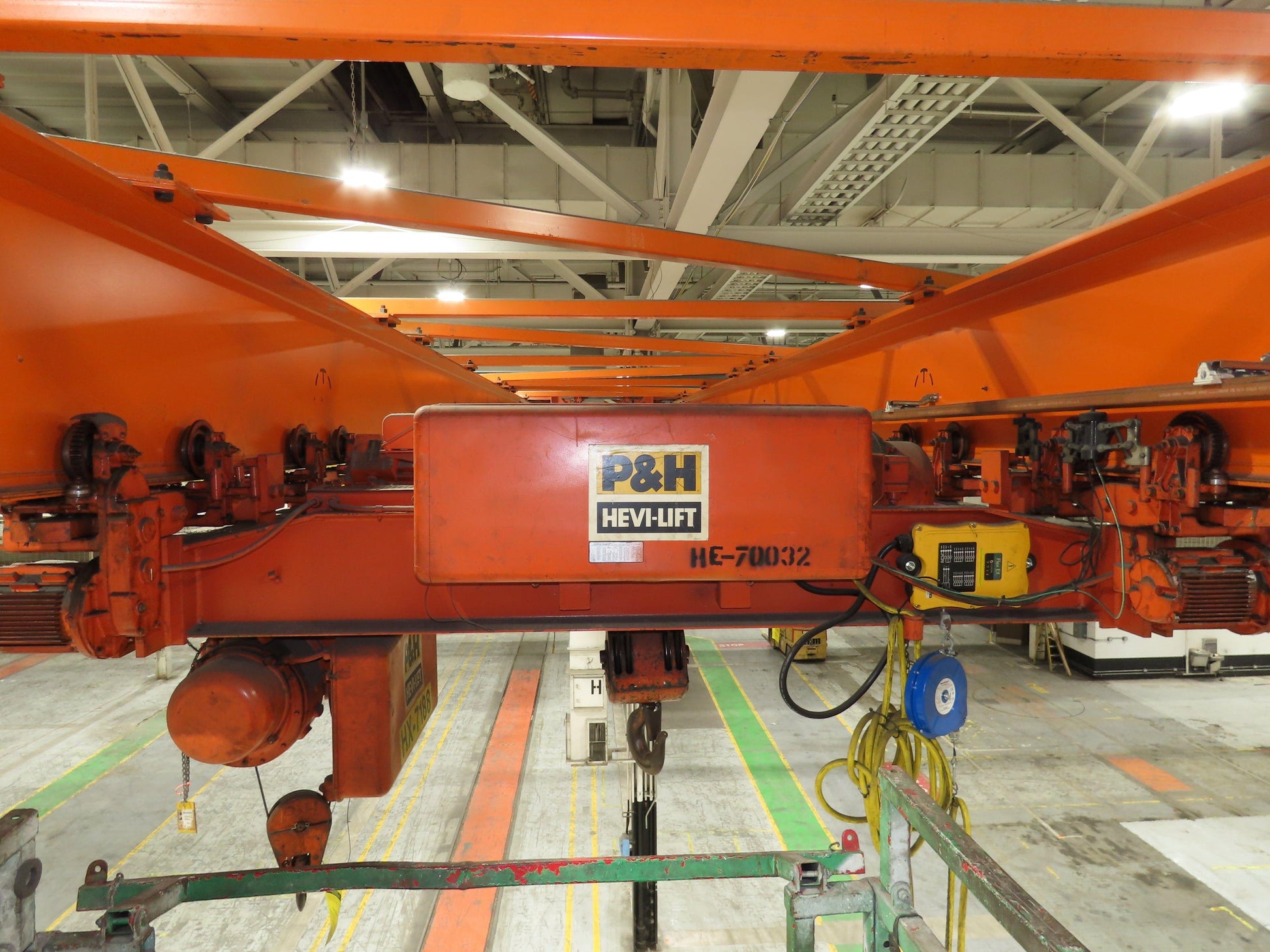

  • Hoist Brand: P&H
  • Lift Travel (feet): Main hoist 22' 9" (2nd hoist 24')
  • Lift Speed (feet per minute): 8/25 (2-speed main hoist)

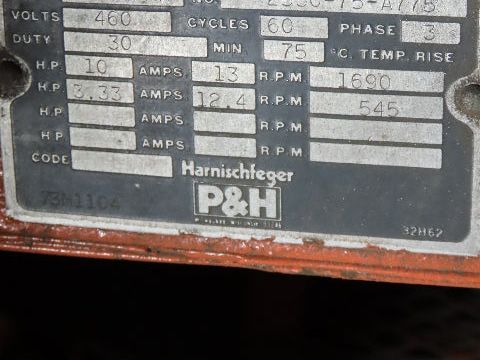

  • Motor Horse Power: 10
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 28' 6"
  • Hoist Power Trolley Speed (feet per minute): 100
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): Main hoist 35" (2nd hoist hook hangs 17" lower)
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 68"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 60"
  • Bridge Crane is in working condition.  Tested on site before removal.

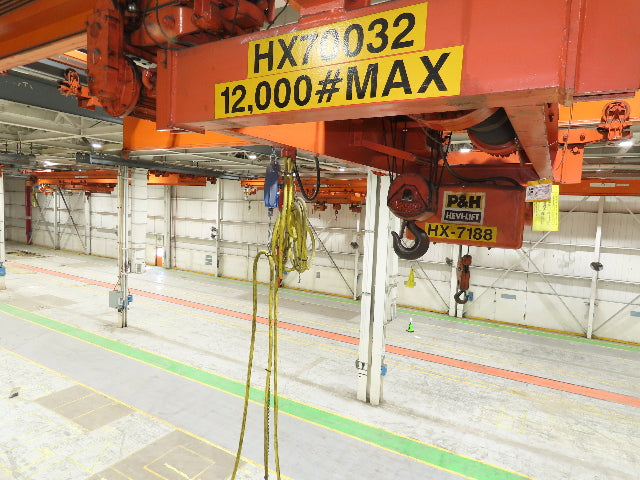

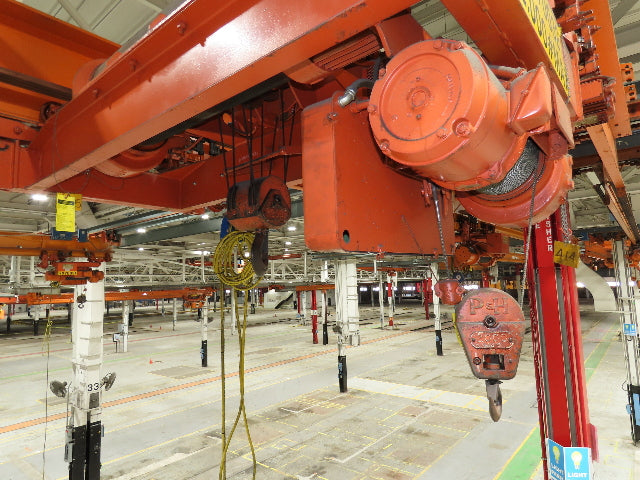

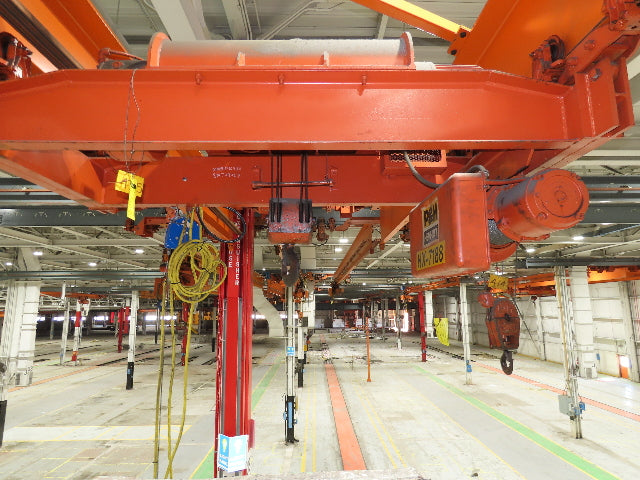

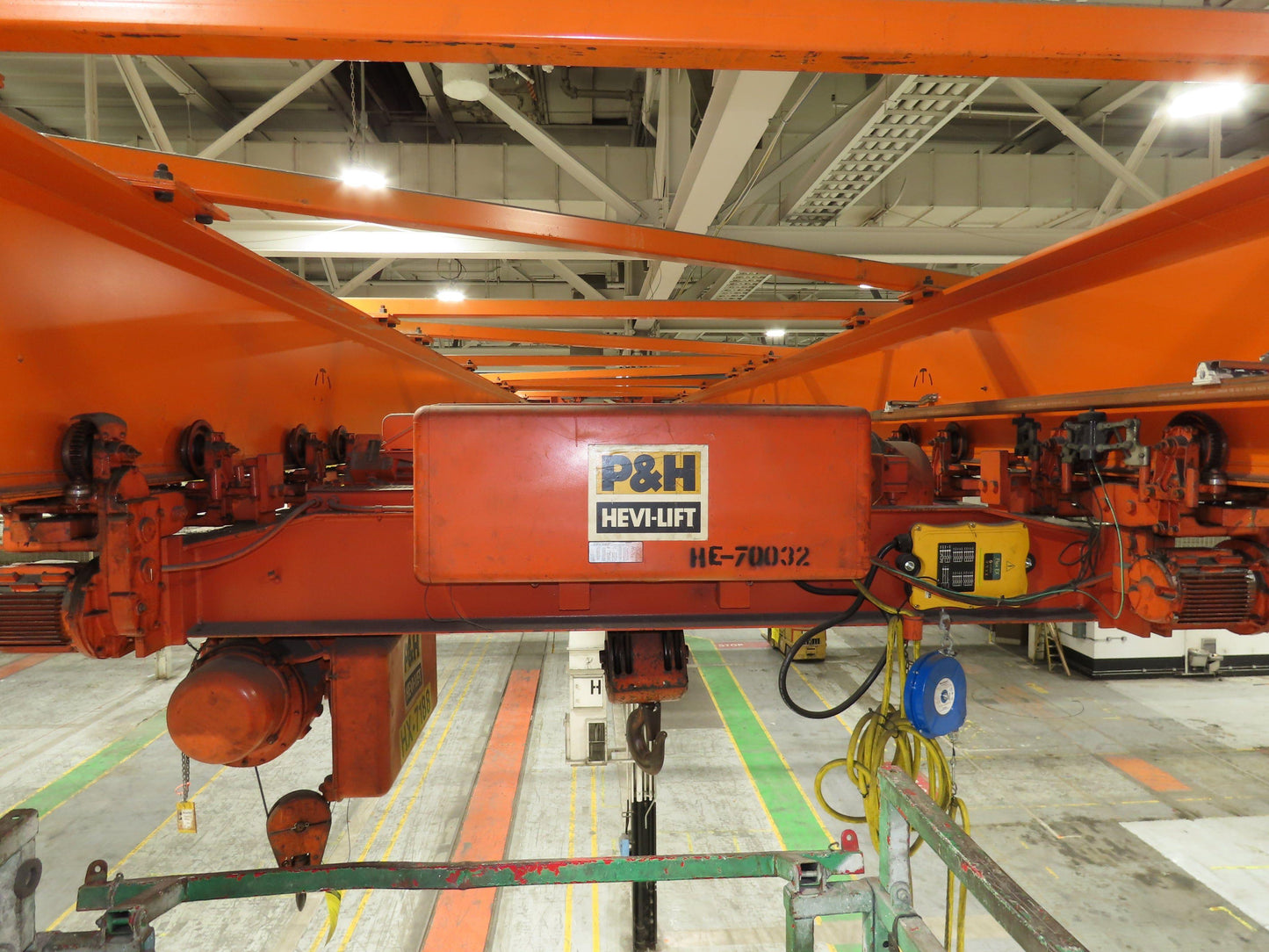

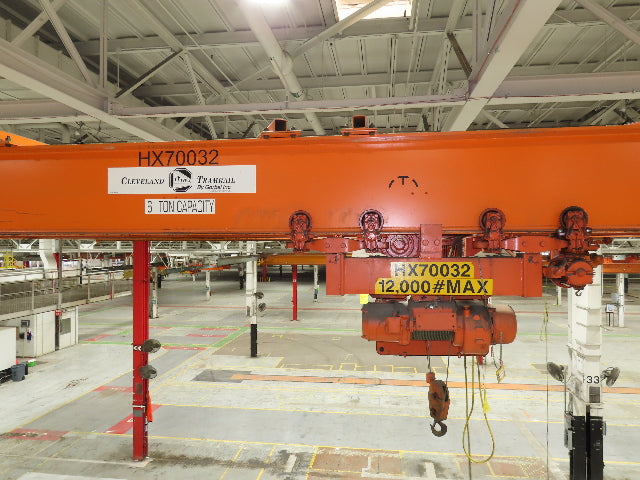

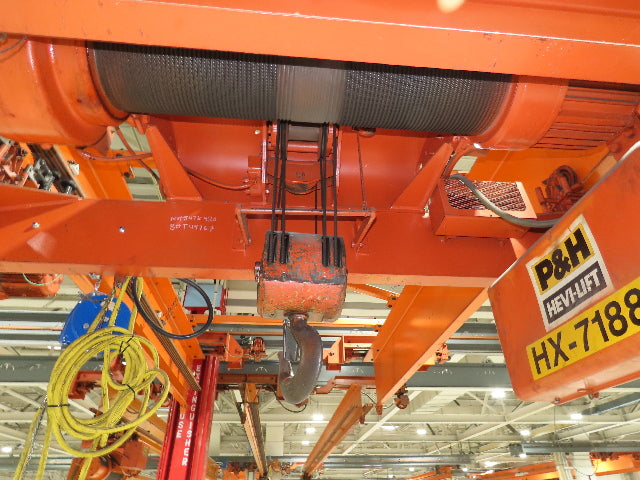

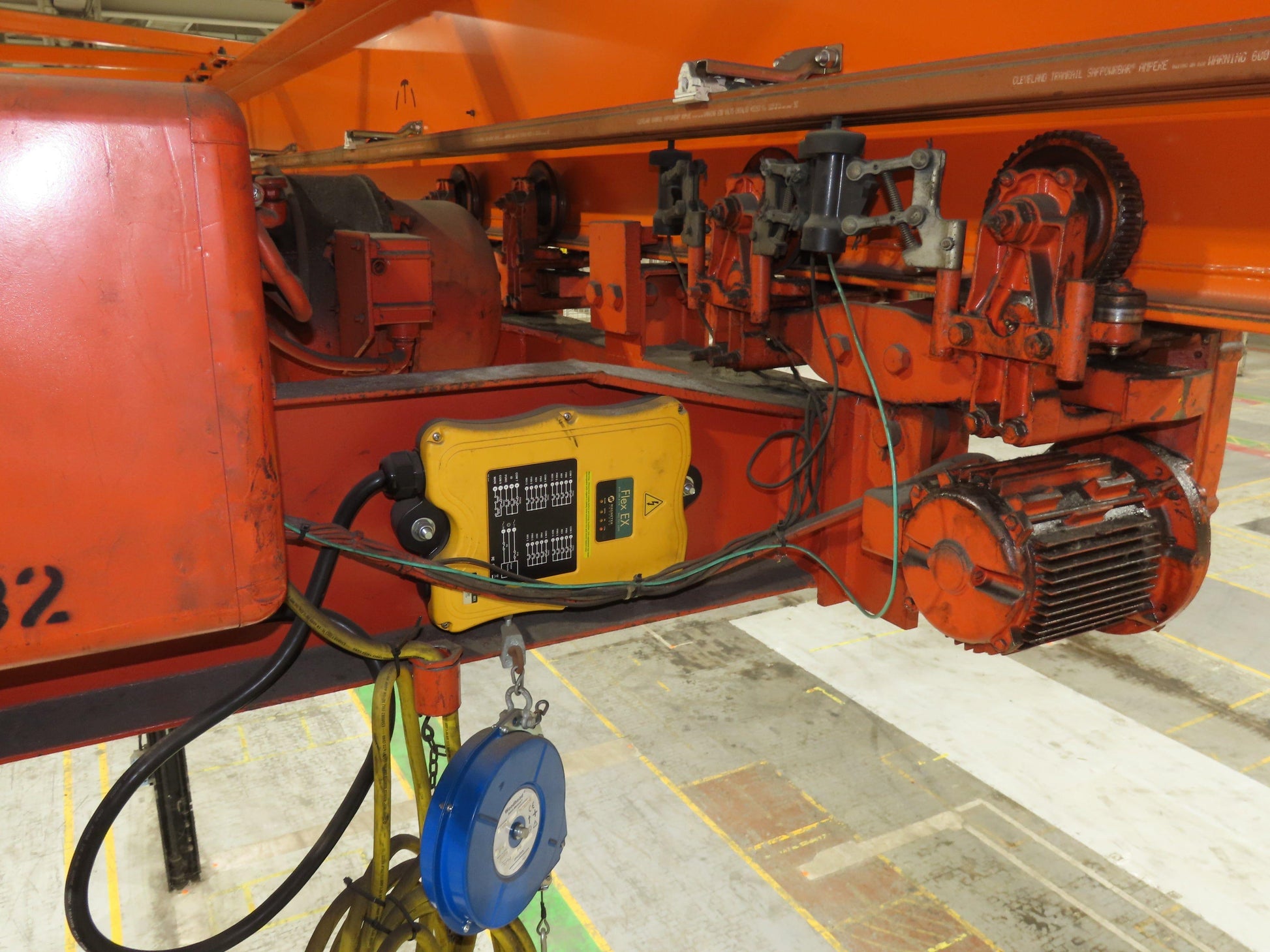

  • 6 ton main hoist with a 1-ton auxilliary stationary hoist.

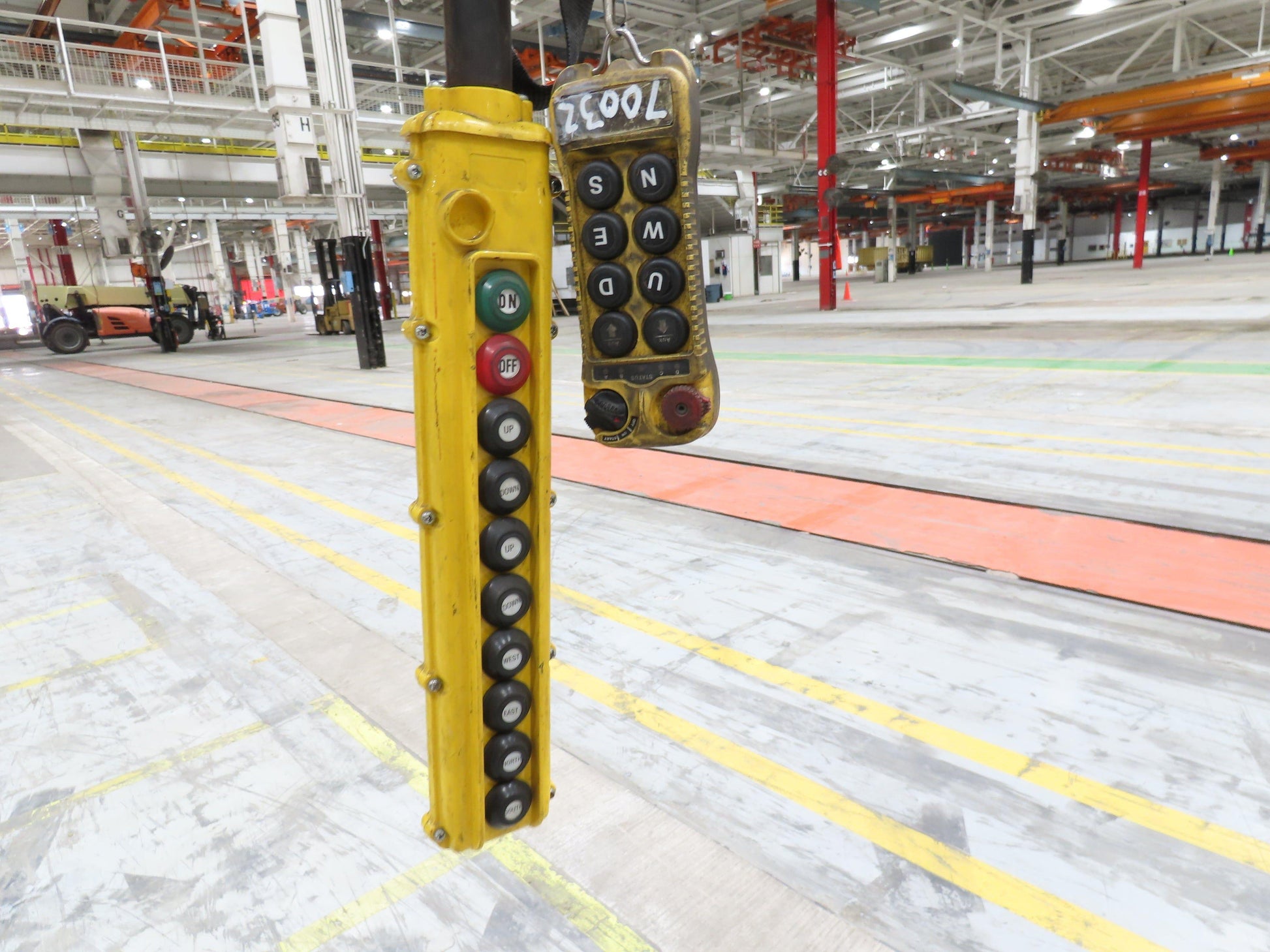

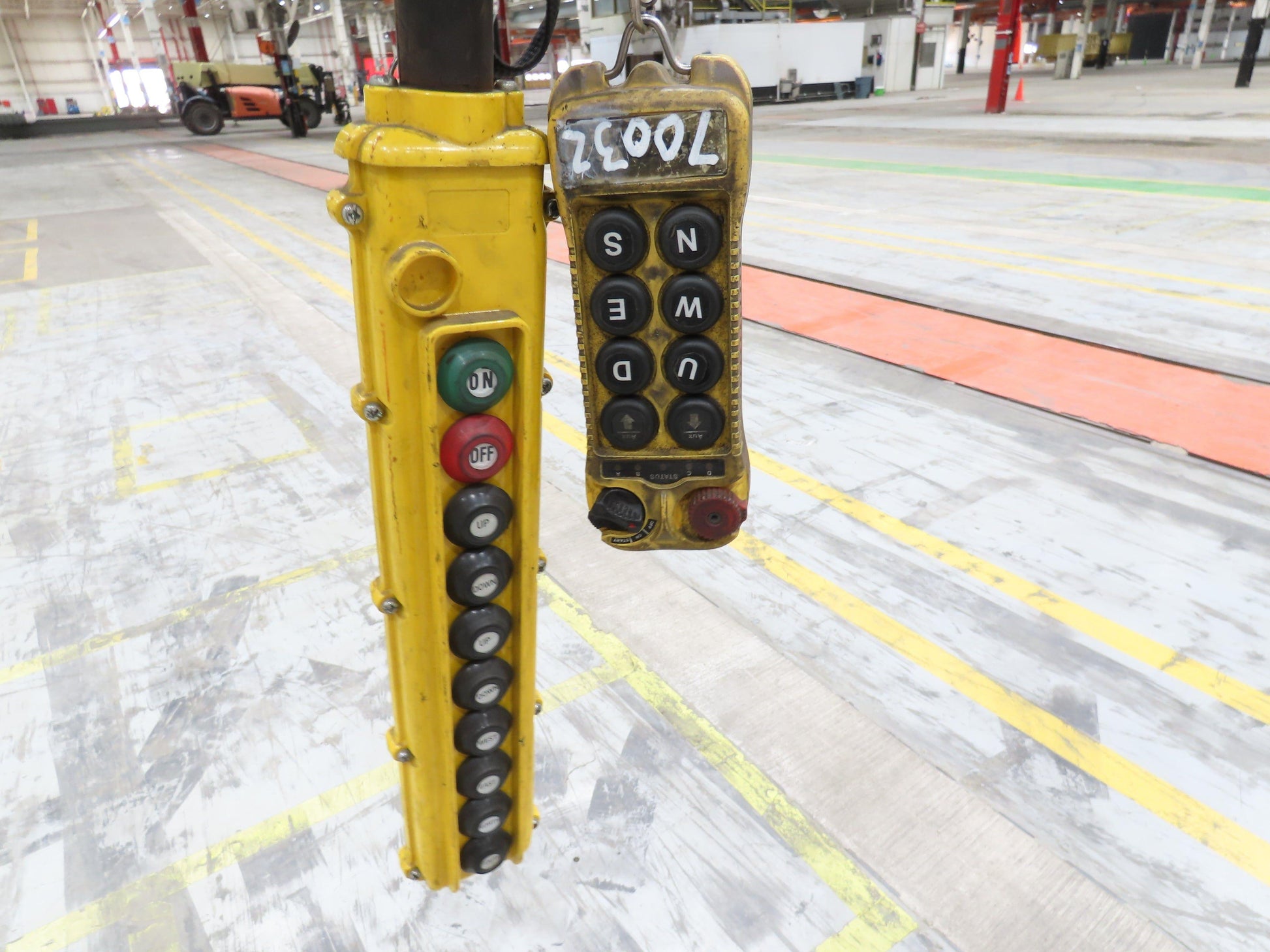

  • Includes corded and wireless pendants.
  • Single speed bridge and trolley.
  • 2-speed main hoist.
  • Girder beam span: 7' 11"
  • Overall width: 14' 3" (End truck to end truck)
