Cleveland Tramrail

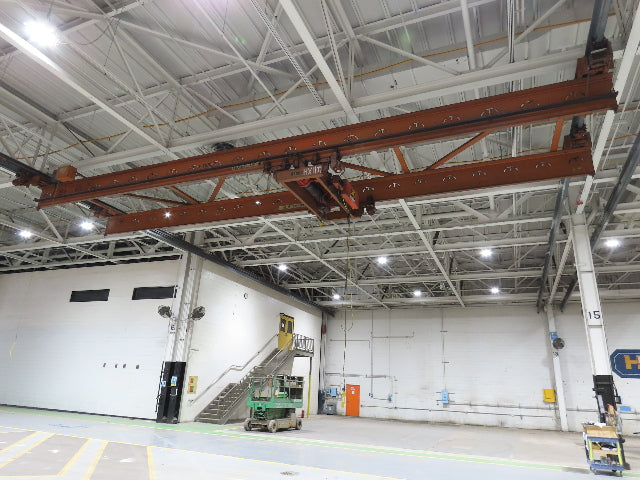

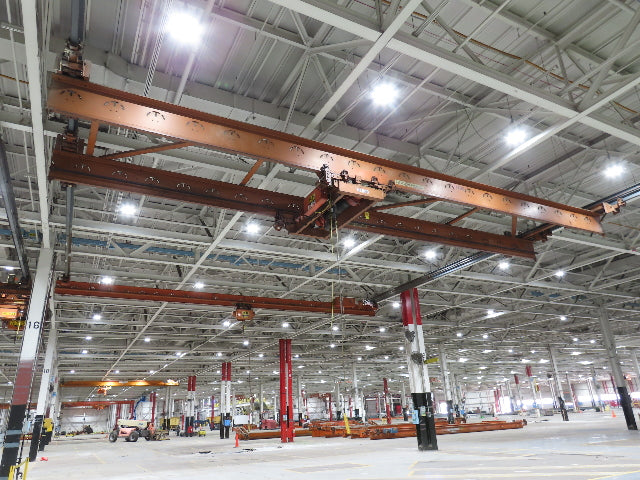

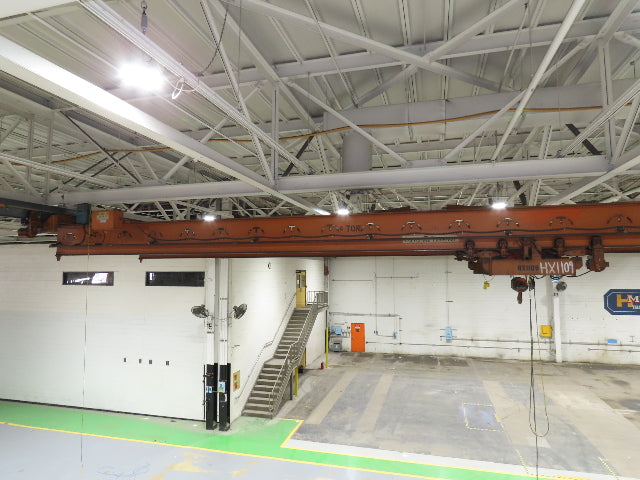

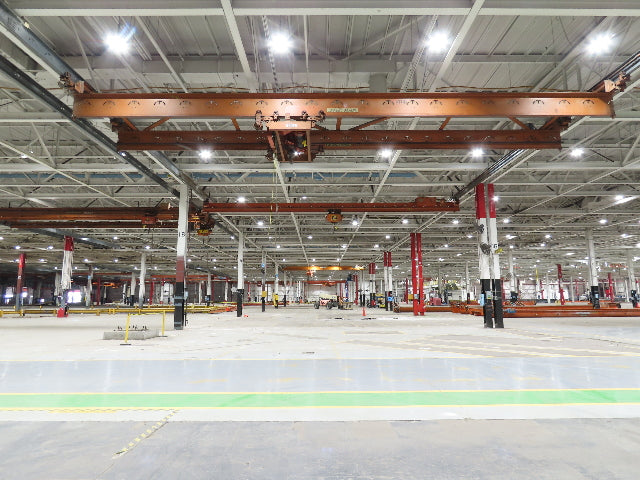

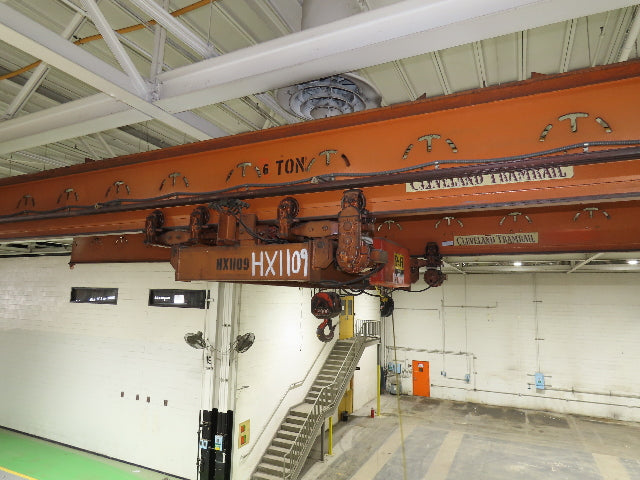

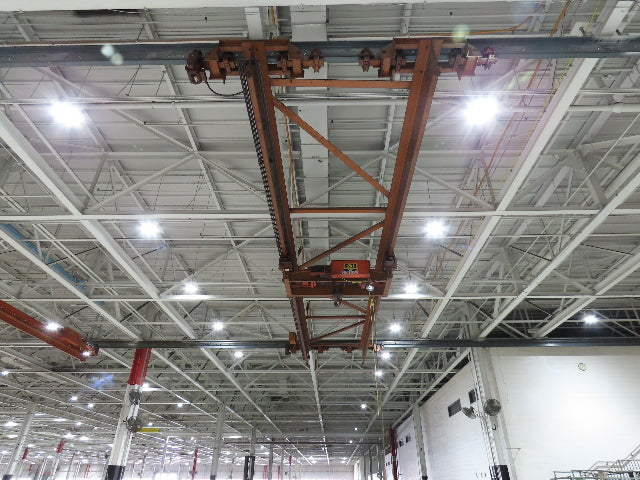

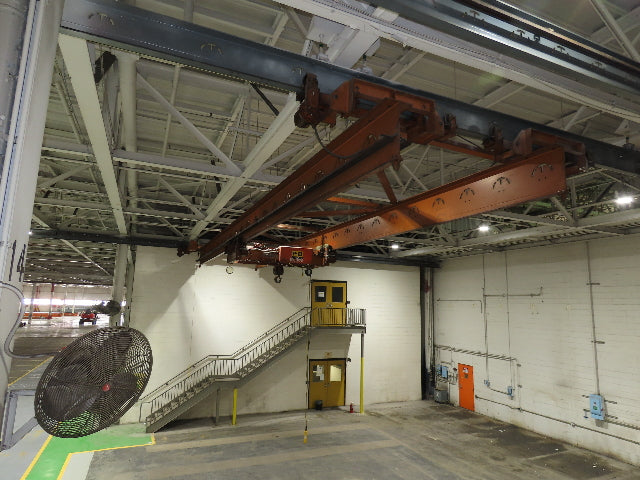

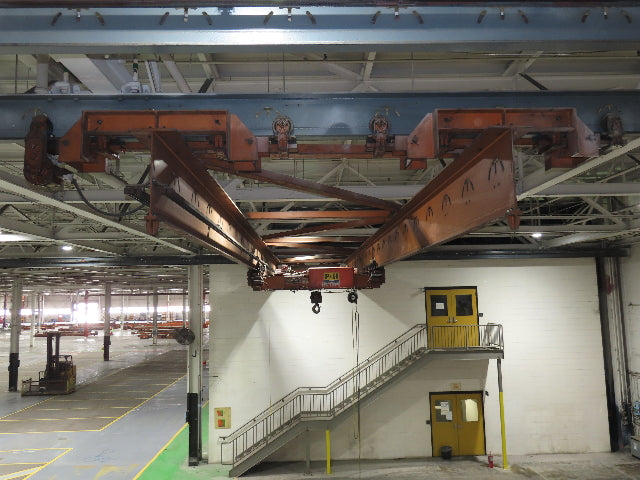

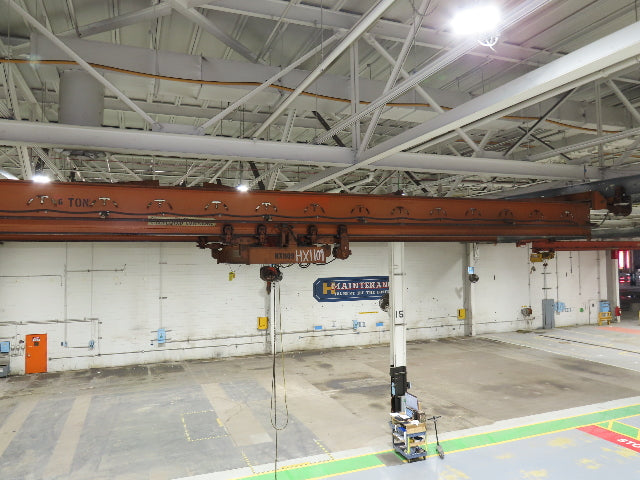

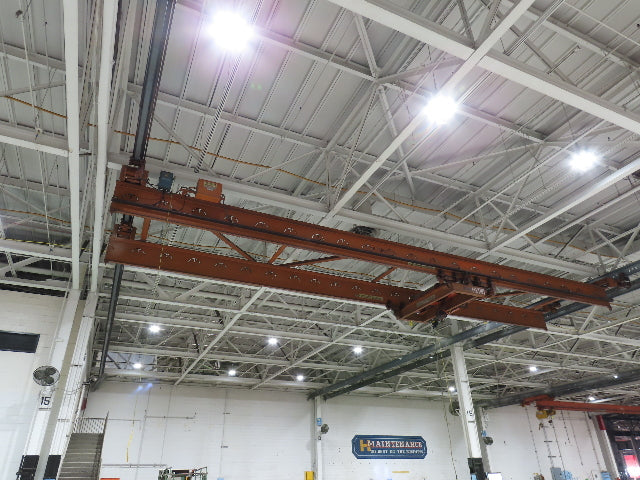

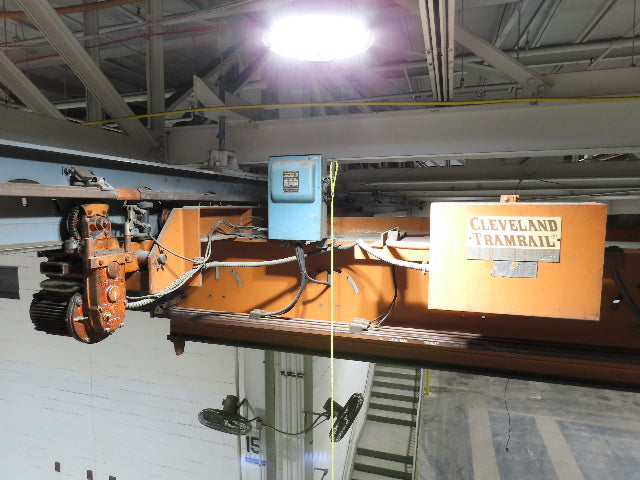

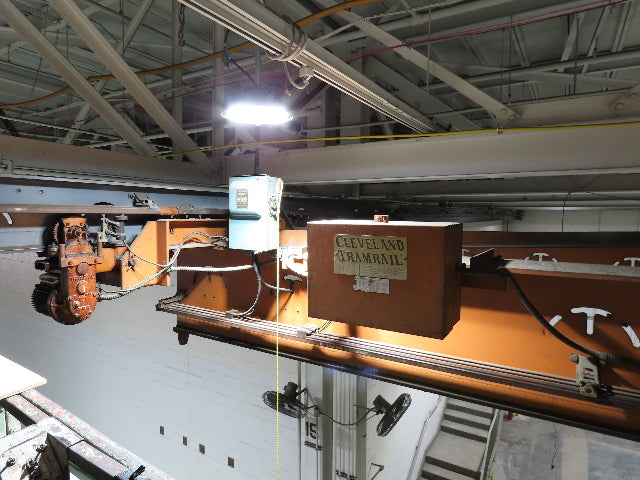

Cleveland Tramrail P&H 6 Ton Double Girder Underhung Bridge Crane 45' 10" Span

Cleveland Tramrail P&H 6 Ton Double Girder Underhung Bridge Crane 45' 10" Span

SKU #262361

Your Price
$13,774.99
$13,774.99
Sale Sold out
Shipping calculated at checkout.
  • Capacity (tons): 6
  • Capacity (lb): 12000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45' 10"

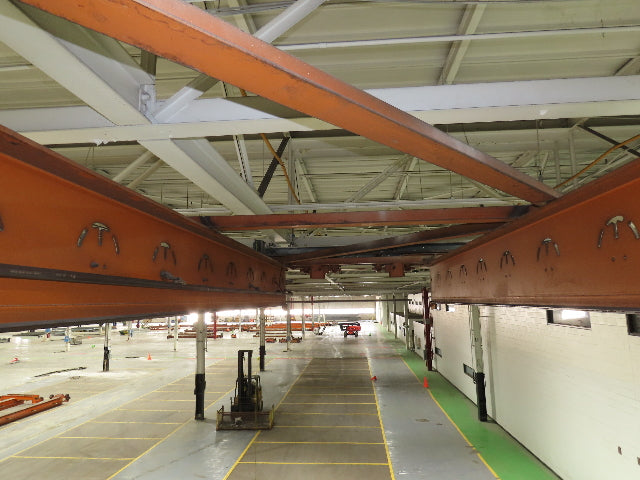

  • Main Girder Beam Size (Height x Width x Length): 24"H 12.5"W x 47' 10" Length (3.25" bottom flange)
  • Bridge Speed (feet per minute): Single

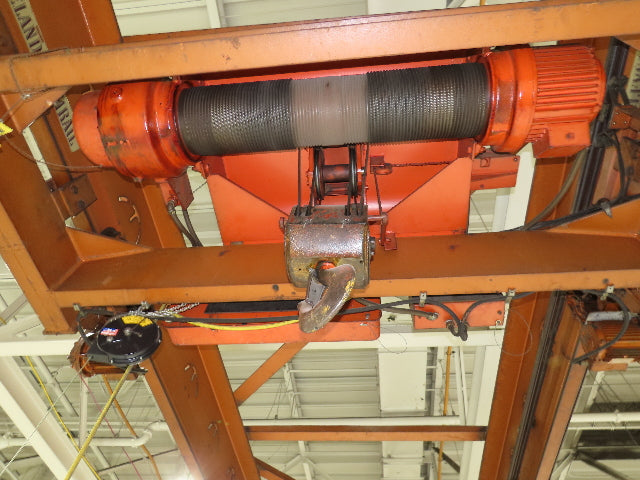

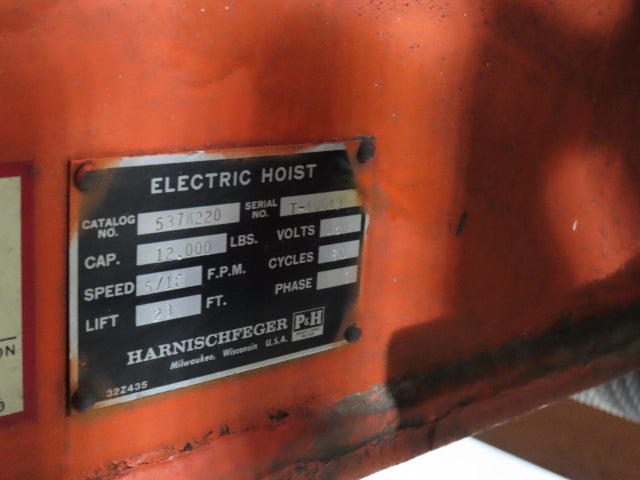

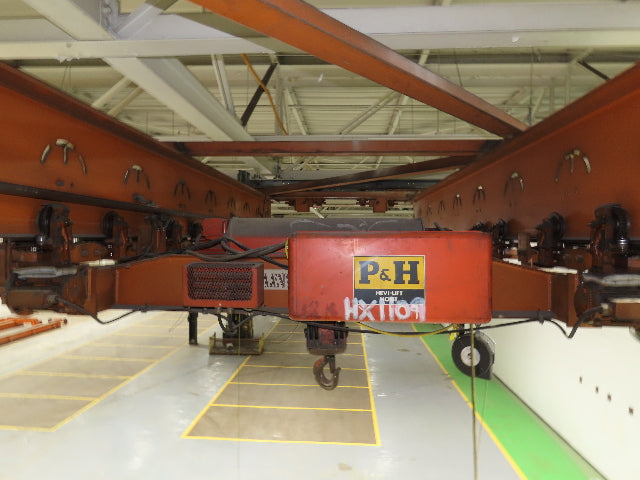

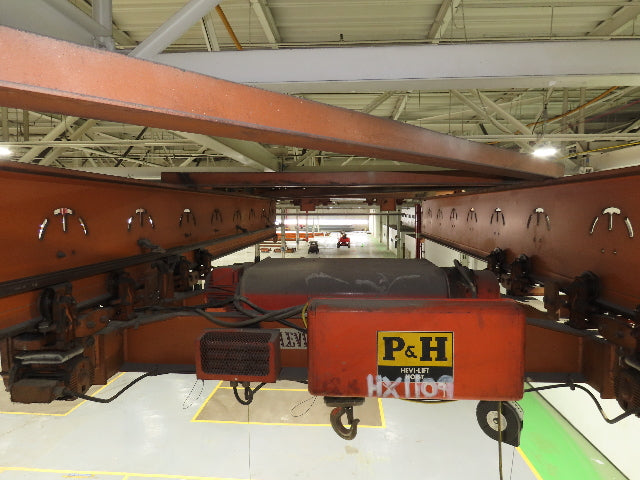

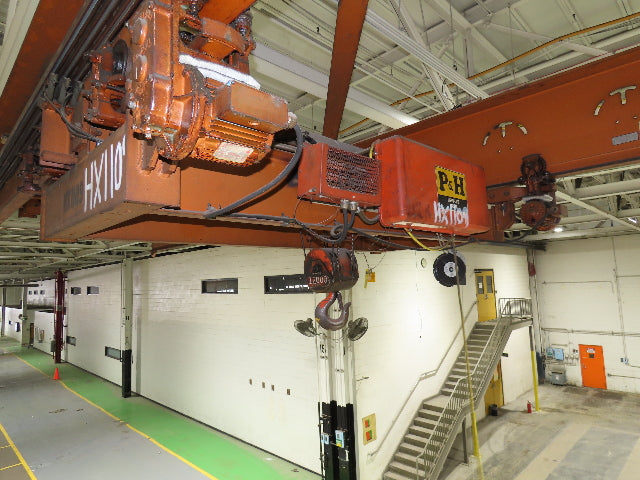

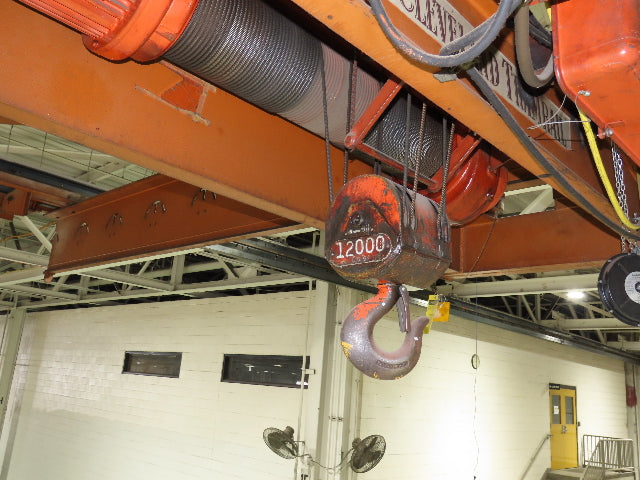

  • Hoist Brand: P&H
  • Lift Travel (feet): 23'
  • Lift Speed (feet per minute): 5/16

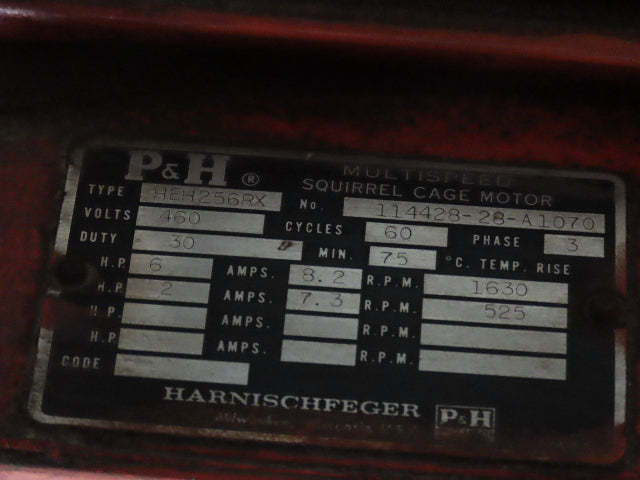

  • Motor Horse Power: 6
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 30'
  • Hoist Power Trolley Speed (feet per minute): 80
  • Hoist Trolley Length of Travel: 41'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 35"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 60"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 77"
  • Bridge Crane is in working condition but has an issue with a contactor sticking on the west direction of the bridge.
  •
  • Includes corded pendant only.  Not set up for wireless.
  • Single speed bridge and trolley, 2-speed hoist.
  • End truck length: 76"
  • Girder beam span: 8'
  • Overall width: 14' 6" (End truck to end truck)
  • Top braces are welded on.
