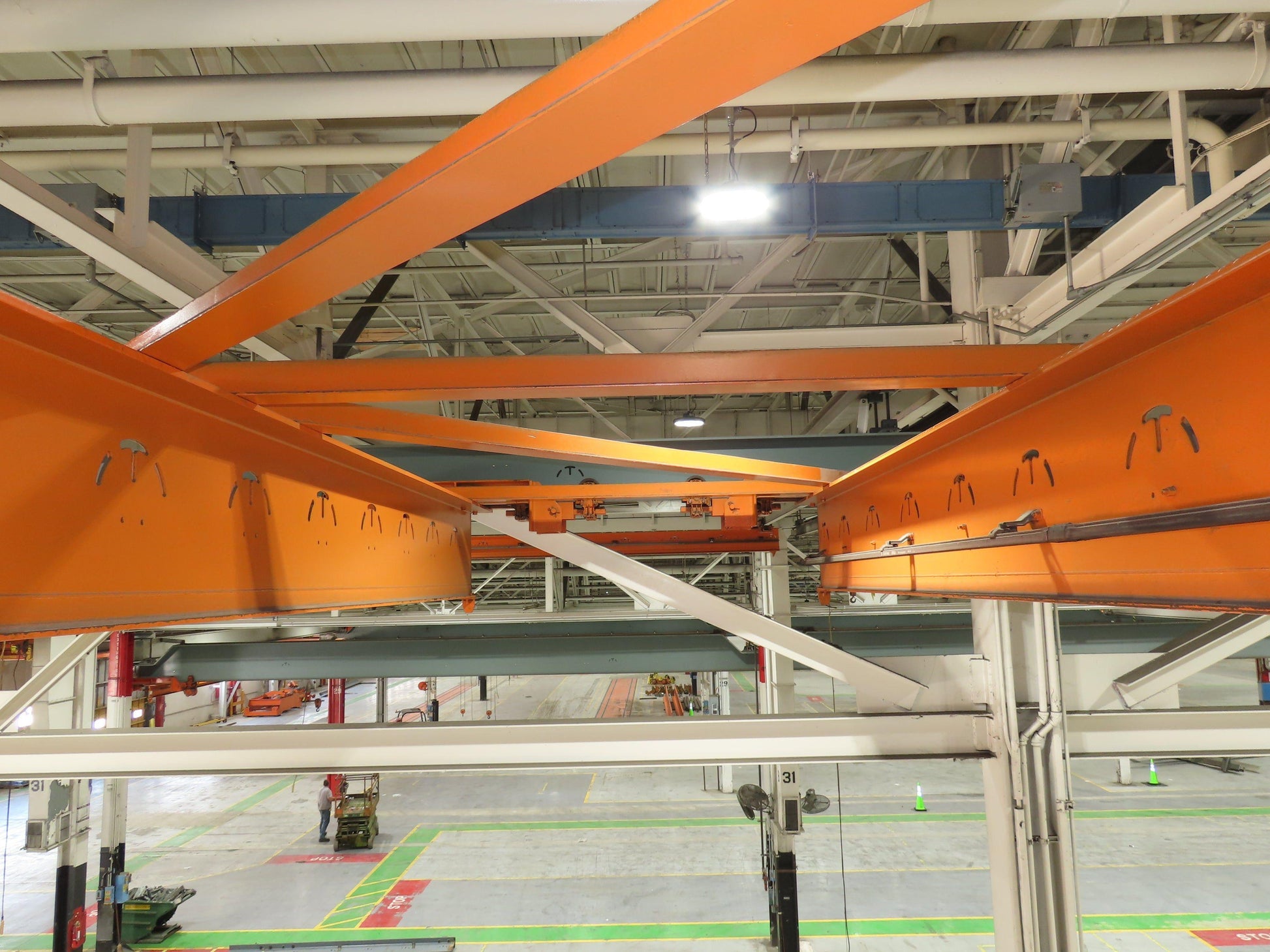

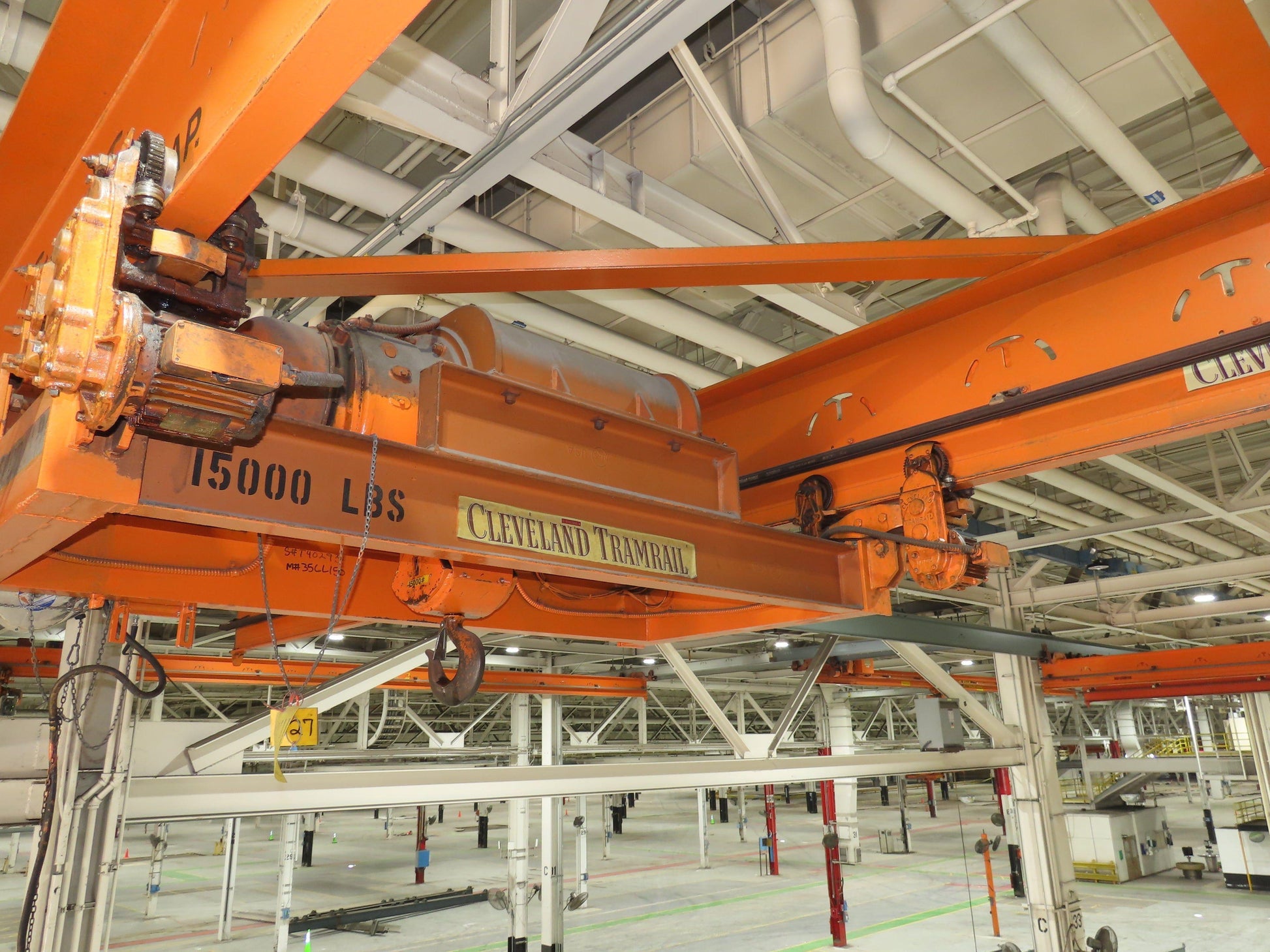

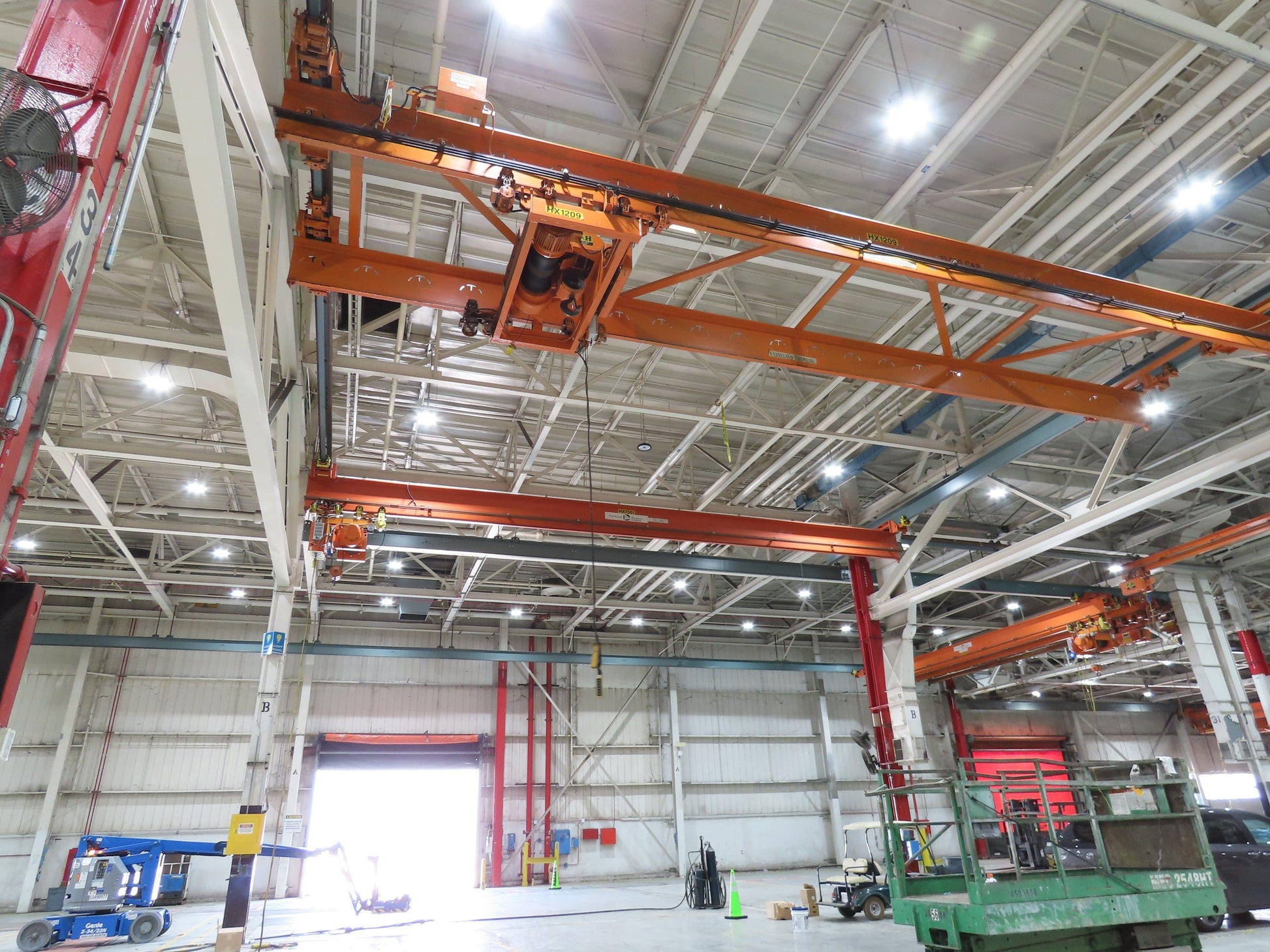

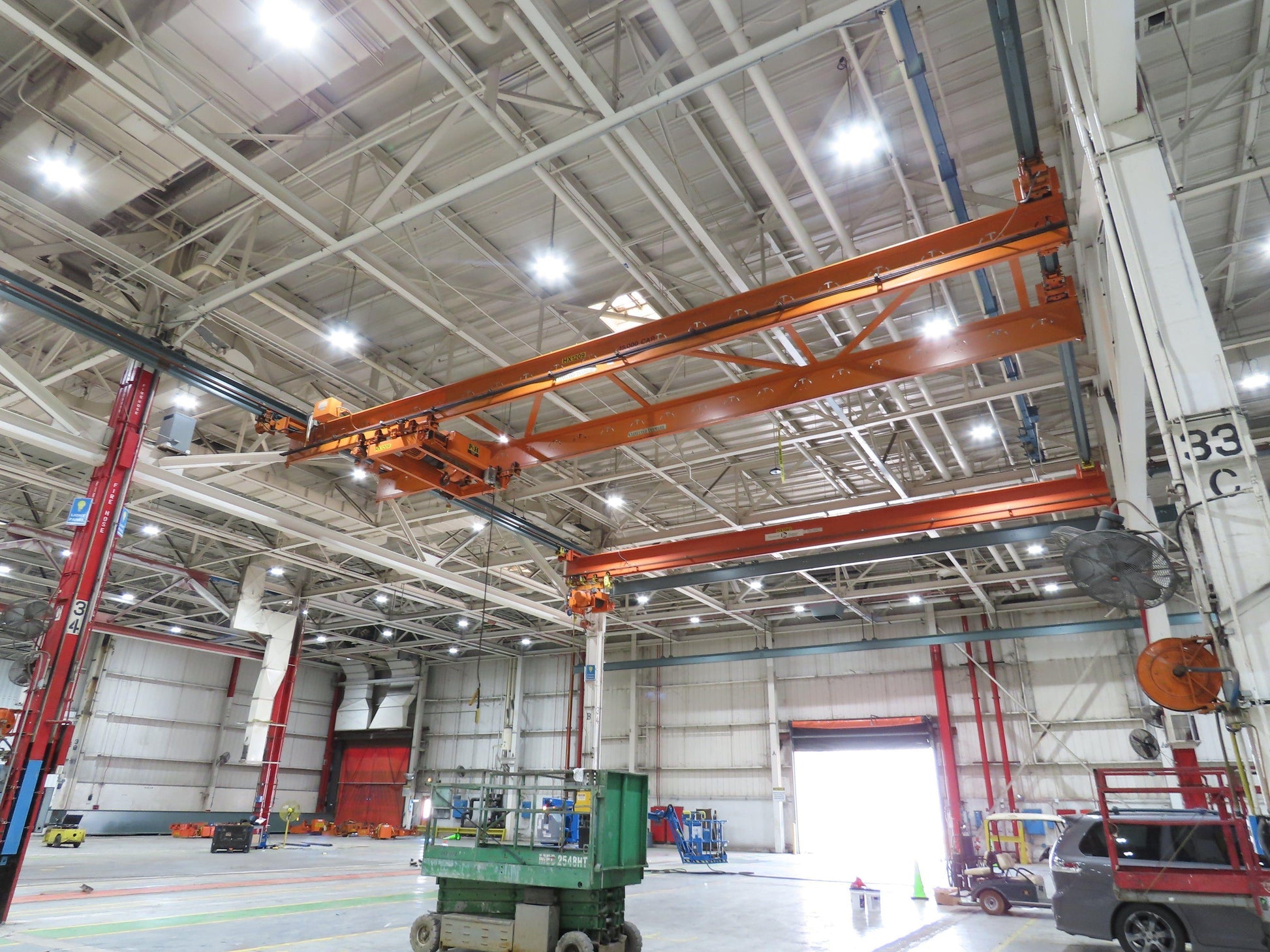

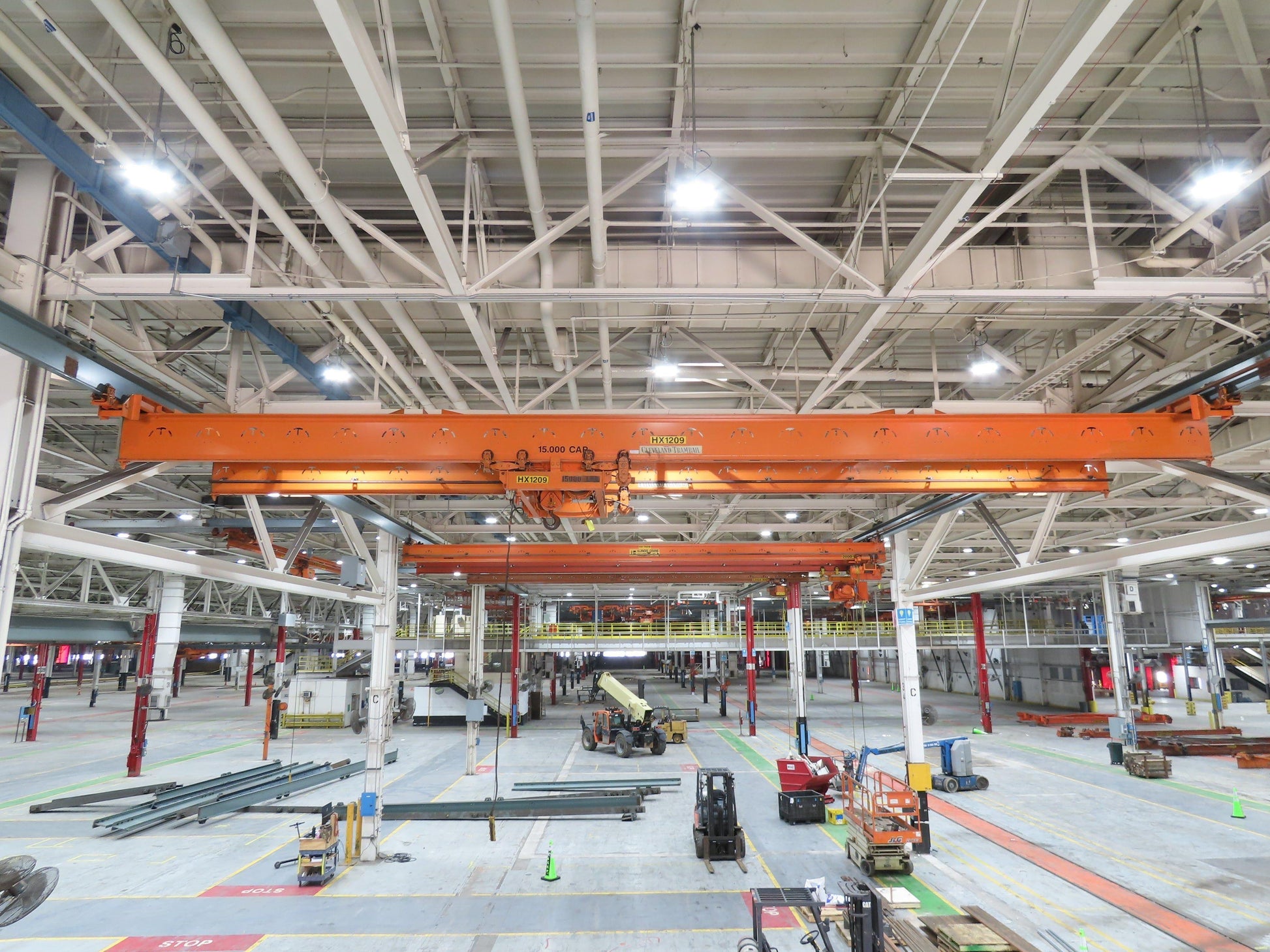

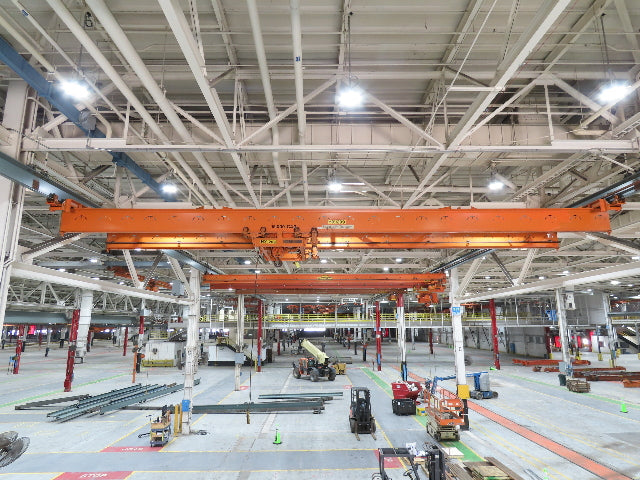

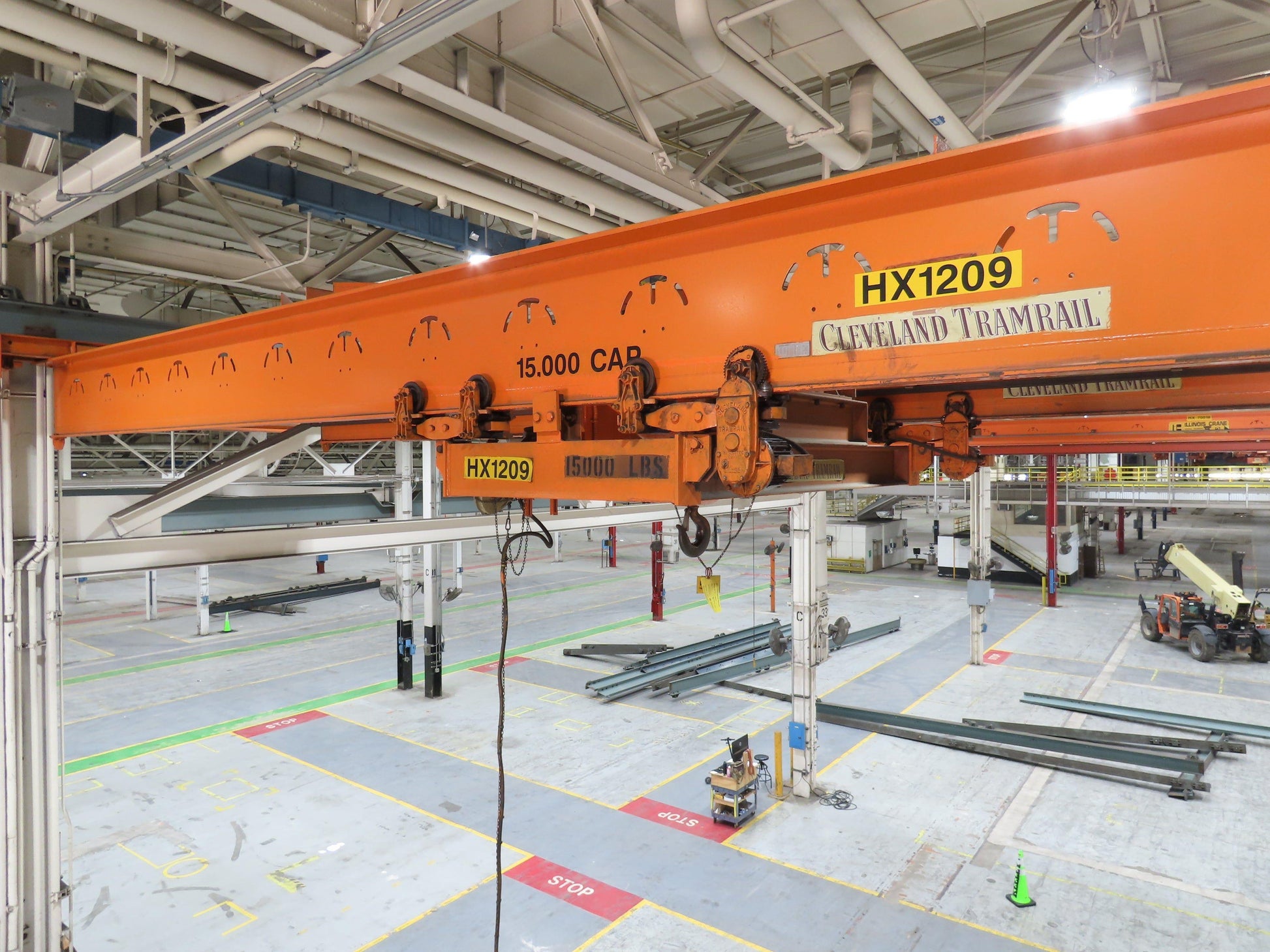

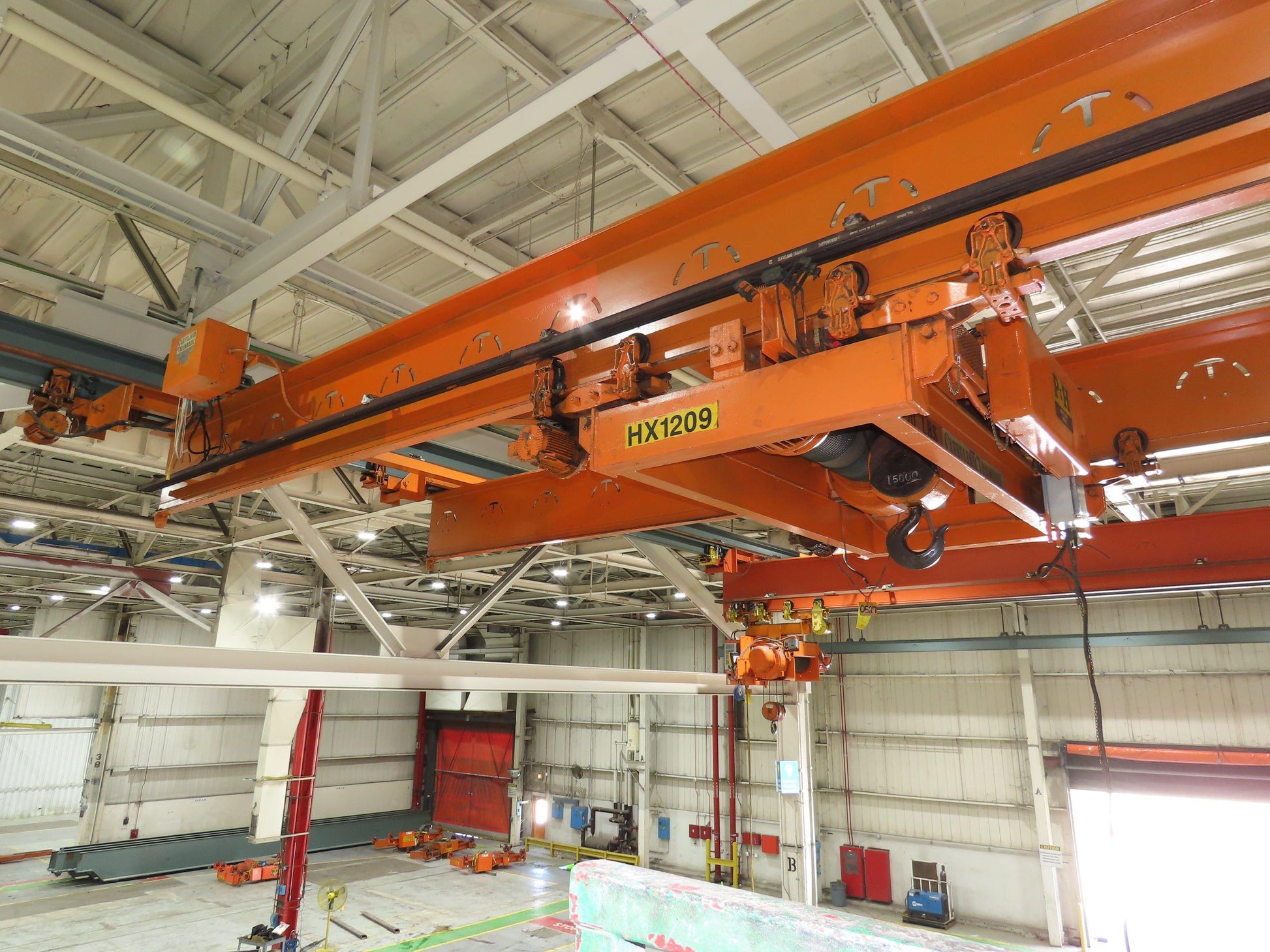

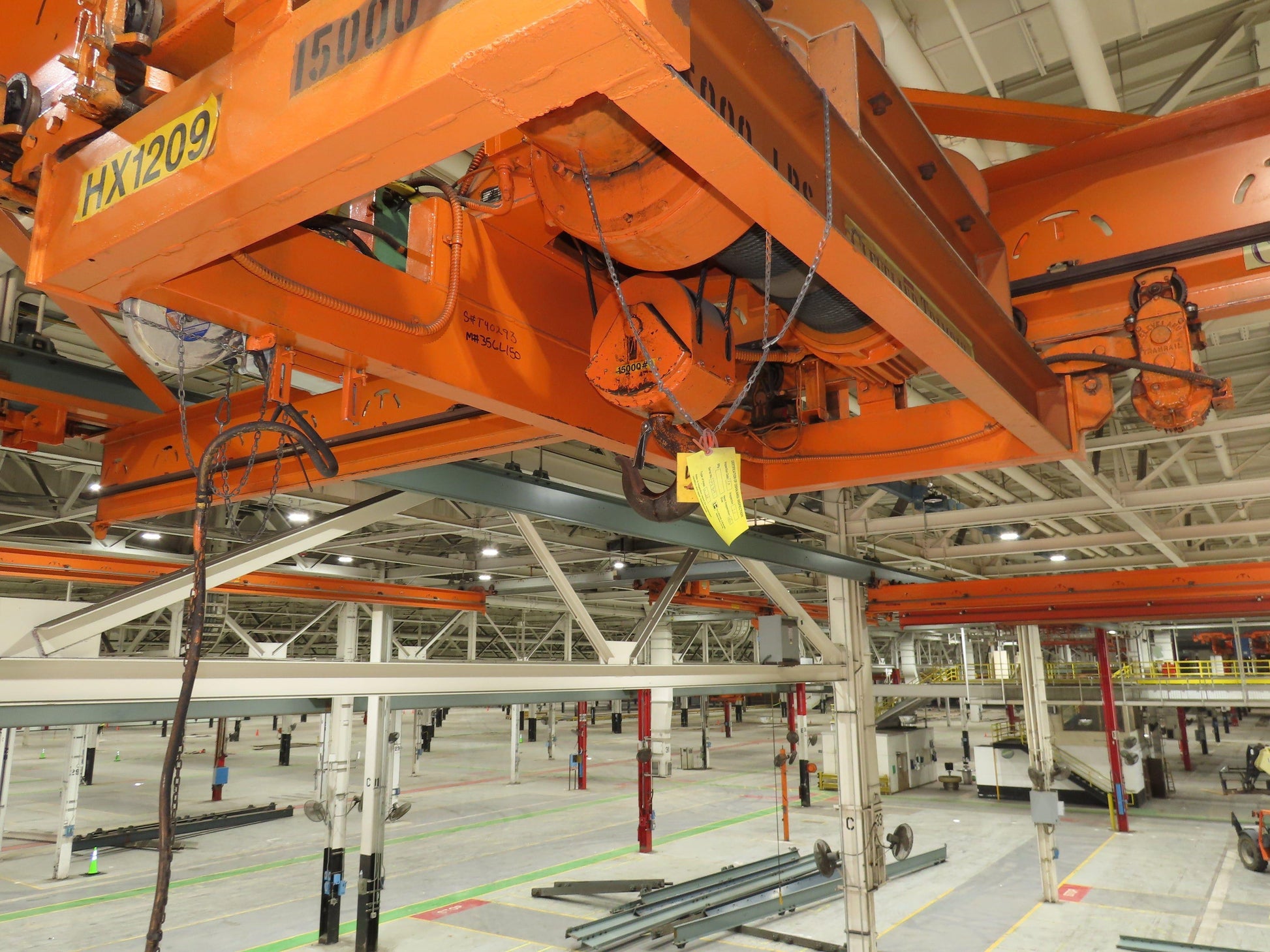

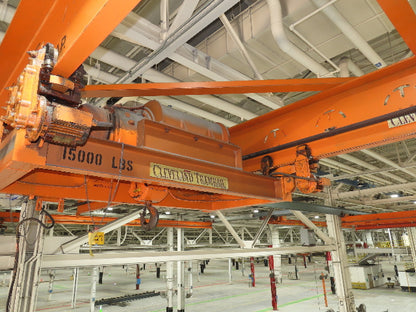

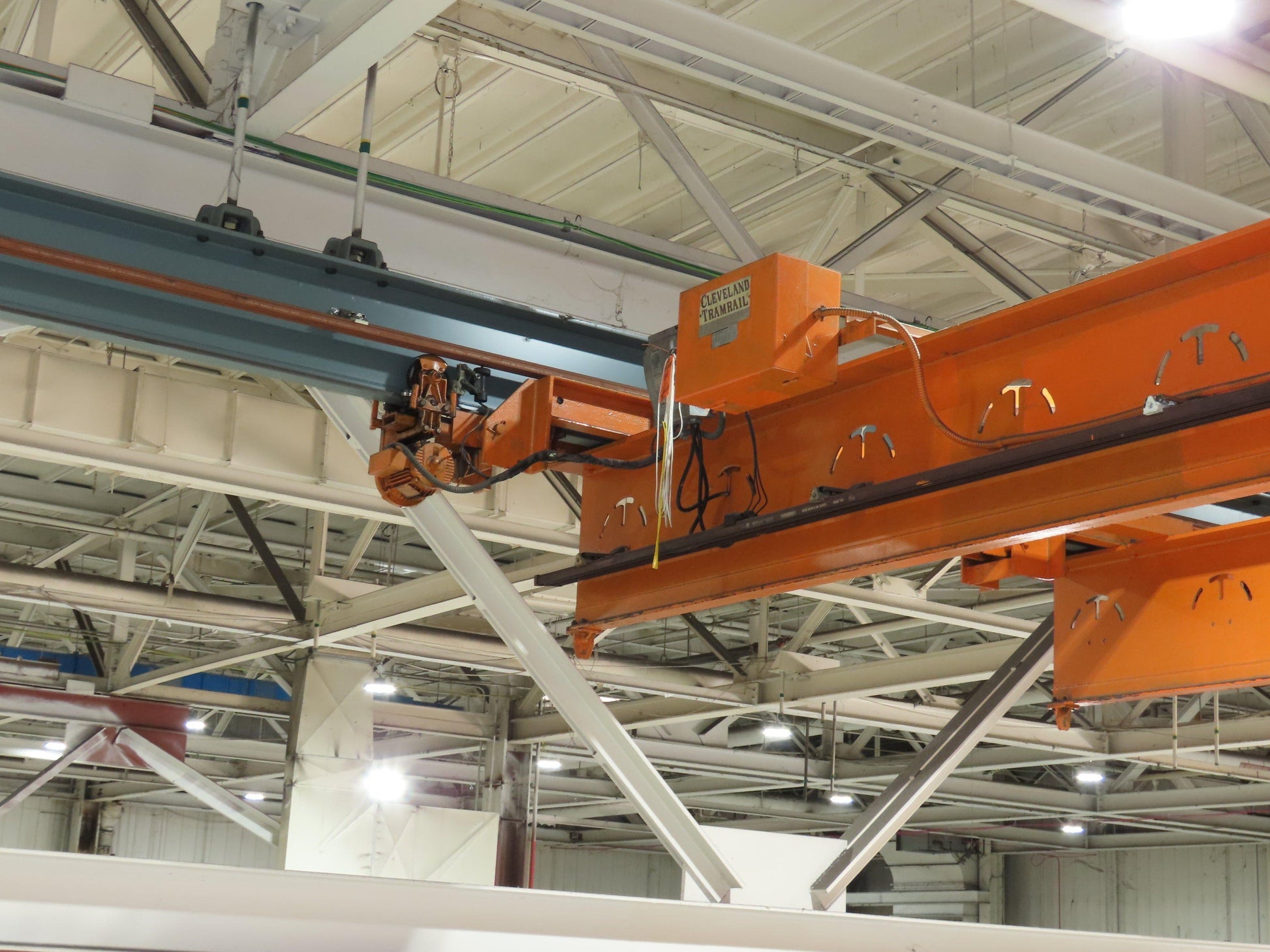

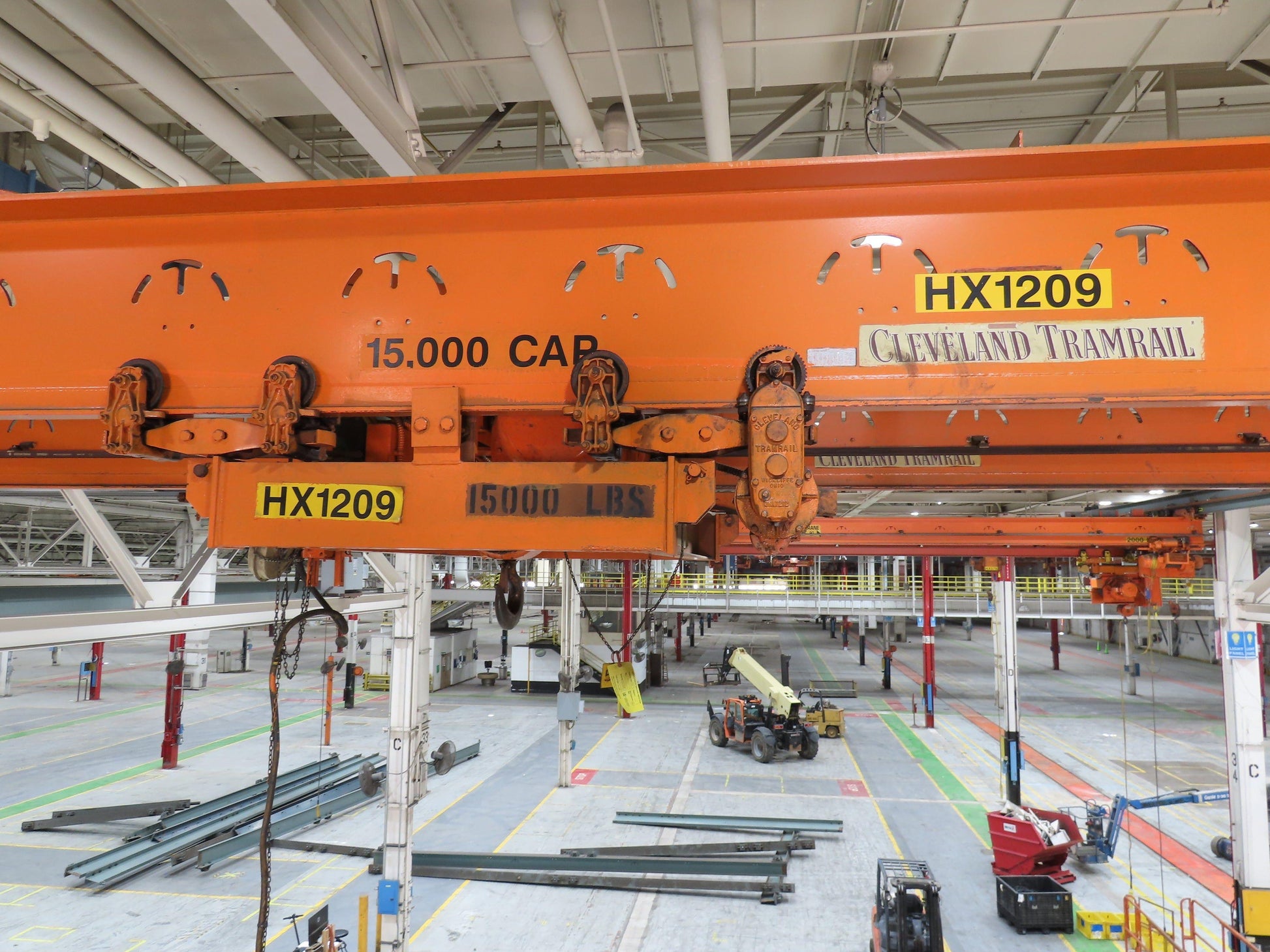

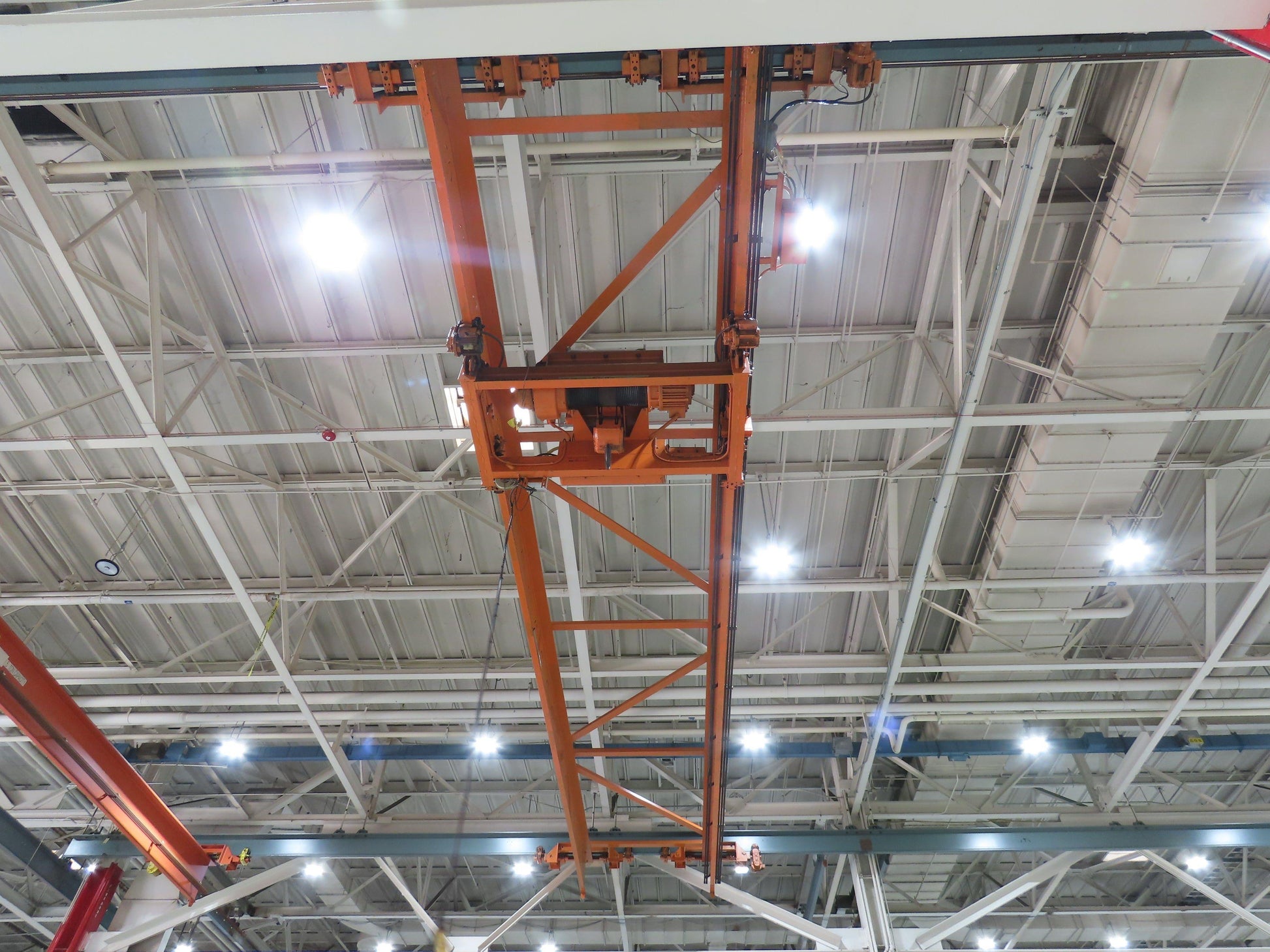

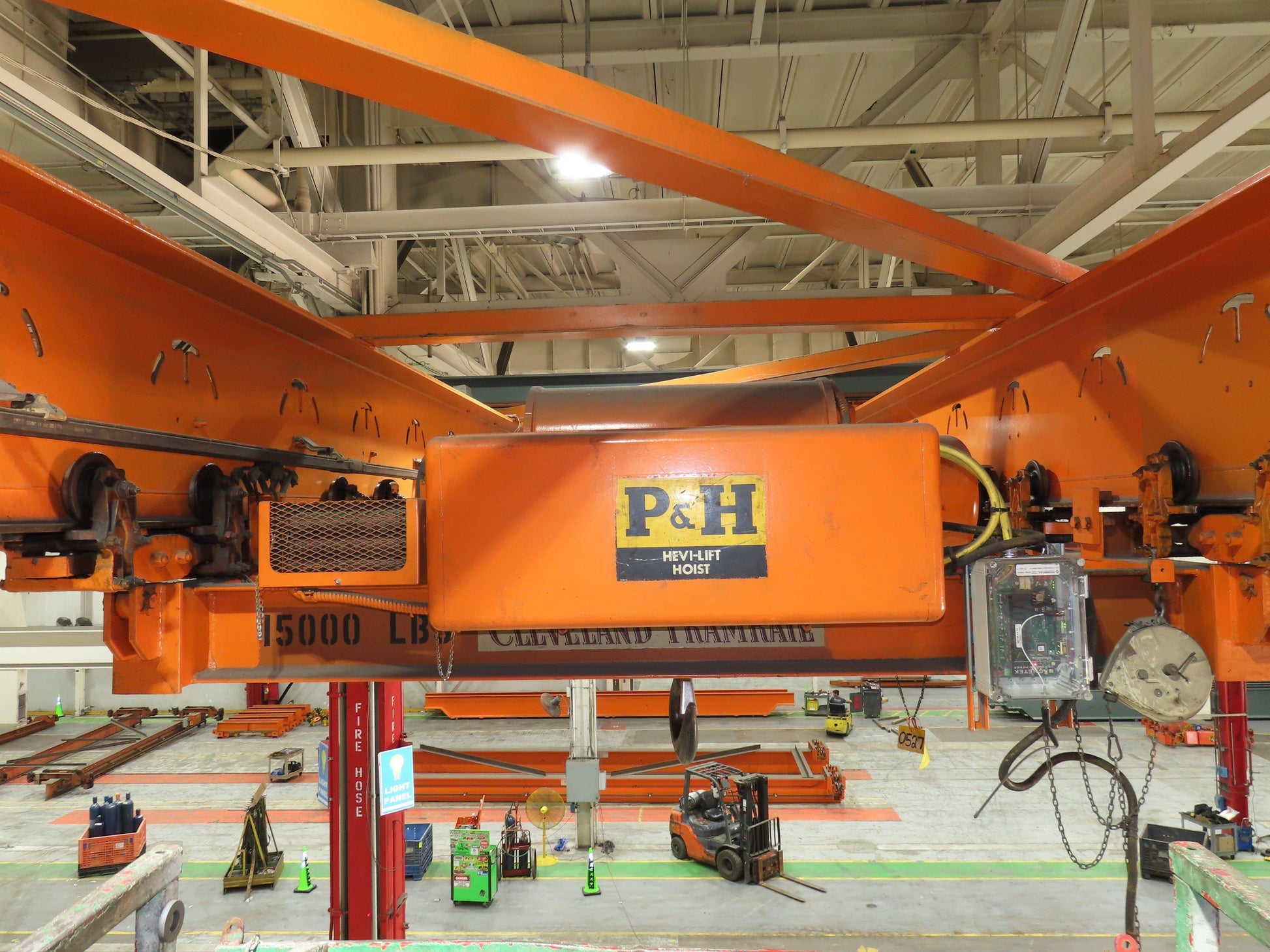

Cleveland Tramrail P&H 7.5 Ton Double Girder Underhung Bridge Crane 45' 10" Span

Cleveland Tramrail P&H 7.5 Ton Double Girder Underhung Bridge Crane 45' 10" Span

SKU #261946

Your Price
$14,534.99
$16,999.99 $14,534.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 7.5
  • Capacity (lb): 15000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45' 10"
  • Main Girder Beam Size (Height x Width x Length): 24"H x 12.5"W x 47' 8" Length (3.25" flange)

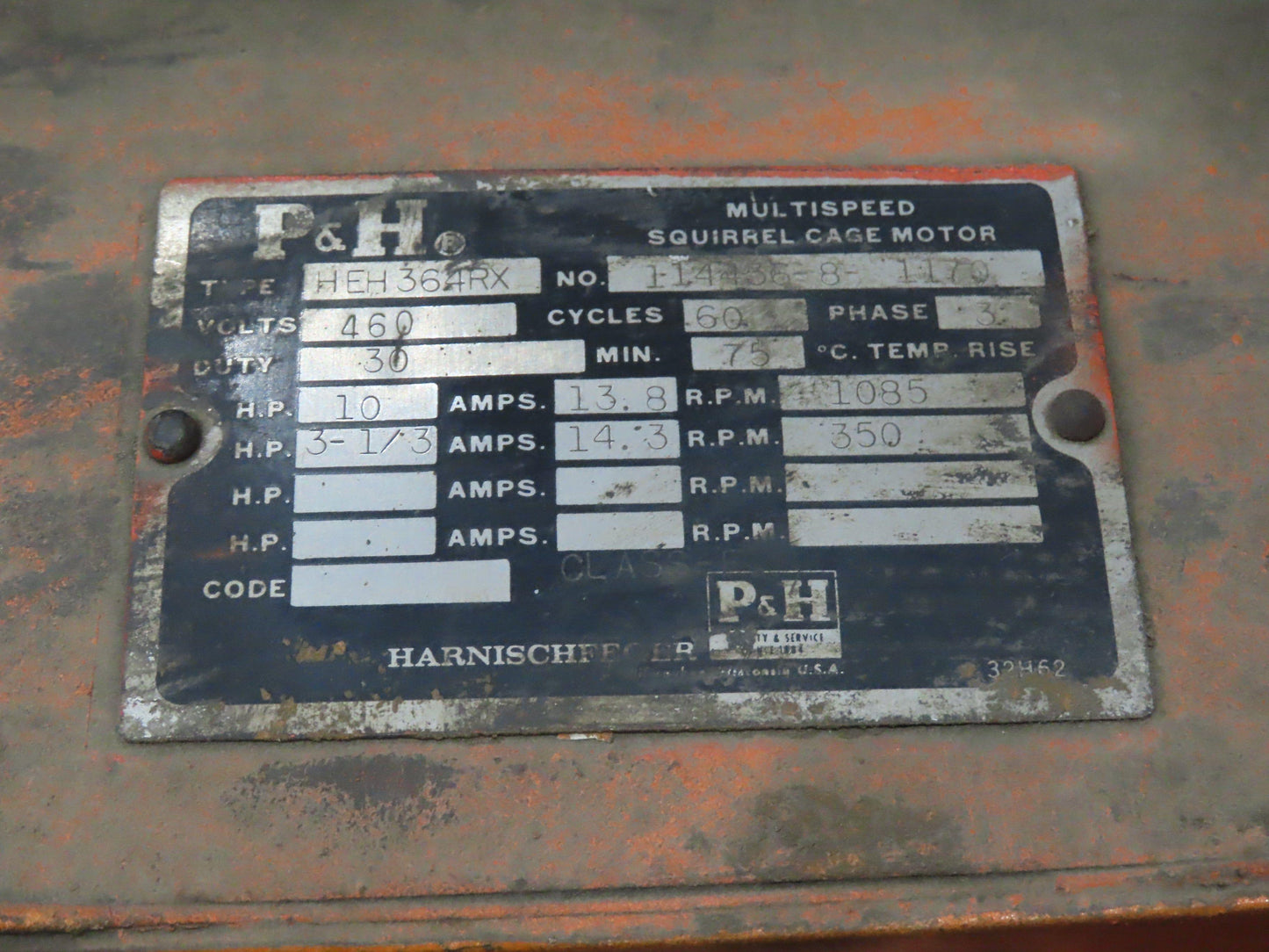

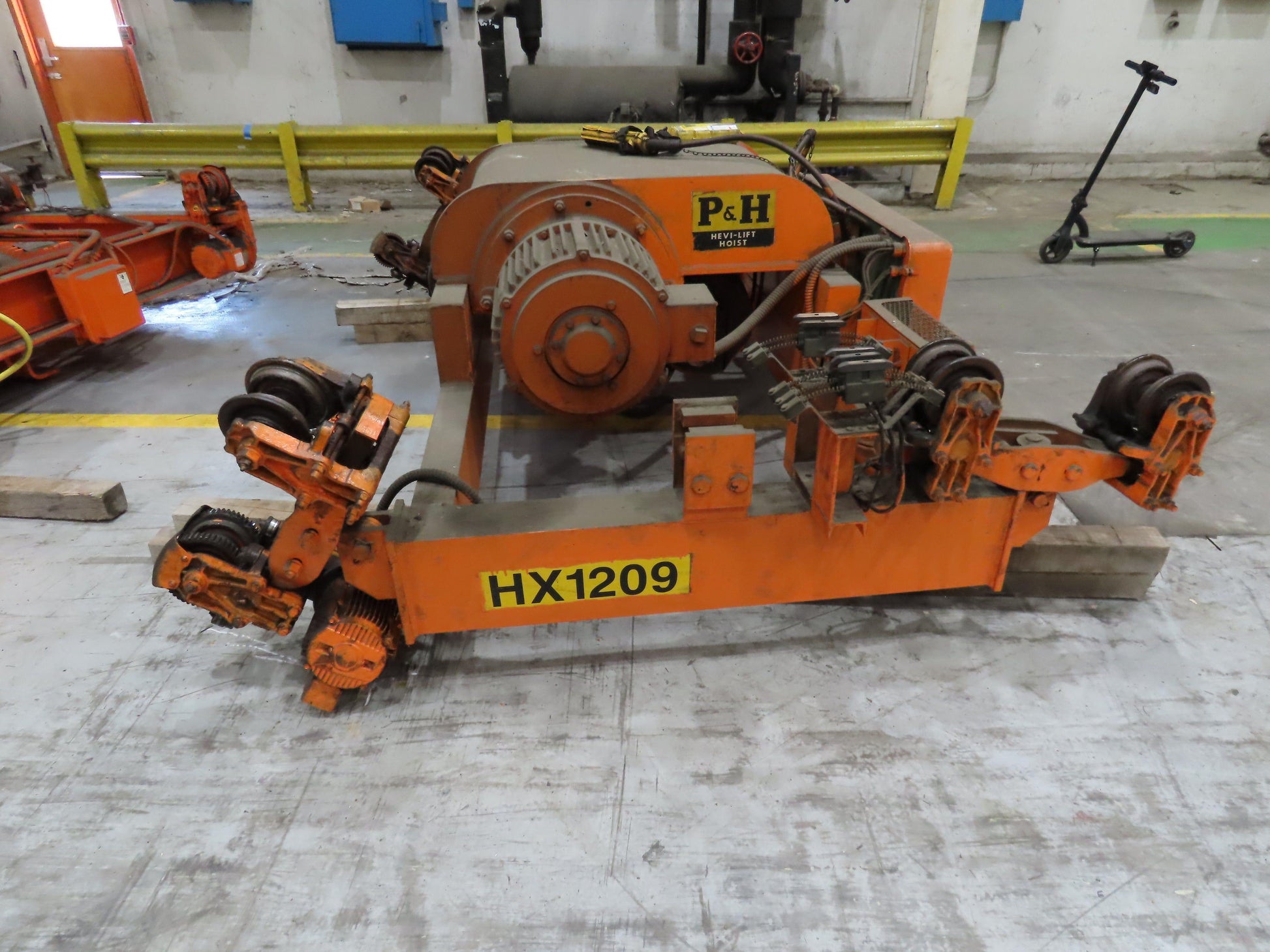

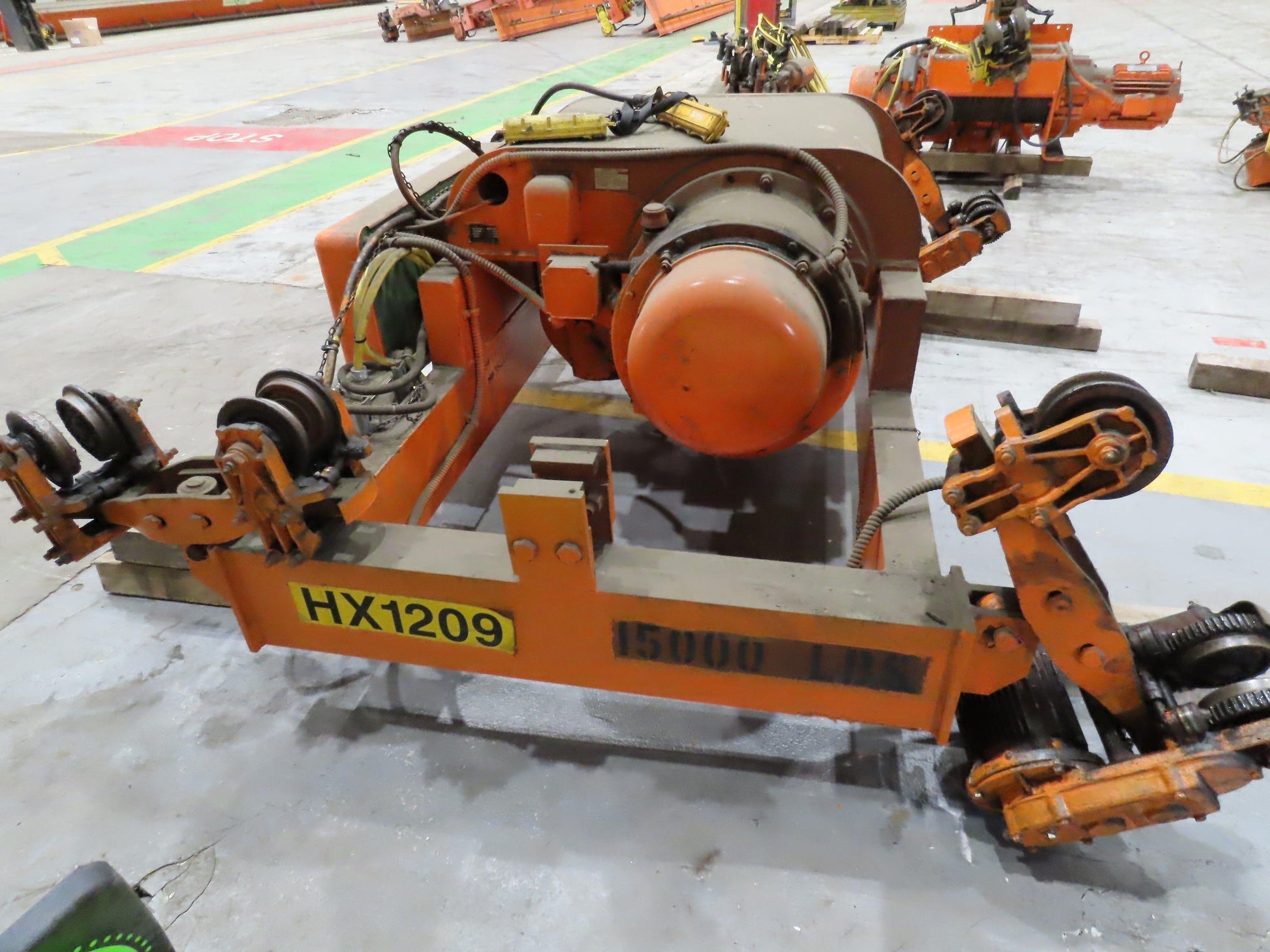

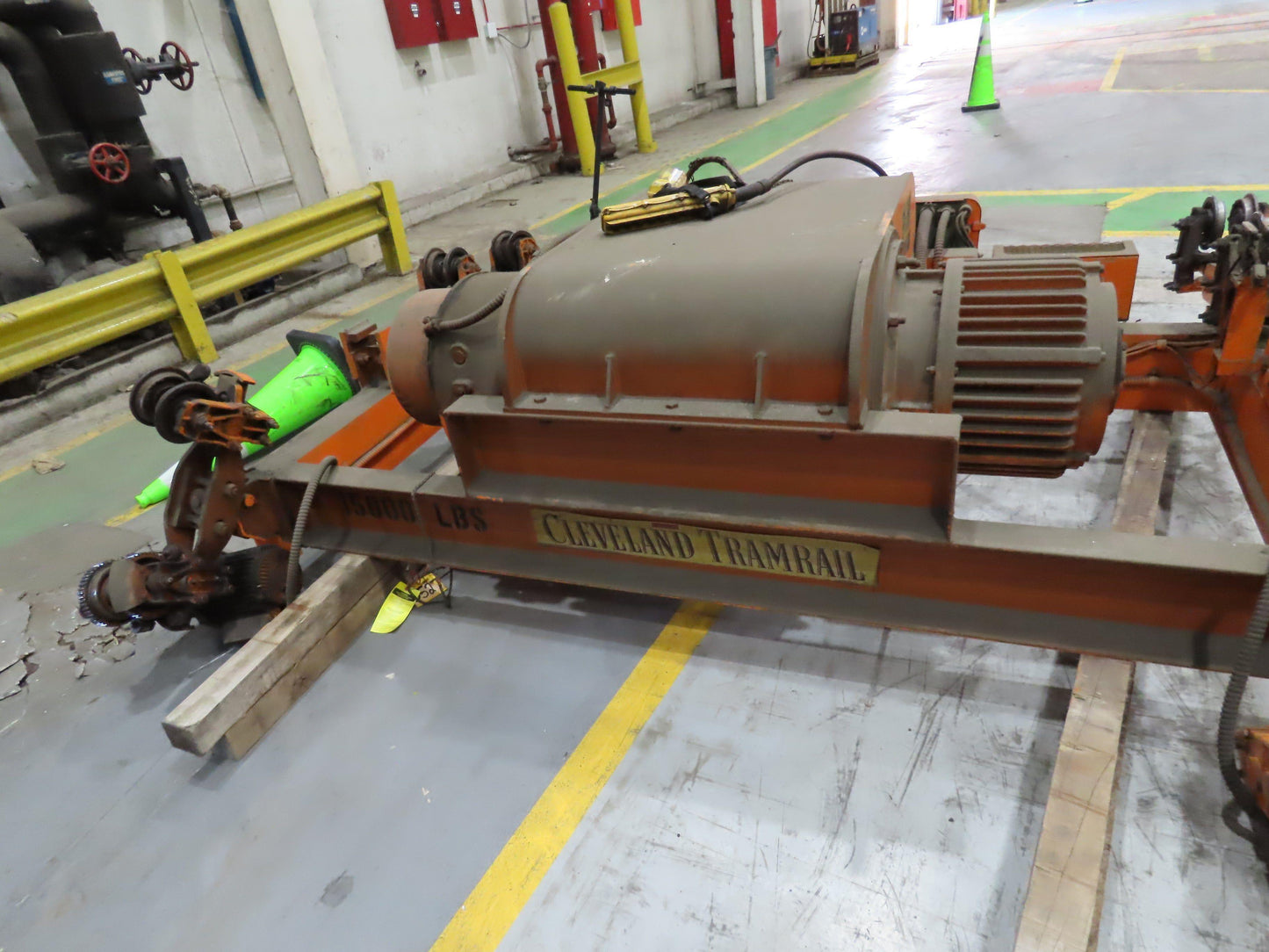

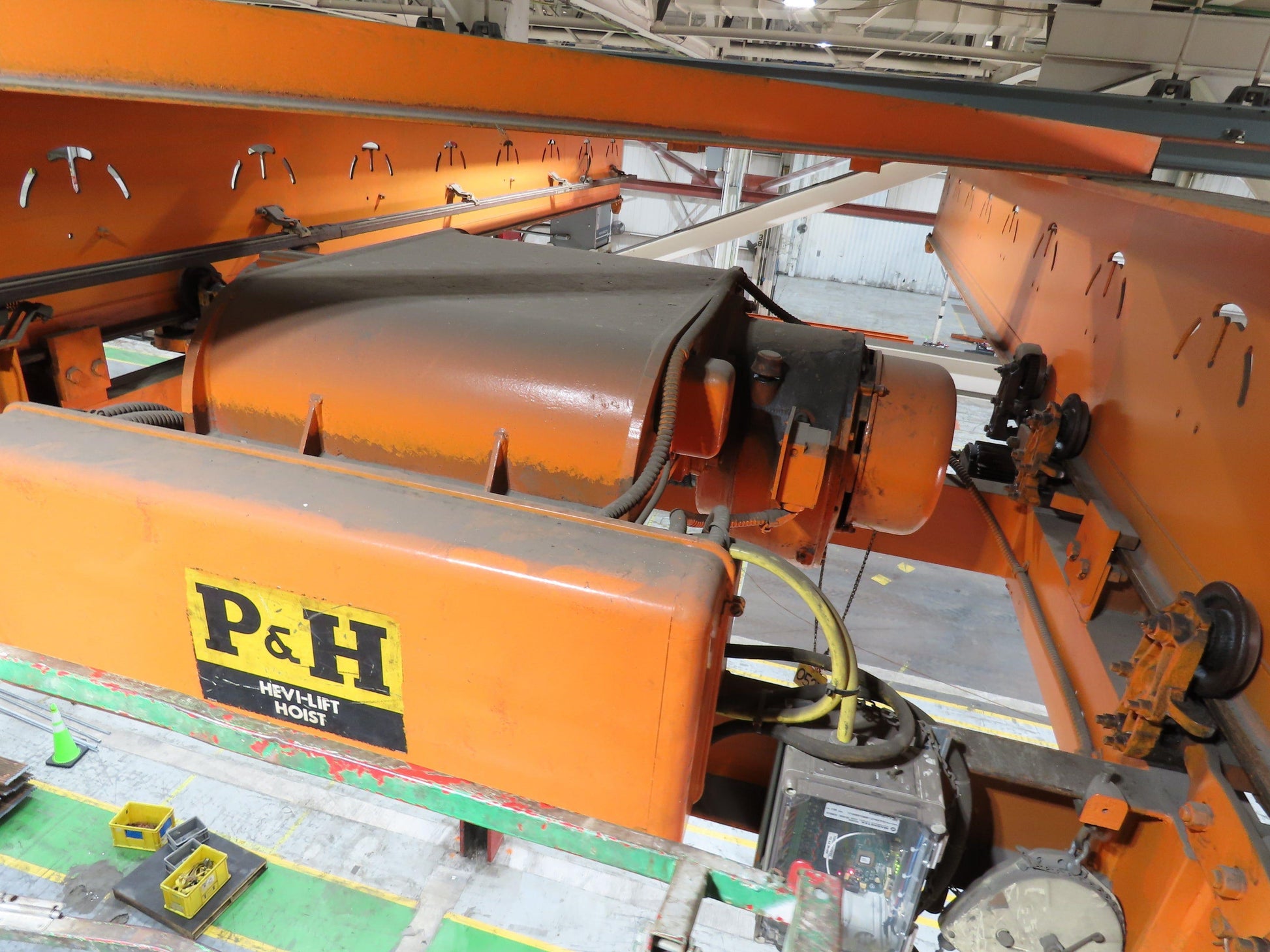

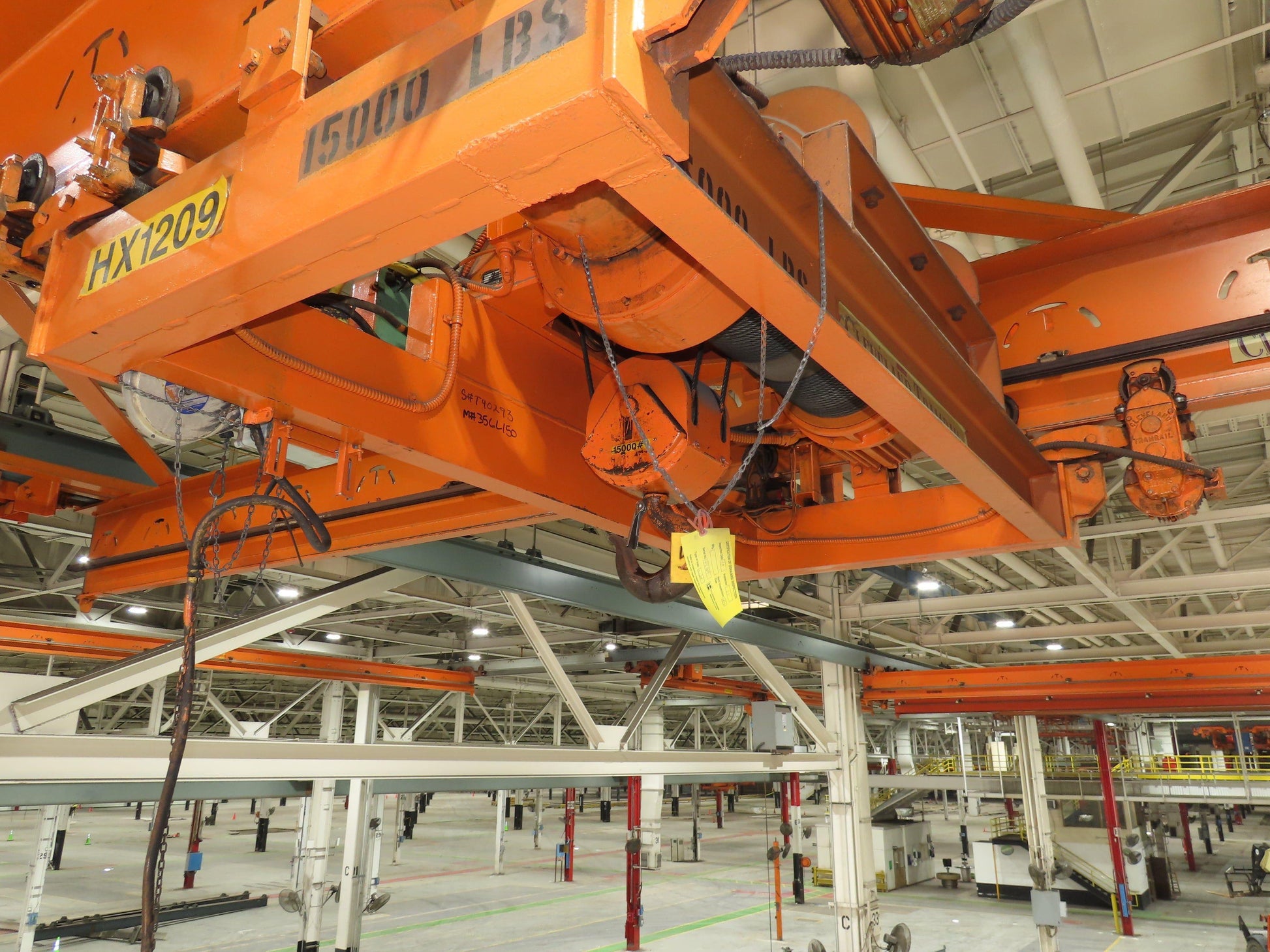

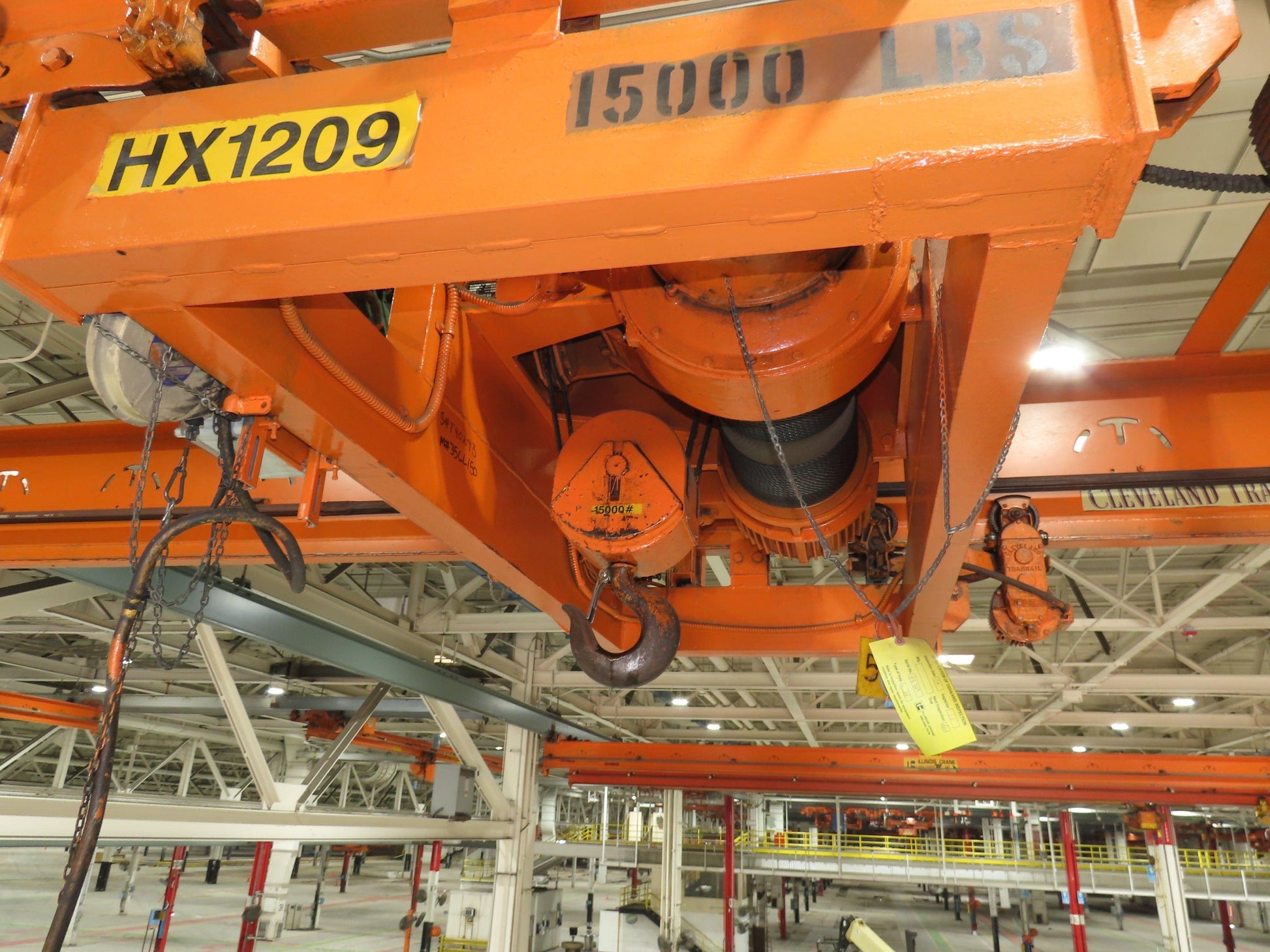

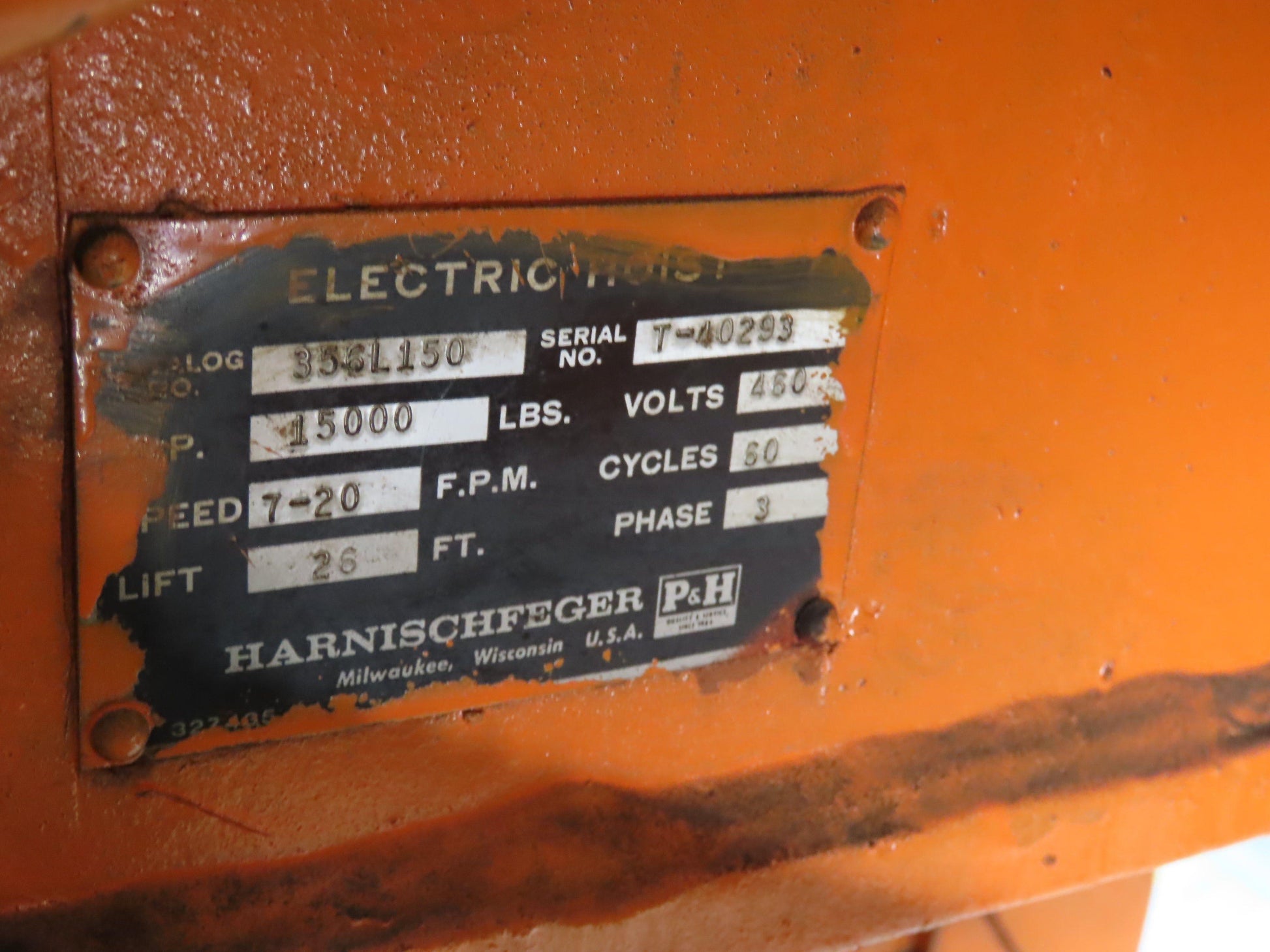

  • Hoist Brand: P&H

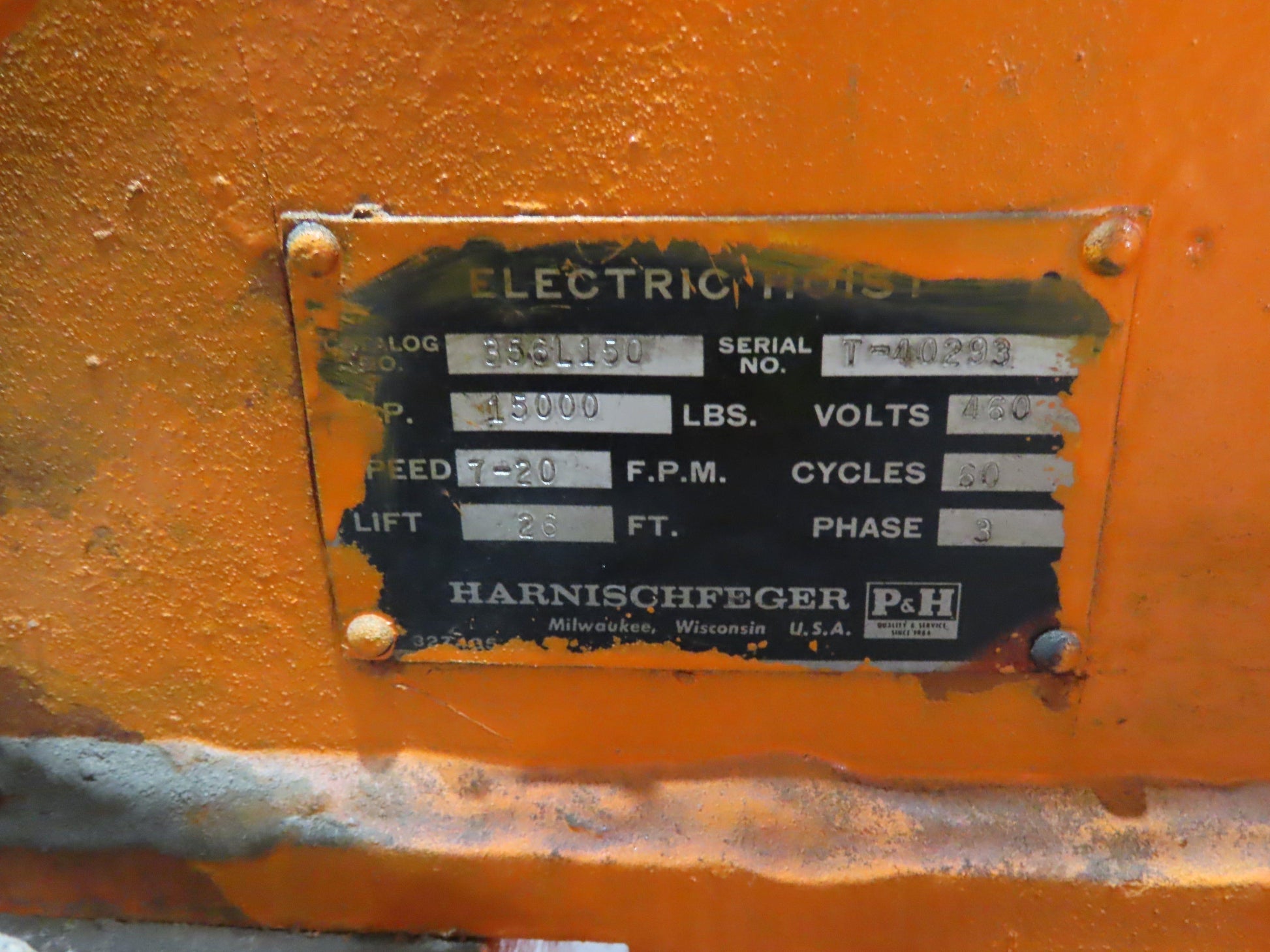

  • Hoist Model: 356L150
  • Lift Travel (feet): 26'
  • Lift Speed (feet per minute): 7 / 20 (2-speed)
  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 13'
  • Hoist Power Trolley Speed (feet per minute): 80
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 27"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 64"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 51"
  • Bridge Crane is in working condition.  Tested on site before removal.

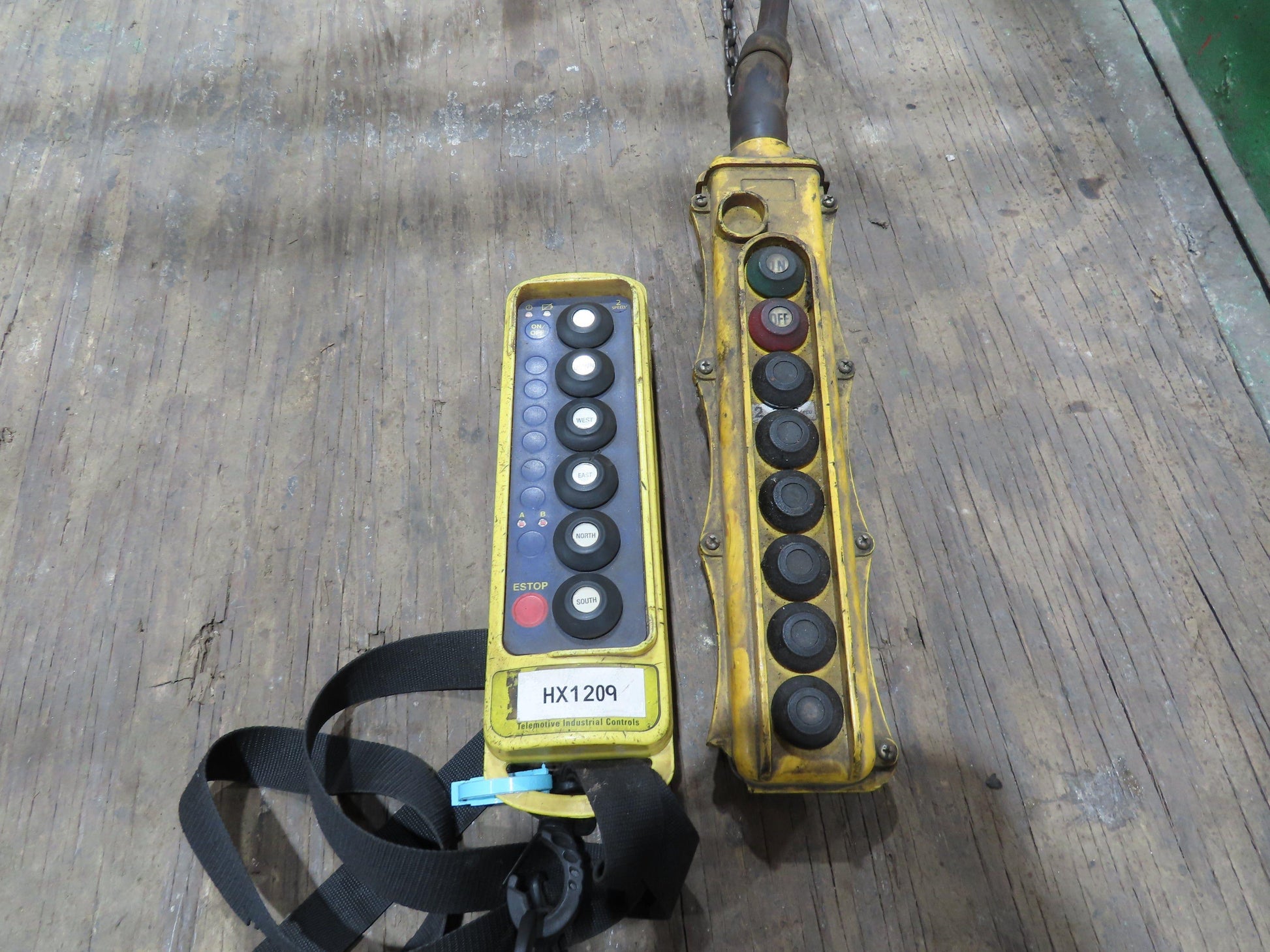

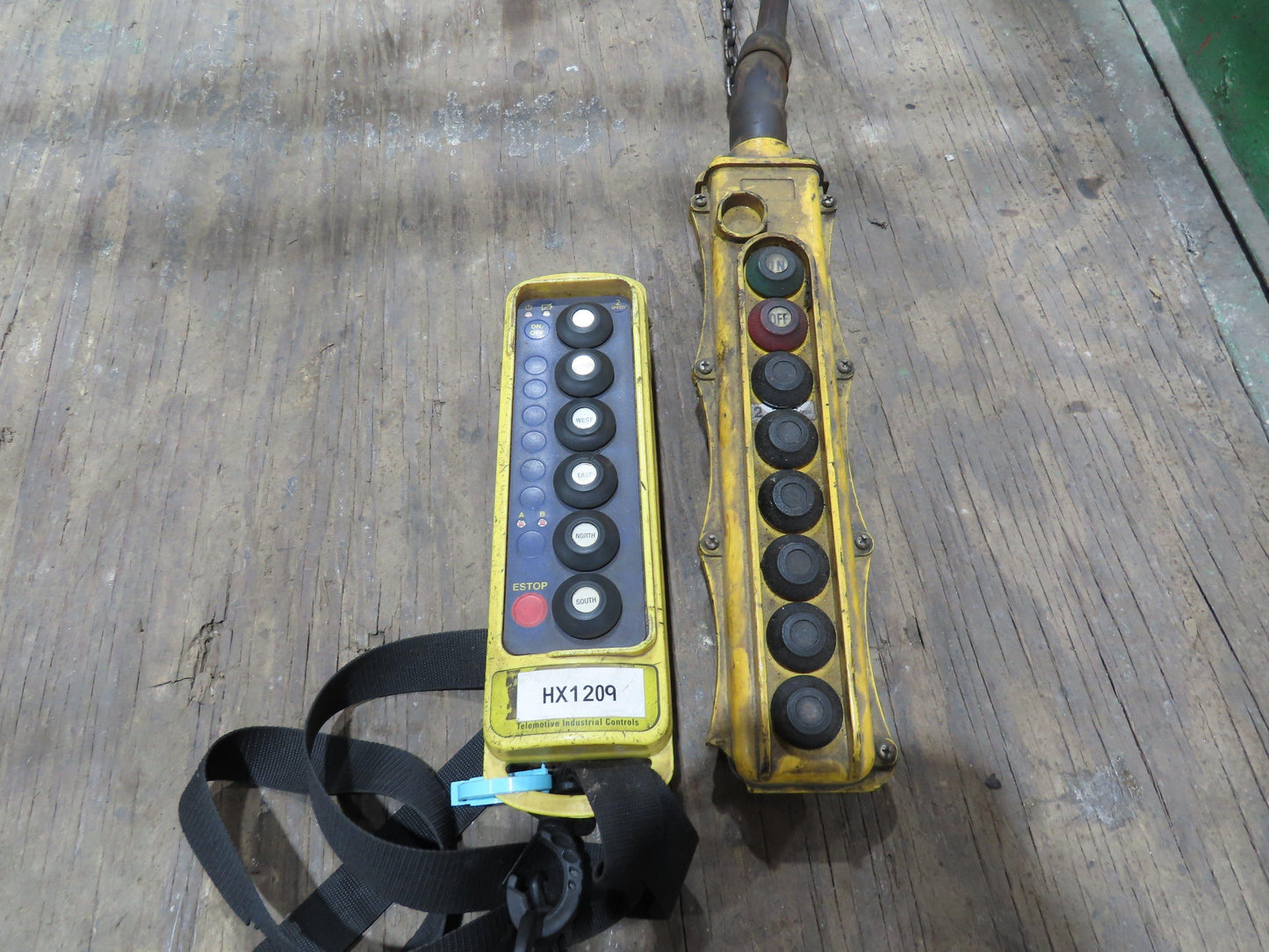

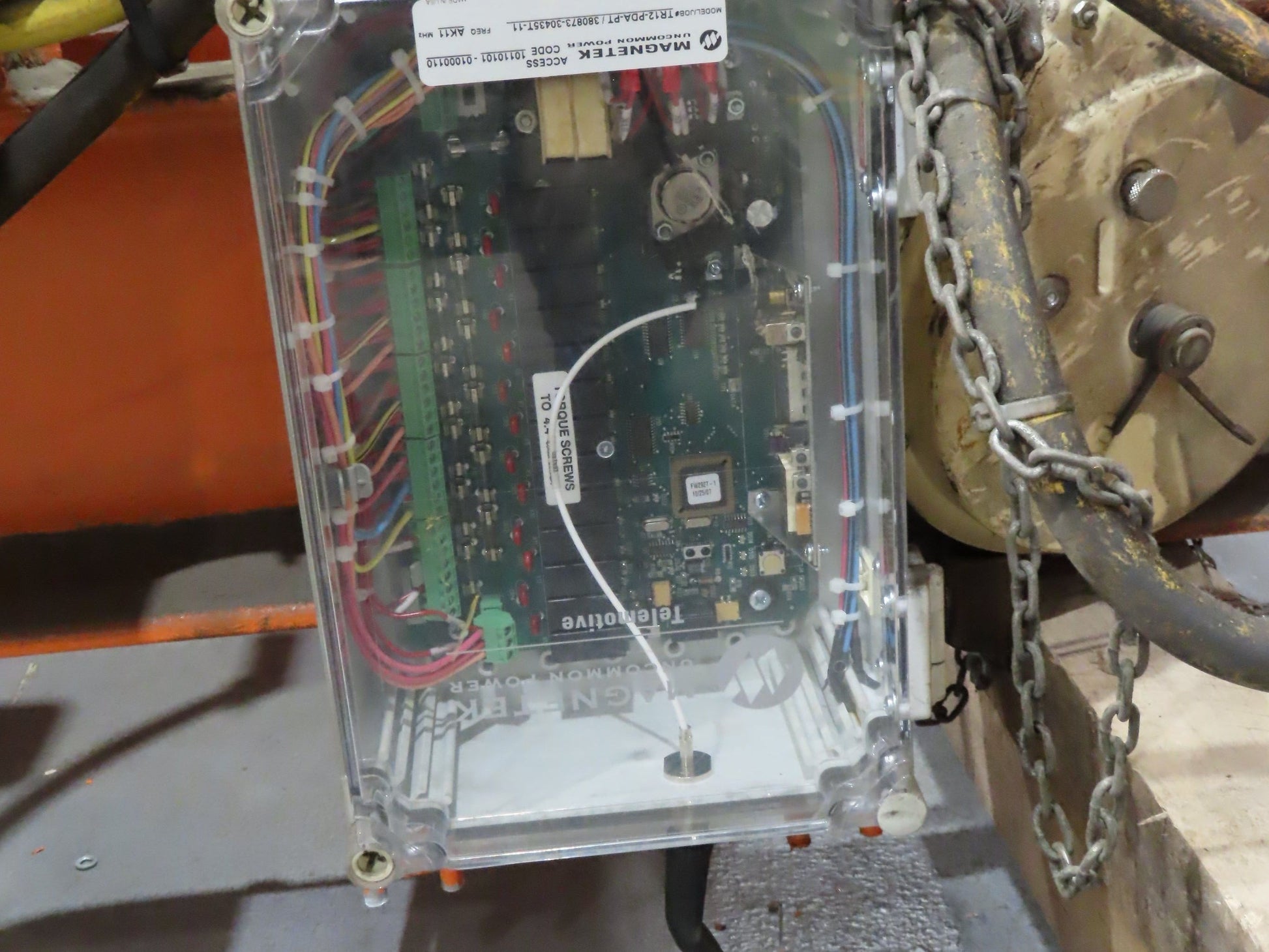

  • Includes corded and wireless pendants.
  • Single speed bridge and trolley.
  • 2-speed hoist.
  • Girder beam span: 7' 11"
  • Overall width: 14' 3" (End truck to end truck)
