Cleveland Tramrail

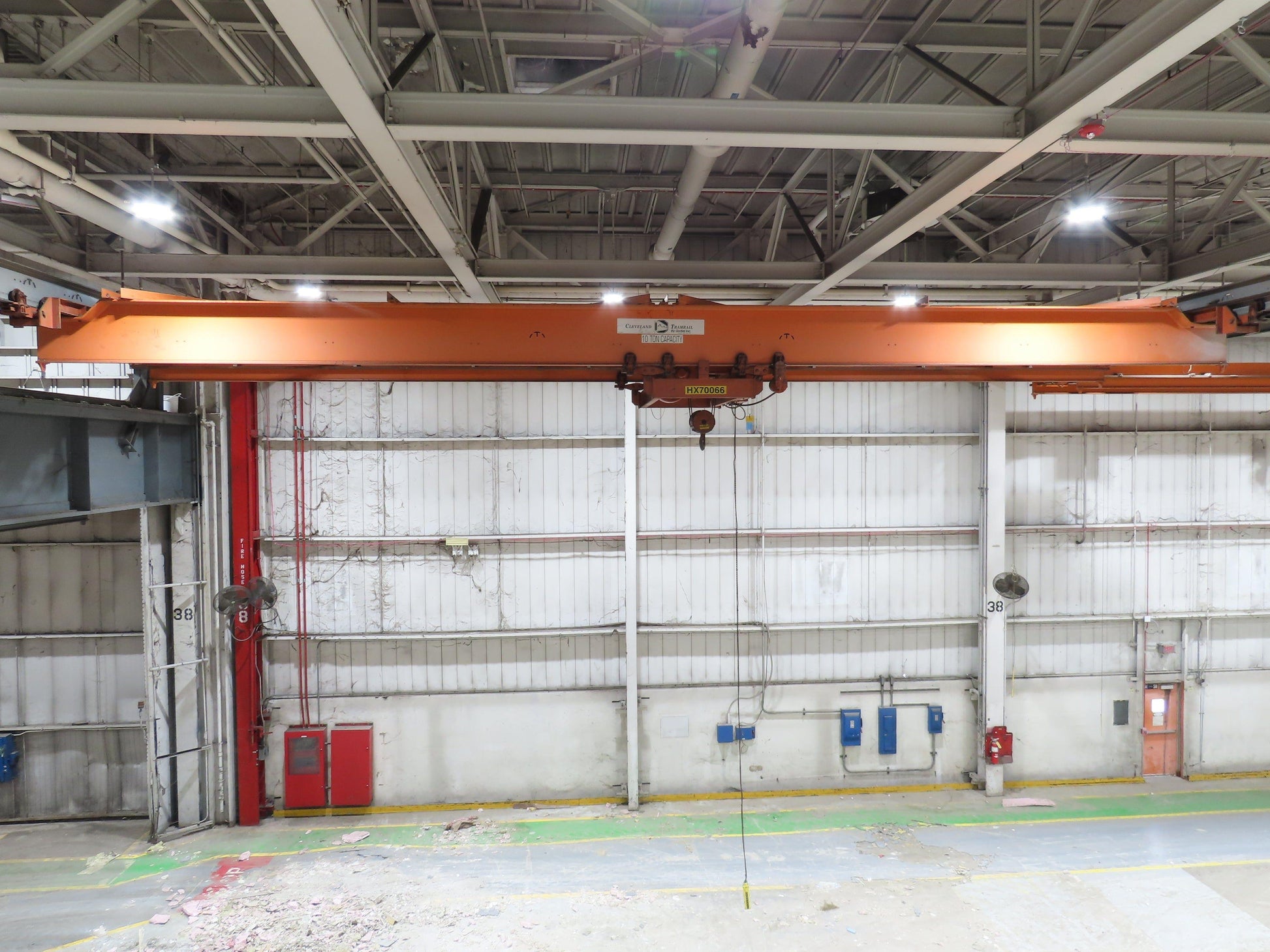

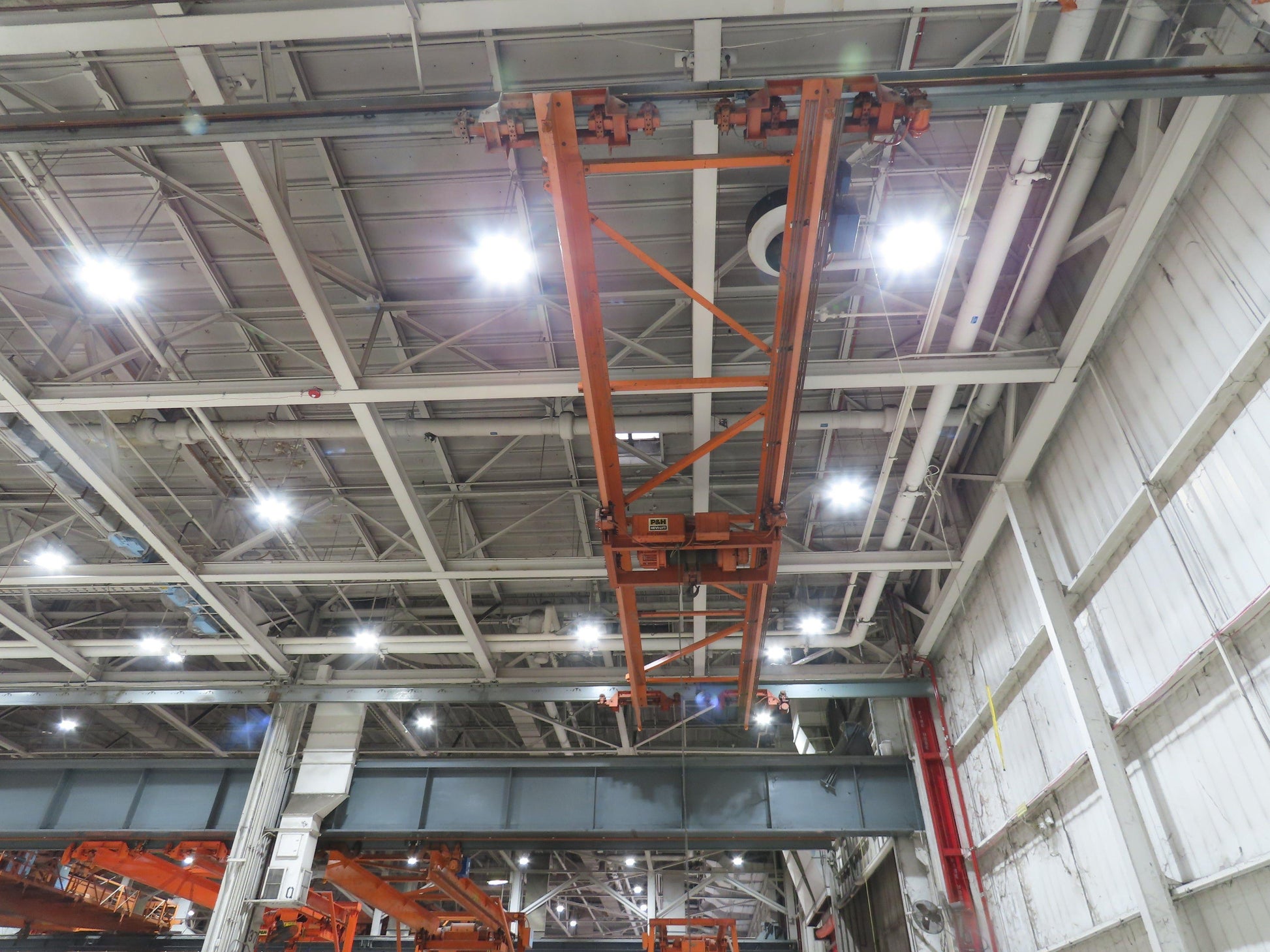

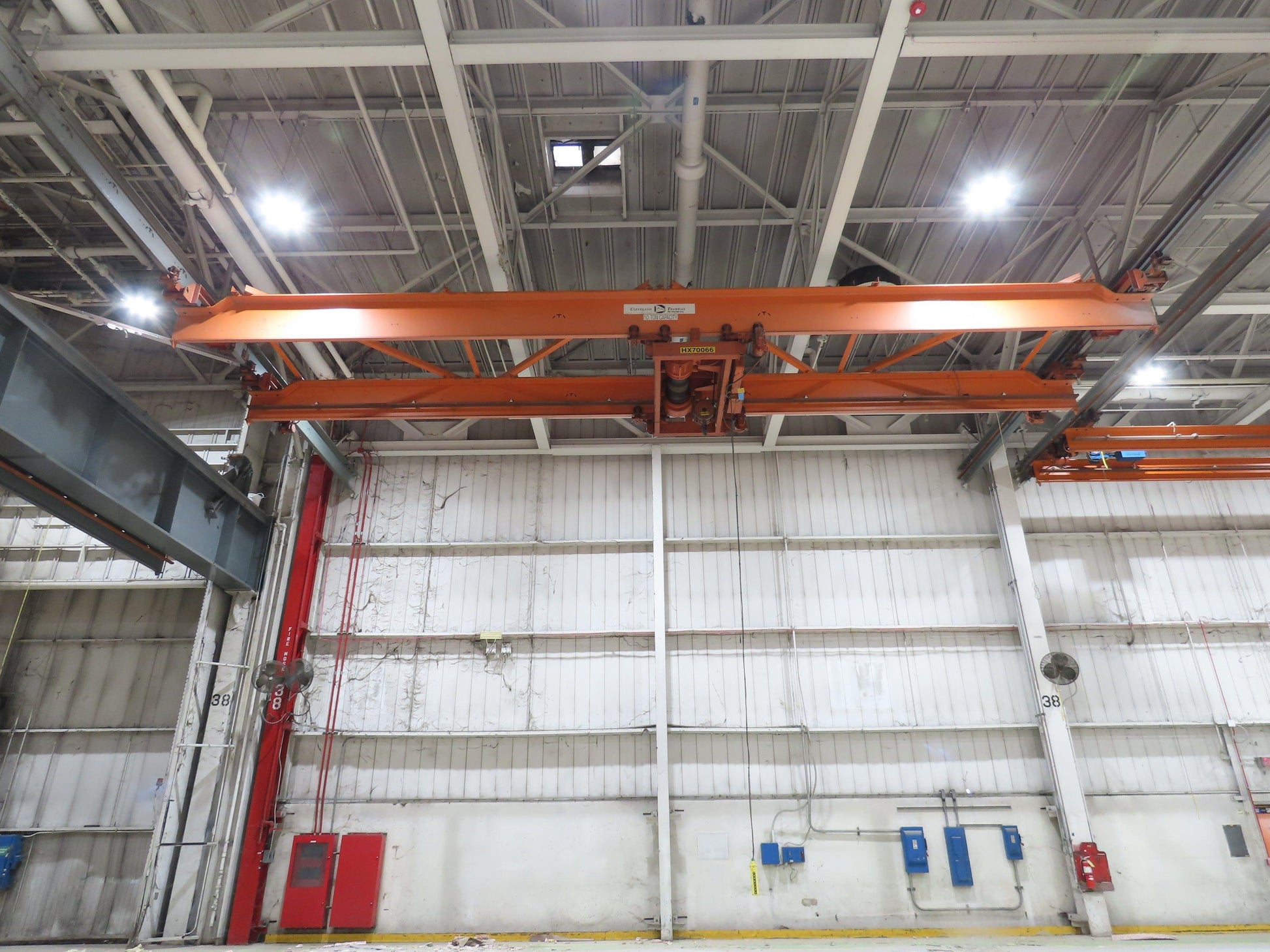

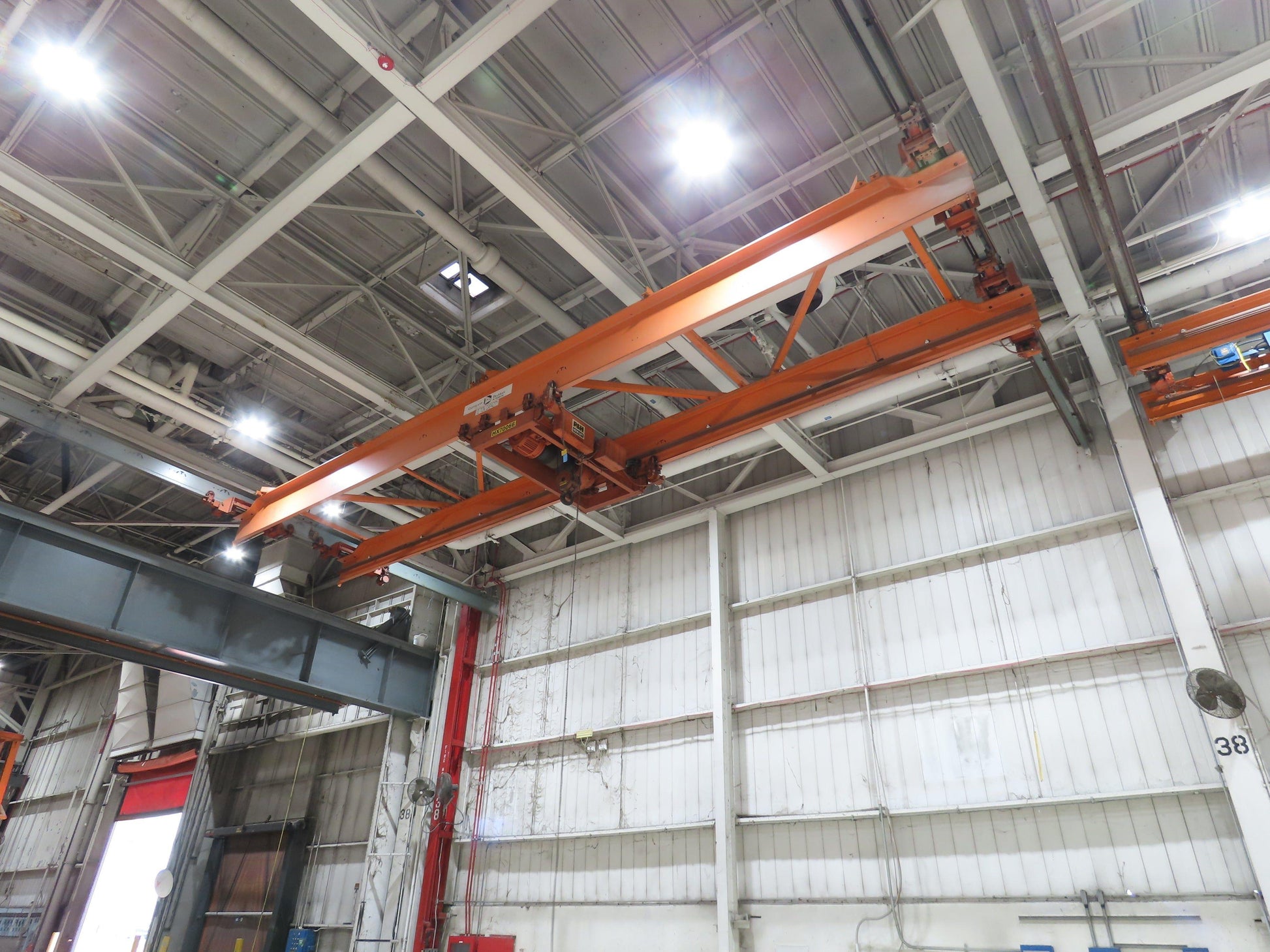

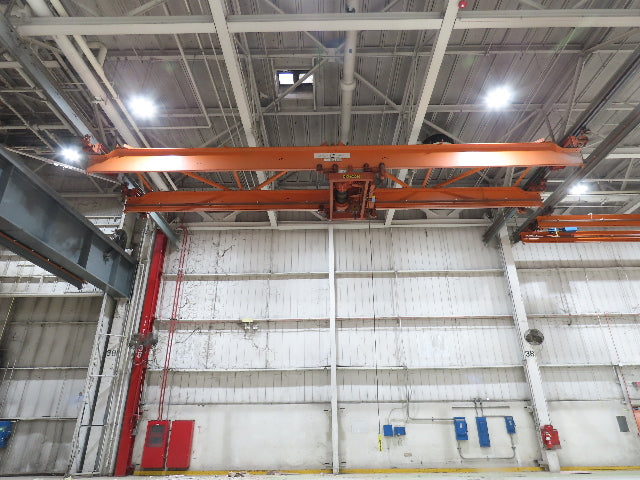

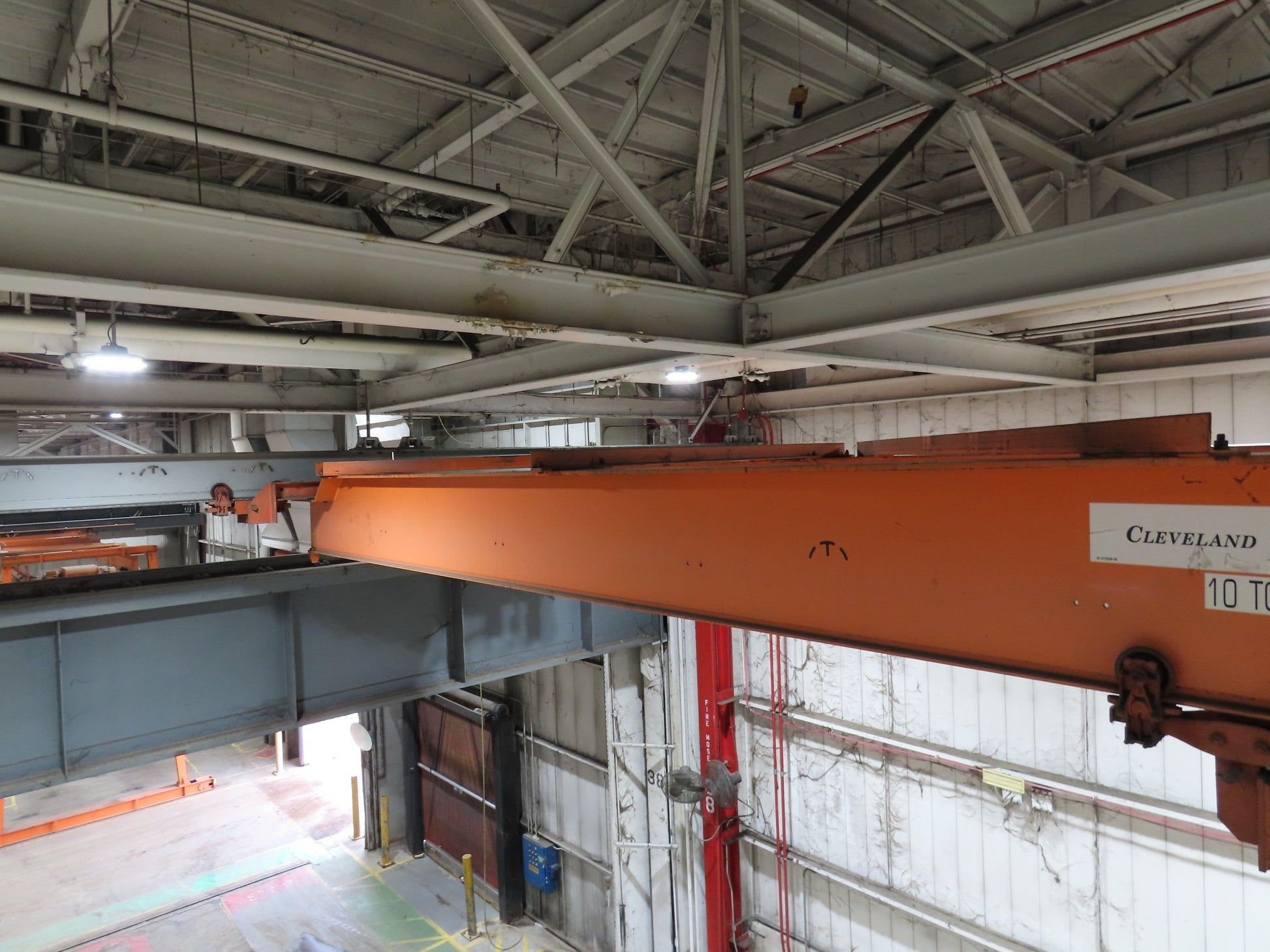

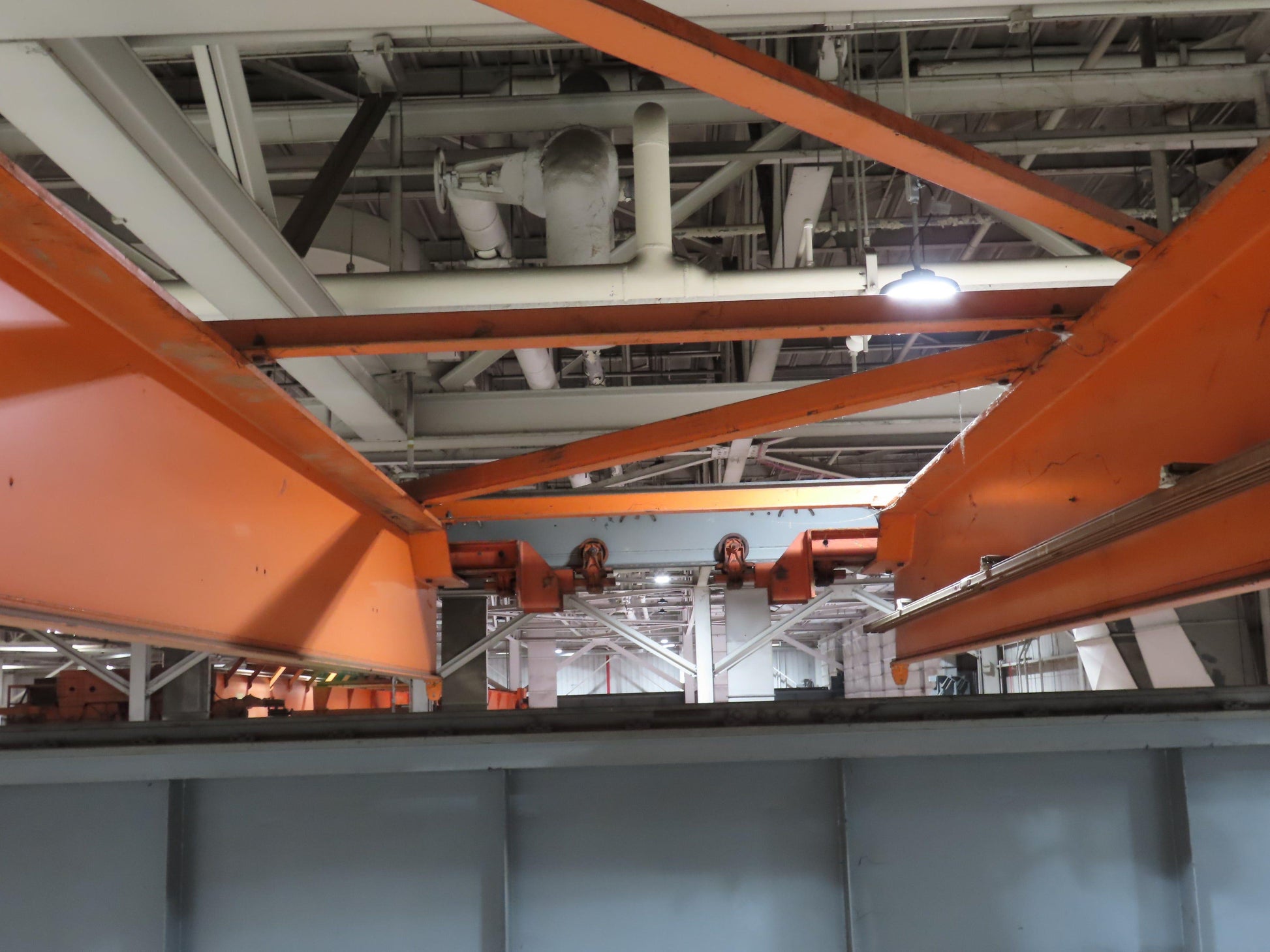

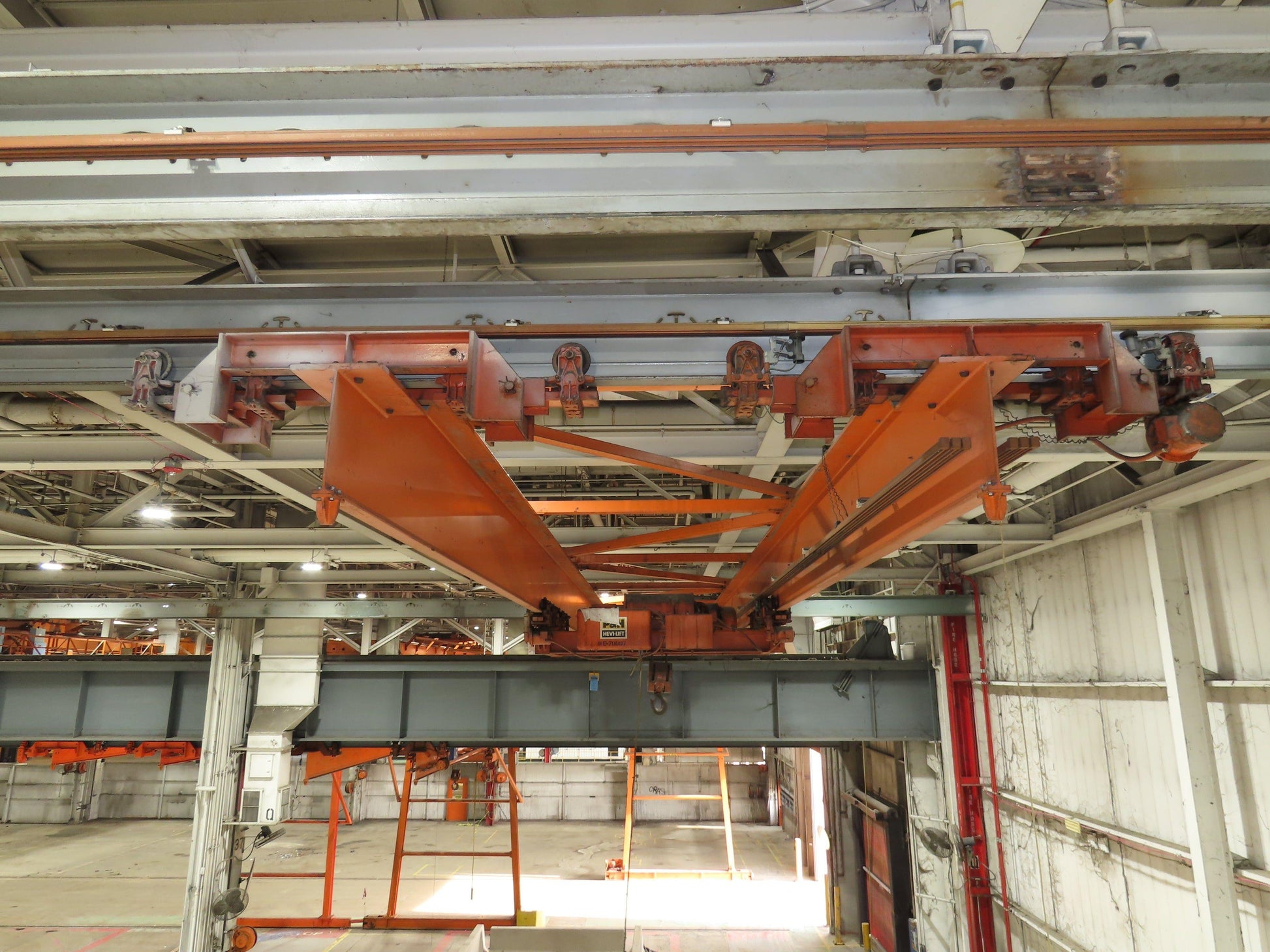

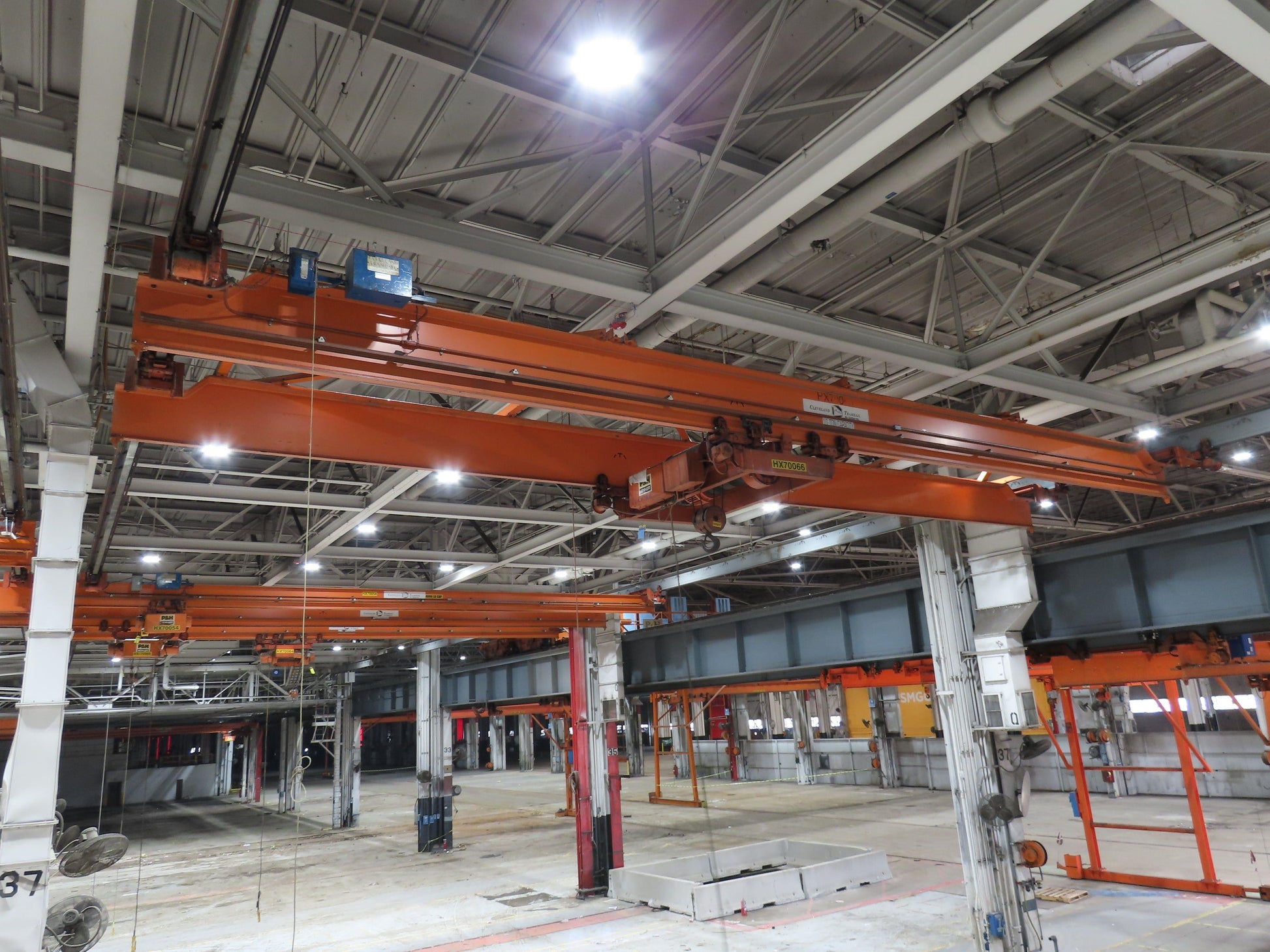

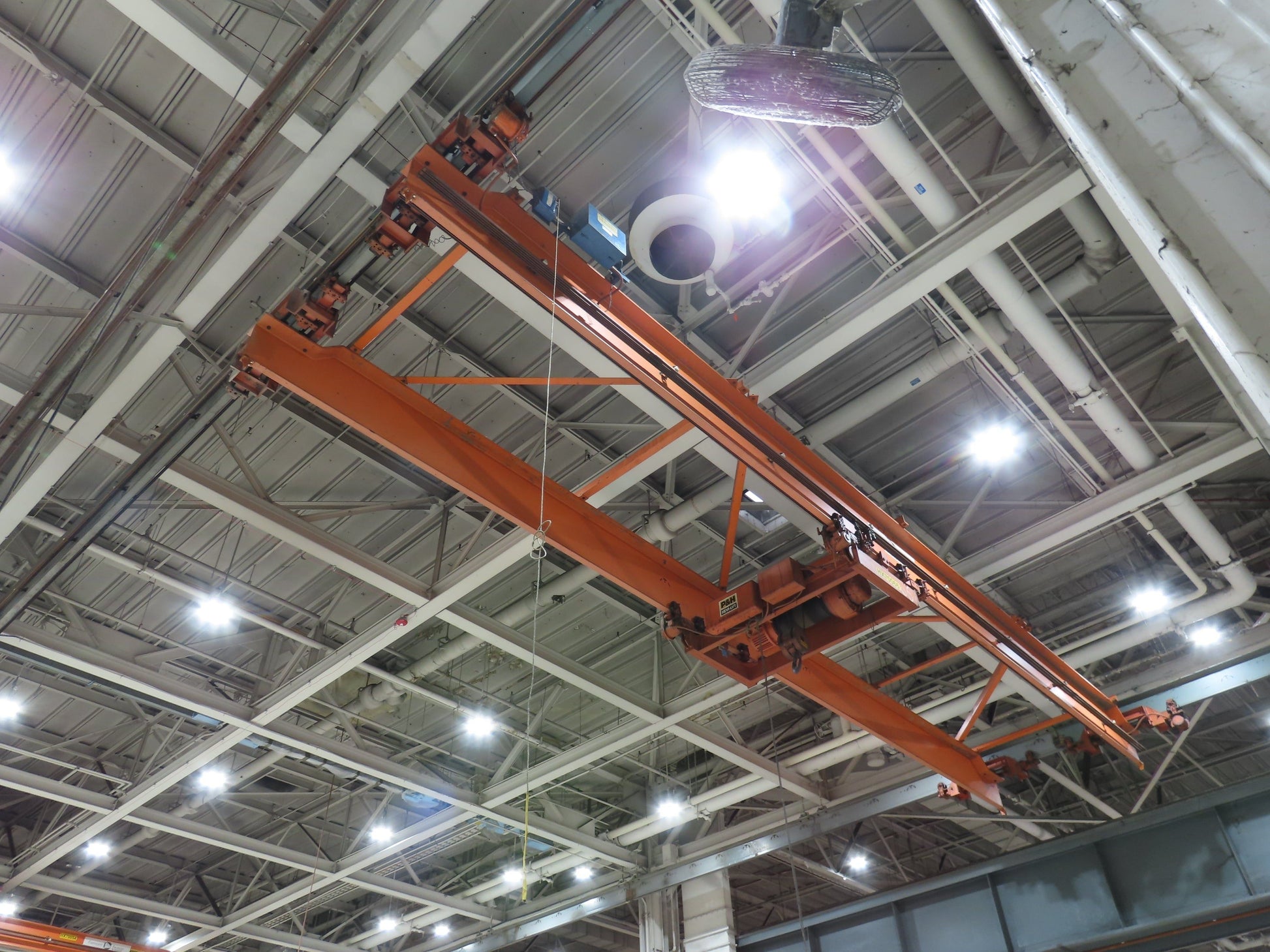

Cleveland Tramrail P&H 7.5 Ton Double Girder Underhung Bridge Crane 45' 10" Span

Cleveland Tramrail P&H 7.5 Ton Double Girder Underhung Bridge Crane 45' 10" Span

SKU #262496

Your Price
$13,679.99
$15,999.99 $13,679.99
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Capacity (tons): 7.5
  • Capacity (lb): 15000
  • Volts: 460
  • Phase: 3
  • Hanging Style: Underhung
  • Runway Beam Distance Between Centers (Span): 45' 10"

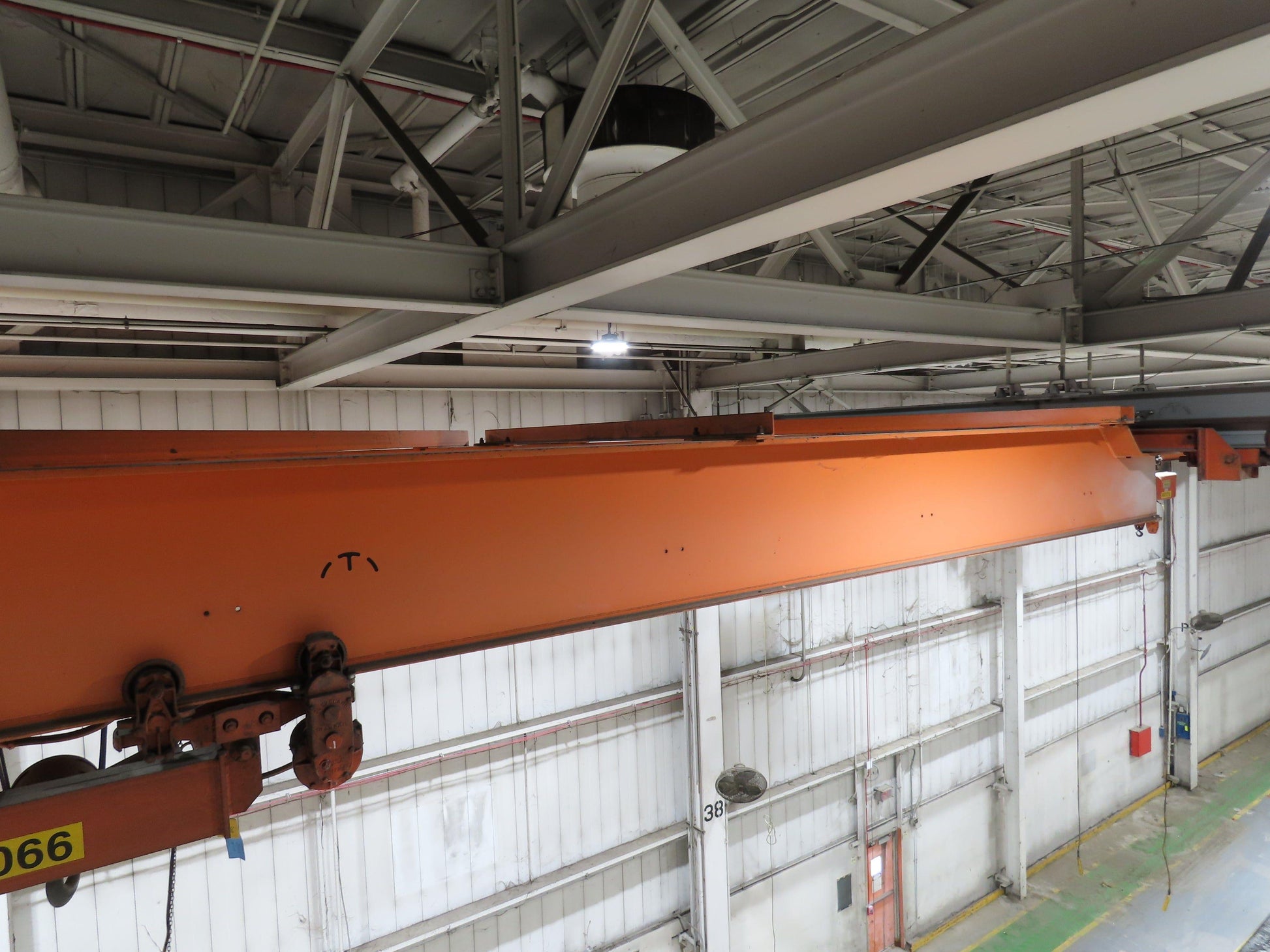

  • Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 47' 10" Length (3.25" bottom flange) Beam height slopes down to 20"H at the ends.
  • Bridge Speed (feet per minute): Single speed

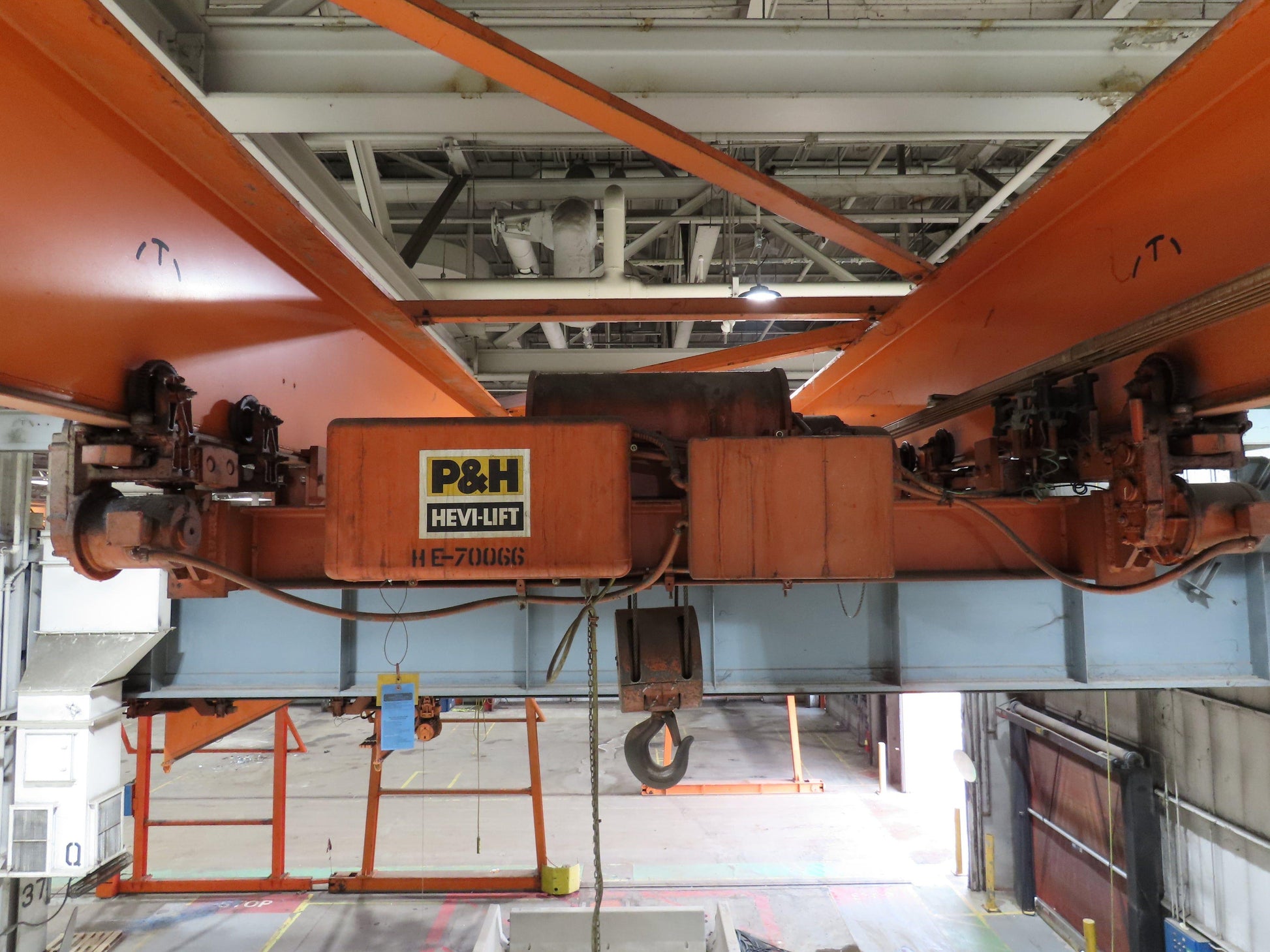

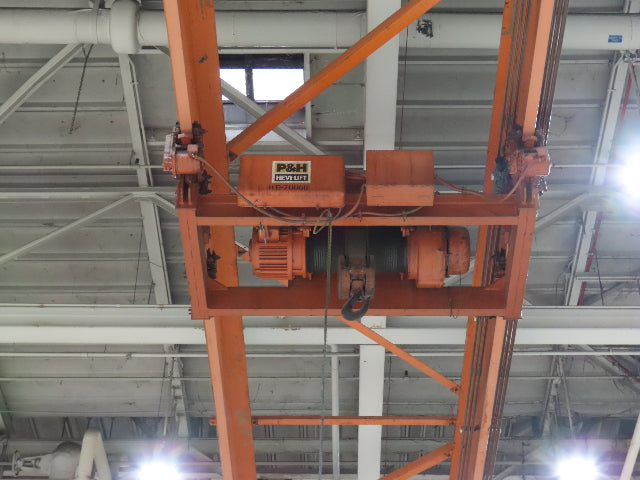

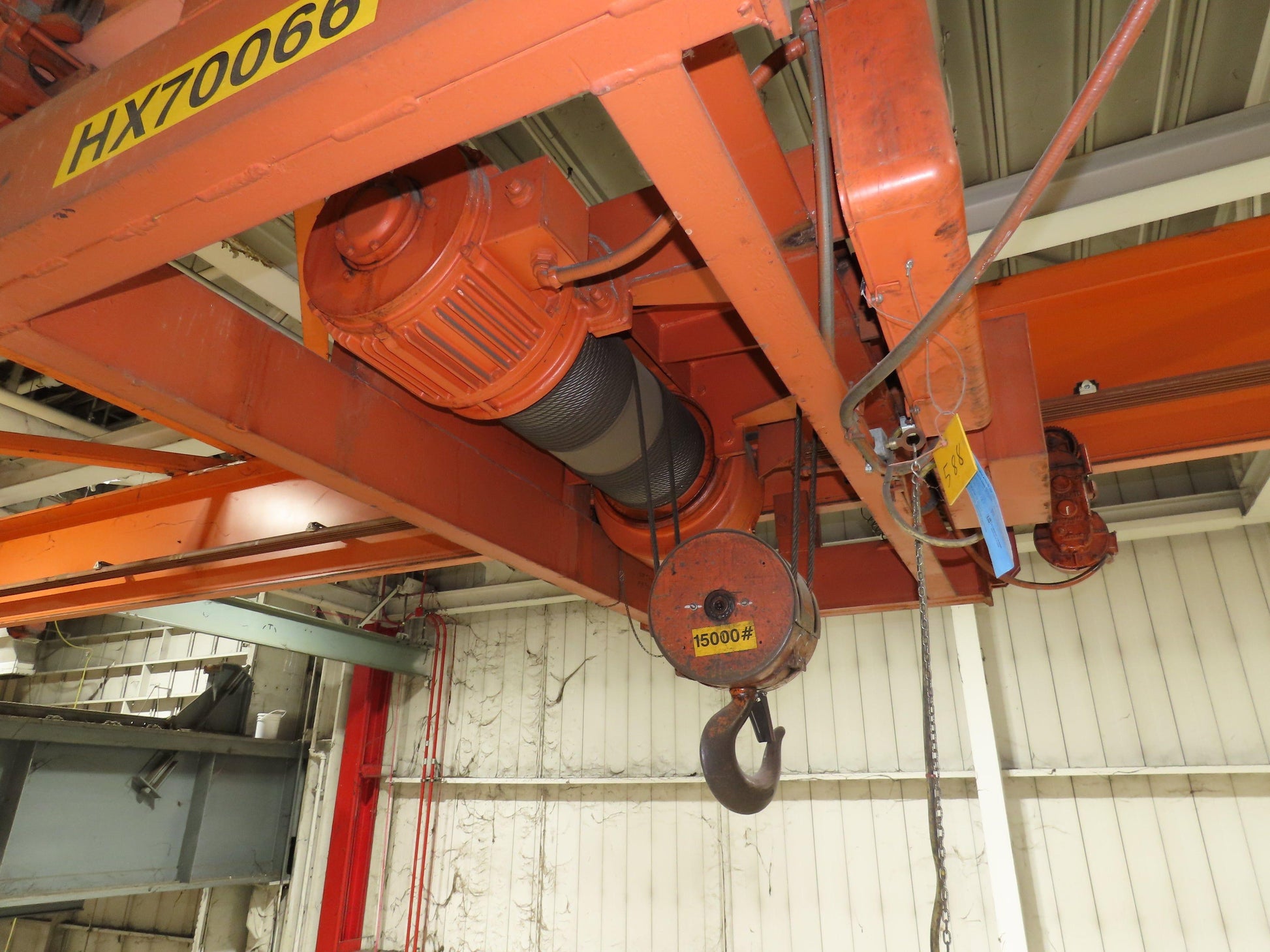

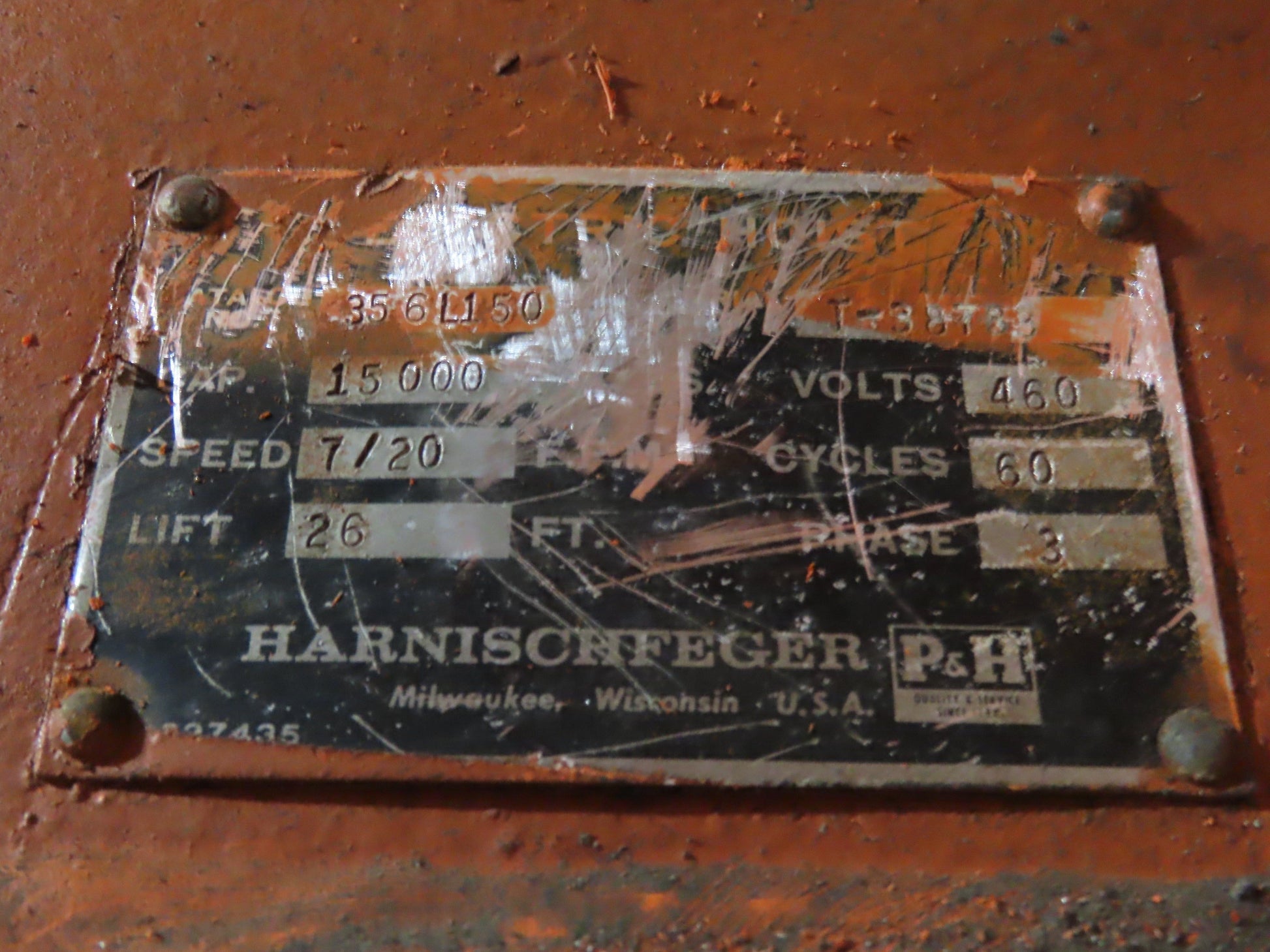

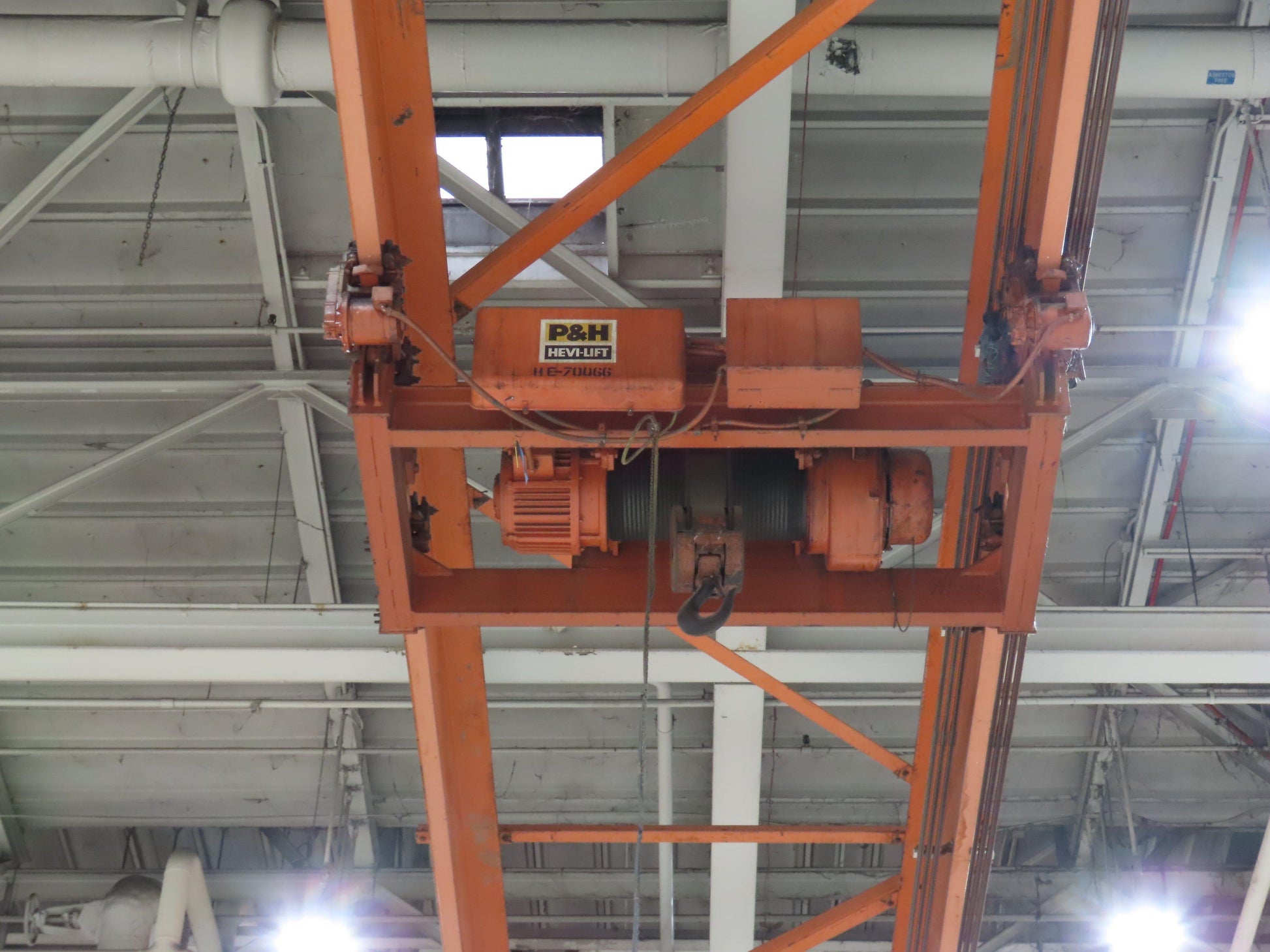

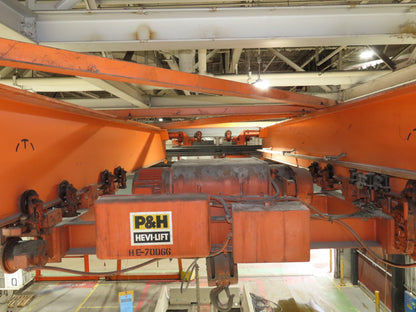

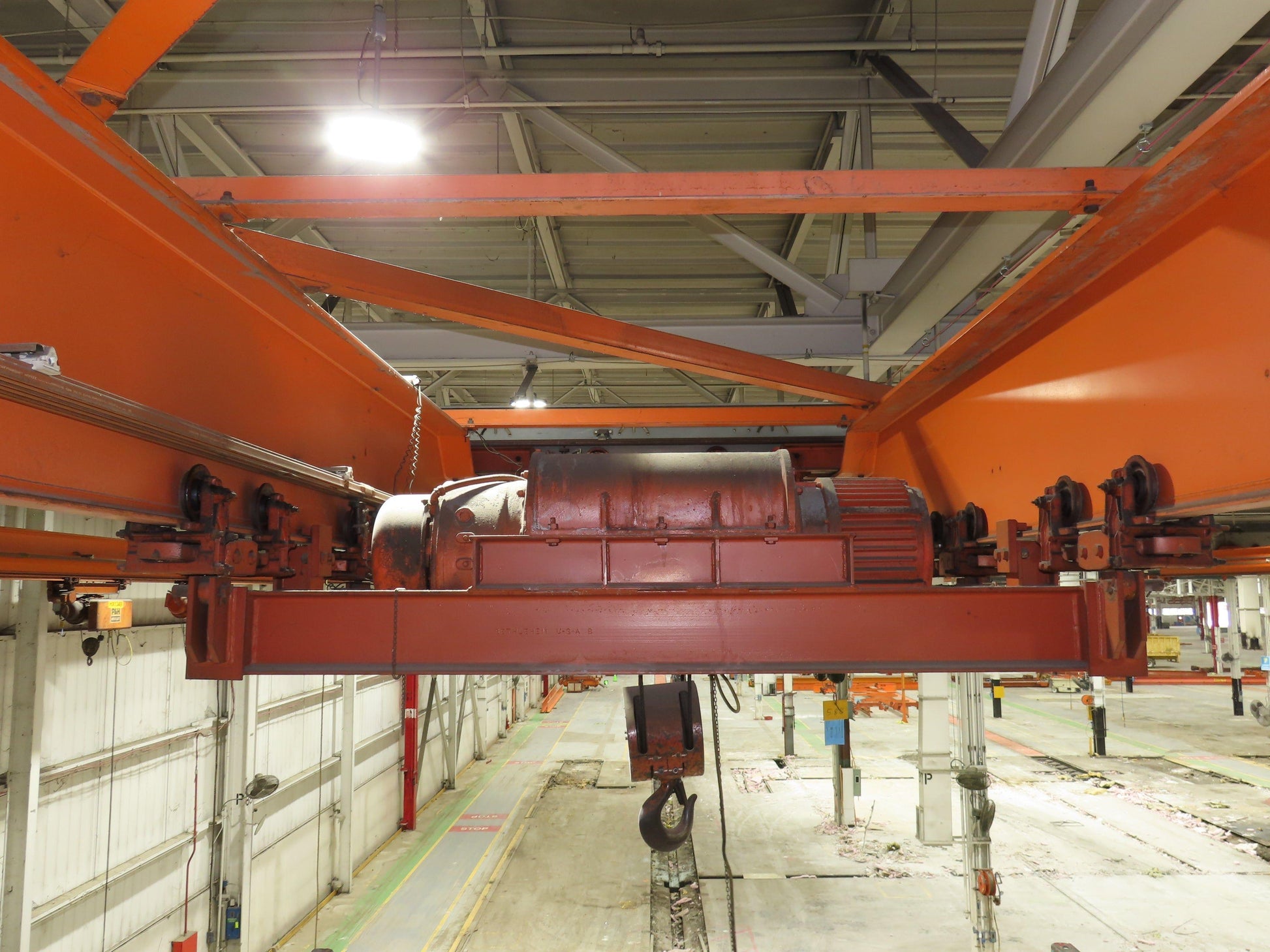

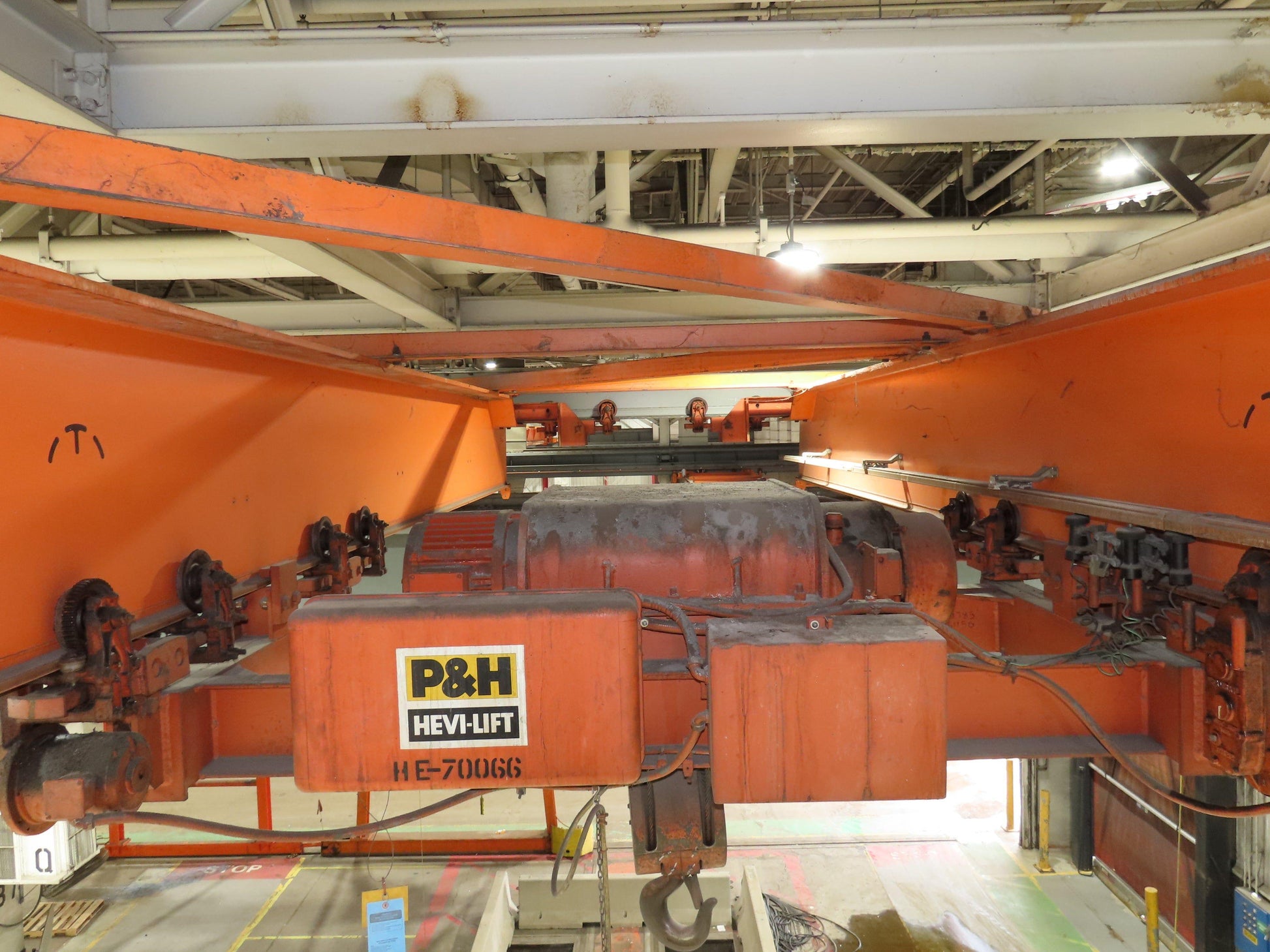

  • Hoist Brand: P&H
  • Lift Travel (feet): 26'
  • Lift Speed (feet per minute): 7/20 (2-speed)

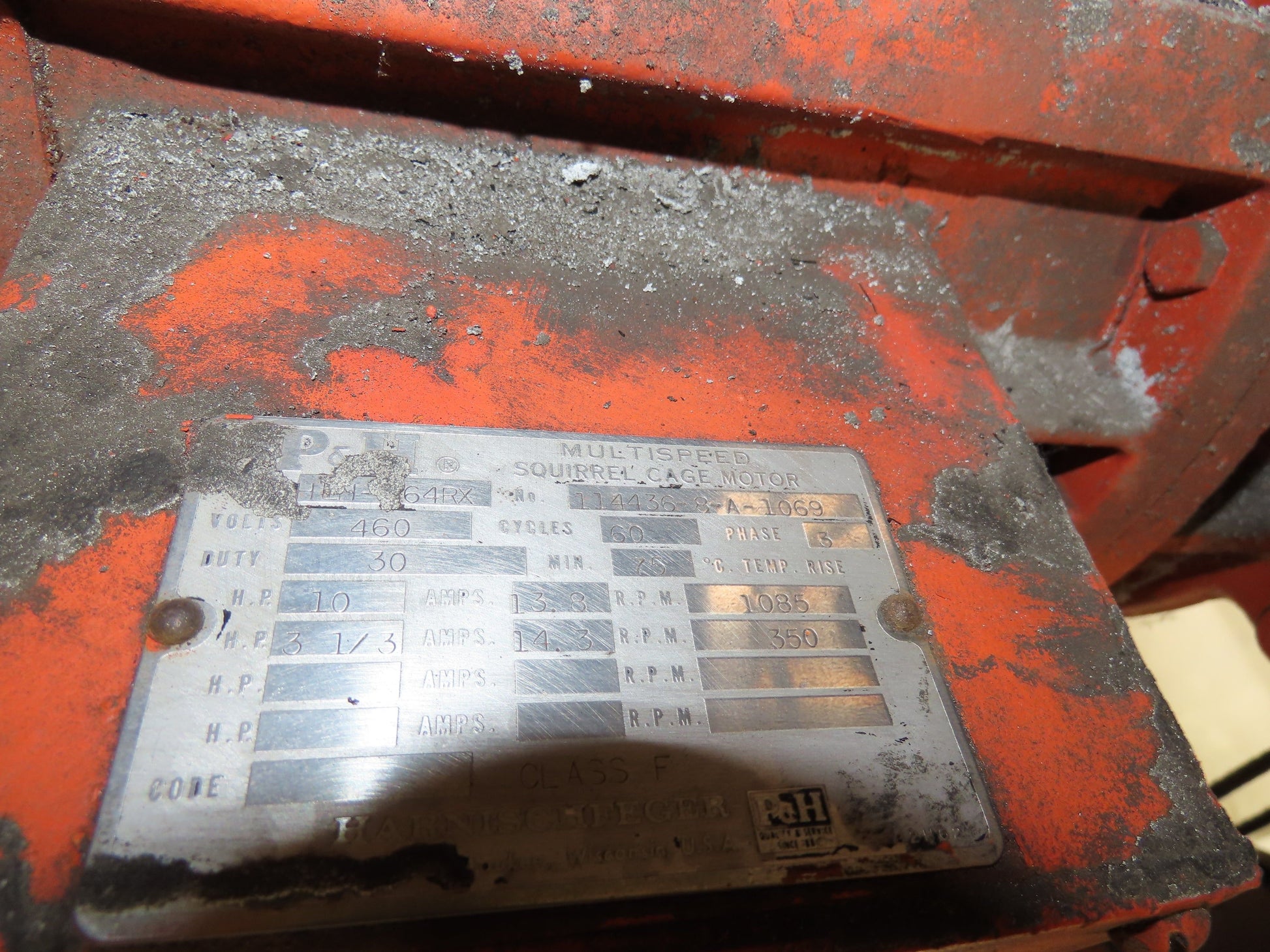

  • Motor Horse Power: 10

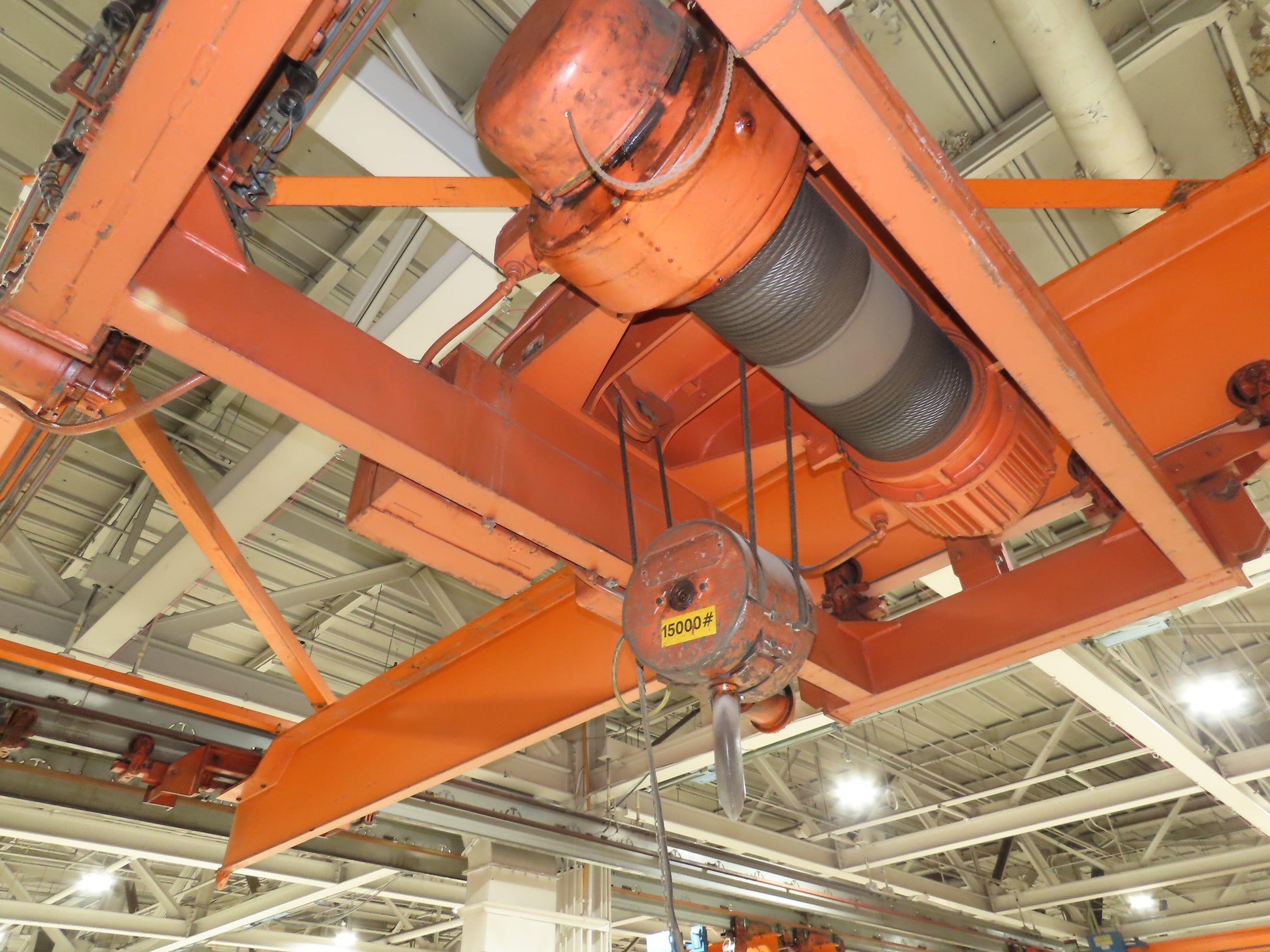

  • Lifting Medium: Cable
  • Pendant/Control Length From Bottom of Hoist (ft): 23'
  • Hoist Power Trolley Speed (feet per minute): 120
  • Hoist Trolley Length of Travel: 40'
  • Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 41"
  • Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 62"
  • Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 70"
  • Bridge Crane is in working condition.  Tested on site before removal.

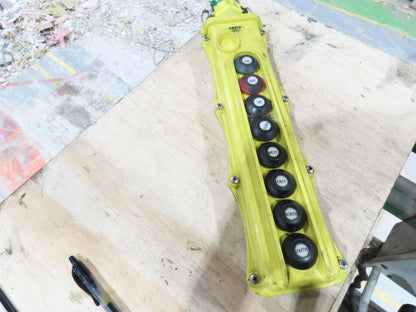

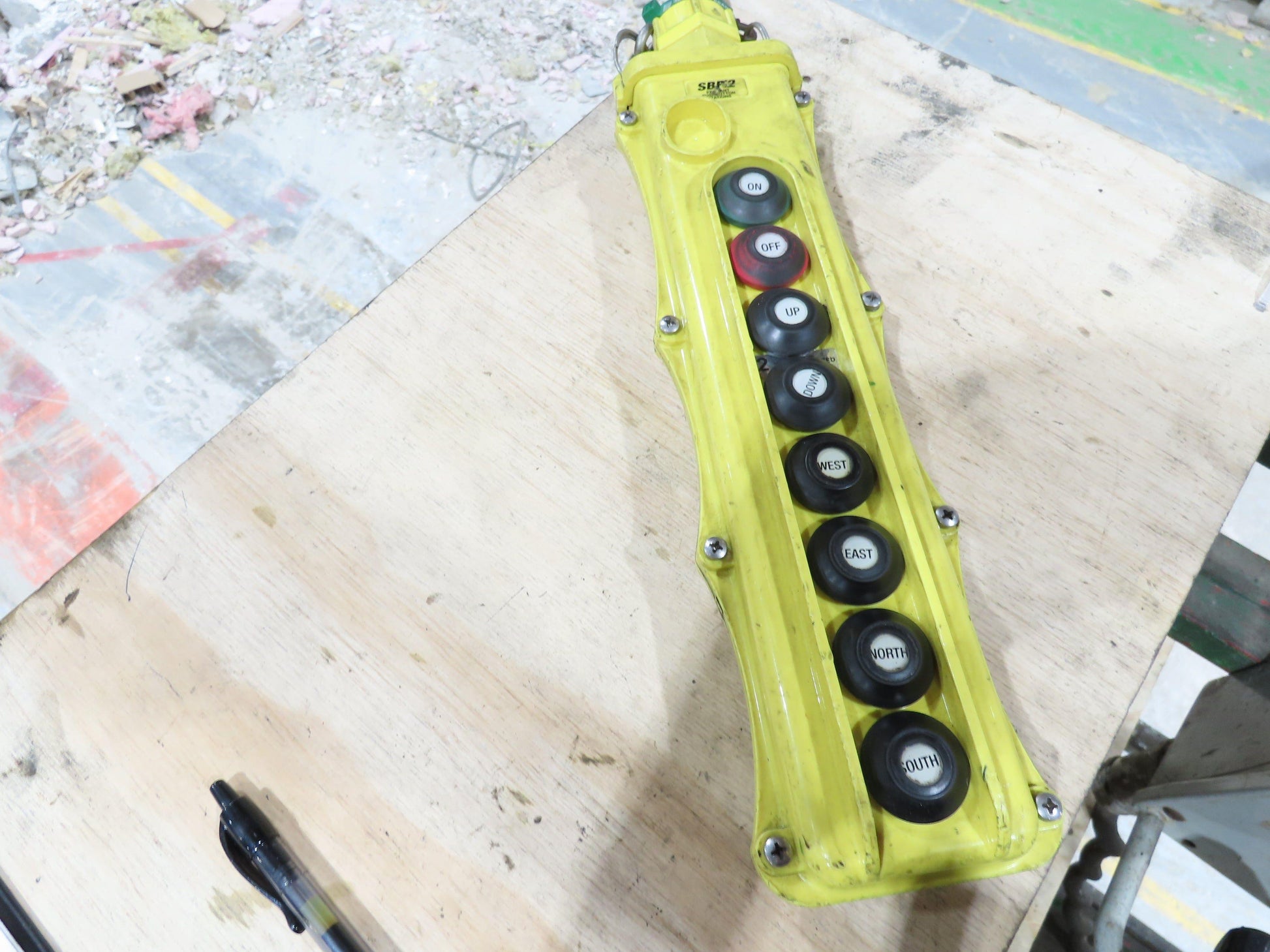

  • Includes corded pendant only.  Not set up for wireless.
  • Single speed bridge and trolley, 2-speed hoist.

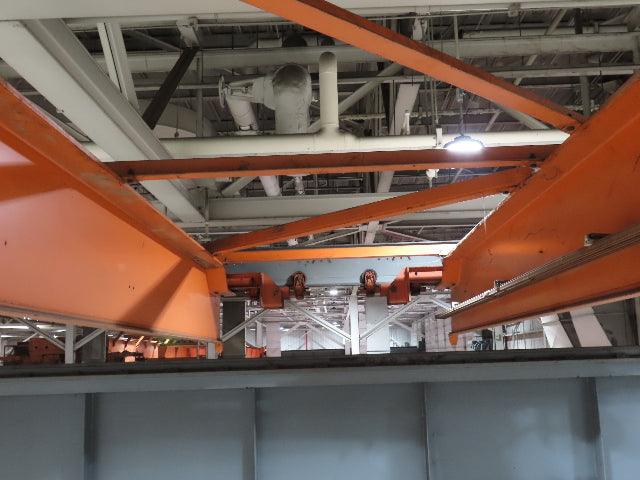

  • End truck length: 76"
  • Girder beam span: 8'
  • Overall width: 14' 4" (End truck to end truck)
