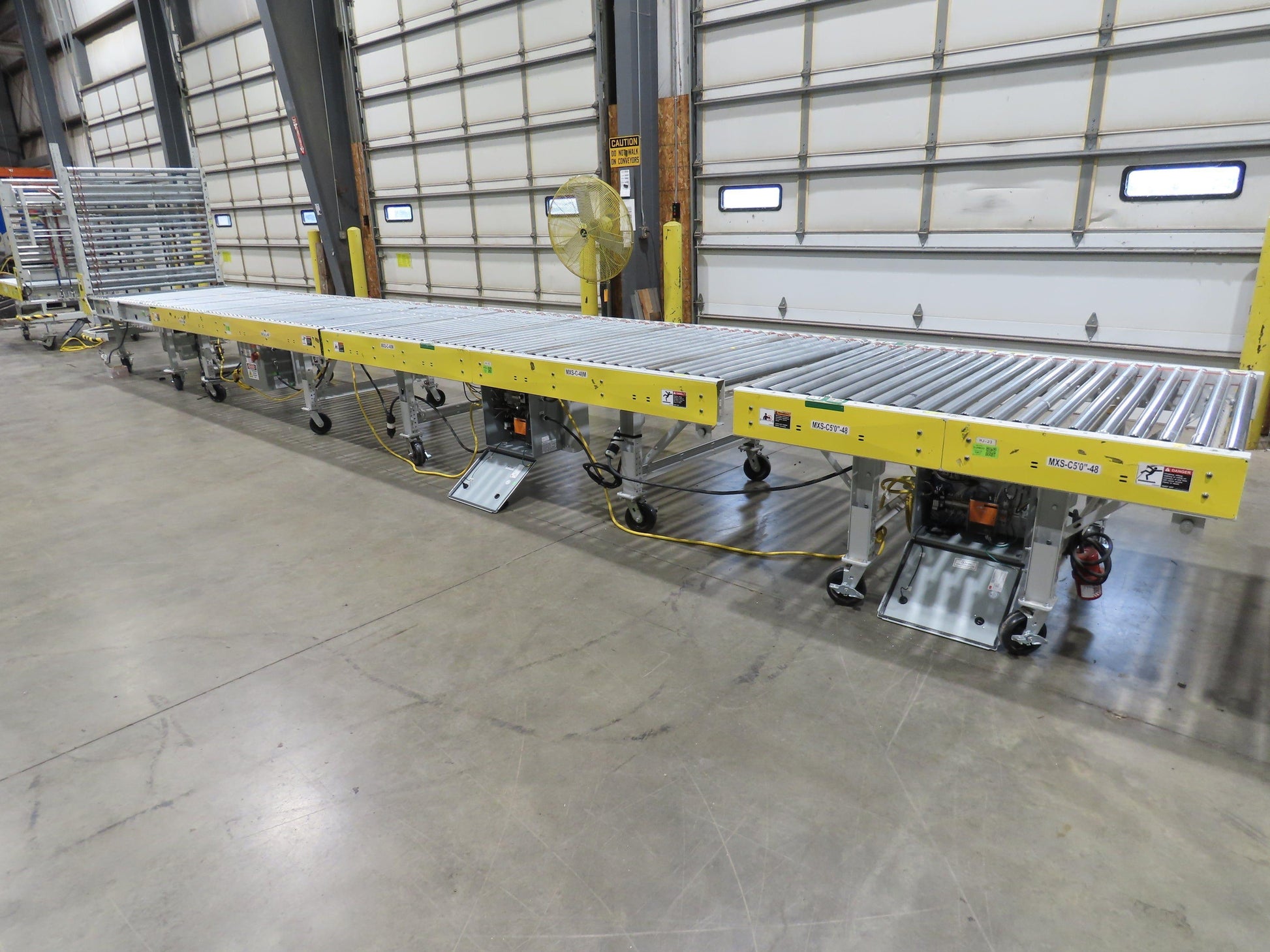

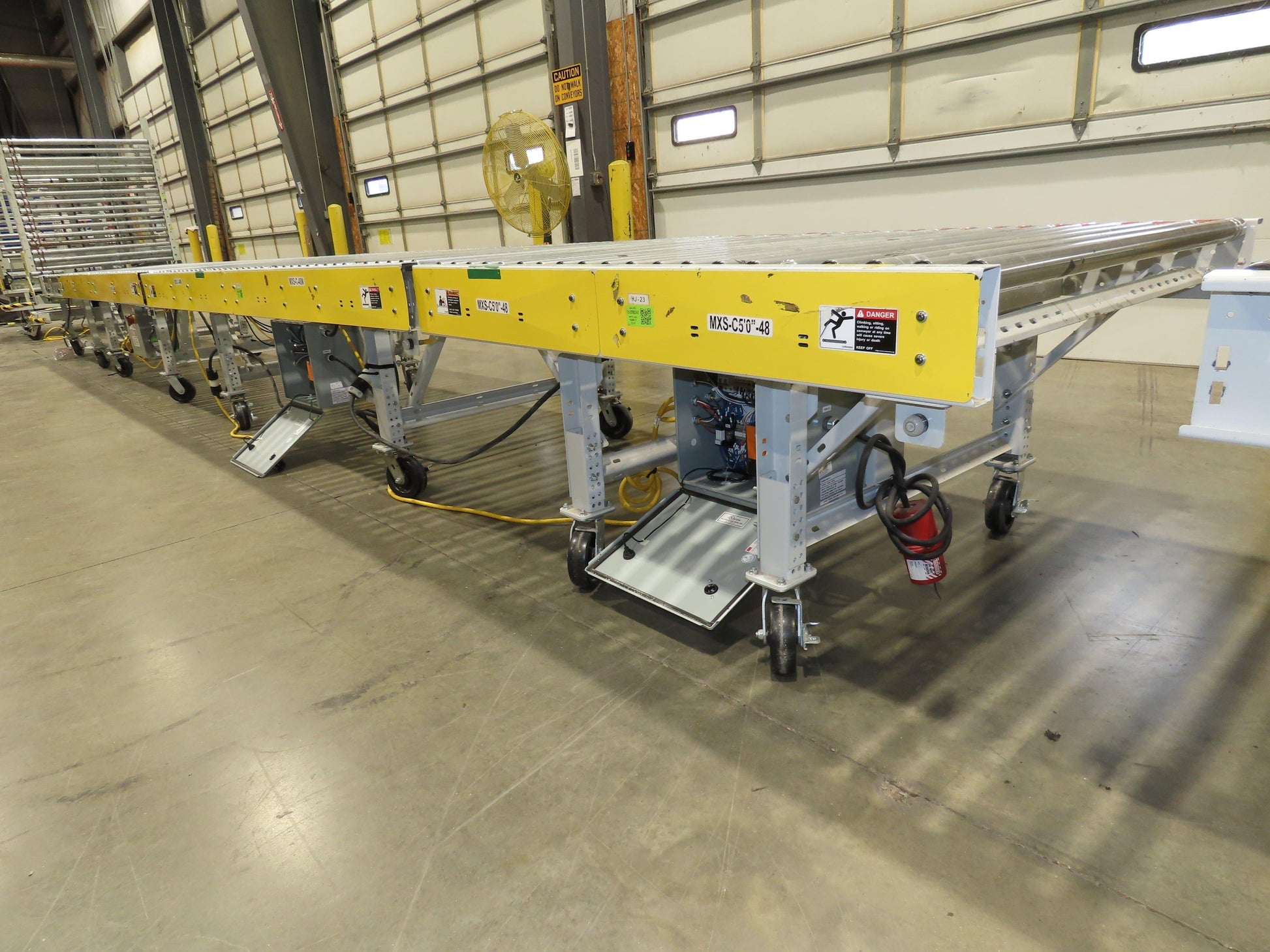

ConveyX 52"x 55' Power Roller Conveyor 48"BF Walk-Thru Gate 115V Variable Speed

ConveyX 52"x 55' Power Roller Conveyor 48"BF Walk-Thru Gate 115V Variable Speed

SKU #257796

Your Price
$10,901.24
$13,499.99 $10,901.24
Sale Sold out
Shipping calculated at checkout.

1 in stock
  • Conveyor system in good used condition.  Removed from a working environment.
  • ConveyX Mod-LinX conveyor system.

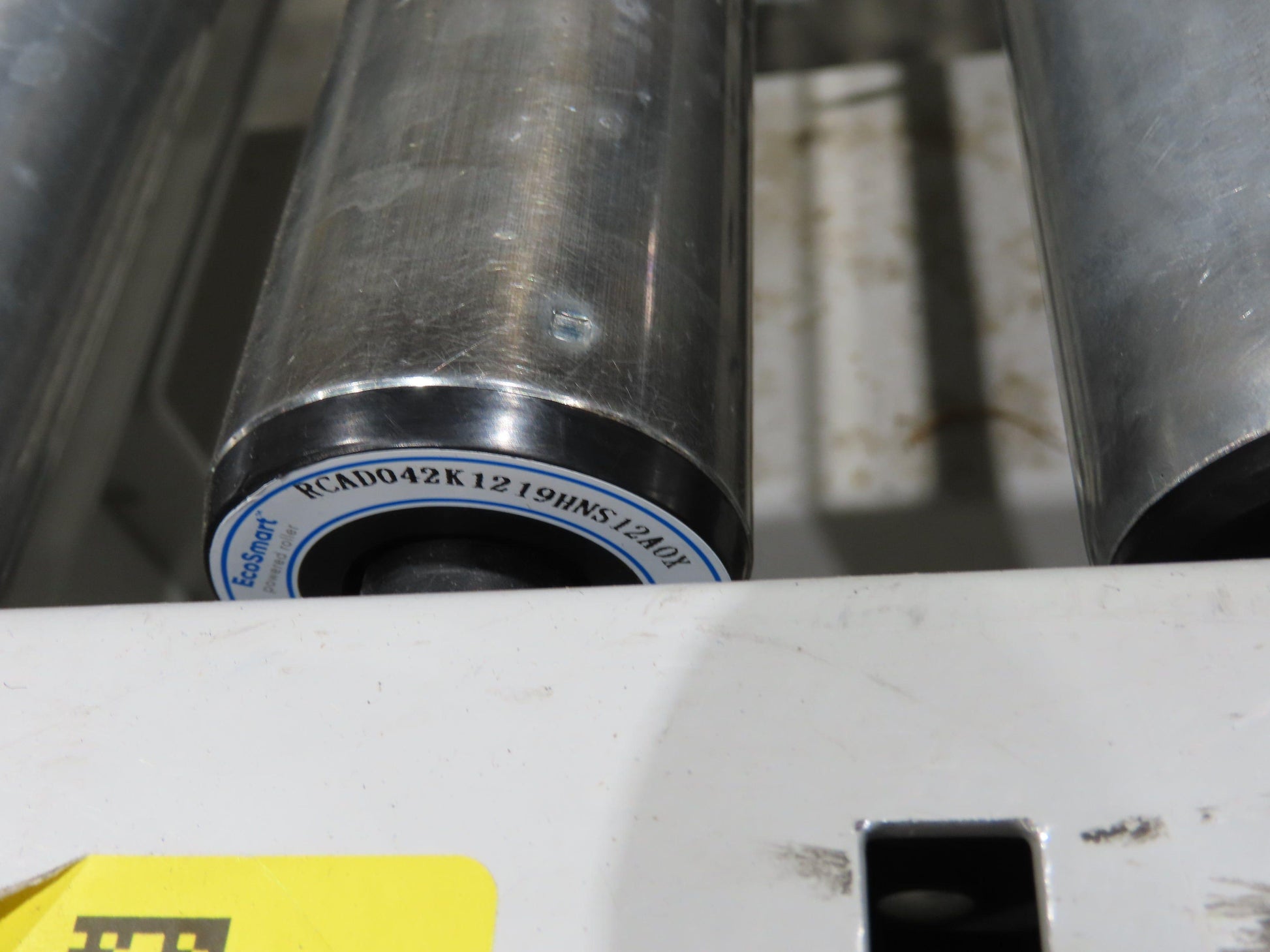

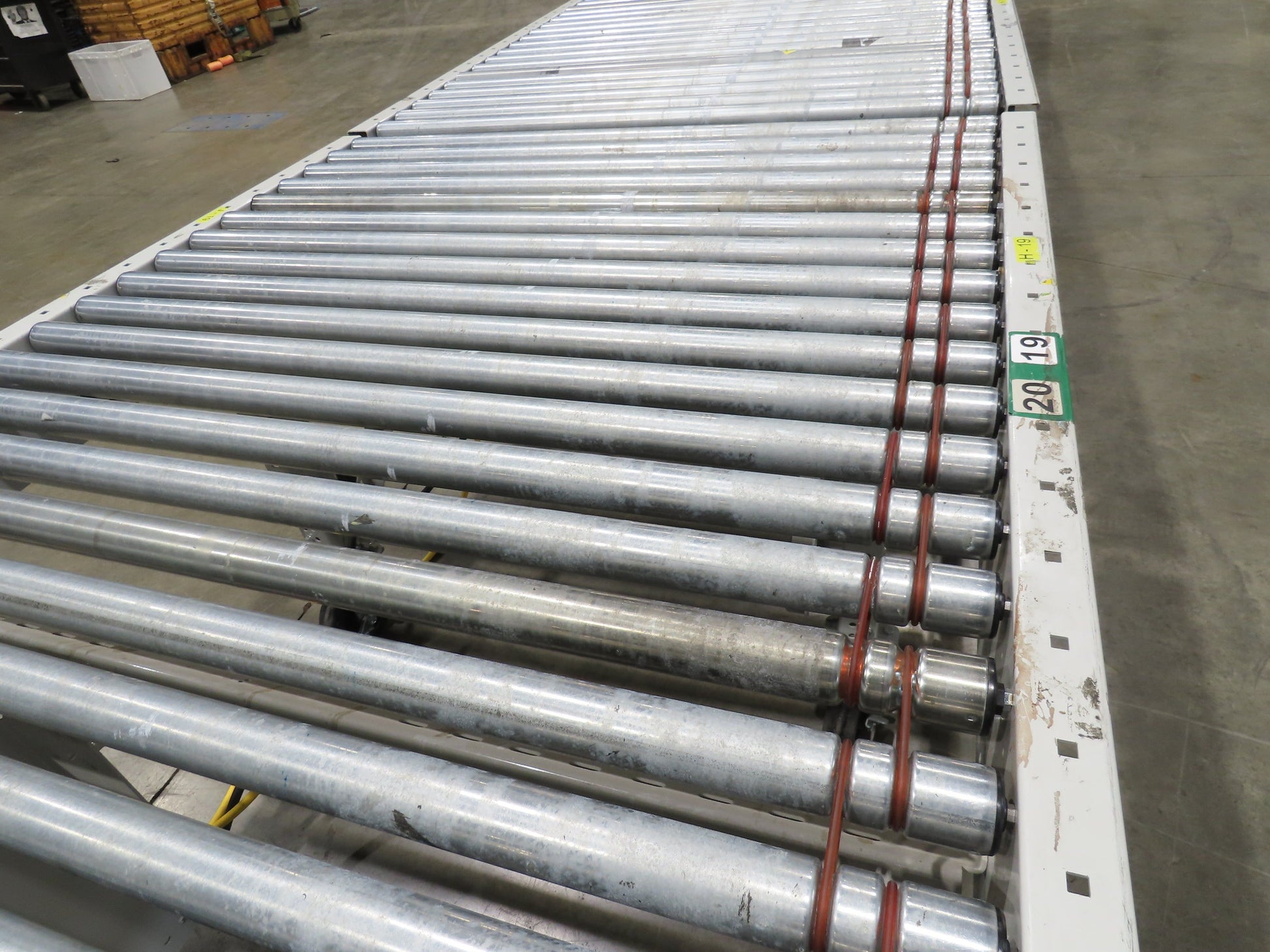

  • Motorized power drive rollers.  O-ring drive bands.

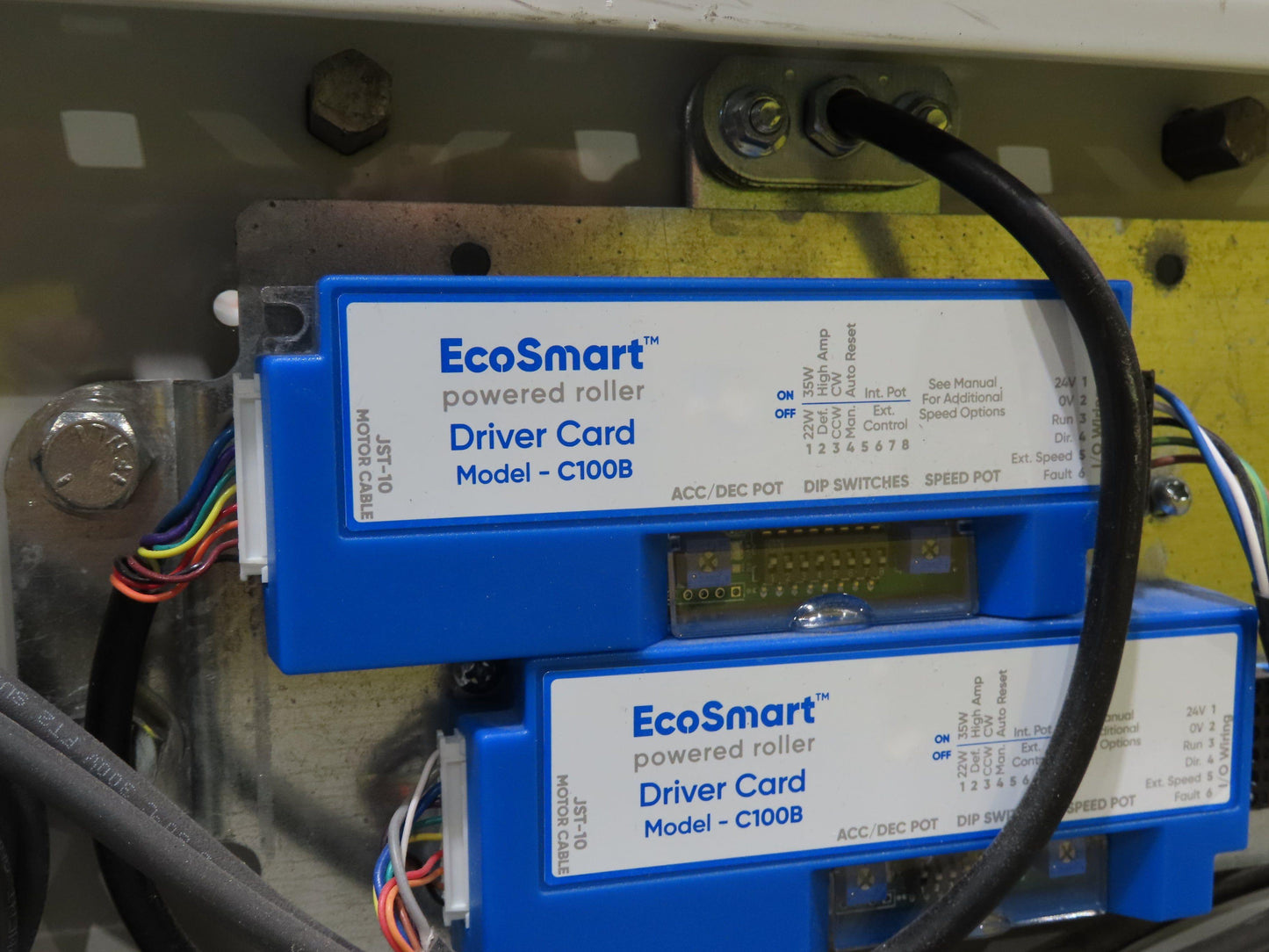

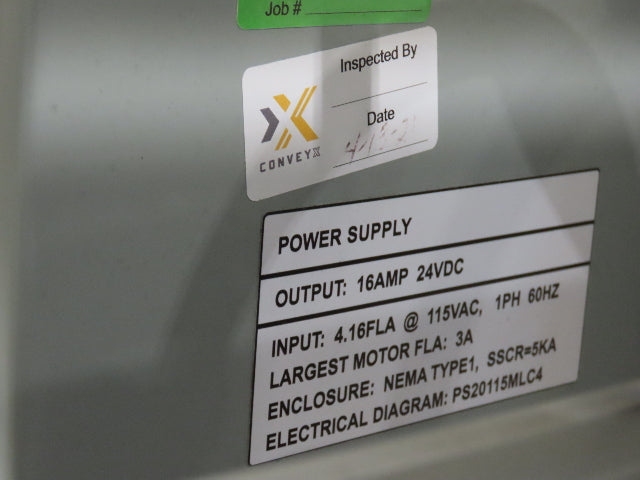

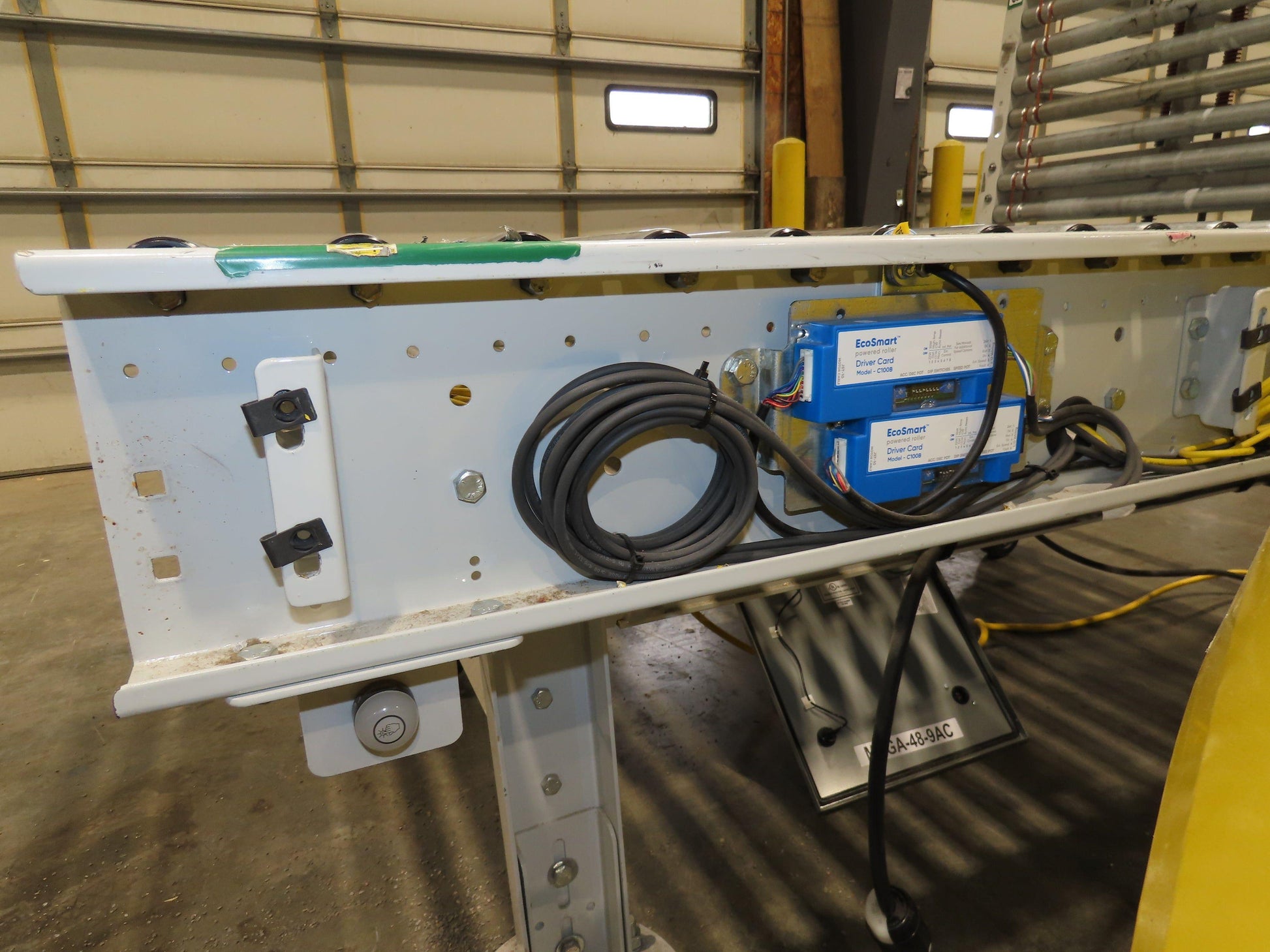

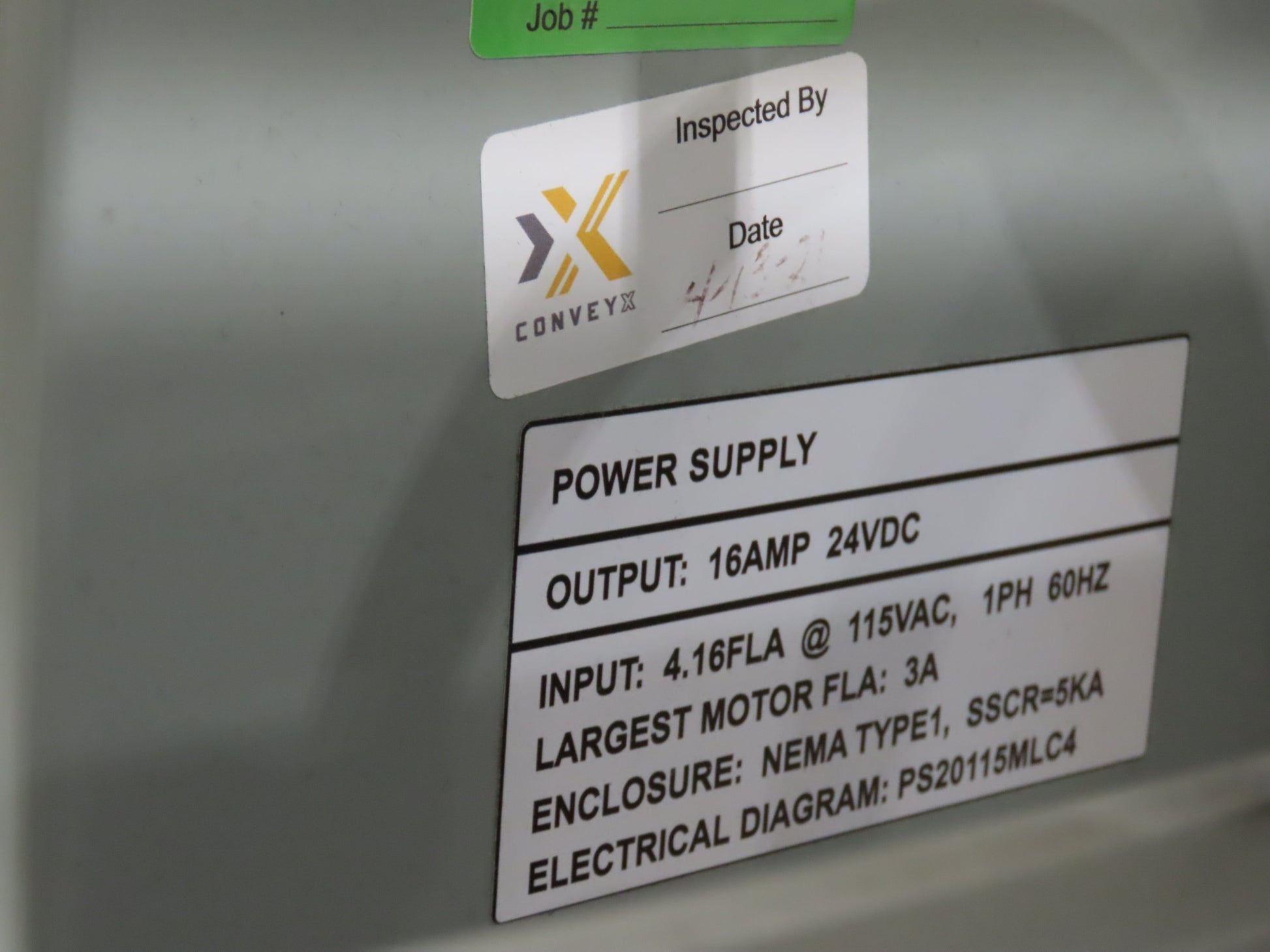

  • 115VAC input and 24VDC drive components.

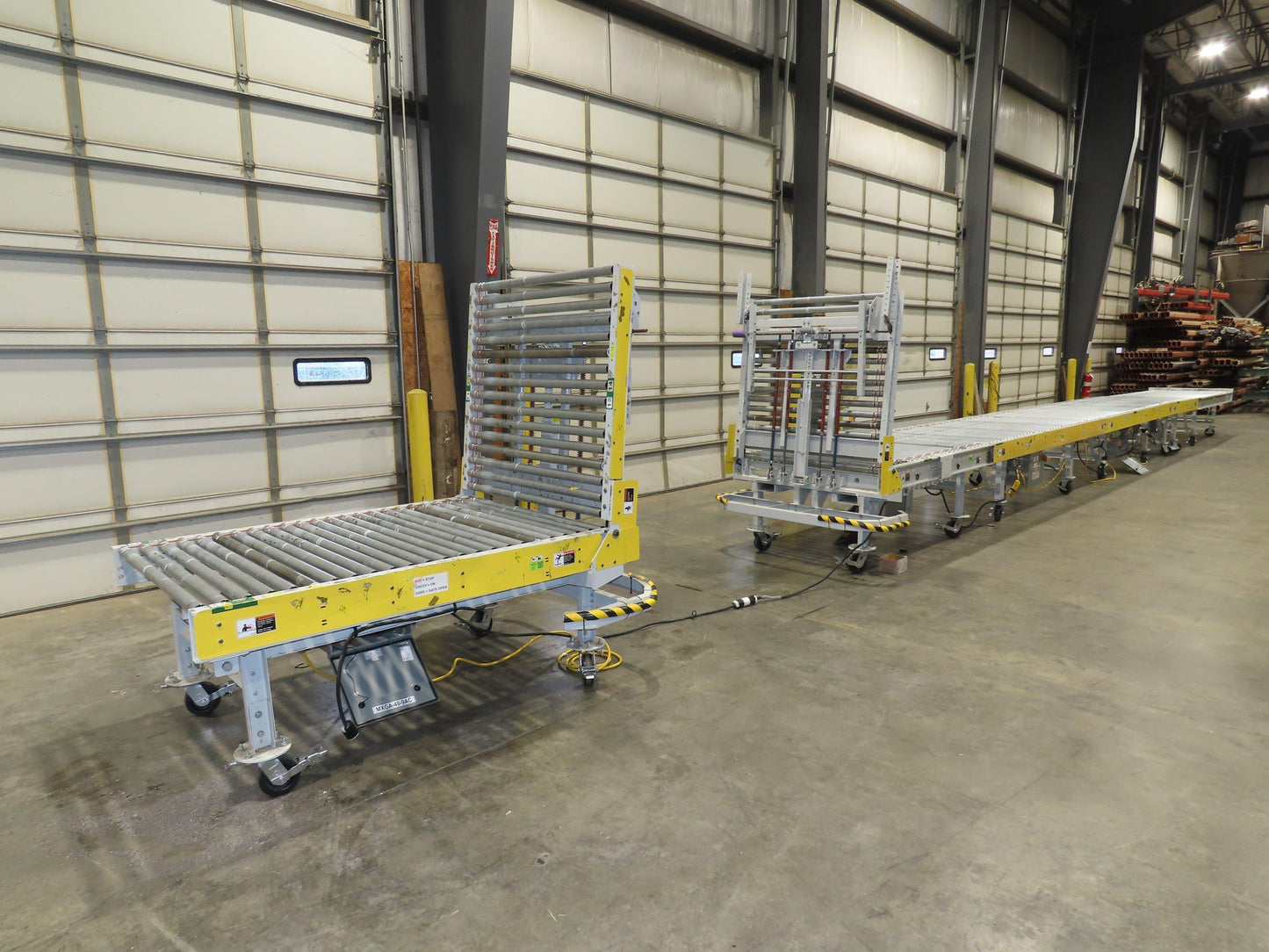

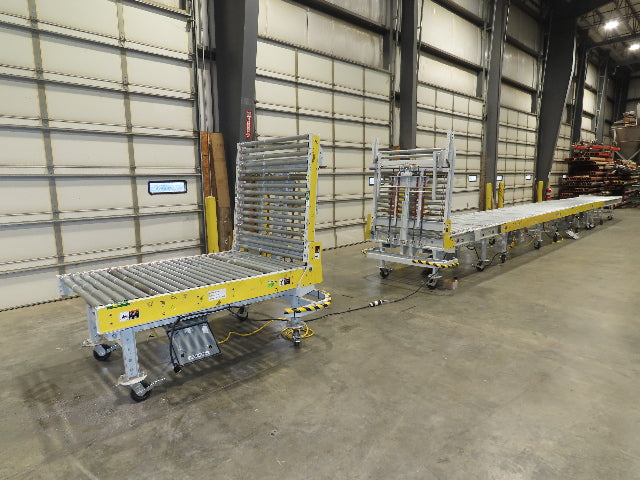

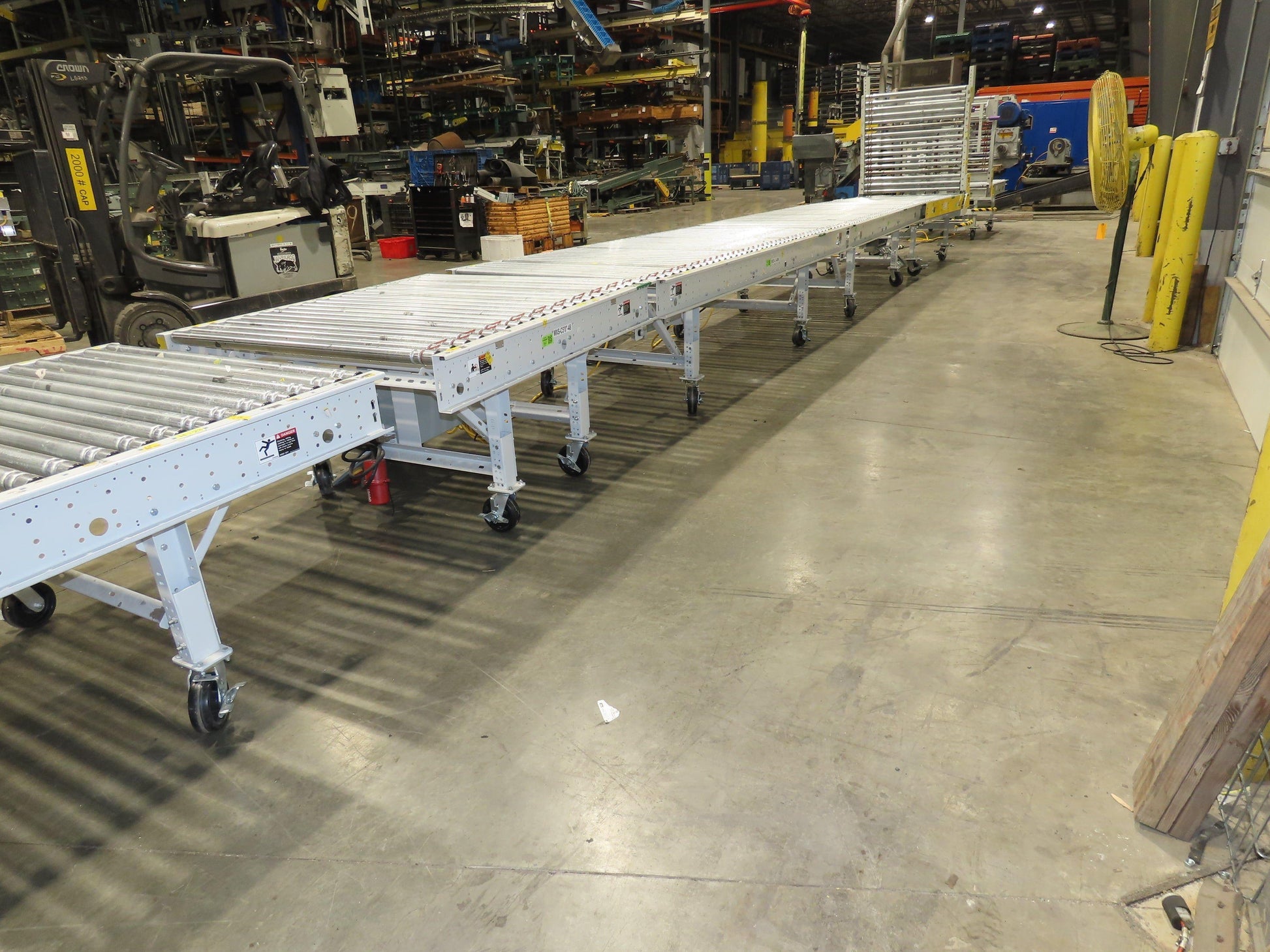

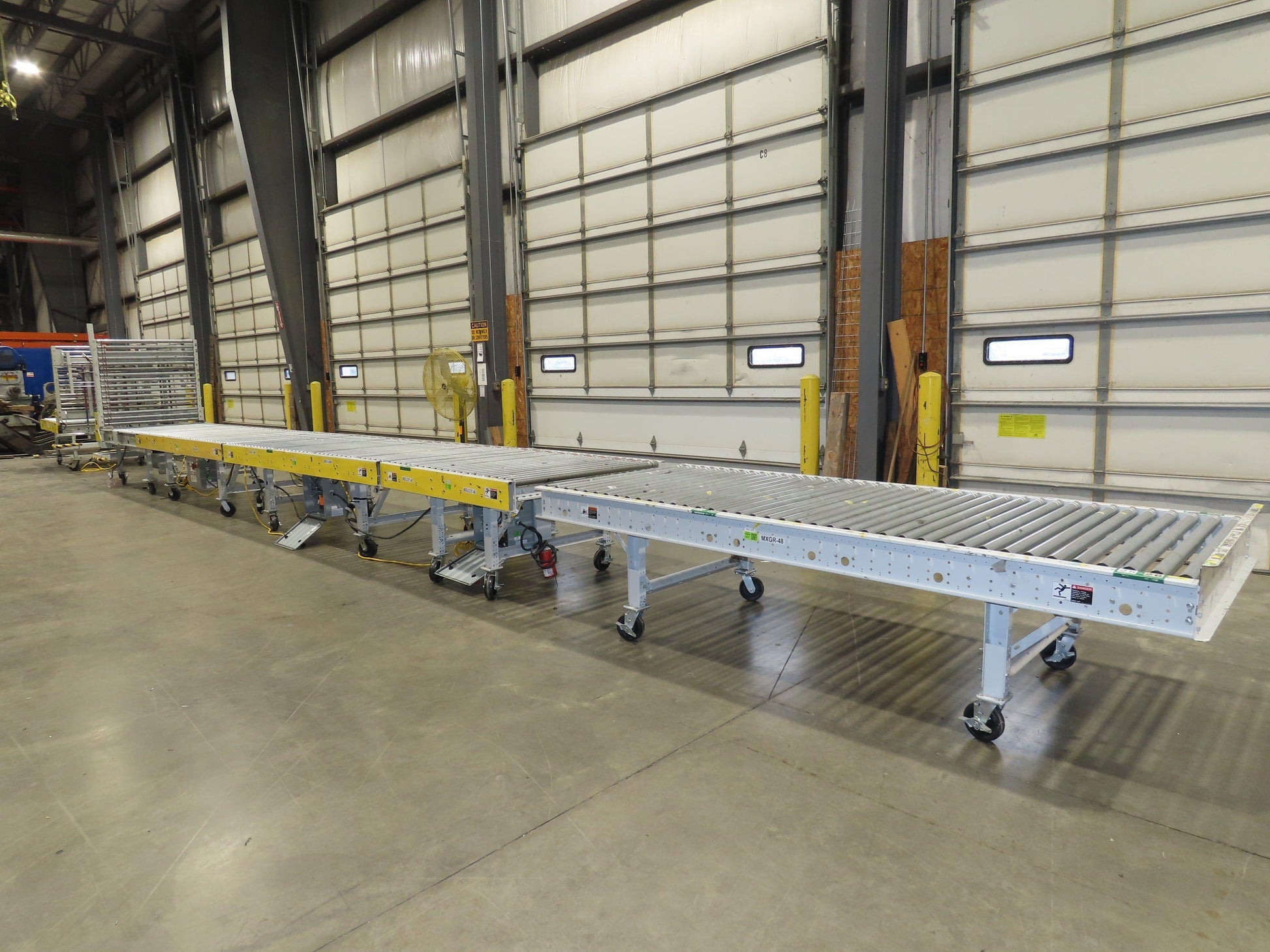

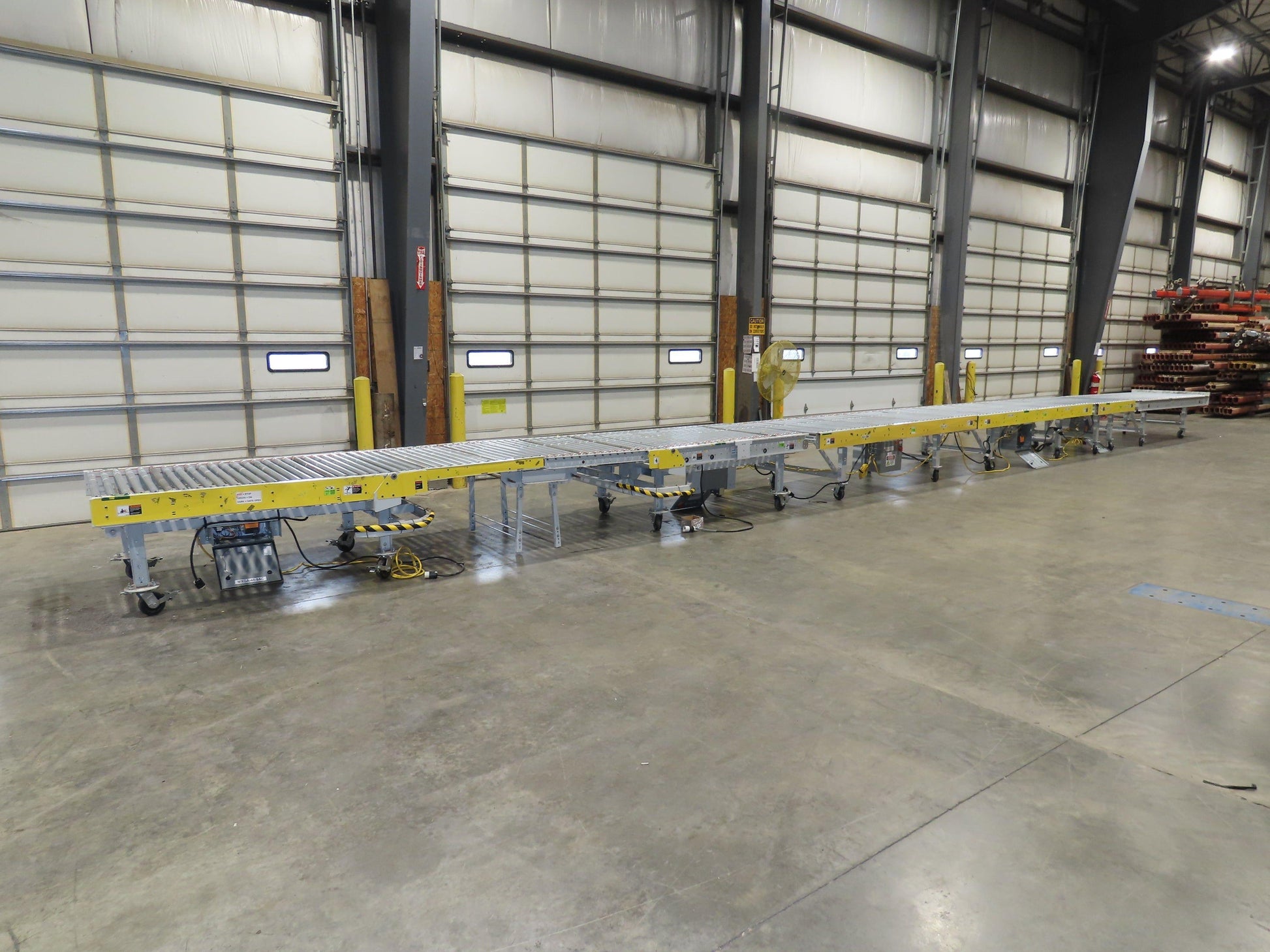

  • This lot consists of:

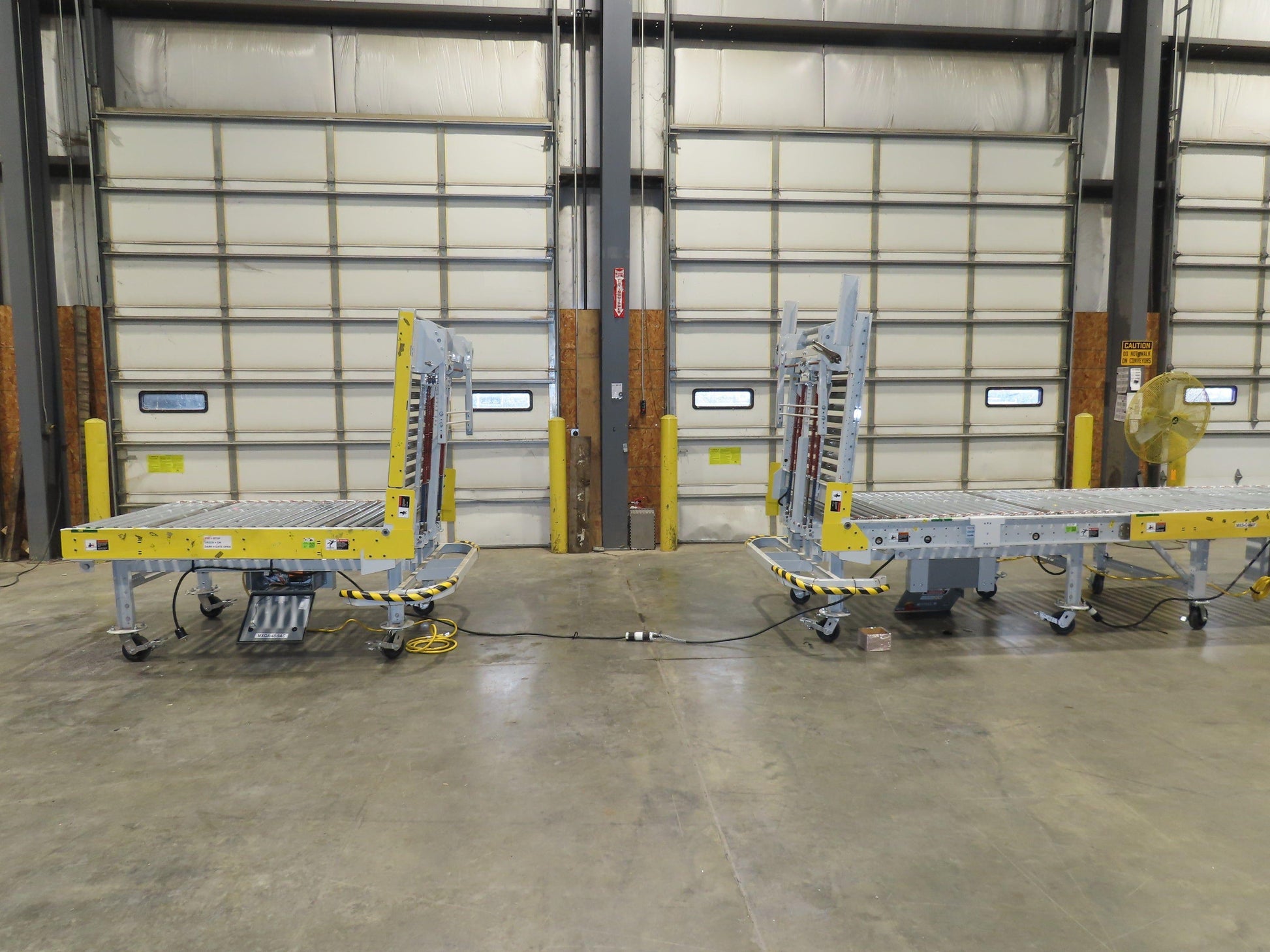

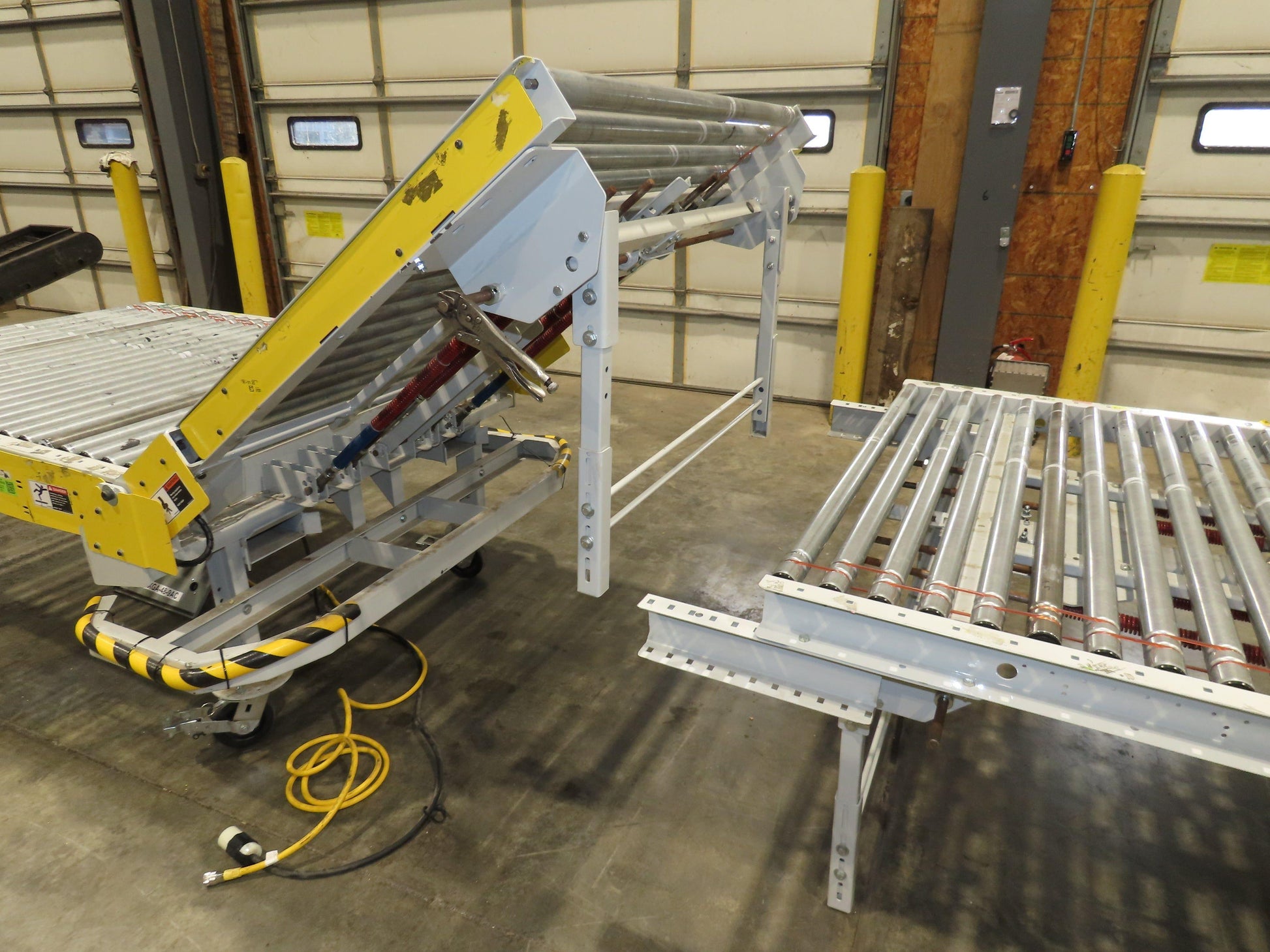

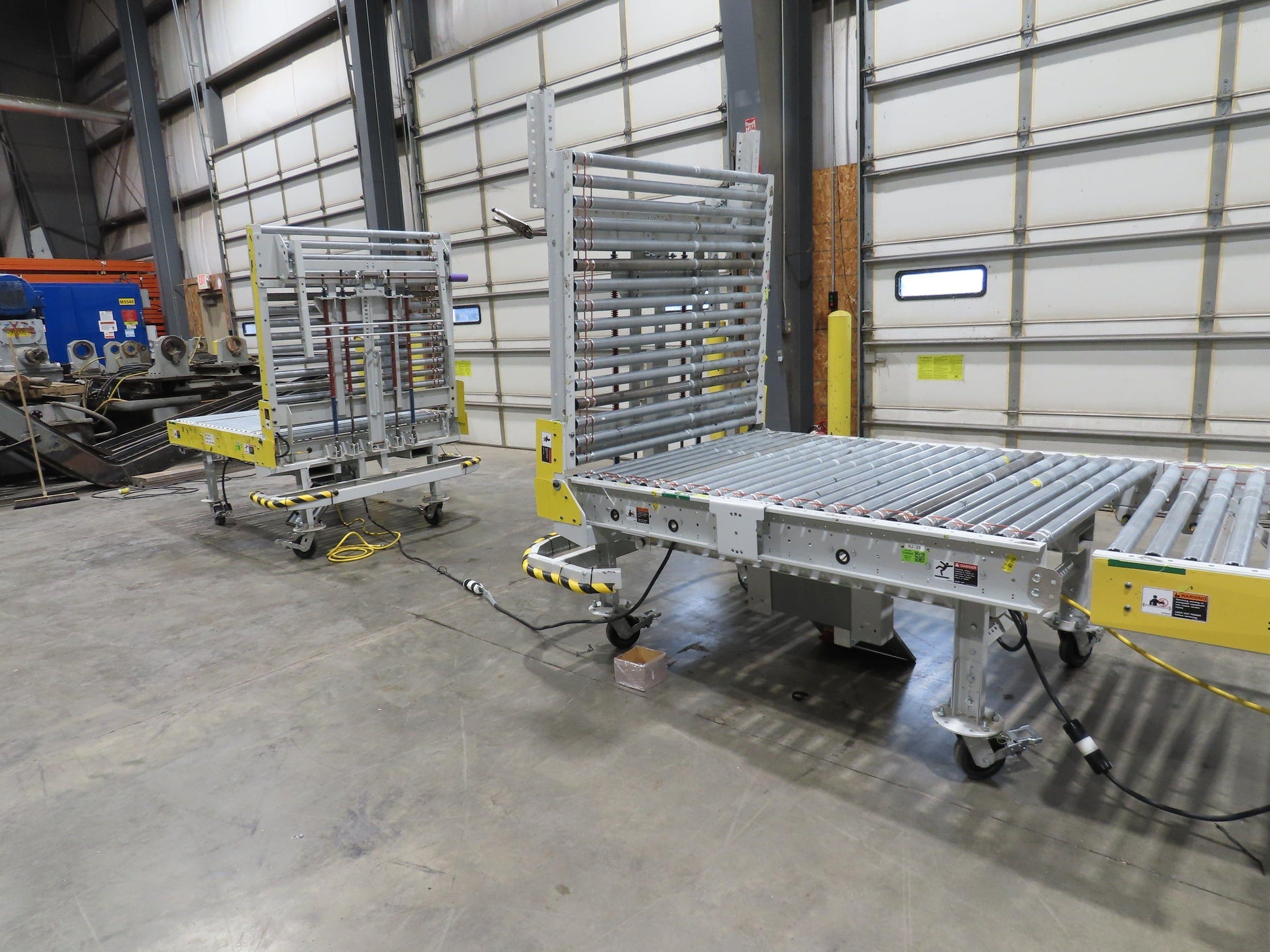

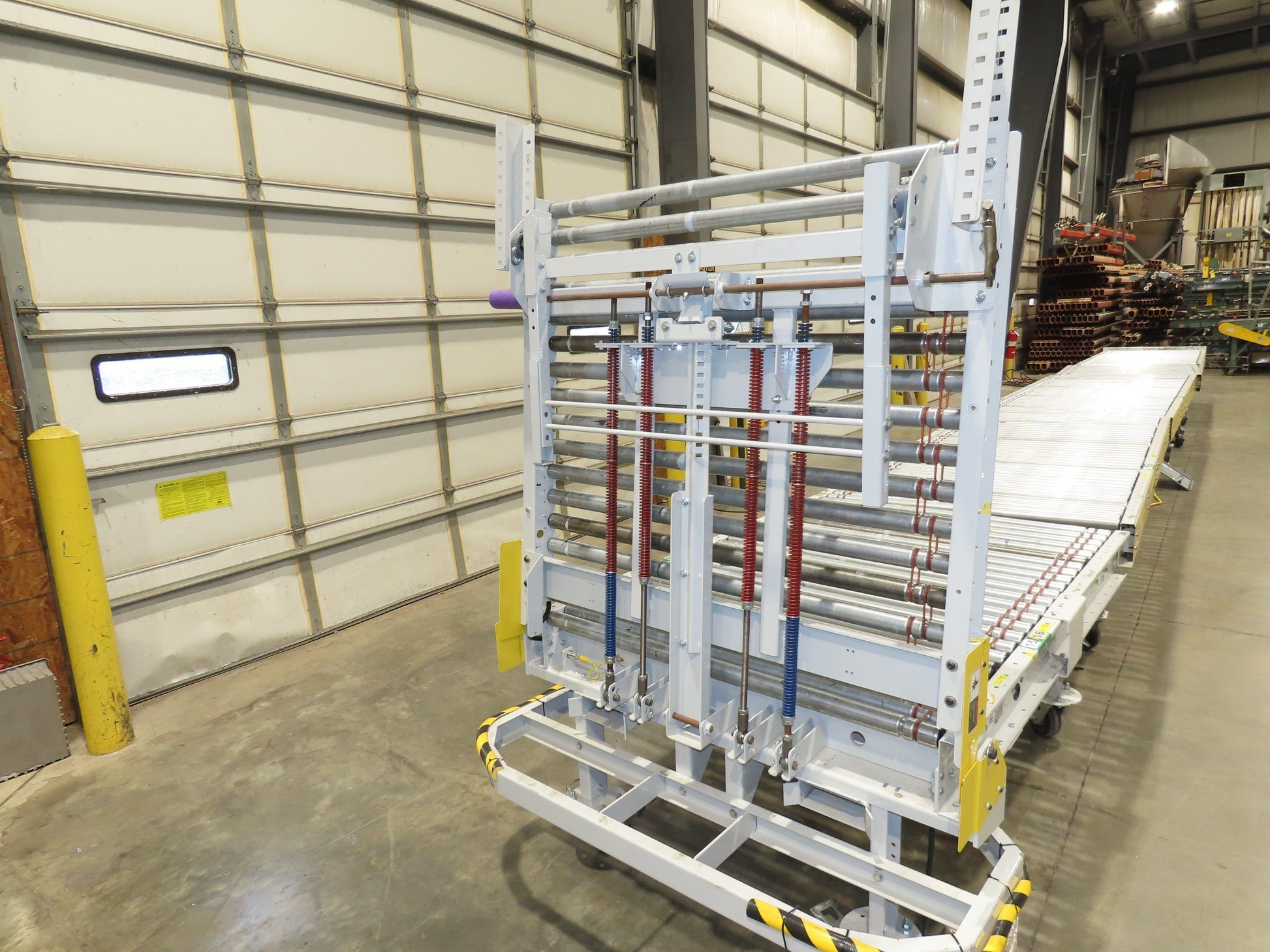

  • (2) 10' gate sections  (48" gate length) Spring loaded manual lift. (Handle is missing)
  • (2) 10' powered sections
  • (1) 5' powered section

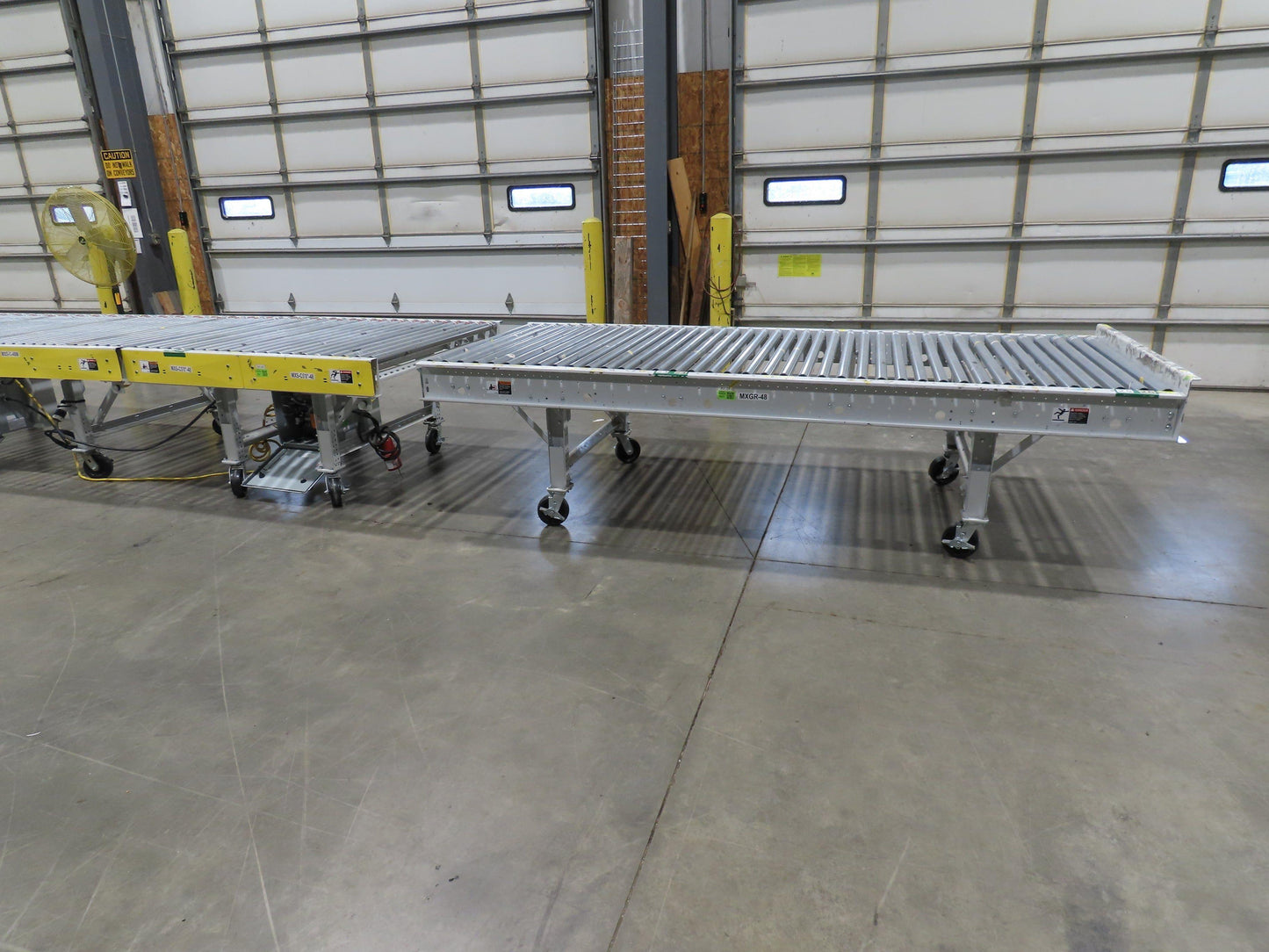

  • (1) 10' gravity non-powered section

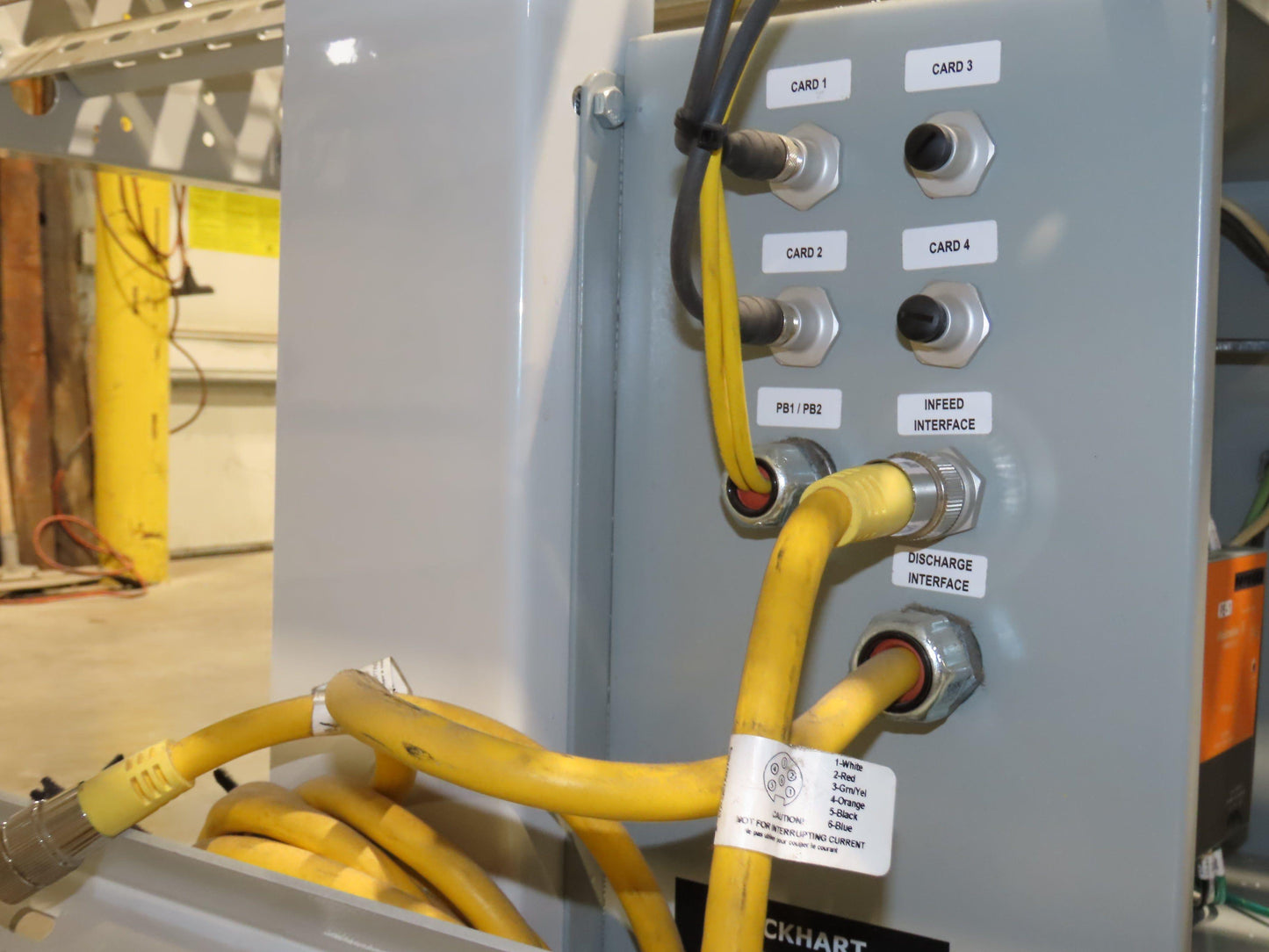

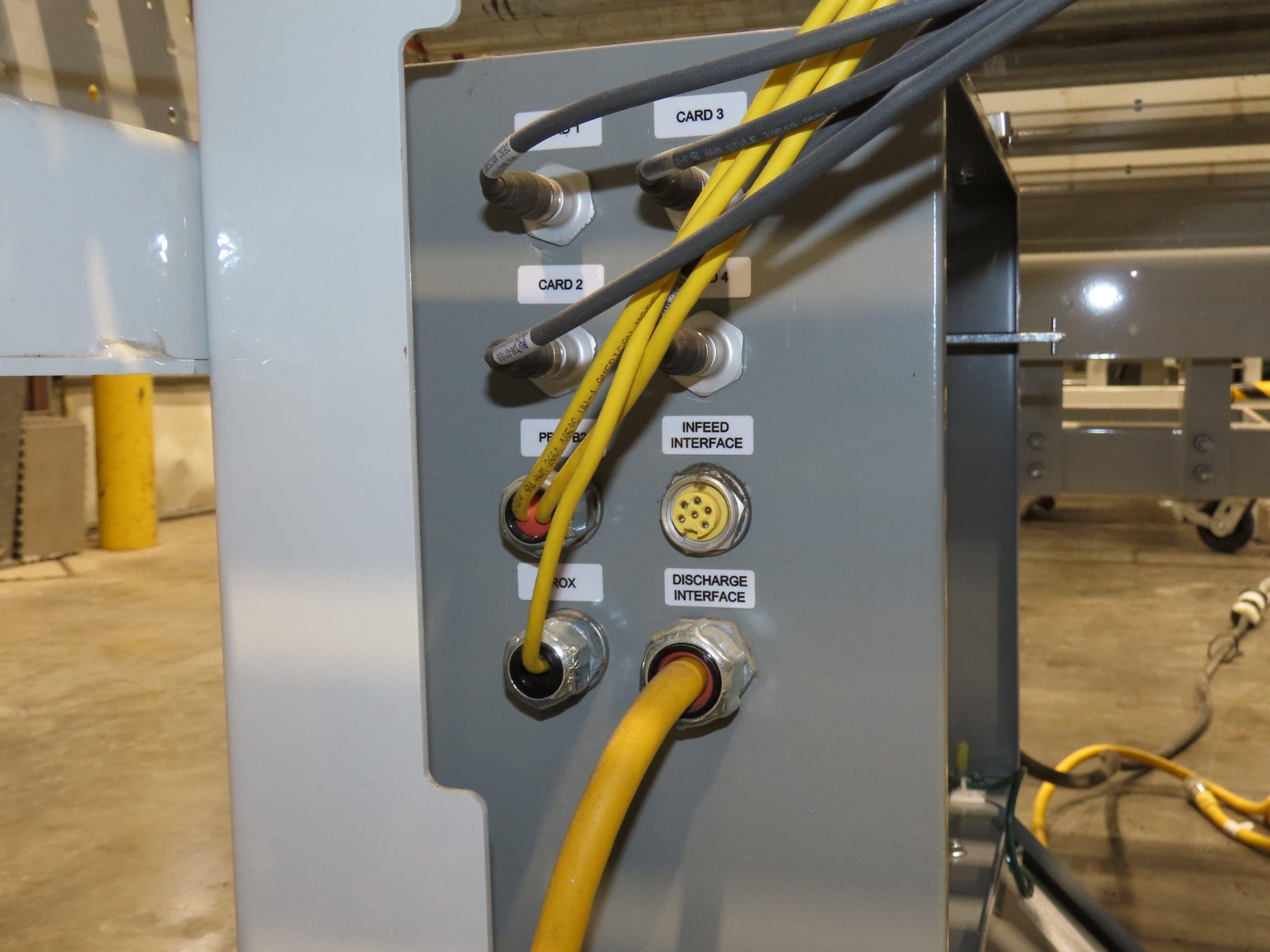

  • These sections all link together with communication cable # MIN-6MPM-5M. We hard wired the system to run it.  Will need a master control for all components to operate.

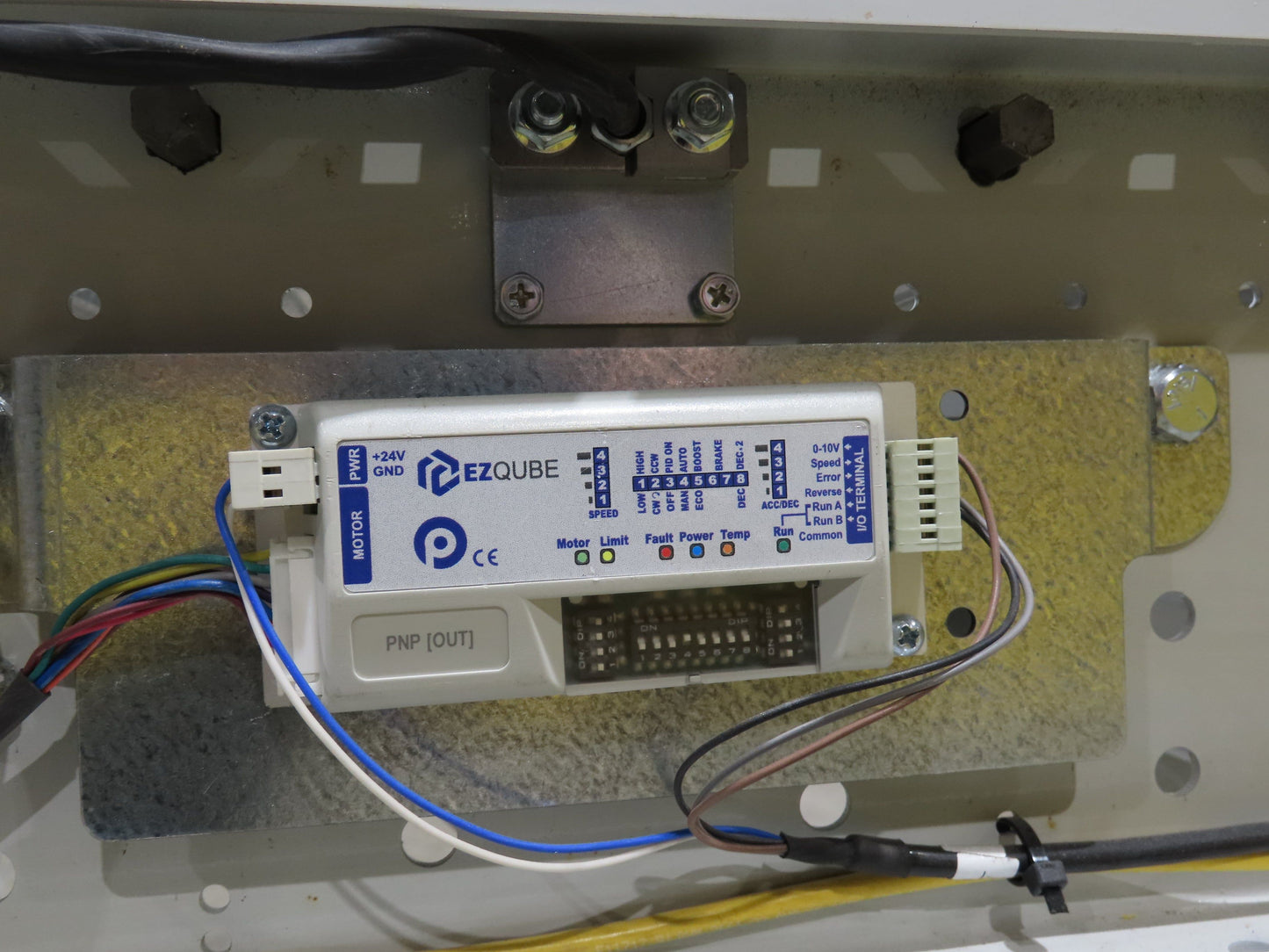

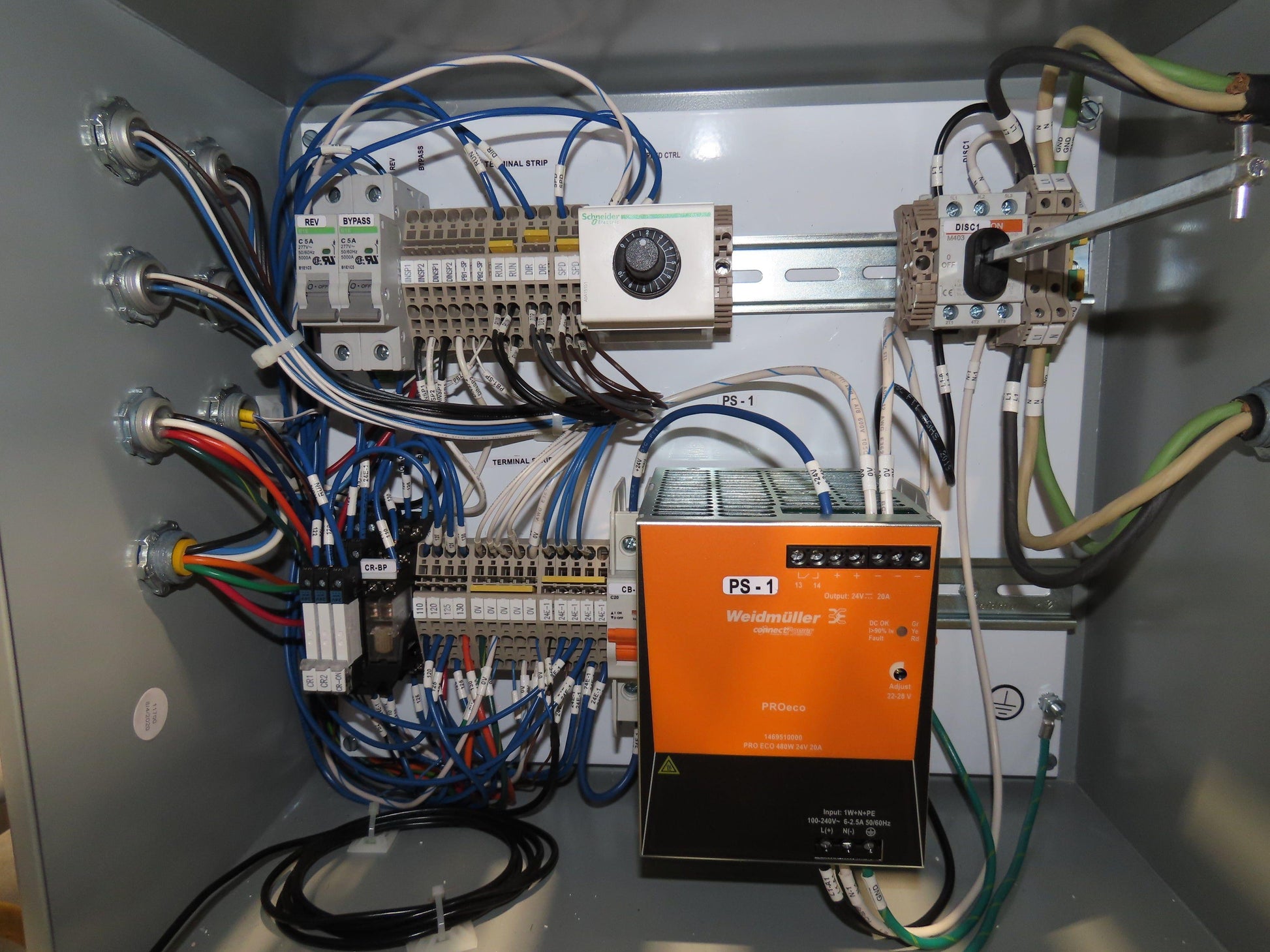

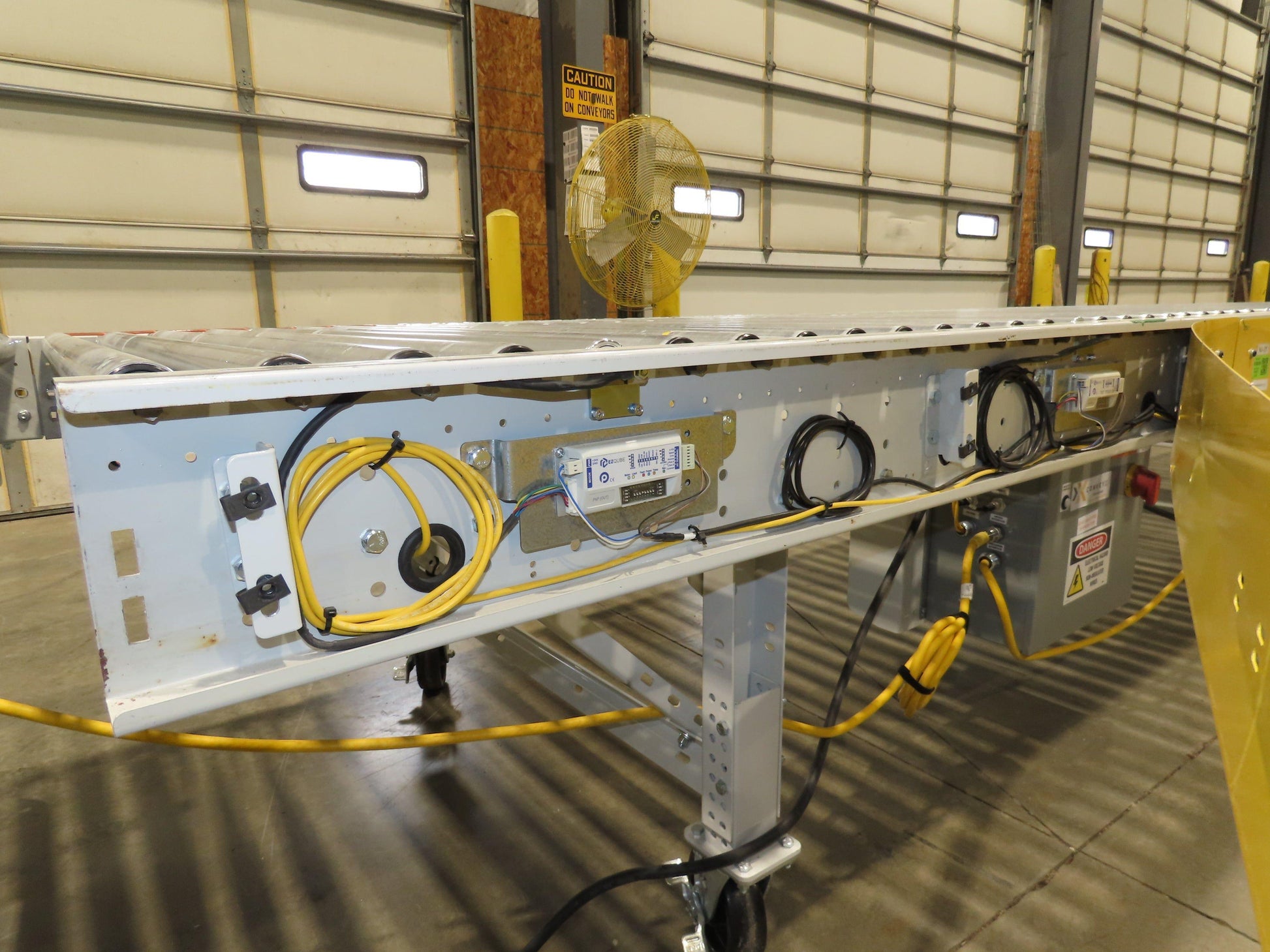

  • Each section has a disconnect panel and variable speed control.
  • 40-150 FPM roller speed.
  • Frame width:  52"
  • Between frame width:  48"
  • Roller Dia:  1.9" on 3" centers 7/16" hex axle.  Rollers set high on frame.
  • Frame height:  7" with 4" guard rails

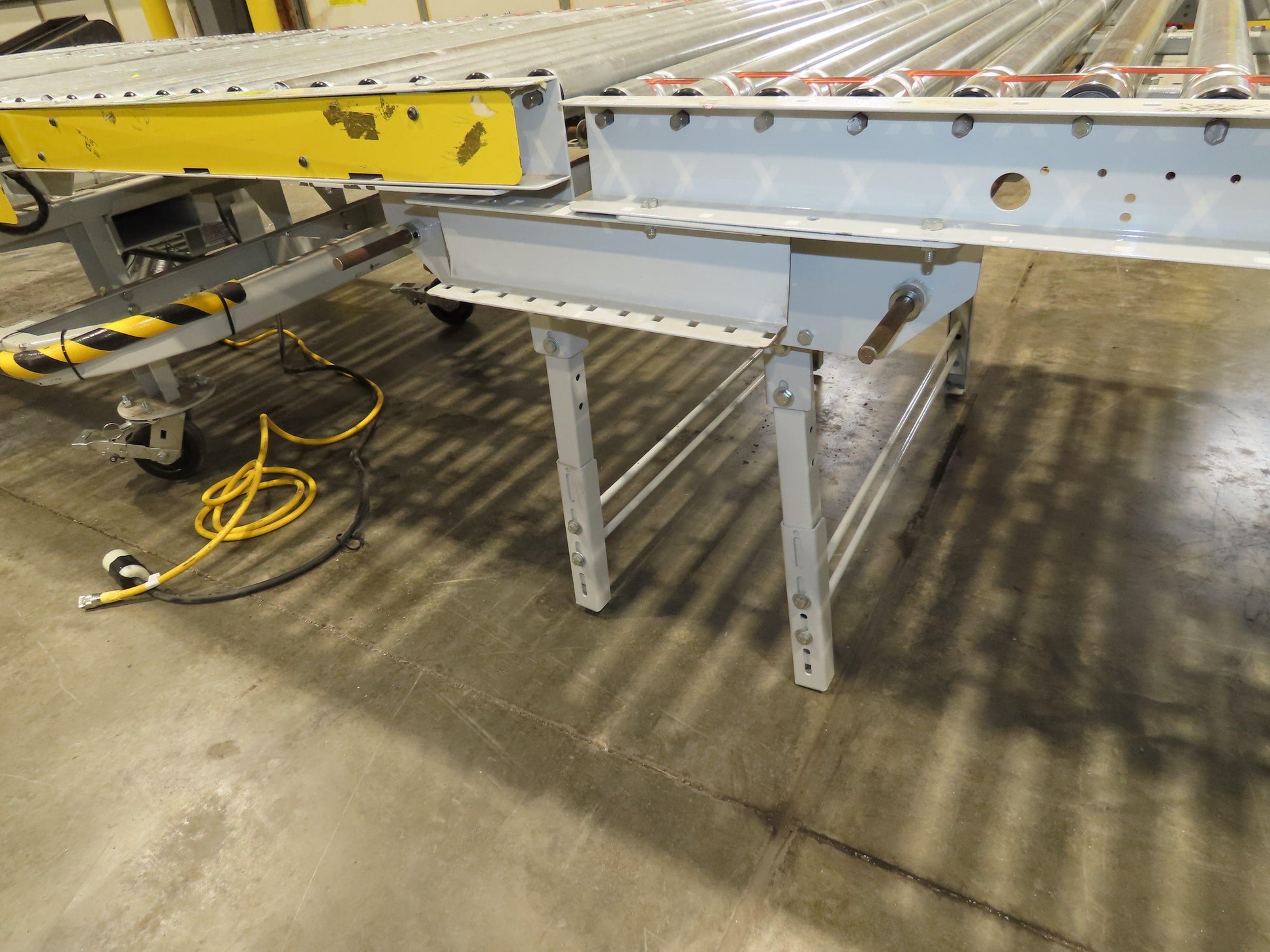

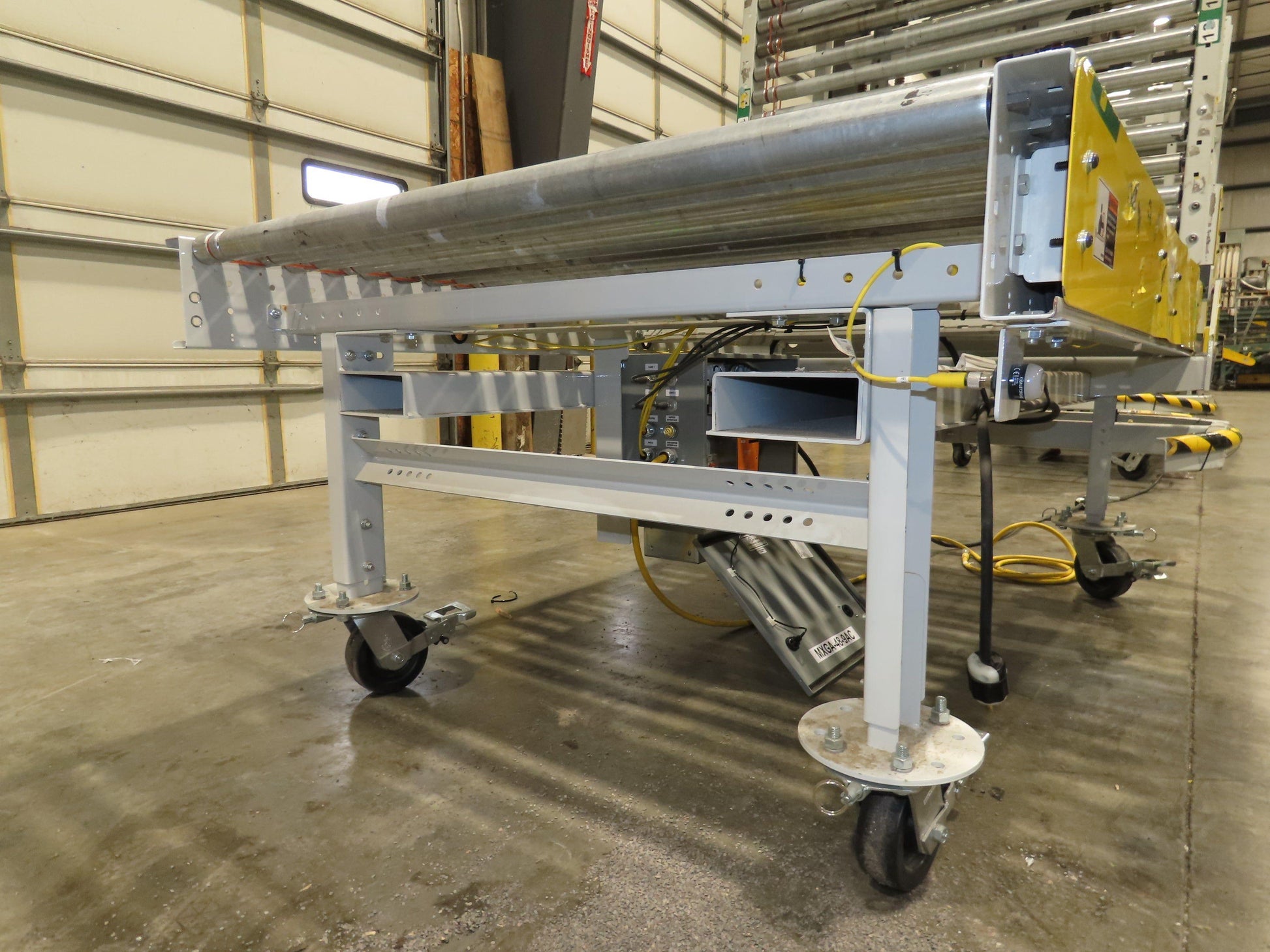

  • Adjustable height legs on 6"x2" swivel casters with brake.
  • Roller height:  31" to 35"
  • Load capacity 50 pounds per foot.

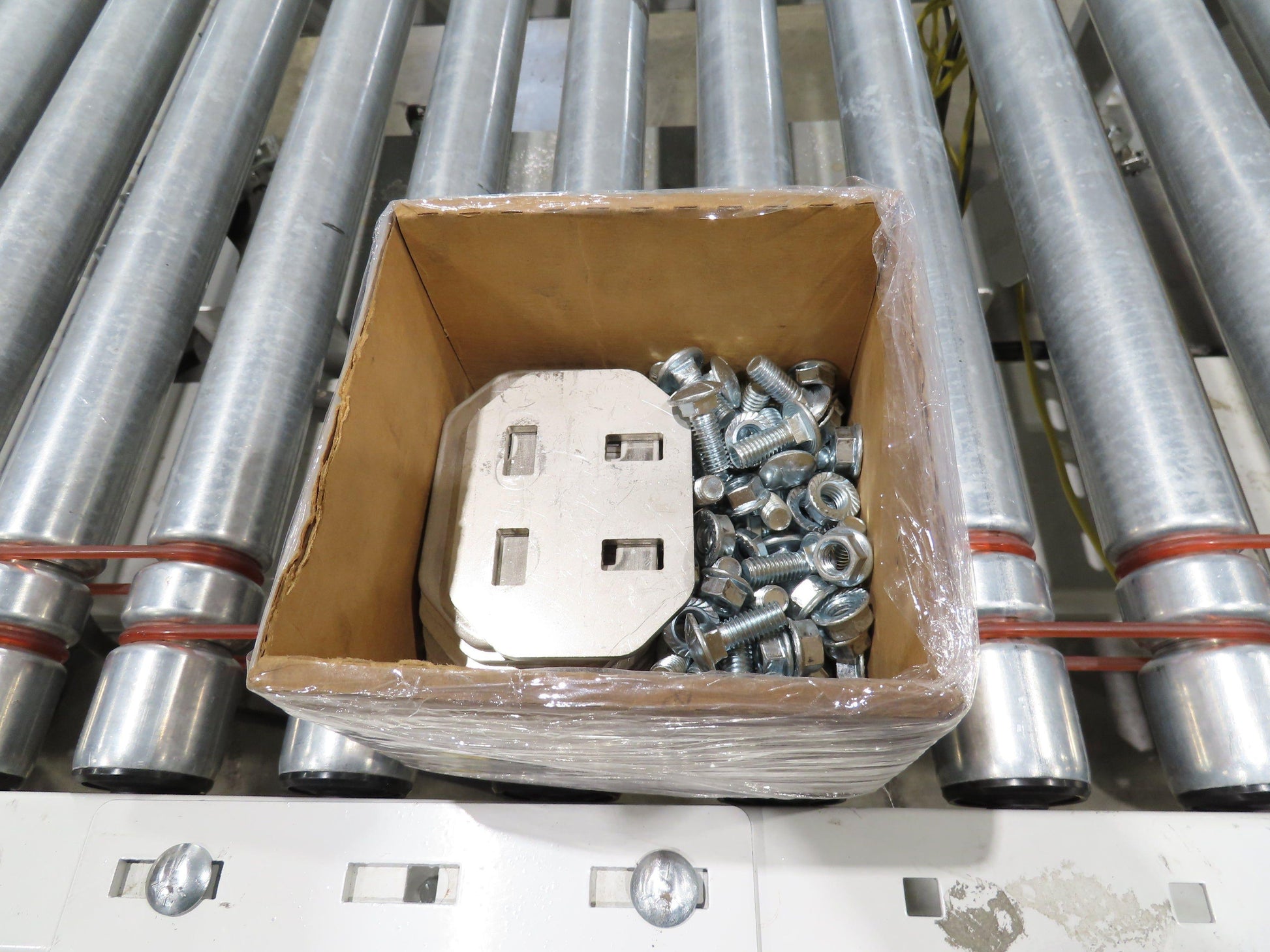

  • Includes bolts and brackets for install.
  • More info available at Convey-x website
