CraneVeyor 2 Ton Free Standing Bridge Crane 23' 8" Span 60' Runway 15' 4" HUB

CraneVeyor 2 Ton Free Standing Bridge Crane 23' 8" Span 60' Runway 15' 4" HUB

SKU #312855

Product Condition: Used

Your Price
$23,749.99
$23,749.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

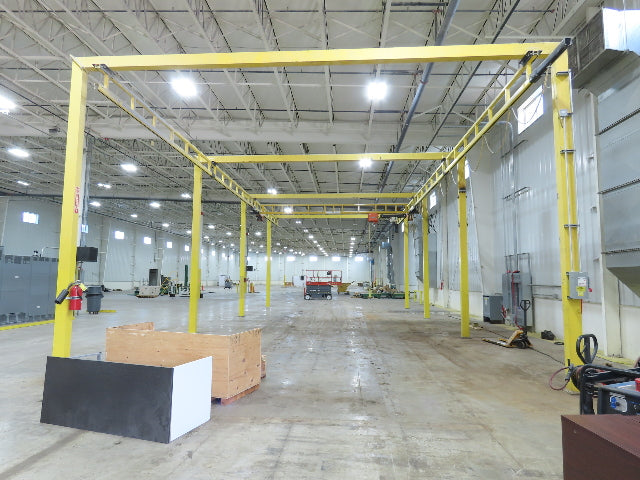

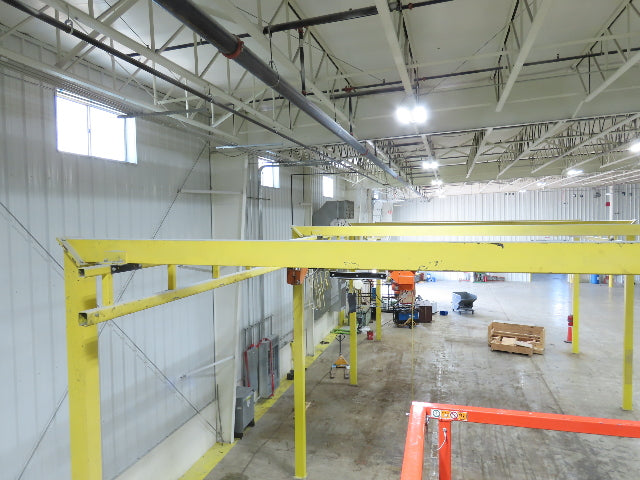

  • Bridge crane in working condition, removed from a working environment.

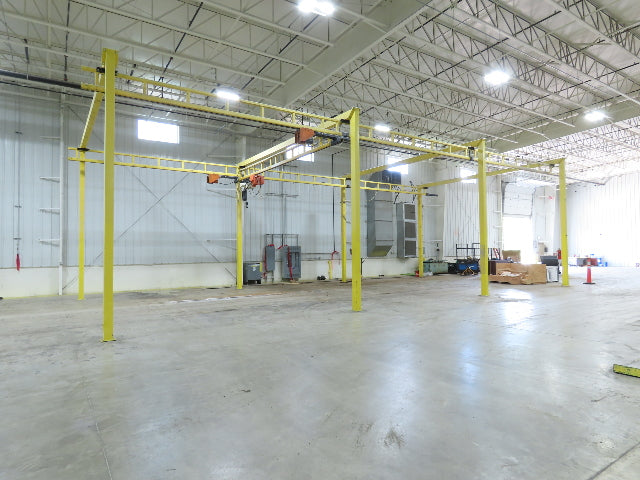

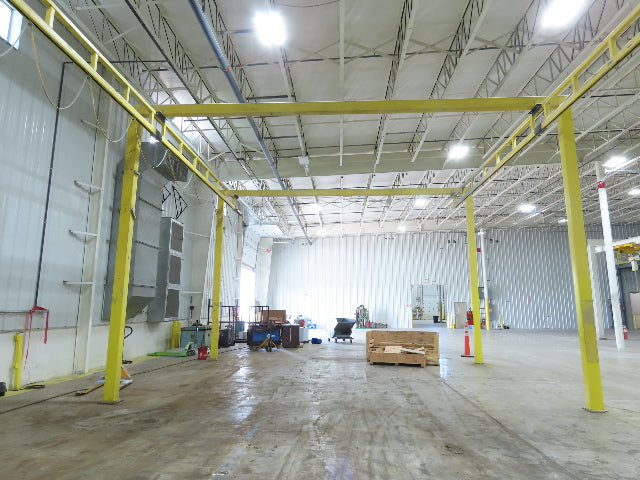

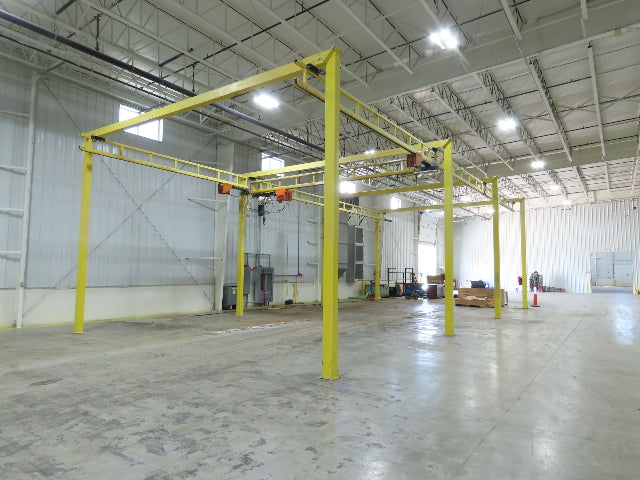

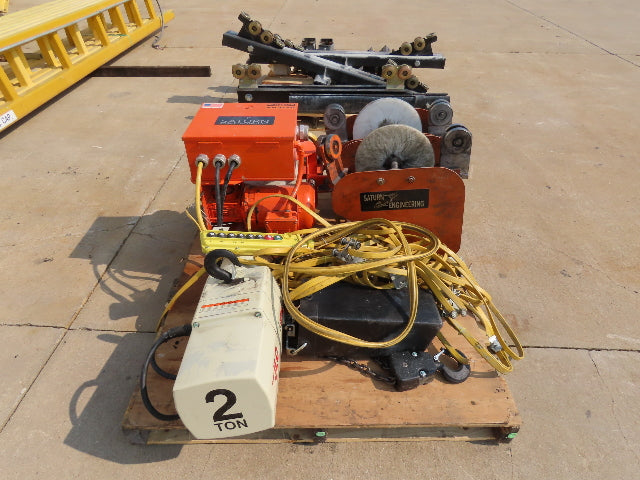

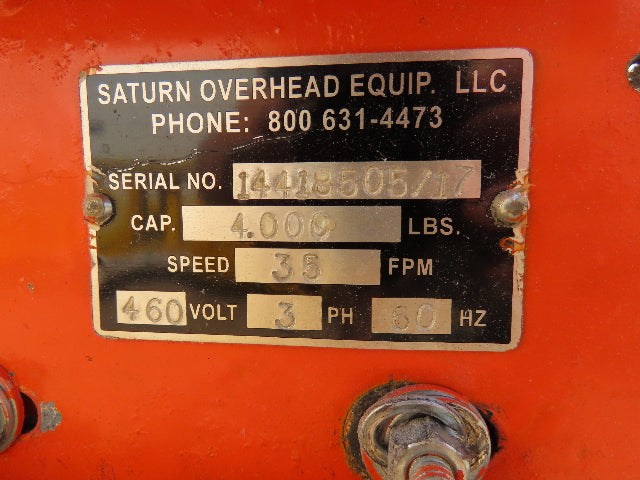

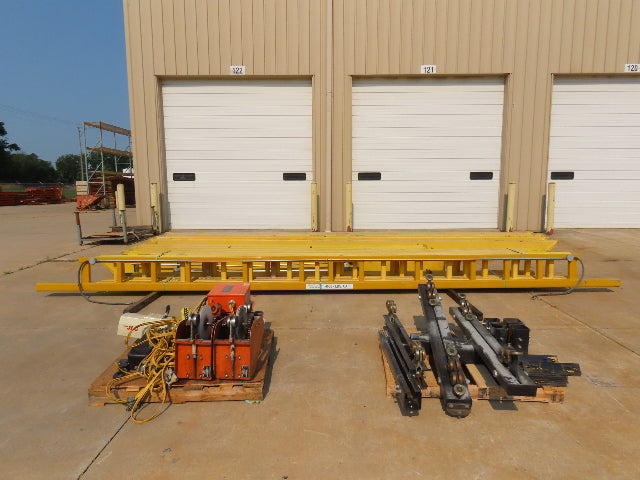

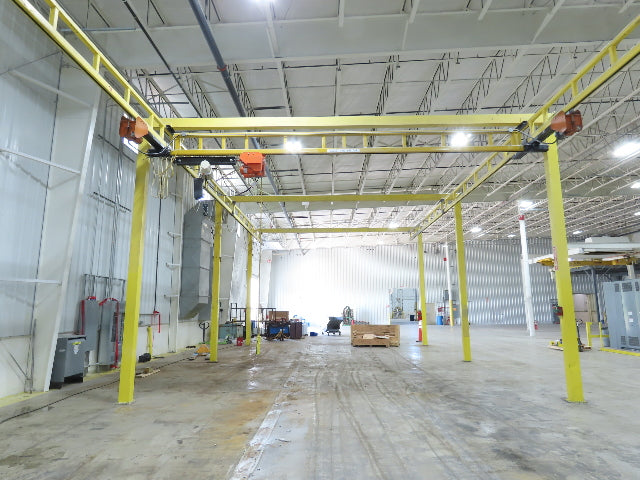

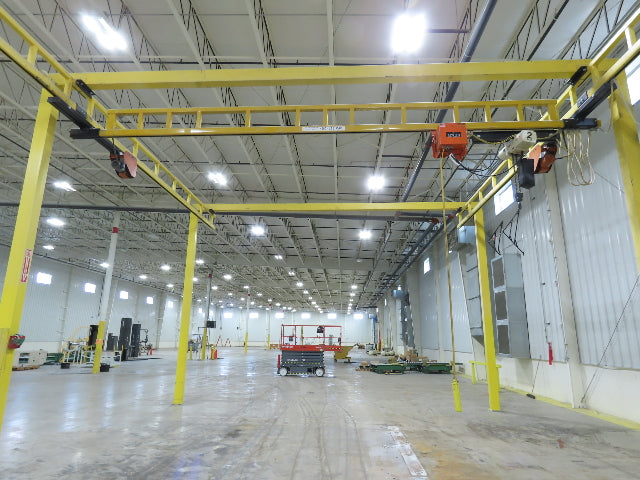

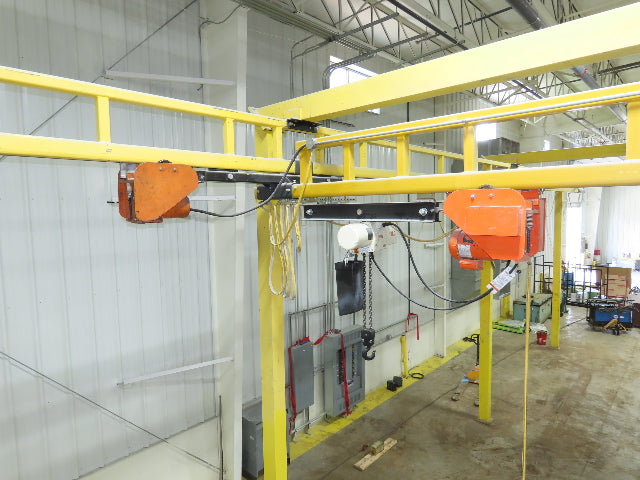

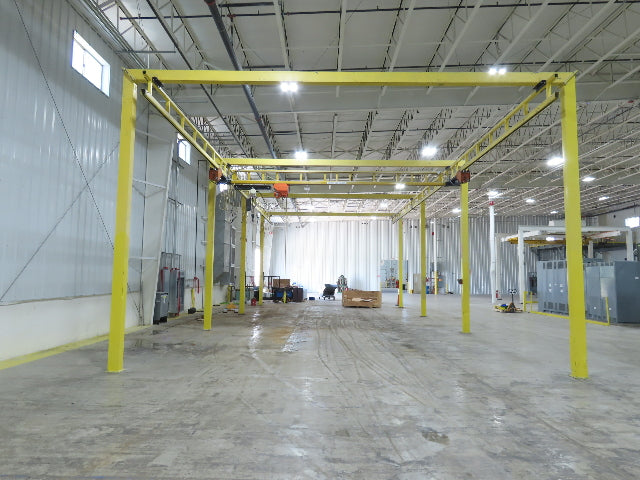

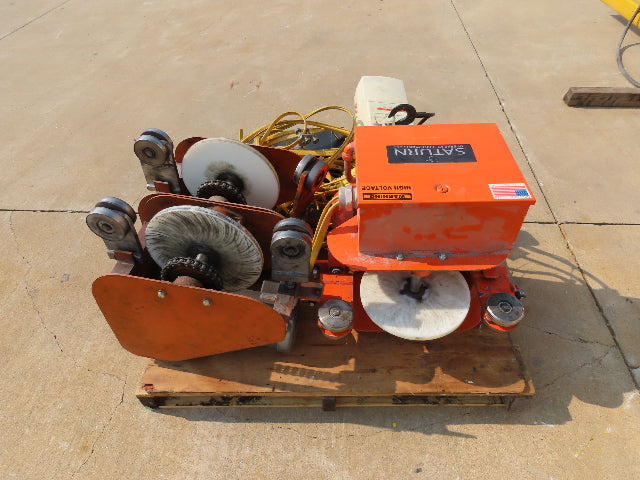

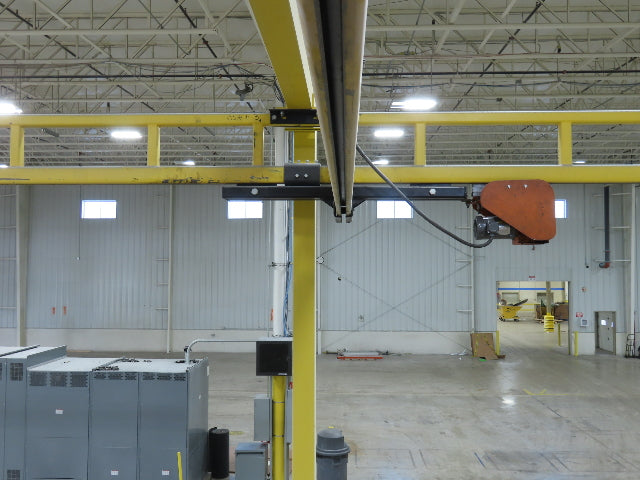

  • 8 Post crane system with Coffing hoist and Saturn trolley tractor.

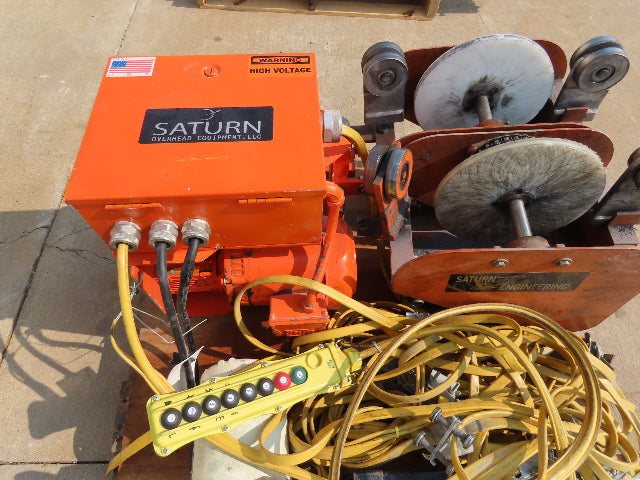

  • Controls:  Corded pendant Single speed hoist with trolley tractor 460V 3PH.

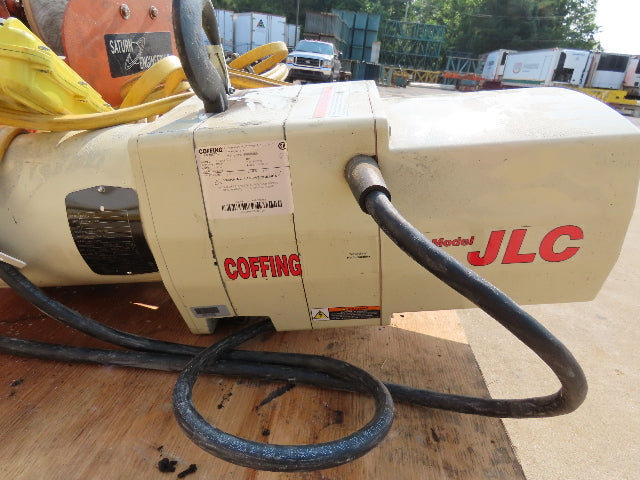

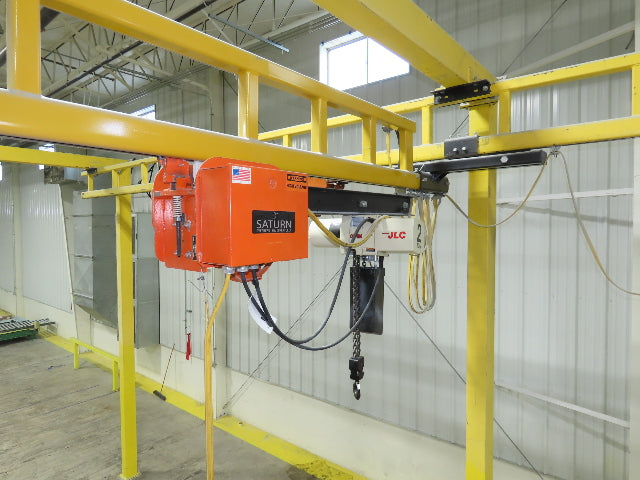

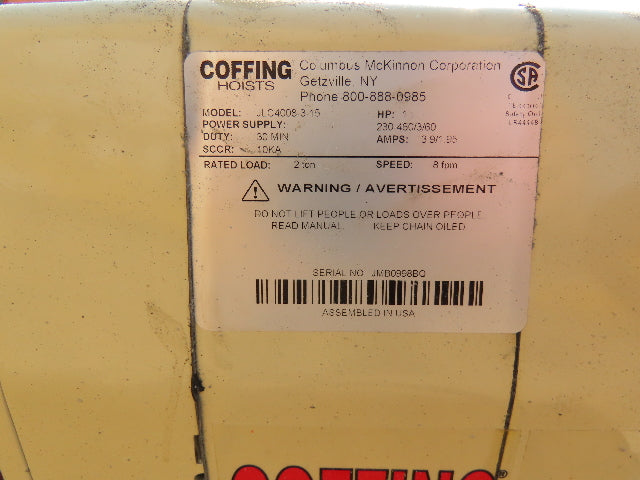

  • Hoist:  Coffing 2 Ton Model JLC4008-3-15 Single Speed 8FPM.

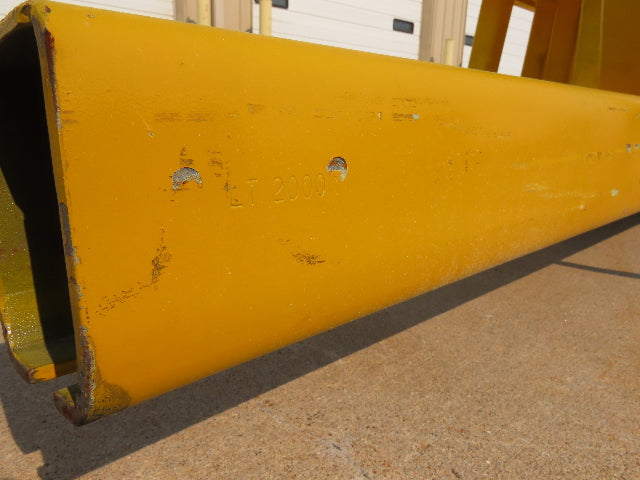

  • Bridge Type:  CraneVeyor Gorbel style rails are stamped LT 2000.

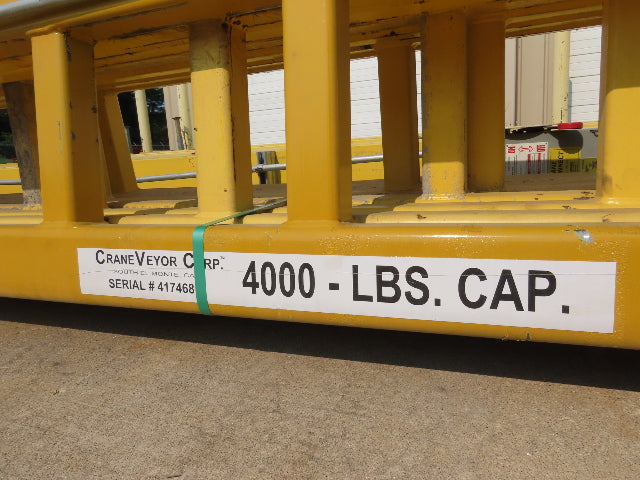

  • Bridge Capacity:  2 Ton
  • Bridge Span:  23' 8"  (Center distance of runways) Span is a few inches adjustable.

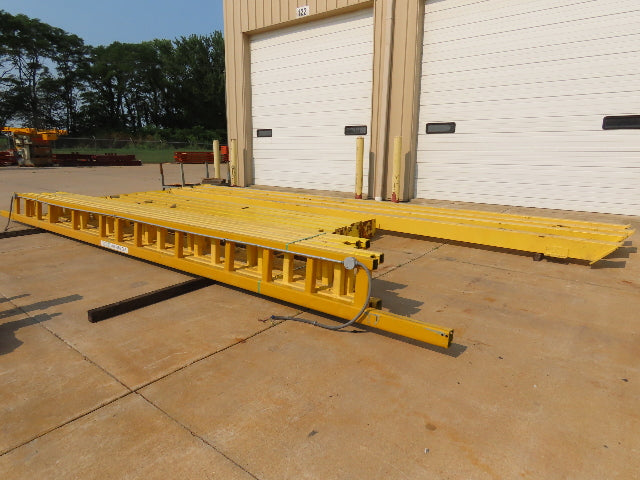

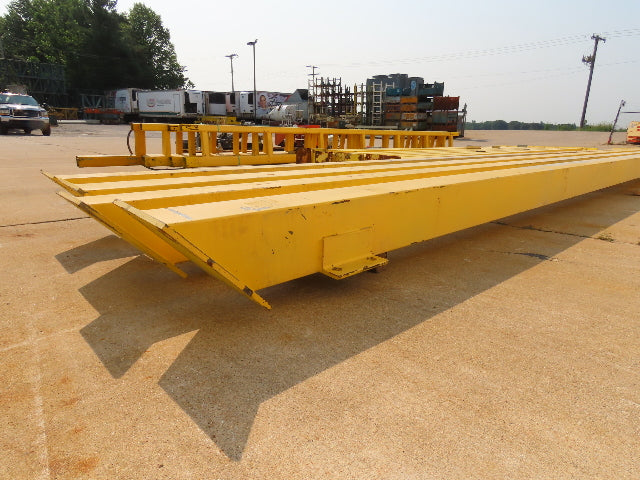

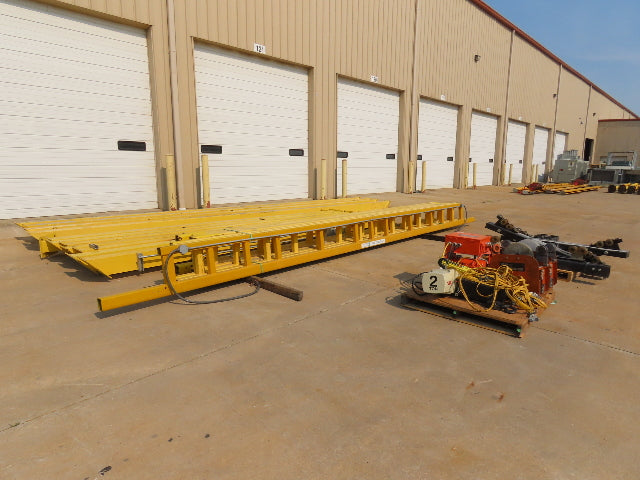

  • Bridge Beam:  25' 10" Length x 18"H

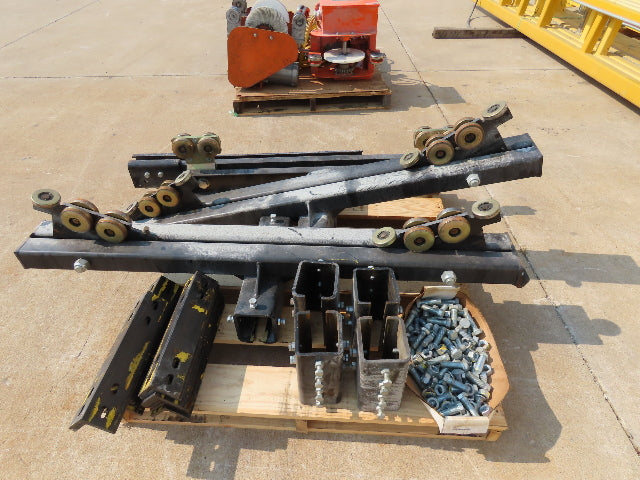

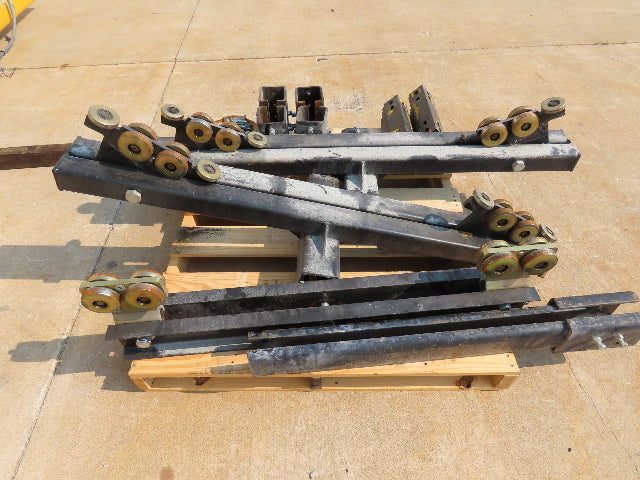

  • End Trucks:  60-1/2" Length x 6-1/2"W.
  • Runway Length:  60' length.

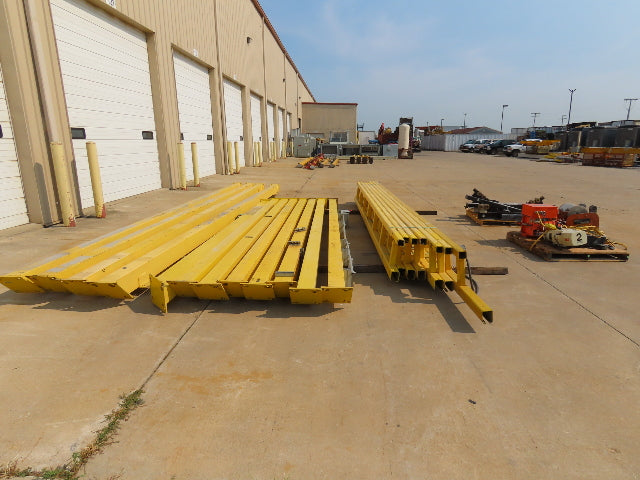

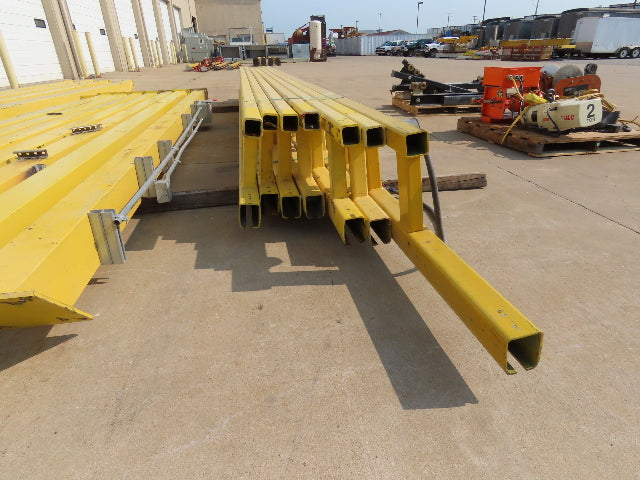

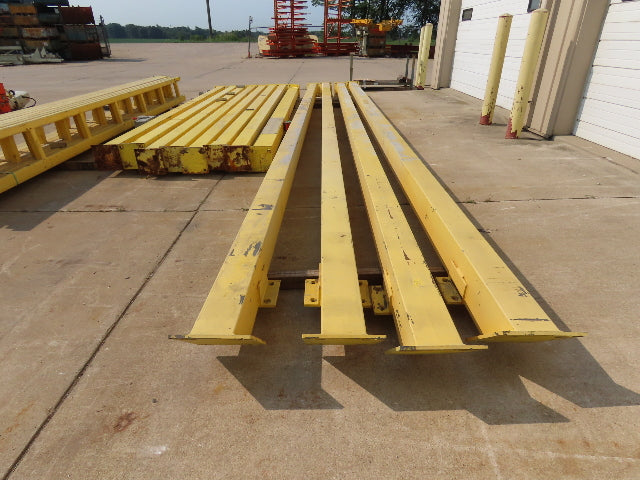

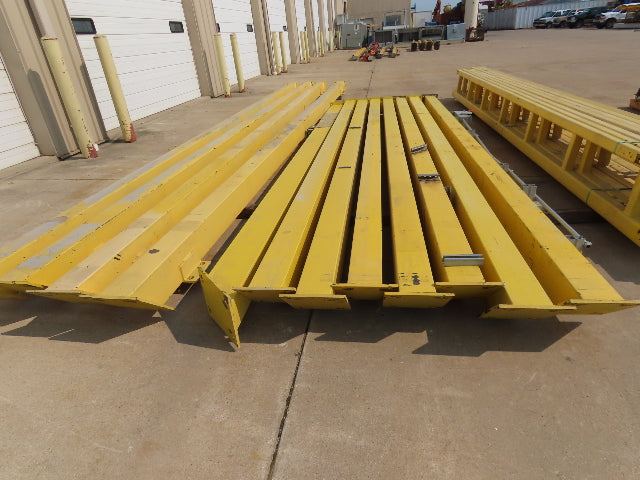

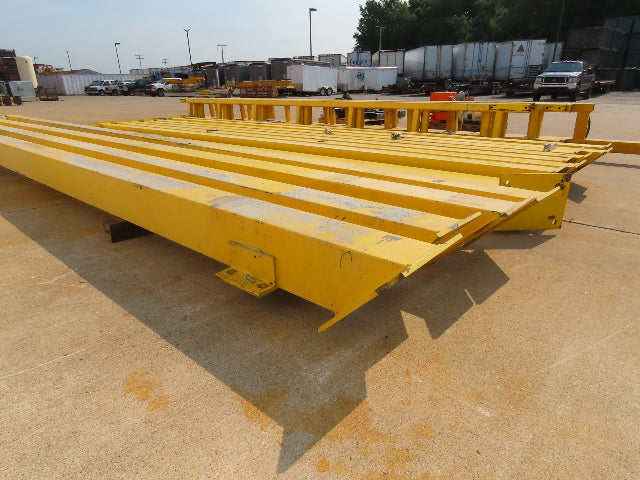

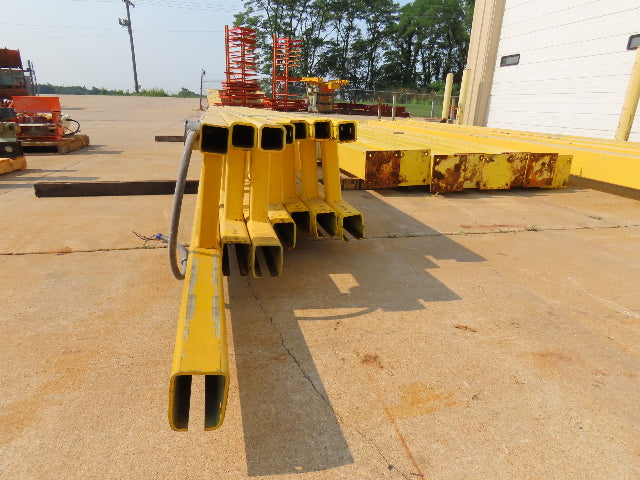

  • Runway Beams:  (2) 19'  (2) 19' 7.5"  (2)  21' 4.5"  (120' Total Length)  18" Rail Height.

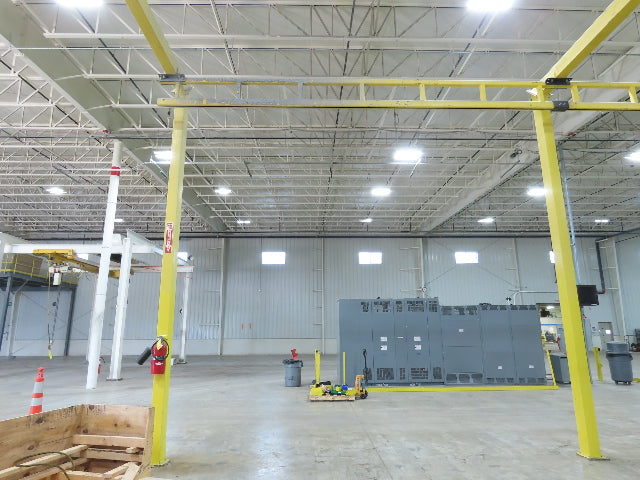

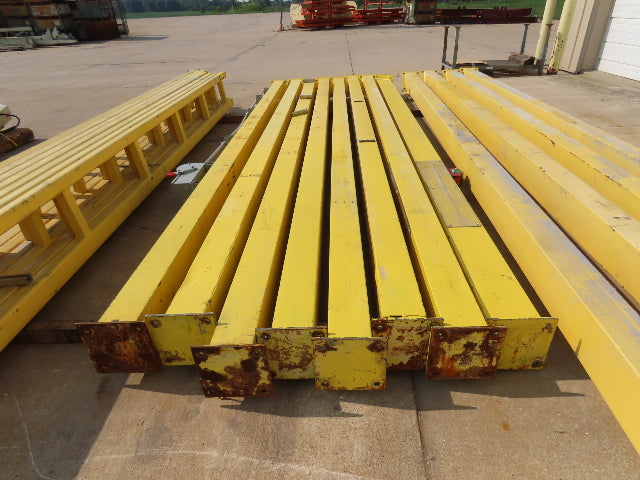

  • Upright Post Height : (8x) 18' 3"
  • Upright Post Width:  6"x8" with a 10" base.
  • Cross Beams:  27' 9" Length.  6"x8"
  • Clearance Heights:
  • Height Under Bridge Beam:  15' 4"
  • Height Under Hoist Hook:  13'  (This is with hook fully retracted, hook may be currently set at a lower height than this)
  • Height Under Hoist Chain Bucket:  12' 4"
  • Height Under Runway Beams:  16' 1"
  • Top Clearance Height:  18' 4"
  • Overall Footprint:  58' 8" Length.  27' 10" Width.
  • Posts are spaced 18' apart.
  • Ship weight is approximate.

Condition: Used
