Custom Steel Hydraulic Punch Press Side Lug Cylinder Mount Fixture DIY See Info

Custom Steel Hydraulic Punch Press Side Lug Cylinder Mount Fixture DIY See Info

SKU #152192

Product Condition: Used

Your Price
$325.46
$570.99 $325.46
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
N/A
MPN
N/A
Condition
Used

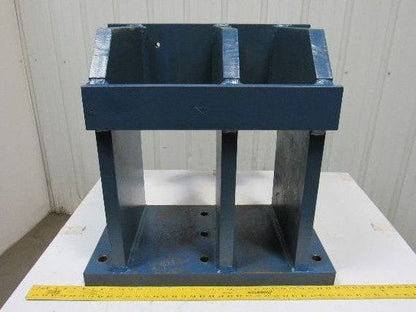

  • Construction Is:

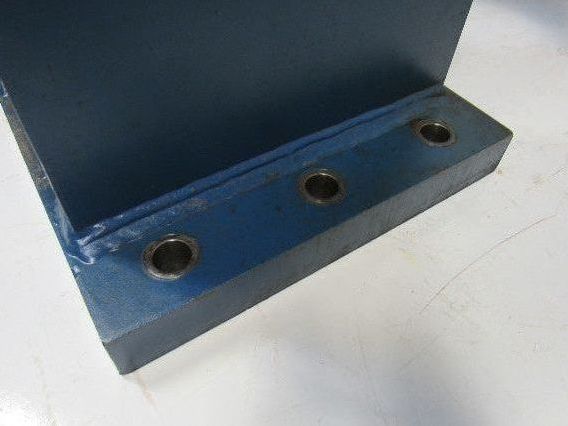

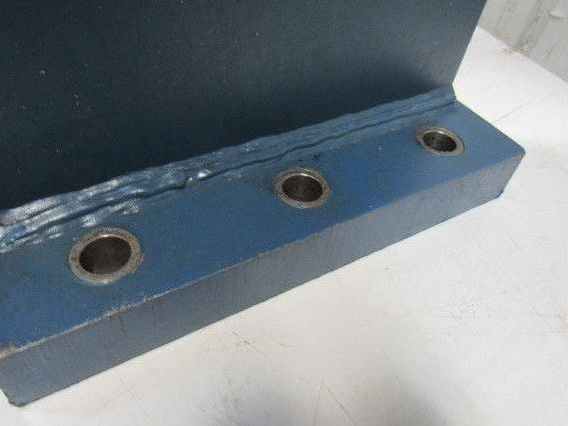

  • Base Steel Is 2" Thick 28" Wide 15" Deep
  • Vertical Pieces Are 1-1/2" Thick 14" at The Base And 19-1/2" At the widest Part
  • Spacing For The Upright Measured Left Edge To Right, (viewed from the front) 4" to center 12-1/4" to center and the last, 24-1/6"
  • Fixture from Top To Bottom 27-3/8"
  • Front Mount Accommodates 5HHSL2KY6 5" bore 2" stroke 3000 psi hydraulic cylinder (Not Included, But mentioned To give you an idea of what worked)

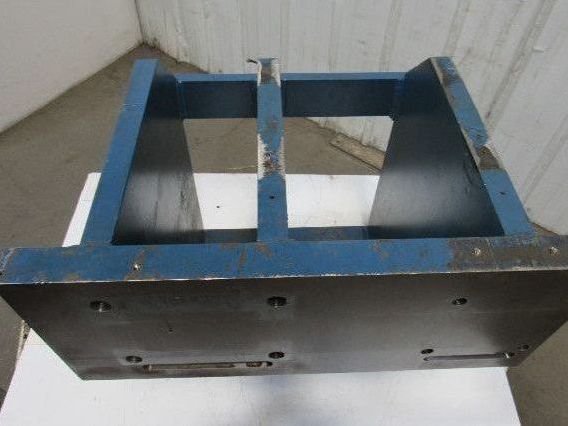

  • Front Plate Where Cylinders Are Mounted Measures 2" Thick 12" x 28"
  • 7-1/2" throat As It Sits, That Will Increase When Cylinders Are Installed
  • there Is a 1" Thick x 4" x 23-3/4" Welled Cross member In Back
  • Bottom Edge Of Front Cylinder Mount to Base Mount Is 15-1/4"
  • Nice Solid Piece, Appears To Have No Repairs Or Rewelds
