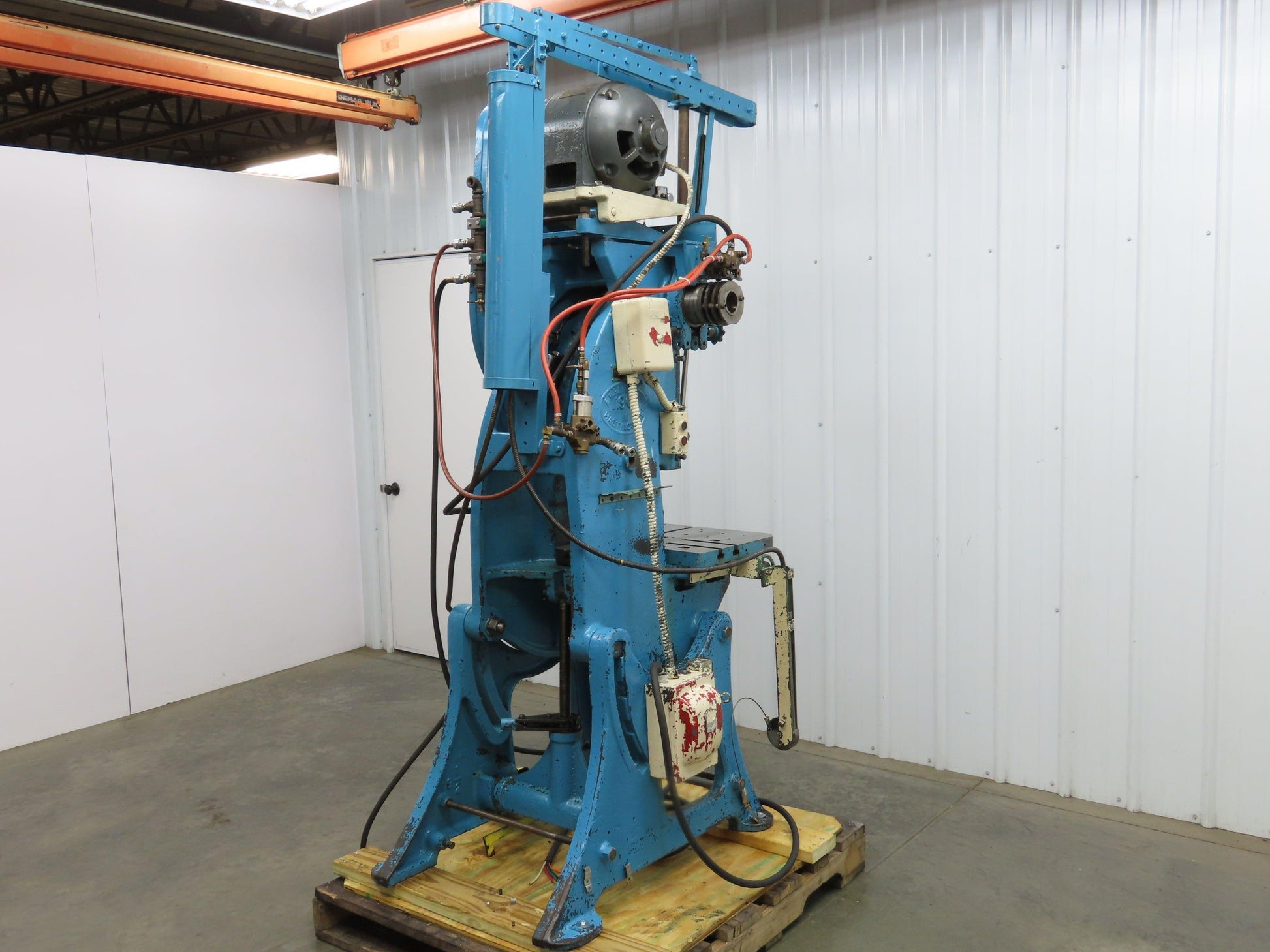

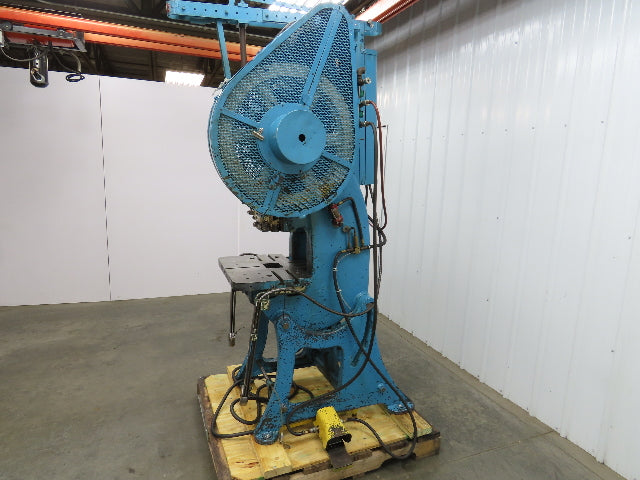

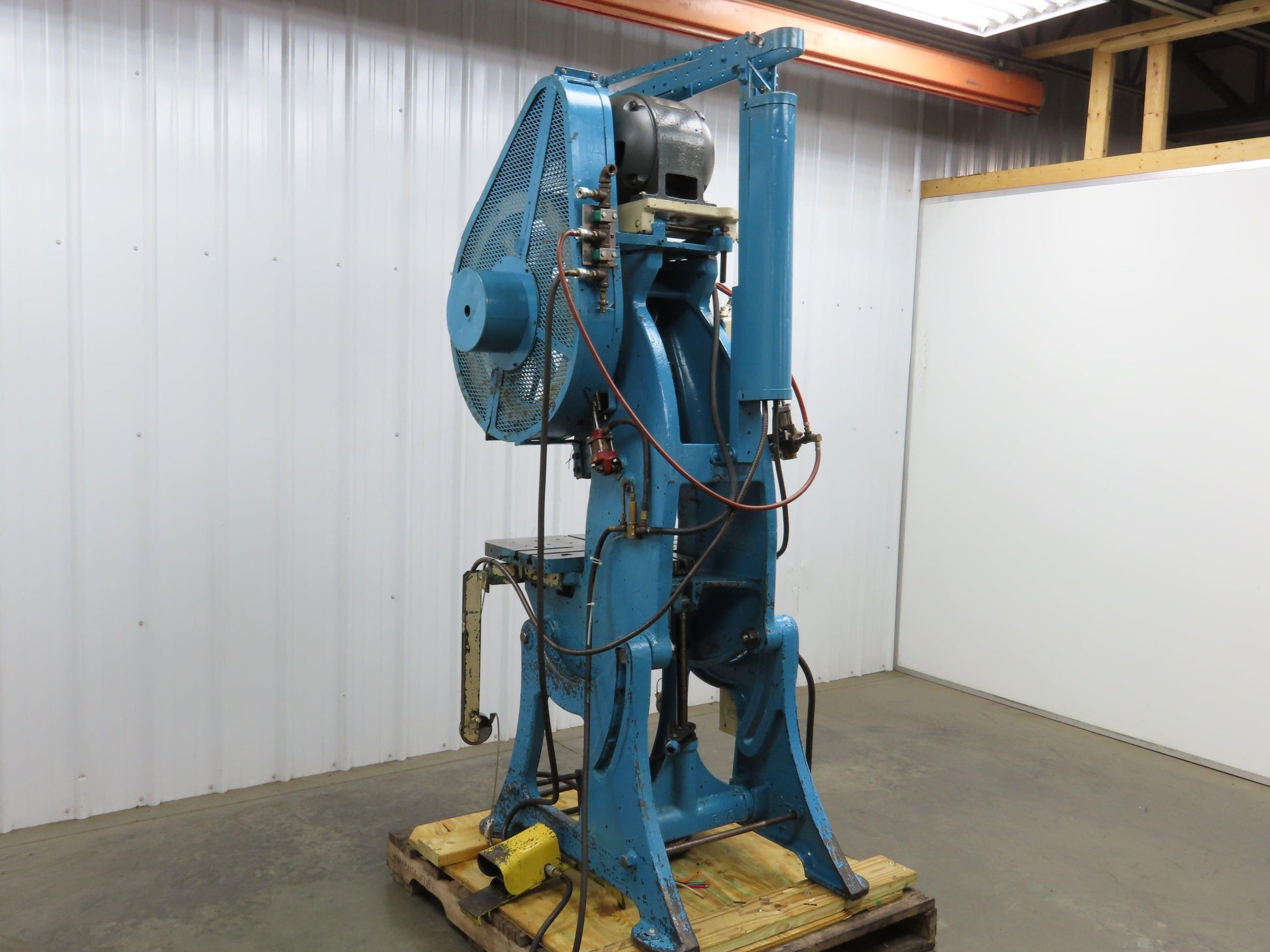

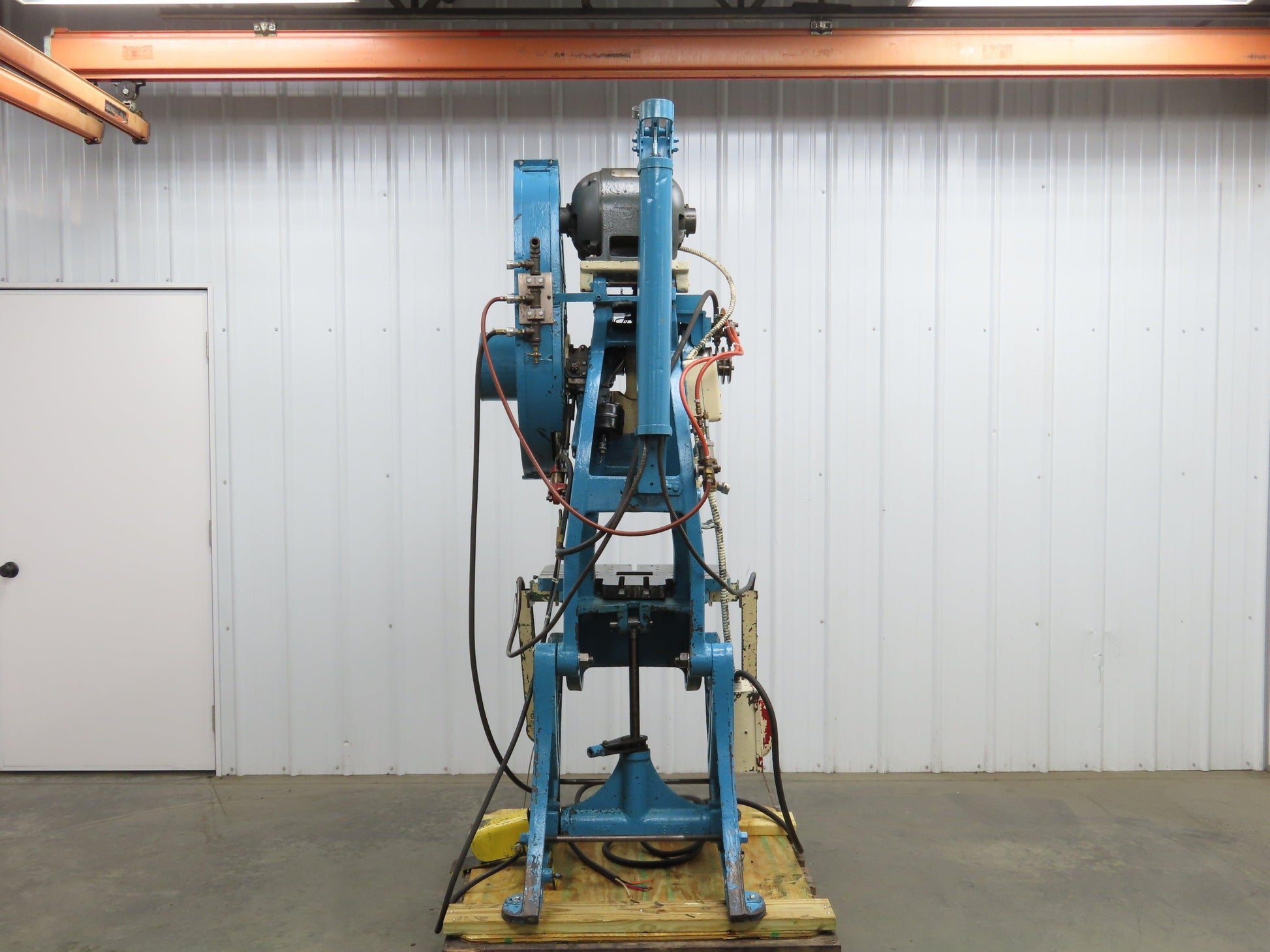

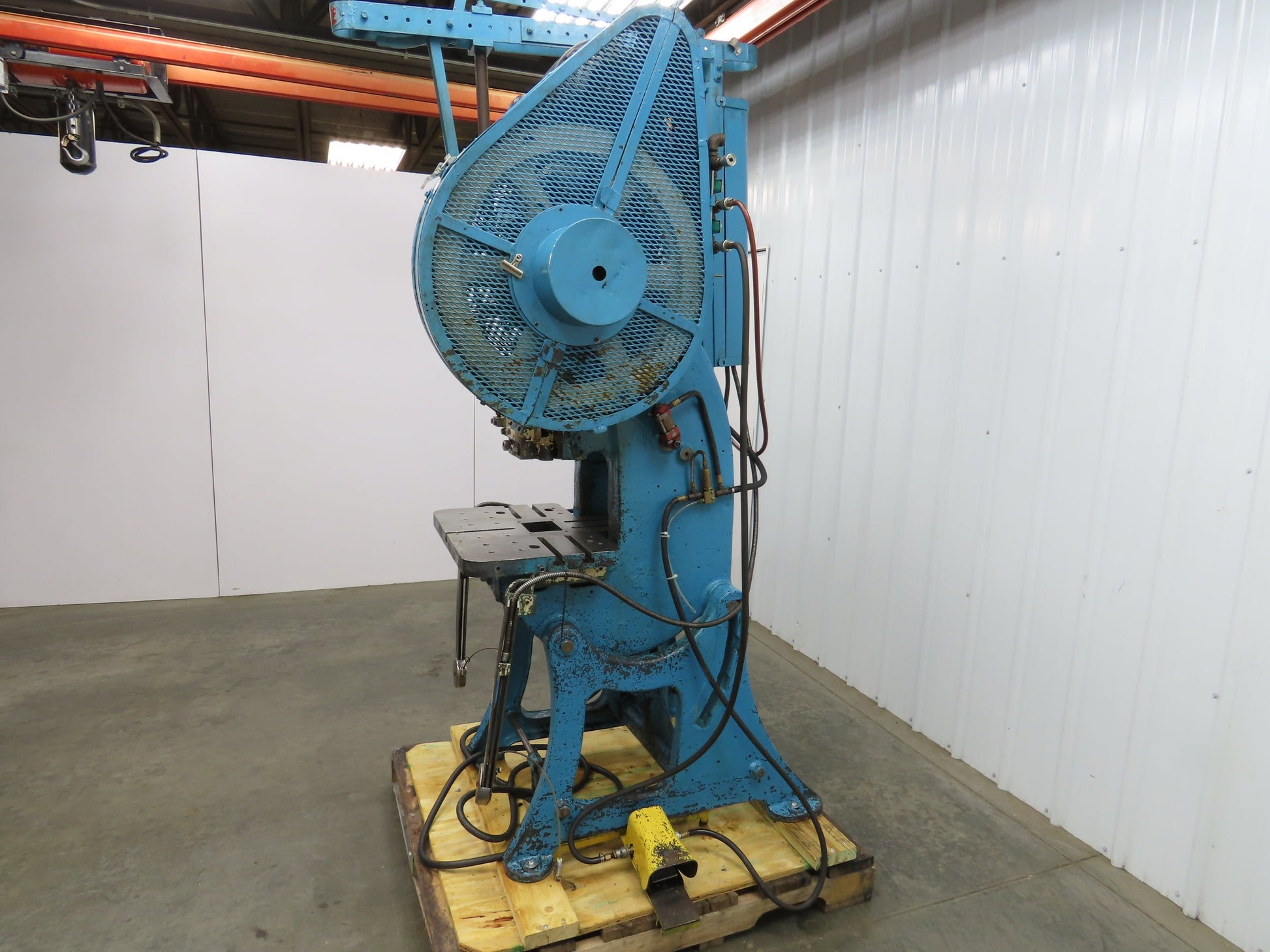

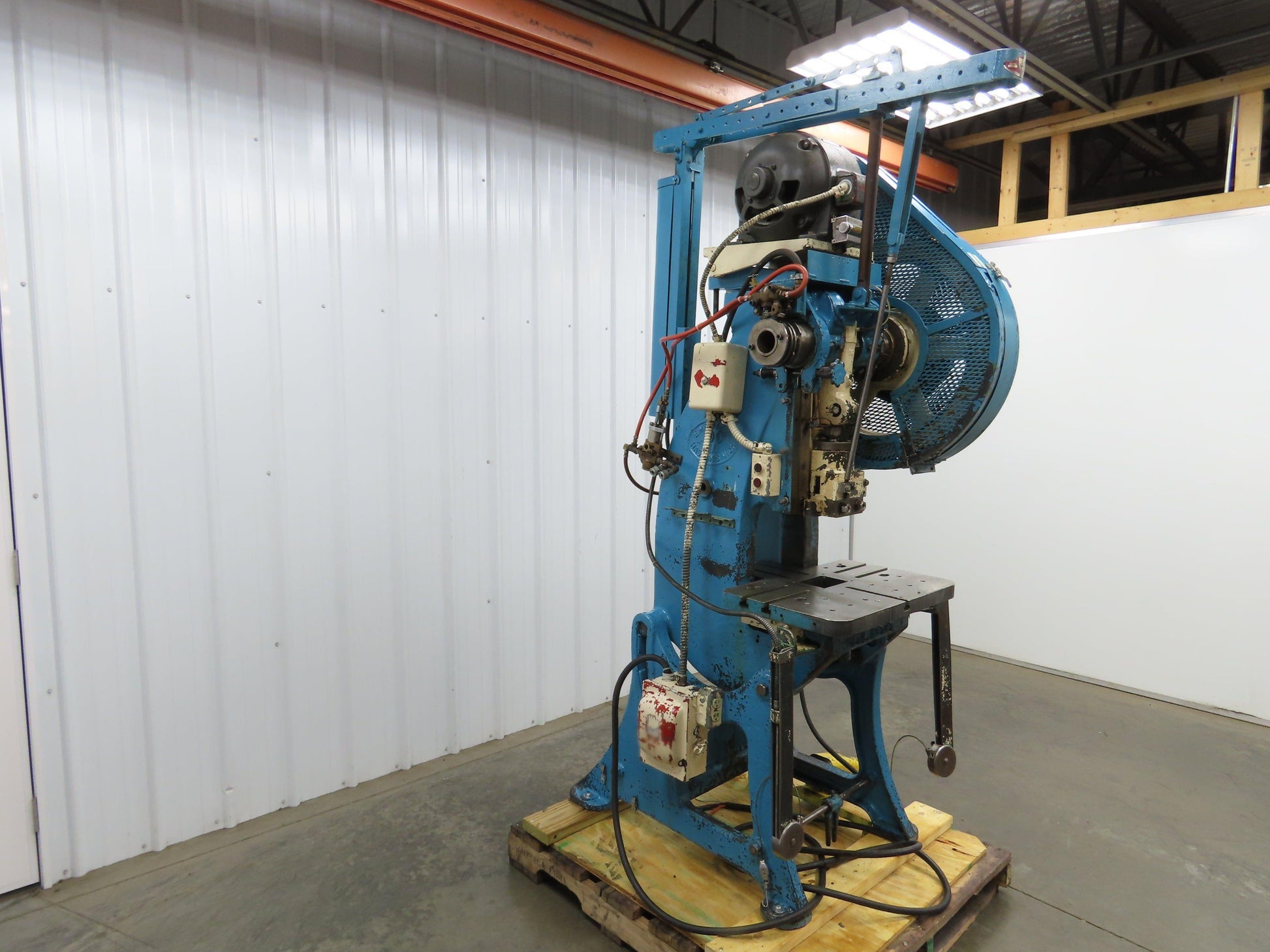

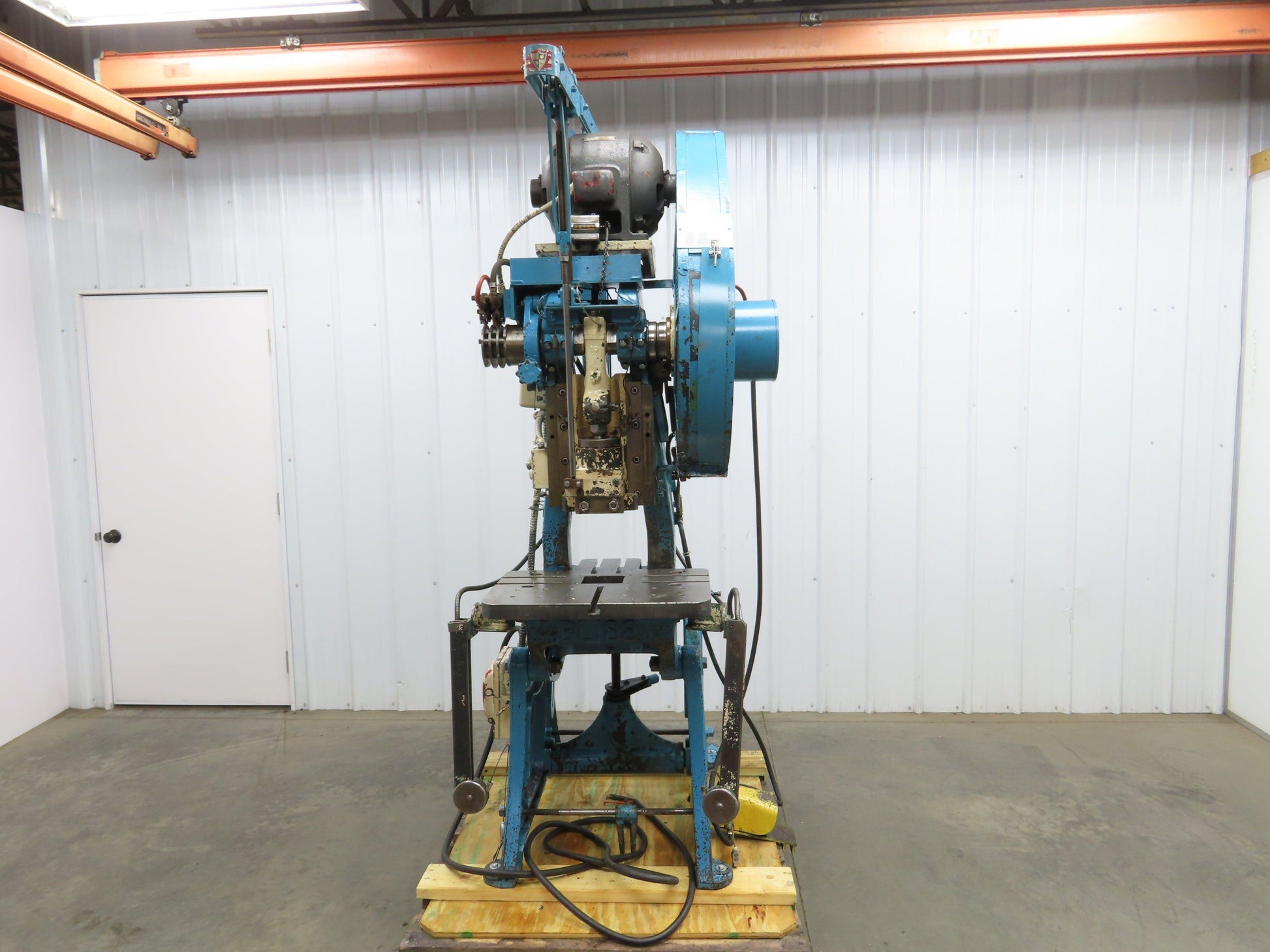

E W Bliss 19C Mechanical OBI Punch Press 19 Ton 2" Stroke 6" Throat 2Hp 3Ph

E W Bliss 19C Mechanical OBI Punch Press 19 Ton 2" Stroke 6" Throat 2Hp 3Ph

SKU #268145

Product Condition: Used

Your Price
$2,393.99
$2,799.99 $2,393.99
Sale Sold out
Shipping calculated at checkout.

1 in stock

Product Details

Brand
E W Bliss
Model
19C
MPN
19
Condition
Used

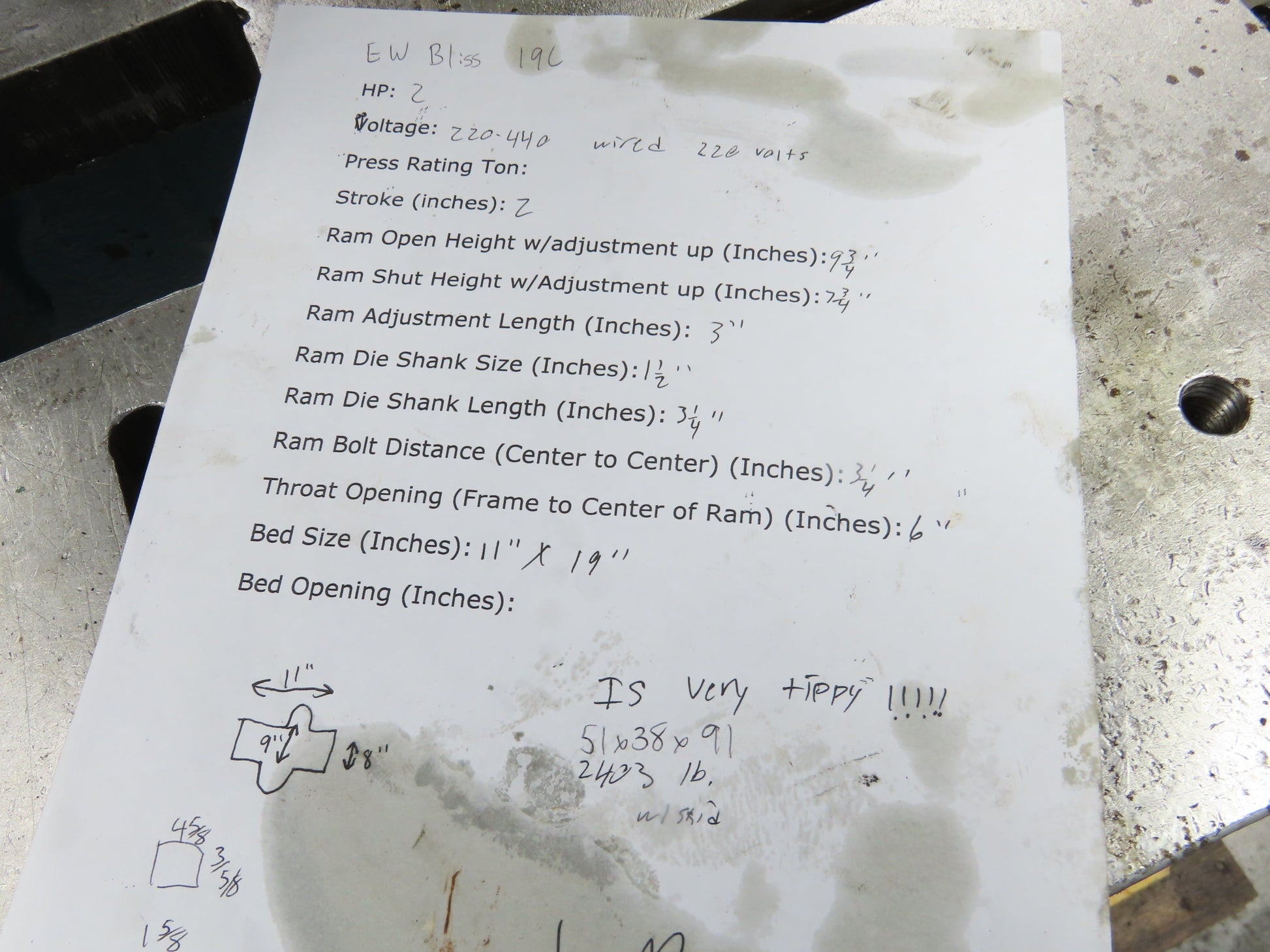

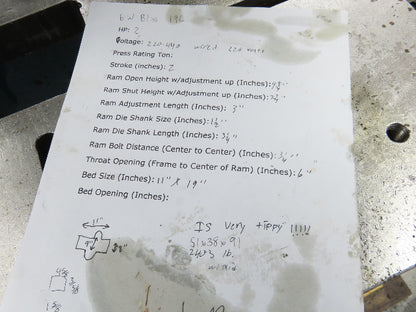

  • HP: 2
  • Voltage: 220/440
  • Press Rating Ton: 19 This may not be right No 19 size is rated between 16-20 tons
  • Stroke (inches): 2
  • Ram Open Height w/adjustment up (Inches): 9-3/4
  • Ram Shut Height w/Adjustment up (Inches): 7-3/4
  • Ram Adjustment Length (Inches): 3

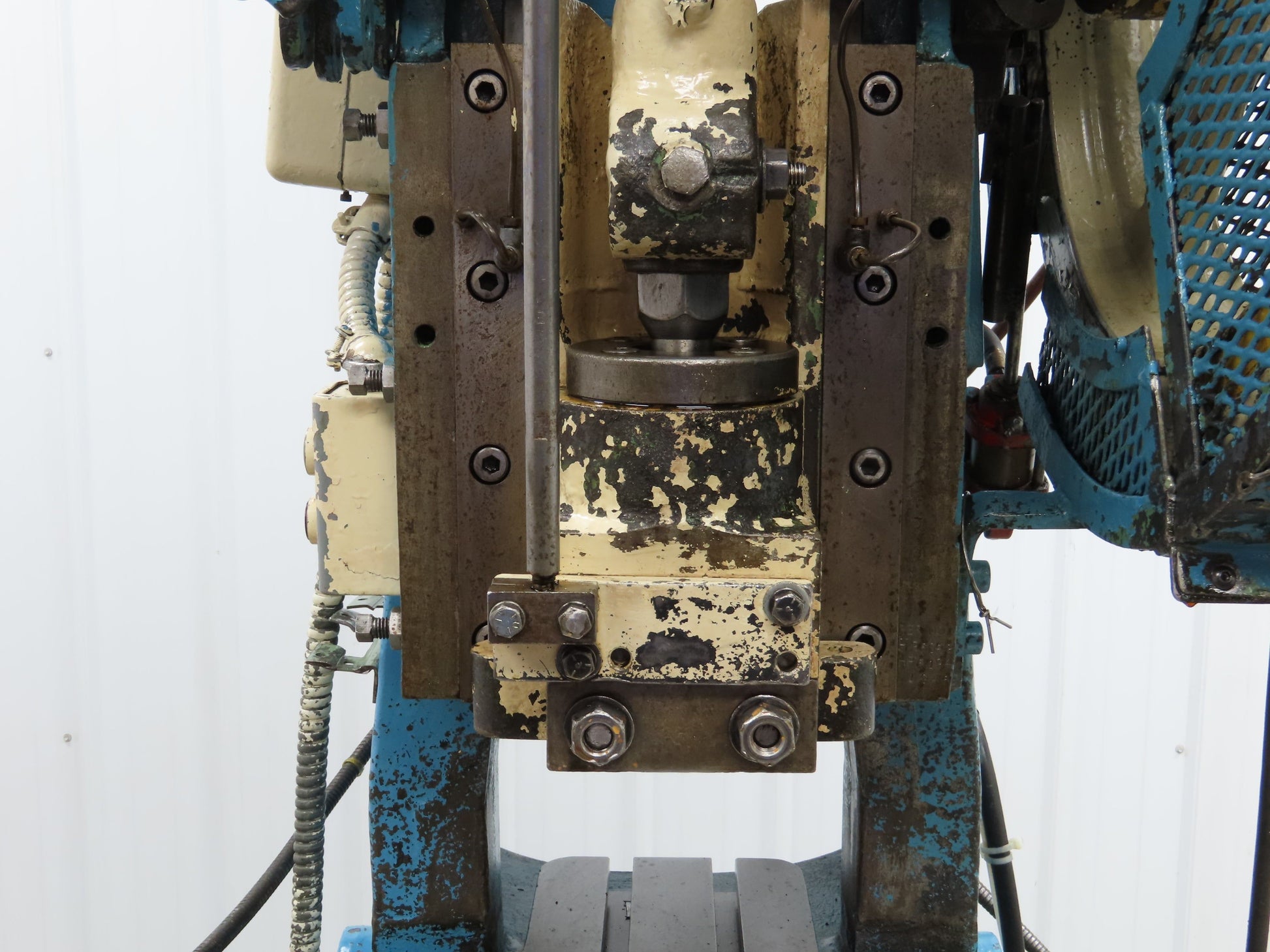

  • Ram Die Shank Size (Inches): 1-1/2
  • Ram Die Shank Length (Inches): 3-1/4
  • Ram Bolt Distance (Center to Center) (Inches): 3-1/4
  • Throat Opening (Frame to Center of Ram) (Inches): 6
  • Bed Size (Inches): 11x19
  • Bed Opening (Inches): 9x11
  • Used, in Good Working Condition, Tested OK.
  • Tested in our shop.
  • Wired for 208V 3 phase

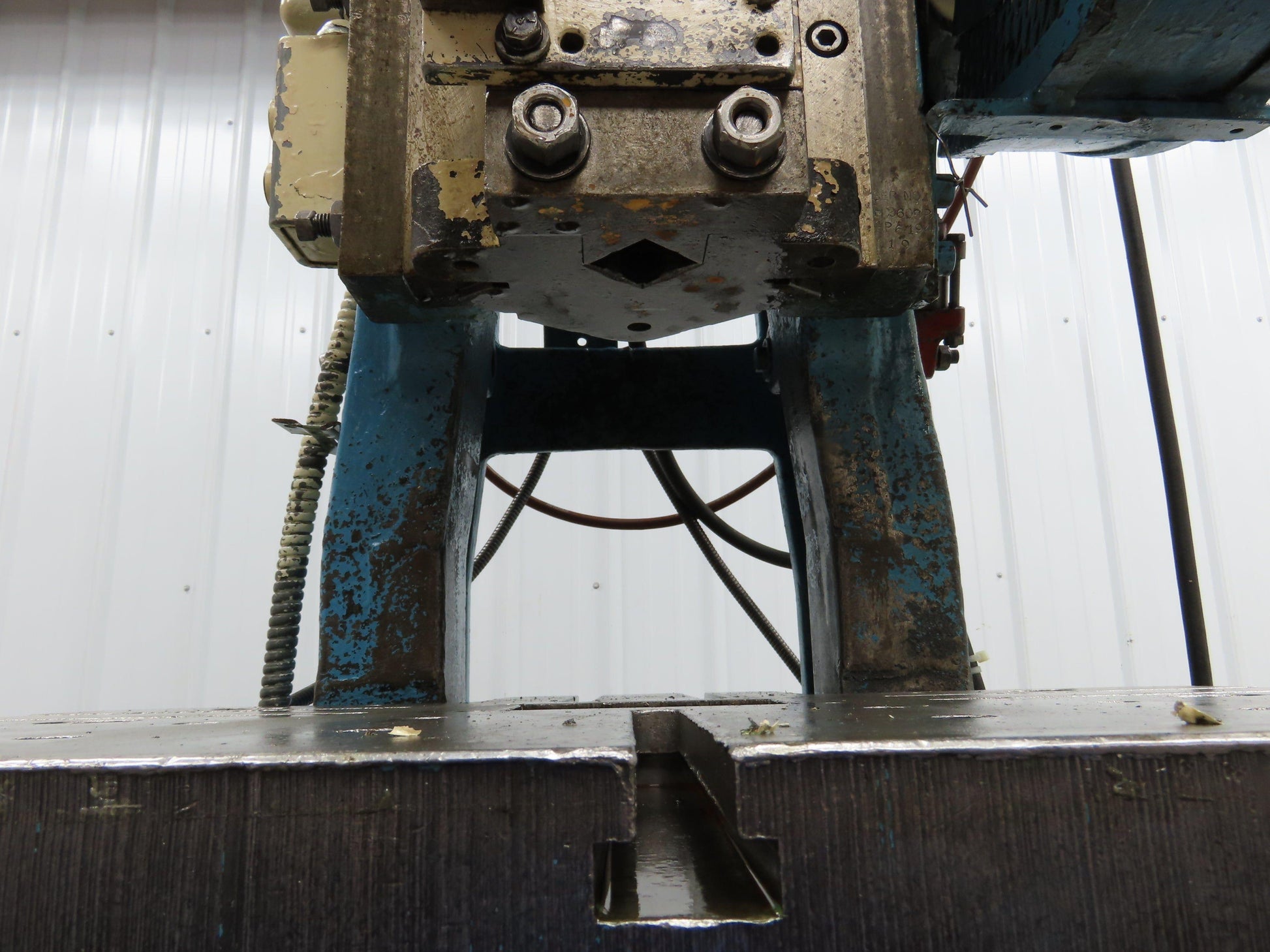

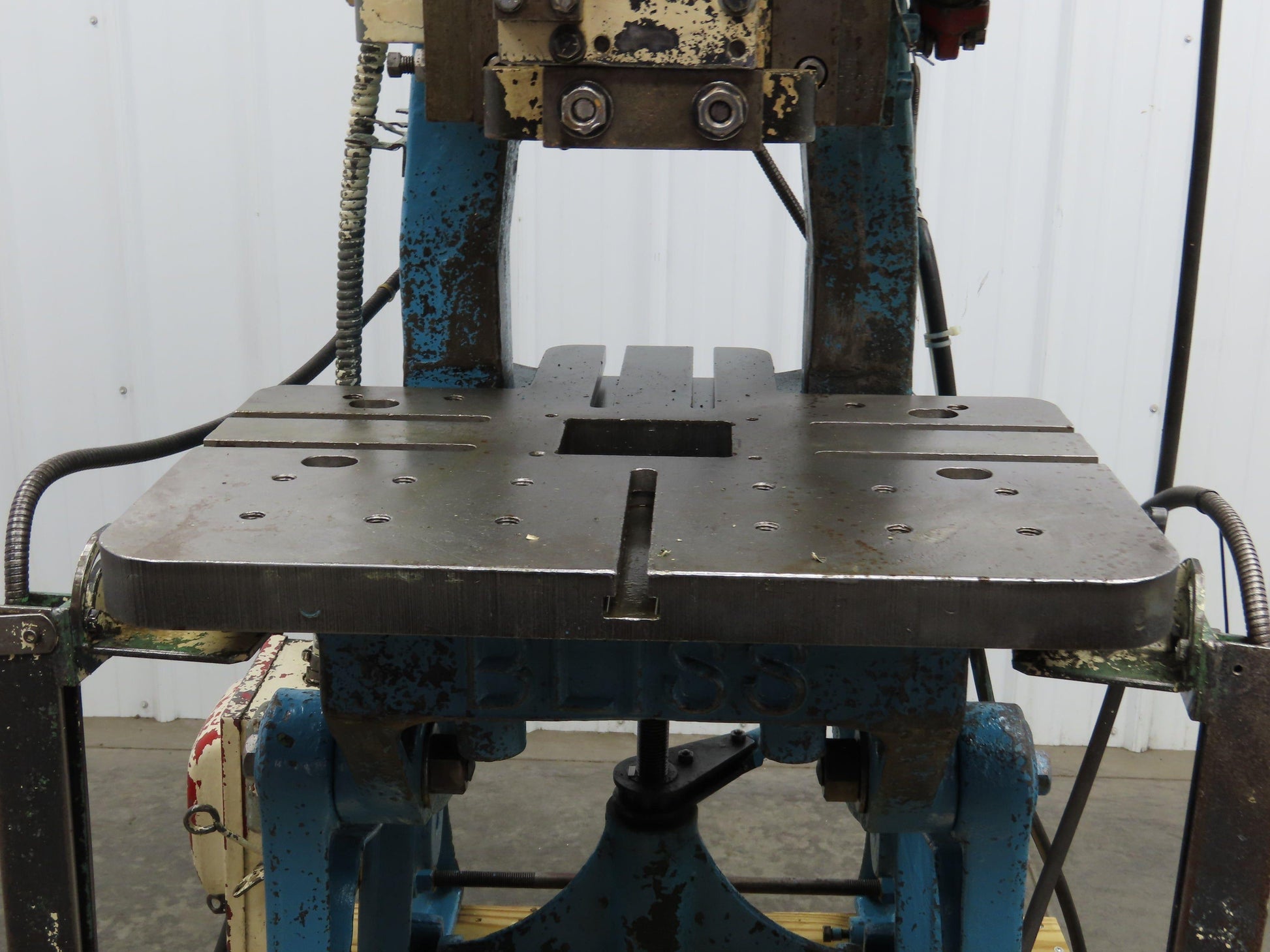

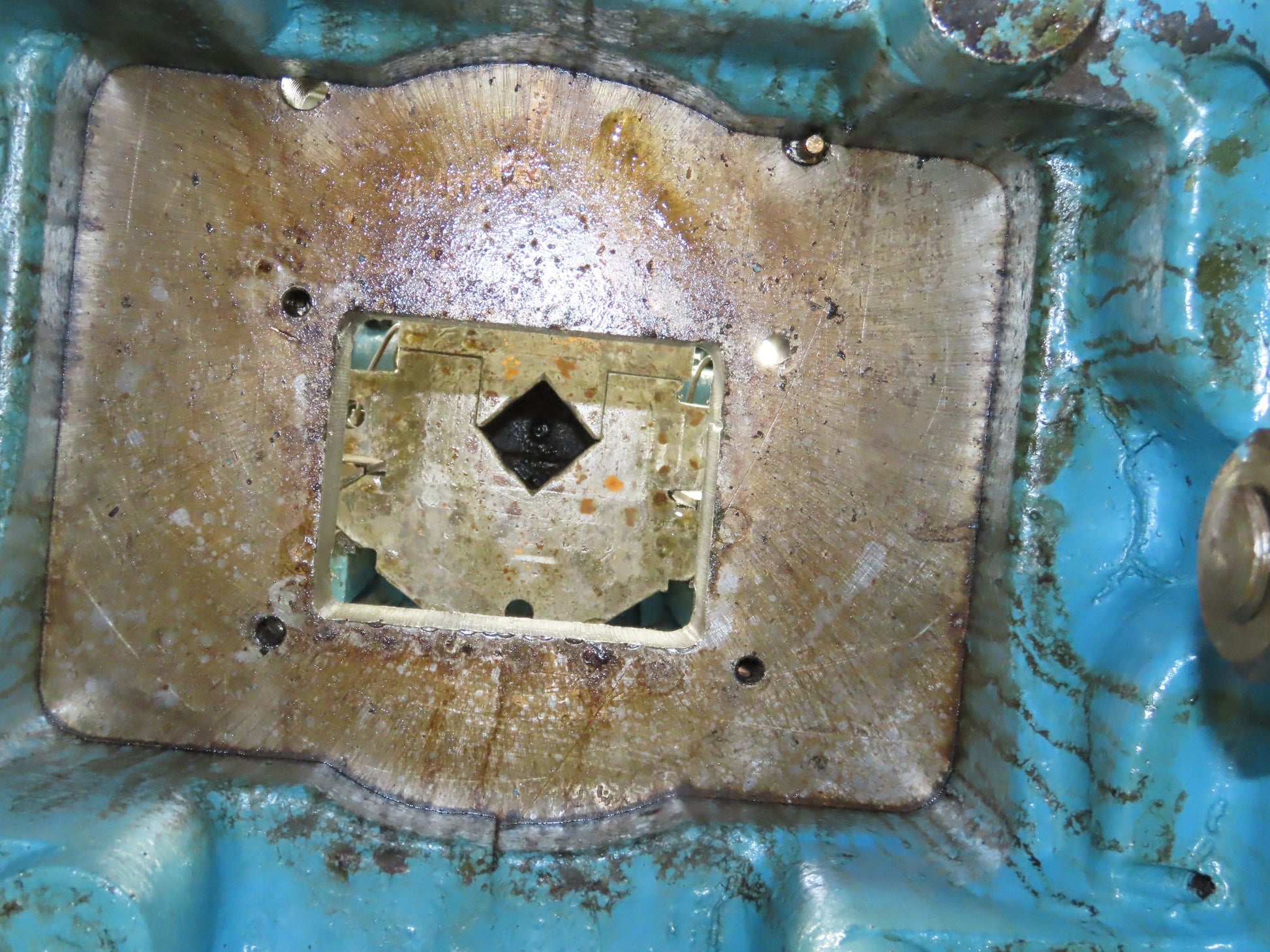

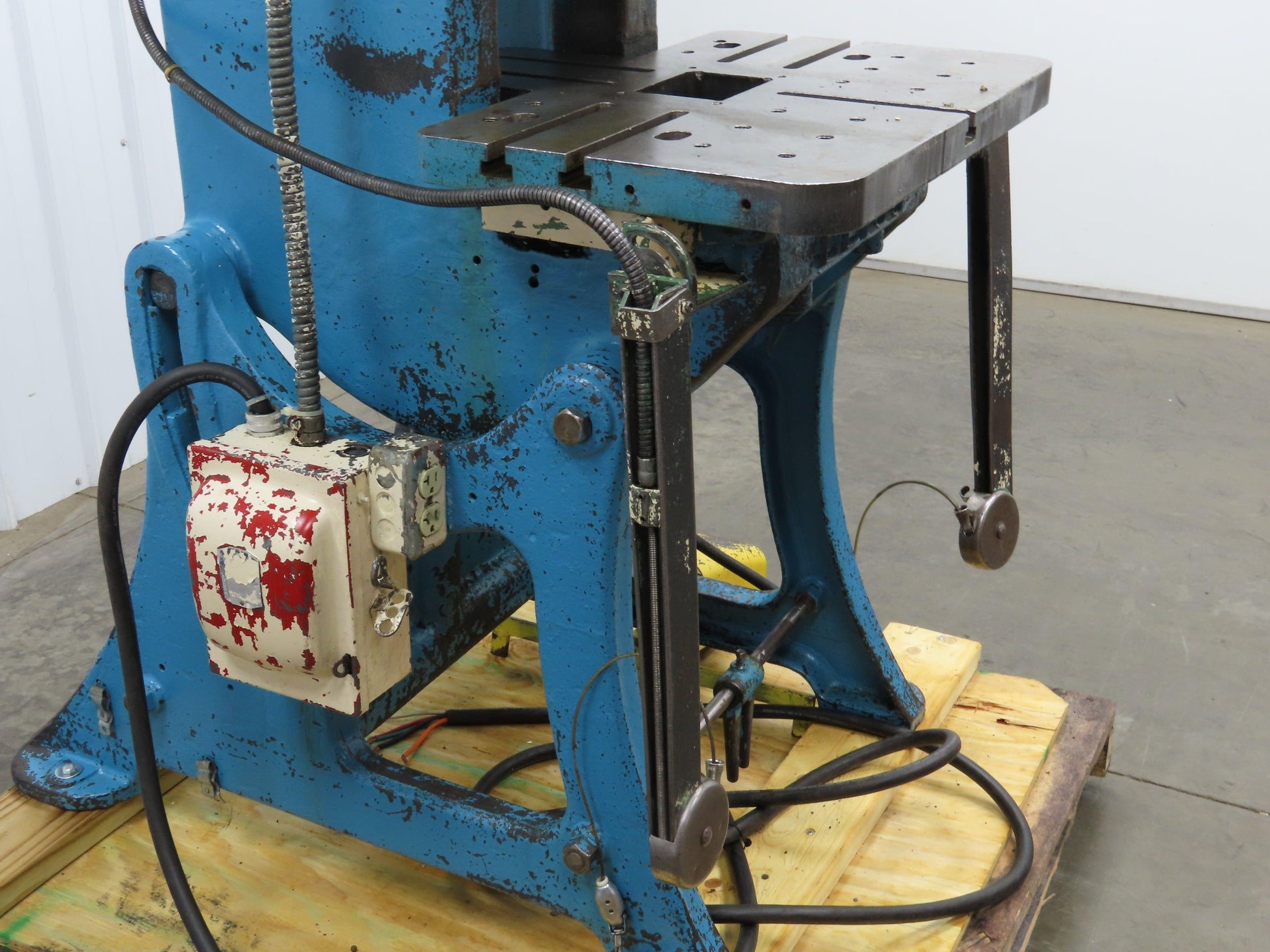

  • Has aftermarket plate 1-5/8" thick with T slot. Center hole is 4-5/8"x3-5/8".

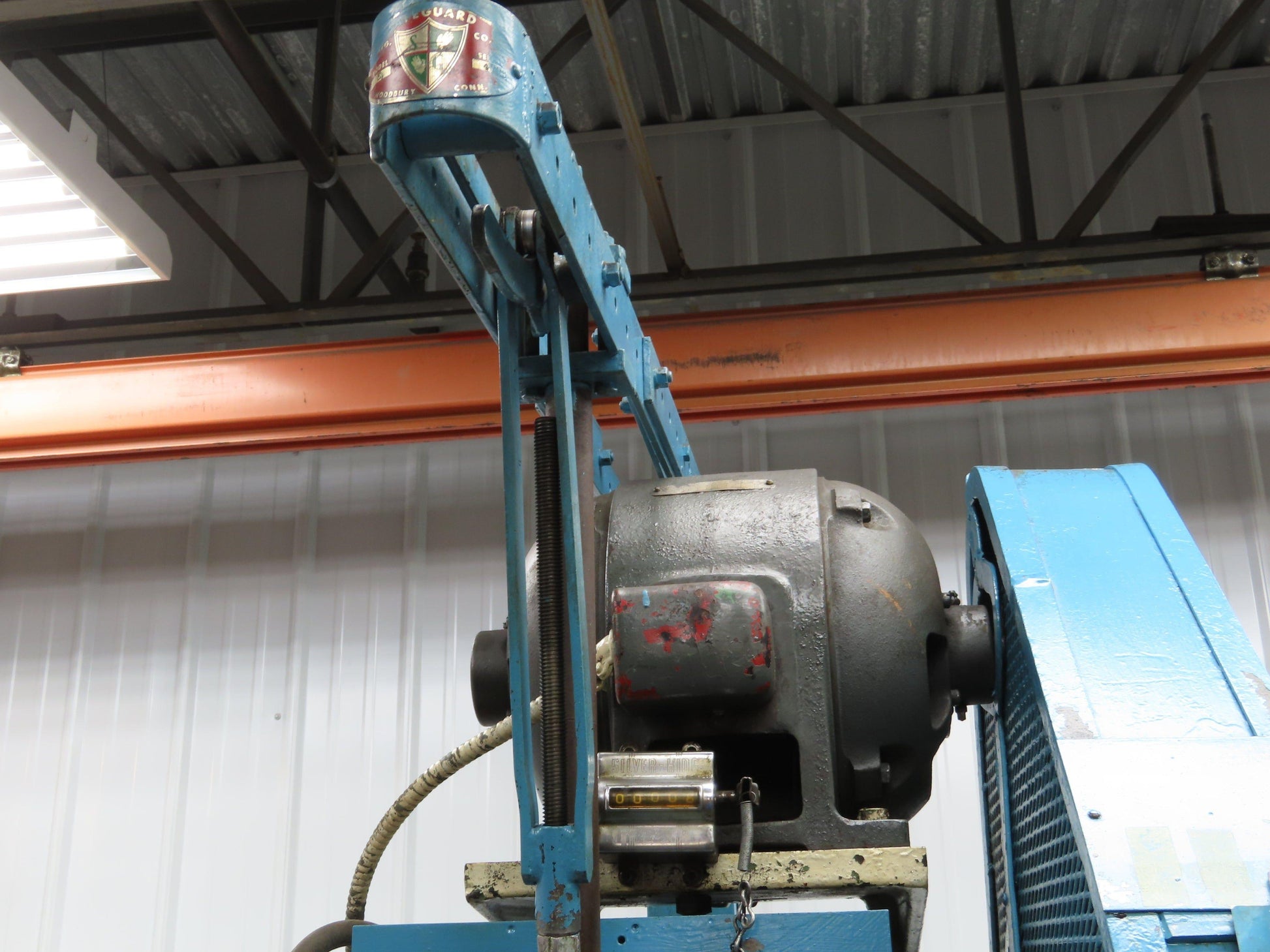

  • Has Safeguard safety controls. Pulls operator's hands out of the way.
